Identification of Listeria species and Multilocus Variable-Number Tandem Repeat Analysis (MLVA) Typing of Listeria innocua and Listeria monocytogenes Isolates from Cattle Farms and Beef and Beef-Based Products from Retail Outlets in Mpumalanga and North West Provinces, South Africa

by
Ayanda Manqele
1,2,*,
Nomakorinte Gcebe
1,2,
Rian Ewald Pierneef
3,
Rebone Moerane
1 and
Abiodun Adewale Adesiyun
1,4
1
Department of Production Animal Studies, Faculty of Veterinary Science, University of Pretoria, Onderstepoort, Pretoria 0110, South Africa
2
Agricultural Research Council–Bacteriology and Zoonotic Diseases Diagnostic Laboratory, Onderstepoort Veterinary Research, Private Bag X 05, Onderstepoort, Pretoria 0110, South Africa
3
Agricultural Research Council-Biotechnology Platform, Private Bag X05, Ondersterpoort, Pretoria 0110, South Africa
4
Department of Paraclinical Sciences, School of Veterinary Medicine, The University of West Indies, St Augustine 999183, Trinidad and Tobago
*
Author to whom correspondence should be addressed.
Pathogens 2023, 12(1), 147; https://doi.org/10.3390/pathogens12010147
Submission received: 5 December 2022 / Revised: 7 January 2023 / Accepted: 10 January 2023 / Published: 15 January 2023
Browse Figures
Review Reports Versions Notes

Abstract

:
In this study, Listeria isolates (214) were characterized as follows: L. innocua (77.10%), L. monocytogenes (11.21%), L. welshimeri (5.61%), L. grayi (1.40%), L. seeligeri (0.93%), and L. species (3.73%) that were not identified at the species level, from beef and beef based products from retail and farms in Mpumalanga and North West provinces of South Africa. MLVA was further used to type Listeria innocua isolates (165) and Listeria monocytogenes isolates (24). The L. monocytogenes isolates were also serogrouped using PCR. The MLVA protocol for L. monocytogenes typing included six tandem repeat primer sets, and the MLVA protocol for L. innocua included the use of three tandem repeats primer sets. The L. monocytogenes serogroups were determined as follows: 4b-4d-4e (IVb) (37.50%), 1/2a-3a (IIa) (29.16%), 1/2b-3b (IIb) (12.50%), 1/2c-3c (IIc) (8.33%), and IVb-1 (4.16%). MLVA could cluster isolates belonging to each specie, L. monocytogenes, and L. innocua isolates, into MLVA-related strains. There were 34 and 10 MLVA types obtained from the MLVA typing of L. innocua and L. monocytogenes, respectively. MLVA clustered the L. monocytogenes isolates irrespective of sample category, serogroups, and geographical origin. Similarly, the L. innocua isolates clustered irrespective of meat category and geographical origin. MLVA was able to cluster isolates based on MLVA relatedness. The clustering of isolates from farms and retailers indicates transmission of Listeria spp. MLVA is an affordable, simple, and discriminatory method that can be used routinely to type L. monocytogenes and L. innocua isolates.

1. Introduction

Listeria spp. are gram-positive, facultative anaerobes, non-spore-forming, flagellated rod-shaped bacterial species that are motile at low temperatures [1,2,3]. Listeria species are found to occur ubiquitously in natural environments and can grow in adverse environmental conditions such as unfavorable pH, temperature, and salt content [4,5,6]. The Listeria species have been isolated from animals, humans, and food products [7,8]. Since 2020, there have been 21 recognized Listeria species and six subspecies [9] (http://www.bacterio.net/listeria.html) accessed 24 November 2022. There are six closely related specie as defined by taxonomy: Listeria monocytogenes, Listeria innocua, Listeria ivanovii, Listeria welshimeri, Listeria seeligeri and Listeria grayi [8,10]. The Listeria specie can be divided into two groups based on the species relatedness to Listeria monocytogenes, Listeria sensu lato, and the Listeria sensu stricto; the latter group consists of two pathogenic species (L. monocytogenes and L. ivanovii) and four non-pathogenic species (L. innocua, L. welshimeri, L seeligeri, and L. marthii) [11]. Among the Listeria specie, Listeria monocytogenes is the pathogenic specie that is responsible for foodborne epidemics and sporadic cases of listeriosis in humans and animals [12].
Listeria monocytogenes has become a significant foodborne pathogen because of its health implications for humans and the danger it poses to immunocompromised individuals such as pregnant women, the elderly, infants, and immune-suppressed individuals [13]. To those prone to listeriosis infection, the clinical manifestations include encephalitis, septicemia, and miscarriage in pregnant women [14,15]. Even though listeriosis is a rare disease, it has a high case-fatality rate of 20–30%, making L. monocytogenes a leading foodborne pathogen associated with human mortality [16]. Unexpectedly, pathogenic L. monocytogenes is genetically closely related to L. innocua, a non-pathogenic Listeria species [17,18]. A whole-genome comparison of L. monocytogenes EGDe (serovar 1/2a) and L. innocua CLIP 11262 strains by Glaser et al. [19] revealed similarities between the chromosomes of the two strains. L. innocua is another widely distributed Listeria species found in soil and food products [20]. Listeria innocua commonly shares the habitat with L. monocytogenes [21]. This makes L. innocua eligible to be used as a surrogate for L. monocytogenes behavior prediction in food-producing environments [22]. Some studies have suggested the use of Listeria innocua, an indicator bacterium for L. monocytogenes, in food processing environments [23].
Listeria innocua has gained interest because of its close relationship with L. monocytogenes, as these two are often found co-existing in various environmental, food, and clinical sources [24,25]. These two species are proposed to have evolved from a common ancestor but have come to differ due to the loss of virulence genes in L. innocua [26]. It has been further hypothesized that L. innocua emerged from the ancestors of the L. monocytogenes serogroups four strains and may have possibly retained some of the characteristics of its ancestor [23]. The prfA-virulence gene cluster present in the common ancestor of Listeria species was eventually lost in L. innocua and L. welshimeri [22,23]. The presence of L. innocua poses a serious risk as it has been believed to harbor virulence factors transmissible to L. monocytogenes [27]. Listeria innocua is frequently overrepresented among other Listeria species in food products and processing environments [28]. Establishing the strain types of L. innocua circulating in food is therefore important.
Typing pathogens is essential for routine surveillance and the investigation of outbreaks [29]. Therefore, reliable typing methods play a significant role in timely source tracking of pathogens during outbreaks investigations, aiding in the control of the outbreak and halting the spread of infections [30]. There are several methods available for typing L. monocytogenes; however, these methods vary in terms of discriminatory power [31]. Conventional serotyping using antisera is the first typing method for Listeria monocytogenes serotypes [32]. However, this method is time-consuming and has low discriminatory power [33,34,35]. Molecular typing methods have therefore gained popularity for typing Listeria [32]. Various methods have been used for molecular typing of Listeria, such as ribotyping, multilocus enzyme electrophoresis (MLEE), pulse field gel electrophoresis (PFGE), and multilocus sequence typing (MLST) [36]. PFGE has been regarded as the ‘gold standard’ method for subtyping Listeria due to its discriminatory power, reproducibility, and repeatability [31].
Multilocus Variable-number Tandem Repeat Analysis (MLVA) is a Polymerase Chain Reaction (PCR) based typing method that characterizes bacteria through the detection of tandem repeats at several specific loci in the genome of bacteria [37]. This method types bacterial strains by exploiting the fact that the number of repeat units in the variable number of tandem repeats region varies from strain to strain [38]. Among other typing methods, MLVA is considered a rapid, robust, and convenient bacterial subtyping method with reliable discriminatory power for genotyping bacterial isolates [36,39,40]. Since the advent of MLVA for other foodborne pathogens, researchers have used this method for typing bacterial isolates from a variety of food-related sources. Murphy et al. [29] developed an MLVA protocol for typing L. monocytogenes isolates from salmon and other related food products. Takahashi et al. [38] developed an MLVA protocol for typing L. innocua isolates originating from a food processing facility with the intention of identifying the contamination routes. Miya et al. [41] also used this method to type L. monocytogenes serotype 4b isolates that had been previously characterized by PFGE, EcoRI ribotyping, and MLST and concluded that MLVA highly discriminated the isolates. In the current study, we used MLVA to type L. monocytogenes and L. innocua isolates obtained from beef and beef-based products. Even though typing of L. monocytogenes using MLVA has been reported by Gana et al. [42] in South Africa, this is the first report of MLVA typing of L. innocua isolates. This study aimed to subtype L. innocua and L. monocytogenes isolates using MLVA.

2. Materials and Methods

2.1. Origin of Isolates

Listeria isolates used in this study originated from farms and retail outlets in Mpumalanga and Northwest Provinces, South Africa. A total of 214 samples were collected over one year, from November 2020 to December 2021. Samples collected were fecal and feed samples from farms and beef and beef-based products from retail outlets. The isolation and detection of Listeria isolates were performed as described by Matle et al. [43]. Briefly, 25 g of each sample was added into 225 mL of One Broth-Listeria (Oxoid, Basingstoke, UK) in a stomacher bag, and the contents were homogenized at high speed for 30 s using a Stomacher (Stomacher Lab Blender 400, Seward Ltd., West Sussex, UK). The mixture was incubated at 37 °C for 24 h. Post incubation, a loop full was inoculated onto Brilliance Listeria agar (BLA) (Oxoid, Basingstoke, UK) and incubated at 37 °C for 48 h. The presumptive Listeria colonies were preserved in 70% glycerol and stored at −80 °C for further analysis.

2.2. Microbiological Resuscitation of Listeria Isolates

The glycerol preserve was thawed at room temperature. The mixture was vortexed at high speed for 30 s, and 1 mL of the mixture was inoculated into 9 mL brain heart infusion (BHI) broth (Oxoid, Basingstoke, UK) and incubated at 37 °C for ±24 h. Post-incubation, the enrichment was plated onto Brilliance Listeria agar (BLA) (Oxoid, Basingstoke, UK) plates and incubated at 37 °C for 48 h. After that, a single colony was picked and re-subcultured onto Brilliance Listeria agar (Oxoid, Basingstoke, UK) and incubated at 37 °C for 48 h. The pure culture was then subjected to DNA extraction using the cell-lysis boiling method.

2.3. DNA Extraction Using Cell-Lysis Boiling Method

DNA was extracted using the cell lysis boiling method adopted from Madoroba [44]. A loopful of culture was suspended in 200 µL of distilled water, and the suspension was vortexed at high speed for 30 s. The mixture was boiled at 96 °C for 10 min and allowed to cool for 5 min at room temperature. Post-cooling, it was centrifuged for 5 min at 15,493× g, the supernatant containing the DNA was transferred into a clean microcentrifuge tube, and the pellet was discarded. The supernatant, containing DNA, was kept and stored at −20 °C for later use in PCR assays.

2.4. Listeria Speciation Using PCR

With minor modifications, Listeria speciation was conducted according to the PCR method by Ryu et al. [45]. The multiplex PCR was designed for the speciation of Listeria species into L. grayi, L. innocua, L. ivanovii, L. monocytogenes, L. seeligeri, and L. welshimeri. Each 25 µL reaction contained 10 µL 2X Red Taq Mastermix (Ampliqon A/S, Odense, Denmark), 4 µL of 20 mM primer mix, 4 µL DNA template, and 7 µL of PCR water. The following thermocycler conditions were used: denaturation at 94 °C for 5 min, 35 cycles of denaturation at 94 °C for the 30 s, annealing at 60 °C for 30 s, extension at 72 °C for 32 s, and final extension at 72 °C for 5 min. L. monocytogenes ATCC 19111 strain, L. grayi ATCC 19120 strain, L innocua ATCC 11288 strain, L. ivanovii ATCC 19119 strain, L. seeligeri ATCC 35967 strain, and L. welshimeri ATCC 35897 strain were used as a positive control, and E. coli strain ATCC 2922 served as a negative control, and water was used as blank. The amplicons were subjected to gel electrophoresis using 1% agarose gel containing ethidium bromide and 100 V for 1 h 45 min. A 100 bp DNA ladder (Thermo Fischer Scientific; Waltham, MA, USA) was used to estimate amplicon sizes. Post electrophoresis, the gel was visualized under ultraviolet light, and the image was captured using a gel documentation system (BIORAD; Hercules, CA, USA).

2.5. PCR Serogrouping of L. monocytogenes

A PCR method described by Doumith [12] was used for the serogrouping of L. monocytogenes isolates. This method included the use of five primer pairs OFR2819 (471bp), OFR2110 (597bp), lmo0737 (691bp), lmo1118 (906bp), and prs (370bp). The PCR assay was performed as a multiplex PCR in a 25 µL reaction with the following PCR reagents: 12.5 µL 2X Red Taq Mastermix (Ampliqon A/S, Odense, Denmark), 4 µL of 20 mM primer mix, 3.5 µL of PCR water and 5 µL DNA template. The PCR was conducted under the following thermocycler conditions: denaturation at 94 °C for 3 min, 35 cycles of 94 °C for 40 s, annealing at 53 °C for 1.15 min, extension for 72 °C at 1.15 min, and final extension at 72 °C for 7 min. L. monocytogenes ATCC 19111 strain was used as a positive control, E. coli strain ATCC 25922 was used as the negative control, and water was used as blank. The amplicons were subjected to gel electrophoresis using 3% agarose gel containing ethidium bromide and 100 V for 3 h. A 100 bp DNA ladder (Thermo Fischer Scientific; Waltham, MA, USA) was used to estimate amplicon sizes. The gel was visualized under ultraviolet light, and the image was captured using a gel documentation system (BIORAD; Hercules, CA, USA).

2.6. MLVA Typing of L. monocytogenes

MLVA typing of L. monocytogenes was performed as a singleplex PCR method according to a protocol developed by Murphy [29] for typing L. monocytogenes isolates. The current study used six primer pairs (TR-1, TR-2, TR-3, TR-4, TR-5, and TR-6) of 20 mM concentration. A 25 µL PCR assay contained 12.5 µL of 2X Red Taq Mastermix (Ampliqon A/S; Odense, Denmark), 2 µL Forward primer, 2 µL Reverse primer, 6.5 µL of PCR water, and 2 µL of template DNA. The thermocycler conditions were 35 cycles of 94 °C for 45 s, an annealing temperature of 54° for primers TR-1 to TR-5 (the annealing temperature for TR 6 primers was only 52 °C), and 72 °C for 60 s, with a final extension at 72 °C for 5 min. The PCR assay included a positive control, L. monocytogenes strain (ATCC 19111), E. coli ATCC 25922 as a negative control, and water as a blank. The PCR amplicons were resolved in conventional gel electrophoresis using a 3% agarose gel stained with ethidium bromide running at a voltage of 80 for 4 h. A 50 bp ladder (New England, Biolabs) was included for the estimation of the sizes of the amplicons. The gel images were captured using a gel documentation system (BIORAD; Hercules, CA, USA).

Determination of MLVA Types

As described by Murphy et al. [29], TR copy numbers were determined. The amplicon fragment size and TR size were used to calculate each Tandem Repeat copy number. Each amplified DNA was then allocated an allele number. Each isolate was given an MLVA profile (MLVA allele string) using the number of tandems repeats at each locus (TR-1, TR-2, TR-3, TR-4, TR-5, and TR-6). Each isolate was assigned under MLVA types using unique MLVA profiles. The UPGMA software was used to plot the minimum spanning trees and construct the dendrograms to elucidate the genetic relatedness of the MLVA types.

2.7. MLVA Typing of L. innocua

An MLVA typing method for L. innocua developed by Takahashi et al. [38] was applied in the current study. Three primer sets, designated TR-D, TR-E, and TR-J (Table 1), were used for typing by targeting tandem repeats. The PCR amplification was performed in singleplex. The PCR reaction was prepared to a final volume of 25 µL with the following reagents: 12.5 µL 2X Red Taq Mastermix (Ampliqon A/S, Odense, Denmark), 1.25 µL (1 Mm) Forward Primer, 1.25 µL (1 Mm) Reverse Primer, 7 µL water and 3 µL DNA. Amplification was performed under the following thermocycler conditions: 94 °C for 5 min, 30 cycles of 94 °C for 30 s, 60 °C for 40 s, and 72 °C for 1 min. Listeria innocua ATCC 33090 strain was used as a positive control, E. coli ATCC 25922 as a negative control, and PCR water was used as blank. The PCR products were separated using electrophoresis 3% ethidium bromide-stained agarose gel at 80 Voltage for 4 h. A 50 bp ladder (New England, Biolabs, Ipswich, MA, USA) was included for the estimation of the sizes of the amplicons. The gel was visualized under ultraviolet light, and the image was captured using a gel documentation system (BIORAD; Hercules, CA, USA).

Determination of the MLVA Types

Each MLVA type was determined as described by Takahashi et al. [38]. First, the Amplified DNA size was estimated and used to calculate the TR copy number. The allele number for each TR locus was calculated by a formula that included the size of the flanking regions of the 3′ end and the 5′ divided by the size of the tandem repeat. The calculations were applied for all tandem repeats, and an allele string was determined for TR-D, TR-E, and TR-J. The allele string was used to allocate each isolate an MLVA type. The UPGMA software was used for plotting the minimum spanning trees and constructing the dendrograms to elucidate the genetic relatedness of the MLVA types.

2.8. Data Analysis

The chi-square test was used to test the significant difference of the MLVA types according to geographical location and sample category. A significant test (p < 0.05) indicated significant variation in compared categories.

3. Results

3.1. Determination of Listeria Species

A total of 214 isolates from retail outlets and farms were classified into L. innocua (77.10%, n = 165), L. monocytogenes (11.21%, n = 24), L. welshimeri (5.61%, n = 12), L. grayi (1.40%, n = 3), L. seeligeri (0.93% n = 2), and Listeria species which were not identified to species level (3.73%, n = 8) (Table 2). Among the six Listeria species targeted, L. ivanovii was not detected in all the isolates. Figure 1 illustrates the percentage of detection of each of the Listeria specie. Among the sample categories, raw meat was the only category with all the Listeria species detected from a variety of its samples. Furthermore, all the Listeria isolates not fully characterized into species level were detected from raw meat samples. The other sample categories, ground meat, offals, processed meat, and RTE, all had multiple Listeria species detected per category. Fecal and feed sample categories were the only categories that detected L. innocua from all the samples found in these categories (Table 2).

3.2. Detection of Serogroups of L. monocytogenes Isolates

The 24 L. monocytogenes isolates were grouped into five serogroups 4b-4d-4e (IVb) (37.50%, n = 9), 1/2a-3a (IIa) (29.16%, n = 7), 1/2b-3b (IIb) (12.50%, n = 3), 1/2c-3c (IIc) (8.33%, n = 2), and IVb-1 (4.16%, n = 1). Two (8.33%) isolates could not be serogrouped using the PCR method described by [12].

3.3. MLVA Typing of L. monocytogenes

MLVA was able to type and discriminate L. monocytogenes (24) isolates from beef and beef-based products from the retail outlets according to MLVA-type relatedness. The isolates did not cluster according to meat type, meat category, serogroups, or province of origin. The clusters showing relatedness of the isolates are illustrated in the dendrogram and minimum spanning tree in Figure 2 and Figure 3. Ten MLVA patterns were identified from L. monocytogenes isolates (Table 3). The frequently detected MLVA pattern was MLVA type 1 (20.83% n = 5). This pattern was detected from beef meat (processed meat, offal, raw meat, and ground meat) from both provinces, and the isolates belonged to serogroups IVb and IIa. The other MLVA types that were detected were as follows: MLVA type 2 (4.16%, n = 1), MLVA type 3 (8.33%, n = 2), MLVA type 4 (12.5%, n = 3), MLVA type 5 (16.66%, n = 4), MLVA type 6 (16.66%, n = 4), MLVA type 7 (8.33%, n = 2) MLVA type 8 (4.16%, n = 1), MLVA type 9 (4.16%, n = 1), and MLVA type 10 (4.16%, n = 1). There was no statistical significance association (p = 0.409) among the MLVA types that were detected between the two provinces. There was also no statistically significant association (p = 0.451) among the MLVA types that were detected among the sample categories. MLVA typing discriminated isolates irrespective of the serogroups. For instance, serogroups IIa had seven isolates that could be grouped into five MLVA types, serogroups IIb had three isolates that could be grouped into three MLVA types, serogroups II c had two isolates that could be characterized into two MLVA types, and serogroups IVb had nine isolates that could be categorized into four MLVA types. Out of the six tandem repeats used, only TR-1 and TR-3 showed variation in the copy number. TR-2, TR-5, and TR-6 had no variation in each of the copy numbers that were obtained, and TR-4 had zero copy numbers for all the isolates.

3.4. MLVA Typing of L. innocua

The MLVA-typing method was able to discriminate the L. innocua isolates based on the MLVA-type relatedness. Thirty-four MLVA types were identified from 165 L. innocua isolates. The clustering of the isolates was irrespective of meat category, meat type, and geographical location, as shown in the dendrogram and minimum spanning tree in Figure 4 and Figure 5. The predominant MLVA type 15 with an MLVA profile (14-17-11) was detected in 21% (35/165) of the isolates. These isolates were not limited to a certain type of meat but were represented in all meat types and both provinces (Table 4). MLVA also revealed an increased variety of profiles in both farms and retailers. A total of 9 (26.47%) of the MLVA types (3, 4, 12, 14, 15, 17, 23, 29, and 31) originated from isolates from both cattle farms and retailers. A total of 9 (26.47%) MLVA patterns (1, 11, 13, 21, 22, 25, 27, 28, and 30) originated from cattle farms only, and 16 (47.05%) MLVA patterns (2, 5, 6, 7, 8, 9, 10, 16, 18, 19, 20, 24, 26, 32, 33, and 34) were from beef products only from retailers (Table 4). There was a statistically significant association (p = 0.002) in the MLVA types that were detected among sample categories. These MLVA patterns also exhibited a genetic relationship among isolates recovered from cattle farms and retail outlets, irrespective of the province of origin. MLVA types 1, 6, 7, 8, 10, 11, 16, 17, 21, 23, 24, 26, 27, 28, 29, 30, and 31 were only detected from isolates from Mpumalanga. MLVA types 2, 5, 9, 18, 20, and 25 were detected from North West only. However, there was no statistically significant association (p = 1.835) among MLVA types that were detected between Mpumalanga and North West Provinces. For the three tandem repeat primers (TR-D, TR-E, and TR-J) used, all the tandem repeats showed variation in tandem repeat copy numbers. However, TR-D and TR-E had 20 and 2 isolates, respectively, that had zero copy numbers. The isolates that had zero copy numbers for TR-D were from a variety of retail samples and one fecal sample, while the samples that had zero copy numbers for TR-E were from two beef stewing samples originating from Mpumalanga.

4. Discussion

Listeria species are widely distributed in nature and, therefore, effortlessly found in various food products [46]. Multiple Listeria species have been detected in beef meat [47]. In the current study, beef-based products were found contaminated with different Listeria species, including the pathogenic L. monocytogenes, non-pathogenic L. grayi, L. welshimeri, L. seeligeri, and L. innocua. Both pathogenic and non-pathogenic strains of Listeria can be found inhabiting the same environment [48]. Similarly, Gebremedhin et al. [49] reported the presence of multiple Listeria species from raw meat and ready-to-eat (RTE) meat from Ethiopia. The presence of any Listeria specie in food products is an indication of poor hygiene [50]. Serogroup IVb of L. monocytogenes was overrepresented among serogroups. This serogroup includes serotype 4b, a serotype frequently identified in human listeriosis cases [51]. Isolates belonging to serogroup IVb have been associated with several clinical cases in humans [52]. The serogroups identified from the current study have been detected from various meat products by Matle et al. [43] and equipment and utensils from food processing environments [53]. The presence of these serotypes in food is a severe health risk as they are commonly transmitted through food to humans [54].
The first report on MLVA subtyping of L. monocytogenes in South Africa was published by Gana et al. [42]. However, the MLVA patterns found in these authors’ study were not similar to ours. These authors identified 16 MLVA types, slightly higher than the MLVA types reported in our study, possibly due to differences in sample sizes. This also suggests that the L. monocytogenes strains circulating in Gauteng are not entirely the same as those found in Mpumalanga and North West based on the MLVA analysis. There is currently no database that can be used as a reference for L. monocytogenes MLVA types. In the current study, MLVA was employed for subtyping L. monocytogenes from retail outlets. MLVA was able to discriminate the L. monocytogenes isolates in the current study, as other authors have used this method for the discrimination of Listeria monocytogenes isolates from various sources [55,56]. There were 10 MLVA patterns for L. monocytogenes; these results concurred with the results presented by Saleh-Lakha et al. [37], as these authors produced 11 MLVA patterns from a culture collection of 2,019 isolates from various food, environmental and clinical sources from Ontario, Canada. However, the results in the current study are different from the 27 MLVA patterns reported by Martín et al. [31] from food products (raw meat, RTE) and food processing plant contact surfaces in Spain, which might be attributed to the use of eight primer pairs and a larger sample size compared to our study that had a protocol with six primer pairs.
MLVA displayed a higher discriminatory power compared to PCR serogrouping since each serogroup was characterized from the isolates. There were multiple MLVA types that were detected except for serogroup IVb-1, as there was one isolate belonging to this serogroup. This is indicative of the higher discriminatory power of MLVA compared to serogrouping. It is also worth mentioning that none of the isolates clustered according to meat type, meat category, or geographic origin of the isolates. In our study, MLVA clustered isolates irrespective of their serogroups, sample type, and geographical origin. Similarly, the MLVA study reported by Gana et al. [42] clustered L. monocytogenes isolates irrespective of serogroups, sample type, and source. This highlights the ability of MLVA to cluster purely based on MLVA relatedness. There were only two (LM-TR-1 and LM-TR-3) that played a significant role in the discrimination of L. monocytogenes isolates by displaying variation in the tandem repeats copy number of the isolates. These played a significant role in the discrimination of the Listeria isolates. LM-TR-2, LM-TR-5, and LM-TR-6 did not display any variation as each TR produced a uniform copy number for all the isolates, and lastly, LM-TR-4 had zero copy numbers detected for all the isolates. The results of uniform copy numbers obtained for LM-TR-2 are similar to the copy numbers obtained by Gana et al. [42] for this tandem repeat.
To our understanding, this study reports the first MLVA typing of Listeria innocua in South Africa. The first MLVA typing for the L. innocua method was developed by Takahashi et al. [38]. These authors further used this protocol to type L. innocua isolates from the food processing environment and identify the MLVA types of these isolates. MLVA is an appropriate subtyping tool as this is a rapid, highly discriminatory method that types bacterial isolates based on detecting tandem repeats at several specific loci [37]. Listeria innocua is frequently found overgrowing L. monocytogenes in food and environmental samples rendering L. innocua an important pathogen. The increased number of MLVA types obtained from typing L. innocua isolates indicates the high genetic diversity of the L. innocua specie from retailers and farms. Furthermore, the variety of the MLVA types detected in farms and retailers is evident that according to MLVA, the strains are diverse even though they belong to L. innocua and originate from bovine-related samples. The predominant MLVA type 15 was obtained from isolates originating from both retailers and farms; this could indicate that this type is highly prevalent in farms and retailers among bovine-related samples. This could also mean that this sequence type is freely circulating in the farm environment and may be transmitted from farms to retail outlets. There were more MLVA types from retail outlets compared to farms, with Mpumalanga having more MLVA types variety compared to North West. This may be attributed to the increased number of samples collected from Mpumalanga (n = 117) compared to the North West (n = 48). All the tandem repeats primers (TR-D, TR-E, and TR-J) used in our study provided enough variation to discriminate L. innocua isolates. This is similar to Takahashi [38] when the authors used this method to discriminate L. innocua isolates from the food-producing environment after optimizing the MLVA for L. innocua protocol. We also detected 20 isolates that had zero tandem repeats copy numbers for TR-D and zero-tandem repeat copy number for TR-E. This is different from the results by Takahashi et al. [38], as these authors did not have any isolates that had zero copy numbers for any of the tandem repeats.

5. Conclusions

We can conclude that detecting Listeria species, both pathogenic and non-pathogenic, from raw and RTE beef products calls for serious concern as these pose serious health risks to humans since there are rare clinical cases of non-pathogenic species. L. innocua is the most overrepresented Listeria species compared to other species. Even though this bacterium is non-pathogenic, its presence in food and food environments should be taken seriously as it is frequently found sharing the same environment with L. monocytogenes. The MLVA subtyping method applied in the current study has proven to be a reliable subtyping method that is fast and affordable. MLVA was able to distinguish the type of L. monocytogenes and L. innocua strains based on tandem repeat analysis. The superiority of this method compared to serotyping was also displayed in this study. Therefore, this method can be used in surveillance studies and monitoring studies. MLVA has proven to type Listeria innocua and L. monocytogenes and cluster the isolates irrespective of the source and serogroups.

Author Contributions

Investigation, writing—original draft preparation, methodology, project administration, A.M.; conceptualization, writing—review, editing, supervision, project administration, N.G.; formal analysis, writing–review, and editing, R.E.P.; funding acquisition, writing—review, and editing, R.M.; conceptualization, writing—review, editing, supervision, funding acquisition, A.A.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Red Meat Research and Development South Africa (RMRDSA).

Institutional Review Board Statement

This study was conducted in accordance with the Department of Agriculture, Land Reform, and Rural Development, with approved Section 20. The study was also conducted in accordance with the University of Pretoria Animal Ethics Committee Approval with the Animal Ethics Certificate number REC257-19.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

I would like to acknowledge RMRDSA for funding the project. Khomotso Moabelo and Nduduzo for assisting with sampling. Itumeleng Matle for guidance throughout the project. Bacteriology, Feed, and food laboratory staff members for assistance in the lab.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Allerberger, F. Listeria: Growth, phenotypic differentiation and molecular microbiology. FEMS Immunol. Med. Microbiol. 2003, 35, 183–189. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Doijad, S.P.; Poharkar, K.V.; Kale, S.B.; Kerkar, S.; Kalorey, D.R.; Kurkure, N.V.; Rawool, D.B.; Malik, S.V.S.; Ahmad, R.Y.; Hudel, M.; et al. Listeria goaensis sp. nov. Int. J. Syst. Evol. Microbiol. 2018, 68, 3285–3291. [Google Scholar] [CrossRef] [PubMed]
  3. Khelef, N.; Lecuit, M.; Buchrieser, C.; Cabanes, D.; Dussurget, O.; Cossart, P. Listeria monocytogenes and the Genus Listeria. In The Prokaryotes; Springer: New York, NY, USA, 2006; Volume 4, pp. 404–476. [Google Scholar] [CrossRef]
  4. Momtaz, H.; Yadollahi, S. Molecular characterization of Listeria monocytogenes isolated from fresh seafood samples in Iran. Diagn. Pathol. 2013, 8, 149. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Tan, M.F.; Siow, C.C.; Dutta, A.; Mutha, N.V.; Wee, W.Y.; Heydari, H.; Tan, S.Y.; Ang, M.Y.; Wong, G.J.; Choo, S.W. Development of ListeriaBase and comparative analysis of Listeria monocytogenes. BMC Genom. 2015, 16, 755. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Vongkamjan, K.; Fuangpaiboon, J.; Jirachotrapee, S.; Turner, M.P. Occurrence and diversity of Listeria spp. in seafood processing plant environments. Food Control 2015, 50, 265–272. [Google Scholar] [CrossRef]
  7. Atil, E.; Ertas, H.; Ozbey, G. Isolation and molecular characterization of Listeria spp. from animals, food and environmental samples. Vet. Med. 2011, 56, 386–394. [Google Scholar] [CrossRef] [Green Version]
  8. Moghadam, A.; Larsen, H. Importance of Listeria monocytogenes in food safety: A review of its prevalence, detection, and antibiotic resistance. Iran. J. Vet. 2019, 20, 241–254. [Google Scholar]
  9. Carlin, C.R.; Liao, J.; Weller, D.; Guo, X.; Orsi, R.; Wiedmann, M. Listeria cossartiae sp. nov., Listeria immobilis sp. nov., Listeria portnoyi sp. nov. and Listeria rustica sp. nov., isolated from agricultural water and natural environments. Int. J. Syst. Evol. Microbiol. 2021, 71, 004795. [Google Scholar] [CrossRef]
  10. Rosimin, A.A.; Kim, M.-J.; Joo, I.-S.; Suh, S.-H.; Kim, K.-S. Simultaneous detection of pathogenic Listeria including atypical Listeria innocua in vegetables by a quadruplex PCR method. Lwt 2016, 69, 601–607. [Google Scholar] [CrossRef]
  11. Liao, J.; Wiedmann, M.; Kovac, J. Genetic Stability and Evolution of the sigB Allele, Used for Listeria Sensu Stricto Subtyping and Phylogenetic Inference. Appl. Environ. Microbiol. 2017, 83, e00306-17. [Google Scholar] [CrossRef]
  12. Doumith, M.; Buchrieser, C.; Glaser, P.; Jacquet, C.; Martin, P. Differentiation of the Major Listeria monocytogenes Serovars by Multiplex PCR. J. Clin. Microbiol. 2004, 42, 3819–3822. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Sosnowski, M.; Lachtara, B.; Wieczorek, K.; Osek, J. Antimicrobial resistance and genotypic characteristics of Listeria monocytogenes isolated from food in Poland. Int. J. Food Microbiol. 2018, 289, 1–6. [Google Scholar] [CrossRef] [PubMed]
  14. Rivoal, K.; Fablet, A.; Courtillon, C.; Bougeard, S.; Chemaly, M.; Protais, J. Detection of Listeria spp. in liquid egg products and in the egg breaking plants environment and tracking of Listeria monocytogenes by PFGE. Int. J. Food Microbiol. 2013, 166, 109–116. [Google Scholar] [CrossRef] [PubMed]
  15. Jallewar, P.; Kalorey, D.; Kurkure, N.; Pande, V.; Barbuddhe, S. Genotypic characterization of Listeria spp. isolated from fresh water fish. Int. J. Food Microbiol. 2007, 114, 120–123. [Google Scholar] [CrossRef] [PubMed]
  16. Hyden, P.; Pietzka, A.; Lennkh, A.; Murer, A.; Springer, B.; Blaschitz, M.; Indra, A.; Huhulescu, S.; Allerberger, F.; Ruppitsch, W.; et al. Whole genome sequence-based serogrouping of Listeria monocytogenes isolates. J. Biotechnol. 2016, 235, 181–186. [Google Scholar] [CrossRef] [Green Version]
  17. Nyhan, L.; Johnson, N.; Begley, M.; O’Leary, P.; Callanan, M. Comparison of predicted and impedance determined growth of Listeria innocua in complex food matrices. Food Microbiol. 2020, 87, 103381. [Google Scholar] [CrossRef] [PubMed]
  18. Moura, A.; Disson, O.; Lavina, M.; Thouvenot, P.; Huang, L.; Leclercq, A.; Fredriksson-Ahomaa, M.; Eshwar, A.K.; Stephan, R.; Lecuit, M. Atypical Hemolytic Listeria innocua Isolates Are Virulent, albeit Less than Listeria monocytogenes. Infect. Immun. 2019, 87, e00758-18. [Google Scholar] [CrossRef] [Green Version]
  19. Glaser, P.; Frangeul, L.; Buchrieser, C.; Rusniok, C.; Amend, A.; Baquero, F.; Berche, P.; Bloecker, H.; Brandt, P.; Chakraborty, T.; et al. Comparative genomics of Listeria species. Science 2001, 294, 849–852. [Google Scholar] [CrossRef] [Green Version]
  20. Liu, Q.; Wu, J.; Lim, Z.Y.; Lai, S.; Lee, N.; Yang, H. Metabolite profiling of Listeria innocua for unravelling the inactivation mechanism of electrolysed water by nuclear magnetic resonance spectroscopy. Int. J. Food Microbiol. 2018, 271, 24–32. [Google Scholar] [CrossRef]
  21. dos Reis, C.M.; Ramos, G.L.d.P.; Pereira, R.D.C.L.; Vallim, D.C.; Costa, L.E.D.O. Evaluation of VITEK® 2 and MALDI-TOF/MS automated methodologies in the identification of atypical Listeria spp. isolated from food in different regions of Brazil. J. Microbiol. Methods 2022, 194, 106434. [Google Scholar] [CrossRef]
  22. Kaszoni-Rückerl, I.; Mustedanagic, A.; Muri-Klinger, S.; Brugger, K.; Wagner, K.-H.; Wagner, M.; Stessl, B. Predominance of Distinct Listeria Innocua and Listeria Monocytogenes in Recurrent Contamination Events at Dairy Processing Facilities. Microorganisms 2020, 8, 234. [Google Scholar] [CrossRef] [PubMed]
  23. Milillo, S.R.; Friedly, E.C.; Saldivar, J.C.; Muthaiyan, A.; O’Bryan, C.; Crandall, P.G.; Johnson, M.G.; Ricke, S.C. A Review of the Ecology, Genomics, and Stress Response of Listeria innocua and Listeria monocytogenes. Crit. Rev. Food Sci. Nutr. 2012, 52, 712–725. [Google Scholar] [CrossRef] [PubMed]
  24. Abay, S.; Aydin, F.; Sümerkan, A.B. Molecular typing of Listeria spp. isolated from different sources. Vet. Fak. Dergis 2012, 59, 183–190. [Google Scholar]
  25. Chen, J.; Chen, Q.; Jiang, L.; Cheng, C.; Bai, F.; Wang, J.; Mo, F.; Fang, W. Internalin profiling and multilocus sequence typing suggest four Listeria innocua subgroups with different evolutionary distances from Listeria monocytogenes. BMC Microbiol. 2010, 10, 97. [Google Scholar] [CrossRef] [Green Version]
  26. Clayton, E.M.; Daly, K.M.; Guinane, C.M.; Hill, C.; Cotter, P.D.; Ross, P.R. Atypical Listeria innocua strains possess an intact LIPI-3. BMC Microbiol. 2014, 14, 58. [Google Scholar] [CrossRef] [Green Version]
  27. Bertsch, D.; Anderegg, J.; Lacroix, C.; Meile, L.; Stevens, M.J. pDB2011, a 7.6kb multidrug resistance plasmid from Listeria innocua replicating in Gram-positive and Gram-negative hosts. Plasmid 2013, 70, 284–287. [Google Scholar] [CrossRef]
  28. Silva-Angulo, A.B.; Zanini, S.F.; Rosenthal, A.; Rodrigo, D.; Klein, G.; Martínez, A. Comparative Study of the Effects of Citral on the Growth and Injury of Listeria innocua and Listeria monocytogenes Cells. PLoS ONE 2015, 10, e0114026. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Murphy, M.; Corcoran, D.; Buckley, J.F.; O’Mahony, M.; Whyte, P.; Fanning, S. Development and application of Multiple-Locus Variable Number of tandem repeat Analysis (MLVA) to subtype a collection of Listeria monocytogenes. Int. J. Food Microbiol. 2007, 115, 187–194. [Google Scholar] [CrossRef]
  30. Nyarko, E.B.; Donnelly, C.W. Listeria monocytogenes: Strain Heterogeneity, Methods, and Challenges of Subtyping. J. Food Sci. 2015, 80, M2868–M2878. [Google Scholar] [CrossRef]
  31. Martín, B.; Bover-Cid, S.; Aymerich, T. MLVA subtyping of Listeria monocytogenes isolates from meat products and meat processing plants. Food Res. Int. 2018, 106, 225–232. [Google Scholar] [CrossRef] [Green Version]
  32. Du, X.-J.; Zhang, X.; Wang, X.-Y.; Su, Y.-L.; Li, P.; Wang, S. Isolation and characterization of Listeria monocytogenes in Chinese food obtained from the central area of China. Food Control 2016, 74, 9–16. [Google Scholar] [CrossRef]
  33. Laksanalamai, P.; Huang, B.; Sabo, J.; Burall, L.S.; Zhao, S.; Bates, J.; Datta, A.R. Genomic Characterization of Novel Listeria monocytogenes Serotype 4b Variant Strains. PLoS ONE 2014, 9, e89024. [Google Scholar] [CrossRef] [Green Version]
  34. Wang, Y.; Zhao, A.; Zhu, R.; Lan, R.; Jin, D.; Cui, Z.; Wang, Y.; Li, Z.; Wang, Y.; Xu, J.; et al. Genetic diversity and molecular typing of Listeria monocytogenes in China. BMC Microbiol. 2012, 12, 119. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Zunabovic, M.; Domig, K.J.; Kneifel, W. Practical relevance of methodologies for detecting and tracing of Listeria monocytogenes in ready-to-eat foods and manufacture environments—A review. Lwt 2011, 44, 351–362. [Google Scholar] [CrossRef]
  36. Jadhav, S.; Bhave, M.; Palombo, E.A. Methods used for the detection and subtyping of Listeria monocytogenes. J. Microbiol. Methods 2012, 88, 327–341. [Google Scholar] [CrossRef]
  37. Saleh-Lakha, S.; Allen, V.G.; Li, J.; Pagotto, F.; Odumeru, J.; Taboada, E.; Lombos, M.; Tabing, K.C.; Blais, B.; Ogunremi, D.; et al. Subtyping of a Large Collection of Historical Listeria monocytogenes Strains from Ontario, Canada, by an Improved Multilocus Variable-Number Tandem-Repeat Analysis (MLVA). Appl. Environ. Microbiol. 2013, 79, 6472–6480. [Google Scholar] [CrossRef] [Green Version]
  38. Takahashi, H.; Ohshima, C.; Nakagawa, M.; Thanatsang, K.; Phraephaisarn, C.; Chaturongkasumrit, Y.; Keeratipibul, S.; Kuda, T.; Kimura, B. Development of New Multilocus Variable Number of Tandem Repeat Analysis (MLVA) for Listeria innocua and Its Application in a Food Processing Plant. PLoS ONE 2014, 9, e105803. [Google Scholar] [CrossRef] [Green Version]
  39. Lindstedt, B.-A.; Tham, W.; Danielsson-Tham, M.-L.; Vardund, T.; Helmersson, S.; Kapperud, G. Multiple-locus variable-number tandem-repeats analysis of Listeria monocytogenes using multicolour capillary electrophoresis and comparison with pulsed-field gel electrophoresis typing. J. Microbiol. Methods 2008, 72, 141–148. [Google Scholar] [CrossRef]
  40. Sperry, K.E.V.; Kathariou, S.; Edwards, J.S.; Wolf, L.A. Multiple-Locus Variable-Number Tandem-Repeat Analysis as a Tool for Subtyping Listeria monocytogenes Strains. J. Clin. Microbiol. 2008, 46, 1435–1450. [Google Scholar] [CrossRef] [Green Version]
  41. Miya, S.; Kimura, B.; Sato, M.; Takahashi, H.; Ishikawa, T.; Suda, T.; Takakura, C.; Fujii, T.; Wiedmann, M. Development of a multilocus variable-number of tandem repeat typing method for Listeria monocytogenes serotype 4b strains. Int. J. Food Microbiol. 2008, 124, 239–249. [Google Scholar] [CrossRef]
  42. Gana, J.; Gcebe, N.; Pierneef, R.; Moerane, R.; Adesiyun, A.A. Multiple-Locus Variable-Number Tandem Repeat Analysis Genotypes of Listeria monocytogenes Isolated from Farms, Abattoirs, and Retail in Gauteng Province, South Africa. J. Food Prot. 2022, 85, 1249–1257. [Google Scholar] [CrossRef]
  43. Matle, I.; Pierneef, R.; Mbatha, K.R.; Magwedere, K.; Madoroba, E. Genomic Diversity of Common Sequence Types of Listeria monocytogenes Isolated from Ready-to-Eat Products of Animal Origin in South Africa. Genes 2019, 10, 1007. [Google Scholar] [CrossRef] [Green Version]
  44. Madoroba, E.; Kapeta, D.; Gelaw, A.K. Salmonella contamination, serovars and antimicrobial resistance profiles of cattle slaughtered in South Africa. Onderstepoort J. Veter.-Res. 2016, 83, 1–8. [Google Scholar] [CrossRef] [Green Version]
  45. Ryu, J.; Park, S.H.; Yeom, Y.S.; Shrivastav, A.; Lee, S.-H.; Kim, Y.-R.; Kim, H.-Y. Simultaneous detection of Listeria species isolated from meat processed foods using multiplex PCR. Food Control 2013, 32, 659–664. [Google Scholar] [CrossRef]
  46. Liu, H.; Lu, L.; Pan, Y.; Sun, X.; Hwang, C.-A.; Zhao, Y.; Wu, V.C. Rapid detection and differentiation of Listeria monocytogenes and Listeria species in deli meats by a new multiplex PCR method. Food Control 2015, 52, 78–84. [Google Scholar] [CrossRef]
  47. Gebretsadik, S.; Kassa, T.; Alemayehu, H.; Huruy, K.; Kebede, N. Isolation and characterization of Listeria monocytogenes and other Listeria species in foods of animal origin in Addis Ababa, Ethiopia. J. Infect. Public Health 2011, 4, 22–29. [Google Scholar] [CrossRef] [Green Version]
  48. Mendonça, M.; Conrad, N.L.; Conceição, F.R.; Moreira, N.; da Silva, W.P.; Aleixo, J.A.; Bhunia, A.K. Highly specific fiber optic immunosensor coupled with immunomagnetic separation for detection of low levels of Listeria monocytogenes and L. ivanovii. BMC Microbiol. 2012, 12, 275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Gebremedhin, E.Z.; Hirpa, G.; Borana, B.M.; Sarba, E.J.; Marami, L.M.; Kelbesa, K.A.; Tadese, N.D.; Ambecha, H.A. Listeria Species Occurrence and Associated Factors and Antibiogram of Listeria monocytogenes in Beef at Abattoirs, Butchers, and Restaurants in Ambo and Holeta in Ethiopia. Infect. Drug Resist. 2021, 14, 1493–1504. [Google Scholar] [CrossRef]
  50. Ismaiel, A.A.-R.; Ali, A.E.-S.; Enan, G. Incidence of Listeria in Egyptian meat and dairy samples. Food Sci. Biotechnol. 2013, 23, 179–185. [Google Scholar] [CrossRef]
  51. Kérouanton, A.; Marault, M.; Petit, L.; Grout, J.; Dao, T.T.; Brisabois, A. Evaluation of a multiplex PCR assay as an alternative method for Listeria monocytogenes serotyping. J. Microbiol. Methods 2010, 80, 134–137. [Google Scholar] [CrossRef]
  52. Amajoud, N.; Leclercq, A.; Soriano, J.M.; Bracq-Dieye, H.; El Maadoudi, M.; Senhaji, N.S.; Kounnoun, A.; Moura, A.; Lecuit, M.; Abrini, J. Prevalence of Listeria spp. and characterization of Listeria monocytogenes isolated from food products in Tetouan, Morocco. Food Control 2018, 84, 436–441. [Google Scholar] [CrossRef]
  53. Camargo, A.C.; Dias, M.R.; Cossi, M.V.C.; Lanna, F.G.P.A.; Cavicchioli, V.Q.; Vallim, D.C.; Pinto, P.S.D.A.; Hofer, E.; Nero, L.A. Serotypes and Pulsotypes Diversity of Listeria monocytogenes in a Beef-Processing Environment. Foodborne Pathog. Dis. 2015, 12, 323–326. [Google Scholar] [CrossRef] [Green Version]
  54. Vallim, D.C.; Hofer, C.B.; Lisbôa, R.D.C.; Barbosa, A.V.; Rusak, L.A.; dos Reis, C.M.F.; Hofer, E. Twenty Years of Listeria in Brazil: Occurrence of Listeria Species and Listeria monocytogenes Serovars in Food Samples in Brazil between 1990 and 2012. BioMed. Res. Int. 2015, 2015, 540204. [Google Scholar] [CrossRef] [Green Version]
  55. Chen, S.; Li, J.; Saleh-Lakha, S.; Allen, V.; Odumeru, J. Multiple-locus variable number of tandem repeat analysis (MLVA) of Listeria monocytogenes directly in food samples. Int. J. Food Microbiol. 2011, 148, 8–14. [Google Scholar] [CrossRef] [PubMed]
  56. Lunestad, B.T.; Truong, T.T.T.; Lindstedt, B.-A. A multiple-locus variable-number tandem repeat analysis (MLVA) of Listeria monocytogenes isolated from Norwegian salmon-processing factories and from listeriosis patients. Epidemiol. Infect. 2012, 141, 2101–2110. [Google Scholar] [CrossRef] [PubMed]
Pathogens 12 00147 g001 550

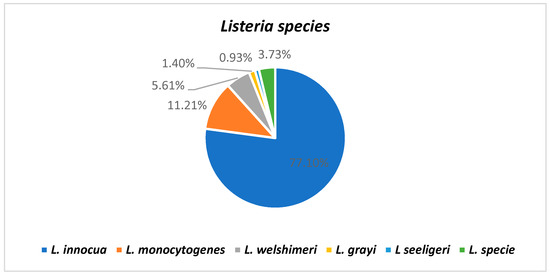

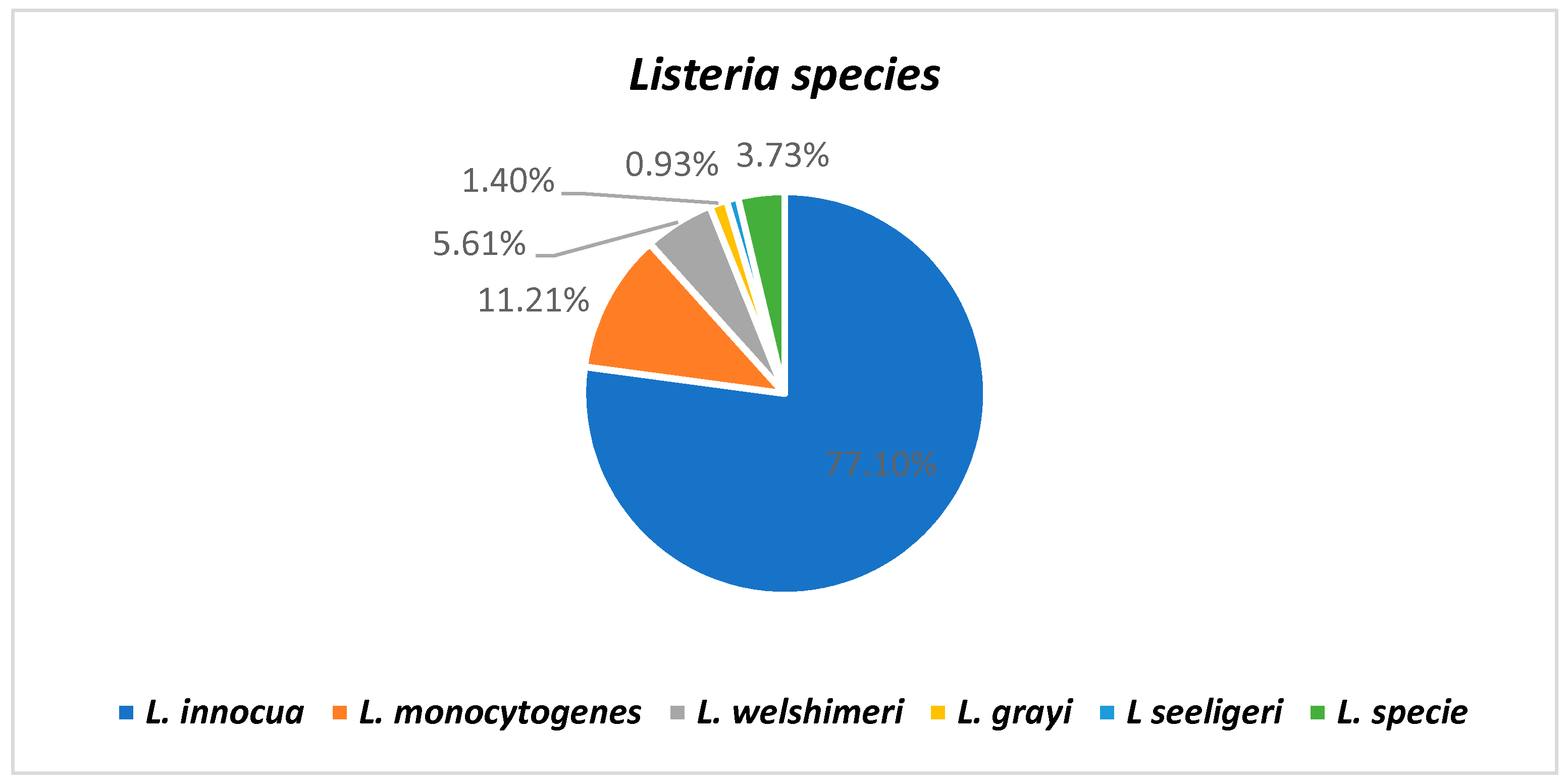

Figure 1. Distribution of Listeria species among the samples.
Figure 1. Distribution of Listeria species among the samples.
Pathogens 12 00147 g001
Pathogens 12 00147 g002 550

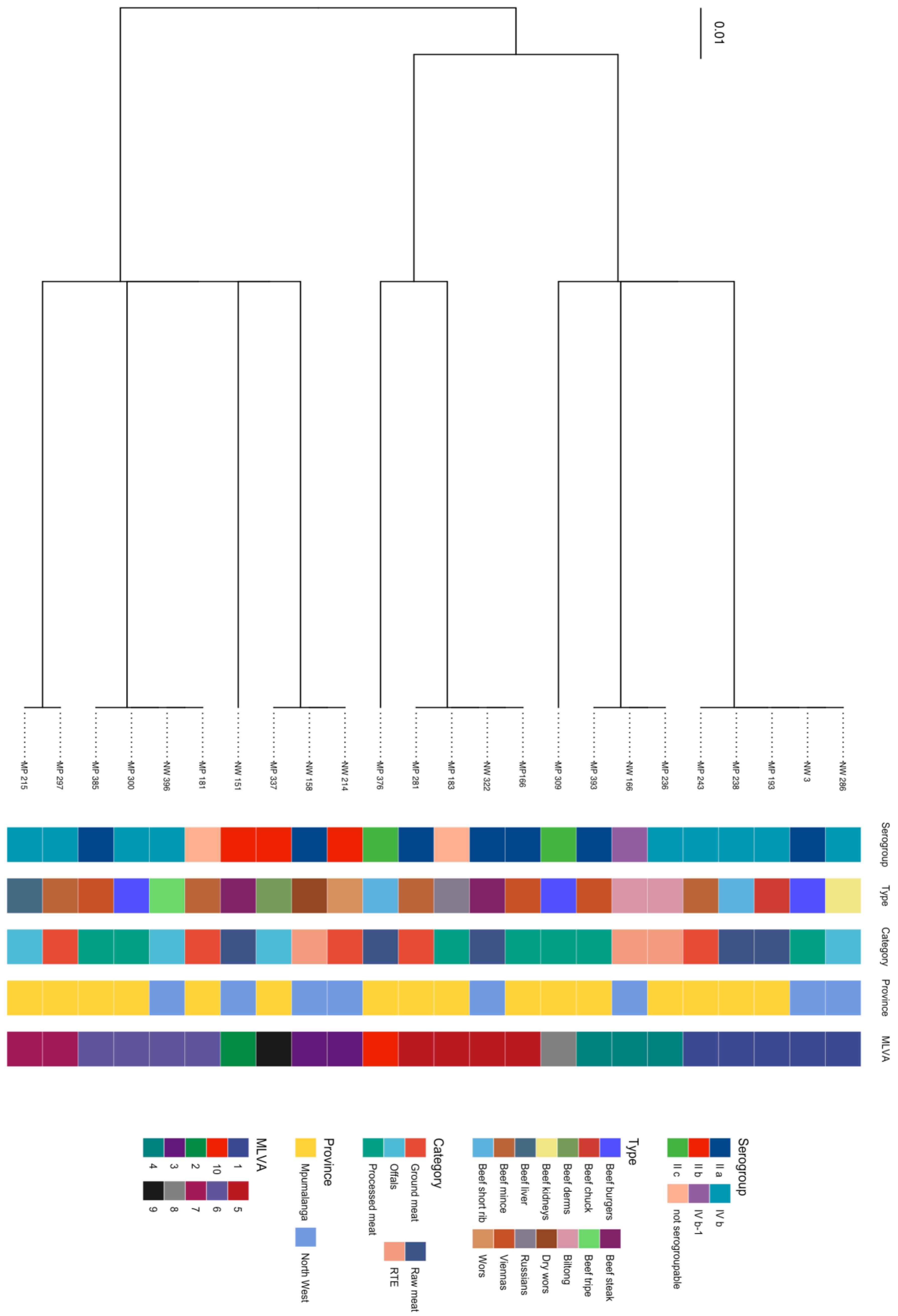

Figure 2. UPGMA Dendrogram of L. monocytogenes isolates obtained from retail outlets in Mpumalanga and North West.
Figure 2. UPGMA Dendrogram of L. monocytogenes isolates obtained from retail outlets in Mpumalanga and North West.
Pathogens 12 00147 g002
Pathogens 12 00147 g003 550

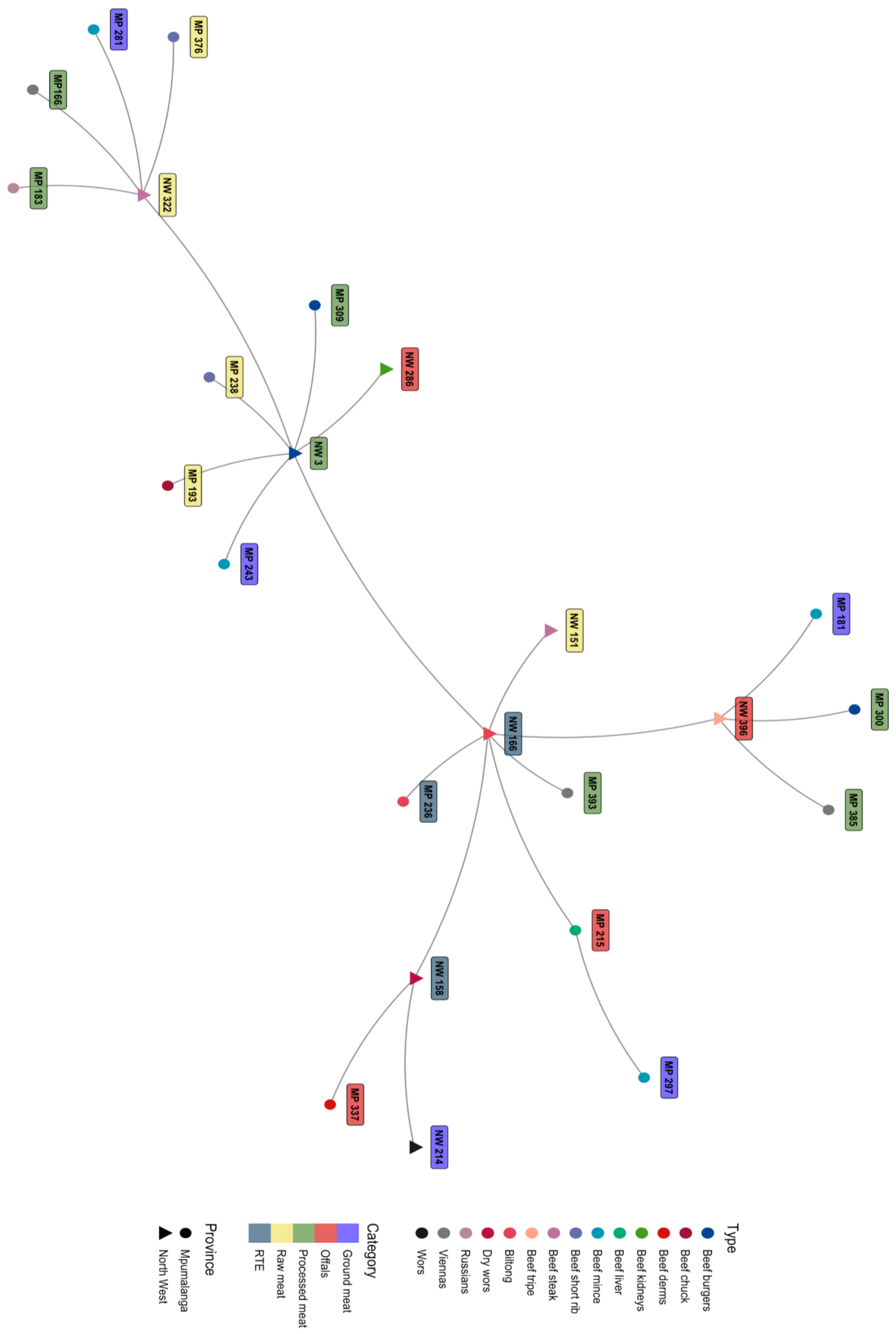

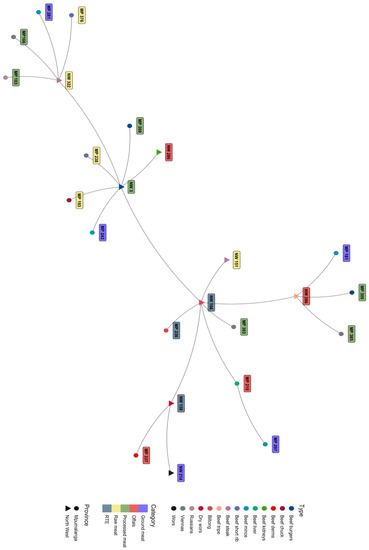

Figure 3. Minimum Spanning Tree displaying the relationship of L. monocytogenes isolates obtained from retailers in Mpumalanga and North West.
Figure 3. Minimum Spanning Tree displaying the relationship of L. monocytogenes isolates obtained from retailers in Mpumalanga and North West.
Pathogens 12 00147 g003
Pathogens 12 00147 g004 550

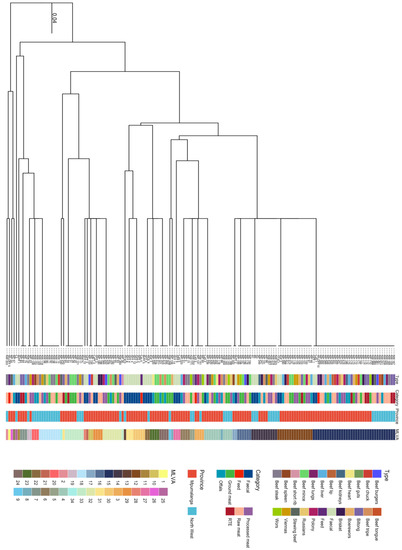

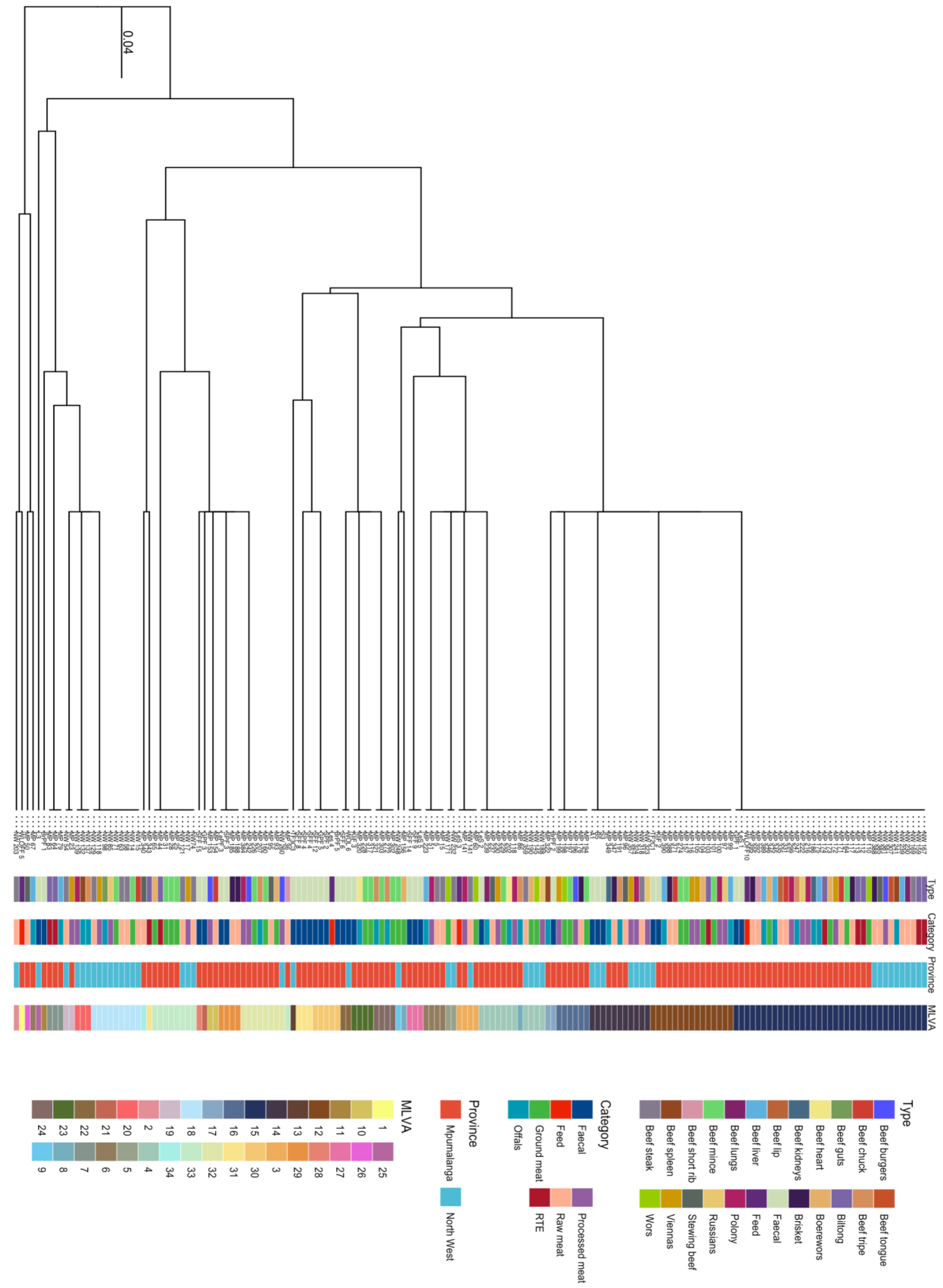

Figure 4. UPGMA Dendrogram of L. innocua isolates obtained from farms and retail outlets in Mpumalanga and North West.
Figure 4. UPGMA Dendrogram of L. innocua isolates obtained from farms and retail outlets in Mpumalanga and North West.
Pathogens 12 00147 g004
Pathogens 12 00147 g005 550

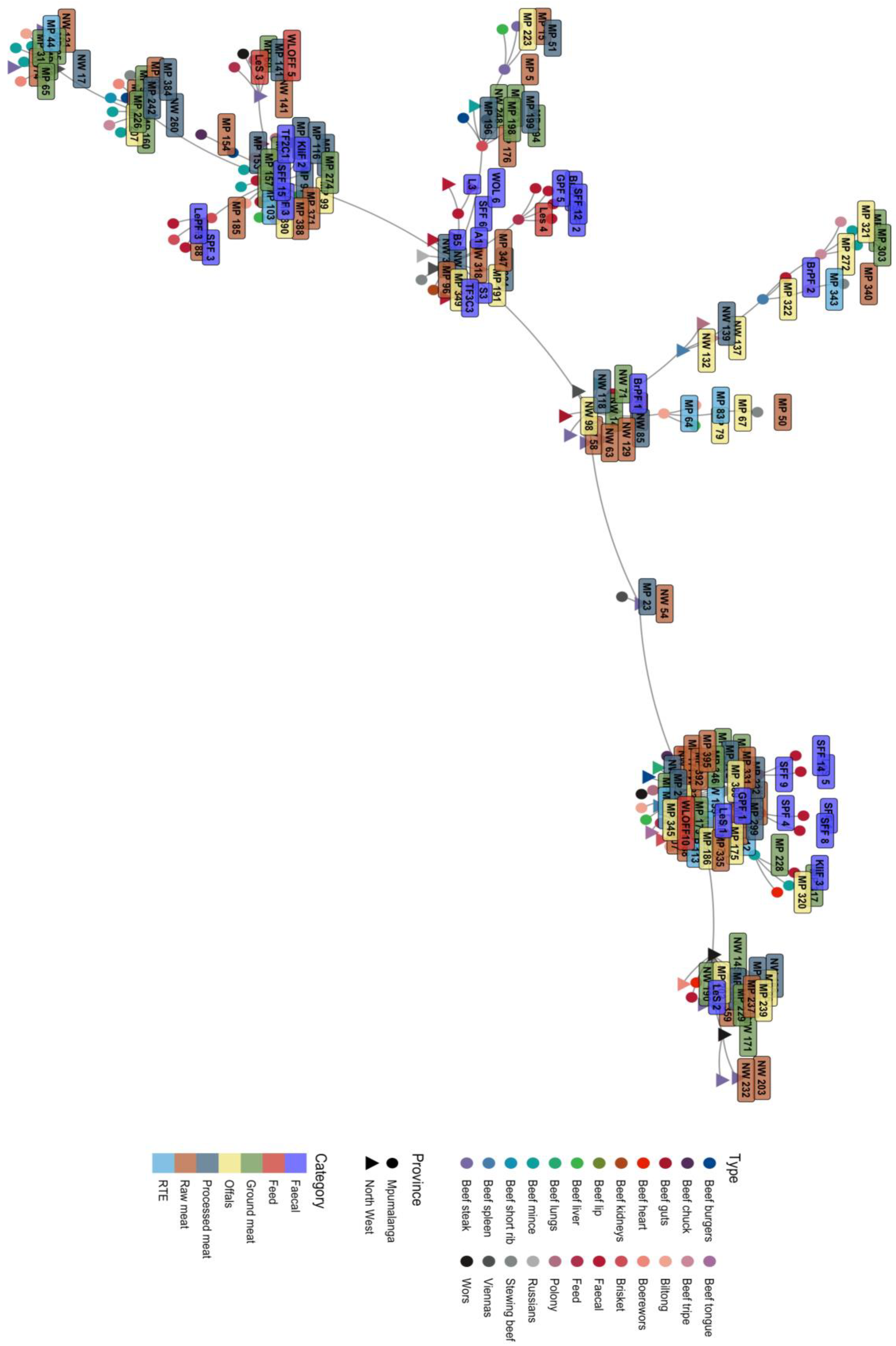

Figure 5. Minimum Spanning Tree, displaying the relationship of L. innocua isolates from retailers and farms in Mpumalanga and North West.
Figure 5. Minimum Spanning Tree, displaying the relationship of L. innocua isolates from retailers and farms in Mpumalanga and North West.
Pathogens 12 00147 g005
Table
Table 1. Primers used for MLVA typing of L. innocua.
Table 1. Primers used for MLVA typing of L. innocua.
Tandem Repeats (TR)PrimerSequence 5′-3′
TR-DD-ForwardGACAAAAGTAAGTCATGCGGGTATTT
D-ReverseTAGCTACAATCGGATTAACGG
TR-EE-ForwardGTACCTCCATTTGCTGTTCCA
E-ReverseATGTTATCCACCTTCAAGTAACTG
TR-JJ-ForwardATGTTTGTGTTCTCAGTTGCC
J-ReverseCTACCAAGGATTACTACAAGAAC
Table
Table 2. Listeria species identified from different sample categories.
Table 2. Listeria species identified from different sample categories.
Sample CategoryL. grayiL. innocuaL. monocytogenesL. seeligeriL. welshimeriL. specie *Total
Fecal 29 29
Feed 4 4
Ground meat2315 2 40
Offals 24414 33
Processed meat 287 1 36
Raw meat139515758
RTE 103 114
Total3165242128214
* could not be identified to species level.
Table
Table 3. MLVA patterns of L. monocytogenes isolates.
Table 3. MLVA patterns of L. monocytogenes isolates.
MLVA TypeMLVA Pattern aSerogroup(s)Meat CategoryFrequency of Occurrence. % (n)Geographical Origin b
104-02-20-00-27-04IIa, IVbProcessed meat, Offals, Raw meat, Ground meat20 (5)NW, MP
205-02-14-00-27-04IIbRaw meat4 (1)NW
305-02-06-00-27-04IIa, IIbRTE, Ground meat 8 (2)NW
405-02-20-00-27-04IVb-1, IVb, IIaRTE, Processed meat13 (3)NW, MP
504-02-25-00-27-04IIa, NSRaw meat, Processed meat, Ground meat17 (4)NW, MP
605-02-25-00-27-04IVb, IIa, NSOffals, Ground meat17 (4)NW, MP
705-02-09-00-27-04IVbOffals, Ground meat8 (2)MP
811-02-20-00-27-04IIcProcessed meat4 (1)MP
904-02-06-00-27-04IIbOffals4 (1)MP
1011-02-25-00-27-04IIcRaw meat4 (1)MP
a MLVA pattern (TR-1, TR-2, TR-3, TR-4, TR-5, and TR-6). b Geographical origin, NW—North West and MP—Mpumalanga Provinces.
Table
Table 4. MLVA patterns of L. innocua isolates.
Table 4. MLVA patterns of L. innocua isolates.
MLVA TypeMLVA Pattern aMeat Category/Farm Sample cFrequency of Occurrence. % (n)Geographical b Origin
108-09-05Feed 0.6 (1)MP
208-09-12RM0.6 (1)NW
308-17-05RM, feed, GM, PM, 2.4 (4)NW, MP
408-17-11GM, PM, offals, RM, feces6.6 (11)NW, MP
508-17-12GM, RM1.2 (2)NW
608-17-16RM, PM, offals3.0 (5)MP
708-25-08RTE, offals1.8 (3)MP
809-17-11GM, offals1.2 (2)MP
909-17-16GM0.6 (1)NW
1010-17-05PM, RM1.2 (2)MP
1114-09-08feces0.6 (1)MP
1214-17-05PM, offals, GM, RTE, feces9 (15)NW, MP
1300-17-08feces0.6 (1)NW
1414-17-18RM, PM, offals, feces 6.6 (11)NW, MP
1514-17-11RM, PM, offals, GM, RTE, feces, feed21 (35)NW, MP
1614-17-16RM, GM, PM3.6 (6)MP
1714-17-14Offals, feces1.2 (2)MP
1814-25-08GM, RM, PM5.4 (9)NW
1914-25-11RM, PM 1.2 (2)NW, MP
2014-25-14PM, offals1.8 (3)NW
2114-25-14feces06. (1)MP
2219-17-05feces1.2 (2)NW, MP
2319-17-11GM, offals, feces 1.8 (3)MP
2419-17-14GM, Offals 2.4 (4)MP
2519-20-08feces0.6 (1)NW
2608-00-16RM0.6 (1)MP
2730-17-11feces1.8 (3)MP
2830-17-05feces0.6 (1)MP
2936-17-05RM, feces2.4 (4)MP
3036-17-08feed, feces3.0 (5)MP
3136-17-11RTE, feces2.4 (4)MP
3200-17-05PM, GM, RM, offals4.8 (8)NW, MP
3300-25-05PM, RM5.4 (9)NW, MP
3400-00-14RM0.6 (1)MP
a MLVA allele string (TR-D, TR-E, TR-J); b Geographical origin (Mpumalanga (MP), North West Provinces (NW); c Meat category/farm samples, RM—raw meat, GM—ground meat, PM—processed meat, RTE—Ready-to-eat meat.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Manqele, A.; Gcebe, N.; Pierneef, R.E.; Moerane, R.; Adesiyun, A.A. Identification of Listeria species and Multilocus Variable-Number Tandem Repeat Analysis (MLVA) Typing of Listeria innocua and Listeria monocytogenes Isolates from Cattle Farms and Beef and Beef-Based Products from Retail Outlets in Mpumalanga and North West Provinces, South Africa. Pathogens 2023, 12, 147. https://doi.org/10.3390/pathogens12010147

AMA Style

Manqele A, Gcebe N, Pierneef RE, Moerane R, Adesiyun AA. Identification of Listeria species and Multilocus Variable-Number Tandem Repeat Analysis (MLVA) Typing of Listeria innocua and Listeria monocytogenes Isolates from Cattle Farms and Beef and Beef-Based Products from Retail Outlets in Mpumalanga and North West Provinces, South Africa. Pathogens. 2023; 12(1):147. https://doi.org/10.3390/pathogens12010147

Chicago/Turabian Style

Manqele, Ayanda, Nomakorinte Gcebe, Rian Ewald Pierneef, Rebone Moerane, and Abiodun Adewale Adesiyun. 2023. "Identification of Listeria species and Multilocus Variable-Number Tandem Repeat Analysis (MLVA) Typing of Listeria innocua and Listeria monocytogenes Isolates from Cattle Farms and Beef and Beef-Based Products from Retail Outlets in Mpumalanga and North West Provinces, South Africa" Pathogens 12, no. 1: 147. https://doi.org/10.3390/pathogens12010147

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
