Review

The Role of Parasitoid Wasps, Ixodiphagus spp. (Hymenoptera: Encyrtidae), in Tick Control

by
Rafael Antonio Nascimento Ramos
1,*,
Lucia Oliveira de Macedo
1,
Marcos Antônio Bezerra-Santos
2,
Gílcia Aparecida de Carvalho
1,
Guilherme Gomes Verocai
3 and
Domenico Otranto
2,4
1
Laboratory of Parasitology, Federal University of the Agreste of Pernambuco, Garanhuns 55292-270, PE, Brazil
2
Department of Veterinary Medicine, University of Bari, Valenzano, 70121 Bari, Italy
3
Department of Veterinary Pathobiology, School of Veterinary Medicine & Biomedical Sciences, Texas A&M University, College Station, TX 77843, USA
4
Faculty of Veterinary Sciences, Bu-Ali Sina University, Hamedan 65174, Iran
*
Author to whom correspondence should be addressed.
Pathogens 2023, 12(5), 676; https://doi.org/10.3390/pathogens12050676
Submission received: 3 April 2023 / Revised: 25 April 2023 / Accepted: 27 April 2023 / Published: 3 May 2023
(This article belongs to the Special Issue Insect-Pathogen Dynamic Interplay and its Effects on Sensory-Perception)
Browse Figures
Versions Notes

Abstract

:
Species of Ixodiphagus (Hymenoptera: Encyrtidae) are parasitoid wasps whose immature forms develop inside ixodid and argasid ticks (Acari: Ixodida). Following oviposition by adult female wasps into the idiosoma of ticks, larvae hatch and start feeding on their internal contents, eventually emerging as adult wasps from the body of the dead ticks. Species of Ixodiphagus have been reported as parasitoids of 21 species of ticks distributed across 7 genera. There are at least ten species described in the genus, with Ixodiphagus hookeri being the most studied as an agent for biological control of ticks. Although attempts of tick control by means of this parasitoid largely failed, in a small-scale study 150,000 specimens of I. hookeri were released over a 1-year period in a pasture where a small cattle population was kept, resulting in an overall reduction in the number of Amblyomma variegatum ticks per animal. This review discusses current scientific information about Ixodiphagus spp., focusing on the role of this parasitoid in the control of ticks. The interactions between these wasps and the ticks’ population are also discussed, focusing on the many biological and logistical challenges, with limitations of this control method for reducing tick populations under natural conditions.

1. Introduction

Species within the genus Ixodiphagus (Hymenoptera: Encyrtidae) are natural parasitoid wasps of ticks (Acari: Ixodida) [1], which were first described more than a century ago, in Haemaphysalis leporispalustris from Texas, United States (USA) [2]. The etymology of the genus name Ixodiphagus (from Greek ixod = tick and phage = eater) alludes to its parasitoid behavior. After its first description, other species of “tick eaters” within this genus were formally described worldwide [3,4,5,6].
Currently, at least ten species of these parasitoids are considered valid, namely Ixodiphagus texanus Howard, 1907; Ixodiphagus hookeri Howard, 1908; Ixodiphagus mysorensis Mani, 1941; Ixodiphagus hirtus Nikolskava, 1950; Ixodiphagus theilerae Fielder, 1953; Ixodiphagus biroi Erdos, 1956; Ixodiphagus sagarensis Geevarghese, 1977; Ixodiphagus taiaroaensis Heath and Cane, 2010; Ixodiphagus sureshani Hayat and Islam, 2011; and Ixodiphagus aethes Hayat and Veenakumari, 2015. These insects are small, generally measuring less than 1 cm in length, blackish in color, and exhibiting the typical appearance of members of the superfamily Chalcidoidea, and display similar biological and ecological features [7].
Despite being known for over a century, many knowledge gaps remain about the biology of these parasitoid wasps, with most information limited to I. hookeri [5,8]. The life cycle of these wasps starts when gravid females lay eggs inside the tick’s body. After an incubation period, the larvae hatch and feed on the internal content of the tick [7]. Approximately 30–57 days after oviposition, new adult male and female wasps emerge from the dead tick, mating and continuing their life cycle [9]. Based on this life cycle, the use of Ixodiphagus spp. as an agent for biological control of ticks has inspired the interest of the scientific community [10]. In addition, populations of I. hookeri may have different developmental times, parasitism rates, and host preferences according to the geographical area of occurrence [10], which may explain the failure, or the limited efficacy, of these wasps in the control of ticks in field studies [11,12].
For many decades the use of acaricide drugs for the control of ticks on animal hosts has been extensively applied worldwide [13], with some classes of drugs (e.g., organophosphates, pyrethroids, amidines, and macrocyclic lactones) widely used. The excessive and/or incorrect use of these compounds, through metabolic detoxification or changes in the sensitivity of the target site of drug action [14], generates the appearance of acaricide resistance in certain tick species and populations [15]. Because of ticks’ major economic impact on livestock production, resistance to acaricide drugs has been considered one of the most significant threats to veterinary medicine in the last decade [16]. With increased concerns about the use of chemicals and reports of their lack of efficacy [17], the interest in alternative biological control methods increased [18,19,20]. Additionally, the implementation of biological control strategies could mitigate direct impacts of ticks and potentially reduce transmission of certain tick-borne pathogens. For instance, it has been demonstrated that Ixodes scapularis parasitized by I. hookeri on Naushon Island, Massachusetts, USA, did not carry Borrelia burgdorferi sensu lato and rarely carried Babesia microti, despite the presence of these zoonotic pathogens in uninfected ticks in the same area [21]. More recently, the presence of Arsenophonus nasoniae and Rickettsiae infections in Ixodes ricinus were attributed to the presence of I. hookeri [22]. Therefore, in this review we discussed the interactions between these wasps and tick populations, focusing on the limitations of this approach under natural conditions.

2. Biology of Ixodiphagus spp. and Geographic Distribution

Information on the biology of Ixodiphagus species is insufficient and mainly limited to experimental studies [10]. The entire life cycle ranges from 28 to 70 days, and starts when female wasps lay eggs into ticks through the penetration of their ovipositor into the tick’s body (Figure 1). After hatching, larvae (Figure 2) develop inside the tick. While no information is available about the pupal stage, adult wasps emerge from their tick hosts through a hole at the posterior end, with mating occurring soon after the emergence [9]. There have been no studies assessing the number of Ixodiphagus eggs released by females in natural conditions. However, based on experimental studies, it is estimated that during the entire life span, I. hookeri and I. texanus lay about 120 and 200 eggs, respectively [23,24].
Information about the preference for certain tick developmental stage remains unclear. For instance, some authors reported that larvae of Ixodiphagus are mostly detected in tick nymphs and adults when the latter are engorged, suggesting that parasitism is likely to occur in blood-fed ticks rather than in unfed ones [25]. However, an experimental study demonstrated that unfed nymphs of I. ricinus were more parasitized than other stages [10]. This observation was later confirmed with the finding of I. hookeri DNA in unfed I. ricinus nymphs collected from the environment [3]. Furthermore, it has been demonstrated that unfed ticks can be collected from vegetation, and after feeding them on laboratory animals (e.g., mice) the parasitoids emerge [26]. In their searching for ticks, Ixodiphagus spp. females may be driven by chemical attractants produced by vertebrate animals hosting ticks [10], as well as by tick feces [27]. In fact, some experiments have demonstrated that I. hookeri females appear to be attracted by odors produced by the haircoat of roe deer (Capreolus capreolus) and wild boar (Sus scrofa) [10] but not from those of mice, cattle, and rabbits [10]. This mechanism of attraction is crucial for facilitating the encounter of Ixodiphagus spp. with their preferred tick species [8], increasing the chances of completion of their lifecycle. Despite this observation, this is most likely not the general scenario in nature. It is believed that in most cases, hosts are attractive for ticks, in which eggs of the parasitoids are already present. The development of wasp larvae is directly dependent on nutrients contained in the engorged blood meal of the ticks; hence it is unlikely that Ixodiphagus larvae could develop in unfed ticks due to the depletion of nutrients [28]. This translates into a correlation between the occurrence of Ixodiphagus larvae, tick density, and infestation rate in vertebrate hosts [8,29]. For example, in I. scapularis nymphs the infestation of wasp parasitoids occurred only in individuals parasitizing white-tailed deer (Odocoileus virginianus) in the northeastern USA, and in areas with deer population density of 13–20 animals per km2 or higher [29]. In addition, no association was observed between the occurrence of wasps and I. ricinus infesting rodents in northern Europe [8], suggesting that the species of vertebrate host is crucial for the behavior of Ixodiphagus spp.. Despite the lack of an association between wasps and ticks of rodents, it is known that in laboratory conditions parasitoids develop and emerge from ticks that feed on mice. The dynamic of Ixodiphagus has been poorly assessed in field conditions. Based on the few studies conducted so far, adults fly for a short period of time. In Germany, adult wasps were found during 3–5 weeks, in late summer/early fall [10]. This seasonal activity overlaps with a high density and feeding activity of I. ricinus immature stages in the same area, which incidentally occurs when vertebrate hosts are also more abundant. For example, it has been demonstrated that wasps from ticks fed before July have a shorter developmental time compared with those from ticks engorged later on [10]. This finding is similar to those previously observed in field conditions in Texas (USA), where wasps required a development time of 25 and 33 days for ticks fed in May and September, respectively [9].
In southern Italy, the majority of ticks that tested positive for I. hookeri (i.e., 92%) were collected during fall–winter (from October to March) [3], when I. ricinus peaked [30]. Overall, the detection in ticks is related to developmental time of Ixodiphagus and to the synchronization with tick development [10]. Curiously, non-embryonated eggs of I. hookeri are able to survive over winter inside unfed nymphs of I. ricinus [31] and I. scapularis [6,25]. From a biological perspective, this characteristic allows wasp populations to survive through different seasons in spite of unfavorable climate conditions (e.g., extreme cold).
The molecular detection of Wolbachia endosymbionts in I. hookeri [32] suggests that it could be the reason for the presence of Wolbachia pipientis in I. ricinus [33], with a role in their parthenogenesis (i.e., development from unfertilized eggs). This is demonstrated in other hymenopteran species (e.g., Encarsia pergandiella) [34]. Despite the suggested parthenogenesis for Ixodiphagus [24], the potential involvement of Wolbachia has never been demonstrated. Recently, the assessment of the microbiota in I. ricinus in high-throughput sequencing revealed the presence of a wide plethora of microorganisms, including I. hookeri and Wolbachia [35]. These multiple interactions among microorganisms in I. ricinus may affect a wasp population, influencing differences in its biology observed in different tick populations worldwide [10,36,37]. Ixodiphagus spp. have been widely reported in various species of ixodid ticks, with a broad distribution across all five inhabited continents [4,38,39], but more commonly reported from Europe and the US [3,6,29]. In fact, several hard tick species within the genera Amblyomma, Dermacentor, Haemaphysalis, Hyalomma, Ixodes, and Rhipicephalus, in various life stages, have been found parasitized by Ixodiphagus wasps (Table 1). So far, the only argasid soft tick found parasitized by an Ixodiphagus species (I. mysorensis) was Ornithodoros sp. [40].

3. Tick–Wasp Interaction in the Control of Ticks

Despite the existing body of literature describing the deadly interactions between ticks and wasps, the success of attempts conducted to control ticks by means of this parasitoid is still arguable. Historically, the use of Ixodiphagus spp. wasps to control tick populations dates back to 1908, when nymphs containing the parasitoid I. hookeri were shipped from Texas to South Africa, Portugal, and Italy [9]. Even with the emergence of Ixodiphagus adults from nymphs sent to South Africa, their use for tick control in this country failed. Unfortunately, Ixodiphagus nymphs sent to Portugal and Italy did not develop to the adult stage [9].
Later on, Ixodiphagus wasps were released in Massachusetts (USA) in various ways, (i) adults, (ii) inside I. scapularis nymphs, and iii) in mice infested by I. scapularis nymphs containing wasp larvae [75]. Interestingly, in 1927 mice and wild rabbits were trapped in the same area and presented a lower infestation rate by D. variabilis than years before (i.e., several hundred larvae and 30–40 nymphs per animal). Despite the apparent success in reducing the population of ticks, estimative methods of tick infestation were not used, making it difficult to correlate the reduction of tick population to wasp infestation [75]. Similarly, about 4,000,000 wasps were released from 1927 to 1932 in Montana, Colorado, Idaho, and Oregon (USA) to control Dermacentor andersoni ticks in the environment [76]. Albeit different methods of release (e.g., as adults, infected nymphs released on the grass, and infected nymphs parasitizing squirrels) had been employed, these attempts failed since the wasp population did not establish in the study area [11,76]. In fact, the recovery of parasitoids from ticks was successful only in Montana, where few adult wasps emerged from tick nymphs collected from squirrels [76].
From 1937 to 1939, approximately 90,000 I. hookeri females were released at Squibnocket Beach in Massachusetts, at two sites, a wild bog (in September and October 1937, and from April to July 1938) and a grassy hill area, close to the beach (in August 1938, and from May to August 1939) [12]. Despite the scarcity of immature ticks in the first location in the subsequent year (1938), adults remained abundant. In this area, a hurricane in September 1938 impaired continued observation. In subsequent tick estimations performed in 1940 and 1941, ticks were abundant but no I. hookeri were detected [12].
Similar attempts to control I. ricinus and I. persulcatus adults were conducted in Russia though the release of I. hookeri (n = 2600) adults, as well as larval and nymphal stages (n = 38,000) of I. ricinus containing wasp larvae [77]. In this case, low temperatures killed the wasps and the experiment failed [76]. Following the attempts above, the interest of the scientific community about Ixodiphagus spp. decreased, and this wasp was not investigated until the end of the last century, when a study conducted in Kenya demonstrated the potential of this parasitoid in controlling ticks [66]. In that study, approximately 150,000 I. hookeri specimens were released over a 1-year period to control Amblyomma variegatum in a field with 10 infested cattle. During the day, animals were kept in a grazing paddock (200 × 200 m), and at night in a resting area measuring 50 × 25 m. Wasps were released into the environment as adults and parasitizing A. variegatum nymphs. Monitoring was performed with monthly tick counting. Despite the reduction of the infestation rate of A. variegatum from 44 to 2 ticks per animal, population of Rhipicephalus appendiculatus did not vary at all [66], suggesting that this parasitoid is effective with a specific tick species. This putative specificity for some tick species should be considered in future studies focusing on the use of wasps for the control of ticks.

4. Wasps in Ticks: Why Did the Control Attempts Fail?

Most of the attempts to control ticks through parasitoid wasps were carried out approximately 100 years ago, with limited information about the biology of this wasp and its interaction with ticks. Overall, these studies were mainly based on the limited knowledge regarding the ability of Ixodiphagus species to cause tick death. Important variables that may directly impact the use of wasps as an effective method for biological control of ticks remain unaddressed, including climatic conditions, target tick species, and density of vertebrate hosts. For instance, the first study conducted demonstrated a reduction in I. scapularis population parasitizing vertebrate animals in the subsequent year [75]. However, a long-term evaluation has never been conducted resulting in partial evidence. Indeed, these attempts were conducted through the release of wasps (i.e., adults or larvae inside ticks) directly into the environment, without the control of any factor that could have influenced the biology of the ticks or the wasps, or their survival and establishment [7,76,77]. Additionally, the strategies of releasing wasps (e.g., single or multiple releases) were not consistent across experiments, making direct comparisons difficult.
The only successful Ixodiphagus field study, conducted in Kenya, provided detailed information about the tick population, method of release, measure of area where animals were kept, temperature (i.e., 24–31 °C), and targeted grazing areas [66]. These parameters suggested that the reduction of tick population was a result of the interactions with parasitoid wasps. Despite this promising outcome, this study was conducted on a small scale and no further follow-ups were performed to clarify the viability and sustainability of this control method on a long-term basis [66]. Additionally, the population of one tick species present, R. appendiculatus, did not reduce, suggesting a potential preference of Ixodiphagus species for some tick species [66].
All the compiled data indicate that tick–wasp interaction is an important factor for tick population balance in natural conditions. Nonetheless, the knowledge accumulated so far suggests that there are several limitations for the implementation of this control method under natural conditions. Both ticks and parasitoid wasps present complex biology and are heavily influenced by environmental conditions (e.g., temperature, rainfall, and air humidity), which poses additional challenges for its successful implementation for tick control.

5. Gaps in the Knowledge and Future Perspectives

Despite Ixodiphagus having been considered for decades as a potential agent for the biological control of ticks, its biology and its interactions with ticks are not fully understood. Currently, little is known about its seasonality, development in different environmental conditions, synchrony with the life cycle of different tick species, and pupal stage. Therefore, studies including the assessment of tick–wasp seasonality in different geographic areas to evaluate the impact of this parasitoid in natural conditions are encouraged. In addition, the genetic characterization of different nuclear and mitochondrial genes of multiple species and isolates of Ixodiphagus is of interest for understanding the phylogenetic relationships among species, which will ultimately improve the knowledge on the evolutionary history of these wasps, and their association with ticks.
Future research using this parasitoid for biological tick control should carefully consider parameters such as targeted tick species based on biological understanding, density of vertebrate host(s) in the area, number of wasps, method of release, dimension of the area, climatic conditions, and seasonal patterns. Despite the need for searching for an effective alternative control strategy for tick balance in natural conditions, the use of this parasitoid for biological control of ticks is tough due to biological and environmental factors associated with ticks and these wasps.

Author Contributions

Conceptualization, R.A.N.R., M.A.B.-S., D.O.; writing—original draft preparation, R.A.N.R., L.O.d.M., M.A.B.-S., G.G.V., D.O.; writing—review and editing, R.A.N.R., L.O.d.M., M.A.B.-S., G.A.d.C., G.G.V., D.O. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Authors would like thank Maureen Kelly (Texas A&M University, United States) and Jéssica Cardoso Pessoa de Oliveira (Federal Rural University of Pernambuco, Brazil) for their suggestions on the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Buczek, A.; Buczek, W.; Bartosik, K.; Kulisz, J.; Stanko, M. Ixodiphagus hookeri wasps (Hymenoptera: Encyrtidae) in two sympatric tick species Ixodes ricinus and Haemaphysalis concinna (Ixodida: Ixodidae) in the Slovak Karst (Slovakia): Ecological and biological considerations. Sci. Rep. 2021, 11, 11310. [Google Scholar] [CrossRef] [PubMed]
  2. Howard, L.O. A chalcidoid parasite of a tick. Ent. News. 1907, 18, 375–378. [Google Scholar]
  3. Ramos, R.A.; Campbell, B.E.; Whittle, A.; Lia, R.P.; Montarsi, F.; Parisi, A.; Dantas-Torres, F.; Wall, R.; Otranto, D. Occurrence of Ixodiphagus hookeri (Hymenoptera: Encyrtidae) in Ixodes ricinus (Acari: Ixodidae) in southern Italy. Ticks Tick Borne Dis. 2015, 6, 234–236. [Google Scholar] [CrossRef] [PubMed]
  4. Santos, M.A.B.; Macedo, L.O.; Souza, I.B.; Ramos, C.A.N.; Alves, L.C.; Ramos, R.A.N.; Carvalho, G.A. Larvae of Ixodiphagus wasps (Hymenoptera: Encyrtidae) in Rhipicephalus sanguineus sensu lato ticks (Acari: Ixodidae) from Brazil. Ticks Tick Borne Dis. 2017, 8, 564–566. [Google Scholar] [CrossRef]
  5. Sormunen, J.J.; Sippola, E.; Kaunisto, K.M.; Vesterinen, E.J.; Sääksjärvi, I.E. First evidence of Ixodiphagus hookeri (Hymenoptera: Encyrtidae) parasitization in Finnish castor bean ticks (Ixodes ricinus). Exp. Appl. Acarol. 2019, 79, 395–404. [Google Scholar] [CrossRef]
  6. Tóth, A.G.; Farkas, R.; Gyurkovszky, M.; Krikó, E.; Solymosi, N. First detection of Ixodiphagus hookeri (Hymenoptera: Encyrtidae) in Ixodes ricinus ticks (Acari: Ixodidae) from multiple locations of Hungary. Sci. Rep. 2023, 13, 1624. [Google Scholar] [CrossRef]
  7. Hu, R.; Hyland, K.E.; Oliver, J.H. A review on the use of Ixodiphagus wasps (Hymenoptera: Encyrtidae) as natural enemies for the control of ticks (Acari: Ixodidae). Syst. Appl. Acarol. 1988, 3, 19–28. [Google Scholar] [CrossRef]
  8. Krawczyk, A.I.; Bakker, J.W.; Koenraadt, C.J.M.; Fonville, M.; Takumi, K.; Sprong, H.; Demir, S. Tripartite Interactions among Ixodiphagus hookeri, Ixodes ricinus and deer: Differential interference with transmission cycles of tick-borne pathogens. Pathogens 2020, 9, 339. [Google Scholar] [CrossRef]
  9. Wood, H.P. Notes on the life history of the tick parasite Hunterellus hookeri Howard. J. Econ. Entomol. 1911, 4, 425–431. [Google Scholar] [CrossRef]
  10. Collatz, J.; Selzer, P.; Fuhrmann, A.; Oehme, R.M.; Mackenstedt, U.; Kahl, O.; Steidle, J.L.M. A hidden beneficial: Biology of the tick-wasp Ixodiphagus hookeri in Germany. J. Appl. Entomol. 2011, 135, 351–358. [Google Scholar] [CrossRef]
  11. Cooley, R.A. A parasite of ticks. Mont. State Bd. Ent. Bien. Rept. 1927, 6, 15–17. [Google Scholar]
  12. Smith, C.N.; Cole, M.M. Studies of parasites of the American dog tick. J. Econ. Entomol. 1943, 36, 569–572. [Google Scholar] [CrossRef]
  13. Vudriko, P.; Okwee-Acai, J.; Byaruhanga, J.; Tayebwa, D.S.; Okech, S.G.; Tweyongyere, R.; Wampande, E.M.; Okurut, A.R.A.; Mugabi, K.; Muhindo, J.B.; et al. Chemical tick control practices in southwestern and northwestern Uganda. Ticks Tick Borne Dis. 2018, 9, 945–955. [Google Scholar] [CrossRef] [PubMed]
  14. Rosario-Cruz, R.; Almazan, C.; Miller, R.J.; Dominguez-Garcia, D.I.; Hernandez-Ortiz, R.; Fuente, J. Genetic basis and impact of tick acaricide resistance. Front. Biosci. 2009, 14, 2657–2665. [Google Scholar] [CrossRef]
  15. Torrents, J.; Morel, N.; Rossner, M.V.; Martínez, N.C.; Toffaletti, J.R.; Nava, S. In vitro diagnosis of resistance of the cattle tick Rhipicephalus (Boophilus) microplus to fipronil in Argentina. Exp. Appl. Acarol. 2020, 82, 397–403. [Google Scholar] [CrossRef]
  16. Rodriguez-Vivas, R.I.; Jonsson, N.N.; Bhushan, C. Strategies for the control of Rhipicephalus microplus ticks in a world of conventional acaricide and macrocyclic lactone resistance. Parasitol. Res. 2018, 117, 3–29. [Google Scholar] [CrossRef]
  17. Bonatte, P., Jr.; Barros, J.C.; Maciel, W.G.; Garcia, M.V.; Higa, L.O.S.; Andreotti, R. Control strategies for the tick Rhipicephalus microplus (Canestrini, 1888) on cattle: Economic evaluation and report of a multidrug-resistant strain. Acta Parasitol. 2022, 67, 1564–1572. [Google Scholar] [CrossRef]
  18. Samish, M.; Ginsberg, H.; Glazer, I. Biological control of ticks. Parasitology 2004, 129, S389–S403. [Google Scholar] [CrossRef]
  19. Otranto, D.; Wall, R. New strategies for the control of arthropod vectors of disease in dogs and cats. Med. Vet. Entomol. 2008, 22, 291–302. [Google Scholar] [CrossRef]
  20. Showler, A.T.; Saelao, P. Integrative alternative tactics for ixodid control. Insects 2022, 13, 302. [Google Scholar] [CrossRef]
  21. Mather, T.N.; Piesman, J.; Spielman, A. Absence of spirocates (Borrelia burgdorferi) and piroplasms (Babesia microti) in deer ticks Ixodes dammini parasitized by chalcid wasps (Hunterellus hookeri). Med. Vet. Entomol. 1987, 1, 3–8. [Google Scholar] [CrossRef] [PubMed]
  22. Bohacsova, M.; Oleg, M.; Kazimirova, M.; Raoult, D.; Sekeyova, Z. Arsenophonus nasoniae and Rickettsiae infection of Ixodes ricinus due to parasitic wasp Ixodiphagus hookeri. PLoS ONE 2016, 11, e0149950. [Google Scholar] [CrossRef] [PubMed]
  23. Knipling, E.F.; Steelman, C.D. Feasibility of controlling Ixodes scapularis ticks (Acari: Ixodidae), the vector of Lyme disease, by parasitoid augmentation. J. Med. Entomol. 2000, 37, 645–652. [Google Scholar] [CrossRef] [PubMed]
  24. Bowman, J.L.; Logan, T.M.; Hair, J.A. Host suitability of Ixodiphagus texanus Howard on five species of hard ticks. J. Agric. Entomol. 1986, 3, 1–9. [Google Scholar]
  25. Hu, R.; Hyland, K.E. Prevalence and seasonal activity of the wasp parasitoid, Ixodiphagus hookeri (Hymenoptera: Encyrtidae) in its tick host, Ixodes scapularis (Acari: Ixodidae). Syst. Appl. Acarol. 1997, 2, 95–100. [Google Scholar] [CrossRef]
  26. Slovák, M. Finding of the endoparasitoid Ixodiphagus hookeri (Hymenoptera, Encyrtidae) in Haemaphysalis concinna ticks in Slovakia. Biologia 2003, 58, 890. [Google Scholar]
  27. Demas, F.A.; Hassanali, A.; Mwangi, E.N.; Kunjeku, E.C.; Mabveni, A.R. Cattle and Amblyomma variegatum odors used in host habitat and host finding by the tick parasitoid, Ixodiphagus hookeri. J. Chem. Ecol. 2000, 26, 1079–1093. [Google Scholar] [CrossRef]
  28. Korenberg, E.I. Seasonal population dynamics of Ixodes ticks and tick-borne encephalitis virus. Exp. Appl. Acarol. 2000, 24, 665–681. [Google Scholar] [CrossRef]
  29. Stafford III, K.C.; Denicola, A.J.; Kilpatrick, H.J. Reduced abundance of Ixodes scapularis (Acari: Ixodidae) and the tick parasitoid Ixodiphagus hookeri (Hymenoptera: Encyrtidae) with reduction of white-tailed deer. J. Med. Entomol. 2003, 40, 642–652. [Google Scholar] [CrossRef]
  30. Dantas-Torres, F.; Otranto, D. Seasonal dynamics of Ixodes ricinus on ground level and higher vegetation in a preserved wooded area in southern Europe. Vet. Parasitol. 2013, 192, 253–258. [Google Scholar] [CrossRef]
  31. Alfeev, N.I.; Klimas, Y.V. On the possibility of developing ichneumon flies, Hunterellus hookeri in climatic conditions of the USSR. Soviet. Vet. 1938, 15, 55. [Google Scholar]
  32. Tijsse-Klasen, E.; Braks, M.; Scholte, E.J.; Sprong, H. Parasites of vectors Ixodiphagus hookeri and its Wolbachia symbionts in ticks in the Netherlands. Parasit. Vectors. 2011, 4, 228. [Google Scholar] [CrossRef] [PubMed]
  33. Plantard, O.; Bouju-Albert, A.; Malard, M.A.; Hermouet, A.; Capron, G.; Verheyden, H. Detection of Wolbachia in the tick Ixodes ricinus is due to the presence of the hymenoptera endoparasitoid Ixodiphagus hookeri. PLoS ONE 2012, 7, e30692. [Google Scholar] [CrossRef] [PubMed]
  34. Zchori-Fein, E.; Gottlieb, Y.; Kelly, S.E.; Brown, J.K.; Wilson, J.M.; Karr, T.L.; Hunter, M.S. A newly discovered bacterium associated with parthenogenesis and a change in host selection behavior in parasitoid wasps. Proc. Natl. Acad. Sci. USA 2001, 98, 12555–12560. [Google Scholar] [CrossRef] [PubMed]
  35. Lejal, E.; Chiquet, J.; Aubert, J.; Robin, S.; Estrada-Peña, A.; Rue, O.; Midoux, C.; Mariadassou, M.; Bailly, X.; Cougoul, A.; et al. Temporal patterns in Ixodes ricinus microbial communities: An insight into tick-borne microbe interactions. Microbiome 2021, 9, 153. [Google Scholar] [CrossRef]
  36. Lyon, S.M.; Van Driesche, R.; Edman, J.D. Ecology of Hunterellus hookeri (Hymenoptera: Encyrtidae) and evaluation of its impact on Ixodes scapularis (Acari: Ixodidae) on Nanamasset Island in Massachusetts. Environ. Entomol. 1998, 27, 463–468. [Google Scholar] [CrossRef]
  37. Takasu, K.; Nakamura, S. Life history of the tick parasitoid Ixodiphagus hookeri (Hymenoptera: Encyrtidae) in Kenya. Biol. Control. 2008, 46, 114–121. [Google Scholar] [CrossRef]
  38. Hayat, M.; Veenakumari, K. Description of four new species of brachypterous Encyrtidae (Hymenoptera: Chalcidoidea) from India. Zootaxa 2015, 3990, 259–271. [Google Scholar] [CrossRef]
  39. Gaye, M.; Amanzougaghene, N.; Laidoudi, Y.; Niang, E.H.A.; Sekeyová, Z.; Laroche, M.; Bérenger, J.M.; Raoult, D.; Kazimírová, M.; Fenollar, F.; et al. Hymenopteran parasitoids of hard ticks in western Africa and the Russian Far East. Microorganisms 2020, 8, 1992. [Google Scholar] [CrossRef]
  40. Mani, M.S. Studies on Indian parasitic Hymenoptera. Indian J. Entomol. 1941, 3, 29. [Google Scholar]
  41. Howard, L.O. Another chalcidoid parasite of a tick. Can. Entomol. 1908, 40, 239–241. [Google Scholar] [CrossRef]
  42. Buysson, R.D. Un Hymenoptere parasite des Ixodes. Arch. Parasitol. 1912, 15, 246–247. [Google Scholar]
  43. Brumpt, M.E. Utilisation des insectes auxiliaires—Entomophages dans la lutte contre les insectes pathogenes. Presse Med. 1913, 36, 359–361. [Google Scholar]
  44. Costa, L. The Chalcid, Hunterellus hookeri, Howard, a parasite of the tick Rhipicephalus sanguineus, Latreille, observed in Rio de Janeiro. Rev. Vet. Zoot. 1915, 5, 201–203. [Google Scholar]
  45. Timberlake, P.H. Hunterrelus hookeri Howard in India. (Note). Haw. Ent. Soc. Proc. 1922, 5, 10. [Google Scholar]
  46. Wolcott, G.N. Insectae Portoricensis. J. Dept. Agr. Porto Rico 1923, 7, 60. [Google Scholar]
  47. Cooley, R.A. The Montana tick parasite expedition to Africa. Science 1930, 71, 419–420. [Google Scholar] [CrossRef] [PubMed]
  48. Philip, C.B. Occurrence of a colony of the tick parasite Hunterellus hookeri in West Africa. Public Health Rep. 1931, 46, 2168–2172. [Google Scholar] [CrossRef]
  49. Cooley, R.A. A search for tick parasites in South Africa. Onderstepoort J. Vet. Sci. Anim. Ind. 1934, 3, 23–42. [Google Scholar]
  50. Bishopp, F.C. Record of hymenopterous parasites of ticks in the United States. Proc. Entomol. Soc. Wash. 1934, 36, 87–88. [Google Scholar]
  51. Larson, C.A. The tick parasite Ixodiphagus texanus in nymphs and larvae of Haemaphysalis leporispalustris in Minnesota. J. Parasitol. 1937, 23, 496–498. [Google Scholar] [CrossRef]
  52. Tate, H.D. The biology of the tropical cattle tick and other species of ticks in Puerto Rico, with notes on the effects on ticks of arsenical dips. J. Agric. Sci. 1941, 25, 1–24. [Google Scholar]
  53. Pervomaisky, G.S. On the infestation of Ixodes persulcatus by Hunterellus hookeri How. (Hymenoptera) Zool. Zhurnal. 1943, 22, 211–213. [Google Scholar]
  54. Boucek, Z.; Verny, V. A parasite of ticks, the chalcid Hunterellus hookeri in Czechoslovakia. Zool. List. 1954, 3, 109–111. [Google Scholar]
  55. Philip, C.B. A new locality record in Africa for the tick parasite, Hunterellus hookeri Howard. J. Parasitol. 1954, 40, 234–235. [Google Scholar] [CrossRef]
  56. Steyn, J.J. A second locality record in Uganda for the tick parasite, Hunterellus hookeri Howard, and a few discussions on other tick parasites. East Afr. Med. J. 1955, 32, 357–360. [Google Scholar] [PubMed]
  57. Doube, B.M.; Heath, A.C.G. Observations on the biology and seasonal abundance of an encyrtid wasp [Hunterellus], a parasite of ticks [Ixodes, Haemaphysalis, Ornithodoros] in Queensland [Insect control of ticks]. J. Med. Entomol. 1975, 12, 443–447. [Google Scholar] [CrossRef]
  58. Munaf, H.B. The first record of Hunterellus hookeri parasitizing Rhipicephalus sanguineus in Indonesia. Southeast Asian J. Trop. Med. Public Health 1976, 7, 492. [Google Scholar]
  59. Cheong, W.H.; Rajamanikam, C.; Mahadevan, S. A case of Hunterellus hookeri parasitization of ticks in Pentaling Jaya, Peninsula Malaysia. Southeast Asian J. Trop. Med. Public Health 1978, 9, 456–458. [Google Scholar]
  60. Davis, A.J.; Campbell, V. Ixodiphagus texanus Howard (Hymenoptera: Encyrtidae) a parasite of the rabbit tick in Nova Scotia. Can. J. Zool. 1979, 57, 1164–1166. [Google Scholar] [CrossRef]
  61. Estradapena, A.; Sanchezacedo, C. Presence in Spain of Hunterellus hookeri Howard, 1907, a parasite of Haemaphysalis punctata (Acarina: Ixodidae). Rev. Iber. Parasitol. 1989, 49, 183–184. [Google Scholar]
  62. Mwangi, E.N.; Newson, R.M.; Kaaya, G.R. A hymenopteran parasitoid of the Bont tick Amblyomma variegatum Fabricius (Acarina: Ixodidae) in Kenya. Discov. Innov. 1993, 5, 331–335. [Google Scholar]
  63. Doby, J.M.; Laere, G. Hunterellus hookeri Howard, 1907 (Hymenoptera: Chalcididae), a parasite of the tick Ixodes ricinus in western and central France. Parasite 1993, 2, 265–270. [Google Scholar]
  64. Hu, R.; Hyland, K.E.; Mather, T.N. Occurrence and distribution in Rhode Island of Hunterellus hookeri (Hymenoptera: Encyrtidae), a wasp parasitoid of Ixodes dammini. J. Med. Entomol. 1993, 30, 277–280. [Google Scholar] [CrossRef] [PubMed]
  65. Soto, M.M. Hunterellus hookeri, a parasitoid of Rhipicephalus sanguineus, a tick of public health interest in Mexico. Rev. Soc. Mex. Hist. Nat. 1995, 45, 157–161. [Google Scholar]
  66. Stafford III, K.C.; Denicola, A.J.; Magnarelli, L.A. Presence of Ixodiphagus hookeri (Hymenoptera: Encyrtidae) in two Connecticut populations of Ixodes scapularis (Acari: Ixodidae). J. Med. Entomol. 1996, 33, 183–188. [Google Scholar] [CrossRef] [PubMed]
  67. Mwangi, E.N.; Hassan, S.M.; Kaaya, G.P.; Essuman, S. The impact of Ixodiphagus hookeri, a tick parasitoid, on Amblyomma variegatum (Acari: Ixodidae) in a field trial in Kenya. Exp. Appl. Acarol. 1997, 21, 117–126. [Google Scholar] [CrossRef]
  68. Coronado, A. Ixodiphagus hookeri Howard, 1907 (Hymenoptera: Encyrtidae) in the brown dog tick Rhipicephalus sanguineus Latreille, 1806 (Acari: Ixodidae) in Venezuela. Entomotropica 2006, 21, 61–64. [Google Scholar]
  69. Heath, A.C.G.; Cane, R.P. A new species of Ixodiphagus (Hymenoptera: Chalcidoidea: Encyrtidae) parasitizing seabird ticks in New Zealand. N. Z. J. Zool. 2010, 37, 147–155. [Google Scholar] [CrossRef]
  70. Lopes, A.J.; Nascimento, J.R., Jr.; Silva, C.G.; Prado, A.P.; Labruna, M.B.; Costa, L.M., Jr. Parasitism by Ixodiphagus wasps (Hymenoptera: Encyrtidae) in Rhipicephalus sanguineus and Amblyomma ticks (Acari: Ixodidae) in three regions of Brazil. J. Econ. Entomol. 2012, 105, 1979–1981. [Google Scholar] [CrossRef]
  71. Miranda, R.; Kadoch, N.; Bermúdez, S.E. Notas preliminares sobre enemigos naturales de Rhipicephalus sanguineus sl (Latreille 1806) (Ixodida: Ixodidae) en condiciones urbanas y rurales de Panamá. Rev. Ibér. Aracnol. 2013, 23, 141–143. [Google Scholar]
  72. Vasquez, A.; Goolsby, J.A.; Vacek, A.T.; Racelis, A.; Kariyat, R.R. Incidence of the Brown dog tick, Rhipicephalus sanguineus and its parasitoid, Ixodiphagus hookeri on dogs in South Texas. Subtrop. Agricult. Environ. 2019, 70, 6–10. [Google Scholar]
  73. Luu, L.; Palomar, A.M.; Farrington, G.; Schilling, A.K.; Premchand-Branker, S.; McGarry, J.; Makepeace, B.L.; Meredith, A.; Bell-Sakyi, L. Bacterial pathogens and symbionts harboured by Ixodes ricinus ticks parasitising red squirrels in the United Kingdom. Pathogens 2021, 10, 458. [Google Scholar] [CrossRef] [PubMed]
  74. Vecchi, M.O.M.; Ramos, R.A.N.; Bitencourth, K.; Alves, M.A.S. First record of the parasitoid wasp Ixodiphagus hookeri (Hymenoptera: Encyrtidae) infesting the tick Amblyomma nodosum (Acari: Ixodidae). Parasitol. Res. 2023, 122, 1255–1259. [Google Scholar] [CrossRef] [PubMed]
  75. Larousse, F.; King, A.G.; Wolbach, S.B. The overwintering in Massachusetts of Ixodiphagus caucurtei. Science 1928, 67, 351–353. [Google Scholar] [CrossRef]
  76. Cooley, R.A.; Kohls, G.M. A summary of tick parasites. In Proceedings of the 5th Pacific Science Congress, Victoria, BC, Canada, 1–4 June 1934; Volume 5, pp. 3375–3381. [Google Scholar]
  77. Alfeev, N.I. The utilization of Hunterellus hookeri Howard for the control of the ticks, Ixodes ricinus L. and Ixodes persulcatus P. Sch. with reference to peculiarities of their metamorphosis under conditions of the Province of Lenningrad. Rev. Appl. Entomol. 1946, 34, 108–109. [Google Scholar]
Pathogens 12 00676 g001 550

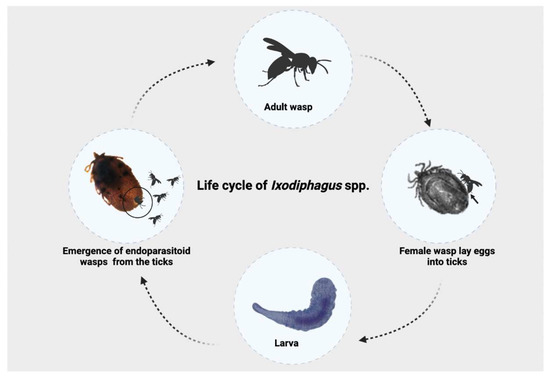

Figure 1. Life cycle of Ixodiphagus spp.
Figure 1. Life cycle of Ixodiphagus spp.
Pathogens 12 00676 g001
Pathogens 12 00676 g002 550
Figure 2. Ixodiphagus sp. larva in a Rhipicephalus sanguineus s.l. tick (Scale bar = 200 μm).
Figure 2. Ixodiphagus sp. larva in a Rhipicephalus sanguineus s.l. tick (Scale bar = 200 μm).
Pathogens 12 00676 g002
Table
Table 1. Distribution of Ixodiphagus spp. parasitizing different tick species in the world.
Table 1. Distribution of Ixodiphagus spp. parasitizing different tick species in the world.
ParasitoidTickTick Life StageCountry Reference
I. texanusH. leporispalustrisNymphUnited States[2]
I. hookeriR. sanguineusNymphUnited States [41]
I. hookeriR. sanguineus, D. marginatusNymphUnited States [9]
I. hookeriI. ricinusNymphFrance[42]
I. hookeriH. concinna, D. reticulatus, D. venustus,
R. sanguineus		NAFrance[43]
I. hookeriR. sanguineusNymphBrazil [44]
I. hookeriR. sanguineusNAIndia[45]
I. hookeriD. nitensNAUnited States [46]
I. hookeriD. variabilisNAUnited States [11]
I. hookeriH. aegyptiumNASouth Africa[47]
I. hookeriR. sanguineusNymphNigeria[48]
I. hookeriI. cookeiNymphUnited States [49]
I. hookeriR. sanguineusNAUnited States [50]
I. texanusH. leporispalustrisNymphUnited States [51]
I. hookeriR. sanguineusNymphUnited States [52]
I. mysorensisOrnithodorus sp.NAIndia[40]
I. texanusI. persulcatusNymphRussia [53]
I. hookeriI. ricinusNymphCzech Republic/Slovakia (Czechoslovakia)[54]
I. hookeriR. sanguineusNymphKenya [55]
I. hookeriR. sanguineusNymphAfrica [56]
Ixodiphagus sp.H. bancrofti, H. bremneri, I. holocyclus, I. tasmaniNAAustralia [57]
I. hookeriR. sanguineusNAIndonesia[58]
I. hookeriR. sanguineusNymphMalaysia[59]
I. texanusH. leporispalustrisLarva, NymphCanada[60]
I. hookeriI. damminiNymphUnited States [21]
I. hookeriH. punctataNymphSpain [61]
I. hookeriA. variegatumNymphKenya[62]
I. hookeriI. ricinusNAFrance[63]
I. texanusI. damminiNymphUnited States[64]
I. hookeriR. sanguineusNymphMexico[65]
I. hookeriI. scapularisNymphUnited States [66]
I. hookeriI. scapularisNymphUnited States[25]
I. hookeriA. variegatumNymphKenya[67]
I. hookeriI. scapularisNymphUnited States [29]
I. hookeriR. sanguineusNymphVenezuela[68]
I. hookeriA. variegatumNymphKenya[37]
I.hookeriH. concinnaNymphSlovakia[26]
I. taiaroaensisI. uriae, I. eudyptidisLarva, NymphNew Zealand[69]
I. hookeriI. ricinusNymphGermany[10]
I. hookeriI. ricinusNymphNetherlands[32]
I. hookeri, I. texanusR. sanguineus, Amblyomma sp.NymphBrazil [70]
I. hookeriI. ricinusNymphFrance[32]
I. hookeri, I. texanusR. sanguineusNymphPanama[71]
I. hookeriI. ricinusNymph, AdultItaly[3]
I. hookeriI. ricinusNymphSlovakia [22]
Ixodiphagus sp.R. sanguineusNymph, AdultBrazil [4]
I. hookeriI. ricinusNymphFinland[5]
I. hookeriR. sanguineusNymphUnited States [72]
I. hookeriR. microplus, I. persulcatus,
D. silvarum, H. concinna		AdultCôte d’Ivoire, Senegal, Russia [39]
I. hookeriI. ricinusLarva, NymphNetherlands[8]
I. hookeriI. ricinus, H. concinnaNymphSlovakia[1]
I. hookeriI. ricinusNymphFrance [35]
I. hookeriI. ricinusNymphUnited Kingdom[73]
I. hookeriA. nodosumNymph, AdultBrazil [74]
I. hookeriI. ricinusNymphHungary[6]
NA: Not available.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ramos, R.A.N.; de Macedo, L.O.; Bezerra-Santos, M.A.; de Carvalho, G.A.; Verocai, G.G.; Otranto, D. The Role of Parasitoid Wasps, Ixodiphagus spp. (Hymenoptera: Encyrtidae), in Tick Control. Pathogens 2023, 12, 676. https://doi.org/10.3390/pathogens12050676

AMA Style

Ramos RAN, de Macedo LO, Bezerra-Santos MA, de Carvalho GA, Verocai GG, Otranto D. The Role of Parasitoid Wasps, Ixodiphagus spp. (Hymenoptera: Encyrtidae), in Tick Control. Pathogens. 2023; 12(5):676. https://doi.org/10.3390/pathogens12050676

Chicago/Turabian Style

Ramos, Rafael Antonio Nascimento, Lucia Oliveira de Macedo, Marcos Antônio Bezerra-Santos, Gílcia Aparecida de Carvalho, Guilherme Gomes Verocai, and Domenico Otranto. 2023. "The Role of Parasitoid Wasps, Ixodiphagus spp. (Hymenoptera: Encyrtidae), in Tick Control" Pathogens 12, no. 5: 676. https://doi.org/10.3390/pathogens12050676

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
