Communication

Allelic Variants of P66 Gene in Borrelia bavariensis Isolates from Patients with Ixodid Tick-Borne Borreliosis

by
Kristina Golidonova
1,*,
Eduard Korenberg
1,
Ekaterina Krupinskaya
1,
Vera Matrosova
2 and
Alexander Gintsburg
1
1
N. F. Gamaleya National Research Centre for Epidemiology and Microbiology, 123098 Moscow, Russia
2
Engelhardt Institute of Molecular Biology, Russian Academy of Sciences, 119991 Moscow, Russia
*
Author to whom correspondence should be addressed.
Microorganisms 2022, 10(12), 2509; https://doi.org/10.3390/microorganisms10122509
Submission received: 22 November 2022 / Revised: 9 December 2022 / Accepted: 15 December 2022 / Published: 19 December 2022
(This article belongs to the Special Issue Advanced Research on Ticks and Tick-Borne Diseases)
Browse Figures
Versions Notes

Abstract

:
Protein P66 is one of the crucial virulence factors of Borrelia, inducing the production of specific antibodies in patients with ixodid tick-borne borreliosis (ITBB). Various species of Borrelia are characterized by genetic variability of the surface-exposed loop of P66. However, little is known about this variability in Borrelia bavariensis. Here we describe the variability of the nucleotide sequences of P66 gene locus in isolates of B. bavariensis. Analysis of nucleotide sequences of P66 in 27 isolates of B. bavariensis from ITBB patients revealed three allelic variants of this gene. The alignment score of amino acid sequences in the isolates showed amino acid replacements in various positions confirming the presence of three allelic variants. Two of them are characteristic only for some isolates of B. bavariensis of the Eurasian gene pool from various parts of the geographic ranges of B. bavariensis from various samples. At least three allelic variants of P66 B. bavariensis have been identified, which have different amino acid expression, occur with different frequency in ITBB patients and, presumably, can have different effects on the course of the infection.

1. Introduction

Ixodid tick-borne borrelioses (ITBB) are chronic or recurrent spirochetal zoonotic vector-borne infections of the group Lyme borreliosis affecting various organ systems [1,2,3]. ITBB is induced by spirochetes of the Borrelia genus, transmitted by several species of the Ixodes ricinus/persulcatus complex that is common in the Northern Hemisphere [2,4,5,6,7,8]. Borrelia pathogenic for humans (B. burgdorferi sensu stricto, B. garinii, B. bavariensis, B. afzelii, B. spielmanii, and B. mayonii) [9,10,11] belong to the Borrelia burgdorferi sensu lato complex consisting of more than 20 species [5]. B. bavariensis has been described as an independent species of the genus Borrelia by multilocus typing (MLST) of the Borrelia housekeeping gene [12,13]. This species is differentiated from its closest relative B. garinii [13,14,15,16]. Scientific publications describe B. bavariensis as endemic to Asia, recently spread to Europe [17] because the European population has shown very little genetic variability [18], unlike Asian isolates [14]. In Europe, B. bavariensis has often been associated with neuroborreliosis [19,20,21], and in Japan it is associated with erythema migrans [15]. Besides B. garinii and B. afzelii [2,22,23] B. bavariensis was recently shown to be of specific epidemiological importance in the Russian Federation, often inducing an erythemic form of ITBB [9,16].
Surface membrane proteins are the crucial virulence factors of Borrelia [24]. These proteins are coded by genes controlling three main functions determining the survival of these microorganisms: (1) invade the vertebrate hosts (disseminate), (2) survival and development in a host, (3) and development of infectious process [25]. The chromosomal P66 gene determines the first of these functions. It was first described by J. Bunikis [26], who suggested a topological model of the protein consisting of two intra-membrane proteins connected with a loop located at the surface of a bacterial cell. Computer models show that P66 forms a β-stem with 20–24 transmembrane and 11–12 surface domains [27,28,29]. This protein often forms oligomers [30] and belongs to the porin family with one-channel non-selective (towards anions or cations) conductance [31]. It contributes to the adhesion of the microorganism to mammalian endothelial and other cells and binds to β3 and β1-chains of integrins [32,33]. The ability of P66 to bind to integrins promotes borrelia dissemination in vertebrate hosts [34,35,36]. Enhanced expression of P66 is observed in full fed, but not unfed ticks as well as in infected experimental mammals [37,38], therefore demonstrating that the protein is probably produced when the bacteria are in a mammalian host.
P66 is used as an antigen for serological analysis of ITBB and the specific IgM and/or IgG are observed in most patients [10,39,40,41]. Immune response to P66 of B31T B. burgdorferi sensu stricto is directed by the surface domain of the loop, containing the epitope [42] which binds to monoclonal antibody H1337 [26,39,43]. This structure is of specific importance for the immune response [28,43,44,45,46].
Lately, the variability of the nucleotide sequences of p66 was described in B. burgdorferi, B. garinii, B. afzelii, and B. miyamotoi [42,44,47,48,49,50,51]. However, little is known about the genetic variability in B. bavariensis. Here we describe the variability of the nucleotide sequences of P66 gene locus in isolates of B. bavariensis.

2. Materials and Methods

2.1. Study Area

The study was performed on 27 primary isolates of Borrelia from patients of the Perm Regional Clinical Hospital of Infectious Diseases located in the east of Eastern Europe (58°00′50′′ N; 56°15′56′′ E). The main part of the Perm region is in the low-hill terrain of the middle Urals covered by Southern taiga. Ixodes persulcatus is the only vector of the causative agent of borrelioses for humans in this region. Natural reservoir hosts of these microorganisms include several species of small mammals [52,53,54,55,56]. Natural foci of borreliosis in this region contain three species of pathogenic borrelia, B. garinii, B. afzelii, and B. bavariensis [2,10,16,22,23]. The Perm region has the highest annual incidence of ITBB in the Russian Federation [53,54]. In 2021, it was 3.71 per 100,000 [56]. The regional features of clinical manifestations of ITBB were described previously [53,54].

2.2. Ethical Statement

Borrelia isolates were obtained in 1992 and 2006 from patients with a localized stage of the manifest form of ITBB accompanied by erythema migrans and including neurological manifestations, which manifested in some patients during their dispensary observation [56]. For seeding, completely impersonal residual biomaterials were used, provided by the attending physicians of the above Perm Regional Clinical Hospital of Infectious Diseases, which were taken from patients for diagnostic purposes. Information on the isolation of isolates from these biomaterials was published in 1998 and 2009 [54,57]. Therefore, this article uses materials obtained before the introduction of the requirement for the need for a “Statement of Informed Consent” from patients and cannot be presented by the authors at the present time.

2.3. Isolates of Borrelia

Bacteria from skin biopsies of the peripheral part of erythema migrans (17 isolates, Hs-1 to Hs-80) or blood plasma (10 isolates, Hs-102 to Hs-163) of patients were cultivated in BSK medium at 33 °C for one month [54,57]. Aliquots of the primary isolates stored in glycerol at −70 °C at the Borrelia Museum in the Vectors of Infections Laboratory of the N. F. Gamaleya National Research Center for Epidemiology and Microbiology of the Russian Federation Ministry of Health were used for the study [58]. The museum number of each isolate has an abbreviation “Hs” (Homo sapiens) indicating its source. Detailed information on the isolates was published previously [16].
DNA isolation was conducted using a commercial “PROBA-NK” kit (DNK-tekhnologia, Moscow, Russia). Previously, applying the multilocus sequence typing method using six recommended housekeeping genes and the intergenic spacer rrfA-rrlB [59], we confirmed that the studied isolates belong to B. bavariensis [16].

2.4. PCR Amplification

Polymerase chain reaction (PCR) was performed in the final volume of 30 µL. The mixture contained 1 U Tag polymerase, 10× buffer with MgCl2, 0.2 mM dNTP’s, 3 µL DNA, and mQ (with 0.3 µM of primers). Primers GAAATCTCAAGCTATGAAGAC (forward) and CTACATATGCTTCTGTTGAAATGG (reverse) flanking 280 nucleotide pairs of p66 gene locus were used [45]. The forward primer was modified (C replaced by T in the position 6) using the Primer-BLAST software for better amplification of the isolates.
The PCR was done using the Eppendorf amplifier (Eppendorf, Hamburg, Germany). The reaction mixture was heated to 94 °C for 1 min, then exposed to 30 cycles of denaturation (30 s, 94 °C), annealing (30 s, 53 °C), elongation (30 s, 72 °C), and final elongation (5 min, 94 °C). Purification of PCR products (280 bp) was performed by the ethanol-acetate method and commercial kits Cleanup S-Cap (Eurogen, Moscow, Russia) and GeneJET Gel Extraction Kit (Thermo Scientific, Waltham, MA, USA).

2.5. Sequencing

Amplicon sequencing was conducted using the BigDye™ Terminator v3.1 Cycle Sequencing Kit (Thermo Scientific, USA). The following analysis of reaction products using forward and reverse primers was conducted using the automatic sequenator 3500xL Genetic Analyzer (Applied Biosystems, Waltham, MA, USA) of the Center of Collective Use “Genome” (Engelhardt Institute of Molecular Biology, Russian Academy of Sciences) [60]. Analysis of results was made using BLAST [61], Sequence Skanner, BioEdit, SeqMan and Jalview software. Three-parameter Tamura evolutionary model was used for nucleotide sequences, and Jones-Taylor-Thornton model was used for the amino acid sequences. Dendrograms were created in MEGA11 software using maximum likelihood method and bootstrap 1000 repeats.

2.6. Accession Numbers

Nucleotide sequences of the four loci representing various allelic variants of P66 were deposited in GenBank INSDC (OP561855-OP561858).

3. Results

3.1. Analaysis of Nucleotide Sequences of p66 Gene Loci from B. bavariensis Isolates

Analysis of nucleotide sequences of P66 gene loci of all 27 isolates from ITBB patients showed most of the sequences (20 out of 27 isolates) were identical. The remaining seven isolates differed. Hs-6, Hs-7, Hs-128, and Hs-163 were identical with each although differing from 20 identical isolates by 1.8%, and differing from isolates Hs-10 and Hs-80 by 2.1%. Isolate Hs-139 showed 96.8% minimal similarity with Hs-10 and Hs-80, and below 98.9% similarity with Hs-6, Hs-7, Hs-128, and Hs-163. The similarity between Hs-139 and the 20 identical isolates was 97.1%. Data by results indicated that various allelic variants of the nucleotide sequences of analyzed gene loci were present among the analyzed isolates. A dendrogram depicting these differences suggested that there were at least two allelic variants of p66 (Figure 1).
One allelic variant was observed in most of the studied isolates (20 out of 27), which were isolated from samples of skin or blood plasma of patients. This group also included the sequences of the Hs-10 and Hs-80 isolates (Figure 1), which slightly differed from other isolates (one nucleotide substitution in different positions (Figure 2)).
Another allelic variant (Figure 1) was observed in four isolates (Hs-6, Hs-7, Hs-128, and Hs-163), two of which were isolated from skin samples and two from blood plasma of patients. In contrast to the first variant, the nucleotide sequences of these isolates possessed five nucleotide substitutions in similar positions (130, 164, 179, 213, 216). Moreover, we observed three additional nucleotide substitutions in positions 30, 33, and 34 in the Hs-139 isolate locus isolated from blood plasma of patient (Figure 2). These results suggested the presence of the third allelic variant of P66 among the studied isolates.

3.2. Analysis of Predicted Amino Acid Sequences of P66 from B. bavariensis Isolates

The nucleotide substitutions observed in P66 gene loci could be silent or affecting the amino acid composition of the protein. This might influence the pathogenic properties of P66 in corresponding isolates. We checked the hypothesis that there are three allelic variants by creating a dendrogram of the predicted amino acid comprising the 93 residue P66 protein (Figure 3). It was very similar to the Figure 1 reflecting the presence of at least three allelic variants of P66 gene. As shown in the Figure 1, one of them is more abundant (was observed in 22 isolates). The second variant was observed in the Hs-6, Hs-7, Hs-128, and Hs-163 isolates, and the third one only in the Hs-139 isolate. The position of the Hs-10 isolate on the dendrogram (Figure 3) allows to distinguish it even from the Hs-80 isolate characterized by maximal similarity to it (Figure 1).
Presence of three allelic variants of p66 was also supported by differences in amino acid sequences (Figure 4). The alignment score shows the amino acid sequences of P66 loop from all analyzed isolates. It also contains corresponding information on various species of B. burgdorferi sensu lato observed using a search with the “nucleotide collection” and “shotgun sequence” search set of databases. The alignment score variants for Hs-1, Hs-6, and Hs-139 isolates containing each of the observed allelic variants are presented in the Figure 4. Moreover, it shows the different isolate Hs-10 and similar structures of B. bavariensis found in the database.
Amino sequence of the Hs-6 allelic variant differs profoundly from the sequence of the major variant class (Hs-1 and others). By comparison the Hs-6 sequence has substitutions of serin to alanine (position 44), glutamic acid to glycine (position 55), and isoleucine to threonine (position 60). These substitutions might result in the changes in the configuration of the P66 loop as two polar amino acids were substituted by non-polar amino acids and vice versa.
Amino acid composition of the protein from the Hs-139 isolate additionally possessed a substitution of lysine to asparagine and leucine to phenylalanine. Thus, a polar positively charged amino acid was substituted by a polar non-charged, and a non-polar aliphatic amino acid was substituted by a non-polar aromatic amino acid (positions 10 and 12, respectively). These substitutions might significantly affect loop conformation of P66.
In the Hs-10 isolate, the amino acid sequence was very similar to it in the Hs-1 isolate. However, asparagine in the position 8 was substituted by isoleucine (polar to non-polar amino acid). These results suggest that besides the three described allelic variant of P66 B. bavariensis, one more variant could exist. However, this suggestion requires additional experiments.
A comparison of predicted amino acid sequences of P66 loop in B. bavariensis isolates we studied with those of 68 strains of this and other B. burgdorferi sensu lato species from the GenBank database, which had over 98% coverage, showed that they were similar only to allelic variants of B. bavariensis isolated in different regions from various sources, and different from sequences of other Borrelia species, which therefore are not shown in Figure 1, Figure 2, Figure 3 and Figure 4.

4. Discussion

We analyzed the genetic variability of P66 gene locus from Borrelia from skin biopsies and blood plasma of the patients with acute ITBB. All studied isolates belonged to the Eurasian genetic subgroup of B. bavariensis [16,62]. This is, to our knowledge, the first study devoted to this species of Borrelia.
Gene P66 locus consists of 280 bp and includes the sequence coding the surface domain (23–61 bp Figure 4, similar to 454–491 bp of B. burgdorferi sensu stricto B31T). This domain determines the immune response against P66 of B. burgdorferi sensu lato. Similar to B. garinii, the nucleotide sequence contains the AAG/AAA triplet at the position 120 (Figure 2), which is not present in B. burgdorferi sensu stricto B31T strain [39]. The insertion of this triplet affects the structure of the P66 loop. It determines the appearance of threonine and serine (positions 40 and 41, respectively; Figure 4) in B. bavariensis and B. garinii. Therefore, two similar species, B. bavariensis and B. garinii, are characterized by the presence of this triplet.
Three allelic variants of nucleotide sequences of P66 and corresponding amino acid sequences were found among the studied isolates of B. bavariensis. These variants were observed in the isolates Hs-1, Hs-6, and Hs-139 (Figure 1 and Figure 3). The sequences corresponding to the allelic variant Hs-1 were revealed in most of the isolates and were similar to sequences from the GenBank database. These sequences are identical for B. bavariensis isolated from ticks I. persulcatus found in Russian Federation (isolate names—Arh913, and Tom2806), China (NMJW1), and Japan (NT24, FujiP2, and Konnai17), Dermacentor sp. from China (SZ), and a human skin biopsy from Japan (J14). The Russian Arh923, Prm7564-11, Prm7019, and Tom3506 isolated from I. persulcatus, as well as the Japanese Hiratsuka isolated from a human skin biopsy are similar to the Hs-6 isolate characterized by another allelic variant. However, the GenBank database does not have nucleotide and amino acid sequences, which are homologous to the Hs-139 allelic variant observed in our study. We also did not find these data for the different Hs-10 isolate, which allelic status needs to be investigated in more detail. Our results suggest that the observed allelic variants of P66 gene locus from B. bavariensis isolates circulate in Eurasian natural foci of ITBB with I. persulcatus as the main vector. However, little is known about possible polymorphisms of this gene in borrelia in natural foci of ITBB with I. ricinus as the main vector.
Genetic polymorphism of P66 gene locus was also observed in other species of Borrelia causing ITBB. For example, 12 allelic variants are found in B. burgdorferi sensu stricto [44]. B. afzelii is characterized by seven allelic variants, five of which were observed in the same natural foci [48,49]. Altogether, our and published data show the possibility of infection of human population with various allelic variants of vectors of ITBB.
Previous research observed five variants of P66 loop in B. garinii [39]. Authors of another research found only three variants of amino acid sequences in this species [51], which were analogous to ones observed in our study. Particularly, Chinese isolates IM91-13 and JC2-2 were similar to Hs-1 and Hs-6 (respectively) in amino acid positions 44, 55, and 60 (454-491 bp of B. burgdorferi s. s. B31T). However, as distinct from all isolates analyzed in our study, JC2-2 has a glutamic acid in the position 51 (E).
Immunology research of patients with ITBB were not the focus of our research. However, previous data showing the specific features of immune response against P66 of B. burgdorferi sensu lato [29,40,41,43,45,46,63] allow us to suggest that the observed variants of amino acid sequences of this protein in B. bavariensis might affect the immune response in patients to a certain extent. The isolates investigated in this article were obtained from humans with ITBB accompanied by erythema migrans, and like most of the isolates obtained from humans in Takano et al. [15] belong to the Eurasian subgroup of B. bavariensis [16], previously known as B. garinii NT29 [29,40,41,43,45,46,63]. Its wide distribution in natural foci of ITBB in Russia and circulation among various vectors and reservoir hosts [29,40,41,43,45,46,63,64,65] was demonstrated, and it was suggested that B. garinii NT29 might be the etiological agent of erythemic forms of ITBB in Russia more often than other Borrelia [29,40,41,43,45,46,63], whereas the European subgroup of B. bavariensis is often associated with neuroborreliosis [19,20,21]. It is possible that both genetic subgroups have a different course of ITBB, but this requires further research.

5. Conclusions

At least three allelic variants of P66 B. bavariensis have been identified, which have different amino acid expression, and which occur with different frequency in ITBB patients. Analysis of amino acid sequences of P66 loop of B. bavariensis showed the presence of hypervariable epitope, which presumably can affect the pathogenic properties of Borrelia, as well as have a different effect on the course of ITBB.

Author Contributions

Conceptualization, E.K. (Eduard Korenberg); validation, E.K. (Eduard Korenberg) and K.G.; investigation, E.K. (Ekaterina Krupinskaya), V.M. and K.G.; data curation, E.K. (Eduard Korenberg); writing—original draft preparation, K.G.; writing—review and editing, E.K. (Eduard Korenberg); supervision, A.G.; project administration, A.G. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the National Research Center for Epidemiology and Microbiology named after the honorary academic N. F. Gamaleya: State Registration Number 121030900383-2.

Data Availability Statement

This article does not contain any studies involving humans as primary objects of research.

Acknowledgments

The authors express their gratitude to the institute and laboratory colleagues who provided advice, support, and assistance in the work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Piesman, J.; Gern, L. Lyme Borreliosis in Europe and North America. Parasitology 2004, 129, S191–S220. [Google Scholar] [CrossRef] [PubMed]
  2. Korenberg, E.; Pomelova, V.; Osin, N. Infections with Natural Focality Transmitted by Ixodid Ticks; OOO Comment: Moscow, Russia, 2013; pp. 174–232. ISBN 978-5-94822-070-3. (In Russian) [Google Scholar]
  3. Stanek, G.; Strle, F.; Gray, J.; Wormser, G.P. History and characteristics of Lyme Borreliosis. In Lyme Borreliosis: Biology, Epidemiology and Control; Gray, J., Kahl, O., Lane, R.S., Stanek, G., Eds.; CABI Publishing: Wallingford, UK, 2002; pp. 1–28. ISBN 0851996329. [Google Scholar]
  4. Filippova, N.A. A Hypothesis for the paleogenesis of the distribution of the main vectors for the Lyme Disease. In Modern Acarology; Dusbábek, F., Bukva, V., Eds.; Academia: Prague, Czechia, 1991; Volume 1, pp. 109–118. [Google Scholar]
  5. Radolf, J.D.; Samuels, D.S. Borrelia: Molecular Biology, Host Interaction and Pathogenesis; Radolf, J.D., Samuels, D.S., Eds.; Caister Academic Press: Poole, UK, 2021; pp. 703–754. ISBN 978-1-913652-61-6. [Google Scholar]
  6. Keirans, J.E.; Needham, G.R.; Oliver, J.H. The Ixodes ricinus complex worldwide: Diagnosis of the species in the complex, hosts and distribution. In Proceedings of the Acarology IX, Symposia; Needham, G.R., Mitchell, R., Horn, D.J., Calvin, W., Eds.; Ohio Biological Survey: Columbus, OH, USA, 1999; pp. 341–347. [Google Scholar]
  7. Eisen, L.; Lane, R.S. Vectors of Borrelia Burgdorferi sensu lato. In Lyme Borreliosis: Biology, Epidemiology and Control; Gray, J., Kahl, O., Lane, R.S., Stanek, G., Eds.; CABI Publishing: Wallingford, UK, 2002; pp. 91–115. ISBN 9780851996325. [Google Scholar]
  8. Kurtenbach, K.; Hanincová, K.; Tsao, J.I.; Margos, G.; Fish, D.; Ogden, N.H. Fundamental processes in the evolutionary ecology of Lyme Borreliosis. Nat. Rev. Microbiol. 2006, 4, 660–669. [Google Scholar] [CrossRef] [PubMed]
  9. Nefedova, V.V.; Korenberg, E.I.; Gorelova, N.B. Multilocus sequence analysis of “atypical” Borrelia burgdorferi sensu lato isolated in Russia. Mol. Gen. Microbiol. Virol. 2017, 32, 196–203. [Google Scholar] [CrossRef]
  10. Hunfeld, K.-P.; Gray, J. (Eds.) . Lyme Borreliosis; Springer International Publishing: Cham, Switzerland, 2022; pp. 1–30. ISBN 978-3-030-93679-2. [Google Scholar]
  11. Margos, G.; Vollmer, S.A.; Ogden, N.H.; Fish, D. Population genetics, taxonomy, phylogeny and evolution of Borrelia burgdorferi sensu lato. Infect. Genet. Evol. 2011, 11, 1545–1563. [Google Scholar] [CrossRef] [Green Version]
  12. Margos, G.; Vollmer, S.A.; Cornet, M.; Garnier, M.; Fingerle, V.; Wilske, B.; Bormane, A.; Vitorino, L.; Collares-Pereira, M.; Drancourt, M.; et al. A new Borrelia species defined by multilocus sequence analysis of housekeeping genes. Appl. Environ. Microbiol. 2009, 75, 5410–5416. [Google Scholar] [CrossRef] [Green Version]
  13. Margos, G.; Wilske, B.; Sing, A.; Hizo-Teufel, C.; Cao, W.-C.; Chu, C.; Scholz, H.; Straubinger, R.K.; Fingerle, V. Borrelia bavariensis sp. nov. is widely distributed in Europe and Asia. Int. J. Syst. Evol. Microbiol. 2013, 63, 4284–4288. [Google Scholar] [CrossRef] [Green Version]
  14. Margos, G.; Fingerle, V.; Reynolds, S. Borrelia bavariensis: Vector switch, niche invasion, and geographical spread of a tick-borne bacterial parasite. Front. Ecol. Evol. 2019, 7, 401. [Google Scholar] [CrossRef] [Green Version]
  15. Takano, A.; Nakao, M.; Masuzawa, T.; Takada, N.; Yano, Y.; Ishiguro, F.; Fujita, H.; Ito, T.; Ma, X.; Oikawa, Y.; et al. Multilocus sequence typing implicates rodents as the main reservoir host of human-pathogenic Borrelia garinii in Japan. J. Clin. Microbiol. 2011, 49, 2035–2039. [Google Scholar] [CrossRef] [Green Version]
  16. Golidonova, K.A.; Korenberg, E.I.; Gorelova, N.B.; Ginzburg, A.L. Multilocus sequence analysis of isolates from patients with the erythemic form of Ixodid Tick-Borne Borrelioses. Mol. Gen. Microbiol. Virol. 2021, 36, 170–175. [Google Scholar] [CrossRef]
  17. Becker, N.S.; Rollins, R.E.; Nosenko, K.; Paulus, A.; Martin, S.; Krebs, S.; Takano, A.; Sato, K.; Kovalev, S.Y.; Kawabata, H.; et al. High conservation combined with high plasticity: Genomics and evolution of Borrelia bavariensis. BMC Genom. 2020, 21, 702. [Google Scholar] [CrossRef]
  18. Gatzmann, F.; Metzler, D.; Krebs, S.; Blum, H.; Sing, A.; Takano, A.; Kawabata, H.; Fingerle, V.; Margos, G.; Becker, N.S. NGS Population genetics analyses reveal divergent evolution of a Lyme Borreliosis agent in Europe and Asia. Ticks Tick-Borne Dis. 2015, 6, 344–351. [Google Scholar] [CrossRef] [PubMed]
  19. Wilske, B.; Busch, U.; Eiffert, H.; Fingerle, V.; Pfister, H.-W.; Rössler, D.; Preac-Mursic, V. Diversity of OspA and OspC among cerebrospinal fluid isolates of Borrelia burgdorferi sensu lato from patients with neuroborreliosis in Germany. Med. Microbiol. Immunol. 1996, 184, 195–201. [Google Scholar] [CrossRef] [PubMed]
  20. Fingerle, V.; Schulte-Spechtel, U.C.; Ruzic-Sabljic, E.; Leonhard, S.; Hofmann, H.; Weber, K.; Pfister, K.; Strle, F.; Wilske, B. Epidemiological aspects and molecular characterization of Borrelia burgdorferi s. l. from Southern Germany with special respect to the new species Borrelia spielmanii sp. nov. Int. J. Med. Microbiol. 2008, 298, 279–290. [Google Scholar] [CrossRef] [PubMed]
  21. Coipan, E.C.; Jahfari, S.; Fonville, M.; Oei, G.A.; Spanjaard, L.; Takumi, K.; Hovius, J.W.R.; Sprong, H. Imbalanced presence of Borrelia burgdorferi s. l. multilocus sequence types in clinical manifestations of Lyme Borreliosis. Infect. Genet. Evol. 2016, 42, 66–76. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Postic, D.; Korenberg, E.; Gorelova, N.; Kovalevski, Y.; Bellenger, E.; Baranton, G. Borrelia burgdorferi sensu lato in Russia and neighboring countries: High incidence of mixed isolates. Microbiol. Res. 1997, 148, 691–702. [Google Scholar] [CrossRef]
  23. Korenberg, E.I.; Gorelova, N.B.; Kovalevskii, Y.V. Ecology of Borrelia burgdorferi sensu lato in Russia. In Lyme Borreliosis: Biology, Epidemiology and Control; CABI: Wallingford, UK, 2002; pp. 175–200. [Google Scholar] [CrossRef]
  24. Samuels, D.S.; Radolf, J.D. (Eds.) . Borrelia: Molecular Biology, Host Interaction and Pathogenesis; Caister Academic Press: Poole, UK, 2010; pp. 299–331. ISBN 978-1-904455-58-5. [Google Scholar]
  25. Coburn, J.; Garcia, B.; Hu, L.T.; Jewett, M.W.; Kraiczy, P.; Norris, S.J.; Skare, J. Lyme Disease Pathogenesis. Curr. Issues Mol. Biol. 2022, 42, 473–518. [Google Scholar] [CrossRef]
  26. Bunikis, J.; Noppa, L.; Bergstram, S. Molecular analysis of a 66-KDa protein associated with the outer membrane of Lyme Disease Borrelia. FEMS Microbiol. Lett. 1995, 131, 139–145. [Google Scholar] [CrossRef]
  27. Bárcena-Uribarri, I.; Thein, M.; Sacher, A.; Bunikis, I.; Bonde, M.; Bergström, S.; Benz, R. P66 porins are present in both Lyme Disease and relapsing fever spirochetes: A comparison of the biophysical properties of P66 porins from six Borrelia species. Biochim. Biophys. Acta Biomembr. 2010, 1798, 1197–1203. [Google Scholar] [CrossRef] [Green Version]
  28. Kenedy, M.R.; Luthra, A.; Anand, A.; Dunn, J.P.; Radolf, J.D.; Akins, D.R. Structural modeling and physicochemical characterization provide evidence that P66 forms a β-barrel in the Borrelia burgdorferi outer membrane. J. Bacteriol. 2014, 196, 859–872. [Google Scholar] [CrossRef]
  29. Curtis, M.W.; Fierros, C.H.; Hahn, B.L.; Surdel, M.C.; Kessler, J.; Anderson, P.N.; Vandewalle-Capo, M.; Bonde, M.; Zhu, J.; Bergström, S.; et al. Identification of amino acid domains of Borrelia burgdorferi P66 that are surface exposed and important for localization, oligomerization, and porin function of the protein. Front. Cell. Infect. Microbiol. 2022, 12, 1415. [Google Scholar] [CrossRef]
  30. Bunikis, I. Borrelia Channel-Forming Proteins: Structure and Function. Ph.D. Thesis, Umeå University, Umeå, Sweden, 2010. [Google Scholar]
  31. Skare, J.T.; Mirzabekov, T.A.; Shang, E.S.; Blanco, D.R.; Erdjument-Bromage, H.; Bunikis, J.; Bergström, S.; Tempst, P.; Kagan, B.L.; Miller, J.N.; et al. The Oms66 (P66) protein is a Borrelia burgdorferi porin. Infect. Immun. 1997, 65, 3654–3661. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Coburn, J.; Chege, W.; Magoun, L.; Bodary, S.C.; Leong, J.M. Characterization of a candidate Borrelia burgdorferi beta3-chain integrin ligand identified using a phage display library. Mol. Microbiol. 1999, 34, 926–940. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Coburn, J.; Cugini, C. Targeted mutation of the outer membrane protein P66 disrupts attachment of the Lyme Disease agent, Borrelia burgdorferi, to integrin α v β 3. Proc. Natl. Acad. Sci. USA 2003, 100, 7301–7306. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Defoe, G.; Coburn, J. Delineation of Borrelia burgdorferi P66 sequences required for integrin α IIb β 3 recognition. Infect. Immun. 2001, 69, 3455–3459. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Kumar, D.; Ristow, L.C.; Shi, M.; Mukherjee, P.; Caine, J.A.; Lee, W.-Y.; Kubes, P.; Coburn, J.; Chaconas, G. Intravital imaging of vascular transmigration by the Lyme spirochete: Requirement for the integrin binding residues of the B. burgdorferi P66 protein. PLoS Pathog. 2015, 11, e1005333. [Google Scholar] [CrossRef]
  36. Ristow, L.C.; Bonde, M.; Lin, Y.; Sato, H.; Curtis, M.; Wesley, E.; Hahn, B.L.; Fang, J.; Wilcox, D.A.; Leong, J.M.; et al. Integrin binding by Borrelia burgdorferi P66 facilitates dissemination but is not required for infectivity. Cell. Microbiol. 2015, 17, 1021–1036. [Google Scholar] [CrossRef] [Green Version]
  37. Brooks, C.S.; Hefty, P.S.; Jolliff, S.E.; Akins, D.R. Global analysis of Borrelia burgdorferi genes regulated by mammalian host-specific signals. Infect. Immun. 2003, 71, 3371–3383. [Google Scholar] [CrossRef] [Green Version]
  38. Cugini, C.; Medrano, M.; Schwan, T.G.; Coburn, J. Regulation of expression of the Borrelia burgdorferi β 3 -chain integrin ligand, P66, in ticks and in culture. Infect. Immun. 2003, 71, 1001–1007. [Google Scholar] [CrossRef] [Green Version]
  39. Bunikis, J.; Noppa, L.; Ostberg, Y.; Barbour, A.G.; Bergström, S. Surface exposure and species specificity of an immunoreactive domain of a 66-kilodalton outer membrane protein (P66) of the Borrelia spp. that cause Lyme Disease. Infect. Immun. 1996, 64, 5111–5116. [Google Scholar] [CrossRef]
  40. Ntchobo, H.; Rothermel, H.; Chege, W.; Steere, A.C.; Coburn, J. Recognition of multiple antibody epitopes throughout Borrelia burgdorferi P66, a candidate adhesin, in patients with early or late manifestations of Lyme Disease. Infect. Immun. 2001, 69, 1953–1956. [Google Scholar] [CrossRef] [Green Version]
  41. Nowalk, A.J.; Gilmore, R.D.; Carroll, J.A. Serologic proteome analysis of Borrelia burgdorferi membrane-associated proteins. Infect. Immun. 2006, 74, 3864–3873. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Clark, K. Borrelia species in host-seeking ticks and small mammals in Northern Florida. J. Clin. Microbiol. 2004, 42, 5076–5086. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Bunikis, J.; Luke, C.J.; Bunikiene, E.; Bergström, S.; Barbour, A.G. A surface-exposed region of a novel outer membrane protein (P66) of Borrelia spp. is variable in size and sequence. J. Bacteriol. 1998, 180, 1618–1623. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Bunikis, J.; Garpmo, U.; Tsao, J.; Berglund, J.; Fish, D.; Barbour, A.G. Sequence typing reveals extensive strain diversity of the Lyme borreliosis agents Borrelia burgdorferi in North America and Borrelia afzelii in Europe. Microbiology 2004, 150, 1741–1755. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Ornstein, K.; Östberg, Y.; Bunikis, J.; Noppa, L.; Berglund, J.; Norrby, R.; Bergström, S. Differential immune response to the variable surface loop antigen of P66 of Borrelia burgdorferi sensu lato species in geographically diverse populations of Lyme borreliosis patients. Clin. Diagn. Lab. Immunol. 2002, 9, 1382–1384. [Google Scholar] [CrossRef] [Green Version]
  46. Morozov, A.V.; Korenberg, E.I.; Fadeeva, I.A.; Gorelova, N.B. Difference in amino acid sequences of B. afzelii P66 surface-exposed loop region. Mol. Gen. Microbiol. Virol. 2008, 1, 38–41. (In Russian) [Google Scholar]
  47. Clark, K.; Hendricks, A.; Burge, D. Molecular identification and analysis of Borrelia burgdorferi sensu lato in lizards in the southeastern United States. Appl. Environ. Microbiol. 2005, 71, 2616–2625. [Google Scholar] [CrossRef] [Green Version]
  48. Fadeeva, I.A.; Korenberg, E.I.; Nefedova, V.V.; Andreĭchuk, I.V.; Markov, A.V.; Shaginian, I.A. Genetic heterogeneity of Borrelia afzelii in the natural focus of the Middle Urals. Zh. Mikrobiol. Epidemiol. Immunobiol. 2006, 3, 27–30. (In Russian) [Google Scholar]
  49. Fadeeva, I.; Korenberg, E.; Andreichuk, Y.; Markov, A.; Gorelova, N. Allelic variants of Borrelia afzelii identified by sequencing of the chromosomal p66 gene. Mol. Gen. Microbiol. Virol. 2006, 2, 33–36. (In Russian) [Google Scholar]
  50. Pukhovskaya, N.M.; Morozova, O.V.; Vysochina, N.P.; Belozerova, N.B.; Ivanov, L.I. Prevalence of Borrelia burgdorferi sensu lato and Borrelia miyamotoi in ixodid ticks in the Far East of Russia. Int. J. Parasitol. Parasites Wildl. 2019, 8, 192–202. [Google Scholar] [CrossRef]
  51. Hao, Q.; Liu, H.X.; Hou, X.X.; Zhang, L.; Yang, X.N.; Wan, K.L. Polymorphism of P66 in Borrelia burgdorferi strains in China. Biomed. Environ. Sci. 2021, 34, 364–371. [Google Scholar] [CrossRef] [PubMed]
  52. Kovalevskii, Y.; Korenberg, E.; Gorelova, N. Long-term dynamics of the epizootic process in natural foci of ixodid tick borrelioses in mountain taiga forests of the Middle Ural. Parazitologiya 2004, 38, 105–121. (In Russian) [Google Scholar]
  53. Korenberg, E.; Vorobyeva, N.; Sumlivaya, O.; Frizen, V.; Afanasyeva, M. Infections transmitted by ixodid ticks in the Perm Territory (etiology, epidemiology, pathogenesis, clinic, diagnosis, treatment and prevention). In Methodical Recommendations for Doctors; Perm State Medical University named after Academician E. A. Wagner (PSMU): Perm, Russia, 2007. (In Russian) [Google Scholar]
  54. Nefedova, V.; Teterin, V.; Korenberg, E.; Gorelova, N.; Vorobyeva, N.; Frizen, V. Isolation of the causative agent of ixodid tick-borne borreliosis from the blood of patients. Zh. Mikrobiol. Epidemiol. Immunobiol. 2009, 1, 63–66. (In Russian) [Google Scholar]
  55. Nikolenko, V.V.; Vorobyova, N.N.; Merkuryeva, E.V.; Nikolenko, A.V.; Suslina, O.A. Lyme borreliosis: Clinical and epidemiological features of its course in the territory of large industrial center of western Urals. Perm Med. J. 2020, 37, 46–53. (In Russian) [Google Scholar] [CrossRef]
  56. Federal Service for Supervision of Consumer Rights Protection and Human Welfare. On the State of Sanitary and Epidemiological Well-Being of the Population in the Russian Federation in 2021: State Report; Federal Service for Supervision of Consumer Rights Protection and Human Welfare, Moscow, Russia. 2022. Available online: https://www.rospotrebnadzor.ru/upload/iblock/594/sqywwl4tg5arqff6xvl5dss0l7vvuank/Gosudarstvennyy-doklad.-O-sostoyanii-sanitarno_epidemiologicheskogo-blagopoluchiya-naseleniya-v-Rossiyskoy-Federatsii-v-2021-godu.pdf (accessed on 30 September 2022). (In Russian).
  57. Vorobyeva, N.; Korenberg, E.; Gorelova, N.; Postic, D.; Zapyantsev, A. Preliminary data on the etiology of erythemic form of ixodid tick-borne borrelioses in the Perm region. In Proceedings of the All-Russian Scientific and Practical Conference of Omsk Research Institute of Natural Focal Infections of the Russian Federation “Natural Focal Infections in Russia: Modern Epidemiology, Diagnostics, Tactics for Protecting the Population”, Omsk, Russia, 20 October 1998; pp. 77–78. (In Russian). [Google Scholar]
  58. Korenberg, E.; Gorelova, N.; Ershov, I.; Golidonova, K. Electronic Database of the Museum of Spirochete Isolates of the Genus Borrelia. RU Patent No. 2020621769, 2020. Rospatent, Federal Service for Intellectual Property. Available online: https://www.elibrary.ru/item.asp?id=44103995 (accessed on 30 September 2020). (In Russian).
  59. Richter, D.; Postic, D.; Sertour, N.; Livey, I.; Matuschka, F.-R.; Baranton, G. Delineation of Borrelia burgdorferi sensu lato species by multilocus sequence analysis and confirmation of the delineation of Borrelia spielmanii sp. nov. Int. J. Syst. Evol. Microbiol. 2006, 56, 873–881. [Google Scholar] [CrossRef]
  60. Center for Collective Use “GENOM”. Available online: http://Www.Genome-Centre.Ru (accessed on 21 November 2022).
  61. BLAST. Available online: https://blast.ncbi.nlm.nih.gov/Blast.cgi (accessed on 21 November 2022).
  62. Golidonova, K.A.; Korenberg, E.I.; Gorelova, N.B. Borrelia bavariensis—The etiological agent of ixodid tick-borne borreliosis (ITTB) common in Russia. Z Infektol. 2022, 14, 17. (In Russian) [Google Scholar]
  63. Arnaboldi, P.M.; Dattwyler, R.J. Cross-reactive epitopes in Borrelia burgdorferi P66. Clin. Vaccine Immunol. 2015, 22, 840–843. [Google Scholar] [CrossRef] [Green Version]
  64. Mukhacheva, T.A.; Kovalev, S.Y. Multilocus sequence analysis of Borrelia burgdorferi s. l. in Russia. Ticks Tick-Borne Dis. 2013, 4, 275–279. [Google Scholar] [CrossRef]
  65. Nefedova, V.V.; Korenberg, E.I.; Gorelova, N.B. Genetic variants of Borrelia garinii, a widely spread eurasian pathogen of Ixodid Tick Borreliosis. Mol. Gen. Microbiol. Virol. 2010, 3, 7–12. (In Russian) [Google Scholar]
Microorganisms 10 02509 g001 550

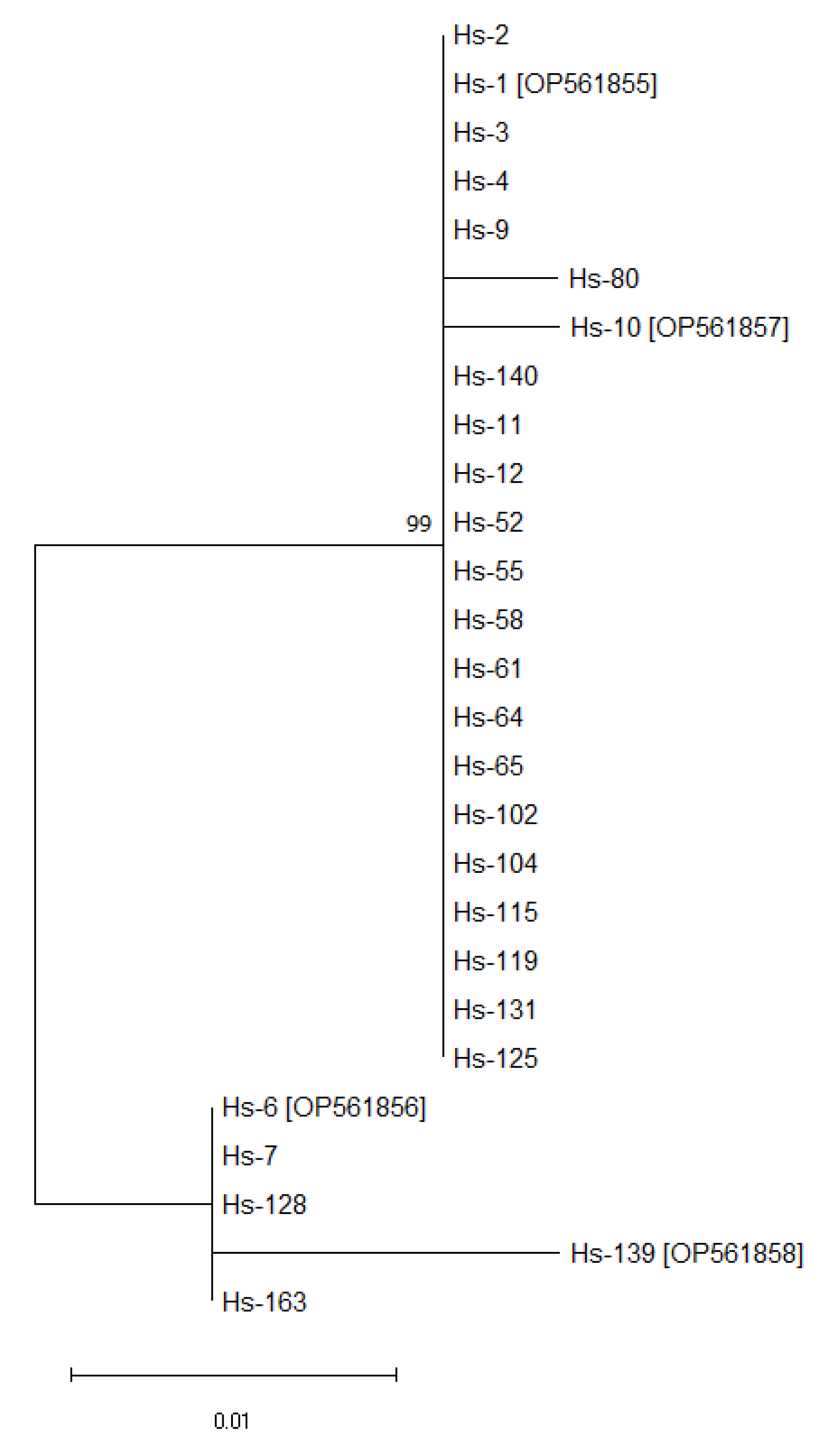

Figure 1. Dendrogram of nucleotide sequences of P66 gene loci from 27 isolates of B. bavariensis. Created using three-parameter Tamura evolutionary model and maximum likelihood method (MEGA11 software; bootstrap 1000 repeats). GenBank numbers are between brackets.
Figure 1. Dendrogram of nucleotide sequences of P66 gene loci from 27 isolates of B. bavariensis. Created using three-parameter Tamura evolutionary model and maximum likelihood method (MEGA11 software; bootstrap 1000 repeats). GenBank numbers are between brackets.
Microorganisms 10 02509 g001
Microorganisms 10 02509 g002 550

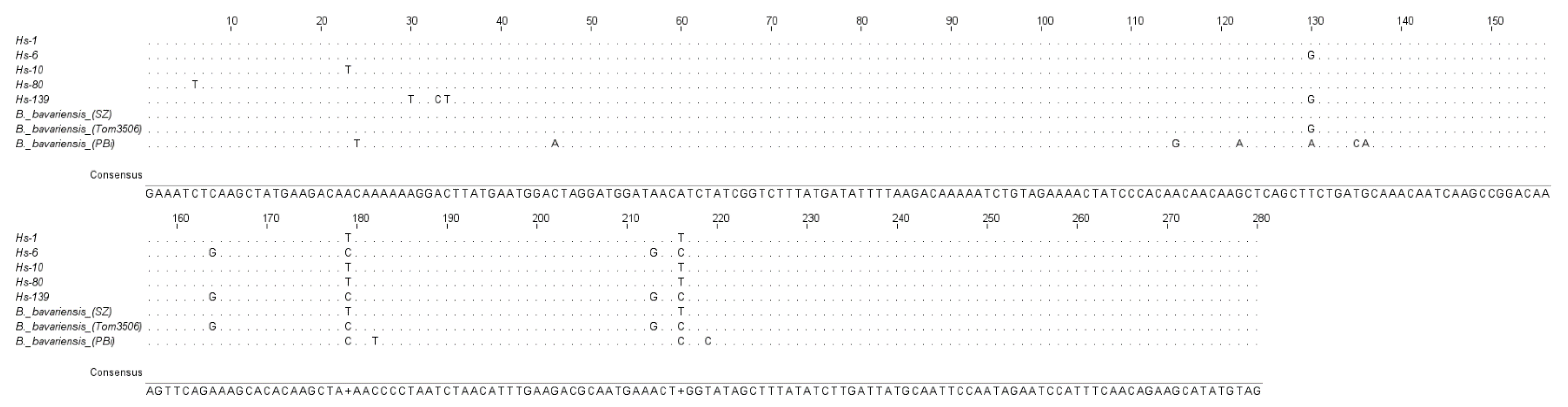

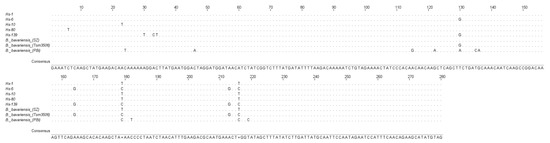

Figure 2. Nucleotide sequences of P66 gene loci of B. bavariensis in isolates with different allelic variants. The sequences were compared with other sequences of this gene taken from the GenBank database.
Figure 2. Nucleotide sequences of P66 gene loci of B. bavariensis in isolates with different allelic variants. The sequences were compared with other sequences of this gene taken from the GenBank database.
Microorganisms 10 02509 g002
Microorganisms 10 02509 g003 550

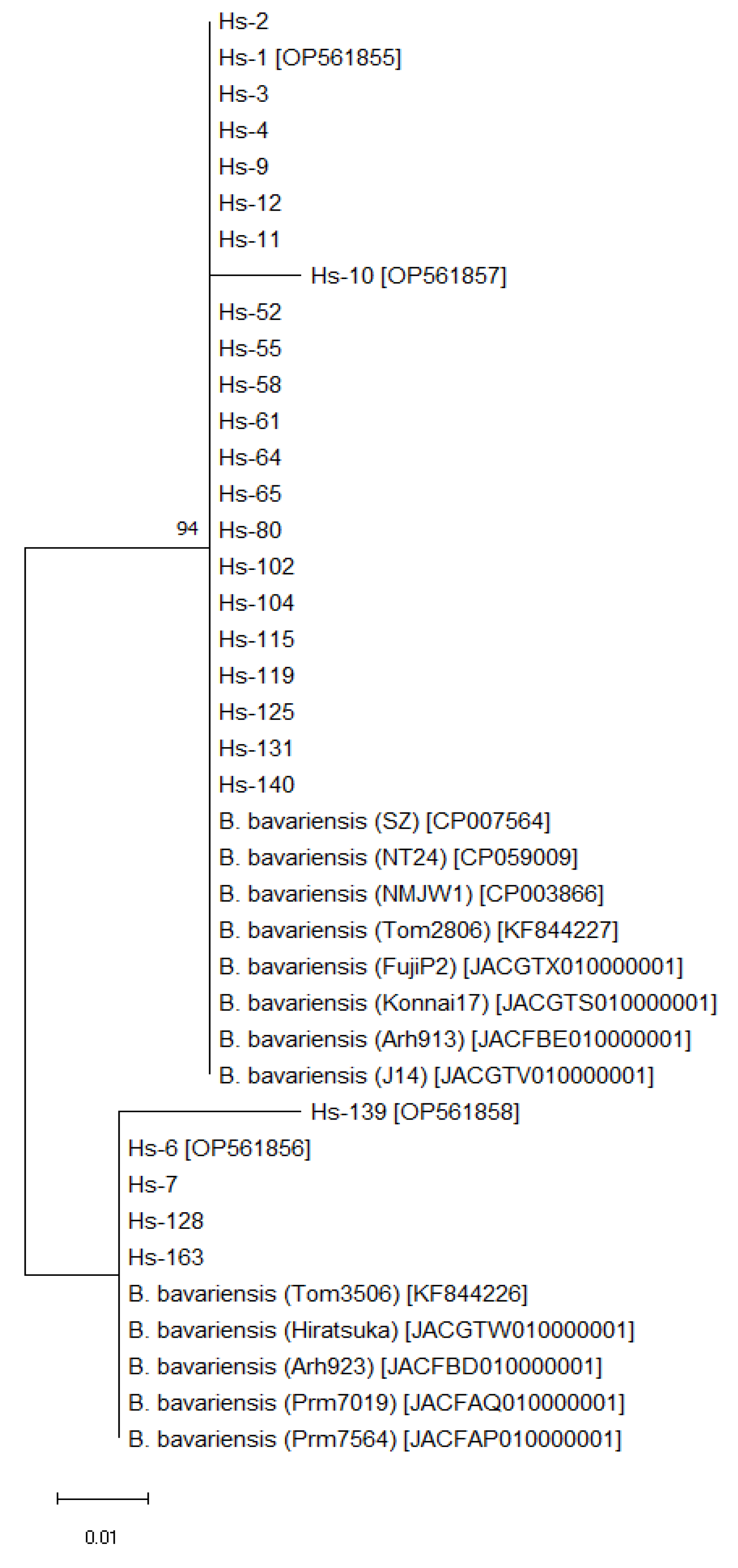

Figure 3. Dendrogram of amino acid sequences of P66 from B. bavariensis isolates. Created using Jones-Taylor-Thornton model and maximum likelihood method (MEGA11 software; bootstrap 1000 repeats). GenBank numbers are between brackets.
Figure 3. Dendrogram of amino acid sequences of P66 from B. bavariensis isolates. Created using Jones-Taylor-Thornton model and maximum likelihood method (MEGA11 software; bootstrap 1000 repeats). GenBank numbers are between brackets.
Microorganisms 10 02509 g003
Microorganisms 10 02509 g004 550

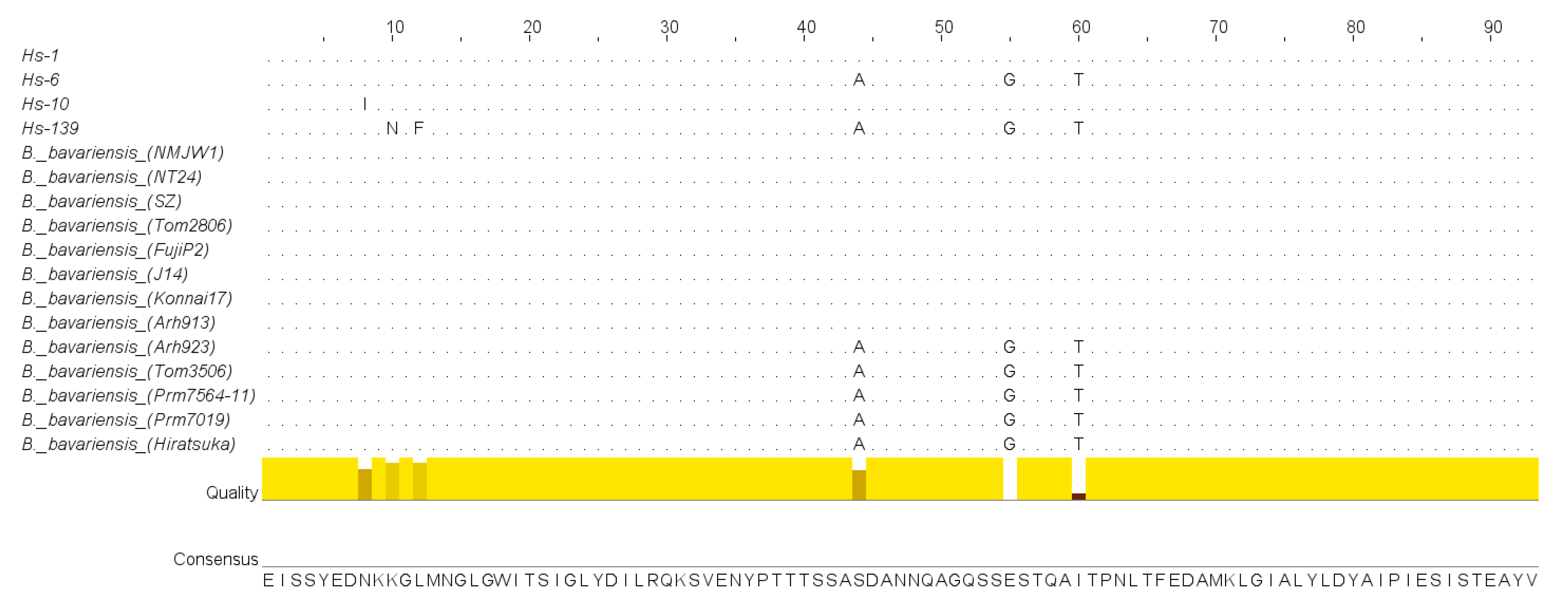

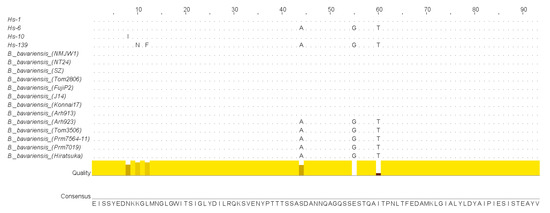

Figure 4. Comparison of amino acid sequences of P66 loop from various isolates of B. bavariensis. The quality annotation histogram reflects the likelihood of observing a mutation in any particular column of the alignment based on the BLOSUM62 matrix scores (for each column, the sum of the ratios of the two BLOSUM62 scores for a mutation pair, and each residue’s conserved BLOSUM62 score, are normalised and plotted on a scale of 0 to 1).
Figure 4. Comparison of amino acid sequences of P66 loop from various isolates of B. bavariensis. The quality annotation histogram reflects the likelihood of observing a mutation in any particular column of the alignment based on the BLOSUM62 matrix scores (for each column, the sum of the ratios of the two BLOSUM62 scores for a mutation pair, and each residue’s conserved BLOSUM62 score, are normalised and plotted on a scale of 0 to 1).
Microorganisms 10 02509 g004
