Article

Engineering Synthetic Microbial Communities through a Selective Biofilm Cultivation Device for the Production of Fermented Beverages

1
Terra Research and Teaching Centre, Microbial Processes and Interactions, Gembloux Agro-Bio Tech, University of Liège, Gembloux Agro-Bio Tech, 5030 Gembloux, Belgium
2
Faculty of Chemical and Food Engineering, Institute of Technology of Cambodia, Phnom Penh 12156, Cambodia
3
General and Organic Chemistry, Gembloux Agro-BioTech, University of Liège, 5030 Gembloux, Belgium
*
Author to whom correspondence should be addressed.
Microorganisms 2019, 7(7), 206; https://doi.org/10.3390/microorganisms7070206
Submission received: 25 June 2019 / Revised: 16 July 2019 / Accepted: 18 July 2019 / Published: 20 July 2019
(This article belongs to the Special Issue Microbial Dynamics in Wine Production)

Abstract

:
Production of Cambodian rice wine involves complex microbial consortia. Indeed, previous studies focused on traditional microbial starters used for this product revealed that three microbial strains with complementary metabolic activities are required for an effective fermentation, i.e., filamentous fungi (Rhizopus oryzae), yeast (Saccharomyces cerevisiae), and lactic acid bacteria (Lactobacillus plantarum). Modulating the ratio between these three key players led to significant differences, not only in terms of ethanol and organic acid production, but also on the profile of volatile compounds, in comparison with natural communities. However, we observed that using an equal ratio of spores/cells of the three microbial strains during inoculation led to flavor profile and ethanol yield close to that obtained through the use of natural communities. Compartmentalization of metabolic tasks through the use of a biofilm cultivation device allows further improvement of the whole fermentation process, notably by increasing the amount of key components of the aroma profile of the fermented beverage (i.e., mainly phenylethyl alcohol, isobutyl alcohol, isoamyl alcohol, and 2-methyl-butanol) and reducing the amount of off-flavor compounds. This study is a step forward in our understanding of interkingdom microbial interactions with strong application potential in food biotechnology.

1. Introduction

Traditional fermented foods have an important place in the food culture of human society worldwide, as the fermentation enhances the shelf life, texture, taste, aroma, and nutritional value of the foods [1]. In Cambodia, several fermented products have been developed from rice grain, such as rice vinegar, fermented rice (Tampè), and rice wine (Sra sor). Among those, rice wine is the most common application of rice fermentation, while it is still produced under traditional practices. Rice wine producers regularly face the problems of low yield and inconsistent quality in terms of taste and flavor. These traditional processes lack research and optimization in the field of food biotechnology. The principle of rice wine production consists of saccharification of the steamed, starchy source by fungi under solid state fermentation and alcoholic fermentation by yeasts under submerged fermentation [2,3,4]. The nature of microbial communities in Cambodian traditional starters, their interactions, and their contributions to the synthesis of aromas during fermentation are still widely unknown. Microbial diversities in fermentation starters have been studied by many researchers [5,6,7,8,9,10,11,12,13]. However, there is a very limited number of studies exploiting the interaction between these three groups of microorganisms and their effect on rice wine quality during the fermentation process. Liu et al. [14] pointed out that wine fermentation is not a single-species process, and the role of the different microbial wine-related species in wine production is the attention of worldwide research. Volatile compounds of wine produced by mixed cultures of Saccharomyces cerevisiae and non-Saccharomyces strains were significantly different from those made by mono-culture [15]. This indicates the important metabolic interaction between yeast strains during fermentation. As mentioned above, not only yeast but also filamentous fungi and lactic acid bacteria (LAB) are involved in rice wine production, and it would be very informative and helpful to investigate the impact of these three groups on volatile compounds produced in rice wine.
Filamentous fungi in submerged and semi-solid conditions in rice wine production can lead to either an increase of broth viscosity or a decrease of nutrient diffusion rate due to their different morphologies, ranging from dispersed filaments to pellets [16]. Large-scale applications are limited due to the appearance of oxygen and nutrient gradients inside the solid mass [17]. Optimal management of microbial communities can be achieved through the design of cultivation media promoting metabolic interactions [18] or by the design of an alternative cultivation device enhancing the spatial organization of the community [19]. The design of the biofilm cultivation device has been previously optimized to improve the natural binding of fungal biomass on inert surfaces (i.e., metal wire gauze packing). This alternative cultivation device was developed for the production and purification of hydrophobin HFBII from filamentous fungi Trichoderma reesei [20] and for the production of recombinant glucoamylase by Aspergillus oryzae [17]. In both cases, the fungal system displayed strong attachment on the metal packing, without any significant growth in the liquid phase. In the opposite case, yeast [21] and bacterial [22,23] systems exhibited lower attachment in similar devices with a significant proliferation in the liquid phase. Thus, based on the differential attachment on the inert surface, the biofilm cultivation device could be used to promote structuration of microbial species within communities involving fungi, yeast, and bacteria.

2. Materials and Methods

2.1. Strain and Medium Preparation

Yeast strain Saccharomyces cerevisiae (Sc), filamentous fungi Rhizopus oryzae (Ro), and lactic acid bacteria Lactobacillus plantarum (Lp) were isolated from Cambodian traditional dried ferment starter (Dombea) and used in this study. These three strains were isolated at different stages of the rice wine fermentation process. R. oryzae was isolated after inoculation of cooked rice with fermentation starter (saccharification step), while S. cerevisiae and L. plantarum were isolated during alcoholic fermentation. R. oryzae was incubated in Dichlorane Rose Bengal Chloramphenicol medium and grown for 72 h, followed by harvesting of spores and storage in 30% glycerol. S. cerevisiae and L. plantarum were inoculated in yeast extract peptone dextrose and De Man, Rogosa and Sharpe (MRS) broth, respectively, for 24 h and stored in 30% glycerol at −80 °C for further use. Pigmented rice (Red rice) and artificial liquid rice media were used and studied.

2.2. Fermentation Based on Red Rice

A laboratory-scale fermentation of red rice was adapted to mimic the traditional process used by local rice wine producers. Briefly, 100 g of red rice were soaked in distilled water for 3 h. The soaking water was discarded and a volume of 100mL of distilled water was then added and steamed in an autoclave at 120 °C for 20 min. The gelatinized rice paste was cooled down to room temperature and further inoculated and mixed with 2% of traditional dried starter (purchased from local producer) before being incubated at 30 °C. After solid-state aerobic fungal fermentation for 3 days, an additional volume of 100mL of sterilized water was added to boost the alcoholic fermentation for 7 more days in the same flask. The fermented rice mashes were homogenized and the sampling was performed every 24 h for 10 days.

2.3. Fermentation Based on Synthetic Liquid Medium

In order to investigate the interaction between these three potential culture strains, artificial liquid rice media were created based on major compounds in rice [24] and used in a packing system flask. Metal packing (wire gauze, 316 L stainless steel) used in the study by Zune and his team were adapted in order to fit in the middle of a 250 mL Erlenmeyer flask with 100 mL of media (see Figure 4B for a scheme of the device) [25]. Additionally, flasks without metal packing were considered as the control, i.e., considered to be equivalent to traditional submerged fermentation. The composition of artificial rice media was created according to the potential rice components. The mixture of soluble starch 20g/L, arginine 0.196g/L, alanine 0.151 g/L, leucine 0.214 g/L, valine 0.151 g/L, phenylalanine 0.133 g/L, glutamic acid 0.526 g/L, aspartic acid 0.242 g/L, CaCl2 0.124 g/L, FeSO4 0.0012 g/L, MgCl2 0.0028 g/L, CuSO4 0.0024 g/L, MnSO4 0.0051 g/L, K2HPO4 1.584 g/L, and KH2PO4 0.58 g/L was adjusted to pH 6.5 with potassium phosphate buffer. All inocula were added into the liquid phase and started at the appropriate concentration of spores or CFU/mL.

2.4. Aromatic Compounds Analysis byHS-SPME-GC-MS

Analysis of the volatile compounds was performed based on Head-Space-Solid-Phase Microextraction (HS-SPME) followed by Gas-Chromatography-Mass-Spectrophotometry (GC-MS) analysis. The sample was extracted using a 50/30 µm Divinylbenzene/Carboxen/ Polydimethylsiloxane (DVB/CAR/PDMS) fiber (Supelco, Inc., Bellefonte, PA, USA). Each liquid sample (5 mL) was placed in a 20 mL SPME glass vial together with 30% w/v of sodium chloride and 1 µL of the internal standard 2-octanol (0.4095 mg/L in absolute methanol). The vial was tightly capped, shaken, and left to equilibrate for 30 min at 60 °C, and then fiber was exposed to the headspace for 30 min. The fiber was introduced into the injection port of the GC-MS system (at 250 °C for 10 min) and the analysts extracted from the fiber were thermally desorbed. The analysis was done in the splitless mode using helium at a total flow rate of 50 mL/min. The identification of the extracted compounds was performed in a Shimadzu GC-2010plus with a Rtx-5MS capillary column. The column carrier gas was helium at a flow rate of 1.5 mL/min. The mass detector operated in the electron impact mode was relative to the tuning result in a range from 35 to 550 m/z, and the ion source temperature was set at 230 °C. The oven temperature was held at 35 °C for 1min, raised at 6 °C /min to 155 °C, then raised to 250 °C at a rate of 10 °C / min, and held at 250 °C for 20min. The aromatic components were identified by comparison of their Retention Indices with data reported in the literature and their mass spectra the National Institute of Standard and Technology (NIST) 11 data base (matching quality higher than 90%). The Retention Indices (RI) of unknown compound were calculated by the retention time of a series of alkanes (C5-C35). Semi-quantitative analysis of the volatile compounds was performed using octan-2-ol as the internal standard. The results were reported on the basis of a mean value from two biological and analytical replicates.

2.5. Sugar and Ethanol Analysis by HPLC

The concentrations of glucose, ethanol, and acetic and lactic acids were determined using High-Performance-Liquid-Chromatography coupled with a Refractive index detector (RID-HPLC, Shimadzu LC20A, Japan). A volume of 5 µL of the sample was injected, in duplicate, through a RezexROA-Organic Acid column (300 × 7.8 mm) with 5 mM H2SO4 as the mobile phase at a flow rate of 0.6 mL/min at 60 °C.

2.6. Microbiological Analysis

Yeast and LAB growth were followed by selective plate count with dechlorane rose bengal with 0.01% chloramphenicol (Merck, Germany) and MRS agar with 0.01% cycloheximide (Merck), respectively. Biomass attached on packing was measured after drying for 24 h at 105 °C followed by subtraction of the mass of metal packing.

2.7. Statistical Aanalysis

ANOVA of chemical and volatile compound analysis was done for the different fermentation treatments. Mean rating and Least Significant Differences (LSD) for each treatment were calculated from each analysis of variance with Minitab 18. Principal component analysis (PCA) was performed to establish the relations of aroma compounds between samples.

3. Results

3.1. Comparison of Natural and Synthetic Community for Red Rice Wine Fermentation

3.1.1. Ethanol and Organic Acid Production during Red Rice Wine Processing

Previous studies reported that Cambodian traditional fermentation starter (natural community) contains Rhizopus oryzae as the main filamentous fungi, Saccharomyces cerevisiae as the main fermenting yeast, and Lactobacillus plantarum as the main lactic acid bacteria. Additionally, the presence and co-occurrence of these three microbial strains were associated with the generation of major flavor compounds. In this study, red rice wine fermentation kinetics were investigated for both culture with a natural community and synthetic community made of R. oryzae, S. cerevisiae and L. plantarum. Sugar, ethanol, and organic acids play important roles in wine taste and quality; accordingly, these parameters were investigated during the process (Figure 1). The time evolution of ethanol and organic acid production was correlated with the consumption of glucose. Maltose and glucose were the main reducing sugars detected in this study (Supplementary Figure S1). Surprisingly, synthetic communities comprising high yeast inoculant (i.e., Ro-Sc 1:10 and Ro-Sc-Lp 1:10:1) did not lead to the highest ethanol production. This type of observation has been made previously for Chinese fermented beverages [26]. According to Table 1, the significant highest ethanol productions were observed when using the natural community, followed by the community Ro-Sc-Lp 1:1:1. Whereas the natural community gave the highest ethanol yield, it also led to the accumulation of acetic and lactic acid levels, two compounds considered as off-flavor compounds for wine.

3.1.2. Comparative Analysis of the Impact of Natural and Synthetic Communities on the Flavor Profile during Red Rice Wine Fermentation

Flavor and aroma profiles are important factors responsible for the organoleptic quality of wine. In this study, flavors compounds produced during the fermentation process were analyzed to investigate and evaluate the efficiency of natural and synthetic communities. Thirty-nine volatile compounds, including alcohol, ester, acid, aldehyde, and ketone, were identified in rice wine mash by HS-SPME-GCMS (Table 2). The use of L. plantarum in the brewing process resulted in increased production of the following flavor compounds: isoamyl acetate, phenethyl acetate, ethyl octanoate, ethyl lactate, ethyl acetate, and isoamyl alcohol. These flavor compounds were considered as important aromas for wine quality, since they were recognized as being fruity and whisky-like aromas with lower detection thresholds [27]. Moreover, acetic acid was produced less by the synthetic communities compared to natural communities (Table 2 and Figure 1).
Because each rice wine sample contained numerous flavor compounds, for a better visualization and interpretation of the data, principal component analysis (PCA) was performed to identify correlation and similarity between samples. Figure 2A shows the corresponding factor loading plots establishing the relative importance of each flavor compound found in each sample. The discrimination of rice wine made by synthetic and natural communities is shown in Figure 2B. Flavor profile and ethanol yield produced by mixtures of those three groups of microorganisms in the same ratio (Ro-Sc-Lp 1:1:1) were similar to those of natural communities. However, the aroma profile produced by the group of Ro-Sc-Lp 1:10:1 was distinctly different from that of the natural community. The presence of L. plantarum in the synthetic community significantly influenced the aromatic profile of rice wine.

3.2. Spatial Structuration of Synthetic Communities Based on Biofilm Ccultivation.

3.2.1. Impact of Submerged and Biofilm Cultivation on Colonization Efficiency

Most oenologists are interested in new fermentation technologies for optimizing the wine production process, either for quality or displaying particular flavor profiles [28]. However, this kind of study on rice wine production technology is very limited. In the context of mixed cultivation, especially with the presence of filamentous fungi involved in the process, biofilm cultivation design with metal structured packing is interesting in order to understand its impact on biofilm formation and microbial interactions for target flavor compounds contributing to rice wine quality. Figure 3 represents the biomass and microbial evolution on the packing and in planktonic phase during single- and co-cultures. Based on observation, the maximal biofilm development always occurred at the level of the air/liquid interface. According to Figure 3A, S. cerevisiae and L. plantarum could grow on artificial rice media containing soluble starch as the carbon source. It was also found that in liquid phase, S. cerevisiae and L. plantarum promoted the growth of each other in a mutualistic way (Figure 3A,C–E) by comparison with single culture. The presence of L. plantarum in all cases did not affect either ethanol production or biomass attachment on packing. Ethanol production was observed in significant amounts for the cultures made with S. cerevisiae, single-, or co-culture (Figure 3B). When S. cerevisiae is absent, only very low amount of ethanol is observed. In the same way, the presence of S. cerevisiae in co-culture contributed to higher amount of biomass when a biofilm cultivation device was used (Figure 3C). On the other hand, there was no evolution for either S. cerevisiae or L. plantarum on the metal packing when they were grown without R. oryzae (data not shown), showing the role of R. oryzae in initial colonization.

3.2.2. Impact of Biofilm Mode of Cultivation on Flavor Compound Using Natural and Synthetic Communities

Natural and synthetic communities were cultivated in biofilm mode in order to investigate the impact of species structuration on flavor production. As a result, using biofilm cultivation mode led to a significant improvement of flavor compound production in comparison with submerged culture, for both for natural and synthetic communities (Table 3). As expected, the metallic support of the biofilm cultivation device sustained the selective development of R. oryzae, promoting the structuration of the whole community. This mode of fungal development is also recognized as increasing secretion abilities, probably leading in our case to a higher amylolytic activity. Additionally, some unpleasant compounds, i.e., pentanoic acid, isovaleric acid, and acetic acid, were produced in high amounts during classical submerged cultivation and were absent in the biofilm mode of cultivation. This mode of cultivation also led to an increase of some flavor compounds, which are important for the organoleptic properties of fermented beverages, i.e., phenylethyl alcohol and isoamyl alcohol.

4. Discussion

After isolating some microbial strains from a natural community, targeted experiments can be performed to highlight optimal community compositions that are responsible for the production of specific metabolites through specific biochemical interactions [29]. In this work, we applied this concept to isolate three strains, i.e., R. oryzae, S. cerevisiae and L. plantarum, from a natural community used in Cambodian fermentation starter in order to determine the performances of synthetic communities by comparison with the natural one. Indeed, microbial composition has a strong impact on both rice wine quality and yield. Basically, spontaneous cereal-based fermentation involves complex interkingdom microbial consortia, including fungi, yeasts, and lactic acid bacteria [2,13]. R. oryzae has been reported as a strong amylase enzyme producer, frequently found in amylolytic fermentation starters for rice wine and during saccharification [4,7,9,30,31]. R. oryzae produces amylase hydrolyzing starch into fermentable sugar feeding S. cerevisiae and L. plantarum (Figure 4A). The presence of LAB found in cereal fermentation is important because beside producing lactic acid, LAB is likely to contribute to the production of some flavor compounds and to display some specific metabolic cross-feeding with yeast [32]. The growth of S. cerevisiae in fermented food is induced by acidification from bacteria and it adjusts its metabolism by secreting a serial metabolite, notably an amino acid, allowing the survival of LAB (Figure 4A) [33,34]. The result of this study supports this evidence, with both L. plantarum and S. cerevisiae promoting the growth of each other during the first 24 hours when grown in co-culture.
The major flavor compounds found in this study were ester group that provide a pleasant flavor to wine. The type of ester formed depended on the fermentation environment including temperature and level of alcohol [35]. Guitart and his team revealed that high concentrations of amino acids in grape must was also shown to enhance the production of more volatile esters [36]. Similarly, red rice is considered as rice containing highest protein as well as free amino acid by comparison with white sticky and non-sticky rice [37]. Beside this, microbial interaction also has a tremendous impact on flavor compound secretion. Based on Table 2, the type and concentration of ester group, as well as other groups, were affected by the combination of species. Metabolite production can indeed be considerably modified by the microbial composition [14,38]. Based on the results accumulated during this work, we have shown that a simple co-culture Ro-Sc-Lp 1:1:1 could provide high ethanol yield and alike flavor profile by comparing to the natural community; moreover, it could reduce some undesired flavors and lower acid which could have off-flavor and taste, especially acetic acid. This might probably because of various and unknown microorganism involved in traditional brewing process and led to difficult control and microbial competitive interaction [13]. The different combination of these three strains has somehow different impacts on chemical compositions of rice wine including lactic acid, acetic acid, and ethanol yield. These three strains together were able to produce flavor profile which was similar to that from natural microbial community, regularly used in rice wine production in Cambodia.
Beside the optimization of the cultivation medium and consortia members, alternative cultivation device can also be proposed. The selection of microbes for specific aroma profile cannot be effective without understanding how microbe interact with each other [14]. In such a case, a biofilm cultivation has been used for promoting the spatial structuration of the three microbial strains extracted from the original starter [17,23]. Indeed, the metallic support used in this device have been previously reported as enhancer the natural binding of filamentous fungi Trichoderma reesei [20] and Aspergillus oryzae [17]. The design of cultivation media promoting metabolic interaction and the design of alternative cultivation device enhancing natural spatial organization of community are both necessary for the study of microbial community [18,19].
Fungal spores generally prefer to adhere and develop on lateral surfaces by several mechanisms involving complex interactions between physical and biological factors. Thus, inserting solid support in the middle flask is very important for the growth of filamentous fungi. Filamentous fungi in submerged and semi-solid conditions always cause problem of increasing viscosity and forming different morphologies leading difficulties of system control during production, notably; cereal-based fermentation [16]. Rice wine production techniques were commonly performed in simultaneous saccharification and fermentation (SSF) method by which starch enzymatic hydrolysis and alcoholic fermentation occur simultaneously in the same reactor. Using SSF can eliminate the inhibition of saccharifying enzyme by sugar substrate [39] and give unique flavor of rice wine [4,40]. The process of rice wine production operating with enzymatic saccharification and alcoholic fermentation gave distinguish flavor profile. This is why saccharification by fungi, alcoholic fermentation by yeast are still used for rice wine production practice. Recently, novel functionality was achieved within a bacterial–fungal co-culture to create special flavors during fermentation in the food industry [41]. Microbial interactions are very essential for a successful establishment and maintenance of a microbial population [42]. Synthetic community ecology focuses on designing, building and analyzing the dynamic performance and understanding how community properties appear as a consequence of those interactions [43]. In the field of biotechnological applications, single- and multi-species culture have a rise of interest in field of research in order to investigate new technology as well as interested metabolites [44,45]. The mixture of chemical substance according to rice composition has been used to set up a new technology using corrugated metal in submerge fermentation flask. The support can be considered as an efficient way for bioprocess intensification by promoting the exchanges between the biofilm, gas and liquid phases. The result revealed the importance of metal packing system on the filamentous fungi growth and interaction with other strains during the process. The biomass binding on packing, the growth rate and ethanol production in planktonic were affected by the combination of strains and the presence of solid support. Moreover, the microbial interaction in term of flavor production was really occurred. Even though R. oryzae, S. cerevisiae and L. plantarum could grow alone in this media, single species was not able to produce some compounds; however, co-culture of three strains could secrete some important compounds such as phenylethyl alcohol, isobutyl alcohol, isoamyl alcohol and 2-methyl-butanol. Additionally, some of off-flavor compounds (pentanoic acid, isovaleric and acetic acid) were reduced in biofilm cultivation mode.
Cambodian people have their own preference for the typical sweet-sour-floral aroma of rice wine. However, keeping or replacing this particular product is a key role for researchers to figure out a synthetic community to produce rice wine in a better control system with similar organoleptic and consistent qualities. Consequently, the information from this study can be a part of an improvement of Cambodian traditional dried starters and provide insight and understanding into traditional rice wine development. Moreover, the biofilm cultivation device from this study is a tool that enables a step forward in developing and improving the understanding of interkingdom microbial interactions involving filamentous fungi, yeast, and bacteria in the aspect of optimal management of organization of microbial communities.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2607/7/7/206/s1, Figure S1: Kinetics of glucose (A) and maltose (B) production during fermentation by natural and synthetic communities. Synthetic communities have been prepared with different ratio between microbial species. In all cases R. oryzae (Ro) has been inoculated at an initial concentration of 106 spores/mL. For the cultures involving either S. cerevisiae (Sc) or L. plantarum (Lp), their initial concentration is indicated by 0.1, 1 or 10 corresponding to 105, 106 and 107 cells/mL respectively.

Author Contributions

S.L. performed the main experiments and drafted the manuscript. H.M. and C.P. accomplished duplicate experiments and reviewed the manuscript. F.B.K. and B.F. carried out data interpretation and reviewed the manuscript. T.K. and M.-L.F. performed SPME-GC-MS data analysis. F.D. designed the experiments and drafted the manuscript.

Funding

“This research received no external funding”.

Acknowledgments

The authors gratefully acknowledge the Académie de Recherche et d’Enseignement Supérieur—Commission de la Coopération au Développement, Belgium (ARES-CCD) for financial support and providing a PhD grant to S.L. Additionally, F.B.K. is supported by a PhD grant provided by an Interreg V France/Wallonia/Flanders program (SmartBioControl-Bioprod).

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Uzogara, S.G.; Agu, L.N.; Uzogara, E.O. A review of traditional fermented foods, condiments and beverages in nigeria: Their benefits and possible problems. Ecol. Food Nutr. 1990. [Google Scholar] [CrossRef]
  2. Blandino, A.; Al-Aseeri, M.E.; Pandiella, S.S.; Cantero, D.; Webb, C. Cereal-based fermented foods and beverages. Food Res. Int. 2003, 36, 527–543. [Google Scholar] [CrossRef]
  3. Sujaya, I.N.; Antara, N.S.; Sone, T.; Tamura, Y.; Aryanta, W.R.; Yokota, a.; Asano, K.; Tomita, F. Identification and characterization of yeasts in brem, a traditional Balinese rice wine. World J. Microbiol. Biotechnol. 2004, 20, 143–150. [Google Scholar] [CrossRef]
  4. Dung, N.T.P.; Rombouts, F.M.; Nout, M.J.R. Characteristics of some traditional Vietnamese starch-based rice wine fermentation starters (men). LWT - Food Sci. Technol. 2007, 40, 130–135. [Google Scholar] [CrossRef]
  5. Ercolini, D. PCR-DGGE fingerprinting: novel strategies for detection of microbes in food. J. Microbiol. Methods 2004, 56, 297–314. [Google Scholar] [CrossRef]
  6. Jeyaram, K.; Singh, W.; Capece, A.; Romano, P. Molecular identification of yeast species associated with ‘Hamei’ — A traditional starter used for rice wine production in Manipur, India. Int. J. Food Microbiol. 2008, 124, 115–125. [Google Scholar] [CrossRef] [PubMed]
  7. Thanh, V.N.; Mai, L.T.; Tuan, D.A. Microbial diversity of traditional Vietnamese alcohol fermentation starters (banh men) as determined by PCR-mediated DGGE. Int. J. Food Microbiol. 2008, 128, 268–273. [Google Scholar] [CrossRef]
  8. Lv, X.-C.; Weng, X.; Zhang, W.; Rao, P.-F.; Ni, L. Microbial diversity of traditional fermentation starters for Hong Qu glutinous rice wine as determined by PCR-mediated DGGE. Food Control 2012, 28, 426–434. [Google Scholar] [CrossRef]
  9. Lv, X.-C.C.; Cai, Q.-Q.Q.; Ke, X.-X.X.; Chen, F.; Rao, P.-F.F.; Ni, L. Characterization of fungal community and dynamics during the traditional brewing of Wuyi Hong Qu glutinous rice wine by means of multiple culture-independent methods. Food Control 2015, 54, 231–239. [Google Scholar] [CrossRef]
  10. Chao, S.H.; Huang, H.Y.; Kang, Y.H.; Watanabe, K.; Tsai, Y.C. The diversity of lactic acid bacteria in a traditional Taiwanese millet alcoholic beverage during fermentation. LWT - Food Sci. Technol. 2013, 51, 135–142. [Google Scholar] [CrossRef]
  11. Luangkhlaypho, A.; Pattaragulwanit, K.; Leepipatpiboon, N.; Yompakdee, C. Development of a defined starter culture mixture for the fermentation of sato, a Thai rice-based alcoholic beverage. ScienceAsia 2014, 40, 125–134. [Google Scholar] [CrossRef]
  12. Wang, P.-P.; Li, Z.; Qi, T.-T.; Li, X.-J.; Pan, S.-Y. Development of a method for identification and accurate quantitation of aroma compounds in Chinese Daohuaxiang liquors based on SPME using a sol–gel fibre. Food Chem. 2015, 169, 230–240. [Google Scholar] [CrossRef] [PubMed]
  13. Ly, S.; Mith, H.; Tarayre, C.; Taminiau, B.; Daube, G.; Fauconnier, M.; Delvigne, F. Impact of Microbial Composition of Cambodian Traditional Dried Starters (Dombea) on Flavor Compounds of Rice Wine: Combining Amplicon Sequencing With HP-SPME-GCMS. Front. Microbiol. 2018, 9, 1–15. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, Y.; Rousseaux, S.; Tourdot-Maréchal, R.; Sadoudi, M.; Gougeon, R.; Schmitt-Kopplin, P.; Alexandre, H. Wine microbiome: A dynamic world of microbial interactions. Crit. Rev. Food Sci. Nutr. 2017, 57, 856–873. [Google Scholar] [CrossRef] [PubMed]
  15. Sadoudi, M.; Tourdot-Maréchal, R.; Rousseaux, S.; Steyer, D.; Gallardo-Chacón, J.J.; Ballester, J.; Vichi, S.; Guérin-Schneider, R.; Caixach, J.; Alexandre, H. Yeast-yeast interactions revealed by aromatic profile analysis of Sauvignon Blanc wine fermented by single or co-culture of non-Saccharomyces and Saccharomyces yeasts. Food Microbiol. 2012, 32, 243–253. [Google Scholar] [CrossRef] [PubMed]
  16. Papagianni, M. Fungal morphology and metabolite production in submerged mycelial processes. Biotechnol. Adv. 2004, 22, 189–259. [Google Scholar] [CrossRef] [PubMed]
  17. Zune, Q.; Delepierre, A.; Gofflot, S.; Bauwens, J.; Twizere, J.C.; Punt, P.J.; Francis, F.; Toye, D.; Bawin, T.; Delvigne, F. A fungal biofilm reactor based on metal structured packing improves the quality of a Gla::GFP fusion protein produced by Aspergillus oryzae. Appl. Microbiol. Biotechnol. 2015, 99, 6241–6254. [Google Scholar] [CrossRef] [Green Version]
  18. Klitgord, N.; Segrè, D. Environments that Induce Synthetic Microbial Ecosystems. PLoS Comput. Biol. 2010, 6, e1001002. [Google Scholar] [CrossRef]
  19. Hays, S.G.; Patrick, W.G.; Ziesack, M.; Oxman, N.; Silver, P.A. Better together: engineering and application of microbial symbioses. Curr. Opin. Biotechnol. 2015, 36, 40–49. [Google Scholar] [CrossRef] [Green Version]
  20. Khalesi, M.; Zune, Q.; Telek, S.; Riveros-Galan, D.; Verachtert, H.; Toye, D.; Gebruers, K.; Derdelinckx, G.; Delvigne, F. Fungal biofilm reactor improves the productivity of hydrophobin HFBII. Biochem. Eng. J. 2014, 88, 171–178. [Google Scholar] [CrossRef]
  21. Vandermies, M.; Kar, T.; Carly, F.; Nicaud, J.-M.; Delvigne, F.; Fickers, P. Yarrowia lipolytica morphological mutant enables lasting in situ immobilization in bioreactor. Appl. Microbiol. Biotechnol. 2018, 102, 5473–5482. [Google Scholar] [CrossRef] [PubMed]
  22. Zune, Q.; Soyeurt, D.; Toye, D.; Ongena, M.; Thonart, P.; Delvigne, F. High-energy X-ray tomography analysis of a metal packing biofilm reactor for the production of lipopeptides by\n Bacillus subtilis. J. Chem. Technol. Biotechnol. 2014, 89, 382–390. [Google Scholar] [CrossRef]
  23. Zune, Q.; Telek, S.; Calvo, S.; Salmon, T.; Alchihab, M.; Toye, D.; Delvigne, F. Influence of liquid phase hydrodynamics on biofilm formation on structured packing: Optimisation of surfactin production from Bacillus amyloliquefaciens. Chem. Eng. Sci. 2016. [Google Scholar] [CrossRef]
  24. Sompong, R.; Siebenhandl-Ehn, S.; Linsberger-Martin, G.; Berghofer, E. Physicochemical and antioxidative properties of red and black rice varieties from Thailand, China and Sri Lanka. Food Chem. 2011, 124, 132–140. [Google Scholar] [CrossRef]
  25. Zune, Q.; Toye, D. Implementation of a Metal Structured Packing in a Fungal Biofilm Reactor for the Production of a Recombinant Protein By. Comm. Appl. Biol. Sci. 2013, 1–6. [Google Scholar]
  26. Yang, D.; Luo, X.; Wang, X. Characteristics of traditional Chinese shanlan wine fermentation. J. Biosci. Bioeng. 2014, 117, 203–207. [Google Scholar] [CrossRef] [PubMed]
  27. Baumes, R.; Cordonnier, R.; Nitz, S.; Drawert, F. Identification and determination of volatile constituents in wines from different vine cultivars. J. Sci. Food Agric. 1986. [Google Scholar] [CrossRef]
  28. Viana, F.; Gil, J.V.; Vallés, S.; Manzanares, P. International Journal of Food Microbiology Increasing the levels of 2-phenylethyl acetate in wine through the use of a mixed culture of Hanseniaspora osmophila and Saccharomyces cerevisiae. Int. J. Food Microbiol. 2009, 135, 68–74. [Google Scholar] [CrossRef]
  29. Lindemann, S.R.; Bernstein, H.C.; Song, H.S.; Fredrickson, J.K.; Fields, M.W.; Shou, W.; Johnson, D.R.; Beliaev, A.S. Engineering microbial consortia for controllable outputs. ISME J. 2016. [Google Scholar] [CrossRef]
  30. Xie, G.-F.; Li, W.-J.; Lu, J.; Cao, Y.; Fang, H.; Zou, H.-J.; Hu, Z.-M. Isolation and identification of representative fungi from shaoxing rice wine wheat Qu using a polyphasic approach of culture-based and molecular-based methods. J. Inst. Brew. 2007. [Google Scholar] [CrossRef]
  31. O’Brien, S.; Wang, Y.J. Susceptibility of annealed starches to hydrolysis by??-amylase and glucoamylase. Carbohydr. Polym. 2008, 72, 597–607. [Google Scholar] [CrossRef]
  32. Mukisa, I.M.; Byaruhanga, Y.B.; Muyanja, C.M.B.K.; Langsrud, T.; Narvhus, J.A. Production of organic flavor compounds by dominant lactic acid bacteria and yeasts from Obushera, a traditional sorghum malt fermented beverage. Food Sci. Nutr. 2017, 5, 702–712. [Google Scholar] [CrossRef]
  33. Ponomarova, O.; Gabrielli, N.; Sévin, D.C.; Mülleder, M.; Zirngibl, K.; Bulyha, K.; Andrejev, S.; Kafkia, E.; Typas, A.; Sauer, U.; et al. Yeast Creates a Niche for Symbiotic Lactic Acid Bacteria through Nitrogen Overflow. Cell Syst. 2017, 5, 345–357.e6. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Nout, M.J.R.; Sarkar, P.K. Lactic acid food fermentation in tropical climates. Antonie van Leeuwenhoek, Int. J. Gen. Mol. Microbiol. 1999, 76, 395–401. [Google Scholar] [CrossRef]
  35. Killian, E.; Ough, C.S. Fermentation Esters — Formation and Retention as Affected by Fermentation Temperature. Am. J. Enol. Vitic. 1979. [Google Scholar]
  36. Guitart, A.; Hernández Orte, P.; Ferreira, V.; Peña, C.; Cacho, J. Some observations about the correlation between the amino acid content of musts and wines of the Chardonnay variety and their fermentation aromas. Am. J. Enol. Vitic. 1999. [Google Scholar]
  37. Zaupa, M.; Calani, L.; Del Rio, D.; Brighenti, F.; Pellegrini, N. Characterization of total antioxidant capacity and (poly)phenolic compounds of differently pigmented rice varieties and their changes during domestic cooking. Food Chem. 2015, 187, 338–347. [Google Scholar] [CrossRef] [PubMed]
  38. Barata, A.; Malfeito-Ferreira, M.; Loureiro, V. The microbial ecology of wine grape berries. Int. J. Food Microbiol. 2012. [Google Scholar] [CrossRef]
  39. Rosales, E.; Pazos, M.; Ángeles Sanromán, M. Solid-State Fermentation for Food Applications. In Current Developments in Biotechnology and Bioengineering; Elsevier: Amsterdam, The Netherland, 2018; pp. 319–355. ISBN 9780444639905. [Google Scholar]
  40. Dung, N.T.P.; Rombouts, F.M.; Nout, M.J.R. Development of defined mixed-culture fungal fermentation starter granulate for controlled production of rice wine. Innov. Food Sci. Emerg. Technol. 2005, 6, 429–441. [Google Scholar] [CrossRef]
  41. Scherlach, K.; Graupner, K.; Hertweck, C. Molecular Bacteria-Fungi Interactions: Effects on Environment, Food, and Medicine. Annu. Rev. Microbiol. 2013, 67, 375–397. [Google Scholar] [CrossRef]
  42. Braga, R.M.; Dourado, M.N.; Araújo, W.L. Microbial interactions: ecology in a molecular perspective. Brazilian J. Microbiol. 2016, 47, 86–98. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Dolinšek, J.; Goldschmidt, F.; Johnson, D.R. Synthetic microbial ecology and the dynamic interplay between microbial genotypes. FEMS Microbiol. Rev. 2016, 40, 961–979. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Liu, W.; Røder, H.L.; Madsen, J.S.; Bjarnsholt, T.; Sørensen, S.J.; Burmølle, M. Interspecific bacterial interactions are reflected in multispecies biofilm spatial organization. Front. Microbiol. 2016, 7, 1–8. [Google Scholar] [CrossRef] [PubMed]
  45. Ponomarova, O.; Patil, K.R. Metabolic interactions in microbial communities: Untangling the Gordian knot. Curr. Opin. Microbiol. 2015, 27, 37–44. [Google Scholar] [CrossRef] [PubMed]

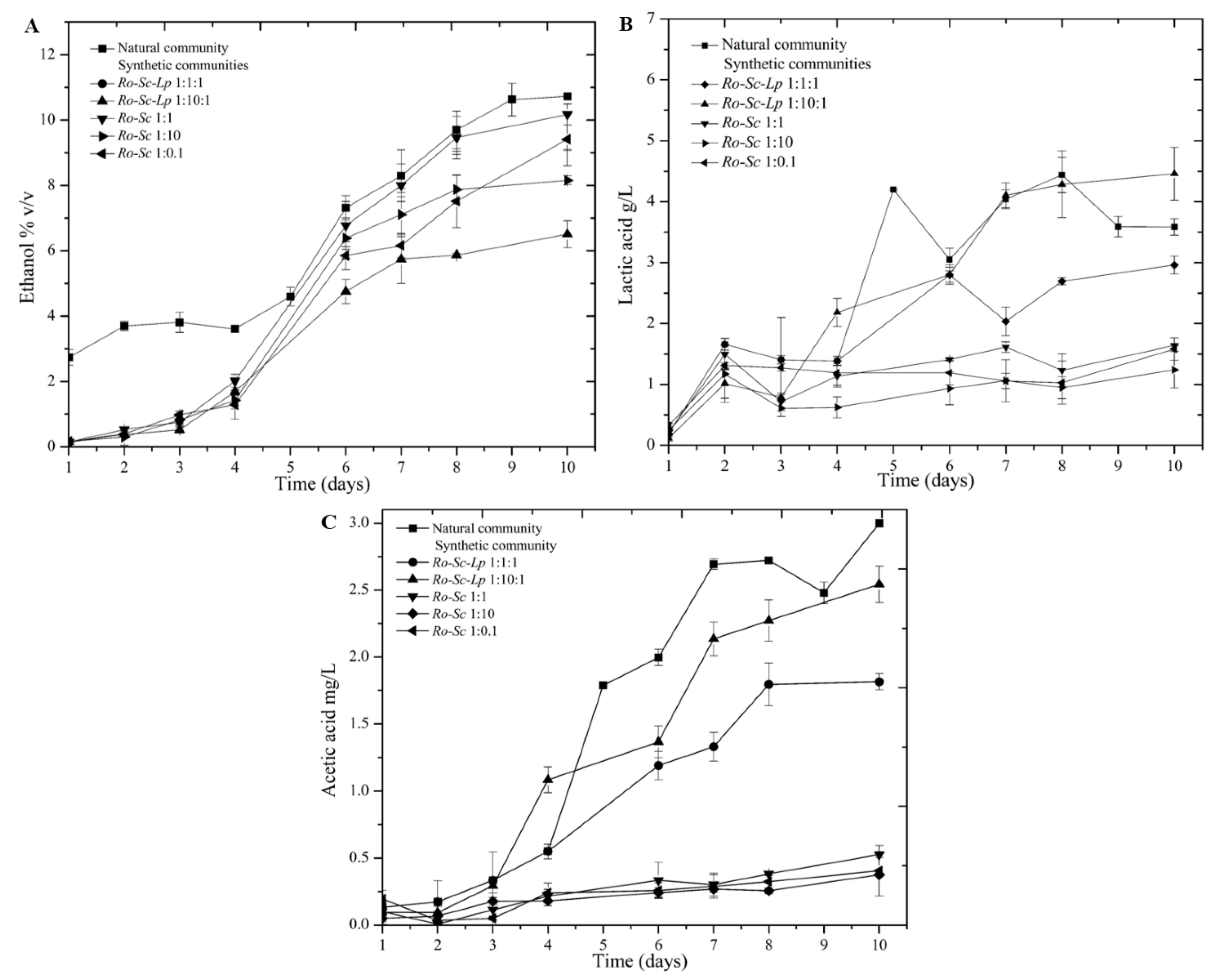

Figure 1. Kinetics of ethanol (A), lactic acid (B), and acetic acid (C) during fermentation by natural and synthetic communities. Synthetic communities were prepared with different ratios of microbial species. In all cases, Rhizopus oryzae was inoculated at an initial concentration of 106 spores/ml. For the cultures involving either S. cerevisiae or L. plantarum, their initial concentrations are indicated by 0.1, 1, or 10, corresponding to 105, 106, and 107 CFU/mL, respectively.
Figure 1. Kinetics of ethanol (A), lactic acid (B), and acetic acid (C) during fermentation by natural and synthetic communities. Synthetic communities were prepared with different ratios of microbial species. In all cases, Rhizopus oryzae was inoculated at an initial concentration of 106 spores/ml. For the cultures involving either S. cerevisiae or L. plantarum, their initial concentrations are indicated by 0.1, 1, or 10, corresponding to 105, 106, and 107 CFU/mL, respectively.
Microorganisms 07 00206 g001

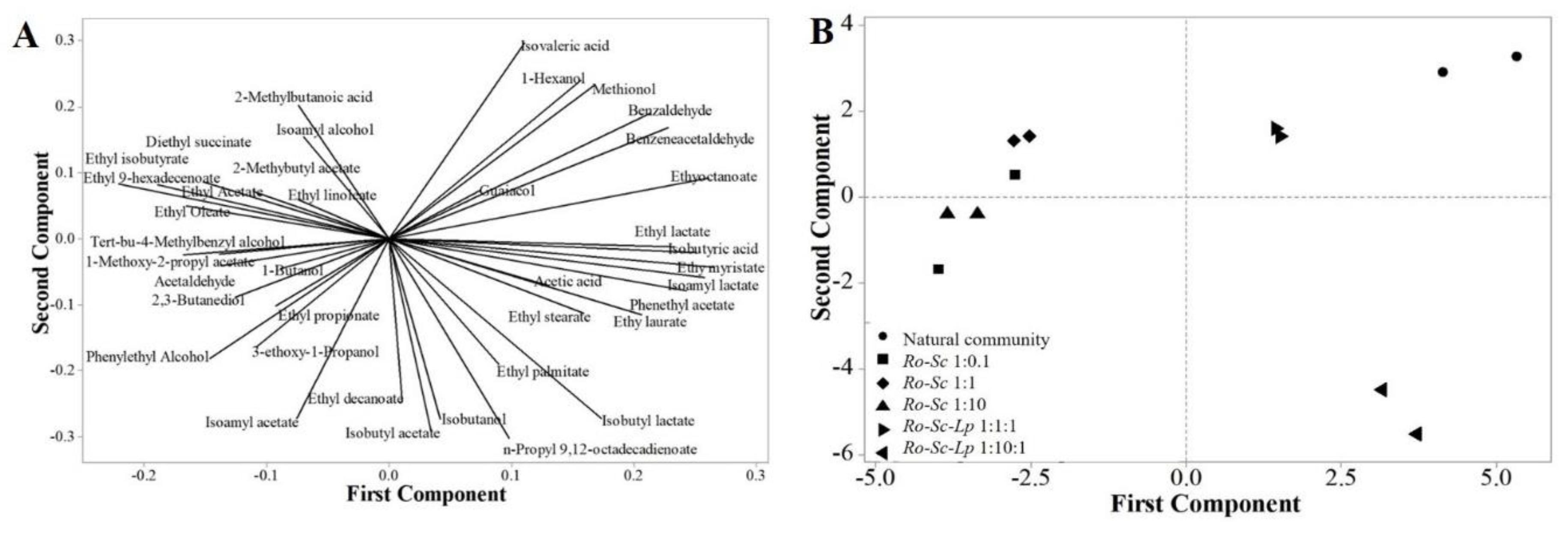

Figure 2. PCA) plot displaying the different aromatic profiles of rice wine by natural and synthetic communities. (A) plot of line distribution of 39 volatile compounds. (B) PCA plot discriminating each sample. In all cases, R. oryzae was inoculated at an initial concentration of 106 spores/ml. For the cultures involving either S. cerevisiae or L. plantarum, their initial concentration is indicated by 0.1, 1, or 10, corresponding to 105, 106 and 107 CFU/mL, respectively. The same symbols represent the samples from biological replications.
Figure 2. PCA) plot displaying the different aromatic profiles of rice wine by natural and synthetic communities. (A) plot of line distribution of 39 volatile compounds. (B) PCA plot discriminating each sample. In all cases, R. oryzae was inoculated at an initial concentration of 106 spores/ml. For the cultures involving either S. cerevisiae or L. plantarum, their initial concentration is indicated by 0.1, 1, or 10, corresponding to 105, 106 and 107 CFU/mL, respectively. The same symbols represent the samples from biological replications.
Microorganisms 07 00206 g002

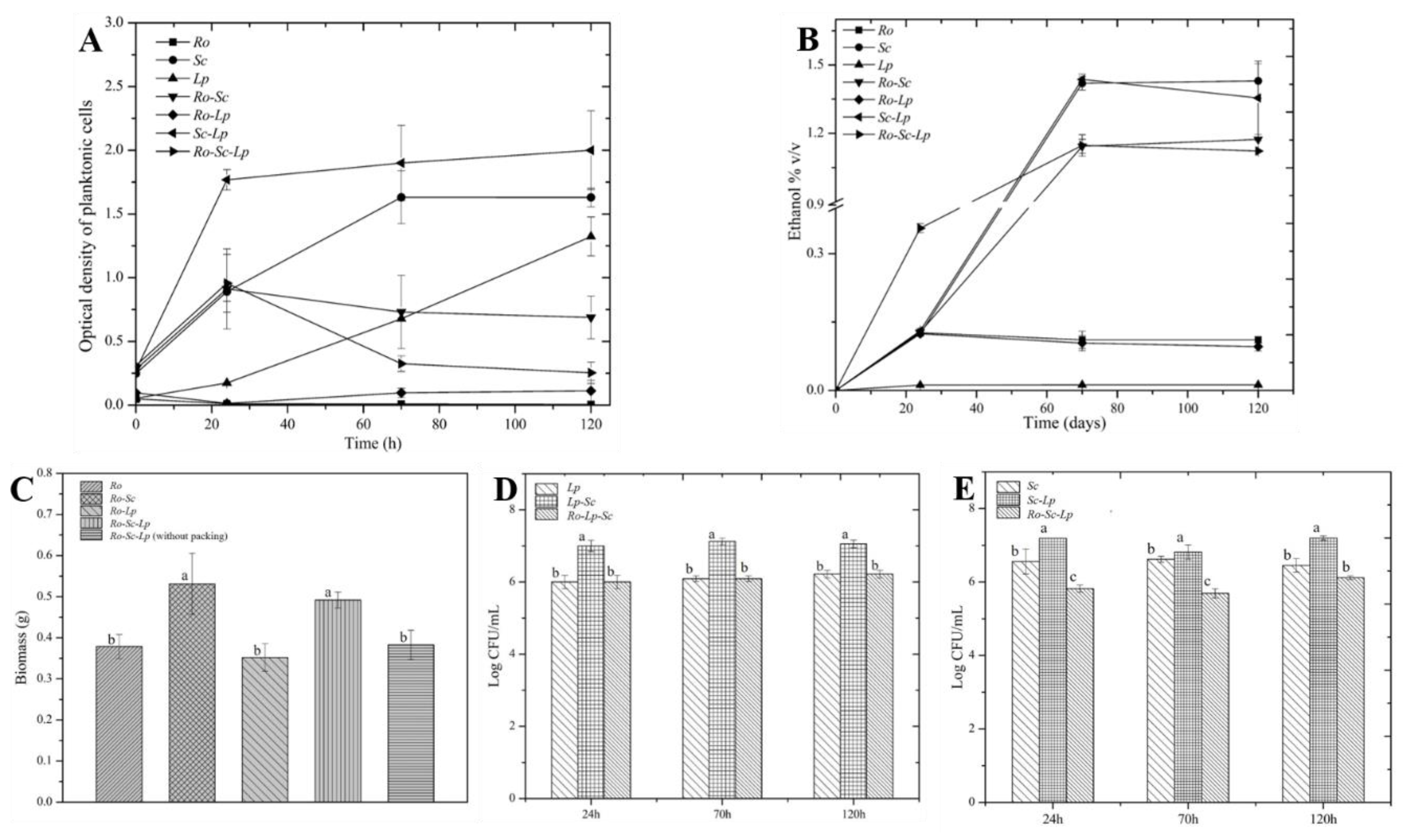

Figure 3. Biofilm and microbial evolution during single and co-culture in biofilm reactor. (A) Optical density OD of the planktonic phase. (B) Ethanol production. (C) Total biomass of the biofilm attached on packing and without packing after 70 h. (D) L. plantarum and (E) S. cerevisiae plate count while in the planktonic phase. Means with the same letter are not significantly different from each other (p < 0.05).
Figure 3. Biofilm and microbial evolution during single and co-culture in biofilm reactor. (A) Optical density OD of the planktonic phase. (B) Ethanol production. (C) Total biomass of the biofilm attached on packing and without packing after 70 h. (D) L. plantarum and (E) S. cerevisiae plate count while in the planktonic phase. Means with the same letter are not significantly different from each other (p < 0.05).
Microorganisms 07 00206 g003

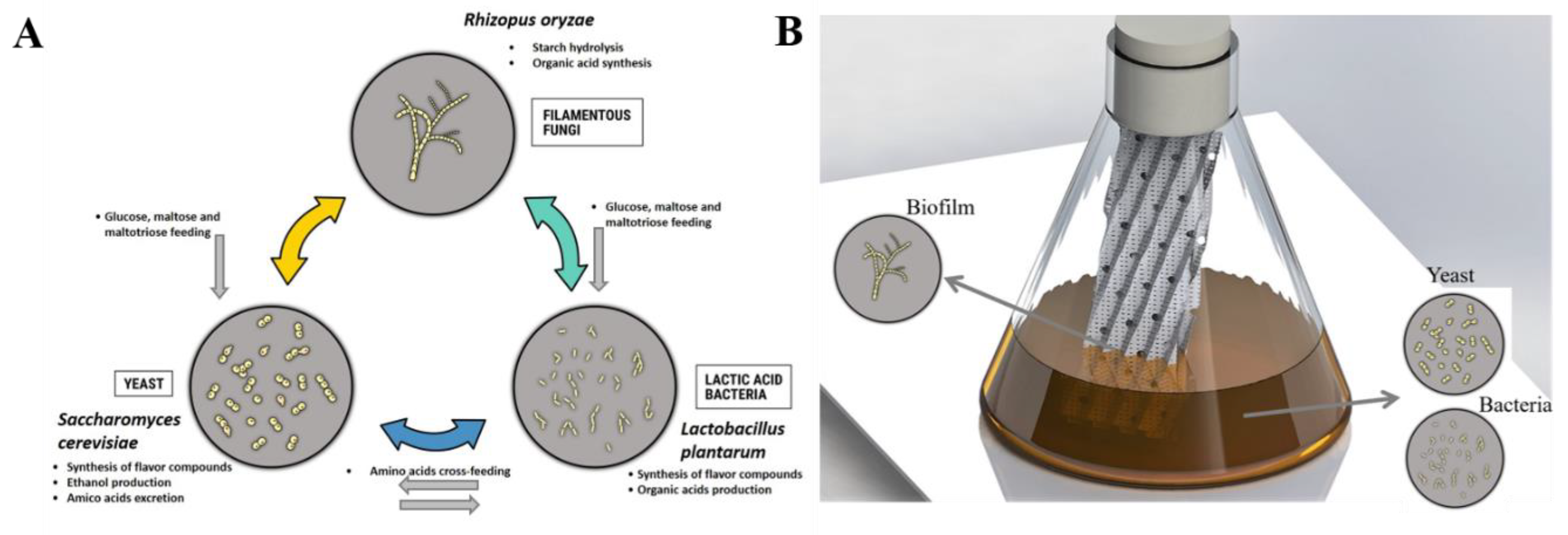

Figure 4. Scheme showing microbial interaction in biofilm cultivation device. (A) hypothetical metabolic interactions between fungi, yeast, and LAB, and the resulting functions during red rice wine fermentation (or on the synthetic liquid medium). (B) Scheme showing the biofilm cultivation device used in this study, i.e., a shake flask with a stainless steel packing sheet, as well as the expected positions of fungi, yeast, and LAB species during fermentation.
Figure 4. Scheme showing microbial interaction in biofilm cultivation device. (A) hypothetical metabolic interactions between fungi, yeast, and LAB, and the resulting functions during red rice wine fermentation (or on the synthetic liquid medium). (B) Scheme showing the biofilm cultivation device used in this study, i.e., a shake flask with a stainless steel packing sheet, as well as the expected positions of fungi, yeast, and LAB species during fermentation.
Microorganisms 07 00206 g004
Table 1. Final concentration of ethanol and organic acids at day 10, the end of the traditional rice wine brewing process.
Table 1. Final concentration of ethanol and organic acids at day 10, the end of the traditional rice wine brewing process.
ConcentrationNatural CommunityRo-Sc-Lp 1:1:1Ro-Sc-Lp 1:10:1Ro-Sc
1:1
Ro-Sc
1:10
Ro-Sc
1:0.1
Ethanol (% v/v)10.73 ± 0.07 a9.95 ± 0.02 b6.5 ± 0.41 d10.17 ± 0.32 b7.95 ± 0.13 c8.41 ± 0.80 c
Acetic acid (g/L)2.99 ± 0.02 a1.81 ± 0.06 c2.54 ± 0.13 b0.52 ± 0.02 d0.37 ± 0.01 d0.40 ± 0.18 d
Lactic acid (g/L)3.58 ± 0.13 a2.95 ± 0.14 b4.45 ± 0.43 a1.64 ± 0.01 c1.23 ± 0.30 c1.58 ± 0.20 c
Values in a row that are not preceded by the same letter are significantly different (p ≤ 0.05).
Table 2. Flavor compounds (μg/L) produced from the natural community and a combination of strains as the synthetic communities in the red rice wine brewing process.
Table 2. Flavor compounds (μg/L) produced from the natural community and a combination of strains as the synthetic communities in the red rice wine brewing process.
NCompoundsRINatural CommunitySynthetic Community
Ro-Sc-Lp 1:1:1Ro-Sc-Lp 1:10:1Ro-Sc 1:1Ro-Sc 1:10Ro-Sc 1:0.1
AverageSTDAverageSTDAverageSTDAverageSTDAverageSTDAverageSTD
Ester19506.02 24029.27 21738.23 28584.87 33152.54 19290.85
12-Methybutyl acetate880Nd 137.8915.85Nd 55.0721.45170.054.09Nd
2Isoamyl acetate876125.9815.4270.1107.15493.09123.93155.89.3533.144.66344.24193.83
31-Methoxy-2-propyl acetate Nd Nd Nd Nd 157.9533.3918.83
4Ethyl linoleate 60.4436.941.399.75Nd 106.44 213.92195.68Nd
54-Methylbenzyl alcohol Nd Nd Nd 30.7 35.16 35.42
6Phenylethyl acetate12521383 1421.55346.221718.8540.95427.9371.34683.6271.998.0562.35
7Ethyl isobutyrate756Nd 275.2861.82Nd 270.53149.22296.7274.47381.78175.2
8Ethyl propionate713Nd 131.7955.24172.86100.09186.7163.47416.39294.43101.9810.34
9Ethyl myristate16511206.1663.671202.5870.771296.14123.4180.21113.44216.0556.8961.8431.72
10Ethyl octanoate1041294.155.68134.7318.25154.177.4438.3354.2141.681.13720.75
11Isobutyl lactate 51.8848.0243.8217.34266.8614.888.9612.6829.6 Nd
12Ethyl lactate10104436.3515013781.811016.623941.33635.91941.16479.842313.941345.61137.4
13Propyl 9,12-octadecadienoate Nd 17.657.7159.4115.7Nd Nd 20.926.88
14Ethyl stearate 253.6154.03121.7137.42366.971.31234.1570.35179.5968.4920.74
15Ethyl decanoate1398631.4265.257.81269.24204.4160.2106.35154.63.3590.3118.23
16Ethyl laurate1494281.2653.27213.4723.88412.841.29241144.21109.991.6944.1318.64
17Ethyl 9-hexadecenoate Nd Nd Nd 122.7964.1961.0786.3724.4712.34
18Ethyl Acetate6289205.51011.4514189.714590.134593.61391.1920976.768697.8624587.577650.8715713.30
19Ethyl Oleate 189.2658.42196.7786.69148.428.87594.82164.86669.91776.57103.153.28
20Ethyl palmitate 1765.79162.581467.66213.547218.18883.393420.411023.081901.87129.36 537.84343.77
21Isoamyl lactate 149.3414.1534.3414.56134.2315.56Nd 32.6723.1Nd
22Diethyl succinate1167Nd 5.431.6Nd 28.6114.2222.10.7812.27
23Isobutyl acetate776Nd 214.98105.78388.6113.3687.832.41242.2738.1157.6645.7
Acids and Aldehyde7525.45 5551.64 7215.71 1274.4 8219.13 588.64
242-Methylbutanoic acid 254.7128.66158.2356.37Nd 204.8476.25352.8967.6879.5482.67
25Isovaleric acid877157.1947.88108.4118.89Nd 125.9815.8822.24 22.1915.69
26Acetic acid6006050.36225.564602.0575.16487.791225.4385.13111.227576.43524.84Nd
27Isobutyric acid1215677.6182.74536.9183.6632.9516.75420.74 205.5975.61120.04138.59
28Acetaldehyde Nd 6.075.539.121.15387.05 Nd 366.87219.63
29Benzaldehyde960134.6314.0240.067.9322.1714.0616.61 23.25 Nd
30Benzeneacetaldehyde 250.9223.21105.9538.5672.788.0134.056.0438.726.18Nd
Alcohol46685.3 47489.59 47434.43 56613.62 68742.36 51864.3
311-Hexanol851108.910.82137.594.5733.291.4962.157.7414.87.3433.6547.6
323-ethoxy-Propanol83340.232.6755.1934.4464.2517.71529.337.0582.5712.2798.8552.61
33Isobutanol6479854.79262.938041.472.2822432.981803.4317018.02 12945.722849.9412593.741040.56
34Methionol978266.39142.01266.7130.07Nd 42.58 64.56 5.938.4
35Isoamyl alcohol 31276.832546.5130257.95536.3421182.441471.734607.611519.7634191.784674.4724232.312570.1
36Guaiacol1089131.534.5885.4213.2693.5212.09115.2444.51125.0128.3949.07
37Phenylethyl Alcohol11183294.85534.533446.39576.438502.171331.229527.542295.839903.824338.516696.663835.75
381-Butanol675167.6628.22530.1992.92343.05311.04294.5481.73895.69 507.3143.73
392,3-Butanediol8061584.31460.754668.68736.444026.13744.143648.25755.4210600.966533.657745.62
Total73716.77 77015.35 85567.57 94788.2 110114.03 71376.9
STD: Standard deviation. Nd: Not detected.
Table 3. Flavor compounds (μg/L) produced from natural community and combinations of strains as synthetic communities in a biofilm cultivation device with artificial rice media.
Table 3. Flavor compounds (μg/L) produced from natural community and combinations of strains as synthetic communities in a biofilm cultivation device with artificial rice media.
CompoundsNatural CommunitySynthetic Community
Ro-Sc-Lp
With PackingWithout PackingWith PackingWithout Packing
Isoamyl acetate1.78 ± 0.32.00 ± 0.46NdNd
Phenethyl acetate1159.08 ± 69.747.92 ± 0.95NdNd
Ethyl propionate4.85 ± 0.15NdNdNd
Ethyl myristate3.29 ± 0.1NdNdNd
Ethyl stearate3.03 ± 0.8NdNdNd
Ethyl laurateNd26.58 ± 16.80NdNd
Ethyl Acetate3.16 ± 1.191.65 ± 0.12NdNd
Ethyl lactateNdNd2.5 ± 0.2Nd
Ethyl Oleate9.12 ± 0.982.97±1.61NdNd
Ethyl IsobutyrateNdNd16.62 ± 0.89Nd
Ethyl palmitate28.33 ± 17.453.64 ± 1.07NdNd
Isobutyl acetate43.14 ± 6.4334.01 ± 14.05NdNd
Isovaleric acidNd23.69 ± 6.19Nd275.58 ± 45.67
Pentanoic acidNdNd124.72 ± 13.45593.58 ± 34.23
Acetic acid23.31 ± 2.638.53 ± 6.034.13 ± 0.561017.38 ± 21.12
1-Hexanol40.66 ± 6.89NdNd18.82 ± 0.93
Isobutanol3.24 ± 0.3210.87 ± 140.32NdNd
MethionolNd4.35 ± 2.75NdNd
PropanolNdNd10.41 ± 2.34Nd
ButanolNdNd10.72 ± 3.23Nd
1-Methyl-butanolNdNd5.04 ± 0.12Nd
2-methyl-butanolNdNd158.59 ± 13.89Nd
Isobutyl alcoholNdNd378.19 ± 16.78Nd
Isoamyl alcohol2374.62 ± 64.321703.32 ± 19.84247.63 ± 234.89256.69 ± 13.89
Guaiacol3.29 ± 0.5NdNd3594.66 ± 84.91
Phenylethyl Alcohol1902.86 ± 89.900.58 ± 0.412017.87 ± 89.78Nd
2,3-Butanediol47.80 ± 1.21NdNd2070.68 ± 34.37
Benzaldehyde25.50 ± 5.25136.39 ± 17.5091.75 ± 7.62Nd
Acetaldehyde2.78 ± 0.67NdNd559.68 ± 23.34
Nd: Not detected.

Share and Cite

MDPI and ACS Style

Ly, S.; Bajoul Kakahi, F.; Mith, H.; Phat, C.; Fifani, B.; Kenne, T.; Fauconnier, M.-L.; Delvigne, F. Engineering Synthetic Microbial Communities through a Selective Biofilm Cultivation Device for the Production of Fermented Beverages. Microorganisms 2019, 7, 206. https://doi.org/10.3390/microorganisms7070206

AMA Style

Ly S, Bajoul Kakahi F, Mith H, Phat C, Fifani B, Kenne T, Fauconnier M-L, Delvigne F. Engineering Synthetic Microbial Communities through a Selective Biofilm Cultivation Device for the Production of Fermented Beverages. Microorganisms. 2019; 7(7):206. https://doi.org/10.3390/microorganisms7070206

Chicago/Turabian Style

Ly, Sokny, F. Bajoul Kakahi, Hasika Mith, Chanvorleak Phat, Barbara Fifani, Tierry Kenne, Marie-Laure Fauconnier, and Frank Delvigne. 2019. "Engineering Synthetic Microbial Communities through a Selective Biofilm Cultivation Device for the Production of Fermented Beverages" Microorganisms 7, no. 7: 206. https://doi.org/10.3390/microorganisms7070206

APA Style

Ly, S., Bajoul Kakahi, F., Mith, H., Phat, C., Fifani, B., Kenne, T., Fauconnier, M. -L., & Delvigne, F. (2019). Engineering Synthetic Microbial Communities through a Selective Biofilm Cultivation Device for the Production of Fermented Beverages. Microorganisms, 7(7), 206. https://doi.org/10.3390/microorganisms7070206

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
