sxtA4+ and sxtA4- Genotypes Occur Together within Natural Pyrodinium bahamense Sub-Populations from the Western Atlantic

by
Kathleen Cusick
* and
Gabriel Duran
Department of Biological Sciences, University of Maryland Baltimore County, Baltimore, MD 21250, USA
*
Author to whom correspondence should be addressed.
Microorganisms 2021, 9(6), 1128; https://doi.org/10.3390/microorganisms9061128
Submission received: 1 April 2021 / Revised: 5 May 2021 / Accepted: 11 May 2021 / Published: 23 May 2021
(This article belongs to the Special Issue Dinoflagellate Biology: Using Molecular Approaches to Unlock Their Ecology and Evolution)
Browse Figures
Versions Notes

Abstract

:
Saxitoxin (STX) is a secondary metabolite and potent neurotoxin produced by several genera of harmful algal bloom (HAB) marine dinoflagellates. The basis for variability in STX production within natural bloom populations is undefined as both toxic and non-toxic strains (of the same species) have been isolated from the same geographic locations. Pyrodinium bahamense is a STX-producing bioluminescent dinoflagellate that blooms along the east coast of Florida as well as the bioluminescent bays in Puerto Rico (PR), though no toxicity reports exist for PR populations. The core genes in the dinoflagellate STX biosynthetic pathway have been identified, and the sxtA4 gene is essential for toxin production. Using sxtA4 as a molecular proxy for the genetic capacity of STX production, we examined sxtA4+ and sxtA4- genotype frequency at the single cell level in P. bahamense populations from different locations in the Indian River Lagoon (IRL), FL, and Mosquito Bay (MB), a bioluminescent bay in PR. Multiplex PCR was performed on individual cells with Pyrodinium-specific primers targeting the 18S rRNA gene and sxtA4. The results reveal that within discrete natural populations of P. bahamense, both sxtA4+ and sxtA4- genotypes occur, and the sxtA4+ genotype dominates. In the IRL, the frequency of the sxtA4+ genotype ranged from ca. 80–100%. In MB, sxtA4+ genotype frequency ranged from ca 40–66%. To assess the extent of sxtA4 variation within individual cells, sxtA4 amplicons from single cells representative of the different sampling sites were cloned and sequenced. Overall, two variants were consistently obtained, one of which is likely a pseudogene based on alignment with cDNA sequences. These are the first data demonstrating the existence of both genotypes in natural P. bahamense sub-populations, as well as sxtA4 presence in P. bahamense from PR. These results provide insights on underlying genetic factors influencing the potential for toxin variability among natural sub-populations of HAB species and highlight the need to study the genetic diversity within HAB sub-populations at a fine level in order to identify the molecular mechanisms driving HAB evolution.

1. Introduction

Saxitoxin is a secondary metabolite produced by several genera of dinoflagellates and cyanobacteria that is better known as a potent neurotoxin due to its detrimental effects on human health. It is the parent molecule in a class of compounds collectively referred to as paralytic shellfish toxins (PSTs), which target voltage-gated ion channels (sodium, potassium, calcium) in humans and can lead to death via respiratory paralysis (as reviewed in [1]). It causes the human illnesses paralytic shellfish poisoning (PSP) and saxitoxin pufferfish poisoning (SPFP) [2], in which shellfish and pufferfish, respectively, ingest the toxic cells and bioaccumulate the toxins within their organs and tissues. STX is produced by microbes from two kingdoms of life inhabiting different aquatic habitats: dinoflagellates (Eukaryota) in marine systems [3,4,5,6], and cyanobacteria (Bacteria) in freshwater systems [7,8], though the biosynthetic pathway is similar between the two groups [9,10].
The gene cluster for STX biosynthesis was first identified in the toxic cyanobacterium Cylindrospermopsis raciborskii T3 [11] followed by identification of homologous gene clusters in other cyanobacteria [12,13]. The core genes in STX biosynthesis have more recently been identified in the three marine dinoflagellate genera capable of STX production-multiple Alexandrium spp., Pyrodinium bahamense, and Gymnodinium catenatum–albeit with varying degrees of coverage [14,15]. The first gene in the pathway, sxtA, [14], codes for a novel polyketide synthase comprised of four catalytic domains (SxtA1, SxtA2, SxtA3, and SxtA4) [16]. Two different forms of SxtA occur in dinoflagellates: a long transcript yielding all four domains (coded for by the genes sxtA1, 2, 3, and 4), and a short transcript lacking sxtA4 [14]. The gene located at the N-terminal portion of sxtA (sxtA1), coding for the acyltransferase and phosphopantetheinyl-attachment site domain, is widespread, occurring in both toxic and non-toxic strains of toxic species as well as non-toxic species from other genera [15,17,18]. SxtA4, which codes for an amidotransferase [11] appears to be relatively specific for toxin synthesis, as demonstrated by its presence and sequence conservation among numerous toxic strains encompassing all three STX-producing genera and its absence in non-STX-producing species [14,19,20,21].
Multiple examples exist as to both the phenotypic and genetic diversity occurring within monospecific HAB populations and/or blooms. Broad intra-specific variability in multiple traits including toxin production, growth rate, and motility, have been documented among strains (of the same species) isolated from the same water sample or geographic area for various HAB species [22,23,24,25]. In general, a dinoflagellate strain is obtained by establishing a clonal culture, which is derived from the isolation of a single cell from an environmental water sample [24]. Clonal diversity has been shown to be linked to differences in genome size [26], morphology [27], and growth rate [28]. An increase in the use of molecular tools in dinoflagellate population ecology studies have revealed that dinoflagellates are not monoclonal, even in a monospecific bloom [24,29]. High levels of genetic diversity are well-documented among toxic Alexandrium dinoflagellate species from the same geographic area, primarily through assessment with microsatellite markers [25,29].
Numerous studies have documented toxin variability in strains isolated from the same geographic area for all three STX-producing genera [22,30,31]. For example, analysis of multiple A. minutum strains from the coast of Ireland found strains from southern areas to be toxic but not those from the west coast [22]. Natural populations of A. tamarense have been shown to be comprised of a mix of strains, differing in both toxin content and profiles [23]. Studies with a large range of Gymnodinium strains demonstrated a high level of intra-population and regional variation in both the presence and amounts of STX congeners and profiles [30]. Additionally, while P. bahamense toxic outbreaks are common in Mexico, screening numerous strains from the same area found only one isolate to be a confirmed toxin-producer [31].
The collective findings with microsatellite markers that monospecific dinoflagellate blooms are not monoclonal events coupled with the isolation of both toxic and non-toxic strains of the same species from similar geographic regions underscores the need to examine the genetic capacity for toxin production as a contributor to toxin variability within bloom sub-populations. In the case of the A. minutum strains from the south (toxic) and west (non-toxic) coasts of Ireland, the strain differentiation–and by extension toxin potential—was not possible based on common phylogenetic markers, with toxin confirmation achieved only via HPLC analysis [22]. Population genetic studies with Alexandrium showed that genetically similar populations (defined via microsatellite markers) differ in toxin production both within and across populations, with natural populations comprised of a mix of strains that differ in both toxin content and profiles [23,25]. Variation in the sxtA4 genotype in natural populations of dinoflagellate species capable of STX production remains unknown.
P. bahamense is a bioluminescent dinoflagellate found in both the Atlantic-Caribbean and the Indo-Pacific [32,33]; toxic outbreaks are well-documented from P. bahamense in the Indo-Pacific [5,34,35,36,37,38]. In contrast, P. bahamense bloomed in the Indian River Lagoon (IRL), along the east coast of Florida, for years with no known record of STX production. Blooms of P. bahamense are the source of the bioluminescence found along both the Florida coast and in the bioluminescent bays in Puerto Rico. However, in the mid-2000s, contaminated seafood outbreaks from multiple states in the US were traced back to Florida, and P. bahamense was identified as the source [2,39], marking the first occurrence of toxin production in the Western Atlantic. No genetic data were collected for these sub-populations, and so the molecular mechanisms (sxt gene presence and/or regulation) underlying this toxin production remain unknown.
A large gap in our understanding is the factors influencing toxin variability among natural dinoflagellate bloom populations, as both toxic and non-toxic strains of the same species have been isolated from the same geographic locations [31,40]. SxtA4 is essential for STX biosynthesis [11,14,17,41,42]. Other dinoflagellate genes have been shown to undergo independent gene duplication and shuffling processes [43,44], and in recent years horizontal gene transfer has been demonstrated to be a significant driver in dinoflagellate genome evolution [45,46]. Analysis based primarily on Alexandrium isolates indicates that sxtA4 is lost rather than gained, and that widespread horizontal gene transfer does not occur for this gene [17].
While the core genes in the dinoflagellate STX biosynthetic pathway are known [14,15], how this relates to variability in STX production within natural populations from the same geographic area remains unknown. Recent studies found sxtA4 gene presence but not transcription in several non-toxic strains of toxic Alexandrium spp. [14,17,19,42]. Thus, while “non-toxic” strains may or may not possess the sxtA4 gene, lack of sxtA4 is a strong indication of lack of toxicity. In this study, we used sxtA4 presence within the genome of individual cells as a molecular proxy as to the genetic potential for toxin production among P. bahamense cells in a natural population. We use the term “sxtA4+ genotype” to indicate cells in which the sxtA4 gene was detected in the genome; conversely, “sxtA4- genotype” indicates sxtA4 was not found. We examined sxtA4+ genotype frequency (the proportion of the sxtA4+ genotype within a population) and sxtA4 gene variation among single cells within natural P. bahamense sub-populations from multiple locations in Florida and Puerto Rico. Our data reveal that both sxtA4+ and sxtA4- genotypes occur within the same sub-population and that frequency of the sxtA4+ genotype dominates in Florida populations.

2. Materials and Methods

2.1. sxtA4 Genomic Characterization from P. bahamense Lab Isolate

Genomic DNA and total RNA were extracted from 15 mL (1.5 × 105 cells) of a toxin-producing P. bahamense isolate from the IRL using the TRI Reagent kit (Invitrogen, Carlsbad, CA, USA) following manufacturer’s protocol. DNA was diluted 1:10 for subsequent PCRs. RNA was reverse transcribed using the High Capacity RNA-to-cDNA kit (ABI, Waltham, MA, USA), using 1 ug of total RNA. Reactions were performed in a Veriti thermocycler (ThermoFisher, Waltham, MA, USA) under the following conditions: 37 °C for 60 min, followed by 95 °C for 5 min. CDNA was then diluted 1:10 for subsequent PCRs. SxtA4 DNA was initially amplified using the primers sxt007 and sxt008 (Table 1) with the conditions described by Stuken [14], which yielded a 750 bp product. Additionally, primers were designed based on all publicly-available P. bahamense sxtA4 sequences in GenBank as of 13 August 2019 to target as nearly a full-length Pyrodinium-specific sxtA4 as possible. This yielded the primer pair sxtA4F1/sxtA4680R (Table 1), which amplified an ca. 680 bp region. PCRs were performed with the ThermoFisher Taq polymerase PCR kit (Waltham, MA, USA) as follows (as final concentrations): 1× KCl (-Mg) buffer, 1.5 mM MgCl2, 200 nM each dNTP, 400 nM each forward and reverse primer, 0.625 U Taq DNA polymerase, 2 µL DNA diluted 1:10, and brought to a final volume of 25 µL with nuclease-free water. A touchdown PCR was used that consisted of an initial denaturation at 95 °C for 2 min followed by 2 cycles of 95 °C, 30 s, 58 °C, 15 s, 72 °C, 45 s, and subsequent two cycles with annealing temperatures of 54 °C, 52 °C, 50 °C, 50 °C, 46 °C, and 35 cycles at 44 °C, with a final extension at 72 °C for 7 min. The primer pair sxt007/sxtA4680R was then used to amplify an 815 bp region from both genomic DNA and cDNA. PCRs and thermocycling conditions were as described for the sxtA4F1/680R PCRs. For all PCRs, the resulting amplicons were cloned into the pCR4 vector using the TOPO TA cloning kit (Invitrogen, Carlsbad, CA, USA) and transformed into TOP10 chemically competent Escherichia coli cells following the manufacturer’s instructions. Transformed cells were plated onto Miller’s Luria Broth (LB) plates containing 50 mg mL−1 kanamycin (LBkan50) and incubated overnight at 37 °C. The resulting transformants were screened via colony PCR using the M13 forward (F) and M13 reverse (R) primers followed by gel electrophoresis to identify those with inserts of the expected size. Colony PCRs were conducted with the ThermoFisher Taq polymerase PCR kit as follows (final concentrations): 1× KCl (-Mg) buffer, 1.5 mM MgCl2, 200 nM each dNTP, 200 nM each M13F and M13R primers, 1 U Taq DNA polymerase, and brought to a final volume of 20 uL with nuclease-free water. Thermocycling conditions consisted of an initial denaturation/cell lysis of 95 °C, 3 min, followed by 35 cycles of 95 °C, 15 s, 50 °C, 15 s, 72 °C, 1 min, and a final extension of 72 °C for 7 min. Colonies producing a band of the expected size were inoculated into 2 mL LBkan50 broth and grown overnight at 37 °C. The plasmids were isolated using the QIAprep Spin Miniprep kit (Qiagen, Hilden, Germany) and sequenced in both directions using the M13 F and R primers by GeneWiz, Inc. (Germantown, MD, USA). Sequence data were trimmed of primer and vector sequences and evaluated using the BLAST program [47] with comparison against published sequences in GenBank. Sequences from multiple clones were aligned in MEGA7 using ClustalW and manually adjusted.
The 815 bp stxA4 DNA sequence was aligned with existing sxtA4 sequences for Alexandrium and Gymnodinium and used to design additional forward and reverse primers within sxtA4. The primer pair sxtA4F1/680R yielded the longest Pyrodinium-specific sxtA4 sequence and so was then optimized for use in a single-cell multiplex PCR assay with P. bahamense-specific 18S rRNA gene primers. The sxtA4166F primer targeted a conserved region within sxtA4 and so was used in subsequent nested PCRs and sequencing reactions (described below).

2.2. sxtA4 Genotype Analysis from Single Cells

2.2.1. Sample Collection

Whole water samples were collected from multiple locations in the IRL and Mosquito Bay, PR, from July–September 2019 and 2020 from the surface to a depth of 0.5 m (Figure 1). Samples from the IRL were collected onto 30-micron mesh and the biomass collected on the mesh rinsed into a sterile 1 L bottle using filtered water. In Mosquito Bay, whole-water grab samples were collected without size fractionation. Samples were transported at ambient temperature back to the laboratory for processing.

2.2.2. Cell Isolation and Lysis

Single cells were isolated for lysis and subsequent multiplex PCR using a slight modification of a protocol described previously [48]. Briefly, an aliquot (ca. 1–3 mL) of the environmental sample water was placed in a petri dish and viewed with an inverted light microscope. P. bahamense cells were identified under 400× magnification based on morphology [49]. At all sampling sites, P. bahamense was the dominant dinoflagellate species. Individual cells were isolated with a sterile glass micropipette under 100× magnification, washed twice in sterile HPLC water, and placed in sterile 200 μL PCR tubes. Samples were stored at −20 °C until DNA extraction. Prior to DNA extraction, the final volume of water in each tube was brought to 20 uL with nuclease-free water. DNA extraction consisted of five consecutive freeze-thaw cycles alternating between baths of a dry ice/ethanol slurry and heating to 100 °C. Tubes were centrifuged briefly prior to PCR.

2.2.3. Multiplex PCR

Multiplex PCR was performed on single cells using Pyrodinium-specific primers targeting the 18S rRNA gene developed previously [48] and the sxtA4F1/stxA4680R primers. The single-cell multiplex PCR was first optimized on single cells from lab cultures of the toxin-producing P. bahamense isolate from the IRL using the same methods for cell isolation and washing, lysis, and PCR as for environmental samples. While all reagents of the PCR were optimized, those which significantly improved the reaction included an increase in final magnesium (2.5 mM) and dNTP (0.3 mM) concentrations as well as a decreased concentration of the 18S rRNA gene primers (200 nM final concentration) in comparison to the sxtA4 F1/680R primers (400 nM final concentration). All single cells from the toxic lab isolate that yielded an 18s rRNA gene amplicon also yielded the 680 bp sxtA4 amplicon (data not shown), indicating the ability of both primer sets to bind to and amplify their respective targets when used in the same PCR. Following the optimization, PCRs were performed on single cells from environmental samples. Single cell multiplex PCRs utilized the GoTaq PCR Core System I kit (Promega, Madison, WI, USA) and consisted of the following (as final concentrations): 1× Colorless GoTaq Flexi buffer, 2.5 mM MgCl2, 0.3 mM dNTP mix, 200 nM each Pcomp370F and Pcomp1530R, 400 nM each sxtA4F1 and sxtA4680R, 3.7 U GoTaq DNA polymerase, and brought to a final volume of 50 µL with 30 µL nuclease-free water. Thermocycling conditions consisted of an initial denaturation at 95 °C for 3 min followed by 45 cycles of 95 °C for 30 s; 57 °C for 15 s; 72 °C for 1 min; and a final extension at 72 °C for 7 min. Multiplex PCRs were also performed on a subset of samples (ca. 40 single cells) with the sxtA4 primer pair sxt007/sxt008, as this primer pair has been used in all sxtA4 analyses to date for Alexandrium, Gymnodinium, and Pyrodinium, and thus appears to be conserved across species. Products were visualized on 1% E-Gel EX agarose gels with the E-Gel Power Snap Electrophoresis System (Invitrogen). The 18S rRNA gene served as a positive control to confirm the presence of the cell in the tube and that reactions were not inhibited by potential contaminants. Only samples yielding the 18S rRNA gene amplicon were included in sxtA4 genotype frequency analysis.
Samples yielding products indicative of both the 18S rRNA gene (1200 bp) and sxtA4 (680 bp) were further screened by one (or more) additional means to confirm sxtA4 amplicon specificity. These included: (1) the multiplex PCRs were PCR purified using the Wizard S/V Gel and PCR Clean-Up System (Promega, Madison, WI) and sequenced (as two separate samples) with the internal primer sxtA4166F and the Pcomp350F primer. The sequencing protocol was modified so that the amount required for each product was doubled; (2) bands corresponding to the 18S rRNA gene and sxtA4 amplicons were gel-purified using the Wizard S/V Gel and PCR Clean-Up System and sequenced with the Pcomp350 F and sxtA4166F primers, respectively; (3) a nested PCR was performed in which the original multiplex PCR product was diluted 1:5 and 2 uL used as the template for a PCR using the sxtA4166F internal primer and 680R. These PCRs utilized the GoTaq PCR Core System I and consisted of the following (as final concentrations): 1× Colorless GoTaq Flexi buffer, 1.5 mM MgCl2, 0.1 mM dNTP mix, 400 nM each sxtA166F and sxtA4680R, 0.625 U GoTaq DNA polymerase, and brought to a final volume of 25 µL with nuclease-free water. Thermocycling conditions consisted of 95 °C for 3 min, followed by 35 cycles of 95 °C, 30 s, 57 °C, 15 sec, 72 °C, 40 s, and a final extension at 72 °C for 7 min. The resulting product was visualized with gel electrophoresis; with this primer set, an amplicon of ca. 500 bp was indicative of sxtA4. These samples were then PCR purified and sequenced with 166F to confirm sxtA4 specificity.
Samples in which only a band indicative of the 18S rRNA gene was amplified were PCR purified and sequenced with Pcomp350F to confirm P. bahamense specificity. For this, 20 uL of the initial multiplex was cleaned using the Wizard PCR Clean-Up kit. Subsequent PCRs were then performed on the initial multiplex with the primer sets 166F/680R and F1/680R to explore whether variants were missed using the Pyrodinium-specific sxtA4F1 (see details in Supplementary Materials). As the initial multiplex PCR was performed in the same tube that contained the single cell, the genomic DNA, and thus template, was still present in the tube for these PCRs.
To confirm their identity, the obtained partial sequences of sxtA4 and the 18S rRNA gene were queried against the GenBank nr database using standard BLASTN 2.2.26+ [50].
To examine the extent of sxtA4 gene variation within individual cells from different populations, the sxtA4 amplicon (yielded with the 166F/680R primer pair for an amplicon length of ca. 500 bp) from a small subset of individual cells (one representative of each site in the IRL plus MB) was cloned, and a minimum of 10 clones from each sequenced. Amplicons were cloned into the pCR-4 vector using the TOPO TA cloning kit (Invitrogen), transformed into chemically competent TOP10 E. coli cells following the manufacturer’s instructions for kanamycin selection, and sequenced using the M13 forward and reverse primers by GeneWiz (Germantown, MD, USA).
Sequence data were trimmed of primer and vector sequences and initially queried against the GenBank nr database using standard BLASTN 2.2.26+ [50]. All subsequent analysis was performed using MEGA (Molecular Evolutionary Genetics Analysis) v7. The phylogenetic relationship among sequences in relation to geographic location (as defined by the four sampling sites) was examined to assess whether sequences were specific for a location. SxtA4 clone sequences obtained from individual cells representative of the four sampling sites as well as Alexandrium spp. sxtA4 sequences retrieved from GenBank were used in the analysis. The model that best fit the data was the Tamura 3-parameter (T92) and so was used to generate Neighbor Joining and minimal evolution trees. Both trees produced identical results. The sequence data were also compared to existing Pyrodinium sxtA4 sequences in GenBank (MN431957.1, a 358bp fragment, designated as var. compressum from Sepanggar Bay, Malaysia; and a 681 bp sequence, from TSA GBXF01000001.1, also designated as var. compressum).
Sequences obtained in this study have been have been deposited into GenBank with the following accession numbers: MZ234664-MZ234695.

3. Results and Discussion

3.1. SxtA4 Genomic Characterization

The ca 815 bp sxtA4 sequence amplified here is the longest to date for P. bahamense. Genomic DNA sequences were highly similar among clones, ranging from 96–100%. This was also the case for the cDNA clones, albeit with even greater similarity (99–100%) and overall, the two types of sequences showed a high degree of similarity (Table 2). Alignment of sequences amplified from genomic DNA demonstrated minimal sequence diversity, with 29 base substitutions. Alignment of sequences derived from cDNA showed even less diversity, with only seven base substitutions. This is in keeping with the trend recorded for Alexandrium, in that the overall percent similarity was higher for cDNA copies than gDNA copies, indicating that only certain copies are transcribed [14,19]. Phylogenetic analysis demonstrated sxtA4 for P. bahamense from the IRL clustered with sxtA4 from a toxic Indo-Pacific strain, and these sequences grouped with Alexandrium, with Gymnodinium forming a separate cluster (Figure 2).
In comparing the gDNA sequences of the P. bahamense lab isolate, two main variants occurred, as defined by consistent base substitutions at 29 sites (i.e., base 182, 4 clones possess “G”, the other 12 clones a “C”; base 234, the same 4 clones possess “T”, the other 12 a “C”). This was in addition to 27 sites in which the base of an individual clone differed from the others. It has been suggested that harboring multiple, slightly different genomic copies of sxtA4 may be the underlying basis for the diversity in STX congener profiles and toxicity within Alexandrium. The P. bahamense lab isolate consistently yields a STX profile of two congeners: STX and GTX-5 (Table S1), even when grown under various conditions.

3.2. sxtA4+/sxtA4- Genotypes in Natural P. bahamense Sub-Populations

Multiplex PCR screening of individual cells revealed that both sxtA4+ and sxtA4- genotypes exist among natural P. bahamense populations, with the sxtA4+ genotype defined by the amplification of sxtA4 in individual cells. The data to date show that among all sites, the sxtA4+ genotype dominates, regardless of sample size (Table 3). However, it is worth noting that sequence data were derived from summer (June–September) samplings. In the IRL, P. bahamense blooms during this period. P. bahamense is present as both bloom and non-bloom events in the IRL. The northern region has particularly long water residence times, and is prone to intense blooms [51,52,53]. Major blooms of P. bahamense in the IRL are defined as > 100 cells/mL; a several-year study on P. bahamense distribution in the IRL recorded densities up to 776 cells/mL [54]. However, since that time, greater cell densities, as well as their locations within the northern IRL, have been observed (Cusick pers. observ.) Microscopic observations of water samples collected at the various sites in the IRL showed P. bahamense to be the dominant cell type at all. In the bioluminescent bay in Puerto Rico, P. bahamense was also the dominant cell type. While not as well-studied as the IRL, a recent one-year study in Mosquito Bay recorded an overall average of ca. 27 cells mL−1, with abundance ranging from 0–244 cells mL−1 [55]. A primary difference among sites is that P. bahamense is present in Mosquito Bay year-round, while it (typically) disappears over the fall and winter months in the IRL.
In the IRL, the frequency of the sxtA4+ genotype ranged from ca. 80–100% (Table 3, Figure 3). Sampling at Diamond Bay (July 2019) showed the sxtA4+ genotype to occur at 80% frequency. Comparable numbers were obtained for samplings at Telemar Bay Marina in 2020 in both June and July, with the sxtA4+ genotype occurring at frequencies of 81% and 84%, respectively. The sxtA4+ genotype occurred at a frequency of 100% in populations from sites LW and 520. The sxtA4+ genotype occurred at a much lower frequency in Mosquito Bay (Puerto Rico) populations, at ca 67% in July and decreasing to ca 40% in Sept (Figure 3). While these data must be interpreted with caution due to the low sample size, these are the first data demonstrating the presence of sxtA4 in P. bahamense populations in bioluminescent bays in Puerto Rico.
The correlation between sxtA4 genomic presence and active toxin production within both Florida and Puerto Rico sub-populations is not known. P. bahamense is part of a routine state HAB monitoring program (Florida Fish and Wildlife Conservation Commission) in Florida. Following the initial determination (2002–2004) of P. bahamense as the source of saxitoxin in pufferfish and shellfish harvested from the IRL, state agencies established the PSP Biotoxin Contingency Program to monitor saxitoxin in shellfish. Since that time, 39 closures of shellfish harvesting areas have occurred based on STX levels exceeding the international standard action level. However, natural P. bahamense populations are not routinely measured for STX production. P. bahamense populations in Puerto Rico have not been measured for toxicity and are presumed to be non-toxic (pers. comm., VCHT staff). Overall, this study consisted of a small sample size, and more widespread sampling would be needed to draw conclusions about the relative proportions of sxtA4 genotypes in the areas sampled and the relationships of these results to the STX levels in the regions.

3.3. Gene Variants

Direct sequencing of sxtA4 amplicons from single cells indicated multiple variants, evidenced by base substitutions that consistently occurred in an ca. 200 bp region (data not shown). Additionally, two distinct variants were consistently obtained from most cells, one of which displayed a 15 bp deletion.
Further testament as to sxtA4 diversity within P. bahamense was evidenced by samples in which sxtA4 was not initially detected. Single cells which yielded only an 18S rRNA gene amplicon in the initial multiplex were then screened with two additional PCRs: (1) the nested PCR using the 166F/680R primer set that targeted a conserved region of the sxtA4 gene and (2) a PCR with only the sxtA4 F1/680R primers. A small subset of these samples yielded an amplicon indicative of sxtA4 with the 166F/680R primers. Sequencing of these 500 bp amplicons confirmed sxtA4. Amplification with the conserved primer (166F) but not the Pyrodinium-specific (F1) suggests sequence variation in this region (F1 is located 165 bp upstream of 166F) of P. bahamense. In comparing sxtA4 sequences available in GenBank that encompassed this region (all Alexandrium spp. and a single Pyrodinium) and gDNA and cDNA sequences of the toxic lab isolate, the F1 primer displayed sequence variation in Alexandrium, while the 166F primer was conserved across Pyrodinium and Alexandrium spp (see sequence alignments in Supplementary Materials).
To assess the extent of sxtA4 variation within individual cells, the sxtA4 amplicons from a small subset of single cells representative of the different sampling sites were cloned and sequenced. As with the direct sequencing of sxtA4 PCR amplicons, two variants were consistently obtained from clones of all samples, with one of the variants displaying the 15 bp deletion (Figure 4). The sxtA4 DNA sequences amplified and cloned from single cells were aligned with the cDNA sequences from the lab isolate. The 15 bp region was present in the cDNA copies of the lab isolate, indicating that this variant is likely a pseudogene. This was found to be the case with A. fundyense strains, in which a 63 bp deletion was found in some gDNA sequences but not the corresponding cDNA sequences [17].
SxtA4 clone sequences from Puerto Rico showed two general variants, defined by the presence or absence of the 15 bp stretch. Overall, the percent identity among sequences ranged from 96–100%; minimal (2–5) base substitutions occurred among clones from the same general variant. SxtA4 clones from the TBM site also showed the two variants. A greater diversity of sequences were obtained, with the percent identity spanning 91–98%. Both sequence variants were also obtained from site LW, and percent identity ranged from 95–99%. The two sxtA4 variants were also recovered from clones from 520, with percent identity ranging from 95–99%.
A neighbor-joining tree constructed with the cloned sxtA4 amplicons from individual cells showed sequences formed two clusters; however, these clusters were not defined by sampling site/population but rather by the presence/absence of the 15 bp region (Figure 5). Comparison of the two representative sequences from the single cell clones with existing Pyrodinium sxtA4 sequences showed the sequence variant not lacking the 15 bp segment was 99% identical to existing P. bahamense sxtA4 sequences, and the variant with the 15 bp deletion was 95–96% identical (Table S2). This indicates the gene is conserved across populations, though this must be interpreted with caution due to the limited number of sequences and the length of the sequences.

4. Conclusions

P. bahamense was previously classified as a single species with two varieties based on biochemical and morphological differences [56]. The Indo-Pacific variety was designated ‘compressum’, and the Atlantic-Caribbean variety ‘bahamense’. However, both “varieties” have since been found in the same geographic locations, and one of the key distinguishing differences, the lack of toxin production by var. bahamense, has since been disproven. The varietal designation has been removed based on a recent reinvestigation of morphological attributes, and the suggestion that the presence of both varieties within the same plankton sample is likely the occurrence of different life stages [57]. Large subunit rRNA gene sequence analysis indicated the existence of Indo-Pacific and Atlantic-Caribbean ribotypes, leading to the suggestions that P. bahamense is a species complex. A previous study showed 18S rRNA gene sequences of P. bahamense from multiple locations in the IRL, Puerto Rico, and the Indo- Pacific to be nearly identical and forming a single cluster [48]. Comparison of 18S rRNA gene sequences from sxtA4+ and sxtA4- genotype cells in this study were compared to existing 18S rRNA gene sequences from the Indo-Pacific and Atlantic-Caribbean. Not surprising, all sequences were 99.6–100% identical (SI).
A previous study by our group showed, at the single cell level, that two different luciferase (lcf, responsible for bioluminescence) variants were consistently recovered from P. bahamense populations in both Florida and Puerto Rico [48]. Lcf codes for a single polypeptide comprised of three homologous domains (“D1”, “D2”, “D3”) [58,59]. The individual domains among species (i.e., D1 A. tamarense, D1 A. affine) are more similar than among the three different domains of the same species. The sequences amplified from individual cells from Florida and Puerto Rico formed two distinct clusters defined by a set of non-synonymous substitutions. Only one of the two types of lcf sequence, but not both, was recovered from each individual cell. Both types of lcf sequences were obtained from all sampling sites. Primers selectively amplified domain 3 (D3), indicating the two P. bahamense lcf sequences represented gene variants rather than amplification of the different domains. The two P. bahamense sequences are 87% similar. The variation between the two P. bahamense lcf sequences is much greater than that of bioluminescent species with known gene variants (i.e., Pyrocystis lunula possesses LcfA and LcfB, with 97% amino acid similarity). The significance underlying this variation remains unknown.
The results obtained here demonstrate that within small discrete natural populations (i.e., 3 L of surface water) of P. bahamense there exist both sxtA4+ and sxtA4- genotypes. Correlation of lcf variant with sxtA4 genotype may provide insights as to a potential Pyrodinium species complex. The next step will be determining how and if sxtA4+/- frequencies change over time, and the environmental factors driving these fluctuations. Understanding the factors driving bloom diversity and evolution is essential to understanding bloom dynamics and success over both space and time. This is the first study, to our knowledge, to examine the genetic potential for toxin production within natural dinoflagellate bloom sub-populations, which is critical for understanding bloom ecology and evolution.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/microorganisms9061128/s1, Detailed methods on additional screenings of P. bahamense cells following the initial multiplex PCR; sequence comparisons of Pyrodinium and Alexandrium illustrating sequence variability in sxtA4F1 and 166F primer binding sites; Table S1 and Methods for Detection of STX congeners in P. bahamense toxic lab isolate; Table S2: Percent Identity among sxtA4 Pyrodinium bahamense clones; representative 18S rRNA gene sequences used in P. bahamense analysis.

Author Contributions

Conceptualization, K.C.; methodology, K.C. and G.D.; formal analysis, K.C.; investigation, K.C.; resources, K.C.; data curation, K.C.; writing—original draft preparation, K.C.; writing—review and editing, K.C.; supervision, K.C.; project administration, K.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding and was funded by UMBC start-up funding to K.C.

Data Availability Statement

Sequences described in this study have been submitted to GenBank.

Acknowledgments

The authors thank Mark Martin, Vieques Conservation and Historical Trust, for collection of samples from Mosquito Bay and Tsetso Bachvaroff for insightful discussions. The authors thank Cary Lopez and staff at the Florida Fish & Wildlife Conservation Commission, Fish and Wildlife Research Institute for providing the P. bahamense isolate from the Indian River Lagoon

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cusick, K.D.; Sayler, G.S. An overview on the marine neurotoxin saxitoxin: Genetics, molecular targets, methods of detection, and ecological functions. Mar. Drugs 2013, 11, 991–1018. [Google Scholar] [CrossRef] [Green Version]
  2. Landsberg, J.H.; Hall, S.; Johannessen, J.N.; White, K.D.; Conrad, S.M.; Abbott, J.P.; Flewelling, L.J.; Richardson, R.W.; Dickey, R.W.; Jester, E.L.E.; et al. Saxitoxin puffer fish poisoning in the United States, with the first report of Pyrodinium bahamense as the putative toxin source. Environ. Health Persp. 2006, 114, 1502–1507. [Google Scholar] [CrossRef] [Green Version]
  3. Anderson, D.M.; Kulis, D.M.; Sullivan, J.J.; Hall, S.; Lee, C. Dynamics and physiology of saxitoxin production by the dinoflagellates Alexandrium spp. Mar. Biol. 1990, 104, 511–524. [Google Scholar] [CrossRef]
  4. Hallegraeff, G.M.; Steffensen, D.A.; Wetherbee, R. Three estuarine Australian dinoflagellates that can produce paralytic shellfish toxins. J. Plankton Res. 1988, 10, 533–541. [Google Scholar] [CrossRef]
  5. Harada, T.; Oshima, Y.; Kamiya, H.; Yasumoto, T. Confirmation of paralytic shellfish toxins in the dinoflagellate pyrodinium-bahamense var. compressa and bivalves in Palau. Bull. Jpn. Soc. Sci. Fish. 1982, 48, 821–825. [Google Scholar] [CrossRef]
  6. Oshima, Y.; Hasegawa, M.; Yasumoto, T.; Hallegraeff, G.; Blackburn, S. Dinoflagellate Gymnodinium catenatum as the source of paralytic shellfish toxins in tasmanian shellfish. Toxicon 1987, 25, 1105–1111. [Google Scholar] [CrossRef]
  7. Carmichael, W.W.; Evans, W.R.; Yin, Q.Q.; Bell, P.; Moczydlowski, E. Evidence for paralytic shellfish poisons in the freshwater cyanobacterium Lyngbya wollei (Farlow ex Gomont) comb. Nov. Appl. Environ. Microbiol. 1997, 63, 3104–3110. [Google Scholar] [CrossRef] [Green Version]
  8. Negri, A.P.; Jones, G.J. Bioaccumulation of paralytic shellfish poisoning (PSP) toxins from the cyanobacterium Anabaena circinalis by the freshwater mussel Alathyria condola. Toxicon 1995, 33, 667–678. [Google Scholar] [CrossRef]
  9. Shimizu, Y. Microalgal metabolites. Chem. Rev. 1993, 93, 1685–1698. [Google Scholar] [CrossRef]
  10. Shimizu, Y. Microalgal metabolites: A new perspective. Annu. Rev. Microbiol. 1996, 50, 431–465. [Google Scholar] [CrossRef] [PubMed]
  11. Kellmann, R.; Mihali, T.K.; Jeon, Y.J.; Pickford, R.; Pomati, F.; Neilan, B.A. Biosynthetic intermediate analysis and functional homology reveal a saxitoxin gene cluster in cyanobacteria. Appl. Environ. Microbiol. 2008, 74, 4044–4053. [Google Scholar] [CrossRef] [Green Version]
  12. Mihali, T.K.; Kellmann, R.; Neilan, B.A. Characterisation of the paralytic shellfish toxin biosynthesis gene clusters in Anabaena circinalis AWQC131C and Aphanizomenon sp. NH-5. BMC Biochem. 2009, 10, 8. [Google Scholar] [CrossRef] [Green Version]
  13. Mihali, T.K.; Carmichael, W.W.; Neilan, B.A. A putative gene cluster from a Lyngbya wollei bloom that encodes paralytic shellfish toxin biosynthesis. PLoS ONE 2011, 6, e14657. [Google Scholar] [CrossRef]
  14. Stuken, A.; Orr, R.J.S.; Kellmann, R.; Murray, S.A.; Neilan, B.A.; Jakobsen, K.S. Discovery of nuclear-encoded genes for the neurotoxin saxitoxin in dinoflagellates. PLoS ONE 2011, 6, e20096. [Google Scholar] [CrossRef] [Green Version]
  15. Hackett, J.D.; Wisecarver, J.H.; Brosnahan, M.L.; Kulis, D.M.; Anderson, D.M.; Bhattacharya, D.; Plumley, F.G.; Erdner, D.L. Evolution of saxitoxin synthesis in cyanobacteria and dinoflagellates. Mol. Biol. Evol. 2013, 30, 70–78. [Google Scholar] [CrossRef] [Green Version]
  16. Kellmann, R.; Michali, T.K.; Neilan, B.A. Identification of a saxitoxin biosynthesis gene with a history of frequent horizontal gene transfers. J. Mol. Evol. 2008, 67, 526–538. [Google Scholar] [CrossRef]
  17. Murray, S.A.; Diwan, R.; Orr, R.J.S.; Kohli, G.S.; John, U. Gene duplication, loss, and selection in the evolution of saxitoxin biosynthesis in alveolates. Mol. Phylogenetics Evol. 2015, 92, 165–180. [Google Scholar] [CrossRef] [Green Version]
  18. Wang, H.; Kim, H.; Ki, J.-S. Transcriptome survey and toxin measurements reveal evolutionary modification and loss of saxitoxin biosynthesis genes in the dinoflagellates Amphidinium carterae and Prorocentrum micans. Ecotoxicol. Environ. Saf. 2020, 195, 110474. [Google Scholar] [CrossRef]
  19. Murray, S.A.; Wiese, M.; Stuken, A.; Brett, S.; Kellmann, R.; Hallegraeff, G.; Neilan, B.A. SxtA-based quantitative molecular assay to identify saxitoxin-producing harmful algal blooms in marine waters. Appl. Environ. Microbiol. 2011, 77, 7050–7057. [Google Scholar] [CrossRef] [Green Version]
  20. Orr, R.J.S.; Stuken, A.; Murray, S.A.; Jakobsen, K.S. Evolutionary acquisition and loss of saxitoxin biosynthesis in dinoflagellates: The second "core" gene, sxtG. Appl. Environ. Microbiol. 2013, 79, 2128–2136. [Google Scholar] [CrossRef] [Green Version]
  21. Murray, S.A.; Hoppenrath, M.; Orr, R.J.S.; Bolch, C.; John, U.; Diwan, R.; Yauwenas, R.; Harwood, T.; de Salas, M.; Neilan, B.; et al. Alexandrium diversaporum sp. nov., a new non-saxitoxin producing species: Phylogeny, morphology and sxtA genes. Harmful Algae 2014, 31, 54–65. [Google Scholar] [CrossRef]
  22. Touzet, N.; Franco, J.M.; Raine, R. Characterization of nontoxic and toxin-producing strains of Alexandrium minutum (Dinophyceae) in Irish coastal waters. Appl. Environ. Microbiol. 2007, 73, 3333–3342. [Google Scholar] [CrossRef] [Green Version]
  23. Alpermann, T.J.; Tillmann, U.; Beszteri, B.; Cembella, A.D.; John, U. Phenotypic variation and genotypic diversity in a planktonic population of the toxigenic marine dinoflagellate Alexandrium tamarense (Dinophyceae). J. Phycol. 2010, 46, 18–32. [Google Scholar] [CrossRef] [Green Version]
  24. Menden-Deuer, S.; Montalbano, A.L. Bloom formation potential in the harmful dinoflagellate Akashiwo sanguinea: Clues from movement behaviors and growth characteristics. Harmful Algae 2015, 47, 75–85. [Google Scholar] [CrossRef] [Green Version]
  25. Anderson, D.M.; Alpermann, T.J.; Cembella, A.D.; Collos, Y. Masseret E, Montresor M. The globally distributed genus Alexandrium: Multifaceted roles in marine ecosystems and impacts on human health. Harmful Algae 2012, 14, 10–35. [Google Scholar] [CrossRef] [Green Version]
  26. Whittaker, K.A.; Rignanese, D.R.; Olson, R.J.; Rynearson, T.A. Molecular subdivision of the marine diatom Thalassiosira rotulain relation to geographic distribution, genome size, and physiology. BMC Evol. Biol. 2012, 12, 209. [Google Scholar] [CrossRef] [Green Version]
  27. Saravanan, V.; Godhe, A. Genetic heterogeneity and physiological variation among seasonally separated clones of Skeletonema marinoi (Bacillariophyceae) in the Gullmar Fjord, Sweden. Eur. J. Phycol. 2010, 45, 177–190. [Google Scholar] [CrossRef] [Green Version]
  28. Rynearson, T.A.; Armbrust, E.V. Genetic differentiation among populations of the planktonic marine diatim Ditylum brightwellii (Bacillariophyceae). J. Phycol. 2004, 40, 34–43. [Google Scholar] [CrossRef] [Green Version]
  29. Richlen, M.L.; Erdner, D.L.; McCauley, L.A.R.; Libera, K.; Anderson, D.M. Extensive genetic diversity and rapid population differentiation during blooms of Alexandrium fundyense (Dinophyceae) in an isolated salt pond on Cape Cod, MA, USA. Ecol. Evol. 2012, 2, 2588–2599. [Google Scholar] [CrossRef]
  30. Hallegraeff, G.M.; Blackburn, S.I.; Doblin, M.A.; Bolch, C.J.S. Global toxicology, ecophysiology and population relationships of the chainforming PST dinoflagellate Gymnodinium catenatum. Harmful Algae 2012, 14, 130–143. [Google Scholar] [CrossRef]
  31. Morquecho, L. Pyrodinium bahamense, one the most significant harmful dinoflagellates in Mexico. Front. Mar. Sci. 2019, 6, 1–8. [Google Scholar] [CrossRef] [Green Version]
  32. Phlips, E.J.; Badylak, S.; Christman, M.; Wolny, J.; Brame, J.; Garland, J.; Hall, L.; Hart, J.; Landsberg, J.; Lasi, M.; et al. Scales of temporal and spatial variability in the distribution of harmful algae species in the Indian River Lagoon, Florida, USA. Harmful Algae 2011, 10, 277–290. [Google Scholar] [CrossRef]
  33. Usup, G.; Ahmada, A.; Matsuoka, K.; Lim, P.T.; Leaw, C.P. Biology, ecology and bloom dynamics of the toxic marine dinoflagellate Pyrodinium bahamense. Harmful Algae 2012, 14, 301–312. [Google Scholar] [CrossRef]
  34. Montojo, U.M.; Sakamoto, S.; Cayme, M.F.; Gatdula, N.C.; Furio, E.F.; Relox, J.J.R.; Shigeru, S.; Fukuyo, Y.; Kodama, M. Remarkable difference in accumulation of paralytic shellfish poisoning toxins among bivalve species exposed to Pyrodinium bahamense var. compressum bloom in Masinloc bay, Philippines. Toxicon 2006, 48, 85–92. [Google Scholar] [CrossRef] [PubMed]
  35. Llewellyn, L.; Negri, A.; Robertson, A. Paralytic shellfish toxins in tropical oceans. Toxin Rev. 2006, 25, 159–196. [Google Scholar] [CrossRef]
  36. Azanza, R.V.; Miranda, L.N. Phytoplankton composition and Pyrodinium bahamense toxic blooms in Manila Bay, Philippines. J. Shellfish Res. 2001, 20, 1251–1255. [Google Scholar]
  37. Azanza, R.V.; Taylor, F.J.R. Are Pyrodinium blooms in the Southeast Asian region recurring and spreading? A view at the end of the millennium. AMBIO 2001, 30, 356–364. [Google Scholar] [CrossRef]
  38. Gacutan, R.Q.; Tabbu, M.Y.; Aujero, E.J.; Icatlo, F. Paralytic shellfish poisoning due to pyrodinium-bahamense var compressa in Mati, Davao-Oriental, Philippines. Mar. Biol. 1985, 87, 223–227. [Google Scholar] [CrossRef]
  39. Bodager, D. Outbreak of saxitoxin illness following consumption of Florida pufferfish. Fl J. Environ. Health 2002, 179, 9–13. [Google Scholar]
  40. Brandenburg, K.M.; Wohlrab, S.; John, U.; Kremp, A.; Jerney, J.; Krock, B.; Van de Waal, D.B. Intraspecific trait variation and trade-offs within and across populations of a toxic dinoflagellate. Ecol. Lett. 2018, 21, 1561–1571. [Google Scholar] [CrossRef] [Green Version]
  41. Murray, S.A.; Mihali, T.K.; Neilan, B.A. Extraordinary conservation, gene loss, and positive selection in the evolution of an ancient neurotoxin. Mol. Biol. Evol. 2011, 28, 1173–1182. [Google Scholar] [CrossRef] [Green Version]
  42. Zhang, Y.; Zhang, S.F.; Lin, L.; Wang, D.Z. Comparative transcriptome analysis of a toxin-producing dinoflagellate Alexandrium catenella and its non-toxic mutant. Mar. Drugs 2014, 12, 5698–5718. [Google Scholar] [CrossRef] [Green Version]
  43. John, U.; Beszteri, B.; Derelle, E.; Van de Peer, Y.; Read, B.; Moreau, H.; Cembella, A.D. Novel insights into evolution of protistan polyketide synthases through phylogenomic analysis. Protist 2008, 158, 21–30. [Google Scholar] [CrossRef]
  44. Eichholz, K.; Beszteri, B.; John, U. Putative monofunctional type I polyketide synthase units: A dinoflagellate-specific feature? PLoS ONE 2012, 7, e48624. [Google Scholar] [CrossRef] [Green Version]
  45. Nosenko, T.; Bhattacharya, D. Horizontal gene transfer in chromalveolates. BMC Evol. Biol. 2007, 7, 173. [Google Scholar] [CrossRef] [Green Version]
  46. Wisecaver, J.H.; Brosnahan, M.L.; Hackett, J.D. Horizontal gene transfer is a significant driver of gene innovation in dinoflagellates. Genome Biol. Evol. 2013, 5, 2368–2381. [Google Scholar] [CrossRef] [Green Version]
  47. Altschul, S.F.; Gish, W.; Miller, W.; Myers, E.W.; Lipman, D.J. Basic local aligment search tool. J. Mol. Biol. 1990, 215, 403–410. [Google Scholar] [CrossRef]
  48. Cusick, K.D.; Wilhelm, S.W.; Hargraves, P.E.; Sayler, G.S. Single-cell PCR of the luciferase conserved catalytic domain reveals a unique cluster in the toxic bioluminescent dinoflagellate Pyrodinium bahamense. Aquat. Biol. 2016, 25, 139–150. [Google Scholar] [CrossRef] [Green Version]
  49. Tomas, C.R. (Ed.) Identifying Marine Phytoplankton; Academic Press: San Diego, CA, USA, 1997; p. 858. [Google Scholar]
  50. Zhang, Z.; Schwartz, S.; Wagner, L.; Miller, W. A greedy algorithm for aligning DNA sequences. J. Comput. Biol. 2000, 7, 203–214. [Google Scholar] [CrossRef]
  51. Phlips, E.J.; Badylak, S.; Grosskopf, T. Factors affecting the abundance of phytoplankton in a restricted subtropical lagoon, the Indian River Lagoon, Florida, USA. Estuar. Coast. Shelf Sci. 2002, 55, 385–402. [Google Scholar] [CrossRef]
  52. Badylak, S.; Phlips, E.J. Spatial and temporal patterns of phytoplankton composition in a subtropical coastal lagoon, the Indian River Lagoon, Florida, USA. J. Plankton Res. 2004, 26, 1229–1247. [Google Scholar] [CrossRef] [Green Version]
  53. Phlips, E.J.; Badylak, S.; Christman, M.C.; Lasi, M.A. Climatic trends and temporal patterns of phytoplankton composition, abundance and succession in the Indian River Lagoon, Florida, USA. Estuar. Coast. 2010, 33, 498–512. [Google Scholar] [CrossRef]
  54. Phlips, E.J.; Badylak, S.; Bledsoe, E.; Cichra, M. Factors affecting the distribution of Pyrodinium bahamense var. bahamense in coastal waters of Florida. Mar. Ecol. Prog. Ser. 2006, 322, 99–115. [Google Scholar] [CrossRef]
  55. Grasso, S.; Albrecht, M.; Bras, M.M. Seasonal abundance of Pyrodinium bahamense (order Peridiniales, family Gonyaulacaceae) in Mosquito Bay, Vieques, Puerto Rico. J. Coast Life Med. 2016, 4, 277–283. [Google Scholar] [CrossRef]
  56. Steidinger, K.A.; Tester, L.S.; Taylor, F.J.R. A redescription of Pyrodinium bahamense var. compressa (Bohm) stat. nov. from Pacific red tides. Phycologia 1980, 19, 329–337. [Google Scholar] [CrossRef]
  57. Mertens, K.N.; Wolny, J.; Carbonell-Moore, C.; Bogus, K.; Ellegaard, M.; Limoges, A.; de Vernal, A.; Gurdebeke, P.; Omura, T.; Al-Muftah, A.; et al. Taxonomic re-examination of the toxic armored dinoflagellate Pyrodinium bahamense Plate 1906: Can morphology or LSU sequencing separate P. bahamense var. compressum from var. bahamense? Harmful Algae 2015, 41, 1–24. [Google Scholar] [CrossRef]
  58. Liu, L.; Wilson, T.; Hastings, J.W. Molecular evolution of dinoflagellate luciferases, enzymes with three catalytic domains in a single polypeptide. Proc. Natl. Acad. Sci. USA 2004, 101, 16555–16560. [Google Scholar] [CrossRef] [Green Version]
  59. Okamoto, O.K.; Liu, L.; Robertson, D.L.; Hastings, J.W. Members of a dinoflagellate luciferase gene family differ in synonymous substitution rates. Biochemistry 2001, 40, 15862–15868. [Google Scholar] [CrossRef] [Green Version]
Microorganisms 09 01128 g001 550
Figure 1. Map depicting sampling sites in (A) Indian River Lagoon, FL and (B) Mosquito Bay in Vieques, Puerto Rico. Florida sampling sites: TBM = Telemar Bay Marina, DB = Diamond Bay, LW = Lee Wenner Park, 520 = 520 Bridge. MB (Vieques map) = Mosquito Bay.
Figure 1. Map depicting sampling sites in (A) Indian River Lagoon, FL and (B) Mosquito Bay in Vieques, Puerto Rico. Florida sampling sites: TBM = Telemar Bay Marina, DB = Diamond Bay, LW = Lee Wenner Park, 520 = 520 Bridge. MB (Vieques map) = Mosquito Bay.
Microorganisms 09 01128 g001
Microorganisms 09 01128 g002 550

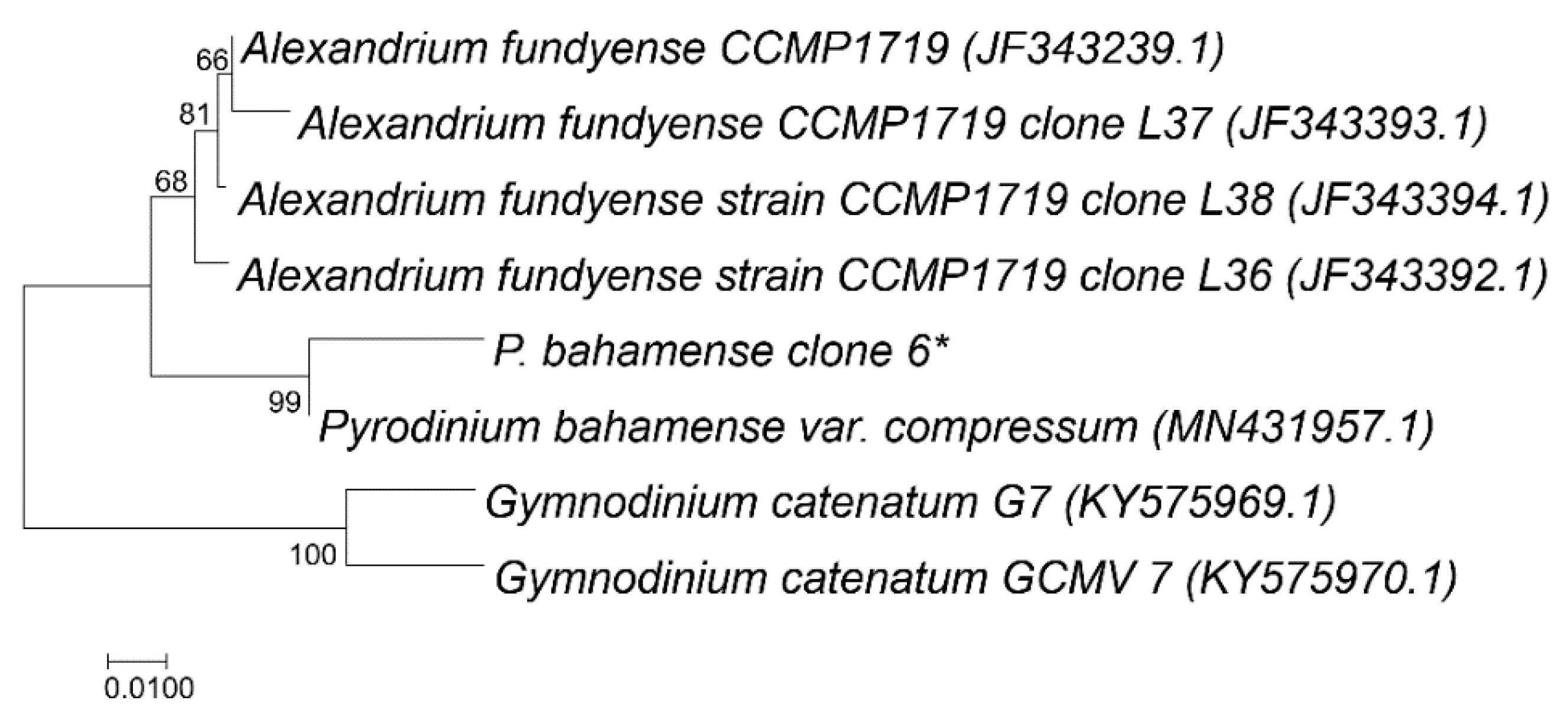

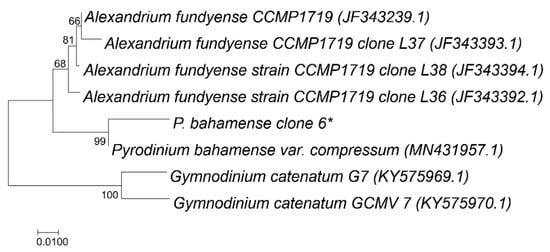

Figure 2. Neighbor Joining tree of sxtA4 sequences. Representative Alexandrium, Pyrodinium, and Gymnodinium sxtA4 sequences were downloaded from GenBank and aligned and trimmed in MEGA 7. Percentages from the bootstrap test (500 replicates) are displayed next to the branches. The rate variation among sites was modeled with a gamma distribution (shape parameter = 0.32). The analysis encompassed 8 nucleotide sequences. All positions containing gaps and missing data were eliminated. There were a total of 575 positions in the final dataset. Evolutionary analyses were conducted in MEGA7. * indicates P. bahamense sxtA4 sequence from this study.
Figure 2. Neighbor Joining tree of sxtA4 sequences. Representative Alexandrium, Pyrodinium, and Gymnodinium sxtA4 sequences were downloaded from GenBank and aligned and trimmed in MEGA 7. Percentages from the bootstrap test (500 replicates) are displayed next to the branches. The rate variation among sites was modeled with a gamma distribution (shape parameter = 0.32). The analysis encompassed 8 nucleotide sequences. All positions containing gaps and missing data were eliminated. There were a total of 575 positions in the final dataset. Evolutionary analyses were conducted in MEGA7. * indicates P. bahamense sxtA4 sequence from this study.
Microorganisms 09 01128 g002
Microorganisms 09 01128 g003 550

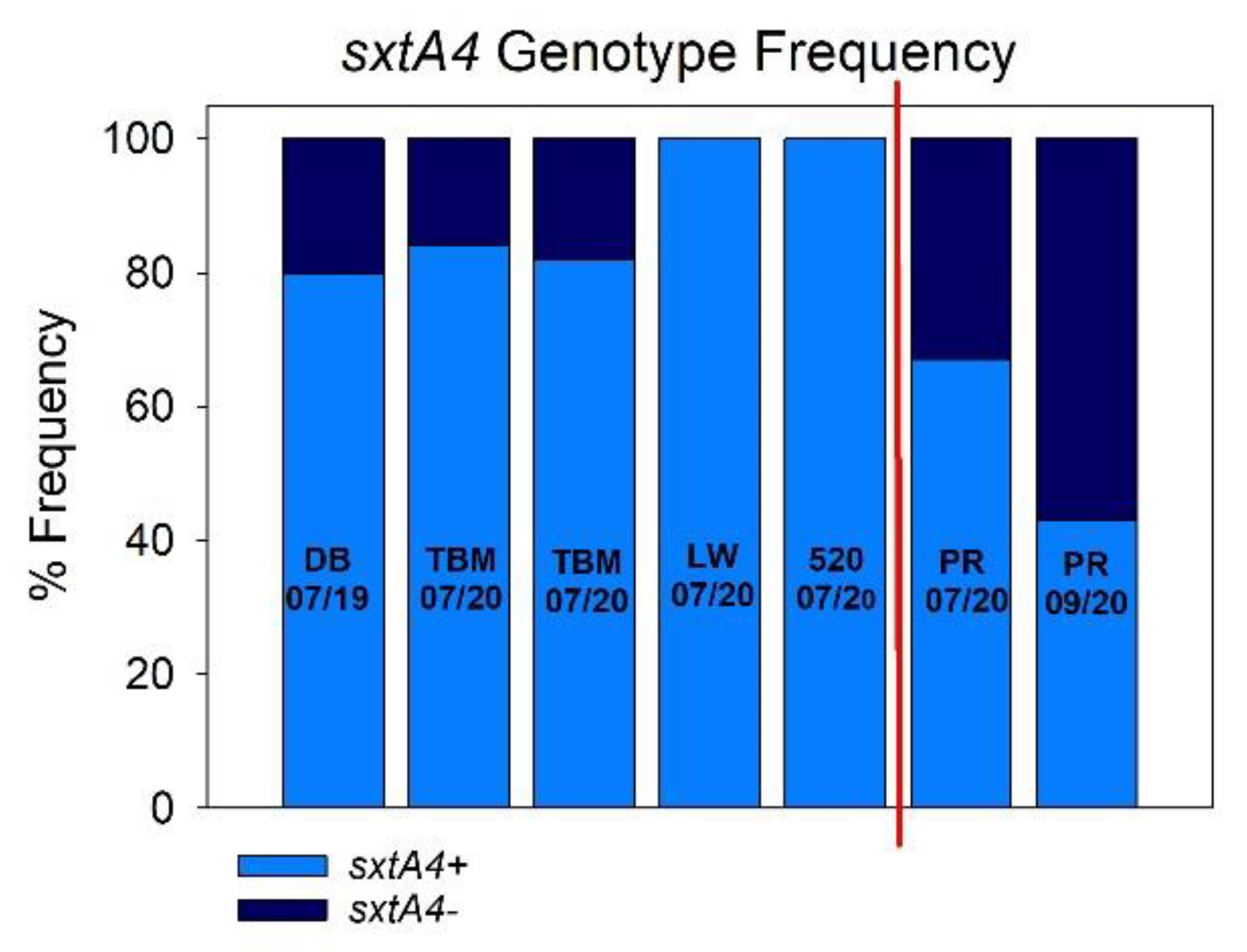

Figure 3. Percent sxtA4 genotype frequency among sites. Multiplex PCR was performed on individual P. bahamense cells collected from multiple sites in the Indian River Lagoon (IRL, Florida) and Mosquito Bay, a bioluminescent bay in Puerto Rico. Cells yielding the sxtA4 amplicon were defined as “sxtA4+”; cells in which sxtA4 was not detected were defined as “sxtA4-“. Text and numbers in each bar represent sampling site and date: DB = Diamond Bay (IRL); TBM = Telemar Bay Marina (IRL); LW = Lee Wenner Park (IRL); 520 = 520 Bridge (IRL). Vertical red line in graph separates Florida and Puerto Rico (PR) sampling sites.
Figure 3. Percent sxtA4 genotype frequency among sites. Multiplex PCR was performed on individual P. bahamense cells collected from multiple sites in the Indian River Lagoon (IRL, Florida) and Mosquito Bay, a bioluminescent bay in Puerto Rico. Cells yielding the sxtA4 amplicon were defined as “sxtA4+”; cells in which sxtA4 was not detected were defined as “sxtA4-“. Text and numbers in each bar represent sampling site and date: DB = Diamond Bay (IRL); TBM = Telemar Bay Marina (IRL); LW = Lee Wenner Park (IRL); 520 = 520 Bridge (IRL). Vertical red line in graph separates Florida and Puerto Rico (PR) sampling sites.
Microorganisms 09 01128 g003
Microorganisms 09 01128 g004 550

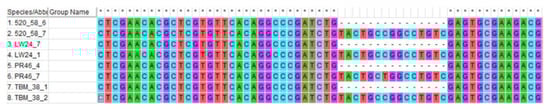

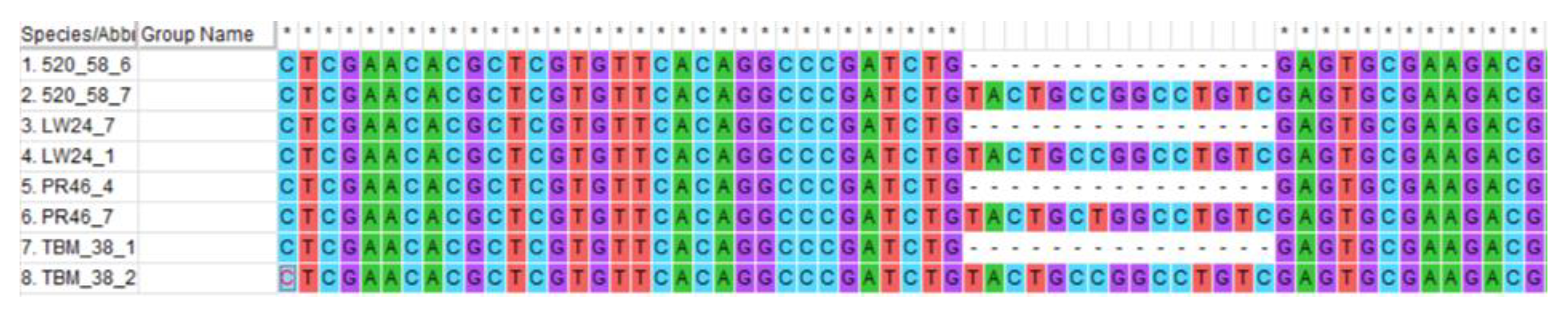

Figure 4. Two distinct variants were recovered from individual cells at all sampling sites, defined by a 15 bp deletion in one of the variants.
Figure 4. Two distinct variants were recovered from individual cells at all sampling sites, defined by a 15 bp deletion in one of the variants.
Microorganisms 09 01128 g004
Microorganisms 09 01128 g005 550

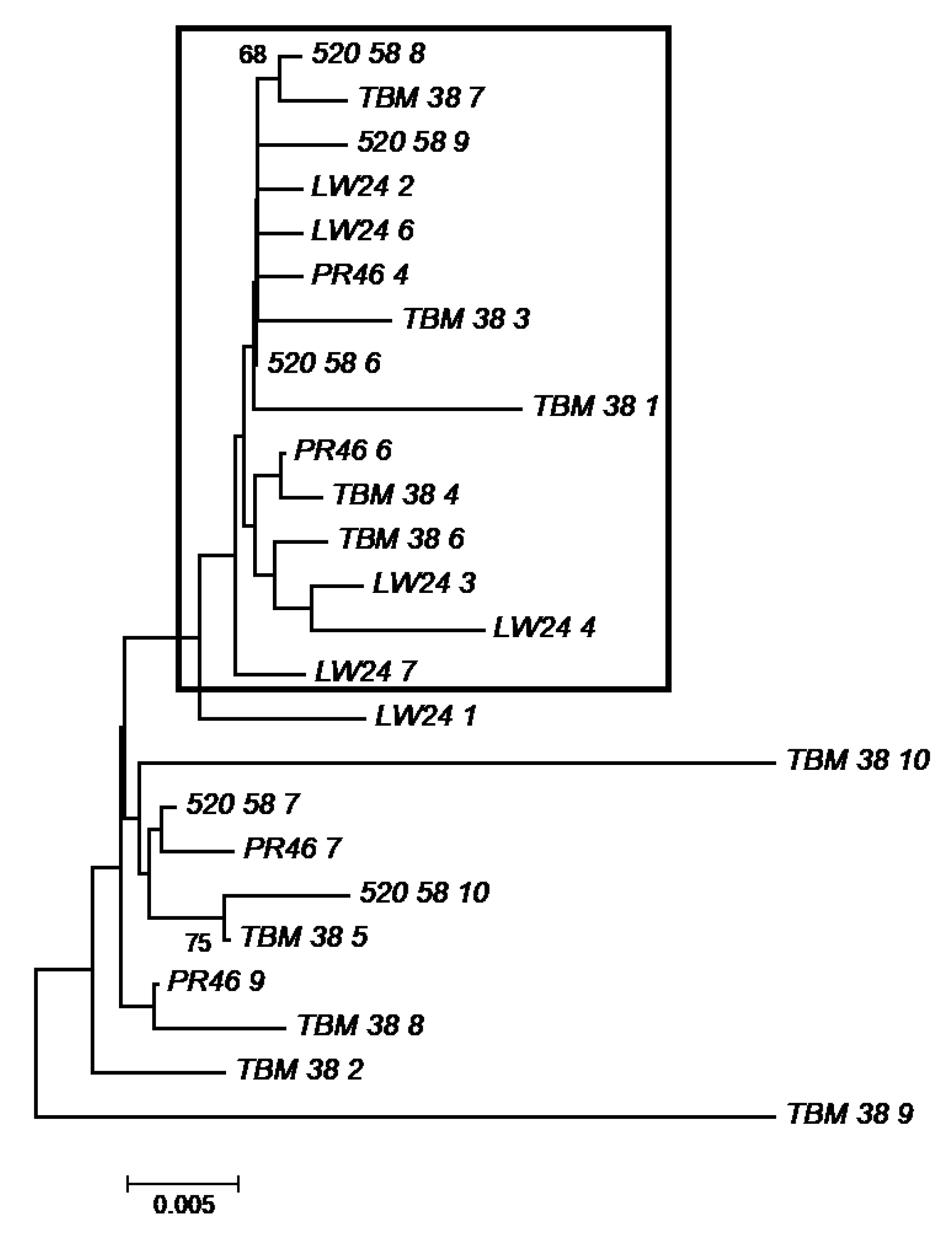

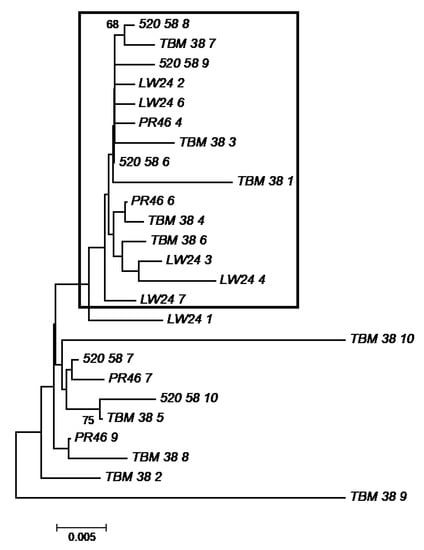

Figure 5. Neighbor Joining tree of sxtA4 sequences obtained from clones of single cells of P. bahamense from the representative sampling sites. Percentages from the bootstrap test (500 replicates) are shown next to the branches. The Tamura 3-parameter method best fit the data and so was used to compute the evolutionary distances. Twenty-five nucleotide sequences were included in the analysis. All ambiguous positions were removed for each sequence pair. There were a total of 517 positions in the final dataset. Evolutionary analyses were conducted in MEGA7. Nomenclature is as follows: Sampling site_cell_clone number. Note that for each site, the “cell” number is the same, as all sequences from that site were derived from the same cell. DB = Diamond Bay (IRL); TBM = Telemar Bay Marina (IRL); LW = Lee Wenner Park (IRL); 520 = 520 Bridge (IRL); PR = Mosquito Bay in Puerto Rico. Sequences with the 15 bp deletion are boxed.
Figure 5. Neighbor Joining tree of sxtA4 sequences obtained from clones of single cells of P. bahamense from the representative sampling sites. Percentages from the bootstrap test (500 replicates) are shown next to the branches. The Tamura 3-parameter method best fit the data and so was used to compute the evolutionary distances. Twenty-five nucleotide sequences were included in the analysis. All ambiguous positions were removed for each sequence pair. There were a total of 517 positions in the final dataset. Evolutionary analyses were conducted in MEGA7. Nomenclature is as follows: Sampling site_cell_clone number. Note that for each site, the “cell” number is the same, as all sequences from that site were derived from the same cell. DB = Diamond Bay (IRL); TBM = Telemar Bay Marina (IRL); LW = Lee Wenner Park (IRL); 520 = 520 Bridge (IRL); PR = Mosquito Bay in Puerto Rico. Sequences with the 15 bp deletion are boxed.
Microorganisms 09 01128 g005
Table
Table 1. List of primers.
Table 1. List of primers.
PrimerSequenceSource
PyrosxtA4F1AACGACATGAAGCAGCTCGAthis study
PyrosxtA4R680CTAGATGGGGTACCACATAGthis study
SxtA4166FCATGGCTGCGGCGTTCTTGthis study
Pcomp370FAAATTACCCAATCCTGACACT48
Pcomp1530RCTGATGACTCAGGCTTACT48
sxt007ATGCTCAACATGGGAGTCATCC14
sxt008GGGTCCAGTAGATGTTGACGATG14
Table
Table 2. Percent similarity between genomic and cDNA sxtA4 sequences for P. bahamense.
Table 2. Percent similarity between genomic and cDNA sxtA4 sequences for P. bahamense.
SpeciesNo. cDNA Sequences% SimilarityNo. DNA Sequences% Similarity
P. bahamense IRL899.1–1001496.0–100
A. fundyense 1 CCMP17191296.2–99.41091.7–100
A. fundyense A8 1793.5–1001977.5–100
A. fundyense E4 11997.0–1004076.8–100
A. pacificum ACCC01 1496.0–100591.0–100
1 Alexandrium data [14,17] are provided for comparison.
Table
Table 3. sxtA4+ genotype frequencies from sites in Florida (IRL) and Puerto Rico. 1 indicates number of isolated cells yielding an 18S rRNA gene amplicon. 2 Number of isolated cells yielding the 18S rRNA gene amplicon in which sxtA4 was detected.
Table 3. sxtA4+ genotype frequencies from sites in Florida (IRL) and Puerto Rico. 1 indicates number of isolated cells yielding an 18S rRNA gene amplicon. 2 Number of isolated cells yielding the 18S rRNA gene amplicon in which sxtA4 was detected.
Sampling SiteDate18S 1sxtA4 2sxtA4+ Frequency
Diamond Bay (IRL)7/15/201910880%
TBM (IRL)6/15/2020645484%
TBM (IRL)7/20/2020443682%
Lee Wenner (IRL)7/20/20203030100%
520 Bridge (IRL)7/20/20203737100%
Mosquito Bay (PR)7/8/20209667%
Mosquito Bay (PR)9/15/20207343%
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cusick, K.; Duran, G. sxtA4+ and sxtA4- Genotypes Occur Together within Natural Pyrodinium bahamense Sub-Populations from the Western Atlantic. Microorganisms 2021, 9, 1128. https://doi.org/10.3390/microorganisms9061128

AMA Style

Cusick K, Duran G. sxtA4+ and sxtA4- Genotypes Occur Together within Natural Pyrodinium bahamense Sub-Populations from the Western Atlantic. Microorganisms. 2021; 9(6):1128. https://doi.org/10.3390/microorganisms9061128

Chicago/Turabian Style

Cusick, Kathleen, and Gabriel Duran. 2021. "sxtA4+ and sxtA4- Genotypes Occur Together within Natural Pyrodinium bahamense Sub-Populations from the Western Atlantic" Microorganisms 9, no. 6: 1128. https://doi.org/10.3390/microorganisms9061128

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
