Article

Comparative Metabolome Analyses of Ivermectin-Resistant and -Susceptible Strains of Haemonchus contortus

State Key Laboratory of Agricultural Microbiology, Key Laboratory of Development of Veterinary Products, Ministry of Agriculture, College of Veterinary Medicine, Huazhong Agricultural University, Wuhan 430070, China
*
Author to whom correspondence should be addressed.
Animals 2023, 13(3), 456; https://doi.org/10.3390/ani13030456
Submission received: 26 November 2022 / Revised: 10 January 2023 / Accepted: 17 January 2023 / Published: 28 January 2023
(This article belongs to the Special Issue Advances in the Diagnosis of Parasitic Infections in Animals)

Abstract

:

Simple Summary

Ivermectin (IVM) is a highly effective, broad-spectrum, gold-standard antiparasitic drug that has been used extensively to control nematodes such as Haemonchus contortus. However, IVM-resistant H. contortus populations are now common throughout the world, and there is limited understanding of the mechanisms underlying IVM resistance in H. contortus. Recent studies have offered evidence that the metabolic status of bacteria significantly affects their antibiotic sensitivity and that specific metabolic characteristics are related to resistance. Thus, in the present study, we explored the metabolome of an IVM-resistant H. contortus strain and analyzed the role of metabolism in IVM resistance. These results contribute to our understanding of the mechanisms of IVM resistance in H. contortus.

Abstract

Resistance to anthelmintics such as ivermectin (IVM) is currently a major problem in the treatment of Haemonchus contortus, an important parasitic nematode of small ruminants. Although many advances have been made in understanding the IVM resistance mechanism, its exact mechanism remains unclear for H. contortus. Therefore, understanding the resistance mechanism becomes increasingly important for controlling haemonchosis. Recent research showed that the metabolic state of bacteria influences their susceptibility to antibiotics. However, little information is available on the roles of metabolites and metabolic pathways in IVM resistance of H. contortus. In this study, comparative analyses of the metabolomics of IVM-susceptible and -resistant adult H. contortus worms were carried out to explore the role of H. contortus metabolism in IVM resistance. In total, 705 metabolites belonging to 42 categories were detected, and 86 differential metabolites (17 upregulated and 69 downregulated) were identified in the IVM-resistant strain compared to the susceptible one. A KEGG pathway analysis showed that these 86 differential metabolites were enriched in 42 pathways that mainly included purine metabolism; the biosynthesis of amino acids; glycine, serine, and threonine metabolism; and cysteine and methionine metabolism. These results showed that amino acid metabolism may be mediated by the uptake of IVM and related with IVM resistance in H. contortus. This study contributes to our understanding of the mechanisms of IVM resistance and may provide effective approaches to manage infection by resistant strains of H. contortus.

1. Introduction

Infection by Haemonchus contortus, a highly pathogenic and economically important parasitic nematode, is ubiquitous in small grazing ruminants in warm climatic regions [1,2]. H. contortus infection is a major health problem in small ruminants, causing edema, anemia, and sudden death in infected sheep and goats, especially in young animals with heavy worm burdens [3]. Due to the high rates of infection and mortality in small ruminants around the world, small ruminant farmers have sustained significant economic losses [4]. The haemonchosis caused by H. contortus has been treated or prevented over the last 50 years using broad- or narrow-spectrum anthelmintics, such as ivermectin (IVM) and albendazole (ALB), with tremendous benefits to livestock health and breeding [5,6]. Among them, ivermectin (IVM) is one of the highly effective drugs used for the treatment and prevention of infections of parasitic endo- and ectoparasites in humans and animals. IVM is one of the most successful forms of anthelmintics treatment in the history of medicine and has improved the lives of many millions of peoples and animals. The researchers who discovered ivermectin won the Nobel Prize in 2015 [7]. Regrettably, the successful use of any anthelmintics is compromised by the rapid appearance of resistance. Similar to ALB, the inappropriate use and/or misuse of IVM has promoted the emergence and rapid spread of resistance in H. contortus, and reports of its resistance are no longer noteworthy, posing a serious threat to livestock and human health [8,9,10,11,12]. For this reason, the mechanisms of IVM resistance have been extensively studied in H. contortus.
Although numerous investigations of the IVM resistance mechanisms in H. contortus have been carried out, the major genetic mediators that can explain IVM resistance in most field isolates of H. contortus have not been unequivocally identified [13]. Previous research demonstrated several mechanisms by which H. contortus develops IVM resistance, including mutations or changes in the expression levels of IVM target genes, the induction or upregulation of drug efflux, and changes in drug uptake pathways [14,15,16,17]. For example, mutations in GluCl genes (avr-14, avr-15, and glc-1) confer high-level resistance to the antiparasitic drug ivermectin in H. contortus and C. elegans [18]. However, the complexities of the inherent characteristics of H. contortus, such as the extremely high levels of genetic diversity within populations, still impede efforts to overcome IVM resistance in H. contortus, requiring innovative approaches [19]. Thus, it is necessary to understand the IVM resistance mechanisms in H. contortus.
Although the mechanisms of action and primary targets for antibiotics and anticancer drugs are well studied, there is growing evidence and appreciation that altered metabolism affects drug efficacy, and this has been recognized as a key determinant of drug resistance in cancer [20]. For example, amino acid metabolism supports the cellular demand to overcome drug-induced stress [20]. Furthermore, recent intense studies have shown that the therapeutic pressure of antibiotics leads to metabolic alterations and drives resistance to antibiotics in bacteria [21]. For example, bacteria with reduced amino acid metabolism tend to be tolerant or resistant to conventional antibiotics due to lower intracellular antibiotic accumulation [22]. Therefore, there is a meaningful lesson that may apply to the study of IVM resistance mechanisms in H. contortus. IVM may also alter the metabolic state of H. contortus, and the metabolic states of resistant strains influence their susceptibility to IVM. Here, we analyzed the metabolic states of IVM-resistant and -susceptible strains using LC-MS-based metabolomics. These results increase our understanding of IVM resistance and may provide a new theoretical basis for IVM resistance mechanisms.

2. Materials and Methods

2.1. H. contortus Strains and Samples

Two isolates of H. contortus were used in this study:
(i)
The Haecon-5 strain kindly presented by Professor Robin B. Gasser (University of Melbourne) and maintained in goats in Huazhong Agricultural, which is sensitive to all commercial anthelmintics.
(ii)
The Zhaosu strain, which was originally isolated in Zhaosu County, Xinjiang, China, as an IVM-resistant strain [22].
(iii)
Samples: Six goats (6-month-old goats free of parasites) were randomly divided into two groups (resistant strain and susceptible strain, three goats/group) and infected with the infective third-stage larvae (7000 L3s per goat) of the respective strain. The adult male and female worms of H. contortus were isolated from the abomasa of goats 45 days after infection. These adult worms were thoroughly washed in PBS and assigned into two groups with three biological replicates for each group. Each sample was made from 160 adult worms (80 males and 80 females/sample) of Haecon-5-S or Zhaosu-R. All samples were transferred to liquid nitrogen for storage until use.

2.2. Metabolite Extraction and HPLC-MS/MS Analysis

Worms (100 mg/sample) collected from different goats were prepared and extracted following the procedures of a previous study [23]. After extraction, the samples were loaded into an ExionLC™ AD system (SCIEX) coupled with a QTRAP ® 6500+ mass spectrometer (SCIEX) at Novogene Co., Ltd. (Beijing, China). As metabolites are susceptible to interference from external factors and change rapidly, quality control during the assay was particularly important for the accuracy of the results. In this experiment, the mass spectrometry process was divided into quality control (QC) samples and experimental samples for testing. The QC (quality control) samples were made of equal volumes of experimental samples that were mixed to evaluate the stability of the chromatography–mass spectrometry system throughout the experimental process and to perform data quality control. The raw data generated by LC-MS/MS were analyzed, and metabolites were quantified and identified using the Q1, Q3, RT (retention time), DP (declustering potential), and CE (collision energy). All parameters and conditions for LC−MS/MS analyses were similar to the previous study [24].

2.3. Data Analysis

A principal components analysis (PCA) and a partial least-squares discriminant analysis (PLS-DA) were performed using metaX. In order to estimate the quality of the PLS-DA model, the model was sorted and verified to check whether the model was “over fitted”. The estimate standard was that when the R2 value was greater than the Q2 value and the intercept between the Q2 regression line and the Y axis was less than 0, the model was not “over fitted”. Prior to the differential analysis of the total identified metabolites, the data were log-transformed and normalized using the metaX software to obtain VIP values for each metabolite. We applied three parameters to identify the statistical differential metabolites. The VIP (variable importance in the projection) values indicate the contributions of metabolites to the grouping. FC refers to the fold change, which is the ratio of the mean values of all biological replicate quantification values for each metabolite in the comparison group. These differential metabolites were identified with VIP > 1, p-value < 0.05, and FC ≥ 1.5 or FC ≤ 0.667, and R software was used to draw the volcano plots and clustering heat map. The potential roles of these metabolites were studied using the KEGG database (http://www.genome.jp/kegg/ (accessed on 26 November 2022)), and the metabolic pathways were considered to have statistically significant enrichment when the p-values of the metabolic pathways were <0.05.

3. Results

3.1. Data Analysis for Quality Control of Samples

The results showed that the total ion flow pattern of QC samples was of high quality with three replicates in the positive and negative ion modes. The intensity and retention times of the spectral peaks showed high reproducibility, indicating good instrument stability during the detection process (Figure 1A,B). In addition, the correlation analysis of the QC samples was performed based on the relative quantitative values of metabolites. From Figure 1C, the correlation coefficients of the QC samples were above 0.994, indicating better stability of the whole assay process and higher data quality. The above results demonstrated that the method used in this test was stable and reproducible and that the raw data that were collected met the requirements of the subsequent analysis.

3.2. Total Sample PCA and PLS-DA Analyses

The principal component analysis (PCA) results showed high clustering of QC samples and good separation between the susceptible and resistant strains, indicating the good stability and high data quality of the whole method (Figure 2A). In addition, the quality of the model was evaluated with a PLS-DA analysis, and the results showed that the R2 and Q2 values were found to be 1 and 0.51, respectively. The intercept of the Q2 regression line with the Y-axis was less than 0, indicating that the OPLS-DA model was not over-fitted and was valid (Figure 2B). The above results indicated that the accuracy and reliability of the obtained data were high enough for the subsequent analysis.

3.3. Overall Metabolomics Analysis of H. contortus

As shown in Table 1 a total of 705 metabolites belonging to 42 categories were identified in the resistant and susceptible strains, including 154 amino acids and derivatives, 105 organic acids and derivatives, 74 nucleotides and derivatives, 50 fatty acyls, 42 carbohydrates and derivatives, 36 hormones, 26 phospholipids, 22 carnitines, 20 organic heterocyclic compounds, 14 sugar acids and derivatives, 13 vitamins, 12 oxidized lipids, 11 others, 11 bile acids, 11 benzoic acid and its derivatives, 10 indole and its derivatives, 10 benzene and its derivatives, and other metabolites with less than 10 metabolites (Table 1 and Tables S1 and S2).

3.4. Differential Metabolite Analysis

In this study, differential metabolites between IVM-resistant and -susceptible H. contortus strains were identified by combining the variables with the VIP, FC, and p-values. In addition, a cluster analysis and an ROC curve analysis were performed to evaluate differential metabolites. The results showed that 86 differential metabolites were identified in the IVM-resistant strain compared to the susceptible strain. Among them, 17 metabolites were upregulated and 69 were downregulated in the IVM-resistant strain (Figure 3A). The types of differential metabolites mainly included amino acids and derivatives (28), organic acids and derivatives (14), nucleotides and derivatives (10), hormones (5), carnitines (5), organic heterocyclic compounds (3), fatty acyl groups (3), vitamins (3), phenols and derivatives (2), sugar alcohols (2), etc. (Table S3). The results indicate that the metabolic profiles of the resistant strain were substantially different from those of the susceptible strain. The corresponding ROC curve of the differential metabolites had an AUC of 1, indicating that the identification accuracy of the differential metabolites was very high (Figure 3B). To assess the relationships among the differential metabolites, all differential metabolites were used for a hierarchical cluster analysis (Figure 4), showing that the differential metabolites from the biological replicates of the same strain were more closely clustered together. These results further confirmed the high accuracy and reproducibility of the experimental results.

3.5. Functional Annotation Analysis of the Differential Metabolites

The altered metabolites in the resistant strain were analyzed, and the significantly enriched pathways are displayed in the scatter diagram (Figure 5 & Table S4). The results showed that 86 differential metabolites were enriched in 43 pathways that mainly included purine metabolism; the biosynthesis of amino acids, specifically glycine, serine, and threonine metabolism; cysteine and methionine metabolism; and tryptophan metabolism. In addition, riboflavin metabolism was also significantly changed.

4. Discussion

Although the main targets and mechanisms of action for antibiotics are well studied, there is growing evidence that altered metabolism actively participates in antibiotic efficacy [25] and that extracellular metabolites may either potentiate [26,27] or suppress [28] the killing activities of the antibiotics. Here, based on the study of bacterial antibiotic resistance, we analyzed the metabolomes of IVM-resistant and IVM-sensitive H. contortus using LC-MS and identified some metabolites and pathways that could play important roles in IVM resistance in H. contortus. Importantly, these results could provide a new idea for the study on the mechanism of IVM resistance in H. contortus and related parasitic nematodes.
Metabolomics has been used to study the metabolic characteristics in antibiotic-resistant bacteria. For example, in kanamycin-resistant Edwardsiella tarda, decreased abundances of alanine, glutamate, glucose, and fructose were detected, and exogenous additions of these metabolites promoted antibiotic uptake and restored the susceptibility of resistant E. tarda bacteria [29]. In addition, in apramycin-resistant Salmonella, the metabolites citrulline and glutamine were significantly reduced, and the killing effect of apramycin was restored when the two metabolites were added [30]. Furthermore, the synergistic use of glycine, serine, and threonine elevated the intracellular kanamycin concentration and increased the lethal efficacy of kanamycin [31]. The underlying mechanism of the above studies is that exogenous amino acids promote TCA cycle substrate activation and increase the concentration of NADH. The NADH is oxidized through the electron transport chain to generate proton motive force (PMF), and PMF facilitates the antibiotic uptake [29]. In the present study, we noted that amino acids and derivatives were significantly decreased in the IVM-resistant strain, namely 24 amino acids and derivatives were downregulated and 4 were upregulated. Interestingly, among them, alanine, citrulline, glutamine, and glycine were significantly downregulated in the IVM-resistant strain. Moreover, the differential amino acids and derivatives were significantly enriched in the biosynthesis of amino acids; glycine, serine, and threonine metabolism; cysteine and methionine metabolism; and the tryptophan metabolism pathway, suggesting that amino acids and derivatives may play significant roles in IVM resistance, although this remains to be verified.
A recent study showed that the production of reactive oxygen species (ROS) was recognized as a common mechanism for antibiotic killing [32]. For example, Ye et al. showed that exogenous alanine could promote ROS production that in turn potentiated the killing of antibiotic-resistant E. tarda. The underlying mechanism was that alanine metabolism could connect to riboflavin metabolism, which was the the source for ROS production [33]. Intriguingly, alanine was one of the significantly downregulated metabolites, and a functional annotation analysis of the differential metabolites showed that riboflavin metabolism was significantly enriched. Therefore, we speculate that the alanine in H. contortus influences the killing efficacy of IVM via connecting with riboflavin metabolism. Furthermore, growing evidence shows that amino acid metabolism has a pleiotropic role in drug resistance in cancer cells and drives drug resistance by sustaining redox homeostasis, regulating epigenetic modification, maintaining biosynthetic processes, and offering metabolic intermediates for energy generation [20,34,35]. For instance, enhanced glutamine metabolism supports the survival of resistant cancer cells via the NADPH-dependent glutathione redox system, and the underlying mechanism is that glutamine-derived antioxidants protect against the oxidative stress prompted by drug-induced ROS [16]. Therefore, the above results indicated that amino acid metabolism should be considered a critical determinant of the sensitivity of H. contortus to IVM.
In addition, a recent study showed that perturbations in purine biosynthesis alter antibiotic lethality [36]. For example, a genetic deletion of enzymes participating in purine biosynthesis exerted significant decreases in ampicillin (AMP) and ciprofloxacin (CIP) lethality in E. coli compared to the wildtype. The underlying mechanism is that a decreased abundance of purine triggers a reduction in ATP demand and decreases the toxic metabolic byproducts generated by central carbon metabolism, and the cellular respiration ultimately exacerbates antibiotic-mediated killing. In the present study, all nucleotides and derivatives were significantly downregulated, and a pathway analysis showed that purine metabolism was also significantly enriched. This suggested that nucleotides may also be involved in H. contortus IVM resistance. In addition, amino acids are primarily required for nucleotide biosynthesis. This further illustrates that amino acid metabolism may be closely related to IVM resistance in H. contortus.
Based on the above discussion, our proposal for the IVM-resistant mechanism in H. contortus is that amino acid metabolism may provide resistant strains with specific adaptive traits to counteract the IVM treatment (Figure 6). The decreased amino acids and derivatives suppress the TCA cycle by substrate activation and lead to a reduced concentration of NADH. The NADH is oxidized through the electron transport chain to generate PMF, leading to a decrease in PMF, which is responsible for decreased IVM uptake, ultimately reducing the intracellular IVM concentration. The metabolic state of H. contortus thereby influences its susceptibility to IVM. In addition, the active transport of IVM by ABC transporters, which are responsible for IVM elimination, further facilitates the emergence of IVM resistance.

5. Conclusions

In the present study, metabolomics was used to analyze the metabolic alterations in an IVM-resistant H. contortus strain. The results revealed that some important metabolites, such as amino acids and derivatives, may be related to IVM resistance. In conclusion, we propose that H. contortus’s susceptibility to IVM may be strongly associated with metabolic states and that specific metabolites may alter the susceptibility of H. contortus to IVM.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ani13030456/s1. Table S1: metabolites identified in resistant, susceptible, quality control samples_all; Table S2: metabolites identified in both Haemonchus contortus ivermectin resistant and susceptible strains.Table S3: differential metabolites between Haemonchus contortus ivermectin resistant and susceptible strains; Table S4: KEGG enrichment analysis of differential metabolites between ivermectin-resistant and -susceptible strains of Haemonchus contortus.

Author Contributions

M.H. conceived the project and revised the manuscript. W.T. performed most experiments with the help of X.L., Y.W. and S.W. and prepared the first draft of the manuscript. P.Q., S.Z., F.L. and C.W. were responsible for feeding goats and collecting samples. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the “National Natural Science Foundation of China” (grants 31872462 and 32172881).

Institutional Review Board Statement

All experimental animals used in this study were treated in strict accordance with the recommendations in the Guide for the Regulation for the Administration of Affairs Concerning Experimental Animals of the People’s Republic of China. The protocol was approved by the Ethics Committee of Huazhong Agriculture University (permit HZAUGO-2016-007).

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated during the study are included in the published article(s) cited within the text and Supplementary Materials and acknowledged in the reference section.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Emery, D.L.; Hunt, P.W.; Le Jambre, L.F. Haemonchus contortus: The then and now and where to from here? Int. J. Parasitol. 2016, 46, 755–769. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Besier, R.B.; Kahn, L.P.; Sargison, N.D.; Van Wyk, J.A. Diagnosis, treatment and management of Haemonchus contortus in small ruminants. Adv. Parasitol. 2016, 93, 181–238. [Google Scholar]
  3. Mushonga, B.; Habumugisha, D.; Kandiwa, E.; Madzingira, O.; Samkange, A.; Segwagwe, B.E.; Jaja, I.F. Prevalence of Haemonchus contortus infections in sheep and goats in nyagatare district, Rwanda. J. Vet. Med. 2018, 2018, 3602081. [Google Scholar] [CrossRef] [Green Version]
  4. Naeem, M.; Iqbal, Z.; Roohi, N. Ovine haemonchosis: A review. Trop. Anim. Health. Prod. 2020, 53, 19. [Google Scholar] [CrossRef]
  5. Kaplan, R.M.; Vidyashankar, A.N. An inconvenient truth: Global worming and anthelmintic resistance. Vet. Parasitol. 2012, 186, 70–78. [Google Scholar] [CrossRef] [PubMed]
  6. Gilleard, J.S.; Kotze, A.C.; Leathwick, D.; Nisbet, A.J.; Mcneilly, T.N.; Besier, B. A journey through 50 years of research relevant to the control of gastrointestinal nematodes in ruminant livestock and thoughts on future directions. Int. J. Parasitol. 2021, 51, 1133–1151. [Google Scholar] [CrossRef]
  7. Omura, S. Ivermectin: 25 years and still going strong. Int. J. Antimicrob. Agents 2008, 31, 91–99. [Google Scholar] [CrossRef]
  8. Kotze, A.C.; Prichard, R.K. Anthelmintic Resistance in Haemonchus contortus: History, mechanisms and diagnosis. Adv. Parasitol. 2016, 93, 397–428. [Google Scholar] [PubMed]
  9. Rose, H.; Rinaldi, L.; Bosco, A.; Mavrot, F.; de Waal, T.; Skuce, P.; Charlier, J.; Torgerson, P.R.; Hertzberg, H.; Hendrickx, G.; et al. Widespread anthelmintic resistance in European farmed ruminants: A systematic review. Vet. Rec. 2015, 176, 546. [Google Scholar] [CrossRef] [Green Version]
  10. Jabbar, A.; Campbell, A.J.; Charles, J.A.; Gasser, R.B. First report of anthelmintic resistance in Haemonchus contortus in alpacas in Australia. Parasit. Vectors 2013, 6, 243. [Google Scholar] [CrossRef] [Green Version]
  11. Schnyder, M.; Torgerson, P.R.; Schönmann, M.; Kohler, L.; Hertzberg, H. Multiple anthelmintic resistance in Haemonchus contortus isolated from South African Boer goats in Switzerland. Vet. Parasitol. 2005, 128, 285–290. [Google Scholar] [CrossRef]
  12. Almeida, F.A.; Garcia, K.C.; Torgerson, P.R.; Amarante, A.F. Multiple resistance to anthelmintics by Haemonchus contortus and Trichostrongylus colubriformis in sheep in Brazil. Parasitol. Int. 2010, 59, 622–625. [Google Scholar] [CrossRef]
  13. Kotze, A.C.; Hunt, P.W.; Skuce, P.; von Samson-Himmelstjerna, G.; Martin, R.J.; Sager, H.; Krücken, J.; Hodgkinson, J.; Lespine, A.; Jex, A.R.; et al. Recent advances in candidate-gene and whole-genome approaches to the discovery of anthelmintic resistance markers and the description of drug/receptor interactions. Int. J. Parasitol. Drugs. Drug. Resist. 2014, 4, 164–184. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Blackhall, W.J.; Pouliot, J.F.; Prichard, R.K.; Beech, R.N. Haemonchus contortus: Selection at a glutamate-gated chloride channel gene in ivermectin- and moxidectin-selected strains. Exp. Parasitol. 1998, 90, 42–48. [Google Scholar] [CrossRef] [PubMed]
  15. Williamson, S.M.; Storey, B.; Howell, S.; Harper, K.M.; Kaplan, R.M.; Wolstenholme, A.J. Candidate anthelmintic resistance-associated gene expression and sequence polymorphisms in a triple-resistant field isolate of Haemonchus contortus. Mol. Biochem. Parasitol. 2011, 180, 99–105. [Google Scholar] [CrossRef]
  16. Godoy, P.; Che, H.; Beech, R.N.; Prichard, R.K. Characterisation of P-glycoprotein-9.1 in Haemonchus contortus. Parasit. Vectors 2016, 9, 52. [Google Scholar] [CrossRef] [Green Version]
  17. Urdaneta-Marquez, L.; Bae, S.H.; Janukavicius, P.; Beech, R.; Dent, J.; Prichard, R. A dyf-7 haplotype causes sensory neuron defects and is associated with macrocyclic lactone resistance worldwide in the nematode parasite Haemonchus contortus. Int. J. Parasitol. 2014, 44, 1063–1107. [Google Scholar] [CrossRef] [PubMed]
  18. Dent, J.A.; Smith, M.M.; Vassilatis, D.K.; Avery, L. The genetics of ivermectin resistance in Caenorhabditis elegans. Proc. Natl. Acad. Sci. USA 2000, 97, 2674–2679. [Google Scholar] [CrossRef] [Green Version]
  19. Laing, R.; Kikuchi, T.; Martinelli, A.; Tsai, I.J.; Beech, R.N.; Redman, E.; Holroyd, N.; Bartley, D.J.; Beasley, H.; Britton, C.; et al. The genome and transcriptome of Haemonchus contortus, a key model parasite for drug and vaccine discovery. Genome Biol. 2013, 14, R88. [Google Scholar] [CrossRef] [Green Version]
  20. Yoo, H.C.; Han, J.M. Amino acid metabolism in cancer drug resistance. Cells 2022, 11, 140. [Google Scholar] [CrossRef]
  21. Stokes, J.M.; Lopatkin, A.J.; Lobritz, M.A.; Collins, J.J. Bacterial metabolism and antibiotic efficacy. Cell. Metab. 2019, 30, 251–259. [Google Scholar] [CrossRef] [PubMed]
  22. Tuersong, W.; Zhou, C.; Wu, S.; Qin, P.; Wang, C.; Di, W.; Liu, L.; Liu, H.; Hu, M. Comparative analysis on transcriptomics of ivermectin resistant and susceptible strains of Haemonchus contortus. Parasit. Vectors 2022, 15, 159. [Google Scholar] [CrossRef] [PubMed]
  23. Want, E.J.; Masson, P.; Michopoulos, F.; Wilson, I.D.; Theodoridis, G.; Plumb, R.S.; Shockcor, J.; Loftus, N.; Holmes, E.; Nicholson, J.K. Global metabolic profiling of animal and human tissues via UPLC-MS. Nat. Protoc. 2012, 8, 17–32. [Google Scholar] [CrossRef]
  24. Luo, P.; Dai, W.; Yin, P.; Zeng, Z.; Kong, H.; Zhou, L.; Wang, X.; Chen, S.; Lu, X.; Xu, G. Multiple reaction monitoring-ion pair finder: A systematic approach to transform nontargeted mode to pseudo-targeted mode for metabolomics study based on liquid chromatography-mass spectrometry. Anal. Chem. 2015, 87, 5050–5055. [Google Scholar] [CrossRef]
  25. Yang, J.H.; Bening, S.C.; Collins, J.J. Antibiotic efficacy-context matters. Curr. Opin. Microbiol. 2017, 39, 73–80. [Google Scholar] [CrossRef] [PubMed]
  26. Allison, K.R.; Brynildsen, M.P.; Collins, J.J. Metabolite-enabled eradication of bacterial persisters by aminoglycosides. Nature 2011, 473, 216–220. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Meylan, S.; Porter, C.B.M.; Yang, J.H.; Belenky, P.; Gutierrez, A.; Lobritz, M.A.; Park, J.; Kim, S.H.; Moskowitz, S.M.; Collins, J.J. Carbon sources tune antibiotic susceptibility in pseudomonas aeruginosa via tricarboxylic acid cycle control. Cell. Chem. Biol. 2017, 24, 195–206. [Google Scholar] [CrossRef]
  28. Yang, J.H.; Bhargava, P.; McCloskey, D.; Mao, N.; Palsson, B.O.; Collins, J.J. Antibiotic-induced changes to the host metabolic environment inhibit drug efficacy and alter immune function. Cell. Host. Microbe 2017, 22, 757–765. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Peng, B.; Su, Y.B.; Li, H.; Han, Y.; Guo, C.; Tian, Y.M.; Peng, X.X. Exogenous alanine and/or glucose plus kanamycin kills antibiotic-resistant bacteria. Cell. Metab. 2015, 21, 249–262. [Google Scholar] [CrossRef] [Green Version]
  30. Yong, Y.; Zhou, Y.; Liu, K.; Liu, G.; Wu, L.; Fang, B. Exogenous citrulline and glutamine contribute to reverse the resistance of Salmonella to apramycin. Front. Microbiol. 2021, 12, 759170. [Google Scholar] [CrossRef]
  31. Ye, J.Z.; Lin, X.M.; Cheng, Z.X.; Su, Y.B.; Li, W.X.; Ali, F.M.; Zheng, J.; Peng, B. Identification and efficacy of glycine, serine and threonine metabolism in potentiating kanamycin-mediated killing of Edwardsiella piscicida. J. Proteom. 2018, 183, 34–44. [Google Scholar] [CrossRef] [PubMed]
  32. Liu, Y.; Li, R.; Xiao, X.; Wang, Z. Bacterial metabolism-inspired molecules to modulate antibiotic efficacy. J. Antimicrob. Chemother. 2019, 74, 3409–3417. [Google Scholar] [CrossRef] [PubMed]
  33. Ye, J.Z.; Su, Y.B.; Lin, X.M.; Lai, S.S.; Li, W.X.; Ali, F.; Zheng, J.; Peng, B. Alanine enhances Aminoglycosides-induced ROS production as revealed by proteomic analysis. Front. Microbiol. 2018, 9, 29. [Google Scholar] [CrossRef] [PubMed]
  34. Pranzini, E.; Pardella, E.; Paoli, P.; Fendt, S.M.; Taddei, M.L. Metabolic reprogramming in anticancer drug resistance: A focus on amino acids. Trends. Cancer 2021, 7, 682–699. [Google Scholar] [CrossRef] [PubMed]
  35. Lieu, E.L.; Nguyen, T.; Rhyne, S.; Kim, J. Amino acids in cancer. Exp. Mol. Med. 2020, 52, 15–30. [Google Scholar] [CrossRef]
  36. Yang, J.H.; Wright, S.N.; Hamblin, M.; McCloskey, D.; Alcantar, M.A.; Schrübbers, L.; Lopatkin, A.J.; Satish, S.; Nili, A.; Palsson, B.O.; et al. A white-box machine learning approach for revealing antibiotic mechanisms of action. Cell 2019, 177, 1649–1661. [Google Scholar] [CrossRef] [PubMed]

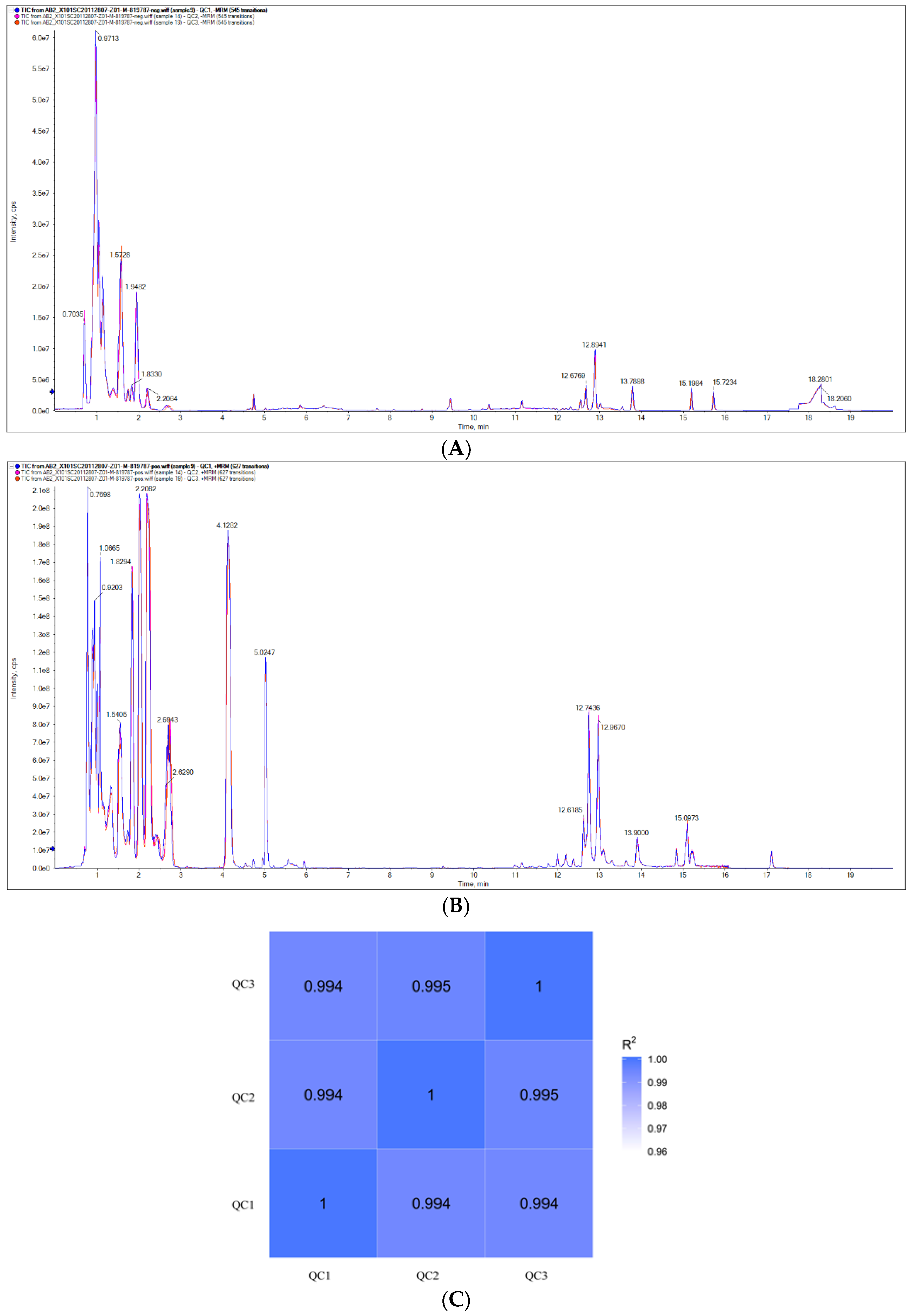

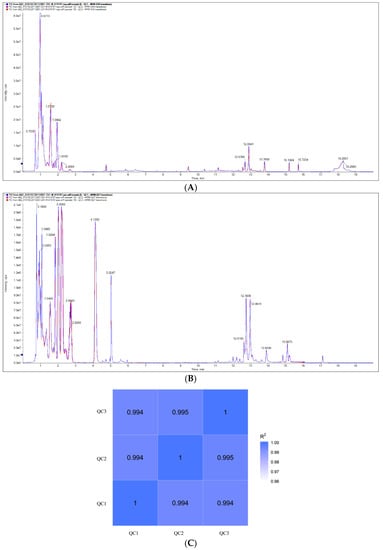

Figure 1. QC sample total ion flow diagrams and Pearson correlations. (A) Negative ion mode. (B) Positive ion mode. (C) Pearson correlations between QC samples.
Figure 1. QC sample total ion flow diagrams and Pearson correlations. (A) Negative ion mode. (B) Positive ion mode. (C) Pearson correlations between QC samples.
Animals 13 00456 g001
Figure 2. The graphs of the PCA and PLS-DA analyses for the total samples. (A) PCA analysis of the IVM-susceptible and -resistant strains. Red circles, susceptible strain; green circles, resistant strain; blue circles, QC samples. (B) PLS-DA analysis for the total samples.
Figure 2. The graphs of the PCA and PLS-DA analyses for the total samples. (A) PCA analysis of the IVM-susceptible and -resistant strains. Red circles, susceptible strain; green circles, resistant strain; blue circles, QC samples. (B) PLS-DA analysis for the total samples.
Animals 13 00456 g002

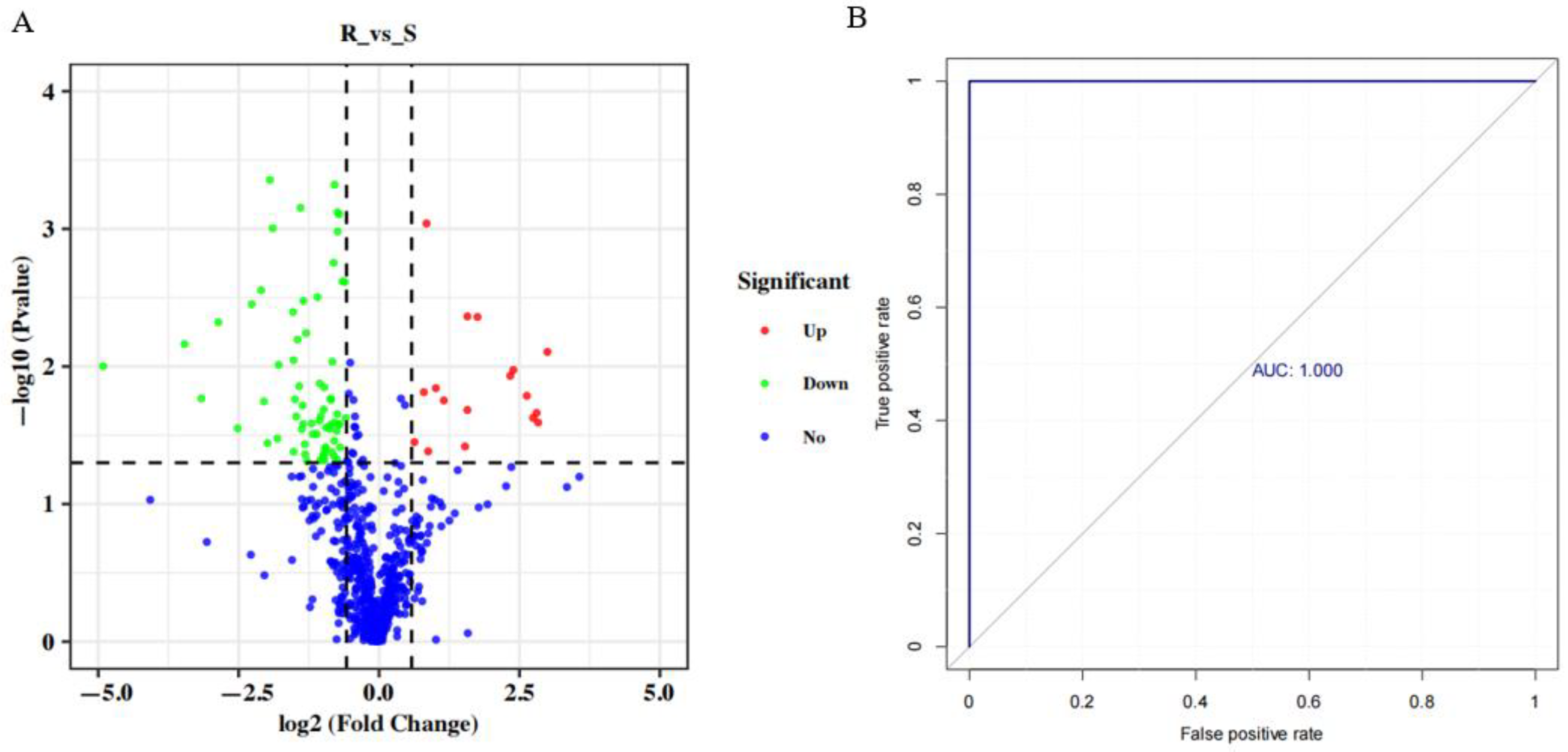

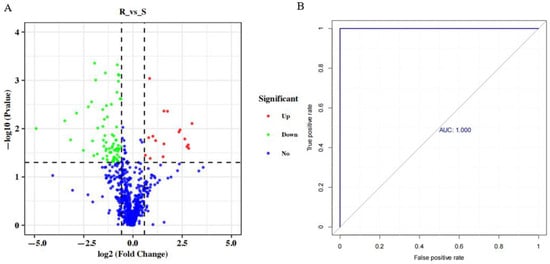

Figure 3. Differential metabolite volcano map and ROC curve of differential metabolites in the IVM-resistant strain compared to the susceptible strain. (A) Differential metabolite volcano map of the IVM-susceptible and -resistant strains. Red circles-upregulated metabolites, green circles- downregulated metabolites, dark blue circles-no change metabolites. (B) ROC curve of differential metabolites in the IVM-resistant strain compared to the susceptible strain.
Figure 3. Differential metabolite volcano map and ROC curve of differential metabolites in the IVM-resistant strain compared to the susceptible strain. (A) Differential metabolite volcano map of the IVM-susceptible and -resistant strains. Red circles-upregulated metabolites, green circles- downregulated metabolites, dark blue circles-no change metabolites. (B) ROC curve of differential metabolites in the IVM-resistant strain compared to the susceptible strain.
Animals 13 00456 g003

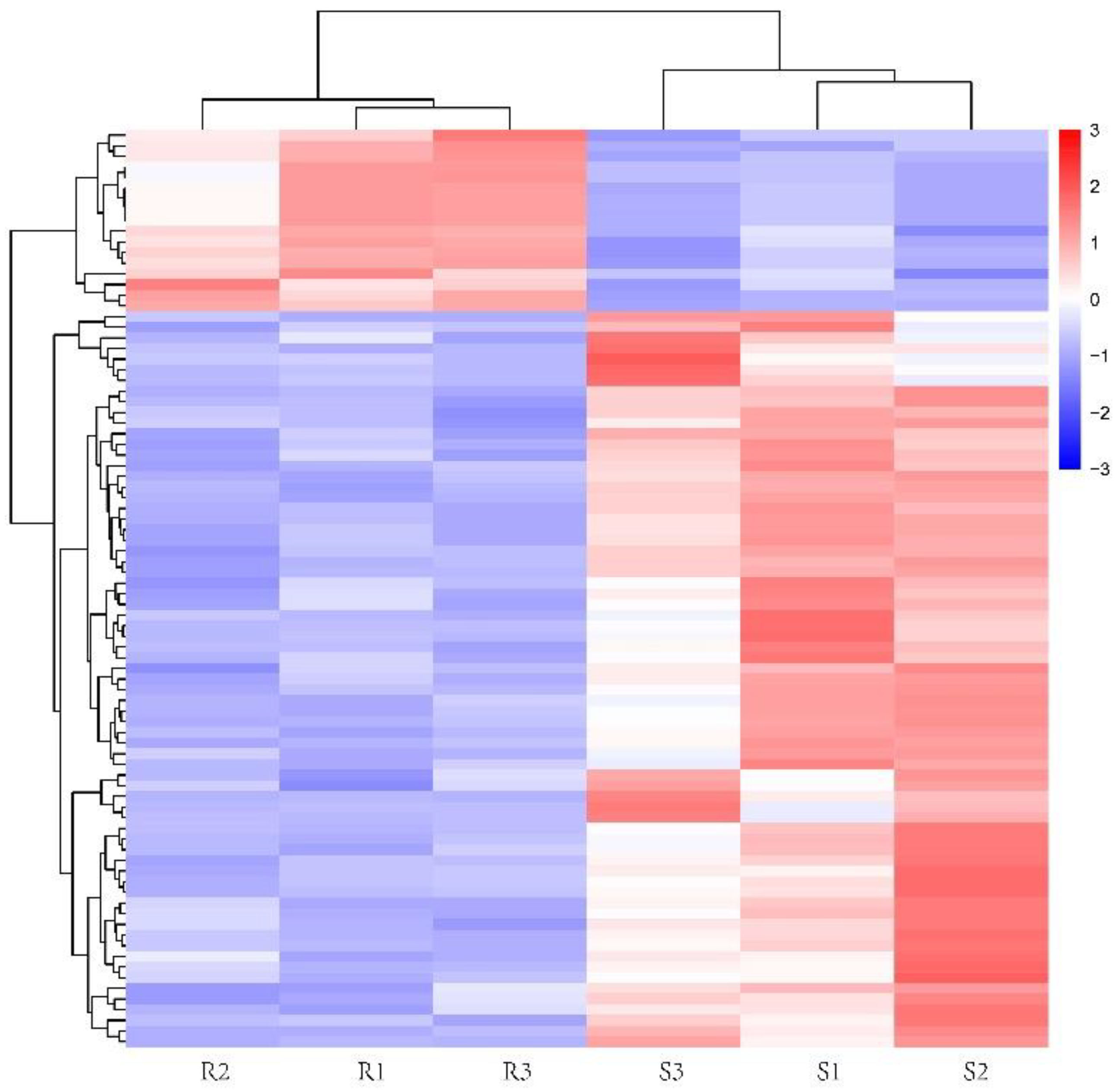

Figure 4. Cluster heat map showing the relative abundance of differential metabolites between the ivermectin (IVM)-resistant and -susceptible strains of Haemonchus contortus. R1–3 represent samples from IVM-resistant strains; S1–3 represent samples from IVM-susceptible strains.
Figure 4. Cluster heat map showing the relative abundance of differential metabolites between the ivermectin (IVM)-resistant and -susceptible strains of Haemonchus contortus. R1–3 represent samples from IVM-resistant strains; S1–3 represent samples from IVM-susceptible strains.
Animals 13 00456 g004

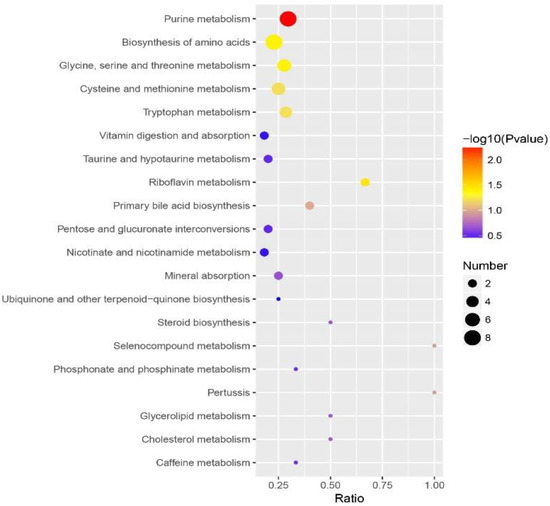

Figure 5. KEGG enrichment analysis of differential metabolites between ivermectin-resistant and -susceptible strains of Haemonchus contortus. The x and y axes represents the enrichment ratio and pathways, respectively. The sizes and colors of the circles represent the number of metabolites and the p value, respectively.
Figure 5. KEGG enrichment analysis of differential metabolites between ivermectin-resistant and -susceptible strains of Haemonchus contortus. The x and y axes represents the enrichment ratio and pathways, respectively. The sizes and colors of the circles represent the number of metabolites and the p value, respectively.
Animals 13 00456 g005

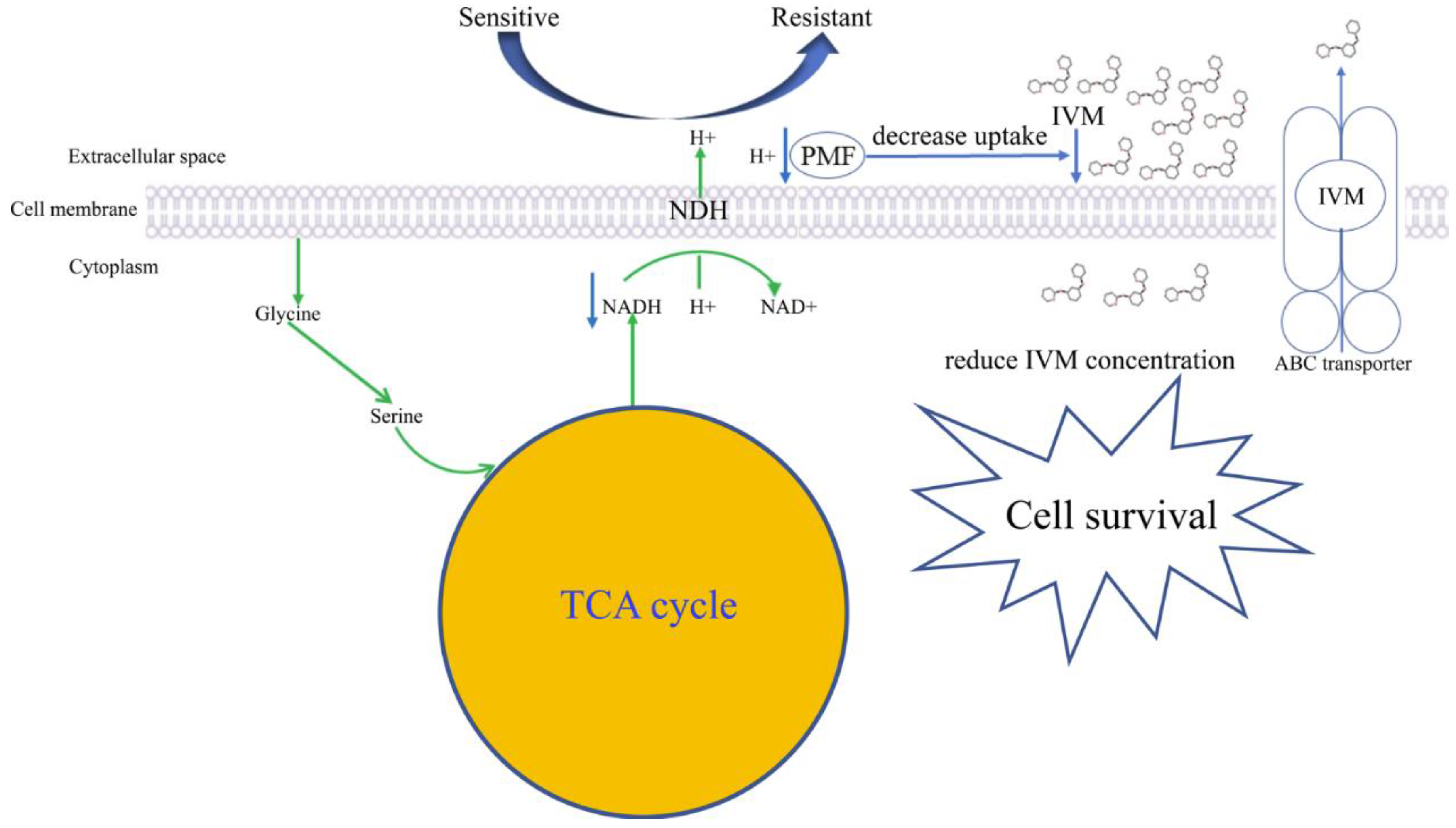

Figure 6. Proposed mechanism for ivermectin resistance in Haemonchus contortus.
Figure 6. Proposed mechanism for ivermectin resistance in Haemonchus contortus.
Animals 13 00456 g006
Table 1. Quantities and types of total metabolites identified in the ivermectin-resistant and -susceptible strains of Haemonchus contortus.
Table 1. Quantities and types of total metabolites identified in the ivermectin-resistant and -susceptible strains of Haemonchus contortus.
TypeQuantity
Amino Acids and Derivatives154
Organic Acids and Derivatives105
Nucleotides and Derivates74
Fatty Acyls50
Carbohydrates and Derivatives42
Hormones36
Phospholipids26
Carnitines22
Organic heterocyclic compounds20
Sugar Acids and Derivatives14
Vitamins13
Eicosanoids12
Others11
Bile Acids11
Benzoic Acid and Derivatives11
Indole and Derivatives10
Benzene and substituted derivatives10
Cholines9
Pyridine and Derivatives9
Sugar Alcohols7
TCA Cycle7
Phenols and Derivatives7
Polyamines7
Phenolamides5
Prenol lipids4
Cinnamic acids and derivatives3
Pyrimidines and pyrimidine derivatives3
Organic nitrogen compounds2
Ketones2
Purines and purine derivatives2
Glycerolipids2
Co-Enzyme Factors2
Alcohols and polyols2
Benzene and substituted derivatives2
Amines2
Esters1
Organic oxygen compounds1
Aldehydes1
Lignans, neolignans, and related compounds1
Ethers1
Steroids and steroid derivatives1
Phenylpropanoids and polyketides1
total705
