Mine Fire Behavior under Different Ventilation Conditions: Real-Scale Tests and CFD Modeling

Abstract

Fires in underground spaces are especially relevant due to their potential mortality. However, there is not much research in real-scale spaces done so far. In this study, several fire scenarios were analyzed in an underground drift, taking into account the main environmental variables: airflow, temperature, oxygen, and pollutants. The behavior before and after the fire load was determined, as well as the evolution of the fire over time throughout the drift and its cross-section, finding important trends of the fire based on the airflow–fuel load ratio. Furthermore, the five most representative scenarios were modeled using the fire dynamics simulator (FDS). Results obtained in the simulations, with the adjusted parameters, display a good correlation between simulated and experimental values, being able to extrapolate these values to know the performance of potential fires in other underground spaces or mines. The outcomes could also be a very useful tool to study the effectiveness of possible emergency measures or the potential impact of a fire in this type of environments.

1. Introduction

Fires are one of the most serious hazards in underground mining. Despite the efforts made to improve the working conditions and the research focused on mine fires over the last decades [1], there were important casualties in the recent years, and it is necessary to analyze them to find the main causal factors [2,3]. The existence of a large number of flammable materials in a mine (such as conveyor belts, electrical cables, wood, internal combustion machines, tires, or oils) makes crucial the availability of proper control systems against potential undesirable situations [4]. This is especially important in coal mining due to its intrinsic characteristics and mining methods commonly used, where the mineral itself together with other flammable materials provide a large potential fire [5,6]. Many materials used in mines are not flame propagators, reducing the virulence of the fire, but it does not impede its development, as found in various incidents produced over the years [7]. The main issue of a fire in underground drifts is the generation of highly toxic gases and combustion products, which run through the entire ventilation return circuit of the mine or even through the intake circuit, being able to affect large areas of the ventilation network [8,9].

There is an important line of research focused on coal mining including the following topics: detecting a fire in an early stage [10], reducing the potential fire or explosion using dynamic seals with inert gas [11], or analyzing the rock characteristics and its relationship with coal spontaneous combustion [12], with a special approach in the protection of workers, firefighting equipment, and facilities such as rescue chambers to guarantee safe conditions for a certain number of workers trapped by fire or high concentrations of pollutants [13] and know the best escape route in different scenarios [14]. However, there is still a long way ahead to increase the safety conditions and knowledge of full-scale fires in underground mines. In this regard, knowing the behavior of the fire and the environmental conditions that can generate becomes relevant.

Fires may be subjected to diverse conditions within a mine, either due to random location of the potential fire [12] or because the ventilation of the mine can have a dynamic behavior [15], and it is necessary to have proper tools for its study. Computational fluid dynamics (CFD) modeling is an option widely used to determine the ventilation conditions in underground spaces. The study done by Diego et al. [16] is good guidance for CFD analysis and details the order of magnitude between modeled and traditional calculations. Guo and Zhang [17] studied the fire behavior in a physical tunnel and compared the analytical data with the CFD, but in a very narrow tunnel. On the other hand, Du et al. [18] determined the backlayering in a full-scale tunnel, achieving good results with considerable dimensions of the grid cell. Despite the specialized code (FDS) developed by the National Institute of Standards and Technology (NIST) being commonly used, there are still some uncertainties to solve in large-scale fires [19]. Moreover, it is very difficult to find real-scale CFD analysis compared to experimental data, where studies mostly focused only on simulating the fire [20]. In recent years, small-scale tunnels were used to combine experimental data and simulations. Sun et al. [21] exposed a detailed layout of the experiment that can be extrapolated to full-scale tests, while results from Tong et al. [22] indicated that FDS simulations agreed well with small-scale experiments. However, there is a lack of research in real-scale underground mines applying and comparing experimental data and simulations [23].

The aim of this study is to determine the ventilation behavior due to the development of a fire in an underground mine, varying the parameters that characterize the fire in a set of several monitored scenarios in a full-scale laboratory drift, as well as to obtain a model adjusted to the reality with FDS.

2. Materials and Methods

2.1. Experimental Set-Up

The real-scale fire experiments were carried out in a drift from the Bierzo School Mine, belonging to the Santa Barbara Foundation, in La Ribera de Folgoso, León (Spain). This facility is equipped to carry out different kinds of tests in underground mine or tunnel conditions and record data from the experiments.

The underground facilities correspond to a typical structure from a mountain mine, configured in several extraction levels. The mine has the main access drift on Level-0, 910 m above the sea, and the main exit on Level-5, 1050 m above. There is a network of drifts with variable geometry regarding length and section, with the possibility to set up distinct types of ventilation circuits based on the needs of the planned experiments (Figure 1). The installation has a 110 kW axial forcing fan, which can work under a variable speed regime, together with two adjustable doors.

A total of 18 tests were carried out with diesel fuel and different configurations of theoretical fire power and ventilation flow, since it is known that the generation of a fire can create important distortions in the airflow quantity [9].

The Fire Dynamics Simulator (FDS), v5.3, was used to define the mesh and boundary conditions, as well as solve the equations, while the Smoke View (SMV), v5.3, was used to visualize the results. Both software were developed by the National Institute of Standards and Technology (NIST), Gaithersburg, MD, U.S.A., 2009. As the experiments were performed during several years, the same version was used over time to preserve compatibility and comparability with all the tests, using a well-tried and stable version [24].

2.2. Drift Geometry and Instrumentation

The trials took place in a straight drift with a length of 115 m and a variable section, between 9 and 15.75 m². The fan was provided with a mechanical adjustment of the vanes and a frequency inverter with remote control and a working range of the engine from 300 to 1450 rpm. The airflow in the ventilation circuit was regulated by doors.

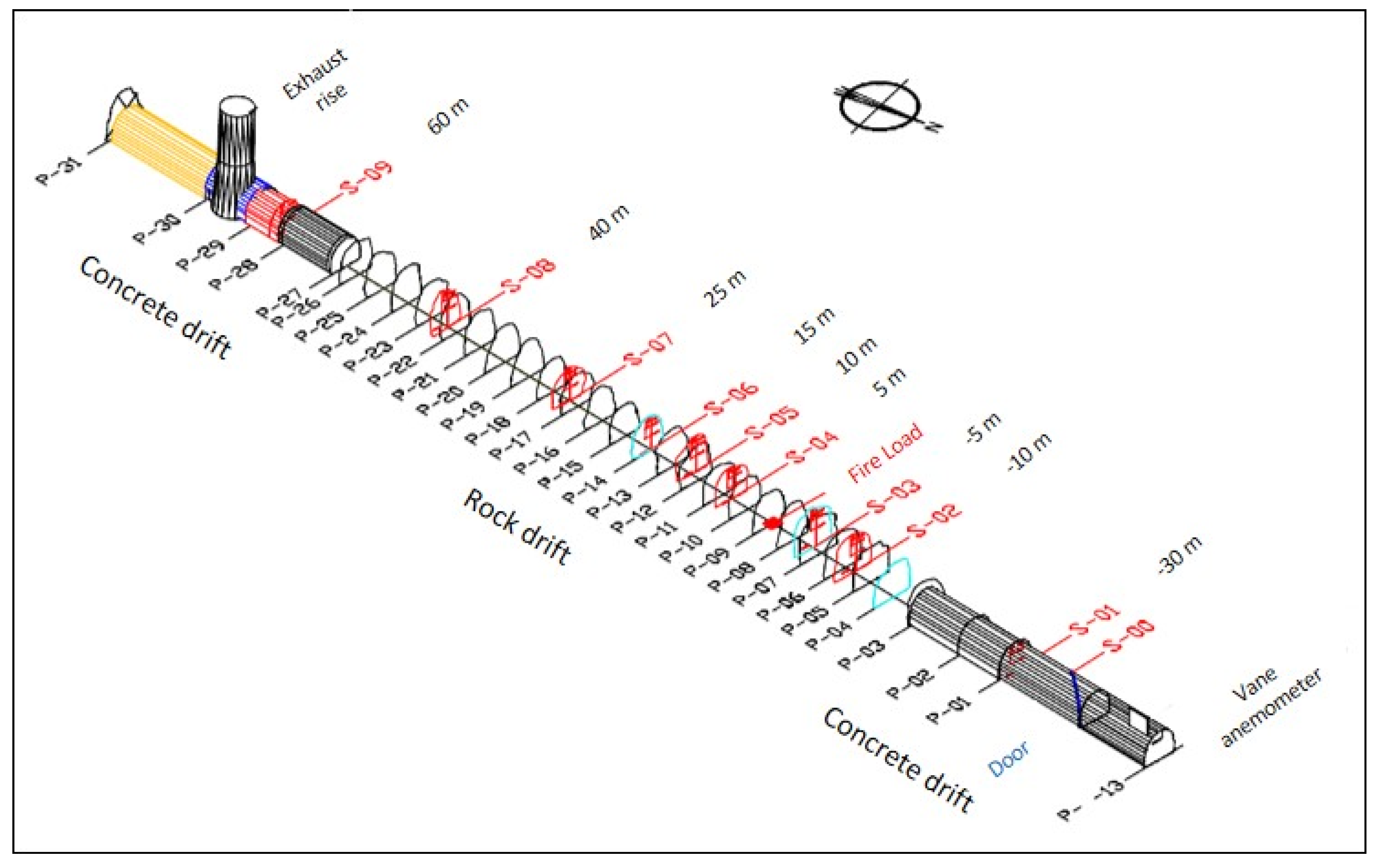

An intermediate section of the drift was chosen to locate the fire. This section was located at a distance of 35 m from the access door (P-09). There were nine control sections of the fire parameters along the drift, measuring temperatures at three heights (0.5, 1, and 2 m vertically with respect to the ceiling), air velocity, and airflow. The characteristics and references of the drift are included in Figure 2.

Fire control sensors were installed upstream and downstream of the fire load in order to control the gases and fumes generated (O₂, CO, CO₂, NO, NO₂, SO₂) with the same heights as the temperature sensors, obtaining real-time data every minute. Figure 3 shows a section of the drift with all the installation used, while

Table 1. Characteristics of the sensors.

Equipment	Type and model
Thermocouple	TC Ltd. Type K
Anemometer	Trolex. Vortex TX 12233 Mk
Barometer	Wika. FBA30WB2-900Y
Manometer	Testo GmbH&Co. 520 D0E10
ENVIRO Multisensor	Trolex. TX6522.01.51
Data acquisition system	Advantech. ADAM 5000

details the instrumentation used.

2.3. Initil Analysis

Before the experimental phase, an initial study of the ventilation circuit was carried out to know its behavior when there is variation in the door opening and the influence of natural ventilation, as well as the humidity and temperature average initial conditions. Five scenarios, gathered in

Table 2. Values used in the different scenarios. FDS—fire dynamics simulator.

Scenarios	Experimental Data		FDS Data		Fire Load (MW)
	Airflow (m3/s)	Velocity (m/s)	Airflow (m3/s)	Velocity (m/s)
1 (Door 0%)	1.93	0.21	1.90	0.21	4.73
2 (Door 17%)	5.10	0.57	5.30	0.59	4.73
3 (Door 100%)	10.45	1.16	12.50	1.39	4.73
4 (Door 100%)	11.05	1.23	12.50	1.39	9.46
5 (Door 100%)	13.38	1.49	12.50	1.39	14.20

, were considered as representative for the subsequent tests, taking into account the door opening and fire load. Experimental values correspond to the airflow and velocity measured just before the performance of the specific test, while FDS data were the mean values based on the door opening in the 18 scenarios studied.

The ventilation conditions correspond to three positions of the door opening: 100%, 17%, and 0%. Other variants of door opening were analyzed, but only these three were taken into account due to their representativeness as different fire environments.

A total of 18 distinct situations were used to determine the behavior of gases and discriminate which are the most relevant, 10 carried out in summer and eight in winter seasons, considering the different outdoor environmental conditions.

2.4. Fire Load

The position of the vessel with the fuel was located at 35 m of the drift, Figure 2 and Figure 3. The vessel was formed by a square base, 1.5 m wide and 0.40 m high, with an iron plate of 4 mm thickness. The fuel used was a type of diesel with a density of 0.86 g/cm³ at 15 °C, a specific heat of 82.2 Cal/mol·K at 20 °C, a heat of combustion of 45.5 kJ/g, and a thermal conductivity of 0.1 kcal/hm·K at 20 °C.

The fuel was also analyzed in each fire test to determine the following characteristics: cetane number, flash point, water and sediment, ashes, high calorific value, low calorific value, sulfur, carbon, hydrogen, and nitrogen. All these fuel characteristics were used in the adjustment of the FDS model.

2.5. Model Formulation

The large eddy simulation (LES) model was used, which allows the resolution of turbulent models in a computational calculation time shorter than other options by filtering the Navier–Stokes equations. It is a system widely used in the resolution of combustion models [17,21,23].

The initial rate of heat release for the FDS was based on the equations expressed by Zalosh [25], where parameters ΔH, x, m_a, and k are characteristic of the type of fuel used.

$$Q=m·\Delta H·x·S,$$

(1)

$$m=m_a·\left(1-e^{-kD}\right),$$

(2)

where Q is the fire power (kW), m is the mass of fuel burning (g/s∙m²), H is the lower calorific value of the fuel (kJ/g), x is the combustion efficiency (%), S is the combustion free surface (m²), ma is the asymptotic mass for large fires (kJ/g), k is the effective absorption coefficient (m⁻¹), and D is the equivalent diameter of the exposed surface (m).

As the equivalent diameter was greater than 1 m, flames were considered fully turbulent and the burn rate was independent of the diameter [26].

Table 3. Modeling features.

Stage	Features	Value
Modeling design	Cell size	0.6 × 0.6 × 0.6 m
	Cell size rate	1 × 1 × 1
	Number of cells	14,625
Combustion parameters	Surface type	BURNER
	HRR (heat release rate)	2.220 kW/m2
	Vessel dimensions	1.8 × 1.2 m
	Material of the vessel	Steel Sheet
Initial conditions	Air temperature	10 °C
	Humidity	80%
	Fan airflow	30 m3/s
Simulation	Type of simulation	LES (large eddy simulation)
	Total time	4800 s
	Output data frames	4800

shows the simulation details, while the meshing is detailed in Figure 4. The calculation volume was 3159 m³, with a cell size of 0.6 × 0.6 × 0.6 m, obtaining a total of 14,625 cells, which is similar to other previous studies [18]. A preliminary analysis of partial areas of the mesh with smaller grid cells was done, achieving similar results; therefore, the grid was considered as adequate for the purpose of the study.

The control points of the parameters in the three orthogonal axes were marked on this mesh, with symmetry conditions, taking into account the sensors applied in the experimental tests for the contour conditions. The vertical exhaust rise, which communicates with the ramp, was located in the last meters of the drift (Figure 1).

3. Results and Discussion

3.1. Experimental Data

Table 4. Average values of the combustion pollutants.

Conditions	O2 (%)		CO (ppm)		NOx (ppm)		SO2 (ppm)		CO2 (%)
	Max.	Min.	Mean	Max.	Mean	Max.	Mean	Max.	Mean	Max.
0%, 180 L	21	16	958	1063	6	16	79	102	-	3
17%, 180 L	20	21	234	362	2	5	24	64	1	2
100%, 180 L	20	21	67	91	2	4	19	26	1	1
100%, 360 L	20	21	132	233	2	3	23	25	1	2
100%, 540 L	20	21	219	284	4	5	19	21	1	2

details the mean and maximum values of the pollutants and the maximum and minimum values of oxygen, based on data recorded downstream of the drift every minute for the five tests studied. CO₂ values below 1% were not detected due to the sensitivity of the measuring equipment used.

Results from the previous table show almost constant oxygen levels in all cases, except when there was a very small opening of the air inlet door or it was closed, between 0% and 4%, lowering the oxygen level to 16% in these cases. Furthermore, it coincided with the highest levels of CO, NO_x, and SO₂. Based on the experiments, it can be seen that an abrupt reduction in the air supply had a much greater impact on the variation of pollutant concentration than an increase in the fuel load. The CO₂ measurements only give an indicative value, since the sensor used was not entirely suitable for the kind of test performed due to a lack of sensitivity of the device, in the lower range.

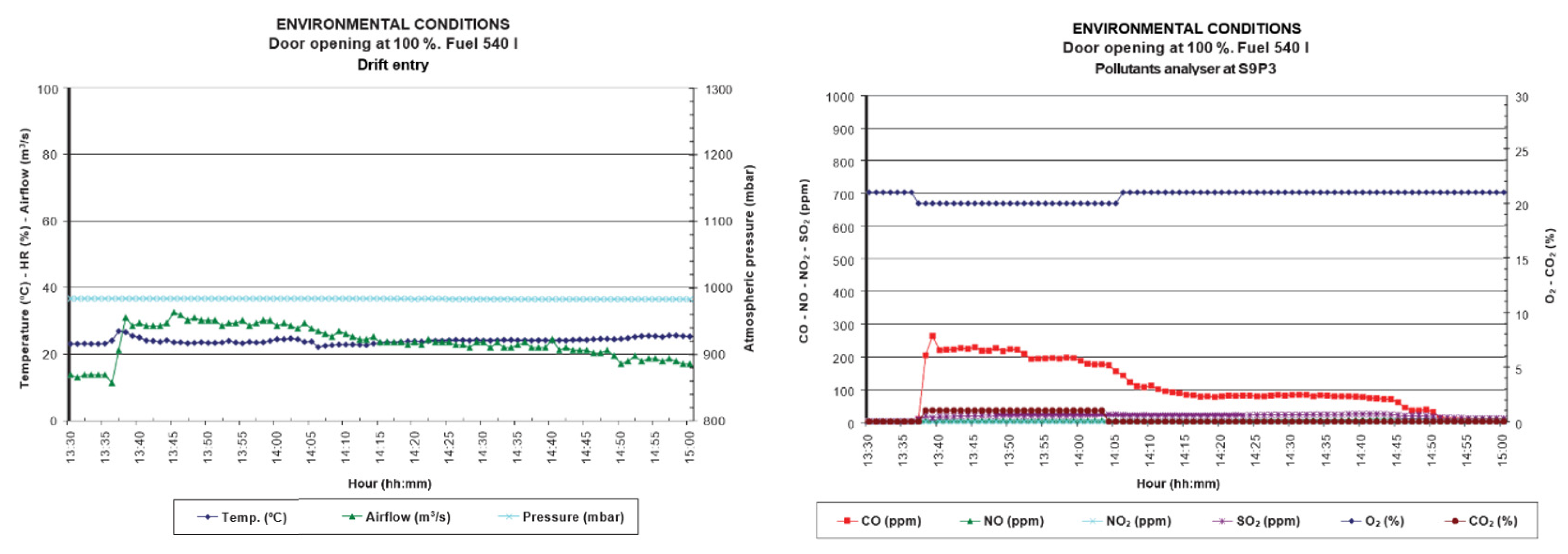

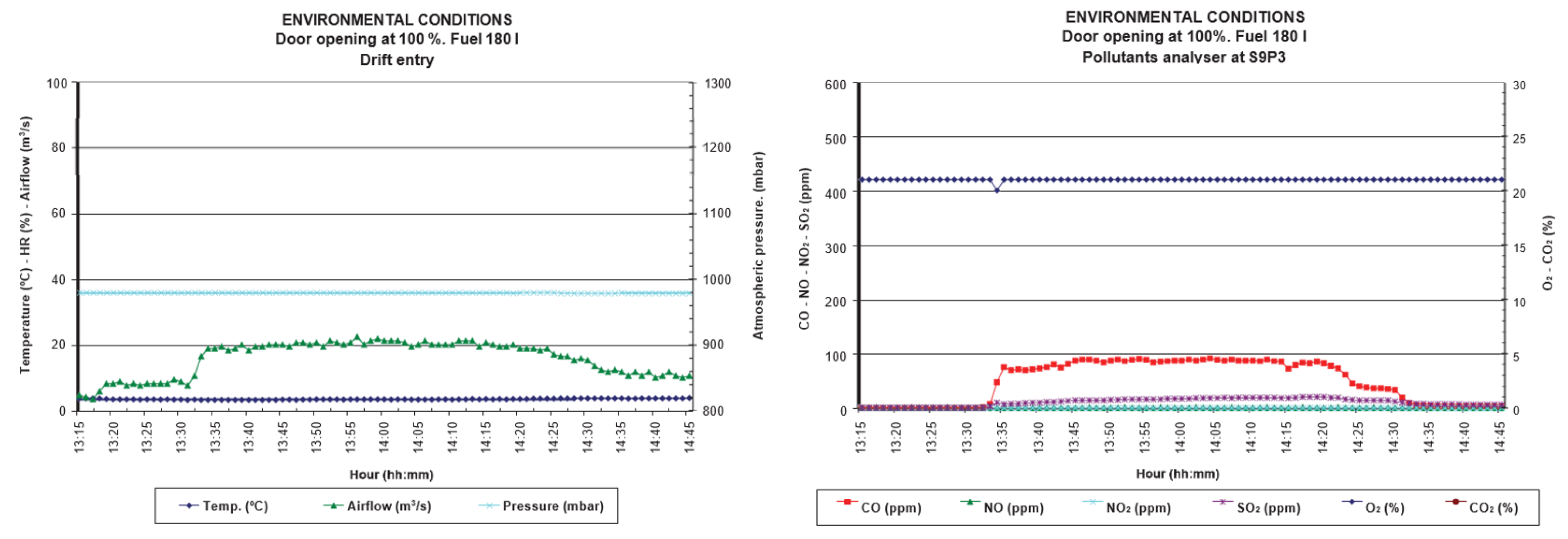

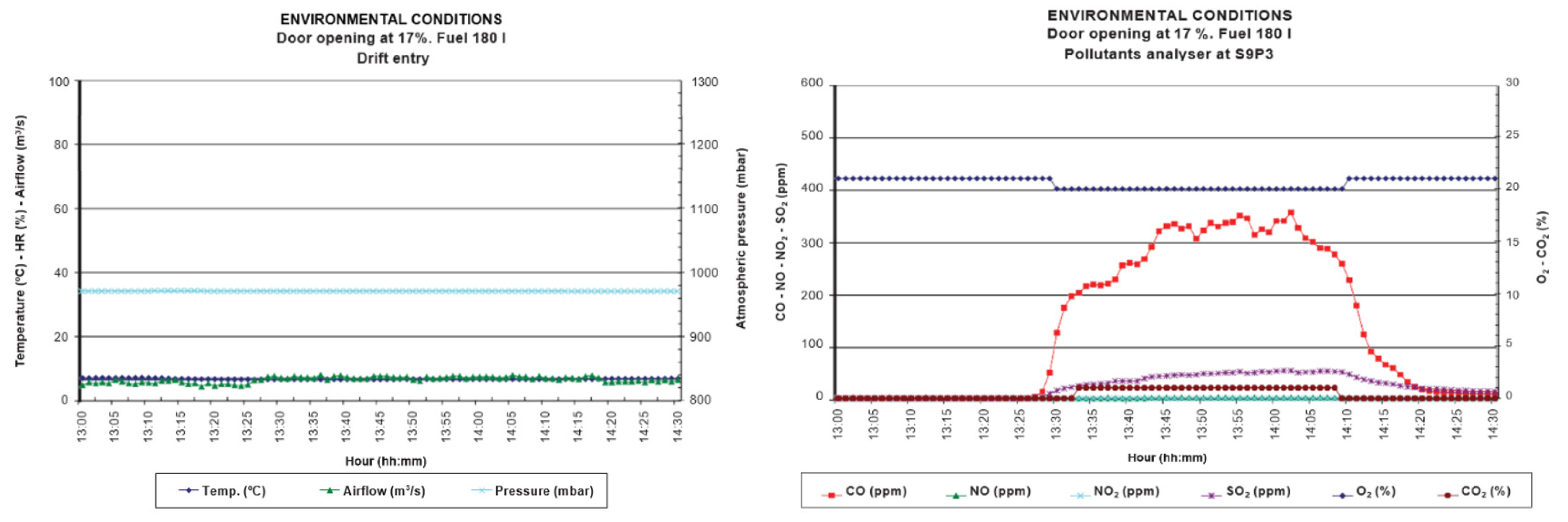

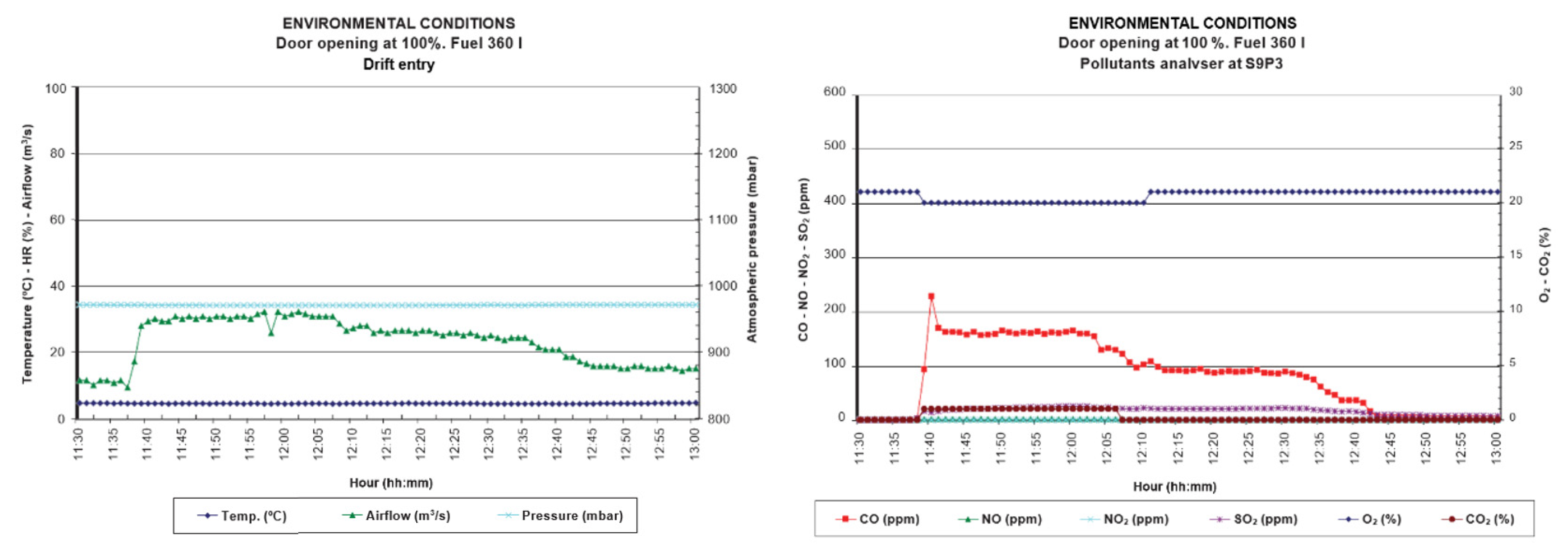

As mentioned in Section 2.3, the most representative fire scenarios are displayed in Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9, detailing the evolution of the pollutants, temperature, airflow, and pressure as a function of time and for each of the five main scenarios analyzed.

The dry temperature did not present any change with respect to the outside temperature except in Scenario 5, the test with the biggest fire load, having a small variation over time. On the other hand, the airflow was significantly affected by the fire evolution over time when the door was fully open. There was a variation between 12.5 m³/s and 20 m³/s for a load of 180 L of fuel, while, for loads of 360 and 540 L, the flow increased to 30 m³/s, representing a 60% increase for E3 scenario and between 150 and 200% for E4 and E5. This variation occurred after 960 s from the beginning of the fire in E3, while it happened at 450 and 420 s for E4 and E5, respectively. This phenomenon is due to a natural pull of the ventilation in the same direction of the flow due to a temperature increase once the fire reaches its maximum development. Then, as the fire loses power, the additional airflow is gradually reduced until it reaches the initial situation. In addition, it was also observed that it acted as a resistance during a brief period of time at an early stage of the fire, reducing the airflow.

In the case of pollutants generated by the fire, scenarios E1 and E2 followed a similar trend, while scenarios E3 to E5 had a different common pattern. In the first case, there was a reduction in oxygen as a consequence of a very important increase in the concentrations of CO, NO_x, SO₂, and CO₂ 900 and 1650 s after the start of the fire for trials E1 and E2, respectively. This difference is mainly given by the airflow variation in the intake. In the E1 test, the airflow was very low, 1.93 m³/s, increasing the pollutants due to incomplete combustion in an earlier stage. In the case of E2, as the airflow was higher, 5.1 m³/s, the incomplete combustion phenomenon appeared once the fire was fully developed.

On the other hand, trials E3, E4, and E5 showed a common behavior, increasing the concentration of pollutants once the fire reached its maximum power, with a stable emission period and finally decreasing the concentration as the fire faded. The only difference between scenarios was the pollutant concentration, showing a direct relationship with the fuel load, and the time to reach the maximum level of emissions (1080, 480, and 450 s, respectively).

Three differentiated fire phases can be defined based on the experiments: (1) growth, with a small generation of pollutants, which increased over time; (2) maximum power of the fire, with a plateau with a variable duration depending on each test, with high concentration of pollutants; (3) decrease and end of the fire, with a progressive reduction of the pollutants concentration over time.

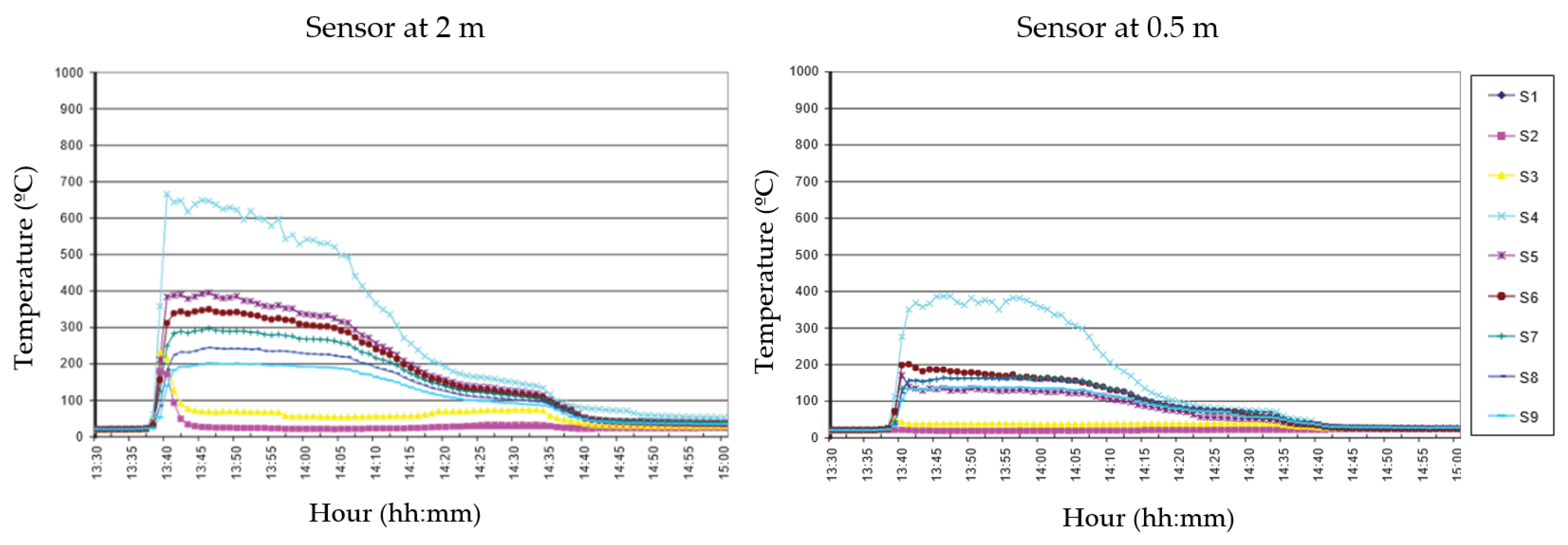

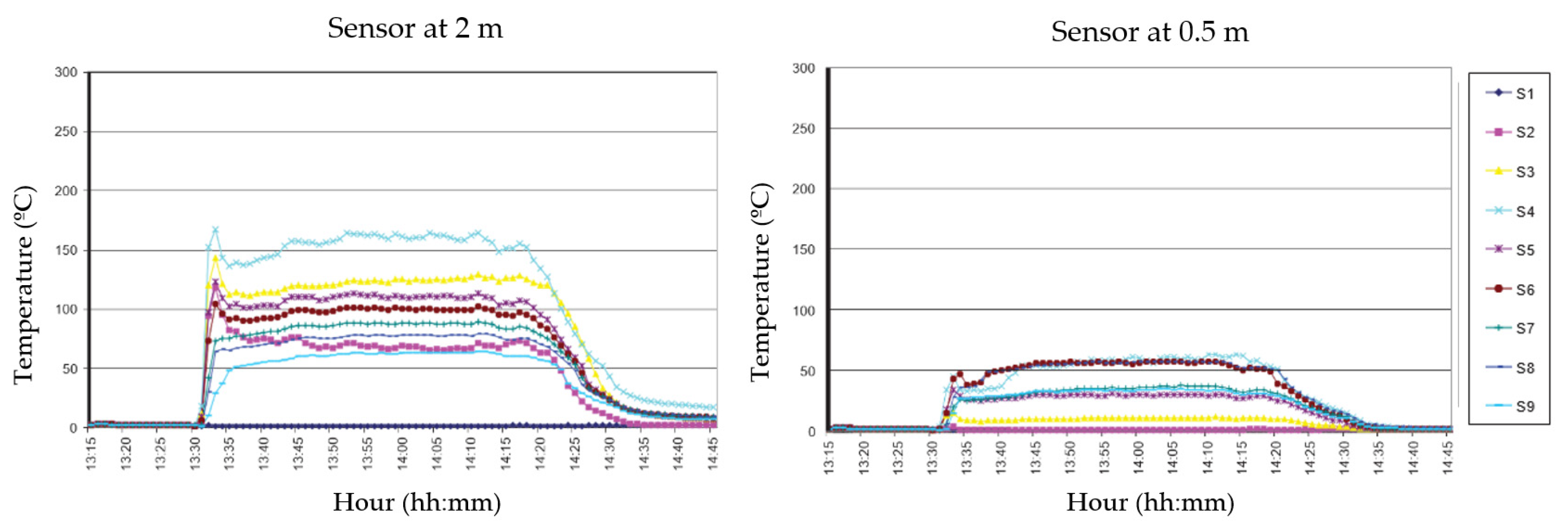

The temperature evolution throughout the drift is shown below as a function of time for the five scenarios analyzed. Figure 10, Figure 11, Figure 12, Figure 13 and Figure 14 gather these scenarios, distinguishing the lower and upper parts of the drift at 0.5 and 2 m, respectively.

The temperature evolution displayed a similar trend: a rise in temperature followed by a stable period of maximum temperature and then a progressive decrease as the fire faded. However, there was an important divergence if it was compared the period from which the temperature increased because of the fire. The temperature increase was recorded earlier than pollutants in E1 and E2, while, in E3 and E4, the opposite occurred and E5 showed an almost identical start for temperature and pollutants.

On the other hand, a phenomenon already mentioned in the previous figures was observed upon analyzing the behavior of the flow. Shortly after reaching the maximum fire power, there was a decrease in the temperature until it reached a stable level. This was due to the fire acting as a resistance in the ventilation circuit at the beginning, as can be seen in the sensors close to the fire: S2, S3, and S4. This phenomenon indicates that there was an advance of the fumes in the opposite direction of the flow during this period, i.e., a roll-back [8], being more pronounced in the case of lower initial airflow. Regarding the maximum temperatures reached, there was a notable difference between lower and upper parts of the drift, showing a 60–320% difference in temperature for the same cross-section.

The outcomes obtained are very important to know potential hazardous scenarios in drifts from the production level, with similar sections and airflows, and where an important quantity of equipment is placed. The knowledge of temperatures and pollutant concentration over time can be used to apply safety and corrective measures.

3.2. FDS Results

Results obtained in the experiments and the FDS model are detailed and compared below. The five scenarios depending on the fuel load and door opening are gathered in

Table 5. Experimental values from the tests.

Section	Control Point	Temperature (°C)
		E1	E2	E3	E4	E5
	P1	139	78	16	19	23
S1 (−30 m)	P2	109	44	16	19	22
	P3	63	27	16	19	20
	P1	255	241	32	26	27
S2 (−10 m)	P2	213	193	20	25	25
	P3	113	42	16	20	22
	P1	290	268	63	45	64
S3 (−5 m)	P2	233	218	34	31	63
	P3	144	64	22	16	49
	P1	355	264	212	502	593
S4 (5 m)	P2	244	181	184	503	590
	P3	117	100	127	332	378
	P1	251	216	133	260	368
S5 (10 m)	P2	185	172	102	188	284
	P3	106	97	87	105	185
	P1	229	200	122	231	329
S6 (15 m)	P2	197	178	109	201	290
	P3	104	98	78	119	176
	P1	186	168	112	198	283
S7 (25 m)	P2	165	147	99	167	256
	P3	99	95	69	103	166
	P1	143	134	97	163	238
S8 (40 m)	P2	126	118	88	144	214
	P3	96	91	61	98	163
	P1	113	109	85	138	199
S9 (60 m)	P2	101	100	81	127	182
	P3	49	62	52	83	140

and

Table 6. FDS values for the same scenarios.

Section	Control Point	Temperature (°C)
		E1	E2	E3	E4	E5
	P1	157	92	22	28	34
S1 (−30 m)	P2	145	68	23	30	35
	P3	94	40	25	31	29
	P1	276	195	26	31	35
S2 (−10 m)	P2	203	128	25	31	38
	P3	98	51	20	25	32
	P1	344	260	45	35	45
S3 (−5 m)	P2	237	175	30	38	51
	P3	107	55	20	23	62
	P1	402	336	181	412	508
S4 (5 m)	P2	311	291	141	404	499
	P3	163	165	142	296	326
	P1	334	296	158	257	388
S5 (10 m)	P2	283	268	141	208	326
	P3	150	144	108	126	200
	P1	289	261	149	248	350
S6 (15 m)	P2	254	241	142	227	328
	P3	149	139	89	163	224
	P1	235	218	139	224	313
S7 (25 m)	P2	216	205	140	223	303
	P3	140	127	83	136	196
	P1	182	184	120	186	258
S8 (40 m)	P2	173	169	121	185	258
	P3	121	130	88	136	184
	P1	136	145	103	158	213
S9 (60 m)	P2	132	134	107	164	220
	P3	64	71	86	129	172

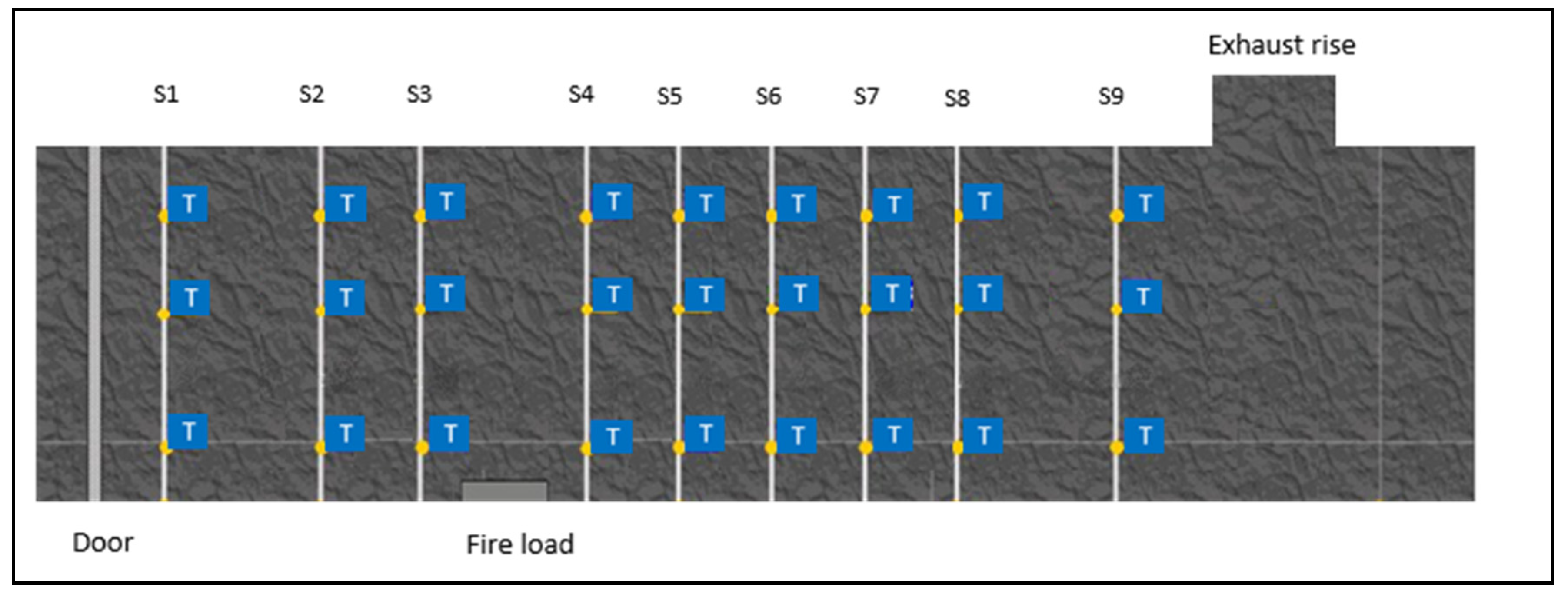

. As previously mentioned, there were three temperature control points at different heights in each section (P1: 2 m, P2: 1 m, P3: 0.5 m).

The mean percentage deviations between experimental and simulated values were as follows: E1, 27%; E2, 35%; E3, 24%; E4, 22%; E5, 20%. An accuracy was reached similar to other studies using CFD software to analyze the ventilation behavior in full-scale underground mine conditions [16]. The FDS simulation presented more adjustment problems with the actual values when the airflow was very low (E1 and E2). The correlation of the mean values by section between experimental data and simulations is shown in Figure 15 and Figure 16.

The FDS adjustment showed similar patterns between E1 and E2 and between E3, E4, and E5. In the first case, it showed a good experimental–FDS fit in the pre-fire zone, while the simulated values exceeded the fire temperatures in the zone after the fuel load, with a tendency to converge when the fire faded. On the other hand, trials E3, E4, and E5 showed a very good fit up to the area just after the fire, where the temperature was underestimated (S4 at 5 m) and then slightly overestimated (S5 at 10 m), following the same trend throughout the drift. Overall, the correlation between the experimental and simulated mean values was better when there was more airflow and higher firepower.

Further research stated some variations in the results with newer FDS versions [27], but consistent with experimental data in both cases [27]. Moreover, the performance and accuracy of the FDS version used in the study was validated in previous studies comparing simulations and experimental data [25], which is in accordance with the outcomes achieved in this study. Results are adequate to study fire situations in underground mining, but further research should be done to be fully applicable for tunneling and other large closed spaces, specifically increasing the accuracy of the simulations with a smaller grid cell and examining the immediate area around the fire.

4. Conclusions

The performance of the fire, as a function of time, was defined in a monitored real-scale space and subjected to distinct fire scenarios that can be extrapolated to possible fires in a mine, varying the airflow, fuel load, and door opening. These scenarios were set in terms of combustion pollutant emission, airflow fluctuation, and temperatures throughout the entire drift, either in length or at different heights, as well as the interaction of these parameters over time.

The experiments proved that an abrupt reduction in the air supply had a much greater impact on the variation of the gas concentration than an increase in the fuel load. Despite the fires following the theoretical principles, the airflow–fuel load ratio considerably varied the fire behavior over time in terms of temperature, pollutants emitted, airflow variation, and the development of the roll-back phenomenon.

In addition, several fire simulations were performed, adapting the FDS code for the five most relevant scenarios, comparing the results with the actual tests and obtaining a good correlation between simulated and experimental values. The average of the maximum deviations in all the sections was 24%, obtaining the smallest deviations in the areas near the focus of the fire and in the upper part of the drift (around 10%).

The adjusted parameters in the model can be used for future analysis of fires in other mining activities or underground spaces, especially regarding the airflow behavior and temperatures reached. Furthermore, it can be very useful to analyze and define the most efficient emergency measures or the potential impact that a fire could generate in the critical areas of the mine.
