Context-Aware Caching Distribution and UAV Deployment: A Game-Theoretic Approach

Abstract

This paper investigates the problem of the optimal arrangement for both unmanned aerial vehicles’ (UAVs’) caching contents and service locations in UAV-assisted networks based on the context awareness, which considers the influence between users and environment. In the existing work, users within the coverage of UAVs are considered to be served perfectly, which ignores the communication probability caused by line-of-sight (LOS) and non-line-of-sight (NLOS) links. However, the links are related to the deployment of UAVs. Moreover, the transmission overhead should be taken into account. To balance the tradeoff between these two factors, we design the ratio of users’ probability and transmission overhead as the performance measure mechanism to evaluate the performance of UAV-assisted networks. Then, we formulate the objective for maximizing the performance of UAV-assisted networks as a UAV-assisted caching game. It is proved that the game is an exact potential game with the performance of UAV-assisted networks serving as the potential function. Next, we propose a log-linear caching algorithm (LCA) to achieve the Nash equilibrium (NE). Finally, related simulation results reflect the great performance of the proposed algorithm.

1. Introduction

During the past decades, unmanned aerial vehicles (UAVs) have been popular in military applications due to their characteristics of high mobility and low cost [1,2,3,4,5], e.g., reasonable use of UAVs can reduce the amount of casualties of front-line soldiers. With the development of the manufacturing process and the reduction of manufacturing costs, UAVs have realized the transition from the military to the civilian domain. Recently UAVs have been widely utilized in civilian applications, including weather monitoring [6,7], forest fire monitoring [8,9], and first aid search and rescue [10,11], which have benefited the public. Specifically, when UAVs are combined with wireless communication networks, users will experience better communication services due to the fact that traditional cellular networks have several of the following shortcomings [12]: (i) the potential damage of communication facilities caused by natural disasters; (ii) an increasingly unbearable communication burden resulting from growing smart devices and communication demands. Fortunately, it happens that the unique characteristics of UAVs can make up for these deficiencies. The characteristics of high mobility and low cost ensure that UAVs can quickly fly to the disaster area to provide services. Moreover, cache-enabled UAVs may increase the degree of file reuse and decrease the file caching cost [13]. Thus, especially in this era of data explosion, the combination of UAVs and the cache is considered to be a promising technology for dealing with the relevant challenges [13,14].

Recently, progress in related research has shown the validity and reliability of the aforementioned technology. In our existing work [15], the problem of selecting caching nodes was studied and a selection algorithm was proposed. However, it ignored the potential cooperation among caching nodes. The authors studied the problem of hybrid caching in device-to-device (D2D) networks in Reference [16], which considered the cooperation but ignored the dynamics among nodes. In Reference [17], a secure transmission scheme based on interference alignment was proposed, which made the caching UAVs provide services similar tothe small base stations (SBSs). Idle SBSs replaced by UAVs would disrupt eavesdropping. However, the caching content sharing of UAVs is not considered. Moreover, the authors studied the problem of resource allocation in a cloud network with cache-enabled UAVs in Reference [18], where the users’ content request distribution can be predicted based on the proposed algorithm. However, the research mentioned above, to a great extent, only focused on the resource allocation and optimization of caching contents but ignored the optimization of UAVs’ service locations. This problem is rarely considered in existing studies to the best of our knowledge. Although, the authors took the change of UAVs’ location into account in Reference [14], the potential cooperation among UAVs was not considered. In our prior work, we investigated the problem of both caching contents and service locations in UAV-assisted emergency networks by multi-hop in Reference [19]. However, the following shortcomings still exist. We considered the cooperation among UAVs by multi-hop based on the assumption that users within the coverage of UAVs were served perfectly. Nevertheless, in practical scenarios, the influence of propagation groups, line-of-sight (LOS) and non-line-of-sight (NLOS), which may result in users within the coverage of UAVs communicating with UAVs successfully by probability, should be taken into account. Meanwhile, a multi-hop service will result in more delay for ground users. Therefore, it is necessary and significant to improve the shortcomings mentioned above.

In this paper, we consider the joint optimization of UAVs’ caching contents and service locations with the goal of balancing the tradeoff between user’s service probability and transmission overhead. In the proposed scenario, users need to be served in a disaster area when the communication facilities are destroyed. UAVs with caching contents fly to the destination to provide communication services. Considering the cooperation among UAVs, the caching contents of neighbor UAVs can be shared by one hop. Thus, the optimal arrangement of UAVs’ caching contents and service locations are the key points to solve. However, the problem is challenging. Firstly, the transmission overhead may be affected by both UAVs’ caching contents and service locations, i.e., the source of the request file and the neighbor UAV sets. Secondly, when considering the locations of UAVs, the probability that the users can communicate with UAVs successfully will be influenced by the propagation groups, i.e., LOS and NLOS, with corresponding probabilities of occurrence.

Motivated by these observations, we consider both the probability that the users can communicate with UAVs successfully and the transmission overhead that the users use to obtain the requested files. Therefore, we apply the ratio of users’ service probability and transmission overhead as the performance indicators of UAVs’ actions to balance the tradeoff. Meanwhile, we formulate the challenging problem as a UAV caching game applying game theory and prove the existence of the Nash equilibrium (NE). In addition, a log-linear caching algorithm (LCA) can achieve great performance.

The main contributions are as follows:

• We first investigate the problem of joint optimization of UAVs’ caching contents and service locations with the goal of balancing the tradeoff between user’s service probability and transmission overhead under the consideration of the share of neighbor UAVs’ caching contents.
• The problem is modeled as a UAV caching game, which intends to find the optimal solution that maximizes UAVs’ performance indicators, i.e., the ratio of user’s service probability and transmission overhead. In addition, the proposed game is proved to be a potential game with at least one pure-strategy NE. Meanwhile, the optimal solution can be achieved by its optimal NE.
• The log-linear caching algorithm is proposed to achieve the desirable solution in joint caching contents and service locations optimization problem. The simulation results show that the proposed algorithm can converge to a great NE solution and guarantee the great performance of UAV-assisted networks, which demonstrates the algorithm’s validity and effectiveness.

The remainder of this paper is organized as follows. In Section 2, we introduce the system model and formulate the problem. In Section 3, we propose the UAV-assisted caching game and apply the log-linear caching algorithm to achieve the desirable solution. We present the simulation results and give an expansion and discussion in Section 4. Finally, we draw a conclusion in Section 5.

2. System Model and Problem Formulation

In this part, we first model the problem and present related formulations, which reflects the impact of UAVs’ caching contents and service locations. Then, we design the measure mechanism to evaluate the performance. Finally, we formulate the problem with the goal of maximizing the performance of all UAVs.

Table 1. Key variables used in this paper.

Variables	Explanation
M	Number of ground users
N	Number of unmanned aerial vehicles (UAVs)
f	Set of system files
$f_i$	i-th requested file
$P_{f_i}$	Probability of requesting the i-th file
$\gamma$	Parameter of a Zipf Distribution
$r_m$	Overhead of user m to obtain files
$Q_m$	Set of user m’s interested files
$a_n$	Action of UAV n
$l_n$	Location of UAV n
$c_n$	Caching contents of UAV n
$D_n$	Communication thresholds between UAVs
$D\left(i,j\right)$	Physical distance from UAV i to j
$J_n$	Neighbor UAVs by one hop
$C_{mk}$	Overhead that User m gets file k
$u_m$	UAV that is serving for User m
${u^{\prime }}_{{}_k}$	UAV that caches file k
$w_1$	Overhead per file per distance from UAV $u_m$ to user m
$P_{success,m}$	Successful communication probability from UAV n to user m
$r_{th}$	Communication threshold
$g_{u_{m}m}$	Channel power gain from UAV $u_m$ to user m
h	Nakagami fading
$d(l_{u_m},l_m)$	Distance from UAV $u_m$ to user m
$c{}_{{u^{\prime }}_k}$	Set of files that UAV $u_k^{\prime }$ caches
I	Indicator function
$P_n$	Transmit power of UAV n
$\alpha$	Path loss exponent
$N_0$	Background noise
$\eta$	Additional attenuation factor due to the non-line-of-sight (NLOS) link
h	Nakagami fading
$\gamma$	Shape parameter
$\xi$	Scale parameter
$\theta$	Elevation angle
$z_{u_m}$	Height of UAV $u_m$
$S_n$	Set of ground users that UAV n serves
$A_n$	Strategy space of player n
$U_n$	Utility function of player n
R	Overhead of all ground users
$\mathsf{\Phi }$	Potential function

presents the key variables used in this paper.

2.1. System Model

We consider a UAV-assisted networks with N cache-enabled UAVs, i.e., $\mathcal{N}=\left\{1,2,\dots ,N\right\}$, and M users, i.e., $\mathcal{M}=\left\{1,2,\dots ,M\right\}$. Denote the set of system files as $f=\left\{f_1,f_2,\dots ,f_{\left|f\right|}\right\}$, where $\left|f\right|$ denotes the number of system files. Suppose that all users request files from f according to a special file popularity distribution, which is as follows [20,21]:

$$P(f_i)=\frac{{x_i}^{\vartheta }}{{\displaystyle {\displaystyle \sum }_{j=1}^{\left|f\right|}}{x_j}^{\vartheta }},$$

(1)

where $P\left(f_i\right)$ denotes the probability that the user requests the i-th file, and $x_i$ is $x_i=1/f_i$. ϑ is the parameter of Zipf distribution.

Meanwhile, we denote user m’s requested files as $V_m=\left(v_1,v_2,\dots ,v_{\left|V_m\right|}\right)$ where $\left|V_m\right|$ is the number of files requested by user m. $v_i=1$ denotes that user m requestes the i-th file while $v_i=0$ indicates that user m does not requeste the i-th file.

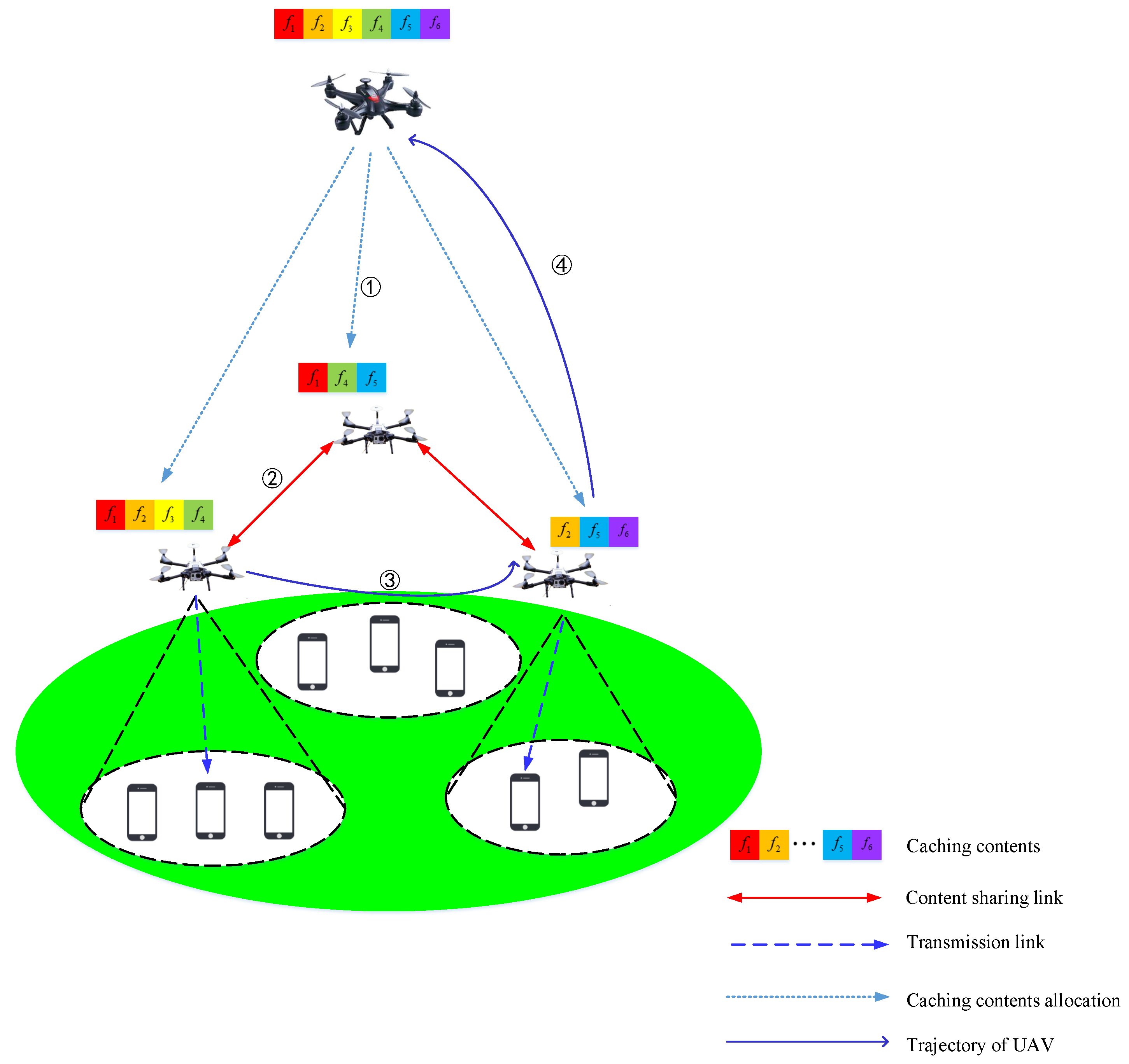

An illustration of UAV-assisted communication networks is shown in Figure 1. There are three small UAVs, a big central UAV and some users waiting to be served. As depicted in Figure 1, the service process of UAVs consists of four parts: firstly, the small UAVs use some prior information provided by the central UAV and make their own caching contents decisions individually; Secondly, small UAVs fly to the service locations with carried caching contents. Then, UAVs start to serve the users under the assumption that the caching contents can be shared among the reachable neighboring UAVs by one hop. Next, if some users’ demands are still not met, the service UAV will fly to some UAVs with caching contents that the dedicated user wants, to cooperate. Meanwhile, the following file requests of corresponding users will be rejected until the service UAV comes back. Finally, the service UAV will return to the central UAV to get files if other UAVs cannot provide such services.

Motivated by Reference [22], we denote reachable neighboring UAVs of UAV n by one hop as $J_n$, i.e.,

$$J_n=\left\{i\in N:D(n,i)\le D_n\right\},$$

(2)

where $D(n,i)$ denotes the distance between UAV n and i. $D_n$ represents the communication distance thresholds for UAVs.

2.2. Problem Formulation

Note that the performance of UAVs is affected by its caching contents as well as the service locations, i.e., where to obtain the files requested by users and the successful communication probability from UAVs to their dedicated users through the influence of propagation groups. Therefore, we need to balance the tradeoff between the transmission overhead and successful communication probability. Consider $a_n=(l_n,c_n)$ as the action of UAV n. Note that $l_n$ reflects the service location of UAV n, which is actually a set of space coordinates, i.e., $(x_n,y_n,z_n)$. Meanwhile, $c_n=(c_{f_1},c_{f_2},\dots ,c_{f_{\left|c_n\right|}})$ indicates the caching action of UAV n, where $c_{f_i}\in f,\forall 1\le i\le \left|c_n\right|$ and $\left|c_n\right|$ are the number of caching contents carried by UAV n, which is the cache space of UAVs. We define the transmission overhead by considering both caching contents and service location, as follows:

$$t_m\left(a\right)=\sum _{i=1}^{\left|V_m\right|}p(m,i)C(m,k,a),$$

(3)

where $\left|V_m\right|$ is the number of files requested by user m, $p(m,i)$ denotes the probability that user m requests $f_i$. Denote C(m, k, a) as the transmission overhead that user m obtains f_i by the joint action, i.e., $a=(a_1,a_2,\dots ,a_N)$, of UAVs under the consideration of different sources of files which is given by:

$$\begin{array}{l}C(m,k,a)=I_1(l_{u_m},l_m)+I_2(k,c_{u_k^{\prime }},l_{u_m},l_{u_k^{\prime }},l_{u_o^{″}}),\\ l_{u_m}\in \left(l_1,l_2,\dots ,l_N\right),c_{u_m}\in \left(c_1,c_2,\dots ,c_N\right),u_m\ne u_k^{\prime },\end{array}$$

(4)

where $I_1(l_{u_m},l_m)$ and $I_2(k,c_{u_k^{\prime }},l_{u_m},l_{u_k^{\prime }},l_{u_o^{″}})$ denote the function of the transmission overhead respectively, which is defined as follows:

$$I_1(l_{u_m},l_m)=w_{1}d(u_m,m),$$

(5)

where $u_m$ and m represent the UAV and its dedicated user, $l_{u_m}$ and $l_m$ denote the location of UAV $u_m$ and user m respectively, $w_1$ is the overhead per file per distance, $d(u_m,m)$ denotes the distance from $u_m$ to m, which is related to $l{u}_m$ and $l_m$.

$$I(k,c_{{u^{\prime }}_k},l_{u_m},l_{{u^{\prime }}_k},l_{{u^{″}}_o})=\left\{\begin{array}{c}0,ifk\in c_{u_m},\hfill \\ w_{2}d(l_{u_m},l_{{u^{\prime }}_k}),ifk\notin c_{u_m},\exists k\in c_{{u^{\prime }}_k},\exists {u^{\prime }}_k\in J_n,\hfill \\ w_{3}d(l_{u_m},l_{{u^{\prime }}_k}),ifk\notin c_{u_m},\exists k\in c_{{u^{\prime }}_k},\exists {u^{\prime }}_k\notin J_n,\hfill \\ w_{4}d(l_{u_m},l_{{u^{″}}_o}),ifk\notin c_{u_m},\exists k\notin \underset{n\ne m,n\in \mathcal{N}}{\cup }{c}_n.\hfill \end{array}\right.$$

(6)

where $u_k^{\prime }$ and ${u^{″}}_o$ denote the UAV that caches file k and the central UAV, respectively, $w_2$, $w_3$, and $w_4$ are different overheads per file per distance according to different source of files, $u_k^{\prime }$ is the UAV that caches file k, $c{}_{{u^{\prime }}_k}$ means the set of files that UAV $u_k^{\prime }$ caches.

The explanation of $I(k,c_{u_k^{\prime }},l_{u_m},l_{u_k^{\prime }},l_{u_o^{″}})$ can be classified into four parts. The first expression indicates that UAV $u_m$ caches the file that the users require; the second expression indicates that UAV $u_m$ tends to obtain files from its neighbors; the third expression denotes the fact that UAV $u_m$ tends to obtain files from other small UAVs, which are defined as potential neighbors; the truth that UAV $u_m$ will fly back to the big central UAV to cache missing files is reflected in the last expression. Moreover, it should be noted that the value of each part in indicator function is related to the distance between UAV $u_m$ and the destination for the file requested by users, i.e., $d(l_{u_m},l_{{u^{\prime }}_k})$ and $d(l_{u_m},l_{{u^{″}}_o})$. Note that the third and last expression indicate that UAV $u_m$ will leave the service location. Therefore, $w_3$ and $w_4$ involve the flight overhead per distance.

Although the UAV can obtain the files requested by users, the successful communication probability is still an important factor which may influence the service performance. Suppose that each communication link uses a pre-given channel to transmit data. It can be completed by applying unicast transmission schemes [23] where each UAV serves corresponding users by different channels. Therefore, it means that the communications between UAVs and users will not interfere with each other. Then, for an interference-free scenario, we define the successful communication probability as the probability that the received signal-to-noise ratio (SNR) by the received user is over a predefined communication threshold, which is as follows:

$$P_{success}=P\left(SNR>r_{th}\right),$$

(7)

where $r_{th}$ is the communication threshold, (SNR) is calculated by:

$$SNR=\frac{P_n{g}_{u{}_{m}m}}{N_0},$$

(8)

where $P_n$ is the transmitting power of UAV n, $g_{u_{m}m}$ is the channel power gain from UAV $u_m$ to user m, $N_0$ is the background noise. Different from terrestrial communication network, the transmission link can be classified into two propagation groups, i.e., LOS and NLOS. Motivated by Reference [24], $g_{u_{m}m}$ for LOS and NLOS links are respectively calculated by:

$$g_{u_{m}m}=\left\{\begin{array}{c}h·d_{u_{m}m}^{-\alpha },LOSlink\hfill \\ h·\eta ·d_{u_{m}m}^{-\alpha },NLOSlink.\hfill \end{array}\right.$$

(9)

where $d_{u_{m}m}$ reflects the distance from UAV $u_m$ to user m, $\alpha$ denotes the path loss exponent, $\eta$ denotes an additional attenuation factor caused by the NLOS link, h, i.e., $h\sim \mathsf{\Gamma }\left(\gamma ,\xi \right)$, represents the Nakagami fading. According to Reference [24], both the service location and the elevation angle $\theta$ between the UAV and the user influence the probability of LOS link. Thus, the probability of causing LOS links can be given as follows:

$$P\left(LOS\right)=\frac{1}{1+aexp\left(-b(\theta -a)\right)},$$

(10)

where a and b are the parameters related to the environment, $\theta$ denotes the elevation angle specified as follows:

$$\theta =\frac{180}{\pi }\times {sin}^{-1}(\frac{z_{u_m}}{d_{u_{m}m}}),$$

(11)

where $z_{u_m}$ is the height of UAV $u_m$. The probability of causing NLOS link is $P\left(NLOS\right)=1-P\left(LOS\right)$. Thus, we express the channel power gain as follows:

$$g_{u_{m}m}=h\left(P\left(LOS\right)d_{u_{m}m}^{-\alpha }+\eta P\left(NLOS\right)d_{u_{m}m}^{-\alpha }\right).$$

(12)

The good arrangements of UAVs’ caching contents and service locations will achieve an appropriate trade-off between a high successful communication probability and low transmission overhead. Therefore, we design the ratio of users’ successful communication probability and transmission overhead as the performance indicators of UAVs’ actions. We denote the performance function of UAV n as:

$$u{}_n\left(a_1,a_2,\dots ,a_N\right)=\sum _{m\in S_n}^{}\frac{P_{success,m}}{r_m\left(a\right)},$$

(13)

where $S_n$ denotes the set of users that UAV n serves, $r_m$ is the transmission overhead of user m to obtain requested files specified in Reference [24], $P_{success,m}$ is the successful communication probability from UAV n to user m. Thus, the performance of all UAVs can be measured by:

$$U\left(a\right)=\sum _{n\in \mathcal{N}}^{}{u}_n\left(a_1,a_2,\dots ,a_N\right),$$

(14)

where $a=\left(a_1,a_2,\dots ,a_N\right)$ denotes the joint strategy profile of all UAVs.

Therefore, the optimization object is to find the optimal strategy profile $a^{*}=\left({a^{*}}_1,{a^{*}}_2,\dots ,{a^{*}}_N\right)$ which can maximize the performance of all UAVs, i.e.,

$$\begin{array}{c}{a}^{*}={arg}_{a}maxU\left(a\right)={arg}_{a}max{\displaystyle {\displaystyle \sum }_{n\in \mathcal{N}}^{}}{u}_n\left(a_1,a_2,\dots ,a_N\right),\hfill \\ s.t.c1:\left|c_n\right|=F\le \left|f\right|,\hfill \\ c2:P_{success,m}>P_{threshold},\hfill \end{array}$$

(15)

where the condition $c1$ reflects the fact that UAVs’ cache space does not exceed the number of system files, $P_{threshold}$ is the communication probability threshold, the condition $c2$ indicates that the solution must ensure users have appropriate communication probability to communicate.

2.3. Summary

Besides the caching contents and service locations, we consider the impact of LOS and NLOS links on the performance of UAV-assisted networks. Meanwhile, the necessary formulations are presented in this part, which indicates that the tradeoff between the transmission overhead and successful communication probability should be balanced.

3. UAV-Assisted Caching Game

As a result of the high computation and complexity of combinatorial problem, the centralized framework is powerless. Therefore, we design a distributed framework with the help of game theory, which makes each UAV take action, respectively. Meanwhile, the proposed game is proved to be an exact potential game. NE points can be reached by the log-linear caching algorithm.

3.1. Game Model

It is well known that game theory is efficient for solving the challenge of resource competition for example the anti-jamming transmission problem [25,26], the opportunistic spectrum access problem [27], the distributed channel-slot selection optimizing problem [28], even the challenging UAV relay selection problem [29], and the ultra-dense small cell network problem [30]. Similarly, we propose a UAV-assisted caching game in this paper from a game-theoretic perspective. The proposed game considers not only the UAVs’ service locations, but also the caching contents. Moreover, UAVs will cooperate with their neighbors and share the caching contents, which reflects cooperation. Therefore, when one UAV selects its action, it will consider the influence that its action has upon its neighbors.

Let $G=\left\{\mathcal{N},A_n,J_n,U_n\right\}$ denotes the UAV-assisted caching game, where $\mathcal{N}$ denotes the set of players (UAVs), $A_n$ is the strategy space of UAV n, $J_n$ is the neighbors of UAV n, $U_n$ indicates the utility function of player n (UAV n).

Considering the influence of marginal contribution of UAVs to the system service, we designed the utility function of UAVs as follows:

$$U_n(a_n,a_{J_n})=R(a_n,a_{-n})-R(a_n=0,a_{-n}),$$

(16)

where $a_n$ indicates the current action of UAV n, $a_{J_n}$ is the joint action profile of UAV n’s neighbors, $a_{-n}=(a_1,\dots ,a_{n-1},a_{n+1},\dots ,a_N)$ denotes the joint action profile of UAVs except UAV n, $a_n=0$ reflects the fact that the current UAV n takes no action, $R(a_n,a{}_{-n})={\displaystyle {\displaystyle \sum }_{n\in \mathcal{N}}^{}}{u}_n\left(a_1,a_2,\dots ,a_N\right)$ is the performance evaluation function of all UAVs, which is the same as Equation (14).

The utility function shows the individual contribution of each UAV to the UAV-assisted network performance, which is influenced by the caching contents and service locations of UAVs. Therefore, when UAVs take proper arrangement of caching contents and service locations, each individual contribution will increase. Therefore, the optimization object of the UAV-assisted caching game is given by:

$$\begin{array}{c}\mathcal{G}:{\displaystyle \underset{a_n\in A_n}{max}}{U}_n(a_n,a_{J_n}),\forall n\in \mathcal{N},\\ s.t.c1\mathrm{and}c2.\end{array}$$

(17)

3.2. Analysis of NE

The NE is the stable solution in game theory. The existence of NE will be analyzed in the part. According to Reference [16], we first give the definitions as follows:

Definition 1 (Nash Equilibrium).

An action profile $a^{*}=(a_1^{*},\dots ,a_N^{*})$ is a pure stragety NE if and only if no player can improve its utility by deviating unilaterally, i.e.,

$$\begin{array}{c}{U}_n({a_n}^{*},{a_{J_n}}^{*})\ge U_n(a_n,{a_{J_n}}^{*}),\forall n\in \mathcal{N},\forall a_n\in A_n,a_n\ne {a_n}^{*}.\hfill \end{array}$$

(18)

Definition 2 (Exact Potential Game).

A game is an exact potential game if and only if a potential function Φ: $A_1\otimes \dots \otimes A_N\mapsto R$ exists so that for $\forall n\in \mathcal{N}$:

$$\begin{array}{c}\hfill U_n({\overline{a}}_n,a_{J_n})-U_n(a_n,a_{J_n})=\mathsf{\Phi }({\overline{a}}_n,a_{-n})-\mathsf{\Phi }(a_n,a_{-n}),\forall a_n\in A_n,{\overline{a}}_n\in A_n.\end{array}$$

(19)

Therefore, a game is an exact potential game when the change in individual utility function is the same as the change in the potential function.

According to the definitions [31], the following theorem is given to present the properties of the proposed game.

Theorem 1.

$\mathcal{G}$ is an exact potential game that has at least one pure strategy NE. The optimal pure strategy NE of $\mathcal{G}$ is the optimal solution of the proposed optimization problem.

Proof.

Inspired by Reference [32], we firstly denote the potential function as follows:

$$\mathsf{\Phi }(a_1,a_2,\dots ,a_N)=R(a_n,a_{-n}),$$

(20)

where $R(a_n,a{}_{-n})={\displaystyle {\displaystyle \sum }_{n\in \mathcal{N}}^{}}{u}_n\left(a_1,a_2,\dots ,a_N\right)$ is the performance evaluation function of all UAVs, which is the same as Equation (14).

The potential function indicates the performance of all UAVs. When UAV n changes its decision action from $a_n$ to ${\overline{a}}_n$, then the change in utility function of UAV n caused by this unilateral change is given by:

$$\begin{array}{c}\hfill U_n({\overline{a}}_n,a_{J_n})-U_n(a_n,a_{J_n})=R({\overline{a}}_n,a{}_{-n})-R({\overline{a}}_n=0,a{}_{-n})-\left[R(a_n,a{}_{-n})-R(a_n=0,a{}_{-n})\right].\end{array}$$

(21)

Note that $a_n=0$ and ${\overline{a}}_n=0$ all indicate the truth that UAV n takes no action in service, which means that this UAV n is broken and can not provide service. Therefore, the performance of UAV-assisted networks is actually the same in these two conditions, i.e.,

$$R(a_n=0,a{}_{-n})=R({\overline{a}}_n=0,a{}_{-n}).$$

(22)

According to Equations (21) and (22), we can get the following equation:

$$\begin{array}{c}\hfill U_n({\overline{a}}_n,a_{J_n})-U_n(a_n,a_{J_n})=R({\overline{a}}_n,a{}_{-n})-R(a_n,a{}_{-n})=\mathsf{\Phi }({\overline{a}}_n,a_{-n})-\mathsf{\Phi }(a_n,a_{-n}).\end{array}$$

(23)

From Equation (23), we can draw the conclusion that the change in the utility function is exactly the same as the change in the potential function. Thus, according to the definition, the fact that our proposed game is an exact potential game is proved. Moreover, the potential game has the most important two properties.

• The potential game has one pure strategy NE at least.
• Local or global maxima of potential function constitutes a pure strategy NE.

Therefore, the UAV-assisted caching game has one NE at least. Moreover, the NE is a stable solution to the potential function, which is equal to the performance of all UAVs. It means that the optimal NE can make the performance of UAV-assisted networks largest. Thus, Theorem 1 is proved. □

3.3. Log-Linear Caching Algorithm

After proposing the UAV-assisted caching game, it is desirable to find the NE point mentioned above. Therefore, the log-linear caching algorithm is proposed to optimize the performance of UAV-assisted networks motivated by Reference [16].

Different from greedy algorithms, the proposed algorithm guarantees that each UAV will not always take its best action. The mechanism avoids the dilemma of UAV-assisted networks falling into the local optimum. It will eventually result in a better NE solution by discarding a temporary good action. The detailed running mechanism of the proposed algorithm is as follows: Firstly, related parameters and actions of UAVs are initialized; secondly, one UAV is selected randomly to enter an exploratory stage, i.e., the selected UAV randomly chooses a new action with equal probability; finally, the selected UAV decides whether to explore the new action or to keep the original action according to its updating rules. More details are described in Algorithm 1.

Theorem 2.

With a sufficiently large learning parameter, the log-linear caching algorithm converges to a NE point of the UAV-assisted caching game and maximizes the performance of UAV-assisted networks locally or globally.

Proof.

According to Theorem 4 [33], the unique stationary distribution of any action profile can be determined. On the basis of the methodology provided in Reference [22], it can be proved that when the learning parameter is large enough, the log-linear caching algorithm can asymptotically obtain the maximum of potential function. As is specified in Equation (20), the potential function represents the performance of all UAVs. Therefore, the proposed algorithm can maximize the performance of UAV-assisted networks. The similar proof process has been completed and more details can be read in Reference [33]. Thus, Theorem 2 is proved. □

Algorithm 1: Log-linear caching algorithm (LCA)

1. Initialization        (1) Initialize randomly users’ locations, file popularity and file requests $Q_m$, $m\in \mathcal{M}$.         Initialize randomly $l_n$ and $c_n$,$n\in \mathcal{N}$ satisfying to $c1$ and $c2$.        (2) Moreover, set k = 0 as the round count and $k_{max}$ as the maximum round.   2. Repeat Round        k = k + 1        Choose UAV n randomly.        Repeat iterations::        (1) Calculate $U_n$ by taking the action $a_n$.        (2) Generate $a_n^{\prime }$ randomly from its strategy space         (3) Calculate $U_n^{\prime }$ by taking the action $a_n^{\prime }$ and keep other UAVs’ actions.        (4) Update strategy:                 $Pr\left[a_n(k+1)=a_n\left(k\right)\right]=\frac{exp\left(\beta U_n\right)}{Y}$                 $Pr\left[a_n(k+1)={a^{\prime }}_n\left(k\right)\right]=\frac{exp\left(\beta {U^{\prime }}_n\right)}{Y}$            where $Y=exp\left(\beta U_n\right)+exp\left(\beta {U^{\prime }}_n\right)$, and $\beta$ is the learning parameter.            Meanwhile, all other UAVs keep their actions, and $a_{-n}(k+1)=a_{-n}\left(k\right)$.        (5) until $k\ge k_{max}$ or $Pr\left[a_n(k+1)\right]>0.95$, $n\in \mathcal{N}$        End iterations        Output: $a^{*}=(a_1^{*},a_2^{*},\dots ,a_N^{*})$   3. End rounds

4. Simulation and Numerical Results and Discussion

In this part, we conduct the simulation with MATLAB software and compare the impact of key parameters, i.e., the number of system files on the performance of UAV-assisted networks. Meanwhile, the simulation results verifies the effectiveness of the proposed model.

4.1. Simulation Scenario

Considering a square region of 200 × 200 m${}^2$, there are $M=20$ users located randomly waiting to be served. Meanwhile, the communication distance threshold of UAVs is $D_n=100$ m and the learning parameter of the proposed algorithm is $\beta =40+k/25$, where k is the number of the current iterations. The different overheads per file per distance are $w_1=0.1$, $w_2=0.3$, $w_3=2$, and $w_4=5$, respectively. Moreover, the communication threshold is $r_{th}=55$ dB. The communication probability threshold is $P_{threshold}=0.5$. The transmitting power of UAVs and background noise are $P_n=0.1$ w and $N_0=-100$ dbm, respectively. The path loss exponent is $\alpha =3$. The Nakagami fading is $h\sim \mathsf{\Gamma }\left(2,0.5\right)$. Inspired by Reference [24], the parameter related to the environment a and b is a = 11.95 and b = 0.136.

4.2. Convergence Behavior

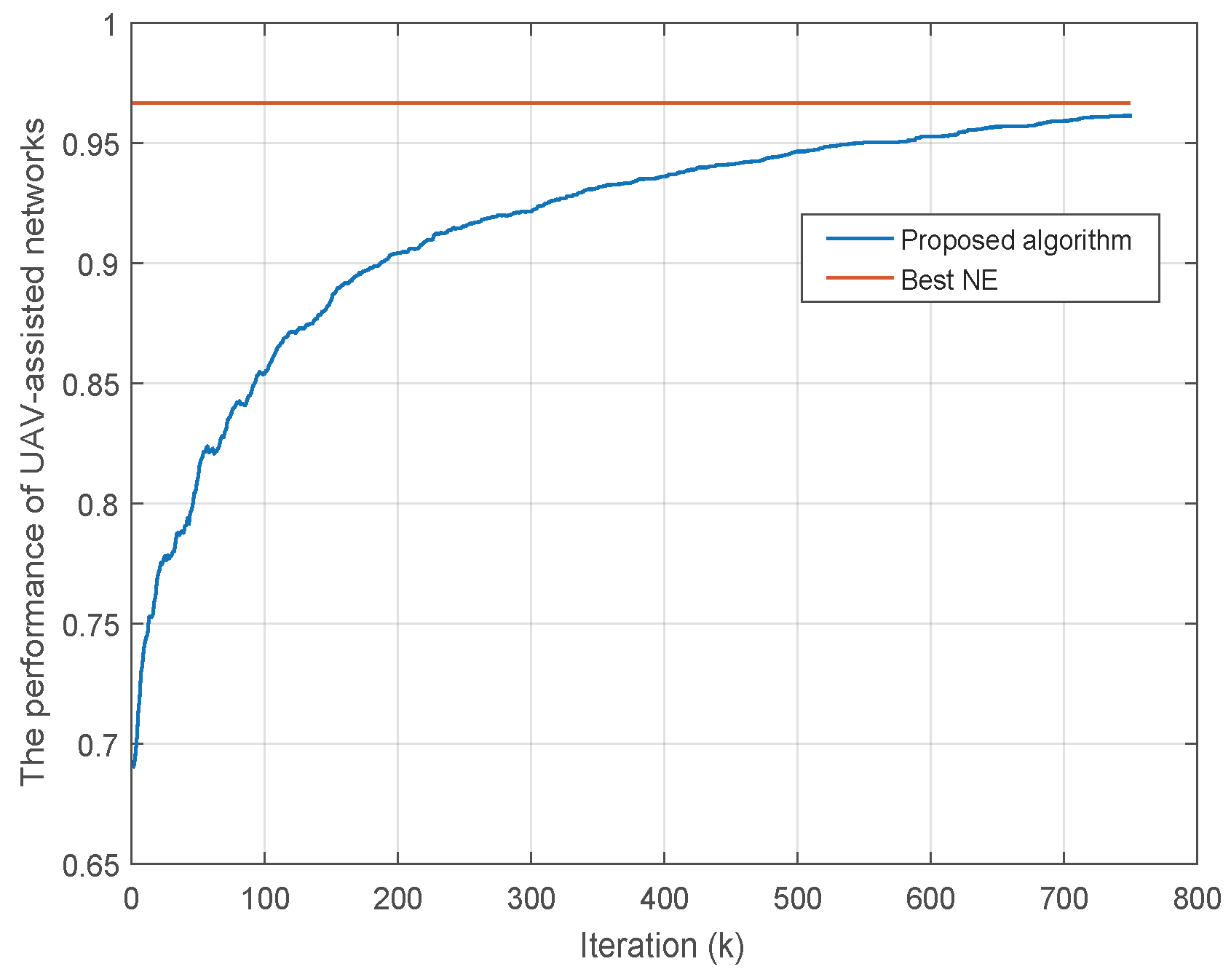

As shown in Figure 2, the performance of UAV-assisted networks finally converges to a stable state. Here we consider that the number of system files is $\left|f\right|=6$, and there are UAVs available to serve the users, i.e., $N=8$. Moreover, the cache space of UAVs is $\left|c_n\right|=3$. At the end of iteration, the performance of UAV-assisted networks will finally converge. In addition, the final performance is near to the best NE, which is the best one of 1000 independent trials based on the proposed algorithm. The simulation result validates its convergence and the effectiveness of the proposed algorithm.

4.3. Performance Analysis

4.3.1. Performance of UAV-Assisted Networks versus the Number of System Files

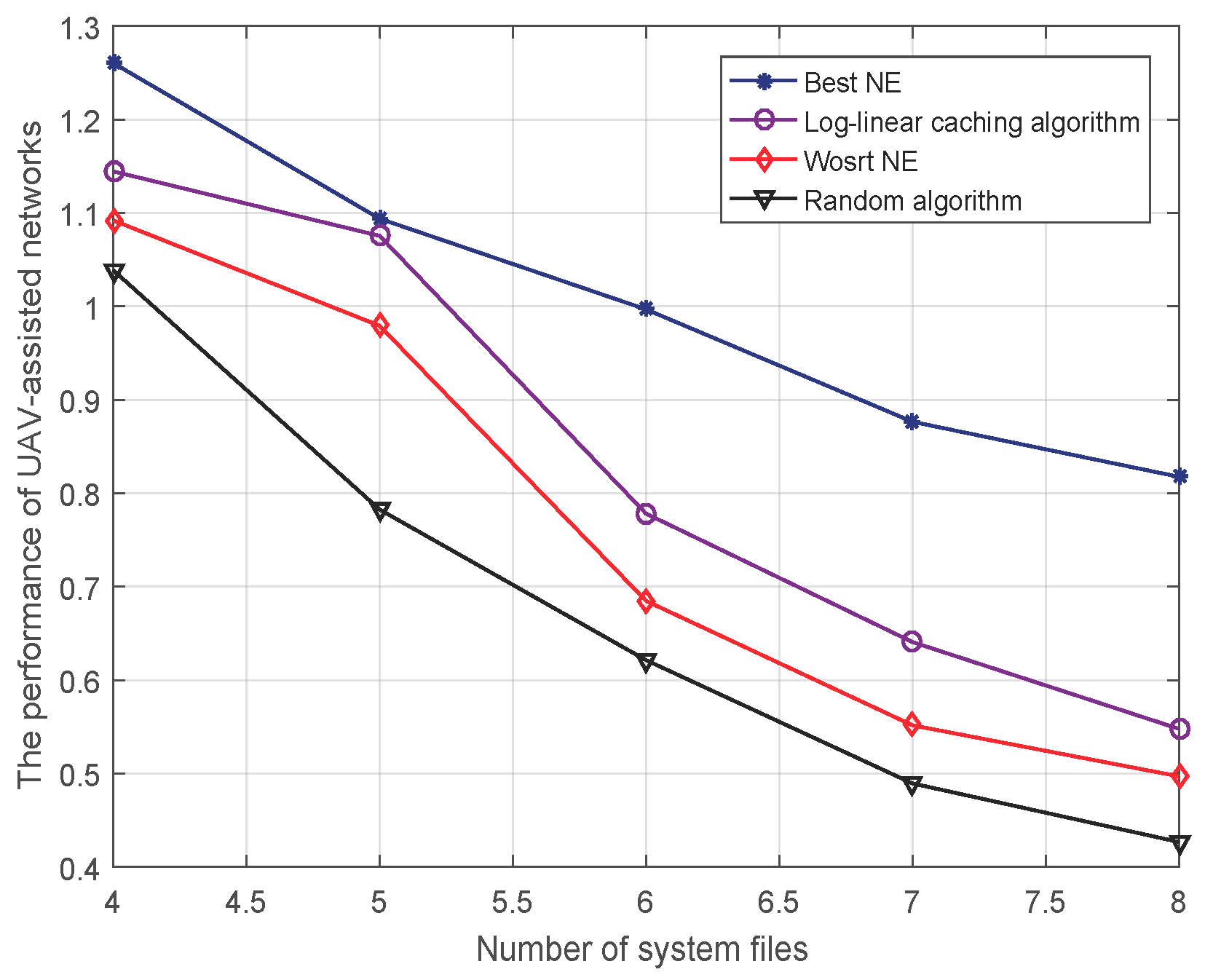

Considering the change of the number of system files, we compare the performance of UAV-assisted networks applying four algorithms, i.e., the random selection, best NE, worst NE, and the proposed algorithm. We run the random selection algorithm 1000 times and choose the average value as the final result of the random selection algorithm. Similarly, we carry out 1000 independent trials using the proposed log-linear caching algorithm. Actually, each convergent value is a NE solution. Then the average of values is defined as the final value. In addition, we choose the best one and the worst one of the values as the best NE and the worst NE, respectively. Figure 3 depicts the performance of UAV-assisted networks when varying the number of system files from $\left|f\right|=4$ to $\left|f\right|=8$. Several important observations can be seen in this figure: (1) the performance of UAV-assisted networks decreases as the number of system files increases. (2) Compared with the random algorithm, the log-linear caching algorithm brings the better performance of UAV-assisted networks. (3) As a result of the limited UAVs’ processing capacity, when the number of system files increases, users’ requests become more complex, which leads to a decline in performance.

4.3.2. Performance of UAV-Assisted Networks versus the Number of Cache Space

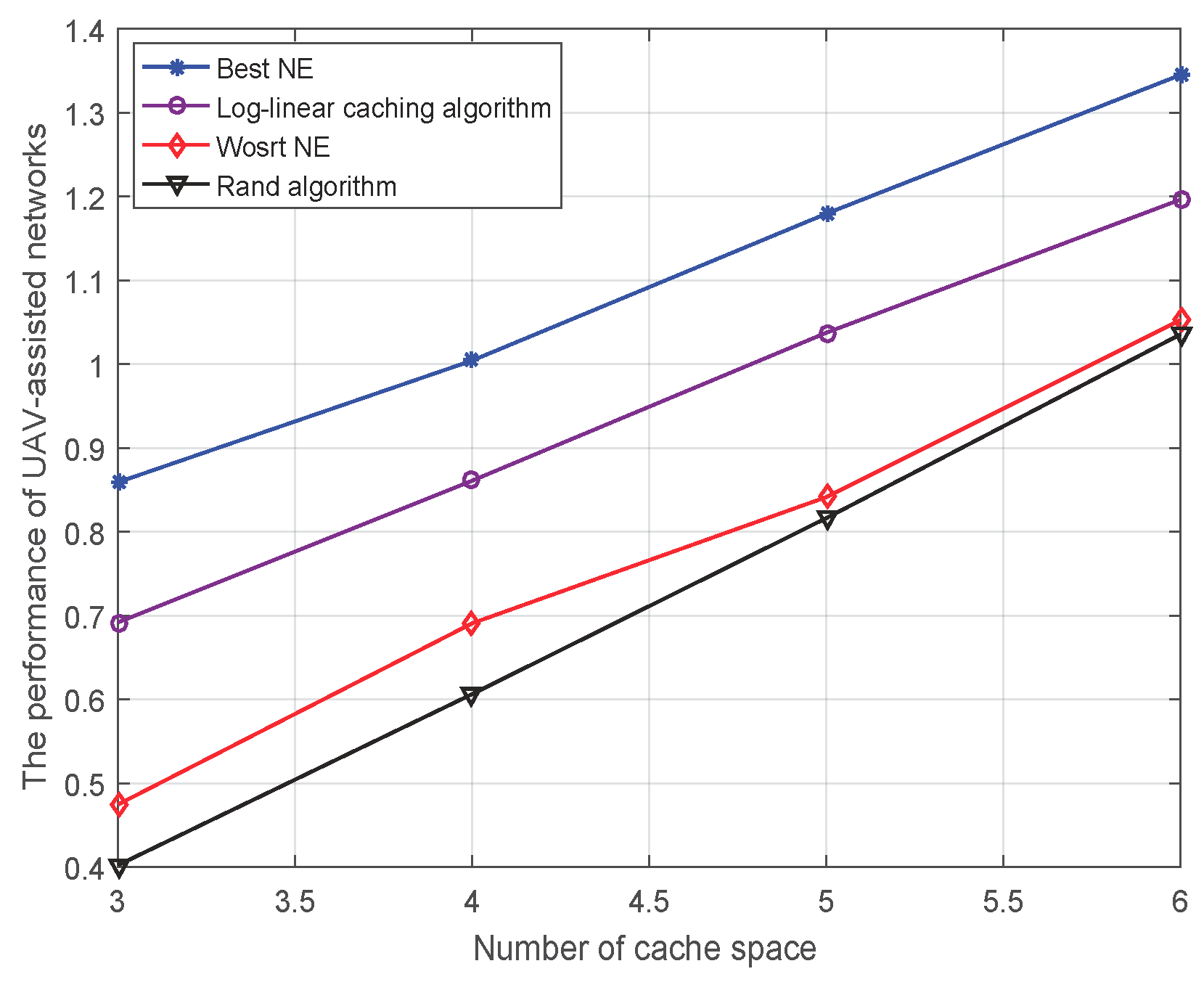

We assess the performance of UAV-assisted networks when changing the number of cache space from $\left|c_n\right|=3$ to $\left|c_n\right|=6$. Figure 4 reflects the final results applying four approaches. The simulation process is similar to Figure 3. From Figure 4, the simulation curves reflect the fact that: (1) The performance of UAV-assisted networks increases as the cache space of UAVs increases. The reason is that greater cache space brings high processing capacity of UAVs, which leads to an increase in performance. (2) The log-linear caching algorithm is close to the best NE and outperforms the random selection algorithm which validate the effectiveness of the proposed algorithm.

4.3.3. Performance of UAV-Assisted Networks versus the Number of UAVs

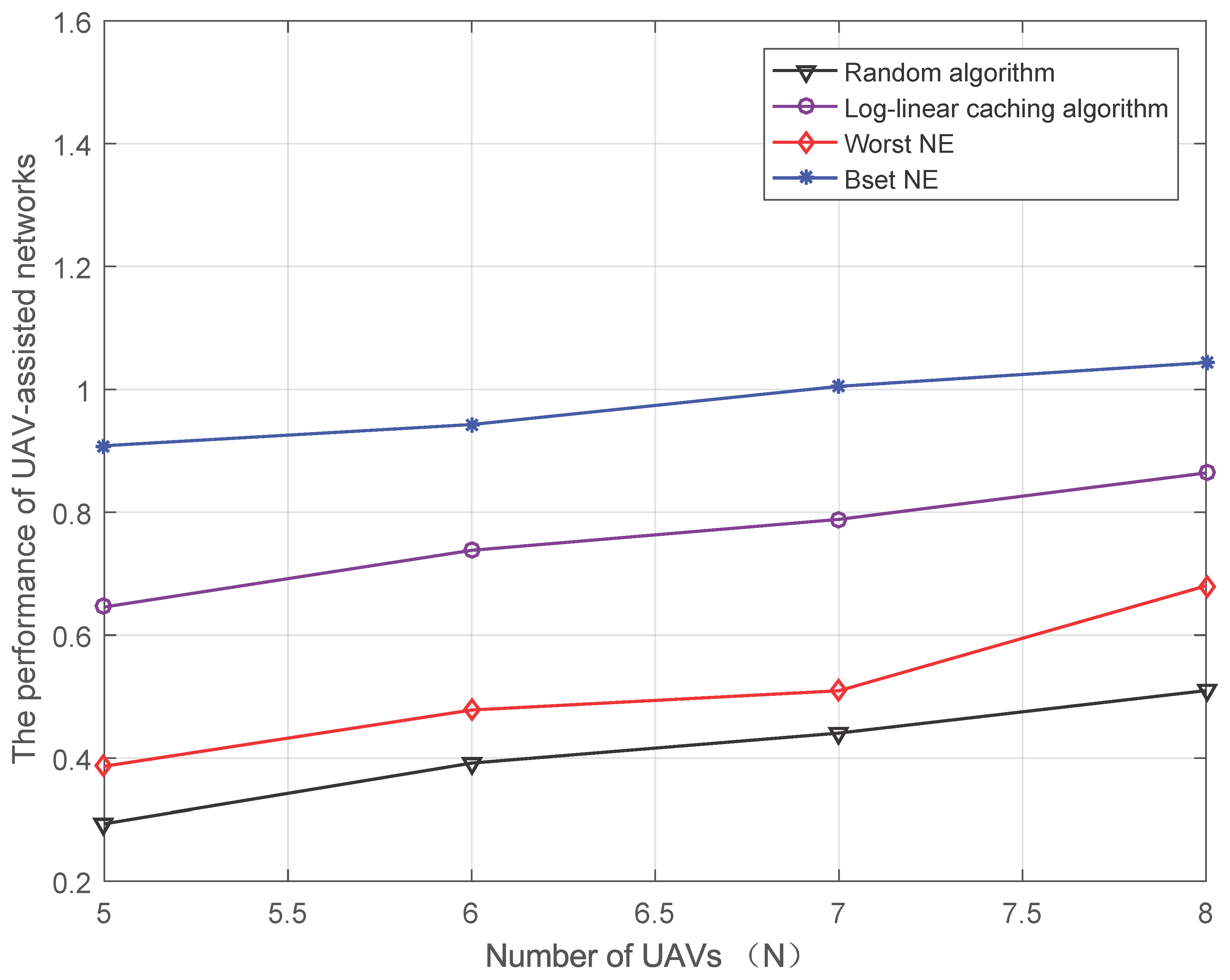

Considering the number of UAVs varying from N = 5 to N = 8, we compare the performance of UAV-assisted networks. Figure 5 indicates the influence of the number of UAVs on the performance of UAV-assisted networks. The fact is reflected from the simulation curves: in general, as the number of UAVs increases, the performance of UAV-assisted networks increases. The reasonable explanation is that more UAVs yield a larger successful communication probability. Additionally, the final performance of the proposed algorithm is close to the best NE with respect to different numbers of UAVs, which again validates the proposed algorithm.

5. Conclusions

In this paper, the problem of the optimal arrangement for both UAV’s caching contents and service locations in UAV-assisted networks was investigated. We modeled the problem as a UAV-assisted caching game with LCA. The proposed model combined with game theory was proved to be effective, which was shown in the simulation results. Meanwhile, the simulation results indicated that the performance of UAV-assisted networks was related with the number of system files, cache space of UAVs, and the number of UAVs in service. Inspired by the related simulation results, increasing the number of UAVs in service is not the only way to improve the quality of service. In real life, the performance of UAV-assisted networks can be improved by reasonable arrangement of UAVs’ caching contents and service locations.
