Preparation and Two-Photon Photoluminescence Properties of Organic Inorganic Hybrid Perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄

Abstract

Organic inorganic hybrid perovskites have potential applications in solar cells, electroluminescent devices and radiation detection because of their unique optoelectronic properties. In this paper, the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄ were synthesized by solvent evaporation. The crystal structure, morphology, absorption spectrum, laser power dependence of the photoluminescence (PL) intensity and lifetime were studied. The results showed that the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄ display a layered stacking structure of organic and inorganic components. The absorption peaks are located at 392 nm (3.16 eV) and 516 nm (2.40 eV), respectively. It was observed that the PL intensity and photoluminescence quantum yield (PLQY) increases with increasing laser power, and that the PL lifetime decreases with increasing laser power, which is mainly due to the non-geminate recombination.

1. Introduction

In recent years, organic inorganic hybrid perovskites have received wide attention and investigation as the most competitive candidates in photovoltaic field development. Organic inorganic hybrid perovskites are a new subclass of material self-assembled at the molecular scale from organic and inorganic components [1,2,3]. The crystal structure of a perovskite can be described with the chemical formula ABX₃, in which A-sites are the organic ammonium cations, B-sites are the inorganic metal cations, and X-sites are the halide anions. The B-site cation is six-coordinated by the X-site anion to form [BX₆] octahedrons, which are corner-sharing to constitute three-dimensional frameworks [4,5]. These compounds have multiple quantum well structures with alternating organic and inorganic layers [6]. In these compounds, the excitons possess larger binding energy due to quantum confinement effects, which displays excellent optical properties such as second harmonic generation, exciton absorption and emission [7,8,9,10,11]. These properties make organic inorganic hybrid perovskites great candidates for applications in solar cells [12], electroluminescent devices [13,14,15] and radiation detection [16].

The perovskite solar cells with all solid state structure can prevent the problems from the liquid electrolyte and exhibit high power conversion efficiency (PCE), displaying great potential in photovoltaic devices. In 2009, Miyasaka et al. [17] firstly studied the solar cells with the perovskite CH₃NH₃PbI₃, yielding a PCE of 3.8% due to the lower open voltage. In 2011, Zheng et al. [18] synthesized a series of the perovskites (C₆H₁₃NH₃)₂(CH₃NH₃)_n−1Pb_nI_3n+1, and investigated the effects of the inorganic-sheet number on the crystal structure, bandgap energy, exciton binding energy and photoluminescent emission. In 2013, Stoumpos et al. [19] synthesized several perovskites CH₃NH₃SnI₃, HC(NH₂)₂SnI₃, CH₃NH₃PbI₃, HC(NH₂)₂PbI₃ and CH₃NH₃Sn_1−xPbxI₃, and studied the structure, morphology, phase transition and photoluminescence. In 2014, Kawano et al. [6] prepared three perovskites (C₄H₉NH₃)₂PbBr₄, (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅C₂H₄NH₃)₂PbBr₄, investigating the effects of organic moieties on luminescence properties of perovskite compounds. In 2015, Qin et al. [13] studied the performance of light-emitting diodes based on perovskite CH₃NH₃PbBr₃, and a high luminance up to 1500 cd/m² was achieved. In 2018, Luo et al. [20] studied solar cells with the inverted planar heterojunction perovskite, yielding a PCE of 21% due to the elimination of nonradiative charge-carrier recombination. Droseros et al. [21] studied the photoluminescence of the perovskite CH₃NH₃PbBr₃, discovering the photoluminescence quantum yield (PLQY) increased with decreasing crystal size and explained the phenomenon.

Organic inorganic hybrid perovskites combine distinct properties of organic and inorganic components within a single molecular composite. The inorganic component forms the octahedral framework by ionic bonds, to provide good conductivity and carrier mobility. The organic component facilitates the self-assembly, enabling the materials to be deposited using a simple way. These properties can be easily controlled by changing the organic ammonium, inorganic metal or halide [22]. Research on perovskites is now focusing on solar cells and light-emitting diodes, however reports on the photoluminescent properties of the perovskites with the two-photon excitation are rarely seen. In this paper, the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄ are synthesized by solvent evaporation. The laser power effect on the photoluminescence (PL) intensity and lifetime was investigated with femtosecond laser via the two-photon excitation.

2. Experimental Section

2.1. Synthesis of Organic Ammonium Salt

HBr and HI were added in the C₆H₅CH₂NH₂ solution respectively. The mixtures were heated at 50 °C and cooled at room temperature. C₆H₅CH₂NH₃Br and C₆H₅CH₂NH₃I were obtained and then heat treated.

2.2. Synthesis of Perovskite Crystal

C₆H₅CH₂NH₃Br and PbBr₂, C₆H₅CH₂NH₃I and PbI₂ were then dissolved in N,N-dimethylformamide (DMF) in a molar ratio of 2:1 respectively. The mixtures were heated at 50 °C and stirred for 1 h, then the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄ were prepared by solvent evaporation. The products were washed with ethanol followed by heat treatment.

2.3. Synthesis of Perovskite Nanosheet

The perovskite crystals were ground into powders, which were used for XRD measurement. The perovskite powders were put in aqueous solution, ultrasonically processed, and then centrifuged. After a period of time, large quantities of perovskite nanosheets were obtained for TEM measurement. The chemical reaction equations involved in the experiment are as follows:

$${\mathrm{C}}_6{\mathrm{H}}_5{\mathrm{CH}}_2{\mathrm{NH}}_2+\mathrm{HBr}\Rightarrow {\mathrm{C}}_6{\mathrm{H}}_5{\mathrm{CH}}_2{\mathrm{NH}}_3\mathrm{Br}$$

(1)

$${2\mathrm{C}}_6{\mathrm{H}}_5{\mathrm{CH}}_2{\mathrm{NH}}_3{\mathrm{Br}+\mathrm{PbBr}}_2\Rightarrow {({\mathrm{C}}_6{\mathrm{H}}_5{\mathrm{CH}}_2{\mathrm{NH}}_3)}_2{\mathrm{PbBr}}_4$$

(2)

$${\mathrm{C}}_6{\mathrm{H}}_5{\mathrm{CH}}_2{\mathrm{NH}}_2+\mathrm{HI}\Rightarrow {\mathrm{C}}_6{\mathrm{H}}_5{\mathrm{CH}}_2{\mathrm{NH}}_3\mathrm{I}$$

(3)

$${2\mathrm{C}}_6{\mathrm{H}}_5{\mathrm{CH}}_2{\mathrm{NH}}_3{\mathrm{I}+\mathrm{PbI}}_2\Rightarrow {{(\mathrm{C}}_6{\mathrm{H}}_5{\mathrm{CH}}_2{\mathrm{NH}}_3)}_2{\mathrm{PbI}}_4$$

(4)

2.4. Characterization

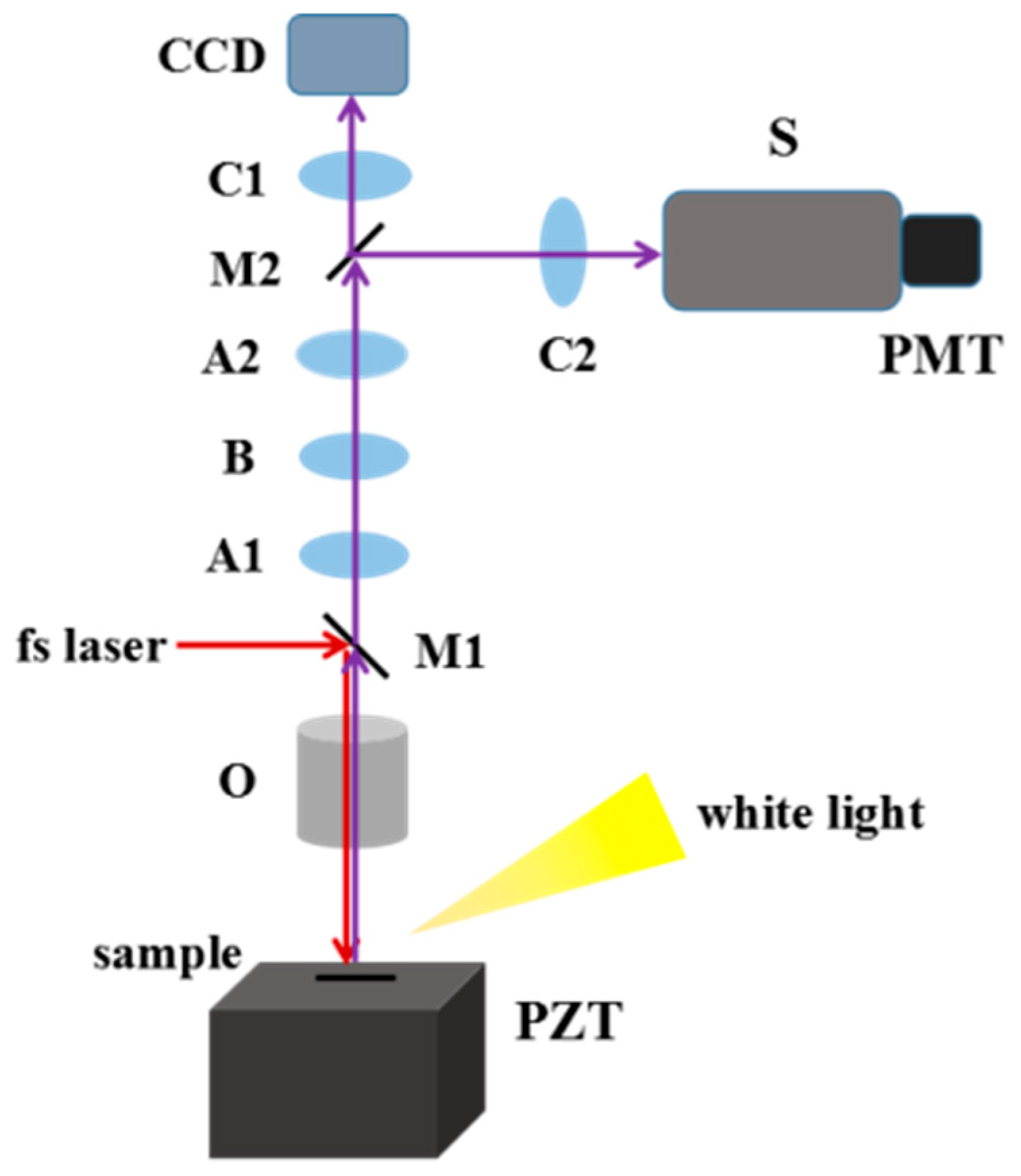

The structure was analyzed by X-ray diffraction (Germany Bruker AXS, D8 Advance). The morphology was observed by transmission electron microscopy (Japan JEOL, JEM-2000) and scanning electron microscopy (Holland FEI, SEM 450). The absorption spectra were measured with UV-visible spectrometer (America PerkinElmer, Lambda 35). The optical measurements were performed using a commercial optical microscope system (Japan, Olympus IX73). A Ti:sapphire oscillator (China Atop Electronic Technology Co. Ltd., Vitara) was used for two-photon excitation. The laser beam was focused by an objective (Olympus, NA = 0.65) onto the samples. The reflected signal was collected by the same objective and then directed into a spectrometer (Andor 193i) for spectral measurement, or onto a CCD camera for imaging. The time correlated single photon count (TCSPC) system consisting of a PicoHarp 300 controller, a PDL 800-B reference and a SPDA-15 detector was used for the lifetime measurements. Figure 1 shows the optical path of the photoluminescence test system used in the experiment.

The experimental results can be fitted to a biexponential decay function:

$$\mathrm{I}={\mathrm{A}}_1\exp {(-\mathrm{t}/\mathsf{\tau }}_1)+{\mathrm{A}}_2\exp {(-\mathrm{t}/\mathsf{\tau }}_2)$$

(5)

where τ₁ and τ₂ are the radiative and nonradiative decay lifetime, respectively.

3. Results and Discussion

3.1. Structure Characterization

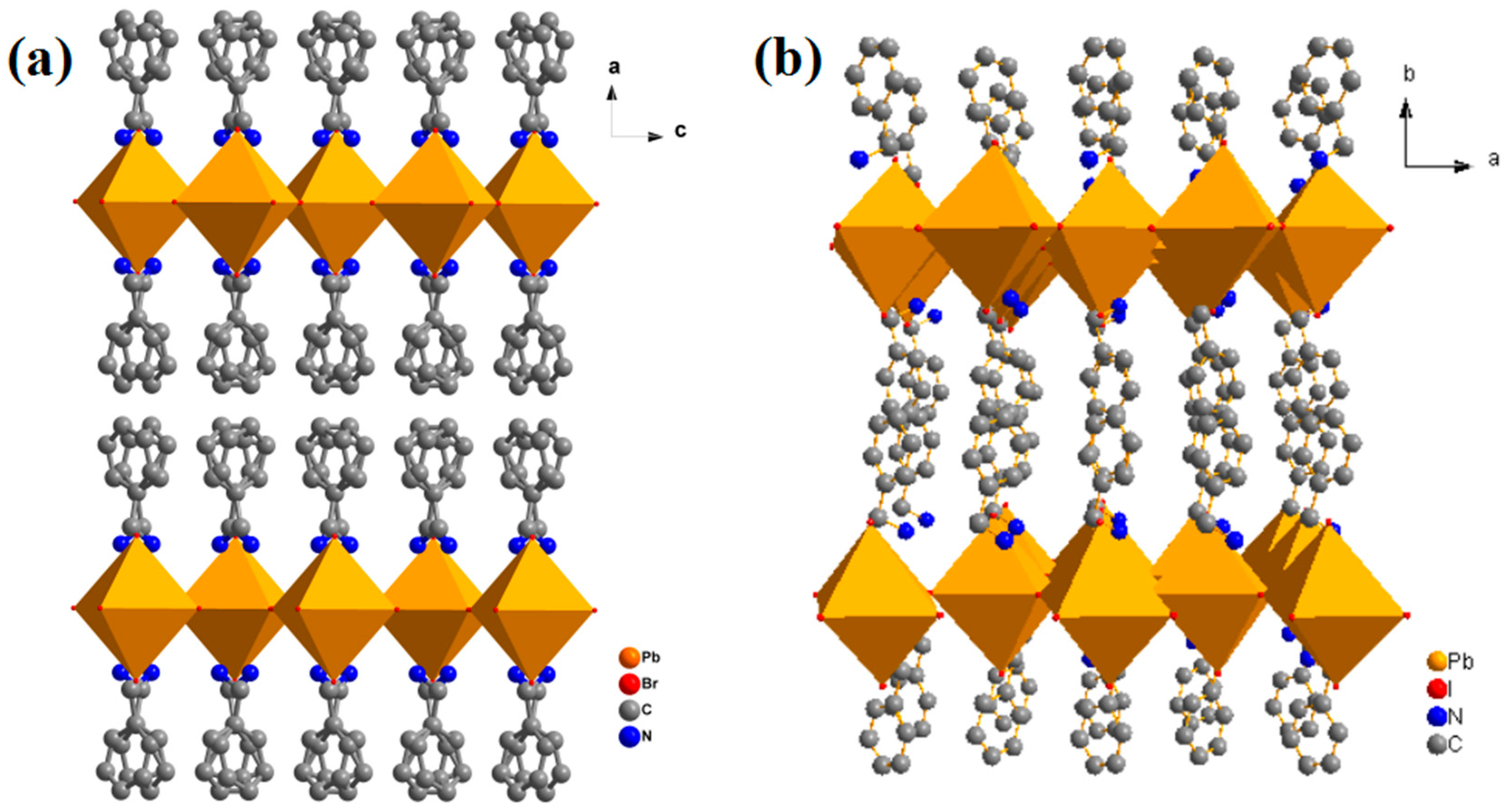

Figure 2a,b shows the crystal structure of the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄. The Pb atoms are six-coordinated by the halogen to form [PbX₆] octahedrons, which are corner-sharing to constitute three-dimensional frameworks. It can be observed that the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄ exhibit the structure with alternating organic and inorganic layers. The growth directions of the layers are along the a axis and b axis, respectively. The lattice parameters of the perovskite (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄ are a = 3.3394 nm, b = 0.8153 nm, c = 0.8131 nm and a = 0.8689 nm, b = 2.878 nm, c = 0.9162 nm, which are consistent with reports in the literature [23].

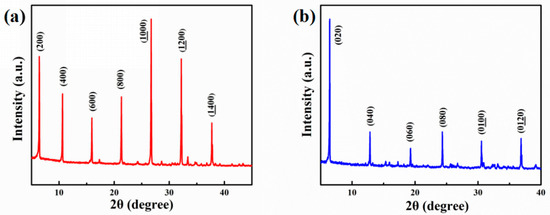

Figure 3a,b shows the XRD patterns of the perovskite powders (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄. The diffraction peaks of the perovskite (C₆H₅CH₂NH₃)₂PbBr₄ are located at 6.41°, 10.63°, 15.96°, 21.32°, 26.72°, 32.18° and 37.73°, which correspond to the lattice plane (X00, X = 2, 4, 6, 8, …). The diffraction peaks of the perovskite (C₆H₅CH₂NH₃)₂PbI₄ are located at 6.14°, 12.29°, 18.48°, 24.73°, 31.05° and 37.47°, which are correspond to the lattice plane (0X0, X = 2, 4, 6, 8, …). The calculated interlayer spacing of the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄ are 1.44 nm and 1.68 nm, respectively, using the Bragg formula: 2dsinθ = nλ. The experimental XRD patterns of the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄ are consistent with calculated values, confirming there is no tri-halide perovskite or PbX₂ phase [23]. All the patterns confirmed that the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄ are well crystallized and oriented.

3.2. Morphology Characterization

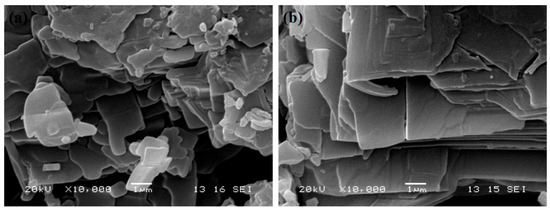

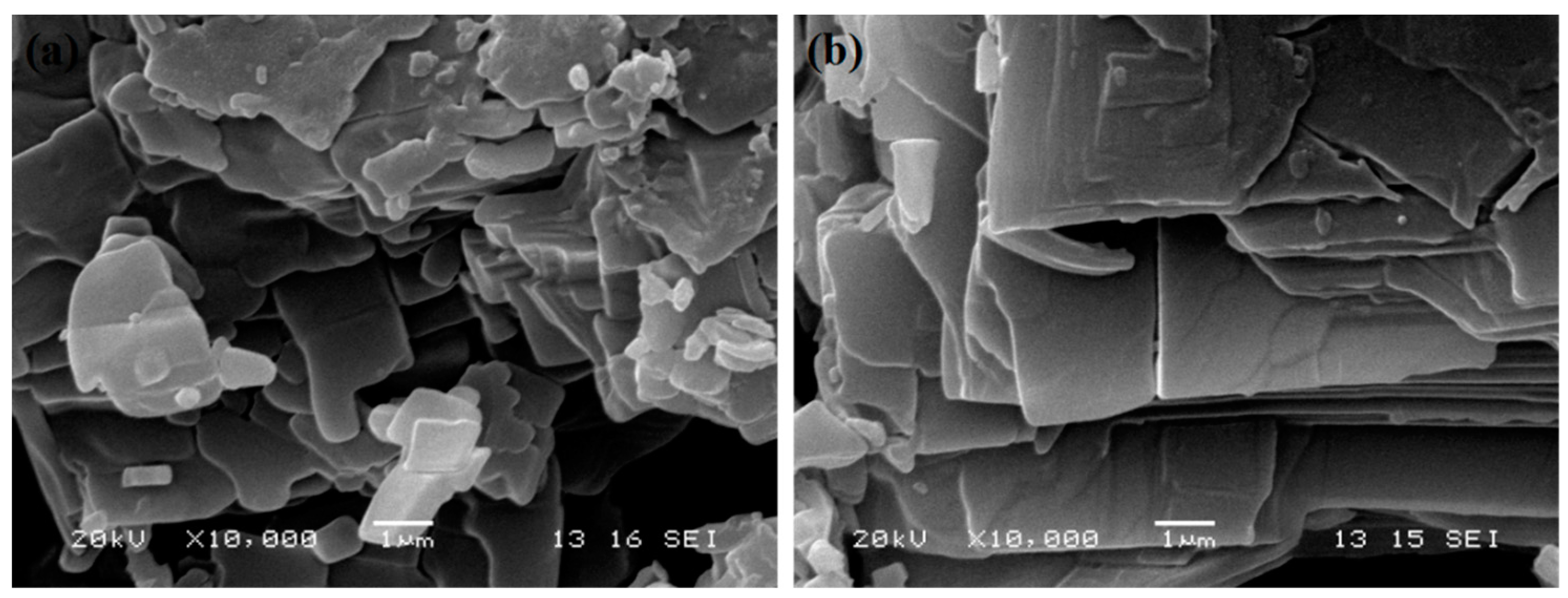

Figure 4a,b shows the SEM images of the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄. The perovskite (C₆H₅CH₂NH₃)₂PbBr₄ exhibits a layered stacking structure with grain size of 1–5 um, and the perovskite (C₆H₅CH₂NH₃)₂PbI₄ also exhibits a layered stacking structure with grain size of 2–8 um. SEM images of the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄ are consistent with those observed in the bright field TEM images.

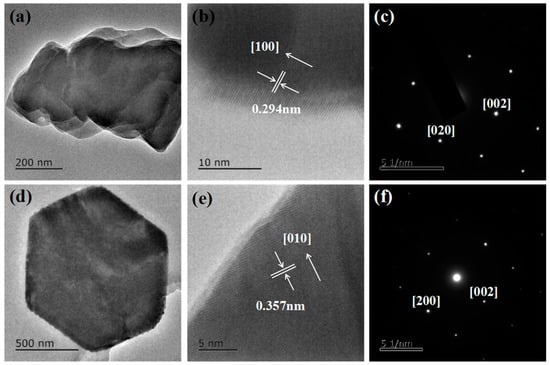

Figure 5a shows the bright field TEM images of the perovskite (C₆H₅CH₂NH₃)₂PbBr₄ nanosheets. The perovskite (C₆H₅CH₂NH₃)₂PbBr₄ displays a layered stacking structure with crystal geometry size of 600 nm. Figure 5b shows the HR-TEM images of the perovskite (C₆H₅CH₂NH₃)₂PbBr₄ nanosheets. It shows that the lattice plane has the spacing distance of 0.294 nm, with the growth direction along [100]. The selected area electron diffraction (SAED) pattern of the perovskite (C₆H₅CH₂NH₃)₂PbBr₄ nanosheets is shown in Figure 5c, indicating the orthorhombic phase, space group Cmca, with a growth direction along [100]. Figure 5d shows the bright field TEM images of the perovskite (C₆H₅CH₂NH₃)₂PbI₄ nanosheets. The perovskite (C₆H₅CH₂NH₃)₂PbI₄ displays a layered stacking structure with crystal geometry size of 1um. Figure 5e shows the HR-TEM images of the perovskite (C₆H₅CH₂NH₃)₂PbI₄ nanosheets. It shows that the lattice plane has the spacing distance of 0.357 nm, with the growth direction along [010]. The SAED pattern of the perovskite (C₆H₅CH₂NH₃)₂PbI₄ nanosheets is shown in Figure 5f, indicating the orthorhombic phase, space group Pbca, with a growth direction along [010].

3.3. Absorption Spectrum

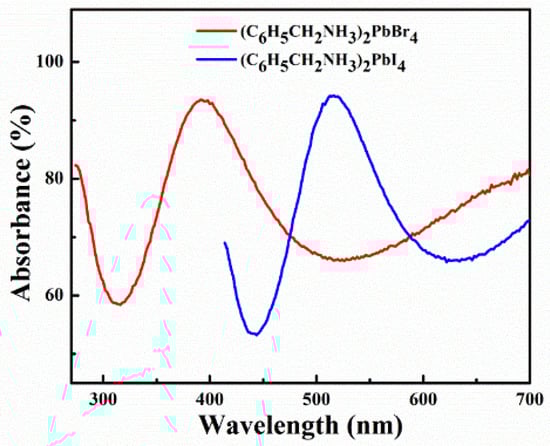

Figure 6 shows the absorption spectrum of the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ (red curve) and (C₆H₅CH₂NH₃)₂PbI₄ (blue curve). The absorption peaks are located at 392 nm (3.16 eV) and 516 nm (2.40 eV), which belong to the typical exciton absorption peaks. Organic inorganic hybrid perovskites have multiple quantum well structures with alternating organic and inorganic layers, therefore the excitons possess larger binding energy, and it is easy to generate exciton absorption due to quantum confinement effects.

3.4. The Laser Power Effect on the PL Intensity

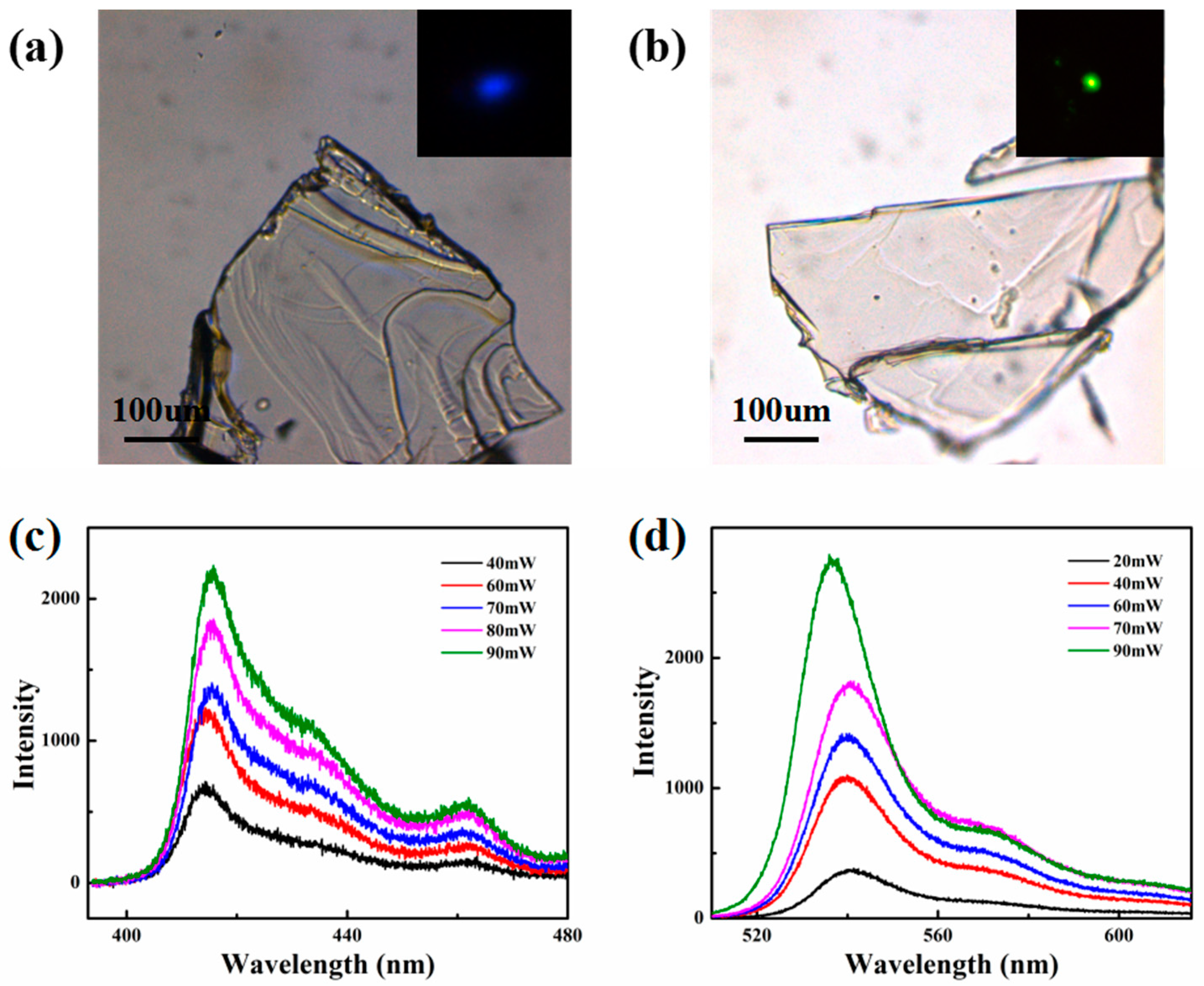

Figure 7a,b shows the bright field and dark field optical microscope images of the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄. It is possible to observe the regular and transparent crystal geometry of the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄, which emit blue and green photoluminescence under the 800 nm femtosecond laser. Figure 7c,d shows the two-photon PL spectrum of the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄. PL peaks are located at 415 nm (298 eV) and 540 nm (2.30 eV) respectively. PL intensity of the perovskite (C₆H₅CH₂NH₃)₂PbBr₄ increases from 117 photon counts to 2195 photon counts when laser power increases from 10 mW to 100 mW. In contrast, PL intensity of the perovskite (C₆H₅CH₂NH₃)₂PbI₄ increases from 158 photon counts to 2771 photon counts when laser power increases from 10 mW to 100 mW.

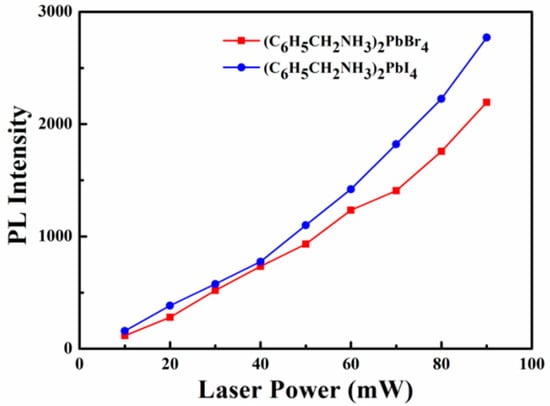

Figure 8 shows the laser power dependence of the PL intensity of the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ (red curve) and (C₆H₅CH₂NH₃)₂PbI₄ (blue curve). It can be observed the PL intensity increases with increasing laser power. PL intensity of the perovskite (C₆H₅CH₂NH₃)₂PbBr₄ is less than that of the perovskite (C₆H₅CH₂NH₃)₂PbI₄ at the same laser power. The radius of a Br atom is less than that of an I atom, and the lattice volume of (C₆H₅CH₂NH₃)₂PbBr₄ is less than that of (C₆H₅CH₂NH₃)₂PbI₄. Therefore the perovskite (C₆H₅CH₂NH₃)₂PbI₄ has a larger Bohr radius and smaller exciton binding energy, so the excitons of the perovskite (C₆H₅CH₂NH₃)₂PbI₄ will more easily separate and produce radiative recombination.

3.5. The Laser Power Effect on the PL Lifetime

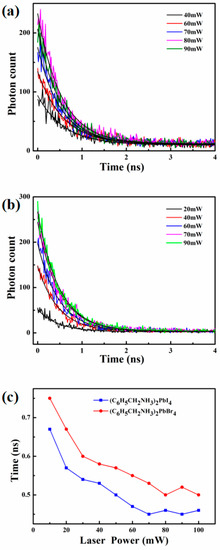

Figure 9a,b shows the PL lifetime of the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄. PL lifetime of the perovskite (C₆H₅CH₂NH₃)₂PbBr₄ decreases from 0.75 ns to 0.50 ns when laser power increases from 10 mW to 100 mW. In contrast, PL lifetime of the perovskite (C₆H₅CH₂NH₃)₂PbI₄ decreases from 0.67 ns to 0.46 ns when laser power increases from 10 mW to 100 mW. Figure 9c shows the laser power dependence of the PL intensity of the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ (red curve) and (C₆H₅CH₂NH₃)₂PbI₄ (blue curve). It can be observed that the PL lifetime decreases with increasing laser power. PL lifetime of the perovskite (C₆H₅CH₂NH₃)₂PbBr₄ is larger than that of the perovskite (C₆H₅CH₂NH₃)₂PbI₄ at the same laser power. The internal quantum efficiency [6] is calculated as:

$$\mathrm{Q}={\mathsf{\tau }}_{\mathrm{nr}}{/(\mathsf{\tau }}_{\mathrm{r}}{+\mathsf{\tau }}_{\mathrm{nr}})$$

(6)

where τ_r and τ_nr are the radiative and nonradiative decay lifetime respectively. According to Equation (6), the internal quantum efficiency of the perovskite (C₆H₅CH₂NH₃)₂PbBr₄ varies from 81.48% to 90.91%, and the internal quantum efficiency of the perovskite (C₆H₅CH₂NH₃)₂PbI₄ varies from 83.55% to 91.28%.

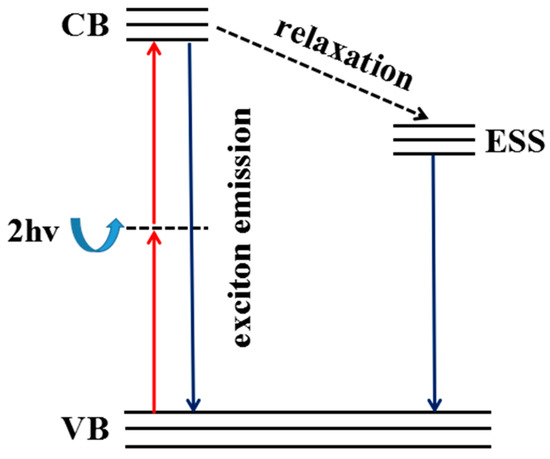

The fluence-dependence of PL intensity and lifetime with laser power can be explained with the energy level diagram [24,25,26], which is shown in Figure 10. The perovskite molecules will absorb two photons after the 800 nm laser excitation, promoting the electron transfer from VB to CB. Some electrons in CB will return to VB and produce exciton emission. Meanwhile, some electrons in CB will move to ESS by relaxation. The relaxation to ESS, or ESS recombination, can possess certain non-geminate recombination characteristics. This emission is a kind of non-geminate recombination, which is the intensity-dependent two-photon absorption cross-section [27]. When laser power increases, more electrons transfer from VB to CB, and move to ESS by relaxation after absorbing two photons. As a consequence, the carrier density increases and the emission is dominated by non-geminate recombination, which results in the increase of PL intensity and decrease of lifetime.

4. Conclusions

In this paper, we prepared the perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄ via solvent evaporation. The perovskites (C₆H₅CH₂NH₃)₂PbBr₄ and (C₆H₅CH₂NH₃)₂PbI₄ were well crystallized and oriented, and exhibited the layered structures with alternating organic and inorganic components. The absorption peaks were located at 392 nm (3.16 eV) and 516 nm (2.40 eV) respectively. PL intensity of the perovskite (C₆H₅CH₂NH₃)₂PbBr₄ increased from 117 photon counts to 2195 photon counts, PLQY varied from 81.48% to 90.91%, and lifetime decreased from 0.75 ns to 0.50 ns when laser power increased from 10 mW to 100 mW. In contrast, PL intensity of the perovskite (C₆H₅CH₂NH₃)₂PbI₄ increased from 158 photon counts to 2771 photon counts, PLQY varied from 83.55% to 91.28%, and lifetime decreased from 0.67 ns to 0.46 ns when laser power increased from 10 mW to 100 mW. The fluence-dependence of PL intensity and lifetime with laser power is mainly due to the non-geminate recombination. The photoluminescence properties of organic inorganic hybrid perovskites can be tuned to a wide range, which has important applications in the optoelectronic field.
