Thermally Activated Delayed Fluorescence Emitters for Deep Blue Organic Light Emitting Diodes: A Review of Recent Advances

Abstract

Organic light-emitting diodes offer attractive perspectives for the next generation display and lighting technologies. The potential is huge and the list of potential applications is almost endless. So far, blue emitters still suffer from noticeably inferior electroluminescence performances in terms of efficiency, lifespan, color quality, and charge injection/transport when compared to that of the other colors. Emitting materials matching the NTSC standard blue of coordinates (0.14, 0.08) are extremely rare and still constitutes the focus of numerous academic and industrial researches. In this context, we review herein the recent developments on highly emissive deep-blue thermally activated delayed fluorescence emitters that constitute the third-generation electroluminescent materials.

1. Introduction

During the past two (plus) decades, organic light-emitting diodes (OLEDs) have been extensively studied as potential devices for full-color flat-panel displays and lighting sources [1,2,3,4,5]. OLEDs have attracted a great deal of interest and possess the potential to replace the traditional inorganic technology. OLEDs are attractive for manifold reasons. OLEDs can be operated at relatively low driving voltages and they can display high brightness, wide viewing angles. The response time can be extremely short and the power consumption can be considerably reduced relative to that of inorganic light-emitting devices. Contrarily to inorganic diodes that can only fabricated on rigid substrates (i.e., glass), OLEDs can be prepared on flexible substrates, such as polymers and the resulting devices can thus be light-weight [6,7,8]. Fully flexible OLEDs can also be elaborated using solution-processing methods, thus becoming particularly promising, owing to large-area low-cost fabrication potential and compatibility with flexible plastic substrates. For a full-color display and white lighting, it is essential to have the three primary colors: red, green, and blue. However, progress in blue OLEDs is far behind that of green and red OLEDs. It relies on the difficulty to develop blue emitters exhibiting high photoluminescence quantum yields (PLQY), the desired color purity and a sufficient operational lifetime for the device to be viable. Deep-blue emitters that exhibit high PLQYs are thus needed to effectively reduce the power consumption and expand the color gamut of full-color OLEDs. In addition, the development of deep blue emitters is of crucial interest as these materials can also be utilized to generate the other colors by a mechanism of energy cascade inside the emissive layer from the wide bandgap blue emitters to emitters of lower and adapted energy levels. At present, efficient and stable deep-blue OLEDs that satisfy the required Commission Internationale de l’Eclairage (CIE) coordinates of (0.14, 0.08), as defined by the National Television System Committee (NTSC) or (0.15, 0.06) defined by the High-Definition Television (HDTV) and the European Broadcasting Union (EBU) are still rare [9]. Therefore, the development of saturated deep-blue emitters with high efficiencies is crucial to produce efficient OLEDs and this topic has become an important research subject. At present, the development of deep-blue emitting materials is still challenging because of an intrinsic large band-gap and the encountered problems of stability [10,11,12,13]. In the last decade, a huge number of efficient blue emitters, both fluorescent and phosphorescent ones, have been reported [14,15,16,17,18,19,20,21,22,23,24,25,26]. However, most of them give a light with CIE y-coordinate > 0.10, thus far from adequate with respect to the present blue standards [27]. One reason for the scarcity of reports is that it is difficult to simultaneously inject electrons and holes into such wide band-gap organic semi-conductors. Notably, for fluorescent emitters, deep blue emission is obtained by restricting the π-conjugation length within the materials to retain the color purity of the emitting part, a strategy that simultaneously inhibits carrier injection and transport [28,29]. Therefore, a trade-off has to be found between an extended π-conjugation that favors charge transport, but at the same time impairs the emission color, and the complete isolation of the emitting part to perfectly match the NTSC or EBU blue standards but that drastically limits charge transport and injection. Carbazole is commonly used to designed blue emitters. To illustrate this, Lin et al. reported OLEDs comprising a carbazole based emitter that furnished a blue light with CIE coordinates of (0.15, 0.09), a maximum external quantum efficiency (EQE) of 4.3%, and a turn-on voltage of 6.5 V [30]. Konidena et al. designed a hybridized local and charge transfer fluorescence by modifying the carbazole core with both of a triphenylamine donor and a cyano acceptor [31]. OLED fabricated with this material furnished an EQE of 6.5% together with an excellent CIE y-coordinate of 0.06 and a full-width at half maximum (FWHM) of 48 nm. Another example that can be cited here is a carbazole/coumarin based emitter that furnished deep blue OLEDs with CIE coordinates of (0.14, 0.11), a maximum luminance of 292 cdm⁻², and an EQE of 0.4% [32]. Chien et al. reported an anthracene emitter at CIE (0.15, 0.07) and maximum current and external quantum efficiencies (CE and EQE) up to 3.2 cd/A and 4.5%, respectively, whereas a dramatic efficiency roll-off was evidenced [33]. Moorthy et al. reported deep-blue OLEDs with CIE coordinates of (0.14, 0.08) and a moderate EQE of 1.51% using 3,3′-bis-p-(2,2-diphenylvinyl)phenylbimesityl as the emitter [34]. Parallel to purely organic materials, metal complexes, such as iridium complexes, perfectly matching the NTSC or EBU standard blues have also been elaborated with EQE, ranging to ~ 6% [35]. Regardless the type of emitter investigated, another key issue in the development of blue OLEDs is the stability of the emitted light. Most of the chromophores that can exhibit excellent deep blue emissions in solution do not perform similarly in the solid state, thus do not give expected deep blue coordinates when tested in OLED devices. This is due to π−π intermolecular stacking or due to molecular aggregation. As a consequence, the emission in solid state and in device is often red-shifted to longer wavelengths, resulting in a blue-green emission and a decrease of efficiency. Molecular engineering and the conception of new emitters in which bulky side groups have been introduced can address this point. Alternatively, the conception of twisted structure can also address this issue [30,36,37,38]. As immediate but adverse consequences, these two strategies often sacrifice the device efficiency or increase raises the turn-on voltage of OLEDs. Aggregation induced emission (AIE) is also a powerful tool to design blue or deep-blue emitters without adversely affecting color emission and device performances. For instance, deep blue tetraphenylethene based emitters have been obtained with CIE y-coordinate below 0.08 [39,40,41]. However, as far as we know, none of the phosphorescent emitters reported to date could display deep blue emissions approaching the blue standards. Recently, a new family of fluorescent emitters i.e., thermally activated delayed fluorescence (TADF) emitting materials has become the rising star of OLEDs by furnishing electroluminescence (EL) performances comparable or outperforming those that were obtained with phosphorescent materials. Adachi et al. were the first reported TADF based OLED in 2009 [42]. They developed new fluorescent materials with 100% internal quantum efficiency (IQE) and established TADF light emission principle. In 2012, they published the first purely organic TADF emitter based OLEDs with η_EQE of 19 %, which is comparable to those of phosphorescent OLEDs [43]. Since these pioneer works, the great potential of TADF emitters in OLEDs has been clearly evidenced and recent results have even put these materials on par with phosphorescence emitting complexes. TADF materials are nowadays considered as the next generation materials, not only for OLEDs [44,45,46,47,48], but also for other applications, such as photoinitiators for polymerization [49,50,51]. In particular, TADF emitters can be metal-free and thus cheaper and less polluting than phosphorescent materials. However, this technology still suffers from the lack of deep blue TADF emitters. A huge number of TADF emitters have been developed, but most of them displayed only sky-blue light [52,53]. In this current short review, we focus our discussions on TADF emitters, leading to deep blue OLED with color coordinate satisfying or close to the NTSC/HDTV/EBU blue standards.

2. Results and Discussion

2.1. Molecular Design of Deep Blue TADF Emitters

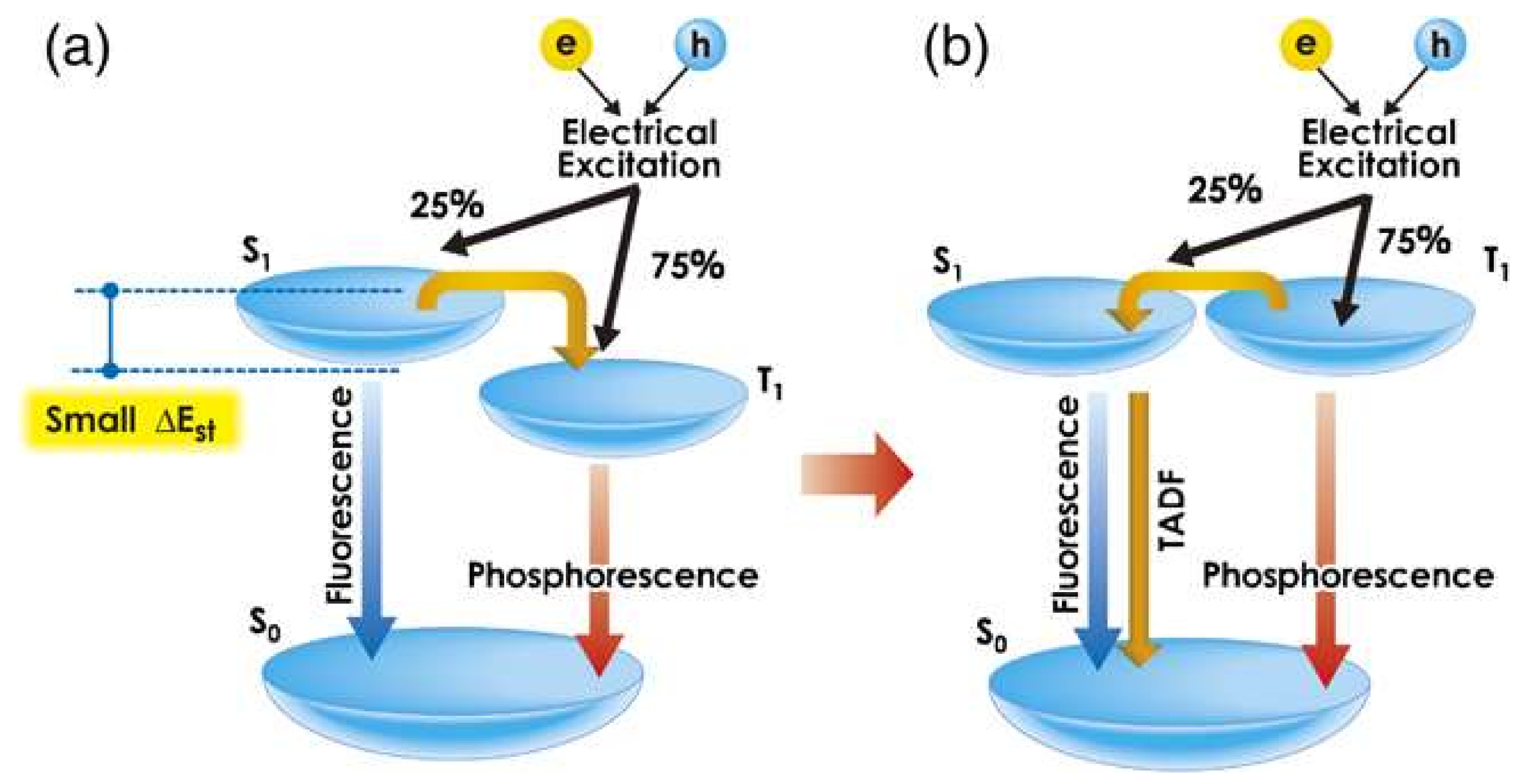

TADF is a mechanism of fluorescence relying on a specific molecular design of the light-emitting materials where the first excited singlet state (S₁) can be thermally repopulated by reverse intersystem crossing (RISC) from the first excited triplet state (T₁). This process is only possible when the energy difference between the triplet and the singlet-excited states (ΔE_ST) is small enough. In most fluorescent molecules, the TADF process is negligible because ΔE_ST is too big (0.5–1.0 eV). Comparative presentation of conventional fluorescence, phosphorescence, and TADF is given in Figure 1.

TADF has been recently used to efficiently produce fluorescent materials. It is now widely recognized as a promising route to harvest triplet excitons in OLEDs, without taking recourse to expensive transition metal complexes. Getting TADF to work therefore took some clever molecular engineering, guided by quantum mechanics to minimize ΔE_ST by forcing each frontier orbital (highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO)) to remain confined on different parts of the molecule [54]. The general strategy to design TADF molecules has been well developed by Adachi et al. [55]. Structurally, these molecules are classically made of electron-donating and electron-accepting moieties that are localized on different parts of the molecules, enabling the triplet states to be extremely localized, and the excited states to exhibit a marked charge-transfer character. As abovementioned, the key parameter enabling initiating the delayed fluorescence is the thermal RISC, enabling the electrons from the triplet state to repopulate the singlet state. To reach this goal, emitters should be designed so the energy gap between the lowest T₁ to the lowest S₁ is small enough. By this specific mechanism, the non-radiative triplet states (that are lost under the form of non-radiative decays with the traditional fluorescent materials) can repopulate the singlet state and participate to light emission, enabling OLEDs to reach an internal quantum efficiency of 100%. Thus, the efficiency of the TADF process is largely dependent on the efficacy of the RISC. It is known that the RISC rate increases when ΔE_ST decreases [56], so minimizing ΔE_ST is crucial to promote the TADF process and this goal can be achieved if both HOMO and LUMO energy levels are spatially separated. Beyond the simple spatial separation of the two orbitals, a careful selection of both the electron donors and acceptors with adapted energy levels is also of crucial importance to minimize ΔE_ST. However, in order the charge transfer to occur, a minimal interaction between the two orbitals should still exist and the complete isolation of the two orbitals onto two different parts of the molecules is definitely not a good strategy to give rise to a delayed fluorescence. The twist angle (α) between the donor and the acceptor largely affects the ΔE_ST. A large dihedral angle allows for the spatial separation of the HOMO and LUMO to be sufficient to realize a small ΔE_ST. The twist angle also impacts the photophysical properties of light-emitting materials containing low-lying charge transfer excited states, including the rates of S₁→S₀ radiative and nonradiative decays. These constants are dependent from the transition dipole moment (in case of radiative decay) and to the vibronic coupling constants (in case of non-radiative decay) between S₀ and S₁, respectively [57,58]. When the HOMO−LUMO excitation dominates the S₀−S₁ transition, the rates of S₁→S₀ radiative and non-radiative decays are altered by the HOMO-LUMO spatial overlap [59]. For donor/acceptor molecules with a small dihedral angle, the superimposition between the HOMO (located mainly on the donor) and the LUMO (located mainly on the acceptor) orbitals is relatively important. This increases the S₁→S₀ radiative decay constant, leading to improvement of the fluorescence efficiency. However, a too large twist angle will prevent the S₀-S₁ transition to occur and reduce the fluorescence efficiency. The challenge of TADF molecular design is thus finding a trade-off to simultaneously minimize ΔE_ST and induce efficient S₁←T₁ RISC, while retaining a good S₁→S₀ radiative decay rate. The spin-orbit vibronic coupling is also another major important factor in the design of TADF materials. To date, investigations concerning the relationship existing between spin-orbit coupling and RISC are still rare [60,61,62,63]. While aiming at designing deep blue TADF emitters, several parameters should be taken under consideration, such as the π-conjugation length, the redox potential of both the electron-releasing and electron-withdrawing moieties, as well as the degree of conjugation, which is allowed between the two moieties. In practice, the photophysical characteristics as well as the geometry of the molecules are now classically examined by theoretical calculations prior to their synthesis, optimizing the probability to get materials with the desired properties. However, the design and synthesis of a light-emitting material with TADF properties is not enough to be sure that OLEDs that will be fabricated will furnish a deep blue OLEDs. Indeed, choice of an adapted host, selection of the right device stacking, the dopant concentration are other crucial parameter governing the performance of OLEDs [64]. In the following paragraphs of this review, an overview of the different scaffold that have been examined to produce a deep blue emission are presented.

2.2. Diphenylsulfone Based Emitters

Diphenylsulfone (DPS) is one of the most popular acceptors used for designing deep blue TADF emitters, followed by triarylboron and triazine derivatives. The high electronegativity of the oxygen atoms results from the electron withdrawing ability of the DPS moiety. In addition, the DPS group exhibits a tetrahedral geometry and the S atom has an isolating nature, which efficiently limits the conjugation within the compounds [65]. For this reason, DPS has become a popular electron-accepting group for researchers that are aiming at designing TADF emitters. Adachi et al. reported for the first time in 2012 DPS emitters (1–3) with pure blue emissions [66]. The chemical structures of 1–3 are given in Figure 2 and the corresponding OLED characteristics are summarized in

Table 1. TADF and OLED characteristics of deep blue emitters.

Emitter	ΔEST (eV)	Td (µs)	PE (Lm/W)	EQE (%)	CIE (x, y)	Reference
1	0.54	90.0	n/a	2.9	n/a	[66]
2	0.45	140.0	n/a	5.6	n/a	[66]
3	0.32	270.0	n/a	9.9	(0.15, 0.07)	[66]
4	0.21	93.0	n/a	14.5	(0.16, 0.16)	[67]
5	0.31	50.0	n/a	2.0	(0.12, 0.13)	[67]
6	0.25	464.0	1.6	n/a	(0.15, 0.12)	[72]
7	0.17	814.0	0.49	n/a	(0.19, 0.15)	[72]
8	0.07	n/a	n/a	2.3	(0.15, 0.11)	[79]
9	0.05	1.23	n/a	11.7	(0.18, 0.19)	[81]
10	0.24	1.16	n/a	5.5	(0.15, 0.08)	[81]
11	0.42	70.0	3.2	8.5	(0.16, 0.08)	[82]
12	0.14	25.4	30.4	22.3	(0.15, 0.20)	[83]
13	0.04	n/a	n/a	4.7	(0.15, 0.09)	[79]
14	0.43	n/a	n/a	7.2	n/a	[84]
15	0.07	3.5	n/a	22	n/a	[84]
16	0.17	13.0	n/a	19.2	(0.15,0.10)	[84]
17	0.15	10.3	n/a	18.3	(0,15, 0.10)	[84]
18	0.26	95.0	7.6	6.3	(0.16, 0.12)	[85]
19	0.19	31.0	16.9	10.6	(0.16, 0.20)	[85]
20	0.11	17.0	23.6	15.3	(0.17, 0.20)	[85]
21	0.27	24.34	n/a	4.8	n/a	[86]
22	0.27	48.22	n/a	14.0	(0.14, 0.12)	[86]
23	0.403	0.01	0.8	1.6	(0.16, 0.06)	[87]
24	0.31	18	0.6	2.5	(0.15, 0.05)	[88]
25	0.22	11.2	2.7	7.7	(0.15, 0.07)	[88]
26	0.36	13.5	3.5	10.3	(0.16, 0.06)	[88]
27	0.14	5.5	19.0	19.0	(0.16, 0.23)	[88]
28	0.013	93.7	8.3	13.5	(0.13, 0.09)	[95]
29	0.041	65.3	15.1	20.2	(0.12, 0.13)	[95]

.

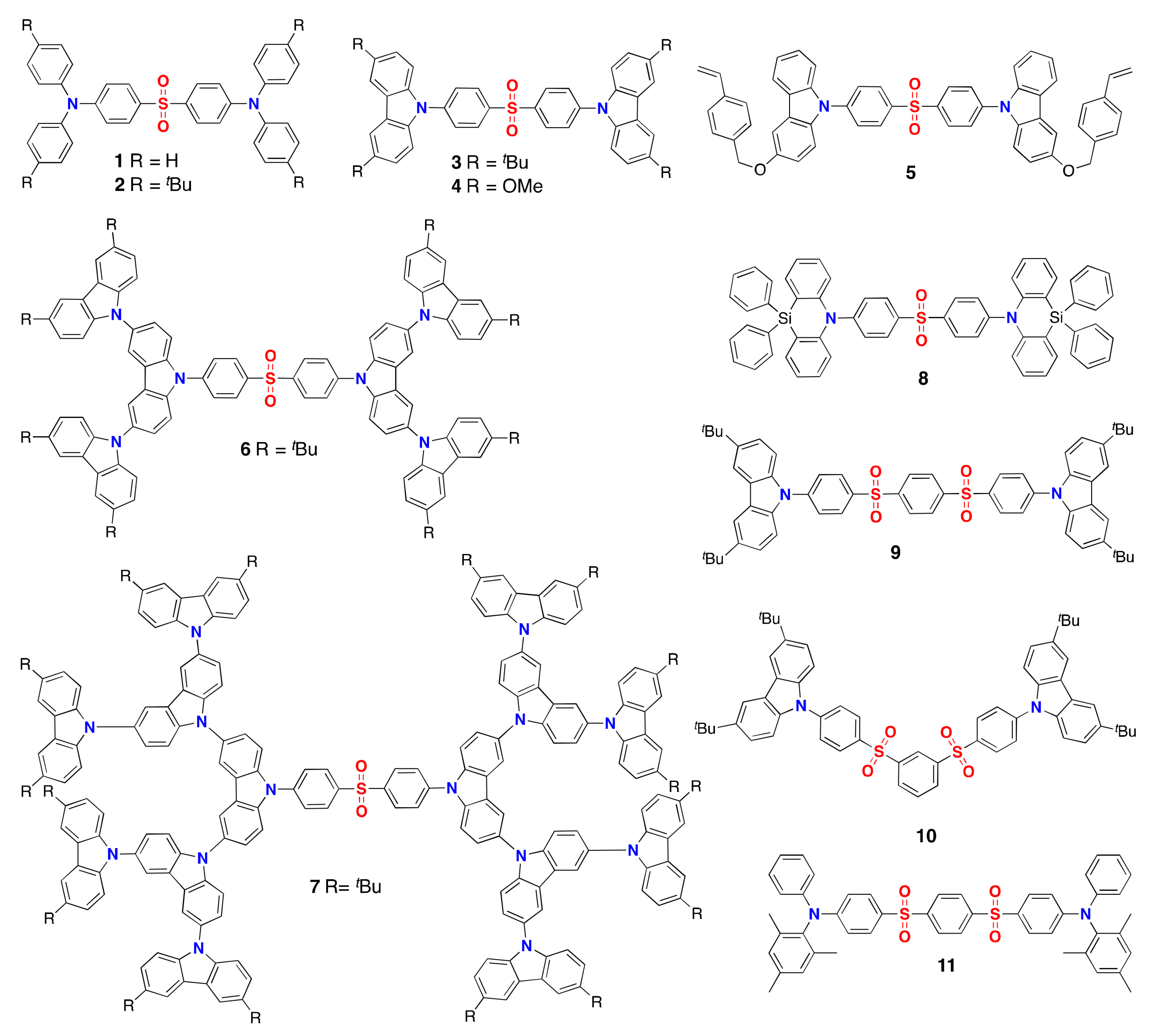

All of the compounds have a donor-acceptor-donor (D-A-D) configuration where the electron donor is a diphenylamine moiety in case of 1 and 2 and a carbazole group in case of 3. Examination of their luminescence spectra revealed that their T₁ states could be assigned to ³π-π* transitions and mainly localized onto their donor moieties. The ΔE_ST energies are 0.54, 0.45, and 0.32 eV for 1–3, respectively. The introduction of bulky tert-butyl groups on the diphenylamine unit in the molecule 2 increased the electron donating properties of the donor compared to that of 1, shifting the charge transfer band towards the visible region and lowering the charge transfer energy and ΔE_ST. When the carbazole group replaced the diphenylamine donor, a destabilization of the ³ππ* state in 3 was demonstrated, increasing its energy level and lowering ΔE_ST. TD-DFT calculations also evidenced a greater separation of the HOMO-LUMO orbitals in 3 as compared to 1 and 2 originating from the large dihedral angle in 3 (49° instead of 32° for 1 and 2). As a result of this, a clear decrease of ΔE_ST was evidenced for 3 relative to that of 1 and 2. As expected, contribution of the delayed fluorescence in the overall luminescence decreased with increasing ΔE_ST, so that it could be detected anymore for 1. When employed as dopants for multilayer OLEDs, maximum EQEs for 1–3 based OLEDs followed the order: EQE (1) < EQE (2) < EQE (3) (2.9%, 5.6%, and 9.9% for 1–3, respectively). This experimental results coincides the order for the contribution of the delayed component of fluorescence for these compounds. If the highest EQE was obtained for 3-based OLED, a severe efficiency roll-off was evidenced for these devices at high current density. This unexpected decrease of EQE was assigned to the long decay time of the delayed fluorescence (270 μs). Under optimized conditions, a deep blue emission with CIE coordinates of (0.15, 0.07) was obtained with 3. To overcome the efficiency roll-off issue, the emitter 4 was designed with substituents of improved electron-donating ability and the methoxy groups were selected as candidates [67]. By introducing these substituents, ΔE_ST decreased from 0.21 eV for 4 to 0.32 eV for 3. A reduction of the TADF lifetime as well as the efficiency roll-off could also be demonstrated. This is a direct consequence of the improved electron-donating ability and the elongation of the π-conjugated system of the 3,6-dimethoxycarbazole when compared to that of the 3,6-di-tert-butylcarbazole. By mean of this convenient substitution, the S₁ state as well as the T₁ state of 4 could be lowered compared to that of 3, reducing in turn ΔE_ST. As a beneficial effect for OLEDs, a delayed luminescence lifetime of 93 μs was measured for 4, considerably reduced as compared to 3 (270 μs). Employing a similar device structure and preparation conditions, 4-based device gave a maximum EQE of 14.5% accompanied by a small efficiency roll-off. This improvement can be assigned to its small ΔE_ST and the shorter lifetime of the delayed luminescence. The same group has also proposed 5, a thermally cross-linkable and solution processable version of 4 [67]. If the strategy seems to be promising to address the stability issue, device performances of 5-based TADF OLEDs remained low compared to the vacuum-processed OLEDs and an EQE only peaking at 2.0% could be measured. For the small molecular deep-blue emitters, the use of the host material with a larger energy gap is often needed to suppress emission quenching in the devices [68,69,70]. This doping strategy could be the source of inefficient hole and/or electron injection into the emitting layer [71]. In addition, it requires the precise control of the doping concentration, a rather complicated structure, and high fabrication costs. For this reason, developing efficient blue emitters with solution processability and reduced ΔE_ST values for non-doped device is of importance. As mentioned above, 3 furnished deep-blue OLED achieving a high EQE of 10%, but the devices suffered from efficiency roll-off at high current density, which was primarily caused by its relatively large ΔE_ST (0.32 eV, Table 1) [66]. To overcome this issue, Li et al. proposed to use sulfone based dendrimers (6–7, Figure 2) [72]. Dendrimers exhibit great advantages owning to their well-defined molecular structure, precisely controllable molecular size, as well as the inhabited molecular interactions [73,74]. However, until now, the reported blue TADF dendrimers are still rare [75], while TADF dendrimers displaying green and greenish-blue emissions have been utilized for the fabrication of non-doped solution-processed OLEDs while exhibiting satisfying electroluminescent performance [75,76,77,78]. 6 and 7 inherited blue emitting and similar triplet energy level to 3, but superior in smaller ΔE_ST to facilitate the RISC process. As expected, the specific molecular design of 6 and 7 prevented from strong intermolecular interactions, while providing high thermal and morphological stabilities and good solution processability. Authors investigated these dendrimers for the design of non-doped solution processed devices and efficient deep-blue OLEDs with low efficiency roll-off at high current density were prepared. OLEDs employing 6 as the non-doped emissive layer achieved a deep blue emission with a maximum CE of 4.1 cd/A and colour coordinates of (0.15, 0.12). Similar devices based on 7 displayed a negligible efficiency roll-off at high current density. This study provides several interesting elements for the molecular conception of TADF emitters and the deep blue dendrimers that are reported in this work are promising candidates for the design of solution-processed OLEDs. In the search for new structures, Sun et al. used azasiline as a donor in combination with DPS to construct a push-pull deep blue emitter (compound 8) with colour coordinates of (0.15, 0.11) [79]. Carbazole has been considered during decades as an excellent donor for the design of light-emitting materials and a huge number of carbazole-based blue emitters have been reported in the literature. However, carbazole exhibits a central five-membered ring that lowers the steric hindrance generated by the lateral aromatic rings. For this reason, the substitution of the 1,8-positions of carbazole has long been considered as an opportunity to increase the bulkiness of this group and this specific substitution of the carbazole core thus constitutes an effective strategy to maintain a large dihedral angle. In contrast to this, azasiline has a six-membered central ring and this group is thus capable of inducing the same encumbrance without taking recourse to a substitution. From a synthetic viewpoint, reducing the number of synthetic step can facilitate the design of TADF emitters. Azasiline is thus a promising electron donor for constructing TADF emitters. However, at present, only few azasiline-based blue TADF emitters have been reported in the literature. The extensive works of C. Adachi et al. concerning TADF emitters could deduce an interesting design rules. Notably, they demonstrated the decay rate of the delayed fluorescence to be greatly improved by extending the π-conjugation of both the electron-donating and electron-accepting parts. By elongating the π-conjugation, the oscillator strength could be increased and ΔE_ST simultaneously lowered even for molecules where a small overlap is observed between the HOMO and LUMO energy level [80]. These design rules constitute a second key-element for the design of TADF emitters. In the work of Sun et al. [79], the highly twisted structure of 8 contributed to reduce ΔE_ST, improve the colour purity, and enhance the electroluminescence device performances. Benefiting from these favourable features, 8 furnished deep blue OLEDs with colour coordinates of (0.15, 0.11). Conversely, the exceptional colour purity of the emitted light resulted in a low EQE of only 2.3% for OLEDs, but it should be kept in mind that this value is directly to the wavelength at which the light is emitted.

As described above, DPS based TADF emitters generally exhibit a large dihedral angle between the phenyl rings of the DPS acceptor and the electron donor. This leads to the effective spatial separation of the HOMO and LUMO wavefunctions. Intrinsically, larger ΔE_ST values can be expected for blue-emitting materials when compared to green or yellow emitters, simply due to the fact that the HOMO-LUMO gap is wider. Resulting from this, a less efficient RISC process can be attended from these materials. Consequently, a careful selection of the π-conjugation length as well as the electronic properties of the donor and acceptor should be done to reduce at best ΔE_ST. Faced with these considerations, Liu et al. proposed an interesting strategy consisting in introducing one or several DPS groups in the emitters [81]. By introducing between the donors one or several DPS, by varying the number of acceptors, by modifying the connection between donors and acceptors, the electronic properties of the final molecules could be finely tuned while maintaining a wide bandgap and a high triplet energy level. Authors could even drastically reduce ΔE_ST. They effectively synthetized two blue TADF molecules (9–10) that were based on bis(phenylsulfonyl)benzene with very small ΔE_ST by covalently linking substituted carbazoles to bis-sulfone systems (Figure 2). Theoretical and experimental results revealed that the introduction of bis-sulfone groups in the emitters could drastically reduce ΔE_ST as compared to molecules possessing a mono-sulfone spacer (3, cf. Table 1). However, authors also demonstrated for compound 9, the para-substitution of the bis(phenylsulfonyl)benzene core to induce a red-shift of the emission. Conversely, EL performance of 9 was higher than that obtained with its meta-isomer. ΔE_ST values of 0.05 and 0.24 eV were, respectively, determined for 9 and 10, whereas a value of 0.32 eV was previously determined for 3. These values are consistent with the values determined by DFT (ΔE_ST values of 0.19 and 0.26 eV for 9 and 10) and the small values of ΔE_ST prove the design strategy of these authors to be effective for the design of TADF emitters with small energy splitting. Devices based on 10 produced a deep blue EL with CIE coordinates of (0.15, 0.08), a maximum CE of 4.4 cd A⁻¹, and an EQE of 5.5%. Devices based on 9 proved to be more efficient than 10-based devices (EQE = 11.7%, CE = 19.4 cd A⁻¹). The authors ascribed this improvement to the relatively small ΔE_ST, facilitating the RISC process. Due to the facilitated intramolecular charge transfer and a higher degree of conjugation between the HOMO and LUMO energy levels in 9, a red shift of the emission was observed and a sky-blue EL with CIE coordinates of (0.18, 0.19) was obtained. Following this strategy, Jürgensen et al. synthetized a series of highly soluble triarylamine/bis(phenylsulfonyl)benzene emitters suitable for printed OLEDs and the bluest emitter (11) is given in Figure 1 [82]. The soluble molecules exhibited an increased steric hindrance of the amine donors and a small ΔE_ST as low as 0.32 eV. Application of these TADF molecules in solution-processed OLEDs resulted in high brightnesses of ≤ 10000 cd/m², CE of ≤ 9.5 cd/A, and EQE of ≤ 8.5%, while retaining deep blue emission ranging from 466 to 436 nm with colour coordinates low as CIE_y = 0.08 in the case of compound 11. In conclusion, bis(phenylsulfonyl)benzene has been proved to be a potential accepting building block for constructing blue solution processable TADF emitters.

2.3. Triazine-Based TADF Light-Emitting Materials

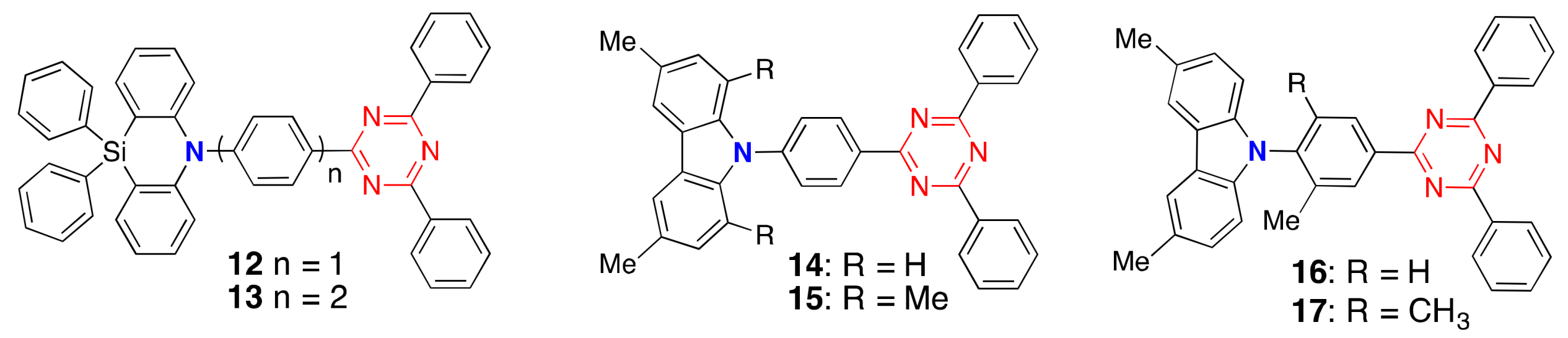

Beside diphenylsulfone, triazine is another popular acceptor building block that is largely used in elaboration of blue TADF emitters. To assess this, OLEDs based on a triazine acceptor/azasiline donor combination could display an unprecedented EQE value of 22.3% [83]. As discussed in the previous section, azasiline is a 6-membered heterocycle in which a carbon atom is replaced by a silicon atom. Azasiline has thus a larger HOMO-LUMO energy gap and a lower HOMO energy level than the molecules comprising a carbon atom. The silicon atom has an sp³ hybridization. Therefore, it is possible to introduce various groups on the silicon-bridge that can provide “on demand” a steric hindrance, improve the solubility and rigidify the structure to the electron donor. This strategy also efficiently prevents intermolecular interactions and drastically reduces the conformation disorder. Sun et al. synthetized two triazine/azasiline emitters (12 and 13, Figure 3) [79]. Structurally, 12 differs from 13 by the length of the π- conjugated bridge. 12 has a ΔE_ST of 0.14 eV, a lifetime for the delayed luminescence of 25.4 μs, and a prompt/delayed fluorescence ratio of 13/87. OLEDs were fabricated using 12 as the dopant and the co-deposited mCP:TSPO1 mixture as the cohost (TSPO1 is diphenyl-4-triphenylsilyl-phenylphosphine oxide). The electroluminescence was detected at 463 nm together with a small efficiency roll-off. However, the CIE coordinates of the emitted light were (0.15, 0.20), thus far from those of the deep blue standard. Another key element for the design of emitters with small ΔE_ST is the physical separation of the electron-donating and accepting part without completely interrupting the π-conjugation. If the internal torsion of the emitter is a strategy, which has been long detailed above, another strategy consists in elongating the π-connecting spacer that was introduced between the two partners. On the basis of this second approach, Sun et al. replaced the phenyl bridge of 12 by a biphenyl system leading to 13, which is longer than 12. As anticipated by the authors, the biphenyl bridge increased the distance between the donor and the acceptor and decrease of the electronic communication between the HOMO and LUMO orbitals could be obtained. As a result, ΔE_ST significantly decreased (0.04 eV, Table 1). In OLEDs, 13 furnished an EQE of 4.7% with a blue emission of chromaticity coordinates (0.15, 0.09), which is close to the NTSC blue standard (0.14, 0.08). However, despites the more favourable ΔE_ST for 13 (0.04 eV for 13 vs. 0.14 eV for 12), OLEDs that were fabricated with this emitter exhibited an that was EQE five times lower than that of 12. This problem is commonly observed with TADF emitters having long donor/acceptor structure. Indeed, the elongation of the spacer between the donor and the acceptor directly impacts the intramolecular charge transfer, which is weaker due to the distance, reducing the oscillator strength the PLQY, and thus the EQE that is directly correlated to the PLQY of the light-emitting material.

As discussed in the previous paragraphs, carbazole is a popular electron donor, largely employed for the design of TADF emitters. However, its five-membered central ring approaches the two lateral aromatic rings so that the steric hindrance that this group can generate is considerably reduced. To address this issue and in order to maintain a sufficiently large dihedral angle to reduce the electronic conjugation with the electron acceptor, several strategies have been envisioned, consisting in the substitution of the carbazole at the more favourable positions (i.e., the 1,8-positions), or conversely, of the spacer ensuring the linkage between the donor and the acceptor. Adachi et al. [84] examined the two possibilities with a series of carbazole/triazine emitters 14–17 (Figure 3) where the methyl groups in charge to ensure the steric hindrance were introduced either on the carbazole group (14, 15) or on the phenyl central bridge (16, 17). On this basis, a structure-performance relationship could be carried out [84]. As first point, modification of the substitution does not significantly modify the optical properties of the different emitters and an almost similar twist angle could be determined for the different molecules. Dihedral angle values of 49.9, 86.8, 71.4, and 82.4° were calculated by DFT for 14–17, respectively. A completely different behaviour was evidenced for ΔE_ST (cf. Table 1). Notably, substitution of the carbazole group by methyl groups drastically modify both its HOMO energy level, but also its redox potential due to the electron-donating ability of the methyl groups, reducing the optical bandgap. On the opposite, the optical bandgap of carbazole was not affected when the methyl groups were introduced on the spacer, enabling the emitters to retain the wide bandgap of carbazole. Thus, 14 that is the less substituted molecule of the series, but also exhibits the more flat structure also showed the highest ΔE_ST of the series. Due to its relatively flat structure, the HOMO level of 14 could extend over the donor, but also the phenylene bridge, increasing ΔE_ST. Upon introduction of methyl groups, the twisting angle between the carbazole and the phenylene spacer drastically increased, more efficiently separating the HOMO and LUMO wavefunctions. As expected, a reduction of the oxidation potential was evidenced for 15, whereas similar oxidation potentials were measured for 14, 16 and 17 (+0.87 V for 15 vs. +0.97V for 14, 16, and 17). Photoluminescent studies proved the first triplet-excited states of 14, 16, and 17 to be ³LE states. Conversely, the excited state of 15 was determined as being a ³CT state. This assignment could be possible by phosphorescence measurements carried out at 77K. PL spectra at low temperature showed well-resolved vibrational structures for 14–17, evidencing their T₁ states to be ³LE states. On the opposite, a broad spectrum was obtained for 15, suggesting that the T₁ state is a ³CT state. As anticipated from its large ΔE_ST, contribution of the delayed fluorescence in the overall photoluminescence of 14 was the lowest of the series. By their large twist angle, a clear contribution of the delayed fluorescence in the radiative decay of 15–17 was demonstrated. Lifetimes of the delayed components of luminescence were determined to be 3.5, 13.0, and 10.3 μs for 15–17, respectively. Due to the absence of delayed contribution in its photoluminescence, 14-based devices only furnished a relatively low EQE of 7.2%. This performance is much poorer than that of 15–17-based devices for which maximum EQEs of 22.0, 19.2, and 18.3% were determined, respectively. Similar CIE coordinates were determined for 16- and 17-based devices gave (0.15, 0.10), whereas less favourable chromaticity coordinates were determined for 15 as a result of its lower oxidation potential.

2.4. Phosphine Oxide Derivatives

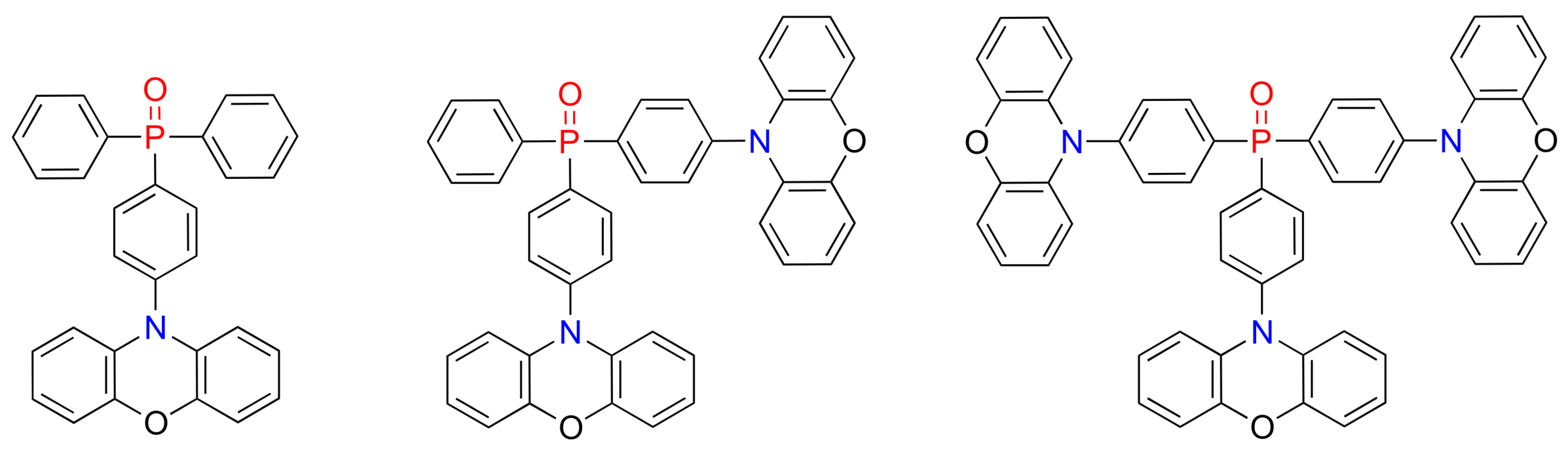

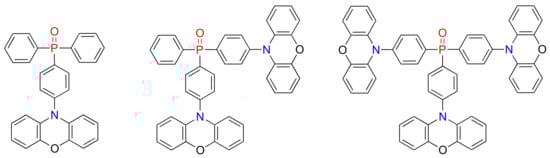

Blue TADF emitters are generally composed of a strong acceptor and a weak donor. Duan et al. used the opposite strategy since they connected triphenylphosphine oxide (TPPO) that is a weak electron-withdrawing group to phenoxazine (POZ), which is a strong electron-releasing group. A series of weak acceptor−strong donor (WA-SD)-type emitters was thus obtained and the photophysical properties were thus examined [85]. Three molecules were synthesized 18, 19, and 20 (See Figure 4). In solution, the three compounds exhibited similar absorption properties, with three transitions being detected at 370, 320, and 240 nm. One peak was attributed to an n→π* transition (POZ → TPPO). The two other transitions correspond to π→π* transitions (POZ and phenyl moieties). Interestingly, the intensity of the peaks was proportional to the number of POZ. The three compounds gave almost identical PL spectra with relatively high PLQYs (45%, 57%, and 65%, for 18–20, respectively), evidencing the almost complete isolation of the TPPO group from the rest of the molecule. This also highlights the pertinence of the WA-SD strategy to preserve the emission colour. ΔE_ST values of 0.26, 0.19, and 0.11 eV were determined for 18–20, respectively, which are in perfect accordance with the TD-DFT data. PLQY of 20-based films (67%) was higher than that of 19- and 18-doped films. In accordance with these results, lifetimes of the prompt fluorescence increased from 8 to 13 to 20 ns for 18–20, whereas the opposite situation was found for the delayed contribution where lifetimes of 95, 31, and 17 μs were respectively measured for 18–20. Parallel to this, the quantum yields also increase from 36% for 18 to 45% for 19, and to 51% for the most emissive candidate 20, respectively. Unfortunately, none of these emitters could provide really deep blue OLEDs. 18-based OLEDs were the bluest devices of the series and an electroluminescence centred at 448 nm could be detected.

19-based OLEDs emitted a blue emission light at 460 nm (with CIE coordinates of (0.16, 0.20)), while 20 gave OLEDs emitting a pure-blue emission peaking at 464 nm (with CIE coordinates of (0.17, 0.20)), an EQE of 15.3% and a low efficiency roll-off.

2.5. Cyanide Based TADF Emitter

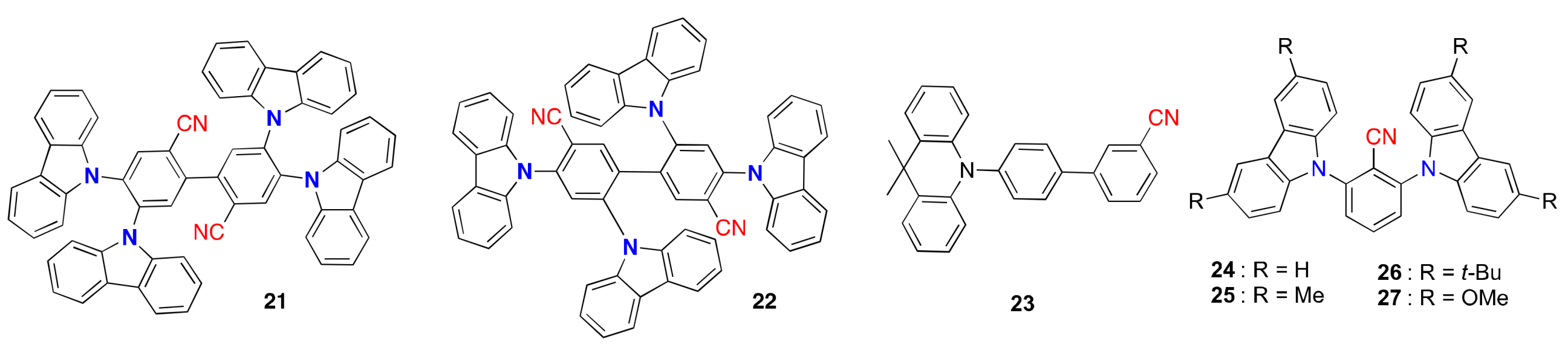

Cyano and carbazolyl are also typical acceptor and donor groups used to make efficient TADF materials [51]. Cho et al. recently used this donor/acceptor couple to prepare new TADF molecules, employing a new design approach to improve the colour purity and broad emission spectrum of common blue TADF emitters [86]. The authors designed 22 (see Figure 5) comprising a biphenyl core decorated with electron-donating and accepting groups. Comparison of 22 having the interlocked donor based molecular design with a reference molecule (21) revealed that the interlocked donor structure is crucial to reduce the FWHM and to obtain deep blue emission colour as well as high EQE. Both compounds have ΔE_ST of 0.27 eV (Table 1), while having different geometrical structures. The PL of 21–22 clearly showed the effect of the interlocked carbazole units. The FL spectrum of 22 was sharper than that of 21. The FWHM of 22 was only 55 nm, which was much smaller than that of other TADF emitters. This value is even smaller than that of common blue phosphorescent emitters. The large FWHM of 71 nm of 21 certifies that 22 shows a very narrow emission spectrum as a TADF emitter. As expected, deep blue TADF OLEDs with a FWHM of 48 nm, a high EQE of 14.0%, and chromaticity coordinates of (0.14, 0.12) were obtained using the newly designed deep blue TADF emitter (22).

Pan et al. also used cyano acceptor to design TADF materials (23, Figure 5) [87]. OLEDs comprising 23 as the emitter gave deep blue devices emitting a light with colour coordinates of (0.16, 0.06). However, due to its low TADF characteristics (high ΔE_ST of 0.403 eV, short delayed time of 0.01 µs, Table 1), the EQE device was poor (1.6%). Finally, a rationalization of the molecular design to produce a deep blue, while combining the carbazole donor with the benzonitrile acceptor seems to have been found with 24–27 [88]. Without impacting the dihedral angle between the donor and the acceptor and by tuning the electron donating ability of carbazoles by a convenient substitution, OLEDs producing a deep blue electroluminescence could be obtained. Four substituents were investigated, namely H, Me, t-Bu, and OMe. By improving the electron ability, a clear decrease of ΔE_ST was evidenced, decreasing from 0.31 eV to 0.14 eV for 24 and 27, respectively. Jointly, a decrease of the lifetimes of the delayed components was evidenced, reducing from 18 to 5.5 μs for 24 and 27 respectively. While fabricating OLEDs, deep blue EL emission could be obtained with 24 (λ_EL = 418 nm), 26 (λ_EL = 428 nm), and a blue emission with 25 (λ_EL = 436 nm). When considering the CIE coordinates of the light produced by 24 (0.15, 0.05) and consistent with the low PLQY of the film, an EQE of 2.5% was however obtained, despites the wide ΔE_ST of 0.31 eV that adversely the exciton upconversion. On the opposite, by the more efficient upconversion of the triplet excitons (ΔE_ST = 0.26 eV) and the higher PLQY of the emitting film (76%) for 26, EQE of OLEDs could be increased to 10.3%, with an emission still being located in the deep blue region (0.16, 0.06). These OLEDs are the deepest-blue TADF OLED to be reported to date with a y-coordinate below 0.07 and with an EQE higher than 10%.

2.6. Triarylborane Emitters

Since a decade, boron-based materials have been the focus of numerous researches, especially devoted to Organic Electronics as these materials exhibit a remarkable electron mobility due to the vacant p-orbital of the boron atom [74,75,76,89,90]. Triarylboron derivatives are also characterized by their bulkiness and these materials are also strong electron withdrawing groups. Interestingly, triarylboron derivatives have often been opposed to donors, such as 9,10-dihydroacridine, triphenylamine of the popular carbazole group [91,92,93]. Some of them even show CIE coordinates of (0.15, 0.09) and (0.15, 0.08) for the PL of emitters in toluene but none of them gave OLEDs with colour coordinates satisfying or being close to the NTSC blue standard of CIE coordinates (0.14, 0.08) [94]. Recently, Hatakeyama et al. reported a new strategy to design effective deep blue triarylboron based emitters [95]. The chemical structures of boron emitters (28–29) are given in Figure 6, while their novel design strategy is displayed in Figure 7.

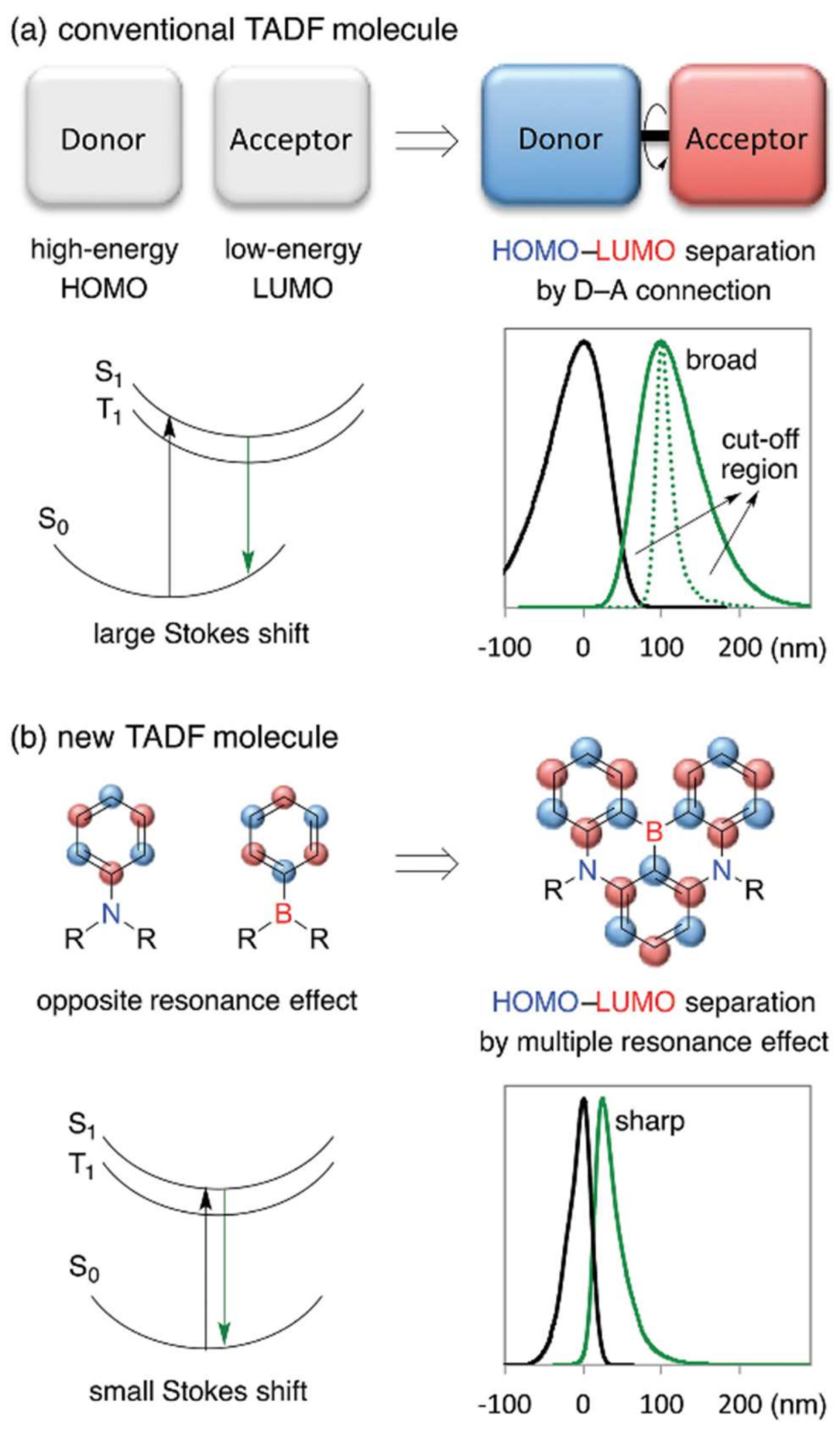

It is well known that efficient TADF-based OLEDs need a fluorophore with a small ΔE_ST. As illustrated through the review, the spatial separation of the HOMO and LUMO orbitals is a really popular strategy for minimizing ΔE_ST involves. As a direct consequence of this, the exchange interaction between occupied molecular orbitals in the excited states is reduced, as illustrated in Figure 7A. Adversely, the Stokes shift is increased and the EL peaks are broadened. Presently, most of the commercially available OLEDs employ a colour filter [96,97] to produce a pure blue emission. In this context, Hatakeyama et al. overcame these issues by establishing a new design way to minimize ΔE_ST of the materials without enlarging of the FL peaks. The authors obtained pure blue TADF molecules by using multiple resonance effect to efficiently separate HOMO–LUMO. The first molecule (28) showed in the Figure 6 comprises a triphenylboron donor fused with two triphenylamine acceptors. The second molecule (29) is designed by increasing the length of the π-conjugated system as well as the number of electron donors. Since the nitrogen atoms are electron donors and the boron atoms are electron acceptors, the para-substitution of the aromatic ring optimize the electronic communication between the two partners (Figure 7b). This rationality is supported by DFT calculations with the LUMOs being localized on the triphenylboron moiety, whereas the HOMOs are being localized on the triphenylamine parts (Figure 8).

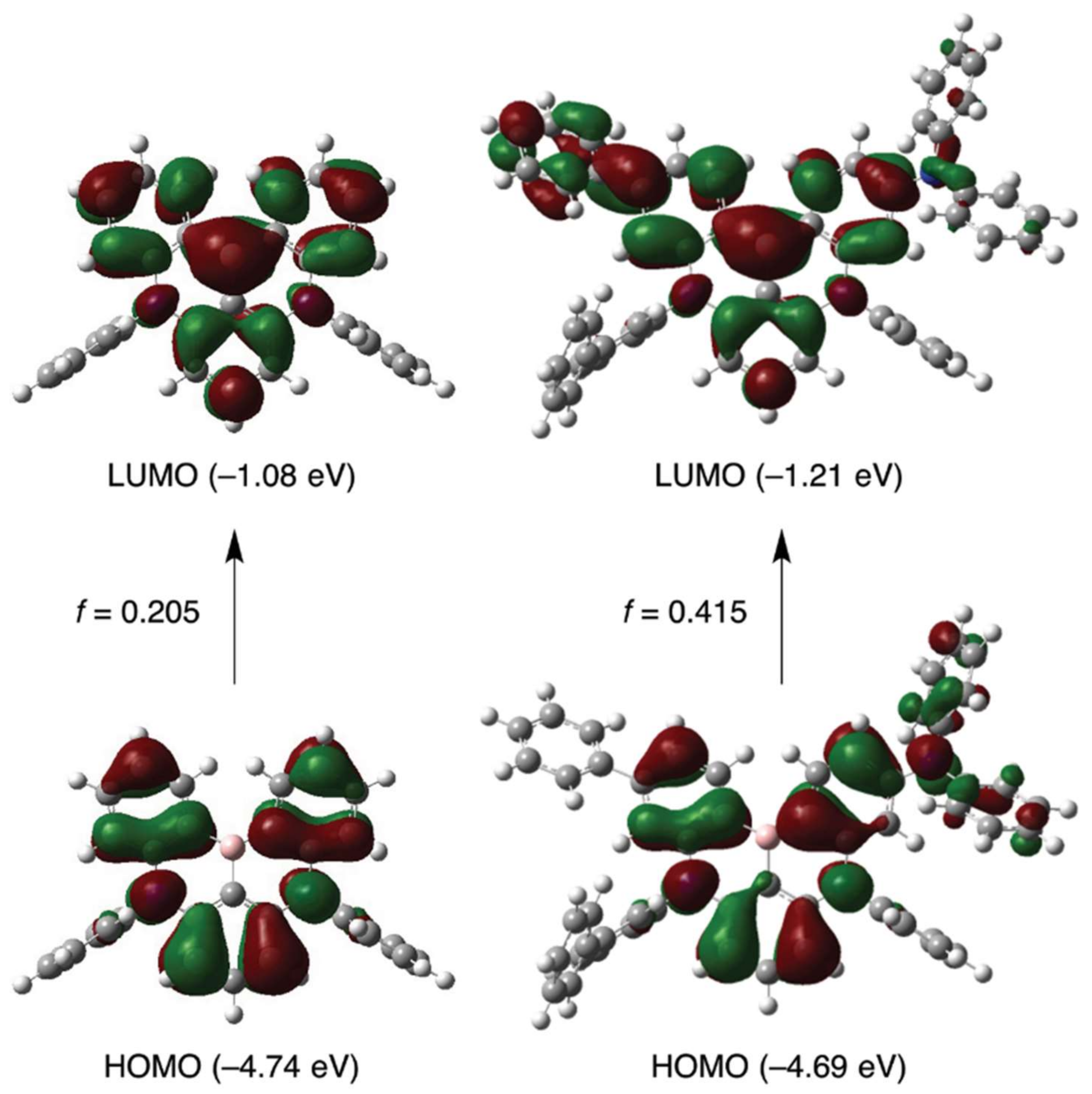

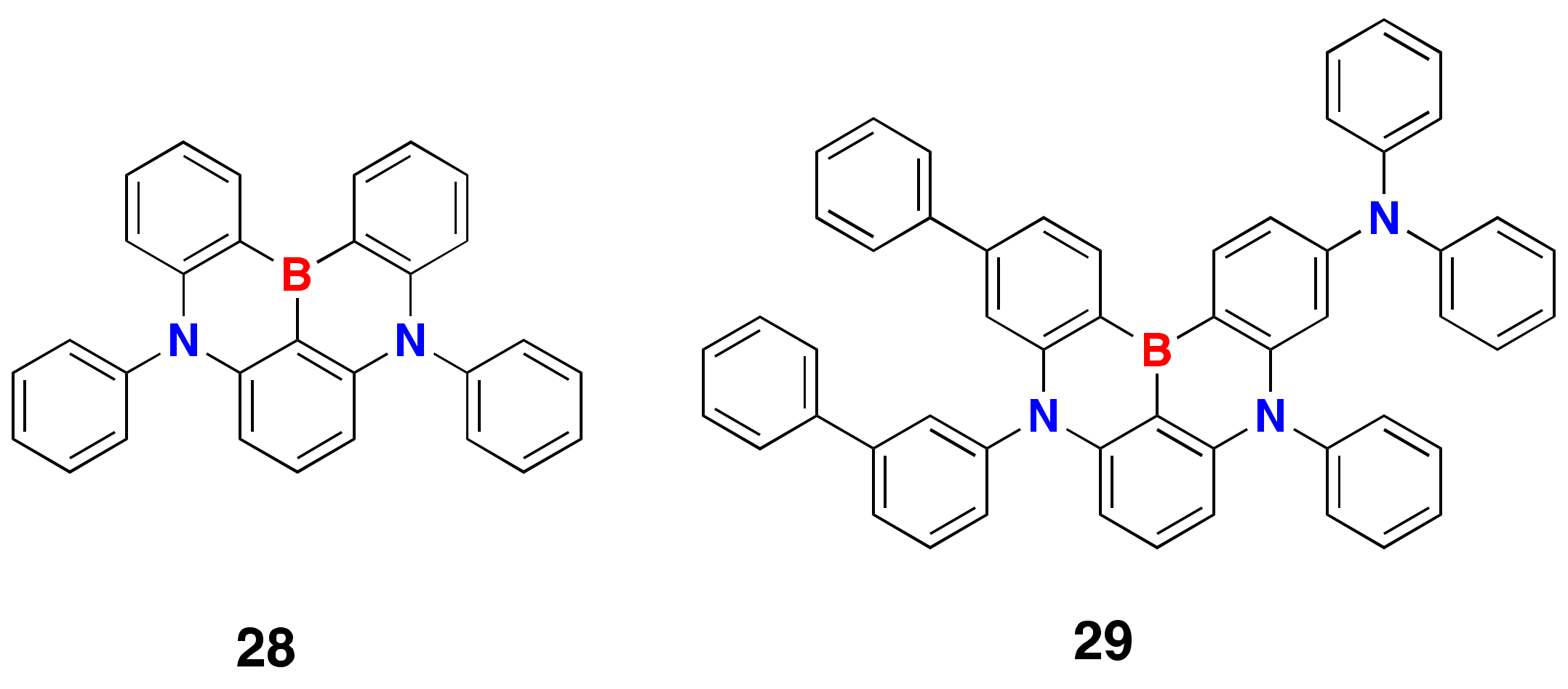

DFT calculations showed the extension of the π-conjugation of the donor in 29 when compared to that in 28 to induce a more delocalized HOMO and LUMO energy levels. As a direct consequence of this, the intramolecular charge transfer as well as the oscillator strength was greatly increased in 29 compared to 28 (Figure 8).

As expected, OLEDs employing 28 as the emitter produced a deep blue light centred at 459 nm with a satisfying FWHM of 28 nm, a high EQE of 13.5%, and colour coordinates of (0.13, 0.09), which is very close to that defined by NTSC. Extending the π-conjugation of the donor improved the oscillator strength (f = 0.415 in 29 vs. f = 0.205 in 28) without modifying the positions of the frontier orbitals in these molecules. This increased the OLED device performance and an EQE as high as 20.2% (emission at 467 nm, FWHM = 28 nm, CIE (0.12, 0.13)) was measured for 29. If high EQEs could be obtained with 28 and 29, a severe limitation was found with the luminance of these devices that was limited to 1000 cd/m² at best. A dramatic efficiency roll-off of the luminance at high current density was also demonstrated and origins of these counter-performances are numerous. First, it can be assigned to imbalanced charge transportation within the emissive layer and the appearance of bimolecular quenching processes at high current density. In conclusion, Hatakeyama et al. have successfully designed deep blue boron based TADF emitters that are only capable of producing low luminance. By a structure performance relationship, authors also showed that the OLED performance could be optimized by a careful selection of the substituents without altering the colour purity of the emitted light.

2.7. TADF Exciplex Emitters

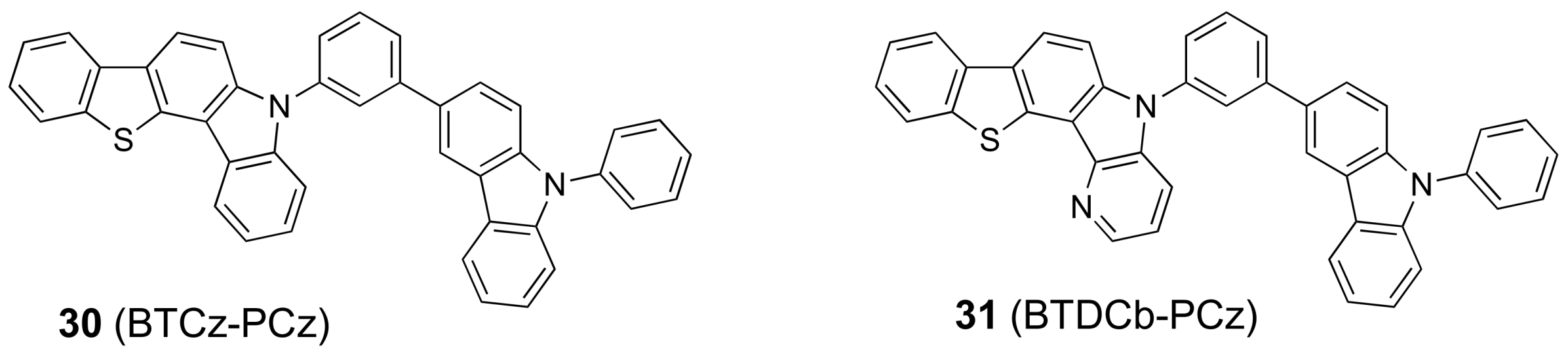

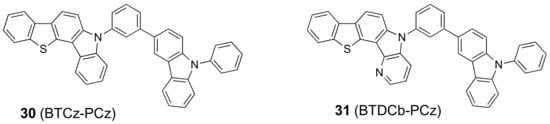

Emitters investigated in the literature are typically single molecules for which their individual emission is observed during electroluminescence. But, molecules can also dimerize or interact with a second type of molecules in the solid state so that the emission of the single molecule is not detected anymore. In this case, the new emission different from that expected for the isolated molecule is detected, originating from the exciplex emission. This emission is based on the electronic interactions that can exist between the electron donors and electron acceptors in close vicinity in the solid state and exhibiting adapted energy levels. The advantages of this strategy are numerous: (1) the emission color of exciplexes can be finely and easily tuned, the number of combination between electron donor/acceptor and host matrix/guest emitter is unlimited; (2) Typically, an electron donor is opposed to an electron acceptor to produce an exciplex emission. The two partners exhibiting complementary charge transport abilities, the device architecture is thus greatly simplified [98,99]. Once again, the pioneering works in this field were carried out by Chihaya Adachi in 2012 and the concept was demonstrated with the m-MTDATA:3TPYMB TADF exciplex, where m-MTDATA stands for 4,4′,4′′-tris[phenyl(m-tolyl)amino]triphenylamine and 3TPYMB for tris(2,4,6-trimethyl-3-(pyridin-3-yl)phenyl)borane [100]. If the EQE of OLEDs that were fabricated with the m-MTDATA:3TPYMB TADF exciplex (EQE = 5.4%) clearly exceeds the theoretical limit that can be calculated from the PLQY of the film (ϕ = 26%), this proof-of-concept was obtained with OLEDs emitting at 550 nm. Since these pioneering works, numerous TADF exciplexes have been reported in the literature [101,102,103,104,105,106], and only few examples could be emitted in the deep blue region. In this field, two interesting examples have been reported in 2017 by using the TADF exciplex 30 (BTCz-PCz) and 31 (BTDCb-PCz):TmPyPB in a 99:1 ratio (where TmPyPB stands for 1,3,5-tri[(3-pyridyl)-phen-3-yl]benzene (see Figure 9) [107]. This is even the unique example of OLEDs based on deep blue TADF exciplexes. By using 30 or 31 as the host for TmPyPB, an EL emission corresponding to the exciplex emission could be detected at 436 nm with the two hosts, providing OLEDs exhibiting a low turn-on voltage of 3.4 V. Best exciplex OLEDs were obtained with 30, with a deep blue emission of CIE coordinates (0.16, 0.21). CE, PE, and EQE of 4.64 cd/A, 2.91 lm/W and 2.36% were, respectively, determined.

2.8. Lifetime of Blue TADF Emitters

Device lifetime is also a crucial point for a further commercialization of OLEDs. If this parameter is of importance, this point is often not mentioned in the different publications. Faced with the difficulty to produce a deep blue emission and before examining the stability of devices; the first parameter to consider is to produce this blue emission. Examination and elaboration of strategies to improve the device stability come only in a second step. This point was however examined with a series of TADF emitters with EL emissions ranging from 458 nm (blue OLEDs) to 490 nm (sky blue OLEDs) [108]. In this work, authors demonstrated that the device stability could be greatly improved by substituting the emitters with tert-butyl groups. While comparing the device lifetimes of OLEDs that were fabricated with 32–35 (Figure 10), a significant improvement could be evidenced for the two complexes substituted with tert-butyl groups (167 and 770 h for 33 and 35, respectively), whereas lifetimes of only 67 and 176 h could be determined for the parent structures 32 and 34, respectively. Introduction of a steric hindrance around the emitter is thus an efficient strategy to enhance the device stability without sacrificing the color purity. Interestingly, even if the tert-butyl groups are electron-donors by nature, influence on the EL emission was only marginal, the emission only shifting from 458 for 32 to 463 nm for the tert-butyl substituted emitter 33. While comparing 34 and 35, EL emission was invariant (490 nm), irrespective of the substitution. This beneficial effect can be assigned to the limited electronic communication in TADF emitters, enabling the introduction of electron-donating groups onto the donor without drastically affecting the emission wavelength.

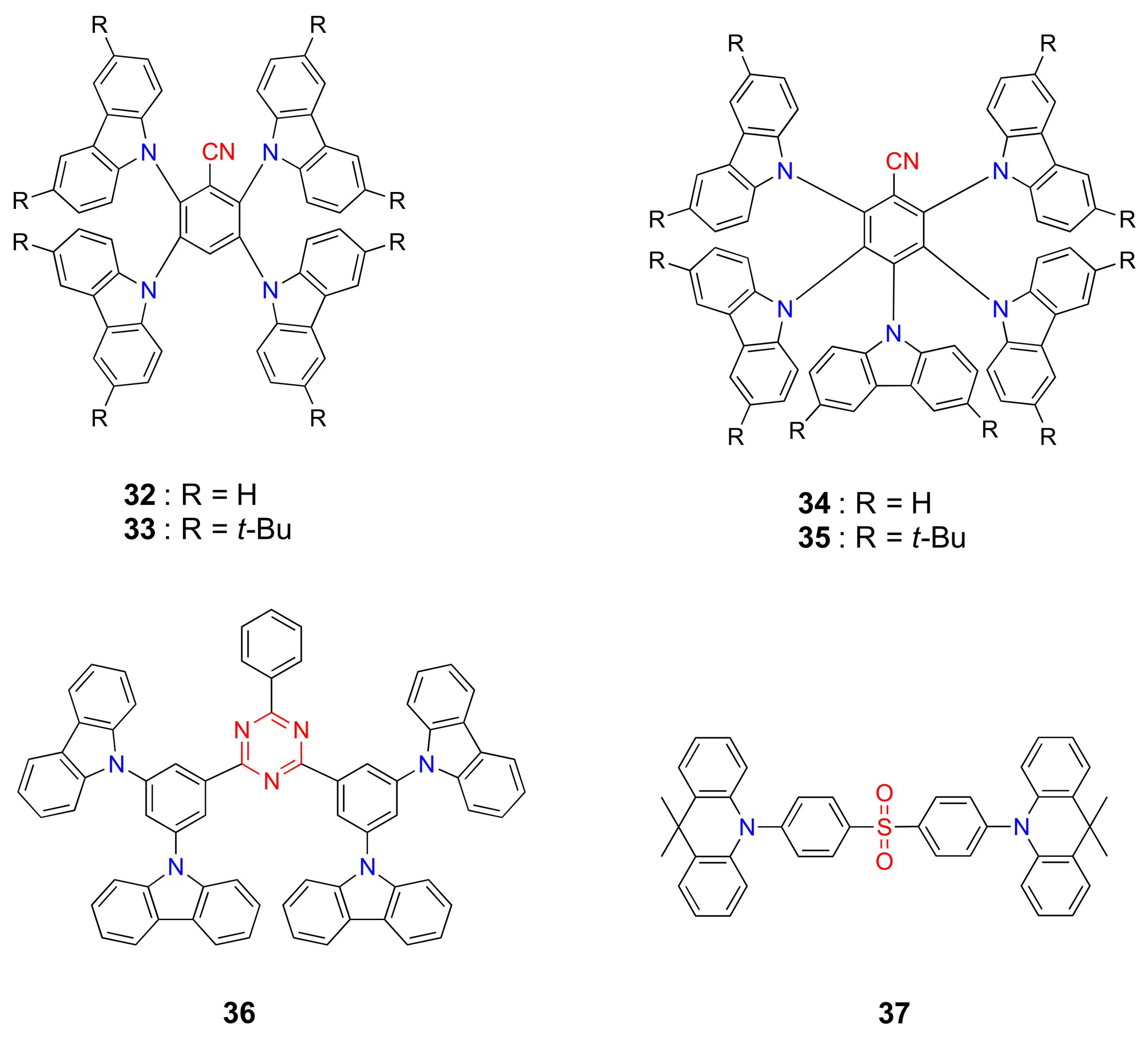

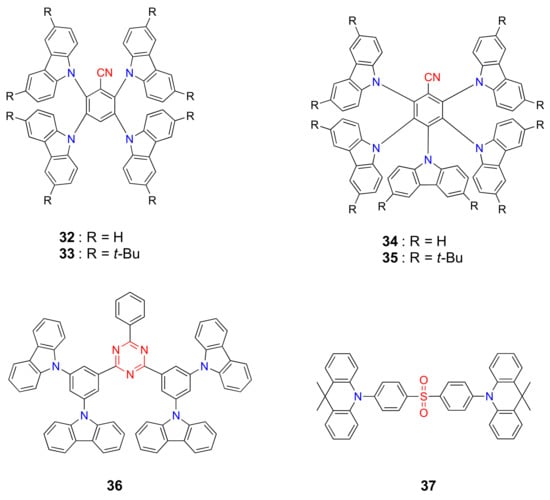

The chemical structure of the electron donors/acceptors used to form the TADF light-emitting materials is also of crucial importance. On the basis of the structures that are reported in the literature, lifetime of devices comprising a carbazole-based emitter seems to be longer than for the other structures. Thus, 36 (Figure 10) could retain 80% of its initial luminance of 52 h, the initial luminance being of 500 cd/m² [109]. On the opposite, a lifetime of only one hour was found for a 9,10-dihydroacridine-based emitter 37 (Figure 10) (the luminance of devices being 500 cd/m²) [110]. Based on these different elements, it is still difficult to rationalize the molecular structure of a long-living deep blue TADF emitter [107,108,109,110].

3. Conclusions

In this work, we review and analyze different family of deep blue TADF emitters. A wide range of theoretical molecular engineering and synthetic strategies are currently deployed to establish guideline to produce the deep blue TADF emitters. The Golden rules for the design of TADF deep blue emitters are listed below.

■

DFT calculations proved to be useful to investigate the photophysical properties of the materials prior to its synthesis.

■

The maximum decrease of the π-conjugation through the whole molecule by introducing a large twist angle between the electron-donating and withdrawing parts is an effective way to reduce the electronic communication between the two parts and ΔE_ST. However, the donor should be in proximity of the acceptor to avoid a complete isolation of the electro-donating and the accepting groups. A careful selection of the π-bridge connecter introduced between the electron donor/acceptor moieties is of crucial importance. This has been exemplified throughout this review and unequal performances were observed for materials simply differing by the substitution pattern.

■

A small value of ∆E_ST optimizes the rate constant of the reverse intersystem crossing by the small energy gap.

■

Elongation of the π-conjugated system of both the donor and/or the acceptor maximizes the oscillator strength, and thus increases the PLQY.

■

To address the excited states annihilation issue, lifetimes of the delayed component should be shortened.

However, despite these well-established molecular design rules, the number of deep blue emitters satisfying standard blue color coordinate are still very limited. As illustrated through the review, the OLED device engineering is also as important as the emitter design in order to have efficient stable deep blue OLEDs for real applications. Recently, a great deal of attention is now paid to the molecular alignment of the emitter within the emissive layer inn order to optimize the EL performance. The light outcoupling efficiency is also another crucial important parameter that should/will be more systematically investigated in the Future.
