Incorporation of Torsional & Higher-Mode Responses in Displacement-Based Seismic Design of Asymmetric RC Frame Buildings

Featured Application

This article proposes a displacement-based seismic design procedure for asymmetric RC frame buildings.

Abstract

Direct Displacement-Based Design (DDBD) is currently a widely used displacement-based seismic design method. DDBD accounts for the torsional response of Reinforced Concrete (RC) frame buildings by using semi-empirical equations formulated for wall-type buildings. Higher-mode responses are incorporated by using equations obtained from only a few parametric studies of regular planar frames. In this paper, there is an attempt to eliminate torsional responses by proportioning frames’ secant stiffnesses so that the centers of rigidity and supported mass (the mass on and above each story) coincide. Once the torsional rotations are significantly reduced and only translational motions are achieved, higher-mode responses are included using a technique developed by the authors in their recent paper. The efficiency of the proposed design procedure in fulfilling the intended performance objective is checked by two plan-asymmetric 20-story RC frame building cases. Case-I has the same-plan configuration while Case-II has a different-plan configuration along the height. Both cases have different bay widths in orthogonal directions. Verification of the case studies by Nonlinear Time History Analysis (NTHA) has shown that the proposed method results in designs that satisfy the performance objective with reasonable accuracy without redesigning members. It is believed that a step forward is undertaken toward rendering design verification by NTHA less necessary, thereby saving computational resources and effort.

1. Introduction

A reliable Performance-Based Seismic Design (PBSD) uses a probabilistic design approach to achieve performance objectives (Bertero and Bertero [1], Collins and Stojadinovic [2], and Castaldo et al. [3]). However, PBSD is implemented for routine design using simplified design methods like the displacement-based design and force-based design. This is due to the complex nature of the probabilistic design approach and scarcity of data on experiments, fragility curves, cost functions, damage states, and so on. Currently, the displacement-based design is found to be a better choice than force-based design since problems with force-based design have been clearly identified by Priestley [4], and damage is correlated with displacements (strains) than forces (stresses). Various displacement-based design methods have been developed, which can be categorized into two types (Bertero and Bertero [1]). The first type, discussed in Mohele [5] and Applied Technology Council (ATC)-40 [6], uses force-based design and checks whether allowable displacements are exceeded. The second type uses allowable displacements at the start of the design process (Priestley [4], Aschheim and Black [7], and Chopra and Goel [8]). While the above displacement-based methods are proposed for general design purposes, many more were devised for a specific type of lateral-load resisting system concentrating on higher-mode and/or torsional effects and are discussed briefly below.

Castillo [9] proposed a seismic design procedure, which is applicable for buildings that can be analyzed using the equivalent static method. The procedure must be extended for multi-story systems with setbacks and regular asymmetry as defined by Hejal and Chopra [10]. The effect of higher modes on the seismic demand is also not addressed. Fazileh [11] devised a displacement-based seismic design procedure for RC planar wall-frame buildings and plan-asymmetric wall buildings. The design is improved by multimode pushover analysis so that seismic demands from first- and higher-modes are not exceeded. In the study, NTHA outputs show that displacements are overestimated while story shears are reasonably accurate.

There are various efficient methods of seismic design verification that consider explicitly the nonlinear torsional and higher-mode effects by Colajanni [12], Ferraioli [13], Ferraioli et al. [14], Kaatsız and Sucuoğlu [15], Kreslin and Fajfar [16], and Landi et al. [17] to cite a few. Further literature on seismic design verification procedures is discussed in detail by De Stefano, M. and Pintucchi, B. [18]. Based on one of the available procedures (i.e., using the modal pushover analysis principle by Chopra and Goel [19]), Wilkinson and Lavan [20] developed design methods termed as modal pushover design and direct modal pushover design. The methodologies were tested for one-way asymmetric wall buildings for which modal coupling due to yielding is insignificant. Both methods, in addition to being computationally intensive, produce a conservative estimate of drifts in some walls because the design process is governed by a given story’s allowable drift or wall curvature. The aforementioned shortcomings were minimized by the authors in their proposed design method called practical modal pushover design [21]. It is based on an inverse process of practical modal pushover analysis by Reyes and Chopra [22]. Other steps are the same as the modal pushover design and direct modal pushover design. Though computationally less intensive, its performance is less than a modal pushover design. The authors recommended that the shear actions obtained using the method be amplified by the flexural reinforcing steel over-strength factor. Furthermore, the frame-section’s shear capacities incorporate the material strength reduction factors.

Georgoussis [23] presented a preliminary seismic design method for low and medium height RC wall-frame buildings accounting for the torsional response. The procedure calculates the distance of a given arbitrary wall which coincides with the center of mass and the modal center of rigidity. NTHA of the case study shows that the lowest roof rotation is indeed achieved when the center of mass and rigidity are aligned on an axis. However, NTHA produces a base shear demand that exceeds the strength due to the higher-mode responses. The paper does not address the effect of the center of mass variation along the height or strength assignment for fixed positions of the walls and frames.

Bahmani et al. [24] developed a displacement-based procedure for plan asymmetric multi-story buildings. It decouples the translational and torsional deformations using an approximate technique formulated by Kan and Chopra [25]. The method is found to be accurate for linear systems. On the other hand, NTHA of a nonlinear (elastic-perfectly plastic) system showed that it is conservative in achieving the allowable story drift; hence, it needed further refinement. The P-Δ effect is checked after the design is completed. If the stability coefficient is greater than 0.1, redesign is necessary.

To incorporate torsional responses in DDBD’s framework, Beyer [26] derived semi-empirical equations for estimating twist-induced displacements of plan-asymmetric wall buildings. These equations are limited for use in the seismic design of torsionally restrained regular-asymmetric systems. Paparo et al. [27] applied the semi-empirical equations to two asymmetric RC frame buildings having the same geometry but different lateral strength distribution along the plan. The case studies did not account for the effects of P-Δ and center of mass variation along the height. The mean NTHA story displacements are low compared to the design displacements for both cases. The NTHA confirmed that design for different strength assignment (zero strength eccentricity) resulted in lower floor rotation than design for equal strength. The mean NTHA drifts have exceeded the allowable first-story drifts for some frames even though the difference is only about 5 percent. The plastic hinge rotations of the members were also not discussed.

Many researchers have attempted to incorporate higher-mode effects in DDBD’s framework. Loeding et al. [28] formulated parametric equations of story displacements for application in DDBD of RC frames. Pettinga and Priestley [29] modified the equations to include drift amplification due to higher modes. The case studies range from two to 20-story vertically regular tube frames, thus not representative of typical frames with longer beam spans where gravity load action may dominate. The P-Δ effect is also not considered. Suarez [30] discussed that the P-Δ, building height, number of stories, and ground motion intensity are the major factors affecting the story displacement equations. Hence, he suggested that the equations be a function of the aforementioned factors. Though DDBD concluded that the maximum drift occurs in the first story, the study showed this is not the case.

Amaris and Priestley [31] found that for cantilever wall buildings ranging from two to 20 stories, reducing the elastic modal force effects by the behavior factor (force-reduction factor) and produces an unsafe design. Thus, they recommended using Modified Modal Superposition (MMS). MMS combines DDBD-obtained inelastic first-mode and elastic higher-mode force effects by the Square Root of Sum Squares (SRSS) method. It gives a satisfactory result for shorter walls (four- to eight-story cases), while it is slightly conservative for taller walls (12- and 20-story cases). Priestley [32] showed that MMS should not be applied for RC frames since yielding causes a significant increase in higher-mode periods compared to walls. Higher-mode periods tend to slide down the constant velocity slope of the response spectrum. Consequently, design by MMS results in conservative responses when checked by NTHA.

When using MMS for wall-frame structures, an improved result has been attained by modifying the structure’s stiffness model (Sullivan et al. [33]). NTHA showed that MMS results in desired outputs for column forces and wall shears. However, it tended to be over-conservative for wall moments. Cheng [34] derived a stiffness matrix for frame members with a plastic hinge at one or both ends using the bilinear moment-curvature relationship for the hinges. To formulate the lateral stiffness of the structure representing the beam-sway mechanism, the post-yield stiffness and initial stiffness of the plastic hinge are needed, which are obtained after the design is completed unless assumed first.

Currently, DDBD does not provide design procedures to account for torsional and higher-mode responses of plan-asymmetric RC frame buildings having a mass and stiffness irregularity along the height. In this paper, a seismic design procedure is proposed to incorporate the torsional and higher-mode responses in DDBD of plan-asymmetric buildings with the above-mentioned irregularities. Torsional responses are significantly reduced by assigning frames’ lateral stiffness so that eccentricity between centers of supported mass and rigidity is eliminated. Once this task is performed, higher-mode responses are included by a design procedure developed by Abebe and Lee [35] for planar frame buildings. In their paper, an equivalent lateral secant stiffness of a building responding in its nonlinear range is determined. Using the stiffness, elastic higher-mode responses can be obtained which are superposed to DDBD’s inelastic first-mode responses. The case studies designed as such do not exceed the allowable performance levels when checked by NTHA, thus fulfilling the desired performance objectives. Ultimately, the goal of the proposed method is to render design verification by NTHA less mandatory though more case studies should be investigated.

2. The Proposed Seismic Design Procedure for Plan-Asymmetric RC Frame Buildings

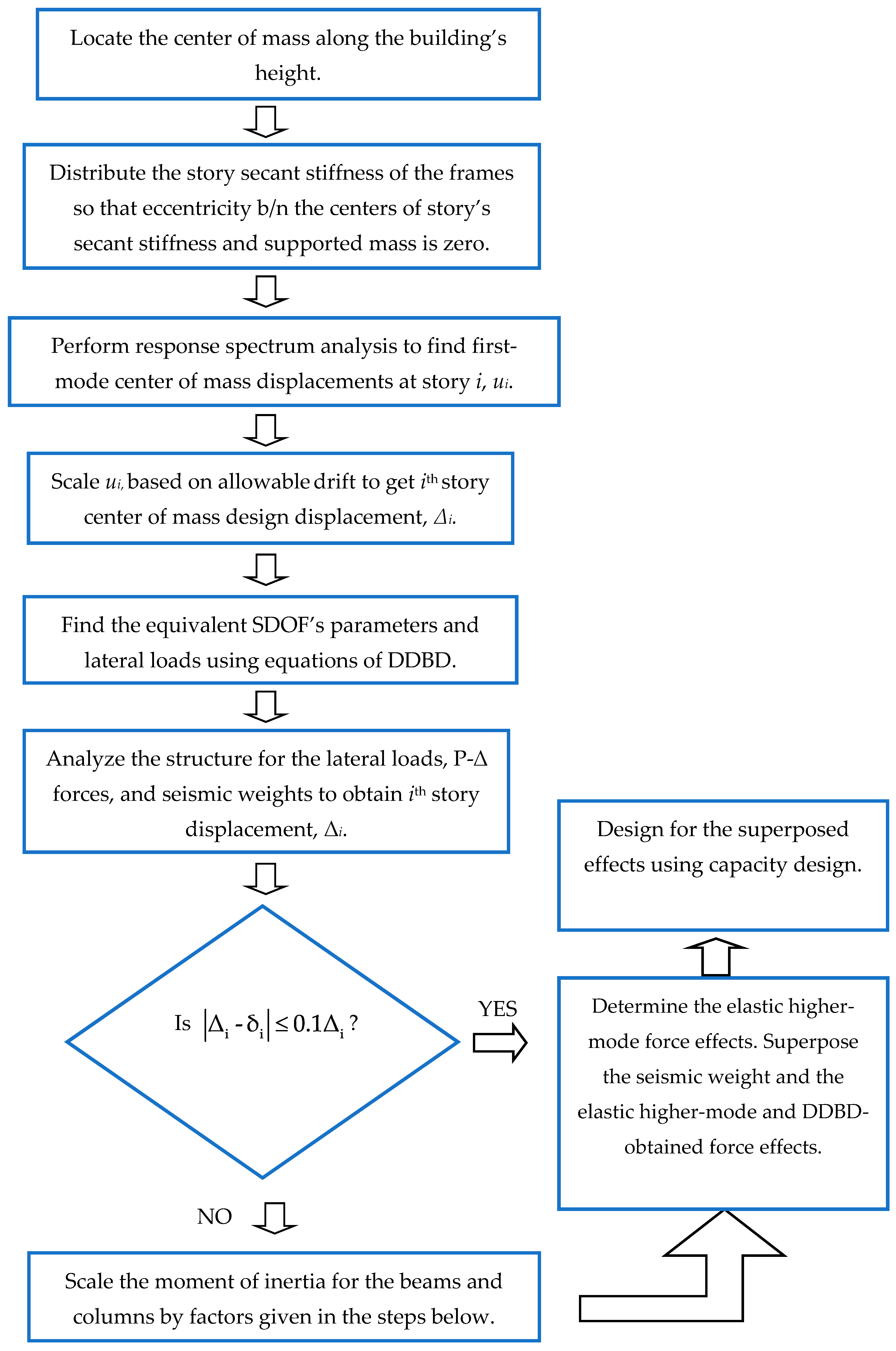

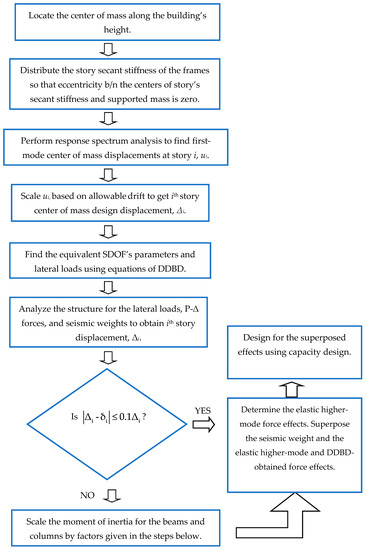

A seismic design procedure is proposed for plan-asymmetric buildings to alleviate the shortcomings of DDBD. The main tasks undertaken are the following:

(1)

Assigning moment of inertia reduction factors for members of frames so that the center of rigidity and center of supported mass coincide.

(2)

Scaling the moment of inertia reduction factors so that the allowable story displacements, drifts, and plastic hinge rotations are not exceeded.

(3)

Determining elastic higher-mode force effects that are combined with DDBD-obtained force effects. The buildings’ stiffness modified according to tasks (1) and (2) is used for modal analysis. Design can then be performed for the modal superposed lateral force effects, P-Δ forces, and gravity loading.

Before applying the proposed procedure, member dimensions are assumed and gravity loads are determined. A given performance objective is chosen, which the building must fulfill under specified seismic hazard levels anticipated at the building site. With the above data obtained, the steps to be followed are given below. A flowchart is provided to show a brief outline of the steps as given below (Figure 1). In this study, uni-directional ground motions in the y-direction (Figure 2) are applied and responses checked.

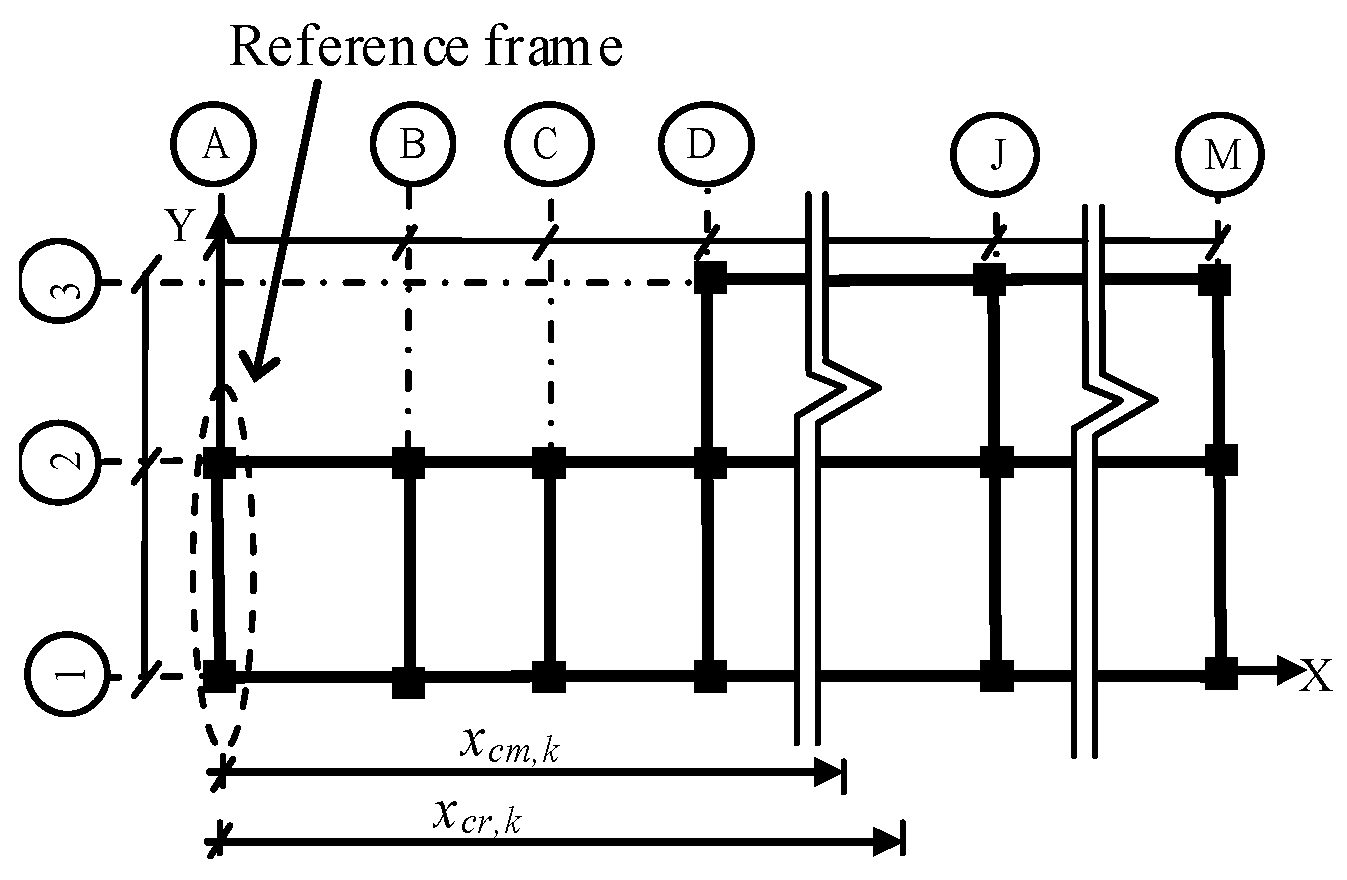

(Step 1) Consider the plan view of a given building at the k-th story as shown in Figure 2. Using Equation (1), calculate the x-coordinate’s location of the k-th story center of supported mass, x_cm,k.

$$x_{cm,k}=\frac{{\displaystyle \sum _{i=k}^n{m}_i{x}_{mi}}}{{\displaystyle \sum _{i=k}^n{m}_i}}$$

(1)

where m_i is the mass at story i, x_m,i, the x-coordinate of the center of mass at story i, and n represents the total number of stories.

(Step 2) Equation (2) is developed by Smith et al. [36] to determine the lateral stiffness of a given frame at story k, K_k.

$$K_k=\frac{12E_c/s_k^2}{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{${\displaystyle \sum _{i=1}^b{\left(I_{gb}/l_b\right)}_i}$}\right.+\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{${\displaystyle \sum _{i=1}^c{\left(I_{gc}/s_k\right)}_i}$}\right.}$$

(2)

where E_c is the young modulus of the concrete material, s_k is the k-th-story height, and l_b is the beam’s span length. b and c represent the number of beams and columns in story k, respectively. I_gb and I_gc are the gross moment of inertia for beams and columns, respectively. To determine the x-coordinate of the center of rigidity at story k of a building in nonlinear range, x_cr,k, Equation (3) is used.

$$x_{cr,k}=\frac{{\displaystyle \sum _{j=1}^m{K}_{j,k}{x}_j}}{{\displaystyle \sum _{j=1}^m{K}_{j,k}}}=\frac{{\displaystyle \sum _{j=1}^m{\gamma }_{j,k}{K}_{ref,k}{x}_j}}{{\displaystyle \sum _{j=1}^m{\gamma }_{j,k}{K}_{ref,k}}}$$

(3)

where K_j,k = γ_j,k K_ref,k. K_ref,k is the secant lateral stiffness of a reference frame at story k. A reference frame is preferably chosen arbitrarily, which rises to the top of the building roof. Figure 2 shows that frame A is a reference frame while its elevation view is depicted in Figure 3. The k-th story secant stiffness for the reference frame is determined by substituting I_gb with α_bI_gb and I_gc with α_cI_gc (for the first-story column only). α_b and α_c are the moment of inertia reduction factors for beams and columns, respectively. x_j is the x-coordinate for frame j. γ_j,k is a factor assigned to the j-th frame to relate the frame to the reference frame secant stiffness at story k. γ_ref,k, is clearly 1, and m stands for the number of frames at story k.

To eliminate the out-of-plane torsional floor rotation at story k, the in-plane stiffness eccentricity at story k, e_x,k, given by Equation (4) below, is set to zero.

$$e_{x,k}=\left|x_{cr,k}-x_{cm,k}\right|.$$

(4)

Accordingly, γ_j,k values are chosen so that e_x,k will be zero. To minimize strength difference between frames and result in insignificant torsional rotation, m − 2 frames are assigned arbitrary γ_j,k values that range from 0.7 to 1.2. Thus, torsion will not impose high displacement demand to frames far from the supported mass center compared to those near it. One-frame relative stiffness value for story k, γ_1,k, is calculated by setting Equation (5) to zero and, can have a value other than a value between 0.7 to 1.2.

If the origin is taken from the x-coordinate of the center of supported mass, e_x,k will be equal to x_cr,k. Setting x_cr,k to zero as in Equation (5) and letting x′_j be the x-coordinate from the center of supported mass to the frame j, γ_1,k can be determined.

$$\frac{{\displaystyle \sum _{j=1}^m{\gamma }_{j,k}{K}_{ref,k}{x^{\prime }}_j}}{{\displaystyle \sum _{j=1}^m{\gamma }_{j,k}{K}_{ref,k}}}=0\Rightarrow \frac{{\displaystyle \sum _{j=1}^m{\gamma }_{j,k}{x^{\prime }}_j}}{{\displaystyle \sum _{j=1}^m{\gamma }_{j,k}}}=0\Rightarrow {\displaystyle \sum _{j=1}^m{\gamma }_{j,k}{x^{\prime }}_j}=0.$$

(5)

For frames closer to the center of supported mass, lower values of the range can be used and vice versa. When a negative value is obtained in calculating the γ_1,k, the range can be adjusted until a positive value is found. The relative stiffness values can vary along the height following the variation of the center of supported mass location. In that case, average relative stiffness values can be used for values within a ten percent variation in a given consecutive story range.

Typically, some frames have fewer columns and beams than other frames in a given story. For example, in Figure 2, frame A has two columns and one beam while frame J has three columns and two beams. In this case, an adjustment is needed.

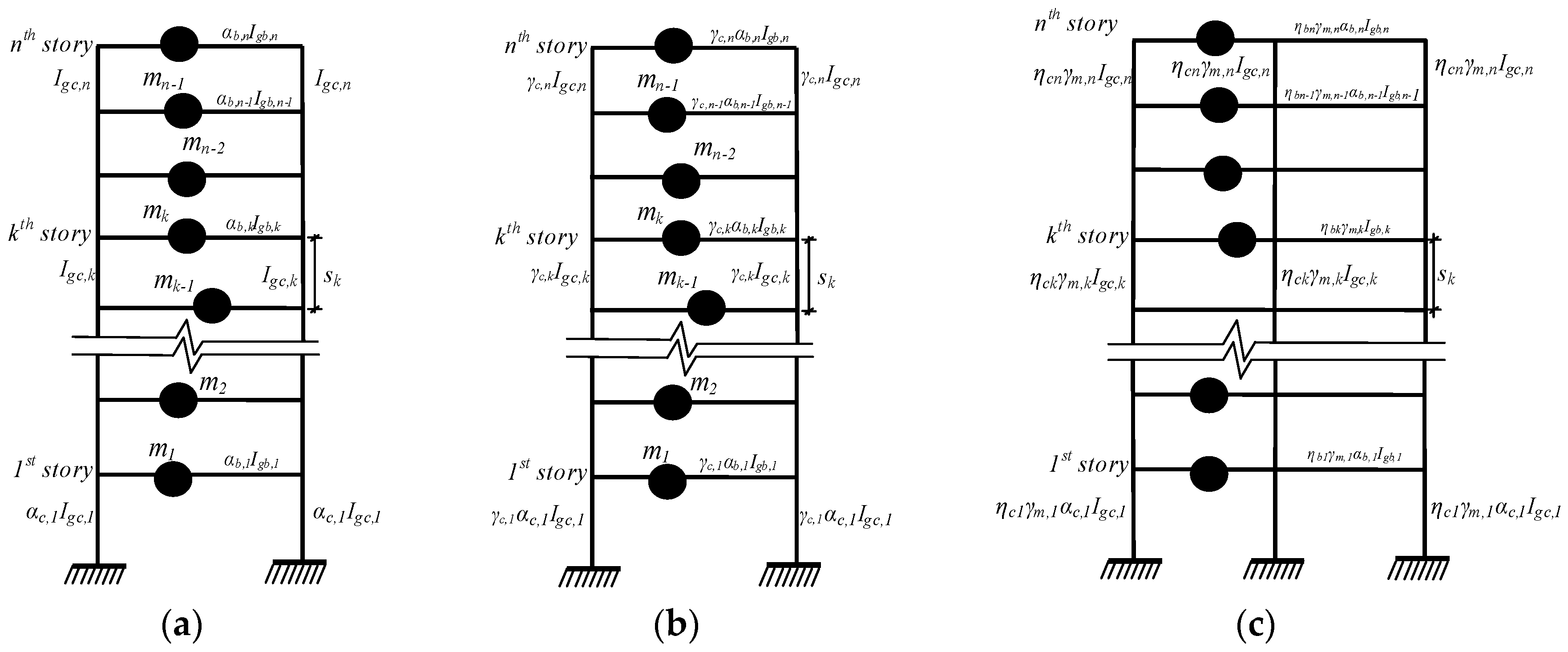

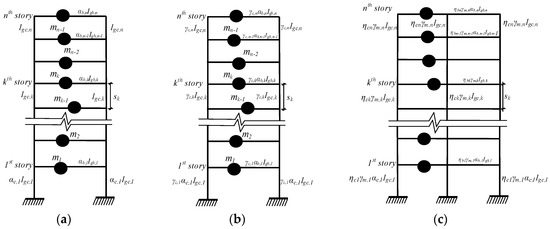

The k-th-story’s lateral stiffness for the j-th frame and the reference frame can be equal if factors η_bk and η_ck are used for the j-th frame as follows:

$$\frac{12E_{c,ref}/s_k^2}{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{${\displaystyle \sum _{i=1}^{b_{ref}}{\left(I_{gb,ref}/l_{b,ref}\right)}_i}$}\right.+\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{${\displaystyle \sum _{i=1}^{c_{ref}}{\left(I_{gc,ref}/s_k\right)}_i}$}\right.}=\frac{12E_{c,j}/s_k^2}{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{${\eta }_{bk}{\displaystyle \sum _{i=1}^{b_j}{\left(I_{gb,j}/l_{b,j}\right)}_i}$}\right.+\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{${\eta }_{ck}{\displaystyle \sum _{i=1}^{c_j}{\left(I_{gc,j}/s_k\right)}_i}$}\right.}$$

(6)

where I_gb,ref and I_gc,ref are the gross moment of inertia for beams and columns of the reference frame at story k, respectively. I_gb,j and I_gc,j are the gross moment of inertia for beams and columns of the j-th frame at story k, respectively. l_b,ref and l_b,j are the beam span for the reference and j-th frame at story k, respectively. b_ref and c_ref represent the number of beams and columns in story k for the reference frame, respectively. b_j and c_j represent the number of beams and columns in story k for the j-th frame, respectively. If E_c,_ref = E_c,_j, then

$$\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{${\eta }_{bk}{\displaystyle \sum _{i=1}^{b_j}{\left(I_{gb,j}/l_{b,j}\right)}_i}$}\right.+\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{${\eta }_{ck}{\displaystyle \sum _{i=1}^{c_j}{\left(I_{gc,j}/s_k\right)}_i}$}\right.=\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{${\displaystyle \sum _{i=1}^{b_{ref}}{\left(I_{gb,ref}/l_{b,ref}\right)}_i}$}\right.+\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{${\displaystyle \sum _{i=1}^{c_{ref}}{\left(I_{gc,ref}/s_k\right)}_i}$}\right..$$

(7)

Keeping the equality of the left and right sides of Equation (7) and after simple algebraic manipulation,

$${\eta }_{bk}=\raisebox{1ex}{${\displaystyle \sum _{i=1}^{b_{ref}}{\left(I_{gb,ref}/l_{b,ref}\right)}_i}$}\!\left/ \!\raisebox{-1ex}{${\displaystyle \sum _{i=1}^{b_j}{\left(I_{gb,j}/l_{b,j}\right)}_i}$}\right.$$

(8)

$${\eta }_{ck}=\raisebox{1ex}{${\displaystyle \sum _{i=1}^{c_{ref}}{\left(I_{gc,ref}/s_k\right)}_i}$}\!\left/ \!\raisebox{-1ex}{${\displaystyle \sum _{i=1}^{c_j}{\left(I_{gc,j}/s_k\right)}_i}$}\right..$$

(9)

Determine the factors γ, η_b and η_c at all stories for all frames in the y-direction. Frames in the x-direction are unchanged. There is no need to calculate the actual value of the story’s secant stiffness for any of the elements. The factors α_b and α_c along with γ, η_b and η_c can be input as section property modifiers in the analysis software, in this case, SAP 2000 V.18. Steps 1 and 2 significantly reduce torsional responses and result in predominantly translational motion of the plan-asymmetric buildings. The next steps to be followed are almost the same as the Steps 2 to 9 of the proposed method developed by Abebe and Lee [35] that considers higher-mode effects in planar RC frames. The only difference is that instead of using design displacement at each story of the frames, the design displacement at the center of mass location of a floor is used. The steps are reproduced here for convenience.

(Step 3) Conduct a modal analysis to calculate the first-mode displacement, u_i, at the center of mass of the story i in the y-direction using Equation (10).

$$u_i={\varphi }_i{\Gamma }_1{D}_1$$

(10)

where ϕ_i is the first-mode shape at the center of mass of i-th story in y-direction. Γ₁ is the corresponding first-mode modal participation factor. D₁ is the first-mode spectral displacement for the mean displacement response spectrum of the selected ground motions obtained using an elastic damping ratio (i.e., 5 percent).

(Step 4) Determine design displacement, Δ_i, at the center of mass of story i. Δ_i is found by scaling u_i so that the allowable story drift, θ, is not exceeded. Δ_i is given as Equation (11).

$${\Delta }_i={u_i}^{\ast }\min \left\{\frac{\theta s_j}{u_j-u_{j-1}}\right\}$$

(11)

where u_j and u_j−1 are the first-mode displacements at the center of mass location of story j and j − 1, respectively. s_j is the j-th story height. j = 1, 2, 3, …, n. n stands for the number of stories.

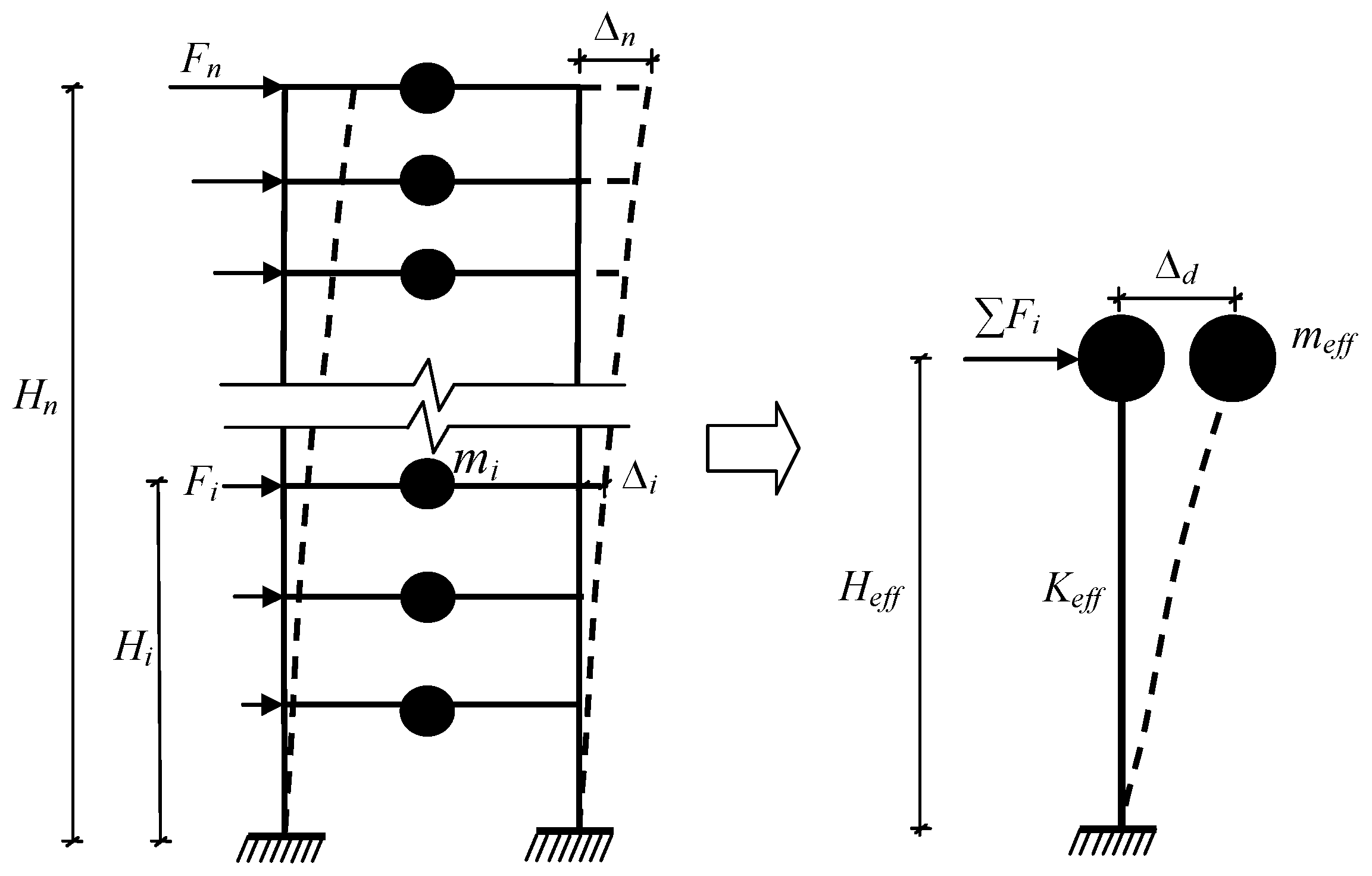

(Step 5) Calculate the effective mass, m_eff, effective height, h_eff, design displacement at effective height, Δ_d, average yield rotation, θ_y,avg, yield displacement at effective height, Δ_y, ductility at Δ_d, μ, equivalent viscous damping ratio, ξ_eq, effective period, T_eff, base shear for the first-mode, V_b, and lateral force at story i-th, F_i, using equations of DDBD as provided by Priestley et al. [37]. These equations are also provided in Appendix A below. Using SeismoSpect 2016 [38], the displacement response spectra for the equivalent viscous damping ratios can be plotted.

(Step 6) Find δ_i, the output displacement at the center of mass in the y-direction obtained using a linear analysis of the structural model modified as Step 2. The loading applied includes F_i, the seismic weight, and the additional lateral force due to P-Δ, Q_i. MacGregor et al. [39] derived Q_i as follows:

$$Q_i=\frac{P_i{\Delta }_i}{s_i}-\frac{P_{i+1}{\Delta }_{i+1}}{s_{i+1}}$$

(12)

where P_i is the sum of story seismic weights at the i-th level and above i. s_i is the i-th story height.

(Step 7) Update the structural model’s secant stiffness given in Step 2 by setting a new moment of inertia reduction factor for beams, α′_b, and for columns, α′_c, as in Equation (13) if $\left|{\Delta }_i-{\delta }_i\right|>0.1{\Delta }_i$ where i = 1, 2, 3, …, n. n is the number of stories

$${{\alpha }^{\prime }}_b={\alpha }_b\frac{{\displaystyle \sum _{i=1}^n\left\{{\delta }_i/{\Delta }_i\right\}}}{n};{{\alpha }^{\prime }}_c={\alpha }_c\frac{{\displaystyle \sum _{i=1}^n\left\{{\delta }_i/{\Delta }_i\right\}}}{n}.$$

(13)

The factor multiplying α_b and α_c in Equation (13) is found to yield a reasonable estimate of design story displacements. It is based on the linear force-displacement relation, whereby keeping the force equal, desired displacements can be obtained by scaling the stiffness. It is known that multiplying a stiffness matrix by a factor does not change the first-mode shapes, ϕ_i, and first-mode modal participation factor, Γ₁. Though the first-mode spectral displacement, D₁, changes as the first-mode period varies, it cancels out from Equation (11). Hence, the design displacements, Δ_i, and the story lateral forces, F_i, remain unaltered. If so,

$$\left\{F_i\right\}=\left[K_{initial}\right]\left\{{\delta }_i\right\}=\left[K_{final}\right]\left\{{\Delta }_i\right\}$$

(14)

and for multi-story frames, [K_final] is approximated as in Equation (15)

$$\left[K_{final}\right]\approx \left[K_{initial}\right]\frac{{\displaystyle \sum _{i=1}^n\left\{{\delta }_i/{\Delta }_i\right\}}}{n}$$

(15)

where i = 1, 2, 3, …, n. n is the number of stories. [K_initial] is the secant stiffness matrix of the frames with I_gb and I_gc modified by α_b, α_c, γ, η_b and η_c, respectively. [K_final] will then be approximated as the final secant stiffness matrix with I_gb and I_gc modified by α′_b and α′_c, γ, η_b and η_c, respectively.

(Step 8) Calculate the force effects by linear analysis applying F_i on the structural model modified in Step 7.

(Step 9) Determine the elastic higher-mode force effects for the modes contributing to at least 90 percent of the total mass. Using the SRSS method, combine force effects from Step 8 and the elastic higher-mode force effects. SRSS is used since the modal frequencies are well separated, i.e., the adjacent frequencies have a ratio of greater than 2 or less than 0.5. In addition, translational motion of each frame is expected which allows the use of SRSS modal combination. Superpose the force effects from the seismic weight, P-Δ forces, and the modal-combined lateral force effects to get design force effects. SAP2000 V.18 has been used for the purpose of structural analysis.

(Step 10) Employ capacity design to achieve the beam-sway mechanism. For a plastic hinge location, the expected material strength is used while the strength reduction factor is set as unity (Priestley et al. [37]). At other column locations, design moments, M_D, are calculated as follows:

$${\phi }_s{M}_D\ge {\phi }^o{M}_A$$

(16)

where φ_s is the strength reduction factor, φ^o is an over-strength factor and M_A is the applied moment.

3. Numerical Examples

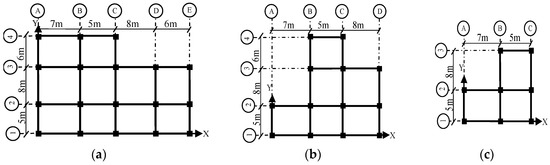

To investigate the performance of the proposed design procedure, two plan-asymmetric 20-story RC frame buildings are chosen. Ali et al. [40] stated that moment-resisting frames will be ineffective in resisting seismic loading above the 20-story limit. Hence, the case studies are imposed on this recommendation. Case-I has same-plan configuration while Case-II has different-plan configuration along the height. Both cases have different bay widths in orthogonal directions as shown in Figure 4 and Figure 5. Columns and beams have dimensions of 800 mm × 800 mm and 800 mm × 300 mm, respectively, for all stories for the frames in the y-direction. In the x-direction, the beam dimensions are 500 mm × 300 mm for all stories. All stories are 3.5 m high. The seismic load acting on all beams is 15 kN/m, excluding the frame members’ weight. A characteristic cylinder strength, f′_c, of 30 MPa for the concrete, a characteristic yield strength of 413.7 MPa, and an ultimate strength of 620.5 MPa for the rebar are used. The characteristic concrete and rebar strengths are factored by 1.3 and 1.1, respectively, to obtain the corresponding expected material strengths.

In this study, it is desired that a basic safety objective must be fulfilled according to the Federal Emergency Management Agency (FEMA-356) standard [41]. Therefore, the buildings when subjected to Design Basis Earthquake (DBE) and Maximum Considered Earthquake (MCE) hazard levels, the Life Safety (LS) and Collapse Prevention (CP) performance levels were not exceeded, respectively. To achieve the performance levels LS and CP, the mean NTHA story drifts shall not be higher than 2 percent and 4 percent, respectively (Table C1–3 of FEMA 356). Mean NTHA plastic hinge rotations shall not exceed the allowable FEMA 356 plastic hinge rotations (Tables 6.8 and 6.9 of FEMA 356).

The case studies are located near San Andreas Fault having coordinates of 37° N, −122° W. Class C (very dense soil and soft rock) is assumed for the soil type. The U.S. seismic design map is utilized to obtain the site’s design spectral accelerations, S_d1 and S_ds, and long period, T_L. These values are input in the PEER NGA-West 2 ground motion database [42] to generate the acceleration response spectrum for DBE. The acceleration response spectrum for MCE is 1.5 times the acceleration response spectrum for DBE. Again, the PEER NGA-West 2 ground motion database is used to select and scale eleven ground motions (

Table 1. Selected ground motions for Design Basis Earthquake (DBE).

Result ID	Earthquake Name	Station Name	Magnitude (Mw)	Mechanism	Peak Ground Accelartion (g)	Scale Factor	Tp-Pulse Period (s)	Arias Intensity (m/s)	Vs30 (m/s)	5–95% Duration (s)
1	“Tabas_ Iran”	“Boshrooyeh”	7.35	Reverse	0.389	3.7211	-	0.3	324.57	19.5
2	“Tabas_ Iran”	“Tabas”	7.35	Reverse	0.439	0.5323	6.188	11.8	766.77	16.5
3	“Cape Mendocino”	“Fortuna-Fortuna Blvd”	7.01	Reverse	0.392	2.8713	-	0.3	457.06	18.7
4	“Landers”	“North Palm Springs”	7.28	strike slip	0.477	3.509	-	0.7	344.67	37.9
5	“Landers”	“Yermo Fire Station”	7.28	strike slip	0.347	1.5334	7.504	0.9	353.63	18.9
6	“Kocaeli_ Turkey”	“Arcelik”	7.51	strike slip	0.813	3.7339	7.791	0.3	523	11.1
7	“Kocaeli_ Turkey”	“Duzce”	7.51	strike slip	0.377	1.1602	-	1.3	281.86	11.8
8	“Kocaeli_ Turkey”	“Gebze”	7.51	strike slip	0.392	1.7377	5.992	0.5	792	8.2
9	“Chi-Chi_ Taiwan”	“CHY006”	7.62	Reverse Oblique	0.438	1.3398	2.5704	2	438.19	26.7
10	“Chi-Chi_ Taiwan”	“CHY010”	7.62	Reverse Oblique	0.458	2.5821	-	0.7	538.69	29.8
11	“Chi-Chi_ Taiwan”	“CHY024”	7.62	Reverse Oblique	0.356	1.2285	6.65	1.8	427.73	27

and

Table 2. Selected ground motions for Maximum Considered Earthquake (MCE).

Result ID	Earthquake Name	Station Name	Magnitude (Mw)	Mechanism	Peak Ground Accelartion (g)	Scale Factor	Tp-Pulse Period (s)	Arias Intensity (m/s)	Vs30 (m/s)	5–95% Duration (s)
1	“Tabas_ Iran”	“Boshrooyeh”	7.35	Reverse	0.613	5.8633	-	0.3	324.57	19.5
2	“Tabas_ Iran”	“Tabas”	7.35	Reverse	0.699	0.848	6.188	11.8	766.77	16.5
3	“Cape Mendocino”	“Fortuna-Fortuna Blvd”	7.01	Reverse	0.589	4.3161	-	0.3	457.06	18.7
4	“Landers”	“Yermo Fire Station”	7.28	strike slip	0.512	2.2642	7.504	0.9	353.63	18.9
5	“Kocaeli_ Turkey”	“Arcelik”	7.51	strike slip	1.207	5.5465	7.791	0.3	523	11.1
6	“Kocaeli_ Turkey”	“Duzce”	7.51	strike slip	0.584	1.7334	-	1.3	281.86	11.8
7	“Kocaeli_ Turkey”	“Gebze”	7.51	strike slip	0.578	2.5618	5.992	0.5	792	8.2
8	“Chi-Chi_ Taiwan”	“CHY006”	7.62	Reverse Oblique	0.692	2.1178	2.5704	2	438.19	26.7
9	“Chi-Chi_ Taiwan”	“CHY010”	7.62	Reverse Oblique	0.709	4.0024	-	0.7	538.69	29.8
10	“Chi-Chi_ Taiwan”	“CHY024”	7.62	Reverse Oblique	0.534	1.8426	6.65	1.8	427.73	27
11	“Chi-Chi_ Taiwan”	“CHY029”	7.62	Reverse Oblique	0.758	2.7817	-	0.9	544.74	32.3

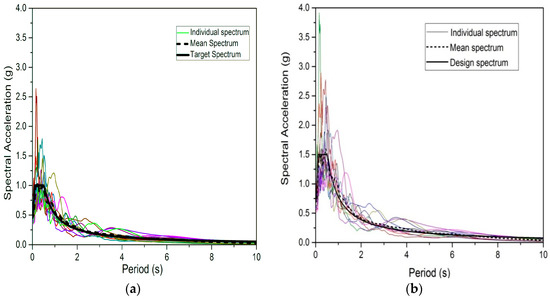

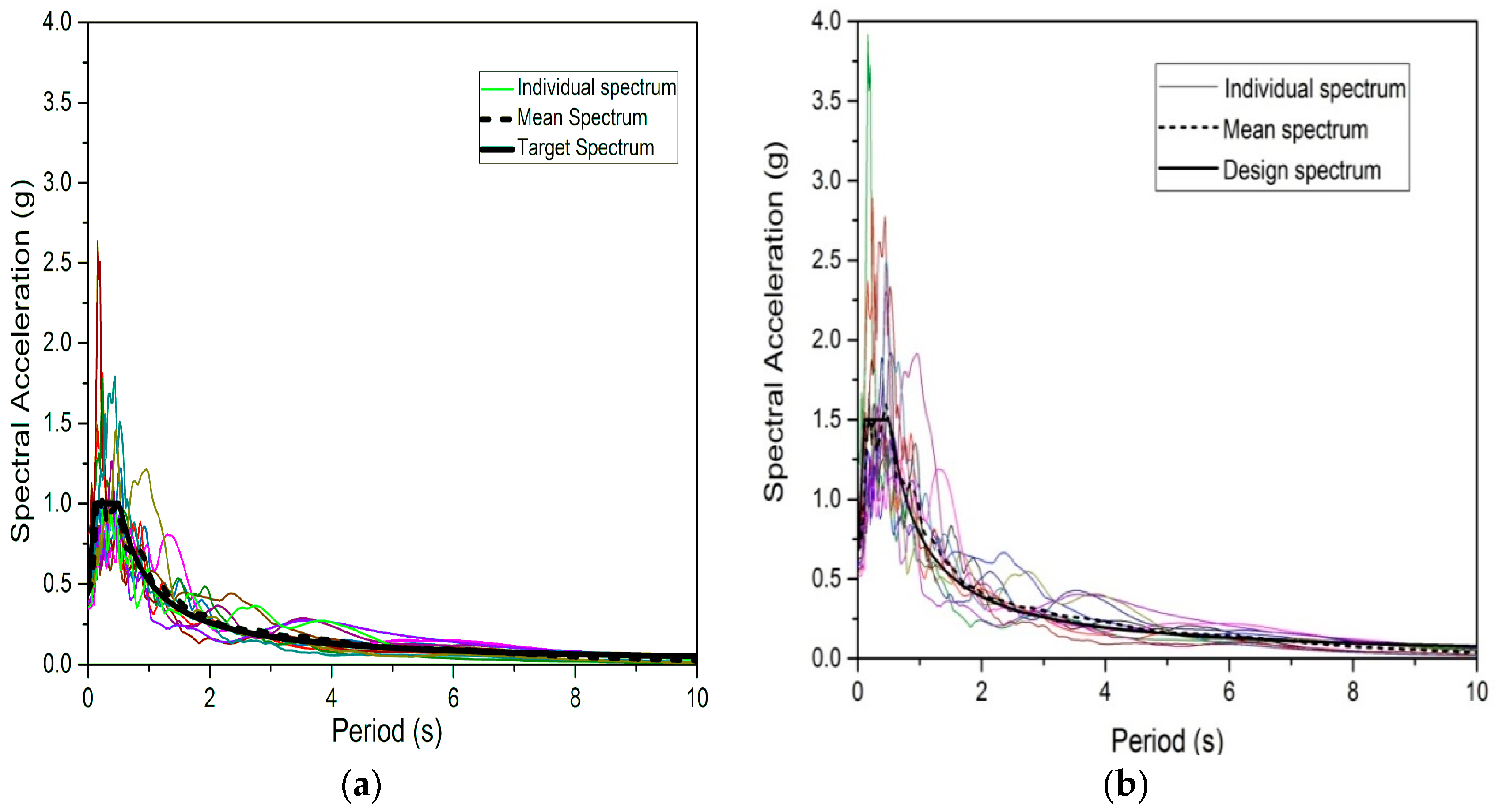

) to match the 5-percent damping DBE and MCE acceleration response spectra (Figure 6a,b).

To define the secant stiffness of the case studies, the moment of inertia reduction factors, α_b for beams and α_c for first-story columns, of the reference frames need to be assumed. Kowalsky [43] and Kappos et al. [44] adopted 10 percent of the uncracked section stiffness to represent the secant stiffness of RC bridge piers as a start for their iterative design methods. Cheng [34] determined the member stiffness matrix with plastic hinges at one or both ends. Accordingly, for members with hinges at both ends, the stiffness of that member will be the stiffness based on the gross moment of inertia of members times the ratio of post-yield stiffness to the elastic stiffness of the plastic hinge. For members with only one hinge, no such simplification has been made. Thus, if that ratio is assumed as 0.1 for members with two hinges at member ends, the moment of inertia reduction factor, α_b, will be also 0.1. The values of the reduction factors are chosen arbitrarily as a starting value as it does not affect the values for α′_c and α′_b. Therefore, α_c is assigned 0.3 since only one plastic hinge is expected and α_b as 0.1 or, in some cases, 0.05. For the reference frames of the case studies, α_c is set as 0.3, whereas α_b for the lower ten story beams is 0.1 and for the top 10 stories 0.05. A lower value of α_b at the top stories is chosen because seismic demand reduces as the height increases.

Steps 3 to 5 need to be performed for both LS and CP levels. When using Step 5, the peak value of the mean displacement response spectra for the equivalent viscous damping may be less than the initial design displacement at effective height, Δ_d,initial. In that case, a method discussed in Section 3.4.6(b) of Priestley et al. [37] is employed. Hence, lower final displacement, Δ_d,final, at reduced equivalent damping ratio is found. To attain Δ_d,final, the design story displacements need to be factored by the ratio Δ_d,final/Δ_d,initial. The DDBD base shear, V_b, for the two performance levels is compared, and the maximum is taken as a governing design base shear.

When the value of P-Δ force at story i, Q_i is found to be negative, it is not added to the lateral force F_i and, hence, only F_i is taken as the design force at that story. Column design moments, M_D, are amplified by the ratio φ^o/φ_s = 1.2 using φ^o = 1.1 and φ_s = 0.9.

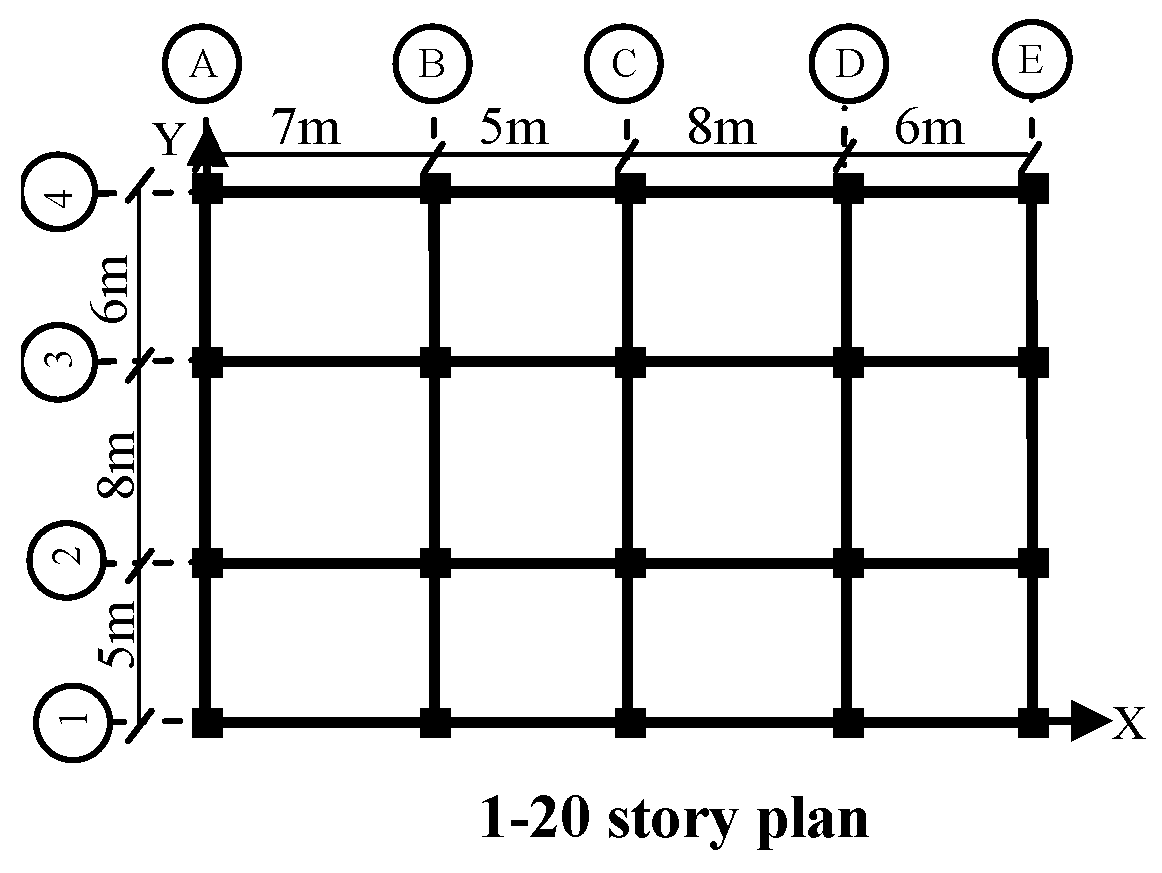

For Case-I, since the center of story mass and the supported mass do not vary per story, there is no variation of γ along the height. Frame A is taken as a reference frame, and the relative stiffness values for frames B, C, and D are assigned arbitrarily (

Table 3. Case-I’s relative stiffness values.

Story	γA	γB	γC	γD	aγE
1–20	1	0.8	0.7	0.8	≈1

^aγ_E is calculated using Equation (5) by setting e_x,k to zero.

). The relative stiffness value for frame E is calculated using Equation (5). Correspondingly, the moment of inertia reduction factors, α_b and α_c, for the frames used are shown in

Table 4. Moment of inertia reduction factors for Case-I frames.

Reduction Factors	Frame A	Frame B	Frame C	Frame D	Frame E
αb for 1st–10th story	0.1	0.08	0.07	0.08	≈0.1
αb for 11th–20th story	0.05	0.04	0.035	0.04	≈0.05
αc for 1st story	0.3	0.24	0.21	0.24	≈0.3
αc for 2nd to 20th story	1	0.8	0.7	0.8	≈1

. From Step 9, the new moment of inertia reduction factors are 0.44 times the initial moment of inertia reduction factors. CP performance level governs for this case.

For Case-II, the relative stiffness values are varied following center of supported mass variation along the height to yield e_x,k equal to zero. Frame C is chosen as the reference frame (

Table 5. Case-II’s relative stiffness values.

Story	γA	γB	γC	γD	γE
1–5	1.2	1.1	1	1.1	a 0.03
6–9	a 1.38	1	1	1.1	-
10–13	a 1.81	0.8	1	1.1	-
14–20	a 0.61	0.8	1	-	-

^a Frame stiffnesses calculated using Equation (5) by setting e_x,k to zero.

). The choice of the reference frame is arbitrary as long as the frame rises to the top-story level. The reference frame C is assigned α_b equal to 0.05 and 0.1 for the top ten stories and bottom ten stories, respectively. α_c is set as 0.3. Since some frames have fewer columns and beams than others in a given story, modification per Step 2 is necessary (

Table 6. Modification factors, η_b and η_c to account for the difference in material properties, member dimensions and the number of members for Case-II frames.

Story	Structural Members	Frame A	Frame C (or B)	Frame D	Frame E
1–5	Beams	1	1	1.51	1.51
	Columns	1	1	1.33	1.33
6–13	Beams	2.46	1	1.46	-
	Columns	2	1	1.5	-
14–20	Beams	1.63	1	-	-
	Columns	1.5	1	-	-

). α_b and α_c for frames other than the reference frame are multiples of those α_b and α_c values for frame C times the factors of the frames given in Table 5 and Table 6. From Step 7, the new moment of inertia reduction factors, α′_b and α′_c, are 0.432 times the initial moment of inertia reduction factors. LS performance level governs for this case.

4. Verification of the Proposed Method by NTHA

For the NTHA of case studies, the flexural reinforcements are first calculated with the Section Designer module of SAP2000 V.18 for the design actions obtained from Step 10 of Section 2. It is required to account for the difference in rebar amount for the first-story columns’ bottom end (plastic hinge) and top end. Hence, a section representing the plastic hinge is incorporated at the bottom end of the column. The section will have a rebar amount provided for the plastic hinge and a length, L_p determined by Priestley et al. [37] as shown in Equation (17).

$$L_p=k{L}_c+L_{sp}$$

(17)

where k = 0.2(f_u/f_y − 1) ≤ 0.08. L_c is the length from the plastic hinge center to the point of contra flexure in the member, and the strain penetration length L_sp = 0.022f_ye d_bl. f_u and f_y are the ultimate and yield strength of the rebar, respectively. f_ye is the expected yield strength of the rebar in MPa, and d_bl is the diameter of the rebar in meters.

Nonlinear analysis for the effect of seismic weight is performed to be continued by NTHA for the ground motions. The analyses are conducted by PERFORM-3D V.7 with FEMA 356 hinges assigned to the members’ ends. The floor slabs are modeled as a rigid diaphragm. The cyclic strength and stiffness degradation of the plastic hinges in PERFORM-3D is accounted for by specifying energy degradation factors. Ghodsi and Ruiz [45] provide reasonable values for the energy degradation factors. Rayleigh damping is used to model the elastic damping. A damping ratio of 5 percent is assumed at periods 1.5 and 0.1 times the fundamental period in the y-direction to calculate mass and stiffness matrix coefficients. A P-Δ option is included in the analyses.

5. Results and Discussion

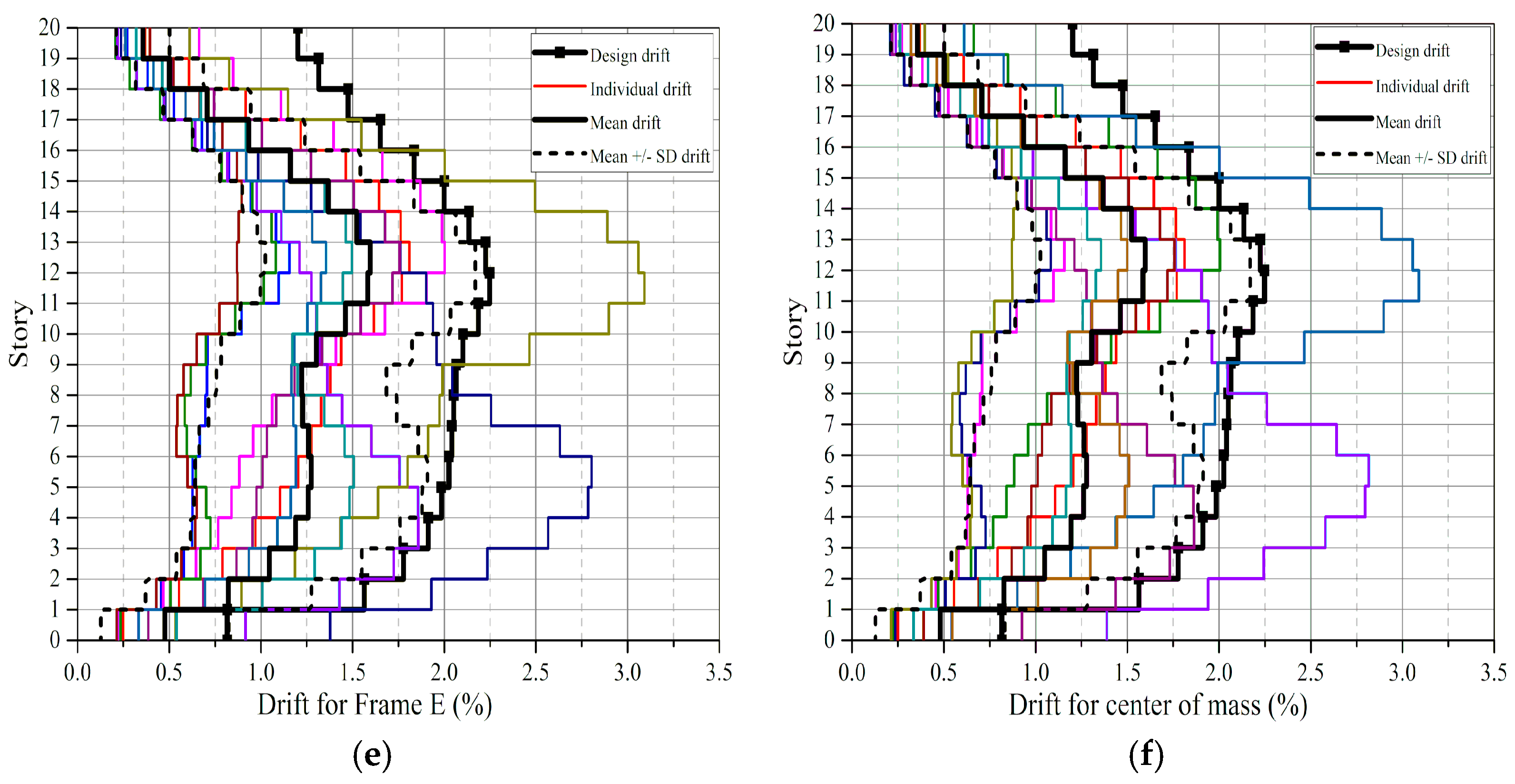

5.1. Case-I Building

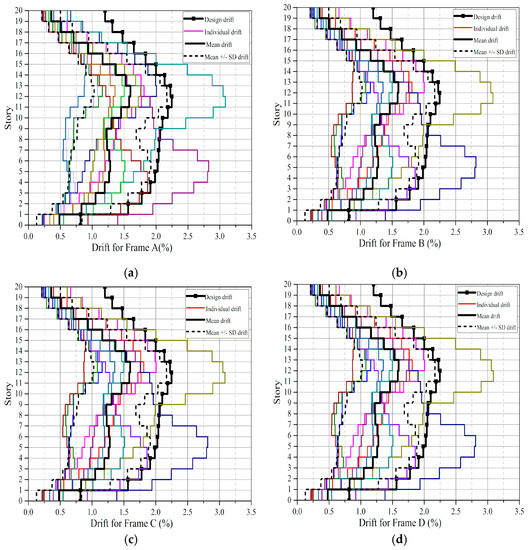

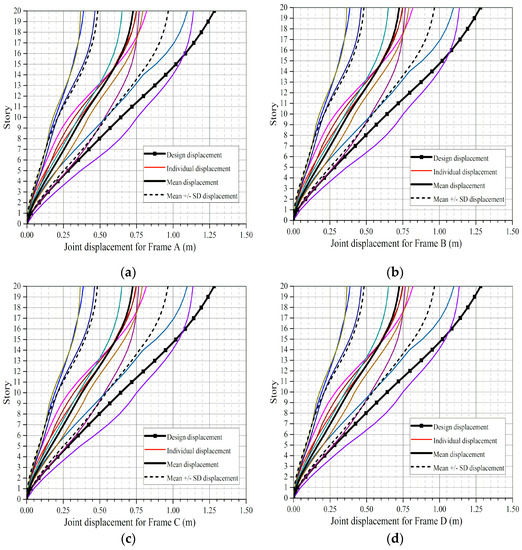

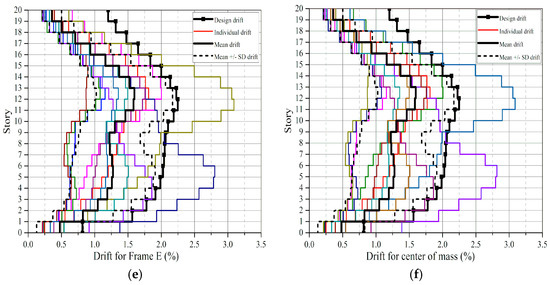

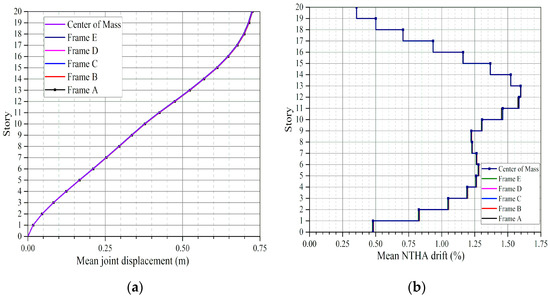

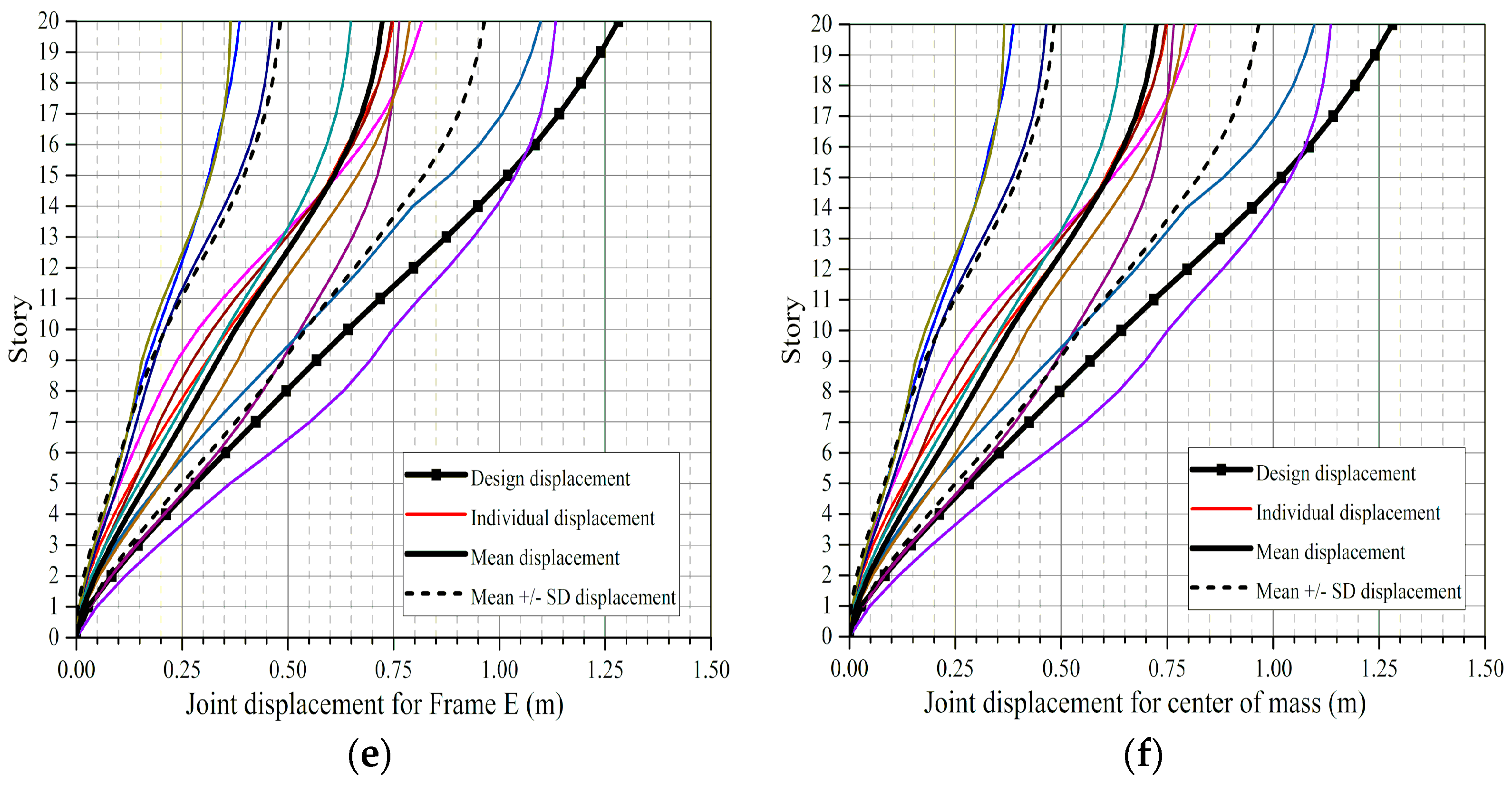

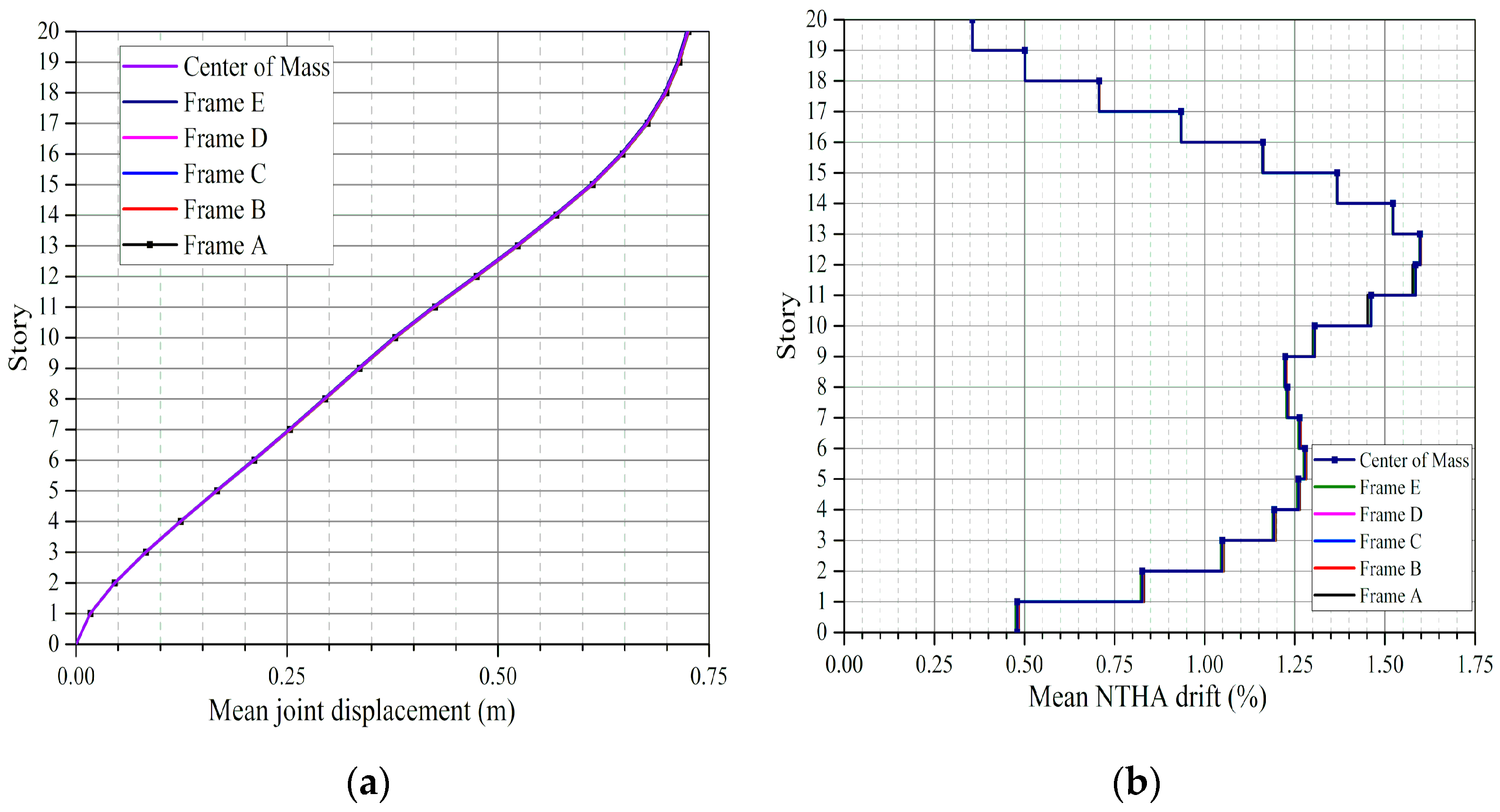

From NTHA outputs, it is observed that the allowable story drift of the governing performance level (i.e., 4 percent) is not exceeded for all ground motions (Figure 7). Design drifts determined from the design displacements are not exceeded when compared to the mean NTHA drifts. Mean NTHA drifts are low compared to design drifts though the mean plus one standard deviation and design drifts are approximately equal (Figure 7). The NTHA drifts tend to follow design drift profile; thus, the method produces a design that reflects the design drift (Figure 7). It is observed that NTHA drifts are nearly the same for all frames. The fact that design drifts are being exceeded for some ground motions is acceptable as long as the mean NTHA drifts from the eleven ground motions did not exceed the allowable drifts. Since the design by the proposed method is performed using the design response spectrum which corresponds to the mean response spectrum of the eleven ground motions, it is expected that some ground motions result in the design drifts being exceeded. The NTHA displacements are below the design displacements, except for one ground motion. Mean plus one standard deviation NTHA displacements are closer to the design displacements at the lower-half stories compared to the top-half stories (Figure 8). Mean NTHA displacements and drifts are almost identical for all frames (Figure 9). For example, the difference in 20th-story mean NTHA displacements at the extreme frames A and E is 0.35 percent. This signifies that the proposed method works well for plan-asymmetric buildings when the plan configuration is identical throughout the height.

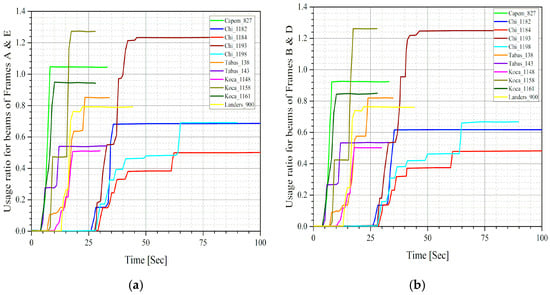

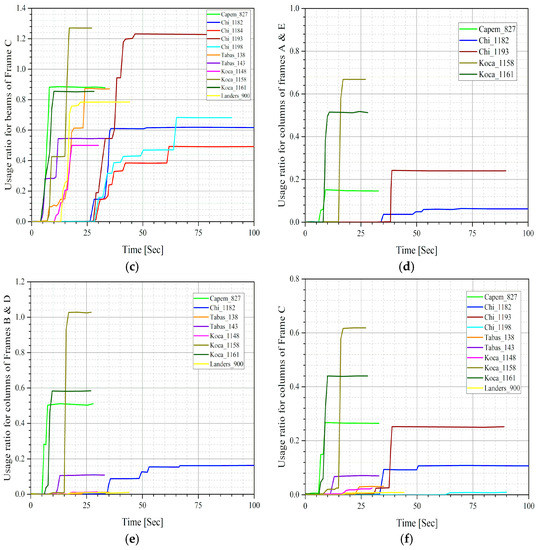

To check whether allowable hinge rotations for the CP performance level are exceeded, usage ratio graphs of Perform-3D V.7 are used. Usage ratio graphs depict the ratio of hinge rotation demand of the ground motions to the allowable hinge rotation through time. An average of 0.8 is achieved for the beams’ usage ratio as shown in Figure 10a–c. For the columns’ usage ratio an average of 0.2 is obtained, which is predominantly from hinge rotations at the base of the building (Figure 10d–f). It can be said that from the hinge status point of view, the procedure produces economical design and a desirable collapse mechanism (i.e., a beam-sway mechanism.)

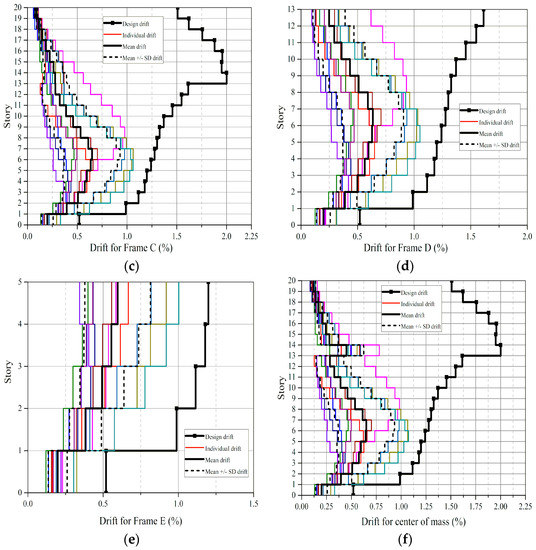

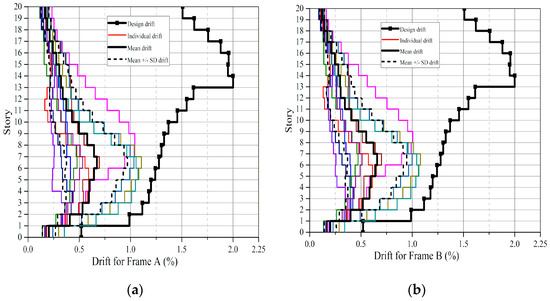

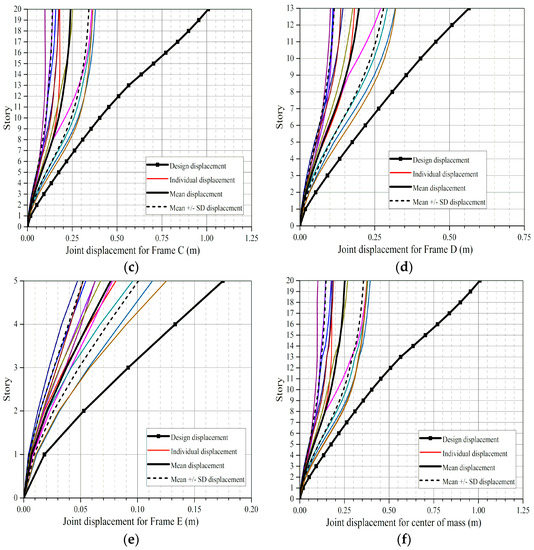

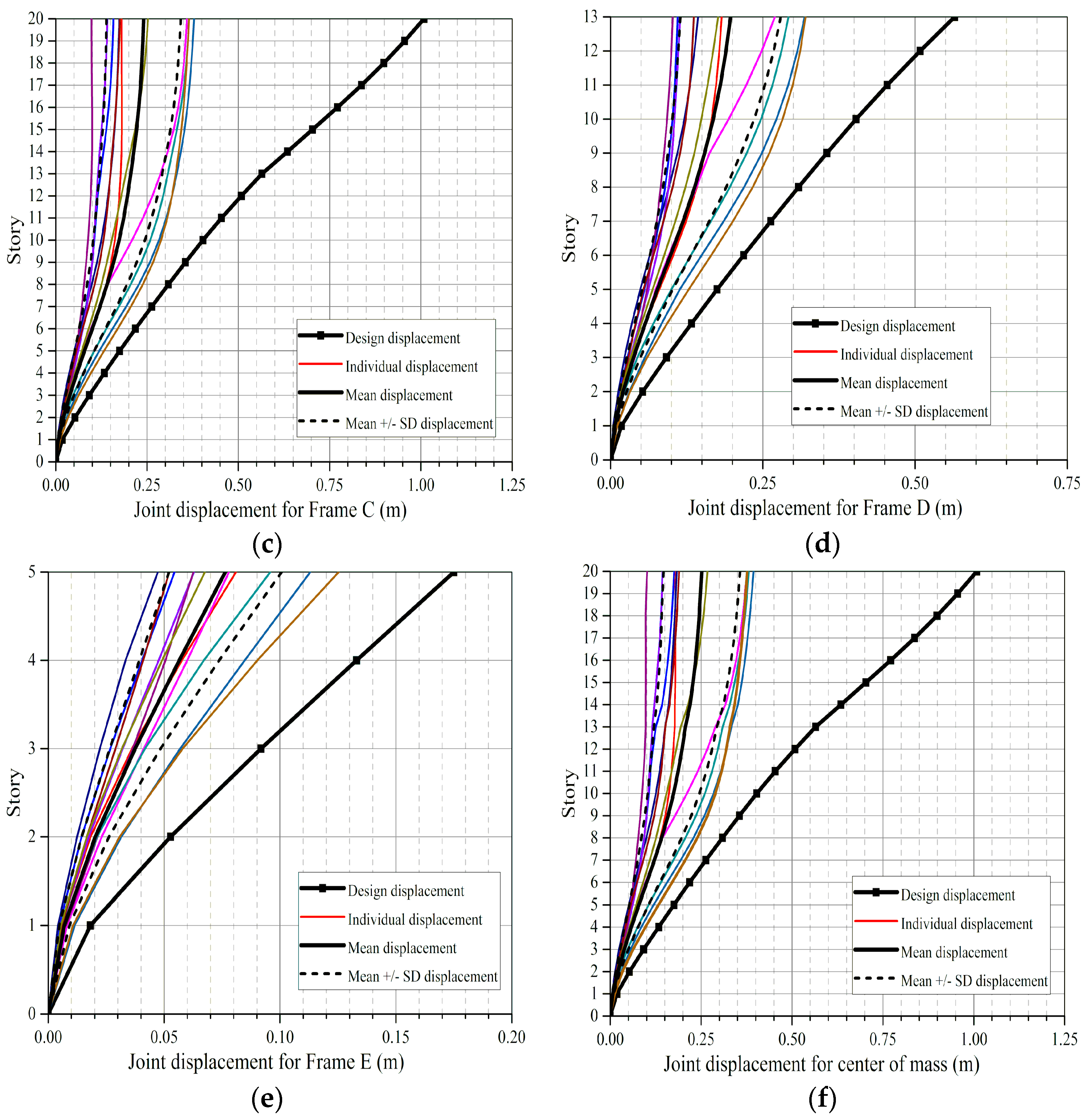

5.2. Case-II Building

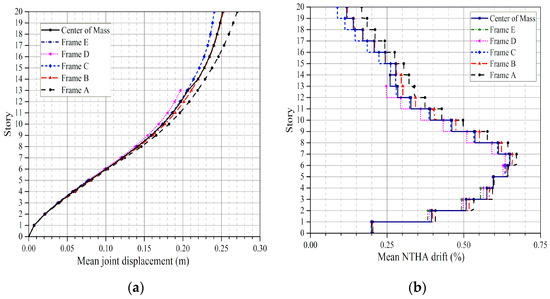

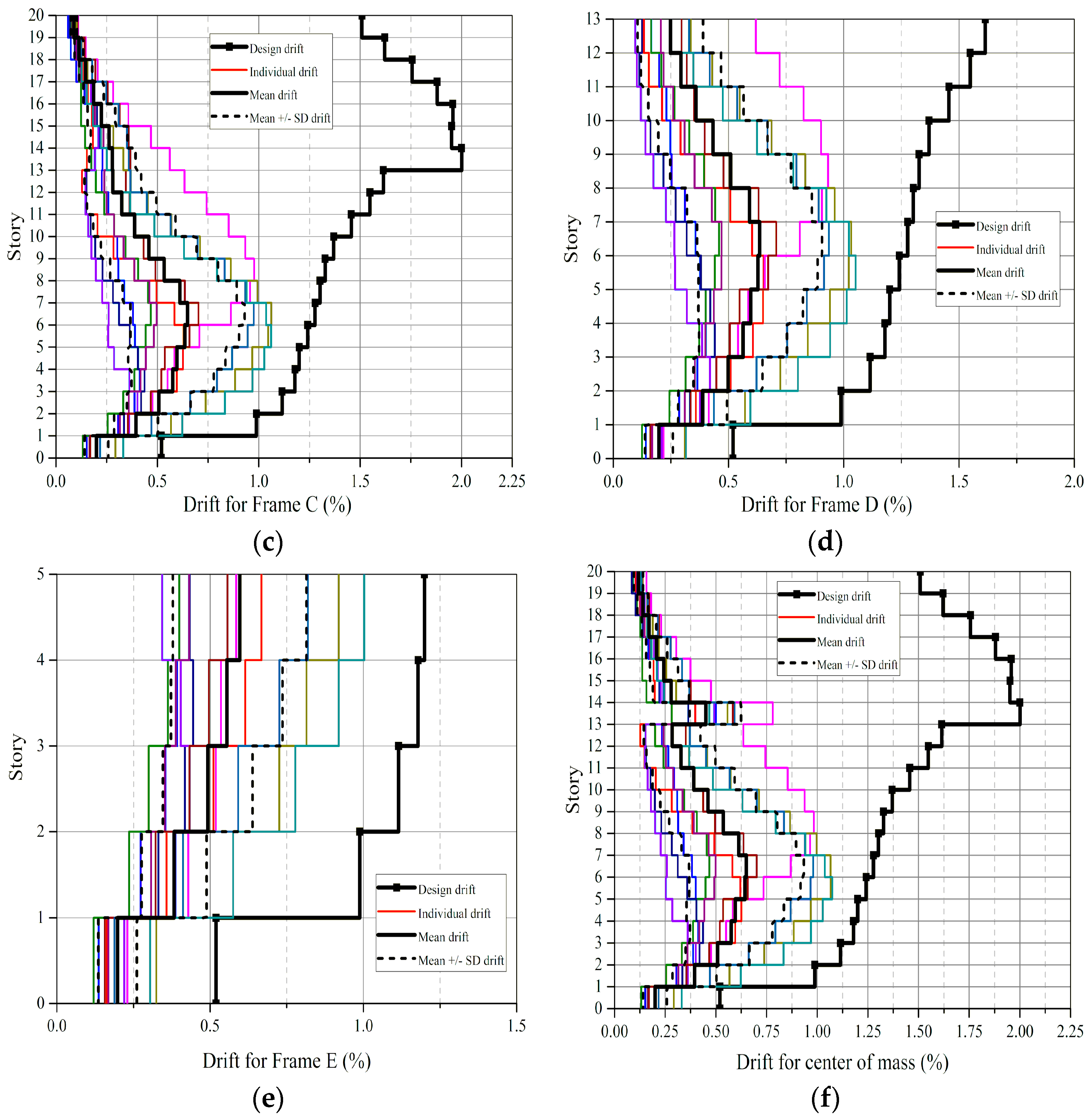

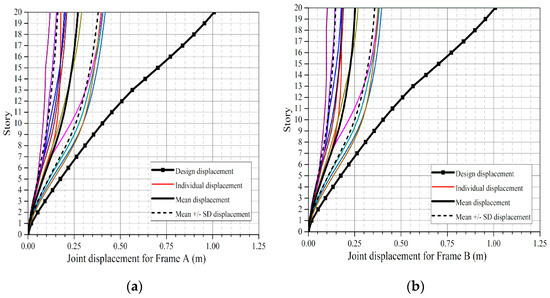

The code specified drift for the governing performance level (i.e., 2 percent) and design drifts are not exceeded for any of NTHA drifts (Figure 11). The result shows the method is conservative in attaining the design drifts for the LS performance level. This is because secant stiffness of the frames obtained based on the 2-percent drift is higher than that from 4-percent drift. As a result, elastic higher-mode periods are obtained that produce significant elastic force effects since periods are on the rising and constant plateau of the design acceleration response spectrum. Thus, design for these force effects gives the frames higher strength than required. NTHA drifts decrease as the story increases although this is not the case for the design drift profile (Figure 11). Less discrepancy is obtained between NTHA and design displacements as well as NTHA and design drifts at the lower stories (Figure 11 and Figure 12). NTHA displacements and drifts of the frames show less identical response compared to the Case-I building. The difference of the mean story displacements between the frames at the extreme ends of the buildings (for example, at the 5th story for frame A and E) is 6 percent, at the 13th story for frame A and D 10 percent, and at the 20th story for frame A and C 11 percent (Figure 13a).

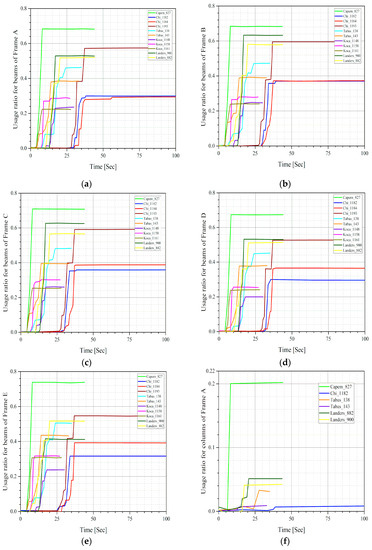

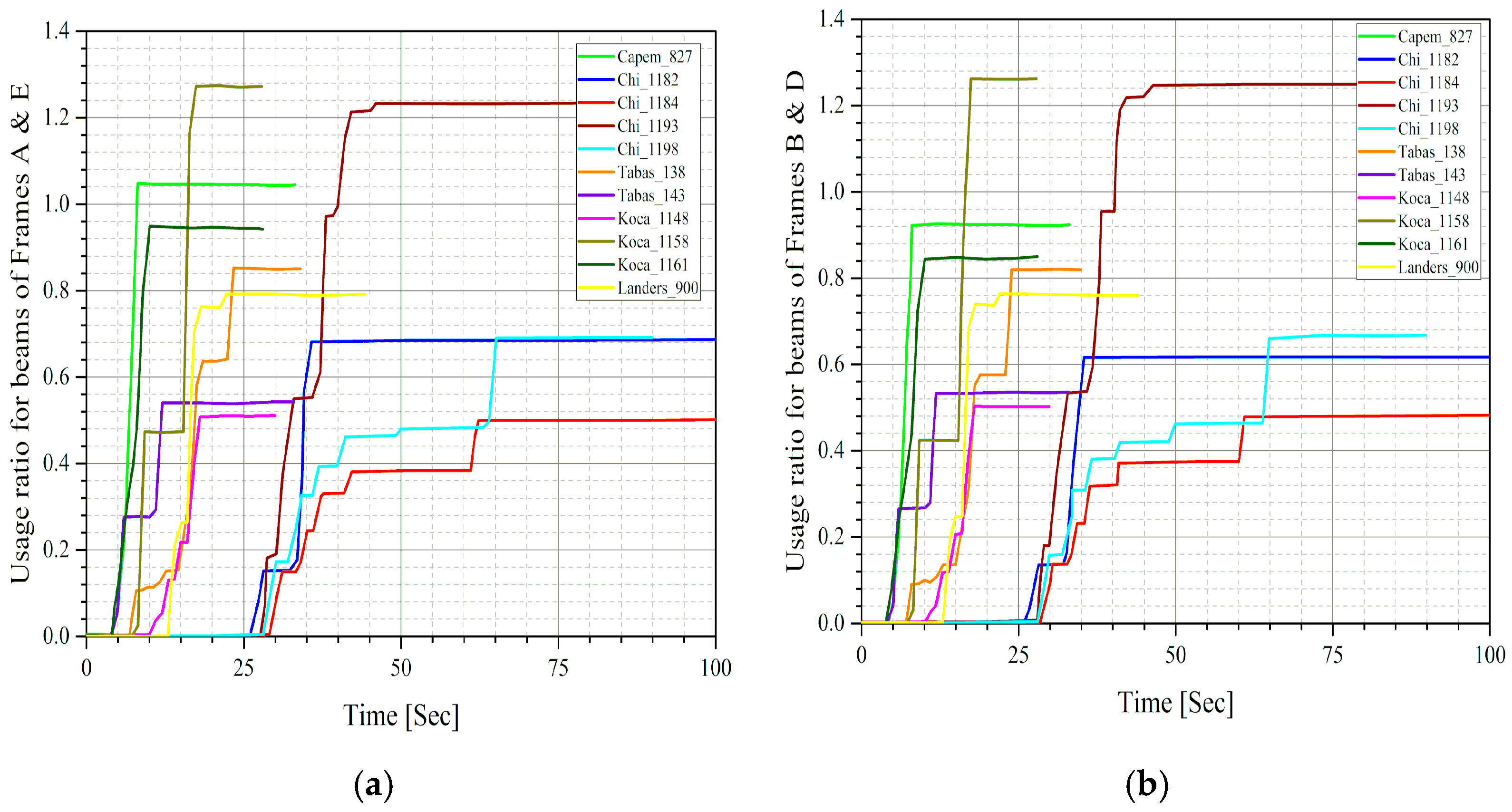

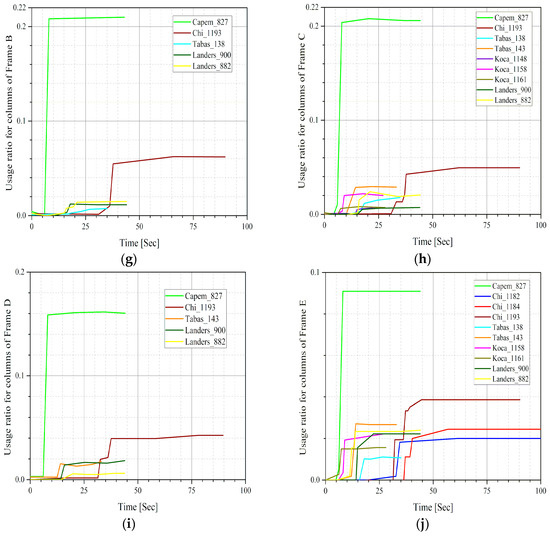

Beam usage ratios for the frames range from 0.4 to 0.45 with an average of 0.43 (Figure 14a–e), while for the columns the usage ratios vary between 0.02 and 0.033, and the mean is 0.03 (Figure 14f–j). The ranges show that similar seismic demands are imposed on each frame, which indicates that uneven responses of frames due to floor rotations (global torsion) are insignificant. Conservatism for the ranges can be minimized by redesigning members, but since the aim is to check the performance of the procedure without redesigning members, it can be inferred that the safety is ensured using the proposed design procedure.

In general, low mean NTHA outputs are produced compared to the design outputs. Factors affecting the outputs include the following:

• To reduce computational effort and time, the design should not be done for each member. Members having similar analysis outputs must be grouped in one category, and design has to be performed for the maximum output from the category. Consequently, some members’ design will be conservative.
• Negative and positive moment capacities of beams, though different values, are the same on a given bay. Thus, some beams will have higher strength than needed.
• The choice of amplification factor (φ^o/φ_s) applied to columns forces affect the design.
• The empirical equations of yield drift and equivalent viscous damping ratio induce errors.

6. Conclusions

A performance-based seismic design procedure is proposed to account for torsional and higher-mode responses in the DDBD of plan-asymmetric RC frame buildings. In the procedure, a technique is developed to minimize torsional response by assigning secant stiffness of the frames that eliminate the eccentricity between the centers of secant-stiffness rigidity and supported mass (the mass on and above that story). To define the design story displacements, the procedure employs a modal analysis and scales the mode shapes so that allowable story drift is not exceeded. In such a way, the effect of stiffness and mass irregularity along the height are considered. The P-Δ effect is included using a non-parametric equation, which is applicable for general cases.

The procedure does not exceed the allowable story drifts of the intended performance levels though the mean NTHA displacements and drifts are low compared to the design displacements and drifts. It greatly reduces the floor rotations of the building with mass and stiffness irregularity along the height. Translational and rotational coupling has become insignificant, and approximately only translational motion is achieved when subjected to the ground motions. Allowable hinge rotations are compared with the corresponding mean NTHA outputs by usage ratios. It was observed that the mean NTHA outputs of usage ratios are within a tolerable limit, and uniform responses for each frame are obtained. The target failure mechanism (i.e., the beam-sway mechanism) is also achieved.

At the current stage, the proposed design method has been tested for moment-resisting RC frame buildings subjected to uni-directional ground motions. The proposed procedure is found to produce designs that achieve the performance objective without redesigning members. It is hoped that upon using the procedure, a step forward is undertaken toward rendering NTHA less necessary, thereby saving computational resources and effort.

Future research should consider the effect of bi-directional ground motions on the proposed method. The applicability of the method to buildings made of steel, precast, prestressed, composite, FRP reinforced, etc., should be checked. It should also be investigated for sufficient samples of lateral-load resisting systems other than rigid-frame buildings such as braced, wall, and wall-frame buildings.
