Review

Flavonoids Affect Host-Microbiota Crosstalk through TLR Modulation

by
Francisco J. Pérez-Cano
1,2,*,
Malen Massot-Cladera
1,2,
Maria J. Rodríguez-Lagunas
2,3 and
Margarida Castell
1,2
1
Departament de Fisiologia, Facultat de Farmàcia, Universitat de Barcelona, Spain
2
Institut de Recerca en Nutrició i Seguretat Alimentària (INSA-UB), E-08028 Barcelona, Spain
3
Departament de Ciències Fisiològiques II, Facultat de Medicina, Universitat de Barcelona, Feixa Llarga s/n, L′Hospitalet de Llobregat, E-08907 Barcelona, Spain
*
Author to whom correspondence should be addressed.
Antioxidants 2014, 3(4), 649-670; https://doi.org/10.3390/antiox3040649
Submission received: 31 July 2014 / Revised: 7 August 2014 / Accepted: 26 September 2014 / Published: 17 October 2014
(This article belongs to the Special Issue Interactions between Dietary Flavonoids and Gut Microbiota: Functional Outcomes)
Browse Figures
Versions Notes

Abstract

:
Interaction between host cells and microbes is known as crosstalk. Among other mechanisms, this takes place when certain molecules of the micro-organisms are recognized by the toll-like receptors (TLRs) in the body cells, mainly in the intestinal epithelial cells and in the immune cells. TLRs belong to the pattern-recognition receptors and represent the first line of defense against pathogens, playing a pivotal role in both innate and adaptive immunity. Dysregulation in the activity of such receptors can lead to the development of chronic and severe inflammation as well as immunological disorders. Among components present in the diet, flavonoids have been suggested as antioxidant dietary factors able to modulate TLR-mediated signaling pathways. This review focuses on the molecular targets involved in the modulatory action of flavonoids on TLR-mediated signaling pathways, providing an overview of the mechanisms involved in such action. Particular flavonoids have been able to modify the composition of the microbiota, to modulate TLR gene and protein expression, and to regulate the downstream signaling molecules involved in the TLR pathway. These synergistic mechanisms suggest the role of some flavonoids in the preventive effect on certain chronic diseases.

1. Host-Microbiota Crosstalk and Dietary Factors

1.1. Interaction between Microbiota and the Host

The intestinal mucosa is constantly interacting with a high load of antigens, which comprises, besides those from food, those derived from microbes, both commensal microbiota and invading pathogens. For this reason, the gastrointestinal tract contains the intestinal epithelial cells (IEC) that act as a physical barrier, and the largest part of the immune system: the gut-associated lymphoid tissue (GALT), with approximately 70% of the body immune cells [1]. The main function of the IEC and immune cells located in the intestine is to discriminate precisely between the potential harmful antigens, and then mounting an effective immune response, and those which are innocuous and therefore do not require counteraction from the host, a process known as oral tolerance [2]. The key and ineludible first action in this discrimination consists of the recognition of microbial components in the intestine.
The microbial interaction with host cells (both immune and non-immune cells) is known as crosstalk. Certain microbiota components can be recognized through the pattern-recognition receptors (PRRs). These are host innate immune receptors involved in the detection of pathogens that recognize conserved molecular structures known as pathogen-associated molecular patterns (PAMPs) as well as microbe-associated molecular patterns (MAMPs) (host-commensal interactions) and induce the production of innate effector molecules. These can be located on the cell membrane or in the cytosol joining to bacterial-surface-exposed structures or nucleic acids, respectively. The cytosolic receptors are composed of two major families: the nucleotide oligomerization domain (NOD)—like receptors (NLRs) such as NOD1, NOD2 and NLRP1, and the retinoic acid inducible gene I (RIG-1)—like receptors (RLRs) which recognizes viral RNAs. The cell membranes’ PRRs include toll-like receptors (TLRs) that may reside outside the cell or in specialized vesicular compartments (endosomes) where they detect DNA and RNA derived from viruses and bacteria [3].
PRRs represent the first line of host defense against pathogens, play a pivotal role in both innate and adaptive immunity and can lead to the subsequent inflammatory process. Their activation results not only in local mucosal immunity but also in systemic immune responses. In this sense, small amounts of MAMPS and exogenous antigens from microbes are handled in a homeostatic manner when the PRRs are operating in a healthy manner, leading then to an appropriate pathway activation and balanced mediators secretion. However, dysregulation in the activity of such receptors can lead to the development of chronic and severe inflammation as well as immunological disorders, including septic shock, atherosclerosis, diabetes and cancer [4,5].
It can be of importance to study the influence of diet in such initial activation. Among components present in the diet, polyphenols, mainly flavonoids, have been suggested as dietary factors able to modulate TLR-mediated signaling pathways [5].

1.2. Toll-Like Receptors

Each host TLR recognizes distinct PAMPs derived from various microbial pathogens including viruses, bacteria, protozoa and fungi. However, besides their microbial-sensing activity, TLRs also play a role in the recognition of endogenous intracellular molecules released by activated or necrotic cells and extracellular matrix, called damage-associated molecular patterns (DAMPs), which also lead to an inflammatory response which is needed to promote tissue repair [6].
In addition, TLR activation induces the expression of many immune and inflammatory genes via the stimulation of nuclear factor κB (NF-κB) and mitogen-activated protein kinases (MAPKs), such as extracellular signal-regulated kinase (ERK), p38 and c-jun N-terminal kinase (JNK) [7]. Generally, NF-κB and MAPKs, involving p38MAPK or JNK, contribute in activating some proinflammatory cytokines [8,9], whereas activation of ERK promotes cell survival [10].
There are 11 human TLRs identified so far, divided into three groups according to the target in which they interact: lipids and lipopeptides (TLR1, 2, 4 and 6), proteins (TLR5) and nucleic acids (TLR3, 7, 8 and 9). TLR1 forms heterodimers with TLR2 (TLR1/2) and recognizes triacyl lipopeptides. TLR2 in concert with TLR1 or TLR6 recognizes a wide variety of PAMPs, including peptidoglycan, lipopeptides and lipoproteins of Gram-negative bacteria, mycoplasma lipopeptides and fungal zymosan. TLR6 in association with TLR2 (TLR2/6) recognizes diacyl lipopeptides. TLR4 interacts with bacterial lipopolysaccharide (LPS). TLR5 recognizes bacterial flagellin. TLR3 recognizes double-strand RNA, and TLR7 and TLR8 interact with the single-strand RNA found during viral replication. TLR9 recognizes unmethylated deoxycytidyl-phosphate-deoxyguanosine (CpG) motifs commonly present in bacterial and viral genomes. Finally, human TLR11 has been reported to be non-functional because of the presence of a stop codon in the gene and TLR10 is able to homodimerize or heterodimerize with TLR1 and TLR2, but its ligand remains unknown [11].
Recognition of PAMPs by host TLRs triggers intracellular signaling cascades through a set of toll/interleukin-1 receptor (TIR) -domain-containing adaptors, including myeloid differentiation primary response protein 88 (MyD88), TIR domain-containing adaptor protein (TIRAP/Mal), TIR domain-containing adaptor inducing interferon (IFN) (TRIF/TICAM1) and TRIF-related adaptor molecule (TRAM/TICAM2) [12]. Each TLR recruits a specific combination of adaptors to activate different transcription factors, giving rise to appropriate inflammatory responses. All TLRs, with the exception of TLR3, share the adaptor MyD88 which recruits IL-1 receptor-associated kinase-4 (IRAK-4) and leads to its phosphorylation. The phosphorylated IRAK-4 then induces the phosphorylation of IRAK-1 [13], which, in turn, activates the tumor necrosis factor receptor-associated factor 6 (TRAF6). TRAF6 induces phosphorylation of the IκB kinase (IKK) complex, resulting in activation of the transcription factor NF-κB [14].
TIRAP mediates the activation of the MyD88-dependent pathway downstream of TLR2 and TLR4 [15]. TRIF is another adaptor molecule for TLR3 and TLR4 that produces a MyD88-independent [16,17] signaling pathway (TRIF-dependent). This pathway activates both NF-κB and interferon regulatory factor 3 (IRF3) to induce the activation of type I interferons (IFNs), and also causes delayed NF-κB activation mediated through the receptor-interacting protein-1 (RIP1) [17]. TRAM selectively mediates the TRIF-dependent pathway downstream of TLR4, but not TLR3.

1.3. Flavonoids

Flavonoids are vegetal compounds that contribute to the brilliant shades of blue, scarlet and orange colors in leaves, flowers and fruits of plants. In addition, they are found in seeds, nuts, grains and spices, and in some beverages such as wine, tea and beer [18]. Chemically, flavonoids are polyphenols which are commonly found conjugated to sugars (as a glycosylated form) although some of them can exist as free aglycones [19].
The basic flavonoid structure is the flavan nucleus consisting of 15-carbon skeleton arranged in two phenyl rings bound by a three-carbon bridge commonly cyclized with oxygen, then forming three rings labeled A, B, C (Figure 1) [18]. The various classes of flavonoids differ in the level of oxidation and pattern of substitution on the C ring while individual compounds within a class differ in the pattern on substitution of the A and B rings. The major classes of flavonoids are flavonols, flavones, flavanones, isoflavones, flavanols and anthocyanidins (Figure 1).
Antioxidants 03 00649 g001 550

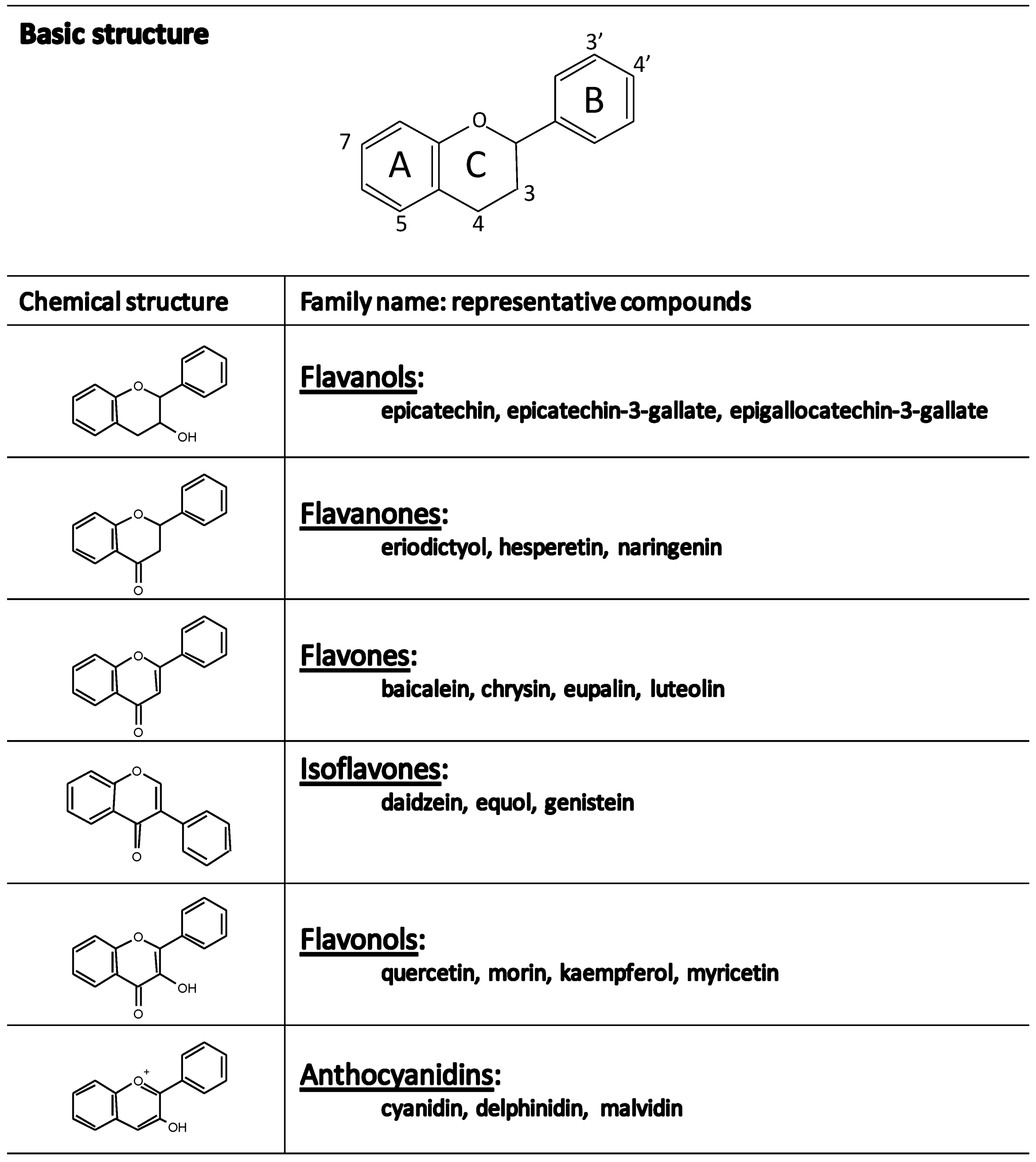

Figure 1. Chemical structure and representative compounds from the main families of flavonoids.
Figure 1. Chemical structure and representative compounds from the main families of flavonoids.
Antioxidants 03 00649 g001
Flavonols are ubiquitous in plants and are found mainly in fruit skin, being the yellow and red onions one of the richest sources of them [20]. The flavonol class includes kaempferol, quercetin, and myricetin typically found as glycosides. The flavones, such as apigenin, luteolin, and baicalin, are less widely distributed, although substantial amounts of apigenin and luteolin have been detected in cereal grain and some aromatic herbs (parsley, rosemary, thyme) [18,20]. The most abundant flavanone is naringenin, followed by hesperidin, eriodictyol and hesperetin. They are present in especially high amounts in citrus fruits and usually occur as rutinosides and neohesperidosides, which differ in taste [19]. Isoflavones are found most often in leguminous plants with substantial quantities of daidzein and genistein occurring in soybean [20]. Flavanols (flavan-3-ols) include monomeric and polymeric forms called procyanidins (condensed tannins). Monomeric forms are catechins and gallic acid esters of catechins and epicatechins [19]. They are widely distributed in plants and fruits and also in tea leaves [18]. Anthocyanidins have a fully aromatized C ring and as a result they are positively charged. The most common of these natural water-soluble compounds are pelargonidin, cyaniding, delphinidin, and malvidin, which form conjugates with sugars and organic acids to generate a multitude of anthocyanins that confer a wide range of colors, ranging from orange and red to blue and purple, on fruits (specially in berries like strawberries, blueberries, blackberries and blackcurrants), vegetables and plants [21,22].

2. Objective

There is increasing scientific evidence of a relationship between diets rich in natural antioxidants and the prevention of several chronic diseases. The inverse association between dietary antioxidants and inflammatory-like disorders is supported by several epidemiological and interventional studies [23]. Polyphenols, including flavonoids, are the most commonly consumed dietary antioxidants and therefore they may be one of the major responsible for the healthy effect of fruit-and-vegetable-enriched diets. As the activation of the TLR pathway constitutes the first step in the inflammatory cascade activation, and its deregulation can lead to severe chronic inflammation and immune disorders, it is plausible to hypothesize a downmodulatory action of flavonoids in the TLR-induced pathways.
This review focuses on the molecular targets and mechanisms involved in the modulatory action of flavonoids on TLR-mediated signaling pathways. In this context, it aims to provide an overview of the three major levels involved in such action: by varying the composition of the microbiota, by modulating the expression and activation of TLRs and, finally, by modifying the downstream signaling pathways involved. The synergy of all these mechanisms may explain the high potential of flavonoids for preventing certain types of disorders (Figure 2). The suppression of TLR activation by flavonoids offers new potential interventions for ameliorating inflammatory diseases and therefore constitutes a new alternative to current approaches.

3. Mechanisms of Modifying “Cross-Talk” by Flavonoids

3.1. Influence on Growth and Composition of Microbiota

Bacterial composition (i.e., types of MAMP and PAMP) is one of the major factors influencing TLR activation. In turn, dietary habits are known to modulate the composition of the gut microbiota [24]. For this reason, the earliest level involved in modifying the host-bacteria crosstalk by dietary flavonoids involves the modification of the microbial inhabitants in the gut (Figure 2). There is evidence showing that several kinds of flavonoids, including flavanones, flavonols, flavanols, and isoflavones, modify the microbiota composition. This has been recently reviewed by Etxeberria et al. [22] who extensively compile the latest investigations regarding the impact of phenolic compounds, as pure chemicals or in the food context, on microbial communities in both in vitro and in vivo studies (in animal and human interventions).
Antioxidants 03 00649 g002 550

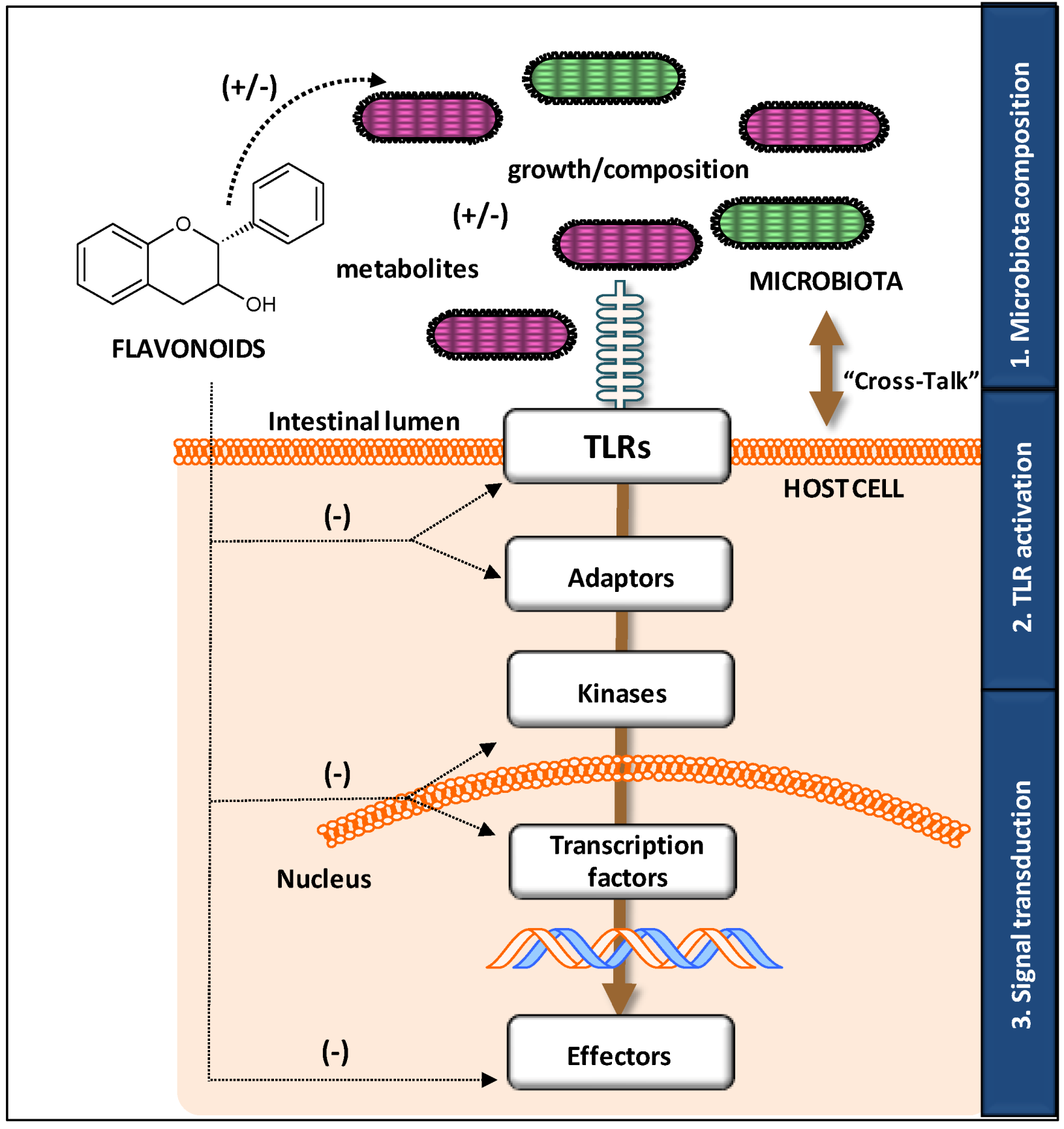

Figure 2. Overview of the mechanisms involved in the regulation of microbiota-host crosstalk by flavonoids. They can act at three different levels by modulating: (1) microbiota composition, by means of directly (flavonoid) or indirectly (metabolite) affecting the growth; (2) Toll-like receptor (TLR) activation, by means of acting on the receptor and its adaptor proteins; (3) signal transduction, by means of interfering with upstream and downstream kinases as well as the transcription factors involved in the inflammatory and immune response activation.
Figure 2. Overview of the mechanisms involved in the regulation of microbiota-host crosstalk by flavonoids. They can act at three different levels by modulating: (1) microbiota composition, by means of directly (flavonoid) or indirectly (metabolite) affecting the growth; (2) Toll-like receptor (TLR) activation, by means of acting on the receptor and its adaptor proteins; (3) signal transduction, by means of interfering with upstream and downstream kinases as well as the transcription factors involved in the inflammatory and immune response activation.
Antioxidants 03 00649 g002
With regard to pure flavonoids, an in vitro study tested the impact of particular flavonols (rutin, quercetin), flavanols (catechin) and flavanones (naringin, naringenin, hesperidin and hesperetin) on the growth of pure cultures of six bacteria species [25]. The author showed the dose-dependent inhibitory effect of the aglycones naringenin and quercetin on the growth of all bacteria species studied, which was stronger than that of their glycosides [25]. On the other hand, both quercetin (aglycone) and rutin (glycoside) significantly increased the growth of the major intestinal Bacteroidetes and Firmicutes phyla, with a greater increase in the former than in the latter in vitro [26]. However hesperetin and catechin (both aglycones) showed no or weak antibacterial activity against most of the analysed bacteria [25], which was later corroborated by an in vitro study evaluating the antimicrobial activity of five aglycones on the growth of the probiotic Bifidobacterium adolescentis [27]. Similarly, the repressing and/or stimulating effect induced by flavanols, such as catechin and epicatechin, on the growth of certain bacteria has been reported in in vitro and batch cultures studies [28,29].
Besides those studies of particular flavonoids on bacteria in vitro, there are a number of studies showing the changes induced by flavonoid-rich foods on microbiota composition. In order to synthesize the available data, and based on the recompilation performed by Etxeberria et al. [22], the Figure 3 below classifies the number of studies or treatments with polyphenols, mainly flavonoids, into the antimicrobial activity or the growth-promoting effect on the more prevalent bacterial groups.
Antioxidants 03 00649 g003 550

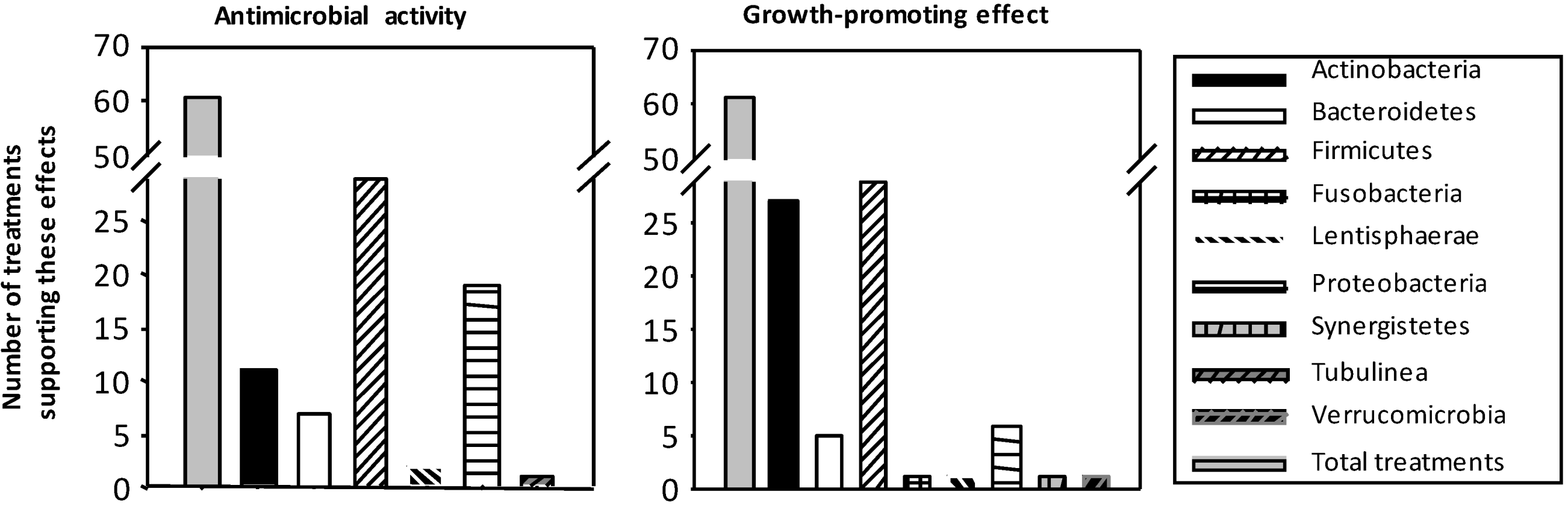

Figure 3. Summary of the number of treatments using beverages (cocoa, tea and wine), fruits or vegetables (soy, pomegranate, grapes, berries and apples) rich in flavonoids and their impact on bacterial growth. There is a high number of studies with flavonoids (in vitro and in vivo) showing both antimicrobial activity (left) and growth-promoting effects (right) on the more prevalent bacterial groups.
Figure 3. Summary of the number of treatments using beverages (cocoa, tea and wine), fruits or vegetables (soy, pomegranate, grapes, berries and apples) rich in flavonoids and their impact on bacterial growth. There is a high number of studies with flavonoids (in vitro and in vivo) showing both antimicrobial activity (left) and growth-promoting effects (right) on the more prevalent bacterial groups.
Antioxidants 03 00649 g003
Globally, more than 100 experiments have shown that bacterial groups in gut microbiota are affected by beverages (cocoa, tea and wine) and fruits/vegetables rich in flavonoids, either showing antimicrobial activity or, on the contrary, promoting the growth of certain bacteria. These effects have been shown in all types of flavonoids.
Concerning the effect of flavonoid-rich beverages, the intake of cocoa, which mainly contains epicatechin and catechin, and their polymeric forms, was able to inhibit the growth of Clostridium histolyticum/C. perfringens, Staphylococcus and Streptococcus genera in preclinical and clinical studies [28,30]. In the same way, tea flavonoids exerted an antimicrobial activity against selective bacterial species [31], whereas bifidogenic properties have also been attributed to them [32,33]. Differences in the proportion of the four major bacteria phyla in humans (Proteobacteria, Fusobacteria, Firmicutes, and Bacteroidetes) have been observed after a nutritional intervention with red wine which contains a complex mixture of polyphenols, mainly including flavanols and anthocyanins [34]. Similar effects have been described in rats treated for 16 weeks with wine polyphenol, which showed a predominant proportion of Lactobacillus and Bifidobacterium spp. [35], while controversial results were obtained in an in vitro batch culture [33,36]. Nevertheless, these effects were not so pronounced or even disappeared in humans when consuming dealcoholized red wine [34].
Changes have also been observed in the Firmicutes, Actinobacteria and/or Bacteroidetes proportions induced by soy products, which mainly contain isoflavones, in in vitro, preclinical and clinical studies [37,38,39,40]. In addition, the potential modulation of gut microbiota composition by fruits has been thoroughly reviewed by Etxeberria et al. [22]. To date, a large amount of evidence suggests that fruits and their derivatives are able to significantly boost the growth of colonic-friendly bacteria, such as Bifidobacterium and Lactobacillus [41,42,43,44].
Overall, it can be summarized that the intake of flavonoids is able to modulate the composition of the gut microbiota, potentiating the growth of specific beneficial bacteria strains (Lactobacillus and Bifidobacterium in >70% of the studies), and also inhibiting the growth of certain pathogenic bacteria (i.e., Clostridium). It must be added that, despite the evidence described above, natural flavonoids are not the only responsible for this effect on gut microbiota but their metabolites are also involved. Flavonoids and related compounds can reach the colon where they become substrate for the microbial metabolism [45,46]. Indeed, intestinal bacteria have the ability to metabolize flavonoids, more or less efficiently, depending on their chemical structure, to simpler and more bioavailable metabolites [20,47]. This transformation modulates the biological activities of these compounds, which, in general, are more beneficial after colonic metabolism than in their original forms [45,46,48,49,50]. Besides the known biological activity of most small phenolic metabolites, several microbial catabolites from epicatechin, epigallocatechin or naringenin have been described possessing important antimicrobial activity, especially against Gram-negative species [51].

3.2. Modulatory Action on TLR Gene and Protein Expression

TLR pathways can be modulated by flavonoids at different levels (Figure 2). Both TLR gene expression and cell membrane expression, which are directly related with TLR functionality, can be affected by flavonoids. Under homeostatic conditions IEC have low expression of TLR2 and TLR4, and therefore in a healthy context, TLR activation is low; however, in an inflammatory scenario, TLR expression on IEC increases and then TLR signaling is triggered [52].
Both in vitro studies (Table 1), using primary cells or cell lines, and in vivo studies (Table 2) have evidenced the influence of different classes of flavonoids on TLR gene and protein expression. The best results regarding the down-regulatory effect of flavonoids have been raised in the presence of TLR activators (i.e., LPS as an in vitro TLR4 activator) whereas lack of effect is found under non stimulatory conditions (i.e., in healthy animals/subjects).
LPS-stimulated J774 macrophages treated with the flavonols engeletin and astilbin showed inhibition of TLR4 gene expression [53]. In addition, kaempferol-3-O-sophoroside down-regulated the cell surface expression of TLR2 and TLR4 in endothelial cells [54] as did quercetin in PBMC after challenge [55]. Flavanones as naringenin and hesperidin have shown similar effects. In particular, naringenin down-regulates TLR2 and TLR4 protein expression and TLR2 mRNA levels in PBMC after being challenged with Chlamyidia trachomatis [56]. Other assays performed in vitro in 3T3-L1 cells during adipocyte differentiation and in vivo in C57Bl/6j mice after a high fat diet (HFD) agree with the inhibitory effect of naringenin on TLR2 gene expression, although no effect was found for TLR4 [57].
Table
Table 1. Flavonoids on TLR gene and protein expression in in vitro studies.
Table 1. Flavonoids on TLR gene and protein expression in in vitro studies.
FlavonoidDoseDuration 1TLR 2Studied TargetCell (Challenge)Reference
FLAVONOLS Engeletin10/50 μM2 h↓ TLR4mRNAJ774 macrophages (LPS)[53]
Astilbin↓ TLR4mRNA
Kaempferol-3-O-sophoroside–6 h↓ TLR2ProteinEndothelial cells[54]
↓ TLR4
Quercetin25 μM1 h↓ TLR2ProteinPBMC[55]
↓ TLR4
FLAVANONES Naringenin1 μg/mL48 h↓ TLR2Protein/mRNAJ774 macrophages (C. trachomatis)[56]
↓ TLR4mRNA
Naringenin100 μM–↓ TLR2mRNA3T3L1 cells (adipocyte differentiation)[57]
FLAVANOLS Epigallocatechin-3-gallate1 μM24 h↓ TLR4Protein/mRNARAW 264.7 macrophages (LPS)[58]
Epigallocatechin-3-gallate10 μM24 h↔ TLR4mRNAMurine bone marrow-derived DCs (unstimulated)[59]
FLAVONES Baicalin40/80 μM24 + 3 h↔ TLR1-9mRNAHuman oral keraynocytes (LPS)[60]
Baicalin5/10 μg/mL0.5–6 h↓ TLR2Protein/mRNAPC12 and primary rat neurons (oxygen glucose deprivation)[61]
↓ TLR4Protein/mRNA
Notes: 1 Treatment duration is showed when detailed in the article, if it is not provided a (–) is showed; 2 Changes in gene expression are summarized by means of an increase (↑), decrease (↓) or not affected (↔) by the intervention.
Table
Table 2. Flavonoids on TLR gene or protein expression in in vivo studies.
Table 2. Flavonoids on TLR gene or protein expression in in vivo studies.
FlavonoidDoseDurationTLR 1,2Studied TargetCellReference
FLAVONES LuteolinDaily dose of 10 and 25 mg/kg body weight24/78 h↓ TLR4Protein/mRNACerebral cortex from. p.o 3 fed SD rats[62]
↓ TLR5
BaicalinOne dose of 50 mg/kg body weight4 h↓ TLR2Protein/Mice hippocampus cells (carotid arteries ligation)[61]
↓ TLR4mRNA
mRNA
FLAVANONES Naringenin1% included in food16 weeks↓ TLR2mRNAAdipocytes C57Bl/6J mice after HFD[57]
EXTRACTS Achyrocline satureoides (Quercetin and Luteolin)One dose of 100 mg/kg1 h↓ TLR4ProteinNeutrophils from p.o fed Wistar rats[63]
Cocoa (Procyanidins)5%/10% included in food3 weeks↔ , ↓ TLR2mRNASmall intestine and mesenteric lymph nodes from p.o fed Wistar rats[64]
↔ , ↔ TLR4
↔ ,↓ TLR7
↔ , ↑ TLR9
Cocoa (Procyanidins)10%included in food7 weeks↔ , ↓ , ↔ TLR2mRNASmall intestine, Peyer’s patches and mesenteric lymph nodes from p.o fed Wistar rats[65]
↓ , ↑, ↔ TLR4
↔ , ↓ , ↔ TLR7
↔ , ↑ , ↑ TLR9
Cocoa (Procyanidins)10% included in food6 weeks↔ TLR2mRNALarge intestine from p.o fed Wistar rats[30]
↔ TLR4
↔ TLR7
↓ TLR9
Orange juice (Flavanones)One dose of 300 kcal drink of orange juice1/3/5 h↓ TLR2 mRNAMononuclear cells from healthy subjects given high-fat high-carbohydrate meal[66]
↓ TLR4Protein
Orange juice (Flavanones)One dose of 300 kcal drink of orange juice1/3/5 h↔ TLR4mRNAMononuclear cells from healthy subjects given high-fat high-carbohydrate meal[67]
Protein
Notes: 1 The TLR changes are expressed as the effect on each studied tissue in the same order as mentioned on the cell/challenge column separated among them with a comma; 2 Changes in gene expression are summarized by means of an increase (↑), decrease (↓) or not affected (↔) by the intervention; 3 p.o. means per os or administration by oral route.
Flavones have been shown to also modulate TLR gene expression in both in vitro and in vivo studies. Isoliquiritigenin decreased, among other targets, the gene expression of TLR4 in RAW 264.7 macrophage line [68], and luteolin administrated at different doses to rats was able to suppress the overexpression of TLR4 and TLR5 induced by ischemia in the cerebral cortex at both protein and gene level [62]. Baicalin added to human oral keratynocytes culture was able to down-regulate P. gingivalis LPS-induced expression of downstream genes associated with TLR signaling, but almost no changes were found in the gene expression of TLR1-9 determined by the PCR array [60]. However, in another study, baicalin down-regulated protein and gene expression of TLR2 and TLR4 both in vitro—PC12 and primary neurons under oxygen glucose deprivation conditions—and in vivo—hippocampus cells from mice after carotid arteries ligation [61].
With regard to flavanols, gene and cell surface expression and total protein level of TLR4 were markedly reduced by the addition of epigallocatechin gallate (EGCG) to LPS-stimulated RAW 264.7 macrophages [58]. However, it did not affect TLR4 gene expression when murine bone marrow-derived DCs were in resting conditions [58], which is in agreement with other studies where the flavonoid is not able to modify TLRs in the absence of stimulatory conditions. On the contrary, a semi-synthetic flavonoid called flavopiridol did not alter the TLR4 cell surface expression in LPS-stimulated RAW 264.7 macrophages [69].
Some extracts rich in flavonoids have also shown an effect on TLR gene expression, mainly in in vivo studies. Thus, the oral treatment of Wistar rats with a hydroalcoholic extract of Achyrocline satureoides, a rich source of quercetin and luteolin, decreased TLR4 expression on neutrophils [63]. Wistar rats fed cocoa, a rich source of procyanidins among other flavonoids, showed changes in the expression of several TLR in different tissues of the intestinal immune system [64]: a cocoa diet induced an up-regulation of TLR4 and TLR9 gene expression and a down-regulation of TLR2 and TLR7 gene expression in Peyer’s patches (PPs) and mesenteric lymph nodes (MLNs). Conversely, in small intestine (SI) tissue, cocoa-fed animals showed lower values for TLR4 and TLR9 mRNA and a higher value for TLR2 and TLR7 [65]. However, a similar design did not show a clear effect on colonic tissue, where microbiota is mainly found [30]. It should be taken into account that the effects induced by these extracts cannot be exclusively attributed to flavonoids because other components may be acting as well (i.e., theobromine and fiber in cocoa).
In humans, two interventional studies using orange juice have evaluated the increase in TLR2 and TLR4 mRNA and protein expression in PBMC, induced by a high-fat high-carbohydrate meal, in volunteers [66,67].
In addition to flavonoids, the effect on TLR genes or surface expression by other polyphenols has also been reported. Thus, curcumin decreases TLR2 gene and surface expression in immune cell lines (monocytic THP-1 cells and dHL-60 promyelocytic leukaemia cells) and in primary cells (peripheral blood polymorphonuclear neutrophils, PMN) [70], and a complement containing resveratrol prevented the increase in TLR4 gene expression in PBMC induced by a high-fat, high-carbohydrate meal in healthy subjects [71].
Finally, it has recently been described that TLR gene expression is subject to circadian rhythms [72,73] which might be related to the presence of flavonoids and other exogenous regulators of TLR in the diet.
It should be also mentioned that certain flavonoids in vivo may not be the only direct responsible of the induced effects because indirect effects, through one or more of its microbial metabolites, might be also considered. However, in the in vitro studies the TLR modulation should be due to direct effects because the microbial metabolism is not present in such approach. Further studies with this aim should be developed.

3.3. Modulatory Action in TLR Activation

The activation of TLR intracellular signaling activation requires further processes that can also be targeted by flavonoids. These processes include the accumulation of lipid rafts, microdomains rich in cholesterol and sphingolipids that act as platforms for downstream molecules and seem to be a key factor in the activation of immune cells, TLR dimerization/oligomerization [74], its glycosilation and the participation of adaptor proteins.
Thus, quercetin and luteolin could interact with lipid rafts [75], whereas isoliquiritigenin was able to suppress LPS-induced dimerization of TLR4 in a dose-dependent manner in RAW 264.7 macrophage cell line [68]. Polyphenols such as curcumin and resveratrol have also shown this effect [74]. With regard to the influence on TLR glycosilation, Helicobacter pylori infection seems to initiate the inflammatory cascade in gastric epithelial cells by TLR4 glycosilation, fact that has been reported suppressed by EGCG [47].
There are at least five adaptor proteins of TLR and each of these has a TIR domain (i.e., TRIF or MyD88), which directly or indirectly binds to the TIR domain of a TLR [76]. Flavonoids seem to modulate the pathways involving such adaptors, however from the literature it is difficult to ascertain which is the specific target affected and mainly focus on downstream molecules (Figure 4). As examples, isoliquiritigenin in RAW 264.7 macrophages was able to suppress the MyD88-dependent pathway (i.e., IRAK1 degradation) [68] whereas other in vitro studies performed in RAW 264.7 cells and also in 293T (human embryonic kidney cell line) showed that EGCG treatment was able to modulate both MyD88- and TRIF-dependent signaling pathways [77].
On the other hand, it has to be taken into account that TLR gene expression can be self-regulated by downstream molecules participating in its signaling (i.e., NF-κB) [78], which potentiates the down-modulatory effect of those flavonoids able to act on both targets.

3.4. Effect on Signal Transduction Molecules

A large number of articles can be found regarding the effect of flavonoids on the activity of different protein kinases that regulate various intracellular signaling cascades, such as MAPK [79,80]. For this reason flavonoids may also modify the downstream kinases activated after TLR triggering. Furthermore, oxidative stress accompanying inflammation, which also leads to MAPK activation, seems to be controlled by the direct action of flavonoids (Figure 4).
The activation of MAPK engages ERK 1 and 2, JNK and p38 MAPK linked to stress stimuli, such as ROS overproduction or inflammation, and among other actions, this stimulation induces the phosphorylation of inhibitor proteins such as κB inhibitor proteins (IκBs), involved in the NF-κB pathway. The modulation of the activity of NF-κB, a pro-inflammatory transcription factor, is one of the clearest effects of certain flavonoids [81,82]. NF-κB triggers the expression of over 100 genes, many of them involved in the inflammatory response [83]. NF-κB is found in the cytoplasm of non-stimulated cells bound to IκBs which are modulated by MAPK action.
To date in the TLR context, the flavanols epicatechin gallate (ECG) and EGCG in human dental pulp fibroblast were able to block the ligand-stimulated TLR2 cell signaling pathways throughout the down-regulation of downstream mechanisms such as p38MAPK, SAP/JNK, ERK1/2 and phosphorylation of IkBa and p65 subunit of NF-κB [84]. Likewise, in DC, EGCG inhibited LPS-induced MAPK and NF-κB activation [59].
Flavones, flavonols and flavanones also modulate these kinases. Luteolin inhibits p38 MAPK [62] and IκB kinase activity [85] both indicating a role for this flavonoid in MyD88-dependent signaling pathway. Baicalin may inhibit P. gingivalis LPS-induced activation of NF-κB, p38 MAPK and JNK [60], and same inflammatory pathway when the study was performed in isquemic neurons [86]. The flavonol flavopiridol—quercetin analogue—was also able to regulate the downstream TLR2 and TLR3 pathways through the MyD88-dependent pathway but not the independent pathway, as was demonstrated by in vitro studies showing inhibition of the activation of NF-κB and MAPKs but not TRAF6 [69]. Flavanones such as naringenin inhibited TLR2 pathways by the modulation of IκB degradation and JNK phosphorylation [57], and also down-regulated the induced increase of phosporylation of p38 MAPK in macrophages infected with Chlamyidia trachomatis [56].
Foods rich in flavonoids, such as cocoa, have also shown this potential in vitro, either by their scavenging action or by direct interaction with the downstream kinases [87,88]. In this context, epicatechin, catechin and dimeric B procyanidins seem to be accumulated in the cytosol and act at the early stages of NF-κB activation, regulating oxidant levels and reducing IκBs phosphorylation, whereas cocoa dimeric procyanidins seem to be able to enter the nuclei and selectively avoid NF-κB binding to DNA [89].
Overall, it is plausible that the different structures of flavonoids and their regiospecific modifications in their side chains lead to different bioactivities. In this sense, Lim et al. [90] studied the effect of five classes of plant-derived flavonoids (flavonols, flavones, flavanones, catechins and cyanidins) on TLR2 pathway in vitro and found differential effects on the targets studied, such as p38 MAPK and NF-κB.
TBK1, a representative kinase found in TRIF-dependent TLR activation, participates in IRF3 activation and type I IFNs production (Figure 4). Some flavonoids, such as EGCG, luteolin, quercetin, chrysiin and eriodictyol, showed inhibitory effects on this downstream kinase whereas others, such as naringenin and hesperitin, had no effect [77,91,92]. Moreover, isoliquiritigenin was able to suppress TLR3 and TLR4 agonist-induced IRF3 activations in RAW 264.7 macrophage cell line [93]. These results demonstrated the down-regulatory activity of certain flavonoids on the TLR3 and TLR4 TRIF-dependent pathways (Figure 4).
Another mechanism can be proposed as an alternative to the direct actions of flavonoids on specific targets of the TLR pathway. In recent years, the importance of the intracellular negative regulators of TLRs such as SOCS1, TOLLIP, IRAK or SIGIRR has been described [94]. In this regard, procyanidin dimer B2-treated macrophages up-regulate IRAK-M protein and therefore also suppress TLR4 signaling and phosphorylation of MAPKs such as ERK1/2, p38 and JNK [95]. Moreover, EGCG has been shown to up-regulate TOLLIP protein expression through a 67-kDa Laminin receptor (67LR) in macrophages [58] and in DCs [59].
Furthermore, as previously described, DAMPs can also activate TLR pathways and it seems that flavonoids can target these molecules as well. For example, a DAMP known as high mobility group box protein 1 (HMGB1) acts as an endogen ligand of TLR2 and TLR4 when it is released to the extracellular compartment [6] and this release by endothelial cells is modulated by kaempferol-3-O-sophoroside [54].
Antioxidants 03 00649 g004 550

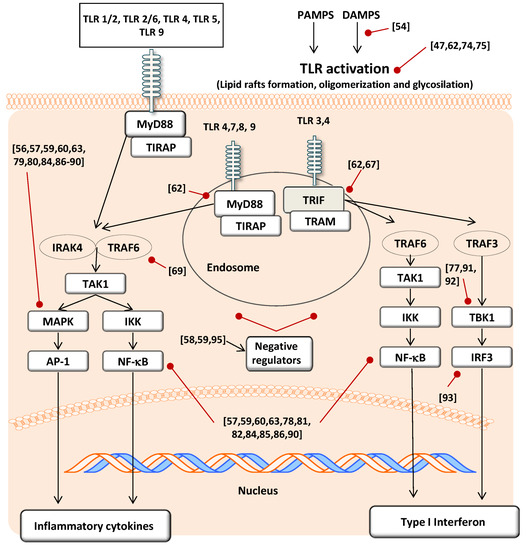

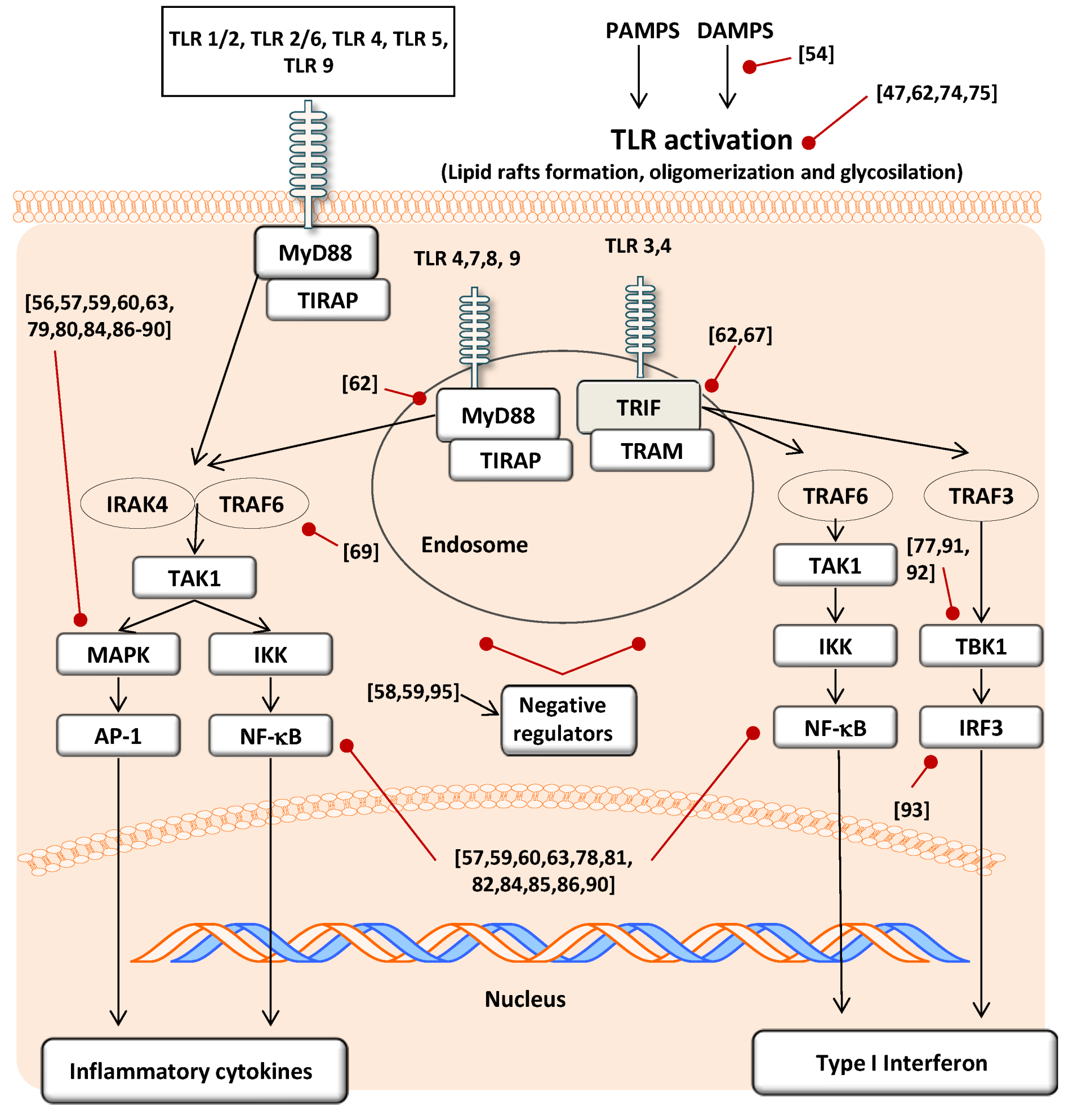

Figure 4. Signal transduction molecules affected by the flavonoids modulatory action on TLR activation. Both, the MyD88 dependent (left) and independent (right) pathways are modulated by the effect of several flavonoids on targets from different upstream (TLR expression and activation; adaptors modulation) and downstream levels (kinases and transcription factors). Black arrows indicate stimulation of the pathway and red arrows indicate inhibition of the pathway. In brackets there are the references cited in the text.
Figure 4. Signal transduction molecules affected by the flavonoids modulatory action on TLR activation. Both, the MyD88 dependent (left) and independent (right) pathways are modulated by the effect of several flavonoids on targets from different upstream (TLR expression and activation; adaptors modulation) and downstream levels (kinases and transcription factors). Black arrows indicate stimulation of the pathway and red arrows indicate inhibition of the pathway. In brackets there are the references cited in the text.
Antioxidants 03 00649 g004
Overall, it can be suggested that changes in microbiota composition and TLR modulation by flavonoids may have also an impact on the intestinal immune activation and oral tolerance. In this sense, flavonoids by modulating intestinal microbiota (Section 3.1) may polarize the immune response towards the T-cell mediated tolerogenic pathway. At the same time the repression of the TLR signaling, which is associated to innate immune tolerance [96], can be also produced by flavonoids (Section 3.2). As certain flavonoids have been described to present immunomodulator activity by inducing changes on the GALT [97] and on systemic immune cells [98], as well as on regulatory T cells [99,100], we may suggest the possible implication of TLR signaling modulation herein described by flavonoids in such immunoregulatory effects.

4. Conclusions

Flavonoids are able to act as exogenous regulators of TLR and therefore modulate the host-microbiota crosstalk. This is possible due to their ability to modulate the TLR signaling pathways at different levels. On one hand, flavonoids can modify the composition of the microbiota, either by direct action or through their microbial catabolites, acting as antimicrobial agents on certain bacterial groups or as growth promoters for other bacteria. On the other hand, flavonoids can modulate the gene expression, the initial activation process of the receptor, and the upstream and downstream signaling molecules involved in the TLR pathway. These synergistic mechanisms make some flavonoids interesting modulatory agents on TLR-mediated inflammatory responses and therefore it is plausible to think that their preventive effect on certain chronic diseases, associated with exacerbated TLR activation, may be at least in part result from TLR regulation.
Based on these effects, we suggest that more preclinical, in vitro and animal model, studies, as well as human clinical trials, should be carried out with flavonoids regarding this aspect. Taking into account the lack of toxic effects and the high availability from natural sources, they should be considered as tools to counteract the increase in inflammatory-based diseases in our society.

Acknowledgements

This study was supported by grants from the Spanish Ministry of Economy and Competitiveness (AGL2011-24279).

Author Contributions

Francisco J. Pérez-Cano and Margarida Castell were mainly responsible for designing the study; Francisco J. Pérez-Cano, Maria J. Rodríguez-Lagunas, Malen Massot-Cladera and Margarida Castell carried out the scientific searches and drafted the manuscript; all authors contributed to and approved the final version of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brandtzaeg, P. Function of mucosa-associated lymphoid tissue in antibody formation. Immunol. Investing. 2010, 39, 303–355. [Google Scholar] [CrossRef]
  2. Pabst, O.; Mowat, A.M. Oral tolerance to food protein. Mucosal. Immunol. 2012, 5, 232–239. [Google Scholar] [CrossRef] [PubMed]
  3. Marques, R.; Boneca, I.G. Expression and functional importance of innate immune receptors by intestinal epithelial cells. Cell. Mol. Life Sci. 2011, 68, 3661–3673. [Google Scholar] [CrossRef] [PubMed]
  4. Ospelt, C.; Gay, S. TLRs and chronic inflammation. Int. J. Biochem. Cell. Biol. 2010, 42, 495–505. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Jeong, E.; Lee, J.Y. Intrinsic and extrinsic regulation of innate immune receptors. Yonsei Med. J. 2011, 52, 379–392. [Google Scholar] [CrossRef] [PubMed]
  6. Piccinini, A.M.; Midwood, K.S. Illustrating the interplay between the extracellular matrix and microRNAs. Int. J. Exp. Pathol. 2014, 95, 158–180. [Google Scholar] [CrossRef] [PubMed]
  7. McGettrick, A.F.; O’Neill, L.A.J. Localisation and trafficking of toll-like receptors: An important mode of regulation. Curr. Opin. Immunol. 2010, 22, 20–27. [Google Scholar] [CrossRef] [PubMed]
  8. Allan, S.M.; Rothwell, N.J. Cytokines and acute neurodegeneration. Nat. Rev. Neurosci. 2001, 2, 734–744. [Google Scholar] [CrossRef] [PubMed]
  9. Thompson, W.L.; van Eldik, L.J. Inflammatory cytokines stimulate the chemokines CCL2/MCP-1 and CCL7/MCP-7 through NFκB and MAPK dependent pathways in rat astrocytes. Brain Res. 2009, 1287, 47–57. [Google Scholar] [CrossRef] [PubMed]
  10. Xia, Z.; Dickens, M.; Raingeaud, J.; Davis, R.J.; Greenberg, M.E. Opposing effects of ERK and JNK-p38 MAP kinases on apoptosis. Science 1995, 270, 1326–1331. [Google Scholar] [CrossRef] [PubMed]
  11. Yu, L.; Wang, L.; Chen, S. Endogenous toll-like receptor ligands and their biological significance. J. Cell. Mol. Med. 2010, 14, 2592–2603. [Google Scholar] [CrossRef] [PubMed]
  12. Newton, K.; Dixit, V.M. Signaling in innate immunity and inflammation. Cold Spring Harb. Perspect. Biol. 2012, 4. [Google Scholar] [CrossRef]
  13. Cao, Z.; Henzel, W.J.; Gao, X. IRAK: A kinase associated with the interleukin-1 receptor. Science 1996, 271, 1128–1131. [Google Scholar] [CrossRef] [PubMed]
  14. Takeda, K.; Akira, S. Microbial recognition by toll-like receptors. J. Dermatol. Sci. 2004, 34, 73–82. [Google Scholar] [CrossRef] [PubMed]
  15. Takeda, K.; Akira, S. TLR signaling pathways. Semin. Immunol. 2004, 16, 3–9. [Google Scholar] [CrossRef] [PubMed]
  16. Hoebe, K.; Du, X.; Georgel, P.; Janssen, E.; Tabeta, K.; Kim, S.O.; Goode, J.; Lin, P.; Mann, N.; Mudd, S.; et al. Identification of Lps2 as a key transducer of MyD88-independent TIR signaling. Nature 2003, 424, 743–748. [Google Scholar] [CrossRef] [PubMed]
  17. Yamamoto, M.; Sato, S.; Hemmi, H.; Hoshino, K.; Kaisho, T.; Sanjo, H.; Takeuchi, O.; Sugiyama, M.; Okabe, M.; Takeda, K.; et al. Role of adaptor TRIF in the MyD88-independent toll-like receptor signaling pathway. Science 2003, 301, 640–643. [Google Scholar] [CrossRef] [PubMed]
  18. Pietta, P.G. Flavonoids as antioxidants. J. Nat. Prod. 2000, 63, 1035–1042. [Google Scholar] [CrossRef] [PubMed]
  19. Corradini, E.; Foglia, P.; Giansanti, P.; Gubbiotti, R.; Samperi, R.; Lagana, A. Flavonoids: Chemical properties and analytical methodologies of identification and quantitation in foods and plants. Nat. Prod. Res. 2011, 25, 469–495. [Google Scholar] [CrossRef] [PubMed]
  20. Del Rio, D.; Rodriguez-Mateos, A.; Spencer, J.P.E.; Tognolini, M.; Borges, G.; Crozier, A. Dietary (poly)phenolics in human health: Structures, bioavailability, and evidence of protective effects against chronic diseases. Antioxid. Redox Signal. 2013, 18, 1818–1892. [Google Scholar] [CrossRef] [PubMed]
  21. Crozier, A.; Del Rio, D.; Clifford, M.N. Bioavailability of dietary flavonoids and phenolic compounds. Mol. Aspects Med. 2010, 31, 446–467. [Google Scholar] [CrossRef] [PubMed]
  22. Etxeberria, U.; Fernández-Quintela, A.; Milagro, F.I.; Aguirre, L.; Martínez, J.A.; Portillo, M.P. Impact of polyphenols and polyphenol-rich dietary sources on gut microbiota composition. J. Agric. Food Chem. 2013, 61, 9517–9533. [Google Scholar] [PubMed]
  23. Pérez-Jiménez, J.; Díaz-Rubio, M.E.; Saura-Calixto, F. Non-extractable polyphenols, a major dietary antioxidant: Occurrence, metabolic fate and health effects. Nutr. Res. Rev. 2013, 26, 118–129. [Google Scholar] [CrossRef] [PubMed]
  24. Tremaroli, V.; Bäckhed, F. Functional interactions between the gut microbiota and host metabolism. Nature 2012, 489, 242–249. [Google Scholar] [CrossRef] [PubMed]
  25. Duda-Chodak, A. The inhibitory effect of polyphenols on human gut microbiota. J. Physiol. Pharmacol. 2012, 63, 497–503. [Google Scholar] [PubMed]
  26. Parkar, S.G.; Trower, T.M.; Stevenson, D.E. Fecal microbial metabolism of polyphenols and its effects on human gut microbiota. Anaerobe 2013, 23, 12–19. [Google Scholar] [CrossRef] [PubMed]
  27. Kawabata, K.; Sugiyama, Y.; Sakano, T.; Ohigashi, H. Flavonols enhanced production of anti-inflammatory substance(s) by Bifidobacterium adolescentis: Prebiotic actions of galangin, quercetin, and fisetin. Biofactors 2013, 39, 422–429. [Google Scholar] [CrossRef] [PubMed]
  28. Tzounis, X.; Rodriguez-Mateos, A.; Vulevic, J.; Gibson, G.R.; Kwik-Uribe, C.; Spencer, J.P.E. Prebiotic evaluation of cocoa-derived flavanols in healthy humans by using a randomized, controlled, double-blind, crossover intervention study. Am. J. Clin. Nutr. 2011, 93, 62–72. [Google Scholar] [CrossRef] [PubMed]
  29. Lee, H.C.; Jenner, A.M.; Low, C.S.; Lee, Y.K. Effect of tea phenolics and their aromatic fecal bacterial metabolites on intestinal microbiota. Res. Microbiol. 2006, 157, 876–884. [Google Scholar] [CrossRef] [PubMed]
  30. Massot-Cladera, M.; Pérez-Berezo, T.; Franch, A.; Castell, M.; Pérez-Cano, F.J. Cocoa modulatory effect on rat faecal microbiota and colonic crosstalk. Arch. Biochem. Biophys. 2012, 527, 105–112. [Google Scholar] [CrossRef] [PubMed]
  31. Friedman, M. Overview of antibacterial, antitoxin, antiviral, and antifungal activities of tea flavonoids and teas. Mol. Nutr. Food Res. 2007, 51, 116–134. [Google Scholar] [CrossRef] [PubMed]
  32. Jin, J.-S.; Touyama, M.; Hisada, T.; Benno, Y. Effects of green tea consumption on human fecal microbiota with special reference to Bifidobacterium species. Microbiol. Immunol. 2012, 56, 729–739. [Google Scholar] [CrossRef] [PubMed]
  33. Kemperman, R.A.; Gross, G.; Mondot, S.; Possemiers, S.; Marzorati, M.; van de Wiele, T.; Doré, J.; Vaughan, E.E. Impact of polyphenols from black tea and red wine/grape juice on a gut model microbiome. Food Res. Int. 2013, 53, 659–669. [Google Scholar] [CrossRef]
  34. Queipo-Ortuño, M.I.; Boto-Ordóñez, M.; Murri, M.; Gomez-Zumaquero, J.M.; Clemente-Postigo, M.; Estruch, R.; Cardona Díaz, F.; Andrés-Lacueva, C.; Tinahones, F.J. Influence of red wine polyphenols and ethanol on the gut microbiota. Am. J. Clin. Nutr. 2012, 95, 1323–1334. [Google Scholar] [CrossRef] [PubMed]
  35. Dolara, P.; Luceri, C.; de Filippo, C.; Femia, A.P.; Giovannelli, L.; Caderni, G.; Cecchini, C.; Silvi, S.; Orpianesi, C.; Cresci, A. Red wine polyphenols influence carcinogenesis, intestinal microflora, oxidative damage and gene expression profiles of colonic mucosa in F344 rats. Mutat. Res. 2005, 591, 237–246. [Google Scholar] [CrossRef] [PubMed]
  36. Sánchez-Patán, F.; Cueva, C.; Monagas, M.; Walton, G.E.; Gibson, G.R.M.; Quintanilla-López, J.E.; Lebrón-Aguilar, R.; Martín-Álvarez, P.J.; Moreno-Arribas, M.V.; Bartolomé, B. In vitro fermentation of a red wine extract by human gut microbiota: Changes in microbial groups and formation of phenolic metabolites. J. Agric. Food Chem. 2012, 60, 2136–2147. [Google Scholar] [CrossRef] [PubMed]
  37. De Boever, P.; Deplancke, B.; Verstraete, W. Fermentation by gut microbiota cultured in a simulator of the human intestinal microbial ecosystem is improved by supplementing a soygerm powder. J. Nutr. 2000, 130, 2599–2606. [Google Scholar] [PubMed]
  38. Bedani, R.; Pauly-Silveira, N.D.; Roselino, M.N.; de Valdez, G.F.; Rossi, E.A. Effect of fermented soy product on the fecal microbiota of rats fed on a beef-based animal diet. J. Sci. Food Agric. 2010, 90, 233–238. [Google Scholar] [CrossRef] [PubMed]
  39. Cavallini, D.C.U.; Suzuki, J.Y.; Abdalla, D.S.P.; Vendramini, R.C.; Pauly-Silveira, N.D.; Roselino, M.N.; Pinto, R.A.; Rossi, E.A. Influence of a probiotic soy product on fecal microbiota and its association with cardiovascular risk factors in an animal model. Lipids Health Dis. 2011, 10, 126. [Google Scholar] [CrossRef] [PubMed]
  40. Fernandez-Raudales, D.; Hoeflinger, J.L.; Bringe, N.A.; Cox, S.B.; Dowd, S.E.; Miller, M.J.; de Mejía, E.G. Consumption of different soymilk formulations differentially affects the gut microbiomes of overweight and obese men. Gut Microbes 2012, 3, 490–500. [Google Scholar] [CrossRef] [PubMed]
  41. Sembries, S.; Dongowski, G.; Mehrländer, K.; Will, F.; Dietrich, H. Physiological effects of extraction juices from apple, grape, and red beet pomaces in rats. J. Agric. Food Chem. 2006, 54, 10269–10280. [Google Scholar] [CrossRef] [PubMed]
  42. Bialonska, D.; Kasimsetty, S.G.; Schrader, K.K.; Ferreira, D. The effect of pomegranate (Punica granatum L.) byproducts and ellagitannins on the growth of human gut bacteria. J. Agric. Food Chem. 2009, 57, 8344–8349. [Google Scholar] [CrossRef] [PubMed]
  43. Vendrame, S.; Guglielmetti, S.; Riso, P.; Arioli, S.; Klimis-Zacas, D.; Porrini, M. Six-week consumption of a wild blueberry powder drink increases bifidobacteria in the human gut. J. Agric. Food Chem. 2011, 59, 12815–12820. [Google Scholar] [CrossRef] [PubMed]
  44. Neyrinck, A.M.; van Hée, V.F.; Bindels, L.B.; de Backer, F.; Cani, P.D.; Delzenne, N.M. Polyphenol-rich extract of pomegranate peel alleviates tissue inflammation and hypercholesterolaemia in high-fat diet-induced obese mice: Potential implication of the gut microbiota. Br. J. Nutr. 2013, 109, 802–809. [Google Scholar] [CrossRef] [PubMed]
  45. Selma, M.V.; Espín, J.C.; Tomás-Barberán, F.A. Interaction between phenolics and gut microbiota: Role in human health. J. Agric. Food Chem. 2009, 57, 6485–6501. [Google Scholar] [CrossRef] [PubMed]
  46. Monagas, M.; Urpi-Sarda, M.; Sánchez-Patán, F.; Llorach, R.; Garrido, I.; Gómez-Cordovés, C.; Andrés-Lacueva, C.; Bartolomé, B. Insights into the metabolism and microbial biotransformation of dietary flavan-3-ols and the bioactivity of their metabolites. Food Funct. 2010, 1, 233–253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Lee, K.-M.; Yeo, M.; Choue, J.-S.; Jin, J.-H.; Park, S.-J.; Cheong, J.-Y.; Lee, K.-J.; Kim, J.-H.; Hahm, K.-B. Protective mechanism of epigallocatechin-3-gallate against Helicobacter pylori-induced gastric epithelial cytotoxicity via the blockage of TLR-4 signaling. Helicobacter 2004, 9, 632–642. [Google Scholar] [CrossRef] [PubMed]
  48. Clifford, M.N. Diet-derived phenols in plasma and tissues and their implications for health. Planta Med. 2004, 70, 1103–1114. [Google Scholar] [CrossRef] [PubMed]
  49. Tzounis, X.; Vulevic, J.; Kuhnle, G.G.C.; George, T.; Leonczak, J.; Gibson, G.R.; Kwik-Uribe, C.; Spencer, J.P. Flavanol monomer-induced changes to the human faecal microflora. Br. J. Nutr. 2008, 99, 782–792. [Google Scholar] [CrossRef] [PubMed]
  50. Neilson, A.P.; Ferruzzi, M.G. Influence of formulation and processing on absorption and metabolism of flavan-3-ols from tea and cocoa. Annu. Rev. Food Sci. Technol. 2011, 2, 125–151. [Google Scholar] [CrossRef] [PubMed]
  51. Tuohy, K.M.; Conterno, L.; Gasperotti, M.; Viola, R. Up-regulating the human intestinal microbiome using whole plant foods, polyphenols, and/or fiber. J. Agric. Food Chem. 2012, 60, 8776–8782. [Google Scholar] [CrossRef] [PubMed]
  52. De Kivit, S.; Tobin, M.C.; Forsyth, C.B.; Keshavarzian, A.; Landay, A.L. Regulation of intestinal immune responses through TLR activation: Implications for pro- and prebiotics. Front. Immunol. 2014, 5, 60. [Google Scholar] [CrossRef] [PubMed]
  53. Huang, H.; Cheng, Z.; Shi, H.; Xin, W.; Wang, T.T.Y.; Yu, L.L. Isolation and characterization of two flavonoids, engeletin and astilbin, from the leaves of Engelhardia roxburghiana and their potential anti-inflammatory properties. J. Agric. Food Chem. 2011, 59, 4562–4569. [Google Scholar] [CrossRef] [PubMed]
  54. Kim, T.H.; Ku, S.-K.; Bae, J.-S. Inhibitory effects of kaempferol-3-O-sophoroside on HMGB1-mediated proinflammatory responses. Food Chem. Toxicol. 2012, 50, 1118–1123. [Google Scholar] [CrossRef] [PubMed]
  55. Bhaskar, S.; Shalini, V.; Helen, A. Quercetin regulates oxidized LDL induced inflammatory changes in human PBMCs by modulating the TLR-NF-κB signaling pathway. Immunobiology 2011, 216, 367–373. [Google Scholar] [CrossRef] [PubMed]
  56. Yilma, A.N.; Singh, S.R.; Morici, L.; Dennis, V.A. Flavonoid naringenin: A potential immunomodulator for Chlamydia trachomatis inflammation. Mediators Inflamm. 2013, 2013. [Google Scholar] [CrossRef]
  57. Yoshida, H.; Watanabe, W.; Oomagari, H.; Tsuruta, E.; Shida, M.; Kurokawa, M. Citrus flavonoid naringenin inhibits TLR2 expression in adipocytes. J. Nutr. Biochem. 2013, 24, 1276–1284. [Google Scholar] [CrossRef] [PubMed]
  58. Byun, E.H.; Fujimura, Y.; Yamada, K.; Tachibana, H. TLR4 signaling inhibitory pathway induced by green tea polyphenol epigallocatechin-3-gallate through 67-kDa laminin receptor. J. Immunol. 2010, 185, 33–45. [Google Scholar] [CrossRef] [PubMed]
  59. Byun, E.-B.; Choi, H.-G.; Sung, N.-Y.; Byun, E.-H. Green tea polyphenol epigallocatechin-3-gallate inhibits TLR4 signaling through the 67-kDa laminin receptor on lipopolysaccharide-stimulated dendritic cells. Biochem. Biophys. Res. Commun. 2012, 426, 480–485. [Google Scholar] [CrossRef] [PubMed]
  60. Luo, W.; Wang, C.-Y.; Jin, L. Baicalin downregulates Porphyromonas gingivalis lipopolysaccharide-upregulated IL-6 and IL-8 expression in human oral keratinocytes by negative regulation of TLR signaling. PLoS One 2012, 7, e51008. [Google Scholar] [CrossRef]
  61. Li, H.-Y.; Yuan, Z.-Y.; Wang, Y.-G.; Wan, H.-J.; Hu, J.; Chai, Y.-S.; Lei, F.; Xing, D.-M.; Du, L.-J. Role of baicalin in regulating toll-like receptor 2/4 after ischemic neuronal injury. Chin. Med. J. 2012, 125, 1586–1593. [Google Scholar] [PubMed]
  62. Qiao, H.; Zhang, X.; Zhu, C.; Dong, L.; Wang, L.; Zhang, X.; Xing, Y.; Wang, C.; Ji, Y.; Cao, X. Luteolin downregulates TLR4, TLR5, NF-κB and p-p38MAPK expression, upregulates the p-ERK expression, and protects rat brains against focal ischemia. Brain Res. 2012, 1448, 71–81. [Google Scholar] [CrossRef] [PubMed]
  63. Barioni, E.D.; Santin, J.R.; Machado, I.D.; de Paula Rodrigues, S.F.; Ferraz-de-Paula, V.; Wagner, T.M.; Cogliati, B.; Corrêa Dos Santos, M.; Machado Mda, S.; de Andrade, S.F.; et al. Achyrocline satureioides (Lam.) D.C. hydroalcoholic extract inhibits neutrophil functions related to innate host defense. Evid. Based Complement. Alternat. Med. 2013, 2013. [Google Scholar] [CrossRef]
  64. Pérez-Berezo, T.; Franch, A.; Ramos-Romero, S.; Castellote, C.; Pérez-Cano, F.J.; Castell, M. Cocoa-enriched diets modulate intestinal and systemic humoral immune response in young adult rats. Mol. Nutr. Food Res. 2011, 55, S56–S66. [Google Scholar] [CrossRef] [PubMed]
  65. Pérez-Berezo, T.; Franch, A.; Castellote, C.; Castell, M.; Pérez-Cano, F.J. Mechanisms involved in down-regulation of intestinal IgA in rats by high cocoa intake. J. Nutr. Biochem. 2012, 23, 838–844. [Google Scholar] [CrossRef] [PubMed]
  66. Ghanim, H.; Sia, C.L.; Upadhyay, M.; Korzeniewski, K.; Viswanathan, P.; Abuaysheh, S.; Mohanty, P.; Dandona, P. Orange juice neutralizes the proinflammatory effect of a high-fat, high-carbohydrate meal and prevents endotoxin increase and toll-like receptor expression. Am. J. Clin. Nutr. 2010, 91, 940–949. [Google Scholar] [CrossRef] [PubMed]
  67. Deopurkar, R.; Ghanim, H.; Friedman, J.; Abuaysheh, S.; Sia, C.L.; Mohanty, P.; Viswanathan, P.; Chaudhuri, A.; Dandona, P. Differential effects of cream, glucose, and orange juice on inflammation, endotoxin, and the expression of toll-like receptor-4 and suppressor of cytokine signaling-3. Diabetes Care 2010, 33, 991–997. [Google Scholar] [CrossRef] [PubMed]
  68. Park, S.-J.; Youn, H.-S. Suppression of homodimerization of toll-like receptor 4 by isoliquiritigenin. Phytochemistry 2010, 71, 1736–1740. [Google Scholar] [CrossRef] [PubMed]
  69. Haque, A.; Koide, N.; Iftakhar-E-Khuda, I.; Noman, A.S.M.; Odkhuu, E.; Badamtseren, B.; Naiki, Y.; Komatsu, T.; Yoshida, T.; Yokochi, T. Flavopiridol inhibits lipopolysaccharide-induced TNF-α production through inactivation of nuclear factor-κB and mitogen-activated protein kinases in the MyD88-dependent pathway. Microbiol. Immunol. 2011, 55, 160–167. [Google Scholar] [CrossRef] [PubMed]
  70. Shuto, T.; Ono, T.; Ohira, Y.; Shimasaki, S.; Mizunoe, S.; Watanabe, K.; Suico, M.A.; Koga, T.; Sato, T.; Morino, S.; et al. Curcumin decreases toll-like receptor-2 gene expression and function in human monocytes and neutrophils. Biochem. Biophys. Res. Commun. 2010, 398, 647–652. [Google Scholar] [CrossRef] [PubMed]
  71. Ghanim, H.; Sia, C.L.; Korzeniewski, K.; Lohano, T.; Abuaysheh, S.; Marumganti, A.; Chaudhuri, A.; Dandona, P. A resveratrol and polyphenol preparation suppresses oxidative and inflammatory stress response to a high-fat, high-carbohydrate meal. J. Clin. Endocrinol. Metab. 2011, 96, 1409–1414. [Google Scholar] [CrossRef] [PubMed]
  72. Silver, A.C.; Arjona, A.; Walker, W.E.; Fikrig, E. The circadian clock controls toll-like receptor 9-mediated innate and adaptive immunity. Immunity 2012, 36, 251–261. [Google Scholar] [CrossRef] [PubMed]
  73. Froy, O.; Chapnik, N. Circadian oscillation of innate immunity components in mouse small intestine. Mol. Immunol. 2007, 44, 1954–1960. [Google Scholar] [CrossRef] [PubMed]
  74. Youn, H.S.; Saitoh, S.I.; Miyake, K.; Hwang, D.H. Inhibition of homodimerization of toll-like receptor 4 by curcumin. Biochem. Pharmacol. 2006, 72, 62–69. [Google Scholar] [CrossRef]
  75. Kaneko, M.; Takimoto, H.; Sugiyama, T.; Seki, Y.; Kawaguchi, K.; Kumazawa, Y. Suppressive effects of the flavonoids quercetin and luteolin on the accumulation of lipid rafts after signal transduction via receptors. Immunopharmacol. Immunotoxicol. 2008, 30, 867–882. [Google Scholar] [CrossRef] [PubMed]
  76. Capelluto, D.G.S. Tollip: A multitasking protein in innate immunity and protein trafficking. Microbes Infect. 2012, 14, 140–147. [Google Scholar] [CrossRef] [PubMed]
  77. Youn, H.S.; Lee, J.Y.; Saitoh, S.I.; Miyake, K.; Kang, K.W.; Choi, Y.J.; Hwang, D.H. Suppression of MyD88- and TRIF-dependent signaling pathways of toll-like receptor by (−)-epigallocatechin-3-gallate, a polyphenol component of green tea. Biochem. Pharmacol. 2006, 72, 850–859. [Google Scholar] [CrossRef] [PubMed]
  78. Wu, T.-T.; Chen, T.-L.; Loon, W.-S.; Tai, Y.-T.; Cherng, Y.-G.; Chen, R.-M. Lipopolysaccharide stimulates syntheses of toll-like receptor 2 and surfactant protein-A in human alveolar epithelial A549 cells through upregulating phosphorylation of MEK1 and ERK1/2 and sequential activation of NF-κB. Cytokine 2011, 55, 40–47. [Google Scholar] [CrossRef] [PubMed]
  79. Williams, R.J.; Spencer, J.P.E.; Rice-Evans, C. Flavonoids: Antioxidants or signaling molecules? Free Radic. Biol. Med. 2004, 36, 838–849. [Google Scholar] [CrossRef] [PubMed]
  80. Bhullar, K.S.; Rupasinghe, H.P.V. Polyphenols: Multipotent therapeutic agents in neurodegenerative diseases. Oxid. Med. Cell. Longev. 2013, 2013. [Google Scholar] [CrossRef]
  81. Park, Y.C.; Rimbach, G.; Saliou, C.; Valacchi, G.; Packer, L. Activity of monomeric, dimeric, and trimeric flavonoids on NO production, TNF-α secretion, and NF-κB-dependent gene expression in RAW 264.7 macrophages. FEBS Lett. 2000, 465, 93–97. [Google Scholar] [CrossRef] [PubMed]
  82. Comalada, M.; Camuesco, D.; Sierra, S.; Ballester, I.; Xaus, J.; Gálvez, J.; Zarzuelo, A. In vivo quercitrin anti-inflammatory effect involves release of quercetin, which inhibits inflammation through down-regulation of the NF-κB pathway. Eur. J. Immunol. 2005, 35, 584–592. [Google Scholar] [CrossRef] [PubMed]
  83. Pantano, C.; Reynaert, N.L.; van der Vliet, A.; Janssen-Heininger, Y.M.W. Redox-sensitive kinases of the nuclear factor-κB signaling pathway. Antioxid. Redox Signal. 2006, 8, 1791–1806. [Google Scholar] [CrossRef] [PubMed]
  84. Hirao, K.; Yumoto, H.; Nakanishi, T.; Mukai, K.; Takahashi, K.; Takegawa, D.; Matsuo, T. Tea catechins reduce inflammatory reactions via mitogen-activated protein kinase pathways in toll-like receptor 2 ligand-stimulated dental pulp cells. Life Sci. 2010, 86, 654–660. [Google Scholar] [CrossRef] [PubMed]
  85. Chen, C.-C.; Chow, M.-P.; Huang, W.-C.; Lin, Y.-C.; Chang, Y.-J. Flavonoids inhibit tumor necrosis factor-alpha-induced up-regulation of intercellular adhesion molecule-1 (ICAM-1) in respiratory epithelial cells through activator protein-1 and nuclear factor-kappaB: Structure-activity relationships. Mol. Pharmacol. 2004, 66, 683–693. [Google Scholar] [CrossRef] [PubMed]
  86. Li, H.-Y.; Hu, J.; Zhao, S.; Yuan, Z.-Y.; Wan, H.-J.; Lei, F.; Ding, Y.; Xing, D.-M.; Du, L.-J. Comparative study of the effect of baicalin and its natural analogs on neurons with oxygen and glucose deprivation involving innate immune reaction of TLR2/TNFα. J. Biomed. Biotechnol. 2012, 2012. [Google Scholar] [CrossRef] [PubMed]
  87. Kang, N.J.; Lee, K.W.; Lee, D.E.; Rogozin, E.A.; Bode, A.M.; Lee, H.J.; Dong, Z. Cocoa procyanidins suppress transformation by inhibiting mitogen-activated protein kinase kinase. J. Biol. Chem. 2008, 283, 20664–20673. [Google Scholar] [CrossRef] [PubMed]
  88. Ramiro-Puig, E.; Casadesús, G.; Lee, H.; Zhu, X.; McShea, A.; Perry, G.; Pérez-Cano, F.J.; Smith, M.A.; Castell, M. Neuroprotective effect of cocoa flavonoids on in vitro oxidative stress. Eur. J. Nutr. 2008, 48, 61. [Google Scholar] [CrossRef]
  89. Mackenzie, G.G.; Carrasquedo, F.; Delfino, J.M.; Keen, C.L.; Fraga, C.G.; Oteiza, P.I. Epicatechin, catechin, and dimeric procyanidins inhibit PMA-induced NF-κB activation at multiple steps in Jurkat T cells. FASEB J. 2004, 18, 167–169. [Google Scholar] [PubMed]
  90. Lim, E.-K.; Mitchell, P.J.; Brown, N.; Drummond, R.A.; Brown, G.D.; Kaye, P.M.; Bowles, D.J. Regiospecific methylation of a dietary flavonoid scaffold selectively enhances IL-1β production following toll-like receptor 2 stimulation in THP-1 monocytes. J. Biol. Chem. 2013, 288, 21126–21135. [Google Scholar] [CrossRef] [PubMed]
  91. Lee, J.K.; Kim, S.Y.; Kim, Y.S.; Lee, W.-H.; Hwang, D.H.; Lee, J.Y. Suppression of the TRIF-dependent signaling pathway of toll-like receptors by luteolin. Biochem. Pharmacol. 2009, 77, 1391–1400. [Google Scholar] [CrossRef] [PubMed]
  92. Jeong, H.Y.; Sung, G.-H.; Kim, J.H.; Yoon, J.Y.; Yang, Y.; Park, J.-G.; Kim, S.-H.; Yi, Y.-S.; Yang, W.-S.; Yong, D.-H.; et al. Syk and Src are major pharmacological targets of a Cerbera manghas methanol extract with kaempferol-based anti-inflammatory activity. J. Ethnopharmacol. 2014, 151, 960–969. [Google Scholar] [CrossRef] [PubMed]
  93. Park, S.-J.; Song, H.-Y.; Youn, H.-S. Suppression of the TRIF-dependent signaling pathway of toll-like receptors by isoliquiritigenin in RAW264.7 macrophages. Mol. Cells 2009, 28, 365–368. [Google Scholar] [CrossRef] [PubMed]
  94. Liew, F.Y.; Xu, D.; Brint, E.K.; O’Neill, L.A.J. Negative regulation of toll-like receptor-mediated immune responses. Nat. Rev. Immunol. 2005, 5, 446–458. [Google Scholar] [CrossRef] [PubMed]
  95. Sung, N.-Y.; Yang, M.-S.; Song, D.-S.; Kim, J.-K.; Park, J.-H.; Song, B.-S.; Park, S.-H.; Lee, J.-W.; Park, H.-J.; Kim, J.-H.; et al. Procyanidin dimer B2-mediated IRAK-M induction negatively regulates TLR4 signaling in macrophages. Biochem. Biophys. Res. Commun. 2013, 438, 122–128. [Google Scholar] [CrossRef] [PubMed]
  96. Renz, H.; Brandtzaeg, P.; Hornef, M. The impact of perinatal immune development on mucosal homeostasis and chronic inflammation. Nat. Rev. Immunol. 2012, 12, 9–23. [Google Scholar]
  97. Pérez-Cano, F.J.; Massot-Cladera, M.; Franch, A.; Castellote, C.; Castell, M. The effects of cocoa on the immune system. Front. Pharmacol. 2013, 4, 71. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  98. Castell, M.; Pérez-Cano, F.J.; Abril-Gil, M.; Franch, À. Flavonoids on allergy. Curr. Pharm. Des. 2014, 20, 973–987. [Google Scholar] [CrossRef] [PubMed]
  99. Kim, W.; Lee, H. Advances in nutritional research on regulatory T-cells. Nutrients 2013, 5, 4305–4315. [Google Scholar] [CrossRef] [PubMed]
  100. Magrone, T.; Jirillo, E. The interplay between the gut immune system and microbiota in health and disease: Nutraceutical intervention for restoring intestinal homeostasis. Curr. Pharm. Des. 2013, 19, 1329–1342. [Google Scholar] [PubMed]

Share and Cite

MDPI and ACS Style

Pérez-Cano, F.J.; Massot-Cladera, M.; Rodríguez-Lagunas, M.J.; Castell, M. Flavonoids Affect Host-Microbiota Crosstalk through TLR Modulation. Antioxidants 2014, 3, 649-670. https://doi.org/10.3390/antiox3040649

AMA Style

Pérez-Cano FJ, Massot-Cladera M, Rodríguez-Lagunas MJ, Castell M. Flavonoids Affect Host-Microbiota Crosstalk through TLR Modulation. Antioxidants. 2014; 3(4):649-670. https://doi.org/10.3390/antiox3040649

Chicago/Turabian Style

Pérez-Cano, Francisco J., Malen Massot-Cladera, Maria J. Rodríguez-Lagunas, and Margarida Castell. 2014. "Flavonoids Affect Host-Microbiota Crosstalk through TLR Modulation" Antioxidants 3, no. 4: 649-670. https://doi.org/10.3390/antiox3040649

APA Style

Pérez-Cano, F. J., Massot-Cladera, M., Rodríguez-Lagunas, M. J., & Castell, M. (2014). Flavonoids Affect Host-Microbiota Crosstalk through TLR Modulation. Antioxidants, 3(4), 649-670. https://doi.org/10.3390/antiox3040649

Article Metrics

Back to TopTop
