Article

Clinical Outcomes of Severe Rhinosinusitis Complicated with Cavernous Sinus Syndrome

1
Department of Otorhinolaryngology-Head and Neck Surgery, China Medical University Hospital, Taichung 404, Taiwan
2
Department of Otorhinolaryngology-Head and Neck Surgery, Asia University Hospital, Taichung 404, Taiwan
3
School of Medicine, China Medical University, Taichung 404, Taiwan
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
J. Clin. Med. 2024, 13(8), 2420; https://doi.org/10.3390/jcm13082420
Submission received: 19 February 2024 / Revised: 31 March 2024 / Accepted: 17 April 2024 / Published: 21 April 2024
(This article belongs to the Section Otolaryngology)

Abstract

:
Background: Various diseases involving the cavernous sinus can cause a condition called cavernous sinus syndrome (CSS), which is characterized by ophthalmoplegia or sensory deficits over the face resulting from the compression effect of internal structure. While tumor compression is the most reported cause of CSS, statistical data on CSS caused by infections are limited. Its risk factors, treatment methods, and clinical outcomes are not well-documented. Methods: In this retrospective study, we reviewed the data of patients admitted to a tertiary medical center from 2015 to 2022 with a diagnosis of acute and chronic sinusitis and at least one diagnostic code for CSS symptoms. We manually reviewed whether patients were involved in two or more of the following cranial nerves (CN): CN III, CN IV, CN V, or CN VI, or at least one of these nerves with a neuroimaging-confirmed lesion in the cavernous sinus. Results: Nine patients were diagnosed with rhinosinusitis-related CSS. The most common comorbidity was type 2 diabetes, and the most common clinical manifestations were diplopia and blurred vision. The sphenoid sinus was the most affected sinus. One patient expired due to a severe brain abscess infection without surgery. The remaining patients underwent functional endoscopic sinus surgery, and 50% of the pathology reports indicated fungal infections. Staphylococcus spp. was the most cultured bacteria, and Amoxycillin/Clavulanate was the most used antibiotic. Only four patients had total recovery during the follow-up one year later. Conclusions: CSS is a rare but serious complication of rhinosinusitis. Patients with diabetes and the elderly may be at a higher risk for this complication. Even after treatment, some patients may still have neurological symptoms.

1. Introduction

The cavernous sinus, located on either side of the sella turcica, plays a critical role in the venous drainage of the brain and eye, housing important structures such as the internal carotid artery, cranial nerves III (oculomotor), IV (trochlear), V1 (ophthalmic branch of the trigeminal), V2 (maxillary branch of the trigeminal), and VI (abducens), as well as sympathetic nerve fibers. These elements are encased within a dural fold, making the cavernous sinus a key site for neurological and vascular interactions.
Cavernous sinus syndrome (CSS) emerges when any of these contained structures are compromised, typically by compression, inflammation, or invasion. The resulting clinical manifestations can include ophthalmoplegia due to impairment of the cranial nerves responsible for eye movements and sensory deficits over the ophthalmic and maxillary regions, reflecting damage to the branches of the trigeminal nerve. Additional symptoms might include Horner’s syndrome from the disruption of the sympathetic pathway, decreased corneal reflex, and, in severe cases, altered mental status or visual loss if the condition progresses to affect the optic nerve or cause increased intracranial pressure.
The pathophysiology behind CSS varies depending on the etiology. Tumors can physically compress the sinus or infiltrate its structures, leading to dysfunction. Infections, particularly those extending from nearby structures like the sinuses in rhinosinusitis, can lead to thrombophlebitis of the cavernous sinus (septic cavernous sinus thrombosis), an emergent condition requiring immediate attention. Autoimmune conditions and vascular diseases, such as carotid cavernous fistulas, can alter the flow within or damage the sinus, further contributing to symptomatology [1]. While there are relevant literature reviews, data specifically on cases caused by rhinosinusitis are limited, and there is no complete description of the associated causative factors and treatment guidelines. Therefore, it is crucial to investigate the risk features and effectiveness of medical or surgical treatment through case studies.

2. Patients and Method

In this retrospective study, we reviewed the medical records of all patients admitted to a tertiary medical center in Taiwan from 2015 to 2022.
As there is no International Classification of Diseases (ICD) diagnostic code for CSS, hospitalization records were searched for any main diagnostic code (ICD10: J01 and J32 for acute and chronic sinusitis, respectively) or at least one diagnostic code for symptoms of CSS (such as G52.7–G52.8 Disorders of cranial nerves, G90.2 Horner’s syndrome, and H05 Disorders of the orbit). This screening method increases the chances of identifying potential cases of CSS. However, as many other diseases may also co-occur with these symptoms, further manual review and identification were completed to confirm that the disease was indeed CSS caused by rhinosinusitis.
The inclusion criteria for patients in this study required evidence of the involvement of two or more of the following cranial nerves: CN III, CN IV, CN V (V1, V2), or CN VI, or at least one of these nerves with a neuroimaging-confirmed lesion in the cavernous sinus. The exclusion criteria were as follows: a diagnosis of stroke with imaging evidence, a history of a tumor with cranial involvement, a mucocele compression as indicated by imaging studies, a diagnosis of thyroid-associated ophthalmopathy, or orbital cellulitis without evidence of cavernous sinus involvement.
The medical records were analyzed, and the following data were collected for statistical analysis: basic information (age, sex, and body mass index), common comorbidities (hypertension, diabetes mellitus, autoimmune diseases, and acquired immunodeficiency syndrome), clinical symptoms, imaging findings (number of involved sinuses on computed tomography (CT) scan and Lund–Mackay score), pathological reports, bacterial or fungal culture results, and treatment modalities such as surgical procedures and conservative management. The treatment outcomes of each case were followed up for one month, six months, and one year to assess residual symptoms and postoperative complications.
Categorical variables were evaluated using Fisher’s exact test, while continuous variables were analyzed using one-way ANOVA via SPSS software (version 26, IBM, Armonk, NY, USA). Due to the small number of enrolled patients, a descriptive analysis without inferential statistics was performed.
Furthermore, we searched the PubMed database using the keywords “cavernous sinus syndrome”, “cavernous sinus thrombosis”, “septic cavernous sinus thrombosis” and included case series studies published in English with accessible full text from 2000 to 2022. We examined their abstracts and screened for relevant case series related to our topic. We found CSS caused by rhinosinusitis and compared these findings with our study results.

3. Results

From 2015 to 2022, we identified 46 patients through ICD codes, and 25 of them were excluded after a manual review of their medical records, owing to them not relating to rhinosinusitis. Among the remaining 21 patients, 12 were excluded since their neurological symptoms were likely caused by stroke, intracranial tumors, mucoceles, thyroid-associated ophthalmopathy, or non-cavernous sinus-related orbital cellulitis (Figure 1).
Of the patients included in the study, most patients did not undergo long-term follow-up in our ENT clinic before their surgery. Instead, they were seen in other departments, such as ophthalmology, neurology, or even emergency departments, due to neurological symptoms, leading to referrals for clinic assessments or hospital admissions. Specifically, two patients came through ophthalmology, three through neurology, and four through emergency departments. Consequently, the majority of patients had not previously been diagnosed with chronic sinusitis in an ENT setting, nor had they undergone related ENT surgeries. There were six male and three female individuals, with a mean age of 67.88 years at the time of diagnosis and a mean BMI of 25.8. Type 2 diabetes mellitus was the most common comorbidity (88%). The most frequent clinical presentations were diplopia (55%), ocular motility disturbance (55%), and blurred vision (55%); the other symptoms included ptosis, periorbital edema, headache, facial numbness, proptosis, fever, and blindness (Table 1).
All patients were subjected to CT imaging examination regardless of whether they underwent surgery or not. Among them, six underwent magnetic resonance imaging (MRI) examination, and two underwent follow-up MRI after surgery. Some clinical features found on MRI or CT helped in the diagnosis of the disease, including asymmetric or bilateral bulging of the cavernous sinus, signal enhancement of lesions on T1-weighted images, luminal narrowing of the carotid artery, and erosion of the bony wall of the cavernous sinus (Figure 2 and Figure 3). The imaging studies confirmed that the most involved sinus was the sphenoid sinus (88%), followed by the ethmoid sinus (77%). A mean Lund–Mackay score was 10.55 for all patients. Detailed CT and MRI imaging data statistics are presented in Table 2.
One patient expired without surgical intervention due to a concomitant severe intracranial abscess, and there is no pathology report for this patient as he did not undergo a biopsy. The enduring eight patients underwent functional endoscopic sinus surgery (FESS). Nearly all patients had their surgery scheduled within a week of diagnosis confirmation. Pathology reports or culture results showed that 50% of the patients had fungal infections—two cases of Aspergillus infection, one of them also indicating invasive mucormycosis and another showed co-infection with Candida albicans, and two cases of infection by fungal hyphae found in tissue sections but without culture reports. Staphylococcus spp. (50%) were the most frequently cultured bacteria. Other pathogens included Corynebacterium, Cutibacterium, Klebsiella pneumoniae, Pseudomonas aeruginosa, and Streptococcus spp. The most utilized antibiotic during hospitalization was Amoxycillin/Clavulanate (44%).
Regarding clinical outcomes, one patient expired during hospitalization (11%) due to central nervous system involvement, and among the patients who underwent surgical treatment, one patient did not return for a follow-up appointment after being discharged, five patients still had neurological symptoms 1 month after surgery (62.5%), and two patients fully recovered (25%). A follow-up 6 months after surgery showed that there was one patient who previously, without signs of recovery, experienced partial improvement and one patient who previously experienced partial improvement achieved full recovery of symptoms. During the one-year follow-up period after discharge, there was another patient who expired from central nervous system infection, while four fully recovered and two still had neurological symptoms. Patient’s inpatient antibiotic treatment, pathogen culture reports, and clinical outcomes are presented in Table 3.

4. Discussion

Cavernous sinus syndrome is one of the complications of local infection involving the adjacent orbits, sinonasal cavities, or facial soft tissues. Headache, orbital pain, ophthalmoplegia, and vision loss due to venous congestion within the retina raise clinical suspicion of cavernous sinus involvement [2]. We collected all sinusitis-associated CSS papers published in English on PubMed from 2000 to 2023 and discussed their case characteristics and clinical findings. The results are summarized in Table 4.
A review of small-scale studies showed that the majority of enrolled patients are elderly individuals, which is consistent with our study; however, there are still several case reports on young and pediatric patients (Table 4) [4,7,9,10].
Diabetes mellitus was the most common comorbidity (89%) in our study, which is consistent with the findings of previous studies [7,10,11]. This observation may be related to the immunocompromised state of patients with diabetes, especially those with poor disease control. A prospective study of 73 cases at a tertiary care center in northern India showed that the presence of diabetes was significantly associated with fungal CSS [12]. As for whether the use of medications affects the onset of the disease, such as topical or systemic steroids causing immunosuppression and, thereby, increasing the severity of the disease or the chances of infection, unfortunately, in our case series, there were no records of patients using relevant medications long-term to observe such phenomena. Previous systematic reviews indicated that the use of systemic steroids may increase the risk of acute exacerbations of chronic rhinosinusitis. However, whether this further increases the chance of CSS remains to be clarified [13]. Double-blind trials showed that the use of topical steroid nasal sprays in patients with chronic rhinosinusitis does not increase the risk of infection [14]. Still, further research is needed on medication use in immunocompromised patients.
Blurred vision was reported as one of the most observed eye-related symptoms (55%), and blindness was observed in one patient in our study, who was the only dead patient. Although the structure of the cavernous sinus does not include the optic nerve, which conveys visual information, the spread of infection can cause local inflammation and lead to associated complications. Thus, visual loss may be due to corneal ulceration, ophthalmic arterial occlusion, venous embolism, ischemia of the optic nerve, or intraorbital compression [5]. In our review of cases, all patients presented with unilateral symptoms, consistent with findings from other studies we reviewed. Bilateral neurological symptoms appear to be exceptionally rare. Our perspective is that while bilateral sinus involvement is common, the cavernous sinus is anatomically distinct from the nasal cavity and sinuses. It is not directly affected by the accumulation of pus in a consistent bilateral manner. Instead, abnormalities in the cavernous sinus may result from surrounding inflammatory reactions or pathogens carried by blood circulation. This process makes it challenging to ensure consistent bilateral involvement, hence our observation of predominantly unilateral lesions. Therefore, if a patient presents with bilateral neurological symptoms, other differential diagnoses must be carefully considered.
There are studies on the distribution of symptoms in larger samples of patients with CSS, but these studies did not specifically focus on patients with infections, and statistics have not been independently analyzed for patients with rhinosinusitis of different etiologies. Consequently, the most common symptoms of CSS may vary depending on the etiology [15].
Owing to the complexity of the cavernous sinus, imaging may not directly show obvious changes in the cavernous sinus in the early stages of the disease. Nevertheless, it can still help exclude certain diagnoses, such as stroke, which can also cause neurological defects. Computed tomography is often the first-line diagnostic tool because it can help identify rhinosinusitis and assess disease severity. Thus, all patients underwent CT scans during hospitalization in our study. However, MRI has an advantage in the evaluation of soft tissue structures such as the carotid artery and mucosa around the cavernous sinus. Therefore, some patients in our study who did not undergo MRI before surgery but still had neurological symptoms after surgery were scheduled for MRIs to obtain further information. Bhatkar et al. showed that CT scans had an overall sensitivity of 14.6% for achieving a final diagnosis, whereas MRI had an overall sensitivity of 70.7%, with a significant difference [16]. It is noteworthy that their study included patients with noninfectious CSS.
On account of the anatomical proximity of the sphenoid sinus to the cavernous sinus, the statistics showed a higher proportion of sphenoid sinus involvement than the other paranasal sinuses, as expected. Interestingly, in one patient from our study, there was no apparent involvement of the sphenoid sinus on imaging, but MRI revealed significant maxillary sinusitis and signal enhancement in the T1 flair phase, with contrast observed in the skull base bone extending from the maxillary sinus. Osteomyelitis secondary to maxillary sinusitis may extend along the skull base and involve the cavernous sinus or the surrounding tissues.
Previous reviews of the bacteriology of acute sphenoiditis have shown that Streptococcus is the most common organism associated with sphenoidal disease [6,17]; therefore, Amoxycillin/Clavulanate appears to be widely used as a first-line empiric antibiotic therapy. However, the occurrence of CSS suggests a more invasive infection that is commonly observed in immunocompromised patients. Therefore, in recent years, there have been increasing reports of CSS caused by co-infection with fungal pathogens. Thus, antifungal antibiotics should be considered if there is evidence of fungal infection [8,18,19,20].
A previous study indicated that a combination of antibiotics and FESS is the optimal treatment strategy for CSS caused by paranasal sinusitis [6]. The purpose of the surgery was to give drainage of the source of infection in the paranasal sinuses, including sphenoidectomy, ethmoidectomy, or maxillary antrostomy. The direct approach to cavernous sinus is difficult and can be risky because of the involvement of the internal carotid artery and numerous cranial nerves [21]. In our study, all patients underwent FESS with the navigation system except for one who expired due to multiple complications before the surgery. The post-operative clinical outcomes seem acceptable. No obvious surgical complications were noted after surgery.
It is worth noting that, upon review, we observed that the stage at which the disease was initially identified and its acute severity significantly influenced the duration of hospitalization. Patients admitted through the emergency department (cases 3, 7, 8, 9) appeared to have longer hospital stays compared to those admitted through outpatient services. Additionally, their antibiotic regimens were more complex. This may suggest the importance of early disease detection in outpatient settings.
In terms of the post-FESS one-month follow-up, three showed improvements but still had remaining neurological symptoms, such as extraocular movement limitation or blurred vision, and one showed no improvement in the first month after discharge from our ward. But, after 6 months of follow-up, two patients showed further improvement in their neurological symptoms, suggesting that neurological symptoms may take time to fully recover. One patient developed a recurrent infection and expired due to central nervous system involvement during the one-year follow-up, implicating the possibility of recurrent infections even after surgical treatment. However, based on available data, our treatment strategy prevented disease progression to some extent.
Our study has certain limitations. Firstly, the absence of an ICD diagnosis code for CSS and the selection methods may have resulted in the possibility of missing some patients despite our efforts to obtain comprehensive data. The limited number of cases raises concerns about the overall credibility of the study. Nonetheless, we find some consistency with previous studies, offering a partial validation of our findings. Secondly, being a retrospective study, there is a potential for recall bias among the subjects during follow-up, which could impact our interpretation of the results. Inadequacies in medical record documentation and incomplete data can lead to the misinterpretation of essential information or make it difficult to review. For example, the patients’ unhealthy habits, such as smoking and alcohol intake, were not well documented and included in the manuscript. It is important to note that our research was conducted at a single tertiary medical center, which may restrict the generalizability of the results to other medical settings or regions. Furthermore, the treatment details from previous care at other regional hospitals or clinics cannot be retrieved completely from the medical record system. The patient population and treatment approaches in this particular hospital may not be representative of other healthcare settings. Additionally, as our study included only Asian individuals, the prevalence of pathogens may vary across different regions.
In terms of future research directions, most of the anatomical imaging data were obtained after the onset of symptoms, which may influence the findings and overlook the opportunity to explore the intriguing topic of anatomically predicting disease onset. Obtaining longer-term imaging data from patients before the onset of symptoms may further advance the prediction of the disease.

5. Conclusions

Cavernous sinus syndrome is a serious complication of rhinosinusitis, and statistical analysis shows that elderly individuals and patients with diabetes may be at a high risk. If a patient with rhinosinusitis exhibits neurological symptoms in the orbital area and imaging studies confirm sphenoid sinus involvement, aggressive treatments, including antibiotics and surgical interventions, should be considered to prevent further risk of central nervous system involvement. Most CSS patients may have neurological symptoms after treatment and may take time to recover. Future research should focus on collecting large case data and longer-term imaging data to comprehensively explore the related risk factors, clinical manifestations, diagnosis, and different treatment strategies.

Author Contributions

Conceptualization, J.-Y.L. and C.-L.L.; methodology, L.-C.S.; software, C.-L.L.; validation, J.-Y.L. and C.-L.L.; formal analysis, J.-Y.L.; investigation, J.-Y.L., C.-L.L. and Z.-Y.D.; resources, C.-J.T., Y.-A.T., Y.-T.L. and L.-C.S.; data curation, J.-Y.L. and C.-L.L.; writing—original draft preparation, J.-Y.L. and C.-L.L.; writing—review and editing, L.-C.S., Z.-Y.D., Y.-T.L. and Y.-A.T.; visualization, J.-Y.L.; supervision, C.-D.L. and C.-J.T.; project administration, C.-D.L.; funding acquisition, L.-C.S. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by a grant from the China Medical University Hospital (DMR-110-242).

Institutional Review Board Statement

This study was approved by the Institutional Review Board of China Medical University Hospital at 17 October 2020(IRB # CMUH111-REC3-135).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The datasets used and/or analyzed during the current study are available from the corresponding author upon reasonable request.

Acknowledgments

The authors extend their heartfelt appreciation to all colleagues whose collective efforts significantly enriched the quality and depth of this study. A special acknowledgment is reserved for An-Bang Huang, whose expertise as a hospital information service professional played a pivotal role in facilitating the retrieval of electronic data, providing invaluable support to our research endeavors. Furthermore, the authors would like to express gratitude to the editors for their constructive criticisms and insightful feedback on an earlier version of this article. Their guidance has played a crucial role in refining and enhancing the overall quality of the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Kuybu, O.; Dossani, R.H. Cavernous Sinus Syndromes. In StatPearls; StatPearls Publishing: Treasure Island, FL, USA, 2023. [Google Scholar]
  2. Munawar, K.; Nayak, G.; Fatterpekar, G.M.; Sen, C.; Zagzag, D.; Zan, E.; Hagiwara, M. Cavernous sinus lesions. Clin. Imaging 2020, 68, 71–89. [Google Scholar] [CrossRef] [PubMed]
  3. Yamanoi, T.; Shibano, K.; Soeda, T.; Hoshi, A.; Matsuura, Y.; Sugiura, Y.; Endo, K.; Yamamoto, T. Intracranial invasive aspergillosis originating in the sphenoid sinus: A successful treatment with high-dose itraconazole in three cases. Tohoku J. Exp. Med. 2004, 203, 133–139. [Google Scholar] [CrossRef] [PubMed]
  4. Chen, H.W.; Su, C.P.; Su, D.H.; Chen, H.W.; Chen, Y.C. Septic cavernous sinus thrombosis: An unusual and fatal disease. J. Formos. Med. Assoc. 2006, 105, 203–209. [Google Scholar] [CrossRef] [PubMed]
  5. Lizé, F.; Verillaud, B.; Vironneau, P.; Blancal, J.P.; Guichard, J.P.; Kania, R.; Herman, P. Septic cavernous sinus thrombosis secondary to acute bacterial sinusitis: A retrospective study of seven cases. Am. J. Rhinol. Allergy 2015, 29, e7–e12. [Google Scholar] [CrossRef] [PubMed]
  6. Wang, Y.H.; Chen, P.Y.; Ting, P.J.; Huang, F.L. A review of eight cases of cavernous sinus thrombosis secondary to sphenoid sinusitis, including a12-year-old girl at the present department. Infect. Dis. 2017, 49, 641–646. [Google Scholar] [CrossRef] [PubMed]
  7. Hsu, C.W.; Tsai, W.C.; Lien, C.Y.; Lee, J.J.; Chang, W.N. The clinical characteristics, implicated pathogens and therapeutic outcomes of culture-proven septic cavernous sinus thrombosis. J. Clin. Neurosci. 2019, 68, 111–116. [Google Scholar] [CrossRef] [PubMed]
  8. Zhang, H.; Jiang, N.; Lin, X.; Wanggou, S.; Olson, J.J.; Li, X. Invasive sphenoid sinus aspergillosis mimicking sellar tumor: A report of 4 cases and systematic literature review. Chin. Neurosurg. J. 2020, 6, 10. [Google Scholar] [CrossRef] [PubMed]
  9. Cannon, M.L.; Antonio, B.L.; McCloskey, J.J.; Hines, M.H.; Tobin, J.R.; Shetty, A.K. Cavernous sinus thrombosis complicating sinusitis. Pediatr. Crit. Care Med. 2004, 5, 86–88. [Google Scholar] [CrossRef] [PubMed]
  10. Saldaña Inda, I.; Sancho Saldaña, A.; García Rubio, S.; Sagarra Mur, D. Cavernous sinus syndrome secondary to invasive aspergilosis with carotid involvement in a HIV pacient. Neurologia 2021, 36, 552–554. [Google Scholar] [CrossRef] [PubMed]
  11. Lee, J.H.; Lee, H.K.; Park, J.K.; Choi, C.G.; Suh, D.C. Cavernous sinus syndrome: Clinical features and differential diagnosis with MR imaging. AJR Am. J. Roentgenol. 2003, 181, 583–590. [Google Scholar] [CrossRef] [PubMed]
  12. Bhatkar, S.; Goyal, M.K.; Takkar, A.; Mukherjee, K.K.; Singh, P.; Singh, R.; Lal, V. Cavernous sinus syndrome: A prospective study of 73 cases at a tertiary care centre in Northern India. Clin. Neurol. Neurosurg. 2017, 155, 63–69. [Google Scholar] [CrossRef] [PubMed]
  13. Walters, Z.A.; Sedaghat, A.R.; Phillips, K.M. Acute exacerbations of chronic rhinosinusitis: The current state of knowledge. Laryngoscope Investig. Otolaryngol. 2022, 7, 935–942. [Google Scholar] [CrossRef] [PubMed]
  14. Parikh, A.; Scadding, G.K.; Darby, Y.; Baker, R.C. Topical corticosteroids in chronic rhinosinusitis: A randomized, double-blind, placebo-controlled trial using fluticasone propionate aqueous nasal spray. Rhinology 2001, 39, 75–79. [Google Scholar] [PubMed]
  15. Fernández, S.; Godino, O.; Martínez-Yélamos, S.; Mesa, E.; Arruga, J.; Ramón, J.M.; Acebes, J.J.; Rubio, F. Cavernous sinus syndrome: A series of 126 patients. Medicine 2007, 86, 278–281. [Google Scholar] [CrossRef] [PubMed]
  16. Bhatkar, S.; Mahesh, K.V.; Sachdeva, J.; Goel, A.; Goyal, M.K.; Takkar, A.; Ray, S.; Shree, R.; Balaini, N.; Singh, P.; et al. Magnetic resonance imaging (MRI) versus computed tomographic scan (CT scan) of brain in evaluation of suspected cavernous sinus syndrome. Neuroradiol. J. 2020, 33, 501–507. [Google Scholar] [CrossRef] [PubMed]
  17. Southwick, F.S.; Richardson, E.P., Jr.; Swartz, M.N. Septic thrombosis of the dural venous sinuses. Medicine 1986, 65, 82–106. [Google Scholar] [CrossRef] [PubMed]
  18. Huang, Y.; Gui, L. Cavernous sinus-orbital apex aspergillus infection in a diabetic patient: A case report. Medicine 2019, 98, e15041. [Google Scholar] [CrossRef]
  19. Kumar, A.; Gupta, K.; Tyagi, A.K.; Varshney, S.; Kumar, N. Isolated Acute Sphenoid Fungal Sinusitis with Cavernous Sinus Thrombosis: Our Experience. Indian J. Otolaryngol. Head Neck Surg. 2022, 74 (Suppl. 2), 987–993. [Google Scholar] [CrossRef] [PubMed]
  20. Ronen, J.A.; Malik, F.A.; Wiechmann, C.; Kolli, S.; Nwojo, R. More than Meets the Eye: Aspergillus-Related Orbital Apex Syndrome. Cureus 2020, 12, e9352. [Google Scholar] [CrossRef] [PubMed]
  21. Toda, M.; Kosugi, K.; Ozawa, H.; Ogawa, K.; Yoshida, K. Surgical Treatment of Cavernous Sinus Lesion in Patients with Nonfunctioning Pituitary Adenomas via the Endoscopic Endonasal Approach. J. Neurol. Surg. B Skull Base 2018, 79 (Suppl. 4), S311–S315. [Google Scholar] [CrossRef] [PubMed]

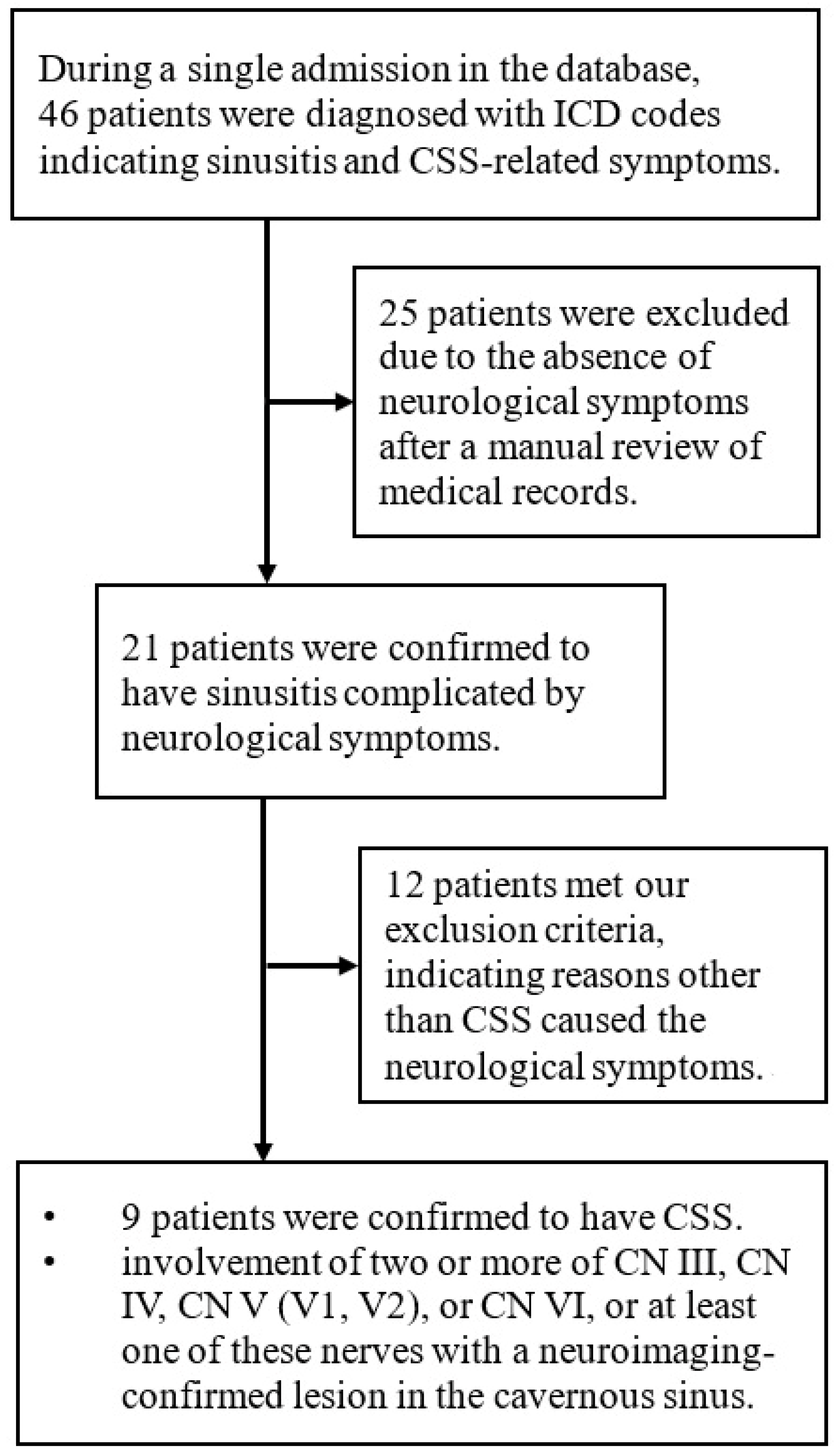

Figure 1. Flow diagram outlining the study design.
Figure 1. Flow diagram outlining the study design.
Jcm 13 02420 g001
Figure 2. Image study of case 8. A 61-year-old woman with a history of diabetes presented with ptosis, double vision, extraocular muscle limitation, blurred vision, and fever. (A) Axial T1- weighted images. Fluid accumulated over the left cavernous sinus, causing luminal narrowing of the left carotid artery (white arrow). (B) Magnetic resonance angiography (MRA). MRA revealed occlusion in the left internal carotid artery.
Figure 2. Image study of case 8. A 61-year-old woman with a history of diabetes presented with ptosis, double vision, extraocular muscle limitation, blurred vision, and fever. (A) Axial T1- weighted images. Fluid accumulated over the left cavernous sinus, causing luminal narrowing of the left carotid artery (white arrow). (B) Magnetic resonance angiography (MRA). MRA revealed occlusion in the left internal carotid artery.
Jcm 13 02420 g002
Figure 3. Image study of case 3. A 44-year-old man with a history of poorly controlled diabetes presented with eyelid swelling, blindness, alert mental status, mydriasis, fever, and headache. (A): Axial contrast-enhanced CT scan. CT scan revealed rhinosinusitis over bilateral sphenoid sinuses, complicated with subperiosteal empyema, bony wall erosion, and right orbital infection. (B,C): Axial T1-weighted MRI images. MRI showed bilateral bulging of the cavernous sinus and signal enhancement over cavernous sinus and skull base under T1-weighted images.
Figure 3. Image study of case 3. A 44-year-old man with a history of poorly controlled diabetes presented with eyelid swelling, blindness, alert mental status, mydriasis, fever, and headache. (A): Axial contrast-enhanced CT scan. CT scan revealed rhinosinusitis over bilateral sphenoid sinuses, complicated with subperiosteal empyema, bony wall erosion, and right orbital infection. (B,C): Axial T1-weighted MRI images. MRI showed bilateral bulging of the cavernous sinus and signal enhancement over cavernous sinus and skull base under T1-weighted images.
Jcm 13 02420 g003
Table 1. Basic data, comorbidity, and clinical signs of patients with CSS.
Table 1. Basic data, comorbidity, and clinical signs of patients with CSS.
CaseAge/SexBMIHTNDMDyslipidemiaOther Underlying ConditionsClinical Signs on Admission
Case 166 year/M30.09+++CAD, HBV, CRS s/p FESS, and Luc procedure 10 years agodouble vision, EOM limitation
Case 277 year/M22.5++renal insufficiencyptosis, eyelid swelling, mydriasis
Case 344 year/M20.45+eyelid swelling, blindness, alert mental status, mydriasis, fever, headache
Case 473 year/F29.37+OA knee, CADfacial numbness
Case 579 year/M31.36++-Af, gout, CADdouble vision, EOM limitation
Case 672 year/M23.42+double vision, blurred vision, headache
Case 774 year/M19.4++ptosis, EOM limitation, eyelid swelling, blurred vision, fever
Case 861 year/F27.3+ptosis, double vision, EOM limitation, blurred vision, fever
Case 965 year/F29++CADptosis, double vision, EOM limitation, facial numbness, eyelid swelling, blurred vision
BMI, body mass index; HTN, hypertension; DM, diabetes mellitus; M, male; F, female; CAD, coronary artery disease; HBV, hepatitis B; CRS, chronic rhinosinusitis; s/p, status post; Af, atrial fibrillation; OA, osteoarthritis. EOM, extraocular muscle.
Table 2. Sinus involvement and image feature on CT or MRI images of patients with CSS.
Table 2. Sinus involvement and image feature on CT or MRI images of patients with CSS.
CaseMaxillary SinusEthmoid SinusFrontal SinusSphenoid SinusLund–Mackay ScoreImage Feature
Case 1BilateralBilateralBilateralBilateral21Status post bilateral FESS and left Luc procedure, Bilateral nasal polyposis, mucus retention, and mucosal swelling in sinuses
Case 2BilateralBilateralLeftBilateral13Extraconal infiltrative enhanced soft tissue density at medial superior aspect of left orbital cavity; secretion accumulation within the sinus antrum
Case 3-BilateralRightBilateral14Subperiosteal empyema, bony wall erosion, bilateral bulging of the cavernous sinus, and signal enhancement over cavernous sinus and skull base
Case 4BilateralLeft-Left7sinonasal polyposis
Case 5Left---2Left maxillary sinus heterogeneous opacification with calcification and mucoperiosteal thickening
Case 6-Bilateral-Bilateral10Expansion of the sphenoid sinus, with peripheral bony erosion, even destruction and disappearance of the clivus and the sellar floor
Case 7BilateralBilateralBilateralBilateral12Mucus retention with mucosa thickening in the bilateral maxillary, ethmoid, sphenoid, and frontal sinuses. Left cavernous sinus engorged
Case 8-Left-Left3Fluid accumulated over the left cavernous sinus; luminal narrowing of the left carotid artery
Case 9-BilateralBilateralBilateral13Bilateral optic nerves and superior and oblique superior rectus muscles were swelling; middle and inferior turbinates in the left nasal cavity were enlarged; mucus retention with mucosa thickening in the bilateral ethmoid, frontal, and sphenoid sinuses
average5 (55%)7 (77%)5 (55%)8 (88%)9.22
Table 3. Antibiotic therapy, pathogen culture report, and clinical outcome of patient with CSS.
Table 3. Antibiotic therapy, pathogen culture report, and clinical outcome of patient with CSS.
CaseAntibiotic TreatmentPathology and Cultural PathogenLength of Hospital StayOutcome (1 Month Follow-up)Outcome (6 Month Follow-up)Outcome (1 Year Follow-up)
Case 1Amoxycillin/ClavulanateCorynebacterium accolens, Cutibacterium acnes, chronic paranasal sinusitis5 daysTotal recoveryTotal recoveryTotal recovery
Case 2Teicoplanin, tazocin-7 daysLostLostLost
Case 3Fluconazole, tazocin, cefepime, vancomycin-14 daysMortalityMortalityMortality
Case 4Amoxycillin/ClavulanateKlebsiella pneumoniae, Streptococcus constellatus, Fusobacterium nucleatum, Fungal sinusitis3 daysPartial improvementPartial improvementTotal recovery
Case 5Amoxycillin/ClavulanateCitrobacter koseri, Staphylococcus epidermidis, Corynebacterium accolens, Cutibacterium avidum, Fungal sinusitis4 daysPartial improvementTotal recoveryTotal recovery
Case 6Amoxycillin/Clavulanatechronic paranasal sinusitis4 daysTotal recoveryTotal recoveryTotal recovery
Case 7Cefepime, vancomycin, voriconazole, tazocinStaphylococcus epidermidis, Candida albicans, Aspergillus, chronic paranasal sinusitis19 daysPartial improvementPartial improvementPartial improvement
Case 8Ceftriaxone, clindamycin, cefepime, FluconazolePseudomonas aeruginosa, Staphylococcus epidermidis, aspergillosis mucormycosis, chronic paranasal sinusitis19 daysNo improvementPartial improvementMortality
Case 9Ceftriaxone, vancomycin, rifampicin, levofloxacin, baktarStaphylococcus aureus (MRSA), chronic paranasal sinusitis21 daysPartial improvementPartial improvementPartial improvement
Table 4. Summary table of rhinosinusitis-related CSS case series from 2000 to 2023.
Table 4. Summary table of rhinosinusitis-related CSS case series from 2000 to 2023.
Author and Publish DateCases NumberMean AgeClinical FeatureComorbiditySinus InvolvementPathogenNotes
Takahiko Yamanoi et al. [3].
June 2004
365.6vision loss (3)
ophthalmoplegia (3)
exophthalmos (2)
seizure (1)
not calculatedsphenoid (3)Aspergillus (3)This article mainly discussed successful cases of treating sphenoidal Aspergillus infection leading to cavernous sinus invasion with high-dose itraconazole therapy.
Huan-Wen Chen et al. [4].
March 2006
958.5headache (5)
diplopia (5)
blurred vision (5)
ptosis (4)
fever (3)
proptosis (2)
facial numbness (2)
photophobia (1)
DM (5)
hematologic
diseases (3)
ethmoid (6)
sphenoid (4)
maxillary (3)
frontal (2)
Zygomycete (3)
Staphylococcus (1)
Streptococcus (1)
fungus (1)
Aspergillus (1)
Peptostreptococcus (1)
The results of this study are consistent with our observations in terms of the patient population, including elderly individuals, patients with diabetes, and those with immunodeficiency, and also underscored the importance of fungal infections.
Franklin Lizé et al. [5].
January 2015
735.7headache (7)
fever (6)
ptosis (3)
chemosis (3)
diplopia (3)
proptosis (2)
ophthalmoplegia (1)
Horner’s syndrome (1)
photophobia (1)
not calculatedsphenoid (7)
ethmoid (3)
maxillary (1)
frontal (1)
Streptococcus spp. (3)
Staphylococcus aureus (2)
Aspergillus fumigatus (2)
Haemophilus influenzae (1)
Serratia marcescens (1)
Buccal bacterial flora (1)
This study provided detailed statistics on the radiological characteristics of sinusitis-related CSS and the duration of anticoagulation therapy use.
Yun-Hu Wang et al. [6].
May 2017
830.8headache (8)
ophthalmoplegia (6)
fever (5)
ptosis (5)
diplopia (4)
photophobia (2)
mydriasis (2)
not calculatedSphenoid (8)
Ethmoid (3)
Maxillary (2)
Streptococcus viridans (2)
Mycobacterium avium (1)
MRSA (1)
Streptococcus intermedius (1)
The clinical outcomes of this study were similar to ours, with comparable results in terms of disease characteristics, treatment, and effectiveness. It further emphasized the importance of anticoagulation therapy.
Che-Wei Hsu et al. [7].
October
2019
1460.4ophthalmoplegia (14)
headache (13)
ptosis (9)
fever (9)
chemosis (8)
eyelid swelling (5)
trigeminal hypesthesia (5)
hemiparesis (5)
eye pain (4)
exophthalmos (4)
decreased visual activity (3)
Facial palsy (3)
dysarthria (3)
seizure (2)
Horner’s syndrome (1)
DM (10)
CRI (2)
CHF (1)
RA (1)
COPD (1)
NPC (1)
liver cirrhosis (1)
sphenoid (13)
ethmoid (11)
maxillary (10)
frontal (3)
Aspergillus spp. (6)
Staphylococcus spp. (5)
Pseudomonas aeruginosa (4)
MRSA (2)
Acinetobacter baumannii (2)
Citrobacter freundii (2)
CoNS (2)
viridians streptococci (2)
Enterobacter faecalis (1)
Veillonella dispar (1)
Streptococcus constellatus (1)
Fusobacterium nucleatum (1)
Prevotella spp. (1)
Unknown fungus (1)
Citrobacter freundii (1)
Propionibacterium spp. (1)
Klebsiella pneumoniae (1)
This study provided detailed pathogen culture results and specific antibiotic treatment regimens and evaluated the prognosis using the Modified Rankin Scale (MRS), discussing risk factors contributing to poor outcomes.
Han-wen Zhang et al. [8].
April
2020
458.7visual disturbance (4)
headache (4)
facial paresthesia (2)
proptosis (1)
diplopia (1)
ptosis (1)
fever (1)
pupils’ asymmetry (1)
DM (1)
HTN (1)
CAD (1)
sphenoid (4)
ethmoid (1)
maxillary (1)
Aspergillus species (4)This study focused on aspergillosis-related CSS and included many cases of Aspergillus infections.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lin, J.-Y.; Liu, C.-L.; Dai, Z.-Y.; Li, Y.-T.; Tsou, Y.-A.; Lin, C.-D.; Tai, C.-J.; Shih, L.-C. Clinical Outcomes of Severe Rhinosinusitis Complicated with Cavernous Sinus Syndrome. J. Clin. Med. 2024, 13, 2420. https://doi.org/10.3390/jcm13082420

AMA Style

Lin J-Y, Liu C-L, Dai Z-Y, Li Y-T, Tsou Y-A, Lin C-D, Tai C-J, Shih L-C. Clinical Outcomes of Severe Rhinosinusitis Complicated with Cavernous Sinus Syndrome. Journal of Clinical Medicine. 2024; 13(8):2420. https://doi.org/10.3390/jcm13082420

Chicago/Turabian Style

Lin, Jin-Yi, Chien-Lin Liu, Zheng-Yan Dai, Yu-Ting Li, Yung-An Tsou, Chia-Der Lin, Chih-Jaan Tai, and Liang-Chun Shih. 2024. "Clinical Outcomes of Severe Rhinosinusitis Complicated with Cavernous Sinus Syndrome" Journal of Clinical Medicine 13, no. 8: 2420. https://doi.org/10.3390/jcm13082420

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
