Review

Deep Learning for Time Series Forecasting: Advances and Open Problems

by
Angelo Casolaro
,
Vincenzo Capone
,
Gennaro Iannuzzo
and
Francesco Camastra
*,†
Department of Science and Technology, Parthenope University of Naples, Centro Direzionale Isola C4, 80143 Naples, Italy
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Information 2023, 14(11), 598; https://doi.org/10.3390/info14110598
Submission received: 26 September 2023 / Revised: 18 October 2023 / Accepted: 2 November 2023 / Published: 4 November 2023
(This article belongs to the Special Issue New Deep Learning Approach for Time Series Forecasting)

Abstract

:
A time series is a sequence of time-ordered data, and it is generally used to describe how a phenomenon evolves over time. Time series forecasting, estimating future values of time series, allows the implementation of decision-making strategies. Deep learning, the currently leading field of machine learning, applied to time series forecasting can cope with complex and high-dimensional time series that cannot be usually handled by other machine learning techniques. The aim of the work is to provide a review of state-of-the-art deep learning architectures for time series forecasting, underline recent advances and open problems, and also pay attention to benchmark data sets. Moreover, the work presents a clear distinction between deep learning architectures that are suitable for short-term and long-term forecasting. With respect to existing literature, the major advantage of the work consists in describing the most recent architectures for time series forecasting, such as Graph Neural Networks, Deep Gaussian Processes, Generative Adversarial Networks, Diffusion Models, and Transformers.

1. Introduction

A time series is a sequence of data enumerated in time order. Time series are used to study how certain measures, e.g., air pollution data [1], ozone concentration [2], plant growth [3], sunspots [4], Dow Jones and Nasdaq indices [5], and electricity consumption [6], evolve over time. Time series forecasting estimates values that a time series takes in the future, allowing the implementation of decision-making strategies, e.g., abandonment of fossil fuels to reduce the surface temperature of the Earth. Specifically, time series forecasting is very relevant for the energy domain (e.g., electricity load demand [7,8], solar and wind power estimation [9,10]), meteorology (e.g., prediction of wind speed [11], temperature [12,13], humidity [12], precipitation [13,14]), air pollution monitoring (e.g., prediction of P M 2.5 , P M 10 , N O 2 , O 3 , S O 2 , and C O 2 concentrations [12,15,16]), the finance domain (e.g., stock market index and shares prediction [17,18], the stock price [19,20], exchange rate [21,22]), health (e.g., prediction of infective diseases diffusion [23], diabetes mellitus [24], blood glucose concentration [25], and cancer growth [26]), traffic (e.g., traffic speed and flow prediction [27,28,29,30]), and industrial production (e.g., petroleum production [31], remaining life prediction [23,32,33], industrial processes [34], fuel cells durability [35], engine faults [36]). Deep learning algorithms are currently the leading methods in machine learning due to their successful application to many computer science domains (e.g., computer vision, natural language processing, speech recognition). In recent years, there has been a growth of interest in the application of deep learning to time series forecasting, due to deep learning’s capability to grasp the nonlinear relations among input data (i.e., time series samples). To the best of our knowledge, there are several reviews on deep learning for time series forecasting (e.g., [37,38,39,40,41,42,43]), but they have the following major shortcomings: they lack a description of Transformer and its variants; they do not provide a clear distinction between models for short-term and long-term forecasting, there are no sections on short-term and long-term forecasting benchmarks; they do not cover the most recent deep learning strategies for short-term forecasting (e.g., Graph Neural Networks, Deep Gaussian Processes, Generative Adversarial Networks, and Diffusion Models). The aim of this work is to provide a comprehensive survey of recent deep learning approaches for time series forecasting, underlining the advances and the open problems for each reviewed deep learning architecture. Specifically, the survey focuses on works about machine learning applied to time series forecasting that are not older than 2016, for the sake of length. The paper is organised in the following sections: in Section 2, the foundations of deterministic time series are introduced; Section 3 describes deep learning architectures for short-term forecasting, i.e., Convolutional Neural Networks, Temporal Convolutional Networks, Recurrent Neural Networks (RNNs), Graph Neural Networks, Deep Gaussian Processes, Generative Adversarial Networks, and Diffusion Models; Section 4 discusses long-term forecasting architectures, i.e., the Transformer architecture and its time series-based variants; Section 5 reviews other heterogeneous architectures for both short-term and long-term forecasting; benchmarking for short-term and long-term time series forecasting is presented in Section 6; in Section 7, some conclusions are drawn and future possible developments are discussed; finally, in the appendix are reported the main mathematical notation used in the work and a description of the main diffusion model foundations.

2. Deterministic Time Series

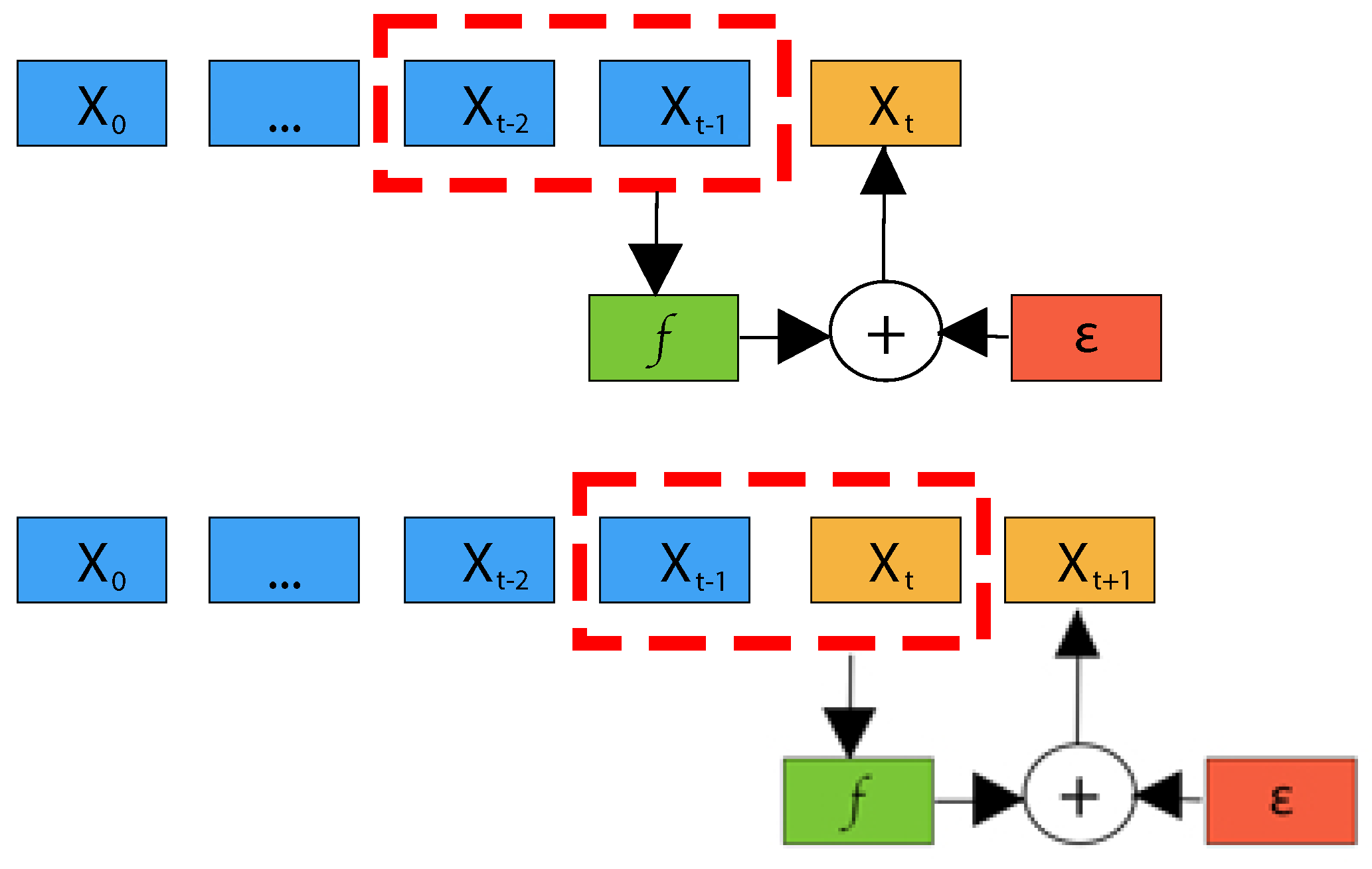

A time series is called a univariate time series if all its samples are scalar; otherwise, if all samples are vectors, it is called a multivariate time series. A time series is defined as stationary when the dynamical process that generated it does not change over time, otherwise, it is non-stationary. A deterministic stationary time series  x t , with t = 1 , , L , can be described by an autoregressive model as follows:
x t + p = f ( x t 1 , , x t q ) + ϵ t + p p [ 0 , P ]
where f ( · ) and q are called skeleton and model order of time series, i.e., how many past samples are required to model the time series adequately, respectively, and ϵ t + p represents an indeterminable part originated either from unmodeled dynamics of the process or from real noise. P defines the prediction length, i.e., how many future samples should be predicted. Figure 1 gives a graphical representation of an autoregressive model.
If P = 0 , the autoregressive model defines the so-called one-step ahead forecasting, otherwise, a prediction length P > 0 specifies a multi-step ahead forecasting problem. Moreover, multi-step ahead forecasting can be further divided into short-term and long-term forecasting. In the literature, the typical threshold value of prediction length P between short-term and long-term forecasting ranges between 2 and 48 [44]. Finally, for the sake of clarity, in this work, one-step ahead forecasting is included in short-term forecasting.

3. Deep Learning Models for Short-Term Forecasting

In short-term forecasting, the skeleton of time series can be approximated by the following deep learning models, which are described below. The section is organised as follows. Firstly, Convolutional Neural Networks (Section 3.1), and Temporal Convolutional Networks (Section 3.1.2) are introduced. Furthermore, Recurrent Neural Networks (Section 3.2) are described, including Elman RNNs (Section 3.2.1), Echo State Networks (Section 3.2.3), Long Short-Term Memory (Section 3.2.4), and Gated Recurrent Units (Section 3.2.5). Successively, hybrids and variants (Section 3.3) of the aforementioned architectures are briefly reviewed. Moreover, Graph Neural Networks (Section 3.4), Deep Gaussian Processes (Section 3.5), and generative models (Section 3.6), i.e., Generative Adversarial Networks (Section 3.6.1) and Diffusion Models (Section 3.6.3), are discussed. Finally, for each reviewed model, drawbacks and limitations are discussed in proper sections.

3.1. Convolutional Neural Networks

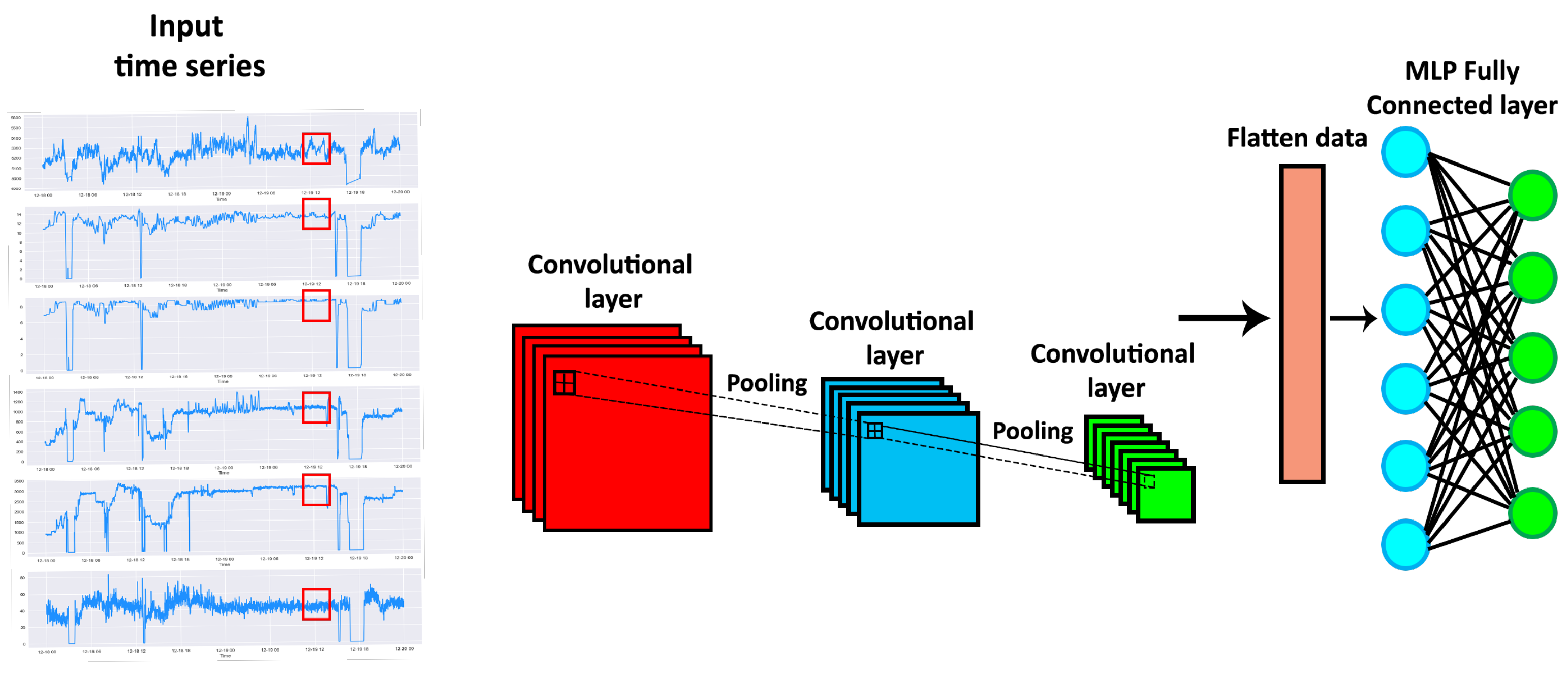

Convolutional Neural Networks (CNNs) [45], as shown in Figure 2, have a deep architecture generally formed by convolution, pooling, and fully connected layers. CNNs have three main peculiarities: local connectivity, shared weights and translation equivariance. Local connectivity resides in each CNN neuron being connected only to its exclusive input region, the so-called receptive field. Besides, the neurons of a given layer share the same weight matrix. Translation equivariance is the ability of CNNs to detect certain patterns, regardless of the position they have in the input image. 1D convolution (see Figure 3) of an input sequence X = [ x 1 , , x L ] with a given kernel w with size q is defined as:

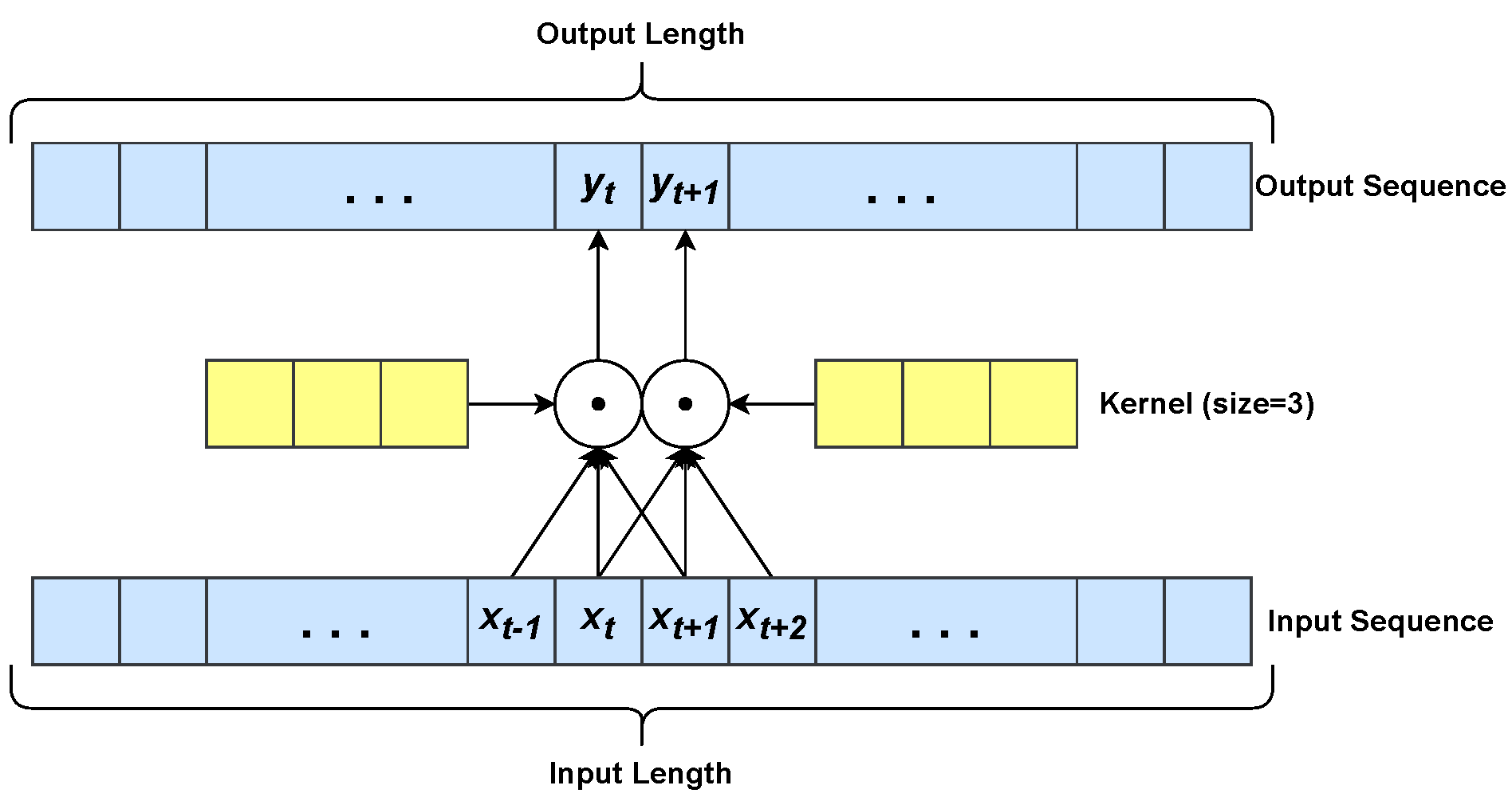

y ( t ) = ( w X ) ( t ) = a = q / 2 q / 2 w ( a ) X ( t a ) t [ 1 , , L ]
It is worthwhile to remark that in the autoregressive approach, the kernel size q corresponds to the model order, generally fixed using model selection techniques (e.g., cross-validation) [46]. Moreover, CNN can stack different convolutional layers in order to transform the input data (i.e., the past time series values) into a more suitable higher-level representation for the forecasting task. CNN time series forecasting applications are described in Table 1.

3.1.1. Shortcomings of Convolutional Neural Networks

The major drawback of CNNs for time series forecasting is the use of Euclidean kernels [51], since only a continuous and commonly short time series subsequence is considered at a time by an Euclidean kernel. However, in time series forecasting tasks it may be useful to extract representative features by analysing non-contiguous and farther time series samples in the past. This limitation is overcome by Temporal Convolutional Networks (see Section 3.1.2), with the use of causal and dilated convolutions, and by Graph Neural Networks (see Section 3.4), with a properly designed adjacency matrix.

3.1.2. Temporal Convolutional Networks

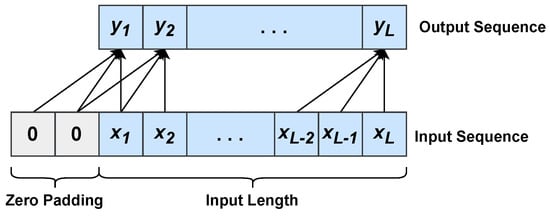

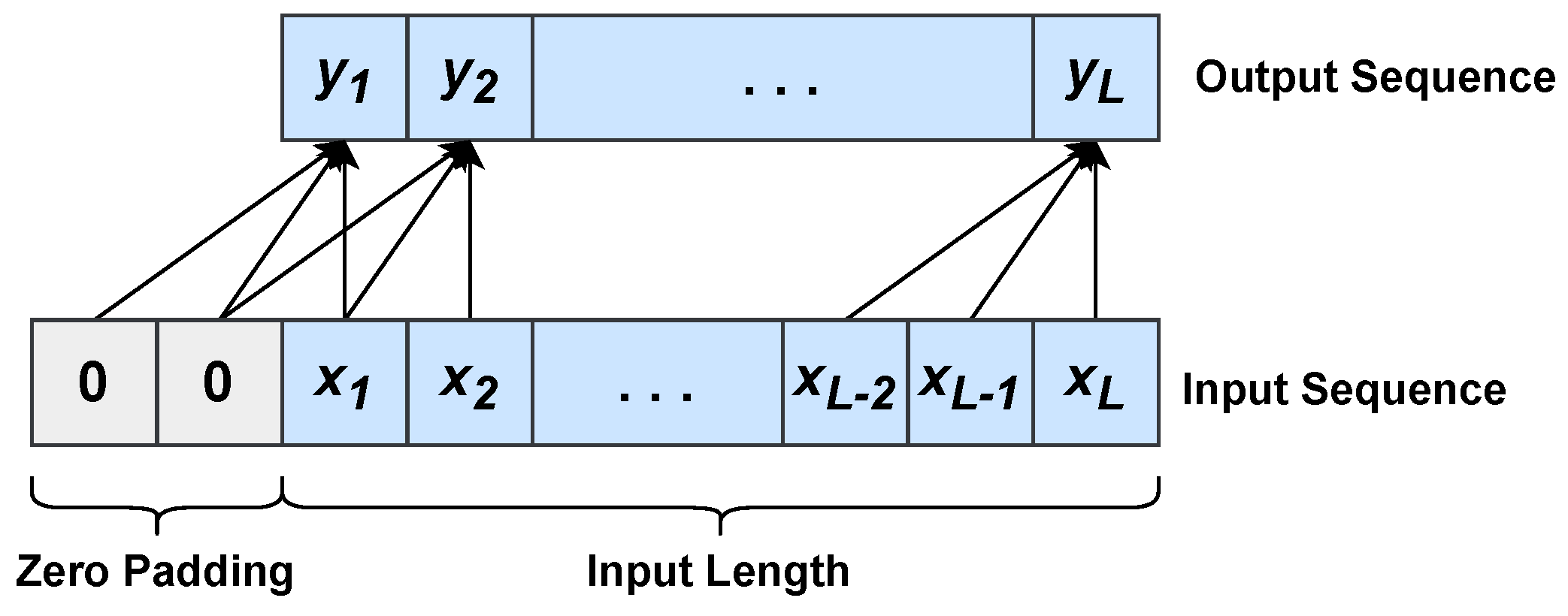

Temporal Convolutional Networks (TCNs) were proposed for action segmentation and detection by Lea et al. [52]. In a nutshell, a TCN is composed of cascaded 1D convolutional layers that allow mapping arbitrarily long inputs onto output sequences of the same length. In contrast to traditional CNNs, TCNs perform causal and dilated convolutions. Unlike 1D convolution (see Equation (2)), in causal 1D convolution (see Figure 4) the output element at time t is yielded by the convolution between the kernel and past input elements only, namely [ x t 1 , x t 2 , , x t q ] , where q is the kernel size that corresponds to the model order in an autoregressive approach (see Section 3.1). In detail, causal 1D convolution is defined as follows:
y ( t ) = ( w X ) ( t ) = a = 1 q w ( a ) X ( t a ) t [ 1 , , L ]

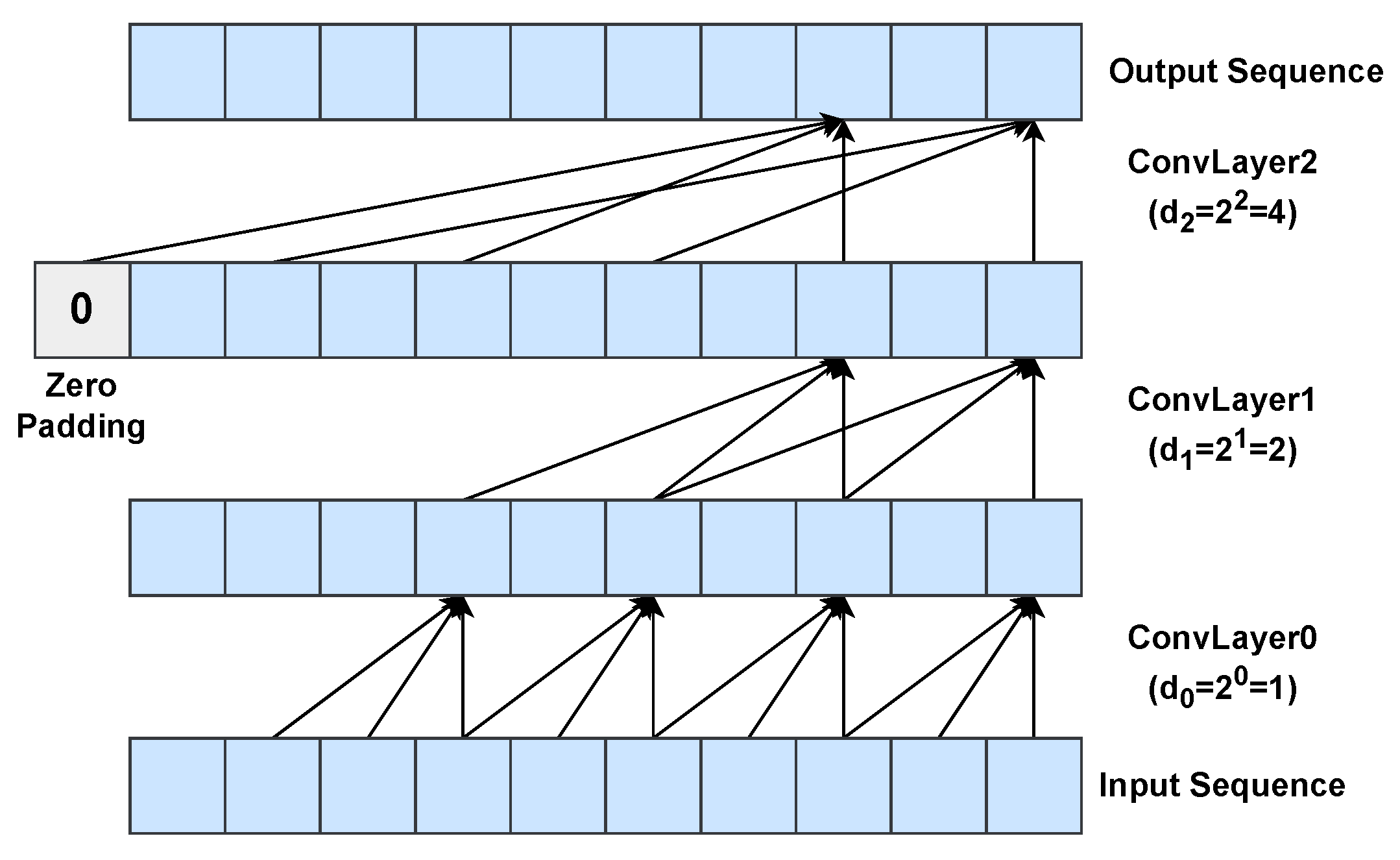

A dilated 1D convolution (see Figure 5) differs from a 1D convolution due to the introduction of a dilation factor d. The dilation, applied to convolution, is equivalent to considering a fixed step between two adjacent kernel elements. In particular, dilated causal 1D convolution can be defined as:
y ( t ) = ( w X ) ( t ) = a = 1 q w ( a ) X ( t d · a ) t [ 1 , , L ]
When d = 1 , a dilated 1D convolution is reduced to a 1D convolution. Dilated convolutions allow the networks to have a large receptive field, i.e., to capture information into the far past, by a logarithmic growth of the number g of convolutional layers, as stated in:
g = log b ( n 1 ) ( b 1 ) ( q 1 ) + 1
where b is the logarithmic base of the dilation factor d i for the i-th convolutional layer (namely, d i = b i ). TCN time series forecasting applications are reported in Table 2.
TCNs share with CNNs most shortcomings (see Section 3.1.1), with the only exception of the Euclidean kernel.

3.2. Recurrent Neural Networks

Recurrent Neural Networks (RNNs) [45] aim to explore the relations between the current time series samples and the past ones. An RNN processes one time series sample at a time to approximate the skeleton f ( · ) and determine the model order q implicitly. While in Equation (1) the model order q is assumed to be constant, RNNs exhibit a dynamic temporal behaviour, as they do not require a fixed model order q and they auto-determine how far back to look in the past. An RNN is composed of recurrent layers, which process one input sample at a time. The earliest RNN applications for time series forecasting [56,57] are replaced by more specific and sophisticated recurrent architectures, that is, Elman Recurrent Neural Networks [58], Echo State Networks [59], Long Short-Term Memory Networks [60], and Gated Recurrent Units [61].

3.2.1. Elman Recurrent Neural Networks

Elman [58], Williams-Zipser [62], and Jordan [63] RNNs are the earliest Recurrent Neural Networks properly designed to handle temporal patterns in time series. In particular, Elman RNN (ERNN) uses a recurrent layer, which yields an output h t that depends on the current sample x t and the previous output h t 1 by a function g ( · ) and a generic set of time-shared parameters ω , as described:
h t = g ω ( x t , h t 1 )
where h t 1 is produced by the same recurrent layer, i.e.,:
h t 1 = g ω ( x t 1 , h t 2 )
and so on. The basic recurrent layer, often called a vanilla cell, works like a fully connected layer with a fixed number of units, jointly applied to the current input x t and the last output h t 1 :
h t = g V x t + W h t 1 + b
In this case, the set of parameters of a recurrent layer is ω = { V , W , b } , where V is the input-recurrent weight matrix, W is the recurrent-recurrent weight matrix, and b is the bias vector. In Equation (8), g ( · ) is a nonlinear activation function, usually a hyperbolic tangent. ERNN time series forecasting applications are summarised in Table 3.

3.2.2. Shortcomings of Recurrent Neural Networks

Recurrent neural networks based on the vanilla cell suffer from unstable training, which prevents the network from grasping long-term dependencies. Recurrent networks, like most neural networks, are trained by gradient descent [67], and backpropagation [67] (Backpropagation is denoted Backpropagation Through Time (BPTT), when applied to recurrent neural networks) is used to compute the gradient of the loss function w.r.t. the network’s weights. When back-propagation is applied to deep networks, the problems of vanishing or exploding gradients [45] may arise. As the error gradient is back-propagated, some of its components might either get very small, giving a negligible contribution to the corresponding weight update, or very large, leading, in this way, to unstable training. Over the years, several approaches have been proposed to cope with unstable gradients. Among the most successful approaches are reservoir computing methods, e.g., Echo State Networks [59] (see Section 3.2.3), and gated cells, e.g., Long Short-Term Memory (LSTM) cells [60] and Gated Recurrent Units (GRU) [61]. A gated cell controls how much input information flows through the layer and prevents derivatives from vanishing or getting large.

3.2.3. Echo State Networks

Echo State Networks (ESNs) were suggested by H. Jaeger [59] in 2001 as a variant of ERNNs. ESNs are really effective in dealing with chaotic multivariate time series [68]. In addition, these networks mitigate the unstable gradient problem and are more computationally efficient due to the use of fixed, random weight matrices for the recurrent layers. Based on the vanilla cell of ERNNs (see Equation (8)), ESNs avoid backpropagation on the recurrent layer by setting V and W as fixed (i.e., non-trainable) random matrices. Furthermore, a given sparsity level is considered in matrix W. Although random matrices are an advantage of ENSs to mitigate the unstable gradient problem, they, at the same time, represent a major ESNs shortcoming since they make particularly difficult the application of common interpretability approaches, e.g., gradient-based approaches [69,70]. ESN time series forecasting applications are described in Table 4.

3.2.4. Long Short-Term Memory

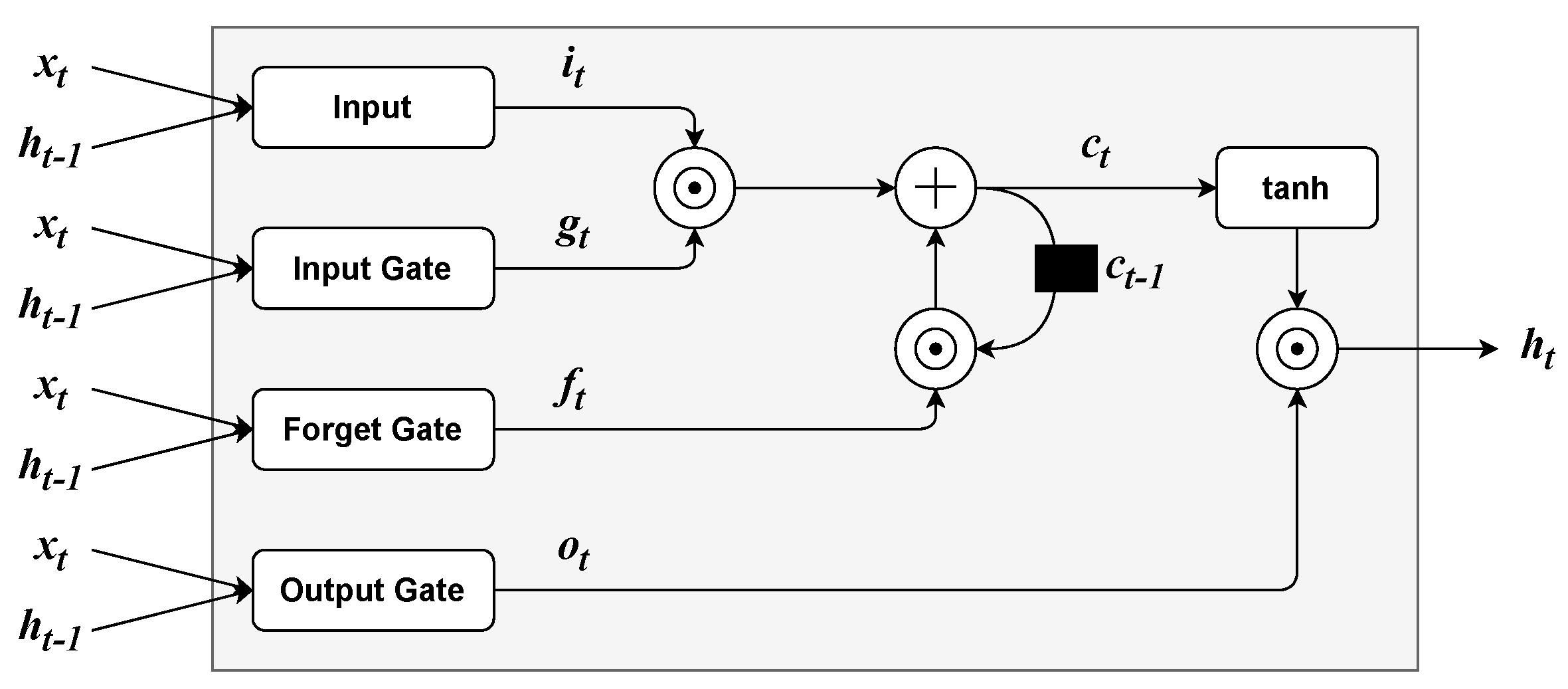

Long Short-Term Memory (LSTM) Networks [60] were originally proposed for natural language modelling. The LSTM cell (see Figure 6) uses three gating mechanisms: input, forget and output gates. Firstly, the input of LSTM layers, which is composed of the current input x t and the output h t 1 from the last time step are is combined into the current input vector i t as follows:
i t = γ ( W i x t + U i h t 1 + b i )
where γ ( · ) can be any sigmoidal function (e.g., logistic or hyperbolic tangent ones) and { W i , U i , b i } is a set of parameters. Furthermore, the three gates are computed as:
g t = σ ( W g x t + U g h t 1 + b g )
f t = σ ( W f x t + U f h t 1 + b f )
o t = σ ( W o x t + U o h t 1 + b o )
where σ ( · ) is the logistic function, g t , f t , o t are the input, forget, and output gates, respectively, and { W g , U g , b g } , { W f , U f , b f } , { W o , U o , b o } are the respective sets of parameters. Furthermore, the LSTM’s inner state c t is updated by a linear combination of i t and the previous inner state c t 1 :
c t = g t i t + f t c t 1
where ⊙ is the element-wise product. Finally, the output h t of a LSTM layer is defined as:
h t = o t tanh ( c t )
LSTM time series forecasting applications are described in Table 5.

3.2.5. Gated Recurrent Units

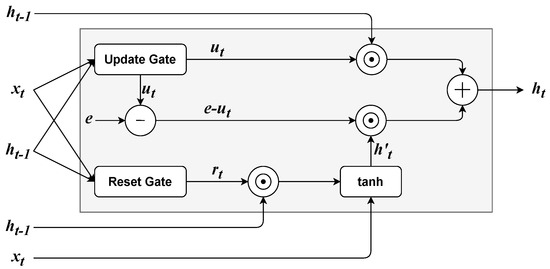

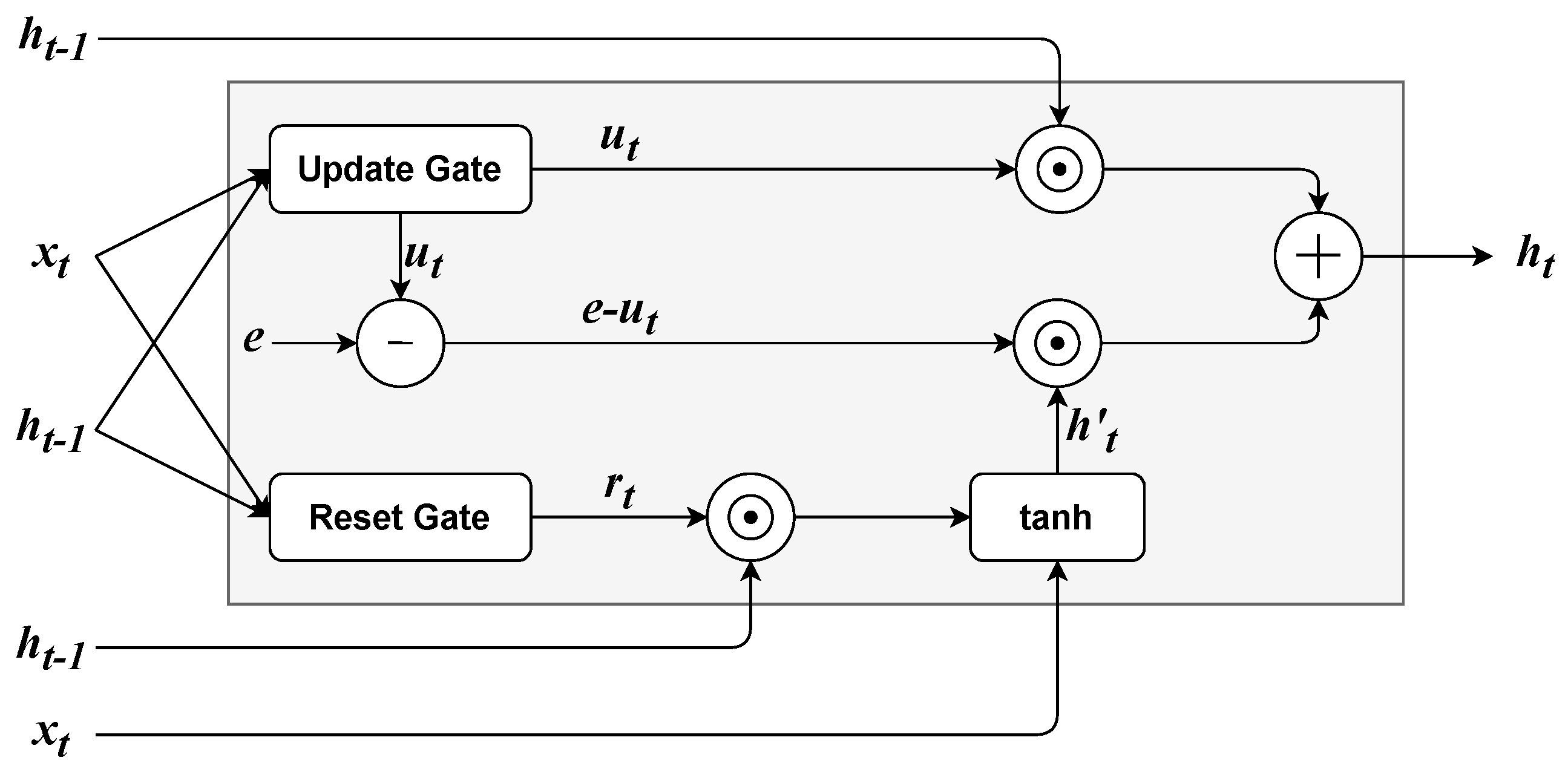

RNNs based on Gated Recurrent Units (GRUs) [61] were introduced for Statistical Machine Translation. A GRU layer, as shown in Figure 7, uses two gating mechanisms: an update and a reset gate. Both the reset and the update gate depend on x t and h t 1 . Analogously to LSTM, the reset gate r t and the update gate u t are computed as:
r t = σ W r x t + U r h t 1 + b r
u t = σ W u x t + U u h t 1 + b u
where σ ( · ) is the logistic function and the rest of the parameters have the same meaning as the LSTM (see Section 3.2.4). Furthermore, an intermediate output h t is given by:
h t = tanh W x t + U ( r t h t 1 ) + b
where { W , V , b } is an additional set of parameters and ⊙ is the element-wise product. Finally, the output h t of the GRU layer is given by the sum of h t and h t 1 , weighted element-wise by the update gate:
h t = u t h t 1 + ( e u t ) h t
where e is a column vector whose elements are all equal to 1. GRU time series forecasting applications are described in Table 6.

3.2.6. Shortcomings of LSTMs and GRUs

It has to be remarked that, even if training is stable, it can be hard for recurrent networks to learn dependencies between distant sequence samples. For instance, a recurrent network that generates an output sequence starting from an input sequence is shown in Figure 8.

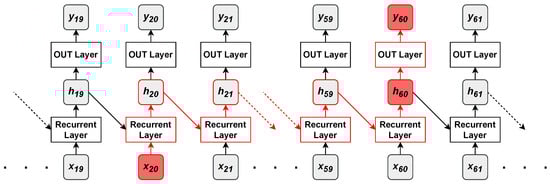

Supposing that the output element at position t = 60 has a strong dependency on the input at position t = 20 , information about the input sample x 20 is useful to predict the output sample y 60 . The output sample y t is predicted starting from h t , a lossy summary of the past inputs yielded by the recurrent layer; hence, the only way for the output layer to know about x 20 is through h 60 . The recurrent layer first captures information about x 20 through h 20 , which has to pass by many steps and then aggregate information about many other input elements, before achieving h 60 . There is no guarantee that after so many recurrent steps, adequate information about x 20 is preserved into h 60 . In fact, h 60 may just contain information about the most recent samples and have no information about x 20 at all. The short-term memory of recurrent networks is one of their major drawbacks and one of the main reasons why attention mechanisms and Transformers were originally introduced in deep learning (see Section 4.1).

3.3. Hybrids and Variants of Deep Neural Networks

In recent years, specific deep neural networks have been proposed as hybrids or variants of the aforementioned architectures. Hybrid models combine multiple statistical or machine learning methods to improve the robustness and accuracy of forecasting. Towards the same goal are the works that propose variants of deep neural architectures properly adapted for time series forecasting tasks. Hybrids and variants of deep neural networks share the same limitations as the models they are based on. The most successful approaches are summarised in Table 7.

3.4. Graph Neural Networks

A recent promising research direction in multivariate time series forecasting is the application of Graph Neural Networks (GNNs) [124,125]. The original domain of GNNs is the handling of spatial dependencies among entities in a graph-modelled problem. In detail, GNNs can be used to generate representations of such entities that depend on the structure of the graph and on any additional information. A graph G is formally defined as a tuple G = [ V , E ] , where V denotes the set of nodes and E is the set of edges, the connections between the nodes of the graph, represented, in this case, with an adjacency matrix. The definition of this matrix is based on a metric function that can be either a priori fixed or learned during the training process [125]. The basic idea of a GNN can be summarised by the use of three main operators: aggregate, combine, and readout. The k-th GNN layer performs the aggregate and combines operators. The former consists of agglomerating, for each graph node v V , information from its neighbourhood N ( v ) as defined by the adjacency matrix:
h N ( v ) k = a g g r e g a t e ( h u k 1 : u N ( v ) ) k > 1
where h u k 1 is the feature vector of the u-th neighbouring node of v, yielded by the previous GNN layer k 1 , and h N ( v ) k is the aggregated information. The latter combines the aggregated information h N ( v ) k with the feature vector h v k 1 of the current node v:
h v k = c o m b i n e ( h v k 1 , h N ( v ) k ) k > 1 .
When k = 1 the a g g r e g a t e operator is not defined, whereas the c o m b i n e operator reduces to:
h v 1 = x v ,
where x v represents the input feature vector associated to the v-th node. Furthermore, the readout operator is applied on the output of the last GNN layer K in order to obtain a final vector h G representing the whole graph G = [ V , E ] :
h G = r e a d o u t ( h v K : v V )
In the case of multivariate time series forecasting, GNNs have been successfully applied as feature selection mechanisms. It is important to remark that GNNs could also be applied to spatio-temporal time series forecasting which is not the object of the survey. GNN time series forecasting applications are described in Table 8.

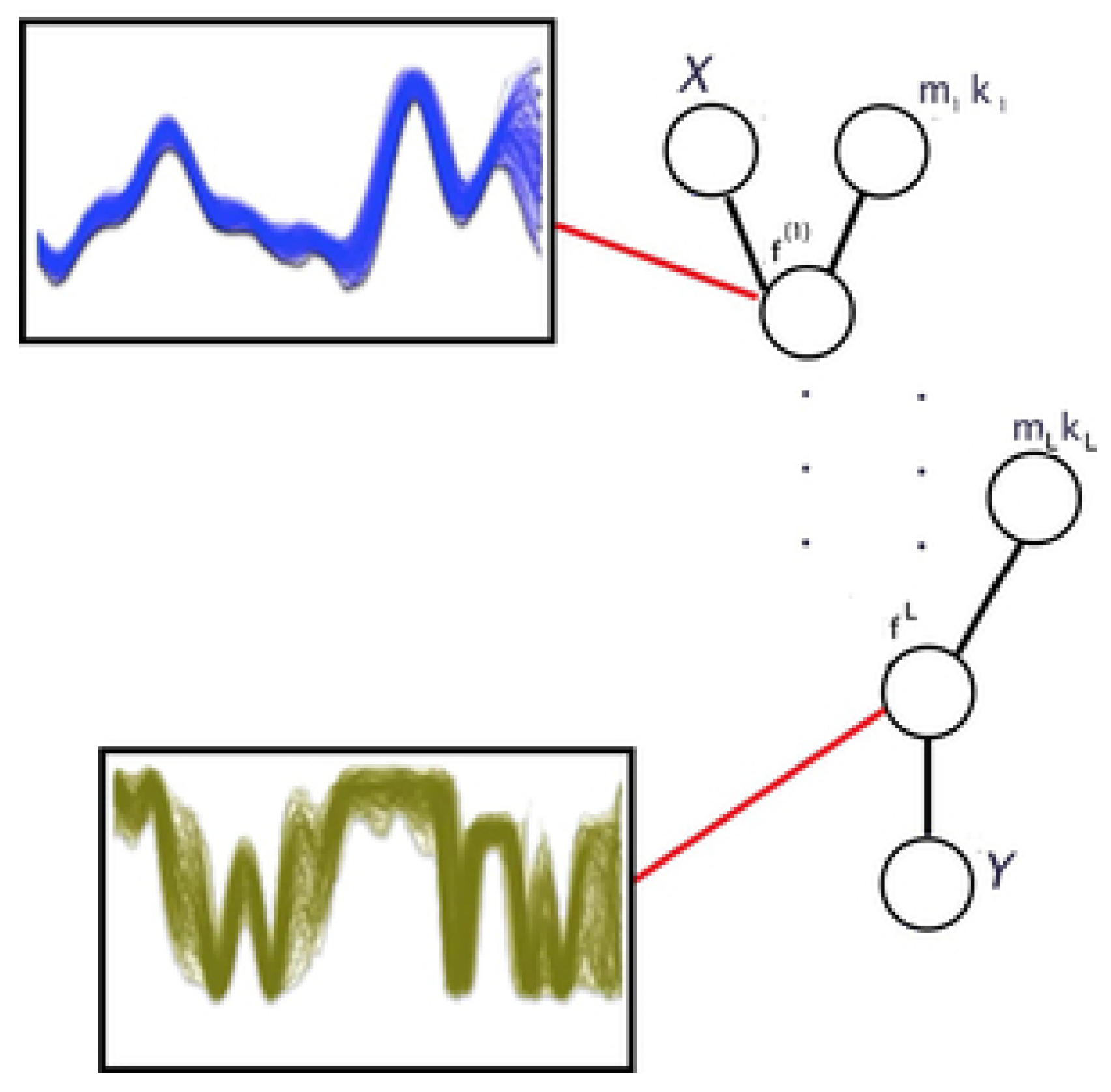

3.5. Deep Gaussian Processes

Let D = ( x 1 , x 2 , , x n ) be a data set and Y = ( y 1 , y 2 , , y n ) the target output, a Gaussian Process [131] is a Bayesian model composed of a collection of random variables, any finite number of which have a joint Gaussian distribution, and it is fully defined by a mean function m ( x i ) and covariance function k ( x i , x j ) , which is usually a Mercer kernel [131,132]. The analytical solution of a Gaussian Process entails computing the inverse of the covariance matrix of observations, which has a computational complexity of O ( n 3 ) . A common approach for coping with this computational drawback is the use of Sparse Gaussian Process [133]. This method consists of considering a reduced set of m ( m n ) training samples, the so-called inducing variables, reducing, in this way, the complexity to O ( n m 2 ) . A sequence of Gaussian Processes defines a Bayesian model called Deep Gaussian Process (DGP) [134]. As shown in Figure 9, in DGPs the output of the single Gaussian Process located at the previous layer is fed as an input to the Gaussian Process located at the next layer. Unlike the rest of the deep learning techniques, Deep Gaussian Processes can estimate not only the value of future time series samples but also provide a confidence interval of the predictive time series value representing, in this way, the uncertainty of the model. DGP time series forecasting applications are described in detail in Table 9.

3.6. Generative Models

Among the latest trends in deep learning research, there are the so-called generative models, specifically Generative Adversarial Networks (GANs) and Diffusion Models (DMs). Both families are popular for their groundbreaking capabilities in generating synthetic images. These successes encouraged researchers to apply GANs and DMs to sequential data as well, including time series. As generative models, both methodologies have been used for time series generation tasks. However, it can adapt them for other time series-related tasks as well, specifically time series forecasting. Section 3.6.1 and Section 3.6.2 provide an overview of GANs and their usage for time series forecasting, respectively; Section 3.6.3 and Section 3.6.4 discuss diffusion models and their applications to time series forecasting, respectively.

3.6.1. Generative Adversarial Networks

A GAN [140] is composed of two separate artificial neural networks: a generator network G that generates synthetic data, with the same distribution of the input ones, and a discriminator network D that classifies input data as either real or synthetic. G and D are trained with an adversarial training approach. G takes random noise as input and it has to transform the noise into a synthetic data sample following the same distribution of the real data. D receives both real and generated samples and it estimates the probability that any given data sample comes from the real data rather than from the generator. The two networks are trained jointly with a minimax two-player game [140], i.e., the discriminator is trained to maximise the correct classification ratio for both real and generated samples. Whereas, the generator has the goal to trick the discriminator into misclassifying generated samples by minimising the correct classification ratio. This training procedure is expressed by the objective function:
min G max D V ( D , G ) = E x p x ( x ) [ log D ( x ) ] + E z p z ( z ) [ log ( 1 D ( G ( z ) ) ) ] .
where, x is a real data point, sampled from the real data distribution p x ( x ) ; z is a noise vector, sampled from a distribution p z ( z ) , a priori fixed; D ( x ) is the probability distribution estimated by the discriminator; G ( z ) is the sample produced by the generator, starting from the noise z . GANs can be implemented by any neural architecture for the generator and the discriminator. For instance, G and D can be implemented by MLPs [67], as originally proposed in [140], CNNs (see Section 3.1), with some architectural constraints to stabilise the training procedure [141], or LSTM (see Section 3.2.4) networks [142].

3.6.2. Generative Adversarial Networks in Time Series Forecasting

In literature, there are two main approaches for using GANs in time series forecasting: as data augmentation or as an end-to-end forecasting model. In the former case, GANs generate synthetic time series in a given domain (e.g., financial or health-related time series) in order to augment the original small data set. The augmented data set, with both real and generated time series, is then used to train a traditional forecasting model, e.g., a model based on an LSTM network. In the latter case, the forecasting model is a GAN itself, and it generates future samples starting from previous ones and, eventually, other exogenous inputs (In time series forecasting, a variable is said to be exogenous if it is not a time series sample, but it can still affect the time series samples. For instance, temperature may be an exogenous variable in rainfall time series forecasting) [143]. For example, in [144] a GAN is firstly used to augment a building energy consumption data set and then, an ensemble of five traditional predictive models is trained on such augmented data set. In particular, to augment the data set, Conditional GANs (CGANs) [145] and Information Maximising GANs (InfoGANs) [146] are compared with each other. Similarly, in [147] COVID-19 epidemic data is generated by a custom GAN with an LSTM generator and an MLP discriminator. Furthermore, a Transformer is used to make a forecasting model trained on the GAN-augmented data set. Moreover, some GAN-based models have been specifically developed for time series generation, e.g., QuantGAN [148], for financial time series with long-term time dependencies, SynSigGAN [149], for continuous biomedical signals, Recurrent Conditional GANs (RCGANs) [150], for medical data, TimeGAN [151], a framework for domain-agnostic time series generation, Conditional Sig-Wasserstein GAN (Sig-WCGAN) [152], and TTS-GAN [153], entirely based on Transformers. Some of the aforementioned GANs, e.g., RCGAN, TimeGAN, Sig-WCGAN, are conditional GANs [145], i.e, time series are not generated from only random noise but also conditioned on the real time series and/or related information, e.g., exogenous inputs, for improving generated time series quality. The use of conditional GANs is popular for end-to-end forecasting, where the generated time series window, typically in the short-term future, is often conditioned on previous samples and on other exogenous inputs (see [154,155,156,157,158]). Table 10 collects some works on GAN applications for time series forecasting.

3.6.3. Diffusion Models

A new family of generative architectures are the diffusion models. They have been showing cutting-edge performance in generating samples that reflect the observed data in different domains, e.g., image generation, video generation, and text synthesis. Three key formulations are used to develop diffusion-based approaches for short-term time series applications: denoising diffusion probabilistic models (DDPMs) [173,174], score-based generative models (SGMs) [175], and stochastic differential equations (SDEs) [176]. Diffusion models aim to approximate a generative process G that generates new samples drawn from an underlying distribution q ( x ) , given some observed data x from the same distribution. To approximate G , in the forward process, a progressive injection of Gaussian noises on the observed data is performed by the majority of diffusion models. Furthermore, a reverse process is applied, by a learnable transition kernel, to reconstruct the original data. Most diffusion models assume that, after a finite number of noise injection steps, q ( x ) distribution of the observed data will become a Gaussian distribution. Therefore, the goal of diffusion models is to find the probabilistic process P that approximates q ( x ) distribution of original data from the Gaussian distribution. In this manner, any sample of Gaussian distribution can be transformed by P into a new sample of q ( x ) distribution of observed data x. The principle of diffusion models is to progressively perturb the observed data x with a random noise by a forward diffusion process F before recovering the original data using a backward reverse diffusion process B . A deep neural network is used in the B process to approximate the amount of noise that must be removed in the denoising steps to recover the original data. For the sake of readability, the theoretical foundations of diffusion models and their main architectures are omitted in the section and moved in Appendix B, whereas the diffusion models for short-term time series forecasting are described in the following subsection.

3.6.4. Diffusion Models in Short-Term Time Series Forecasting

In recent years, several diffusion-based approaches for time series forecasting have been proposed. They are based on the three predominant methods of diffusion model described in Appendix B. The first prominent diffusion model architecture for time series forecasting is TimeGrad [177], which is a DDPM variant. The forward process of TimeGrad injects noises into data at each predictive sample, and then denoises gradually through the backward process conditioned on previous time series samples. For encoding the previous time series samples, TimeGrad uses an RNN architecture, e.g., LSTM (see Section 3.2.4) or GRU (see Section 3.2.5), The objective function of TimeGrad is represented by a negative log-likelihood, denoted as:
t = t 0 T log p θ ( x t 0 | h t 1 ) ,
where [ t 0 , T ] is the prediction length. The Equation (24) can be reformulated considering the lower bound:
E k , x t 0 , ϵ [ δ ( k ) | | ϵ ϵ θ ( a ˜ k x t 0 + 1 a ˜ k ϵ , h t 1 , k ) | | 2 ] .
The parameters θ are estimated during the training, minimising the negative log-likelihood objective function with a stochastic sampling. Furthermore, future time series samples are generated with a step-by-step procedure. The observation for the next samples at time T + 1 is predicted in a similar way as DDPM (see Appendix B). Similarly, the ScoreGrad model [178], based on the same target distribution of TimeGrad, defines a continuous diffusion process using SDEs (see Appendix B). ScoreGrad consists of two modules: the former is a feature extraction module (e.g., an RNN) almost identical to TimeGrad, or an attention-based network, e.g., Transformer (see Section 4.1), for computing the hidden state h t of previous time samples, the latter is a conditional SDE-based score-matching module. The objective function of ScoreGrad is computed as follows:
t = t 0 T L t ( θ ) ,
with L t ( θ ) being:
E k , x t 0 , x t k [ δ ( k ) | | s θ ( x t k , h t , k ) x t k log q o k ( x t | x t 0 ) | | 2 ] .
It is worthwhile to remark that, in Equation (27), the general formulation of SDEs has been used for the sake of simplicity. Recently, time series research has paid attention to avoiding model overfitting phenomena in the forecasting of short time series. D 3 V A E [179], tries to address the problem of short time series, applying a coupled diffusion process for time series data augmentation, and then it performs a bidirectional autoencoder (BVAE), as a score model. Moreover, D 3 V A E takes into account the decoupling of latent variables by reducing total correlation to improve prediction interpretability and stability. Furthermore, the objective function of D 3 V A E includes the mean square error (MSE), which highlights the requirement of supervision, among the forecast and current samples in the prediction window. Unlike TimeGrad, D 3 V A E injects noises separately into the previous samples (context) x 1 : t 0 1 0 and the prediction window x t 0 : T 0 by the coupled diffusion process:
x 1 : t 0 1 k = a ˜ k x 1 : t 0 1 0 + 1 a ˜ k ϵ ,
x t 0 : T k = a ˜ k x t 0 : T 0 + 1 a ˜ k ϵ ,
where ϵ indicates the standard Gaussian noise. Short time series forecasting benefits the simultaneous improvement of the context and prediction window provided by the diffusion process. The B process is made up of two steps. The former forecasts x t 0 : T k with a BVAE model, considering the context x 1 : t 0 1 k . The latter denoises the output x ˜ t 0 : T k of BVAE with a denoising score matching module, as follows:
x t 0 : T k x ˜ t 0 : T k σ 0 2 x ˜ t 0 : T k E ( x ˜ t 0 : T k ; e ) ,
where E ( x ˜ t 0 : T k ; e ) is the energy function. The objective function of D 3 V A E is composed of four losses, that can be written as follows:
λ 1 D K L ( q ( x t 0 : T k | | p θ ( x ˜ t 0 : T k ) ) + λ 2 L D S M + λ 3 L T C + L M S E ,
where λ 1 , λ 2 , λ 3 are the regularisation parameters of divergence between target distribution and distribution of prediction window, denoising score matching objective, and total correlation among latent variables, respectively. Diffusion models for time series forecasting are summarised in Table 11.

4. Deep Learning Models for Long-Term Forecasting

In long-term forecasting, the skeleton of a time series can be approximated by using the Transfomer architecture. Firstly, the original Transformer architecture (Section 4.1) is described and attention mechanisms are presented (Section 4.1.1 and Section 4.1.2). Furthermore, the main limitations of Transformers are discussed (Section 4.1.3) and variants of Transformer, properly designed to cope with long-term time series forecasting tasks, e.g., Informer, Autoformer, FEDFormer and Crossformer, are presented (Section 4.1.4).

4.1. Transformers

The Transformer [181] is a deep-learning architecture borrowed from Natural Language Processing. It can be described as: “a model architecture eschewing recurrence and relying entirely on attention mechanisms to draw global dependencies between input and output” [181]. The Transformer architecture was proposed to overcome the main drawbacks of recurrent models (see Section 3.2.2 and Section 3.2.6) with sequence modelling tasks:
  • The output state h t of a recurrent layer at time t depends on the state h t 1 , produced at the previous time step. This inherent sequential nature prohibits the intra-sequence parallelism of recurrent networks.
  • Recurrent networks cannot generally learn relationships between sequences of distant samples, since information must first pass through all data samples in between (see Figure 8).

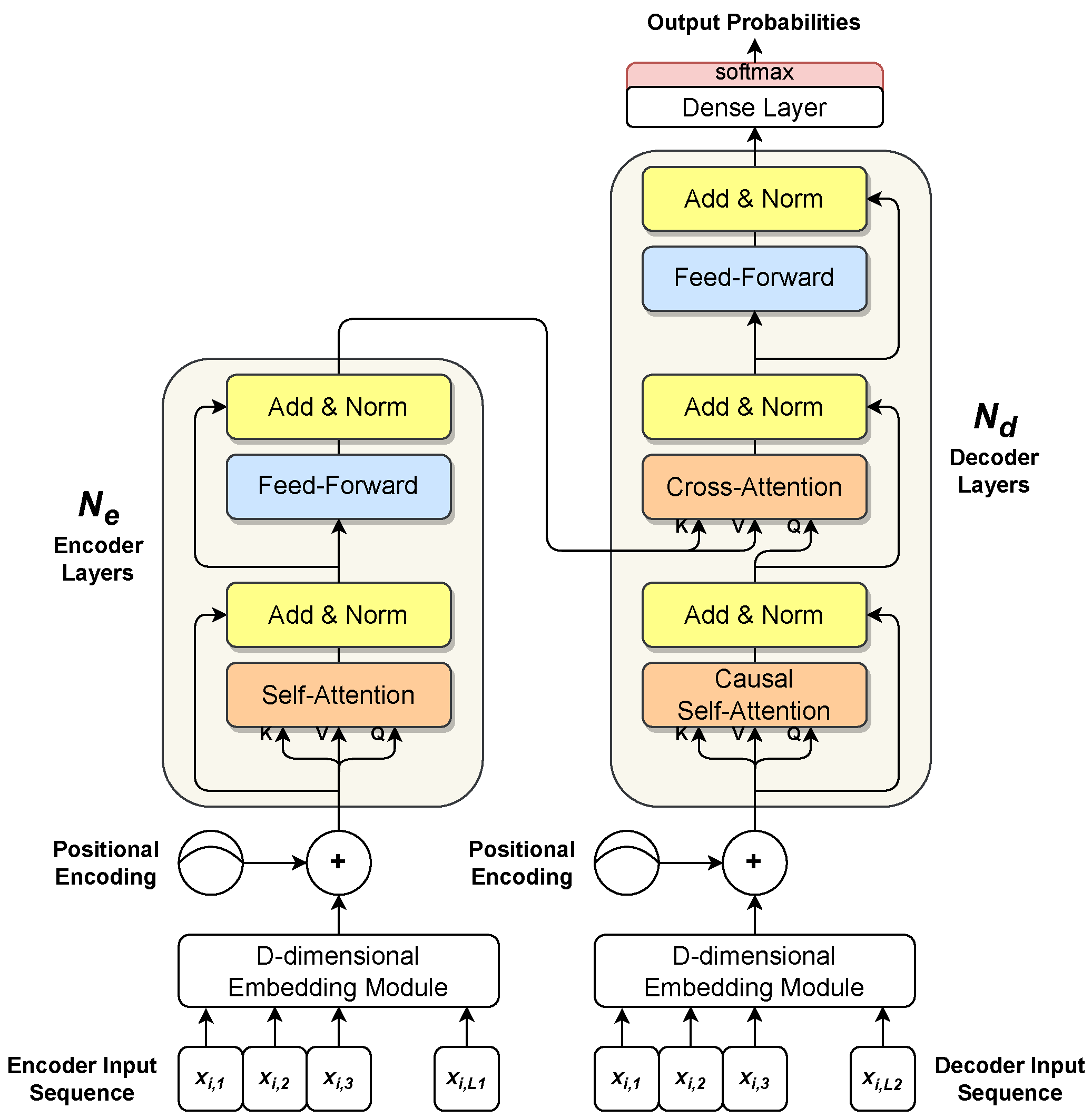

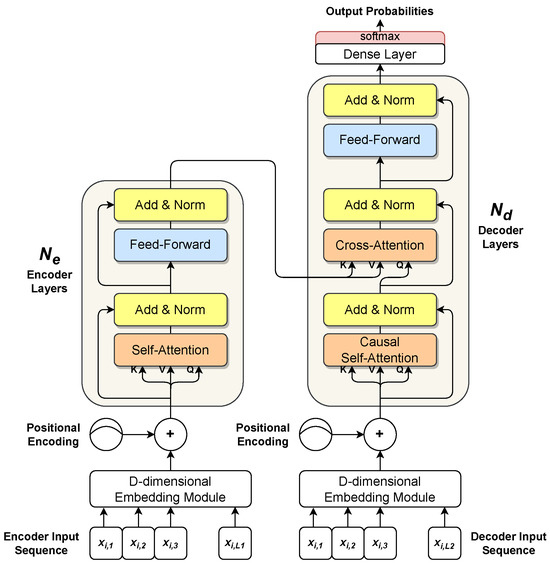

The standard Transformer follows a general encoder-decoder architecture for sequence-to-sequence transduction, as shown in Figure 10.
In time series forecasting, the Transformer’s input is a time-ordered sequence of past samples X = [ x 1 , x 2 , , x L ] where L is the sequence length and x i R d is the i-th sample of a d-dimensional multivariate time series. Due to the use of attention mechanisms, Transformers make no assumption on any intrinsic temporal or spatial ordering of input elements, namely inputs are seen as a set of samples rather than ordered sequences of samples. If there is a relevant input ordering for the modelling task, e.g., time series forecasting, the ordering should be encoded in the input embedding. In Transformers, this is commonly achieved by summing a positional embedding E p o s to the main sample embedding F ( X ) [181]:
i n p u t = F ( X ) + E p o s
where the matrix (Differently from what appears in some machine learning papers, the more precise tensor product notation is used in the whole work for representing matrices) F ( X ) R L R D represents a projection of the input sequence in a higher D-dimensional space ( D > d ). In time series forecasting, a 1D convolutional layer is commonly used with D learned kernels, as described in Section 3.1, in order to extract a D-dimensional representation for each sample in X [181,182,183,184]. E p o s can either be a learned embedding or a fixed embedding. A naive solution, yet effective, consists of using a sinusoidal position encoding [181]. However, in time series forecasting, other positional embeddings can be used as well, e.g., temporal-based embeddings [182,183,184]. The encoder and the decoder can have two different separated embeddings, or they can share the same embedding if input and output samples belong to the same set. In time series forecasting, the encoder input is the complete sequence of past samples X , while the decoder input is commonly composed of the most recent part of X (e.g., the second half of X , i.e., [ x L / 2 , x L / 2 + 1 , , x L ] ) and a zero-vector whose length is equal to prediction length P, see Equation (1). The encoder and decoder are composed of N e and N d stacked layers, respectively (see Figure 10). The output of a layer is the input for the next layer. Each encoder layer has two sublayers: a self-attention layer, that relates each input sample with the rest of the samples, and a shallow feed-forward dense layer, shared along the sequence axis, that works as a nonlinear projection layer. To foster gradient propagation and training, each sublayer’s input is added to its own output with a residual connection [185], and layer normalization [186] is used to normalise the samples of the resulting sequence into a normal distribution with a learned mean and standard deviation. Each decoder layer follows the same overall structure of a generic encoder layer, but it has one additional sublayer. The first sublayer implements a particular kind of self-attention mechanism, the so-called causal (or masked) self-attention [181]. It works similarly to the encoder layer’s self-attention, as each input sample is related to the others in the decoder’s input sequence, but it also uses masking to prevent future samples from being considered when the processing of the current sample occurs. Furthermore, the output of the causal self-attention sublayer is related to the encoder’s hidden representation (that is, the output of the final encoder layer) by a cross-attention layer. As in encoder layers, a Multi-Layer Perceptron [67] with one hidden layer is used for projecting nonlinearly the output of cross-attention. Moreover, each sublayer is wrapped by a residual connection followed by layer normalization. Finally, the output of the last decoder layer is fed to a final prediction layer.

4.1.1. Attention Mechanisms

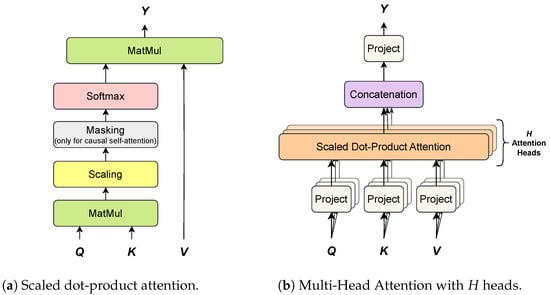

The most important computational blocks of a Transformer are attention mechanisms, that allow the model to focus its attention on specific parts of the input, depending on the information being processed. Among various definitions of attention, Transformers adopt the so-called scaled dot-product attention, which is very similar to multiplicative attention [187]. Attention mechanisms operate on the following elements: a set of queries  Q R M R D k that represents the information being processed by the model, and sets of keys K R N R D k and values V R N R D v , where D k and D v denote the dimension of space where queries, keys and values are projected. Moreover, N denotes the cardinality of both keys and values, while M is the cardinality of the input queries. The output Y for all queries is computed as follows:
Y = Attention ( K , V , Q ) = softmax Q K D k V
The attention output Y R M R D v is a matrix whose i-th row contains the output vector for the i-th query. Note that the softmax in Equation (33) is applied row-wise to its input matrix. Where do these queries, keys and values come from? First of all, keys and values are often the same vectors, i.e., a value vector coincides with its key. Furthermore, as described in Section 4.1, the Transformer performs attention in two ways, self-attention and cross-attention. In self-attention, queries and values are the same vectors; in cross-attention queries come from the previous decoder sublayer, while key and value vectors are given by the encoder’s hidden representation.

4.1.2. Multi-Head Attention

Multi-Head Attention (MHA) is a more advanced version of the aforementioned scaled dot-product attention. As discussed in [181], the scaled dot-product attention permits a network to attend over a sequence. However, often there are multiple different aspects a sequence element wants to attend to, and a single weighted average is not an adequate option for it. This motivates the extension of the scaled dot-product attention to MHA, which allows the model to jointly attend to information from diverse representation sub-spaces, as shown in Figure 11.
In MHA, keys, values and queries are linearly projected H separate times, by three learned projection matrices, onto spaces of dimensions D k , D v and D k respectively. Furthermore, a scaled dot-product attention is applied to each of these projections and the results are concatenated together and re-projected onto the previous layer space. Each projection-attention pair defines a so-called attention head h i . For the sake of simplicity, keys, values and queries are assumed to have the same dimension D. Each attention head h i has three learned matrices: W i K R D R D k , W i V R D R D v and W i Q R D R D k , used to project keys, values and queries, respectively. Each attention head applies a scaled dot-product attention (see Equation (33)) to the projected keys, values and queries (see Section 4.1.1):
h i = Attention ( K W i K , V W i V , Q W i Q ) i [ 1 , H ]
Finally, the attention output Y is given by:
Y = MHA ( K , V , Q ) = Concatenate ( h 1 , h 2 , , h H ) W o
where the outputs h i from all attention heads are concatenated into a single R M R H D v matrix and then re-projected linearly to the original D-dimensional space via an additional projection matrix W o R H D v R D .

4.1.3. Shortcomings of Transformers

There are three main shortcomings of Transformers. Firstly, Transformers are locally-agnostic, that is, the scaled dot-product of the attention mechanism (see Equation (33)) is insensitive to the local context, which can make the model prone to anomalies in time series forecasting [188]. Furthermore, Transformers suffer of memory bottleneck, i.e., Transformers’ space complexity is O ( L 2 ) with sequence length L [188]. Similarly, Transformers also have the same time complexity, limiting their application to the long-term forecasting. These shortcomings are faced by some of the Transformer variants described in the following section.

4.1.4. Transformer Variants for Time Series Forecasting

In recent years, many variants of the naive Transformer [181], specific for time series forecasting, have been proposed. Key innovations that these variants suggest concern the embedding layer, attention mechanisms and even the encoder-decoder structure. Most of the literature focused on the design of alternative attention mechanisms that are more suitable for time series forecasting tasks. One of the first such works is the LogTrans [188], which handles two limitations of the traditional Transformer: locally-agnostic and memory bottleneck (see Section 4.1.3). The former limitation is tackled using causal convolutions (see Section 3.1.2) to generate keys and queries in the self-attention module. For the latter, a log-sparse mask is considered in order to reduce the computational complexity (see Section 4.1.3) of multi-head attention. Inspired by the idea of LogTrans, another variant, the Informer [182], defines a new sparse measure to characterise a subset of the most informative queries before applying attention. In addition, this strategy also allows for the reduction of the computational complexity of attention mechanisms. Unlike LogTrans and Informer, the Autoformer [183] replaces the standard scaled dot-product attention with an autocorrelation mechanism. Additionally, a decomposition module is employed to break down the time series into trend and seasonal components, assuming implicitly that they exist and are additive. The autocorrelation mechanism measures the time-delay similarity between input signals and aggregates the top-k similar sub-series to produce the output. The FEDformer [184], based on the work of Linformer [189], applies attention to a low-rank approximation of the input based on the Restricted Isometry Property (RIP) matrix theory [190]. First, it represents the input signal into a frequency domain (either Fourier or Wavelet). Furthermore, it achieves a linear complexity by applying simplified attention mechanisms on a randomly selected subset of frequencies with a fixed size m. Recently, research efforts have moved from attention mechanisms to input representation, specifically concerning how to relate the dimensions of a multivariate time series and how to project the input sequence into a latent representation. The patchTST [191] assumes channel independence, i.e., independence among the dimension of the input multivariate time series, processing each dimension as a univariate time series. PatchTST segments each input sequence into shorter, local sub-sequences that are fed as input samples to a naive Transformer encoder [181]. All time series dimensions are implicitly related via the sharing of the encoder weights. A similar consideration is adopted by the Crossformer [192], which segments each dimension of the input time series into non-overlapping shorter sub-sequences. Unlike patchTST, however, the Crossformer explicitly defines the relations among all dimensions using a Two-Stage Attention (TSA) mechanism. Furthermore, Crossformer follows a Hierarchical Encoder-Decoder architecture, in which multiple layers of TSA are used to capture relations at multiple time scales. Another relevant work is the Pyraformer [193], which proposes a Pyramidal Attention Module (PAM) to capture long-term dependencies while achieving a complexity that is linear in the sequence length. Essentially, PAM consists of applying the classic scaled dot-product attention in a sparse fashion according to a pyramidal graph, built using a cascade of strided convolutions, that defines a multi-scale representation of the input sequence. According to PAM, each node of the graph is a query and it can attend only those nodes (keys) that are its direct neighbours in the graph. In this way, Pyraformer is able to capture both short-term and long-term dependencies while still achieving a linear complexity. Similarly to Pyraformer, Scaleformer [194] addresses the importance of multi-scale dependencies in time series forecasting. The approach is orthogonal to many time series Transformers and, as such, it has been empirically evaluated with some of the aforementioned models like the Autoformer [183] and the FEDformer [184]. Given an input past sequence and the corresponding target sequence, the main idea is to apply one of the above-mentioned Transformer models, multiple times at multiple time scales. At a given scale s i , the input to the encoder is the original look-back window but downsampled by a factor s i using average pooling; the input to the decoder is given by the model forecast at the previous scale s i 1 , but upsampled by a fixed factor s through linear interpolation. To mitigate error propagation and distribution shifts that are due to repeated upsampling operations, the encoder and decoder’s inputs are first normalised using Cross-Scale Normalization. Finally, a loss function, based on an adaptive loss, is applied at each time scale between the model forecast and the target sequence, which is also downsampled by a factor s i via average pooling. The Triformer [195] proposes a particular architecture that integrates attention mechanisms and recurrent units to ensure high efficiency and accuracy. The former is achieved by a patch attention mechanism with linear complexity; the latter is obtained by using variable-specific parameters. The patch attention mechanism splits the input sequence in P patches of length S and assigns a learnable pseudo-timestamp T p to each patch. When patch attention is applied, each pseudo-timestamp T p is considered as a query Q for its patch only. Moreover, variable-specific parameters are introduced by factorising the projection matrices (i.e, W K and W V ) into three matrices: left variable-agnostic matrix L R D R a , middle variable-specific matrix B R a R a and right variable-agnostic matrix R R a R D , where a D . Finally, to cope with the limited temporal receptive field that is due to the patch mechanism, recurrent units are used to aggregate and control the information for all pseudo-timestamps of each layer before the final prediction. All above-mentioned variants of Transformer share the over-stationarization problem that consists in the inability to generate distinguishable attention scores when trained on stationarized series [196]. The Non-stationary Transformer [196] proposes a generic framework to overcome the problem of over-stationarization. This framework is composed of two interdependent modules: Series Stationarization and De-stationary Attention. The former attenuates the non-stationarity of the time series considered, using two sequential operations: Normalization module, which computes the mean and the variance for each input time series in order to transform it into a stationary time series, and a De-normalization module, which transforms the model outputs back into a non-stationary time series, using the mean and variance computed in the previous module. The latter is a novel attention mechanism, which can approximate the attention scores that are obtained without stationarization and discover the particular temporal dependencies from original non-stationary data. Transformer variants for time series forecasting are described in detail in Table 12. Further details on each Transformer variant, can be found in the original paper that presents the architecture.
Table 13 reports an extensive comparison among all aforementioned Transformer variants. It has to be noted that, the reported results were collected from the original papers that tested a given model on a given data set (the reader can refer to the GitHub pages linked in the original papers of each architecture for reproducing the experiments, using the original experimental setups).

5. Other Relevant Deep Learning Models

This section is reserved for those works that propose interesting architectures for short-term and long-term time series forecasting which do not fit the previously defined categories. Even though these models might share the same building blocks of well-known architectures (e.g., CNN, TCN, RNN, Transformer), due to their peculiarity and heterogeneity it has been decided to collect them under a proper section. In [197] a Continuous Recurrent Unit (CRU) based on stochastic differential equations (SDEs) and Kalman filters, that can handle irregularly sampled time series, is proposed. The FiLM (Frequency-improved Legendre Memory) model [198] generates a representation of past time series samples by Legendre projections. It uses a noise reduction module based on Fourier analysis to preserve only relevant information from previous time samples, reducing the effect that noisy signals can have on time series forecasting. In [199], it shows how a time series forecasting model fully based on MLP can compare competitively with state-of-the-art Transformer models (e.g., PatchTST [191]), reducing, in this way, the forecasting computational cost. In detail, it proposes an adaption (TSMixer) of MLP-Mixer, originally proposed for the vision domain, for time series forecasting. A convolution-based architecture, MICN (Multi-scale Isometric Convolution Network) [200], can discover local patterns and global correlations in time series by using a multi-branch structure and relying on downsampled 1D convolutions to extract local features and isometric convolutions, a particular case of causal convolution (see Section 3.1.2), to discover global correlations. Table 14 summarises the aforementioned models.

6. Benchmarks for Time Series Forecasting

Recently, a group of time series have emerged as benchmarks for assessing the performance of machine learning models in time series forecasting tasks. This section describes the most relevant benchmarks for both short and long-term forecasting.

6.1. Benchmarks for Short-Term Forecasting

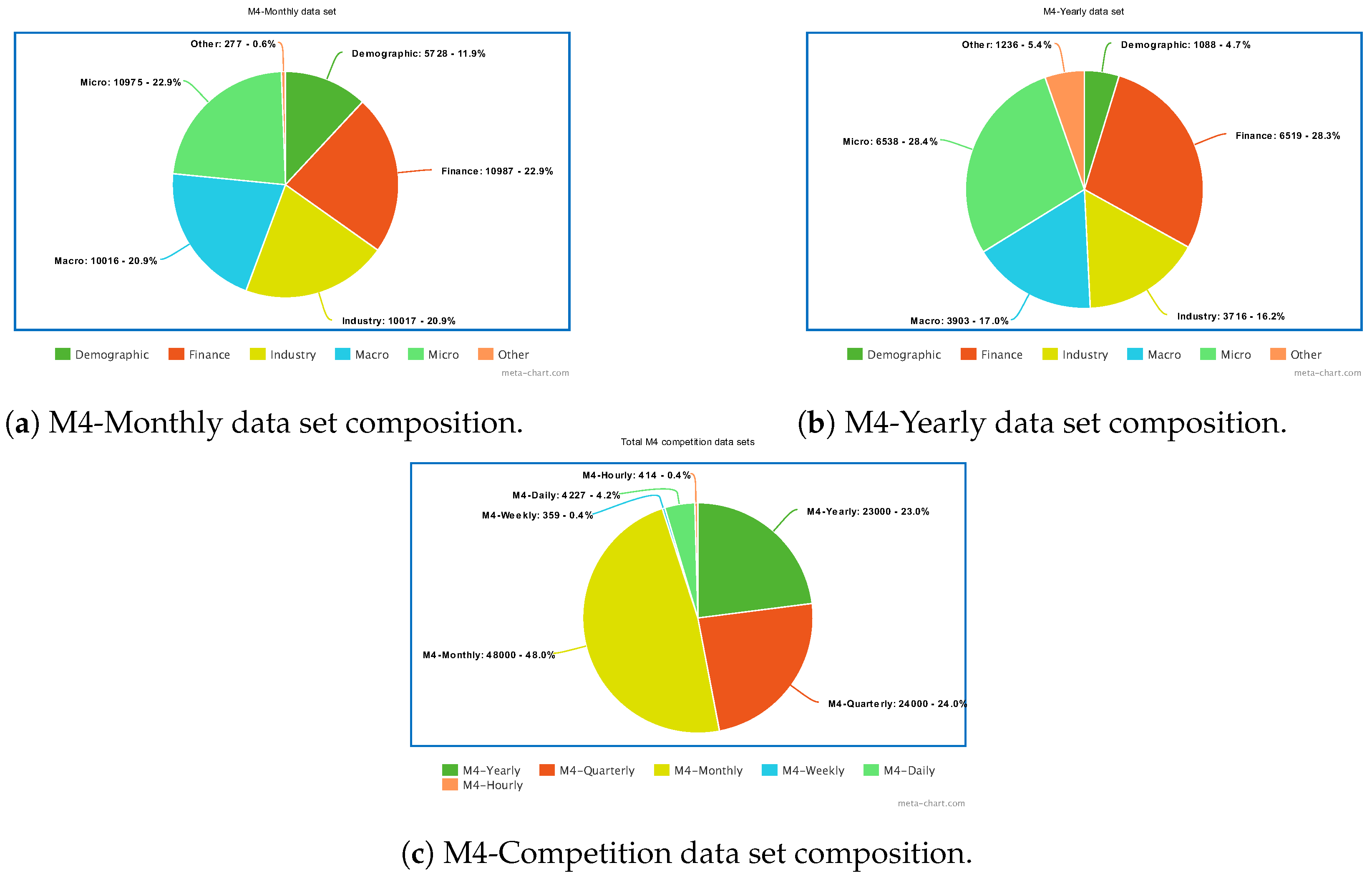

Among several different data sets used for short-term forecasting, the most popular ones are described in Table 15. It is worth quoting the M4 data set [44], proposed in 2020 for the homonymous M4 competition as a common benchmark for evaluating the performance of short-term forecasting models. The M4 data set contains 100.000 time series subdivided according to their data frequency into six groups: M4-Yearly, M4-Quarterly, M4-Monthly, M4-Weekly, M4-Daily and M4-Hourly. Furthermore, time series are also categorised into six domains, namely, Demographic, Finance, Industry, Macro, Micro and Other. Some insights on how time series are distributed into these categories are given in Figure 12.

6.2. Benchmarks for Long-Term Forecasting

Nowadays, a group of specific data sets has become the de-facto benchmark [183] to assess long-term forecasting accuracy of all Transformer variants presented in Section 4.1.4. In detail, this benchmark is composed of nine multivariate time series data sets concerning the following domains: electricity, transportation, weather, exchange rate and illness (see Table 16). Time resolution can vary from 10 min up to 7 days.

7. Conclusions

The paper has reviewed deep learning architectures for time series forecasting, underlining their advances. Nevertheless, four major problems remain open. The first one resides in the inability of most deep learning methods, with the exception of Deep Gaussian Processes, to estimate a confidence interval for the time series prediction. In principle, all deep learning architectures quoted in the survey can be properly modified using Bayesian training strategies [206] in order to provide the uncertainty of the model prediction, but, to the best of our knowledge, it has not been performed yet. The second problem resides in the development of more and more complex deep learning architectures. This makes them subject to overfitting, a problem that can hardly be faced by deep learning architectures. Therefore, the development of deep learning architectures for time series forecasting that are robust w.r.t. overfitting is becoming more and more relevant. The third problem consists in the need for adequately long time series. In particular, some deep learning architectures, e.g., Transformers, require the estimation of millions of parameters, implying, in this way, the necessity of adequately long time series for estimating them. The problem seems to be partially addressed by data augmentation but the proposed solutions are not fully adequate, yet. Finally, the last problem emerges in most of the reviewed deep learning models. They assume the dynamical stationarity of time series, implying that the dynamic system generating time series is stationary over time. When the aforementioned assumption is violated, a concept drift phenomenon [207] in time series is observed, consequently leading to a dramatic decrease in the prediction accuracy of deep learning models for time series forecasting.

Author Contributions

Conceptualization, A.C., V.C. and F.C.; methodology, A.C. and V.C.; validation, A.C., V.C. and F.C.; formal analysis, F.C.; investigation, A.C., V.C. and G.I.; resources, A.C., V.C., G.I. and F.C.; writing—original draft preparation, A.C., V.C. and F.C.; writing—review and editing, A.C., V.C. and F.C.; visualization, A.C., V.C. and F.C.; supervision, F.C.; project administration, F.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

We would like to thank the anonymous reviewers for the useful comments.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. Table of Mathematical Expressions

In Appendix A, the table of the most frequent mathematical expressions and operations is provided. Table A1 provides a description for each mathematical operation.
Table A1. Table of the most commonly used mathematical operations with their respective description.
Table A1. Table of the most commonly used mathematical operations with their respective description.
SymbolDefinition
Y = w X Convolution between a kernel w and a sequence X . The result is a new sequence Y .
y = u v Element-wise product between two vectors u and v . The result is a vector y such that y i = u i v i .
V W Tensor product between two vectors V and W, the result is a matrix.
I The Identity matrix.

Appendix B. Diffusion Models

In this section, the most relevant diffusion models, i.e., DDPMs (Appendix B.1), SGMs (Appendix B.2) and SDEs (Appendix B.3), and foundations, are described.

Appendix B.1. Denoising Diffusion Probabilistic Models

Denoising Diffusion Probabilistic Models, originally proposed in [173] and later extended in [174], consider two Markov chains for forward and backward process, respectively, to approximate the generative process of observed data. In detail, let the original noiseless data be x 0 . The forward Markov chain projects x 0 into a sequence of noised data x 1 , x 2 , , x K with a diffusion transition kernel:
q ( x k | x k 1 ) = N ( a k x k 1 , ( 1 a k ) I ) ,
where K is the finite number of noise level of forward process, a k ( 0 , 1 ) for k = 1 , 2 , , K are hyperparameters indicating the variance of the noise level at each step, N ( · , · ) is the Gaussian distribution, and I is the identity matrix. The Gaussian transition kernel q ( · | · ) has a fundamental property that allows obtaining x k directly from original sample x 0 :
q ( x k | x 0 ) = N ( a k ˜ x 0 , ( 1 a k ˜ ) I ) ,
where a k ˜ = i = 1 k a i . In DDPM, the reverse transition kernel p θ ( · | · ) is designed by a deep neural network:
p θ ( x k 1 | x k ) = N ( μ θ ( x k , k ) , Σ θ ( x k , k ) ) ,
where θ indicates learnable parameters of deep neural networks. In order to compute the parameters θ such that samples estimated by p θ ( x 0 ) are almost identical to observed data x 0 , a maximum likelihood estimation method is performed, minimising the variational lower bound of the estimated negative log-likelihood E [ log p θ ( x 0 ) ] :
E [ log p θ ( x 0 ) ] = E q ( x 0 : K ) log p ( x K ) k = 1 K log p θ ( x k 1 | x k ) q ( x k | x k 1 ) ,
where x 0 : K indicates the sequence x 0 , , x K . A simpler objective function [174] can be provided, as follows:
E k , x 0 , ϵ [ δ ( k ) | | ϵ ϵ θ ( a ˜ k x 0 + 1 a ˜ k ϵ , k ) | | 2 ] ,
assuming the covariance matrix equal to Σ θ ( x k , k ) = σ k 2 I , where σ k 2 controls the noise level and may vary at different reverse steps, and δ ( k ) = ( 1 a k ) 2 2 σ k 2 a k ( 1 a ˜ k ) .

Appendix B.2. Score-Based Generative Models

Score-based generative models (SGMs) [175], are made up of two modules. The former is the score matching module [208], for estimating the unknown target distribution q ( x ) with the Stein score approximation, x log q ( x ) , by means of a score-matching network (e.g., denoising score matching [209], slided score matching [210]). The latter is the annealed Langevin dynamics (ALD), that is a sampling algorithm generating samples with an iterative Langevin Monte Carlo process at each update step. The fundamental idea behind denoising score matching is to process the observed data x 0 with the forward transition kernel q ( x k | x 0 ) = N ( x 0 , σ k 2 I ) , and to estimate jointly the Stein scores for the noise density distributions q σ 1 ( x ) , q σ 2 ( x ) , , q σ k ( x ) . In this case, the Stein score for noise density function q σ k ( x ) is x log q σ k ( x ) . Hence, a neural network s θ ( x , σ x ) , with learnable parameters θ , can approximate the Stein score. The initial objective function is therefore given by:
E k , x 0 , x k [ δ ( k ) | | s θ ( x k , k ) x k log q σ k ( x k ) | | 2 ] .
Subsequently, the ALD algorithm is used for the sampling phase. The algorithm is initialised with a sequence of increasing noise levels σ 1 , , σ K and a starting sample x K , 0 N ( 0 , I ) . For k = K , K 1 , , 0 , x k is updated with N iterations that compute:
z N ( 0 , I )
x k , n x k , n 1 + 1 2 ψ k s θ ( x k , n 1 , σ k ) + ψ k z ,
where n = 1 , , N and ψ k represent the step of update.

Appendix B.3. Stochastic Differential Equations

As described in Appendix B.1 and Appendix B.2, both DDPMs and SGMs models define a discrete forward process, considering N iterations of diffusion steps. In order to define a continuous diffusion process, a solution based on stochastic differential equations (SDEs) [176] has been proposed. Since both DDPMs and SGMs are discrete forms of SDEs, the SDEs formulation can be considered as an extension of the aforementioned two definitions. Therefore, the backward process is modelled as a time-reverse SDE (see Equation (A10)), and the samples can be generated by solving time-reverse SDE. A general expression of SDE is defined as follows:
d x = f ( x , k ) d k + g ( k ) d w ,
and the time-reverse SDE [211] is:
d x = [ f ( x , k ) g ( k ) 2 x log q k ( x ) ] d k + g ( k ) d w ˜ ,
where w and w ˜ are standard Wiener processes [212]. It can be proved [176] that the sampling from the probability flow ordinary differential equations (ODE) yields the same distribution of the time-reverse SDE:
d x = [ f ( x , k ) 1 2 g ( x ) x log q k ( x ) ] d k ,
where f ( x , k ) and g ( k ) are the drift and diffusion coefficients for the diffusion process, respectively, and x log q k ( x ) is the Stein score that can be learned with similar methods as in SGMs (see Appendix B.2). At this point, it can observed that the DDPMs can be reformulated in terms of SDEs, that generally known as variance preserving (VP) SDE [176]. The same reformulation can be done for the forward process of SGMs, where the corresponding SDE is known as variance exploding (VE) SDE [176]. After having learned the score model s θ ( x , k ) , the samples are generated by solving the time-reverse SDE or the probability flow ODE with ALD techniques.

References

  1. Chianese, E.; Camastra, F.; Ciaramella, A.; Landi, T.C.; Staiano, A.; Riccio, A. Spatio-temporal learning in predicting ambient particulate matter concentration by multi-layer perceptron. Ecol. Inform. 2019, 49, 54–61. [Google Scholar] [CrossRef]
  2. Feng, Y.; Zhang, W.; Sun, D.; Zhang, L. Ozone concentration forecast method based on genetic algorithm optimized back propagation neural networks and support vector machine data classification. Atmos. Environ. 2011, 45, 1979–1985. [Google Scholar] [CrossRef]
  3. Paine, C.T.; Marthews, T.R.; Vogt, D.R.; Purves, D.; Rees, M.; Hector, A.; Turnbull, L.A. How to fit nonlinear plant growth models and calculate growth rates: An update for ecologists. Methods Ecol. Evol. 2012, 3, 245–256. [Google Scholar] [CrossRef]
  4. Pala, Z.; Atici, R. Forecasting sunspot time series using deep learning methods. Sol. Phys. 2019, 294, 50. [Google Scholar] [CrossRef]
  5. Duarte, F.B.; Tenreiro Machado, J.; Monteiro Duarte, G. Dynamics of the Dow Jones and the NASDAQ stock indexes. Nonlinear Dyn. 2010, 61, 691–705. [Google Scholar] [CrossRef]
  6. Binkowski, M.; Marti, G.; Donnat, P. Autoregressive convolutional neural networks for asynchronous time series. In Proceedings of the International Conference on Machine Learning, Stockholm, Sweden, 10–15 July 2018; pp. 580–589. [Google Scholar]
  7. Ugurlu, U.; Oksuz, I.; Tas, O. Electricity price forecasting using recurrent neural networks. Energies 2018, 11, 1255. [Google Scholar] [CrossRef]
  8. Kuan, L.; Yan, Z.; Xin, W.; Yan, C.; Xiangkun, P.; Wenxue, S.; Zhe, J.; Yong, Z.; Nan, X.; Xin, Z. Short-term electricity load forecasting method based on multilayered self-normalising GRU network. In Proceedings of the 2017 IEEE Conference on Energy Internet and Energy System Integration (EI2), Beijing, China, 26–28 November 2017; pp. 1–5. [Google Scholar]
  9. Zhu, R.; Liao, W.; Wang, Y. Short-term prediction for wind power based on temporal convolutional network. Energy Rep. 2020, 6, 424–429. [Google Scholar] [CrossRef]
  10. Koprinska, I.; Wu, D.; Wang, Z. Convolutional neural networks for energy time series forecasting. In Proceedings of the 2018 International Joint Conference on Neural Networks (IJCNN), Rio de Janeiro, Brazil, 8–13 July 2018; pp. 1–8. [Google Scholar]
  11. Li, D.; Jiang, F.; Chen, M.; Qian, T. Multi-step-ahead wind speed forecasting based on a hybrid decomposition method and temporal convolutional networks. Energy 2022, 238, 121981. [Google Scholar] [CrossRef]
  12. Narigina, M.; Kempleis, A.; Romanovs, A. Machine Learning-based Forecasting of Sensor Data for Enhanced Environmental Sensing. Wseas Trans. Syst. 2013, 22, 543–555. [Google Scholar] [CrossRef]
  13. Han, M.; Xu, M. Laplacian echo state network for multivariate time series prediction. IEEE Trans. Neural Netw. Learn. Syst. 2017, 29, 238–244. [Google Scholar] [CrossRef]
  14. Kumar, D.; Singh, A.; Samui, P.; Jha, R.K. Forecasting monthly precipitation using sequential modelling. Hydrol. Sci. J. 2019, 64, 690–700. [Google Scholar] [CrossRef]
  15. Wan, R.; Mei, S.; Wang, J.; Liu, M.; Yang, F. Multivariate temporal convolutional network: A deep neural networks approach for multivariate time series forecasting. Electronics 2019, 8, 876. [Google Scholar] [CrossRef]
  16. Liu, H.; Zhang, X. AQI time series prediction based on a hybrid data decomposition and echo state networks. Environ. Sci. Pollut. Res. 2021, 28, 51160–51182. [Google Scholar] [CrossRef] [PubMed]
  17. Akita, R.; Yoshihara, A.; Matsubara, T.; Uehara, K. Deep learning for stock prediction using numerical and textual information. In Proceedings of the 2016 IEEE/ACIS 15th International Conference on Computer and Information Science (ICIS), Okayama, Japan, 26–29 June 2016; pp. 1–6. [Google Scholar]
  18. Pang, X.; Zhou, Y.; Wang, P.; Lin, W.; Chang, V. An innovative neural network approach for stock market prediction. J. Supercomput. 2020, 76, 2098–2118. [Google Scholar] [CrossRef]
  19. Zhang, L.; Aggarwal, C.; Qi, G.J. Stock price prediction via discovering multi-frequency trading patterns. In Proceedings of the 23rd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, Halifax, NS, Canada, 13–17 August 2017; pp. 2141–2149. [Google Scholar]
  20. McNally, S.; Roche, J.; Caton, S. Predicting the price of bitcoin using machine learning. In Proceedings of the 2018 26th Euromicro International Conference on Parallel, Distributed and Network-Based Processing (PDP), Cambridge, UK, 21–23 March 2018; pp. 339–343. [Google Scholar]
  21. Ye, J.; Liu, Z.; Du, B.; Sun, L.; Li, W.; Fu, Y.; Xiong, H. Learning the evolutionary and multi-scale graph structure for multivariate time series forecasting. In Proceedings of the 28th ACM SIGKDD Conference on Knowledge Discovery and Data Mining, Washington, DC, USA, 14–18 August 2022; pp. 2296–2306. [Google Scholar]
  22. Chen, L.; Chen, D.; Shang, Z.; Wu, B.; Zheng, C.; Wen, B.; Zhang, W. Multi-Scale Adaptive Graph Neural Network for Multivariate Time Series Forecasting. IEEE Trans. Knowl. Data Eng. 2023, 35, 10748–10761. [Google Scholar] [CrossRef]
  23. Song, Y.; Gao, S.; Li, Y.; Jia, L.; Li, Q.; Pang, F. Distributed attention-based temporal convolutional network for remaining useful life prediction. IEEE Internet Things J. 2020, 8, 9594–9602. [Google Scholar] [CrossRef]
  24. Alhassan, Z.; McGough, A.S.; Alshammari, R.; Daghstani, T.; Budgen, D.; Al Moubayed, N. Type-2 diabetes mellitus diagnosis from time series clinical data using deep learning models. In Proceedings of the Artificial Neural Networks and Machine Learning–ICANN 2018: 27th International Conference on Artificial Neural Networks, Rhodes, Greece, 4–7 October 2018; Proceedings, Part III 27. Springer: Berlin/Heidelberg, Germany, 2018; pp. 468–478. [Google Scholar]
  25. Kim, T.; King, B.R. Time series prediction using deep echo state networks. Neural Comput. Appl. 2020, 32, 17769–17787. [Google Scholar] [CrossRef]
  26. Lim, B. Forecasting treatment responses over time using recurrent marginal structural networks. Adv. Neural Inf. Process. Syst. 2018, 31. [Google Scholar]
  27. Huang, S.; Wang, D.; Wu, X.; Tang, A. Dsanet: Dual self-attention network for multivariate time series forecasting. In Proceedings of the 28th ACM International Conference on Information and Knowledge Management, Beijing, China, 3–7 November 2019; pp. 2129–2132. [Google Scholar]
  28. Wu, Z.; Pan, S.; Long, G.; Jiang, J.; Chang, X.; Zhang, C. Connecting the dots: Multivariate time series forecasting with graph neural networks. In Proceedings of the 26th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining, Virtual, 6–10 July 2020; pp. 753–763. [Google Scholar]
  29. Cui, Y.; Zheng, K.; Cui, D.; Xie, J.; Deng, L.; Huang, F.; Zhou, X. METRO: A generic graph neural network framework for multivariate time series forecasting. Proc. Vldb Endow. 2021, 15, 224–236. [Google Scholar] [CrossRef]
  30. Zhao, W.; Gao, Y.; Ji, T.; Wan, X.; Ye, F.; Bai, G. Deep temporal convolutional networks for short-term traffic flow forecasting. IEEE Access 2019, 7, 114496–114507. [Google Scholar] [CrossRef]
  31. Sagheer, A.; Kotb, M. Time series forecasting of petroleum production using deep LSTM recurrent networks. Neurocomputing 2019, 323, 203–213. [Google Scholar] [CrossRef]
  32. Sánchez, L.; Anseán, D.; Otero, J.; Couso, I. Assessing the health of LiFePO4 traction batteries through monotonic echo state networks. Sensors 2017, 18, 9. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, Y.; Xiong, R.; He, H.; Pecht, M.G. Long short-term memory recurrent neural network for remaining useful life prediction of lithium-ion batteries. IEEE Trans. Veh. Technol. 2018, 67, 5695–5705. [Google Scholar] [CrossRef]
  34. Colla, V.; Matino, I.; Dettori, S.; Cateni, S.; Matino, R. Reservoir computing approaches applied to energy management in industry. In Proceedings of the Engineering Applications of Neural Networks: 20th International Conference, EANN 2019, Xersonisos, Greece, 24–26 May 2019; Proceedings 20. Springer: Berlin/Heidelberg, Germany, 2019; pp. 66–79. [Google Scholar]
  35. Li, Z.; Zheng, Z.; Outbib, R. Adaptive prognostic of fuel cells by implementing ensemble echo state networks in time-varying model space. IEEE Trans. Ind. Electron. 2019, 67, 379–389. [Google Scholar] [CrossRef]
  36. Bala, A.; Ismail, I.; Ibrahim, R.; Sait, S.M.; Oliva, D. An improved grasshopper optimization algorithm based echo state network for predicting faults in airplane engines. IEEE Access 2020, 8, 159773–159789. [Google Scholar] [CrossRef]
  37. Mahmoud, A.; Mohammed, A. A survey on deep learning for time series forecasting. In Machine Learning and Big Data Analytics Paradigms: Analysis, Applications and Challenges; Springer: Cham, Switzerland, 2021; pp. 365–392. [Google Scholar]
  38. Lim, B.; Zohren, S. Time-series forecasting with deep learning: A survey. Philos. Trans. R. Soc. 2021, 379, 20200209. [Google Scholar] [CrossRef] [PubMed]
  39. Sezer, O.B.; Gudelek, M.U.; Ozbayoglu, A.M. Financial time series forecasting with deep learning: A systematic literature review: 2005–2019. Appl. Soft Comput. 2020, 90, 106181. [Google Scholar] [CrossRef]
  40. Zeroual, A.; Harrou, F.; Dairi, A.; Sun, Y. Deep learning methods for forecasting COVID-19 time-Series data: A Comparative study. Chaos Solitons Fractals 2020, 140, 110121. [Google Scholar] [CrossRef]
  41. Lara-Benítez, P.; Carranza-García, M.; Riquelme, J.C. An experimental review on deep learning architectures for time series forecasting. Int. J. Neural Syst. 2021, 31, 2130001. [Google Scholar] [CrossRef]
  42. Barrera-Animas, A.Y.; Oyedele, L.O.; Bilal, M.; Akinosho, T.D.; Delgado, J.M.D.; Akanbi, L.A. Rainfall prediction: A comparative analysis of modern machine learning algorithms for time series forecasting. Mach. Learn. Appl. 2022, 7, 100204. [Google Scholar] [CrossRef]
  43. Lakshmanna, K.; Kaluri, R.; Gundluru, N.; Alzamil, Z.S.; Rajput, D.S.; Khan, A.A.; Haq, M.A.; Alhussen, A. A review on deep learning techniques for IoT data. Electronics 2022, 11, 1604. [Google Scholar] [CrossRef]
  44. Makridakis, S.; Spiliotis, E.; Assimakopoulos, V. The M4 Competition: 100,000 time series and 61 forecasting methods. Int. J. Forecast. 2020, 36, 54–74. [Google Scholar] [CrossRef]
  45. Goodfellow, I.; Bengio, Y.; Courville, A. Deep Learning; MIT Press: Cambridge, MA, USA, 2016. [Google Scholar]
  46. Hastie, T.; Tibshirani, R.; Friedman, J.H.; Friedman, J.H. The Elements of Statistical Learning: Data Mining, Inference, and Prediction; Springer: Berlin/Heidelberg, Germany, 2009; Volume 2. [Google Scholar]
  47. Gudelek, M.U.; Boluk, S.A.; Ozbayoglu, A.M. A deep learning based stock trading model with 2-D CNN trend detection. In Proceedings of the 2017 IEEE Symposium Series on Computational Intelligence (SSCI), Honolulu, HI, USA, 27 November–1 December 2017; pp. 1–8. [Google Scholar]
  48. Kuo, P.H.; Huang, C.J. A high precision artificial neural networks model for short-term energy load forecasting. Energies 2018, 11, 213. [Google Scholar] [CrossRef]
  49. Zahid, M.; Ahmed, F.; Javaid, N.; Abbasi, R.A.; Zainab Kazmi, H.S.; Javaid, A.; Bilal, M.; Akbar, M.; Ilahi, M. Electricity price and load forecasting using enhanced convolutional neural network and enhanced support vector regression in smart grids. Electronics 2019, 8, 122. [Google Scholar] [CrossRef]
  50. Cai, M.; Pipattanasomporn, M.; Rahman, S. Day-ahead building-level load forecasts using deep learning vs. traditional time series techniques. Appl. Energy 2019, 236, 1078–1088. [Google Scholar] [CrossRef]
  51. Bronstein, M.M.; Bruna, J.; LeCun, Y.; Szlam, A.; Vandergheynst, P. Geometric deep learning: Going beyond euclidean data. IEEE Signal Process. Mag. 2017, 34, 18–42. [Google Scholar] [CrossRef]
  52. Lea, C.; Flynn, M.D.; Vidal, R.; Reiter, A.; Hager, G.D. Temporal convolutional networks for action segmentation and detection. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Virtual, 6–10 July 2017; pp. 156–165. [Google Scholar]
  53. Borovykh, A.; Bohte, S.; Oosterlee, C.W. Dilated convolutional neural networks for time series forecasting. J. Comput. Financ. Forthcom. 2018. [Google Scholar] [CrossRef]
  54. Lara-Benítez, P.; Carranza-García, M.; Luna-Romera, J.M.; Riquelme, J.C. Temporal convolutional networks applied to energy-related time series forecasting. Appl. Sci. 2020, 10, 2322. [Google Scholar] [CrossRef]
  55. Hewage, P.; Behera, A.; Trovati, M.; Pereira, E.; Ghahremani, M.; Palmieri, F.; Liu, Y. Temporal convolutional neural (TCN) network for an effective weather forecasting using time series data from the local weather station. Soft Comput. 2020, 24, 16453–16482. [Google Scholar] [CrossRef]
  56. Sfetsos, A.; Coonick, A. Univariate and multivariate forecasting of hourly solar radiation with artificial intelligence techniques. Sol. Energy 2000, 68, 169–178. [Google Scholar] [CrossRef]
  57. Hsieh, T.J.; Hsiao, H.F.; Yeh, W.C. Forecasting stock markets using wavelet transforms and recurrent neural networks: An integrated system based on artificial bee colony algorithm. Appl. Soft Comput. 2011, 11, 2510–2525. [Google Scholar] [CrossRef]
  58. Elman, J.L. Finding structure in time. Cogn. Sci. 1990, 14, 179–211. [Google Scholar] [CrossRef]
  59. Jaeger, H. The “echo state” approach to analysing and training recurrent neural networks-with an erratum note. Bonn Ger. Ger. Natl. Res. Cent. Inf. Technol. Gmd Tech. Rep. 2001, 148, 13. [Google Scholar]
  60. Hochreiter, S.; Schmidhuber, J. Long short-term memory. Neural Comput. 1997, 9, 1735–1780. [Google Scholar] [CrossRef]
  61. Cho, K.; van Merrienboer, B.; Gulcehre, C.; Bahdanau, D.; Bougares, F.; Schwenk, H.; Bengio, Y. Learning Phrase Representations using RNN Encoder–Decoder for Statistical Machine Translation. In Proceedings of the 2014 Conference on Empirical Methods in Natural Language Processing (EMNLP), Doha, Qatar, 25–29 October 2014; Association for Computational Linguistics: Cedarville, OH, USA, 2014; p. 1724. [Google Scholar]
  62. Williams, R.J.; Zipser, D. A learning algorithm for continually running fully recurrent neural networks. Neural Comput. 1989, 1, 270–280. [Google Scholar] [CrossRef]
  63. Jordan, M.I. Serial order: A parallel distributed processing approach. In Advances in Psychology; Elsevier: Amsterdam, The Netherlands, 1997; Volume 121, pp. 471–495. [Google Scholar]
  64. Shi, H.; Xu, M.; Ma, Q.; Zhang, C.; Li, R.; Li, F. A whole system assessment of novel deep learning approach on short-term load forecasting. Energy Procedia 2017, 142, 2791–2796. [Google Scholar] [CrossRef]
  65. Mohammadi, M.; Talebpour, F.; Safaee, E.; Ghadimi, N.; Abedinia, O. Small-scale building load forecast based on hybrid forecast engine. Neural Process. Lett. 2018, 48, 329–351. [Google Scholar] [CrossRef]
  66. Ruiz, L.G.B.; Rueda, R.; Cuéllar, M.P.; Pegalajar, M. Energy consumption forecasting based on Elman neural networks with evolutive optimization. Expert Syst. Appl. 2018, 92, 380–389. [Google Scholar] [CrossRef]
  67. Bishop, C.M. Neural Networks for Pattern Recognition; Oxford University Press: Oxford, UK, 1995. [Google Scholar]
  68. Kantz, H.; Schreiber, T. Nonlinear Time Series Analysis; Cambridge University Press: Cambridge, UK, 2004; Volume 7. [Google Scholar]
  69. Simonyan, K.; Vedaldi, A.; Zisserman, A. Deep inside convolutional networks: Visualising image classification models and saliency maps. arXiv 2013, arXiv:1312.6034. [Google Scholar]
  70. Selvaraju, R.R.; Cogswell, M.; Das, A.; Vedantam, R.; Parikh, D.; Batra, D. Grad-cam: Visual explanations from deep networks via gradient-based localization. In Proceedings of the IEEE International Conference on Computer Vision, Venice, Italy, 22–29 October 2017; pp. 618–626. [Google Scholar]
  71. Morando, S.; Jemei, S.; Hissel, D.; Gouriveau, R.; Zerhouni, N. ANOVA method applied to proton exchange membrane fuel cell ageing forecasting using an echo state network. Math. Comput. Simul. 2017, 131, 283–294. [Google Scholar] [CrossRef]
  72. Antonelo, E.A.; Camponogara, E.; Foss, B. Echo state networks for data-driven downhole pressure estimation in gas-lift oil wells. Neural Netw. 2017, 85, 106–117. [Google Scholar] [CrossRef] [PubMed]
  73. Shen, L.; Chen, J.; Zeng, Z.; Yang, J.; Jin, J. A novel echo state network for multivariate and nonlinear time series prediction. Appl. Soft Comput. 2018, 62, 524–535. [Google Scholar] [CrossRef]
  74. Jing, Z.; Yuxi, L.; Yan, C.; Bao, Y.; Jiakui, Z.; Di, L. Photovoltaic Output Prediction Model Based on Echo State Networks with Weather Type Index. In Proceedings of the 2019 3rd International Conference on Innovation in Artificial Intelligence, Suzhou, China, 15–18 March 2019; pp. 91–95. [Google Scholar]
  75. Hu, H.; Wang, L.; Peng, L.; Zeng, Y.R. Effective energy consumption forecasting using enhanced bagged echo state network. Energy 2020, 193, 116778. [Google Scholar] [CrossRef]
  76. Mansoor, M.; Grimaccia, F.; Mussetta, M. Echo State Network Performance in Electrical and Industrial Applications. In Proceedings of the 2020 International Joint Conference on Neural Networks (IJCNN), Glasgow, UK, 19–24 July 2020; pp. 1–7. [Google Scholar]
  77. Hu, H.; Wang, L.; Lv, S.X. Forecasting energy consumption and wind power generation using deep echo state network. Renew. Energy 2020, 154, 598–613. [Google Scholar] [CrossRef]
  78. Yang, Y.; Zhao, X.; Liu, X. A novel echo state network and its application in temperature prediction of exhaust gas from hot blast stove. IEEE Trans. Instrum. Meas. 2020, 69, 9465–9476. [Google Scholar] [CrossRef]
  79. Li, N.; Tuo, J.; Wang, Y.; Wang, M. Prediction of blood glucose concentration for type 1 diabetes based on echo state networks embedded with incremental learning. Neurocomputing 2020, 378, 248–259. [Google Scholar] [CrossRef]
  80. Gao, R.; Du, L.; Duru, O.; Yuen, K.F. Time series forecasting based on echo state network and empirical wavelet transformation. Appl. Soft Comput. 2021, 102, 107111. [Google Scholar] [CrossRef]
  81. Mansoor, M.; Grimaccia, F.; Leva, S.; Mussetta, M. Comparison of echo state network and feed-forward neural networks in electrical load forecasting for demand response programs. Math. Comput. Simul. 2021, 184, 282–293. [Google Scholar] [CrossRef]
  82. Sui, Y.; Gao, H. Modified echo state network for prediction of nonlinear chaotic time series. Nonlinear Dyn. 2022, 110, 3581–3603. [Google Scholar] [CrossRef]
  83. Marino, D.L.; Amarasinghe, K.; Manic, M. Building energy load forecasting using deep neural networks. In Proceedings of the IECON 2016—42nd Annual Conference of the IEEE Industrial Electronics Society, Florence, Italy, 23-26 October 2016; pp. 7046–7051. [Google Scholar]
  84. Fu, R.; Zhang, Z.; Li, L. Using LSTM and GRU neural network methods for traffic flow prediction. In Proceedings of the 2016 31st Youth Academic Annual Conference of Chinese Association of Automation (YAC), Wuhan, China, 11–13 November 2016; pp. 324–328. [Google Scholar]
  85. Li, Z.; Tam, V. Combining the real-time wavelet denoising and long-short-term-memory neural network for predicting stock indexes. In Proceedings of the 2017 IEEE Symposium Series on Computational Intelligence (SSCI), Honolulu, HI, USA, 27 November–1 December 2017; pp. 1–8. [Google Scholar]
  86. dos Santos Pinheiro, L.; Dras, M. Stock market prediction with deep learning: A character-based neural language model for event-based trading. In Proceedings of the Australasian Language Technology Association Workshop 2017, Brisbane, Australia, 6–8 December 2017; pp. 6–15. [Google Scholar]
  87. Shi, H.; Xu, M.; Li, R. Deep learning for household load forecasting—A novel pooling deep RNN. IEEE Trans. Smart Grid 2017, 9, 5271–5280. [Google Scholar] [CrossRef]
  88. Li, X.; Peng, L.; Yao, X.; Cui, S.; Hu, Y.; You, C.; Chi, T. Long short-term memory neural network for air pollutant concentration predictions: Method development and evaluation. Environ. Pollut. 2017, 231, 997–1004. [Google Scholar] [CrossRef] [PubMed]
  89. Baek, Y.; Kim, H.Y. ModAugNet: A new forecasting framework for stock market index value with an overfitting prevention LSTM module and a prediction LSTM module. Expert Syst. Appl. 2018, 113, 457–480. [Google Scholar] [CrossRef]
  90. Fischer, T.; Krauss, C. Deep learning with long short-term memory networks for financial market predictions. Eur. J. Oper. Res. 2018, 270, 654–669. [Google Scholar] [CrossRef]
  91. Kratzert, F.; Klotz, D.; Brenner, C.; Schulz, K.; Herrnegger, M. Rainfall–runoff modelling using Long Short-Term Memory (LSTM) networks. Hydrol. Earth Syst. Sci. 2018, 22, 6005–6022. [Google Scholar] [CrossRef]
  92. Zhang, J.; Zhu, Y.; Zhang, X.; Ye, M.; Yang, J. Developing a Long Short-Term Memory (LSTM) based model for predicting water table depth in agricultural areas. J. Hydrol. 2018, 561, 918–929. [Google Scholar] [CrossRef]
  93. Bouktif, S.; Fiaz, A.; Ouni, A.; Serhani, M.A. Optimal deep learning lstm model for electric load forecasting using feature selection and genetic algorithm: Comparison with machine learning approaches. Energies 2018, 11, 1636. [Google Scholar] [CrossRef]
  94. Xu, L.; Li, C.; Xie, X.; Zhang, G. Long-short-term memory network based hybrid model for short-term electrical load forecasting. Information 2018, 9, 165. [Google Scholar] [CrossRef]
  95. Wang, Y.; Shen, Y.; Mao, S.; Chen, X.; Zou, H. LASSO and LSTM integrated temporal model for short-term solar intensity forecasting. IEEE Internet Things J. 2018, 6, 2933–2944. [Google Scholar] [CrossRef]
  96. Freeman, B.S.; Taylor, G.; Gharabaghi, B.; Thé, J. Forecasting air quality time series using deep learning. J. Air Waste Manag. Assoc. (1995) 2018, 68, 866–886. [Google Scholar] [CrossRef]
  97. Wang, Y.; Smola, A.; Maddix, D.; Gasthaus, J.; Foster, D.; Januschowski, T. Deep factors for forecasting. In Proceedings of the International Conference on Machine Learning, Long Beach, CA, USA, 9–15 June 2019; pp. 6607–6617. [Google Scholar]
  98. Nichiforov, C.; Stamatescu, G.; Stamatescu, I.; Făgărăşan, I. Evaluation of sequence-learning models for large-commercial-building load forecasting. Information 2019, 10, 189. [Google Scholar] [CrossRef]
  99. Zou, M.; Fang, D.; Harrison, G.; Djokic, S. Weather based day-ahead and week-ahead load forecasting using deep recurrent neural network. In Proceedings of the 2019 IEEE 5th International forum on Research and Technology for Society and Industry (RTSI), Florence, Italy, 9–12 September 2019; pp. 341–346. [Google Scholar]
  100. Chimmula, V.K.R.; Zhang, L. Time series forecasting of COVID-19 transmission in Canada using LSTM networks. Chaos Solitons Fractals 2020, 135, 109864. [Google Scholar] [CrossRef] [PubMed]
  101. Wu, Y.; Ni, J.; Cheng, W.; Zong, B.; Song, D.; Chen, Z.; Liu, Y.; Zhang, X.; Chen, H.; Davidson, S.B. Dynamic gaussian mixture based deep generative model for robust forecasting on sparse multivariate time series. In Proceedings of the AAAI Conference on Artificial Intelligence, Virtual, 2–9 February 2021; Volume 35, pp. 651–659. [Google Scholar]
  102. Dastgerdi, A.K.; Mercorelli, P. Investigating the effect of noise elimination on LSTM models for financial markets prediction using Kalman Filter and Wavelet Transform. WSEAS Trans. Bus. Econ. 2022, 19, 432–441. [Google Scholar] [CrossRef]
  103. Wang, Y.; Liao, W.; Chang, Y. Gated recurrent unit network-based short-term photovoltaic forecasting. Energies 2018, 11, 2163. [Google Scholar] [CrossRef]
  104. Du, Y.; Wang, J.; Feng, W.; Pan, S.; Qin, T.; Xu, R.; Wang, C. Adarnn: Adaptive learning and forecasting of time series. In Proceedings of the 30th ACM International Conference on Information & Knowledge Management, Gold Coast, QLD, Australia, 1–5 November 2021; pp. 402–411. [Google Scholar]
  105. Bollerslev, T. Generalized autoregressive conditional heteroskedasticity. J. Econom. 1986, 31, 307–327. [Google Scholar] [CrossRef]
  106. Gensler, A.; Henze, J.; Sick, B.; Raabe, N. Deep Learning for solar power forecasting—An approach using AutoEncoder and LSTM Neural Networks. In Proceedings of the 2016 IEEE International Conference on Systems, Man, and Cybernetics (SMC), Budapest, Hungary, 9–12 October 2016; pp. 2858–2865. [Google Scholar]
  107. Bao, W.; Yue, J.; Rao, Y. A deep learning framework for financial time series using stacked autoencoders and long-short term memory. PLoS ONE 2017, 12, e0180944. [Google Scholar] [CrossRef] [PubMed]
  108. Lee, C.Y.; Soo, V.W. Predict stock price with financial news based on recurrent convolutional neural networks. In Proceedings of the 2017 Conference on Technologies and Applications of Artificial Intelligence (TAAI), Taipei, Taiwan, 1–3 December 2017; pp. 160–165. [Google Scholar]
  109. Kuo, P.H.; Huang, C.J. An electricity price forecasting model by hybrid structured deep neural networks. Sustainability 2018, 10, 1280. [Google Scholar] [CrossRef]
  110. Tian, C.; Ma, J.; Zhang, C.; Zhan, P. A deep neural network model for short-term load forecast based on long short-term memory network and convolutional neural network. Energies 2018, 11, 3493. [Google Scholar] [CrossRef]
  111. Liu, H.; Mi, X.; Li, Y. Smart deep learning based wind speed prediction model using wavelet packet decomposition, convolutional neural network and convolutional long short term memory network. Energy Convers. Manag. 2018, 166, 120–131. [Google Scholar] [CrossRef]
  112. Chen, Y.; Wu, J.; Bu, H. Stock market embedding and prediction: A deep learning method. In Proceedings of the 2018 15th International Conference on Service Systems and Service Management (ICSSSM), Hangzhou, China, 21–22 July 2018; pp. 1–6. [Google Scholar]
  113. Hossain, M.A.; Karim, R.; Thulasiram, R.; Bruce, N.D.; Wang, Y. Hybrid deep learning model for stock price prediction. In Proceedings of the 2018 IEEE Symposium Series on Computational Intelligence (SSCI), Bangalore, India, 18–21 November 2018; pp. 1837–1844. [Google Scholar]
  114. Kim, H.Y.; Won, C.H. Forecasting the volatility of stock price index: A hybrid model integrating LSTM with multiple GARCH-type models. Expert Syst. Appl. 2018, 103, 25–37. [Google Scholar] [CrossRef]
  115. Li, Y.; Yu, R.; Shahabi, C.; Liu, Y. Diffusion Convolutional Recurrent Neural Network: Data-Driven Traffic Forecasting. In Proceedings of the International Conference on Learning Representations, Vancouver, BC, Canada, 30 April–3 May 2018. [Google Scholar]
  116. Huang, C.J.; Kuo, P.H. A deep CNN-LSTM model for particulate matter (PM2. 5) forecasting in smart cities. Sensors 2018, 18, 2220. [Google Scholar] [CrossRef]
  117. Soh, P.W.; Chang, J.W.; Huang, J.W. Adaptive deep learning-based air quality prediction model using the most relevant spatial-temporal relations. IEEE Access 2018, 6, 38186–38199. [Google Scholar] [CrossRef]
  118. Fan, C.; Zhang, Y.; Pan, Y.; Li, X.; Zhang, C.; Yuan, R.; Wu, D.; Wang, W.; Pei, J.; Huang, H. Multi-horizon time series forecasting with temporal attention learning. In Proceedings of the 25th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining, Anchorage, AK, USA, 4–8 August 2019; pp. 2527–2535. [Google Scholar]
  119. Pan, C.; Tan, J.; Feng, D.; Li, Y. Very short-term solar generation forecasting based on LSTM with temporal attention mechanism. In Proceedings of the 2019 IEEE 5th International Conference on Computer and Communications (ICCC), Chengdu, China, 6–9 December 2019; pp. 267–271. [Google Scholar]
  120. Wang, S.; Wang, X.; Wang, S.; Wang, D. Bi-directional long short-term memory method based on attention mechanism and rolling update for short-term load forecasting. Int. J. Electr. Power Energy Syst. 2019, 109, 470–479. [Google Scholar] [CrossRef]
  121. Shen, Z.; Zhang, Y.; Lu, J.; Xu, J.; Xiao, G. A novel time series forecasting model with deep learning. Neurocomputing 2020, 396, 302–313. [Google Scholar] [CrossRef]
  122. Pal, R.; Sekh, A.A.; Kar, S.; Prasad, D.K. Neural network based country wise risk prediction of COVID-19. Appl. Sci. 2020, 10, 6448. [Google Scholar] [CrossRef]
  123. Dudukcu, H.V.; Taskiran, M.; Taskiran, Z.G.C.; Yildirim, T. Temporal Convolutional Networks with RNN approach for chaotic time series prediction. Appl. Soft Comput. 2023, 133, 109945. [Google Scholar] [CrossRef]
  124. Scarselli, F.; Gori, M.; Tsoi, A.C.; Hagenbuchner, M.; Monfardini, G. The graph neural network model. IEEE Trans. Neural Netw. 2008, 20, 61–80. [Google Scholar] [CrossRef]
  125. Hamilton, W.L. Graph Representation Learning; Morgan & Claypool Publishers: San Rafael, CA, USA, 2020. [Google Scholar]
  126. Cheng, D.; Yang, F.; Xiang, S.; Liu, J. Financial time series forecasting with multi-modality graph neural network. Pattern Recognit. 2022, 121, 108218. [Google Scholar] [CrossRef]
  127. Geng, X.; He, X.; Xu, L.; Yu, J. Graph correlated attention recurrent neural network for multivariate time series forecasting. Inf. Sci. 2022, 606, 126–142. [Google Scholar] [CrossRef]
  128. Xiang, S.; Cheng, D.; Shang, C.; Zhang, Y.; Liang, Y. Temporal and Heterogeneous Graph Neural Network for Financial Time Series Prediction. In Proceedings of the 31st ACM International Conference on Information & Knowledge Management, Atlanta, GA, USA, 17–21 October 2022; pp. 3584–3593. [Google Scholar]
  129. Jin, M.; Zheng, Y.; Li, Y.F.; Chen, S.; Yang, B.; Pan, S. Multivariate time series forecasting with dynamic graph neural odes. IEEE Trans. Knowl. Data Eng. 2022, 35, 9168–9180. [Google Scholar] [CrossRef]
  130. Liu, Y.; Liu, Q.; Zhang, J.W.; Feng, H.; Wang, Z.; Zhou, Z.; Chen, W. Multivariate time series forecasting with temporal polynomial graph neural networks. Adv. Neural Inf. Process. Syst. 2022, 35, 19414–19426. [Google Scholar]
  131. Williams, C.K.; Rasmussen, C.E. Gaussian Processes for Machine Learning; MIT Press: Cambridge, MA, USA, 2006; Volume 2. [Google Scholar]
  132. Berg, C.; Christensen, J.P.R.; Ressel, P. Harmonic Analysis on Semigroups: Theory of Positive Definite and Related Functions; Springer: Berlin/Heidelberg, Germany, 1984; Volume 100. [Google Scholar]
  133. Hensman, J.; Fusi, N.; Lawrence, N.D. Gaussian processes for big data. arXiv 2013, arXiv:1309.6835. [Google Scholar]
  134. Damianou, A.; Lawrence, N.D. Deep gaussian processes. In Proceedings of the Artificial Intelligence and Statistics, Scottsdale, AZ, USA, 29 April–1 May 2013; pp. 207–215. [Google Scholar]
  135. You, J.; Li, X.; Low, M.; Lobell, D.; Ermon, S. Deep gaussian process for crop yield prediction based on remote sensing data. In Proceedings of the AAAI Conference on Artificial Intelligence, San Francisco, CA, USA, 4–9 February 2017; Volume 31. [Google Scholar]
  136. Mahdi, M.D.; Mrittika, N.J.; Shams, M.; Chowdhury, L.; Siddique, S. A Deep Gaussian Process for Forecasting Crop Yield and Time Series Analysis of Precipitation Based in Munshiganj, Bangladesh. In Proceedings of the IGARSS 2020—2020 IEEE International Geoscience and Remote Sensing Symposium, Waikoloa, HI, USA, 26 September–2 October 2020; pp. 1331–1334. [Google Scholar]
  137. Jiang, Y.; Fan, J.; Liu, Y.; Zhang, X. Deep graph Gaussian processes for short-term traffic flow forecasting from spatiotemporal data. IEEE Trans. Intell. Transp. Syst. 2022, 23, 20177–20186. [Google Scholar] [CrossRef]
  138. Chang, W.; Li, R.; Fu, Y.; Xiao, Y.; Zhou, S. A multistep forecasting method for online car-hailing demand based on wavelet decomposition and deep Gaussian process regression. J. Supercomput. 2023, 79, 3412–3436. [Google Scholar] [CrossRef]
  139. Camastra, F.; Casolaro, A.; Iannuzzo, G. Time Series prediction with missing data by an Iterated Deep Gaussian Process. In Proceedings of the 31st Edition of WIRN 2023, Vietri sul Mare, Salerno, Italy, 22–26 May 2023. [Google Scholar]
  140. Goodfellow, I.; Pouget-Abadie, J.; Mirza, M.; Xu, B.; Warde-Farley, D.; Ozair, S.; Courville, A.; Bengio, Y. Generative Adversarial Nets. In Proceedings of the Advances in Neural Information Processing Systems, Montreal, QC, Canada, 8–13 December 2014; Volume 27. [Google Scholar]
  141. Radford, A.; Metz, L.; Chintala, S. Unsupervised representation learning with deep convolutional generative adversarial networks. arXiv 2015, arXiv:1511.06434. [Google Scholar]
  142. Mogren, O. C-RNN-GAN: Continuous recurrent neural networks with adversarial training. arXiv 2016, arXiv:1611.09904. [Google Scholar]
  143. Box, G.E.; Jenkins, G.M.; Reinsel, G.C.; Ljung, G.M. Time Series Analysis: Forecasting and Control; John Wiley & Sons: Hoboken, NJ, USA, 2015. [Google Scholar]
  144. Wu, D.; Hur, K.; Xiao, Z. A GAN-Enhanced Ensemble Model for Energy Consumption Forecasting in Large Commercial Buildings. IEEE Access 2021, 9, 158820–158830. [Google Scholar] [CrossRef]
  145. Mirza, M.; Osindero, S. Conditional generative adversarial nets. arXiv 2014, arXiv:1411.1784. [Google Scholar]
  146. Chen, X.; Duan, Y.; Houthooft, R.; Schulman, J.; Sutskever, I.; Abbeel, P. InfoGAN: Interpretable Representation Learning by Information Maximising Generative Adversarial Nets. Adv. Neural Inf. Process. Syst. 2016, 29. [Google Scholar]
  147. Wang, H.; Tao, G.; Ma, J.; Jia, S.; Chi, L.; Yang, H.; Zhao, Z.; Tao, J. Predicting the epidemics trend of COVID-19 using epidemiological-based generative adversarial networks. IEEE J. Sel. Top. Signal Process. 2022, 16, 276–288. [Google Scholar] [CrossRef]
  148. Wiese, M.; Knobloch, R.; Korn, R.; Kretschmer, P. Quant GANs: Deep generation of financial time series. Quant. Financ. 2020, 20, 1419–1440. [Google Scholar] [CrossRef]
  149. Hazra, D.; Byun, Y.C. SynSigGAN: Generative adversarial networks for synthetic biomedical signal generation. Biology 2020, 9, 441. [Google Scholar] [CrossRef] [PubMed]
  150. Esteban, C.; Hyland, S.L.; Rätsch, G. Real-valued (medical) time series generation with recurrent conditional gans. arXiv 2017, arXiv:1706.02633. [Google Scholar]
  151. Yoon, J.; Jarrett, D.; Van der Schaar, M. Time-series generative adversarial networks. Adv. Neural Inf. Process. Syst. 2019, 32. [Google Scholar]
  152. Ni, H.; Szpruch, L.; Wiese, M.; Liao, S.; Xiao, B. Conditional sig-wasserstein gans for time series generation. arXiv 2020, arXiv:2006.05421. [Google Scholar] [CrossRef]
  153. Li, X.; Metsis, V.; Wang, H.; Ngu, A.H.H. Tts-gan: A transformer-based time series generative adversarial network. In Proceedings of the International Conference on Artificial Intelligence in Medicine, Halifax, NS, Canada, 14–17 June 2022; Springer: Berlin/Heidelberg, Germany, 2022; pp. 133–143. [Google Scholar]
  154. Koochali, A.; Schichtel, P.; Dengel, A.; Ahmed, S. Probabilistic forecasting of sensory data with generative adversarial networks–ForGAN. IEEE Access 2019, 7, 63868–63880. [Google Scholar] [CrossRef]
  155. Bej, A.; Maulik, U.; Sarkar, A. Time-Series prediction for the epidemic trends of COVID-19 using Conditional Generative adversarial Networks Regression on country-wise case studies. SN Comput. Sci. 2022, 3, 352. [Google Scholar] [CrossRef]
  156. Zúñiga, G.; Acuña, G. Probabilistic multistep time series forecasting using conditional generative adversarial networks. In Proceedings of the 2021 IEEE Latin American Conference on Computational Intelligence (LA-CCI), Temuco, Chile, 2–4 November 2021; pp. 1–6. [Google Scholar]
  157. Huang, X.; Li, Q.; Tai, Y.; Chen, Z.; Liu, J.; Shi, J.; Liu, W. Time series forecasting for hourly photovoltaic power using conditional generative adversarial network and Bi-LSTM. Energy 2022, 246, 123403. [Google Scholar] [CrossRef]
  158. Li, F.; Zheng, H.; Li, X. A novel hybrid model for multi-step ahead photovoltaic power prediction based on conditional time series generative adversarial networks. Renew. Energy 2022, 199, 560–586. [Google Scholar] [CrossRef]
  159. Zhou, X.; Pan, Z.; Hu, G.; Tang, S.; Zhao, C. Stock market prediction on high-frequency data using generative adversarial nets. Math. Probl. Eng. 2018, 2018, 4907423. [Google Scholar] [CrossRef]
  160. Zhang, Y.; Wang, S.; Chen, B.; Cao, J.; Huang, Z. Trafficgan: Network-scale deep traffic prediction with generative adversarial nets. IEEE Trans. Intell. Transp. Syst. 2019, 22, 219–230. [Google Scholar] [CrossRef]
  161. Kaushik, S.; Choudhury, A.; Natarajan, S.; Pickett, L.A.; Dutt, V. Medicine expenditure prediction via a variance-based generative adversarial network. IEEE Access 2020, 8, 110947–110958. [Google Scholar] [CrossRef]
  162. Gu, Y.; Chen, Q.; Liu, K.; Xie, L.; Kang, C. GAN-based Model for Residential Load Generation Considering Typical Consumption Patterns. In Proceedings of the 2019 IEEE Power & Energy Society Innovative Smart Grid Technologies Conference (ISGT), Washington, DC, USA, 18–21 February 2019; pp. 1–5. [Google Scholar]
  163. He, B.; Kita, E. Stock price prediction by using hybrid sequential generative adversarial networks. In Proceedings of the 2020 International Conference on Data Mining Workshops (ICDMW), Sorrento, Italy, 17–20 November 2020; pp. 341–347. [Google Scholar]
  164. Wu, S.; Xiao, X.; Ding, Q.; Zhao, P.; Wei, Y.; Huang, J. Adversarial sparse transformer for time series forecasting. Adv. Neural Inf. Process. Syst. 2020, 33, 17105–17115. [Google Scholar]
  165. Li, Q.; Hao, H.; Zhao, Y.; Geng, Q.; Liu, G.; Zhang, Y.; Yu, F. GANs-LSTM model for soil temperature estimation from meteorological: A new approach. IEEE Access 2020, 8, 59427–59443. [Google Scholar] [CrossRef]
  166. Yin, X.; Han, Y.; Sun, H.; Xu, Z.; Yu, H.; Duan, X. Multi-attention generative adversarial network for multivariate time series prediction. IEEE Access 2021, 9, 57351–57363. [Google Scholar] [CrossRef]
  167. Wu, W.; Huang, F.; Kao, Y.; Chen, Z.; Wu, Q. Prediction method of multiple related time series based on generative adversarial networks. Information 2021, 12, 55. [Google Scholar] [CrossRef]
  168. Jiang, C.; Mao, Y.; Chai, Y.; Yu, M. Day-ahead renewable scenario forecasts based on generative adversarial networks. Int. J. Energy Res. 2021, 45, 7572–7587. [Google Scholar] [CrossRef]
  169. Bendaoud, N.M.M.; Farah, N.; Ben Ahmed, S. Comparing Generative Adversarial Networks architectures for electricity demand forecasting. Energy Build. 2021, 247, 111152. [Google Scholar] [CrossRef]
  170. Wu, X.; Yang, H.; Chen, H.; Hu, Q.; Hu, H. Long-term 4D trajectory prediction using generative adversarial networks. Transp. Res. Part Emerg. Technol. 2022, 136, 103554. [Google Scholar] [CrossRef]
  171. Ye, Y.; Strong, M.; Lou, Y.; Faulkner, C.A.; Zuo, W.; Upadhyaya, S. Evaluating performance of different generative adversarial networks for large-scale building power demand prediction. Energy Build. 2022, 269, 112247. [Google Scholar] [CrossRef]
  172. Vuletić, M.; Prenzel, F.; Cucuringu, M. Fin-Gan: Forecasting and Classifying Financial Time Series via Generative Adversarial Networks. 2023. Available online: https://ssrn.com/abstract=4328302 (accessed on 25 September 2023).
  173. Sohl-Dickstein, J.; Weiss, E.; Maheswaranathan, N.; Ganguli, S. Deep unsupervised learning using nonequilibrium thermodynamics. In Proceedings of the International Conference on Machine Learning, Lille, France, 7–9 July 2015; pp. 2256–2265. [Google Scholar]
  174. Ho, J.; Jain, A.; Abbeel, P. Denoising diffusion probabilistic models. Adv. Neural Inf. Process. Syst. 2020, 33, 6840–6851. [Google Scholar]
  175. Song, Y.; Ermon, S. Generative modeling by estimating gradients of the data distribution. Adv. Neural Inf. Process. Syst. 2019, 32. [Google Scholar]
  176. Song, Y.; Sohl-Dickstein, J.; Kingma, D.P.; Kumar, A.; Ermon, S.; Poole, B. Score-Based Generative Modeling through Stochastic Differential Equations. In Proceedings of the International Conference on Learning Representations, Addis Ababa, Ethiopia, 26–32 April 2020. [Google Scholar]
  177. Rasul, K.; Seward, C.; Schuster, I.; Vollgraf, R. Autoregressive denoising diffusion models for multivariate probabilistic time series forecasting. In Proceedings of the International Conference on Machine Learning, Virtual, 18–24 July 2021; pp. 8857–8868. [Google Scholar]
  178. Yan, T.; Zhang, H.; Zhou, T.; Zhan, Y.; Xia, Y. ScoreGrad: Multivariate probabilistic time series forecasting with continuous energy-based generative models. arXiv 2021, arXiv:2106.10121. [Google Scholar]
  179. Li, Y.; Lu, X.; Wang, Y.; Dou, D. Generative time series forecasting with diffusion, denoise, and disentanglement. Adv. Neural Inf. Process. Syst. 2022, 35, 23009–23022. [Google Scholar]
  180. Biloš, M.; Rasul, K.; Schneider, A.; Nevmyvaka, Y.; Günnemann, S. Modeling temporal data as continuous functions with process diffusion. arXiv 2022, arXiv:2211.02590. [Google Scholar]
  181. Vaswani, A.; Shazeer, N.; Parmar, N.; Uszkoreit, J.; Jones, L.; Gomez, A.N.; Kaiser, Ł.; Polosukhin, I. Attention is all you need. Adv. Neural Inf. Process. Syst. 2017, 30. [Google Scholar]
  182. Zhou, H.; Zhang, S.; Peng, J.; Zhang, S.; Li, J.; Xiong, H.; Zhang, W. Informer: Beyond efficient transformer for long sequence time series forecasting. In Proceedings of the AAAI Conference on Artificial Intelligence, Virtual, 2–9 February 2021; Volume 35, pp. 11106–11115. [Google Scholar]
  183. Wu, H.; Xu, J.; Wang, J.; Long, M. Autoformer: Decomposition transformers with auto-correlation for long-term series forecasting. Adv. Neural Inf. Process. Syst. 2021, 34, 22419–22430. [Google Scholar]
  184. Zhou, T.; Ma, Z.; Wen, Q.; Wang, X.; Sun, L.; Jin, R. Fedformer: Frequency enhanced decomposed transformer for long-term series forecasting. In Proceedings of the International Conference on Machine Learning, Baltimore, MD, USA, 17–23 July 2022; pp. 27268–27286. [Google Scholar]
  185. He, K.; Zhang, X.; Ren, S.; Sun, J. Deep residual learning for image recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 26 June–1 July 2016; pp. 770–778. [Google Scholar]
  186. Ba, J.L.; Kiros, J.R.; Hinton, G.E. Layer normalization. arXiv 2016, arXiv:1607.06450. [Google Scholar]
  187. Luong, T.; Pham, H.; Manning, C.D. Effective Approaches to Attention-based Neural Machine Translation. In Proceedings of the 2015 Conference on Empirical Methods in Natural Language Processing, Lisbon, Portugal, 17–21 September 2015; Association for Computational Linguistics: Cedarville, OH, USA, 2015; pp. 1412–1421. [Google Scholar]
  188. Li, S.; Jin, X.; Xuan, Y.; Zhou, X.; Chen, W.; Wang, Y.X.; Yan, X. Enhancing the locality and breaking the memory bottleneck of transformer on time series forecasting. Adv. Neural Inf. Process. Syst. 2019, 32. [Google Scholar]
  189. Wang, S.; Li, B.Z.; Khabsa, M.; Fang, H.; Ma, H. Linformer: Self-attention with linear complexity. arXiv 2020, arXiv:2006.04768. [Google Scholar]
  190. Donoho, D.L. Compressed sensing. IEEE Trans. Inf. Theory 2006, 52, 1289–1306. [Google Scholar] [CrossRef]
  191. Nie, Y.; Nguyen, N.H.; Sinthong, P.; Kalagnanam, J. A Time Series is Worth 64 Words: Long-term Forecasting with Transformers. In Proceedings of the International Conference on Learning Representations, Kigali, Rwanda, 1–5 May 2023. [Google Scholar]
  192. Zhang, Y.; Yan, J. Crossformer: Transformer utilising cross-dimension dependency for multivariate time series forecasting. In Proceedings of the Eleventh International Conference on Learning Representations, Kigali, Rwanda, 1–5 May 2022. [Google Scholar]
  193. Liu, S.; Yu, H.; Liao, C.; Li, J.; Lin, W.; Liu, A.X.; Dustdar, S. Pyraformer: Low-Complexity Pyramidal Attention for Long-Range Time Series Modeling and Forecasting. In Proceedings of the International Conference on Learning Representations, Virtual, 25–29 April 2022. [Google Scholar]
  194. Shabani, M.A.; Abdi, A.H.; Meng, L.; Sylvain, T. Scaleformer: Iterative Multi-scale Refining Transformers for Time Series Forecasting. In Proceedings of the The Eleventh International Conference on Learning Representations, Kigali, Rwanda, 1–5 May 2023. [Google Scholar]
  195. Cirstea, R.G.; Guo, C.; Yang, B.; Kieu, T.; Dong, X.; Pan, S. Triformer: Triangular, Variable-Specific Attentions for Long Sequence Multivariate Time Series Forecasting–Full Version. arXiv 2022, arXiv:2204.13767. [Google Scholar]
  196. Liu, Y.; Wu, H.; Wang, J.; Long, M. Non-stationary transformers: Exploring the stationarity in time series forecasting. Adv. Neural Inf. Process. Syst. 2022, 35, 9881–9893. [Google Scholar]
  197. Schirmer, M.; Eltayeb, M.; Lessmann, S.; Rudolph, M. Modeling irregular time series with continuous recurrent units. In Proceedings of the International Conference on Machine Learning, Baltimore, MD, USA, 17–23 July 2022; pp. 19388–19405. [Google Scholar]
  198. Zhou, T.; Ma, Z.; Wen, Q.; Sun, L.; Yao, T.; Yin, W.; Jin, R. Film: Frequency improved legendre memory model for long-term time series forecasting. Adv. Neural Inf. Process. Syst. 2022, 35, 12677–12690. [Google Scholar]
  199. Ekambaram, V.; Jati, A.; Nguyen, N.; Sinthong, P.; Kalagnanam, J. TSMixer: Lightweight MLP-Mixer Model for Multivariate Time Series Forecasting. In Proceedings of the 29th ACM SIGKDD Conference on Knowledge Discovery and Data Mining, Long Beach, CA, USA, 6–10 August 2023; pp. 459–469. [Google Scholar]
  200. Wang, H.; Peng, J.; Huang, F.; Wang, J.; Chen, J.; Xiao, Y. MICN: Multi-scale Local and Global Context Modeling for Long-term Series Forecasting. In Proceedings of the Eleventh International Conference on Learning Representations, Kigali, Rwanda, 1–5 May 2023. [Google Scholar]
  201. Mackey, M.C.; Glass, L. Oscillation and chaos in physiological control systems. Science 1977, 197, 287–289. [Google Scholar] [CrossRef] [PubMed]
  202. Weiss, C.O.; Hübner, U.; Abraham, N.B.; Tang, D. Lorenz-like chaos in NH3-FIR lasers. Infrared Phys. Technol. 1995, 36, 489–512. [Google Scholar] [CrossRef]
  203. Aguirre, L.A.; Rodrigues, G.G.; Mendes, E.M. Nonlinear identification and cluster analysis of chaotic attractors from a real implementation of Chua’s circuit. Int. J. Bifurc. Chaos 1997, 7, 1411–1423. [Google Scholar] [CrossRef]
  204. Wijngaard, J.; Klein Tank, A.; Können, G. Homogeneity of 20th century European daily temperature and precipitation series. Int. J. Climatol. J. R. Meteorol. Soc. 2003, 23, 679–692. [Google Scholar] [CrossRef]
  205. Weigend, A.S.; Gershenfeld, N.A. Time Series Prediction: Forecasting the Future and Understanding the Past; Santa Fe Institute Studies in the Sciences of Complexity: Santa Fe, NM, USA, 1994. [Google Scholar]
  206. Jospin, L.V.; Laga, H.; Boussaid, F.; Buntine, W.; Bennamoun, M. Hands-on Bayesian neural networks—A tutorial for deep learning users. IEEE Comput. Intell. Mag. 2022, 17, 29–48. [Google Scholar] [CrossRef]
  207. Lu, J.; Liu, A.; Dong, F.; Gu, F.; Gama, J.; Zhang, G. Learning under concept drift: A review. IEEE Trans. Knowl. Data Eng. 2018, 31, 2346–2363. [Google Scholar] [CrossRef]
  208. Hyvärinen, A.; Dayan, P. Estimation of non-normalized statistical models by score matching. J. Mach. Learn. Res. 2005, 6. [Google Scholar]
  209. Vincent, P. A connection between score matching and denoising autoencoders. Neural Comput. 2011, 23, 1661–1674. [Google Scholar] [CrossRef] [PubMed]
  210. Song, Y.; Garg, S.; Shi, J.; Ermon, S. Sliced score matching: A scalable approach to density and score estimation. In Proceedings of the Uncertainty in Artificial Intelligence, Virtual, 3–6 August 2020; pp. 574–584. [Google Scholar]
  211. Anderson, B.D. Reverse-time diffusion equation models. Stoch. Process. Their Appl. 1982, 12, 313–326. [Google Scholar] [CrossRef]
  212. Papoulis, A.; Unnikrishna Pillai, S. Probability, Random Variables and Stochastic Processes; McGraw-Hill: New York, NY, USA, 2002. [Google Scholar]
Figure 1. An example of an autoregressive model for forecasting based on deterministic stationary time series. In the figure, the model order is q = 2 and the prediction length is P = 0 (i.e., it is a one-step ahead forecasting problem).
Figure 1. An example of an autoregressive model for forecasting based on deterministic stationary time series. In the figure, the model order is q = 2 and the prediction length is P = 0 (i.e., it is a one-step ahead forecasting problem).
Information 14 00598 g001
Figure 2. An example of Convolutional Neural Network applied to time series forecasting. The red, the blue and the green boxes represent CNN’s convolutional layers.
Figure 2. An example of Convolutional Neural Network applied to time series forecasting. The red, the blue and the green boxes represent CNN’s convolutional layers.
Information 14 00598 g002
Figure 3. Example of 1D convolution using a kernel with size k = 3 . The scalar product is denoted by •. The yellow boxes denote the learned kernel.
Figure 3. Example of 1D convolution using a kernel with size k = 3 . The scalar product is denoted by •. The yellow boxes denote the learned kernel.
Information 14 00598 g003
Figure 4. Causal 1D convolution with a kernel of size q = 3 . Zero padding elements are added at the beginning of the input sequence in order to have an output sequence with the same length as the input sequence.
Figure 4. Causal 1D convolution with a kernel of size q = 3 . Zero padding elements are added at the beginning of the input sequence in order to have an output sequence with the same length as the input sequence.
Information 14 00598 g004
Figure 5. Example of a dilated causal 1D convolution with three layers using a dilation base b = 2 and a kernel size q = 3 . Zero padding is used to preserve the input sequence length.
Figure 5. Example of a dilated causal 1D convolution with three layers using a dilation base b = 2 and a kernel size q = 3 . Zero padding is used to preserve the input sequence length.
Information 14 00598 g005
Figure 6. Long-Short Term Memory cell architecture.
Figure 6. Long-Short Term Memory cell architecture.
Information 14 00598 g006
Figure 7. Architecture of a GRU cell. The column vector e is composed of elements that are all equal to 1.
Figure 7. Architecture of a GRU cell. The column vector e is composed of elements that are all equal to 1.
Information 14 00598 g007
Figure 8. The red path in the recurrent model denotes the flow that information about an input sample ( x 20 ) must follow before reaching an output layer ( y 60 ) that might require it.
Figure 8. The red path in the recurrent model denotes the flow that information about an input sample ( x 20 ) must follow before reaching an output layer ( y 60 ) that might require it.
Information 14 00598 g008
Figure 9. Deep Gaussian Processes. In the figure X , Y represent the data set and the desired output, respectively, f ( i ) is the latent function to be estimated and m i , k i represent the mean and covariance function of i-th layer.
Figure 9. Deep Gaussian Processes. In the figure X , Y represent the data set and the desired output, respectively, f ( i ) is the latent function to be estimated and m i , k i represent the mean and covariance function of i-th layer.
Information 14 00598 g009
Figure 10. Transformer architecture. On the left side, the encoder processes an input sequence, producing a hidden representation. On the right side, the decoder uses the encoder’s output to generate the output sequence. The decoder works in an autoregressive way, consuming past generated samples as additional inputs to generate the next output sample.
Figure 10. Transformer architecture. On the left side, the encoder processes an input sequence, producing a hidden representation. On the right side, the decoder uses the encoder’s output to generate the output sequence. The decoder works in an autoregressive way, consuming past generated samples as additional inputs to generate the next output sample.
Information 14 00598 g010
Figure 11. Comparison of a single scaled dot-product attention (a) and multi-head attention with H attention heads (b).
Figure 11. Comparison of a single scaled dot-product attention (a) and multi-head attention with H attention heads (b).
Information 14 00598 g011
Figure 12. Composition of the M4 data set. (a,b) show, respectively, the distribution of M4-Monthly and M4-Yearly time series into the six M4 categories. (c) shows the number of time series in each of the M4 data sets.
Figure 12. Composition of the M4 data set. (a,b) show, respectively, the distribution of M4-Monthly and M4-Yearly time series into the six M4 categories. (c) shows the number of time series in each of the M4 data sets.
Information 14 00598 g012
Table 1. Recent applications on time series forecasting using Convolutional Neural Networks.
Table 1. Recent applications on time series forecasting using Convolutional Neural Networks.
Ref.YearApplication
[47]2017ETFs prices
[48]2018Electricity consumption
[10]2018Solar power and electricity load
[6]2018Electricity consumption
[7]2018Electricity price
[49]2019Electricity price and load forecasting
[50]2019Building-level load
[12]2023 C O 2 /Temperature/Humidity
Table 2. Time series forecasting applications using Temporal Convolutional Networks.
Table 2. Time series forecasting applications using Temporal Convolutional Networks.
Ref.YearApplication
[53]2018Stock market
[15]2019Beijing P M 2.5
[30]2019Traffic
[54]2020National electric demand and power demand
[9]2020Wind power generation
[55]2020Weather
[11]2022Wind speed
Table 3. Elman RNN applications for time series forecasting.
Table 3. Elman RNN applications for time series forecasting.
Ref.YearApplication
[64]2017Electricity load
[65]2018Electricity load
[66]2018Energy consumption
[14]2019Monthly precipitation
[16]2021Air Quality Index
Table 4. ESN applications on time series forecasting.
Table 4. ESN applications on time series forecasting.
Ref.YearApplication
[71]2017Fuel cell voltage ageing
[32]2017Health of automotive batteries
[72]2017Slugging flow phenomenon
[13]2017Temperature/Rainfall
[73]2018Lorenz/Rossler/Sunspot-Runoff
[34]2019Industrial processes
[35]2019Fuel cell durability
[74]2019Photovoltaic voltage
[75]2020Electricity load
[76]2020Electricity load
[77]2020Energy consumption/Wind power generation
[78]2020Temperature of exhaust gas
[36]2020Faults in airplane engines
[79]2020Multiple time series
[25]2020Blood glucose concentration
[80]2021Multiple time series
[81]2021Electrical load
[16]2021Air Quality Index
[82]2022Chaotic time series
Table 5. LSTM applications on time series forecasting.
Table 5. LSTM applications on time series forecasting.
Ref.YearApplication
[17]2016Stock market
[83]2016Electricity load
[84]2016Traffic flow
[19]2017Stock prices
[85,86]2017Stock market
[87]2017Electricity load
[88]2017Air quality
[26]2018Forecasting Cancer Growth
[89,90]2018Stock market
[20]2018Stock prices
[7]2018Electricity price
[24]2018Diabetes mellitus
[91]2018Rainfall-runoff modelling
[92]2018Predicting water table depth
[93,94]2018Electricity load
[33]2018Life prediction of batteries
[10]2018Solar power and electricity load
[95]2018Solar intensity
[96]2018Air quality
[97]2019UCI data sets
[98]2019Building load
[31]2019Petroleum production
[14]2019Monthly precipitation
[99]2019Weather forecasting
[18]2020Stock market
[100]2020COVID-19
[79]2020Multiple time series
[101]2021Weather/Air Quality/Clinical data
[16]2021Air Quality Index
[102]2022Financial markets
[12]2023 C O 2 /Temperature/Humidity
Table 6. Applications on time series forecasting using GRU-based Recurrent Neural Networks.
Table 6. Applications on time series forecasting using GRU-based Recurrent Neural Networks.
Ref.YearApplication
[84]2016Traffic flow
[8]2017Electricity load
[103]2018Photovoltaic forecasting
[7]2018Electricity price
[24]2018Diabetes mellitus
[97]2019UCI data sets
[79]2020Multiple time series
[104]2021Air quality/Stock prices/Household electric power
Table 7. Applications in time series forecasting using variants and hybrids of common deep neural networks. The symbol ‘+’ denotes a combination of multiple models or methodologies. GARCH and ANN acronym stand for Generalized AutoRegressive Conditional Heteroskedasticity [105] and Artificial Neural Networks, respectively.
Table 7. Applications in time series forecasting using variants and hybrids of common deep neural networks. The symbol ‘+’ denotes a combination of multiple models or methodologies. GARCH and ANN acronym stand for Generalized AutoRegressive Conditional Heteroskedasticity [105] and Artificial Neural Networks, respectively.
Ref.YearArchitectureApplication
[106]2016Autoencoder + LSTMSolar power
[107]2017Autoencoder + LSTMStock prices
[108]2017CNN + LSTMStock prices
[109]2018CNN + LSTMElectricity prices
[110]2018CNN + LSTMElectricity load
[111]2018CNN + LSTMWind speed
[112]2018LSTM + Attention mechanism (see Section 4.1.1)Stock market
[113]2018LSTM + GRUStock prices
[114]2018GARCH + LSTMStock prices
[115]2018GRU variantTraffic forecasting
[116]2018CNN + LSTM P M 2.5 concentration
[117]2018ANN + LSTM + CNN P M 2.5 concentration
[118]2019LSTM + Attention mechanism (see Section 4.1.1)Online Sales/Electricity prices
[119]2019LSTM + Attention mechanism (see Section 4.1.1)Solar generation
[120]2019LSTM + Attention mechanism (see Section 4.1.1)Electricity load
[27]2019CNN + Attention mechanism (see Section 4.1.1)Traffic/Stock market
[121]2020CNN + LSTMStock market/Temperature
[122]2020LSTM + Fuzzy LogicCOVID-19
[23]2020TCN + AttentionRemaining Useful Life
[123]2023TCN + LSTM/GRUChaotic Time Series/ECG
Table 8. GNN applications on time series forecasting.
Table 8. GNN applications on time series forecasting.
Ref.YearApplication
[28]2020Traffic/Electricity load/Exchange rate
[29]2021Solar energy/Traffic/Electricity load/Exchange rate
[126]2022Stock market
[127]2022 P M 2.5 /Traffic/Wind speed
[128]2022Stock market
[129]2022Electricity load/Solar energy/Traffic
[21]2022Solar energy/Wind power generation/Electricity load/Exchange rate
[130]2022Solar energy/Traffic/Electricity load/Exchange rate
[22]2023Solar energy/Traffic/Electricity load/Exchange rate
Table 9. DGP applications on time series forecasting.
Table 9. DGP applications on time series forecasting.
Ref.YearApplication
[135]2017Crop Yield forecasting
[136]2020Crop Yield forecasting
[137]2022Electricity load
[138]2023Car-hailing demand
[139]2023Ozone concentration forecasting
Table 10. GAN applications on time series forecasting.
Table 10. GAN applications on time series forecasting.
Ref.YearApplication
[159]2018Stock market
[160]2019Traffic forecasting
[154]2019Lorenz/Mackey-Glass/Internet Traffic data
[161]2019Medicine expenditure
[162]2019Electricity load
[163]2020Stock price
[164]2020Long-term benchmark data sets (see Section 6.2)
[165]2020Soil temperature
[166]2021Stock market/Energy production/EEG/Air quality
[156]2021Internet Traffic data
[167]2021Store Item Demand/Internet Traffic/Meteorological data
[168]2021Wind power/Solar power
[144]2021Energy consumption
[169]2021Electricity load
[170]2022Trajectories forecasting
[147,155]2022COVID-19
[157,158]2022Photovoltaic power
[171]2022Building power demand
[172]2023Financial time series
Table 11. Recent diffusion models for time series forecasting.
Table 11. Recent diffusion models for time series forecasting.
Ref.YearModel
[177]2021TimeGrad
[178]2021ScoreGrad
[180]2022DSPD
[179]2022 D 3 V A E
Table 12. Recent variants of Transformer architecture for time series forecasting.
Table 12. Recent variants of Transformer architecture for time series forecasting.
Ref.YearModel
[188]2019LogTrans
[182]2021Informer
[183]2021Autoformer
[184]2022FEDFormer
[193]2022Pyraformer
[195]2022Triformer
[196]2022Non-stationary Transfomers
[191]2023PatchTST
[192]2023Crossformer
[194]2023Scaleformer
Table 13. Multivariate long-term forecasting benchmarks among variant of Transformer architectures with different prediction lengths P [ 96 , 192 , 336 , 720 ] . The input length considered for ILI data set is 36 and 96 for the others. A lower MSE or MAE indicates a better prediction. The best results, for each data sets, are highlighted in bold.
Table 13. Multivariate long-term forecasting benchmarks among variant of Transformer architectures with different prediction lengths P [ 96 , 192 , 336 , 720 ] . The input length considered for ILI data set is 36 and 96 for the others. A lower MSE or MAE indicates a better prediction. The best results, for each data sets, are highlighted in bold.
ModelsCrossformerPatchTSTNon-StationaryPyraformerFEDFormerAutoformerInformerLogTransLSTMTCN
MetricMSEMAEMSEMAEMSEMAEMSEMAEMSEMAEMSEMAEMSEMAEMSEMAEMSEMAEMSEMAE
Weather96--0.1490.1980.1730.2230.3540.3920.2170.2960.2660.3360.3000.3840.4580.4900.3690.4060.6150.589
192--0.1940.2410.2450.2850.6730.5970.2760.3360.3070.3670.5980.5440.6580.5890.4160.4350.6290.600
3360.4950.5150.2450.2820.3210.3380.6340.5920.3390.3800.3590.3950.5780.5230.7970.6520.4550.4540.6390.608
7200.5260.5420.3140.3340.4140.4100.9420.7230.4030.4820.4190.4281.0590.7410.8690.6750.5350.5200.6390.610
Traffic96--0.3600.2490.6120.3380.6840.3930.5620.3490.6130.3880.7190.3910.6840.3840.8430.4531.4380.784
192--0.3790.2560.6130.3400.6920.3940.5620.3460.6160.3820.6960.3790.6850.3900.8470.4531.4630.794
3360.5300.3000.3920.2640.6180.3280.6990.3960.5700.3230.6220.3370.7770.4200.7330.4080.8530.4551.4790.799
7200.5730.3130.4320.2860.6530.3550.7120.4040.5960.3680.6600.4080.8640.4720.7170.3960.5000.8051.4990.804
Electricity96--0.1290.2220.1690.2730.4980.2990.1830.2970.2010.3170.2740.3680.2580.3570.3750.4370.9850.813
192--0.1470.2400.1820.2860.8280.3120.1950.3080.2220.3340.2960.3860.2660.3680.4420.4730.9960.821
3360.3230.3690.1630.1590.2000.3041.4760.3260.2120.3130.2310.3380.3000.3940.2800.3800.4390.4731.0000.824
7200.4040.4230.1970.2900.2220.3214.0900.3720.2310.3430.2540.3610.3730.4390.2830.3760.9800.8141.4380.784
ILI243.0411.1861.3190.7542.2940.9455.8001.6932.2030.9633.4831.2875.7641.6774.4801.4445.9141.7346.6241.830
363.4061.2321.5790.8701.8250.8486.0431.7332.2720.9763.1031.1484.7551.4674.7991.4676.6311.8456.8581.879
483.4591.2211.5530.8152.0100.9006.2131.7632.2090.9812.6691.0854.7631.4694.8001.4686.7361.8576.9681.892
603.6401.3051.4700.7882.1780.9636.5311.8142.5451.0612.7701.1255.2641.5645.2781.5606.8701.8797.1271.918
ETTm296--0.1660.2560.1920.2740.4090.4880.2030.2870.2550.3390.3650.4530.7680.6422.0411.0733.0411.330
192--0.2230.2960.2800.3390.6730.6410.2690.3280.2810.3400.5330.5630.9890.7572.2491.1123.0721.339
336--0.2740.3290.3340.3611.2100.8460.3250.3660.3390.3721.3630.8871.3340.8722.5681.2383.1051.348
720--0.3620.3850.4170.4134.0441.5260.4210.4150.4220.4193.3791.3883.0481.3282.7201.2873.1531.354
Table 14. Recent applications on time series forecasting using other deep learning architectures.
Table 14. Recent applications on time series forecasting using other deep learning architectures.
Ref.YearApplication
[197]2022Climate data/Electronic Health Records
[198]2022Long-term benchmark data sets (see Section 6.2)
[199,200]2023Long-term benchmark data sets (see Section 6.2)
Table 15. Short-term forecasting data sets. The column Dim refers to the dimensionality of time series.
Table 15. Short-term forecasting data sets. The column Dim refers to the dimensionality of time series.
DatasetDimData Type (Real/Synthetic)
M4-Yearly [44]1Real
M4-Quarterly [44]1Real
M4-Monthly [44]1Real
M4-Weekly [44]1Real
M4-Daily [44]1Real
M4-Hourly [44]1Real
Mackey-Glass [201]1Synthetic
DatasetA [202]1Real
DSVC1 [203]1Real
Paris-14E [204]1Real
DatasetD [205]1Synthetic
Table 16. Long-term forecasting benchmark data sets. The data set size ( · , · , · ) refers to the cardinality of training, validation and test set, respectively. The columns dim, pred len and time res refer to the dimensionality of time series, the number of predicted future samples and the time resolution, respectively.
Table 16. Long-term forecasting benchmark data sets. The data set size ( · , · , · ) refers to the cardinality of training, validation and test set, respectively. The columns dim, pred len and time res refer to the dimensionality of time series, the number of predicted future samples and the time resolution, respectively.
DatasetDimPred LenDataset SizeTime ResDomain
ETTm17[96,192,336,720](34,465, 11,521, 11,521)15 minsElectricity
ETTm27[96,192,336,720](34,465, 11,521, 11,521)15 minsElectricity
ETTh17[96,192,336,720](8545, 2881, 2881)15 minsElectricity
ETTh27[96,192,336,720](8545, 2881, 2881)15 minsElectricity
Electricity321[96,192,336,720](18,317, 2633, 5261)1 hElectricity
Traffic862[96,192,336,720](12,185, 1757, 3509)1 hTransport
Weather21[96,192,336,720](36,792, 5271, 10,540)10 minsWeather
Exchange8[96,192,336,720](5120, 665, 1422)1 dayFinance
ILI7[24,36,48,60](617, 74, 170)1 weekIllness
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Casolaro, A.; Capone, V.; Iannuzzo, G.; Camastra, F. Deep Learning for Time Series Forecasting: Advances and Open Problems. Information 2023, 14, 598. https://doi.org/10.3390/info14110598

AMA Style

Casolaro A, Capone V, Iannuzzo G, Camastra F. Deep Learning for Time Series Forecasting: Advances and Open Problems. Information. 2023; 14(11):598. https://doi.org/10.3390/info14110598

Chicago/Turabian Style

Casolaro, Angelo, Vincenzo Capone, Gennaro Iannuzzo, and Francesco Camastra. 2023. "Deep Learning for Time Series Forecasting: Advances and Open Problems" Information 14, no. 11: 598. https://doi.org/10.3390/info14110598

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
