Surfactant-Free Synthesis of Nb2O5 Nanoparticles Anchored Graphene Nanocomposites with Enhanced Electrochemical Performance for Supercapacitor Electrodes

by
P. Nagaraju
1,2,
R. Vasudevan
1,
A. Alsalme
3,
A. Alghamdi
3,
M. Arivanandhan
1 and
R. Jayavel
1,*
1
Centre for Nanoscience and Technology, Anna University, Chennai-600025, Tamil Nadu, India
2
Department of Physics, School of Arts and Science, AV campus, Vinayaka Mission’s Research Foundation, Chennai-600105, Tamil Nadu, India
3
Department of Chemistry, College of Science, King Saud University, P.O. Box 2455, Riyadh Province-11451, Riyadh, Saudi Arabia
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(1), 160; https://doi.org/10.3390/nano10010160
Submission received: 24 December 2019 / Revised: 12 January 2020 / Accepted: 15 January 2020 / Published: 17 January 2020
(This article belongs to the Section Energy and Catalysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Nb2O5/graphene nanocomposites without any surfactant are synthesized by an in situ microwave irradiation technique. Structural and morphological studies revealed that the prepared composites were composed of Nb2O5 nanoparticles intercalated into the graphene sheet. The thermal stability of graphene oxide, Nb2O5, and Nb2O5/graphene nanocomposite was studied by the TGA. The electrochemical properties are assessed by cyclic voltammetry, chronopotentiometry and electrochemical impedance spectroscopy analyses. The specific capacitance of Nb2O5/graphene nanocomposites is greater (633 Fg−1) than pure Nb2O5 nanoparticles (221 Fg−1) and graphene (290 Fg−1) at a current density of 1 Ag−1. The long-term cyclic measurement confirms higher cyclic stability of the nanocomposite with capacitance retention of 99.3% after 5000 cycles without performance degradation. The composites exhibit higher electrochemical conductivity and allow effective ions and charge transport over the entire electrode surface with aqueous electrolyte. The electrochemical study suggests that Nb2O5/graphene nanocomposites have the potential to be an effective electrode for superior performance supercapacitor applications.

Graphical Abstract

1. Introduction

In recent years, the depletion of natural energy sources due to the industrialization of technological advancements has been alarming. Among the most important requirements is the judicious use of available energy, and an efficient mechanism for energy storage [1]. Renewable energy sources are great replacements for conventional fossil fuels [2]. The predicted future energy crisis demands efficient energy conversion and storage devices [3,4]. Electrochemical capacitors, known as supercapacitors, possess the high power output of conventional dielectric capacitors and the high energy storage of batteries. The current challenge is to sustainably achieve higher power density and instant charge-discharge [5,6]. In general, electrochemical capacitors can be divided into two categories, depending on the storage process. The first type of Supercapacitor is termed the pseudocapacitor, with charge storage by Faradic reactions [7]. Materials under this category include conducting polymers and metal oxides. The second type is the electric double-layer capacitor (EDLC), which involves an electrostatic process for storage. These types of materials include the carbon family, including activated carbon, carbon aerogels, carbon nanotubes, and graphene, which exhibit high surface area. These electrode materials play a vital role in the performance of supercapacitors, based on their electrochemical performance [8,9,10]. Hence, lucid design of efficient materials is a prerequisite for high-performance supercapacitors.
Several materials have been studied as electrodes for supercapacitors in order to improve the energy and power density requirements. Among them, the transition metal oxide Nb2O5 has been explored recently due to its higher valance state and excellent structural stability with pseudocapacitance behavior. It is widely used in many potential applications, such as solar cells [11], electrochromic materials [12], photocatalysis of water to produce hydrogen [13], gas sensing [14], and especially photo-degradation of harmful organic contaminants in water [15] due to outstanding advantages of low toxicity, thermodynamic stability, and relatively high photocatalytic activity. Nb2O5 has many forms, such as a-Nb2O5 (amorphous), TT-Nb2O5 (pseudohexagonal), T-Nb2O5 (orthorhombic) and M- Nb2O5 (monoclinic), which can be obtained through controlled thermal treatment [16]. Structure-dependent electrochemical performance has been investigated on Nb2O5 and it has been observed that orthorhombic Nb2O5 (T-Nb2O5) has comparatively better electrochemical performance than the monoclinic phase [17]. Amorphous and pseudo-hexagonal Nb2O5 exhibits lower specific capacitance values.
However, the poor electronic conductivity of Nb2O5 nanoparticles limits their electrochemical utilization [18]. Additionally, the fabrication of nanoparticles involves heavy agglomeration due to van der Wall’s force that limits the applicability due structural instability. Graphene (G) offers large 2D space with a large surface area for the decoration of nanoparticles for fast ion transport. The 2D structure of G provides suitable platform to accommodate electrochemically active materials. In addition, G also offers opportunities to develop nanocomposites with wide range of materials for diverse applications [19,20].
To date, several methods have been adopted to synthesize Nb2O5 nanocomposites. Wang et al. reported the Nb2O5/graphene synthesized by hydrothermal method [21]. T-Nb2O5/graphene was prepared through a facile hydrothermal method by Kong et al. [22]. Murugan et al. reported a hydrothermal method [23]. However, these methods have been limited by lower capacitance with lower stability of the Nb2O5/graphene nanocomposite; other disadvantages include the long processing time, exorbitant cost, and higher processing temperature, which would hinder large-scale production. The microwave irradiation method can be used as an alternative heat source for other synthesis methods, leading to fast heating, achieving the desired temperature in a short duration and increasing the reaction kinetics compared with the conventional methods. The supercapacitor properties have generally been studied using organic electrolytes, which are expensive and hazardous. In this study, aqueous electrolyte was used because it is less expensive, while being environmentally friendly and easy to use, and possessing greater ionic conductivity than organic electrolytes, which are required to improve rate capability and high power density.
In this report, a new approach is demonstrated for synthesizing high-quality Nb2O5 nanoparticles combined with graphene without any surfactant via a one-step in situ microwave irradiation method. This process is inexpensive, straightforward, and can be readily adopted for the production of larger quantities of nanoparticles. This ultrafast, eco-friendly microwave irradiation method is used to prepare graphene and demonstrated the decoration of G surface with Nb2O5 nanoparticles. Further heat treatment at 700 °C leads to the reduction of remaining graphene oxide into graphene, while the amorphous Nb2O5 nanoparticles are recrystallized into T-Nb2O5 nanoparticles. Furthermore, the microwave irradiation method improves the physico-chemical properties of the T-Nb2O5/graphene nanocomposite. The synergistic effect of T-Nb2O5 and G composite exhibits promising properties with higher capacitance and very good sustainability in aqueous electrolyte.

2. Experimental Section

2.1. Material Synthesis

High purity natural graphite powder (Alfa easer 99.999%), KMnO4 (SRL Extra pure AR), NaNO3 (Merck), H2SO4 (Merck), H2O2 (Merck), HCl (Merck), and ammonium niboate (v) oxalate hydrate (C4H4NbO9.XH2O) (Aldrich), ammonium hydroxide (NH4OH) (Merck) were used for the synthesis of electro-active materials.
Preparation of graphene oxide (GO) by the modified Hummer’s method has already been described in an earlier report [24]. The microwave method was employed to prepare Nb2O5 nanoparticle-decorated G nanocomposite. In a typical reaction, 80 mg of GO was mixed in 100 mL DI water and sonicated for 2 h. After the sonication, the obtained GO solution was mixed with 0.02 M of ammonium niobate (V) oxalate hydrate by constantly stirring for 60 min. Subsequently, ammonium hydroxide was added to the solution at a pH of 12 with continuous stirring for 30 min to get the brownish solution. This solution was loaded in a microwave oven operated at 850 W for 10 min. followed by natural cooling to RT. Subsequently, 3 mL of hydrazine hydrate was added into the solution and stirred for 1 h followed by heating for 3 min. The final product of greyish black precipitate was filtered, washed successively and dried at 60 °C overnight in hot air oven to improve the crystallinity. The prepared Nb2O5/G was calcined at 600 °C for 4 h in N2 atmosphere. The same process was repeated without GO to synthesize pure Nb2O5 nanoparticles.

2.2. Characterization

The structural properties of Nb2O5/G nanocomposite were studied by Rigaku Miniflex (Rigaku Miniflex, Japan) X-ray diffractometer with CuKα radiation in the scan range of 5–80°. The morphology study of the nanocomposite was accomplished by scanning electron microscope (TESCAN VEGA3, Czech Republic) and Transmission electron microscope (FEI Technai, Hitachi, Germany). The presence of functional groups was confirmed by FTIR (Bruker optics systems, Germany) spectral analysis performed by KBr pellet method. Thermal stability (SII-TG/DTA A6300, Japan) of the nanocomposite was studied in N2 atmosphere at 20 °C/min in the temperature range RT to 1000 °C. The structural properties of composite were studied by Raman spectral analysis (Lab RAM HR micro Raman system, France). The BET analysis was performed using N2 adsorption-desorption isotherms at 77 K using the (Quanta Chrome Instruments (version 6.0), Florida). The binding energy states of the composite were studied by X-ray photoelectron spectroscopy analysis using a (Shimadzu ESCA 3400, India) spectrometer.

2.3. Fabrication of Working Electrode

To prepare the working electrode, Nb2O5/G electro-active material was mixed with ethanol and a few drops of nafion paste in the weight ratio of 8:1:1. The mixed solution was sonicated for a few min to achieve the homogeneity. The prepared paste was coated on the glassy carbon electrode. The prepared working electrode was dried at 80 °C for 2 min. The electrolyte was prepared by mixing 1 M H2SO4 with distilled water and stirring for 30 min. The cyclic voltammograms (CV) and chronopotentiometry (CP) were recorded at the potential range of 0.45–1.0 V at different scan rates of 5 to 100 mVs−1 and different current densities. The electrochemical impedance spectroscopy (EIS) was analyzed in the frequency range from 0.01 Hz to 105 Hz using a three-electrode system at room temperature.

3. Results and Discussion

3.1. X-ray Diffraction Analysis

Figure 1 shows XRD patterns of G, Nb2O5, Nb2O5/G nanocomposites. The diffraction peaks of graphene observed at 2θ = 24.43° and 43.14°, and are very well matched with the data profile of JCPDS No. 75-1621, as shown in Figure 1a. The broad, low-intensity diffraction patterns of (002) and (100) planes were assigned to the hexagonal structure and poor crystalline nature of the sp2 bonded carbon. No other diffraction peaks were observed, confirming the removal of oxygen functional groups from the GO by the reduction process. Figure 1b,c reveals the crystalline nature of Nb2O5, Nb2O5/G and diffraction peaks are assigned to orthorhombic phase (JCPDS No. 30-0873). The high-intensity peaks belong to Nb2O5 nanoparticles and Nb2O5/G composites, confirming the strong crystalline nature of the prepared materials. The (002) diffraction peak of G in Figure 1c also confirmed the formation of Nb2O5 decorated nanocomposite.

3.2. Scanning Electron Microscopy Investigations

The SEM images (Figure 2a,b) show Nb2O5 nanoparticle-incorporated graphene sheets. The coagulation of the nanoparticles was controlled by the polar oxygenated functional groups, which served as preferred sites for Nb2O5 nanoparticles. The calcination process leads the nanoparticles to become aggregated, forming a porous structure with rough surface [25]. The images show that the G sheets are assembled by swelling radially from the center. This swelling offers a relatively large contact area at the electro-active material–electrolyte interface, providing short and more efficient ion transport.

3.3. TEM Analysis

HR-TEM images of Nb2O5 nanoparticles homogeneously anchored on the G surface are shown in Figure 3a,b. The decoration of Nb2O5 nanoparticles onto a significantly shaped crumpled sheet indicates the intercalation of Nb2O5 into the G layers controlling the re-stacking of G during the reduction process. Figure 3c shows the Nb2O5 nanoparticles with lattice spacing of 0.39 nm corresponding (001) plane of orthorhombic structure, consistent with the results of XRD analysis [22]. The SAED pattern show in Figure 3d confirms the highly crystalline nature of Nb2O5 nanoparticles. The Nb2O5 nanoparticles are well dispersed, ensuring the formation of a homogeneous composite structure. The morphology of nanocomposite provides sufficient electrochemically active sites, subsequently improving the electrochemical properties.

3.4. Analysis of Functional Groups

Figure 4 shows the FTIR vibrational spectra of G, Nb2O5, and Nb2O5/G nanocomposites. Figure 4a shows the spectrum for graphene with the absorption peak at 1643 cm–1 and broad absorption stretch at 3427 cm–1, which are attributed to the C=C skeletal vibration and atmospheric moisture. In Figure 4b, the absorption peaks at 3413 and 1623 cm–1 correspond to the stretching vibration of -OH groups due to adsorbed H2O. The wide band at 640 cm–1 is ascribed to the symmetric stretching of Nb-O-Nb, and the shoulder peak at 853 cm−1 corresponds to asymmetric stretching of Nb=O bands, indicating the crystalline nature of Nb2O5 [26,27]. The peaks at 3415 cm–1 and 1622 cm–1 are assigned to the O-H stretching and C=C skeletal vibration of graphene sheets in the Nb2O5/G nanocomposite (Figure 4c). The peak intensity is mostly decreased for the composite owing to the reduction of GO to G and signifying a very strong interaction between Nb2O5 nanoparticles and residual surface hydroxyl groups.

3.5. Optical Properties

Figure 5 depicts the Raman spectra of GO, graphene, Nb2O5 and Nb2O5/G nanocomposite. Figure 5a shows the spectrum for GO with two bands centered at 1332 and 1598 cm−1 as prominent D and G bands respectively. Figure 5b shows the scattering spectrum of graphene with the D band (1327) related to the disorder band of sp3 carbon and G (1585) band corresponding to sp2 bonded carbon atmos. Compared with graphene oxide, a shift in the lower band was observed for the graphene, indicating the strong reduction of GO. Figure 5c depicts the spectrum of Nb2O5 with broad band at 695 cm–1 assigned to the symmetric and asymmetric stretching mode of Nb-O bond linkage. The peaks at 231 and 307 cm–1 are characteristics of Nb-O-Nb bonds, confirming the orthorhombic phase of Nb2O5 nanoparticles [28]. The Raman spectrum of Nb2O5/G composite is red shifted compared to pure graphene, providing evidence for the interactions between Nb2O5 nanoparticles and graphene sheets, as shown in Figure 5d.

3.6. Thermal Behavior

Figure 6 shows the thermal behavior of the synthesized GO, Nb2O5 and Nb2O5/G composite investigated by TGA carried out in N2 atmosphere. Figure 6a shows the weight loss due to the removal of adsorbed water molecules at 100 °C and the organic matter originating from the GO in the temperature range from 150 to 250 °C. Further increasing the temperature, gradual weight loss occurred up to 1000 °C due to the liable oxygen containing functional groups with a total weight loss of 70%. Figure 6b shows the TGA curve of Nb2O5, started with a minor step from RT to 1000 °C, which indicates the release of H2O molecules. The next strong weight loss of 22.8% perceived from 150 to 300 °C reflects the disintegration of organic molecules. The weight loss of 2.2% at 600 °C was associated with the recrystallization due to the transformation of niobium pentoxide hydrate to a pseudohexagonal phase of Nb2O5 nanoparticles [29]. The weight loss of less than 0.5% from 800 to 1000 °C means the morphology deviation and a change in the crystal structure from pseudohexagonal to orthorhombic phase, with an overall weight loss of 34.5%. The Nb2O5/G nanocomposite possesses gradual weight loss up to 600 °C and above of 800 °C, similar behavior that of Nb2O5 was observed as shown in Figure 6c with total weight loss of 32%. The Nb2O5/G composite has the higher thermal stability and lower weight loss compared with GO and pure Nb2O5 nanoparticles.

3.7. Binding Energy States

The XPS survey spectrum of the prepared Nb2O5/G composite with signature bands for Nb, C and O is shown in Figure 7a. This evidences the decoration of Nb2O5 nanoparticles onto the surface of G sheet. Figure 7b shows the high-resolution Nb3d spectra with binding energy of 207.35 eV (3d5/2) and 210.15 eV (3d3/2), signifying that Nb exists in the Nb5+ chemical state [30]. Figure 7c depicts the O1s spectrum of Nb2O5/G composite with two peaks for oxygen; first one at 531.02 eV consistent with presence of lattice oxygen in Nb2O5 and second one at 532.5 eV due to lattice oxygenated surface of the G. Figure 7d displays the high-resolution C1s spectra of Nb2O5/G with three peaks for various carbon family sp2 bonded carbonyls at 284.16 eV (C=C), epoxy/hydroxyl groups at 285.4 eV (C-C) and carbonyls at 287.2 eV (C=O). The chemical interaction between graphene and Nb2O5 nanoparticles is attributed to the construction bonds of Nb-O-C [31].

3.8. Surface Area Analysis

The surface area analysis results (Figure 8a) reveal that both the samples exhibit a Type IV isotherm with a hysteresis loop of H4 in the P/P0 range of 0.4 to 1.0, suggesting the characteristics of a mesoporous structure. The specific surface area of the Nb2O5/G nanocomposite is higher (94 m2g−1) than that of pure Nb2O5 nanoparticles (32 m2g−1). The Specific Surface Area (SSA) of graphene was estimated to be 145.05 m2g−1 [32]. This is attributed to the porosity of G and Nb2O5 nanoparticles deposited on G sheets, which prevents the G sheets from aggregating and restacking after the removal of solvents. This leads to a porous structure of Nb2O5/G nanocomposite, and hence to a higher surface area [33]. The porous structure facilities the more efficient diffusion of electrolyte ions to the active sites. Figure 8b indicates the pore size distribution of 3.5 nm and 4.5 nm for the composite and pure Nb2O5, respectively. This mesoporous structure and high surface area of the composite play an important role in providing shorter diffusion paths, rapid electrolyte transport and additional active sites for electrochemical reaction on the electrode surface to enhance the electrochemical performance [34].

3.9. Electrochemical Evaluation

3.9.1. Cyclic Voltammogram

Figure 9a displays the typical cyclic voltammogram (CV) curves of the Nb2O5 electrode material for the potential range from −0.45 to 1.0 V at various scan rates in 1 M H2SO4 aqueous electrolyte. The CV curves of Nb2O5 exhibit oxidation reduction peaks for the sweep rate from 5 to 100 mVs−1, which are evidently the characteristics of Faradic behavior. With the increasing scan rate, the redox peaks become stable, indicating a strong kinetic reversibility. At higher scan rates the increase in the anodic peak current density with a decrease in the cathodic peak indicates the low resistance of the electrode. The CV curves shown in Figure 9b exhibit a quasi-rectangular shape without oxidation and reduction peaks, suggesting the higher stability of Nb2O5/G composite electrodes for a wider potential range. Moreover, the quasi-rectangular shape of CV curves reveals exceptional reversibility and faster surface reaction. This confirms the ideal capacitive behavior with excellent electrochemical property and electrical conductivity. The CV curves recorded at low scan rates are due to the strong reversible process. These results confirm that the Nb2O5/G composite electrode has excellent capacitance behavior and low contact resistance, provided by high surface area. Figure 9c shows the comparison of CV curves of Nb2O5 and Nb2O5/G composites electrodes at a scan rate of 100 mVs−1. The composite electrode showed a higher integral area than the pure Nb2O5 electrode, confirming the higher specific capacitance. In the composite electrodes the ionic charge accumulates at the electrode/electrolyte interface due to high surface area and the porosity of the G. The higher capacitance suggests that Nb2O5 nanoparticles might be intercalated at the pores to support the EDLC formation. The charge storage mechanism of Nb2O5/G composites is shown in Scheme 1.

3.9.2. Chronopotentiometry Measurements

The charge-discharge performance was analyzed in the potential range from 0.45 to 1.0 V vs. Ag/AgCl, in 1 M H2SO4 aqueous electrolyte. Figure 10a shows the charge-discharge curves of Nb2O5, and displays nonlinear and symmetrical shapes for the corresponding discharge period with a slight plateau without internal resistance (IR) drop. The charge and discharge platforms correspond to the oxidation and reduction of Nb2O5 nanoparticles. While increasing the current density, the charge-discharge process decreases gradually due to the adsorption/desorption of H+ ions during the charge-discharge process. The CP curves of the Nb2O5/G electrode without linear and symmetrical shapes confirm the characteristics of non-Faradic behavior at different current densities are shown in Figure 10b. The perfect symmetry of the CP curves indicates represents the excellent reversibility in non-Faradic reactions. The discharge portion displays a longer discharge time at low current density, indicating higher capacitance. The decrease in current density and increased discharge time are due to the higher surface area and conductivity of graphene. The CP curves show no obvious IR drop due to the low thermal resistance, well-formed electrode/electrolyte interface and high reversibility and good capacitive nature of the electrode materials.
Figure 10c displays the comparison CP curves of Nb2O5 and Nb2O5/G nanocomposite at a current density of 1 Ag−1. The composite exhibits higher discharge time than pure Nb2O5 electrode. The Nb2O5 nanoparticles possess poor electrical conductivity and fast degradation as compared to the Nb2O5/G composite electrode material. The combination of Nb2O5 nanoparticles with G increases the conductivity thereby effectively creating conducting paths for the electrons to achieve ideal capacitive behavior. Thus, increasing the overall discharge time of composite electrodes is beneficial to improving the specific capacitance by shortening the diffusion and moving length of the electrolyte ions. The G ensures the strong conductive network for the ions transport due to the higher interfacial contact area between Nb2O5 and G. The specific capacitance (Cs) values of pure Nb2O5 and Nb2O5/G nanocomposites were obtained from CP curves using the formula,
Cs = I × Δt/m × ΔV
where, I—discharge current, ΔV—potential window, t—discharge time, m—mass of the active material in the electrode. The calculated specific capacitance values were 633, 271, 445, 314.8, 238.1, 168.9 and 221, 168.5, 82.1, 34.5, 19 Fg−1 for Nb2O5/G nanocomposite and pure Nb2O5 electrodes, respectively, at different current density values. The capacitance of pure graphene was measured to be 290 Fg−1 [35]. The specific capacitance values of the composite electrode have been compared with previously reported results as shown in Table 1.
The calculated specific capacitance (Cs) values of Nb2O5 and Nb2O5/G nanocomposite electrode at different current densities are shown in Figure 11. The response of both the electrodes decreased with increasing current density from 1 to 5 Ag−1. The specific capacitance of the composite electrode was higher than pure Nb2O5 electrode. The enhanced capacitive performance of the composite is due to the synergistic effect of higher conductivity of G and mesopores structure of Nb2O5 nanoparticles. Additionally, well-dispersed Nb2O5 nanoparticles can avoid the restacking of G sheets to ensure higher surface area for the storage [37]. Meanwhile, Nb2O5/G nanocomposite could provide higher contact area, improving the electrochemical performance [38].
Figure 12 depicts the capacitance retention of the Nb2O5/G nanocomposite electrode tested up to 5000 cycles. The composite electrodes maintain a stability of 99.3% after 5000 cycles without decay, indicating the excellent electrochemical stability of electrode, which is higher than pure Nb2O5 electrode material. This is attributed to the relatively easy path for electrode/electrolyte interface reactions. Moreover, the 2D network of the G sheet with low resistance allows rapid and effective electron transport providing higher stability. The Coulombic efficiency (η) was calculated from the CP curves using the following equation,
η = (td/tc) × 100
where td and tc are the discharge time and charge time. The Nb2O5/G nanocomposite electrode retains the Coulombic efficiency of 99.5%, as derived from its symmetrical charge-discharge curves.

3.9.3. Electrochemical Impedance Analysis

Typical electrochemical impedance spectroscopy (EIS) plots of Nb2O5 and Nb2O5/G nanocomposite electrodes in the frequency range of 0.01 Hz to 105 Hz are presented in Figure 13. The semicircle in the high-frequency region represents the solution resistance (Rs). The slope in the low-frequency range is attributed to Warburg resistance, which results from the frequency dependence of ions diffusion. The solution resistance (Rs) of composite and pure Nb2O5 is measured to be 0.61 and 2.2 Ω respectively. The equivalent circuit best fits the experimental data provided in the inset of Figure 13, where RS—solution resistance, Rct—charge transfer resistance, and CPE—constant phase element values are given in Table 2. The estimated solution resistance (Rs) value for the composite (0.61 Ω) is much lower than pure Nb2O5 (2.2 Ω), revealing the higher accessibility of active sites in composite for electrolyte ions. The composite electrodes display lower Rs value than the Nb2O5 due to the intrinsic electrical conductivity. The lower Rs value of the composite electrodes suggests that the introduction of G significantly enhances the electrical conductivity of the composite [39] due to strong interface between Nb2O5 and the G framework, which enhances the electrochemical activity.

4. Conclusions

Nanocomposites of Nb2O5/G were synthesized via a facile in situ microwave irradiation method. The XRD results confirmed the reduction of graphene oxide into graphene and orthorhombic structure of Nb2O5 in the composite. The aromatic ring of C=C bands from oxygen functionalities of G appeared in the composite as confirmed from FTIR studies. The HR-TEM analysis reveals the decoration of Nb2O5 nanoparticles on G sheets. Higher specific capacitance of 633 Fg−1 was measured for Nb2O5/G nanocomposites much higher than pure Nb2O5 nanoparticles (221 Fg−1) and graphene (290 Fg−1) at 1 Ag−1. The cyclic stability of 99.3% was achieved at 5000 cycles, which confirmed that the composite electrode can be a better choice for energy storage applications for supercapacitor.

Author Contributions

R.J. planned and supervised the research work with necessary study materials; P.N., the main author, carried out the experiments and the investigations; R.V. contributed basic characterizations; A.A. (Ali Alsalme) and A.A. (Abdulaziz Alghamdi) performed all microscopic studies; M.A. suggested the methodology. All authors have read and agreed to version of the manuscript.

Funding

The authors would like to acknowledgment the Researchers Supporting Project (RSP-2019/78) King Saud University, Riyadh, Saudi Arabia.

Acknowledgments

The authors would like to acknowledge the Researchers Supporting Project (RSP-2019/78) King Saud University, Riyadh, Saudi Arabia. The author P.N gratefully acknowledges the University Grants Commission, Government of India for the award of the Rajiv Gandhi National Fellowship to carry out this work (F1-17.1/2015-17/RGNF-2015-17-SC-TAM-23248).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, Y.; Xia, Y. Recent Progress in Supercapacitors: From Materials Design to System Construction. Adv. Mater. 2013, 25, 5336–5342. [Google Scholar] [CrossRef]
  2. Xiong, P.; Zhu, J.; Wang, X. Recent advances on multi-component hybrid nanostructures for electrochemical capacitors. J. Power Sources 2015, 294, 31–50. [Google Scholar] [CrossRef]
  3. Zhang, L.L.; Zhao, X.S. Carbon-based materials as supercapacitor electrodes. Chem. Soc. Rev. 2009, 38, 2520–2531. [Google Scholar] [CrossRef]
  4. Wang, X.; Lu, X.; Liu, B.; Chen, D.; Tong, Y.; Shen, G. Flexible Energy-Storage Devices: Design Consideration and Recent Progress. Adv. Mater. 2014, 26, 4763–4782. [Google Scholar] [CrossRef]
  5. Yan, J.; Wang, Q.; Wei, T.; Fan, Z. Recent Advances in Design and Fabrication of Electrochemical Supercapacitors with High Energy Densities. Adv. Energy Mater. 2014, 4, 1300816. [Google Scholar] [CrossRef]
  6. Yang, J.; Yu, C.; Fan, X.; Zhao, C.; Qiu, J. Ultrafast Self-Assembly of Graphene Oxide-Induced Monolithic NiCo–Carbonate Hydroxide Nanowire Architectures with a Superior Volumetric Capacitance for Supercapacitors. Adv. Funct. Mater. 2015, 25, 2109–2116. [Google Scholar] [CrossRef]
  7. Zhao, X.; Sánchez, B.M.; Dobson, P.J.; Grant, P.S. The role of nanomaterials in redox-based supercapacitors for next generation energy storage devices. Nanoscale 2011, 3, 839–855. [Google Scholar] [CrossRef]
  8. Guan, Q.; Cheng, J.; Wang, B.; Ni, W.; Gu, G.; Li, X.; Huang, L.; Yang, G.; Nie, F. Needle-like Co3O4 Anchored on the Graphene with Enhanced Electrochemical Performance for Aqueous Supercapacitors. ACS Appl. Mater. Interfaces 2014, 6, 7626–7632. [Google Scholar] [CrossRef]
  9. Peng, S.; Li, L.; Wu, H.B.; Madhavi, S.; Lou, X.W. Controlled Growth of NiMoO4 Nanosheet and Nanorod Arrays on Various Conductive Substrates as Advanced Electrodes for Asymmetric Supercapacitors. Adv. Energy Mater. 2015, 5, 1401172. [Google Scholar] [CrossRef]
  10. Chen, W.; Xia, C.; Alshareef, H.N. One-Step Electrodeposited Nickel Cobalt Sulfide Nanosheet Arrays for High-Performance Asymmetric Supercapacitors. ACS Nano 2014, 8, 9531–9541. [Google Scholar] [CrossRef]
  11. Balandin, A.A.; Ghosh, S.; Bao, W.; Calizo, I.; Teweldebrhan, D.; Miao, F.; Lau, C.N. Superior Thermal Conductivity of Single-Layer Graphene. Nano Lett. 2008, 8, 902–907. [Google Scholar] [CrossRef]
  12. Bolotin, K.I.; Sikes, K.J.; Jiang, Z.; Klima, M.; Fudenberg, G.; Hone, J.; Kim, P.; Stormer, H.L. Ultrahigh electron mobility in suspended graphene. Solid State Commun. 2008, 146, 351–355. [Google Scholar] [CrossRef] [Green Version]
  13. Xuan, Y.; Wu, Y.Q.; Shen, T.; Qi, M.; Capano, M.A.; Cooper, J.A.; Ye, P.D. Atomic-layer-deposited nanostructures for graphene-based nanoelectronics. Appl. Phys. Lett. 2008, 92, 013101. [Google Scholar] [CrossRef] [Green Version]
  14. Machado, B.F.; Serp, P. Graphene-based materials for catalysis. Catal. Sci. Technol. 2012, 2, 54–75. [Google Scholar] [CrossRef]
  15. Kim, H.; Abdala, A.A.; Macosko, C.W. Graphene/Polymer Nanocomposites. Macromolecules 2010, 43, 6515–6530. [Google Scholar] [CrossRef]
  16. Nowak, I.; Ziolek, M. Niobium Compounds:  Preparation, Characterization, and Application in Heterogeneous Catalysis. Chem. Rev. 1999, 99, 3603–3624. [Google Scholar] [CrossRef]
  17. Kim, J.W.; Augustyn, V.; Dunn, B. The Effect of Crystallinity on the Rapid Pseudocapacitive Response of Nb2O5. Adv. Energy Mater. 2012, 2, 141–148. [Google Scholar] [CrossRef]
  18. Liu, M.; Yan, C.; Zhang, Y. Fabrication of Nb2O5 nanosheets for high-rate lithium ion storage applications. Sci. Rep. 2015, 5, 8326. [Google Scholar] [CrossRef] [Green Version]
  19. Kuila, T.; Mishra, A.K.; Khanra, P.; Kim, N.H.; Lee, J.H. Recent advances in the efficient reduction of graphene oxide and its application as energy storage electrode materials. Nanoscale 2013, 5, 52–71. [Google Scholar] [CrossRef]
  20. Mishra, A.K.; Ramaprabhu, S. Functionalized Graphene-Based Nanocomposites for Supercapacitor Application. J. Phys. Chem. C 2011, 115, 14006–14013. [Google Scholar] [CrossRef]
  21. Wang, L.P.; Yu, L.; Satish, R.; Zhu, J.; Yan, Q.; Srinivasan, M.; Xu, Z. High-performance hybrid electrochemical capacitor with binder-free Nb2O5@graphene. RSC Adv. 2014, 4, 37389–37394. [Google Scholar] [CrossRef]
  22. Kong, L.; Zhang, C.; Zhang, S.; Wang, J.; Cai, R.; Lv, C.; Qiao, W.; Ling, L.; Long, D. High-power and high-energy asymmetric supercapacitors based on Li+-intercalation into a T-Nb2O5/graphene pseudocapacitive electrode. J. Mater. Chem. A 2014, 2, 17962–17970. [Google Scholar] [CrossRef]
  23. Murugan, M.; Kumar, R.M.; Alsalme, A.; Alghamdi, A.; Jayavel, R. Facile hydrothermal preparation of niobium pentaoxide decorated reduced graphene oxide nanocomposites for supercapacitor applications. Chem. Phys. Lett. 2016, 650, 35–40. [Google Scholar] [CrossRef]
  24. Nagaraju, P.; Alsalme, A.; Alswieleh, A.; Jayavel, R. Facile in-situ microwave irradiation synthesis of TiO2/graphene nanocomposite for high-performance supercapacitor applications. J. Electroanal. Chem. 2018, 808, 90–100. [Google Scholar] [CrossRef]
  25. Kim, H.; Kim, Y.; Joo, J.B.; Ko, J.W.; Yi, J. Preparation of coral-like porous gold for metal ion detection. Microporous Mesoporous Mater. 2009, 122, 283–287. [Google Scholar] [CrossRef]
  26. Yue, Z.; Chu, D.; Huang, H.; Huang, J.; Yang, P.; Du, Y.; Zhu, M.; Lu, C. A novel heterogeneous hybrid by incorporation of Nb2O5 microspheres and reduced graphene oxide for photocatalytic H2 evolution under visible light irradiation. RSC Adv. 2015, 5, 47117–47124. [Google Scholar] [CrossRef]
  27. Castro, D.C.; Cavalcante, R.P.; Jorge, J.; Martines, M.A.U.; Oliveira, L.C.S.; Casagrande, G.A.; Machulek, A., Jr. Synthesis and Characterization of Mesoporous Nb2O5 and Its Application for Photocatalytic Degradation of the Herbicide Methylviologen. J. Braz. Chem. Soc. 2016, 27, 303–313. [Google Scholar]
  28. Kong, L.; Zhang, C.; Wang, J.; Qiao, W.; Ling, L.; Long, D. Nanoarchitectured Nb2O5 hollow, Nb2O5@carbon and NbO2@carbon Core-Shell Microspheres for Ultrahigh-Rate Intercalation Pseudocapacitors. Sci. Rep. 2016, 6, 21177. [Google Scholar] [CrossRef] [Green Version]
  29. Li, S.; Xu, Q.; Uchaker, E.; Cao, X.; Cao, G. Comparison of amorphous, pseudohexagonal and orthorhombic Nb2O5 for high-rate lithium ion insertion. CrystEngComm 2016, 18, 2532–2540. [Google Scholar] [CrossRef] [Green Version]
  30. Dai, Z.; Dai, H.; Zhou, Y.; Liu, D.; Duan, G.; Cai, W.; Li, Y. Monodispersed Nb2O5 Microspheres: Facile Synthesis, Air/Water Interfacial Self-Assembly, Nb2O5-Based Composite Films, and Their Selective NO2 Sensing. Adv. Mater. Interfaces 2015, 2, 1500167. [Google Scholar] [CrossRef]
  31. Yu, J.; Jin, J.; Cheng, B.; Jaroniec, M. A noble metal-free reduced graphene oxide–CdS nanorod composite for the enhanced visible-light photocatalytic reduction of CO2 to solar fuel. J. Mater. Chem. A 2014, 2, 3407–3416. [Google Scholar] [CrossRef]
  32. Nagaraju, P.; Alsalme, A.; Alkathiri, A.M.; Jayavel, R. Rapid synthesis of WO3/graphene nanocomposite via in-situ microwave method with improved electrochemical properties. J. Phys. Chem. Solids 2018, 120, 250–260. [Google Scholar] [CrossRef]
  33. Wu, Z.-S.; Wang, D.-W.; Ren, W.; Zhao, J.; Zhou, G.; Li, F.; Cheng, H.-M. Anchoring Hydrous RuO2 on Graphene Sheets for High-Performance Electrochemical Capacitors. Adv. Funct. Mater. 2010, 20, 3595–3602. [Google Scholar] [CrossRef]
  34. Yang, S.; Song, X.; Zhang, P.; Gao, L. Heating-Rate-Induced Porous α-Fe2O3 with Controllable Pore Size and Crystallinity Grown on Graphene for Supercapacitors. ACS Appl. Mater. Interfaces 2015, 7, 75–79. [Google Scholar] [CrossRef] [PubMed]
  35. Nagaraju, P.; Vasudevan, R.; Arivanandhan, M.; Alsalme, A.; Jayavel, R. High-performance electrochemical capacitor based on cuprous oxide/graphene nanocomposite electrode material synthesized by microwave irradiation method. Emerg. Mater. 2019, 2, 495–504. [Google Scholar] [CrossRef]
  36. Arunkumar, P.; Ashish, A.G.; Babu, B.; Sarang, S.; Suresh, A.; Sharma, C.H.; Thalakulam, M.; Shaijumon, M.M. Nb2O5/graphene nanocomposites for electrochemical energy storage. RSC Adv. 2015, 5, 59997–60004. [Google Scholar] [CrossRef]
  37. Gao, F.; Qu, J.; Zhao, Z.; Zhou, Q.; Li, B.; Qiu, J. A green strategy for the synthesis of graphene supported Mn3O4 nanocomposites from graphitized coal and their supercapacitor application. Carbon 2014, 80, 640–650. [Google Scholar] [CrossRef]
  38. Cai, G.; Wang, X.; Cui, M.; Darmawan, P.; Wang, J.; Eh, A.L.-S.; Lee, P.S. Electrochromo-supercapacitor based on direct growth of NiO nanoparticles. Nano Energy 2015, 12, 258–267. [Google Scholar] [CrossRef]
  39. Park, S.; An, J.; Piner, R.D.; Jung, I.; Yang, D.; Velamakanni, A.; Nguyen, S.T.; Ruoff, R.S. Aqueous Suspension and Characterization of Chemically Modified Graphene Sheets. Chem. Mater. 2008, 20, 6592–6594. [Google Scholar] [CrossRef]
Nanomaterials 10 00160 g001 550

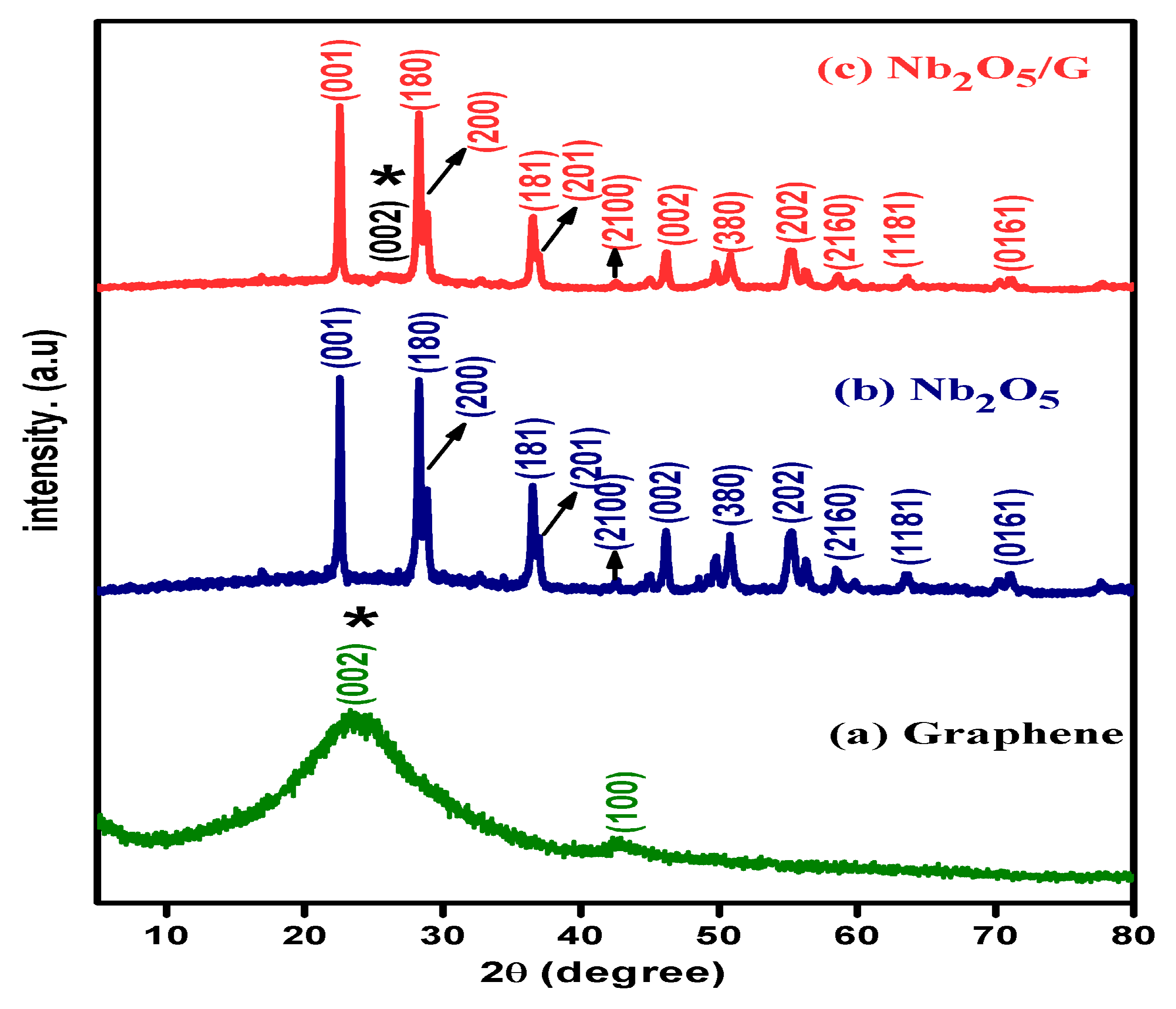

Figure 1. Powder X-ray diffraction patterns of (a) graphene, (b) Nb2O5, and (c) Nb2O5/G composite.
Figure 1. Powder X-ray diffraction patterns of (a) graphene, (b) Nb2O5, and (c) Nb2O5/G composite.
Nanomaterials 10 00160 g001
Nanomaterials 10 00160 g002 550
Figure 2. (a,b) Morphology of Nb2O5/G nanocomposite annealed at 600 °C.
Figure 2. (a,b) Morphology of Nb2O5/G nanocomposite annealed at 600 °C.
Nanomaterials 10 00160 g002
Nanomaterials 10 00160 g003 550

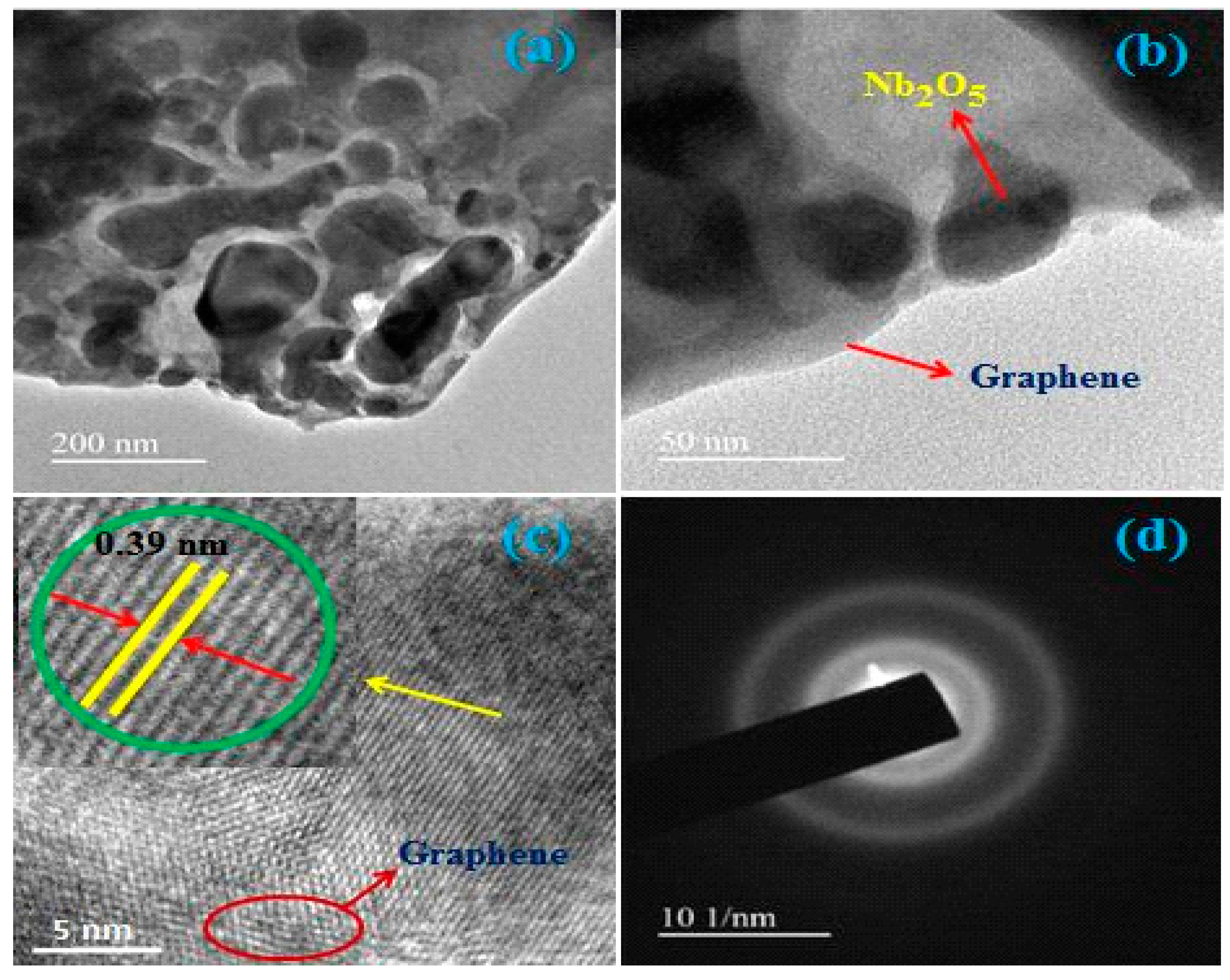

Figure 3. (a–c) HRTEM images of Nb2O5/G nanocomposite, and (d) SAED pattern.
Figure 3. (a–c) HRTEM images of Nb2O5/G nanocomposite, and (d) SAED pattern.
Nanomaterials 10 00160 g003
Nanomaterials 10 00160 g004 550

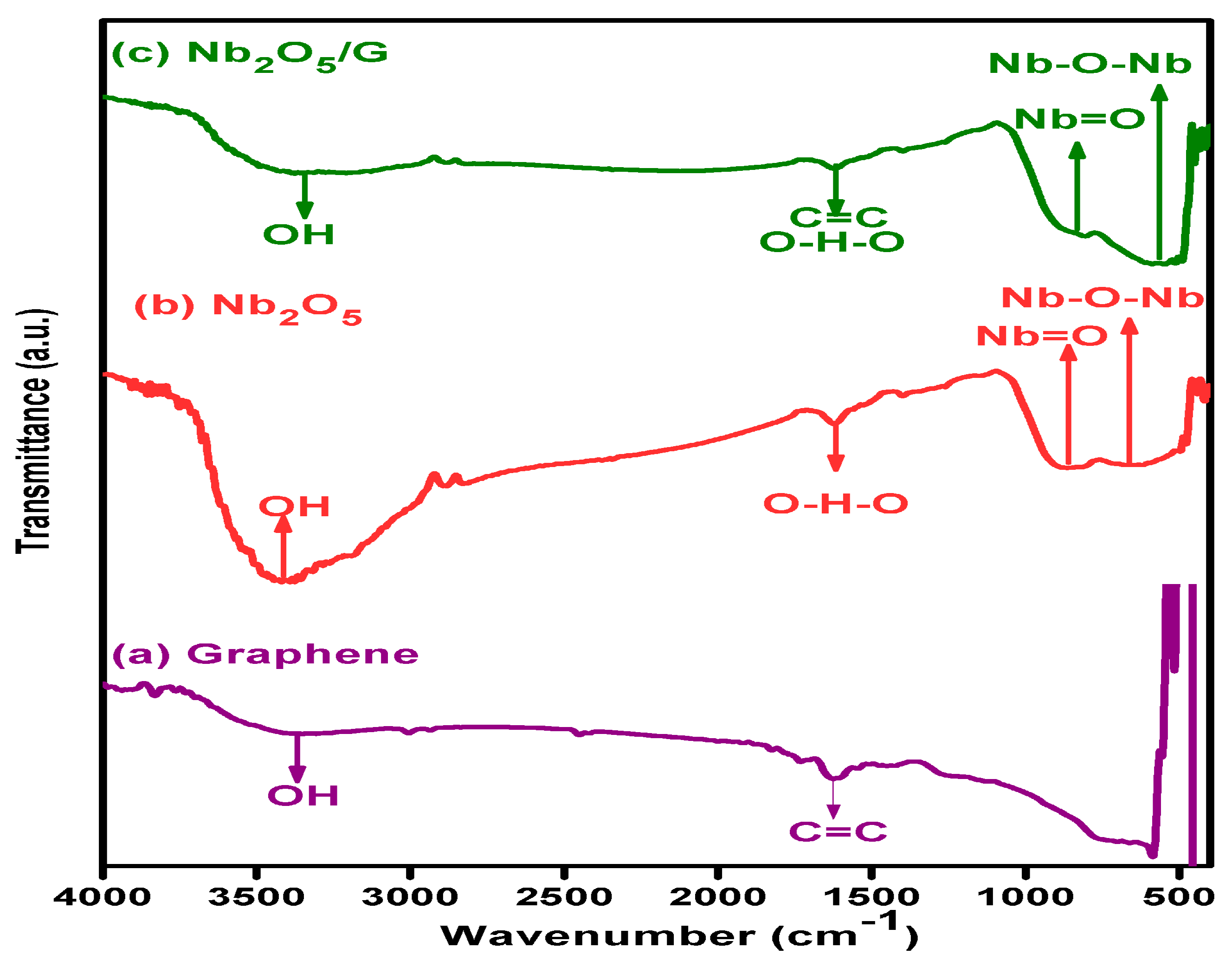

Figure 4. FTIR spectra of (a) graphene, (b) Nb2O5, and (c) Nb2O5/G nanocomposite.
Figure 4. FTIR spectra of (a) graphene, (b) Nb2O5, and (c) Nb2O5/G nanocomposite.
Nanomaterials 10 00160 g004
Nanomaterials 10 00160 g005 550

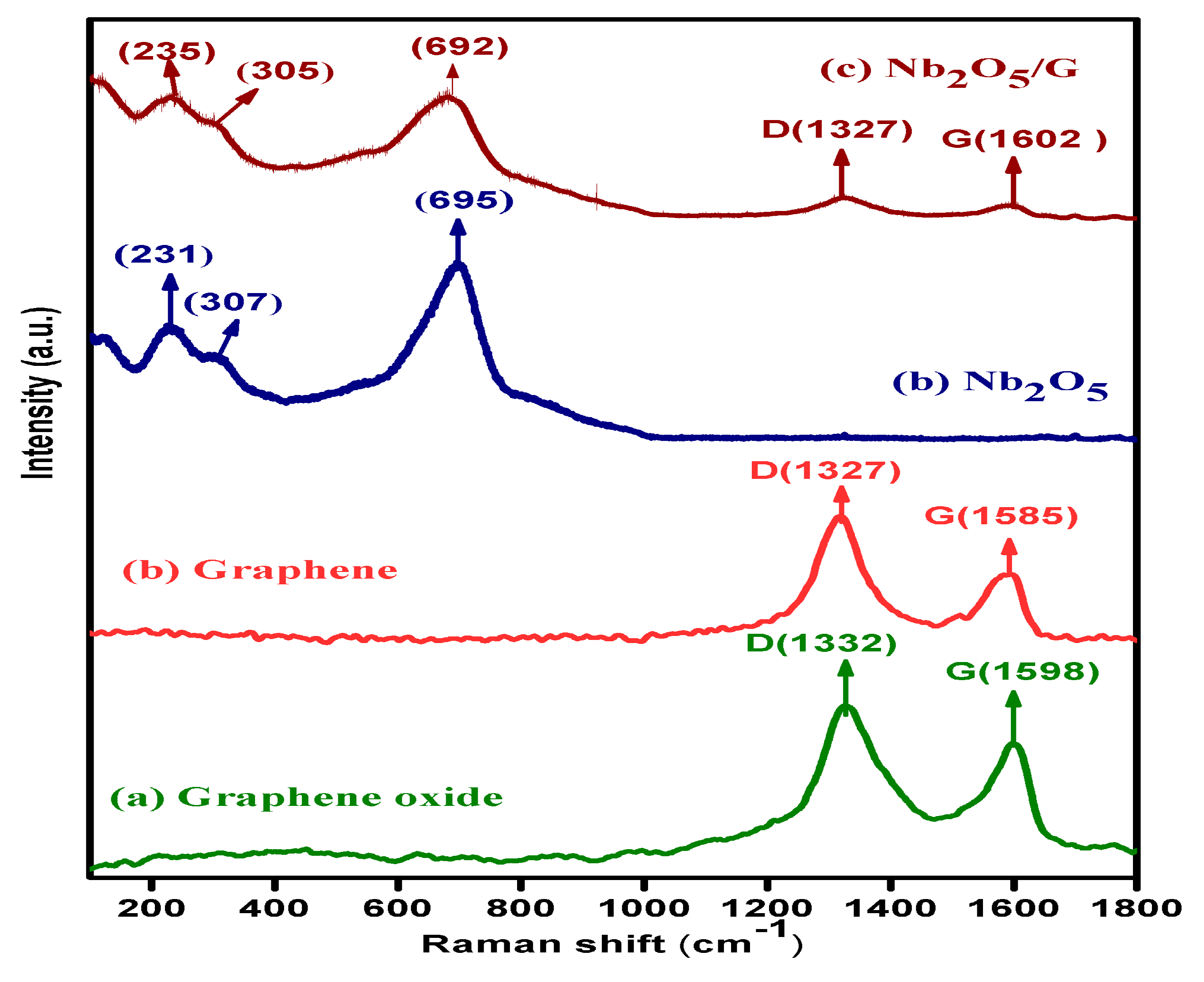

Figure 5. Raman spectra of (a) graphene oxide (b) graphene, (c) Nb2O5, (d) Nb2O5/G composite.
Figure 5. Raman spectra of (a) graphene oxide (b) graphene, (c) Nb2O5, (d) Nb2O5/G composite.
Nanomaterials 10 00160 g005
Nanomaterials 10 00160 g006 550

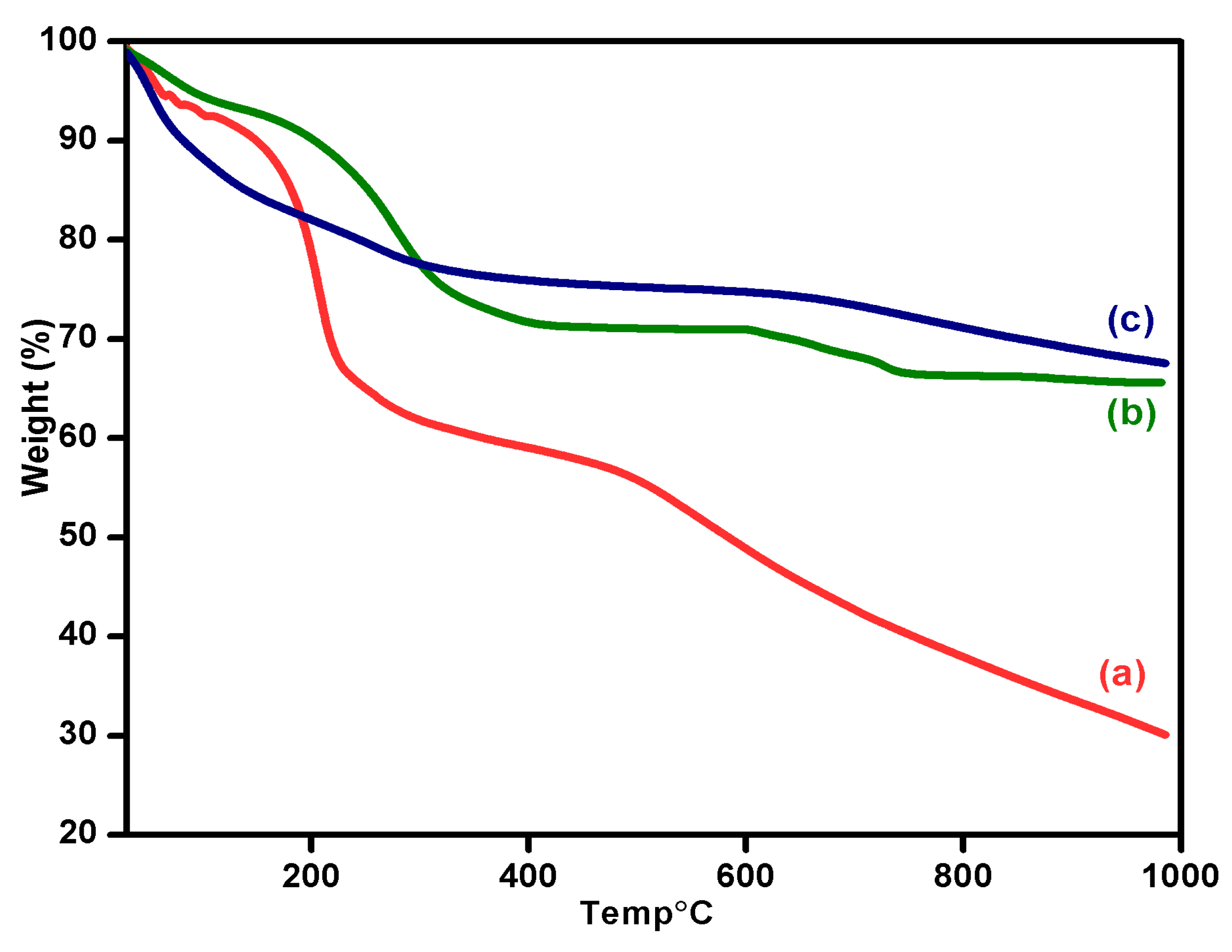

Figure 6. Thermogravimetric curves of (a) graphene oxide, (b) Nb2O5, and (c) Nb2O5/G nanocomposite.
Figure 6. Thermogravimetric curves of (a) graphene oxide, (b) Nb2O5, and (c) Nb2O5/G nanocomposite.
Nanomaterials 10 00160 g006
Nanomaterials 10 00160 g007 550

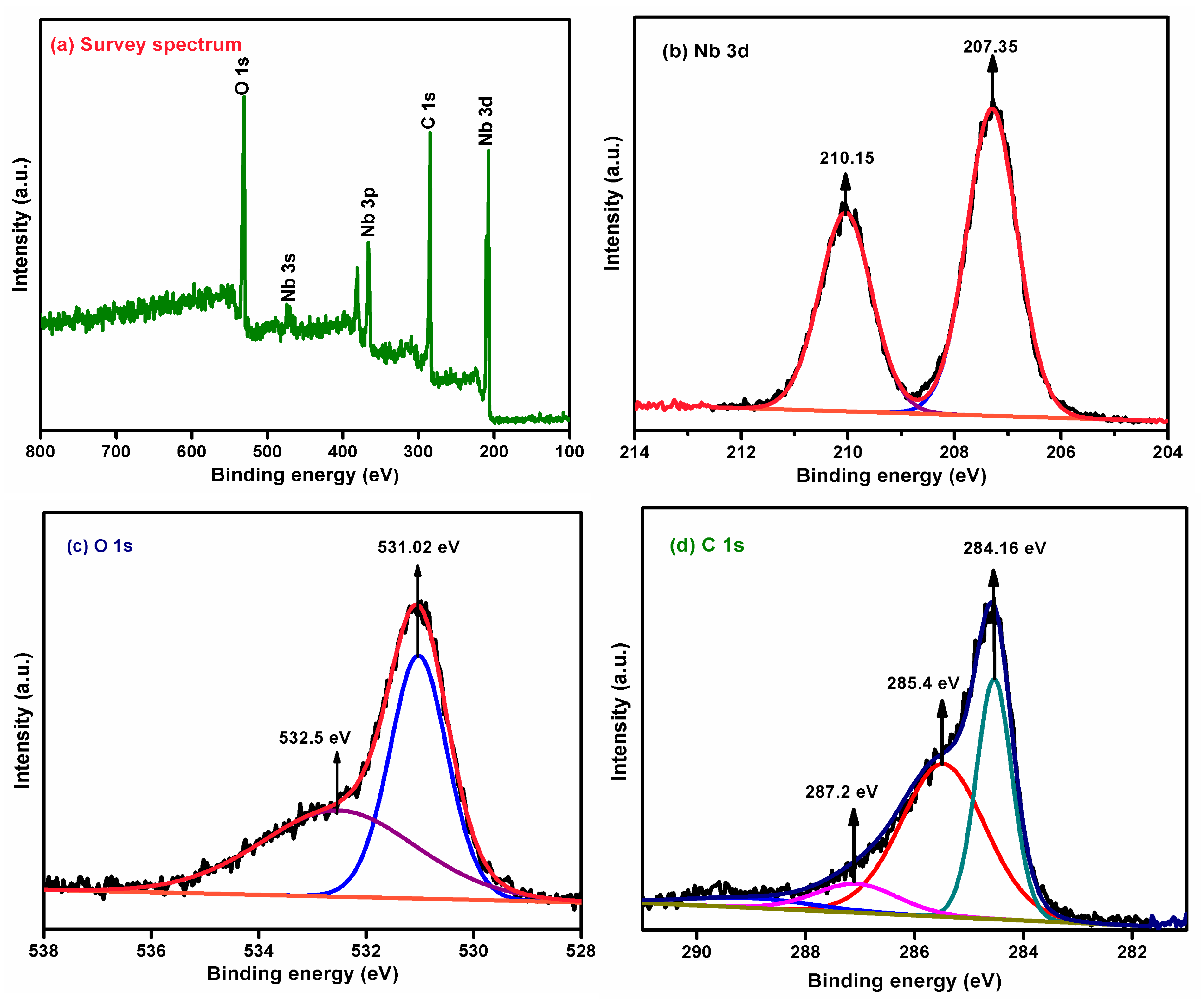

Figure 7. Display (XPS) the survey spectra of Nb2O5/G nanocomposite.
Figure 7. Display (XPS) the survey spectra of Nb2O5/G nanocomposite.
Nanomaterials 10 00160 g007
Nanomaterials 10 00160 g008 550

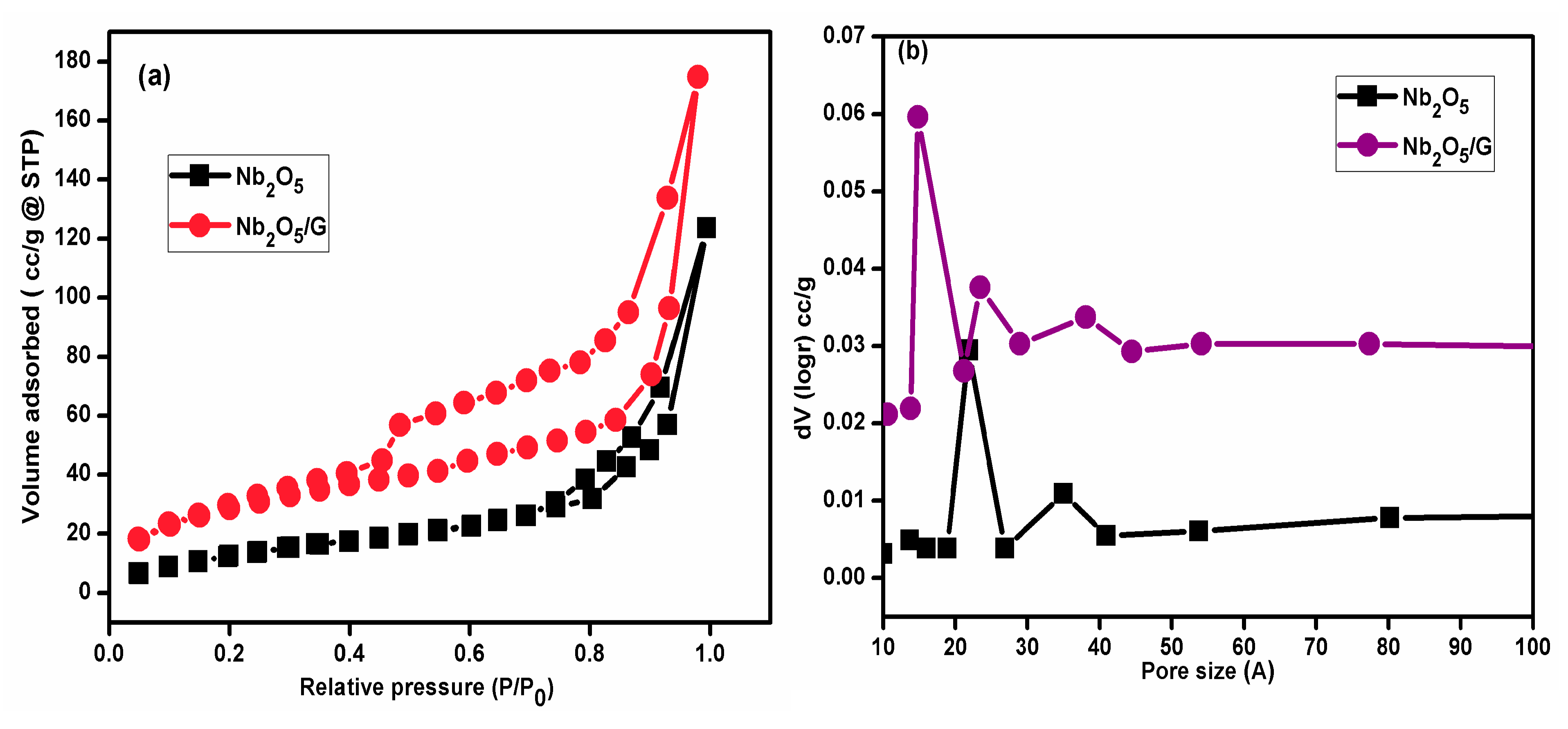

Figure 8. (a) Characteristics of N2 adsorption-desorption isotherm plots; and (b) BJH pore size distribution of Nb2O5 and Nb2O5/G nanocomposite.
Figure 8. (a) Characteristics of N2 adsorption-desorption isotherm plots; and (b) BJH pore size distribution of Nb2O5 and Nb2O5/G nanocomposite.
Nanomaterials 10 00160 g008
Nanomaterials 10 00160 sch001 550

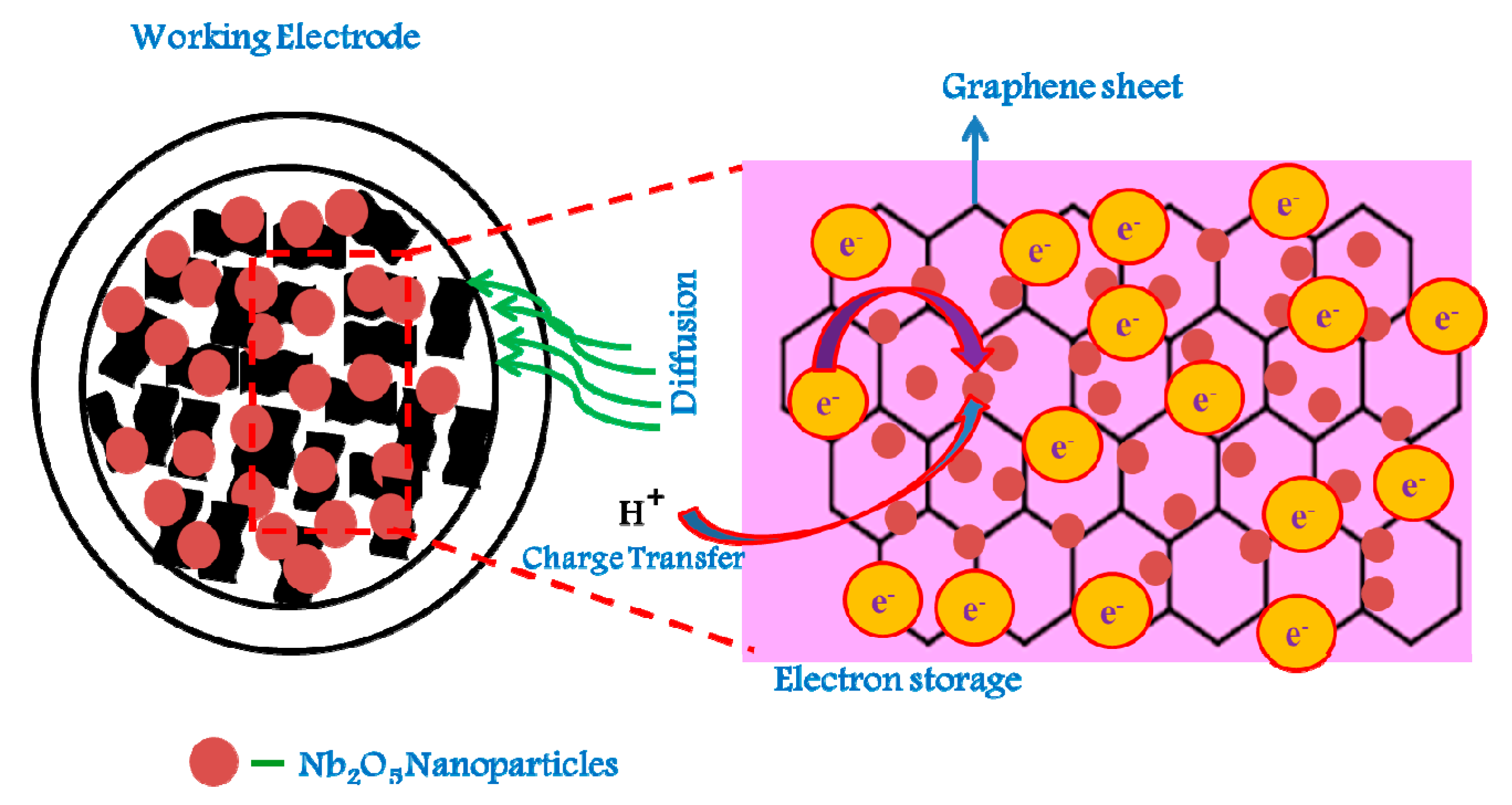

Scheme 1. Schematic of the charge-storage mechanism of the Nb2O5/G composite electrode.
Scheme 1. Schematic of the charge-storage mechanism of the Nb2O5/G composite electrode.
Nanomaterials 10 00160 sch001
Nanomaterials 10 00160 g009 550

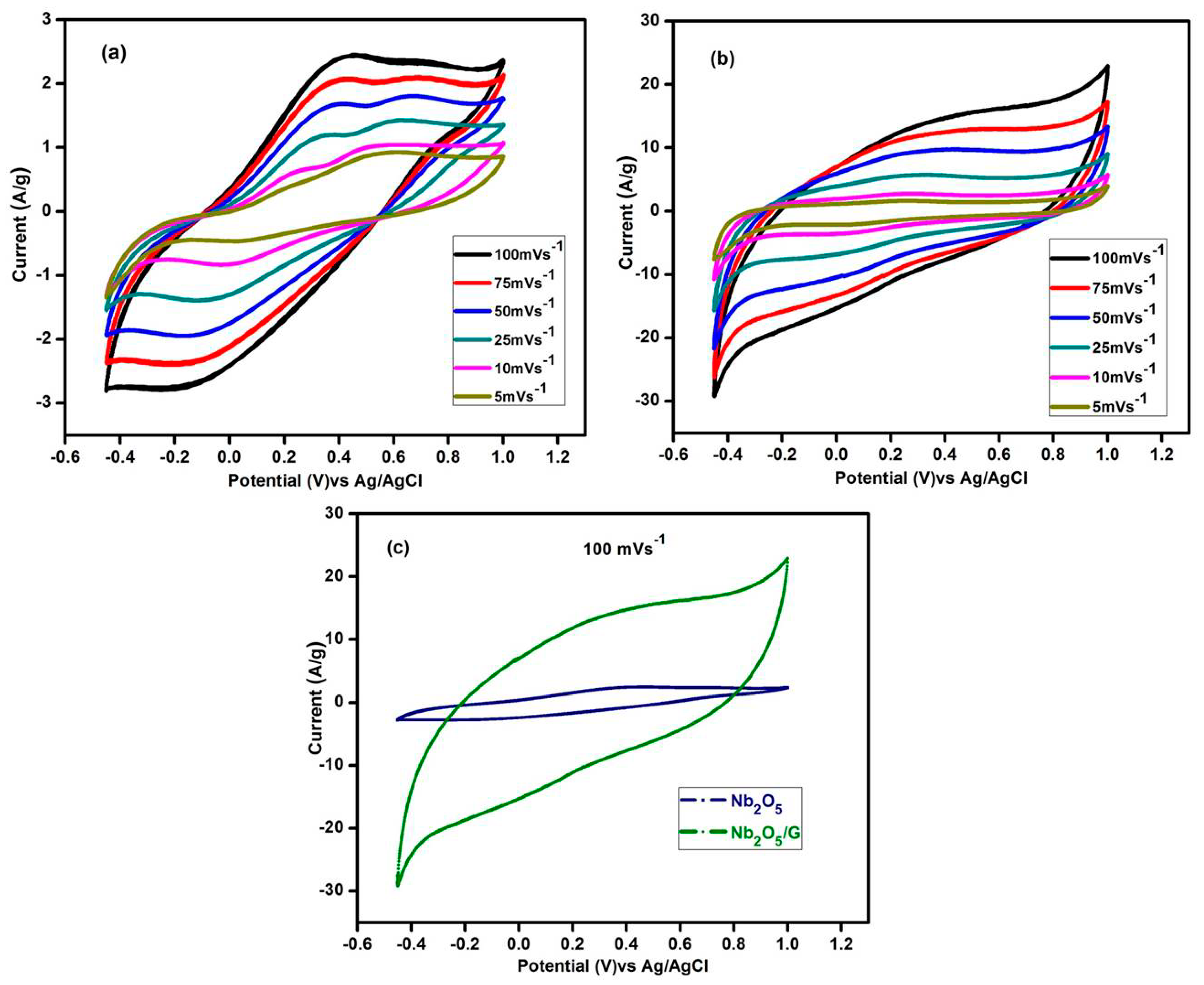

Figure 9. Cyclic voltamograms of (a) Nb2O5, (b) Nb2O5/G nanocomposite at different scan rates, and (c) comparison of CV curves of Nb2O5, and Nb2O5/G at a scan rate of 100 mVs−1.
Figure 9. Cyclic voltamograms of (a) Nb2O5, (b) Nb2O5/G nanocomposite at different scan rates, and (c) comparison of CV curves of Nb2O5, and Nb2O5/G at a scan rate of 100 mVs−1.
Nanomaterials 10 00160 g009
Nanomaterials 10 00160 g010 550

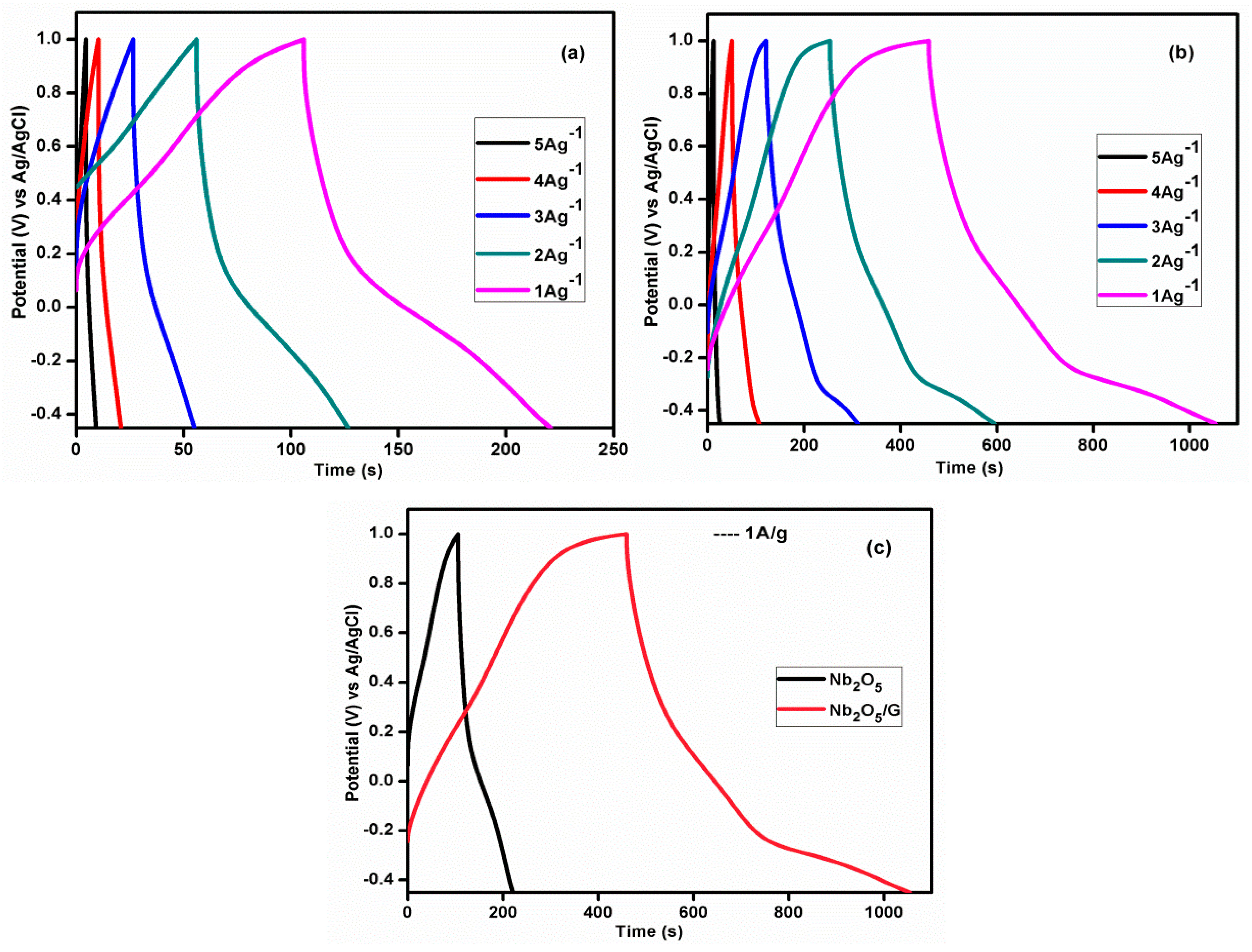

Figure 10. Charge-discharge profile of (a) Nb2O5 and (b) Nb2O5/G nanocomposites. (c) Comparison charge-discharge profile at a current density of 1 Ag−1.
Figure 10. Charge-discharge profile of (a) Nb2O5 and (b) Nb2O5/G nanocomposites. (c) Comparison charge-discharge profile at a current density of 1 Ag−1.
Nanomaterials 10 00160 g010
Nanomaterials 10 00160 g011 550

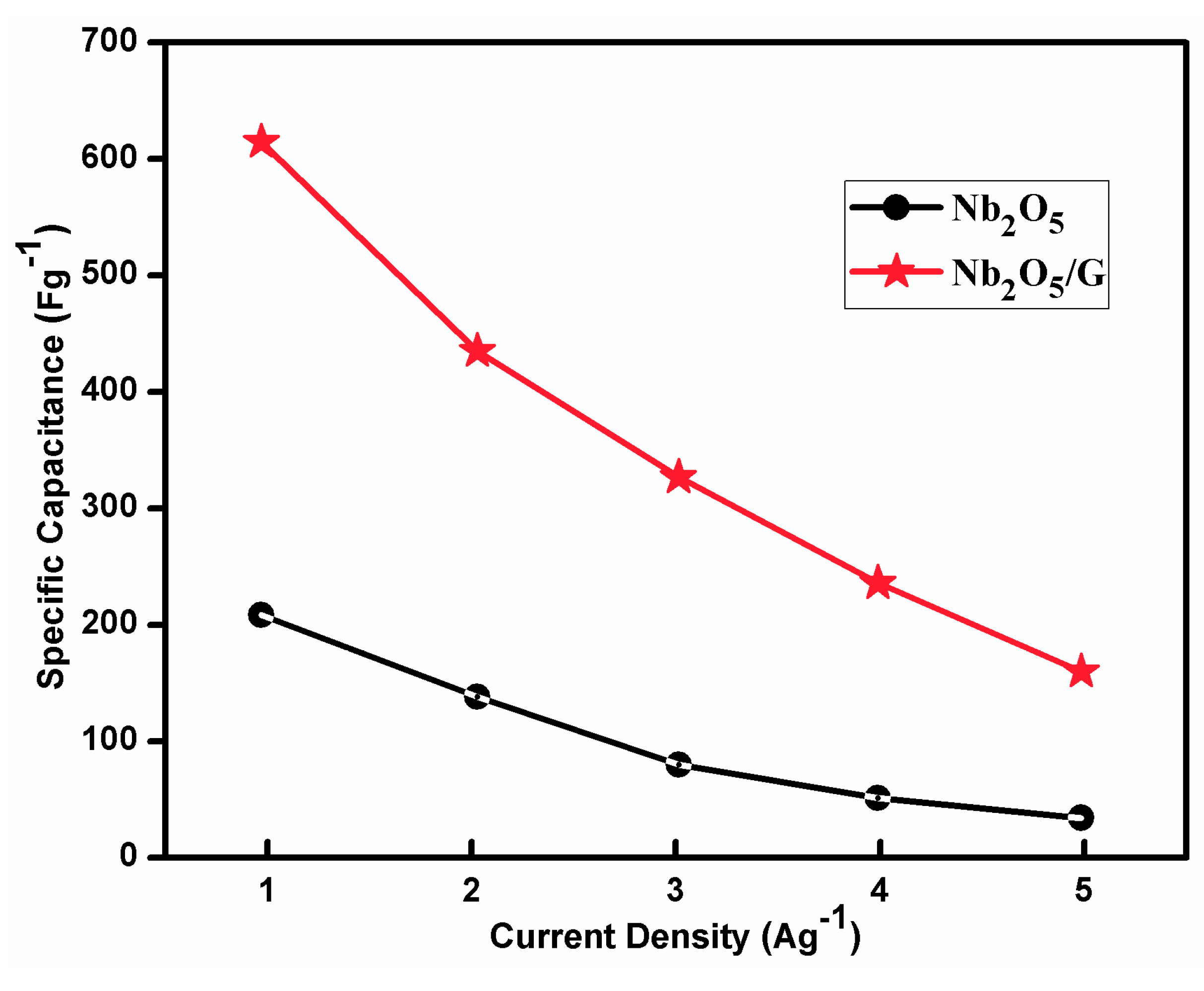

Figure 11. Specific capacitance of pure and composite electrode material at different current density values.
Figure 11. Specific capacitance of pure and composite electrode material at different current density values.
Nanomaterials 10 00160 g011
Nanomaterials 10 00160 g012 550

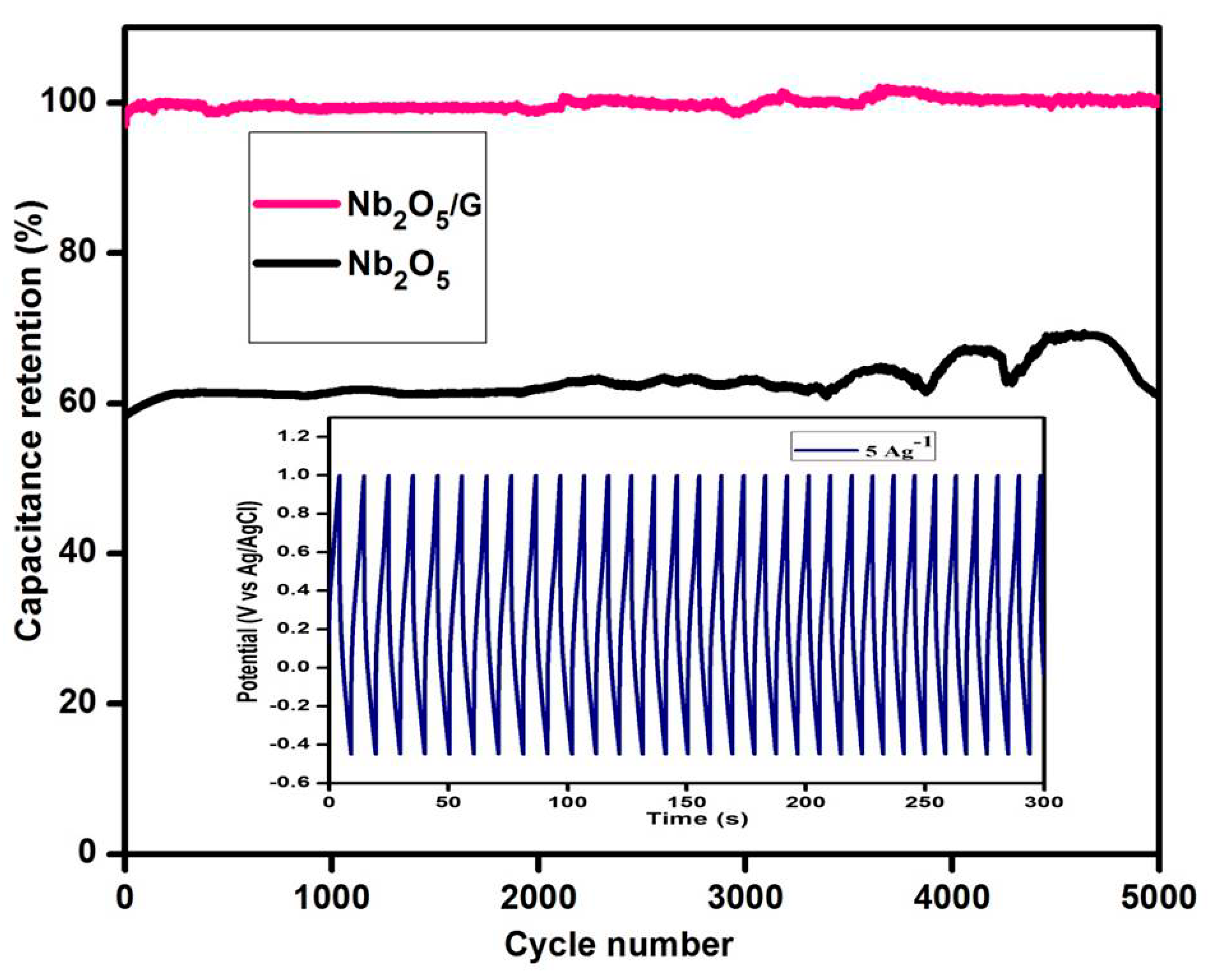

Figure 12. Capacitance retention of Nb2O5/G composite electrode upto 5000 cycles at a current density of 5 Ag−1 with an inset for a few cycles.
Figure 12. Capacitance retention of Nb2O5/G composite electrode upto 5000 cycles at a current density of 5 Ag−1 with an inset for a few cycles.
Nanomaterials 10 00160 g012
Nanomaterials 10 00160 g013 550

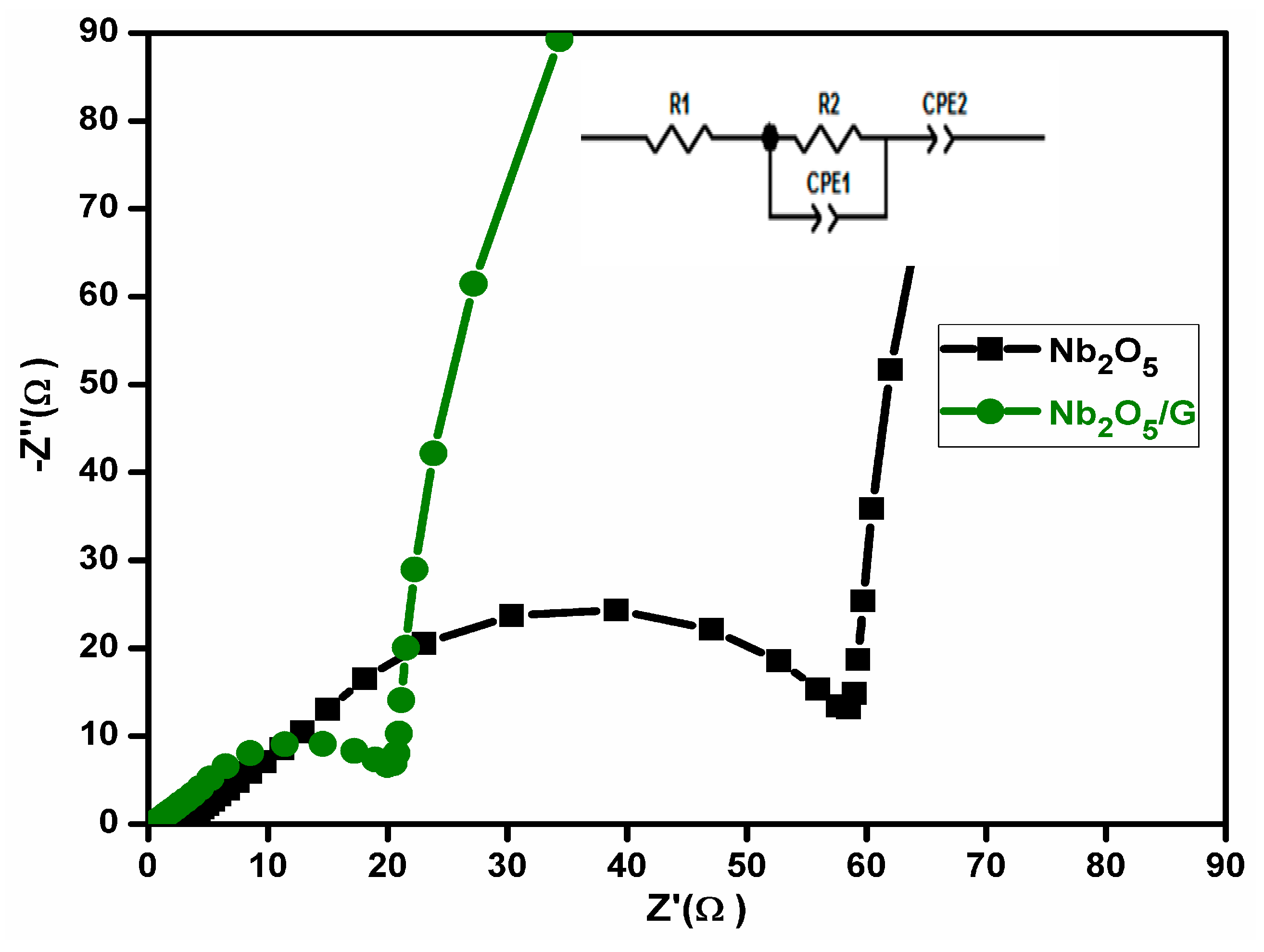

Figure 13. The complex impedance (Nyquist plots) of prepared Nb2O5 and Nb2O5/G composite electrodes. Inset shows the corresponding equivalent circuit.
