Generalized Stacking Fault Energy of Al-Doped CrMnFeCoNi High-Entropy Alloy

Abstract

Using first-principles methods, we investigate the effect of Al on the generalized stacking fault energy of face-centered cubic (fcc) CrMnFeCoNi high-entropy alloy as a function of temperature. Upon Al addition or temperature increase, the intrinsic and extrinsic stacking fault energies increase, whereas the unstable stacking fault and unstable twinning fault energies decrease monotonously. The thermodynamic expression for the intrinsic stacking fault energy in combination with the theoretical Gibbs energy difference between the hexagonal close packed (hcp) and fcc lattices allows one to determine the so-called hcp-fcc interfacial energy. The results show that the interfacial energy is small and only weakly dependent on temperature and Al content. Two parameters are adopted to measure the nano-twinning ability of the present high-entropy alloys (HEAs). Both measures indicate that the twinability decreases with increasing temperature or Al content. The present study provides systematic theoretical plasticity parameters for modeling and designing high entropy alloys with specific mechanical properties.

1. Introduction

High-entropy alloys (HEAs) have attracted significant attention in recent years [1,2,3,4,5,6,7]. Excellent combination of strength-ductility properties is one of the great advantages of the face-cubic centered (fcc) HEAs [1,2], which is usually attributed to the deformation twins [1,8].

In conventional alloys, it is often a challenge to improve the strength and ductility at the same time. Usually higher strength is achieved by sacrificing ductility and vice versa. On the other hand, the deformation twinning mechanism can be used to overcome the strength-ductility trade-off. The deformation twins are created by the dislocation gliding in the slip systems under external stress. The newly created twin boundaries hinder the dislocation motion, resulting in an increased work hardening rate (“dynamic Hall-Petch effect”). At the same time, twinning maintains the elongation of alloys during work hardening by delaying the onset of plastic instability by necking [9].

The generalized stacking fault energy (GSFE) plays an important role in understanding the deformation mechanism of fcc alloys [10,11,12]. There are four important parameters of GSFE corresponding to the first four extrema on the energy versus slip vector curve: the unstable stacking fault energy (γ_usf), the intrinsic stacking fault energy (γ_isf), the unstable twin fault energy (γ_utf), and the extrinsic stacking fault energy (γ_esf). γ_isf is the most widely used parameter to predict the twinning ability, twinning stress [10], and phase stability [13]. Classical theories generally predict that the critical twinning stress (${\tau }_{crit}$) is proportional to the intrinsic stacking fault energy γ_isf [10], i.e., ${\tau }_{crit}·b_{112}~{\gamma }_{isf}$, where b₁₁₂ is the Burgers vector of partial dislocation. A lower γ_isf suggests that deformation twins are easier to form, and the twinning stress is relatively low. For example, the twinning easily happens in Cu but not in Al, which is attributed to the lower γ_isf of Cu (45 mJ/m²) than that of Al (122 mJ/m²) [14]. The measured γ_isf of many medium-entropy alloys (MEAs) and HEAs are as low as (or even lower than) those obtained for the twinning-induced plasticity (TWIP) steels [10], which is consistent with the large amount of nano-twins observed in these systems. γ_isf of CrMnFeCoNi HEA is 25–35 mJ/m² [9] and 22–31 mJ/m² [15] measured at room temperature by different works. The deformation twins are easily found at cryogenic temperature in CrMnFeCoNi HEA [1], indicating that γ_isf decreases with lowering temperature. γ_isf of MEAs and HEAs were studied by theoretical methods as well. Both CrCoNi and CrMnFeCoNi have negative theoretical γ_isf [16,17,18], which is ascribed to the metastable character of these alloys [19].

2. Methodology

The ab initio calculations were performed using the exact muffin-tin orbitals (EMTO) method [20]. The Perdew–Burke–Ernzerhof (PBE) [21] exchange-correlation functional was adopted to perform the self-consistent and total energy calculations. The chemical and magnetic disorders were treated within the coherent-potential approximation (CPA) [22]. The paramagnetic (PM) state of Al_y(CrMnFeCoNi)_100−y was modeled within the disordered local magnetic moment approach [23]. The EMTO-CPA method successfully described the lattice constants [24] and the elastic moduli [5] of Al-doped CrMnFeCoNi HEAs in our previous works.

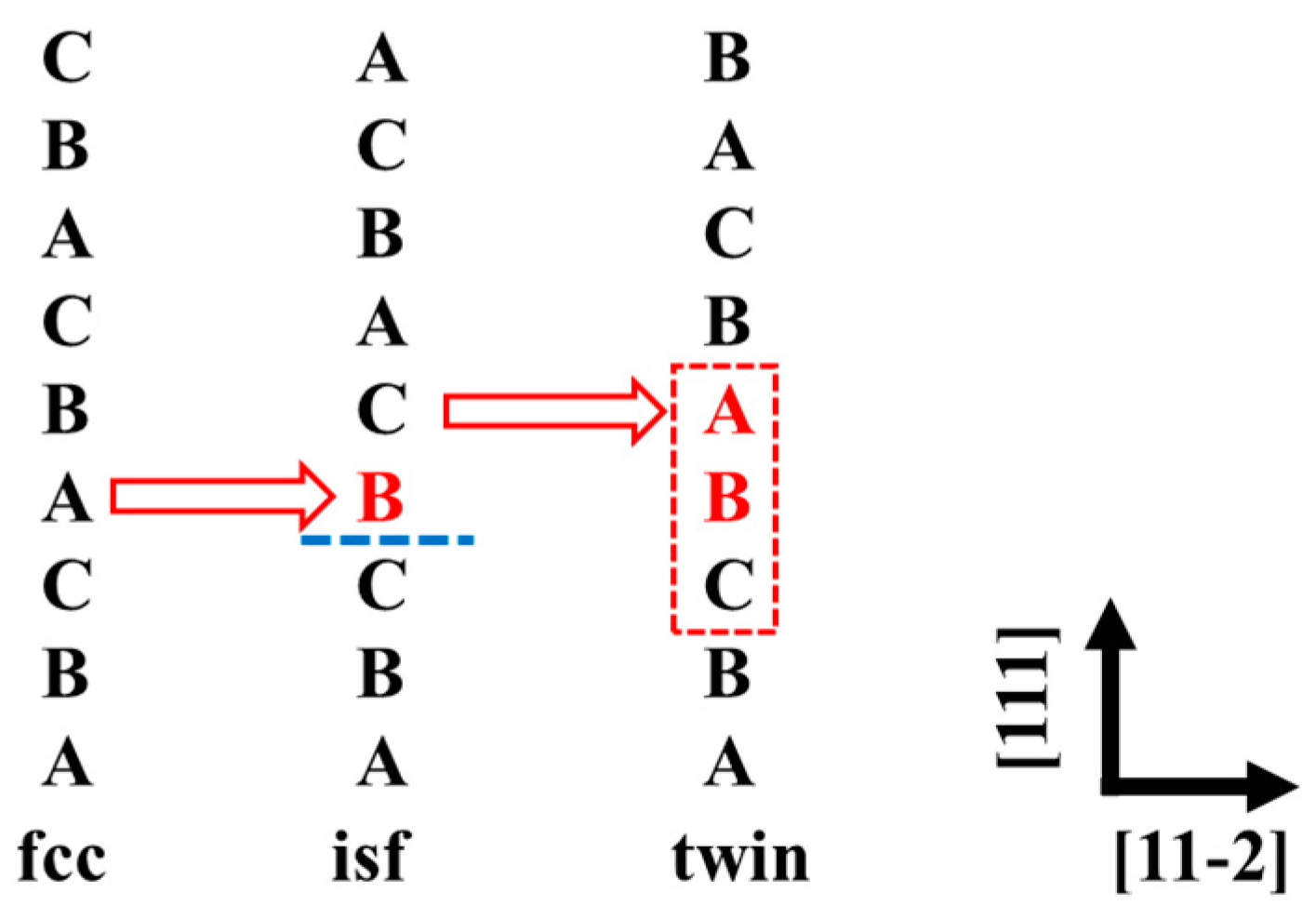

According to the Mahajan–Chin model [25], the nucleation and propagation of deformation twins in fcc systems by shearing successive {111} planes along the <112> direction [26], as shown in Figure 1. The GSFE was calculated by adopting a 9-layers supercells with and without one fault per unit cell [26]. Due to the periodic boundary condition used, the number of atomic layers needs to be large enough to prevent the influence of the interaction between the two adjacent stacking faults. The 9-layers supercell is proved to be accurate enough for the GSFEs [18]. This approach has been successfully applied in pure metals, binary alloys, and HEAs in previous studies [27,28]. The GSFE was calculated as γ_GSFE = (F^fault − F⁰)/A, where F^fault and F⁰ are the free energies of supercell with and without the fault, respectively, and A is the area. The free energy is approximated as F = E − TS_mag, where E is the total energy and T is the temperature. Within the mean-field approximation, the magnetic entropy is $S_{mag}=k_B{{\displaystyle \sum }}_{i=1}^6{c}_i\ln (1+{\mu }_i)$, where k_B is the Boltzmann constant, c_i is the concentration, and μ_i the local magnetic moment of the ith alloying element, respectively. The total energy E at each temperature and Al concentration was calculated at the corresponding lattice constant. We started from the experimental lattice constants of fcc Al_y(CrMnFeCoNi)_100−y (y = 0, 2, 4, 6, 8) alloys at room temperature [29]. Then we used the coefficient of thermal expansion [30] of fcc CrMnFeCoNi alloy to evaluate the lattice constants of Al_y(CrMnFeCoNi)_100−y alloys as a function of temperature, i.e., we assumed that Al addition has a negligible influence on the thermal expansion coefficient. This assumption is supported by the fact that the Debye temperature of Al-doped fcc CrMnFeCoNi varies little with the amount of Al [5]. Namely, the Debye temperature changes from 525 to 490 K [5] as the Al concentration increases from 0% to 8%. According to the quasi-harmonic Debye model [31], the corresponding change in the thermal expansion coefficient is less than 10% at 300 K, which leads to less than 0.05% uncertainty in the room-temperature lattice parameters.

3. Results and Discussion

In Figure 2, we present the GSFE of paramagnetic fcc CrMnFeCoNi at room temperature. For γ_usf, γ_isf, γ_utf, and γ_esf our predictions give 285, −6, 281, and 3 mJ/m², respectively. We observe that γ_isf is negative, and γ_esf is also very small. On the other hand, the energy barriers γ_usf and γ_utf are relatively large as compared to the energy barriers obtained for pure metals with low γ_isf [27], such as Cu, Au, and Ag. We find that the present results of GSFE satisfy with a good accuracy the universal scaling law [32], i.e., ${\mathsf{\gamma }}_{usf}\simeq {\mathsf{\gamma }}_{utf}-\frac{1}{2}{\mathsf{\gamma }}_{isf}$. It is interesting that although γ_isf is negative, the universal scaling law remains valid, which suggests that our results are reasonable. Similar negative γ_isf was reported in previous works. For instance, Huang et al. [18] used a similar approach as the one adopted here and obtained −7 mJ/m² for γ_isf of PM fcc CrMnFeCoNi at room temperature. On the other hand, the present γ_isf at 300 K is smaller than the former EMTO result (21 mJ/m²) reported by Huang et al. [28]. The relatively large deviation between the two sets of data should be ascribed to the fact that Huang et al. [28] employed the local density appropriation (LDA) instead of the PBE functional adopted here and used an experimental lattice parameter of 3.6 Å compared to 3.59 Å [29] considered here. Furthermore, here we neglect the positive strain contribution to γ_isf, which was considered by Huang et al. [28].

At 0 K and for the ferromagnetic (collinear) state, calculations based on the Vienna ab initio simulation package (VASP) combined with the special quasi-random structure (SQS) approach for the intrinsic stacking fault energy of CrMnFeCoNi gave average values of −54 [33] and −31 mJ/m² [34] with scatter of about ±35 and ±100 mJ/m², respectively. The deviations between the present result and the above VASP values [33,34] can be attributed to the different magnetic states and different alloy theories adopted in those calculations.

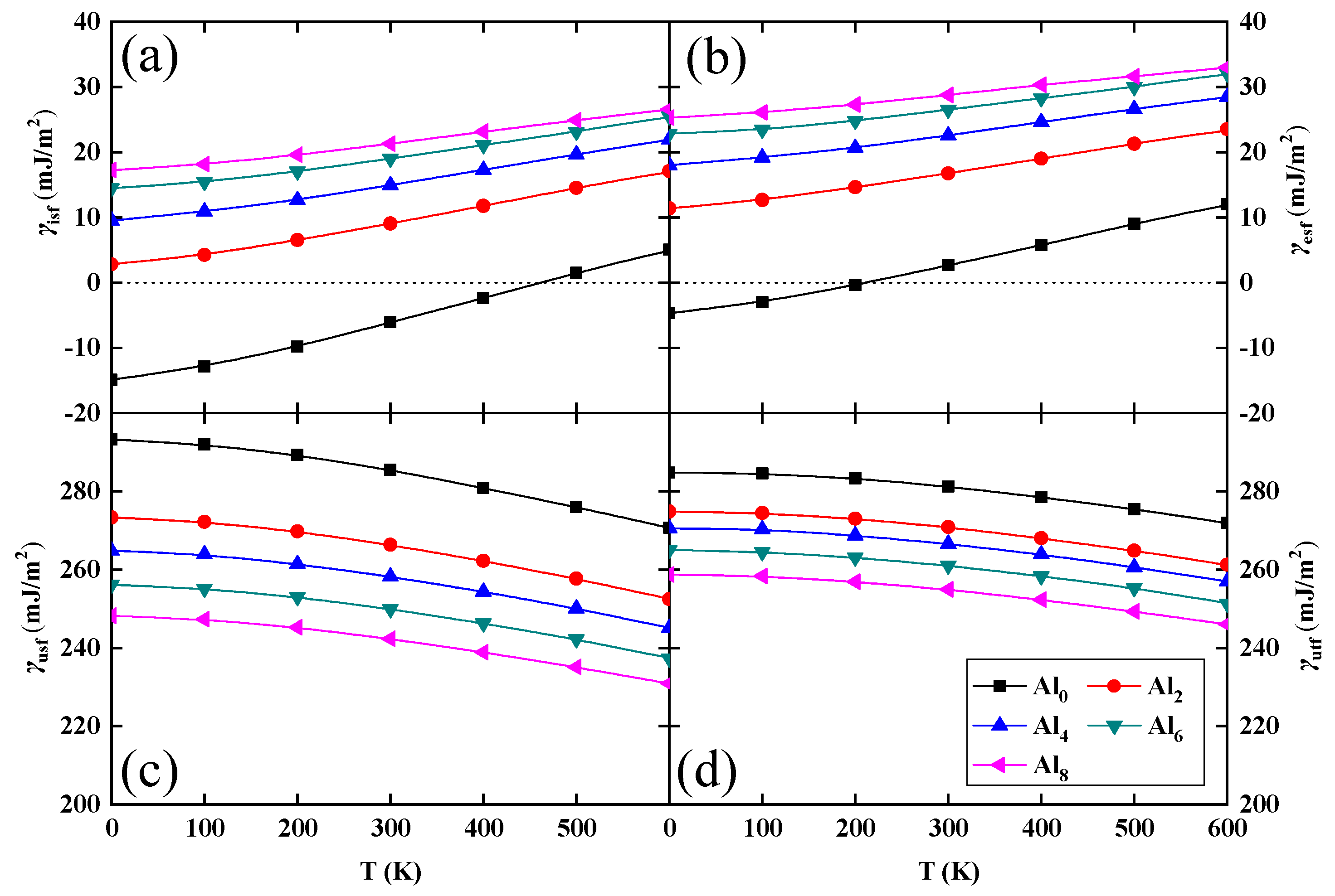

In Figure 3, we present the calculated GSFE for the PM fcc Al_y(CrMnFeCoNi)_100−y (y = 0, 2, 4, 6, 8) alloys as a function of temperature and composition. In the considered temperature and Al concentration range, both γ_isf and γ_esf increase monotonously with increasing temperature and Al content. At the same time, γ_usf and γ_utf decrease with increasing temperature and Al addition. It is found that temperature has a large effect on the GSFE. The values of γ_isf and γ_esf for the Al-free alloy are negative when the temperature is below 400 and 200 K, respectively, as shown in Figure 3. We notice that the present temperature dependence of γ_isf follows closely the one predicted by Huang et al. [28] in spite of the methodological differences discussed above.

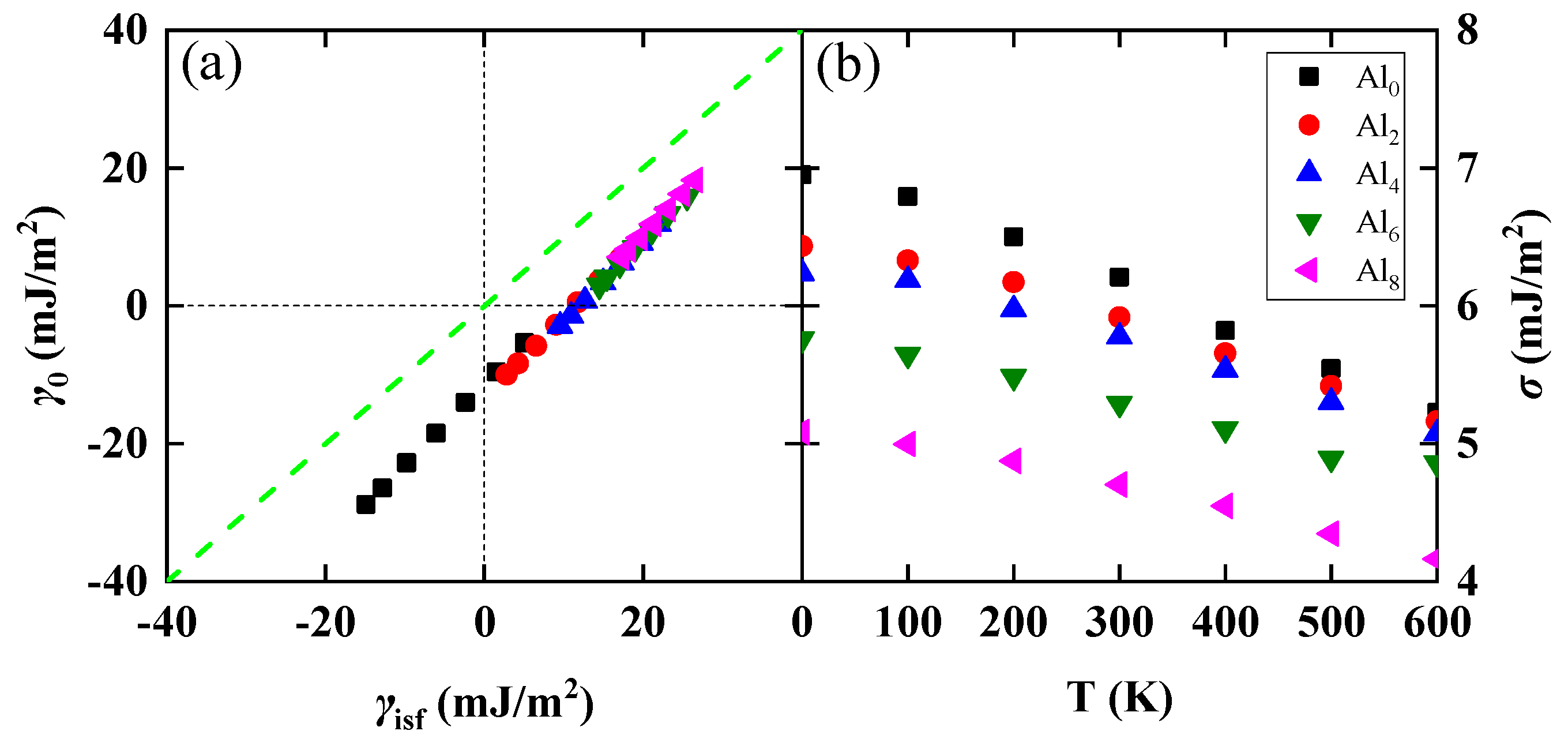

For elemental metals and homogeneous solid solutions, the intrinsic stacking fault energy can be approximated by the energy difference between the hexagonal close packed (hcp) and fcc lattices, viz. ${\gamma }_{isf}=\frac{2\left(F^{hcp}-F^{fcc}\right)}{A}+2\sigma$ [13,35], where F_hcp and F_fcc are the free energies per atom for the hcp and fcc phase, respectively. The last term is the interfacial contribution describing the transition zone between the fcc matrix and the hcp embryo. The interfacial energy σ was estimated to be of the order of 7 mJ/m² [36] for the present Al-free CrMnFeCoNi HEA. In Figure 4a, we compared γ_isf and the stacking fault energy γ₀ obtained merely from the structural energy difference, viz. ${\gamma }_0=\frac{2\left(F^{hcp}-F^{fcc}\right)}{A}$. We find γ₀ is very close to γ_isf for all Al concentrations and temperature. Thus, the free energy difference between hcp and fcc can reflect the value of γ_isf. The small difference between γ_isf and γ₀ is equal to the double of the interfacial energy σ. In Figure 4b, we also plotted the interfacial energy $\sigma =({\gamma }_{isf}-{\gamma }_0)/2$ as a function of temperature. We find that σ slightly decreases with increasing temperature and Al content, but it remains in the range of 4–7 mJ/m². Thus, at least for the present alloy family, the composition and temperature dependence of σ is rather weak and could safely be omitted. Similar observation was made by Dong et al. using calculations based on floating spin and longitudinal spin fluctuations schemes [37].

Previous theoretical study on the PM CrMnFeCoNi system [38] found that the hcp structure is more stable than the fcc structure below 370 K, which means that the negative values of γ_isf and γ_esf shown in Figure 3 are reasonable. Similar to our findings, first-principles calculations [19] discovered that the negative γ_isf in fcc CrCoNi and CrFeCoNi alloys originate from the thermodynamic stability of the hcp phase at low temperatures. Recently, Zhang et al. [39] confirmed that the hcp phase is more stable thermodynamically than the fcc one at relatively lower temperatures, agreeing well with the theoretical results [38].

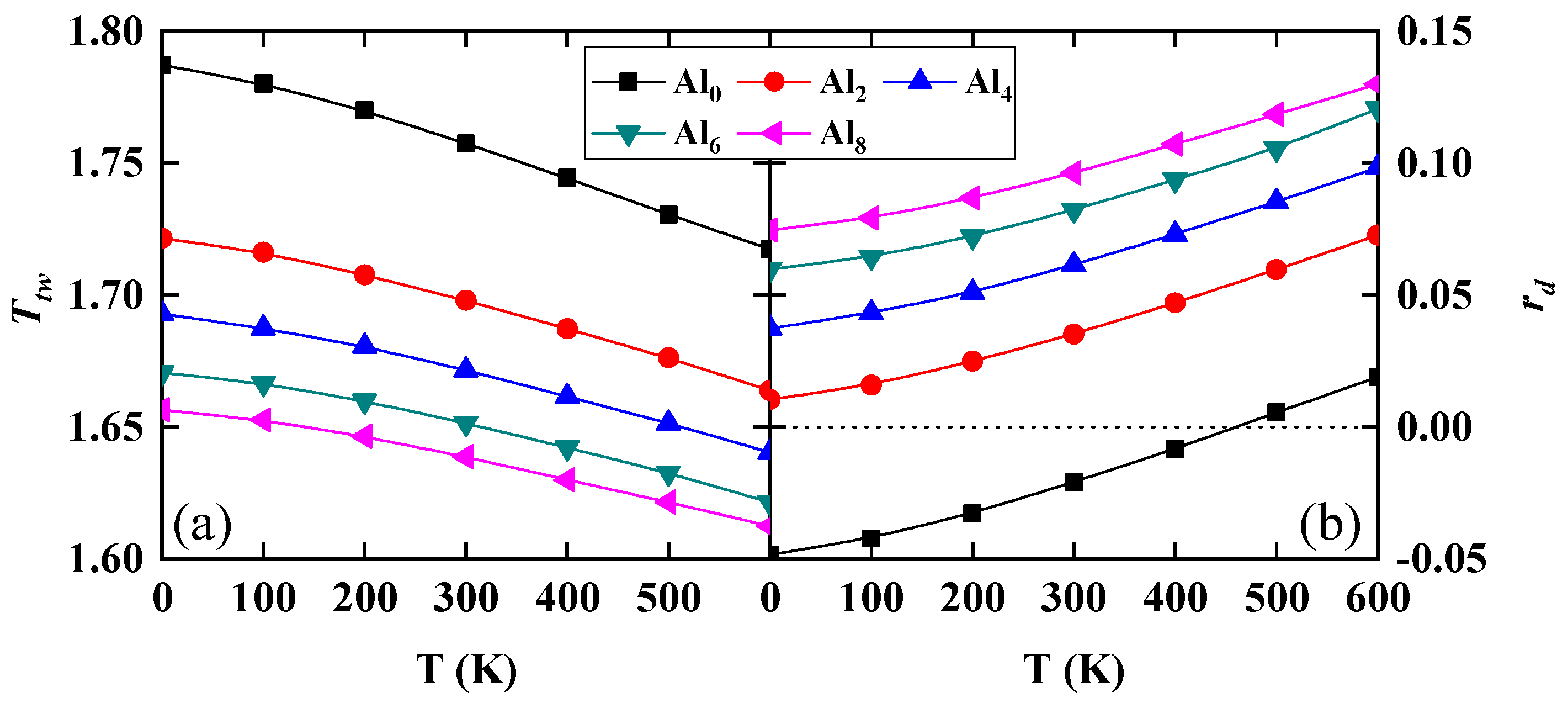

Despite the fact that low γ_isf generally improves the twinning ability of alloys, the combined effects of all energy parameters determining the GSFE should be considered when studying the twinning affinity. That is because the intrinsic energy parameters in Figure 3 exhibit complex temperature and alloying trends. To describe the twinning ability in the Al_yCrMnFeCoNi system, we adopt two twinning ability parameters. The parameter T_tw proposed by Asaro et al. [40] is defined as

$$T_{tw}=\sqrt{\left(3{\gamma }_{usf}-2{\gamma }_{isf}\right)/{\gamma }_{utf}}$$

(1)

when T_tw > 1 a twin is more favorable than the dislocation slip and vice versa. We plot T_tw as a function of temperature and Al content in Figure 5a. We find that all alloys considered here have good twinning ability within the entire temperature range. All T_tw decrease with increasing temperature and Al content, suggesting that the Al addition and increasing temperature decrease the ability of twinning. However, the twinning parameter remains far above 1, meaning that the present alloys remain prone to twinning even when the Al level comes close to the solubility limit within the fcc phase and temperature increases up to 600 K. A second twinning parameter was introduced by Jo et al. [41] as

$$r_d={\gamma }_{isf}/\left({\gamma }_{usf}-{\gamma }_{isf}\right)$$

(2)

In terms of this parameter, one can distinguish four regimes corresponding to different deformation mechanisms. Namely, for r_d < −0.5 we have stacking fault only, for −0.5 < r_d < 0 both stacking fault and full slip can be realized, for 0 < r_d < 2 full slip is combined with twinning, and for r_d > 2 we have full slip only. Within the range of 0 < r_d < 2, r_d = 0 corresponds to the maximum twinning ability. As shown in Figure 5b, all r_d values are much lower than 2, indicating a strong twinning ability. We find that r_d increases with increasing Al content and temperature, meaning that the twinning ability decreases, which is fully consistent with the prediction from T_tw. There is one exceptional case that the negative r_d in Al-free CrMnFeCoNi HEA below 400 K predict that only stacking fault and full slip will happen. However, plenty of deformation twins are found in the CrMnFeCoNi HEA [1,42]. The current twinning parameter cannot explain this phenomenon. Further theory is needed to resolve this question. Byun formula would suggest that the critical stress for twinning also increases and thus it is unclear whether twinning can indeed be realized at elevated temperatures. That depends crucially on the alloy preparation, micro-structure, and strain rate. Describing these effects is a very complex problem and calls for further advanced models built among others on the presently disclosed intrinsic energy parameters.

4. Conclusions

Using first-principles alloy theory formulated within the EMTO method, we have calculated the GSFE of paramagnetic fcc Al_y(CrMnFeCoNi)_100−y (y = 0, 2, 4, 6, 8) alloys as a function of temperature. The present theoretical results show that the GSFE can be tuned by adding Al or changing the temperature. In particular, the intrinsic and extrinsic stacking fault energies increase, whereas the unstable stacking and twinning fault energies decrease with increasing temperature and Al doping. The thermodynamic phase stability can reflect γ_isf accurately due to the fact that γ₀ is very close to γ_isf. The interfacial energy σ slightly decreases with increasing temperature and Al content, but the change within the present composition-temperature interval always remains below ~30% compared to its mean value. Furthermore, from two parameters for twinning ability, it is predicted that Al addition and temperature increase cause a small decrease of the ability of twinning, but the alloys still remain prone to twinning even at the largest temperature and the highest Al-level considered here. The present theoretical data is expected to serve as input for modeling and design of new HEAs with desired mechanical properties.
