Optimized Preparation of Nanosized Hollow SSZ-13 Molecular Sieves with Ultrasonic Assistance

by
Liang Zhou
1,
Runlin Han
1,2,*,
Yuxuan Tao
1,
Jinqu Wang
1 and
Yiwei Luo
1
1
School of Chemical Engineering, Dalian University of Technology, Panjin 124221, China
2
School of Chemistry and Chemical Engineering, Jinggangshan University, Ji’an 343009, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(11), 2298; https://doi.org/10.3390/nano10112298
Submission received: 17 October 2020 / Revised: 16 November 2020 / Accepted: 17 November 2020 / Published: 20 November 2020
(This article belongs to the Special Issue State-of-the-Art Environmental Nanoscience and Nanotechnology)
Browse Figures
Versions Notes

Abstract

:
Because of its unique eight-membered ring pore structure and the arrangement of cations in its structure, the SSZ-13 molecular sieve has a higher affinity for CO2 than other gases, meaning it has attracted more attention than other porous materials for CO2 adsorption. However, the expensive template and long preparation time limits the industrial production of SSZ-13. In this work, a hollow structure was successfully introduced into the nanosized SSZ-13 molecular sieve with ultrasonic treatment. The effects of the amount of seed added and the ultrasonic time on the structure were investigated. When the amount of seed added was 0.5 wt.% and the ultrasonic time was 60 min, the sample showed a hollow cubic crystal with a diameter of about 50 nm. The specific surface area reached 791.50 m2/g, and the mesoporous ratio was 66.3%. The samples were tested for CO2 adsorption performance at 298 K. It was found that the hollow sample prepared in this work has higher CO2 adsorption capacity compared with the SSZ-13 zeolite prepared with conventional methods. When the adsorption pressure was 0.27 bar, the adsorption amount reached 2.53 mmol/g. The hollow SSZ-13 molecular sieve reached a CO2 adsorption capacity of 4.24 mmol/g at 1 bar.

Graphical Abstract

1. Introduction

The emission of greenhouse gases due to burning fossil fuels causes serious global warming, which is one of the most pressing issues in the world. To address this issue, the development of facile and cost-effective methods to reduce industrial CO2 emissions has attracted great attention [1]. High-performance adsorbents with efficient and selective capture of CO2 from industrial gas streams are potential candidates [2]. Zeolitic materials with appropriate pore aperture dimensions have an obvious advantage in gas separation based on molecular sieving. For an efficient capture of CO2, the zeolite should have high capacity, high selectivity, good hydrothermal stability, and the ease of regeneration [3], which has promoted much research to synthesize new types of zeolite with special structures and decrease the cost of the synthesis process. All-silica Deca-Dodecasil 3 Rhombohedral (Si-DD3R) type zeolite with a two-dimensional pore system shows attractive selectivity in CO2 [4]. T-type zeolite was also utilized in the separation of CO2/CH4 and CO2/N2 mixtures [5]. In order to overcome the intrinsic limitations of conventional zeolites in CO2 capture, recent investigations mostly focused on searching for zeolites with a higher affinity with CO2.
Aluminosilicate zeolites of SSZ-13 with the chabazite (CHA) structure were first synthesized by Zones through the hydrothermal method. The SSZ-13 material contains four, six, and eight-membered ring (MR) units to form a three-dimensional pore structure with a large 7.3 Å cage and 3.8 Å 8-MR windows [6]. Due to its unique pore system, SSZ-13 has excellent low- and high-temperature hydrothermal stability, and the production selectivity can be widely used in the methanol-to-olefin (MTO) process [7], catalytic reduction of NOx, NH3-selective catalytic reduction (SCR) in the diesel industry, and CO2 treatment [8,9]. It was reported that the synthesis of SSZ-13 needs six days, which limited its industrial application. Efforts have been made to decrease the synthesis time, simplify the synthesis process, and improve the activity of the crystals [10]. Improvement of synthesis temperature was demonstrated to be an efficient method to decrease SSZ-13 synthesis time and fast heating prompted crystallization [11]. Adding F− was also used to reduce the synthesis time of SSZ-13; however, it is harmful to the environment [12]. Hollow materials have attracted great attention owing to their unique structure and great potential in adsorption, energy storage, catalysis, and so on [13,14]. Hollow zeolites are particularly outstanding due to their high controlled porosity, thermal stability, and unique shape selectivity, which is significant for gas separation [13,14]. A layer-by-layer self-assembly technique and a controlled dissolution method are often used to prepare hollow zeolite. However, most of the methods are tedious and the alkaline treatment lowers the crystallinity of the final product, which is detrimental to the thermal stability of the formed material [15]. Ultrasonic sonochemistry has been intensively studied and successfully applied to the preparation of materials with unusual properties in recent years. It was supposed that ultrasonics induces the formation, growth, and instantaneously implosive collapse of bubbles in the aqueous solution, which is ready to form local hot spots, decrease crystallization time, and obtain materials with an increased surface area or a hollow structure [16,17]. Hierarchical hollow CuO submicrospheres have been fabricated on a large scale by a facile sonochemical process in the absence of surfactants and additives [18].
Herein, the ultrasonic oscillation was utilized as a direct and facile synthetic route to form hollow zeolite with high crystallinity and adjust the structure of SSZ-13 without adding F−. The synthesis time was fixed at 96 h at 433 K for the crystal growth. The effects of seed concentration and ultrasonic time on the structure of SSZ-13 were studied in detail, and CO2 adsorption performance was also investigated.

2. Experimental

2.1. Synthesis of SSZ-13

N,N,N-trimethyl-1-adamantanammonium hydroxide (TMAdaOH, 25 wt.%, Alladin, Shanghai, China) was first mixed with NaOH (Kemiou, Tianjin, China) in a beaker with deionized water for 10 min. Then Al(OH)3 (Damao, Tianjin, China) was added into the solution with strong stirring. Then colloidal silica (40 wt.%, Sigama-Aldrich, Burlington, MA, USA) was added in slowly. After that, the seed powder was added in the solution with strong stirring. For example, SH-2, the seed powder added, was 0.25 wt.% of the total solution weight. The resulting mixture was treated with ultrasonic oscillation at 40 kHz and 320 W. Then the solution was stirred at room temperature for 6 h to obtain a homogeneous synthesis solution. The solution was transferred to a Teflon reaction kettle for the reaction at 433 K for 96 h. The seed used in this experiment was prepared with conventional method. The Al source was Al(OH)3, and the synthesis mixture molar ratio was 20 SDA:20 NaOH:5 Al:100 Si:4400 H2O. The preparation procedure of seed was the same as SH-1 except the ultrasonic step. The synthesis conditions are listed in Table 1.

2.2. Characterization

X-ray powder diffraction (XRD, Shimadzu XRD-7000S, Shimadzu, Kyushu, Japan) was measured to determine the crystal structure using Cu Kα radiation (40 kV, 40 mA, λ=1.5418 Å). The morphology of the particles was analyzed via scanning electron microscopy (SEM, Nova Nano SEM 450, FEI, Hillsboro, OR, USA) after the samples were coated with gold by sputtering. Transmission electron microscopy (TEM) was analyzed on a Tecnai F30 instrument (FEI, Hillsboro, OR, USA) at 300 kV. The CO2 adsorption performance was tested by a specific surface area aperture analyzer (V-Sorb-2800P, APP application, Beijing, China) at 298 K and dried at 823 K for 6 h before testing. The calcined samples with different seed contents were tested with the specific surface area aperture to investigate their structural properties and porous parameters via the N2 adsorption/desorption test at 77 K.

3. Results and Discussion

3.1. Effect of the Amount of Seed on the Sample Structure

Figure 1 shows the XRD patterns of samples with different seed contents (from SH-1 to SH-4) prepared by using various amounts of seed. All samples possessed typical diffraction peaks corresponding to the CHA zeolite structure; the strongest diffractions were at 2θ = 9.6°, 16.3°, 21°, 24.9°, and 26.2°. With the increase of seed content, the CHA characteristic peaks changed little while the intensity was improved gradually. This implies that the addition of seed could promote crystallization.
Figure 2 shows the SEM images of the crystalline products. Without seed addition, the crystals showed a typical CHA-type cubic structure. When 0.25 wt.% seed was added, the crystal size decreased below 250 nm. With the further increase of seed content, the crystal size did not change obviously, but particles became uniform. When the seed content was increased to 1 wt.%, the majority of crystals in the sample SH-4 exhibited a cubic morphology and they had a size range of 50–100 nm (Figure 2d). The introduction of seed was beneficial for preparing small particles as shown in Figure 2. It was found that the intensities of the peaks did not only depend on the size of the crystals. With the increase of XRD intensity, the crystal size decreased gradually. Similar results can also be found in references [7,19].
The calcined samples with different seed contents were selected in order to perform a deeper investigation of their structural properties and porous parameters via the N2 adsorption/desorption test at 77 K. Figure 3 presents their N2 adsorption isotherms after calcination at 823 K for 6 h. These curves show a steep slope at the relative pressure of 10−6< P/P0< 0.01, which indicates the presence of micropores, and a hysteresis loop in the 0.40–1.0 relative pressure range relates to the mesoporosities. As shown in the BJH pore size distribution curves in Figure 4, the samples exhibited mesopores with a pore diameter of about 4 nm. The SH-3 sample presented a larger distribution of mesopores at 4 nm. The samples SH-2, SH-3, and SH-4 were also tested with TEM, and the images are shown in Figure 5. All the particles exhibited cubic crystals.
The textural parameters of these structures are listed in Table 2. Without seed added, the sample SH-1 showed very low BET surface area and total pore volume (0.29 cm3/g), which is detrimental to efficient gas separation. The SH-2 sample had a larger BET surface area (671.67 m2·g−1) when compared to SH-3 and SH-4 (610.43 m2·g−1 and 622.96 m2·g−1, respectively). However, it showed relative low total pore volume and average pore width. The SH-3 sample showed a high ratio of mesoporous content (56.7%) with suitable total pore volume. In order to prepare hollow SSZ-13 zeolite, 0.5 wt.% seed content was chosen for further research.

3.2. Effect of the Ultrasonic Time on the Sample Structure

It has been demonstrated that ultrasound irradiation can promote chemical transformations, improve yields and purity of the products, and shorten the reaction time at mild condition [20]. In this work, seed addition was fixed to 0.5 wt.% and different ultrasonic times on the structure of SSZ-13 were investigated. As shown in Figure 6, all the samples exhibit typical CHA characteristic peaks. When the ultrasonic time was increased from 15 min to 60 min, the intensities of the characteristic peak increased gradually, which implies increased crystallinity. The SEM images of samples prepared with different ultrasonic times are shown in Figure 7. It can be seen that with the increase of ultrasonic time, the particles exhibited typical cubic crystals with decreased particle size. The particle size was only 50 nm when the ultrasonic time was 60 min. Ultrasound with high-energy shock waves was positive to the nucleation rate. Tiny bubbles in the solution grew up and collapsed quickly, which caused super-saturation and promoted homogenization of the solution. Thus, the formed zeolite particles were smaller and more uniform [21,22,23]. As shown Figure 7, the samples showed a hollow structure, and the quantity increased along with the ultrasonic time.
The samples were also tested with TEM, and the images are shown in Figure 8. All the particles exhibited cubic crystals with a hollow structure. The hollow structure is shown clearly in the TEM images with higher resolution. The hollow SSZ-13 crystals showed a wall thickness of about 5 nm when the ultrasonic time was increased to 60 min as shown in Figure 8i. The collapse of the crystals seen in Figure 8e,h was in accordance with the SEM images.
N2 adsorption/desorption tests were also carried for the calcined SH-5, SH-6, and SH-7 samples to investigate their structural properties and porous parameters. Figure 9 shows their N2 adsorption isotherms after calcination at 823 K for 6 h. These curves with a steep slope at the relative pressure of 10−6< P/P0 < 0.01 indicated the microporosities in the crystals. The hysteresis loop with the type of H1 at the 0.70–1.0 relative pressure range indicated the presence of mesoporosities. Thus, all the samples possessed microporosities and mesoporosities, which was positive to the adsorption performance. As shown in the BJH pore size distribution curves in Figure 10, all of the samples exhibitedmesoporesat a pore diameter of about 4 nm. The textural parameters of these structures are listed in Table 3. The SH-6 and SH-7 showed very high specific area (763.36 m2·g−1 and 791.50 m2·g−1, respectively) with the introduction of ultrasonic treatment. Additionally, the crystals showed high total pore volume, especially the SH-7, which showed 0.95 cm3/g of total pore volume and 66.3% content of mesoporosity. Combined with the images of TEM, the crystals with a hollow structure were formed successfully with ultrasonic assistance.

3.3. CO2 Adsorption Performance of Hollow SSZ-13

SSZ-13 with chabazite topology is a highly stable small-pore zeolite with high CO2 capacity, which is an ideal adsorbent for CO2 capture. It has high hydrothermal stability, which is easy to regenerate. Figure 11 illuminates the adsorption isotherms for CO2 measured at 298 K for SSZ-13 zeolites. As shown in Figure 11, sample SH-1 with low pore volume showed relative low adsorption of CO2 compared with samples SH-3 and SH-7. The adsorption of CO2 on samples SH-3 and SH-7 increased dramatically starting from very low-pressure (0–0.3 bar) because there were many nanopores in the zeolites. The SH-3 and SH-7 samples with large pore volume and mesoporosity showed higher adsorption performance compared with SH-1 that was prepared without seed addition. At 0.27 bar, the CO2-adsorbed amount of SH-7 reached 2.53 mmol/g, which is higher than that of conventional SSZ-13 (1.83 mmol/g). At 1 bar, the sample SH-7 showed a CO2 adsorbed amount of 4.24 mmol/g, which is also higher compared with conventional SSZ-13 (3 mmol/g) [2]. Increase of ultrasonic time did not improve the adsorption performance, as shown in Figure 11. The micropores in the zeolites may play a more important role in the CO2 capture because CO2 may dissolve in the pores and induce higher adsorption amount [24]. The nanosized hollow SSZ-13 showed excellent CO2 adsorption performance, which is a potential material for selective capture of CO2 from industrial gas streams.

4. Conclusions

In conclusion, when studying the effect of seed content and ultrasonic time on the structure of SSZ-13 crystal as well as characterizing the samples with XRD, SEM, N2 physical adsorption, and CO2 adsorption, it was found that the crystallinity of samples increased with the increase of seed content while the crystal size decreased with the low sized distribution. According to the N2 adsorption and TEM characterization, the samples showed a hollow structure with a diameter of 5–20 nm. When the seed content was 0.5 wt.% and ultrasonic time was 60 min, the sample showed CHA-type crystals of about 50 nm with high mesoporosity ratio (66.3%) and a high specific area (791.50 g/m2). Compared with SSZ-13 prepared with the conventional method, the SSZ-13 prepared with ultrasonic assistance showed higher CO2 adsorption ability. Especially at 298 K and 0.27 bar, the CO2-adsorbed amount reached 2.53 mmol/g, which is higher than that of conventional SSZ-13 prepared with conventional methods.

Author Contributions

Conceptualization, L.Z. and J.W.; Investigation, Y.T. and Y.L.; Writing—review and editing, R.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Fund of China, grant number 21706022, Science & Technology Program of Jiangxi Provincial Education Bureau, grant number GJJ190557 and GJJ180575, Jiangxi Provincial Natural Science Foundation of China, grant number 20202BABL203021. And the APC was funded by National Natural Science Fund of China, grant number 21706022.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bui, M.; Adjiman, C.S.; Bardow, A.; Anthony, E.J.; Boston, A.; Brown, S.; Fennell, P.S.; Fuss, S.; Galindo, A.; Hackett, L.A. Carbon capture and storage (CCS): The way forward. Energy Environ. Sci. 2018, 11, 1062–1176. [Google Scholar] [CrossRef] [Green Version]
  2. Sun, M.; Gu, Q.; Hanif, A.; Wang, T.; Shang, J. Transition metal cation-exchanged SSZ-13 zeolites for CO2 capture andseparation from N2. Chem. Eng. J. 2019, 370, 1450–1458. [Google Scholar] [CrossRef]
  3. Shang, J.; Li, G.; Singh, R.; Gu, Q.; Nairn, K.M.; Bastow, T.J.; Medhekar, N.; Doherty, C.M.; Hill, A.J.; Liu, J.Z.; et al. Discriminative Separation of Gases by a “Molecular Trapdoor” Mechanism in Chabazite Zeolites. J. Am. Chem. Soc. 2012, 134, 19246–19253. [Google Scholar] [CrossRef] [PubMed]
  4. Han, R.; Zhou, L.; Luo, Y. Controllable synthesis of Si-DD3R molecular sieves nanocrystallineby microwave assisting dry-gel conversion method. Mater. Res. Express 2020, 7, 085014. [Google Scholar] [CrossRef]
  5. Jiang, Q.; Rentschler, J.; Sethia, G.; Weinman, S.; Perrone, R.; Liu, K. Synthesis of T-type zeolite nanoparticles for the separation of CO2/N2 and CO2/CH4 byadsorption process. Chem. Eng. J. 2013, 230, 380–388. [Google Scholar] [CrossRef]
  6. Wang, Y.; Wang, C.; Wang, J.; Wang, J.; Wang, L.; Xu, C.; Shen, M. Efficient Hydrothermal Synthesis of SSZ-13 with Variable Grain Size. Materials 2020, 13, 1829. [Google Scholar] [CrossRef]
  7. Li, Y.; Liu, R.; Guo, Q.; Bian, H.; Lan, A.; Li, X.; Han, P.; Dou, T. Efficient synthesis of high silica SSZ-13 zeolite via a steam-assisted crystallization process. J. Porous Mater. 2019, 26, 1879–1888. [Google Scholar] [CrossRef]
  8. Niu, K.; Li, G.; Liu, J.; Wei, Y. One step synthesis of Fe-SSZ-13 zeolite by hydrothermal method. J. Solid State Chem. 2020, 287, 121330. [Google Scholar] [CrossRef]
  9. Zhao, Z.; Yu, R.; Zhao, R.; Shi, C.; Gies, H.; Xiao, F.-S.; De Vos, D.; Yokoi, T.; Bao, X.; Kolb, U.; et al. Cu-exchanged Al-rich SSZ-13 zeolite from organotemplate-free synthesis as NH3-SCR catalyst: Effects of Na+ ions on the activity and hydrothermal stability. Appl. Catal. B Environ. 2017, 217, 421–428. [Google Scholar] [CrossRef]
  10. Lv, Y.; Ye, C.; Zhang, J.; Guo, C. Rapid and efficient synthesis of highly crystalline SSZ-13 zeolite by applying high shear mixing in the aging process. Microporous Mesoporous Mater. 2020, 293, 109812. [Google Scholar] [CrossRef]
  11. Liu, Z.; Wakihara, T.; Oshima, K.; Nishioka, D.; Hotta, Y.; Elangovan, S.P.; Yanaba, Y.; Yoshikawa, T.; Chaikittisilp, W.; Matsuo, T.; et al. Widening Synthesis Bottlenecks: Realization of Ultrafast and Continuous-Flow Synthesis of High-Silica Zeolite SSZ-13 for NOx Removal. Angew. Chem. 2015, 127, 5775–5779. [Google Scholar] [CrossRef]
  12. Chen, B.; Xu, R.; Zhang, R.; Liu, N. Economical Way to Synthesize SSZ-13 with Abundant Ion-Exchanged Cu+ for an Extraordinary Performance in Selective Catalytic Reduction (SCR) of NOx by Ammonia. Environ. Sci. Technol. 2014, 48, 13909–13916. [Google Scholar] [CrossRef] [PubMed]
  13. Han, R.; Zhang, Y.; Xie, Y. Application of Mn3O4 nanowires in the dye waste water treatment at room temperature. Sep. Purif. Technol. 2020, 234, 116119. [Google Scholar] [CrossRef]
  14. Han, R.; Chen, M.; Liu, X.-B.; Zhang, Y.; Xie, Y.; Sui, Y. Controllable Synthesis of Mn3O4 Nanowires and Application in the Treatment of Phenol at Room Temperature. Nanomaterials 2020, 10, 461. [Google Scholar] [CrossRef] [Green Version]
  15. Wang, X.; Zhao, D.; Chu, W.; Yang, C.; Wang, Y.; Zhu, X.; Xin, W.; Liu, Z.; Wang, H.; Liu, S.; et al. N-methyl-2-pyrrolidone-induced conversion of USY into hollow Beta zeolite and its application in the alkylation of benzene with isobutylene. Microporous Mesoporous Mater. 2020, 294, 109944. [Google Scholar] [CrossRef]
  16. Wang, J.; Wan, J.; Yang, N.; Li, Q.; Wang, D. Hollow multishell structures exercise temporal–spatial ordering and dynamic smart behaviour. Nat. Rev. Chem. 2020, 4, 159–168. [Google Scholar] [CrossRef]
  17. Chu, N.; Wang, J.; Zhang, Y.; Yang, J.; Lu, J.; Yin, D. Nestlike Hollow Hierarchical MCM-22 Microspheres: Synthesis and Exceptional Catalytic Properties. Chem. Mater. 2010, 22, 2757–2763. [Google Scholar] [CrossRef]
  18. Jia, X.; Fan, H.; Zhang, F.; Qin, L. Using sonochemistry for the fabrication of hollow ZnO microspheres. Ultrason. Sonochem. 2010, 17, 284–287. [Google Scholar] [CrossRef]
  19. Hamidzadeh, M.; Saeidi, M.; Komeili, S. Modified seeding method to produce hierarchical nanocrystalline ZSM-5 zeolite. Mater. Today Commun. 2020, 25, 101308. [Google Scholar] [CrossRef]
  20. Zarekarizi, F.; Morsali, A. Ultrasonic-assisted synthesis of nano-sized metal-organic framework; a simple method to explore selective and fast Congo Red adsorption. Ultrason. Sonochem. 2020, 69, 105246. [Google Scholar] [CrossRef]
  21. Deng, C.; Hu, H.; Ge, X.; Han, C.; Zhao, D.; Shao, G. One-pot sonochemical fabrication of hierarchical hollow CuOsubmicrospheres. Ultrason. Sonochem. 2011, 18, 932–937. [Google Scholar] [CrossRef] [PubMed]
  22. Nasrollahzadeh, M.; Ehsani, A.; Rostami-Vartouni, A. Ultrasound-promoted green approach for the synthesis of sulfonamides using natural, stable and reusable Natrolitenanozeolite catalyst at room temperature. Ultrason. Sonochem. 2014, 21, 275–282. [Google Scholar] [CrossRef] [PubMed]
  23. Behin, J.; Kazemian, H.; Rohani, S. Sonochemical synthesis of zeolite NaP from clinoptilolite. Ultrason. Sonochem. 2016, 28, 400–408. [Google Scholar] [CrossRef] [PubMed]
  24. Hudson, M.R.; Queen, W.L.; Mason, J.A.; Fickel, D.W.; Lobo, R.F.; Brown, C.M. Unconventional, Highly Selective CO2 Adsorption in Zeolite SSZ-13. J. Am. Chem. Soc. 2012, 134, 1970–1973. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 10 02298 g001 550

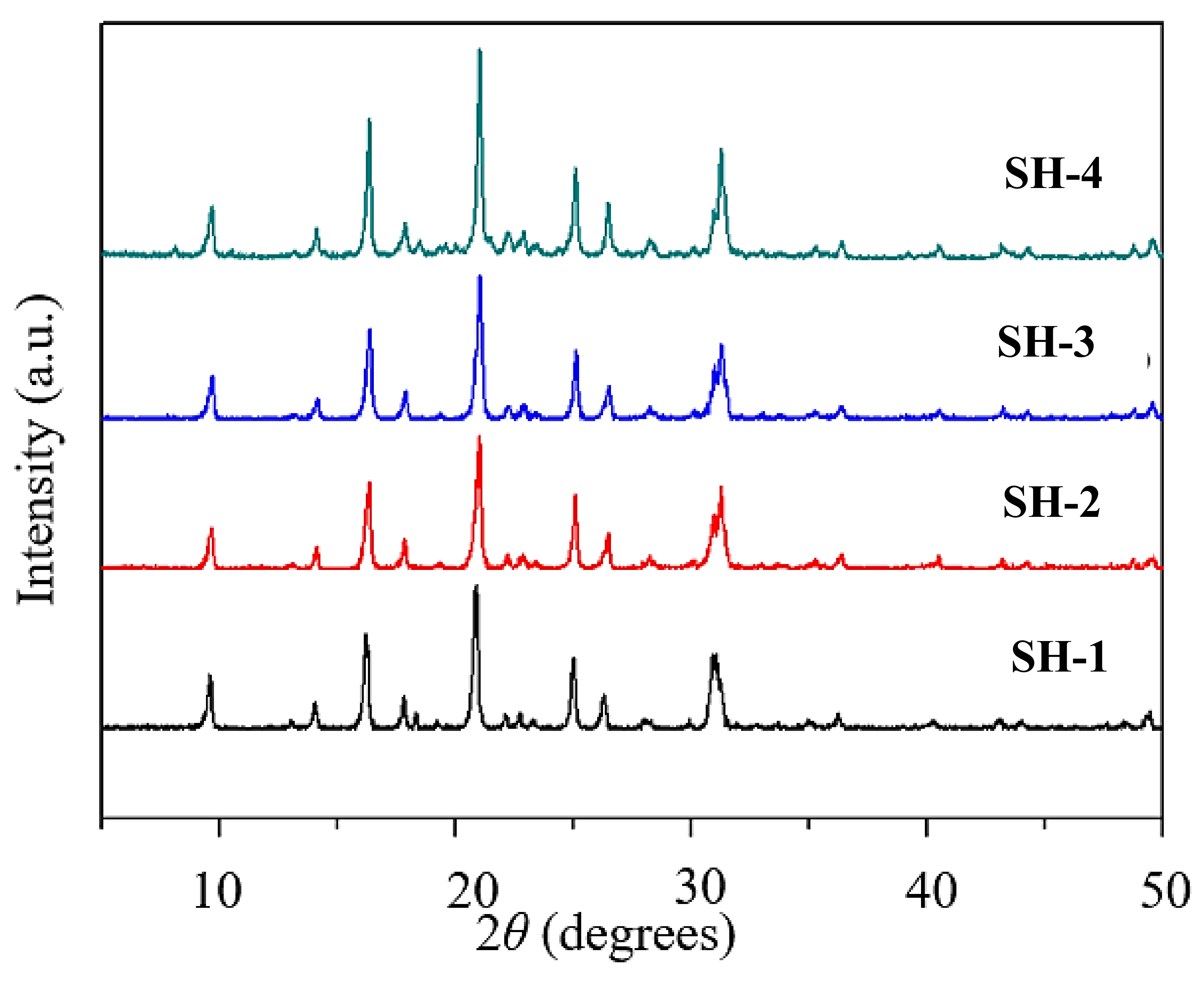

Figure 1. XRD spectra of samples with different seed contents (SH-1, 0 wt.%; SH-2, 0.25 wt.%; SH-3, 0.5 wt.%; SH-4, 1 wt.%).
Figure 1. XRD spectra of samples with different seed contents (SH-1, 0 wt.%; SH-2, 0.25 wt.%; SH-3, 0.5 wt.%; SH-4, 1 wt.%).
Nanomaterials 10 02298 g001
Nanomaterials 10 02298 g002 550
Figure 2. SEM diagrams of samples with different seed contents (a, SH-1; b, SH-2; c, SH-3; d, SH-4).
Figure 2. SEM diagrams of samples with different seed contents (a, SH-1; b, SH-2; c, SH-3; d, SH-4).
Nanomaterials 10 02298 g002
Nanomaterials 10 02298 g003 550

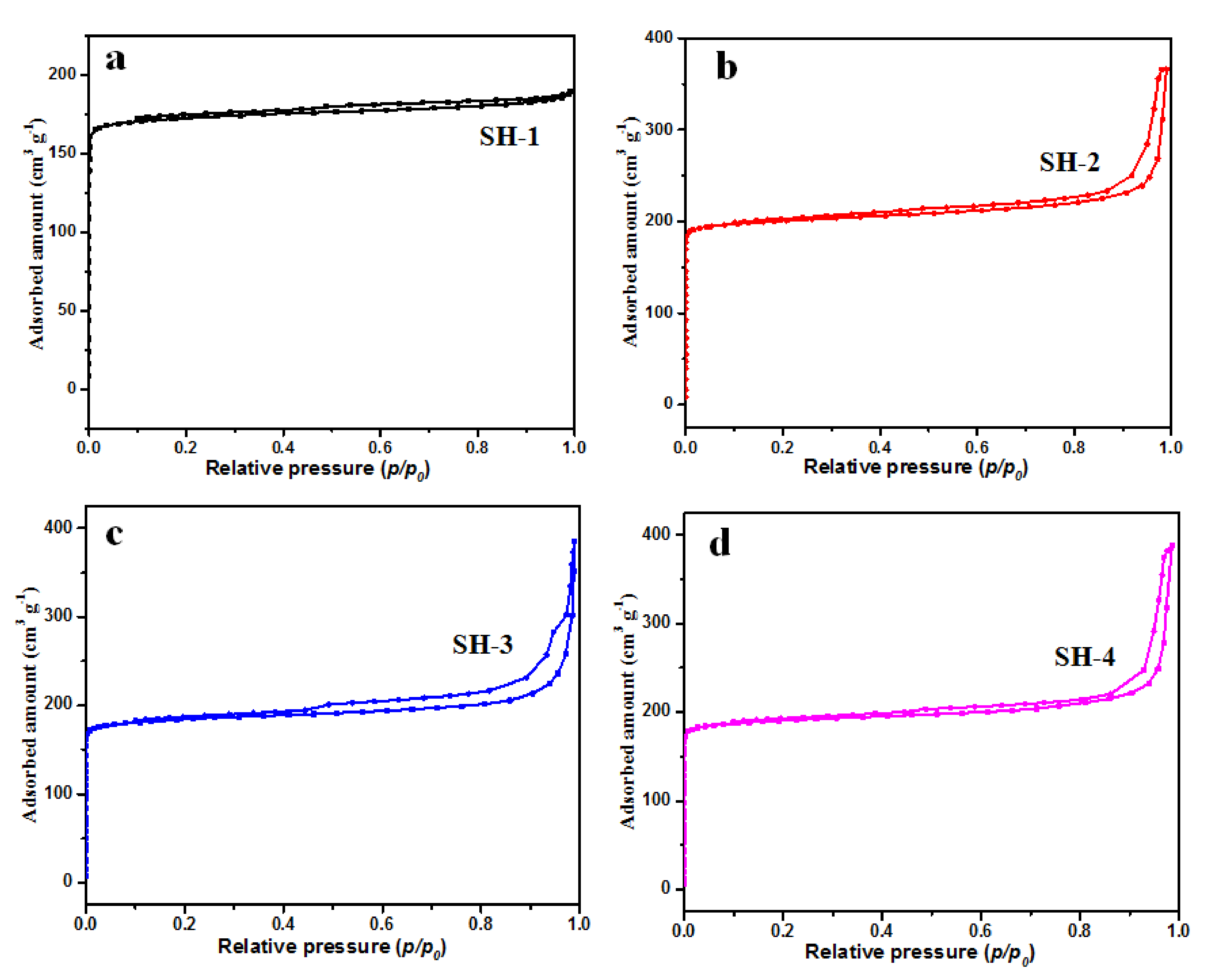

Figure 3. N2 adsorption isotherms of (a) SH-1, (b) SH-2, (c) SH-3, and (d) SH-4.
Figure 3. N2 adsorption isotherms of (a) SH-1, (b) SH-2, (c) SH-3, and (d) SH-4.
Nanomaterials 10 02298 g003
Nanomaterials 10 02298 g004 550

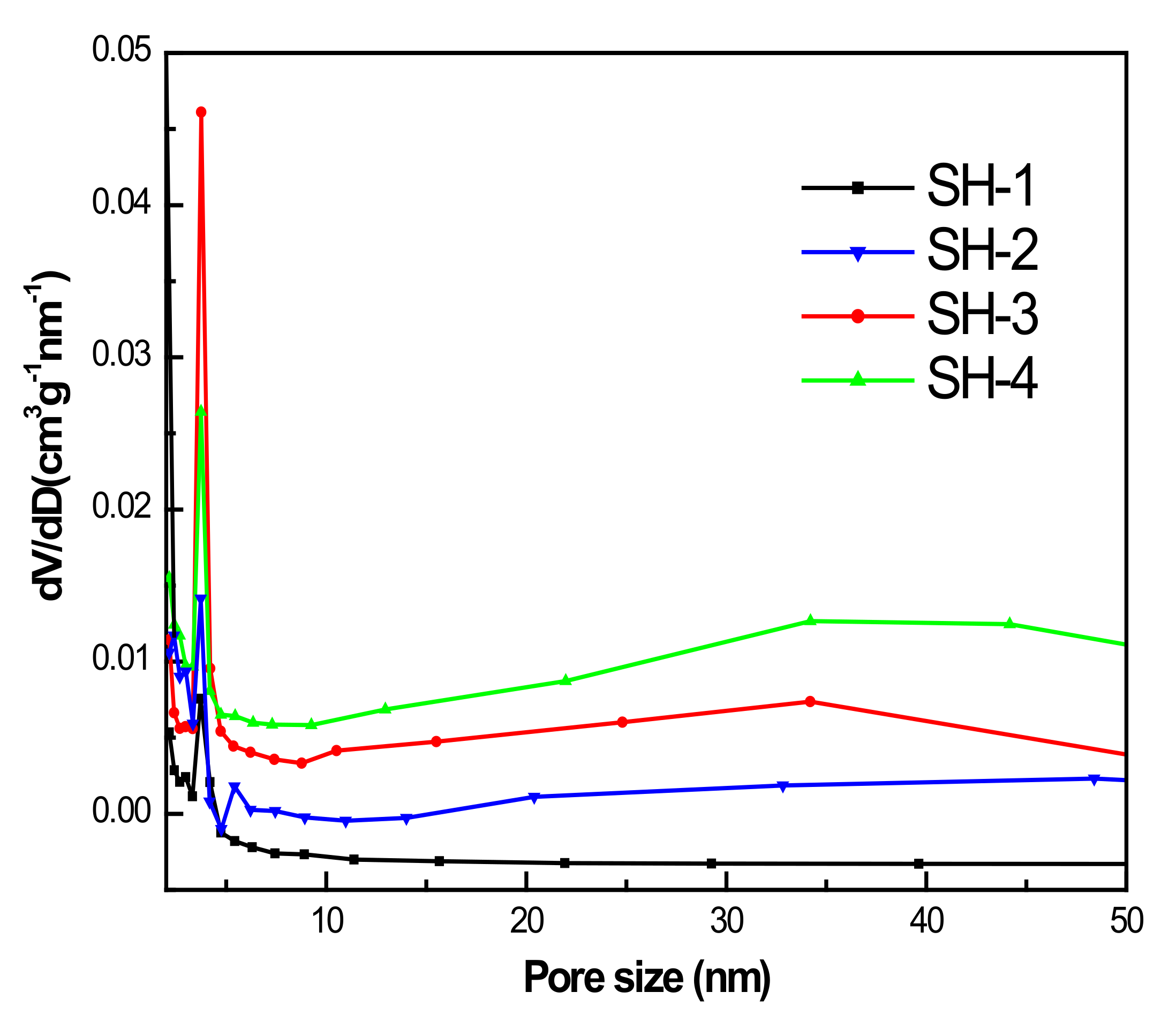

Figure 4. Pore size distribution of samples with different seed contents.
Figure 4. Pore size distribution of samples with different seed contents.
Nanomaterials 10 02298 g004
Nanomaterials 10 02298 g005 550
Figure 5. TEM diagrams of SH-2 (a,d), SH-3 (b,e), and SH-4 (c,f).
Figure 5. TEM diagrams of SH-2 (a,d), SH-3 (b,e), and SH-4 (c,f).
Nanomaterials 10 02298 g005
Nanomaterials 10 02298 g006 550

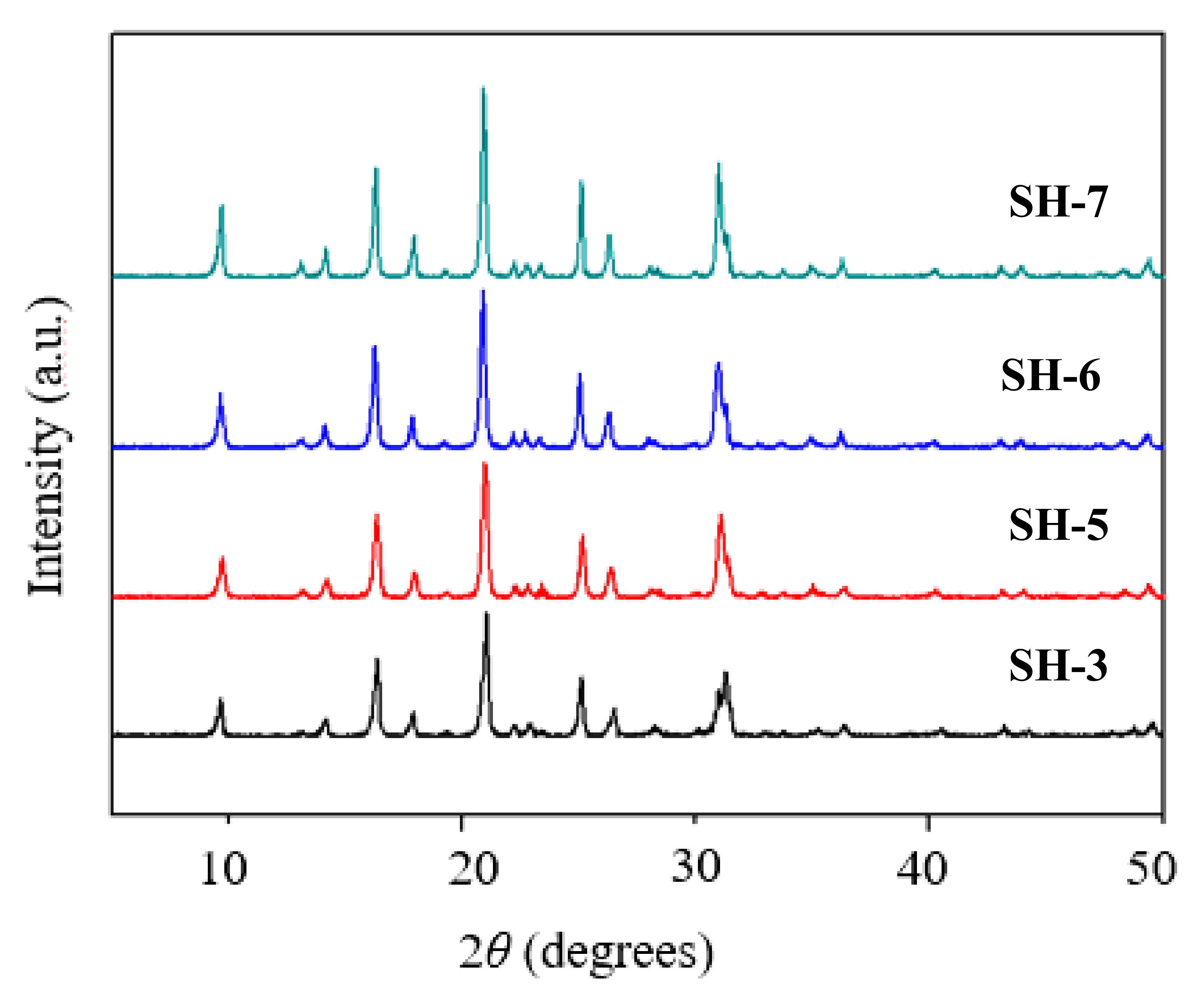

Figure 6. XRD spectra of samples prepared with different ultrasonic times (SH-3, 15 min; SH-5, 30 min; SH-6, 45 min; SH-7, 60 min).
Figure 6. XRD spectra of samples prepared with different ultrasonic times (SH-3, 15 min; SH-5, 30 min; SH-6, 45 min; SH-7, 60 min).
Nanomaterials 10 02298 g006
Nanomaterials 10 02298 g007 550
Figure 7. SEM diagrams of SH-3(a), SH-5(b), SH-6(c), and SH-7(d).
Figure 7. SEM diagrams of SH-3(a), SH-5(b), SH-6(c), and SH-7(d).
Nanomaterials 10 02298 g007
Nanomaterials 10 02298 g008 550
Figure 8. TEM images of SH-5 (a–c), SH-6 (d–f), and SH-7 (g–i).
Figure 8. TEM images of SH-5 (a–c), SH-6 (d–f), and SH-7 (g–i).
Nanomaterials 10 02298 g008
Nanomaterials 10 02298 g009 550

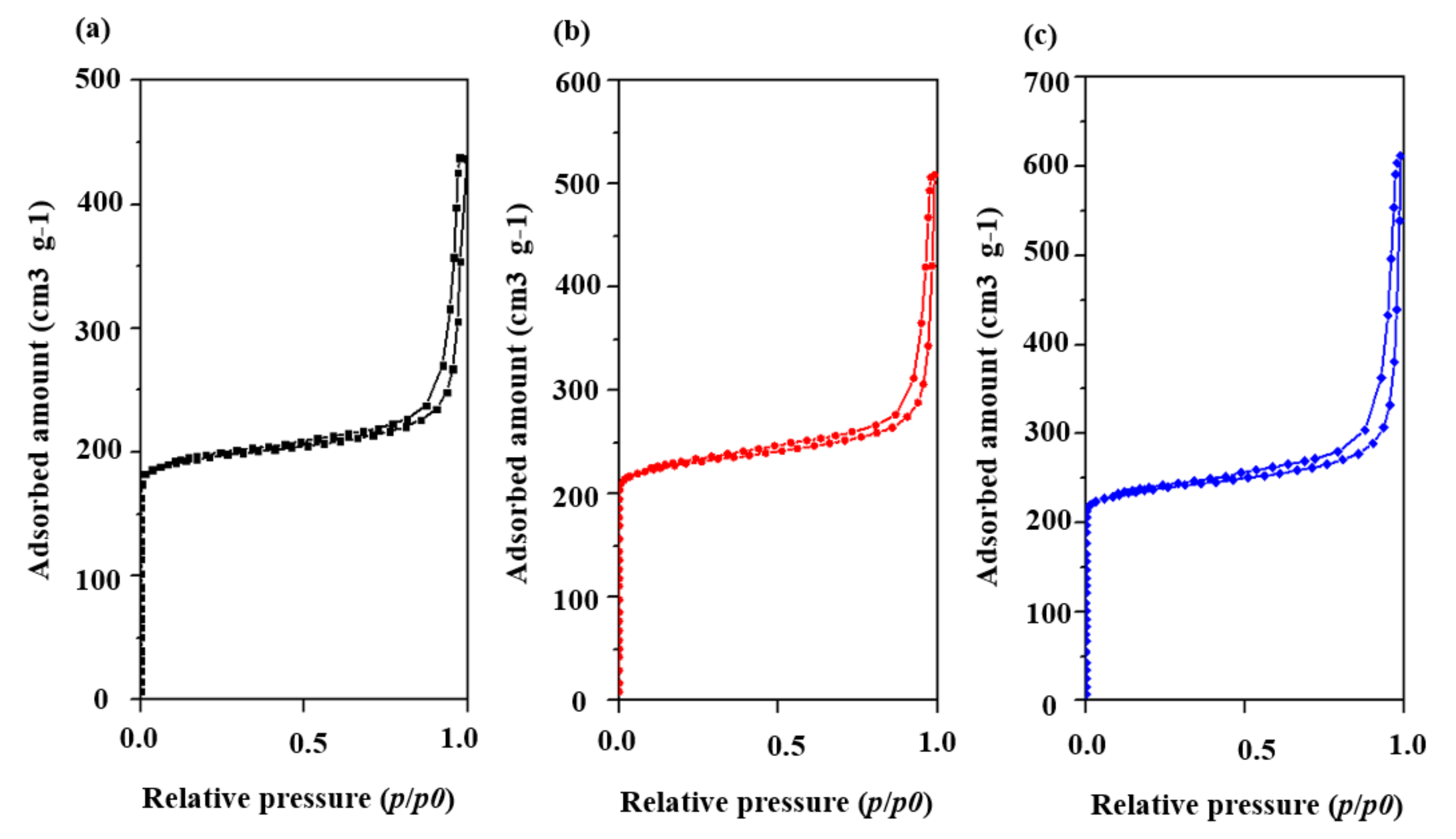

Figure 9. N2 adsorption isotherms of (a) SH-5, (b) SH-6, and (c) SH-7.
Figure 9. N2 adsorption isotherms of (a) SH-5, (b) SH-6, and (c) SH-7.
Nanomaterials 10 02298 g009
Nanomaterials 10 02298 g010 550

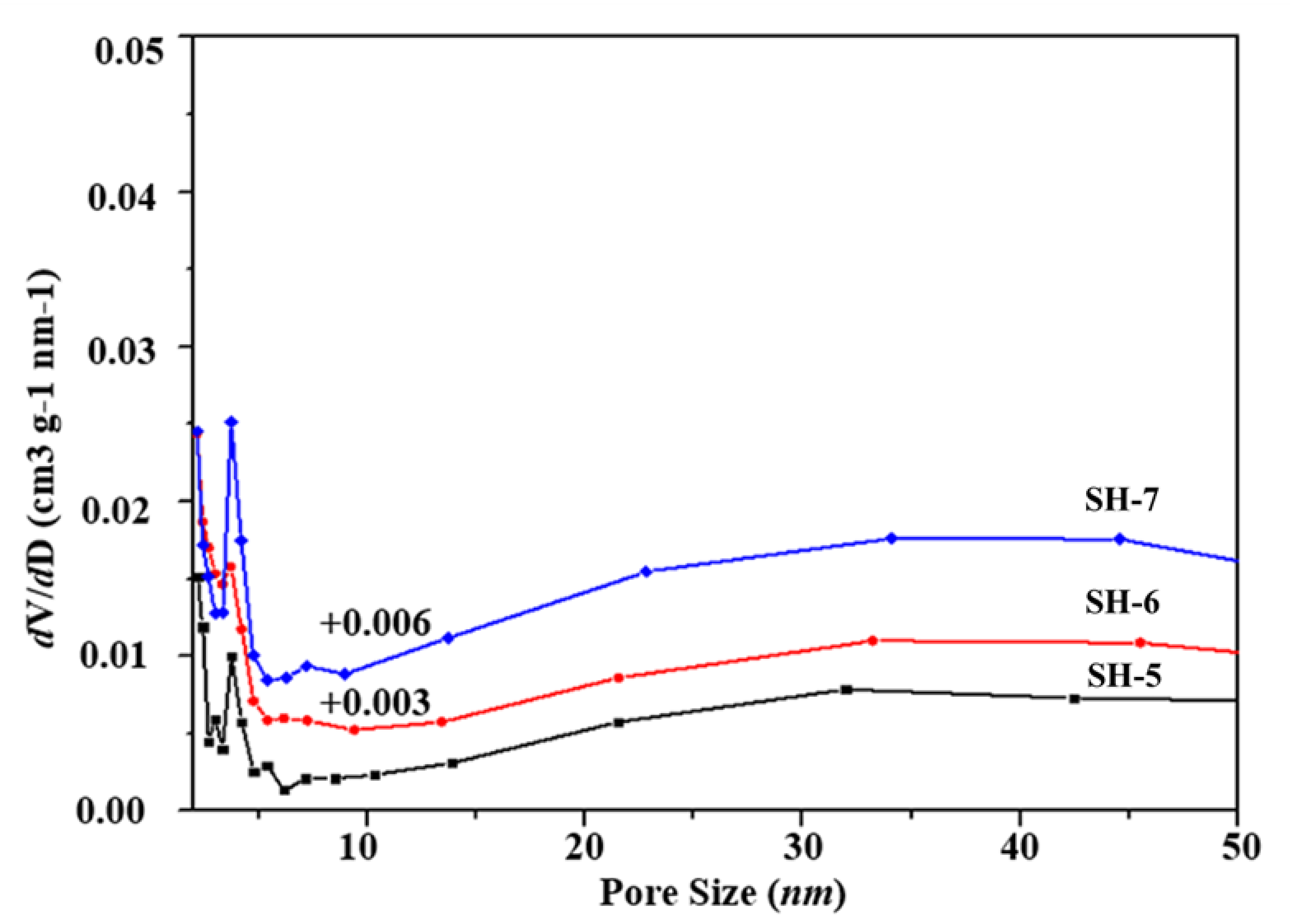

Figure 10. Pore size distribution (SH-5, 30 min; SH-6, 45 min; SH-7, 60 min).
Figure 10. Pore size distribution (SH-5, 30 min; SH-6, 45 min; SH-7, 60 min).
Nanomaterials 10 02298 g010
Nanomaterials 10 02298 g011 550

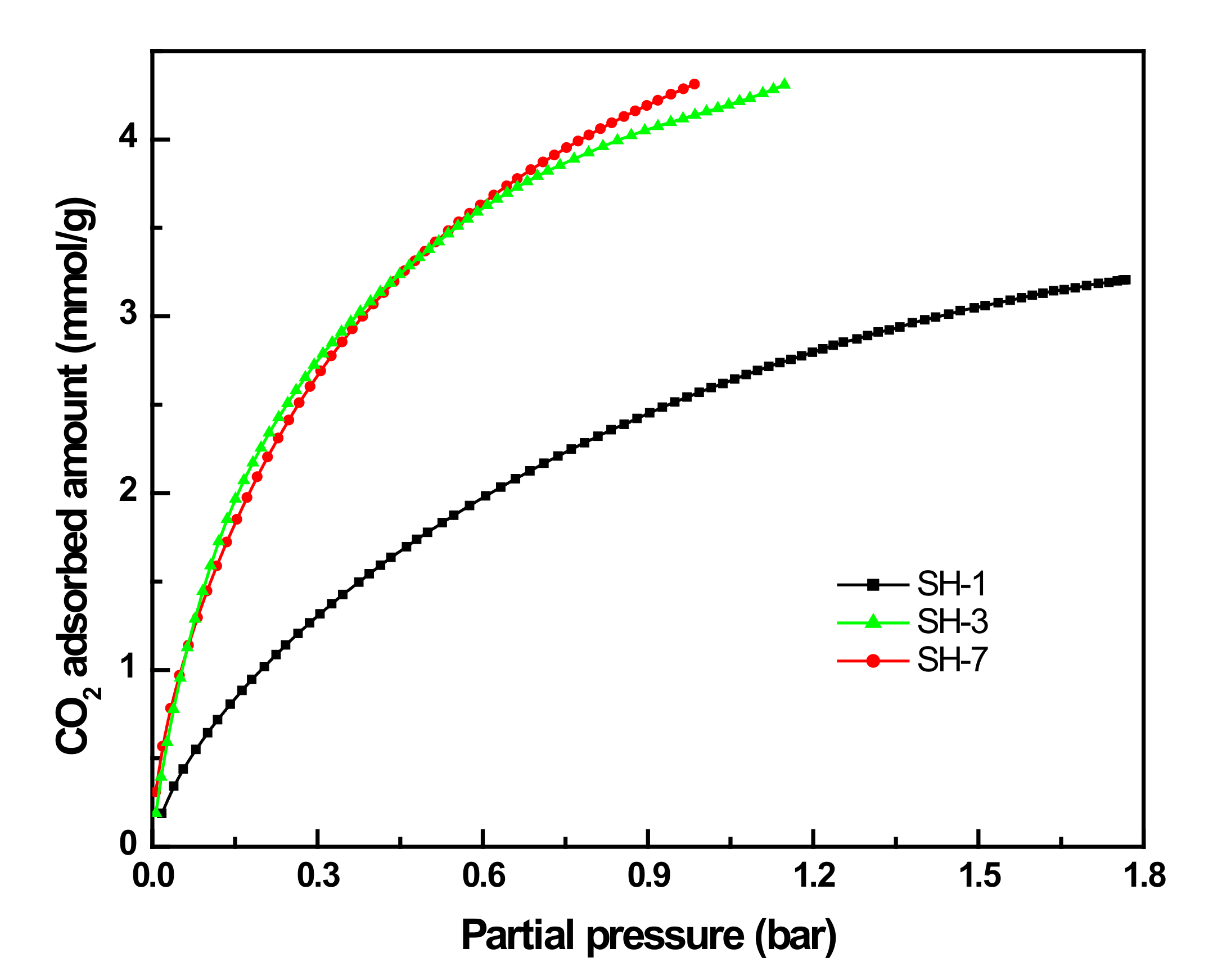

Figure 11. CO2 adsorption isotherms of SH-1, SH-3, and SH-7.
Figure 11. CO2 adsorption isotherms of SH-1, SH-3, and SH-7.
Nanomaterials 10 02298 g011
Table
Table 1. Synthesis conditions of SSZ-13 molecular sieve.
Table 1. Synthesis conditions of SSZ-13 molecular sieve.
SampleSolution Composition
SDA:NaOH:Al:Si:H2O (wt.% Seed)		Al SourceT/°Ct/hUltrasonic
Time/Min
SH-120:20:5:100:4400 (0)Al (OH)31609615
SH-220:20:5:100:4400 (0.25)Al (OH)31609615
SH-320:20:5:100:4400:0 (0.5)Al (OH)31609615
SH-420:20:5:100:4400:0 (1)Al (OH)31609615
SH-520:20:5:100:4400:0 (0.5)Al (OH)31609630
SH-620:20:5:100:4400:0 (0.5)Al (OH)31609645
SH-720:20:5:100:4400:0 (0.5)Al (OH)31609660
Table
Table 2. N2 physical adsorption data of samples with different seed contents.
Table 2. N2 physical adsorption data of samples with different seed contents.
SampleSBET (m2/g)Total Pore Volume 1,3
(cm3/g)		Mesoporous Volume 2 (cm3/g)Micropore Volume 1
(cm3/g)		Average Pore Width (nm)Content of Mesoporous (%)
SH-1574.910.290.040.256.39313.8
SH-2671.670.570.280.2816.7449.1
SH-3610.430.600.340.2818.5056.7
SH-4622.960.600.320.2922.4453.3
1 Calculated with t-plot method. 2 Calculated with BJH method. 3 P/P0 = 0.9918, 0.9885, 0.9906, 0.9947.
Table
Table 3. N2- physical adsorption data of SH-5 to SH-7.
Table 3. N2- physical adsorption data of SH-5 to SH-7.
SampleSBET (m2/g)Total Pore Volume 1,3
(cm3/g)		Mesoporous Volume 2 (cm3/g)Micropore Volume 1
(cm3/g)		Average Pore Width (nm)Content of Mesoporous (%)
SH-5653.450.680.410.2621.5360.3
SH-6763.360.780.470.3019.1160.3
SH-7791.500.950.630.3121.9666.3
1 Calculated with t-plot method. 2 Calculated with BJH method. 3 P/P0 = 0.9977, 0.9907, 0.9889.
