Green Synthesis of Cu Nanoparticles in Modulating the Reactivity of Amine-Functionalized Composite Materials towards Cross-Coupling Reactions

by
Surjyakanta Rana
*,
G. Bishwa Bidita Varadwaj
and
Sreekanth B. Jonnalagadda
*
School of Chemistry & Physics, College of Agriculture, Engineering & Science, University of KwaZulu-Natal, Durban 4041, South Africa
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(9), 2260; https://doi.org/10.3390/nano11092260
Submission received: 14 July 2021 / Revised: 6 August 2021 / Accepted: 10 August 2021 / Published: 31 August 2021
(This article belongs to the Special Issue Metallic and Metal Oxide Nanoparticles and Their Applications)
Browse Figures
Versions Notes

Abstract

:
Control over both dispersion and the particle size distribution of supported metal particles is of paramount importance for the catalytic activity of composite materials. We describe the synthesis of materials with Cu nanoparticles well-dispersed on different amine-functionalized supports, using the extract of Wallich Spurge as a green, reducing agent. Graphene oxide (GO), mesoporous silica (MCM-41), mesoporous zirconia, and reduced graphene oxide-mesoporous silica (RGO-MCM-41) were explored as supports. Cu nanoparticles were better stabilized on RGO-MCM-41 compared to other supports. The novel composite materials were characterized by X-ray diffraction (XRD), Raman spectra, Scanning electron microscope (SEM), Transmission electron microscopy analysis and HR-TEM. SEM and EDX techniques. High angle XRD confirmed the conversion of graphene oxide to reduced graphene oxide (RGO) with plant extract as a reducing agent. Both XRD and TEM techniques confirmed the Cu nanoparticle formation. The catalytic activity of all the prepared materials for the Ullmann coupling reactions of carbon-, oxygen-, and nitrogen-containing nucleophiles with iodobenzene was evaluated. From the results, 5 wt% Cu on amine-functionalized reduced graphene oxide/mesoporous silica nanocomposite (5 wt%Cu(0)-AAPTMS@RGO-MCM-41) exhibited excellent efficiency with 97% yield of the C-C coupling product in water at 80 °C in 5 h. The activity remained unaltered almost up to the fourth cycle. The Cu nanoparticles stabilized by organic amine group on RGO hybrid facilitated sustained activity.

1. Introduction

The distinct properties of nanoparticles activity were well explored and harvested in different chemical manufacturing fields, biological applications, energy conversion, hydrogen production and storage, and environmental technology [1,2,3,4]. Due to unique shapes and sizes, the metal nanoparticles exhibit better catalytic activity than their bulk materials. The nanoparticles of precious metals such as gold, palladium, and silver have been well explored in various applications [5,6,7,8,9]. Generally, nanomaterials are expensive, toxic and unstable. Hence, stable nanomaterials prepared using inexpensive metals and abundant sources as reducing agents are economical and attractive [5]. Thus, Cu nanoparticles are appealing because of their high natural abundance and low cost [10,11]. Cu with different oxidation states (Cu0, CuI, CuII, and CuIII) can be oxidized and reduced easily [12]. Thus, Cu nanomaterials can promote various reactions for energy, environmental and industrial requirements.
Carbon-based materials, including graphene, carbon nanotube, fullerene, have received significant attention as support materials for loading different nanoparticles. The nature of support and the preparation methods greatly influence the stability of nanoparticles. Carbon Nanotubes (CNT) are promising materials from various carbon-based materials, but CNT is not a good option due to their toxic nature [13]. Graphene oxide is nontoxic and possesses excellent surface area, high electrical and optical conductivity, and a honeycomb-like structure. Hence, graphene oxide is considered a perfect material as support [14,15,16,17,18,19,20,21,22,23,24]. Composite materials offer extra advantages such as stability over typical single compounds due to tunable surface properties.
The cross-coupling reaction of nucleophiles (nitrogen, oxygen, and carbon) with aryl groups for the bond construction frameworks is relatively underexplored. Its scope in organic synthesis is fast increasing. Considering the high costs of using precious metals, Pd, Pt, Au, and Ag, as catalysts, inexpensive alternate materials are continually in pursuit. Pary et al. described Cu2O nanoparticle-mediated oxidative C–C coupling reactions [25]. Sonei et al. reported that Copper-functionalized silica-coated magnetic nanoparticles catalyst gives good to excellent yields at 80 °C in Suzuki-Miyuara cross-coupling reaction under solvent-free conditions [26].
This work is focused on the preparation of functionalized graphene-mesoporous silica composite loaded with Cu nanoparticles and detailing its application as an efficient catalyst. First, the support material composite was functionalized by reacting their hydroxyl groups with an organic amine before loading the Cu nanoparticles. The functionalization reduced graphene oxide, and silica composites prevent nanoparticle agglomeration on the surface [27]. In organic synthesis, the Ullmann C-C homocoupling, C-N, and C-O hetero coupling reactions are essential tools to prepare the bi-aryl, di-aryl amine and di-aryl ether structures. These are analogues to many natural products and precursors in synthesizing many biologically active complexes [23,24,25,26,27,28].
Many copper nanoparticles preparation methods use hydrazine, sodium borohydride, and other chemicals as reducing agents, and these reducing agents are toxic and not ecofriendly. Wallich Spurge Leaf extract is a green and environment-friendly reducing agent. These leaves possess different potent antioxidants, terpenes, phenolics, and flavonoids, which increases the reducing ability. We used Wallich Spurge leaf extract as a reducing agent for generating 5 nm size Cu(0) nanoparticles. Thus, we explore graphene oxide (GO), mesoporous silica (MCM-41), mesoporous zirconia, and reduced graphene oxide-mesoporous silica (RGO-MCM-41) as supports to prepare Cu nanonoparticle-loaded composites. Of the 1, 5, and 10 wt% Cu on amine-functionalized reduced graphene oxide/mesoporous silica nanocomposites (Cu(0)-AAPTMS@RGO-MCM-41) prepared, 5 wt%Cu(0)-AAPTMS@RGO-MCM-41 demonstrated excellent activity as a recyclable catalyst towards C-C homocoupling (97% yield) in water and C-O hetero coupling (94% yield) and C-N hetero coupling reactions in DMF solvent with 85% yield.

2. Materials and Methods

2.1. Preparation of Leaf Extract Reducing Agent

In the leaf extract preparation, dried leaf powder of Wallich Spurge (50 g) was added to distilled water (200 mL) followed by constant stirring for 2 h at 80 °C. Then, the mixture was centrifuged for 10 min and filtered, and the filtrate was stored under an argon atmosphere.

2.2. Preparation of Amine-Functionalized Composite Materials

The graphene oxide (GO) was prepared according to the literature-reported method [29]. GO (1 g) was dissolved in distilled water (50 mL) in a conical flask and sonicated for one hour. Then, cetyltrimethylammonium bromide (0.5 g), 2 M of NaOH (aq) (7 mL, 14 mmol), and H2O (480 g) were added to a conical flask and stirred for 30 min. The sonicated GO solution was slowly added to the mixture and stirred for 1 h. Then, tetraethyl orthosilicate (44.8 mmol) and 3-(2-aminoethylamino) propyl trimethoxysilane (AAPTMS) (1.68 mL) were added in sequence and stirred for 2 h at 70 °C. The products were isolated by a hot filtration, washed with water followed by ethanol, and dried in an oven. For the removal of the surfactant, we used an acid extraction technique. Then, the mixture dried at 100 °C for overnight. The final sample was designated as AAPTMS@GO-MCM-41. The amine-functionalized zirconia and amine-functionalized mesoporous silica were prepared using the reported methods [30,31].

2.3. Preparation of Cu(0) Modified Composite Materials

The amine-functionalized graphene oxide-mesoporous silica composite material (1 g) was suspended in 50 mL water in a beaker. Then required amount of aqueous CuCl2.2H2O was added dropwise to achieve the 1, 5, and 10 wt% Cu materials. Then the solution was stirred for 30 min. Then, the plant extract reducing agent was added to the final mixture and stirred for another 4 h. Finally, the mixture was washed several times with double distilled water and hot water. Then, the product was dried in a vacuum oven at 100 °C for overnight. Hereafter the prepared samples are termed as xCu(0)-AAPTMS@RGO-MCM-41 (x = 1, 5 or 10 wt%).We also prepared amine-functionalized materials loaded with 5 wt% copper on mesoporous silica (5Cu(0)-AAPTMS@MCM-41), zirconia (5Cu(0)-AAPTMS@ZrO2), and graphene oxide (5Cu(0)-AAPTMS@RGO). ICP-MS was used to calculate the exact percentage % of Cu present on the catalyst, which was found to be 0.91, 4.79, and 9.57.

2.4. Physico-Chemical Analytical Methods

The Bruker D8 Advance instrument was used for X-ray diffraction (XRD) study. The Jeol JEM-1010 electron microscope with iTEM software was used for the TEM study. High-resolution TEM images were recorded with Jeol JEM 2100 Electron Microscope. A JEOL JSM-6100 microscope was used for both SEM and EDX studies. The DeltaNu advantage 532™ Raman instrument was used for Raman spectra.

2.5. General Procedure for Catalytic Ullman C-C/C-O/C-N Coupling Reaction

The Ullman C-C coupling reaction was performed in a 50 mL round-bottomed flask. In the round-bottomed flask, the mixture of catalyst (0.03 g), water solvent (10 mL), Aryl halide (4.5 mmol), HCOONa (1.10 g), and KOH (1.40 g) was stirred for 5 h at 80 oC. Then, the products were extracted with diethyl ether. The final products were analyzed by an off-line Shimadzu gas chromatograph (GC-2010).
The Ullman C-O coupling reaction, Aryl halide (1.5 mmol), phenol (1.0 mmol), catalyst (0.03 g), and Cs2CO3 (2.0 mmol) in DMF (1 mL) were stirred in a 50 mL flask at 100 °C for 7 h. Then the products were analyzed off-line using GC-2010.
The Ullman C-N coupling reaction, Aryl halide (1 mmol), aniline (1.2 mmol), catalyst (0.03 g), and Cs2CO3 (2.0 mmol) in DMF (1 mL) were stirred in a 50 mL flask for 6 h at 110 °C. Off-line GC-2010 was used to analyze the final.

3. Results and Discussion

3.1. Surface Characterization

Figure 1 illustrates the X-ray diffraction spectra of (a)1 Cu(0)-AAPTMS@RGO-MCM-41, (b) 5Cu(0)-AAPTMS@RGO-MCM-41and (c) 10Cu(0)-AAPTMS@RGO-MCM-41 materials. In RGO, the main peak represents the (002) plane at a 2 θ value of 10.75 degrees [32]. During the preparation, we used both plant extract reducing agent and sonication to generate Cu nanoparticles. The (002) plane of the graphene oxide peak vanished as it formed reduced graphene oxide. In graphene oxide and MCM-41, no peaks were observed at a higher angle for mesoporous silica due to the amorphous nature of the silica material. Therefore, high angle XRD did not confirm the composite materials. For further confirmation, we used SEM and EDX studies. From this analysis, we confirmed the formation of reduced graphene oxide and mesoporous silica composite materials. In these XRD spectra, all the 1, 5, and 10 wt% samples gave three peaks at 2θ ≈ 43.47, 50.44, and 74.55 correspond to the (111), (200), and (220) planes of Cu metal nanoparticles, respectively [33]. Thus, the XRD pattern provides another confirmation about the Cu nanoparticle and reduced graphene oxide.
The Raman spectra of (a) 1Cu(0)-AAPTMS@RGO-MCM-41, (b) 5Cu(0)-AAPTMS@RGO-MCM-41, and (c) 10Cu(0)-AAPTMS@RGO-MCM-41 are represented in Figure 2. In these spectra, all the composite materials give the characteristic D and G bands. The bands at 1355 cm−1 represent the disorder in the sp2-hybridized carbon atoms, and 1604 cm−1 represents σ-sp2 bonded C-atoms in carbon-based graphene materials. The D and G band position slightly shifted towards the higher wavenumber for all the samples. The shift was due to metal modification via molecular interaction. The Id/Ig ratios were 0.69, 0.73, and 0.72 for (a) 1Cu(0)-AAPTMS@RGO-MCM-41, (b) 5Cu(0)-AAPTMS@RGO-MCM-41, and (c) 10Cu(0)-AAPTMS@RGO-MCM-41 samples. The Id/Ig ratio of metal-modified functionalized composite materials increased the intensity of the Id/Ig ratio up to 0.1 compared with graphene oxide.
Figure 3 illustrates the Scanning electron microscopy images, transmission electron microscopy, and the SAAD pattern of the 5Cu(0)-AAPTMS@RGO-MCM-41 sample. The SEM images (Figure 3a,b) show that all the graphene oxide sheets converted to reduced graphene oxide, and some spherical particles represent the mesoporous silica. Thus, the carbon-based material and mesoporous silica formed the composite materials. The tiny particles on the surface of the composite material were due to the functionalization of composite material. The functional group increases the binding capacity of the metal particles. The spherical mesoporous silica particles and the Cu nanoparticles were confirmed from the TEM image of Figure 3c. The electron diffraction pattern gives information about the planes such as (111), (200), and (220), which resemble the d-spacing of the Cu phases as obtained from the powder X-ray diffraction study.
High-resolution images of (a) 5Cu(0)-AAPTMS@RGO-MCM-41 and (b) histogram of the particle size distribution for Cu nanoparticles are shown in Figure 4. In this image (Figure 4a), the big spherical particles are mesoaporous silica, represented with yellow lines. The reduced graphene oxide is also represented by yellow lines in Figure 4a. In this image, the red circles represent the Cu Nanoparticles. A histogram of the particle size distribution reflects the size of the particles. Figure 4b illustrates the particle size for Cu nanoparticles as 4–6.5 nm.
Figure 5 illustrates the Scanning electron microscopy and energy-dispersive X-ray spectroscopy images of 5Cu(0)-AAPTMS@RGO-MCM-41 sample. Energy-dispersive X-ray spectroscopy (EDS) analysis allows determining the surface elemental composition of the materials. The C, Cu, N, Si and O molecules on the surface of the composite materials can be perceived (confirmed by color mapping images).

3.2. Catalyst Evaluation

In the present work, we studied the activity of Cu nanoparticles loaded on different functionalized supports as a catalyst for C-C, C-O, and C-N Ullmann coupling reactions. We initially investigated different wt% of Cu nanoparticles supported reduced graphene oxide–mesoporous silica material. Uniform distribution over the support surface was observed, only with 5 wt% material among the three Cu loadings. Hence, we prepared 5 wt% Cu on various supports and compared their activity.
The assessed the efficiency of water, DMF, THF, benzene, and toluene as solvents on the reaction and the effect of varying halo- substituents on benzene on the yields of the coupling reactions. In Ullmann C-C homo-coupling reaction, we used two iodobenzene molecules as the model substrate and potassium carbonate as a base with water as the solvent. The obtained yields with different catalysts summarized in Figure 6 illustrate that 5Cu(0)-AAPTMS@RGO-MCM-41 gave excellent yield (97%) of the biphenyl product as compared to other materials such as 5Cu(0)-AAPTMS@MCM-41 (87%), 5Cu(0)-AAPTMS@ZrO2 (84%), and 5Cu(0)-AAPTMS@GO (89%) under similar conditions. The superior yield may be due to the better distribution of Cu nanoparticles on RGO and MCM-41 composite surfaces. The 1Cu(0)-AAPTMS@RGO-MCM-41 gave a relatively lower yield (91%), which could be due to the fewer metal particles available on the catalyst surface. With 10Cu(0)-AAPTMS@RGO-MCM-41, the yield decreased from 97 to 93%. This decrease could be due to the increased loading of the metal agglomerate and offering less active sites of the surface of the composite material. Thus, 5Cu(0)-AAPTMS@RGO-MCM-41 material proved ideal for this coupling reaction.
Li et al. [34] reported that MOF- 253·0.05PdCl2catalyst gives 99% yield in DMSO/EtOH (20:1) at 120 °C for 10 h, while Pd/Ph-SBA-15 catalyst reportedly gave 75% yield at 100 °C for 10 h [35]. Wan et al. described that silica-carbon supported palladium catalyst offers 64% yield in water medium for 6 h [36]. Karim et al. [37] reported that Au-supported mesoporous silica gives 95% yield at 100 °C for 16 h. Varadwaj et al. Pd(0) reported that Nanoparticles supported organo-functionalized clay gave 96% yield in a water medium at 80 °C for6 h [38]. The inherent disadvantages associated with these reports were higher temperature, longer reaction time and expensive metal catalysts. The current method giving 97% yield in 5 h at 80 °C in an aqueous medium offers superior yield, reaction time, solvent and temperature conditions.
For investigating the Ullmann C-O coupling reaction, we used iodobenzene and phenol as the model reactants and potassium carbonate as base and DMF as the solvent. Figure 7 illustrates the obtained results. The 5Cu(0)-AAPTMS@RGO-MCM-41 gave the highest yield (94%) towards the C-O coupling reaction in a shorter time (7 h) at 100 °C temperature, while 1Cu(0)-AAPTMS@RGO-MCM-41 gave 87%, 10wt% gave 88% yields. Compared to the 5Cu(0)-AAPTMS@RGO-MCM-41 composite, the materials with other supports, namely 5Cu-AAPTMS@MCM-41 offered (80%), 5Cu-AAPTMS@ZrO2 (79%), and 5Cu-AAPTMS@GO (83%) under comparable reaction conditions.
The literature survey shows that Mahmoud et al. used magnetically separable and reusable copper nanoparticles (NPs) supported on reduced graphene oxide (RGO)–Fe3O4 as the catalyst for O-arylation of phenols with aryl halides with 98% yield at 120 °C for 12 h in the presence of DMSO solvent withtBu4NBr [39]. Miao et al. reported that silica-supported Cu(II) catalyst gives excellent yields (92%) in DMSO at 130 °C for 16 h [40]. As published by Arundhathi et al., the O-arylation of phenol with iodobenzene gives 97% yield in the presence of natural clay with DMF solvent at 110 °C for 12 h [41]. Zhai et al. reported that Cu2O/graphene catalyst gives 96% yield in THF at 150 °C for 3 h [42]. In most published methods, the yield towards C-O coupling was generally good, but reaction required high temperatures and long reaction times. We also prepared and assessed the activity of different Cu-loaded supported materials under comparable conditions. The examination of the table shows that our catalyst gave superior results at lower temperatures and shorter times than the other literature reported results.
The C-N coupling reaction between iodobenzene and aniline was investigated using potassium carbonate as a base and DMF as a solvent (Figure 8). 5Cu(0)-AAPTMS@RGO-MCM-41 gave superior yield (85%) towards C-N coupling reaction compared to graphene oxide (76%), zirconia (69%), and mesoporous silica (74%) supported materials. The 1% and 10Cu (0)-AAPTMS@RGO-MCM-41 composites offered 80% and 83% yields, respectively. Literature review shows that only very few articles on C-N coupling reactions. Pan et al. [43] reported that Cu nanoparticles-modified silicon nanowires give 89% yield in the presence of DMSO, at 110 °C for 18 h.
In both homo and hetero coupling reactions, the solvent plays a crucial role in the selectivity and yield of the reaction product. Therefore, we investigated the effect of different media (solvent) on the three Ullmann coupling reactions, and the obtained results are summarized in Table 1, Table 2 and Table 3. Toluene and benzene gave meagre yield towards C-C, C-O and C-N coupling products, while polar solvents THF and DMF gave excellent returns. As water is a green and cost-effective solvent, it is the preferred solvent. Some researchers explored water as a co-solvent for Ulmann C-C homo-coupling reaction. We examined the efficiency of the Cu nanoparticle-doped organo-functionalized composite material as a catalyst for C-C homo-coupling with water as a solvent, and fascinatingly excellent yield was obtained (Table 1, entry 5). Similar to the C-C coupling reaction, nonpolar solvent gave lower products for C-O and C-N coupling reactions, and polar solvents offered good yields (Table 2 and Table 3). Generally, polar solvents increase the rate of trans-metalation but decrease the stability of the catalyst. A Cu catalyst is capable of facilitating faster trans-metalation in a polar medium. As anticipated, 5Cu(0)-AAPTMS@RGO-MCM-41 material increased the yield of the coupling product in a polar solvent while maintaining the stability of the catalyst.
The yields for reactions of bromobenzene and chlorobenzene with phenol and aniline are summarized in Table 4. The 5Cu(0)-AAPTMS@RGO-MCM-41 catalyst performed well for all three reaction types except for lower yields with Cl-substituents for C-O and C-N coupling reactions. Bromobenzene offered good to excellent yields in all three coupling reactions. It also gave good gains with Cl-substituted benzene for the C-C coupling reaction. The C-Br, C-Cl, and C-I bond energies are 281.4, 340.2, and 222.6 kJ mol−1. According to MOT theory, the C-I bond easily breaks due to low energy and forms C–C, C-O, and C-N products compared to C-Br and C-Cl bond.
Figure 9 shows a yield versus time plot, which illustrates the significance of the catalyst towards the Ullman C-C coupling reaction. The red line connecting with yellow squares indicates the yield of biphenyl in the presence of a catalyst. During the experiment, after 2.5 h of the reaction, the catalyst was removed by filtration. The reaction was monitored for another 2.5 h in the absence of the catalyst. The yield of the biphenyl product did not increase during that period, suggesting that Cu from the composite did not leach to the reaction medium. These results are indicated by a blue line connected to the red cube in Figure 9. Hence, the Cu metal particles were tightly bonded and stable with functionalized composite material.
In heterogeneous catalysis, the material’s recyclability is paramount, and it is contingent primarily on the stability of the catalyst. The activity of catalyst materials can decline due to the leaching effect of the active metal or the agglomeration of the metal particles. For robustness, the recovered catalyst was reused after regeneration by calcination. Up to the fourth cycle, the yield of the product has not changed. The active metal particle did not leach out in the reaction medium because of the strong bonding between metal nanoparticles and functionalized composite material. On the fifth cycle to onwards, some reduction in its productivity was observed in Figure 10.

4. Conclusions

In conclusion, we demonstrate the synthesis of amine-functionalized composites with well-dispersed Cu particles (4–6.5 nm) using a green reducing agent, a plant extract. 5Cu(0)-AAPTMS@RGO-MCM-41 displayed excellent catalytic activity towards all the C-C, C-O, and C-N coupling reactions with different substrates and showed recyclability up to the fourth cycle. The strong bonding between the metal nanoparticle and functional groups of functionalized composite material prevents the aggregation of metal particles and leaching during the reaction time. XRD and TEM analysis confirmed the size of Cu nanoparticles.
Future perspectives of the proposed method: (i) Leaf extract (Wallich Spurge) as a green and eco-friendly reducing agent, (ii) the functionalization reduced graphene oxide and silica composites preventing nanoparticle agglomeration and (iii) the novel nanocomposite possess potential applications as a catalyst in different C-C and C-hetero atom coupling reactions.

Author Contributions

S.R. (Conceptualization, Formal analysis, methodology, writing—original draft preparation); G.B.B.V. (Conceptualization, Formal analysis, investigation); S.B.J. (Resources, writing—review and editing, supervision and funding acquisition). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by University of KwaZulu-Natal.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors acknowledge the support received from the School of Chemistry and Physics and the College of Agriculture, Engineering and Science, University of KwaZulu-Natal, Durban, South Africa, for research facilities and financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Senanayake, S.; Stacchiola, D.; Rodriguez, J.A. Unique Properties of Ceria Nanoparticles Supported on Metals: Novel Inverse Ceria/Copper Catalysts for CO Oxidation and the Water-Gas Shift Reaction. Acc. Chem. Res. 2013, 46, 1702–1711. [Google Scholar] [CrossRef] [PubMed]
  2. Bordiga, S.; Groppo, E.; Agostini, G.; Van Bokhoven, J.A.; Lamberti, C. Reactivity of Surface Species in Heterogeneous Catalysts Probed by In Situ X-ray Absorption Techniques. Chem. Rev. 2013, 113, 1736–1850. [Google Scholar] [CrossRef] [Green Version]
  3. Laurent, S.; Forge, D.; Port, M.; Roch, A.; Robic, C.; Vander Elst, L.; Muller, R.N. Magnetic Iron Oxide Nanoparticles: Synthesis, Stabilisation, Vectorization, Physicochemical Characterizations, and Biological Applications. Chem. Rev. 2008, 108, 2064–2110. [Google Scholar] [CrossRef] [PubMed]
  4. Gawande, M.B.; Branco, P.; Parghi, K.D.; Shrikhande, J.J.; Pandey, R.K.; Ghumman, C.A.A.; Bundaleski, N.; Teodoro, O.; Jayaram, R.V. Synthesis and characterization of versatile MgO–ZrO2 mixed metal oxide nanoparticles and their applications. Catal. Sci. Technol. 2011, 1, 1653–1664. [Google Scholar] [CrossRef]
  5. Zaera, F. Nanostructured materials for applications in heterogeneous catalysis. Chem. Soc. Rev. 2013, 42, 2746–2762. [Google Scholar] [CrossRef] [PubMed]
  6. Evano, G.; Blanchard, N.; Toumi, M. Copper-Mediated Coupling Reactions and Their Applications in Natural Products and Designed Biomolecules Synthesis. Chem. Rev. 2008, 108, 3054–3131. [Google Scholar] [CrossRef]
  7. Losada-Garcia, N.; Rodriguez-Otero, A.; Palomo, J.M. Tailorable synthesis of heterogeneous enzyme–copper nanobiohybrids and their application in the selective oxidation of benzene to phenol. Catal. Sci. Technol. 2020, 10, 196–206. [Google Scholar] [CrossRef] [Green Version]
  8. Huang, H.; Huang, W.; Xu, Y.; Ye, X.; Wu, M.; Shao, Q.; Ou, G.; Peng, Z.; Shi, J.; Chen, J.; et al. Catalytic oxidation of gaseous benzene with ozone over zeolite-supported metal oxide nanoparticles at room temperature. Catal. Today 2015, 258, 627–633. [Google Scholar] [CrossRef]
  9. Ahmed, A.; Elvati, P.; Violi, A. Size-and phase-dependent structure of copper (II) oxide nanoparticles. RSC Adv. 2015, 5, 35033–35041. [Google Scholar] [CrossRef]
  10. Mondal, J.; Biswas, A.; Chiba, S.; Zhao, Y. Cu0 Nanoparticles Deposited on Nanoporous Polymers: A Recyclable Heterogeneous Nanocatalyst for Ullmann Coupling of Aryl Halides with Amines in Water. Sci. Rep. 2015, 5, 8294. [Google Scholar] [CrossRef] [Green Version]
  11. Baig, N.; Varma, R. Copper Modified Magnetic Bimetallic Nano-catalysts Ligand Regulated Catalytic Activity. Curr. Org. Chem. 2013, 17, 2227–2237. [Google Scholar] [CrossRef]
  12. Gawande, M.B.; Goswami, A.; Felpin, F.-X.; Asefa, T.; Huang, X.; Silva, R.; Zou, X.; Zboril, R.; Varma, R.S. Cu and Cu-Based Nanoparticles: Synthesis and Applications in Catalysis. Chem. Rev. 2016, 116, 3722–3811. [Google Scholar] [CrossRef] [Green Version]
  13. Nerl, H.; Cheng, C.; E Goode, A.; Bergin, S.D.; Lich, B.; Gass, M.; E Porter, A. Imaging methods for determining uptake and toxicity of carbon nanotubesin vitroandin vivo. Nano Med. 2011, 6, 849–865. [Google Scholar] [CrossRef] [PubMed]
  14. Allen, M.J.; Tung, V.; Kaner, R.B. Honeycomb Carbon: A Review of Graphene. Chem. Rev. 2010, 110, 132–145. [Google Scholar] [CrossRef]
  15. Geim, A.K.; Novoselov, K. The rise of graphene. Nat. Mater. 2007, 6, 183–191. [Google Scholar] [CrossRef]
  16. Yu, D.; Dai, L. Self-Assembled Graphene/Carbon Nanotube Hybrid Films for Supercapacitors. J. Phys. Chem. Lett. 2010, 1, 467–470. [Google Scholar] [CrossRef]
  17. Liu, Y.; Yu, D.; Zeng, C.; Miao, Z.; Dai, L. Biocompatible Graphene Oxide-Based Glucose Biosensors. Langmuir 2010, 26, 6158–6160. [Google Scholar] [CrossRef]
  18. Geim, A.K. Graphene: Status and Prospects. Science 2009, 324, 1530–1534. [Google Scholar] [CrossRef] [Green Version]
  19. Nair, R.R.; Blake, P.; Grigorenko, A.N.; Novoselov, K.; Booth, T.; Stauber, T.; Peres, N.M.R.; Geim, A.K. Fine Structure Constant Defines Visual Transparency of Graphene. Science 2008, 320, 1308. [Google Scholar] [CrossRef] [Green Version]
  20. Zhu, Y.; Murali, S.; Cai, W.; Li, X.; Suk, J.W.; Potts, J.R.; Ruoff, R.S. Graphene and Graphene Oxide: Synthesis, Properties, and Applications. Adv. Mater. 2010, 22, 3906–3924. [Google Scholar] [CrossRef]
  21. Park, S.; Ruoff, R.S. Chemical methods for the production of graphenes. Nat. Nanotechnol. 2009, 4, 217–224. [Google Scholar] [CrossRef]
  22. Qu, L.; Liu, Y.; Baek, J.-B.; Dai, L. Nitrogen-Doped Graphene as Efficient Metal-Free Electrocatalyst for Oxygen Reduction in Fuel Cells. ACS Nano 2010, 4, 1321–1326. [Google Scholar] [CrossRef]
  23. Dreyer, D.R.; Park, S.; Bielawski, C.W.; Ruoff, R.S. The chemistry of graphene oxide. Chem. Soc. Rev. 2010, 39, 228–240. [Google Scholar] [CrossRef]
  24. Huang, X.; Yin, Z.; Wu, S.; Qi, X.; He, Q.; Zhang, Q.; Yan, Q.; Boey, F.; Zhang, H. Graphene-Based Materials: Synthesis, Characterization, Properties, and Applications. Small 2011, 7, 1876–1902. [Google Scholar] [CrossRef]
  25. Pary, F.F.; Tirumala, R.T.A.; Andiappan, M.; Nelson, T.L. Copper(i) oxide nanoparticle-mediated C–C couplings for synthesis of polyphenylenediethynylenes: Evidence for a homogeneous catalytic pathway. Catal. Sci. Technol. 2021, 11, 2414–2421. [Google Scholar] [CrossRef]
  26. Sonei, M.S.S.; Taghavi, F.; Khojastehnezhad, A.; Gholizadeh, M. Copper-Functionalized Silica-Coated Magnetic Nanoparticles for an Efficient Suzuki Cross-Coupling Reaction. ChemistrySelect 2021, 6, 359–368. [Google Scholar] [CrossRef]
  27. Lee, J.K.; Smith, K.B.; Hayner, C.M.; Kung, H.H. Silicon nanoparticles–graphene paper composites for Li ion battery anodes. Chem. Commun. 2010, 46, 2025–2027. [Google Scholar] [CrossRef] [PubMed]
  28. Ley, S.; Thomas, A.W. Modern Synthetic Methods for Copper-Mediated C(aryl)-O, C(aryl)-N, and C(aryl)-S Bond Formation. Angew. Chem. Int. Ed. 2003, 42, 5400–5449. [Google Scholar] [CrossRef]
  29. Rana, S.; Varadwaj, G.B.B.; Jonnalagadda, S.B.; Varadwaj, B.B. Ni nanoparticle supported reduced graphene oxide as a highly active and durable heterogeneous material for coupling reactions. Nanoscale Adv. 2019, 1, 1527–1530. [Google Scholar] [CrossRef] [Green Version]
  30. Rana, S.; Mallick, S.; Parida, K.M. Facile Method for Synthesis of Polyamine-Functionalized Mesoporous Zirconia and Its Catalytic Evaluation toward Henry Reaction. Ind. Eng. Chem. Res. 2011, 50, 2055–2064. [Google Scholar] [CrossRef]
  31. Kommidi, D.R.; Rana, S.; Singh, P.; Shintre, S.A.; Koorbanally, N.A.; Jonnalagadda, S.B.; Pagadala, R.; Moodley, B. Novel carbapenem chalcone derivatives: Synthesis, cytotoxicity and molecular docking studies. Org. Biomol. Chem. 2015, 13, 4344–4350. [Google Scholar] [CrossRef] [PubMed]
  32. Rana, S.; Varadwaj, G.B.B.; Jonnalagadda, S.B. Pd nanoparticle supported reduced graphene oxide and its excellent catalytic activity for the Ullmann C–C coupling reaction in a green solvent. RSC Adv. 2019, 9, 13332–13335. [Google Scholar] [CrossRef] [Green Version]
  33. Prabhu, Y.; Rao, K.V.; Sai, V.S.; Pavani, T. A facile biosynthesis of copper nanoparticles: A micro-structural and antibacterial activity investigation. J. Saudi Chem. Soc. 2017, 21, 180–185. [Google Scholar] [CrossRef] [Green Version]
  34. Chen, L.; Gao, Z.; Li, Y. Immobilization of Pd(II) on MOFs as a highly active heterogeneous catalyst for Suzuki–Miyaura and Ullmann-type coupling reactions. Catal. Today 2015, 245, 122–128. [Google Scholar] [CrossRef]
  35. Li, H.; Chai, W.; Zhang, F.; Chen, J. Water-medium Ullmann reaction over a highly active and selective Pd/Ph-SBA-15 catalyst. Green Chem. 2007, 9, 1223–1228. [Google Scholar] [CrossRef]
  36. Wan, Y.; Wang, H.; Zhao, Q.; Klingstedt, M.; Terasaki, O.; Zhao, D. Ordered Mesoporous Pd/Silica−Carbon as a Highly Active Heterogeneous Catalyst for Coupling Reaction of Chlorobenzene in Aqueous Media. J. Am. Chem. Soc. 2009, 131, 4541–4550. [Google Scholar] [CrossRef]
  37. Karimi, B.; Esfahani, F.K. Unexpected golden Ullmann reaction catalyzed by Au nanoparticles supported on periodic mesoporous organosilica (PMO). Chem. Commun. 2011, 47, 10452–10454. [Google Scholar] [CrossRef]
  38. Varadwaj, G.B.B.; Rana, S.; Parida, K. Pd(0) Nanoparticles Supported Organofunctionalized Clay Driving C–C Coupling Reactions under Benign Conditions through a Pd(0)/Pd(II) Redox Interplay. J. Phys. Chem. C 2014, 118, 1640–1651. [Google Scholar] [CrossRef]
  39. Nasrollahzadeh, M.; Maham, M.; Rostami-Vartooni, A.; Bagherzadeh, M.; Sajadi, S.M. Barberry fruit extract assisted in situ green synthesis of Cu nanoparticles supported on a reduced graphene oxide–Fe3O4 nanocomposite as a magnetically separable and reusable catalyst for the O-arylation of phenols with aryl halides under ligand-free conditions. RSC Adv. 2015, 5, 64769–64780. [Google Scholar] [CrossRef]
  40. Miao, T.; Wang, L. Immobilization of copper in organic–inorganic hybrid materials: A highly efficient and reusable catalyst for the Ullmann diaryl etherification. Tetrahedron Lett. 2007, 48, 95–99. [Google Scholar] [CrossRef]
  41. Arundhathi, R.; Sreedhar, B.; Parthasarathy, G. Highly efficient heterogenous catalyst for O-arylation of phenols with aryl halides using natural ferrous chamosite. Appl. Clay Sci. 2011, 51, 131–137. [Google Scholar] [CrossRef]
  42. Zhai, Z.; Guo, X.; Jiao, Z.; Jin, G.; Guo, X.-Y. Graphene-supported Cu2O nanoparticles: An efficient heterogeneous catalyst for C–O cross-coupling of aryl iodides with phenols. Catal. Sci. Technol. 2014, 4, 4196–4199. [Google Scholar] [CrossRef]
  43. Pan, K.; Ming, H.; Yu, H.; Huang, H.; Liu, Y.; Kang, Z. Copper nanoparticles modified silicon nanowires with enhanced cross-coupling catalytic ability. Dalton Trans. 2012, 41, 2564–2566. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 11 02260 g001 550

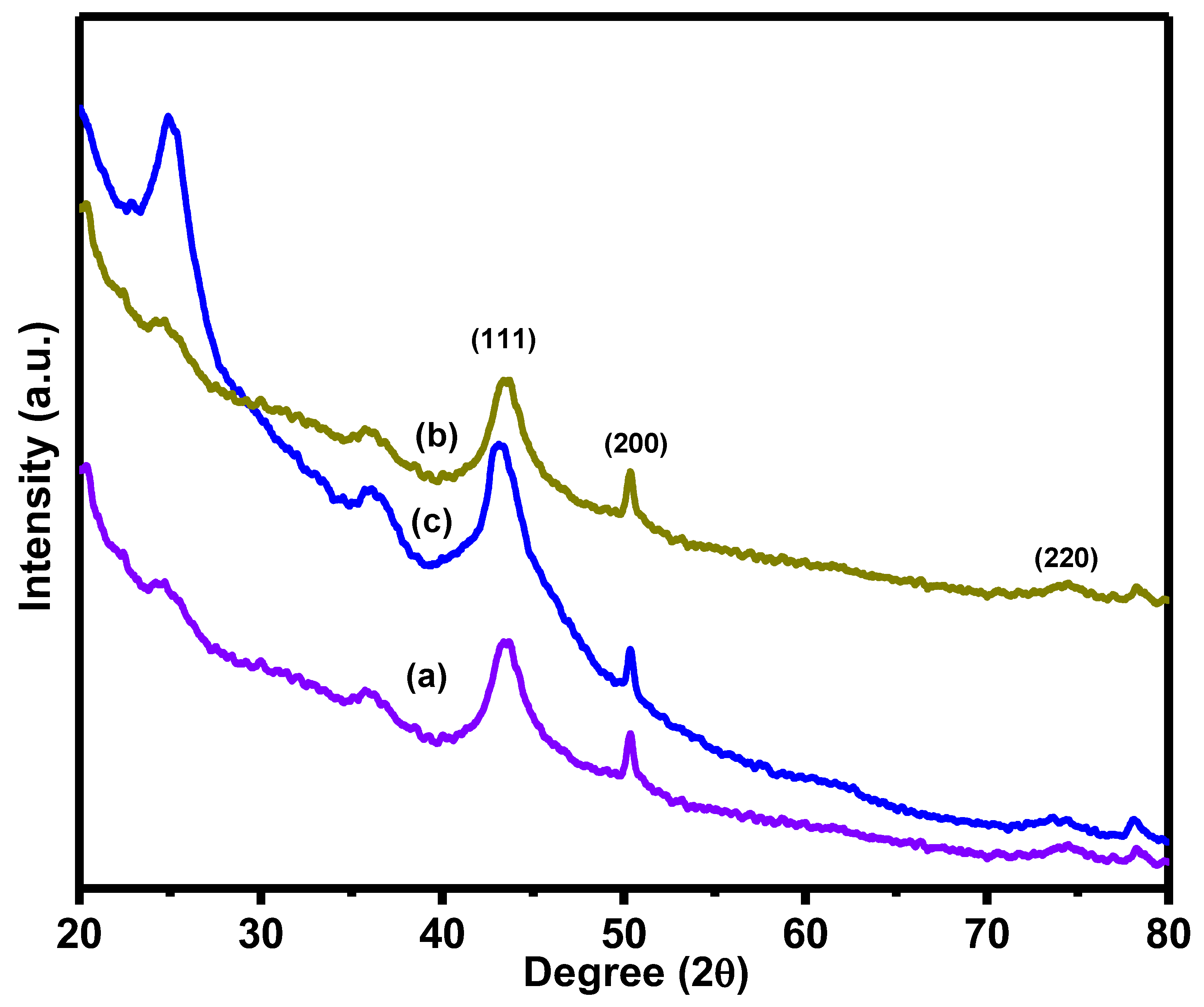

Figure 1. XRD spectra of (a) 1Cu(0)-AAPTMS@RGO-MCM-41, (b) 5Cu(0)-AAPTMS@RGO-MCM-41, and (c) 10Cu(0)-AAPTMS@RGO-MCM-41 samples.
Figure 1. XRD spectra of (a) 1Cu(0)-AAPTMS@RGO-MCM-41, (b) 5Cu(0)-AAPTMS@RGO-MCM-41, and (c) 10Cu(0)-AAPTMS@RGO-MCM-41 samples.
Nanomaterials 11 02260 g001
Nanomaterials 11 02260 g002 550

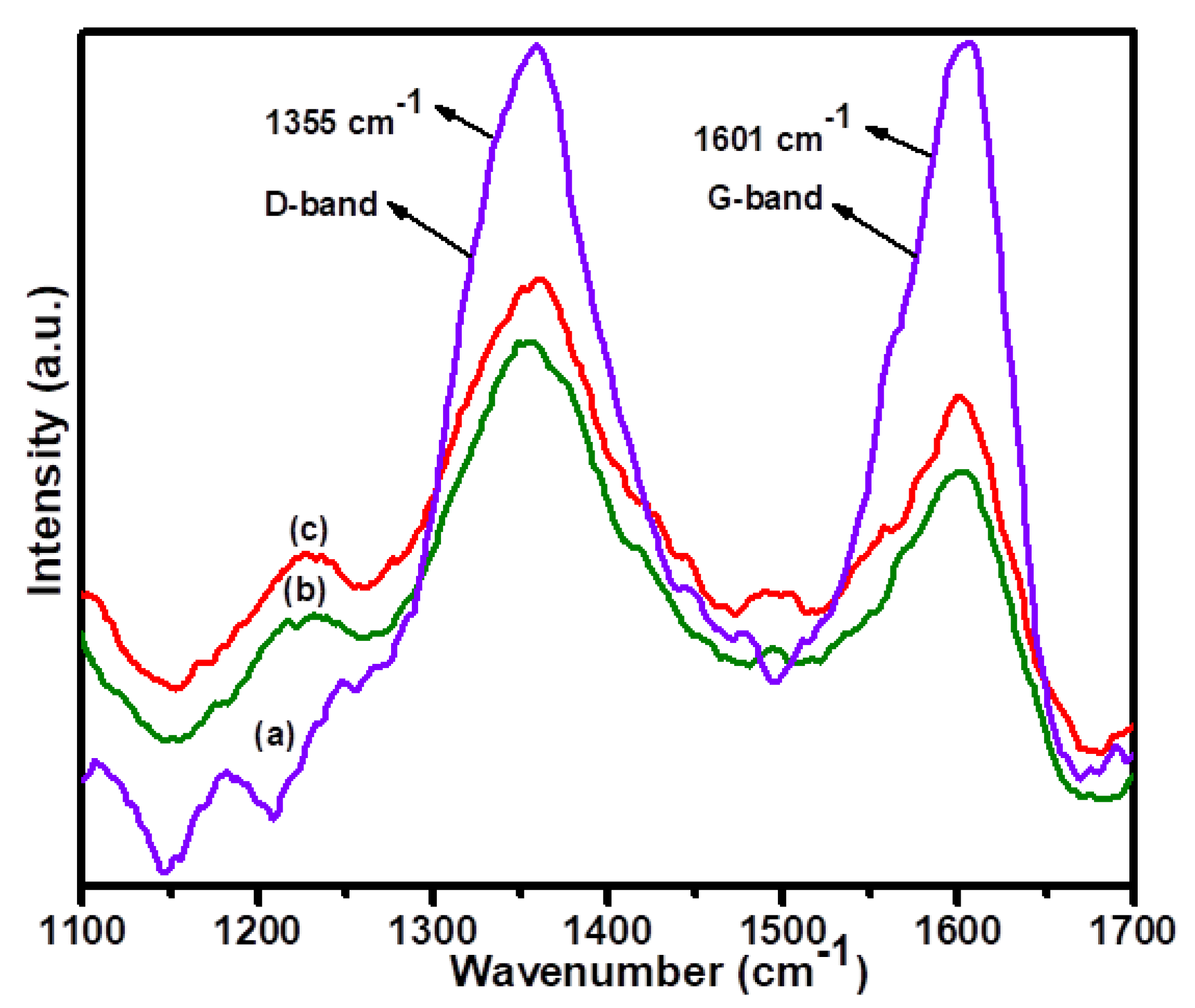

Figure 2. Raman spectra of (a) 1Cu(0)-AAPTMS@RGO-MCM-41, (b) 5Cu(0)-AAPTMS@RGO-MCM-41, and (c) 10Cu(0)-AAPTMS@RGO-MCM-41 samples..
Figure 2. Raman spectra of (a) 1Cu(0)-AAPTMS@RGO-MCM-41, (b) 5Cu(0)-AAPTMS@RGO-MCM-41, and (c) 10Cu(0)-AAPTMS@RGO-MCM-41 samples..
Nanomaterials 11 02260 g002
Nanomaterials 11 02260 g003 550
Figure 3. Different magnifications of SEM image (a,b), TEM image (c), and SAAD pattern (d) of 5Cu(0)-AAPTMS@RGO-MCM-41 sample.
Figure 3. Different magnifications of SEM image (a,b), TEM image (c), and SAAD pattern (d) of 5Cu(0)-AAPTMS@RGO-MCM-41 sample.
Nanomaterials 11 02260 g003
Nanomaterials 11 02260 g004 550

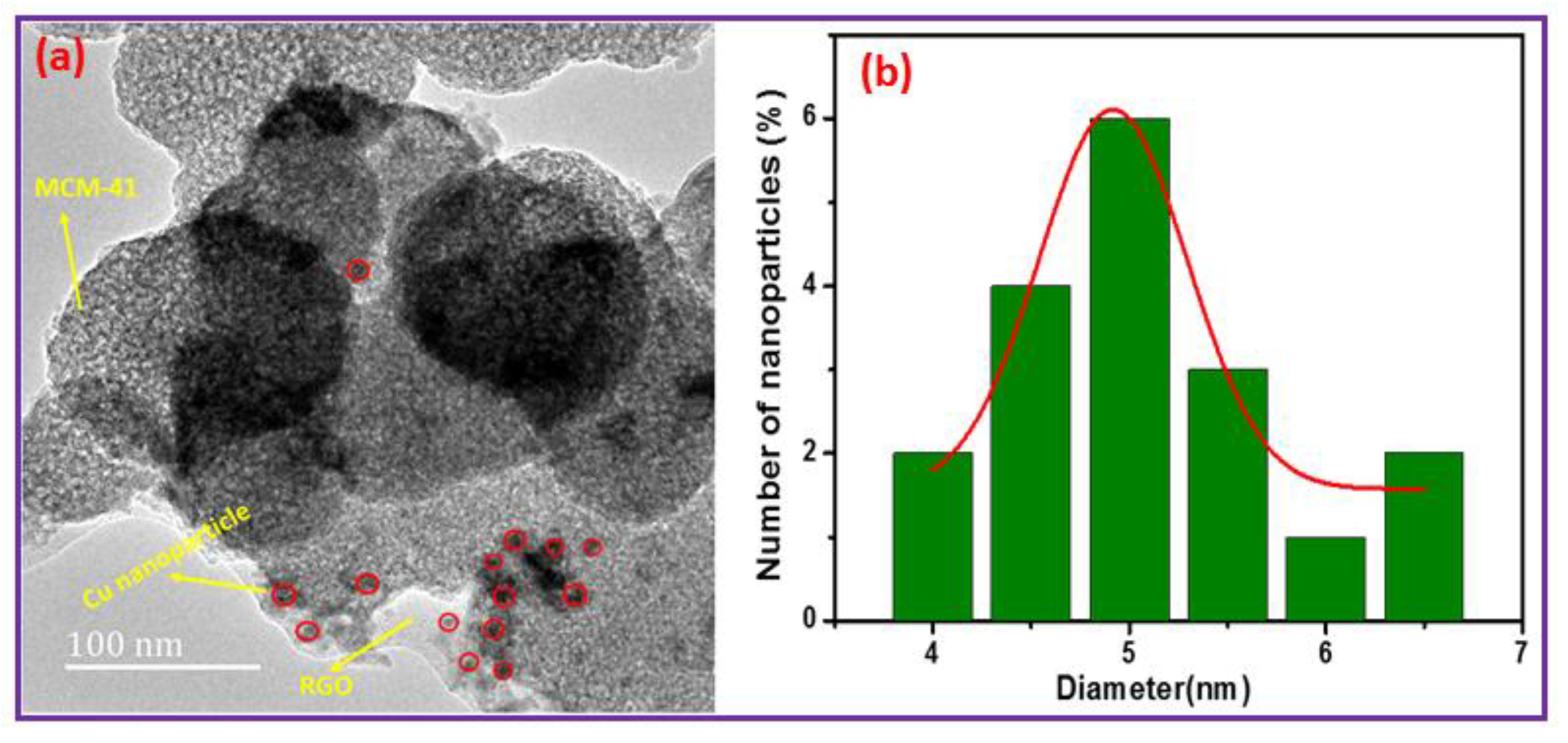

Figure 4. (a) An HRTEM image of 5 Cu(0)-AAPTMS@RGO-MCM-41 and (b) a histogram of the particle size distribution for the Cu nanoparticles.
Figure 4. (a) An HRTEM image of 5 Cu(0)-AAPTMS@RGO-MCM-41 and (b) a histogram of the particle size distribution for the Cu nanoparticles.
Nanomaterials 11 02260 g004
Nanomaterials 11 02260 g005 550

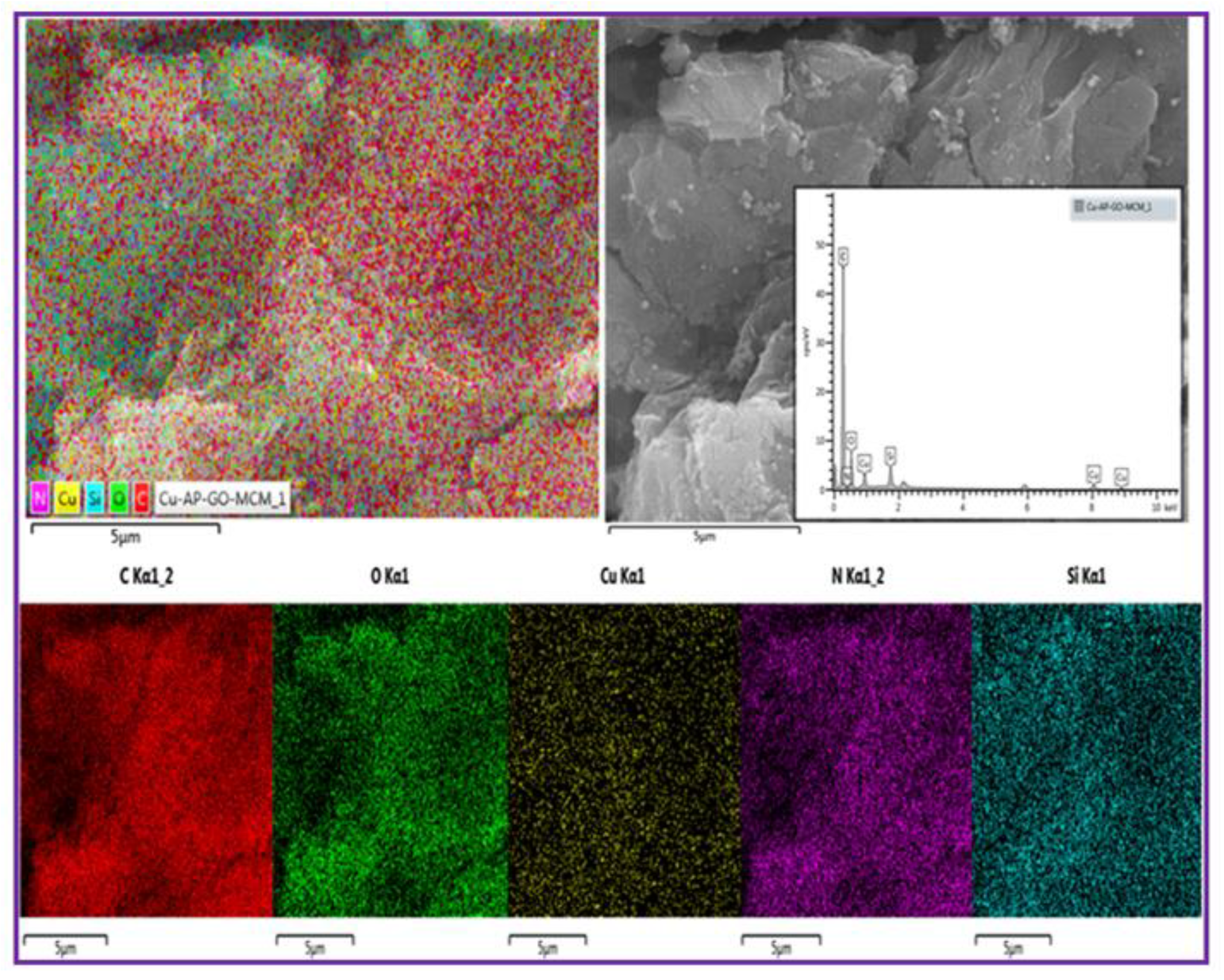

Figure 5. SEM/EDX images of the 5Cu(0)-AAPTMS@RGO-MCM-41 sample.
Figure 5. SEM/EDX images of the 5Cu(0)-AAPTMS@RGO-MCM-41 sample.
Nanomaterials 11 02260 g005
Nanomaterials 11 02260 g006 550

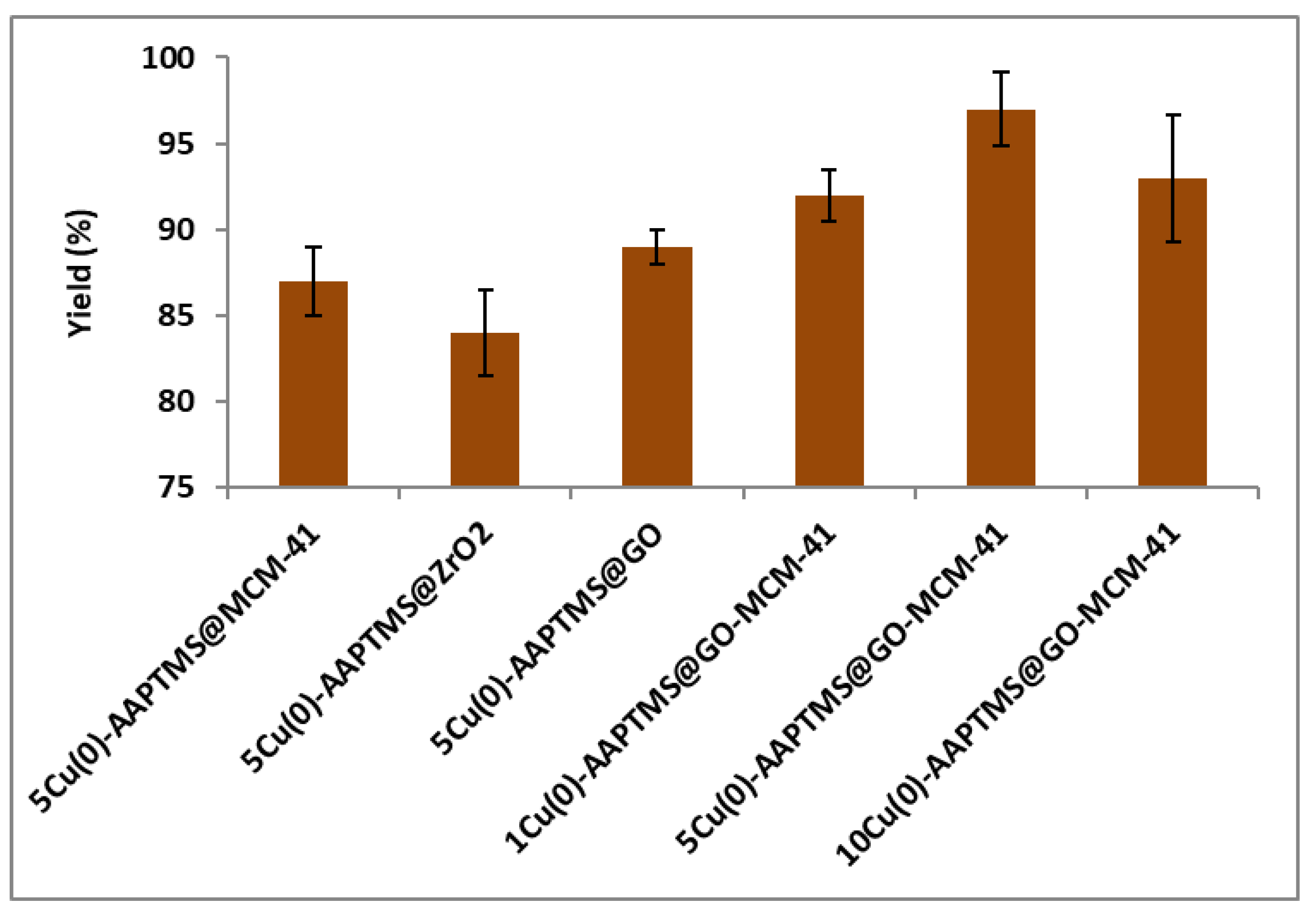

Figure 6. The activity of different catalysts towards the C-C Ullmann coupling reaction a. a Reaction conditions: Temperature, 80 °C; time, 5 h; catalyst, 0.03 g; solvent (water), 10 mL. Reactants: Aryl halides (4.5 mmol); HCOONa (1.10 g); KOH (1.40 g).
Figure 6. The activity of different catalysts towards the C-C Ullmann coupling reaction a. a Reaction conditions: Temperature, 80 °C; time, 5 h; catalyst, 0.03 g; solvent (water), 10 mL. Reactants: Aryl halides (4.5 mmol); HCOONa (1.10 g); KOH (1.40 g).
Nanomaterials 11 02260 g006
Nanomaterials 11 02260 g007 550

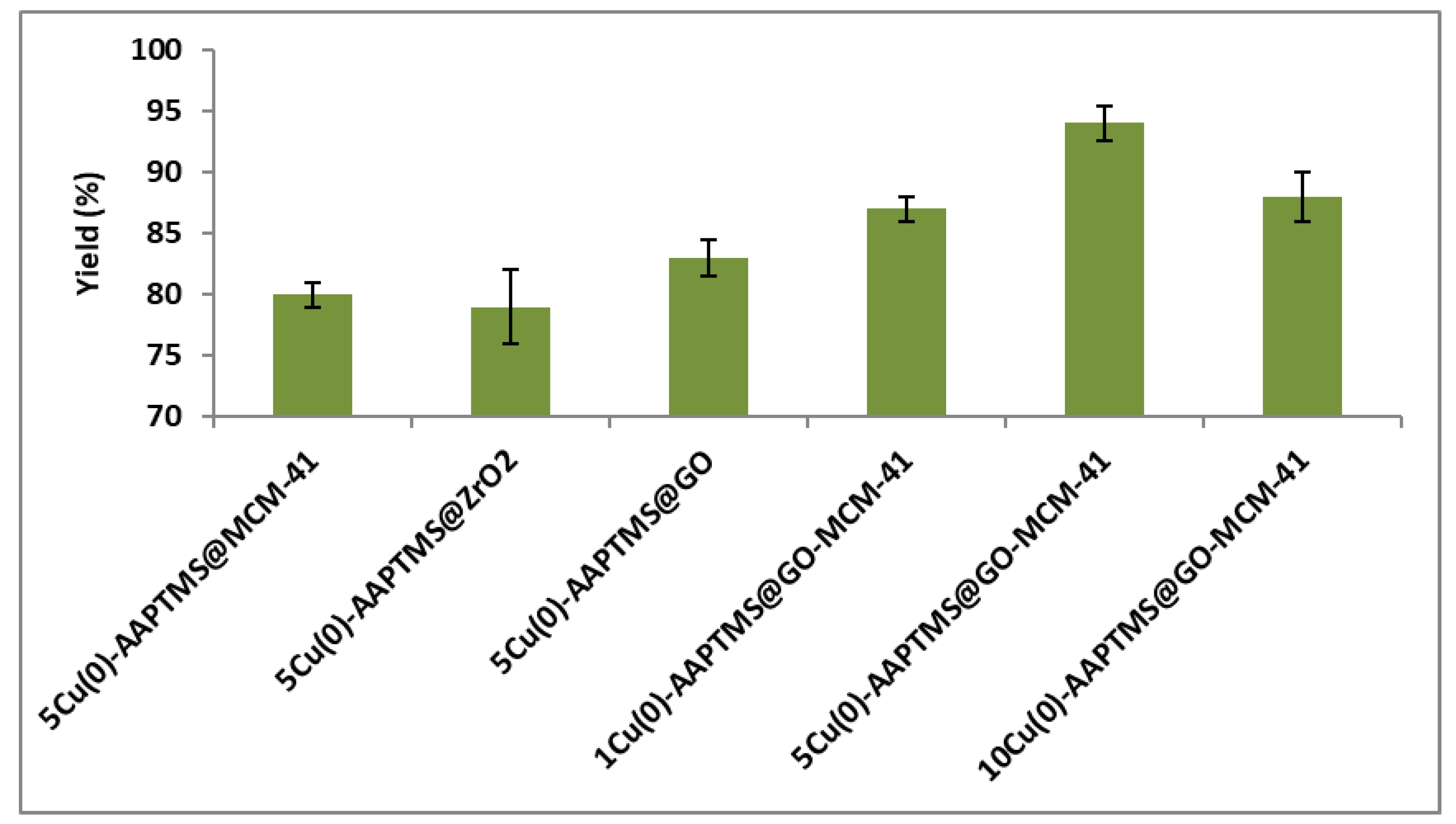

Figure 7. The activity of different catalysts towards the C-O Ullmann coupling reaction a. a Reaction conditions: Temperature, 100 °C; time, 7 h; catalyst, 0.03 g; solvent (DMF), 1 mL. Reactants: Aryl halides (1.5 mmol); Phenol (1.0 mmol); CsCO3 (2 mmol).
Figure 7. The activity of different catalysts towards the C-O Ullmann coupling reaction a. a Reaction conditions: Temperature, 100 °C; time, 7 h; catalyst, 0.03 g; solvent (DMF), 1 mL. Reactants: Aryl halides (1.5 mmol); Phenol (1.0 mmol); CsCO3 (2 mmol).
Nanomaterials 11 02260 g007
Nanomaterials 11 02260 g008 550

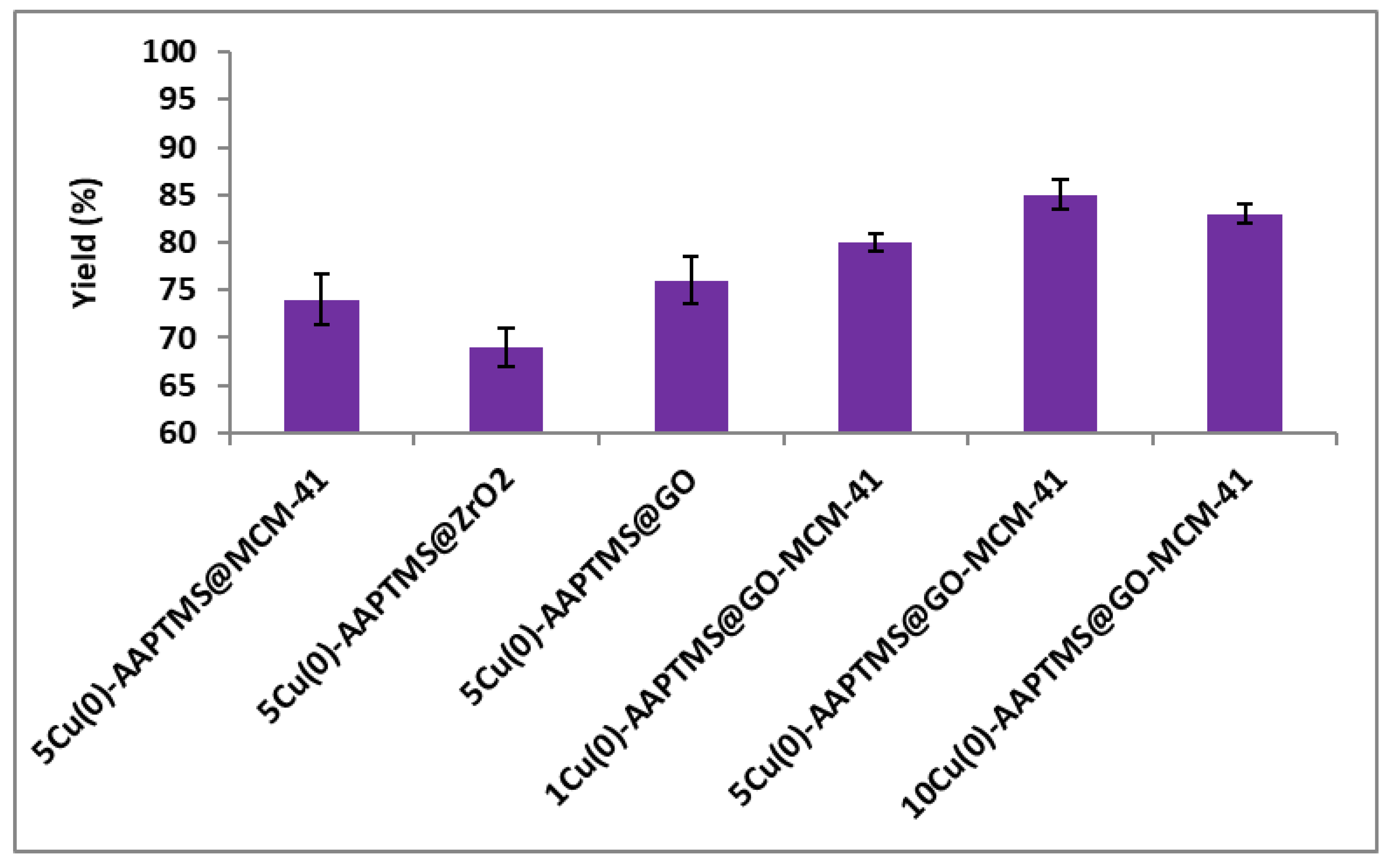

Figure 8. The activity of different catalysts towards the C-N Ullmann coupling reaction a. a Reaction conditions: Temperature, 110 °C; time, 6 h; catalyst, 0.03 g; solvent (DMF), 1 mL. Reactants: Aryl halides (1 mmol); Aniline (1.2 mmol); CsCO3 (2 mmol).
Figure 8. The activity of different catalysts towards the C-N Ullmann coupling reaction a. a Reaction conditions: Temperature, 110 °C; time, 6 h; catalyst, 0.03 g; solvent (DMF), 1 mL. Reactants: Aryl halides (1 mmol); Aniline (1.2 mmol); CsCO3 (2 mmol).
Nanomaterials 11 02260 g008
Nanomaterials 11 02260 g009 550

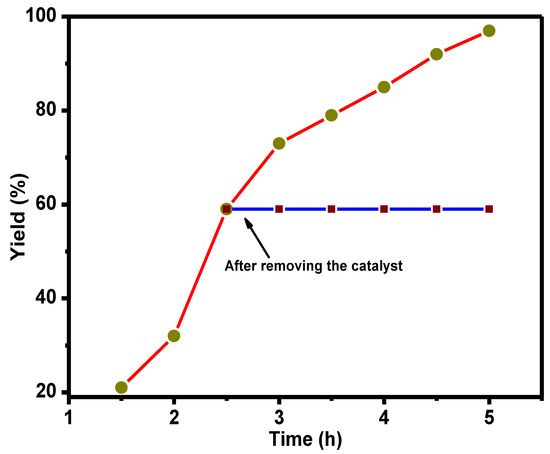

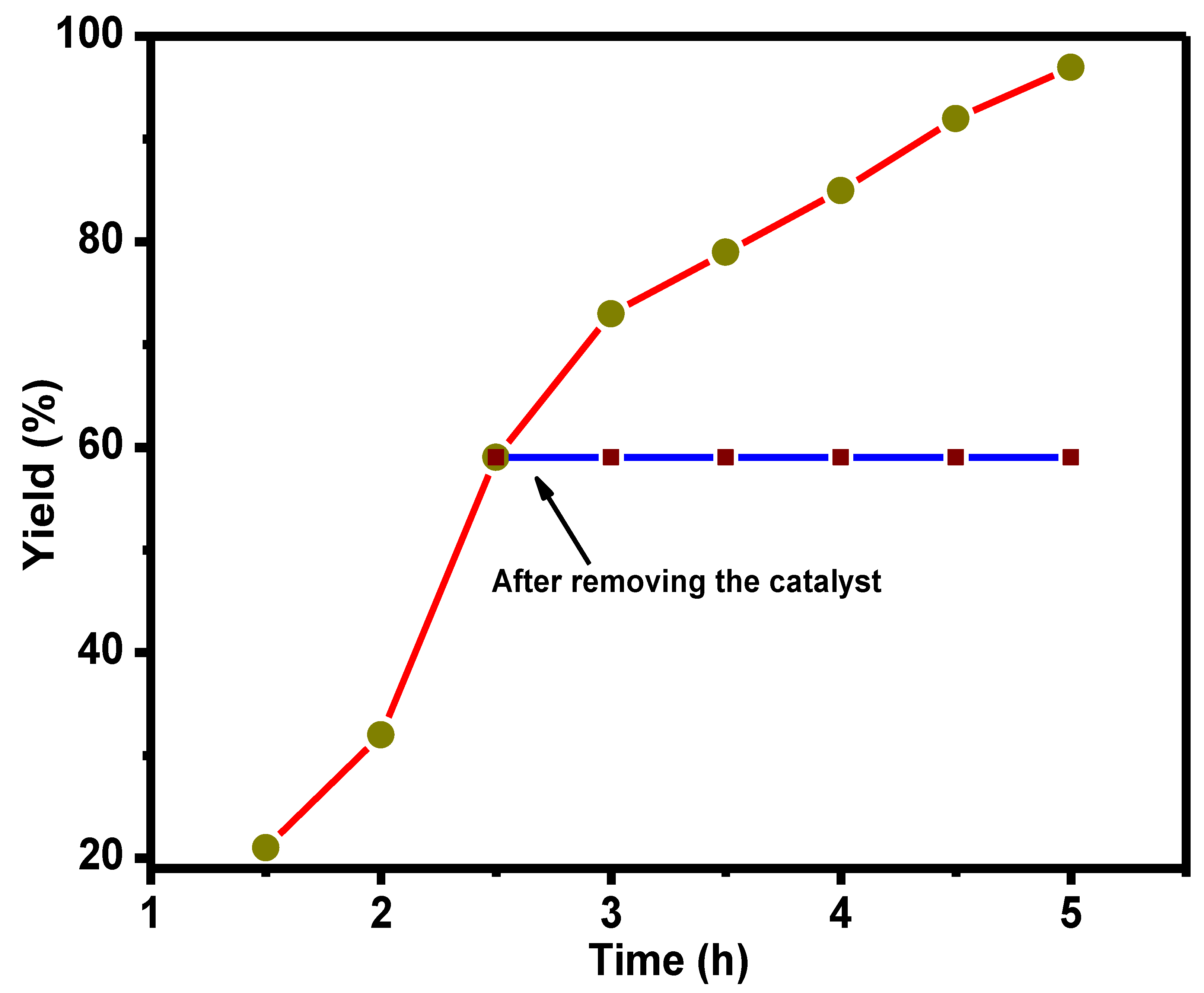

Figure 9. The test to determine homogeneous catalysis contribution in the C-C coupling reaction by 5 Cu(0)-AAPTMS@RGO-MCM-41 a. a The line connecting red squares shows the yield of biphenyl as a function of reaction time in the presence of 5Cu(0)-AAPTMS@RGO-MCM-41. The line connecting blue stars indicates the yield of biphenyl after the removal of the catalyst.
Figure 9. The test to determine homogeneous catalysis contribution in the C-C coupling reaction by 5 Cu(0)-AAPTMS@RGO-MCM-41 a. a The line connecting red squares shows the yield of biphenyl as a function of reaction time in the presence of 5Cu(0)-AAPTMS@RGO-MCM-41. The line connecting blue stars indicates the yield of biphenyl after the removal of the catalyst.
Nanomaterials 11 02260 g009
Nanomaterials 11 02260 g010 550

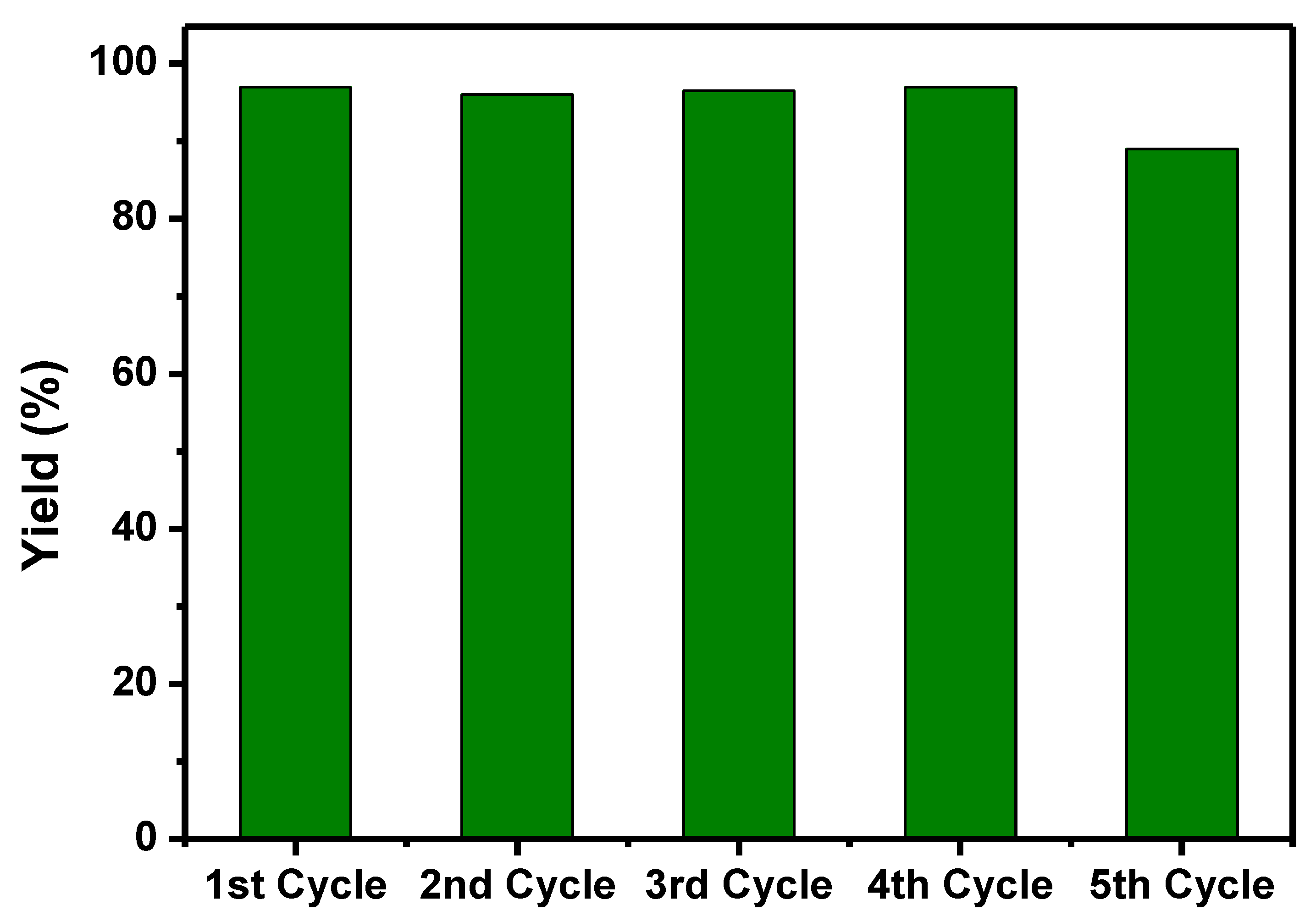

Figure 10. The recycle experiment over 5Cu(0)-AAPTMS@RGO-MCM-41 catalyst.
Figure 10. The recycle experiment over 5Cu(0)-AAPTMS@RGO-MCM-41 catalyst.
Nanomaterials 11 02260 g010
Table
Table 1. The effect of different solvents on the yield for the C-C Ullmann coupling reaction using 5 Cu(0)-AAPTMS@RGO-MCM-41 as a catalyst a.
Table 1. The effect of different solvents on the yield for the C-C Ullmann coupling reaction using 5 Cu(0)-AAPTMS@RGO-MCM-41 as a catalyst a.
EntrySolventsYield (%) C-C Coupling Product
Nanomaterials 11 02260 i001
1Toluene79
2Benzene68
3DMF99
4THF98
5Water97
a Reaction conditions: Temperature, 80 °C; time, 5 h; catalyst, 0.03 g; solvent, Reactants: Aryl halides (4.5 mmol); HCOONa (1.10 g); KOH (1.40 g).
Table
Table 2. The effect of different solvents on the yield for the C-O Ullmann coupling reaction using 5 Cu(0)-AAPTMS@RGO-MCM-41 as a catalyst a.
Table 2. The effect of different solvents on the yield for the C-O Ullmann coupling reaction using 5 Cu(0)-AAPTMS@RGO-MCM-41 as a catalyst a.
EntrySolventsYield (%) C-O Coupling Product
Nanomaterials 11 02260 i002
1Toluene63
2Benzene49
3DMF94
4THF90
5Water89
a Reaction conditions: Temperature, 100 °C; time, 7 h; catalyst, 0.03 g; solvent, 1 mL. Reactants: Aryl halides (1.5 mmol); Phenol (1.0 mmol); CsCO3 (2 mmol).
Table
Table 3. The effect of different solvents on the yield for the C-N Ullmann coupling reaction using 5 Cu(0)-AAPTMS@RGO-MCM-41 as a catalyst a.
Table 3. The effect of different solvents on the yield for the C-N Ullmann coupling reaction using 5 Cu(0)-AAPTMS@RGO-MCM-41 as a catalyst a.
EntrySolventsYield (%) C-N Coupling Product
Nanomaterials 11 02260 i003
1Toluene57
2Benzene25
3DMF85
4THF65
5Water84
a Reaction conditions: Temperature, 110 °C; time, 6 h; catalyst, 0.03 g; solvent, 1 mL. Reactants: Aryl halides (1 mmol); Aniline (1.2 mmol); CsCO3 (2 mmol).
Table
Table 4. Yields for C-C, C-O, and C-N coupling reactions with different substrates with 5 Cu(0)-AAPTMS@RGO-MCM-41 as a catalyst.
Table 4. Yields for C-C, C-O, and C-N coupling reactions with different substrates with 5 Cu(0)-AAPTMS@RGO-MCM-41 as a catalyst.
Sl. No.Substratea Yield (%) C-C Coupling Product
Nanomaterials 11 02260 i004		b Yield (%) C-O Coupling Product
Nanomaterials 11 02260 i005		c Yield (%) C-N Coupling Product
Nanomaterials 11 02260 i006
1 Nanomaterials 11 02260 i007 9485
2 Nanomaterials 11 02260 i008907162
3 Nanomaterials 11 02260 i009812918
a Reaction conditions: Temperature, 80 °C; time, 5 h; catalyst, 0.03 g; solvent (water), 10 mL. Reactants: Aryl halides (4.5 mmol); HCOONa (1.10 g); KOH (1.40 g). b Reaction conditions: Temperature, 100 °C; time, 7 h; catalyst, 0.03 g; solvent (DMF), 1 mL. Reactants: Aryl halides (1.5 mmol); Phenol (1.0 mmol); CsCO3 (2 mmol). c Reaction conditions: Temperature, 110 °C; time, 6 h; catalyst, 0.03 g; solvent (DMF), 1 mL. Reactants: Aryl halides (1 mmol); Aniline (1.2 mmol); CsCO3 (2 mmol).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Rana, S.; Varadwaj, G.B.B.; Jonnalagadda, S.B. Green Synthesis of Cu Nanoparticles in Modulating the Reactivity of Amine-Functionalized Composite Materials towards Cross-Coupling Reactions. Nanomaterials 2021, 11, 2260. https://doi.org/10.3390/nano11092260

AMA Style

Rana S, Varadwaj GBB, Jonnalagadda SB. Green Synthesis of Cu Nanoparticles in Modulating the Reactivity of Amine-Functionalized Composite Materials towards Cross-Coupling Reactions. Nanomaterials. 2021; 11(9):2260. https://doi.org/10.3390/nano11092260

Chicago/Turabian Style

Rana, Surjyakanta, G. Bishwa Bidita Varadwaj, and Sreekanth B. Jonnalagadda. 2021. "Green Synthesis of Cu Nanoparticles in Modulating the Reactivity of Amine-Functionalized Composite Materials towards Cross-Coupling Reactions" Nanomaterials 11, no. 9: 2260. https://doi.org/10.3390/nano11092260

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
