Anchoring NiO Nanosheet on the Surface of CNT to Enhance the Performance of a Li-O2 Battery

by
Shuang Chen
1,
Shukun Wang
1,
Yunyun Dong
2,
Hongmei Du
2,
Jinsheng Zhao
2,* and
Pengfang Zhang
2,*
1
State Key Laboratory of Heavy Oil Processing, College of Chemical Engineering, China University of Petroleum (East China), Qingdao 266580, China
2
Shandong Provincial Key Laboratory of Chemical Energy Storage and Novel Cell Technology, School of Chemistry and Chemical Engineering, Liaocheng University, Liaocheng 252059, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(14), 2386; https://doi.org/10.3390/nano12142386
Submission received: 10 June 2022 / Revised: 6 July 2022 / Accepted: 8 July 2022 / Published: 13 July 2022
Browse Figures
Versions Notes

Abstract

:
Li2O2, as the cathodic discharge product of aprotic Li-O2 batteries, is difficult to electrochemically decompose. Transition-metal oxides (TMOs) have been proven to play a critical role in promoting the formation and decomposition of Li2O2. Herein, a NiO/CNT catalyst was prepared by anchoring a NiO nanosheet on the surface of CNT. When using the NiO/CNT as a cathode catalyst, the Li-O2 battery had a lower overpotential of 1.2 V and could operate 81 cycles with a limited specific capacity of 1000 mA h g−1 at a current density of 100 mA g−1. In comparison, with CNT as a cathodic catalyst, the battery could achieve an overpotential of 1.64 V and a cycling stability of 66 cycles. The introduction of NiO effectively accelerated the generation and decomposition rate of Li2O2, further improving the battery performance. SEM and XRD characterizations confirmed that a Li2O2 film formed during the discharge process and could be fully electrochemical decomposed in the charge process. The internal network and nanoporous structure of the NiO/CNT catalyst could provide more oxygen diffusion channels and accelerate the decomposition rate of Li2O2. These merits led to the Li-O2 battery’s better performance.

Graphical Abstract

1. Introduction

In the past few years, as the global population and economy increase rapidly, the development model, relying on non-renewable fossil fuels as the main energy source, has been unable to meet human needs. Researchers are devoted to seeking high-energy and clean energy storage facilities to replace non-renewable resources. With a super-high theory energy density of 3500 Wh kg−1, Li-O2 batteries are poised to become the next generation of rechargeable systems to store energy [1,2,3,4]. Particularly, in an aprotic Li-O2 battery system, lithium peroxide (Li2O2) is recognized as the main discharge product, and is generated via the oxygen reduction reaction (ORR) and its decomposition into Li+ ions and O2 through the oxygen evolution reaction (OER) during the recharge process [5,6]. The reaction equation is expressed as 2Li+ + 2e− + O2 ↔ Li2O2 (E0 = 2.96 V vs. Li/Li+). So far, the actual energy density of Li-O2 batteries is far from its theoretical value. Additionally, reasons for this primarily include: (i) the inherently slow kinetics in ORR and OER throughout discharge and recharge processes can result in high overpotential and poor cyclic stability; (ii) the Li2O2 discharge products, generated on the surface of electrode material, occupy the active site; and (iii) the decomposition of organic electrolytes at higher voltages around 4.5 V can lead to increased impedance [7,8,9].
In this regard, to improve the formation and decomposition kinetics of Li2O2, the design and preparation of efficient catalysts for application to Li-O2 batteries is necessary. Up to now, a variety of cathode catalysts have been prepared and applied to Li-O2 batteries to reduce the overpotential of internal reactions [10,11,12]. Pt [13,14], Ru [15,16], Ir [17], Au [18] and Pd [19] have efficient catalytic activity for the formation and decomposition of Li2O2. However, scarce reserves and high prices have limited the practical application of noble-metal catalysts. TMOs such as Mn2O3 [20], Co3O4 [21,22,23] and CeO2 [24,25] show excellent cycle stability. Their features, such as a low cost, high activity and long-term stability, have made TMO one of the most promising candidates. During the discharge process, O2 is reduced and the insoluble discharge product Li2O2 forms. As a result, the design of catalysts that can provide enough space for storing Li2O2 is indispensable.
Carbon materials, considered as common electrode materials, possess excellent properties, including environmental friendliness, brilliant electrical conductivity and a high surface area, which have been paid a lot of attention. In Li-O2 batteries, carbon materials exhibit prominent catalytic performance as electrocatalysts owing to the complex porous structure [26,27]. They are usually considered as important carriers in cathode catalysts [28,29,30,31,32]. NiO-based catalysts, due to their high catalytic activity, have often been compounded with other chemical compounds such as metal oxides/sulfides [33,34,35,36,37]. The Li-O2 battery, with these NiO-based catalysts, shows a better cycling stability. However, the catalytic behavior of individual NiO catalysts is still ambiguous and should be further investigated. In particular, Zhao et al. introduced a NiO/MWCNT nanocomposite into Li-O2 batteries to study its electrochemical performance [38]. Their research revealed that Li-O2 batteries with a NiO/MWCNT catalyst exhibit a discharge capacity of 2500 mA h g−1 and a cycling ability of five cycles.
Herein, pristine CNT (CNT-P) was treated with concentrated acid to generate an oxygen-containing functional group, and then a NiO nanosheet was anchored on the surface of CNT to synthesize the NiO/CNT electrocatalyst. A Li-O2 battery with a NiO/CNT cathodic catalyst was assembled to study the catalytic performance for the formation and decomposition of Li2O2 and the cycling stability of batteries. With the NiO/CNT catalyst, the Li-O2 battery could sustain a stability of 81 cycles and an overpotential of 1.2 V with a constant capacity of 1000 mA h g−1 at a current density of 100 mA g−1. SEM and XRD analyses of the discharge cathodes show that solid Li2O2 adhered to the surface of both NiO/CNT during the discharge process. After recharging, the surface of NiO/CNT was clean, confirming that NiO/CNT could effectively catalyze the decomposition of Li2O2.

2. Experimental Section

2.1. Acidification of CNT

Based on the previous literature [31], 100 mL of concentrated nitric acid and concentrated sulfuric acid (v:v = 1:1) was sequentially added dropwise to 500 mg carbon nanotubes (Beijing Boyu Gaoke New Material Technology Co., Ltd. (Beijing, China)); diameter: 10–30 nm; purity: 95%). The suspension was then evenly dispersed by ultrasonication for two hours. After that, the mixtures were refluxed at 60 °C for eight hours. Then, the mixture was centrifuged and then washed with deionized water until the pH of the solution reached 7. Finally, the obtained product was dried overnight at 80 °C.

2.2. Preparation of NiO/CNT

A total of 100 mg of activated CNT and 1 mmol of NiCl2·6H2O were added into 70 mL of deionized water, and were well-dispersed by ultrasonication for 30 min. Then, NH3·H2O was added to the mixture dropwise until the pH value was equal to 11. Subsequently, the mixture was stirred for one hour and was transferred to a Teflon high-pressure reactor. Then, the temperature of the reaction equipment was increased to 180 °C and maintained for 12 h. The mixture was washed with deionized water and dried at 80 °C. The obtained solid product was calcined by tube furnace at 400 °C for 3 h under N2 atmosphere at the ramp rate of 2 °C min−1.

2.3. Material Characterization

Scanning electron microscopy (SEM) images of the materials were recorded on Thermo Fisher Scientific FIB-SEM GX4, operating at 10 kV. Transmission electron microscopy (TEM) and high-resolution transmission electron microscope (HRTEM) of the materials were carried out on JEM-2100 using ethanol absolute as the dispersant. Powder X-ray diffraction (PXRD) pattern was carried out on a Kigaka D/max 2500 X-ray advance diffractometer with a monochromatic Cu Kα radiation source (λ = 1.54 Å, 10° min−1 from 20° to 80°). The Raman spectra of the materials were recorded on a Renishaw Laser Microscopic Confocal Raman Spectrometer accompanied by excitation wavelength of 532 nm. X-ray photoelectron spectroscopy (XPS) was examined using Thermo Fisher Scientific ESCALAB Xi+ spectrometer (Thermo Fisher Scientific Inc., Waltham, MA, USA). Nitrogen adsorption–desorption isotherm was investigated with ASAP 2460-3 (Micromeritics) multi-station extended specific surface area and porosity analyzer at 77.3 K.

2.4. Electrochemical Tests

First, the as-prepared catalyst was mixed with polyvinylidene fluoride (PVDF, 10 wt%) in 600 μL of N-methylpyrrolidone (NMP) at a mass ratio of 9:1. The mixture was ball-milled for three hours to obtain a uniform slurry. After that, the slurry was dripped onto the carbon paper (TGP-H-060, Toray Corporation, Tokyo, Japan) with a diameter of 7 mm. The load mass of the electrode sheet was approximately 0.5 mg cm−2. Then, carbon paper was dried under vacuum with a temperature of 100 °C for 10 h. The battery was assembled under an Ar atmosphere while O2 and H2O content were kept below 0.1 ppm. Additionally, a CR 2032-type coin cell was made of positive cap with seven holes (Φ = 2 mm), lithium foil, glass fiber separators (Whatman A), electrolyte (1 M LITFSI/TEGDME), spacer, spring and negative cap. Oxygen was then pumped into the closed container with the battery. After standing for three hours, the assembled batteries were tested on the LAND CT2001A with the galvanostatic charge–discharge testing to determine their cycling performance. The cyclic voltammetry (CV) curve was tested with electrochemical workstation (PGSTAT 302N, Metrohm) with the voltage range of 2.0–4.5 V, and the sweep rate was set to 0.1 mV s−1. Kinetics and electrode interface structure information were obtained using electrochemical impedance spectroscopy (EIS). The frequency varied between 100 kHz and 0.1 Hz.

3. Results and Discussion

3.1. Characterizations of Materials’ Morphology and Structure

As shown in Figure 1, the NiO/CNT electrocatalyst was synthesized using the facile hydrothermal process, followed by calcining at a certain temperature. First, NH3·H2O, as a precipitant, was combined with Ni2+ to form a Ni(OH)2 precursor. Then, the precursor was further crystallized through the process of hydrothermal reaction. The morphology of the materials was observed by SEM. The XRD patterns of Ni(OH)2 and Ni(OH)2/CNT are displayed in Figure S1a. The main diffraction peaks at 19.1°, 33.0°, 38.5°, 51.9° and 59.0°, 59.9° are well-matched with the (001), (100), (011), (012), (100) and (003) planes of Ni (OH)2 (JCPDS #00-014-0117), respectively, demonstrating the formation of Ni (OH)2 [39]. A hexagonal structure was seen in the Ni (OH)2 sample (Figure S1b). As is shown in Figure 2a, CNTs were criss-crossed and woven from tubular structures with a diameter of about 25 nm. Through the subsequent calcination process, Ni(OH)2 released gaseous water molecules at a high temperature to form porous NiO, and the hexagonal morphology was maintained. Figure 2b,c show the morphology of NiO/CNT. It can be seen that NiO and CNT were uniformly compounded together. According to HRSEM images, it can be observed that CNTs were evenly and tightly coated on the surface of NiO nanosheets. The fine structure of NiO/CNT can be observed in TEM and HRTEM images. CNT and the porous NiO nanosheet were closely linked with each other (Figure 2d). Furthermore, it was apparent that the porous structure was uniformly distributed on the NiO nanosheet. Furthermore, as exhibited in Figure 2e, the lattice fringe spacings of 0.24 nm were well-indexed to the (111) crystal plane of NiO. Furthermore, the diffraction rings in the selected area electron diffraction (SAED) pattern were indexed into the (002) plane of CNT and the (111), (200), (220) and (311) planes of NiO (Figure 2f).
XRD patterns of activated CNT were performed, and the results can be seen in Figure 3a. It is obvious that there were two peaks near 26° and 43° in the CNT XRD pattern, belonging to the diffraction peaks of the (005) and (102) planes. The XRD pattern of NiO/CNT exhibited five peaks at 37.2°, 43.2°, 62.8°, 75.4° and 79.4°, which were indexed to the (111), (200), (220), (311) and (222) planes of NiO, respectively, corresponding to the standard card PDF No. 01-073-1519. After that, Raman spectroscopy was carried out to further analyze the structure of the NiO/CNT catalyst, which revealed the graphite degree of NiO/CNT and CNT (Figure 3b). Obviously, the D-band representing the lattice defect of C atoms was around 1300 cm−1. Furthermore, the peak around 1580 cm−1 represents the G-band, which indicates as in-plane stretching vibration of the sp2 hybridization of C atoms [40]. According to the calculation, the ID/IG value of NiO/CNT was 1.09, which is lower than the 1.2 of CNT. After loading Ni(OH)2 on the CNT, the Ni(OH)2/CNT was calcinated at 400 °C in the N2 atmosphere to prepare NiO/CNT. The calcination process led to the ratio decrease in the functional group on the surface of the CNT, resulting in the decrease in the ID/IG value. The lower the ID/IG value, the more complete the surface structure of the carbon nanotubes, and the stronger electronic conduction. After compounding NiO nanosheets, the ordered structure of the carbon nanotube surface was improved, which facilitated the conduction of electrons between CNTs and NiO. Considering the perspective of battery performance, although there were fewer defects on the CNT section for NiO/CNT, the porous structure of NiO nanosheets provided more defects in composite materials, and so the cathode catalyst had an efficient catalytic ability for ORR and OER processes.
The element composition as well as valence distribution of NiO/CNT were further confirmed via XPS characterization. The C1s spectra are compared in Figure S2. The ratio of the C-O bond in NiO/CNT was about 17.7%, which is lower than the 20.2% seen in CNT. The calcination process at 400 °C in the N2 atmosphere to prepare the NiO/CNT catalyst may have led to the ratio decrease in the C-O bond. In addition, after loading the NiO on CNT, a new peak appeared, which should be ascribed to the Ni-O bond based on the O1s XPS spectra (Figure S3). Figure 3c exhibits the survey spectrum of NiO/CNT. The characteristic peaks of C, O and Ni elements were easily observed from the spectrum, proving the existence of these three elements. Moreover, the high-resolution spectrum of Ni 2p in NiO/CNT is displayed (Figure 3d). The two peaks situated at 855.5 and 871.6 eV belong to Ni2+. The peaks at 853.8 and 873.2 eV matched with Ni3+. The satellite peaks were well-fitted, abbreviated as ‘sat.’ [34,35]. According to the XPS data, it can be clearly seen that Ni existed on the surface of NiO/CNT, and mainly shows the valence state of Ni2+ and Ni3+. Thermogravimetry (TG) confirmed that the mass ratio of NiO in the NiO/CNT catalyst was 56.2% (Figure S4).
To obtain the specific surface area and pore size distribution of NiO/CNT and CNT catalysts, a nitrogen absorption and desorption measurement was carried out. As depicted in Figure 3e, nitrogen adsorption–desorption isotherms of CNT and NiO/CNT catalysts showed obvious hysteresis loops, confirming the existence of distinct mesopores [41,42]. These isotherms should be classified as type IV isotherms. Moreover, an obvious H3-type hysteresis loop was observed. According to Brunner−Emmet−Teller (BET) characterization, the specific surface area of CNT was 144.8 m2 g−1 and the pore volume was 0.938 cm3 g−1. When loading the NiO nanosheet on CNT, NiO/CNT could still achieve a specific surface area of 132.9 m2 g−1 and a pore volume of 0.617 cm3 g−1, which is slightly lower than that of CNT, confirming the porous inner structure. As shown in Figure 3f, a pore diameter of 30 nm can be observed based on the Barrett–Joyner–Halenda (BJH) calculation method, which comes from the interstitial holes formed by cross-linked CNTs [43]. The mesoporous structure of CNT could effectively store the Li2O2 products, which is beneficial for the improvement of the Li-O2 battery performance.

3.2. Electrochemical Performance Test

The Li-O2 battery was assembled, and a variety of electrochemical tests were performed to gain insight into the catalytic activity of the NiO/CNT and CNT catalysts (Figure 4). Cycle voltammetry (CV) curves were performed to research the onset potential of ORR and OER by using NiO/CNT and CNT as cathodes. The scan range was set from 2.0 V to 4.5 V (Figure 4a). It can be clearly seen that there was an obvious reduction peak in the batteries with both NiO/CNT and CNT cathodes. The reduction peak of the Li-O2 battery with the NiO/CNT catalyst appeared at 2.52 V, while the reduction peak of CNT appeared at 2.42 V, indicating that the NiO/CNT catalyst had better ORR catalytic activity. In the positive scanning process, an oxidation peak was generated at 3.20 V in the battery with the NiO/CNT catalyst, while an unapparent peak at a higher position, 3.4 V, appeared with the CNT catalyst, confirming the better OER activity of the NiO/CNT catalyst. Therefore, a higher discharge plateau and lower charge plateau confirm the superior catalytic performance of NiO/CNT electrode materials, which can decrease overpotential and increase cycle stability.
The charge–discharge curves of the first cycle were used to compare the overpotential of two materials under a limited capacity at 1000 mA h g−1. The Li-O2 battery with the NiO/CNT cathode exhibited an obvious lesser overpotential of 1.2 V, while the overpotential with the CNT cathode was 1.64 V (Figure 4b). The overpotential of OER decreased from 1.32 V to 0.93 V, and the overpotential of ORR decreased from 0.32 V to 0.27 V. Therefore, NiO/CNT had higher activity than CNT in ORR and OER processes. Additionally, using NiO/CNT and CNT catalysts as cathode materials, full discharge–charge tests in the first cycle of batteries were performed with a current density of 100 mA g−1 (Figure 4c). In the discharge stage, the battery with the NiO/CNT cathode catalyst showed a specific capacity of 8000 mA h g−1, while that of the battery with CNT was merely 3300 mA h g−1. The high capacity is mainly ascribed to the catalyst’s prominent catalytic capability for accelerating the generation of Li2O2. The charging voltage of the Li-O2 battery with the NiO/CNT cathode reached to 4.32 V, which is lower than the 4.42 V achieved with the CNT cathode at a current density of 100 mA g−1. Upon reaching the set upper limit (4.5 V), the charging specific capacity visibly exhibited a higher value of 11,000 mA h g−1 with overcharging. Electrolyte decomposition is considered to be the main reason for this result. Therefore, it can be revealed that the NiO/CNT electrocatalyst exhibited a better OER performance than the CNT electrocatalyst. In addition, the discharge–charge curve of Li-O2 batteries with NiO/CNT was also tested with a discharge specific capacity of 6810 mA h g−1, indicating NiO/CNT electrocatalysts possess a most excellent catalytic performance among these electrode materials (Figure S5). Moreover, the Li-O2 battery with the NiO/CNT cathode lasted for five cycles in the full discharge and charge process (Figure 4d). It was found that though the specific capacity of the battery showed a downward trend, the battery with the NiO/CNT cathode exhibited a stable cyclability and a higher capacity, at over 4000 mA h g−1, after five cycles. A detailed data comparison is shown in Figure S6. To provide insight into the importance of the interfacial interaction between NiO and CNT in the NiO/CNT catalyst, the NiO/CNT-P catalyst was prepared by loading NiO on CNT-P without acid-etching treatment. When using NiO/CNT-P as cathodic catalysts, the Li-O2 battery showed an overpotential of 1.3 V, which is higher than the 1.2 V achieved with the NiO/CNT catalyst (Figure S7). This result proves that the strong interfacial interactions between NiO and CNT are responsible for the superior catalytic activity of the NiO/CNT catalyst.
To further investigate the influence of NiO content on the performance of Li-O2 batteries, a NiO/CNT catalyst with 37.3 wt% and 72.9 wt% NiO loading was also prepared (Figure S8). Additionally, the Li-O2 battery with NiO(56.2 wt%)/CNT showed an overpotential of 1.2 V, which is lower than the 1.33 V achieved with the NiO(72.9 wt%)/CNT catalyst and 1.42 V with the NiO(37.3 wt%)/CNT catalyst. This indicates the better catalytic activity of NiO(56.2 wt%)/CNT catalyst for the formation and decomposition of Li2O2.
Additionally, to compare the cycle performance of the two materials, galvanostatic charge–discharge tests were carried out with the specific capacity fixed at 1000 mA h g−1. As depicted in Figure 4e,f, the battery with the NiO/CNT cathode could achieve a stability of 81 cycles with low polarization at a current density of 100 mA g−1, and the battery with the CNT cathode could only run for 66 cycles (Figure 4g). Obviously, the battery with the NiO/CNT cathode exhibited a superior catalytic performance and better cycle stability than that with CNT cathode. The remarkable cycling stability of Li-O2 batteries with NiO/CNT catalysts is attributed to the superior catalytic activity of NiO/CNT towards the continuous formation and decomposition of Li2O2. The high specific surface area of CNT is expected to show excellent absorption ability towards the gas of O2, and the mesoporous structure could provide a large space for the deposition of Li2O2. The NiO nanosheet could effectively decrease the decomposition potential of Li2O2. The synergetic effect between NiO and CNT ensured the Li-O2 battery had an optimal performance.

3.3. Characterizations of Discharge Products

The discharge products were tested with SEM, XRD, XPS and EIS characterizations to better understand the charging and discharging mechanism of Li-O2 batteries. The different discharge–charge depths of the battery with the NiO/CNT catalyst were studied using SEM to analyze the morphology evolution of Li2O2 (Figure 5a). The NiO/CNT catalyst was clearly observed in the initial stage (Figure 5b). As the discharge depth reached 2000 mA h g−1, Li2O2 particles were deposited on the surface of NiO/CNT (Figure 5c). As the discharge depth increased to 4000 mA h g−1, Li2O2 gradually became thick (Figure 5d). When the charge depth was 2000 mA h g−1, only part of Li2O2 was decomposed (Figure 5e). Additionally, most of the discharge products disappeared when charge depth was 4000 mA h g−1 (Figure 5f).
To further corroborate the discharge product’s identity, the XRD of NiO/CNT electrode sheets after discharge and recharge processes were tested. As is shown in Figure 5g, the small peak in the yellow area corresponded to Li2O2. The result verifies that Li2O2 was indeed the primary discharge product of the Li-O2 battery. After recharging in the first cycle, the Li2O2 discharge product was almost completely decomposed, which illustrates that the NiO/CNT cathode had a high-efficiency catalytic ability to form and decompose Li2O2.
Additionally, the discharge product of the NiO/CNT cathode was further verified through XPS characterization under a capacity of 1000 mA h g−1. As seen in the Li 1s high-resolution spectra of the discharged NiO/CNT cathode, the peak at 55.2 eV corresponds to Li2O2 (Figure 5h). This result is in accord with the ex situ XRD data. After charging for the first cycle, the signal of the Li element in Li2O2 went almost completely undetected in the Li 1s high-resolution spectra, indicating that the battery with the NiO/CNT cathode had high reversibility throughout discharge–charge processes.
In addition, electrochemical impedance spectroscopy (EIS) was tested with a 1 M LiTFSI/TEGDME electrolyte to reflect the kinetic characteristics of charge transfer in Li-O2 batteries with a NiO/CNT electrocatalyst. In particular, the diameter of the semicircle in the mid-frequency range corresponds to the charge transfer resistance (Rct), which plays a vital role in determining the electrocatalytic capability and reaction kinetics. As shown in Figure S9 and Tables S1 and S2, the Rct values of Li-O2 batteries with NiO/CNT and CNT catalysts were 84 Ω and 111 Ω in the initial stage, respectively. After discharge processes, the Rct values increased to 414 Ω and 430 Ω, which decreased to 296 Ω and 310 Ω after the charge process. Owing to the formation of an insulating Li2O2, the impedance increased significantly after the discharge process. The result indicates that the NiO/CNT catalyst had a better electron conductivity, which is attributed to the better affinity between CNT and NiO nanosheets. In addition, the lower resistance after discharge processes should be ascribed to the good contact of the interface between the NiO/CNT catalyst and Li2O2, which benefits the decomposition of Li2O2 in the charge process. Therefore, after the charge process, the Rct value of the Li-O2 battery with the NiO/CNT catalyst was lower than that with the CNT catalyst. The lower charge transfer resistance could ensure the better battery performance.
To explore the decay mechanism of the Li-O2 battery, the failed battery was disassembled. As depicted in Figure S10a,b the digital photos show that the electrolyte was almost consumed, and the surface of the Li anode was broken. These are likely the main factors behind the decay of batteries. The Li-O2 battery is an open system that will lead to the volatilization of the electrolyte. The rebuilt battery with the cycled NiO/CNT cathode, fresh electrolyte and a new Li anode demonstrated a decreased overpotential, reaffirming the decay mechanism (Figure S10c). Thus, the degradation of the Li anode and the loss of the electrolyte are the main reasons for the battery degradation.

4. Conclusions

A NiO/CNT catalyst was successfully prepared by anchoring a NiO nanosheet on the surface of CNT as an efficient electrocatalyst in a non-aqueous Li–O2 battery. NiO and CNT were uniformly compounded together to form a porous network structure during the hydrothermal process. Charge transfer dynamics were enhanced with the internal network structure in the CNT/NiO catalyst, and more oxygen transmission channels were provided by its nanoporous structure, enabling the Li-O2 battery to have an excellent cycle stability. The battery with the NiO/CNT cathode exhibited an overpotential of 1.2 V and could maintain 81 cycles at a fixed capacity of 1000 mA h g−1 at the current density of 100 mA g−1. In comparison, when using CNT as a cathodic catalyst, the battery could achieve a cycling stability of 66 cycles with an overpotential of 1.64 V. The battery with the NiO/CNT cathode possessed a specific discharge capacity of 8000 mA h g−1, while the specific capacity of the battery with the CNT cathode was merely 3300 mA h g−1. Additionally, SEM characterization verified that the Li2O2 particle generated in the discharge stage and completely electrochemically decomposed after recharging. XRD and XPS proved the formation and decomposition of Li2O2 as well. With the introduction of NiO, the catalyst can effectively catalyze the formation and decomposition of Li2O2 due to the high activity of the NiO/CNT electrocatalyst. This work puts forward an excellent design of a high-activity catalyst for a metal–O2 battery.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12142386/s1, Figure S1: (a) XRD patterns of Ni(OH)2/CNT and Ni(OH)2; (b) SEM image of Ni(OH)2/CNT; Figure S2: The C1s XPS spectra of CNT (a); NiO/CNT (b); the ratios of C element at different valence states (c); Figure S3: (a) The O1s XPS spectra of CNT and (b) NiO/CNT; Figure S4: The TG curve of NiO/CNT catalysts; Figure S5: Discharge/charge curve at first cycle of Li-O2 batteries with NiO/CNT. The NiO/CNT-mech electrode sheets are obtained by mixing CNT, NiO and PVDF with NMP solvent via ball-milling for 3 h; Figure S6: Five cycles of charge-discharge specific capacity comparison histogram of Li-O2 battery with NiO/CNT cathode; Figure S7: The charge and discharge curves of Li-O2 batteries with NiO/CNT and NiO/CNT-P catalysts; Figure S8: (a) The TG curve of NiO/CNT catalysts with different NiO contents (O2 atmosphere, 10 °C min−1); (b) the discharge and charge curves of Li-O2 battery with NiO/CNT catalysts at a current density of 100 mA g−1; Figure S9: EIS of pristine Li-O2 battery (blue), Li-O2 battery for the 1st-discharge (purple), Li-O2 battery for the 1st-charge (red); Figure S10: The photographs of (a) glass fiber and (b) lithium anode of Li-O2 battery after 81 cycles with the NiO/CNT catalyst; (c) The discharge-charge profiles between the battery at 81st cycle and the rebuilt battery with the cycled NiO/CNT cathode, the fresh lithium foil, glassfiber and electrolyte; Table S1: Parameters for the Li-O2 battery with the NiO/CNT catalyst, fitted by the equivalent circuit in the inset; Table S2: Parameters for Li-O2 battery with the CNT catalyst, fitted by the equivalent circuit in the inset.

Author Contributions

Writing—original draft preparation, S.C.; Conceptualization, S.C, S.W. and J.Z.; methodology and software, Y.D.; validation, H.D. and P.Z.; formal analysis, S.C. and S.W.; writing—review and editing, J.Z. and P.Z. All authors have read and agreed to the published version of the manuscript.

Funding

The work was financially supported by the National Natural Science Foundation of China (22172069), and the Natural Science Foundation of Shandong Province (ZR2021ME071).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon reasonable request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, H.; Wang, X.; Li, F.; Xu, J. Fundamental understanding and construction of solid-state Li-air batteries. Small Sci. 2022, 2, 2200005. [Google Scholar] [CrossRef]
  2. Kang, J.; Lee, J.; Jung, J.; Park, J.; Jang, T.; Kim, H.; Nam, J.; Lim, H.; Yoon, K.; Ryu, W.; et al. Lithium-air batteries: Air-breathing challenges and perspective. ACS Nano 2020, 14, 14549–14578. [Google Scholar] [CrossRef] [PubMed]
  3. Xiao, F.; Lin, Z.; Zhang, J.; Lei, Y.; Meng, Y.; Chen, X.; Zhao, S.; Hong, B.; Wang, J.; Li, D.; et al. A novel approach to facile synthesis of boron and nitrogen co-doped carbon and its application in lithium oxygen batteries. Energy Storage Mater. 2021, 41, 61–68. [Google Scholar] [CrossRef]
  4. Chu, S.; Cui, Y.; Liu, N. The path towards sustainable energy. Nat. Mater. 2017, 16, 16–22. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, P.; Ding, M.; Li, X.; Li, C.; Li, Z.; Yin, L. Challenges and Strategy on Parasitic Reaction for High-Performance Nonaqueous Li-O2 Batteries. Adv. Energy Mater. 2020, 10, 2001789–2001830. [Google Scholar] [CrossRef]
  6. Wang, Y.; Lu, Y. Nonaqueous lithium–oxygen batteries: Reaction mechanism and critical open questions. Energy Storage Mater. 2020, 28, 235–246. [Google Scholar] [CrossRef]
  7. Wang, H.; Yin, F.; Liu, N.; Kou, R.; He, X.; Sun, C.; Chen, B.; Liu, D.; Yin, H. Engineering Fe-Fe3C@Fe-N-C active sites and hybrid structures from dual Metal-Organic Frameworks for oxygen reduction reaction in H2-O2 fuel cell and Li-O2 battery. Adv. Funct. Mater. 2019, 29, 1901531–1901541. [Google Scholar] [CrossRef]
  8. Adpakpang, K.; Oh, S.; Agyeman, D.; Jin, X.; Jarulertwathana, N.; Kim, I.; Sarakonsri, T.; Kang, Y.; Hwang, S. Holey 2D nanosheets of low-valent manganese oxides with an excellent oxygen catalytic activity and a high functionality as a catalyst for Li-O2 batteries. Adv. Funct. Mater. 2018, 28, 1707106–1707116. [Google Scholar] [CrossRef]
  9. Park, J.; Lee, S.; Jung, H.; Aurbach, D.; Sun, Y. Redox Mediators for Li-O2 batteries: Status and perspectives. Adv. Mater. 2018, 30, 1704162–1704174. [Google Scholar] [CrossRef]
  10. Li, D.; Liang, J.; Robertson, S.J.; Chen, Y.; Wang, N.; Shao, M.; Shi, Z. Heterogeneous bimetallic organic coordination polymer-derived Co/Fe@NC bifunctional catalysts for rechargeable Li-O2 batteries. ACS Appl. Mater. Interfaces 2022, 14, 5459–5467. [Google Scholar] [CrossRef]
  11. Xia, Q.; Li, D.; Zhao, L.; Wang, J.; Long, Y.; Han, X.; Zhou, Z.; Liu, Y.; Zhang, Y.; Li, Y.; et al. Recent advances in heterostructured cathodic electrocatalysts for non-aqueous Li-O2 batteries. Chem. Sci. 2022, 13, 2841–2856. [Google Scholar] [CrossRef] [PubMed]
  12. Zheng, X.; Yuan, M.; Guo, D.; Wen, C.; Li, X.; Huang, X.; Li, H.; Sun, G. Theoretical design and structural modulation of as surface-functionalized Ti3C2Tx mxene-based heterojunction electrocatalyst for a Li-oxygen battery. ACS Nano 2022, 16, 4487–4499. [Google Scholar] [CrossRef]
  13. Dong, H.; Tang, P.; Li, X.; Wang, Y.; Wang, D.; Wang, H.; Liu, S.; Yang, C.; Wu, C. Pt/NiO microsphere composite as efficient multifunctional catalysts for nonaqueous lithium-oxygen batteries and alkaline fuel cells: The synergistic effect of Pt and Ni. ACS Appl. Mater. Interfaces 2019, 11, 39789–39797. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, P.-F.; Sheng, T.; Zhou, Y.; Wu, Y.-J.; Xiang, C.-C.; Lin, J.-X.; Li, Y.-Y.; Li, J.-T.; Huang, L.; Sun, S.-G. Li-CO2/O2 battery operating at ultra-low overpotential and low O2 content on Pt/CNT catalyst. Chem. Eng. J. 2022, 448, 137541. [Google Scholar] [CrossRef]
  15. Hu, X.; Luo, G.; Zhao, Q.; Wu, D.; Yang, T.; Wen, J.; Wang, R.; Xu, C.; Hu, N. Ru single atoms on N-Doped carbon by spatial confinement and ionic substitution strategies for high-performance Li-O2 batteries. J. Am. Chem. Soc. 2020, 142, 16776–16786. [Google Scholar] [CrossRef] [PubMed]
  16. Cao, X.; Wei, C.; Zheng, X.; Zeng, K.; Chen, X.; Rummeli, M.H.; Strasser, P.; Yang, R. Ru clusters anchored on Magnéli phase Ti4O7 nanofibers enables flexible and highly efficient Li–O2 batteries. Energy Storage Mater. 2022, 50, 355–364. [Google Scholar] [CrossRef]
  17. Song, S.; Xu, W.; Zheng, J.; Luo, L.; Engelhard, M.; Bowden, M.; Liu, B.; Wang, C.; Zhang, J. Complete decomposition of Li2CO3 in Li-O2 batteries using Ir/B4C as noncarbon-based oxygen electrode. Nano Lett. 2017, 17, 1417–1424. [Google Scholar] [CrossRef]
  18. Wang, G.; Tu, F.; Xie, J.; Du, G.; Zhang, S.; Cao, G.; Zhao, X. High-performance Li-O2 batteries with controlled Li2O2 growth in graphene/Au-nanoparticles/Au-nanosheets sandwich. Adv. Sci. 2016, 3, 1500339–1500345. [Google Scholar] [CrossRef]
  19. Zhang, Y.; Jie, M.; Yuan, M.; Li, Y.; Shen, R.; Cheong, W.C.; Han, T.; Sun, G.; Chen, C.; Nan, C. Design of Hollow PdO-Co3O4 Nano-Dodecahedrons with Moderate Catalytic Activity for Li-O2 Batteries. Chem. Commun. 2019, 55, 12683–12686. [Google Scholar] [CrossRef]
  20. Dai, L.; Sun, Q.; Guo, J.; Cheng, J.; Xu, X.; Guo, H.; Li, D.; Chen, L.; Si, P.; Lou, J.; et al. Mesoporous Mn2O3 rods as a highly efficient catalyst for Li-O2 battery. J. Power Sources 2019, 435, 226833–226840. [Google Scholar] [CrossRef]
  21. Lian, Z.; Lu, Y.; Ma, S.; Li, Z.; Liu, Q. Metal atom-doped Co3O4 nanosheets for Li-O2 battery catalyst: Study on the difference of catalytic activity. Chem. Eng. J. 2022, 445, 136852. [Google Scholar] [CrossRef]
  22. Li, D.; Kang, Z.; Sun, H.; Wang, Y.; Xie, H.; Liu, J.; Zhu, J. A bifunctional MnxCo3-xO4-decorated separator for efficient Li-LiI-O2 batteries: A novel strategy to promote redox coupling and inhibit redox shuttling. Chem. Eng. J. 2022, 428, 131105. [Google Scholar] [CrossRef]
  23. Jiang, Z.; Xu, G.; Yu, Z.; Zhou, T.; Shi, W.; Luo, C.; Zhou, H.; Chen, L.; Sheng, W.; Zhou, M.; et al. High rate and long cycle life in Li-O2 batteries with highly efficient catalytic cathode configured with Co3O4 nanoflower. Nano Energy 2019, 64, 103896–103906. [Google Scholar] [CrossRef]
  24. Sun, Z.; Cao, X.; Tian, M.; Zeng, K.; Jiang, Y.; Rummeli, M.; Strasser, P.; Yang, R. Synergized multimetal oxides with amorphous/crystalline heterostructure as efficient electrocatalysts for lithium–oxygen batteries. Adv. Energy Mater. 2021, 11, 2100110. [Google Scholar] [CrossRef]
  25. Wang, T.; Lu, L.; Sun, C. A long life solid-state lithium–oxygen battery enabled by a durable oxygen deficient flower-like CeO2 microsphere based solid electrolyte. Inorg. Chem. Front. 2022, 9, 2508–2516. [Google Scholar] [CrossRef]
  26. Cui, X.; Luo, Y.; Zhou, Y.; Dong, W.; Chen, W. Application of functionalized graphene in Li-O2 batteries. Nanotechnology 2021, 32, 132003–132019. [Google Scholar] [CrossRef]
  27. He, L.; Shi, K.; Pan, Y.; Wu, J.; Li, X.; Xin, X. Dual-functional 3D carbon fibers decorated with Co nanoparticles and Co-Nx sites for rechargeable aprotic Li–O2 batteries. New J. Chem. 2022, 46, 11570–11578. [Google Scholar] [CrossRef]
  28. Xiao, X.; Li, X.; Wang, J.; Yan, G.; Wang, Z.; Guo, H.; Peng, W. Three-dimensionally mesoporous dual (Co, Fe) metal oxide/CNTs composite as electrocatalysts for air cathodes in Li-O2 batteries. Ceram. Int. 2018, 44, 21942–21949. [Google Scholar] [CrossRef]
  29. Wang, P.; Li, C.; Dong, S.; Ge, X.; Zhang, P.; Miao, X.; Zhang, Z.; Wang, C.; Yin, L. One-step route synthesized Co2P/Ru/N-doped carbon nanotube hybrids as bifunctional electrocatalysts for high-performance Li-O2 batteries. Small 2019, 15, e1900001. [Google Scholar] [CrossRef]
  30. Hu, A.; Long, J.; Shu, C.; Xu, C.; Yang, T.; Liang, R.; Li, J. NiCo2S4 nanorod arrays supported on carbon textile as a free-standing electrode for stable and long-life Lithium-Oxygen batteries. ChemElectroChem 2019, 6, 349–358. [Google Scholar] [CrossRef]
  31. Bie, S.; Du, M.; He, W.; Zhang, H.; Yu, Z.; Liu, J.; Liu, M.; Yan, W.; Zhou, L.; Zou, Z. Carbon nanotube@RuO2 as a high performance catalyst for Li-CO2 batteries. ACS Appl. Mater. Interfaces 2019, 11, 5146–5151. [Google Scholar] [CrossRef]
  32. Chen, H.; Ye, Y.; Chen, X.; Zhang, L.; Liu, G.; Wang, S.; Ding, L.-X. N-doped porous carbon nanofibers inlaid with hollow Co3O4 nanoparticles as an efficient bifunctional catalyst for rechargeable Li-O2 batteries. Chin. J. Catal. 2022, 43, 1511–1519. [Google Scholar] [CrossRef]
  33. Zhang, P.; Zhang, J.; Sheng, T.; Lu, Y.; Yin, Z.; Li, Y.; Peng, X.; Zhou, Y.; Li, J.; Wu, Y.; et al. Synergetic effect of Ru and NiO in the electrocatalytic decomposition of Li2CO3 to enhance the performance of a Li-CO2/O2 battery. ACS Catal. 2020, 10, 1640–1651. [Google Scholar] [CrossRef]
  34. Song, K.; Ai, W.; Zhang, Y.; Zeng, Y.; Yu, Y.; Qiao, H.; Liu, Z.; Shen, X.; Hu, X.; Hu, X. Three-dimensional self-supported CuCo2O4 nanowires@NiO nanosheets core/shell arrays as an oxygen electrode catalyst for Li-O2 batteries. J. Mater. Chem. A 2021, 9, 3007–3017. [Google Scholar] [CrossRef]
  35. Wang, H.; Wang, H.; Huang, J.; Zhou, X.; Wu, Q.; Luo, Z.; Wang, F. Hierarchical mesoporous/macroporous Co-doped NiO nanosheet arrays as free-standing electrode materials for rechargeable Li-O2 batteries. ACS Appl. Mater. Interfaces 2019, 11, 44556–44565. [Google Scholar] [CrossRef]
  36. Wang, P.; Li, C.; Dong, S.; Ge, X.; Zhang, P.; Miao, X.; Wang, R.; Zhang, Z.; Yin, L. Hierarchical NiCo2S4@NiO core-shell heterostructures as catalytic cathode for long-life Li-O2 batteries. Adv. Energy Mater. 2019, 9, 1900788–1900801. [Google Scholar] [CrossRef]
  37. Wang, H.; Fan, B.; Luo, Z.; Wu, Q.; Zhou, X.; Wang, F. A unique hierarchical structure: NiCo2O4 nanowire decorated NiO nanosheets as a carbon-free cathode for Li-O2 battery. Catal. Sci. Technol. 2021, 11, 7632–7639. [Google Scholar] [CrossRef]
  38. Zhao, G.; Li, Z.; Tong, P.; Sun, K. Preparation of NiO/multiwalled carbon nanotube nanocomposite for use as the oxygen cathode catalyst in rechargeable Li–O2 batteries. J. Solid State Electrochem. 2013, 17, 1759–1764. [Google Scholar] [CrossRef]
  39. Hoa, N.; El-Safty, S. Synthesis of mesoporous NiO nanosheets for the detection of toxic NO2 gas. Chem. Eur. J. 2011, 17, 12896–12901. [Google Scholar] [CrossRef]
  40. Price, B.; Hudson, J.; Tour, J. Green chemical functionalization of single-walled carbon nanotubes in ionic liquids. J. Am. Chem. Soc. 2005, 127, 14867–14870. [Google Scholar] [CrossRef]
  41. Tian, N.; Zhang, Y.; Li, X.; Xiao, K.; Du, X.; Dong, F.; Waterhouse, G.I.N.; Zhang, T.; Huang, H. Precursor-reforming protocol to 3D mesoporous g-C3N4 established by ultrathin self-doped nanosheets for superior hydrogen evolution. Nano Energy 2017, 38, 72–81. [Google Scholar] [CrossRef]
  42. Zhang, J.; Cui, B.; Jiang, S.; Liu, H.; Dou, M. Construction of three-dimensional cobalt sulfide/multi-heteroatom co-doped porous carbon as an efficient trifunctional electrocatalyst. Nanoscale 2022. [Google Scholar] [CrossRef]
  43. Zhang, P.F.; Lu, Y.Q.; Wu, Y.J.; Yin, Z.W.; Li, J.T.; Zhou, Y.; Hong, Y.H.; Li, Y.Y.; Huang, L.; Sun, S.G. High-Performance Rechargeable Li-CO2/O2 Battery with Ru/N-Doped CNT Catalyst. Chem. Eng. J. 2019, 363, 224–233. [Google Scholar] [CrossRef]
Nanomaterials 12 02386 g001 550

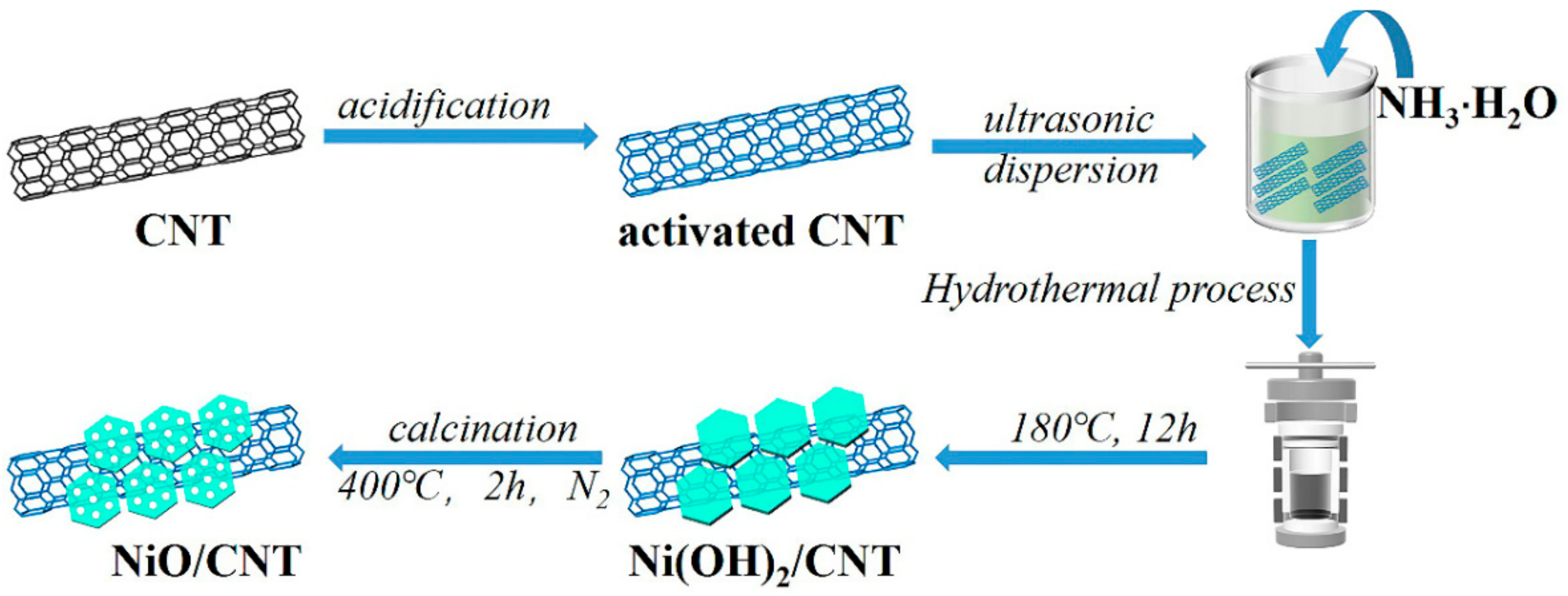

Figure 1. Schematic illustration of the fabrication of NiO/CNT composites.
Figure 1. Schematic illustration of the fabrication of NiO/CNT composites.
Nanomaterials 12 02386 g001
Nanomaterials 12 02386 g002 550
Figure 2. (a–c) SEM images of CNT and NiO/CNT, (d) TEM, (e) HRTEM images, (f) SAED pattern of NiO/CNT.
Figure 2. (a–c) SEM images of CNT and NiO/CNT, (d) TEM, (e) HRTEM images, (f) SAED pattern of NiO/CNT.
Nanomaterials 12 02386 g002
Nanomaterials 12 02386 g003 550

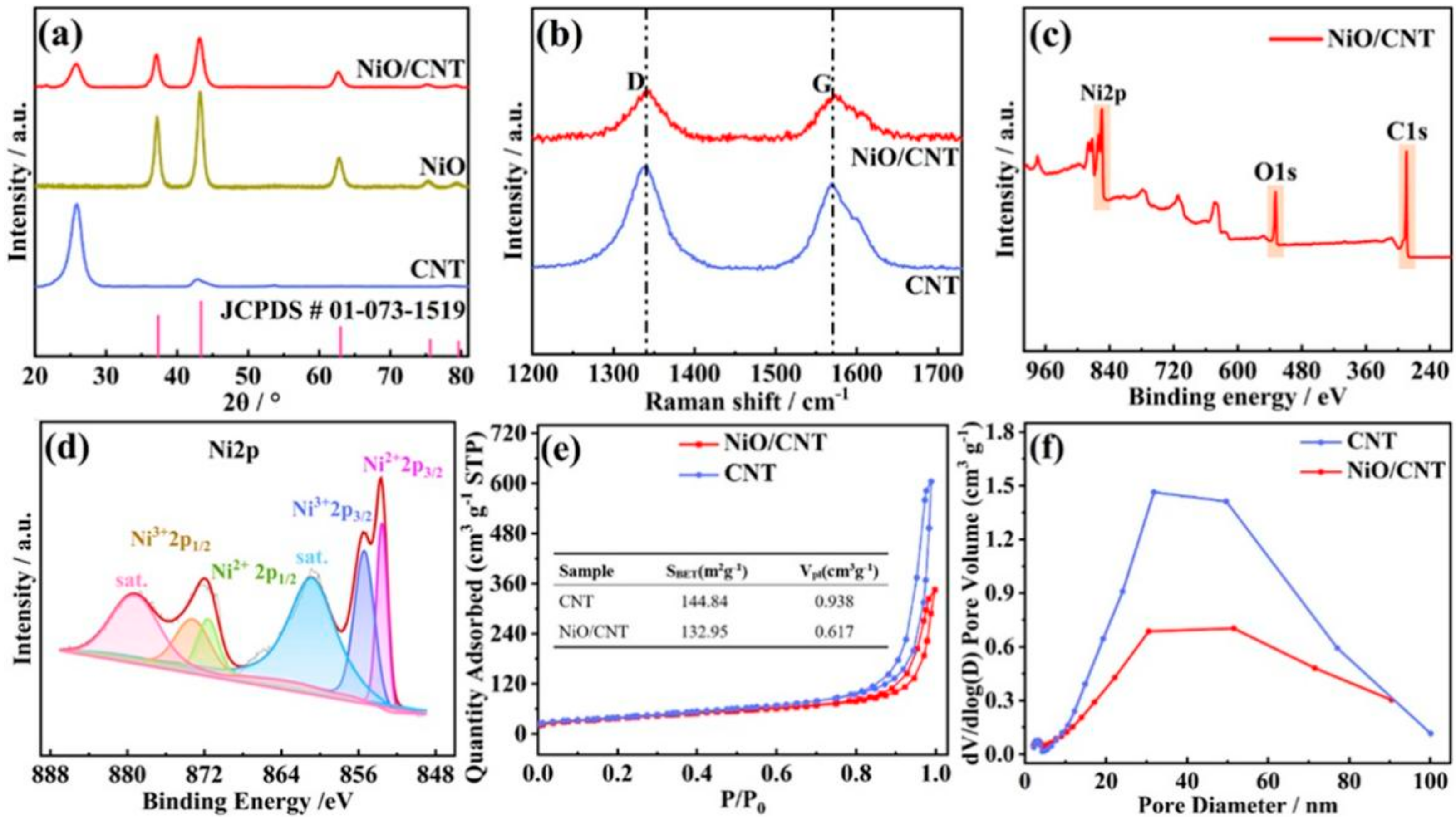

Figure 3. (a) XRD patterns of NiO/CNT, NiO and CNT catalysts; (b) Raman spectra of NiO/CNT and CNT catalysts; (c) XPS survey spectrum; (d) Ni 2p high-resolution spectrum of NiO/CNT; (e) N2 adsorption–desorption isotherms; and (f) pore diameter distributions of NiO/CNT and CNT.
Figure 3. (a) XRD patterns of NiO/CNT, NiO and CNT catalysts; (b) Raman spectra of NiO/CNT and CNT catalysts; (c) XPS survey spectrum; (d) Ni 2p high-resolution spectrum of NiO/CNT; (e) N2 adsorption–desorption isotherms; and (f) pore diameter distributions of NiO/CNT and CNT.
Nanomaterials 12 02386 g003
Nanomaterials 12 02386 g004 550

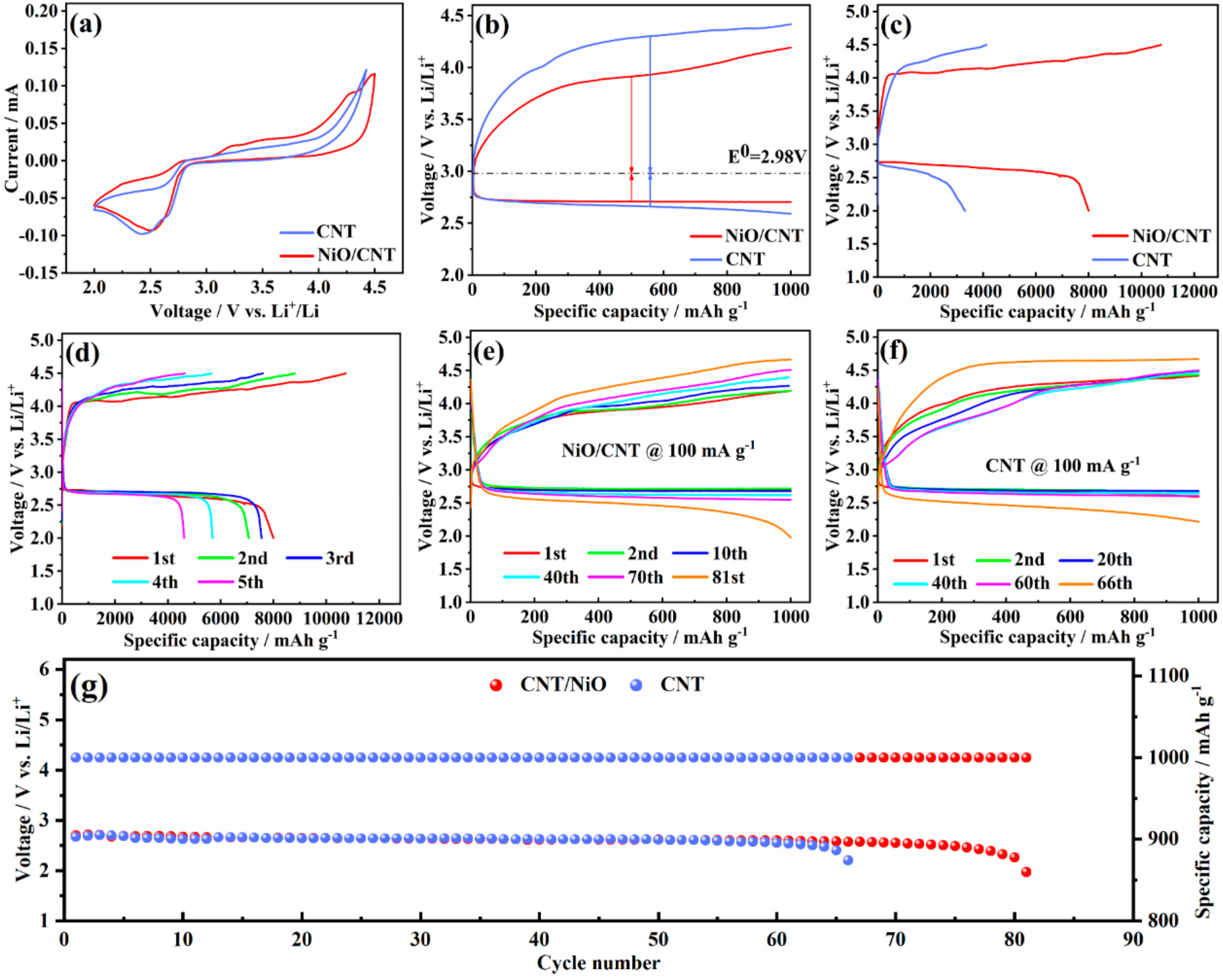

Figure 4. (a) The CV curves and (b) discharge–charge curves at first cycle of Li-O2 batteries with NiO/CNT and CNT catalysts; (c) full discharge–charge curves of NiO/CNT and CNT catalysts at a current density of 100 mA g−1; (d) the cycling stability of full discharge–charge battery with the NiO/CNT catalyst at a current density of 100 mA g−1; (e,f) the cycling curves of NiO/CNT and CNT catalysts with a limited specific capacity of 1000 mA h g−1 at a current density of 100 mA g−1; (g) cycling stability of Li-O2 batteries with NiO/CNT and CNT cathodes at a current density of 100 mA g−1.
Figure 4. (a) The CV curves and (b) discharge–charge curves at first cycle of Li-O2 batteries with NiO/CNT and CNT catalysts; (c) full discharge–charge curves of NiO/CNT and CNT catalysts at a current density of 100 mA g−1; (d) the cycling stability of full discharge–charge battery with the NiO/CNT catalyst at a current density of 100 mA g−1; (e,f) the cycling curves of NiO/CNT and CNT catalysts with a limited specific capacity of 1000 mA h g−1 at a current density of 100 mA g−1; (g) cycling stability of Li-O2 batteries with NiO/CNT and CNT cathodes at a current density of 100 mA g−1.
Nanomaterials 12 02386 g004
Nanomaterials 12 02386 g005 550

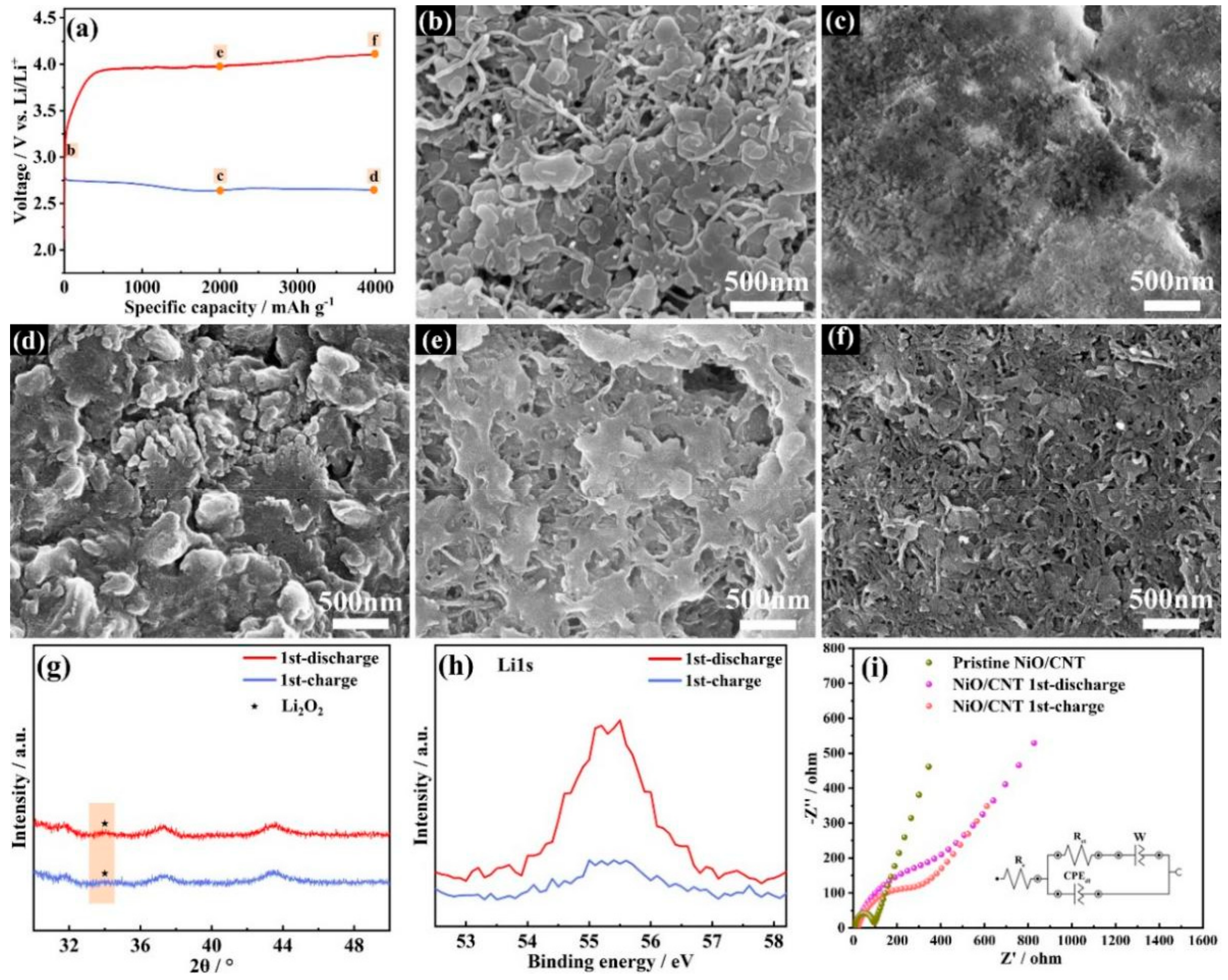

Figure 5. (a) The curves and SEM images of the CNT/NiO catalyst at different discharge–recharge depths at a current density of 100 mA g−1 discharged (blue line) to (b) the initial stage, (c) 2000 mA h g−1 (d) and 4000 mA h g−1, and recharged (red line) to (e) 2000 mA h g−1 and (f) 4000 mA h g−1; (g) XRD patterns and (h) Li 1s core peaks of the NiO/CNT catalyst after discharge and charge; (i) EIS of Li-O2 battery with NiO/CNT catalyst at different stages.
Figure 5. (a) The curves and SEM images of the CNT/NiO catalyst at different discharge–recharge depths at a current density of 100 mA g−1 discharged (blue line) to (b) the initial stage, (c) 2000 mA h g−1 (d) and 4000 mA h g−1, and recharged (red line) to (e) 2000 mA h g−1 and (f) 4000 mA h g−1; (g) XRD patterns and (h) Li 1s core peaks of the NiO/CNT catalyst after discharge and charge; (i) EIS of Li-O2 battery with NiO/CNT catalyst at different stages.
Nanomaterials 12 02386 g005
