Lindqvist@Nanoporous MOF-Based Catalyst for Effective Desulfurization of Fuels

by
Simone Fernandes
1,
Daniela Flores
1,
Daniel Silva
1,
Isabel Santos-Vieira
2,
Fátima Mirante
1,*,
Carlos M. Granadeiro
1,* and
Salete S. Balula
1,*
1
LAQV/REQUIMTE & Department of Chemistry and Biochemistry, Faculty of Sciences, University of Porto, 4169-007 Porto, Portugal
2
CICECO—Aveiro Institute of Materials, Department of Chemistry, University of Aveiro, 3810-193 Aveiro, Portugal
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(16), 2887; https://doi.org/10.3390/nano12162887
Submission received: 15 July 2022 / Revised: 5 August 2022 / Accepted: 10 August 2022 / Published: 22 August 2022
(This article belongs to the Special Issue Feature Papers in Nanomaterials Science)
Browse Figures
Review Reports Versions Notes

Abstract

:
An effective and sustainable oxidative desulfurization process for treating a multicomponent model fuel was successfully developed using as a heterogeneous catalyst a composite material containing as an active center the europium Lindqvist [Eu(W5O18)2]9− (abbreviated as EuW10) encapsulated into the nanoporous ZIF-8 (zeolitic imidazolate framework) support. The EuW10@ZIF-8 composite was obtained through an impregnation procedure, and its successful preparation was confirmed by various characterization techniques (FT-IR, XRD, SEM/EDS, ICP-OES). The catalytic activity of the composite and the isolated EuW10 was evaluated in the desulfurization of a multicomponent model fuel containing dibenzothiophene derivatives (DBT, 4-MDBT and 4,6-DMDBT) with a total sulfur concentration of 1500 ppm. Oxidative desulfurization was performed using an ionic liquid as extraction solvent and aqueous hydrogen peroxide as oxidant. The catalytic results showed a remarkable desulfurization performance, with 99.5 and 94.7% sulfur removal in the first 180 min, for the homogeneous active center EuW10 and the heterogeneous EuW10@ZIF-8 catalysts, respectively. Furthermore, the stability of the nanocomposite catalyst was investigated by reusing and recycling processes. A superior retention of catalyst activity in consecutive desulfurization cycles was observed in the recycling studies when compared with the reusing experiments. Nevertheless, the nanostructure of ZIF-8 incorporating the active POM (polyoxometalate) was shown to be highly suitable for guaranteeing the absence of POM leaching, although structural modification was found for ZIF-8 after catalytic use that did not influenced catalytic performance.

1. Introduction

The combustion of transportation fuels has been one of the biggest global concerns in the last decades, due to environmental and health risks. In particular, sulfur compounds present in fuels can cause equipment corrosion, catalyst deactivation and, more importantly, the emission of sulfur oxides (SOx) [1,2]. The dangers associated with the emission of SOx, such as air pollution and acid rain, have led to the implementation of restrictive legislation limiting the sulfur content in commercialized transportation fuels to 10–15 ppm in Europe and the USA [3,4]. Hydrodesulfurization (HDS) is the conventional method used in refineries, because it is very effective in the removal of thiols, sulfides and dissulfides. However, it requires high temperatures (300–400 °C) and high hydrogen pressure to achieve the production of ultra-low-sulfur fuels [5,6]. The removal of certain sulfur compounds, such as benzothiophene derivatives, is more difficult to achieve by HDS, demanding even harsher conditions [7,8,9]. Therefore, alternative and/or complementary methods to current desulfurization technology have been developed. Oxidative desulfurization (ODS) is one of the most promising methods, reconciling sustainability with cost-efficiency when compared with HDS [8,10,11]. ODS operates efficiently under mild conditions, at atmospheric pressure, and without the need for hydrogen consumption [1,4,11]. Oxidative desulfurization occurs in two main steps: extraction and catalytic oxidation [2]. In the first step, a polar solvent is required in order to extract the sulfur compounds from the fuel [3,6,12,13,14]. Ionic liquids have demonstrated high desulfurization efficiency for extracting sulfur compounds from fuels and also for promoting highly effective catalytic oxidation [13,14,15,16,17,18,19]. However, the main key to achieving ultra-low-sulfur fuels is the adequate choice of catalyst and oxidant with which to oxidize the sulfur compounds into sulfoxides and sulfones [20,21,22,23,24]. Hydrogen peroxide has been widely used in ODS due to its low environmental impact, since the only resulting sub-product is water [13,14,25,26,27,28,29,30,31,32,33].
Polyoxometalates (POMs) are oxometallic anionic clusters that possess structural diversity, thermal stability and interesting redox properties [34,35,36]. POMs have been widely used as active catalytic centers in oxidative desulfurization [1,17,20,22,24,25,28,30,31,32,33,37]. The presence of lanthanide ions in the structure of POMs confers unique photoluminescent properties, and recently the application of lanthanide-containing POMs in ODS has been shown to be an effective strategy with very promising results [9,38,39]. However, the study of the catalytic potential of Lindqvist-type [Ln(W5O18)2]n− (LnW10), where Ln = Eu3+, Gd3+, Tb3+), is still in its early stages [40,41,42,43].
The high solubility of POMs in polar solvents makes for difficult recovery and recycling of catalysts. The immobilization of active POM centers in solid porous supports, such as metal–organic frameworks (MOFs), allows the heterogenization of POMs and its reusability [44,45]. MOFs are hybrid materials obtained from the covalent connection between inorganic metal nodes using organic linkers [46]. ZIF-8 (zeolitic imidazolate framework) is a widely studied MOF with structural simplicity, ease of synthetic reproducibility, and potential for scale-up [47,48]. The existence of pores of adequate internal diameter (11.6 Å) and aperture (3.4 Å) allows the encapsulation of guests in the cavities while preventing leaching from the cavities [33,49,50].
In previous works from our research group, various Keggin-type POMs were incorporated into different porous MOFs to prepare active heterogeneous catalysts for oxidative desulfurization [1,30,33,39,46,51,52,53,54,55,56,57,58]. To the best of our knowledge, no reports can be found in the literature presenting Lindqvist-type isopolyanions incorporated into MOF supports for use as heterogeneous catalysts. The use of Lindqvist-type materials with a europium metal center supports the preparation of a more stable bridged-polyoxometalate, which incorporates a high number of tungsten octahedrons, promoting the activation of the oxidant, and thus increasing the desulfurization efficiency of the catalyst. This work reports the successful preparation of EuW10 isopolyanion encapsulated in an appropriate MOF structure (Scheme 1), the Zeolitic Imidazolate Framework, ZIF-8, and the application of the novel composite EuW10@ZIF-8 to desulfurize a multicomponent fuel under sustainable conditions.

2. Experimental Section

2.1. Characterization Methods

Tetradecane (C14H30, >99.0%), zinc(II) nitrate hexahydrate (Zn(NO3)2·6H2O, 99.0%), sodium tungstate dihydrate (Na2WO4·2H2O, ≥99.5%), glacial acetic acid, 2-methylimidazole (2-MIM, 99.0%), europium chloride hexahydrate (EuCl3·6H2O, 99.9%), 1-butyl-3-methylimidazole hexafluorophosphate (C8H15F6N2P, >97%, [BMIM]PF6), hydrogen peroxide (H2O2, aq. 30%), dibenzothiophene (C12H8S, 98%, DBT) and 4-methyldibenzothiophene (C13H10S, 96%, MDBT) were obtained from Sigma-Aldrich. N,N-dimethylformamide (C3H7NO, 99.99%, DMF), methanol (MeOH, analytical reagent grade), ethanol (C2H5OH, >99.8%, EtOH) and decane (C10H22, ≥99.0%) were purchased from Fisher. Acetonitrile (CH3CN, >99.5%, MeCN), 1 and benzothiophene (C8H6S, >95%, BT) were acquired from Fluka. Potassium chloride (KCl, 99.5%) was obtained from Merck. 4,6-dimethyldibenzothiophene (C14H12S, 95%, DMDBT) were acquired from Acros Organic. None of these were subjected to further treatment or purification.
Fourier-transformed infrared (FT-IR) spectra were acquired using the attenuated total reflectance (ATR) operation mode of a PerkinElmer FT-IR System Spectrum BX spectrometer, and all the representations are shown in arbitrary units of transmittance. Elemental analysis for W was performed by ICP-OES on a Perkin-Elmer Otima 4300 DV instrument at the University of Santiago de Compostela, Spain. Powder X-ray diffraction (PXRD) patterns were obtained at room temperature on a Rigaku Geigerflex diffractometer operating with a Cu radiation source (λ1 = 1.540598 Å; λ2 = 1.544426 Å; λ1/λ2 = 0.500) and in a Bragg-Brentano θ/2θ configuration (45 kV, 40 mA) at the Analytical Laboratory of the Faculty of Sciences and Technology of the NOVA University Lisbon, Portugal. Intensity data were collected by a step-counting method (step 0.026°) in continuous mode in the 3 ≤ 2θ ≤ 50° range, and all representations are shown in arbitrary units of intensity. Scanning electron microscopy (SEM) and electron dispersive X-ray spectroscopy (EDS) analysis were performed at “Centro de Materiais da Universidade do Porto” (CEMUP, Porto, Portugal). The studies were performed in an FEI Quanta 400 FEG ESEM high-resolution scanning electron microscope equipped with an EDAX Genesis X4M spectrometer working at 15 kV. Samples were coated with an Au/Pd thin film by sputtering using SPI Module Sputter Coater equipment. Catalytic reactions were periodically monitored by GC-FID analysis carried out in a Bruker 430-GC-FID chromatograph. Hydrogen was used as carrier gas (55 cm·s−1) and fused silica Supelco capillary columns SPB-5 (30 m × 0.25 mm i.d.; 25 μm film thickness) were used.

2.2. Materials Preparation

2.2.1. Synthesis of Europium Polyoxometalate (EuW10)

The potassium salt of the europium Lindqvist derivative [Eu(W5O18)2]9− was prepared through an adaptation of a previously reported method [59,60]. Na2WO4·2H2O (5.020 g; 15 mmol) was dissolved in 7 mL of water and the pH adjusted to 7 with glacial acetic acid. After heating the solution at 90 °C, a hot solution of EuCl3·6H2O (557 mg, 1.5 mmol) dissolved in H2O (2 mL) was added dropwise. The mixture was kept at 90 °C under stirring for 30 min, and then a previously prepared KCl solution (1.120 g, 15 mmol in 8 mL of H2O) was added. The solution was cooled in air conditions and kept in the fridge for 72 h. A white precipitate was collected, washed with EtOH and dried in a desiccator over silica gel. TGA showed a mass loss of 4.2% up to 120 °C, corresponding to the loss of seven H2O hydration molecules (Figure S2), leading to the formula K9[EuW10O36]·7H2O.

2.2.2. Preparation of the Composite Material EuW10@ZIF-8

The ZIF-8 was prepared following an experimental procedure adapted from previously reported methods [61]. An initial solution of Zn(NO3)2·6H2O (900 mg, 3 mmol) in MeOH (30 mL) was magnetically stirred for 15 min. Then, a solution of 2-methylimidazole (2-MIM, 995 mg, 12 mmol) in MeOH (10 mL) was slowly added. The resulting reactional mixture was magnetically stirred for 24 h at ambient temperature, after which the resulting material was isolated by centrifugation, washed three times with MeOH, and dried at 60 °C under vacuum for 16 h.
The preparation of the composite was performed through the immobilization of the EuW10 in the porous ZIF-8 support through an impregnation procedure for POM@MOF composites [52,53,62]. The procedure consisted of the preparation of an ethanolic solution of EuW10 (90.2 mg; 0.031 mmol), followed by the addition of previously dried ZIF-8 (150 mg) and stirring of the mixture for 96 h at room temperature. The product was recovered by centrifugation, washed with MeOH, and dried in a desiccator over silica gel.
ZIF-8: selected FT-IR (cm−1): 1574 (w), 1458 (s), 1421 (s), 1385 (s), 1308 (s), 1146 (s), 995 (s), 758 (s), 692 (m), 420 (s).
EuW10@ZIF-8: Anal. Found (%): W, 28.6; loading of EuW10: 0.156 mmol per g; selected FT-IR (cm−1): 1577 (w), 1458 (s), 1419 (s), 1306 (s), 1144 (s), 993 (m), 932 (w), 887 (m), 835 (m), 752 (s), 692 (m), 420 (m).

2.3. Oxidative Desulfurization

Desulfurization studies were performed with a model fuel prepared with DBT, 4-MDBT and 4,6-MDBT, in decane (500 ppm of each sulfur compound). The reactions were carried out under air in a closed borosilicate vessel with a magnetic stirrer and immersed in a thermostatically controlled liquid paraffin bath at 70 °C. Catalytic oxidative reactions were performed in a biphasic system with a 1:1 model fuel/extraction solvent with the ionic liquid [BMIM]PF6. In a representative experiment, a certain amount of the heterogeneous catalyst equivalent to 3 µmol of active POM (EuW10) was added to [BMIM]PF6. After adding the model fuel, the system was stirred for 10 min at 70 °C. The oxidative catalytic step was then initiated with the addition of aqueous H2O2 30% (75 μL) to the reaction mixture. Tetradecane was used as a standard in the periodical monitorization of the sulfur content by GC analysis.

3. Results and Discussion

3.1. Materials Characterization

The resulting EuW10@ZIF-8 composite material was characterized using several techniques, including Fourier transform infrared spectroscopy (FT-IR), powder XRD, thermogravimetric analysis (TGA), inductively coupled plasma–optical emission spectrometry (ICP-OES) and scanning electron microscopy (SEM) coupled with energy dispersive X-ray spectroscopy (EDS). The FT-IR spectrum of EuW10@ZIF-8 (Figure 1) exhibits the typical bands arising from the ZIF-8 framework, namely the bands associated with the stretching modes of the C=N and C–N bonds located 1577 and 1144 cm−1, respectively. The bands located at 993 and 752 cm−1 are ascribed to the bending modes of C–N and C–H bonds, respectively, while the band at 692 cm−1 arises from the out-of-plane bending of the ring. The band located at 420 cm−1 is assigned to the stretching vibration of the Zn–N confirming the coordination between the metal center and organic ligand [63,64]. The presence of additional bands can be observed in the spectrum of the composite when compared with the spectrum of ZIF-8. These bands are located at 937 cm−1, which can be assigned to the terminal νas(W–Od) stretching mode, as well as at 887 and 835 cm−1, ascribed to the corner-sharing ν(W–Ob–W) stretching modes of EuW10, respectively [60,65,66,67]. Moreover, the presence of the europium POM in the composite material was further confirmed by elemental analysis (ICP-OES). The results reveal a tungsten amount of 28.6 wt%, leading to a EuW10 loading of 0.156 mmol per g, which confirms the successful immobilization of the POM onto the porous ZIF-8 structure.
The crystalline structures of EuW10@ZIF-8 composite and the solid support were investigated by powder XRD. Figure 2 exhibits the patterns of both materials in the 5 < 2θ < 50° range. The results reveal highly crystalline materials with nearly identical diffraction patterns composed by the characteristic diffraction peaks of the ZIF-8 crystalline structure. The main diffraction peaks located at 2θ = 7.4, 10.5, 12.8, 14.9, 16.6, 18.2, 24.7 and 26.8° can be indexed to the (011), (002), (112), (022), (013), (222), (233) and (134) reflections. The high similarity between the diffraction patterns points out to the stability of the MOF by retaining its crystalline structure after the EuW10 incorporation process. Although an additional low-intensity peak can be detected at 2θ = 8.7°, the main diffraction peaks of EuW10 are absent from the EuW10@ZIF-8 pattern, suggesting its homogenous distribution within the MOF framework [68,69].
The morphology and chemical composition of the MOF support and the EuW10@ZIF-8 composite material were studied by SEM/EDS techniques. The SEM image of ZIF-8 (Figure 3A) reveals uniform particles with a morphology of rhombic dodecahedrons, which is in good agreement with the reported literature [70,71,72]. SEM images were used to estimate the average particle size (ImageJ v1.53e; https://imagej.nih.gov/ij/; accessed on 5 February 2022; 50 measurements), leading to a mean particle size of 554 ± 20 nm. The EDS spectrum of ZIF-8 (Figure S1A) shows the presence of zinc as the main constituent as well as nitrogen from the organic ligand (2-methylimidazole). The SEM micrograph obtained for the EuW10@ZIF-8 composite material (Figure 3B) also exhibits rhombic dodecahedron-shaped particles with an average particle size of 567 ± 16 nm, suggesting that the MOF structure remained intact in the final composite. The EDS spectrum (Figure S1B) shows, besides the Zn and N elements from the ZIF-8 support, the presence of W which further confirms the successful immobilization of EuW10 in the composite material.
The thermal stabilities of the support and the EuW10@ZIF-8 composite material were evaluated by thermogravimetric analysis (TGA) up to 1000 °C. In the TGA obtained for ZIF-8 (Figure S2), it is possible to observe a mass loss (11.8%) in the range 150–400 °C, which is most likely due to the evaporation of solvent molecules of methanol from inside the pores. Nevertheless, the most pronounced mass loss (69.7%) starts at ca. 550 °C and can be attributed to the decomposition of the organic ligand (2-methylimidazole), thus resulting in the collapse of the structure [73].
The TGA of EuW10@ZIF-8 (Figure S2) reveals a superior thermal stability of the composite when compared with the ZIF-8 support. In fact, the first mass loss (4.4%) is only detected at approximately 390 °C which should correspond to the evaporation of adsorbed solvent molecules. Afterwards, the main mass loss (51.8%) occurs at ca. 590 °C exhibiting a similar profile to the step observed in the ZIF-8 support and can be assigned to the degradation of the organic ligand together with the EuW10 anions.

3.2. Catalytic Desulfurization Studies

The catalytic performance of the composite EuW10@ZIF-8 was investigated for the desulfurization of a multicomponent model fuel prepared with the most representative refractory sulfur compounds in real diesel, namely dibenzothiophene (DBT), 4-methyldibenzothiophene (4-MDBT) and 4,6-dimethyldibenzo-thiophene (4,6-DMDBT). Catalytic studies were performed at 70 °C in a biphasic liquid–liquid system based on equal volumes of the extraction solvent 1-butyl-3-methylimidazole hexafluorophosphate ([BMIM]PF6) and the model fuel. Aqueous hydrogen peroxide was used as oxidizing agent. The desulfurization process occurred in two main steps: extraction and catalytic oxidation. During the first 10 min and before the addition of oxidant, an initial extraction occurs to transfer certain amount of the sulfur compounds from fuel to the [BMIM]PF6 phase. The initial extraction equilibrium is reached, and the second step is initiated by adding hydrogen peroxide oxidant to the system. The metal-catalyzed oxidation of the extracted sulfur compounds is initiated (i.e., the oxidation of sulfur compounds to the corresponding sulfoxides and/or sulfones presented in the extraction solvent). The sulfur oxidation promotes a continued sulfur extraction from the diesel phase by decreasing the concentration of non-oxidized sulfur compounds in the extractant phase since no oxidation products were detected in the model diesel phase. The mechanism involved in the oxidation of benzothiophene and dibenzothiophene derivative compounds involved an initial formation of peroxo-POM active species via nucleophilic attack of the oxidant on the WVI atoms of EuW10. Oxidation of sulfur compounds into sulfoxides occurs by transfer of an oxygen atom from the intermediate active species, which are then regenerated into the initial WVI species. Subsequent nucleophilic attack on sulfoxides leads to the formation of the corresponding sulfones [9,25,27,41,43]. The desulfurization efficiency was determined by the periodical analysis of the model fuel phase by gas chromatography. Pristine ZIF-8 was tested as catalyst showing no activity in the studied reaction. Initially, the catalytic activity of the EuW10@ZIF-8 composite was compared with the homogeneous EuW10 (Figure 4). The desulfurization profile reveals a considerable extraction of sulfur compounds during the initial extraction step (50.2% and 68.3% of desulfurization for the heterogeneous EuW10@ZIF-8 and the homogeneous EuW10, respectively). Both catalysts were also demonstrated to be highly efficient for the desulfurization of the sulfur multicomponent model fuel. After 3 h of the process, near-complete desulfurization was achieved using the EuW10@ZIF-8 composite (94.7%). The homogeneous EuW10 was shown to be slightly more efficient than the composite, since after only 1 h, a desulfurization of 98.9% was achieved. The individual desulfurization for each sulfur compound in the presence of EuW10@ZIF-8 is depicted in Figure 5. The difficulty to remove the sulfur compounds from the model fuel increases according to the following order: DBT > 4-MDBT > 4,6-DMDBT, which is in good agreement with previously reported studies [4,74,75]. This tendency is correlated with the steric hindrance introduced by the methyl groups that hinders the nucleophilic attack, delaying the oxidation of the sulfur compounds to sulfoxides and/or sulfones. In fact, the removal of DBT from the model fuel was greatly promoted, with complete desulfurization being achieved after only 2 h. As for 4-MDBT, nearly total desulfurization (97.2%) was achieved after three hours of reaction, while only 87.9% was achieved for 4,6-DMDBT. Despite the superior catalytic activity of the homogeneous catalyst, a major drawback is its inability to be removed from the reactional medium and recycled in consecutive catalytic cycles.
The recycling capacity of the solid EuW10@ZIF-8 catalyst and the reuse ability of the EuW10@ZIF-8/[BMIM]PF6 system were evaluated by performing five consecutive desulfurization cycles. The reuse method consisted of the preservation of the composite and the ionic liquid-phase EuW10@ZIF-8/[BMIM]PF6 during five consecutive cycles. The sustainability of this procedure is higher, since the same portion of extraction solvent and catalyst were used in these consecutive cycles. After each cycle, the model fuel was removed from the system and a new desulfurization cycle was performed by adding a novel portion of sulfurized model fuel as well the H2O2 oxidant, maintaining all the experimental conditions. In the case of the recycling procedure, the solid catalyst was recovered, washed with water and acetonitrile, dried, weighed, and used again in a new desulfurization cycle while maintaining the same experimental conditions. Figure 6 displays the results obtained after 4 h for the reusing and recycling processes. It is noteworthy that the recycling process of EuW10@ZIF8 demonstrates the retention of the desulfurization efficiency during the various cycles, with near complete desulfurization after 4 h. On the other hand, the reuse process of the EuW10@ZIF8/[BMIM]PF6 system presented a decrease in catalytic efficiency after the first cycle. Between the 2nd and the 4th cycles, the reuse process caused an accumulation of oxidized products (mainly sulfones) in the [BMIM]PF6 extraction phase. This caused a decrease in sulfur transfer from the fuel to the ionic liquid phase, and consequently a decrease in the desulfurization efficiency. This behavior has been attributed to the accumulation and consequent saturation of the extraction phase during the reuse process with the oxidized sulfur compounds (sulfones), which prevents further transfer of sulfur compounds from the non-polar phase (model diesel) to the ionic liquid phase, decreasing the desulfurization efficiency of the system [27,76]. After the 4th cycle, the solid catalyst was recovered, washed, and used in a new desulfurization cycle. This promoted an increase in desulfurization efficiency, which was observed for the 5th cycle of the reuse process. Therefore, the results show that the saturation of the extraction phase prevents the reutilization of the solid catalyst for longer desulfurization cycles, since the oxidative reaction should occur in the extraction phase (sulfones and/or sulfoxides were observed in the model fuel phase), and a clean medium promotes a higher diffusion of reactants to the catalytic active center located at the ZIF-8 framework.
The mechanism involved in the oxidation of benzothiophene and dibenzothiophene derivative compounds catalyzed by POMs using H2O2 as oxidant has been well described in the literature [9,52,75,77]. The initial formation of peroxo-POM active species occurs by nucleophilic attack of the oxidant on the WVI atoms of EuW10. Oxidation of sulfur compounds into sulfoxides occurs by transfer of an oxygen atom from the intermediate active species, which are then regenerated into the initial WVI species. Subsequent nucleophilic attack on sulfoxides lead to the formation of the corresponding sulfones.

3.3. Comparison with Other Catalysts

Recently, our research group reported the desulfurization of a multicomponent model fuel using homogeneous Lindqvist POMs (including EuW10) and compared their activities with Keggin-type POM (Table 1) [43]. The superior efficiency of the Lindqvist-type structure was observed, requiring a smaller oxidant dosage to reach complete desulfurization. In the present work, the heterogenization of the active Lindqvist EuW10 was strategically envisaged through its encapsulation into the framework of ZIF-8. The selection of this MOF as a host for the POM anion was due to the match between POM dimensions (near 10 Å) and the ZIF-8 pore size (11.6 Å), with a small pore window (3.4 Å) [78]. The small pore window prevents POM leaching, and at the same time can promote the diffusion of reactants towards the EuW10 catalytic active center. Scarce work can be found in the literature reporting POMs@ZIF-8 catalysts for oxidative desulfurization, and the majority only reports their application in single-component DBT model fuel [50,79]. The only work presenting the application of a POM@ZIF-8 catalyst using a multicomponent model fuel was reported by our research group, and involved the incorporation of an imidazolium-based Keggin-type polyoxomolybdate ([BMIM]3PMo12O40) into a ZIF-8 framework ([BMIM]3PMo12O40@ZIF-8) [33]. Under identical experimental conditions, near-complete desulfurization was achieved after 1 h; however, a structural alteration was observed after the first use of the catalyst. For this reason, the stability of the EuW10@ZIF-8 composite was investigated by using it in consecutive desulfurization cycles.

3.4. Catalyst Material Stability

The stability of the heterogeneous catalyst was evaluated by recovering the composite after catalytic use (EuW10@ZIF-8-ac). The catalyst was separated by centrifugation, washed with water and acetonitrile, and dried in a desiccator over silica gel. The powder XRD characterization of EuW10@ZIF-8-ac reveals that the composite undergoes structural transformation after catalytic use (Figure S3). In fact, the ZIF-8 is known to undergo thermally and pressure-induced phase transformations as previously reported by our research group and others [33,80]. In this case, the main diffraction peaks in the powder XRD pattern of EuW10@ZIF-8-ac suggest the structural transformation of ZIF-8 into the ZIF-L polymorph as a consequence of the applied experimental conditions [81,82]. The morphology and chemical composition of EuW10@ZIF-8-ac were assessed using SEM/EDS techniques (Figure S4). The SEM images showed a higher degree of aggregation between the particles, which was most likely due to remaining solvent with high viscosity in the recovered material, as suggested by the presence of P and F from [BMIM]PF6 in the EDS spectrum. The morphology of the particles also seems to have changed after catalytic use, most likely as a consequence of the previously discussed phase transformation. Nevertheless, the EDS spectrum of EuW10@ZIF-8-ac still exhibits the presence of Zn, N and W, with similar relative intensities to the spectrum of the as-prepared composite. This result, together with the retention of the high desulfurization results along the recycling studies suggests the minimal occurrence or even absence of EuW10 leaching.

4. Conclusions

The heterogenization of the active Lindqvist isopolyoxometalate EuW10 was performed in this work following an impregnation procedure to prepare the EuW10@ZIF-8 nanocomposite. The oxidative catalytic performance of this nanocomposite was compared with the homogeneous Lindqvist [Eu(W5O18)2]9− (abbreviated as EuW10) for the desulfurization of a multicomponent model fuel. Only a slightly superior catalytic efficiency of the homogeneous was observed during the first 2 h of the process and practically complete desulfurization was achieved after 3 h. The reutilization and recycling processes of the solid catalyst were investigated over five consecutive desulfurization cycles. Due to the high saturation of the [BMIM]PF6 extraction phase after the first cycle, a decrease in desulfurization efficiency was detected. However, the activity was maintained for a number of consecutive cycles if the solid catalyst was recycled by separation and solvent washing was performed between cycles. Stability was further confirmed by different characterization techniques. The nanoporous ZIF-8 was shown to be highly suitable for promoting the high catalytic activity of the Lindqvist active center.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12162887/s1, Figure S1: EDS spectra of (A) ZIF-8 support and (B) EuW10@ZIF-8 composite; Figure S2: Thermogravimetric analysis (TGA) of (A) EuW10, (B) ZIF-8 and (C) EuW10@ZIF-8 composite; Figure S3: Powder XRD patterns of the EuW10@ZIF-8 composite as-prepared and after catalysis (ac); Figure S4: SEM image and EDS spectrum of the EuW10@ZIF-8 composite after catalysis.

Author Contributions

Conceptualization, S.S.B. and C.M.G.; methodology, S.F., D.S. and F.M.; investigation, S.F., D.S., I.S.-V. and F.M.; writing—original draft preparation, S.F., D.F. and F.M.; writing—review and editing, I.S.-V., C.M.G. and S.S.B.; supervision, C.M.G. and S.S.B.; formal analysis, I.S.-V.; funding acquisition, S.S.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research work received financial support from Portuguese national funds (FCT/MCTES, Fundação para a Ciência e a Tecnologia and Ministério da Ciência, Tecnologia e Ensino Superior) through the strategic project REQUIMTE-LAQV (FCT, Ref. LAQV, REQUIMTE (POCI-01-0145-FEDER-007265, UID/QUI/50006/2013)], and UIDB/50011/2020 and UIDP/50011/2020 (for CICECO). Parts of this work were performed with funds from the European Union (FEDER funds through COM-PETE POCI-01-0145-FEDER-031983.

Data Availability Statement

Not applicable.

Acknowledgments

The position held by Isabel Santos-Vieira. (Ref. 197_97_ARH-2018), through FCT-Fundação para a Ciência e a Tecnologia, in the scope of the framework contract foreseen in the numbers 4, 5 and 6 of the article 23, of the Decree-Law 57/2016, of August 29, changed by Law 57/2017, of July 19. Salete.S. Balula thanks FCT/MCTES for funding through the Individual Call to Scientific Employment Stimulus (Ref. CEECIND/03877/2018). Carlos M. Granadeiro acknowledges FCT/MCTES for funding through DL 57/2016 program contract—Norma transitória.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gao, Y.; Mirante, F.; de Castro, B.; Zhao, J.; Cunha-Silva, L.; Balula, S.S. An Effective Hybrid Heterogeneous Catalyst to Desulfurize Diesel: Peroxotungstate@Metal–Organic Framework. Molecules 2020, 25, 5494. [Google Scholar] [CrossRef] [PubMed]
  2. Lin, Z.-J.; Zheng, H.-Q.; Chen, J.; Zhuang, W.-E.; Lin, Y.-X.; Su, J.-W.; Huang, Y.-B.; Cao, R. Encapsulation of Phosphotungstic Acid into Metal–Organic Frameworks with Tunable Window Sizes: Screening of PTA@MOF Catalysts for Efficient Oxidative Desulfurization. Inorg. Chem. 2018, 57, 13009–13019. [Google Scholar] [CrossRef] [PubMed]
  3. Srivastava, V.C. An evaluation of desulfurization technologies for sulfur removal from liquid fuels. RSC Adv. 2012, 2, 759–783. [Google Scholar] [CrossRef]
  4. Ribeiro, S.O.; Nogueira, L.S.; Gago, S.; Almeida, P.L.; Corvo, M.C.; Castro, B.d.; Granadeiro, C.M.; Balula, S.S. Desulfurization process conciliating heterogeneous oxidation and liquid extraction: Organic solvent or centrifugation water? Appl. Catal. A Gen. 2017, 542, 359–367. [Google Scholar] [CrossRef]
  5. García-Gutiérrez, J.L.; Fuentes, G.A.; Hernández-Terán, M.E.; García, P.; Murrieta-Guevara, F.; Jiménez-Cruz, F. Ultra-deep oxidative desulfurization of diesel fuel by the Mo/Al2O3-H2O2 system: The effect of system parameters on catalytic. Act. Appl. Catal. A Gen. 2008, 334, 366–373. [Google Scholar] [CrossRef]
  6. Wang, J.; Zhao, R.; Han, B.; Tang, N.; Li, K. Extractive and oxidative desulfurization of model oil in polyethylene glycol. RSC Adv. 2016, 6, 35071–35075. [Google Scholar] [CrossRef]
  7. Babich, I.V.; Moulijn, J.A. Science and technology of novel processes for deep desulfurization of oil refinery streams: A review. Fuel 2003, 82, 607–631. [Google Scholar] [CrossRef]
  8. Mjalli, F.S.; Ahmed, O.U.; Al-Wahaibi, T.; Al-Wahaibi, Y.; AlNashef, I.M. Deep oxidative desulfurization of liquid fuels. Rev. Chem. Eng. 2014, 30, 337–378. [Google Scholar] [CrossRef]
  9. Xu, J.; Zhao, S.; Chen, W.; Wang, M.; Song, Y.-F. Highly Efficient Extraction and Oxidative Desulfurization System Using Na7H2LaW10O36⋅32 H2O in [bmim]BF4 at Room Temperature. Chem. A Eur. J. 2012, 18, 4775–4781. [Google Scholar] [CrossRef]
  10. Rezvani, M.A.; Asli, M.A.; Khandan, S.; Mousavi, H.; Aghbolagh, Z.S. Synthesis and characterization of new nanocomposite CTAB-PTA@CS as an efficient heterogeneous catalyst for oxidative desulphurization of gasoline. Chem. Eng. J. 2017, 312, 243–251. [Google Scholar] [CrossRef]
  11. Xu, J.; Zhao, S.; Ji, Y.; Song, Y.-F. Deep Desulfurization by Amphiphilic Lanthanide-Containing Polyoxometalates in Ionic-Liquid Emulsion Systems under Mild Conditions. Chem. A Eur. J. 2013, 19, 709–715. [Google Scholar] [CrossRef] [PubMed]
  12. Sobati, M.A.; Dehkordi, A.M.; Shahrokhi, M. Liquid–liquid extraction of oxidized sulfur-containing compounds of non-hydrotreated kerosene. Fuel Process. Technol. 2010, 91, 1386–1394. [Google Scholar] [CrossRef]
  13. Bhutto, A.W.; Abro, R.; Gao, S.R.; Abbas, T.; Chen, X.C.; Yu, G.R. Oxidative desulfurization of fuel oils using ionic liquids: A review. J. Taiwan Inst. Chem. Eng. 2016, 62, 84–97. [Google Scholar] [CrossRef]
  14. Liu, F.; Yu, J.; Qazi, A.B.; Zhang, L.; Liu, X.K. Metal-Based Ionic Liquids in Oxidative Desulfurization: A Critical Review. Environ. Sci. Technol. 2021, 55, 1419–1435. [Google Scholar] [CrossRef] [PubMed]
  15. Bryzhin, A.A.; Buryak, A.K.; Gantman, M.G.; Zelikman, V.M.; Shilina, M.I.; Tarkhanova, I.G. Heterogeneous Catalysts SILP with Phosphotungstic Acid for Oxidative Desulfurization: Effect of Ionic Liquid. Kinet. Catal. 2020, 61, 775–785. [Google Scholar] [CrossRef]
  16. Desai, K.; Dharaskar, S.; Khalid, M.; Gedam, V. Effectiveness of ionic liquids in extractive-oxidative desulfurization of liquid fuels: A review. Chem. Pap. 2022, 76, 1989–2028. [Google Scholar] [CrossRef]
  17. Mirante, F.; Gomes, N.; Corvo, M.C.; Gago, S.; Balula, S.S. Polyoxomolybdate based ionic-liquids as active catalysts for oxidative desulfurization of simulated diesel. Polyhedron 2019, 170, 762–770. [Google Scholar] [CrossRef]
  18. Yu, Z.D.; Huang, X.Y.; Xun, S.H.; He, M.Q.; Zhu, L.H.; Wu, L.L.; Yuan, M.M.; Zhu, W.S.; Li, H.M. Synthesis of carbon nitride supported amphiphilic phosphotungstic acid based ionic liquid for deep oxidative desulfurization of fuels. J. Mol. Liq. 2020, 308, 113059. [Google Scholar] [CrossRef]
  19. Zhang, M.; Liu, J.Q.; Li, H.P.; Wei, Y.C.; Fu, Y.J.; Liao, W.Y.; Zhu, L.H.; Chen, G.Y.; Zhu, W.S.; Li, H.M. Tuning the electrophilicity of vanadium-substituted polyoxometalate based ionic liquids for high-efficiency aerobic oxidative desulfurization. Appl. Catal. B-Environ. 2020, 271, 118936. [Google Scholar] [CrossRef]
  20. Ahmadian, M.; Anbia, M. Oxidative Desulfurization of Liquid Fuels Using Polyoxometalate-Based Catalysts: A Review. Energy Fuels 2021, 35, 10347–10373. [Google Scholar] [CrossRef]
  21. Boshagh, F.; Rahmani, M.; Rostami, K.; Yousefifar, M. Key Factors Affecting the Development of Oxidative Desulfurization of Liquid Fuels: A Critical Review. Energy Fuels 2022, 36, 98–132. [Google Scholar] [CrossRef]
  22. Li, J.R.; Yang, Z.; Li, S.W.; Jin, Q.P.; Zhao, J.S. Review on oxidative desulfurization of fuel by supported heteropolyacid catalysts. J. Ind. Eng. Chem. 2020, 82, 1–16. [Google Scholar] [CrossRef]
  23. Rajendran, A.; Cui, T.Y.; Fan, H.X.; Yang, Z.F.; Feng, J.; Li, W.Y. A comprehensive review on oxidative desulfurization catalysts targeting clean energy and environment. J. Mater. Chem. A 2020, 8, 2246–2285. [Google Scholar] [CrossRef]
  24. Taghizadeh, M.; Mehrvarz, E.; Taghipour, A. Polyoxometalate as an effective catalyst for the oxidative desulfurization of liquid fuels: A critical review. Rev. Chem. Eng. 2020, 36, 831–858. [Google Scholar] [CrossRef]
  25. Gao, Y.; Julião, D.; Silva, D.F.; de Castro, B.; Zhao, J.; Balula, S.S. A simple desulfurization process to achieve high efficiency, sustainability and cost-effectivity via peroxotungstate catalyst. Mol. Catal. 2021, 505, 111515. [Google Scholar] [CrossRef]
  26. Juliao, D.; Gomes, A.C.; Pillinger, M.; Lopes, A.D.; Valenca, R.; Ribeiro, J.C.; Goncalves, I.S.; Balula, S.S. Desulfurization of diesel by extraction coupled with Mo-catalyzed sulfoxidation in polyethylene glycol-based deep eutectic solvents. J. Mol. Liq. 2020, 309, 113093. [Google Scholar] [CrossRef]
  27. Juliao, D.; Gomes, A.C.; Pillinger, M.; Valenca, R.; Ribeiro, J.C.; Goncalves, I.S.; Balula, S.S. Desulfurization of liquid fuels by extraction and sulfoxidation using H2O2 and CpMo(CO)(3)R as catalysts. Appl. Catal. B-Environ. 2018, 230, 177–183. [Google Scholar] [CrossRef]
  28. Juliao, D.; Mirante, F.; Ribeiro, S.O.; Gomes, A.C.; Valenca, R.; Ribeiro, J.C.; Pillinger, M.; de Castro, B.; Goncalves, I.S.; Balula, S.S. Deep oxidative desulfurization of diesel fuels using homogeneous and SBA-15-supported peroxophosphotungstate catalysts. Fuel 2019, 241, 616–624. [Google Scholar] [CrossRef]
  29. Mirante, F.; Mendes, R.F.; Faria, R.G.; Cunha-Silva, L.; Paz, F.A.A.; Balula, S.S. Membrane-Supported Layered Coordination Polymer as an Advanced Sustainable Catalyst for Desulfurization. Molecules 2021, 26, 2404. [Google Scholar] [CrossRef]
  30. Ribeiro, S.; Barbosa, A.D.S.; Gomes, A.C.; Pillinger, M.; Goncalves, I.S.; Cunha-Silva, L.; Balula, S.S. Catalytic oxidative desulfurization systems based on Keggin phosphotungstate and metal-organic framework MIL-101. Fuel Process. Technol. 2013, 116, 350–357. [Google Scholar] [CrossRef]
  31. Ribeiro, S.O.; Almeida, P.L.; Pires, J.; de Castro, B.; Balula, S.S. Polyoxometalate@Periodic mesoporous organosilicas as active materials for oxidative desulfurization of diesels. Microporous Mesoporous Mater. 2020, 302, 110193. [Google Scholar] [CrossRef]
  32. Ribeiro, S.O.; Juliao, D.; Cunha-Silva, L.; Domingues, V.F.; Valenca, R.; Ribeiro, J.C.; de Castro, B.; Balula, S.S. Catalytic oxidative/extractive desulfurization of model and untreated diesel using hybrid based zinc-substituted polyoxometalates. Fuel 2016, 166, 268–275. [Google Scholar] [CrossRef]
  33. Silva, D.F.; Viana, A.M.; Santos-Vieira, I.; Balula, S.S.; Cunha-Silva, L. Ionic Liquid-Based Polyoxometalate Incorporated at ZIF-8: A Sustainable Catalyst to Combine Desulfurization and Denitrogenation Processes. Molecules 2022, 27, 1711. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, W.L.; Tan, H.Q.; Wang, E.B. Review: The chirality and bionic studies of polyoxometalates: The synthetic strategy and structural chemistry. J. Coord. Chem. 2012, 65, 1–18. [Google Scholar] [CrossRef]
  35. Pope, M.T.; Miiller, A. Polyoxometalate Chemistry: An Old Field with New Dimensions in Several Disciplines. Angew. Chem. Int. Ed. 1991, 30, 34–48. [Google Scholar] [CrossRef]
  36. Wang, S.-S.; Yang, G.-Y. Recent Advances in Polyoxometalate-Catalyzed Reactions. Chem. Rev. 2015, 115, 4893–4962. [Google Scholar] [CrossRef]
  37. Granadeiro, C.M.; Ferreira, R.A.S.; Soares-Santos, P.C.R.; Carlos, L.D.; Nogueira, H.I.S. Lanthanopolyoxometalates as Building Blocks for Multiwavelength Photoluminescent Organic–Inorganic Hybrid Materials. Eur. J. Inorg. Chem. 2009, 2009, 5088–5095. [Google Scholar] [CrossRef]
  38. Chen, Y.; Zhao, S.; Song, Y.F. An efficient heterogeneous catalyst based on highly dispersed Na(7)H(2)LaW(10)O(36 center dot)32H(2)O nanoparticles on mesoporous silica for deep desulfurization. Appl. Catal. A-Gen. 2013, 466, 307–314. [Google Scholar] [CrossRef]
  39. Ribeiro, S.; Granadeiro, C.M.; Silva, P.; Paz, F.A.A.; de Biani, F.F.; Cunha-Silva, L.; Balula, S.S. An efficient oxidative desulfurization process using terbium-polyoxometalate@MIL-101(Cr). Catal. Sci. Technol. 2013, 3, 2404–2414. [Google Scholar] [CrossRef]
  40. Fu, J.W.; Ma, W.W.; Guo, Y.; Li, X.N.; Wang, H.Y.; Fu, C.; Zhang, H. The Ultra-Deep Desulfurization of Model Oil Using Amphipathic Lindqvist-Type Polyoxometalate-Based TiO2 Nanofibres as Catalysts. Catal. Lett. 2021, 151, 2027–2037. [Google Scholar] [CrossRef]
  41. Guo, Y.; Fu, J.W.; Li, L.; Li, X.N.; Wang, H.Y.; Ma, W.W.; Zhang, H. One-pot synthesis of polyoxomolybdate anion intercalated layered double hydroxides and their application in ultra-deep desulfurization of fuels under mild conditions. Inorg. Chem. Front. 2018, 5, 2205–2210. [Google Scholar] [CrossRef]
  42. Li, J.K.; Dong, J.; Wei, C.P.; Yang, S.; Chi, Y.N.; Xu, Y.Q.; Hu, C.W. Controllable Synthesis of Lindqvist Alkoxopolyoxovanadate Clusters as Heterogeneous Catalysts for Sulfoxidation of Sulfides. Inorg. Chem. 2017, 56, 5748–5756. [Google Scholar] [CrossRef] [PubMed]
  43. Fernandes, S.; Mirante, F.; Castro, B.d.; Granadeiro, C.M.; Balula, S.S. Lindqvist versus Keggin-Type Polyoxometalates as Catalysts for Effective Desulfurization of Fuels. Catalysts 2022, 12, 581. [Google Scholar] [CrossRef]
  44. Du, D.Y.; Qin, J.S.; Li, S.L.; Su, Z.M.; Lan, Y.Q. Recent advances in porous polyoxometalate-based metal-organic framework materials. Chem. Soc. Rev. 2014, 43, 4615–4632. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Zhang, S.W.; Ou, F.X.; Ning, S.G.; Cheng, P. Polyoxometalate-based metal-organic frameworks for heterogeneous catalysis. Inorg. Chem. Front. 2021, 8, 1865–1899. [Google Scholar] [CrossRef]
  46. Piscopo, C.G.; Granadeiro, C.M.; Balula, S.S.; Boskovi, D. Metal-Organic Framework-Based Catalysts for Oxidative Desulfurization. Chemcatchem 2020, 12, 4721–4731. [Google Scholar] [CrossRef]
  47. Venna, S.R.; Jasinski, J.B.; Carreon, M.A. Structural Evolution of Zeolitic Imidazolate Framework-8. J. Am. Chem. Soc. 2010, 132, 18030–18033. [Google Scholar] [CrossRef]
  48. Park, K.S.; Ni, Z.; Côté, A.P.; Choi, J.Y.; Huang, R.; Uribe-Romo, F.J.; Chae, H.K.; O’Keeffe, M.; Yaghi, O.M. Exceptional chemical and thermal stability of zeolitic imidazolate frameworks. Proc. Natl. Acad. Sci. USA 2006, 103, 10186–10191. [Google Scholar] [CrossRef] [Green Version]
  49. Liang, D.D.; Yang, Y.L.; Zhou, Q.H.; Liu, J.B.; Tang, S.S. Incorporation of Isopolyoxometalate into the Crystal and Membrane of ZIF-8. Chin. J. Struct. Chem. 2020, 39, 1395–1404. [Google Scholar]
  50. Yang, N.; Lu, L.J.; Zhu, L.H.; Wu, P.W.; Tao, D.J.; Li, X.W.; Gong, J.H.; Chen, L.L.; Chao, Y.H.; Zhu, W.S. Phosphomolybdic acid encapsulated in ZIF-8-based porous ionic liquids for reactive extraction desulfurization of fuels. Inorg. Chem. Front. 2022, 9, 165–178. [Google Scholar] [CrossRef]
  51. Fernandes, S.C.; Viana, A.M.; de Castro, B.; Cunha-Silva, L.; Balula, S.S. Synergistic combination of the nanoporous system of MOF-808 with a polyoxomolybdate to design an effective catalyst: Simultaneous oxidative desulfurization and denitrogenation processes. Sustain. Energy Fuels 2021, 5, 4032–4040. [Google Scholar] [CrossRef]
  52. Granadeiro, C.M.; Ferreira, P.M.C.; Juliao, D.; Ribeiro, L.A.; Valenca, R.; Ribeiro, J.C.; Goncalves, I.S.; de Castro, B.; Pillinger, M.; Cunha-Silva, L.; et al. Efficient Oxidative Desulfurization Processes Using Polyoxomolybdate Based Catalysts. Energies 2018, 11, 1696. [Google Scholar] [CrossRef] [Green Version]
  53. Granadeiro, C.M.; Nogueira, L.S.; Juliao, D.; Mirante, F.; Ananias, D.; Balula, S.S.; Cunha-Silva, L. Influence of a porous MOF support on the catalytic performance of Eu-polyoxometalate based materials: Desulfurization of a model diesel. Catal. Sci. Technol. 2016, 6, 1515–1522. [Google Scholar] [CrossRef]
  54. Juliao, D.; Gomes, A.C.; Pillinger, M.; Cunha-Silva, L.; de Castro, B.; Goncalves, I.S.; Balula, S.S. Desulfurization of model diesel by extraction/oxidation using a zinc-substituted polyoxometalate as catalyst under homogeneous and heterogeneous (MIL-101 (Cr) encapsulated) conditions. Fuel Process. Technol. 2015, 131, 78–86. [Google Scholar] [CrossRef]
  55. Juliao, D.; Gomes, A.C.; Pillinger, M.; Valenca, R.; Ribeiro, J.C.; de Castro, B.; Goncalves, I.S.; Silva, L.C.; Balula, S.S. Zinc-Substituted Polyoxotungstate@amino-MIL-101(Al)—An Efficient Catalyst for the Sustainable Desulfurization of Model and Real Diesels. Eur. J. Inorg. Chem. 2016, 2016, 5114–5122. [Google Scholar] [CrossRef]
  56. Granadeiro, C.M.; Barbosa, A.D.S.; Ribeiro, S.; Santos, I.; de Castro, B.; Cunha-Silva, L.; Balula, S.S. Oxidative catalytic versatility of a trivacant polyoxotungstate incorporated into MIL-101(Cr). Catal. Sci. Technol. 2014, 4, 1416–1425. [Google Scholar] [CrossRef]
  57. Granadeiro, C.M.; Barbosa, A.D.S.; Silva, P.; Paz, F.A.A.; Saini, V.K.; Fires, J.; de Castro, B.; Balula, S.S.; Cunha-Silva, L. Monovacant polyoxometalates incorporated into MIL-101(Cr): Novel heterogeneous catalysts for liquid phase oxidation. Appl. Catal. A-Gen. 2013, 453, 316–326. [Google Scholar] [CrossRef]
  58. Granadeiro, C.M.; Silva, P.; Saini, V.K.; Paz, F.A.A.; Pires, J.; Cunha-Silva, L.; Balula, S.S. Novel heterogeneous catalysts based on lanthanopolyoxometalates supported on MIL-101(Cr). Catal. Today 2013, 218, 35–42. [Google Scholar] [CrossRef]
  59. Peacock, R.D.; Weakley, T.J.R. Heteropolytungstate complexes of the lanthanide elements. Part I. Preparation and reactions. J. Chem. Soc. A: Inorg. Phys. Theor. 1971, 1836–1839. [Google Scholar] [CrossRef]
  60. Granadeiro, C.M.; Ribeiro, S.O.; Kaczmarek, A.M.; Cunha-Silva, L.; Almeida, P.L.; Gago, S.; van Deun, R.; de Castro, B.; Balula, S.S. A novel red emitting material based on polyoxometalate@periodic mesoporous organosilica. Microporous Mesoporous Mater. 2016, 234, 248–256. [Google Scholar] [CrossRef]
  61. Xia, Y.; He, J.; Chen, S.; Gao, S.; Wang, W.; Lu, P.; Yao, Y. Magnetic Co-based carbon materials derived from core–shell metal–organic frameworks for organic contaminant elimination with peroxymonosulfates. Dalton Trans. 2019, 48, 10251–10259. [Google Scholar] [CrossRef]
  62. Kargar, H.; Ghahramaninezhad, M.; Shahrak, M.N.; Balula, S.S. An Effective Magnetic Catalyst for Oxidative Desulfurization of Model and Real Fuels: Fe3O4/ZIF-8/TiO₂. Microporous Mesoporous Mater. 2021, 317, 110992. [Google Scholar] [CrossRef]
  63. Zhang, Y.; Jia, Y.; Hou, L.A. Synthesis of zeolitic imidazolate framework-8 on polyester fiber for PM2.5. Remov. RSC Adv. 2018, 8, 31471–31477. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Zhou, K.; Mousavi, B.; Luo, Z.; Phatanasri, S.; Chaemchuen, S.; Verpoort, F. Characterization and properties of Zn/Co zeolitic imidazolate frameworks vs. ZIF-8 and ZIF-67. J. Mater. Chem. A 2017, 5, 952–957. [Google Scholar] [CrossRef]
  65. Wang, X.; Chen, W.; Song, Y.-F. Directional Self-Assembly of Exfoliated Layered Europium Hydroxide Nanosheets and Na9EuW10O36·32H2O for Application in Desulfurization. Eur. J. Inorg. Chem. 2014, 2014, 2779–2786. [Google Scholar] [CrossRef]
  66. Qiu, Y.-F.; Liu, H.; Liu, J.-X.; Zhang, C.; Ma, Z.; Hu, P.-A.; Gao, G.-G. Moisture-responsive films consisting of luminescent polyoxometalates and agarose. J. Mater. Chem. C 2015, 3, 6322–6328. [Google Scholar] [CrossRef]
  67. Granadeiro, C.M.; Ferreira, R.A.S.; Soares-Santos, P.C.R.; Carlos, L.D.; Trindade, T.; Nogueira, H.I.S. Lanthanopolyoxotungstates in silica nanoparticles: Multi-wavelength photoluminescent core/shell materials. J. Mater. Chem. 2010, 20, 3313–3318. [Google Scholar] [CrossRef] [Green Version]
  68. Liu, S.-M.; Zhang, Z.; Li, X.-H.; Jia, H.-J.; Liu, S.-X. Synthesis and photophysical properties of crystalline [EuW10O36]9--based polyoxometalates with lanthanide ions as counter cations. J. Alloys Compd. 2018, 761, 52–57. [Google Scholar] [CrossRef]
  69. Liu, H.; Lv, Y.; Li, S.; Yang, F.; Liu, S.; Wang, C.; Sun, J.-Q.; Meng, H.; Gao, G.-G. A solar ultraviolet sensor based on fluorescent polyoxometalate and viologen. J. Mater. Chem. C 2017, 5, 9383–9388. [Google Scholar] [CrossRef]
  70. Binaeian, E.; Maleki, S.; Motaghedi, N.; Arjmandi, M. Study on the performance of Cd2+ sorption using dimethylethylenediamine-modified zinc-based MOF (ZIF-8-mmen): Optimization of the process by RSM technique. Sep. Sci. Technol. 2020, 55, 2713–2728. [Google Scholar] [CrossRef]
  71. Gross, A.F.; Sherman, E.; Vajo, J.J. Aqueous room temperature synthesis of cobalt and zinc sodalite zeolitic imidizolate frameworks. Dalton Trans. 2012, 41, 5458–5460. [Google Scholar] [CrossRef]
  72. Ran, J.; Chen, H.; Bi, S.; Guo, Q.; Deng, Z.; Cai, G.; Cheng, D.; Tang, X.; Wang, X. One-step in-situ growth of zeolitic imidazole frameworks-8 on cotton fabrics for photocatalysis and antimicrobial activity. Cellulose 2020, 27, 10447–10459. [Google Scholar] [CrossRef]
  73. Wu, C.-A.; Xiong, Z.-A.; Li, C.; Zhang, J.-M. Zeolitic imidazolate metal organic framework ZIF-8 with ultra-high adsorption capacity bound tetracycline in aqueous solution. RSC Adv. 2015, 5, 82127–82137. [Google Scholar] [CrossRef]
  74. Ribeiro, S.O.; Granadeiro, C.M.; Almeida, P.L.; Pires, J.; Valença, R.; Campos-Martin, J.M.; Ribeiro, J.C.; de Castro, B.; Balula, S.S. Effective Zinc-Substituted Keggin Composite To Catalyze the Removal of Sulfur from Real Diesels under a Solvent-Free System. Ind. Eng. Chem. Res. 2019, 58, 18540–18549. [Google Scholar] [CrossRef]
  75. Mirante, F.; Gomes, N.; Branco, L.C.; Cunha-Silva, L.; Almeida, P.L.; Pillinger, M.; Gago, S.; Granadeiro, C.M.; Balula, S.S. Mesoporous nanosilica-supported polyoxomolybdate as catalysts for sustainable desulfurization. Microporous Mesoporous Mater. 2019, 275, 163–171. [Google Scholar] [CrossRef]
  76. Mirante, F.; Mendes, R.F.; Paz, F.A.A.; Balula, S.S. High Catalytic Efficiency of a Layered Coordination Polymer to Remove Simultaneous Sulfur and Nitrogen Compounds from Fuels. Catalysts 2020, 10, 731. [Google Scholar] [CrossRef]
  77. Trakarnpruk, W.; Rujiraworawut, K. Oxidative desulfurization of Gas oil by polyoxometalates catalysts. Fuel Process. Technol. 2009, 90, 411–414. [Google Scholar] [CrossRef]
  78. Mukhopadhyay, S.; Debgupta, J.; Singh, C.; Kar, A.; Das, S.K. A Keggin Polyoxometalate Shows Water Oxidation Activity at Neutral pH: POM@ZIF-8, an Efficient and Robust Electrocatalyst. Angew. Chem. Int. Ed. 2018, 57, 1918–1923. [Google Scholar] [CrossRef]
  79. Ghahramaninezhad, M.; Pakdel, F.; Shahrak, M.N. Boosting oxidative desulfurization of model fuel by POM-grafting ZIF-8 as a novel and efficient catalyst. Polyhedron 2019, 170, 364–372. [Google Scholar] [CrossRef]
  80. James, J.B.; Lin, Y.S. Kinetics of ZIF-8 Thermal Decomposition in Inert, Oxidizing, and Reducing Environments. J. Phys. Chem. C 2016, 120, 14015–14026. [Google Scholar] [CrossRef]
  81. Deacon, A.; Briquet, L.; Malankowska, M.; Massingberd-Mundy, F.; Rudić, S.; Hyde, T.l.; Cavaye, H.; Coronas, J.; Poulston, S.; Johnson, T. Understanding the ZIF-L to ZIF-8 transformation from fundamentals to fully costed kilogram-scale production. Commun. Chem. 2022, 5, 18. [Google Scholar] [CrossRef]
  82. Pérez-Miana, M.; Reséndiz-Ordóñez, J.U.; Coronas, J. Solventless synthesis of ZIF-L and ZIF-8 with hydraulic press and high temperature. Microporous Mesoporous Mater. 2021, 328, 111487. [Google Scholar] [CrossRef]
Nanomaterials 12 02887 sch001 550

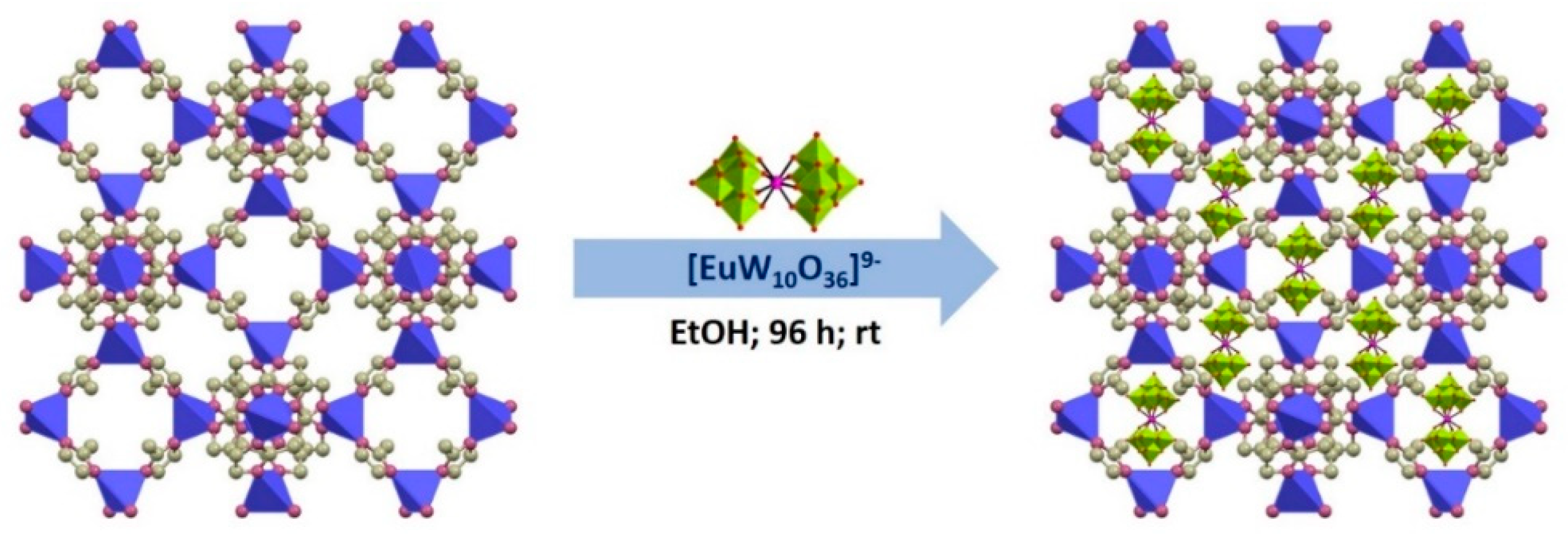

Scheme 1. Representation of the preparation of the EuW10@ZIF-8 composite material. Room temperature is abbreviated as rt.
Scheme 1. Representation of the preparation of the EuW10@ZIF-8 composite material. Room temperature is abbreviated as rt.
Nanomaterials 12 02887 sch001
Nanomaterials 12 02887 g001 550

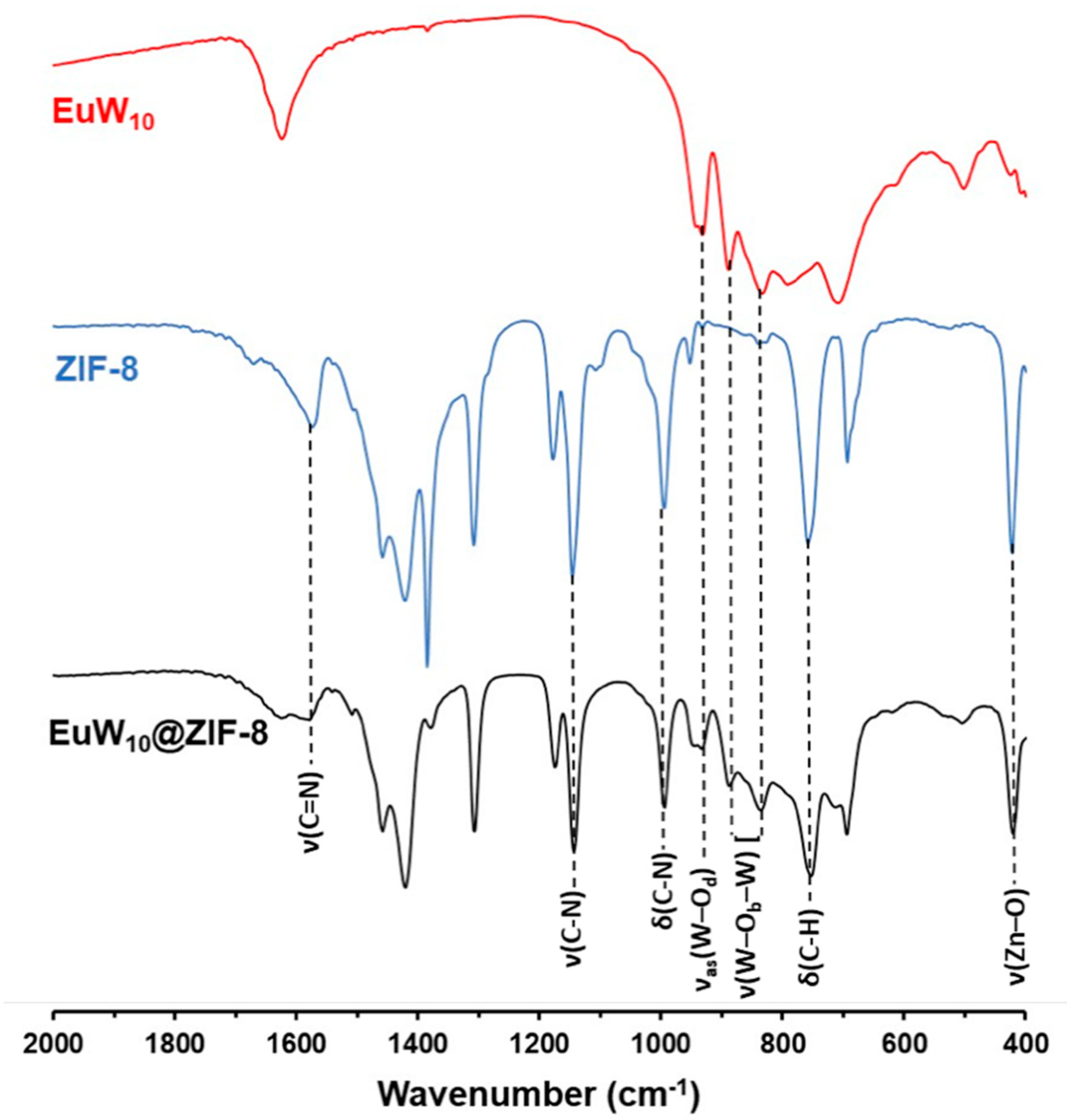

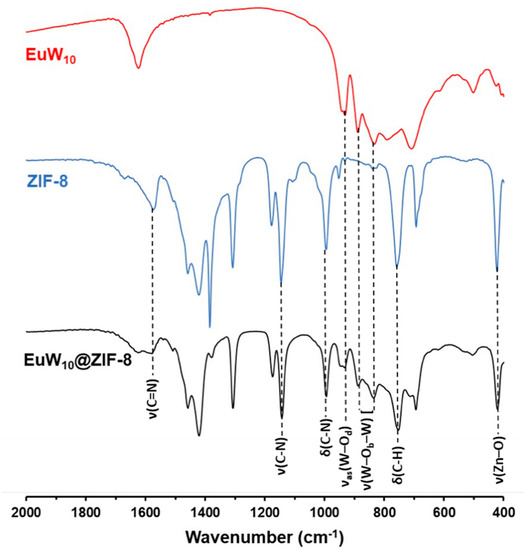

Figure 1. FT-IR spectra of the isolated EuW10, the ZIF-8 support, and the resulting EuW10@ZIF-8 composite.
Figure 1. FT-IR spectra of the isolated EuW10, the ZIF-8 support, and the resulting EuW10@ZIF-8 composite.
Nanomaterials 12 02887 g001
Nanomaterials 12 02887 g002 550

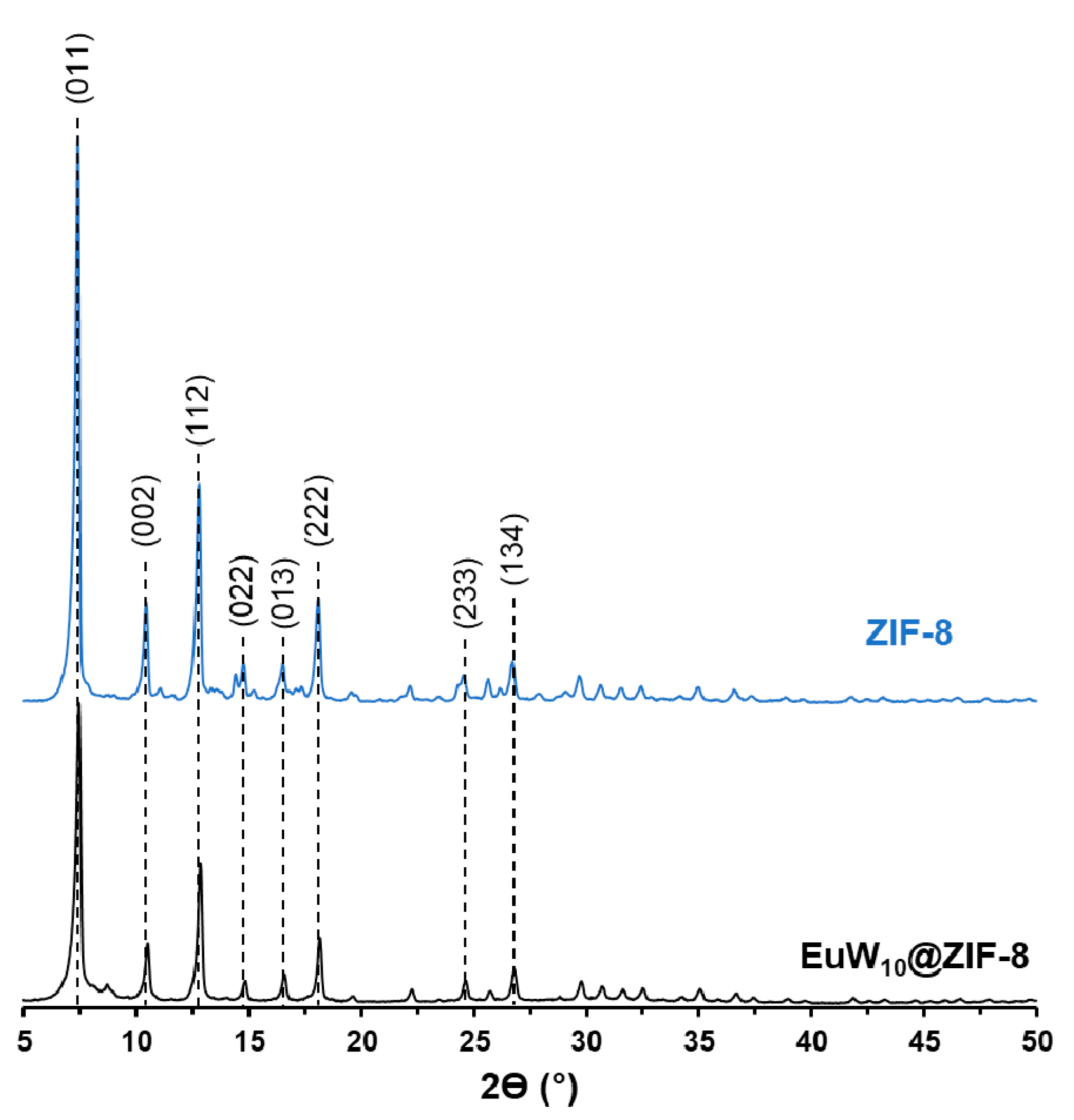

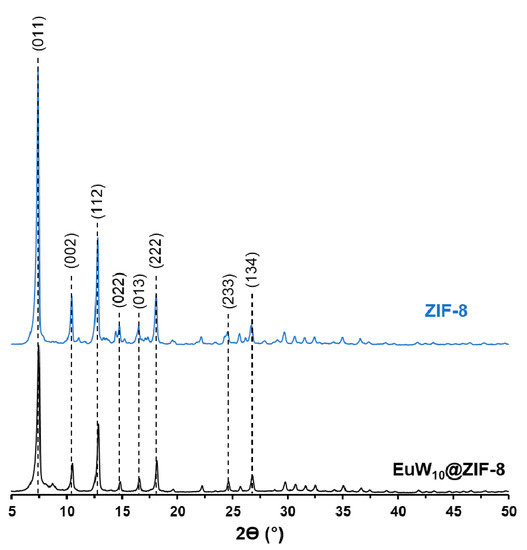

Figure 2. Powder XRD patterns of the isolated ZIF-8 support and the EuW10@ZIF-8 composite.
Figure 2. Powder XRD patterns of the isolated ZIF-8 support and the EuW10@ZIF-8 composite.
Nanomaterials 12 02887 g002
Nanomaterials 12 02887 g003 550

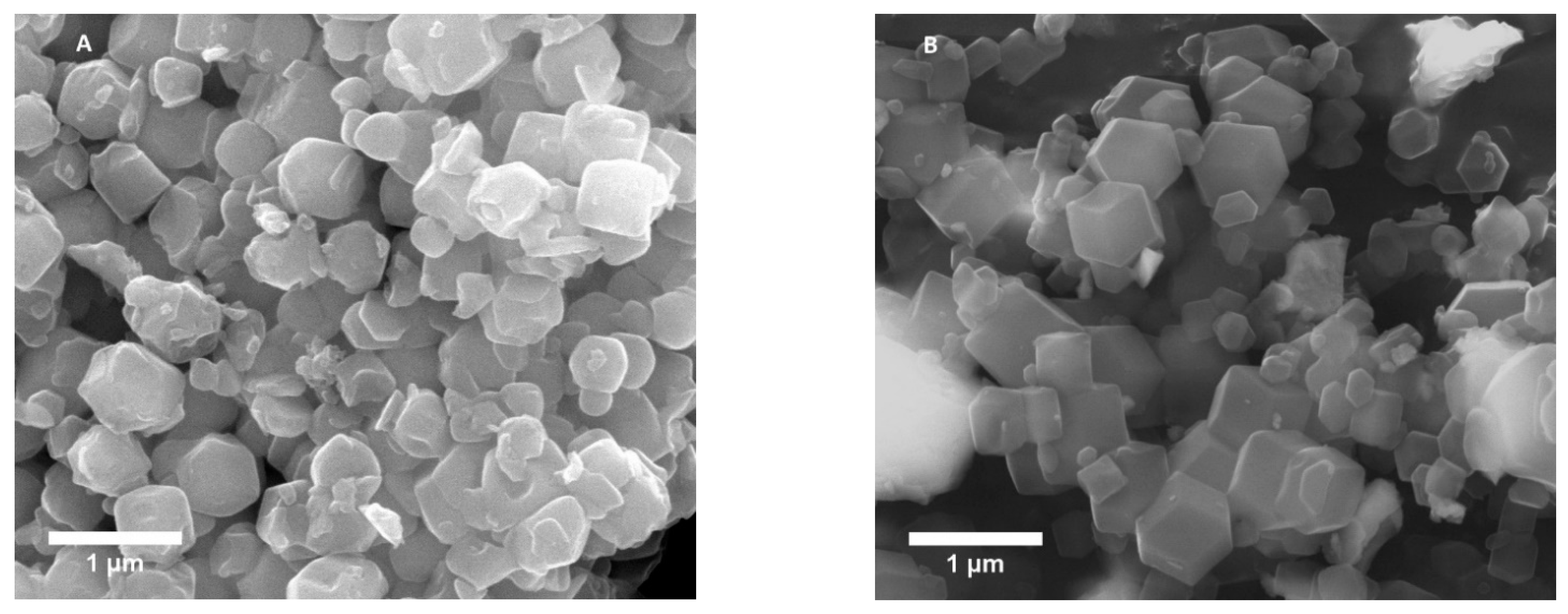

Figure 3. SEM images of (A) ZIF-8 support and (B) EuW10@ZIF-8 composite material.
Figure 3. SEM images of (A) ZIF-8 support and (B) EuW10@ZIF-8 composite material.
Nanomaterials 12 02887 g003
Nanomaterials 12 02887 g004 550

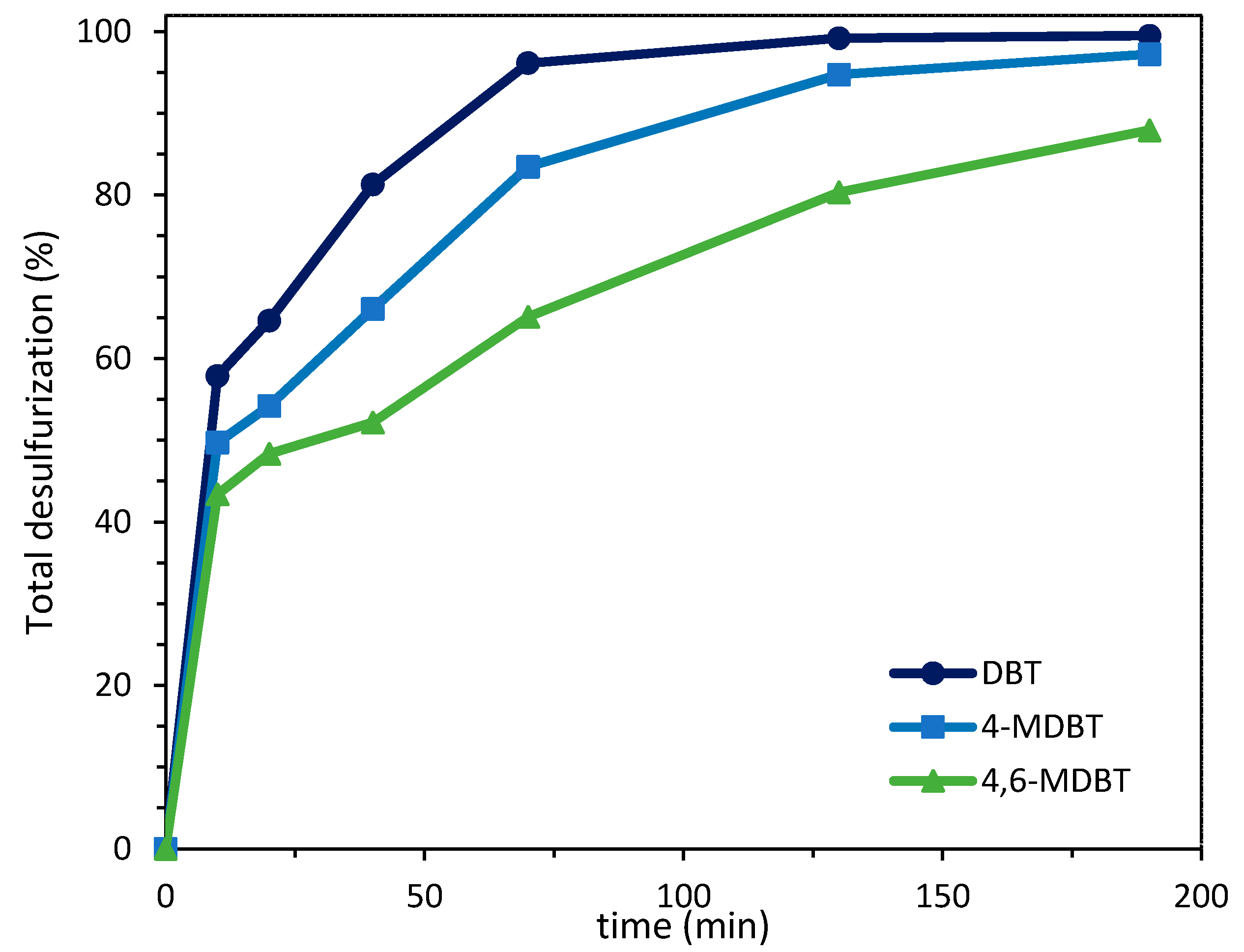

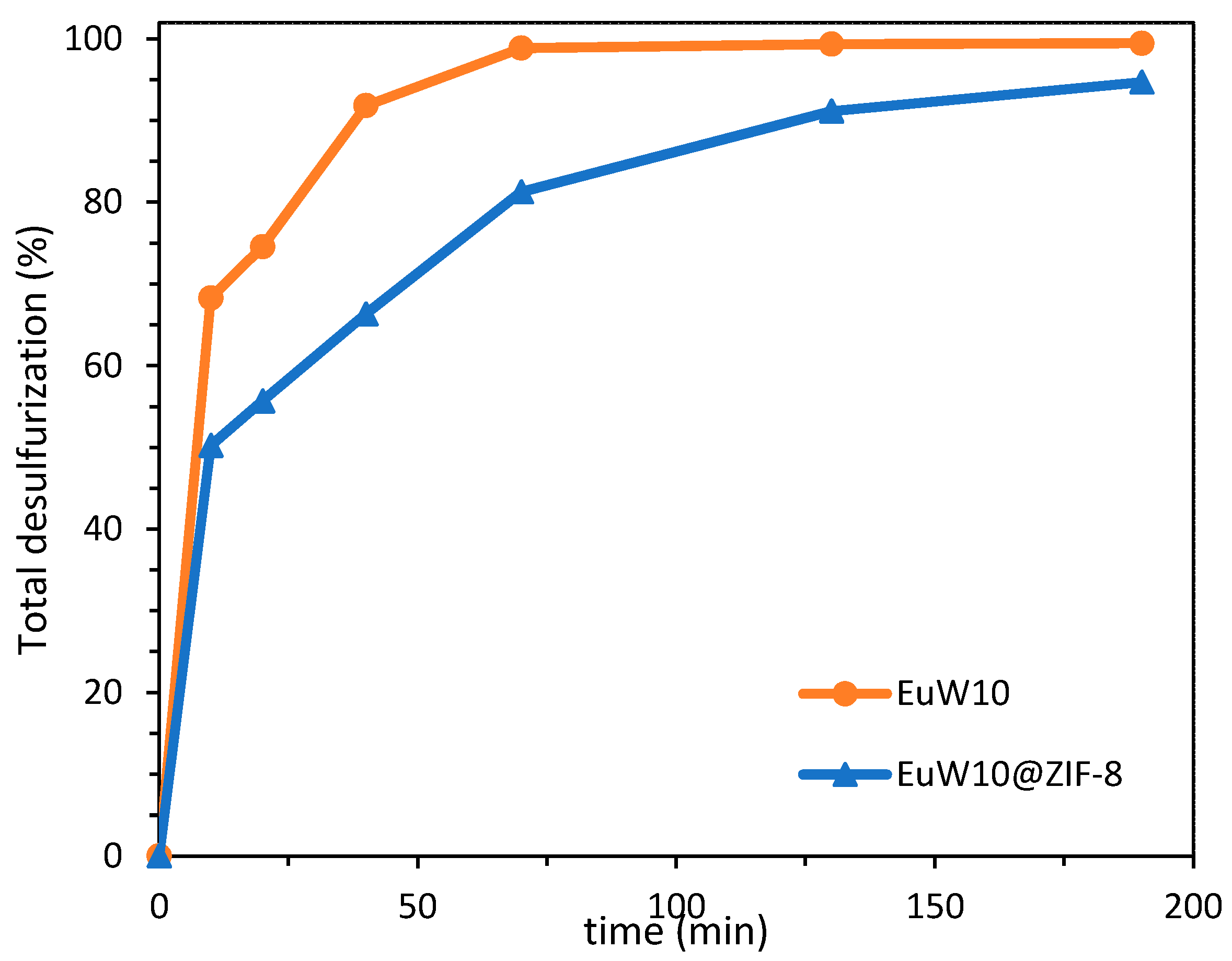

Figure 4. Desulfurization profile of a multicomponent model fuel (DBT, 4-MDBT, 4,6-DMDBT) catalyzed by the heterogeneous EuW10@ZIF-8 and the homogeneous EuW10 (both with 3 µmol of EuW10 active center), using [BMIM]PF6 as extraction solvent and H2O2 as oxidant, at 70 °C.
Figure 4. Desulfurization profile of a multicomponent model fuel (DBT, 4-MDBT, 4,6-DMDBT) catalyzed by the heterogeneous EuW10@ZIF-8 and the homogeneous EuW10 (both with 3 µmol of EuW10 active center), using [BMIM]PF6 as extraction solvent and H2O2 as oxidant, at 70 °C.
Nanomaterials 12 02887 g004
Nanomaterials 12 02887 g005 550
Figure 5. Desulfurization profile for the individual sulfur components present in the multicomponent model fuel (DBT, 4-MDBT, 4,6-DMDBT) catalyzed by the heterogeneous EuW10@ZIF-8 (containing 3 µmol of EuW10 active center) using [BMIM]PF6 as extraction solvent and H2O2 as oxidant, at 70 °C.
Figure 5. Desulfurization profile for the individual sulfur components present in the multicomponent model fuel (DBT, 4-MDBT, 4,6-DMDBT) catalyzed by the heterogeneous EuW10@ZIF-8 (containing 3 µmol of EuW10 active center) using [BMIM]PF6 as extraction solvent and H2O2 as oxidant, at 70 °C.
Nanomaterials 12 02887 g005
Nanomaterials 12 02887 g006 550

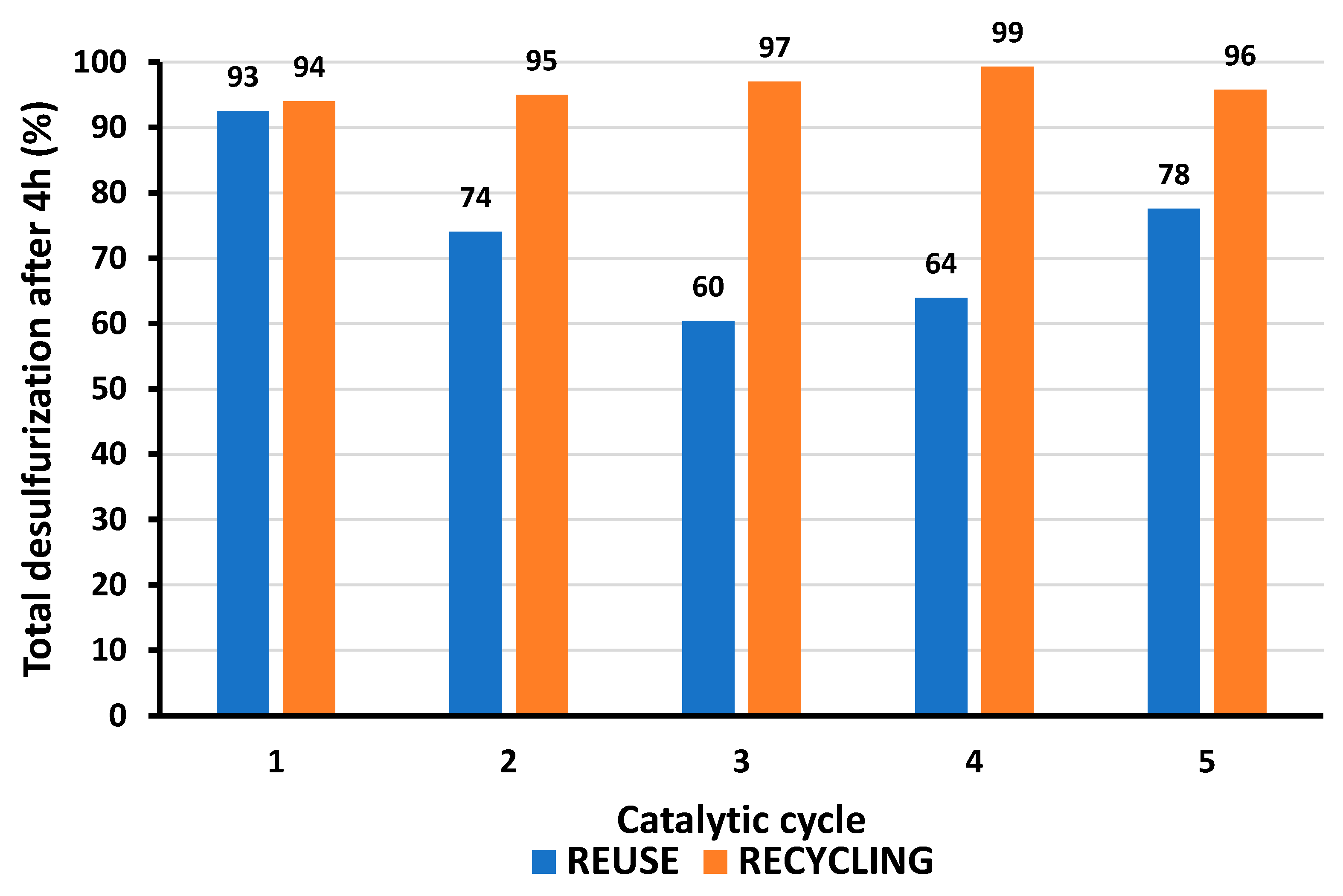

Figure 6. Reusability and recycling results obtained after 4 h using a biphasic model fuel/[BMIM]PF6 as extraction solvent and the solid EuW10@ZIF-8 catalyst (containing 3 µmol of EuW10 active center), using 75 µL of H2O2 as oxidant, at 70 °C.

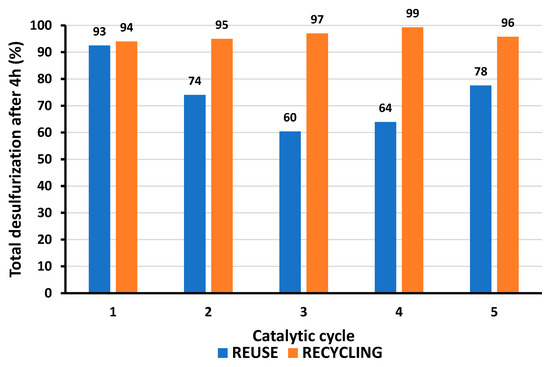

Figure 6. Reusability and recycling results obtained after 4 h using a biphasic model fuel/[BMIM]PF6 as extraction solvent and the solid EuW10@ZIF-8 catalyst (containing 3 µmol of EuW10 active center), using 75 µL of H2O2 as oxidant, at 70 °C.
Nanomaterials 12 02887 g006
Table
Table 1. Extractive/oxidative desulfurization efficiency of model diesel, using H2O2 as oxidant and various POM-based catalysts.
Table 1. Extractive/oxidative desulfurization efficiency of model diesel, using H2O2 as oxidant and various POM-based catalysts.
CatalystSolventTime (h)Desulfurization (%)Ref.
[Eu(PW11O39)2]11−[BMIM]PF61100[44]
[EuW10O36]9−[BMIM]PF61100[44]
[TbW10O36]9−[BMIM]PF61100[44]
[PMo12O40]@ZIF-8[Emim][NTf2]2100 a[51]
[Mo132]@ZIF-8toluene892 a,b[78]
[BMIM]3[PMo12O40]@ZIF-8[BMIM]PF6192 c[33]
[EuW10O36]@ZIF-8[BMIM]PF6394.7This work
a Only DBT (instead of a multicomponent sulfur model diesel) was used to study the desulfurization efficiency. b TBHP as oxidant. c Low structural stability of the catalyst was found.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Fernandes, S.; Flores, D.; Silva, D.; Santos-Vieira, I.; Mirante, F.; Granadeiro, C.M.; Balula, S.S. Lindqvist@Nanoporous MOF-Based Catalyst for Effective Desulfurization of Fuels. Nanomaterials 2022, 12, 2887. https://doi.org/10.3390/nano12162887

AMA Style

Fernandes S, Flores D, Silva D, Santos-Vieira I, Mirante F, Granadeiro CM, Balula SS. Lindqvist@Nanoporous MOF-Based Catalyst for Effective Desulfurization of Fuels. Nanomaterials. 2022; 12(16):2887. https://doi.org/10.3390/nano12162887

Chicago/Turabian Style

Fernandes, Simone, Daniela Flores, Daniel Silva, Isabel Santos-Vieira, Fátima Mirante, Carlos M. Granadeiro, and Salete S. Balula. 2022. "Lindqvist@Nanoporous MOF-Based Catalyst for Effective Desulfurization of Fuels" Nanomaterials 12, no. 16: 2887. https://doi.org/10.3390/nano12162887

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
