Deposition of Visible Light-Active C-Doped Titania Films via Magnetron Sputtering Using CO2 as a Source of Carbon

by
Rachan Klaysri
1,
Marina Ratova
2,*,
Piyasan Praserthdam
1 and
Peter J. Kelly
2
1
Center of Excellence on Catalysis and Catalytic Reaction Engineering, Department of Chemical Engineering, Faculty of Engineering, Chulalongkorn University, Bangkok 10330, Thailand
2
Surface Engineering Group, School of Engineering, Manchester Metropolitan University, Manchester M1 5GD, UK
*
Author to whom correspondence should be addressed.
Nanomaterials 2017, 7(5), 113; https://doi.org/10.3390/nano7050113
Submission received: 8 April 2017 / Revised: 9 May 2017 / Accepted: 11 May 2017 / Published: 16 May 2017
Browse Figures
Versions Notes

Abstract

:
Doping of titanium dioxide with p-block elements is typically described as an efficient pathway for the enhancement of photocatalytic activity. However, the properties of the doped titania films depend greatly on the production method, source of doping, type of substrate, etc. The present work describes the use of pulsed direct current (pDC) magnetron sputtering for the deposition of carbon-doped titania coatings, using CO2 as the source of carbon; ratios of O2/CO2 were varied through variations of CO2 flow rates and oxygen flow control setpoints. Additionally, undoped Titanium dioxide (TiO2) coatings were prepared under identical deposition conditions for comparison purposes. Coatings were post-deposition annealed at 873 K and analysed with scanning electron microscopy (SEM), X-ray diffreaction (XRD), atomic force microscopy (AFM), and X-ray photoelectron spectroscopy (XPS). The photocatalytic properties of the thin films were evaluated under ultraviolet (UV) and visible light irradiation using methylene blue and stearic acid decomposition tests. Photoinduced hydrophilicity was assessed through measurements of the water contact angle under UV and visible light irradiation. It was found that, though C-doping resulted in improved dye degradation compared to undoped TiO2, the UV-induced photoactivity of Carbon-doped (C-doped) photocatalysts was lower for both model pollutants used.

1. Introduction

Titanium dioxide (TiO2) photocatalysts have attracted a lot of attention since the discovery of their properties through photocatalytic water splitting reactions in 1972 [1]. Over the past few decades titanium dioxide-based photocatalyts have been the subject of extensive research efforts, due to their low cost, low toxicity, and high chemical- and photo-stability. Anatase is the crystalline phase of titania that is typically referred to as being the most photocatalytically active, as compared to the other phases of TiO2; rutile and brookite. Despite a variety of applications of photocatalytic materials being proposed (e.g., building materials, antimicrobial surfaces, self-cleaning surfaces, waste water treatment, etc.), the practical application of photocatalytic materials still remains quite limited [2,3]. This is due to several drawbacks of titania, such as low photonic efficiency and the relatively high band gap value. Also, the short lifetime and fast recombination rates of the photogenerated charge carriers make TiO2 photocatalysts generally unsuitable for high throughput applications, e.g., the purification of heavily polluted industrial wastewater. The band gap value of 3.2 eV (for anatase) means that only UV light with a wavelength of 387 nm or below can be used for the photoactivation of titania. As UV constitutes just under 4% of the solar spectrum, for many practical applications it is necessary to shift the photocatalytic activity of titanium dioxide into the visible range.
Extensive work in this direction started with the pioneering work of Asahi and co-workers [4] who showed that the visible light response of titanium dioxide can be significantly enhanced through nitrogen doping. Consequently, the doping of TiO2 with p-block elements still remains a popular method for the synthesis of visible light photocatalysts, along with other techniques, such as transition metal doping [5] or photosensitization. Various p-block elements have been studied as dopants for the enhancement of photocatalytic properties, including nitrogen [6,7,8,9,10,11], carbon [12], sulphur [13,14], boron [15], fluorine [16], and combinations of several elements [17,18]. The exact mechanism of the photocatalytic activity enhancement is still under question, however it is generally accepted that band gap narrowing takes place due to mixing of the 2p states of the dopant with the 2p states of oxygen [19]. Alternatively, it has been suggested that the red shift observed as a result of p-element doping is due to the formation of colour centres, and that the doped materials may have completely different band gap electronic structures, as compared to undoped TiO2 [20]. Compared to N-doping, C-doping is a considerably less studied field, mainly due to fact that synthesis routes for C-doped TiO2 photocatalysts often involve multiple stages and/or unstable and costly reagents [19]. Nevertheless, a number of studies that are available indicate that carbon doping is a promising method for the enhancement of titania photocatalytic activity [21,22] due to band gap narrowing and the extended lifetime of photogenerated electrons and holes. The well-known fact that carbon-doped titania photocatalysts can have very different characteristics, with carbon found in interstitial, as well as in substitutional positions in the titania lattice, depending on the synthesis route, means that the choice of production technique is of particular importance in this case.
Titania thin films, as opposed to powdered or particulate photocatalysts, offer multiple advantages from the point of practical applicability, such as high recycle rates, ease of recovery, and separation from the media [23]. A number of deposition techniques are typically used for the deposition of titania and doped titania coatings, including chemical vapor deposition (CVD), sol gel, atomic layer deposition (ALD), hydrothermal synthesis, magnetron sputtering, etc. Of the methods given, magnetron sputtering is a process of particular industrial importance, as it is widely used for the production of high quality coatings for various commercial applications, including glazing products, thin film photovoltaics, data storage media, etc. [24,25]. It offers such advantages as excellent scalability, versatility, and high uniformity of the produced thin films. A number of techniques can be used for the deposition of C-doped TiO2 via magnetron sputtering, including using CO2 gas [26] or solid carbon targets as the source of carbon [27]. However, due to a limited number of studies available to date, it is still unclear how the choice of the dopant affects structural and photocatalytic properties of the C-doped titania coatings.
Therefore, the authors of the present work have performed a series of consecutive studies on the deposition of C-doped titania via reactive pulsed DC (pDC) magnetron sputtering, using different sources of carbon. This work describes the deposition of C-doped TiO2 using a mixture of CO2/O2 as the reactive gas at different ratios, followed by a study of the structural, morphological, and photocatalytic properties of these films. Carbon-doped coatings were compared to undoped titania coatings deposited under otherwise identical conditions.

2. Materials and Methods

2.1. Deposition of the Coatings

In this study the carbon-doped TiO2 films were prepared using a Teer Coatings UDP350 reactive pDC magnetron sputtering system (Teer Coatings Ltd., Droitwich, UK), without additional heating applied to the substrate. A schematic diagram of the rig is shown in Figure 1. In brief, the sputtering rig was fitted with a 300 mm × 100 mm directly cooled titanium metal target (99.5% purity) mounted onto a type II unbalanced planar magnetron, installed through the chamber wall. The titanium metal target was driven in pulsed DC mode using a dual channel power supply (Advanced Energy Pinnacle Plus, Fort Collins, CO, USA), at 100 kHz pulse frequency, and a duty cycle of 50%. The base pressure of the vacuum chamber before sputtering was 2.0 × 10−5 mbar or lower. All titanium dioxide films were deposited onto soda lime glass substrate materials. The substrates were ultrasonically pre-cleaned in propanol prior to deposition (all reagents used in this work were purchased from Sigma Aldrich, unless stated otherwise) and mounted on the rotatable substrate holder at 10 cm separation from the titanium target. During the sputtering process, the substrate holder was rotated at a speed of 10 rpm. The titanium metal target power was fixed at 1000 W for each run; the target was pre-sputtered in an argon plasma for 10 min prior to the deposition process to remove any oxide layer on the target surface (with the substrates shielded from the target), and the reactive sputtering time for each run was 2 h. The deposition runs were carried out in an Ar/O2 and Ar/O2/CO2 plasma for undoped and carbon-doped titanium dioxide films, respectively. The Ar flow was controlled by a mass flow controller and set at 15 sccm. The O2 flow was controlled by optical emission monitoring (OEM) at three different set points of 25%, 30%, and 35% of the full metal signal (FMS). To vary the carbon concentration, the CO2 flow rate was varied by the mass flow controller at different flows of 2.5, 5, and 7 sccm. The coatings were post-deposition isothermally annealed for 30 min at 873 K in air for crystal structure development and then allowed to cool gradually in air for 10–12 h to avoid the formation of thermal stresses in the coatings.

2.2. Characterization of the Coatings

The film thickness was measured via a Dektak™ stylus profilometer (Bruker, Billerica, MA, USA). The surface images of the coatings were obtained with scanning electron microscopy (SEM) (JEOL JSM-5410LV scanning microscope) (JEOL, Peabody, MA, USA). The micro structure and crystallinity of the thin films were investigated with a Panalytical Xpert powder X-ray diffractometer (XRD) (PANalytical Ltd., Cambridge, UK) operating with Cu Kα1 radiation at 0.154 nm in grazing incidence mode at a 3° angle of incidence, over a scan range from 20° to 70° 2θ and the accelerating voltage and applied current were 40 kV and 30 mA, respectively. The bulk composition of the thin films was characterized by energy dispersive X-ray spectroscopy (EDX, JEOL model JSM-5410LV scanning microscope) (JEOL, Peabody, MA, USA). The Ti 2p, O 1s, and C 1s core levels on the surface were measured by X-ray photoelectron spectroscopy (XPS) to examine the surface composition, electron binding energy, and bonding sites on the thin films. The XPS analysis was performed using an AMICUS photoelectron spectrometer (Kratos Analytical Ltd., Manchester, UK) equipped with an Mg Kα X-ray as the primary excitation source. The binding energy was referenced to the Ag 3d line at 368.2 eV for calibration. Curve fitting was performed using a Gaussian function with a Shirley background. The surface topography of the films was studied using atomic force microscopy (AFM) (Veeco, Plainview, NY, USA), specifically a Veeco NanoScope IV MultiMode AFM. The transmission data of the coatings were obtained using an Ocean Optics USB4000 UV-Visible spectrometer (Ocean Optics Inc., Oxford, UK), which was used in turn to evaluate the band gap energy according to the Tauc plot method, by plotting (αhν)1/2 as a function of hν and extrapolating the linear region to the abscissa (where α is the absorbance coefficient, h is Plank’s constant, ν is the frequency of vibration). The photoinduced wettability was evaluated at ambient temperature by analyzing the change in the water contact angles using a Theta Lite optical tensiometer (Biolin Scientific, Manchester, UK), while irradiating with UV light or visible light (identical to the light sources used for the methylene blue degradation described in the latter section). Prior to the experiments of contact angle measurements, the thin films were kept in the dark for 24 h.

2.3. Photocatalytic Activity Assessment

2.3.1. Decomposition of Methylene Blue (MB)

The photocatalytic properties of the series of thin films deposited with different carbon concentrations were evaluated under UV and visible light illumination. For photocatalytic oxidation of methylene blue, samples of the same geometrical size (1.5 × 2.5 cm2) were immersed in 40 mL conditioning solution of methylene blue (concentration 1.5 μmol/L) in the dark at room temperature for 30 min to reach the adsorption-desorption equilibrium. The samples were then withdrawn from the conditioning solution and immersed into 40 mL of testing solution (concentration 1.5 μmol/L—pre-defined experimentally to detect the photocatalytic responses of all samples in a 1-hour experiment) with continuous magnetic stirring, while being irradiated with either UV or visible light for a total time of 1 h. During irradiation, the absorbance of methylene blue at 664 nm was monitored continuously with an Ocean Optics USB4000 spectrometer for one hour. Each coating was tested both under UV and visible light; 2 × 15 W 352 nm Sankyo Denki BLB lamps were used as the UV light source, while visible light was simulated by combining a fluorescent light source (2 × 15 W Ushio fluorescent lamps) with a Knight Optical 395 nm long pass UV filter. The emission spectra of the light sources used are given elsewhere [28,29]. According to the Lambert—Beer law, the concentration of the dye is proportional to the absorbance decay. The apparent first order rate constant, ka, was used as a quantitative characterization of the photocatalytic degradation rate of MB. Values for ka were found from the gradient of the graph of At/At=0 versus experiment time (At=0 and At are the peak absorbance values of the methylene blue solution at 664 nm at time 0 and time of experiment, respectively). A series of reference tests was performed prior to the photocatalytic activity measurements, which included tests with blank samples (soda-lime glass of the same geometrical size) under each light source, as well as tests of each sample in dark conditions, to prove that solution decolourization was caused by a photocatalytic reaction. As none of the reference tests showed more than 1% peak height decay in a 1 h experiment, their effect was neglected in further calculations.

2.3.2. Decomposition of Stearic Acid (SA)

The stearic acid decomposition test was used for verification of the dye degradation results in this work. It is generally accepted that the stearic acid photocatalytic decomposition reaction pathway has no major intermediates, therefore it can be easily monitored through IR-observable species (SA disappearance or CO2 generation). A 0.1 M stearic acid solution in acetone was used for the test. The same sample size of the thin films, 1.5 cm × 2.5 cm, were spin-coated with 0.5 mL of stearic acid using an Osilla spin coater at 1000 rpm speed for 30 s. After spin coating the samples were kept in the dark for 1 h to ensure that the acetone had evaporated from the surfaces. As the stearic acid has three strong absorption peaks at 2958, 2923, and 2853 cm-1, the model pollutant decomposition was monitored here by Fourier transform infrared spectroscopy (FTIR), using a Perkin Elmer Spectrum Two IR spectrometer (Perkin Elmer, Waltham, MA, USA), in the range 2700−3000 cm-1 every 24 h. FTIR spectra were collected in absorbance mode and the amount of stearic acid on the surface of each sample was evaluated through the integrated area under the corresponding FTIR absorbance spectrum. Each sample was tested under both UV and visible light irradiation. The light sources used for irradiation of these samples were identical to the light sources used for the methylene blue decomposition tests.

3. Results and Discussion

3.1. Coatings Overview

An overview of deposition conditions, thickness information, and compositional results for the undoped and C-doped TiO2 coatings are summarized in Table 1. In terms of visual appearance, all coatings were uniform and optically transparent, with no visual signs of stresses. The color of the coatings varied from colorless (for undoped titanium dioxide samples) to pale yellow (for coatings deposited at low flow rates of CO2) and pale brown (for coatings deposited at high CO2 flow rates).
It was observed that the thickness of the carbon-doped films was considerably greater than that of the undoped titania; also, a gradual increase of coating thickness was observed with increasing carbon dioxide flow rate. The thickness difference between the corresponding coatings of the arrays deposited at 25% and 30% OEM setpoints was minimal, while array coatings at 35% OEM signal were considerably thicker, both in the case of undoped and C-doped samples. As established from earlier work, using a 25% OEM setpoint resulted in a titanium-to-oxygen ratio close to the stoichiometric 2:1. For undoped coatings deposited at higher OEM setpoints, the ratio of Ti:O was slightly higher. Carbon content in the doped coatings varied from 4 to 6.4 wt %. Unsurprisingly, coatings deposited at higher OEM setpoints (i.e., lower O2 content) were characterized with higher carbon content, as titanium preferentially reacts with oxygen, and creating oxygen deficiencies promotes carbon incorporation. Similar trends were seen as the carbon dioxide flow was increased.
Examples of SEM images for carbon-doped TiO2 and undoped TiO2 thin films deposited at 35% OEM setpoint are shown in Figure 2. It is evident that all films were characterized with relatively smooth surfaces consisting of small densely packed grains, as typically observed for titania and doped titania films deposited by reactive magnetron sputtering [24,30]; no obvious defects could be seen on the film surfaces.

3.2. Morphology of the Films (AFM)

Morphological properties of the coatings (surface area and surface roughness) were studied with atomic force microscopy (AFM); the data on surface area and surface roughness values are presented in Table 2. The surface area of all deposited films was around 900 µm2; the variations of surface area between different samples was <1% for undoped and C-doped coatings. The roughness of the films obtained by AFM showed that coatings deposited at higher CO2 flow rates were characterized with higher roughness values. Examples of AFM images for carbon-doped TiO2 and undoped TiO2 thin films deposited at 35% OEM setpoint are shown in Figure 3. The differences in the surface topography of the films, from relatively smooth to the dense domains as a result of increasing carbon dioxide flow, are obvious from Figure 3. Despite the considerable difference in film thicknesses, similar values of surface area mean that the photocatalytic performance of the samples could be compared directly, rather than being normalized per unit of surface area, as is typically done when comparing the photocatalytic activity of samples with largely different surface areas [31].

3.3. Film Crystallinity (XRD)

X-ray diffraction (XRD) analysis was employed to characterize the crystal structure of the undoped and C-doped thin films fabricated in this study. The XRD patterns of all samples before annealing were indicative of amorphous or weakly crystalline structures. After annealing, all samples were crystalline; sharp peaks observed at 2θ ca. 25.3°, 37.7°, 48.0°, and 55.0° on the diffraction patterns of all the analyzed samples can be identified as TiO2 anatase phase peaks (crystallographic card number 96-900-8215). Figure 4 shows the XRD patterns of undoped and carbon-doped TiO2 films deposited at 25% OEM setpoint after isothermal annealing in air at 873 K. No peaks that could be attributed to the other TiO2 crystal phases (rutile and brookite) were seen on the diffraction patterns. It can be seen that for the films produced at higher flows of carbon dioxide, the peaks were shifted to slightly lower values; this can be indicative of crystal lattice deformation as the result of carbon introduction. This shift is typically explained by the lattice distortion of TiO2 due to internal stress (carbon inclusion in this case), which caused the expansion of the unit cell volume [32]. Overall, the carbon incorporation in TiO2 does not cause any crystal phase transformations of TiO2, as all deposited films were in the anatase phase with a (101) preferred orientation, regardless of the OEM setpoint and carbon dioxide flow variations.

3.4. XPS Results

To examine the species and the bonding states of all elements in the deposited undoped and carbon-doped TiO2 thin films, XPS spectra were recorded and deconvoluted. The XPS survey scans of all samples showed the presence of titanium and oxygen; a carbon peak was also seen for all carbon-doped TiO2 thin films (Figure 5a). Gaussian functions were used to deconvolute the Ti 2p, O 1s, and C 1s spectra. Ratios of titanium/oxygen on the surface calculated based on the XPS data were in good correlation with the bulk composition of the coatings estimated based on the EDX data (given in Table 1).
Figure 5b shows an example of a high resolution XPS spectra for Ti 2p (sample T25C7). The two strong peaks at binding energies of 458.8 and 456.4 eV were observed for all TiO2 thin films and can be assigned to Ti4+ 2p3/2 and Ti4+ 2p1/2, respectively [33]. Interestingly, for the films deposited at higher CO2 flows (5 and 7 sccm) the presence of Ti3+ can be seen on the XPS spectra—Ti3+ 2p3/2 and Ti3+ 2p1/2 at 457.3 and 462.3 eV, respectively. At the same time, no evidence of the presence of Ti3+ could be seen on the XPS spectra of the undoped and carbon-doped TiO2 thin films deposited at a low (2.5 sccm) flow of CO2. To quantify the observed effect, the ratio of Ti3+/Ti4+ was calculated for each sample (given in Table 2). Apparently, the ratio of the Ti3+ to Ti4+ states increased with increasing the CO2 flow rate. Ti3+ is typically reported as a surface defect of TiO2 that plays an important role for photocatalysis and the photoinduced hydrophilicity phenomenon. It can also act as an active site for oxygen desorption, prevent the electron-hole recombination process, and enhance visible light activity [34,35]. The Ti 3d peak at 455 eV that is typically assigned to Ti–C bonds could not be detected, but the existence of Ti-C bonds was confirmed on the high resolution C 1s spectrum [36]. Figure 5c shows an example of the high resolution O 1s spectrum (sample T25C7) and its deconvolution into three peaks. The peak at 530.2 eV is assigned to the lattice oxygen of TiO2 [37], while two other peaks at 532.1 and 534.6 eV correspond to C–O and C=O bonds, respectively [38]. For all carbon-doped TiO2 thin films, the binding energies exhibited a slight positive shift, which can be explained by carbon incorporation into the TiO2 lattice [39]. Figure 5d shows an example of the high resolution C 1s XPS profile of the carbon-doped TiO2 thin film (sample T25C7) deconvoluted into four peaks. The major broad peak at 285 eV is typically assigned to contaminant hydrocarbons (C–C) [40]. It is often reported that this peak disappears with increasing Ar+ etching time during the XPS measurement [41]. Contaminant carbon species are typically believed to not contribute to the visible light photocatalytic activity, however several works suggest that carbon may exist in the grain boundaries of TiO2 and therefore acts as a photosensitizer [42,43]. The peak at 283.4 eV corresponding to the titanium-carbon bond (Ti–C) [44] was observed for all carbon-doped TiO2 thin films. The presence of this peak indicates the substitution of oxygen atoms by carbon atoms as the result of carbon-doping (substitutional doping). The Ti–C bonding percentage was estimated using the relative areas of the peak at 283.4 eV and is shown in Table 2. This confirms the presence of carbon bonded in the TiO2 matrix. It can be concluded that the carbon atoms were substituted in some lattice oxygen sites not only at the surface but also in the bulk region, and the carbon concentration was increased with increasing CO2 flow rate. Two peaks at 286.6 eV and 288.3 eV can be attributed to the oxygen bound species, C–O and Ti–C–O, respectively, confirming the fact that some carbon was incorporated into the titania lattice in place of Ti atoms (interstitial doping) [22]. The atomic percentage of C doping in place of Ti atoms was estimated using the relative areas of the peaks at 288.3 eV and is given in Table 2. Reportedly, carbon substitution of both oxygen and titanium atoms, as well as the presence of the carbonate species (C–O) can contribute to enhanced visible light photocatalytic activity through band gap narrowing [19].

3.5. Optical Properties and Band Gap Calculations

Optical band gaps of undoped and carbon-doped titania films were calculated using the Tauc plot method, as described in the Materials and Methods section. Graphical examples of the band gap calculation of selected samples are given in Figure 6 (films deposited at 35% OEM setpoint). Calculated band gap values of all the coatings studied are given in Table 2, along with the other analytical results. According to the calculation results, band gap values of undoped titania films deposited at 25%, 30%, and 35% OEM setpoint values were 3.22, 3.20, and 3.18 eV, respectively. These numbers are in good agreement with the data typically reported for anatase titania (ca. 3.2 eV). It is obvious from the data presented that increasing the CO2 flow rate, along with increasing the OEM setpoint resulted in remarkable red shifts of the absorbance edge. The large shift in band gap towards the visible light region (up to 1.2 eV—for sample T35C5, compared to undoped titania) is due to the inclusion of carbon into the TiO2 crystal lattice and subsequent band gap narrowing. Despite the different positions of the carbon atoms that may occur as a result of C-doping (incorporation in the TiO2 structure as Ti–C, Ti–C–O, and carbonate species), it is generally accepted that band gap narrowing is a result of the existence of mid-gap state(s) caused by mixing of the C 2p and O 2p states [19].

3.6. Wettability Measurements

Titanium dioxide-based surfaces are known for their ability to exhibit reversible wettability behaviour, becoming superhydrophilic upon sub-band gap photoexcitation and returning to their original wettability as the irradiation stops [45,46]. Water droplet contact angle (CA) measurements were performed here to study the wettability of the thin films upon UV and visible light irradiation; the results are given in Table 3. It can be seen that the undoped titania coatings and coatings produced at 2.5 sccm CO2 flow rate showed the highest values of CA both before and after irradiation. Thus, the contact angle values of sample T25 change from 92° to 18° and 55° after 60 min of UV and visible irradiation, respectively. While the initial contact angles of the undoped samples T30 and T35 were lower compared to T25 (53°), neither of these samples reached a superhydrophilic state after 1 h of irradiation. Whilst the initial values of the carbon-doped thin films produced at 2.5 sccm CO2 flow rate were comparable to those of undoped titania, the CA reduction under both UV and visible light irradiation was greater in this case. At the same time, wettability properties of the C-doped coatings produced at higher flow rates of CO2 (5 and 7 sccm) were remarkably different. These coatings exhibited superhydrophilicity (CA ca. 10°) prior to the light irradiation, with perfect wettability (a zero contact angle) after irradiation with either UV or visible light. However, this phenomenon was unsurprising, considering the presence of Ti3+ states observed with XPS for these samples. It is a frequently reported fact that an increased number of Ti3+ states on the surface results in considerably higher hydrophilicity [47]. Therefore, the lowest contact angle values both prior to and after irradiation in this study were observed for the samples that earlier showed the presence of Ti3+ states on their surfaces.

3.7. Photocatalytic Tests Results

To investigate the effect of carbon-doping on the photocatalytic activity of TiO2 thin films, two types of photocatalytic tests were used in this work; namely the decomposition of methylene blue and stearic acid. The MB decomposition reaction was approximated to pseudo first order kinetics and the reaction constants for the samples studied are given in Table 3. Examples of MB decay rates for the selected samples under UV and visible light irradiation are shown in Figure 7. The results under UV light irradiation are shown in Figure 7a. The methylene blue degradation rate constants for undoped TiO2 thin films were around 1.4–1.8 × 10 −5 s−1. As can be seen from the data presented in Table 3, carbon doping did not help to improve UV light photocatalytic activity in this case; the rate constants of all C-doped samples were equal to or lower than those of the undoped titania samples. Figure 7b shows the selected methylene blue photocatalytic degradation under visible light irradiation. All undoped TiO2 thin films showed low rates of MB decay under visible light irradiation with kinetic constants below 1 × 10−5 s−1, and no significant variation of the kinetic constant values was seen for undoped titania coatings produced at different OEM setpoints. However, the C-doped samples showed higher photocatalytic activity under visible light irradiation. Generally, the ability to photodegrade MB under visible light irradiation increased with increasing OEM setpoint along with increasing CO2 flow rate. Of the samples studied, the highest MB decay rates under visible light irradiation were seen for samples T35C5 and T35C7. Given that the the band gap value is indicative of light absorbance, it is no surprise that samples T35C5 and T35C7 with the lowest band gap values (and consequently the highest visible light absorbance) proved the most active under visible light conditions.
Photocatalytic degradation of stearic acid, a common model pollutant for assessing self-cleaning properties of photocatalytic coatings, was monitored with FTIR through the disappearance of SA absorbance peaks. Reaction rate constants were calculated for the quantitative characterisation of the degradation process under UV and visible light (presented in Table 3). Prior to the experiments with photocatalytic surfaces, the test was carried out on pieces of uncoated glass. As no significant SA peak reduction was detected on plain glass under either of the two light sources used, it can be concluded that stearic acid films were stable under both UV and visible light. Examples of the decay of the integrated area under the SA absorbance spectrum for selected samples are given in Figure 8. From the data presented in Table 3, it is obvious that the highest degradation rates under UV light were recorded for undoped titania films, and in particular for T25. It is obvious that carbon doping had a detrimental effect on the coatings’ ability to degrade stearic acid. No improvement of photocatalytic activity for C-doped coatings could be seen under visible light either. While selected C-doped coatings outperformed sample T25, the overall rates of stearic acid degradation under visible light remained rather low.
Two types of photocatalytic tests were used in this work to cross-verify whether the incorporation of carbon into the titania lattice had a positive effect on photocatalytic activity. The stearic acid test was also used because the suitability of the dye degradation test is often questioned as a method for the determination of visible light activity [48]. Though no direct correlation between quantitative results of these two testing methods was found here, both sets of results were indicative of the fact that C-doping had a rather detrimental effect on the UV light photocatalytic activity of the samples, while improvement of the visible light activity was found only for two samples of the array (T35C5 and T35C7). As for visible light induced stearic acid degradation, the overall low levels of photocatalytic activity seen under visible light makes it difficult to quantify the activity precisely. Despite the fact that authors often report the correlation between the results of different photocatalytic tests [49,50], the examples of non-correlative results are also often reported [14]. This is evidence of the fact that some model pollutants can be decomposed much more easily than others.
Despite the widely published information that carbon doping is an efficient method of enhancement of UV and introduction of visible light photocatalytic activity, the present work confirms the fact that the properties of a photocatalytic material depend greatly on the production method, phase composition of TiO2, position of carbon in titania lattice, etc. It is frequently stressed in the literature that the exact mechanism of the enhancement of TiO2 photocatalytic properties via C-doping is not yet fully understood [19]. The majority of the work reporting significant improvements of photocatalytic activity for C-doped titania films report carbon found either in the interstitial [51,52] or in substitutional [26,53] position, while all of the C-doped films deposited in the present work reveal carbon in both positions in the same film. Similar results observed for nitrogen-doped samples may suggest that the presence of dopants in both positions may cancel out the effect, as compared to the samples where the dopant is found only in one of the positions [54]. It is also frequently mentioned in the literature that, for doped TiO2, excessive dopant may act as recombination sites, therefore lowering the photocatalytic activity. We assume that this hypothesis was the reason for the lower overall photocatalytic activity of the C-doped coatings produced here, as compared to undoped titania. This suggestion is supported by the fact that the UV-induced activity of C-doped photocatalysts for all samples was lower than that for undoped TiO2. Consequently, it may be concluded that the use of C-doped photocatalysts produced via magnetron sputtering with CO2 gas as the source of carbon is practical, only when the extension of the absorption spectrum into the visible range is more important than the efficient use of UV photons, and when the pollutants are relatively easy degradable [14].

4. Conclusions

The present work describes the deposition of C-doped titanium dioxide coatings onto glass substrates via reactive magnetron sputtering using mixtures of CO2 and O2 as the reactive gas. Undoped titania coatings were deposited under otherwise identical conditions for comparison purposes. It was demonstrated that variations of the OEM setpoint, as well as the CO2 flow rate, allowed variation of the carbon doping content in the coatings (ca. 4–6.5 wt %, according to the EDX results). Carbon films were found to be considerably thicker than the undoped titania films. Typically, for magnetron sputtered titania coatings, all as-deposited samples were amorphous; post-deposition annealing at 873 K resulted in anatase phase formation for all the films studied, as identified with XRD. XPS analysis revealed the existence of Ti3+ species for the coatings deposited at higher flows of CO2; carbon dopant atoms were found in both interstitial and substitutional positions in the titania lattice. Significant band gap narrowing was achieved as the result of C-doping, with BG values as low as 2.02 eV, compared to ca. 3.2 eV for undoped titania. In contrast to undoped titania films, C-doped samples showed higher photoinduced wettability. Carbon-rich coatings exhibited superhydrophilicity prior to irradiation; the latter phenomenon was found to correlate with the presence of Ti3+ species. Photocatalytic activity was tested using dye (MB) and stearic acid decomposition tests; UV-induced photocatalytic activity of the undoped TiO2 films was superior to C-doped ones for both pollutants. Visible light photoactivity of carbon-rich samples was found to be improved in the case of MB degradation, while stearic acid decomposition results under visible light were low for all the films studied. Overall, it can be concluded that the above method is practical for producing coatings when the extension of the absorption spectrum into the visible range is more important than the efficient use of UV photons and the target pollutants are easily degradable.

Acknowledgments

The authors wish to acknowledge the Royal Golden Jubilee PhD scholarship from the Thailand Research Fund (PHD/0067/2554) for supporting the secondment of Rachan Klaysri at Manchester Metropolitan University, UK.

Author Contributions

The experimental work was performed by Rachan Klaysri and Marina Ratova. The first draft of the paper was written by Rachan Klaysri. The process design and supervision of the experimental work were performed by Marina Ratova. Piyasan Praserthdam and Peter J. Kelly supervised every step of the entire work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fujishima, A.; Honda, K. Electrochemical photolysis of water at a semiconductor electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  2. Taga, Y. Titanium oxide based visible light photocatalysts: Materials design and applications. Thin Solid Films 2009, 517, 3167–3172. [Google Scholar] [CrossRef]
  3. Paz, Y. Application of TiO2 photocatalysis for air treatment: Patents overview. Appl. Catal. B: Environ. 2010, 99, 448–460. [Google Scholar] [CrossRef]
  4. Asahi, R.; Morikawa, T.; Ohwaki, T.; Aoki, K.; Taga, Y. Visible-light photocatalysis in nitrogen-doped titanium oxides. Science 2001, 293, 269–271. [Google Scholar] [CrossRef] [PubMed]
  5. Ratova, M.; Kelly, P.J.; West, G.T.; Iordanova, I. Enhanced properties of magnetron sputtered photocatalytic coatings via transition metal doping. Surf. Coat. Technol. 2013, 228 (Suppl. 1), S544–S549. [Google Scholar] [CrossRef]
  6. Nolan, N.T.; Synnott, D.W.; Seery, M.K.; Hinder, S.J.; Van Wassenhoven, A.; Pillai, S.C. Effect of N-doping on the photocatalytic activity of sol-gel TiO2. J. Hazard. Mater. 2012, 211–212, 88–94. [Google Scholar] [CrossRef] [PubMed]
  7. Wong, M.S.; Chou, H.P.; Yang, T.S. Reactively sputtered N-doped titanium oxide films as visible-light photocatalyst. Thin Solid Films 2006, 494, 244–249. [Google Scholar] [CrossRef]
  8. Wang, M.C.; Lin, H.J.; Wang, C.H.; Wu, H.C. Effects of annealing temperature on the photocatalytic activity of N-doped TiO2 thin films. Ceram. Int. 2012, 38, 195–200. [Google Scholar] [CrossRef]
  9. Abadias, G.; Paumier, F.; Eyidi, D.; Guerin, P.; Girardeau, T. Structure and properties of nitrogen-doped titanium dioxide thin films produced by reactive magnetron sputtering. Surf. Interface Anal. 2010, 42, 970–973. [Google Scholar] [CrossRef]
  10. Bu, X.; Zhang, G.; Zhang, C. Effect of nitrogen doping on anatase-rutile phase transformation of TiO2. Appl. Surf. Sci. 2012, 258, 7997–8001. [Google Scholar] [CrossRef]
  11. Peng, F.; Cai, L.; Yu, H.; Wang, H.; Yang, J. Synthesis and characterization of substitutional and interstitial nitrogen-doped titanium dioxides with visible light photocatalytic activity. J. Solid State Chem. 2008, 181, 130–136. [Google Scholar] [CrossRef]
  12. Xie, Y.; Zhao, X.; Chen, Y.; Zhao, Q.; Yuan, Q. Preparation and characterization of porous C-modified anatase titania films with visible light catalytic activity. J. Solid State Chem. 2007, 180, 3576–3582. [Google Scholar] [CrossRef]
  13. Ohno, T.; Akiyoshi, M.; Umebayashi, T.; Asai, K.; Mitsui, T.; Matsumura, M. Preparation of S-doped TiO2 photocatalysts and their photocatalytic activities under visible light. Appl. Catal. A Gen. 2004, 265, 115–121. [Google Scholar] [CrossRef]
  14. Rockafellow, E.M.; Stewart, L.K.; Jenks, W.S. Is sulfur-doped TiO2 an effective visible light photocatalyst for remediation? Appl. Catal. B Environ. 2009, 91, 554–562. [Google Scholar] [CrossRef]
  15. Gombac, V.; De Rogatis, L.; Gasparotto, A.; Vicario, G.; Montini, T.; Barreca, D.; Balducci, G.; Fornasiero, P.; Tondello, E.; Graziani, M. TiO2 nanopowders doped with boron and nitrogen for photocatalytic applications. Chem. Phys. 2007, 339, 111–123. [Google Scholar] [CrossRef]
  16. Dozzi, M.V.; D’Andrea, C.; Ohtani, B.; Valentini, G.; Selli, E. Fluorine-doped TiO2 materials: Photocatalytic activity vs time-resolved photoluminescence. J. Phys. Chem. C 2013, 117, 25586–25595. [Google Scholar] [CrossRef]
  17. Ao, Y.; Xu, J.; Fu, D.; Yuan, C. Synthesis of C, N, S-tridoped mesoporous titania with enhanced visible light-induced photocatalytic activity. Microporous Mesoporous Mater. 2009, 122, 1–6. [Google Scholar] [CrossRef]
  18. Wu, K.R.; Hung, C.H. Characterization of N,C-codoped TiO2 films prepared by reactive dc magnetron sputtering. Appl. Surf. Sci. 2009, 256, 1595–1603. [Google Scholar] [CrossRef]
  19. Dozzi, M.V.; Selli, E. Doping TiO2 with p-block elements: Effects on photocatalytic activity. J. Photochem. Photobiol. C Photochem. Rev. 2013, 14, 13–28. [Google Scholar] [CrossRef]
  20. Serpone, N. Is the band gap of pristine TiO2 narrowed by anion- and cation-doping of titanium dioxide in second-generation photocatalysts? J. Phys. Chem. B 2006, 110, 24287–24293. [Google Scholar] [CrossRef] [PubMed]
  21. Sullivan, J.A.; Neville, E.M.; Herron, R.; Thampi, K.R.; MacElroy, J.M.D. Routes to visible light active C-doped TiO2 photocatalysts using carbon atoms from the Ti precursors. J. Photochem. Photobiol. A Chem. 2014, 289, 60–65. [Google Scholar] [CrossRef]
  22. Zhang, Y.; Zhao, Z.; Chen, J.; Cheng, L.; Chang, J.; Sheng, W.; Hu, C.; Cao, S. C-doped hollow TiO2 spheres: In situ synthesis, controlled shell thickness, and superior visible-light photocatalytic activity. Appl. Catal. B Environ. 2015, 165, 715–722. [Google Scholar] [CrossRef]
  23. Wang, J.; Wang, Z.; Li, H.; Cui, Y.; Du, Y. Visible light-driven nitrogen doped TiO2 nanoarray films: Preparation and photocatalytic activity. J. Alloy. Compd. 2010, 494, 372–377. [Google Scholar] [CrossRef]
  24. Kelly, P.J.; West, G.T.; Ratova, M.; Fisher, L.; Ostovarpour, S.; Verran, J. Structural formation and photocatalytic activity of magnetron sputtered titania and doped-titania coatings. Molecules 2014, 19, 16327–16348. [Google Scholar] [CrossRef] [PubMed]
  25. Kelly, P.J.; Arnell, R.D. Development of a novel structure zone model relating to the closed-field unbalanced magnetron sputtering system. J. Vac. Sci. Technol. A: Vac. Surf. Films 1998, 16, 2858–2869. [Google Scholar] [CrossRef]
  26. Irie, H.; Washizuka, S.; Hashimoto, K. Hydrophilicity on carbon-doped TiO2 thin films under visible light. Thin Solid Films 2006, 510, 21–25. [Google Scholar] [CrossRef]
  27. Pradhan, S.S.; Sahoo, S.; Pradhan, S.K. Influence of annealing temperature on the structural, mechanical and wetting property of TiO2 films deposited by rf magnetron sputtering. Thin Solid Films 2010, 518, 6904–6908. [Google Scholar] [CrossRef]
  28. Ratova, M.; West, G.T.; Kelly, P.J. Optimisation of hipims photocatalytic titania coatings for low temperature deposition. Surf. Coat. Technol. 2014, 250, 7–13. [Google Scholar] [CrossRef]
  29. Ratova, M.; West, G.T.; Kelly, P.J. Visible light activated photocatalytic TaON coatings deposited via pulsed-dc magnetron sputtering. Vacuum 2014, 109, 135–138. [Google Scholar] [CrossRef]
  30. Farahani, N.; Kelly, P.J.; West, G.; Ratova, M.; Hill, C.; Vishnyakov, V. Photocatalytic activity of reactively sputtered and directly sputtered titania coatings. Thin Solid Films 2011, 520, 1464–1469. [Google Scholar] [CrossRef]
  31. Ratova, M.; Kelly, P.J.; West, G.T.; Tosheva, L.; Edge, M. Reactive magnetron sputtering deposition of bismuth tungstate onto titania nanoparticles for enhancing visible light photocatalytic activity. Appl. Surf. Sci. 2017, 392, 590–597. [Google Scholar] [CrossRef]
  32. Schiffmann, K.I.; Fryda, M.; Goerigk, G.; Lauer, R.; Hinze, P.; Bulack, A. Sizes and distances of metal clusters in Au-, Pt-, W- and Fe-containing diamond-like carbon hard coatings: A comparative study by small angle X-ray scattering, wide angle X-ray diffraction, transmission electron microscopy and scanning tunnelling microscopy. Thin Solid Films 1999, 347, 60–71. [Google Scholar] [CrossRef]
  33. Chen, K.-C.; Hong, F.C.-N.; Jeng, Y.-R. Deposition of titania-containing diamond-like carbon nanocomposite films by sputtering-assisted chemical vapor deposition. Plasma Process. Polym. 2011, 8, 324–332. [Google Scholar] [CrossRef]
  34. Hamdy, M.S.; Amrollahi, R.; Mul, G. Surface Ti3+-containing (blue) titania: A unique photocatalyst with high activity and selectivity in visible light-stimulated selective oxidation. ACS Catal. 2012, 2, 2641–2647. [Google Scholar] [CrossRef]
  35. Xiong, L.-B.; Li, J.-L.; Yang, B.; Yu, Y. Ti3+ in the surface of titanium dioxide: Generation, properties and photocatalytic application. J. Nanomater. 2012, 2012, 831524. [Google Scholar] [CrossRef]
  36. Mai, W.; Wen, F.; Xie, D.; Leng, Y.; Mu, Z. Structure and composition study of carbon-doped titanium oxide film combined with first principles. J. Adv. Ceram. 2014, 3, 49–55. [Google Scholar] [CrossRef]
  37. Cheng, Y.; Sun, H.; Jin, W.; Xu, N. Photocatalytic degradation of 4-chlorophenol with combustion synthesized TiO2 under visible light irradiation. Chem. Eng. J. 2007, 128, 127–133. [Google Scholar] [CrossRef]
  38. Zhang, F.; Jin, S.; Mao, Y.; Zheng, Z.; Chen, Y.; Liu, X. Surface characterization of titanium oxide films synthesized by ion beam enhanced deposition. Thin Solid Films 1997, 310, 29–33. [Google Scholar] [CrossRef]
  39. Park, Y.; Kim, W.; Park, H.; Tachikawa, T.; Majima, T.; Choi, W. Carbon-doped TiO2 photocatalyst synthesized without using an external carbon precursor and the visible light activity. Appl. Catal. B Environ. 2009, 91, 355–361. [Google Scholar] [CrossRef]
  40. Xie, D.; Wen, F.; Yang, W.; Li, X.; Leng, Y.; Wan, G.; Sun, H.; Huang, N. Carbon-doped titanium oxide films by dc reactive magnetron sputtering using CO2 and O2 as reactive gas. Acta Metall. Sin. (Engl. Lett.) 2014, 27, 239–244. [Google Scholar] [CrossRef]
  41. Hsu, S.-W.; Yang, T.-S.; Chen, T.-K.; Wong, M.-S. Ion-assisted electron-beam evaporation of carbon-doped titanium oxide films as visible-light photocatalyst. Thin Solid Films 2007, 515, 3521–3526. [Google Scholar] [CrossRef]
  42. Wong, M.-S.; Hsu, S.-W.; Rao, K.K.; Kumar, C.P. Influence of crystallinity and carbon content on visible light photocatalysis of carbon doped titania thin films. J. Mol. Catal. A Chem. 2008, 279, 20–26. [Google Scholar] [CrossRef]
  43. Wang, S.-H.; Chen, T.-K.; Rao, K.K.; Wong, M.-S. Nanocolumnar titania thin films uniquely incorporated with carbon for visible light photocatalysis. Appl. Catal. B Environ. 2007, 76, 328–334. [Google Scholar] [CrossRef]
  44. Soto, G. Aes, EELS and XPS characterization of Ti (C, N, O) films prepared by PLD using a Ti target in N2, CH4, O2 and CO as reactive gases. Appl. Surf. Sci. 2004, 233, 115–122. [Google Scholar] [CrossRef]
  45. Taizo, K.; Satoshi, K. TiO2 patterns with wide photo-induced wettability change by a combination of reactive sputtering process and surface modification in a microfluidic channel. J. Micromech. Microeng. 2015, 25, 115014. [Google Scholar] [CrossRef]
  46. Sun, R.-D.; Nakajima, A.; Fujishima, A.; Watanabe, T.; Hashimoto, K. Photoinduced surface wettability conversion of ZnO and TiO2 thin films. J. Phys. Chem. B 2001, 105, 1984–1990. [Google Scholar] [CrossRef]
  47. Meng, F.M.; Lu, F.; Sun, Z.Q.; Lu, J.G. A mechanism for enhanced photocatalytic activity of nano-size silver particle modified titanium dioxide thin films. Sci. China Technol. Sci. 2010, 53, 3027–3032. [Google Scholar] [CrossRef]
  48. Mills, A.; Hill, C.; Robertson, P.K.J. Overview of the current ISO tests for photocatalytic materials. J. Photochem. Photobiol. A Chem. 2012, 237, 7–23. [Google Scholar] [CrossRef]
  49. Evans, P.; Mantke, S.; Mills, A.; Robinson, A.; Sheel, D.W. A comparative study of three techniques for determining photocatalytic activity. J. Photochem. Photobiol. A Chem. 2007, 188, 387–391. [Google Scholar] [CrossRef]
  50. Mills, A.; Wells, N.; O’Rourke, C. Correlation between δabs, δrgb (red) and stearic acid destruction rates using commercial self-cleaning glass as the photocatalyst. Catal. Today 2014, 230, 245–249. [Google Scholar] [CrossRef]
  51. Xie, C.; Yang, S.; Li, B.; Wang, H.; Shi, J.-W.; Li, G.; Niu, C. C-doped mesoporous anatase TiO2 comprising 10 nm crystallites. J. Colloid Interface Sci. 2016, 476, 1–8. [Google Scholar] [CrossRef] [PubMed]
  52. Lin, Y.-T.; Weng, C.-H.; Lin, Y.-H.; Shiesh, C.-C.; Chen, F.-Y. Effect of c content and calcination temperature on the photocatalytic activity of C-doped TiO2 catalyst. Sep. Purif. Technol. 2013, 116, 114–123. [Google Scholar] [CrossRef]
  53. Wen, F.; Zhang, C.; Xie, D.; Sun, H.; Leng, Y.X. Research of composition and photocatalytic property of carbon-doped Ti-O films prepared by r-ms using CO2 gas resource. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2013, 307, 381–384. [Google Scholar] [CrossRef]
  54. Dunnill, C.W.H.; Aiken, Z.A.; Pratten, J.; Wilson, M.; Morgan, D.J.; Parkin, I.P. Enhanced photocatalytic activity under visible light in N-doped TiO2 thin films produced by apcvd preparations using t-butylamine as a nitrogen source and their potential for antibacterial films. J. Photochem. Photobiol. A Chem. 2009, 207, 244–253. [Google Scholar] [CrossRef]
Nanomaterials 07 00113 g001 550

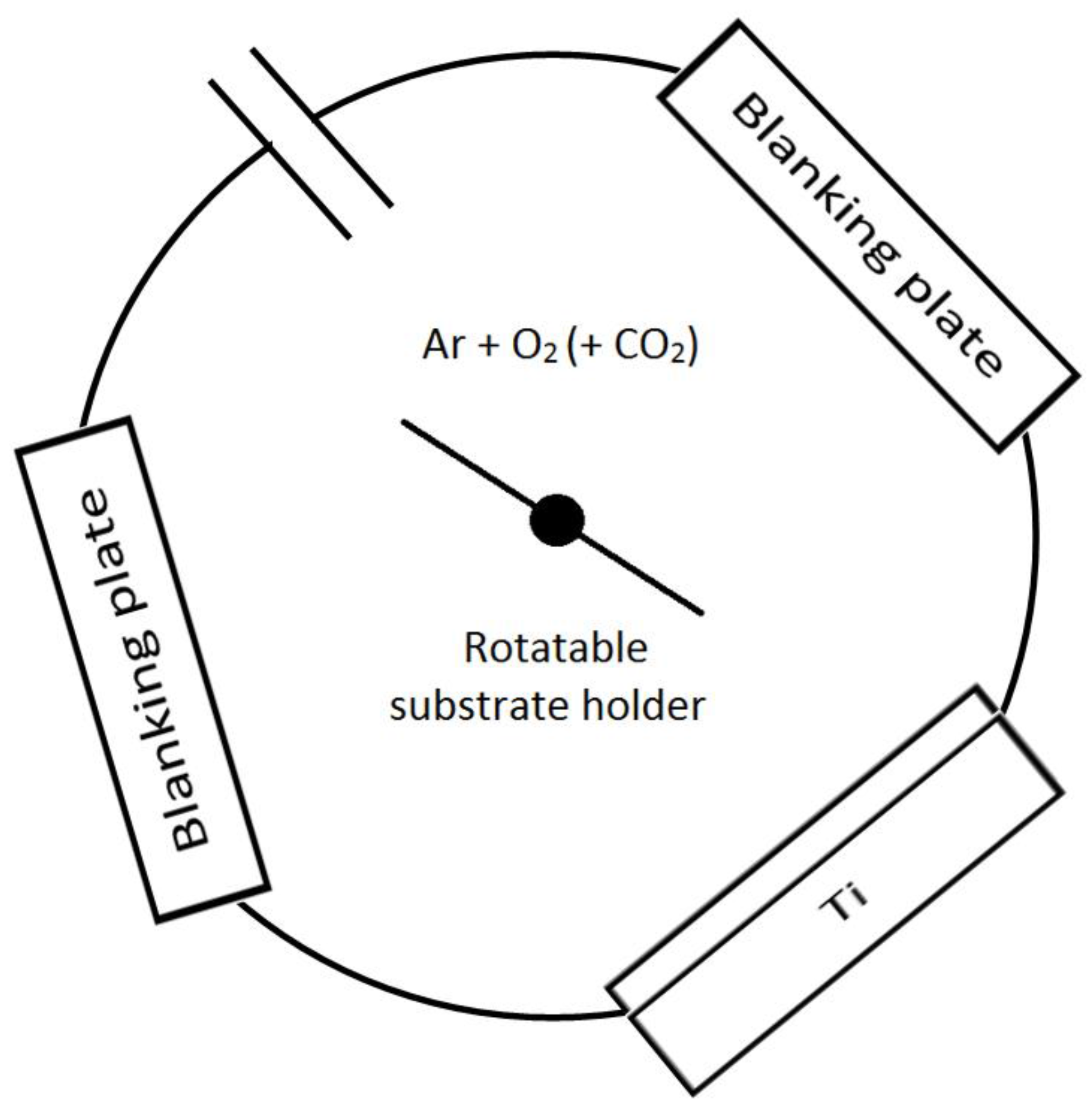

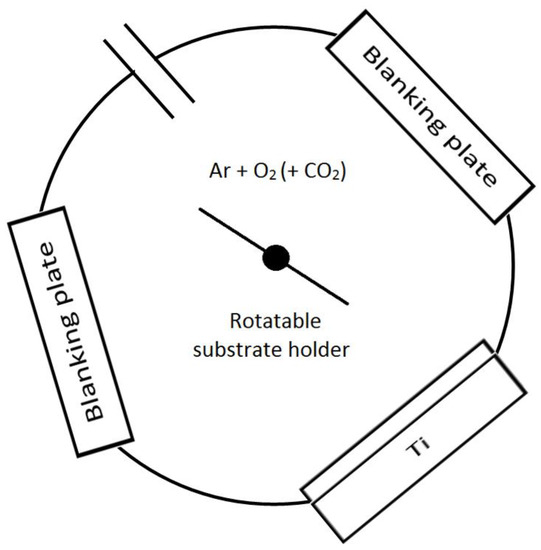

Figure 1. Schematic representation of the Teer UDP350 sputtering rig.
Figure 1. Schematic representation of the Teer UDP350 sputtering rig.
Nanomaterials 07 00113 g001
Nanomaterials 07 00113 g002 550

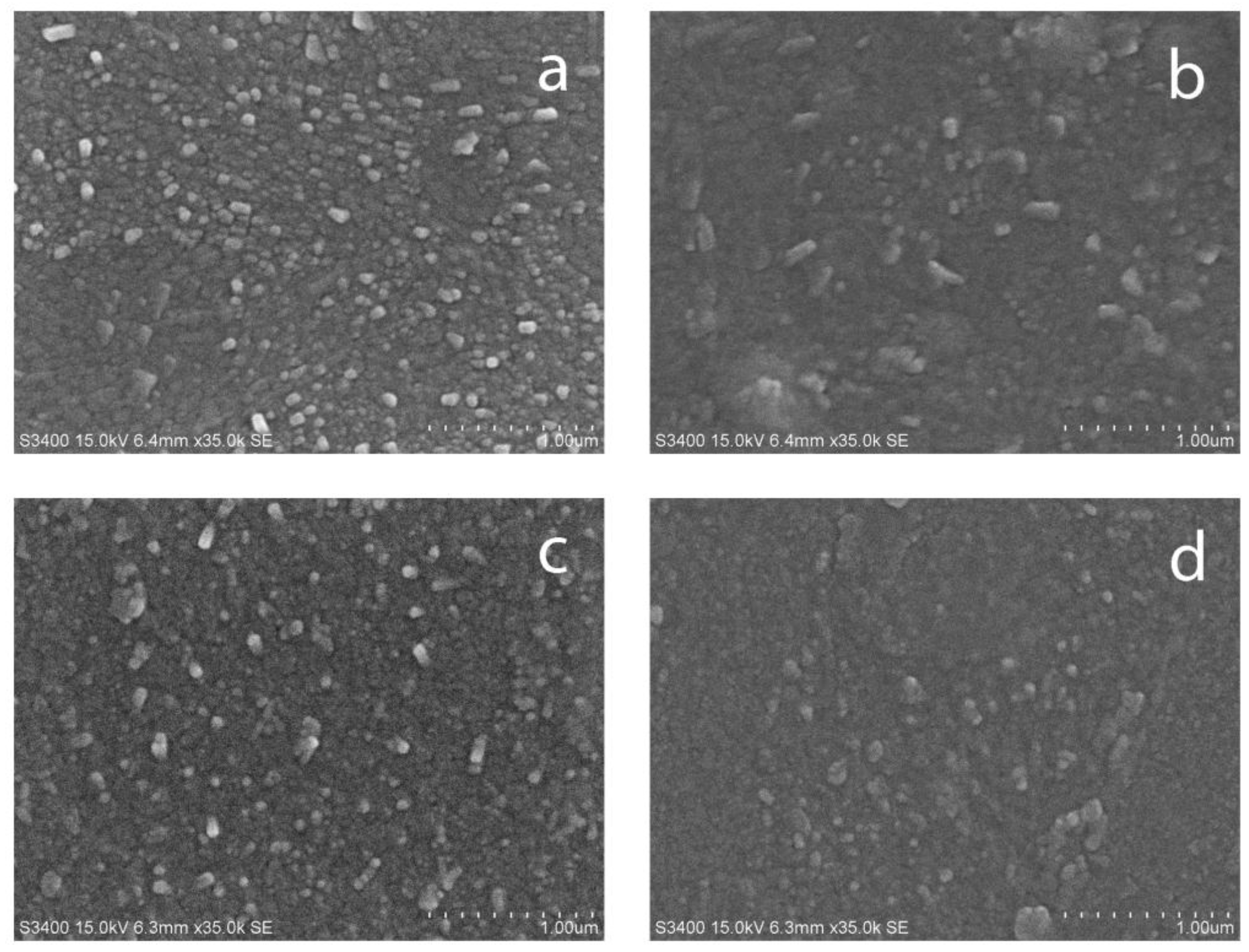

Figure 2. Scanning electron microscopy (SEM) images of selected titania and C-doped titania coatings deposited on glass substrate (a) T35; (b) T35C2.5; (c) T35C5; (d) T35C7.
Figure 2. Scanning electron microscopy (SEM) images of selected titania and C-doped titania coatings deposited on glass substrate (a) T35; (b) T35C2.5; (c) T35C5; (d) T35C7.
Nanomaterials 07 00113 g002
Nanomaterials 07 00113 g003 550

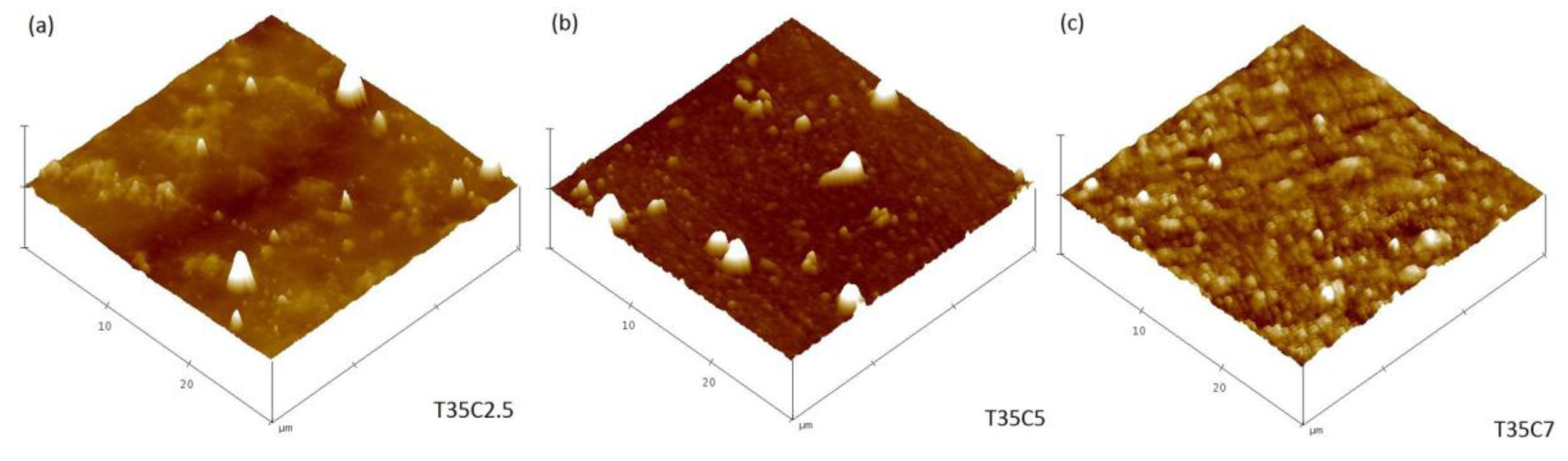

Figure 3. AFM images of selected C-doped coatings deposited on glass substrate (a) T35C2.5; (b) T35C5; (c) T35C7.
Figure 3. AFM images of selected C-doped coatings deposited on glass substrate (a) T35C2.5; (b) T35C5; (c) T35C7.
Nanomaterials 07 00113 g003
Nanomaterials 07 00113 g004 550

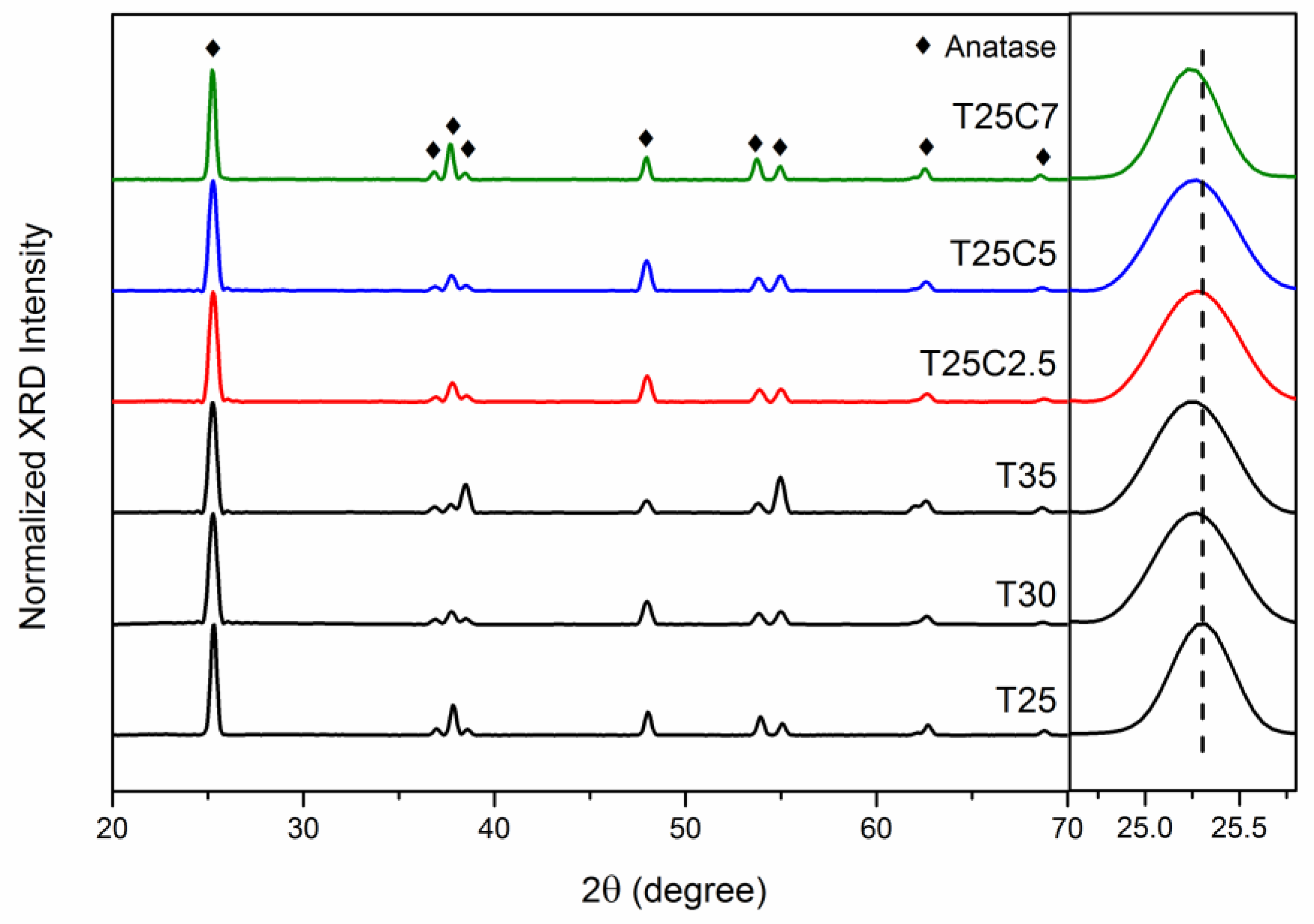

Figure 4. X-ray diffraction (XRD) patterns of selected C-doped and undoped TiO2 coatings (25% optical emission monitoring (OEM) setpoint) deposited on glass substrates and annealed at 873 K.
Figure 4. X-ray diffraction (XRD) patterns of selected C-doped and undoped TiO2 coatings (25% optical emission monitoring (OEM) setpoint) deposited on glass substrates and annealed at 873 K.
Nanomaterials 07 00113 g004
Nanomaterials 07 00113 g005 550

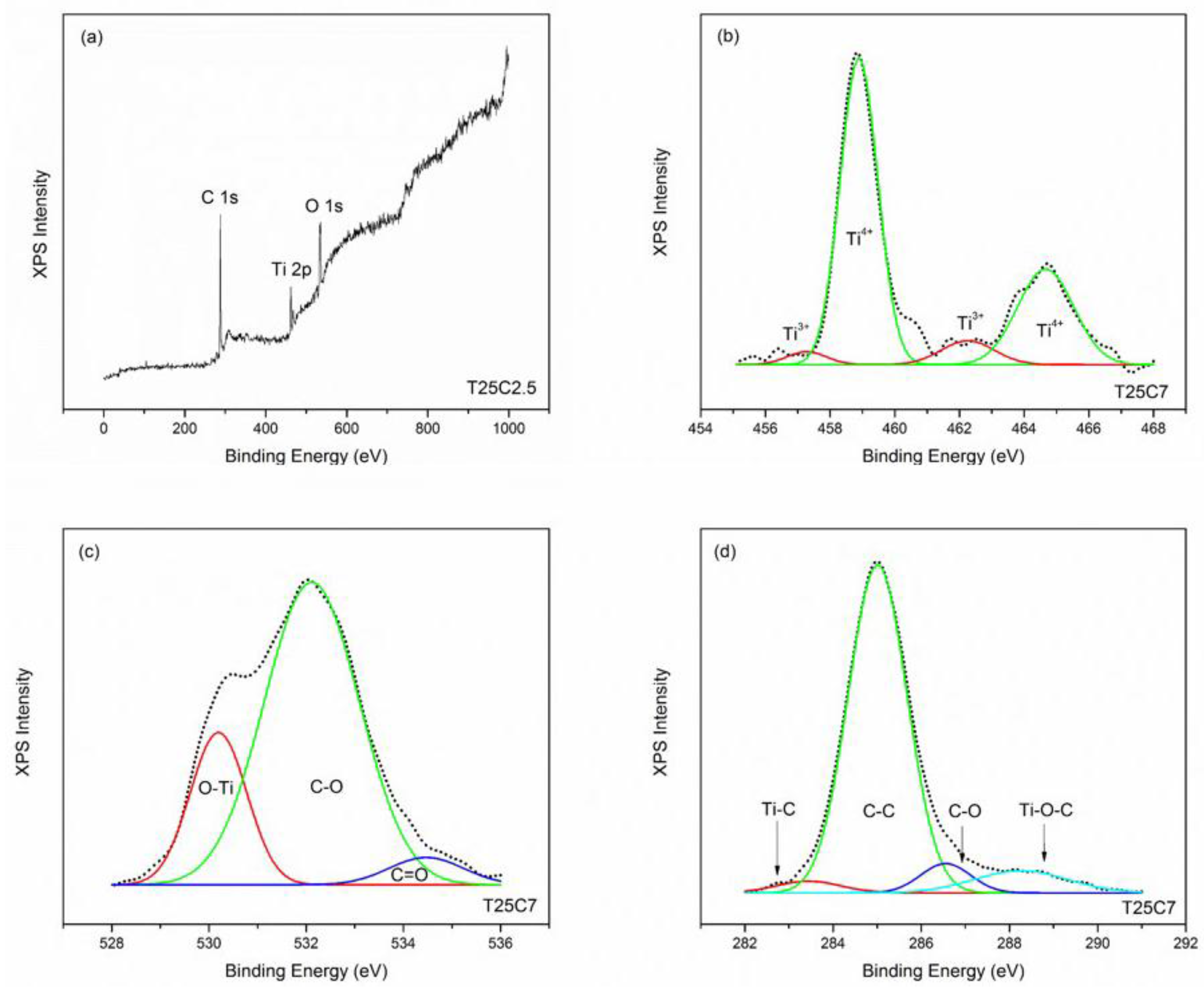

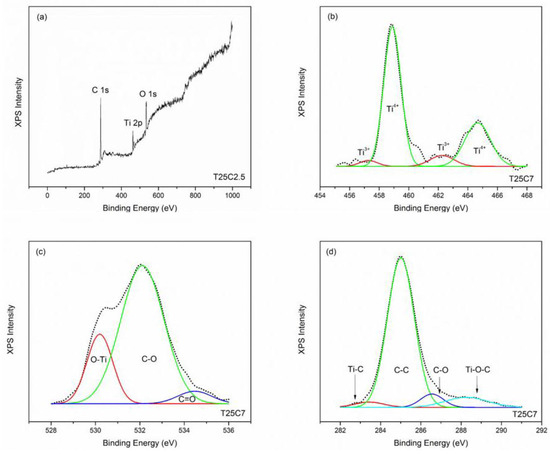

Figure 5. X-ray photoelectron spectroscopy (XPS) results of selected C-doped samples: (a) Survey spectrum (sample T25C2.5); (b) Ti 2p spectrum (sample T25C7); (c) O 1s spectrum (sample T25C7); (d) C 1s spectrum (sample T25C7).
Figure 5. X-ray photoelectron spectroscopy (XPS) results of selected C-doped samples: (a) Survey spectrum (sample T25C2.5); (b) Ti 2p spectrum (sample T25C7); (c) O 1s spectrum (sample T25C7); (d) C 1s spectrum (sample T25C7).
Nanomaterials 07 00113 g005
Nanomaterials 07 00113 g006 550

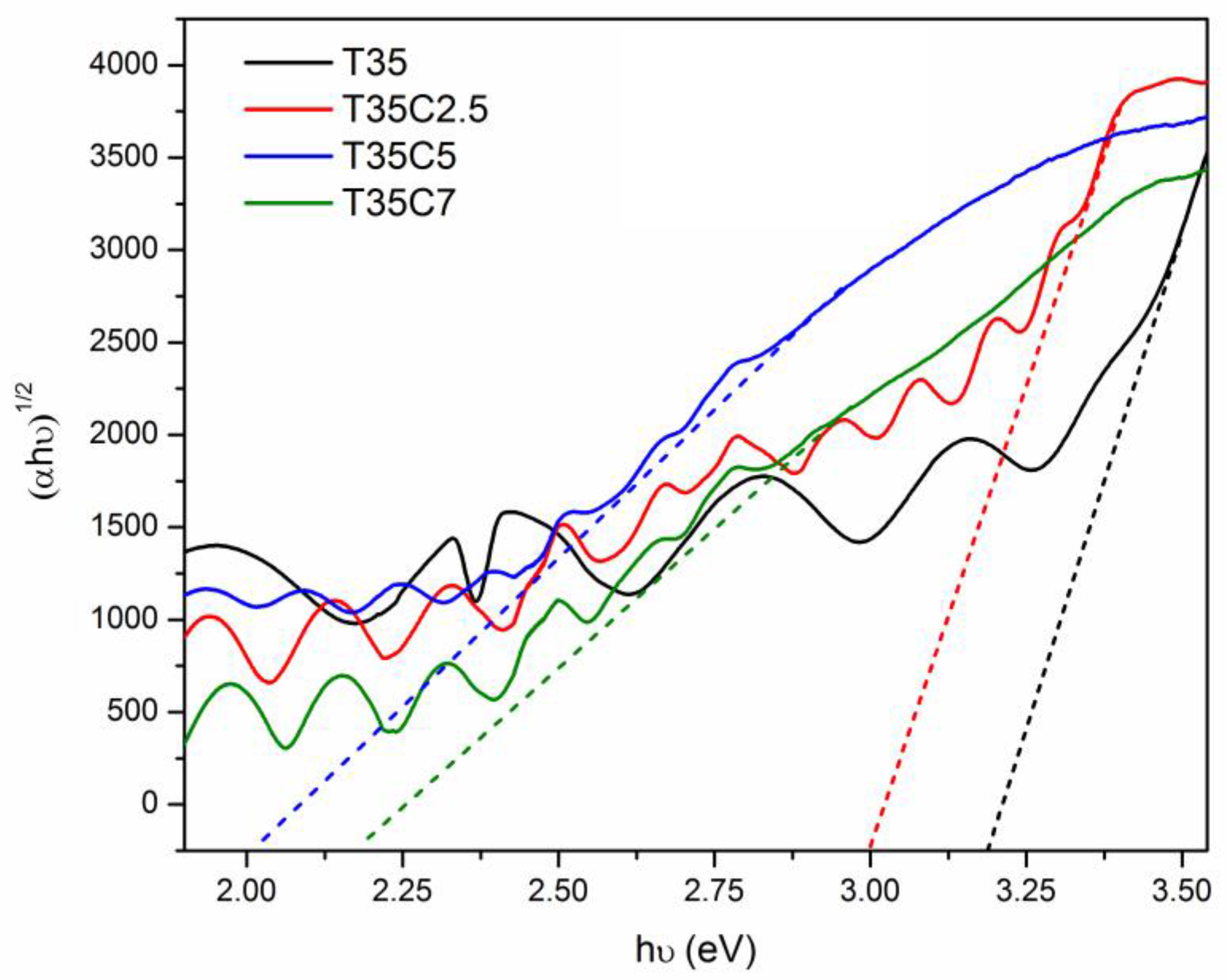

Figure 6. Examples of band gap calculations for selected C-doped and undoped titania samples (deposited at 35% OEM setpoint).
Figure 6. Examples of band gap calculations for selected C-doped and undoped titania samples (deposited at 35% OEM setpoint).
Nanomaterials 07 00113 g006
Nanomaterials 07 00113 g007 550

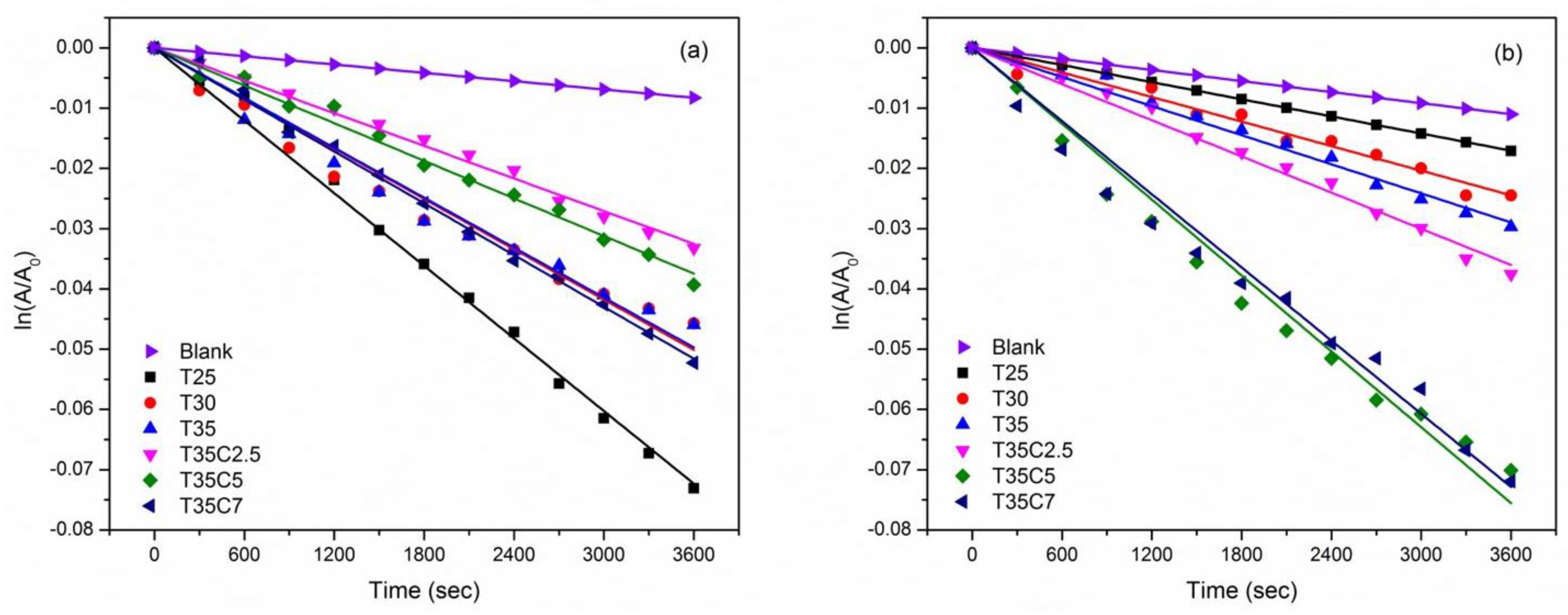

Figure 7. Kinetics plot of selected thin films of methylene blue degradation under (a) UV and (b) visible light irradiation.
Figure 7. Kinetics plot of selected thin films of methylene blue degradation under (a) UV and (b) visible light irradiation.
Nanomaterials 07 00113 g007
Nanomaterials 07 00113 g008 550

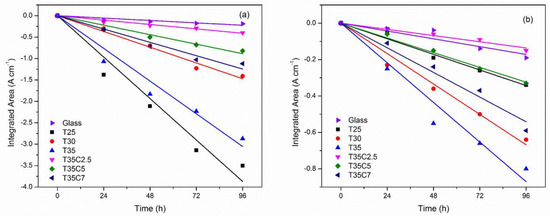

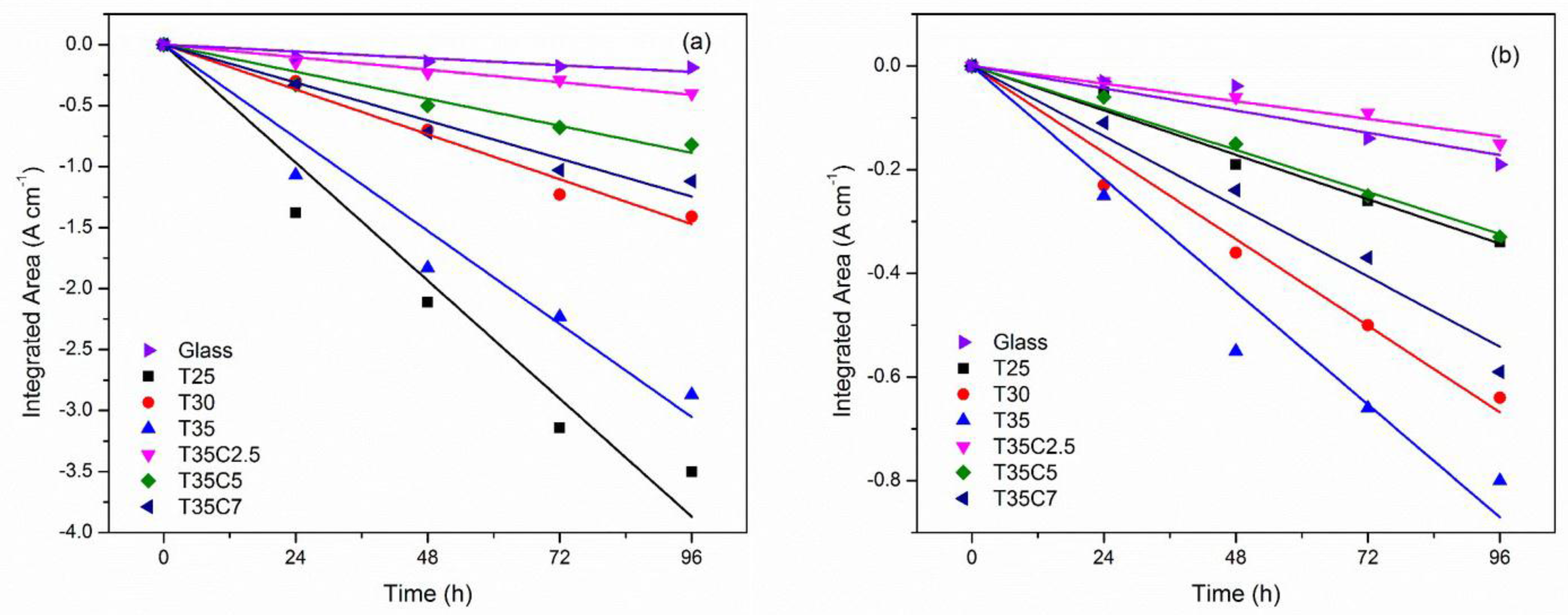

Figure 8. Plots of the integrated area changes of the FTIR spectra of the stearic acid peaks (3000–2700 cm−1) for selected C-doped and undoped TiO2 samples under: (a) UV light irradiation; (b) visible light irradiation.
Figure 8. Plots of the integrated area changes of the FTIR spectra of the stearic acid peaks (3000–2700 cm−1) for selected C-doped and undoped TiO2 samples under: (a) UV light irradiation; (b) visible light irradiation.
Nanomaterials 07 00113 g008
Table
Table 1. Summary of the deposition conditions and compositional properties of undoped and C-doped titanium dioxide films on glass substrate.
Table 1. Summary of the deposition conditions and compositional properties of undoped and C-doped titanium dioxide films on glass substrate.
Sample IDOptical Emission Monitoring (OEM) Setpoint, % FMSCO2 Flow, sccmThickness, nm aTi, at. % bO, at. % bC, at. % b
T25--49034.965.1-
T25C2.5252.582032.962.54.5
T25C525586032.961.65.0
T25C725787035.259.45.5
T3030-51040.959.1-
T30C2.5302.582033.962.04.1
T30C530587033.560.85.3
T30C730791035.858.65.6
T3535-60040.259.8-
T35C2.5352.584033.660.74.7
T35C5355130034.159.86.1
T35C7357150036.756.96.4
a Stylus profilometry results; b energy dispersive X-ray spectroscopy (EDX) results.
Table
Table 2. Summary of the deposition conditions and surface properties of undoped and C-doped titanium dioxide films on glass substrate.
Table 2. Summary of the deposition conditions and surface properties of undoped and C-doped titanium dioxide films on glass substrate.
Sample IDSurface Roughness, nm aSurface Area, µm2 aTi3+/Ti4+ bTi–C, at. % bC–O, at. % bTi–C–O, at. % bBand Gap, eV c
T255.7902----3.22
T25C2.56.0901-0.060.280.283.13
T25C54.29010.020.090.720.393.15
T25C713.09020.030.180.340.483.08
T306.0901----3.20
T30C2.55.8901-0.080.390.163.04
T30C55.89010.020.130.550.423.05
T30C710.09020.040.270.490.342.63
T356.2911----3.18
T35C2.512.8902-0.110.370.513.00
T35C511.09020.020.180.740.322.02
T35C712.49020.060.310.490.462.17
a Atomic force microscopy (AFM) results; b Calculation based on the X-ray photoelectron spectroscopy (XPS) results; c Calculation based on transmittance data.
Table
Table 3. Results of wettability measurements and photocatalytic tests of C-doped and undoped Titanium dioxide (TiO2) coatings annealed at 873 K.
Table 3. Results of wettability measurements and photocatalytic tests of C-doped and undoped Titanium dioxide (TiO2) coatings annealed at 873 K.
Sample IDInitial CA, deg.CA after 1 h UV, deg.CA after 1 h vis, deg.Kinetic Constant, k
MB UV, k × 105, s−1 aMB vis, k × 105, s−1 aSA UV, k × 102, A cm−1 h−1 bSA vis, k × 102, A cm−1 h−1 b
T259218551.80.54.00.4
T25C2.56010151.81.50.80.6
T25C511~0~01.31.01.10.3
T25C711~0~01.40.81.00.2
T305313201.40.91.60.7
T30C2.55813160.80.91.20.1
T30C511~0~00.71.51.30.2
T30C710~0~00.81.40.70.2
T355410221.40.92.30.9
T35C2.56312140.91.00.40.1
T35C510~0~01.02.10.90.3
T35C710~0~01.42.01.30.6
a MB UV/Vis—Methylene blue degradation under UV or visible light, respectively; b SA UV/Vis—Stearic acid degradation under UV or visible light, respectively.

Share and Cite

MDPI and ACS Style

Klaysri, R.; Ratova, M.; Praserthdam, P.; Kelly, P.J. Deposition of Visible Light-Active C-Doped Titania Films via Magnetron Sputtering Using CO2 as a Source of Carbon. Nanomaterials 2017, 7, 113. https://doi.org/10.3390/nano7050113

AMA Style

Klaysri R, Ratova M, Praserthdam P, Kelly PJ. Deposition of Visible Light-Active C-Doped Titania Films via Magnetron Sputtering Using CO2 as a Source of Carbon. Nanomaterials. 2017; 7(5):113. https://doi.org/10.3390/nano7050113

Chicago/Turabian Style

Klaysri, Rachan, Marina Ratova, Piyasan Praserthdam, and Peter J. Kelly. 2017. "Deposition of Visible Light-Active C-Doped Titania Films via Magnetron Sputtering Using CO2 as a Source of Carbon" Nanomaterials 7, no. 5: 113. https://doi.org/10.3390/nano7050113

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
