Suppressing the Photocatalytic Activity of TiO2 Nanoparticles by Extremely Thin Al2O3 Films Grown by Gas-Phase Deposition at Ambient Conditions

by
Jing Guo
1,2,4,
Hao Van Bui
1,5,*,
David Valdesueiro
1,3,
Shaojun Yuan
2,
Bin Liang
2 and
J. Ruud Van Ommen
1
1
Product & Process Engineering, Department of Chemical Engineering, Faculty of Applied Sciences, Delft University of Technology, 2629 HZ Delft, The Netherlands
2
Multi-Phase Mass Transfer & Reaction Engineering Lab, College of Chemical Engineering, Sichuan University, Chengdu 610065, China
3
Delft IMP B.V., Molengraaffsingel 10, 2629 JD Delft, The Netherlands
4
Shanxi Province Key Laboratory of Higee-Oriented Chemical Engineering, North University of China, Taiyuan 030051, China
5
Department of Physics, Quy Nhon University, 170 An Duong Vuong Street, Quy Nhon City 590000, Vietnam
*
Author to whom correspondence should be addressed.
Nanomaterials 2018, 8(2), 61; https://doi.org/10.3390/nano8020061
Submission received: 23 November 2017 / Revised: 17 January 2018 / Accepted: 19 January 2018 / Published: 24 January 2018
(This article belongs to the Special Issue Design of Nanostructured Materials by Atomic Layer Deposition and Its Applications)
Browse Figures
Versions Notes

Abstract

:
This work investigated the suppression of photocatalytic activity of titanium dioxide (TiO2) pigment powders by extremely thin aluminum oxide (Al2O3) films deposited via an atomic-layer-deposition-type process using trimethylaluminum (TMA) and H2O as precursors. The deposition was performed on multiple grams of TiO2 powder at room temperature and atmospheric pressure in a fluidized bed reactor, resulting in the growth of uniform and conformal Al2O3 films with thickness control at sub-nanometer level. The as-deposited Al2O3 films exhibited excellent photocatalytic suppression ability. Accordingly, an Al2O3 layer with a thickness of 1 nm could efficiently suppress the photocatalytic activities of rutile, anatase, and P25 TiO2 nanoparticles without affecting their bulk optical properties. In addition, the influence of high-temperature annealing on the properties of the Al2O3 layers was investigated, revealing the possibility of achieving porous Al2O3 layers. Our approach demonstrated a fast, efficient, and simple route to coating Al2O3 films on TiO2 pigment powders at the multigram scale, and showed great potential for large-scale production development.

Graphical Abstract

1. Introduction

The brilliant white color and high photostability of nanoparticulate titanium dioxide (TiO2) make it an excellent white pigment in the paint, plastic, and paper industries [1]. In particular, TiO2 has been widely used as a white pigment in oil paint since the 20th century, replacing lead white—the most important white pigment in history [2]. However, the high photocatalytic activity of TiO2 under UV light irradiation causes the inevitable degradation of surrounding materials, which consequently changes the appearance and severely decreases the lifetime of the paintings. Depending on the surrounding materials, the photocatalytic degradation can occur via different regimes [3]. For instance, photocatalytic reactions can either promote polymerization of the organic binder, creating cross-linking that leads to embrittlement [4], or decompose the binder into volatile organic components, resulting in surface roughening and chalking [5]. In addition, photocatalytic reactions can induce degradation of other organic colored pigments, which consequently leads to discoloration [6]. Photocatalytic degradation has also been observed for plastic art objects and photographic papers using TiO2 as a white pigment [7]. Therefore, to avoid the photodegradation caused by the high catalytic activity of TiO2, in these applications TiO2 particles are commonly coated with a thin layer of a ceramic oxide, such as Al2O3 and SiO2, with a thickness of a few nanometers [8,9,10,11,12,13,14,15,16]. On the one hand, owing to their good insulating properties, ultrathin layers of these oxides can provide efficient photocatalytic suppression by preventing the transport of electrons and holes generated by UV-light absorption to the surface. On the other hand, the large bandgap of the ceramic oxide materials ensures the optical transparency of the coating layers, and conserves the brilliant white color of TiO2.
Ceramic oxide coating on TiO2 pigments to mitigate their photocatalytic activity began in the early 1940s, using a precipitation technique [17]. Since then, a number of methods have been developed for the deposition of ultrathin coating layers. Wet chemistry methods, such as sol-gel and precipitation, have been most popular due to their simplicity, inexpensiveness, and versatility in depositing thin films of various materials. For example, thin films of single SiO2 layer or binary Al2O3/SiO2 layers can be obtained by precipitation [11], whereas sol-gel enables the deposition of various ceramic and transition metal oxides such as SiO2, Al2O3, ZrO2, NiO, and CoO with tunable morphology and properties [9,10,18,19]. However, wet chemistry methods have several shortcomings in controlling the coating thickness and conformity due to their high sensitivity to experimental parameters, such as precursor concentration, type and pH of the solvents, deposition time, and temperature. In addition, wet chemistry methods are time-consuming and commonly require post-treatment processes, for instance, high-temperature treatment, washing, drying, and separation to eliminate impurities arising from the residual solvent and reaction byproducts [9,10,14]. Moreover, when it comes to large-scale production, these techniques usually encounter environmental issues due to the use of a large amount of solvents and chemical solutions. Therefore, there has been a constant search for a simple, fast, environmentally friendly, and controllable deposition method that can overcome the drawbacks associated with wet chemistry methods, while being feasible for large-scale production.
Atomic layer deposition (ALD) is a gas-phase deposition technique that is carried out using alternating exposures of the substrate to chemical reactants, each having self-limiting surface reactions that enable the control of film thickness at the atomic level [20,21,22]. ALD has been developed for a few decades [23,24], and utilized in the deposition of a wealth of materials on virtually every substrate for applications in various fields such as microelectronics, catalysis, and energy conversion and storage [21,25,26]. Particularly for coating on nanoparticles, ALD has emerged as an excellent method for the deposition of ultrathin conformal films of SiO2 and Al2O3 [14,15,24,27,28,29,30,31,32,33,34,35,36]. In particular, recent developments in ALD reactor types, such as rotary and fluidized bed reactors (FBR), have enabled ALD of thin films on large quantities of micro- and nanoparticles [37,38,39]. Particularly, ALD of SiO2 and Al2O3 on TiO2 nanoparticles to mitigate their photocatalytic activities for pigment applications has been investigated by Weimer’s research group [14,15,40]. Using tris-dimethylaminosilane (TMAS) and H2O2 as precursors, King et al. demonstrated that ultrathin conformal SiO2 films could be deposited onto anatase/rutile TiO2 powders with a growth-per-cycle (GPC) of approximately 0.04 nm at 500 °C [14]. Such an ALD-grown SiO2 film with a thickness of 2 nm could suppress 98% of the photocatalytic activity of anatase TiO2. However, the low GPC is not favorable for large-scale production development. A process based on siloxane polymerization using alternating exposures of tris(tert-pentoxy)silanol (TPS) and trimethylaluminum (TMA) enabled rapid SiO2 ALD with a significantly high GPC of 1.8 nm at 170 °C [15]. Accordingly, a SiO2 layer obtained for five cycles (i.e., ~9 nm) could entirely suppress the catalytic activity of TiO2 pigments. Compared to the conventional SiO2 ALD process [14], although a thicker film is needed to suppress the photocatalytic activity of TiO2, which could be due to the lower mass density, the significantly lower deposition temperature and the remarkably higher GPC provide a fast and efficient deposition method that is suitable for upscaling. Meanwhile, the mitigation of photocatalytic activity of TiO2 by thin Al2O3 films deposited by ALD was also investigated. Hakim et al. demonstrated that an Al2O3 layer obtained for 50 ALD cycles at 170 °C (GPC of 0.2 nm) could suppress the high photocatalytic activity of P25 TiO2 [40]. It is worth noting that, for pigment application, the thickness of the coating layer is of crucial importance: the layer must be thick enough to efficiently suppress the photocatalytic activity of TiO2, but thin enough to conserve the gloss and brightness of TiO2. This requires an optimal thickness, which is normally in the range of a few nanometers [17]. Therefore, reducing the coating thickness while ensuring its photocatalytic suppression ability is highly desirable.
This work reports on the suppression of photocatalytic activity of various types of TiO2 powders (i.e., anatase, rutile, and P25 TiO2) by Al2O3 films deposited via an ALD-like process using TMA and H2O as precursors, which was carried out at room temperature and atmospheric pressure in a home-built fluidized bed reactor. This gas-phase deposition process enabled the control of coating thickness at the sub-nanometer level, allowing us to investigate the dependence of photocatalytic suppression ability of Al2O3 on the film thickness. The surface morphology and film thickness, composition, and crystallinity of the coating layers were characterized by transmission electron microscopy (TEM), X-ray photoelectron spectroscopy (XPS) and thermogravimetric analysis (TGA), and X-ray diffraction spectroscopy (XRD), respectively. The results showed that highly conformal Al2O3 films with a thickness as thin as 1 nm were obtained, which efficiently suppressed the photocatalytic activity of TiO2 powders without affecting their bulk optical properties. Furthermore, the influence of high-temperature annealing on the properties of the Al2O3 layers was investigated, revealing the possibility to achieve porous Al2O3 layers, which could be useful for other applications.

2. Reaction Mechanism of Al2O3 ALD Using TMA and H2O: A Brief Overview

The high reactivity of TMA facilitates the deposition of Al2O3 in a broad range of temperature on various types of substrates and materials with any geometries, including flat surfaces [21], high-aspect-ratio structures [41,42,43], porous media [44,45,46,47], nanoparticles [29,32,34,40], fibers [48], carbon nanotubes [49,50], graphene [51,52,53], polymers [54], and biomaterials [55]. The reaction mechanism in ALD of Al2O3 using TMA and H2O has been intensively investigated in the past decades, both theoretically and experimentally [21,56,57,58,59,60,61,62,63,64,65,66,67]. Accordingly, the surface chemical reactions that lead to the deposition of Al2O3 in the ideal case can be divided into two half-reactions. During the exposure to TMA, the first half-reaction takes place and proceeds as:
║–OH + Al(CH3)3 (g) → ║–O–Al(CH3)2 + CH4 (g),
where the ║–OH represents the functional groups (i.e., hydroxyl groups), which are formed during the exposure of the substrate to air, or surface pretreatment. After all of the –OH groups have reacted with TMA, the reactions achieve saturation, forming a –CH3 terminated surface, which is ready for the second half-reactions to take place during the exposure to H2O, described as:
║–O–Al–CH3 + H2O (g) → ║–O–Al–OH + CH4 (g).
These reactions convert the –CH3 into CH4 and create a new surface terminated by –OH groups, which serves two purposes: blocking further reactions with H2O, which causes saturation, and providing an active surface for the chemical reactions in the next cycle. A typical GPC in the range of 0.1–0.3 nm is obtained for TMA/H2O ALD depending on experimental conditions such as temperature range, pressure range, and reactor type. The sequential exposures are repeated to deposit Al2O3 films, which translates into ability to control the film thickness at atomic level.
Nevertheless, the TMA/H2O ALD chemistry is rather complex, which involves—apart from the ligand-exchange reactions described above—dissociation reactions that can take place in both the half-reactions [21,68]. In the first half-reaction, TMA can react with unsaturated Al–O pairs of Al2O3 layers, creating a –CH3 terminated surface described as [68]:
║Al–O║ + Al(CH3)3 (g) → ║Al–CH3 + ║O–Al(CH3)2.
In the second half-reaction, dissociation reactions can occur between H2O and the oxygen on Al2O3 surface, forming –OH surface functional groups, described as [21]:
║–O–║ + H2O (g) → 2║–OH.
The reversed reaction of the dissociation, the dehydroxylation, can also take place that consequently reduces the concentration of the OH groups, especially at high temperatures [21]:
2║–OH → ║–O–║ + H2O (g).
Although the dissociation reactions are not often mentioned in the literature when discussing the surface chemistry in TMA/H2O ALD, these reactions are believed to contribute considerably to growth. Especially, the dissociative chemisorption of TMA in the first half-cycle is the key mechanism that is used to interpret the nucleation on hydroxyl-free surfaces [59,60,69,70,71,72], even at room temperature [70]. In addition, at high deposition temperatures, the desorption of –OH groups and decomposition of TMA can occur simultaneously, which will strongly affect the growth rate of Al2O3 ALD [57,73]. Nevertheless, the ligand-exchange reactions are considered the dominant reactions during the deposition and have been most studied.
The GPC in ALD regime is generally temperature-independent, which is commonly known as “ALD window” [22]. However, ALD of Al2O3 using TMA/H2O is found to be temperature-dependent [57,61,63,65]. Rahtu et al. [57] demonstrated a slight increase of GPC with increasing temperature from 150 to 250 °C, followed by a drop of GPC with further increase of temperature. The lower GPC at low temperature was attributed to the slow kinetics of the chemical reactions between the precursors, whereas the desorption of hydroxyl groups at high temperatures led to the drop of GPC. Most recently, the decrease of GPC at low deposition temperatures has been thoroughly investigated by Vandalon and Kessels [65]. Using in-situ vibrational sum-frequency generation technique, the authors investigated the reaction mechanism between TMA and H2O in a broad temperature range (i.e., 100–300 °C), which revealed that the low GPC is caused by the incomplete removal of –CH3 groups by H2O at low temperature. The unreacted –CH3 groups decline the chemisorption of TMA in the subsequent cycles, which consequently decreases the growth rate. The study also demonstrate that the persistent –CH3 groups are not accumulated with increasing the number of cycles, which explains the low carbon impurity in Al2O3 layers grown by ALD at low temperatures [65]. Nevertheless, the experimental data obtained by Ylivaara et al. have demonstrated that the low-temperature deposition of Al2O3 using TMA and H2O is inherently associated with a considerable amount of impurities, especially hydrogen and carbon, which increase with decreasing deposition temperature [74]. The hydrogen impurity arises from the unreacted hydroxyl groups, which has recently been verified by Guerra-Nunez et al. [66]. The degree of the GPC decrease at low temperatures is not well determined, and strongly depends on experimental conditions. For instance, contrary to the considerable drop of GPC at low temperatures observed by Vandalon and Kessels (i.e., the growth rate drops by approximately 50% when reducing the temperature from 250 to 100 °C), Groner et al. previously showed a slight decrease of GPC with decreasing temperature, even to near room temperature (i.e., 33 °C) [61]. The discrepancy between the studies can be attributed to the different ALD conditions, especially the process pressure range and reactor types.

3. Results and Discussion

3.1. Properties of the Al2O3 Coating Layers

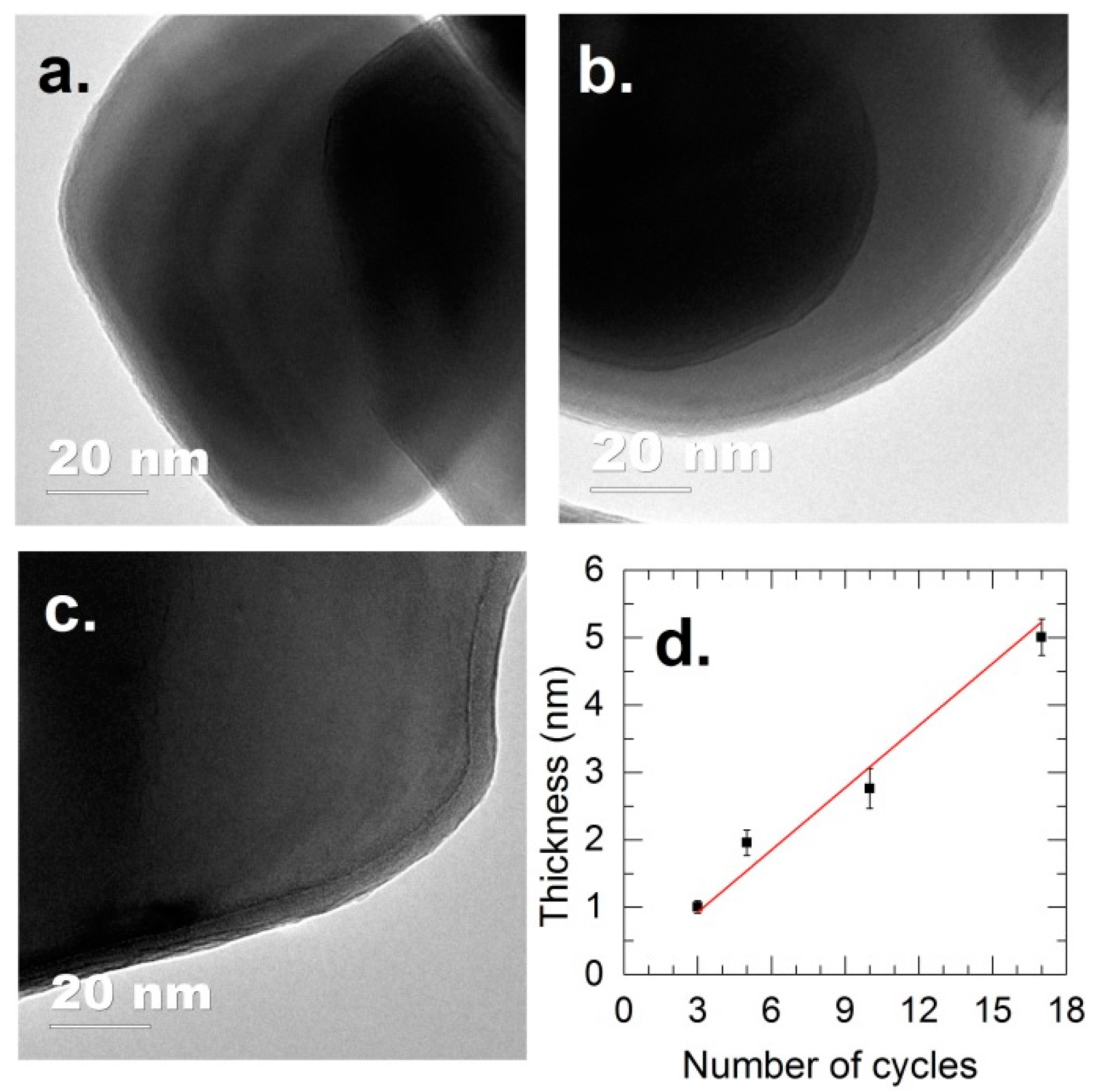

3.1.1. Morphology of Al2O3-Coated TiO2

We will first focus on the coating and performance of anatase TiO2 powders. The morphology of the Al2O3 films on anatase TiO2 for different exposure cycles is shown in Figure 1, demonstrating the deposition of uniform Al2O3 films, even at a film thickness of about 1 nm (Figure 1a). The coating thickness increases linearly with the number of cycles, with a GPC of approximately 0.3 nm (Figure 1d). The obtained GPC is higher than the GPC reported for ALD of Al2O3 on flat substrates, which is typically in the range of 0.1–0.2 nm [61,65]. However, this GPC value is lower than the GPC obtained for the Al2O3 ALD on particles (i.e., 0.5 nm) reported by Liang et al. [75]. Nevertheless, previous work from our group demonstrated that the growth of Al2O3 at room temperature and atmospheric pressure in FBR follows the chemical vapor deposition (CVD) mode, in which the GPC increases with increasing dosing time (i.e., without a self-saturating regime) [34]. With a GPC of 0.3 nm obtained for the examined conditions, a controlled deposition at sub-nanometer level of highly conformal Al2O3 films is totally achievable. In fact, this higher GPC is beneficial for the fast and scalable production that is required for practical applications.

3.1.2. Structural and Optical Properties of Room-Temperature-Grown Al2O3

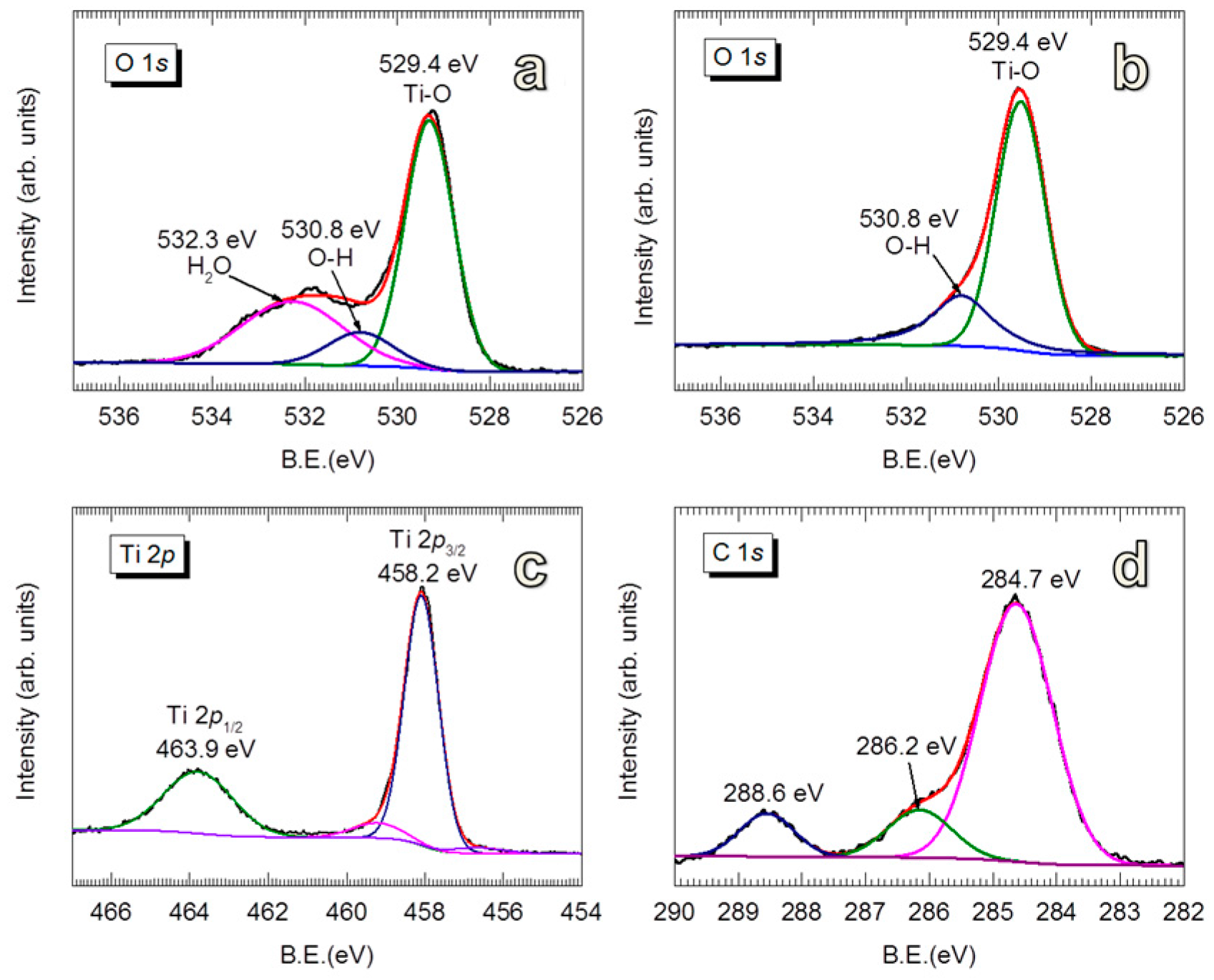

The chemical states of the initial TiO2 surface are characterized by XPS and shown in Figure 2. The fingerprints of TiO2 are featured by the peaks at binding energies (BE) of 529.4 eV (O 1s, Figure 2a), BE = 463.9 eV and BE = 458.2 eV (Ti 2p, Figure 2c). The deconvolution of O 1s spectrum revealed the presence of a considerable amount of –OH groups (BE = 530.8 eV) and physisorbed H2O (BE = 532.3 eV) [76,77]. The physisorbed H2O can be removed by applying a heat treatment in air at 170 °C for 1 h, as indicated by Figure 2b. We note that no distinguishable difference was observed for the growth of the Al2O3 on the TiO2 without and with heat treatment. However, the existence of –OH groups on the surface is important to the inception of TMA chemisorption. The C 1s spectrum exhibits different states of C contamination (Figure 2d), including C=O (BE = 288.6 eV), O–C (BE = 286.2 eV) and C=C (BE = 284.7 eV) [76,78]. These carbon compounds could arise from adsorbed species on the surface of the powders and/or the carbon tape used to immobilize the TiO2 particles.
For the Al2O3-coated TiO2, the BE = 531.6 eV (for O 1s, Figure 3a,b) and BE = 74.3 eV (for Al 2p, Figure 3c,d) represent the Al–O bonds in Al2O3 compounds [78,79,80]. No noticeable change was observed for the BE of Al 2p with increasing coating thickness. However, the peaks of TiO2 (i.e., BE = 529.4 eV for O 1s, BE = 463.9 eV for Ti 2p1/2, and BE = 458.2 eV for Ti 2p3/2) are gradually attenuated with increasing Al2O3 thickness. For the TiO2 coated with 5 nm Al2O3, the TiO2 peaks are almost vanished, which suggests that the photoelectrons of TiO2 excited by the X-rays are effectively shielded by the Al2O3 film. The disappearance of TiO2 features in XPS spectra is evidence of uniform Al2O3 coating on a large scale, in addition to the evidence provided by the TEM micrographs shown in Figure 1. Furthermore, the gradual attenuation of C 1s at BE = 288.6 eV (C=O) and BE = 286.2 eV (O–C) relatively compared to the peak at BE = 284.7 eV (C=C) with increasing Al2O3 thickness can be explained that these carbon-containing species are on the surface of TiO2. This, however, does not rule out the possibility that the carbon content is accumulating in the growing film, which cannot be avoided due to the deposition at room temperature.
As a photocatalytic suppression layer for pigment applications, the transparency of the coating layer, which is crucially important to maintain the bulk optical properties of TiO2 such as the white color and high brightness, is highly desirable. The optical absorption spectra shown in Figure 4 indicate that the absorption of TiO2 remained unaffected upon the coating with Al2O3 with different film thicknesses. From the absorption spectra, an optical bandgap of 3.2 eV was determined, which corresponds to that of anatase TiO2 [81]. The characterization using X-ray diffraction showed the amorphous state of the Al2O3 layers, even after annealing at 500 °C for 12 h (Figure S1).

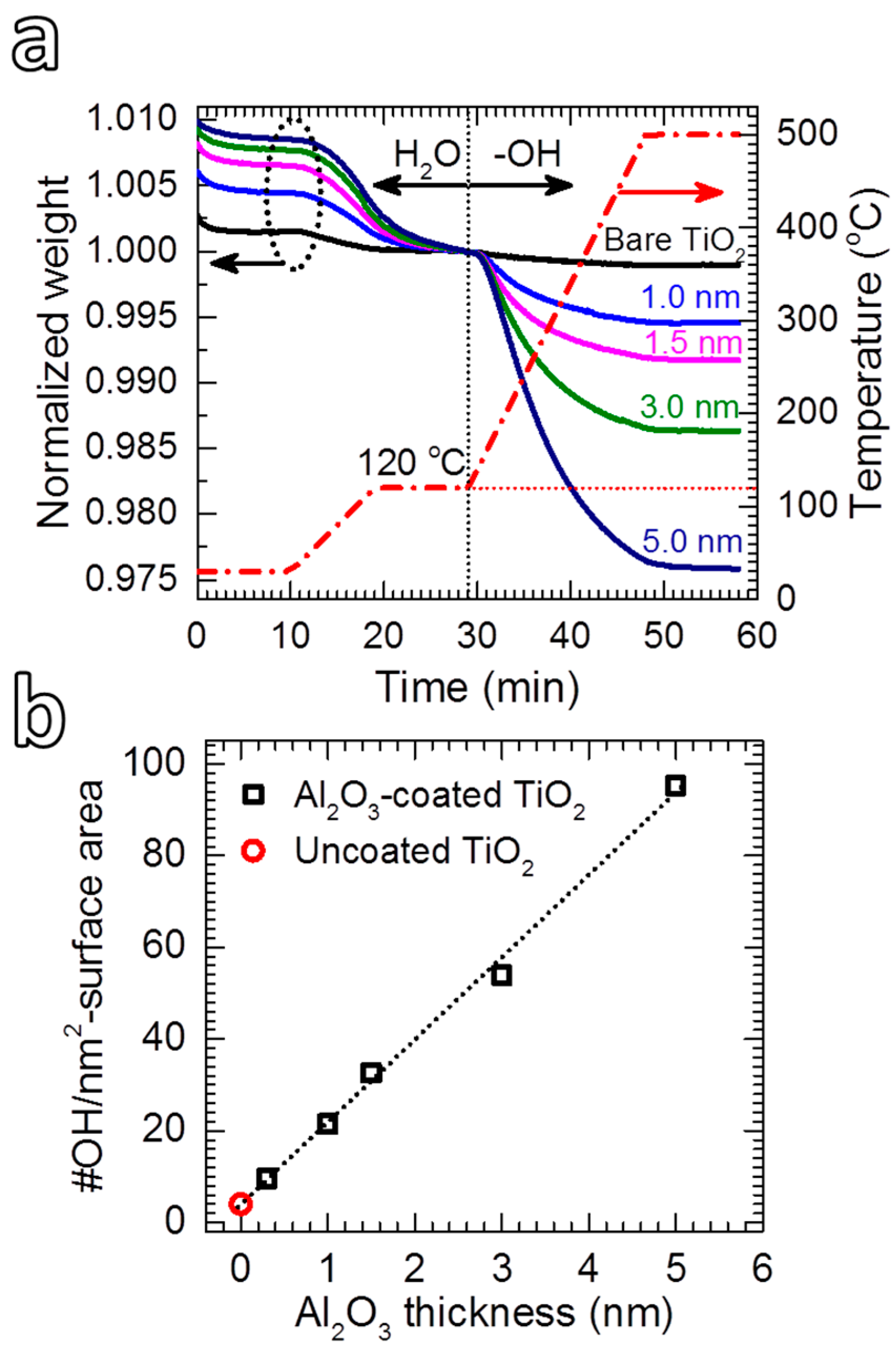

3.1.3. Thermogravimetric Analysis

Figure 5a shows TGA plots of the TiO2 powders coated with Al2O3 films with different thicknesses. The first stage (i.e., T ≤ 120 °C) describes the desorption of water when the powders are heated from 25 °C, showing an increasing amount of water with Al2O3 thickness. The second stage demonstrates the desorption of hydroxyl groups, which increases remarkably with increasing the coating thickness. Following the calculation method proposed by Pratsinis et al., from the TGA plots shown in Figure 5a, the density of –OH groups was estimated by following the common assumption that all the –OH groups are on the surface [82,83]. For uncoated TiO2, a density of 4 –OH/nm2 was obtained, which is close to the value reported for anatase TiO2 [83]. On Al2O3-coated TiO2, the density of –OH groups increased linearly with Al2O3 thickness (Figure 5b): a density of 9.6 –OH/nm2 was obtained for the 1 nm thick Al2O3 coated powder, and increased to 95.3 –OH/nm2 for the TiO2 coated with 5 nm Al2O3. As this number is not reasonable for the assumption that all the –OH groups are on the surface of the powder (i.e., it is theoretically and practically impossible to have 95 OH –groups on 1 nm2), the calculated values suggest that most of the –OH groups are located inside the coating layer. This is caused by the incomplete consumption of –OH groups, which leads to hydrogen impurity in the film [66]. The existence of –OH strongly affects the density of Al2O3 [61]. Nevertheless, Groner et al. [61] demonstrated that the Al2O3 films grown at low temperatures exhibited excellent electrical properties despite containing high –OH concentrations. As we will demonstrate later, despite having high densities of –OH groups, ultrathin Al2O3 films deposited at room temperature can provide excellent photocatalytic suppression ability.

3.2. Photocatalytic Activity of Al2O3-Coated TiO2

3.2.1. Dependence of Photocatalytic Suppression Ability of Al2O3 on Film Thickness

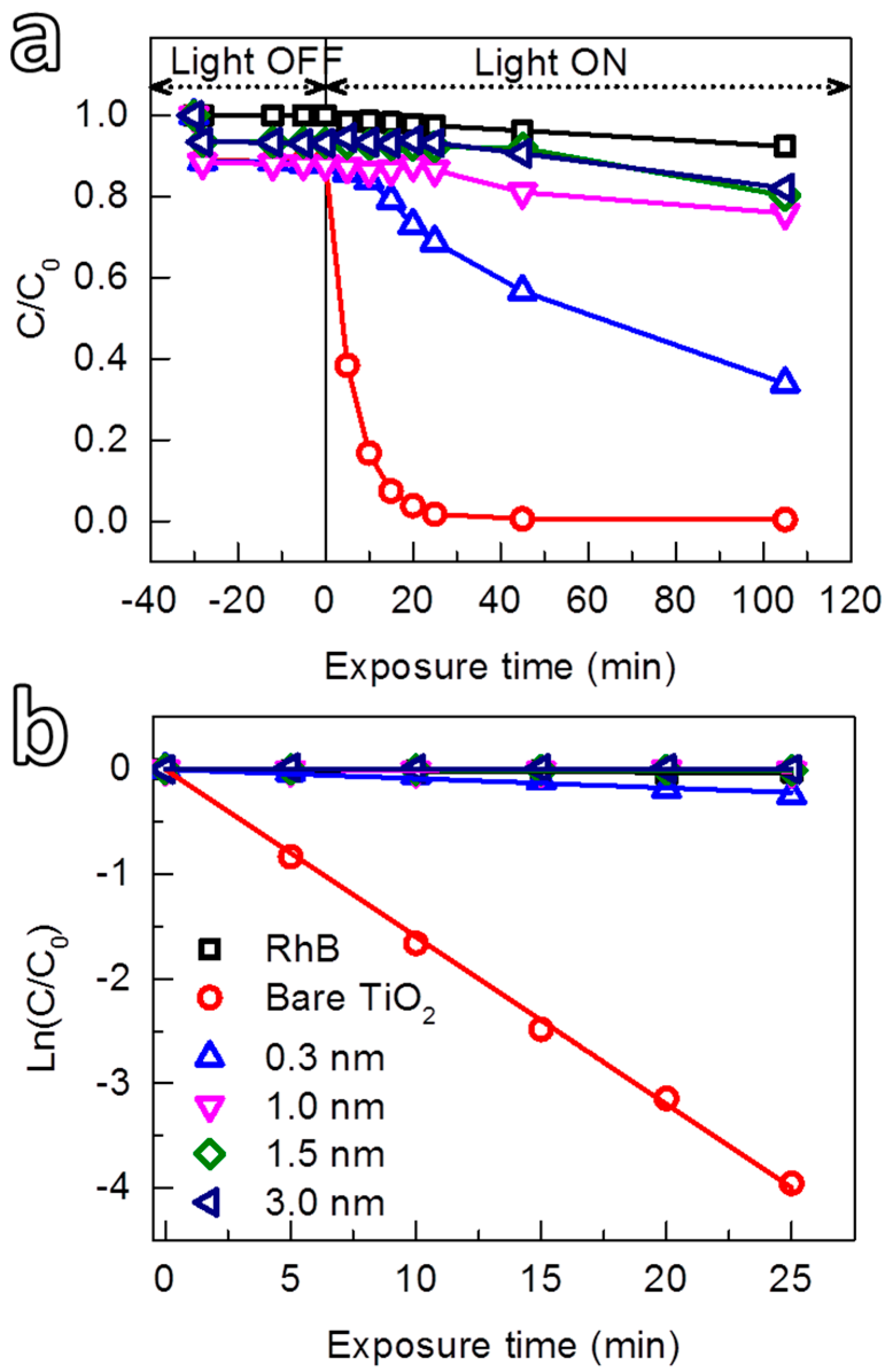

The photocatalytic suppression ability of the room-temperature grown Al2O3 was investigated by the photodegradation of rhodamine B (RhB) solution under the irradiation of sunlight generated by a solar simulator. The ability to control the growth at sub-nanometer level allowed us to study the interdependence of the photocatalytic suppression ability and the thickness of Al2O3. Figure 6 shows the photocatalytic activity toward the photodegradation of RhB of TiO2 powders coated with Al2O3 films with different thicknesses. For comparison, the self-degradation of RhB (i.e., without TiO2) caused by the UV light and the photocatalytic activity of uncoated TiO2 were also investigated. Prior to the UV irradiation, the solution was continuously stirred in the dark (i.e., light-off stage) for 30 min to obtain adsorption/desorption equilibrium of RhB and uniform suspensions, which were collected after certain time-intervals to determine the concentration of the residual RhB. The results showed that during the light-off stage, the concentration of RhB in the solution without TiO2 powders (blank RhB) remained unchanged. However, a small drop of RhB concentration was observed for the solutions with TiO2 powders (both uncoated and coated with Al2O3). This drop is due to the adsorption of a fraction of RhB molecules on the surface of the particles. Shortly after that (i.e., after 2 min) the concentration of RhB reached the steady state. In the light-on stage, a rapid decomposition of RhB in the solution containing uncoated TiO2 was observed (the circles in Figure 6a), and after 25 min of irradiation, the RhB was completely decomposed, indicative of the high photocatalytic activity of the TiO2.
For the Al2O3-coated TiO2, the photocatalytic activity was reduced, which exhibited a strong dependence on the thickness of the Al2O3 layer. This thickness dependence can be quantitatively estimated by the kinetics of the photodegradation reaction, which can be described by first-order kinetics [84]:
ln(C0/C) = kapp·t, or C = C0·exp(−kapp·t),
where C0 and C are the initial concentration and the concentration at the time t, respectively, kapp is the apparent first-order kinetic constant that represents the reaction rate. The kinetic plots describing the degradation of RhB are shown in Figure 6b, from which the kapp value for each reaction was extracted and presented in Table 1. Accordingly, the photocatalytic activity of TiO2 (kapp ≈ 160 × 10−3 min−1) was reduced approximately 18 times (to kapp ≈ 8.87 × 10−3 min−1) by coating an Al2O3 layer for 1 cycle of TMA and H2O exposures (i.e., the calculated thickness of about 0.3 nm). Nevertheless, the Al2O3 at this thickness cannot entirely suppress the photocatalytic activity of TiO2. This could be due to (1) the insufficient thickness that can block the transport of photogenerated charges from the TiO2 to the surface, and/or (2) the lack of continuity of the coating layer. With increasing film thickness, kapp value decreased rapidly, which dropped to far below 1 × 10−3 min−1 for Al2O3 films with a thickness of 1 nm or thicker (thickness a ≥ 1 nm). The results showed that an Al2O3 layer with a thickness of 1 nm efficiently suppressed entirely the catalytic activity of the TiO2. The degradation of RhB observed for the TiO2 coated with Al2O3 films with thickness a ≥ 1 nm is identical to that of the self-degradation of RhB solution without the powder (Figure 6b and Table 1). A comparison with other coating processes and materials that have been used to mitigate the photocatalytic activity of TiO2 pigments is given in Table 2. It is can be seen that gas-phase deposition methods such as ALD and CVD have been employed. However, the reported processes were carried out at much higher temperatures, i.e., above 150 °C for Al2O3 and 175 °C for SiO2. In addition, thicker layers are needed to efficiently suppress the photocatalytic activity of TiO2, which is also the case for the layer obtained by wet-chemistry methods. This indicates that our approach has significant advantages in providing a fast and efficient coating method that can be carried out at room temperature, which increases the feasibility for further development to large-scale production.

3.2.2. Influence of High-Temperature Calcination on Photocatalytic Suppression Ability of Al2O3

As demonstrated by the thermal analysis shown in Figure 5, the room-temperature-grown Al2O3 films contain a high density of –OH groups, which can desorb at high temperatures. Therefore, a calcination at 500 °C for 12 h was applied to investigate the influence of the –OH desorption on the suppression ability of Al2O3. The results show that the calcination of Al2O3-coated TiO2 resulted in an enhanced photocatalytic activity (Figure S2), in which kapp values increased nearly an order of magnitude (Table 1). This indicates that the –OH desorption reduced the suppression ability of the Al2O3 layer. We speculate that the desorption of –OH groups resulted in the formation of porous Al2O3 that allows photogenerated electrons to transport to the surface. In addition, the densification, which my introduce cracks during calcination, can also take place and increase the porosity of the Al2O3 [74]. This is supported by the XPS spectra of the calcined Al2O3/TiO2 shown in Figure S3. Accordingly, the two XPS peaks of the Ti 2p core-levels that were attenuated after coating with a 5-nm Al2O3 film were partially recovered after the calcination, which suggests that the photoelectrons generated by the X-rays could travel through the calcined Al2O3 layer. For uncoated TiO2, the results show that the –OH desorption reduced the photocatalytic activity (Figure S2), indicated by the drop of kapp from 160 × 10−3 to 100 × 10−3 min−1 (Table 1). This can be explained by the fact that in TiO2 photocatalysis, hydroxyl groups act as hole traps, which causes two important effects that enhance the photocatalytic activity: enhancement of charge separation and formation of hydroxyl radicals [76,88,89,90].

3.2.3. Photocatalytic Suppression Ability of Al2O3 on P25 and Rutile TiO2

Analogously to the deposition on anatase TiO2, uniform Al2O3 films were also achieved on rutile and P25 TiO2 powders (Figures S4 and S5), which enabled the study on photocatalytic suppression ability of the Al2O3 films on P25 and rutile TiO2 nanoparticles. The results are demonstrated in Figure 7. The photocatalytic activity of rutile TiO2 (kapp ≈ 4.85 × 10−3 min−1) is much lower than that of anatase TiO2 (kapp ≈ 159.88 × 10−3 min−1) under identical conditions, which is also known from the literature [90,91]. After coating the rutile particles with 1 nm Al2O3, the photocatalytic activity is strongly suppressed, which is confirmed by the low kapp value obtained (0.28 × 10−3 min−1). In contrast, the photocatalytic activity of P25 TiO2 (kapp ≈ 231 × 10−3 min−1) was found to be higher than that of anatase TiO2. Nevertheless, by coating with an Al2O3 layer with a thickness of approximately 1 nm, the photocatalytic activity of P25 was also strongly suppressed (kapp ≈ 2.01 × 10−3 min−1). These results have further demonstrated the high photocatalytic suppression ability of the ultrathin Al2O3 films deposited under mild conditions.

4. Experimental Section

The deposition was carried out in a home-built fluidized bed reactor operating at atmospheric pressure and room temperature, as described elsewhere [34]. Briefly, the system consisted of a glass column (26 mm in internal diameter and 500 mm in height) placed on top of a single motor Paja PTL 40/40–24 vertical vibration table to assist the fluidization of nanoparticles. Anatase (mean diameter d ≈ 270 nm) and rutile (mean diameter d ≈ 300 nm) TiO2 pigment powders were provided by Taihai TiO2 Pigment Co. (Panzhihua, China); aeroxide P25 TiO2 (mean diameter d ≈ 21 nm) were purchased from Evonik Industries (Hanau, Germany). Semiconductor grade trimethylaluminum (TMA) was provided by Akzo Nobel HPMO (Amersfoort, The Netherlands) in a 600 mL WW-600 stainless steel bubbler. Both the TiO2 powders and the TMA precursor were used as received. Pressurized nitrogen (99.999 vol %) was used as the carrier gas. For each experiment on anatase and rutile TiO2, 7.0 g of powders was used. An optimized N2 gas flow of 0.5 L min−1 was introduced through the distributor plate placed at the bottom of the glass column to fluidize the powders. A coating cycle consisted of alternating exposures of the powders to TMA precursor (2 min) and deionized water vapor (2 min), separated by a purging step (5 min) using N2. The coating on P25 followed the conditions described elsewhere [34]. The temperature inside the bed was monitored by a type-K thermocouple inserted in the column, which showed a small variation during the deposition (i.e., 27 ± 3 °C), possibly due to the heat release from the chemical reactions.
As-coated Al2O3/TiO2 powders were suspended in ethanol and transferred to regular transmission electron microscopy (TEM) grids (3.05 mm in diameter). TEM images were taken at several locations on the grids using a JEOL JEM1400 transmission electron microscope (JEOL, Peabody, MA, USA) operating at a voltage of 120 kV and a current density of 50 pA cm−2.
X-ray photoelectron (XPS) characterizations were carried out using a ThermoFisher K-Alpha system (ThermoFisher Scientific, Waltham, MA, USA) using Al Kα radiation with photon energy of 1486.7 eV. A sufficient amount of powder was immobilized on carbon tape before loading into the XPS chamber. Survey scans were acquired using a 200 μm spot size, 55 eV pass energy and 0.1 eV/step with charge neutralization. The peaks positions were calibrated according to the C 1s peak at 284.7 eV.
A Mettler Toledo TGA/SDTA 851e thermogravimetric analyzer (Mettler Toledo B.V., Tiel, The Netherlands) was used for studying the thermal behavior of the synthesized powders. An amount of 30 mg of powders was used for each TGA measurement. The TGA curves were recorded while (1) heating up the powders from 25 to T1 = 120 °C with a ramping rate of 10 °C min−1 in a N2 flow of 100 mL min−1; (2) maintaining at 120 °C for 10 min; (3) ramping up to 500 °C with a ramping rate of 20 °C min−1; and (4) finally maintaining at this temperature for 10 min. Steps (1) and (3) are commonly used to determine the density of physisorbed water and chemisorbed hydroxyl groups on the surface, respectively [83].
The Al2O3/TiO2 was transferred onto a Si wafer with 300 nm of SiO2 thermal oxide, which was to eliminate the influence of the substrate (Si) signal in the X-ray diffractograms of the powders. The X-ray diffractograms were obtained by a PANalytical X’pert Pro diffractometer (PANalytical, Almelo, The Netherlands) with Cu Kα radiation, secondary flat crystal monochromator and X’celerator RTMS Detector system. The angle of interest 2θ was measured from 10° to 90° with fine steps of 0.001°.
Optical absorption measurements were performed using a PerkinElmer-Lambda 900 spectrometer (PerkinElmer, Spokane, WA, USA) equipped with an integrated sphere device. The powder was suspended in ethanol, which was transferred onto a quartz substrate and dried in air. The spectra were acquired in the wavelength range of 600–200 nm, with fine steps of 1 nm.
The photocatalytic activity of the Al2O3-coated TiO2 powders was evaluated by the photodegradation of RhB solution. For each test, 30 mg of the powders were added to 30 mL RhB solution (concentration of 8 mg L−1) and continuously stirred in the dark for 30 min to obtain a uniform suspension. Thereafter, the suspension was exposed to UV radiation generated by a mercury lamp with a power of 45 W for different exposure times. The set-up allowed us to assess up to 10 samples simultaneously, which ensured that all samples were irradiated under the same conditions, such as light intensity, exposure time, and temperature. The suspension was then centrifuged to separate the powders from the solution. Finally, the solution was analyzed by UV-visible spectrophotometry (HACH LANGE DR5000 UV-vis spectrometer, Hach-Lange GmbH, Düsseldorf, Germany) to determine the residual concentration of the RhB in solution, which was used to evaluate the catalytic activity suppression of the Al2O3 layers.

5. Conclusions

We have demonstrated the deposition and investigated the photocatalytic suppression ability of ultrathin Al2O3 films on different types of TiO2 powders: anatase (mean diameter d ≈ 270 nm), rutile (mean diameter d ≈ 300 nm) and P25 (mean diameter d ≈ 21 nm). The deposition was carried out using an ALD-like process, in which the TiO2 powders were alternatively exposed to TMA and H2O at room temperature and atmospheric pressure in a FBR. This enabled the deposition of ultrathin, conformal and uniform Al2O3 films with the thickness control at sub-nanometer level. The deposition at room temperature resulted in amorphous Al2O3 layers containing a high concentration of hydroxyl groups, which was caused by the incomplete reactions between the precursors at low temperature. Nevertheless, the films exhibited excellent photocatalytic suppression ability, which showed that an Al2O3 layer with a thickness of 1 nm could efficiently suppress the photocatalytic activities of the TiO2 powders. In addition, the optical absorption of TiO2 was not affected by the Al2O3 coating. Upon calcination at a high temperature, photocatalytic suppression ability of the Al2O3 was decreased, possibly due to the formation of porous Al2O3 layer, which created pathways for charge carriers to transport to the surface. Our approach of using a FBR operating at atmospheric pressure is a fast, efficient, simple method for depositing ultrathin conformal Al2O3 films that meet the requirements for coating pigments, which can be further developed for large-scale production.
