Effect of Organic Substrates on the Photocatalytic Reduction of Cr(VI) by Porous Hollow Ga2O3 Nanoparticles

1
Henan Key Laboratory of Rare Earth Functional Materials, International Joint Research Laboratory for Biomedical Nanomaterials of Henan, The Key Laboratory of Rare Earth Functional Materials and Applications, Zhoukou Normal University, Zhoukou 466001, China
2
School of Civil Engineering and Architecture, Ningbo Institute of Technology, Zhejiang University, Ningbo 315100, China
3
School of Life Science and Agriculture, Zhoukou Normal University, Zhoukou 466001, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2018, 8(4), 263; https://doi.org/10.3390/nano8040263
Submission received: 6 March 2018 / Revised: 19 April 2018 / Accepted: 19 April 2018 / Published: 22 April 2018

Abstract

:
Porous hollow Ga2O3 nanoparticles were successfully synthesized by a hydrolysis method followed by calcination. The prepared samples were characterized by field emission scanning electron microscope, transmission electron microscope, thermogravimetry and differential scanning calorimetry, UV-vis diffuse reflectance spectra and Raman spectrum. The porous structure of Ga2O3 nanoparticles can enhance the light harvesting efficiency, and provide lots of channels for the diffusion of Cr(VI) and Cr(III). Photocatalytic reduction of Cr(VI), with different initial pH and degradation of several organic substrates by porous hollow Ga2O3 nanoparticles in single system and binary system, were investigated in detail. The reduction rate of Cr(VI) in the binary pollutant system is markedly faster than that in the single Cr(VI) system, because Cr(VI) mainly acts as photogenerated electron acceptor. In addition, the type and concentration of organic substrates have an important role in the photocatalytic reduction of Cr(VI).

Graphical Abstract

1. Introduction

Heavy metal ions from wastewater have become the primary threat to the human environment with the development of industrial civilization [1,2,3,4]. Hexavalent chromium (Cr(VI)) is a typical heavy metal contaminant with high solubility and toxicity, which originates from various industrial processes such as electroplating, leather tanning, and paint manufacture [5]. A common method of treating Cr(VI) in wastewater is to convert it into low toxic Cr(III), which can be precipitated as Cr(OH)3 in neutral or alkaline solutions, and removed as a solid waste [6]. Recently, photocatalytic reduction of Cr(VI) to Cr(III) has been recognized as an efficient and economical form of technology [7,8,9,10,11]. Briefly, photocatalytic reduction of Cr(VI) is based on the photogenerated electrons in the conduction band of semiconductor when it is irradiated by UV/visible light having energy greater than the band gap energy of the semiconductor. In addition, organic and inorganic pollutants usually co-exist in industrial wastewater and natural aqueous environment, and no doubt the presence of organic pollutants in wastewater will greatly increase the difficulty of photocatalytic reduction of Cr(VI) [12,13,14].
During the photocatalytic process, the photocatalyst is the key factor, and it is necessary to design and fabricate efficient and stable photocatalysts. Ga2O3 is one of most popular photocatalysts used in the photocatalytic degradation of organic pollutants and reduction of CO2 [15,16,17,18], owing to its high activity and environmental friendliness. Its activity can be further enhanced through a proper synthetic strategy to obtain nanostructured materials, as the morphology, size and pore structure of materials can significantly influence their properties and applications [19,20,21]. As one promising field of research, porous hollow nanostructures have been investigated for a long time. Compared with bulk materials, porous hollow materials have higher porosity, larger specific surface areas, and lots of active chemical sites, which could enhance light harvesting efficiency and provide lots of channels for the diffusion of pollutants, while also improving photocatalytic activity efficiently [22,23,24].
In this study, porous hollow Ga2O3 nanoparticles were prepared via a hydrolysis method followed by calcination. The effect of parameters including pH and concentration of metronidazole on the reduction rate of Cr(VI) by the porous hollow Ga2O3 nanoparticles was also studied. Meanwhile, the photocatalytic reduction of Cr(VI) was also systematically investigated in the absence and presence of organic substrates. To the best of our knowledge, this is the first report on the simultaneous treatment of organics and Cr(VI) using porous hollow Ga2O3.

2. Materials and Methods

2.1. Materials

Ga2O3 (99.999%), NaCO3 (AR, 99.8%), and NaOH (AR, 96%) were purchased from Shanghai Aladdin Bio-Chem Technology Co., Ltd. (Shanghai, China) and HCl (AR, 36–38%) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China) Deionized water was used throughout the experiments.

2.2. Synthesis of Porous Hollow Ga2O3 Nanoparticles

Porous hollow Ga2O3 nanoparticles were synthesized via a thermal transformation of GaOOH precursor based on our previous study [25]. The NaGaO2 powders were prepared by heating a stoichiometric mixture of Na2CO3 and Ga2O3 at 850 °C for 12 h. The GaOOH precursor was prepared by a hydrolysis reaction of NaGaO2 colloidal solution. The NaGaO2 powders (1.0 g) was dispersed in deionized water (100 mL) to obtain a colloidal solution with ultrasonic oscillations. Then, 5 mol/L HCl solution was added to the NaGaO2 colloidal solution with magnetic stirring; the final pH value was kept at 9.0. The obtained white suspension was treated thermally at 80 °C for 12 h. The obtained GaOOH precursor was separated by centrifugation and dried at 70 °C for 10 h. The Ga2O3 was prepared by calcining GaOOH precursor with a programmed temperature (400 °C, 5 h and 700 °C, 1.5 h, 1 °C/min).

2.3. Characterization

The Raman spectrum was recorded using a Raman spectrometer (RM2000) (Renishaw, Gloucestershire, UK). Field emission scanning electron microscope (FESEM) images were obtained using a MERLIN scanning microscope at an accelerating voltage of 10 kV (ZEISS, Oberkochen, German). Scanning transmission electron microscopy (STEM), transmission electron microscope (TEM) and high-resolution transmission electron microscopy (HRTEM) images were obtained using a JEOL-2010 transmission electron microscope (JEOL Ltd., Kyoto, Japan) at an accelerating voltage of 200 kV. TEM is equipped with an energy-dispersive X-ray spectroscopy (EDS) analysis system. The quantitation method for Ga and O elements is Cliff Lorimer thin ratio section. Thermogravimetry and differential scanning calorimetry (TG-DSC) analysis was performed on a STA 6000 (Perkin Elmer, Waltham, MA, USA) instrument at a heating rate of 10 °C/min. UV-vis diffuse reflectance spectra (UV-vis DRS) were obtained by a UV-2600 UV-vis spectrophotometer (Shimadzu Corporation, Kyoto, Japan).

2.4. Photocatalytic Experiments

Photoreduction of Cr(VI) (K2Cr2O7) and photocatalytic degradation of rhodamine B (RhB), acid red 1 (AR1), methyl orange (MO) and metronidazole (MNZ) as well as their binary mixtures, were adopted to evaluate the photocatalytic activity of the as-synthesized Ga2O3 sample. The concentration of Cr(VI) and organics is the same in single and binary pollutants (Table 1). Typically, 20 mg of the Ga2O3 sample was added into a 50 mL Cr(VI) aqueous solution. The initial pH of the Cr(VI) solution was adjusted to 2–9 by adding HCl or NaOH. Prior to irradiation, the suspensions were magnetically stirred for 30 min to establish the adsorption-desorption equilibrium. The irradiation was performed with a 30 W UV light lamp (λ = 253.7 nm). At a given time interval, about 3 mL suspension was taken for further analysis after centrifugation. The concentration of organic pollutants, including RhB, AR1, MO and MNZ, were analyzed by UV-vis spectroscopy at 554, 505, 464 and 320 nm, respectively. Meanwhile, the concentration of Cr(VI) was analyzed by a 1,5-diphenylcarbazide spectrophotometric method with a spectrophotometer at 540 nm (GB 7466-87, Standards of China). The characteristic absorbance peaks of organic pollutants (rhodamine B, acid red 1, methyl orange, metronidazole) are different; their absorbances are different when the concentrations are same. In order to quickly measure the absorbance of organic pollutants by UV-vis spectroscopy, we created the proper concentrations.

3. Results and Discussion

3.1. Composition and Morphology

Previous X-ray diffraction (XRD) results show that the phase composition of the GaOOH precursor and its calcined product are α-GaOOH (JCPDS No. 06-0180) and β-Ga2O3 (JCPDS No. 41-1103), respectively [25]. The average crystallite size of β-Ga2O3 sample is about 27.3 nm by the Scherrer equation. [26] The composition of Ga2O3 samples was further investigated by Raman spectra, owing to the greater sensitivity of Raman spectroscopy to the outer region of the solid samples than XRD [27]. The Raman spectra of Ga2O3 samples from the GaOOH precursor—calcined at 600 °C and 700 °C—are shown in Figure 1. The characteristic Raman bands of α-Ga2O3 and β-Ga2O3 are shown in Figure 1a,b, respectively; this is consistent with the reported results [28,29]. This result indicates that the α-Ga2O3 gradually transforms into β-Ga2O3 with the increase of calcination temperature; pure phase β-Ga2O3 is finally obtained at 700 °C.
The composition of porous hollow Ga2O3 nanoparticles was also analyzed by EDS elemental mapping images and EDS spectrum. As shown in Figure 2, it is clearly seen that Ga2O3 nanoparticles possess a porous structure, and that Ga and O elements are distributed homogenously in the Ga2O3 sample and their atomic ratio was close to 2:3, which further indicates that the synthesized sample is pure Ga2O3.
The morphology and microstructure of GaOOH precursor and its calcined product Ga2O3 were investigated by TEM and SEM. As shown in Figure 3a,b, the GaOOH precursor presents monodisperse nanoplate-like structure. Compared with GaOOH (Figure 3a,b), Ga2O3 nanoparticles (Figure 3c) present porous hollow structures. Moreover, the clearly resolved lattice fringes with d spacing of 0.23 nm (distance between two arrow heads in Figure 3d) correspond to the ( 3 ¯ 11) lattice planes of monoclinic β-Ga2O3, which is in good agreement with the XRD result. Figure 4 also shows that the Ga2O3 nanoparticles possess hollow structures [25]. The porous hollow structure of Ga2O3 nanoparticles is mainly ascribed to the thermal dehydration of the GaOOH precursor. These porous structure can enhance the light harvesting efficiency and provide lots of channels for the diffusion of Cr(VI) and Cr(III), resulting in the improvement of photocatalytic efficiency [30]. The size distribution of Ga2O3 in Figure 5 was evaluated from the SEM image (Figure 4) by measuring the diamenter of about 100 nanoparticles. It is clearly seen that the size of most Ga2O3 nanoparticles is 160–230 nm.

3.2. Hermogravimetry and Differential Scanning Calorimetry TG-DSC Analysis

To understand the thermal conversion of the GaOOH precursor to Ga2O3, a TG-DSC measurement was performed. The TG-DSC measurement, performed from 40 to 900 °C for the GaOOH precursor, is shown in Figure 6. The major exothermic peak at about 394 °C was probably caused by the phase transformation of the sample from GaOOH to Ga2O3, as evidenced by a weight loss of 12% in the range of 40–400 °C in TG curve. A weight loss of 3% in the range of 400–600 °C, which is demarcated by weak endothermic peak in DSC curve, indicates the conversion of α-Ga2O3 to β-Ga2O3 above 600 °C [31]. The result is consistent with the Raman band of the GaOOH precursor calcined at 600 °C (Figure 1). The XRD, Raman spectra, and TG-DSC results indicate that the pure phase β-Ga2O3 can be obtained at 700 °C, and that α-Ga2O3 gradually transforms into β-Ga2O3 in the temperature range of 600–700 °C.

3.3. Photocatalytic Experiments

3.3.1. Photocatalytic Reduction of Cr(VI)

The pH of the solution is one of the most important parameters affecting the photocatalytic reduction of Cr(VI) on photocatalysts. The temporal concentration variation of Cr(VI) reduction by the porous hollow Ga2O3 nanoparticles at a pH range from 2.0 to 9.0 is shown in Figure 7. Obviously, the reduction of Cr(VI) is increased rapidly by decreasing the pH when the initial pH is in the range of 3–9. In general, the predominant form of Cr(VI) is Cr2O72 at a pH range of 2–6, while the major form was CrO42− at pH > 7 [32,33]. The photocatalytic reduction of Cr(VI) to Cr(III) consumes H+ in an acidic solution (Equation (1)), and produces OH in an alkaline solution (Equation (2)). At a low pH, the Ga2O3 nanoparticles are highly protonated and have a strong affinity toward the anion Cr2O72, and thus enhance the photocatalytic reduction of Cr(VI). However, the photocatalytic reduction of Cr(VI) is decreased when the initial pH is kept at 2–2.5, which may be attributed the dissolution of Ga2O3 nanoparticles. At a higher pH, the surface charge of the Ga2O3 nanoparticles will be less positively charged, or even negatively charged, which tends to electrostatically repel the anionic Cr(VI), and adsorb the cationic Cr(III) [34,35]. The electrostatical repulsion makes it more difficult for the anionic Cr(VI) to obtain the photogenerated electrons. Meanwhile, Cr(OH)3 precipitate will be formed at pH > 6, and occupies the active sites of Ga2O3 nanoparticles, leading to the decrease in the photocatalytic reduction of Cr(VI). Therefore, it is concluded that the photocatalytic reduction of Cr(VI) to Cr(III) is highly efficient at a suitable acidic condition, and is restrained at an alkaline condition.
Cr 2 O 7 2 + 14 H + + 6 e 2 Cr 3 + + 7 H 2 O
Cr O 4 2 + 4 H 2 O + 3 e Cr ( OH ) 3 + 5 OH

3.3.2. Photocatalytic Degradation of Organic Pollutants

Besides the photocatalytic reduction of Cr(VI), typical organic pollutants such as RhB, AR1, MO and MNZ were also used to evaluate the photocatalytic activity of porous hollow Ga2O3 nanoparticles. As shown in Figure 8, these four pollutants can be effectively degraded by the Ga2O3 nanoparticles in 60 min when they are in the single pollutant system (Table 1). The results indicate that the porous hollow Ga2O3 is a promising photocatalyst in water treatment.

3.3.3. Simultaneous Treatment of Cr(VI) and Organic Pollutants

Cr(VI) is often discharged together with hazardous organics from industrial wastewater. To further study the photocatalytic activity of porous hollow Ga2O3 nanoparticles, several binary pollutants were simulated using organics as the additional substrates. As shown in Figure 9, the reduction rate of Cr(VI) in the binary pollutants is markedly faster than that of the single Cr(VI). Cr(VI) mainly acts as photogenerated electron acceptor. However, the degradation rate of the organic pollutants in the binary pollutant system is lower than that of the corresponding single pollutant system. Based on our previous study, the photogenerated electrons play an important role in the degradation of organic pollutants by Ga2O3. The photogenerated electrons in the conduction band of Ga2O3 are assumed by Cr(VI), reducing the degradation rate of organic pollutants. The photocatalytic stability of the prepared Ga2O3 for the treatment of pollutants has been investigated by the recycling experiments. However, the photocatalytic reduction rate of Cr(VI) is 67% after two cycling runs. In order to activate the recycled Ga2O3 photocatalyst, an ultrasound treatment is used; a photocatalytic reduction rate of Cr(VI) is able to maintain 81%, under the same conditions. However, the photocatalytic reduction rate of Cr(VI) is only 44%, even after four cycling runs with the ultrasound treatment. The photocatalytic degradation rate of organic pollutants (RhB, AR1, MO, MNZ) is stable, even after five cycling runs.

3.3.4. Effect of Substrate Concentration on Photocatalytic Reduction of Cr(VI)

To further assess the effect of organic pollutants as substrates on the photocatalytic reduction of Cr(VI), several different concentrations of MNZ in the Cr(VI)/MNZ binary pollutants were investigated. As shown in Figure 10, only 57% of Cr(VI) is photocatalytically reduced in the absence of MNZ after 60 min, and the reduction of Cr(VI) is increased striking when MNZ is added into the system. By increasing the concentration of MNZ to 10 mg/L, 94% of Cr(VI) is reduced. The reason may be that the presence of MNZ can consume the photogenerated holes in photocatalyst, and more photogenerated electrons are captured by Cr(VI), improving the photocatalytic reduction of Cr(VI). The reduction rate of Cr(VI) is not markedly changed when the concentration of MNZ is further increased.

4. Conclusions

In summary, porous hollow Ga2O3 nanoparticles were successfully synthesized by a hydrolysis method followed by calcination. It was demonstrated that the Ga2O3 photocatalyst is effective for the treatment of Cr(VI) and organic pollutants—as well as a mixture of them. The photocatalytic removal rate of Cr(VI) is highest when the initial pH of Cr(VI) is 3.0. The presence of organic pollutants in the reaction system improves the photocatalytic reduction of Cr(VI) by acting as a holes scavenger, leading to better charge carrier separation. The results broaden the range of approaches for the treatment of practical wastewater.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (21477167, 51509220, 21701203), Key Scientific and Technological Project of Henan Province (182102210603, 172102210612), Zhejiang Provincial Natural Science Foundation of China (LQ14E090003) and Ningbo Science and Technology Plan Projects (2014C50007).

Author Contributions

Lili Li and Zhenling Wang conceived and designed the experiments; Jin Liu and Jun Zhang performed the experiments; Lili Li and Jin Liu analyzed the data; Huihui Gan, Hongzhang Wu and Xinlei Zhang contributed reagents/materials/analysis tools; all authors contributed to the writing of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jiang, W.J.; Cai, Q.; Xu, W.; Yang, M.W.; Cai, Y.; Dionysiou, D.D.; O’Shea, K.E. Cr(VI) adsorption and reduction by humic acid coated on magnetite. Environ. Sci. Technol. 2014, 48, 8078–8085. [Google Scholar] [CrossRef] [PubMed]
  2. Naimi-Joubani, M.; Shirzad-Siboni, M.; Yang, J.-K.; Gholami, M.; Farzadkia, M. Photocatalytic reduction of hexavalent chromium with illuminated ZnO/TiO2 composite. J. Ind. Eng. Chem. 2015, 22, 317–323. [Google Scholar] [CrossRef]
  3. Yuan, X.; Zhou, C.; Jing, Q.; Tang, Q.; Mu, Y.; Du, A.-K. Facile Synthesis of g-C3N4 Nanosheets/ZnO Nanocomposites with Enhanced Photocatalytic Activity in Reduction of Aqueous Chromium(VI) under Visible Light. Nanomaterials 2016, 6, 173. [Google Scholar] [CrossRef] [PubMed]
  4. Luo, S.; Qin, F.; Ming, Y.A.; Zhao, H.P.; Liu, Y.L.; Chen, R. Fabrication uniform hollow Bi2S3 nanospheres via Kirkendall effect for photocatalytic reduction of Cr(VI) in electroplating industry wastewater. J. Hazard. Mater. 2017, 340, 253–262. [Google Scholar] [CrossRef] [PubMed]
  5. Abdel Moniem, S.M.; Ali, M.E.M.; Gad-Allah, T.A.; Khalil, A.S.G.; Ulbricht, M.; El-Shahat, M.F.; Ashmawy, A.M.; Ibrahim, H.S. Detoxification of hexavalent chromium in wastewater containing organic substances using simonkolleite-TiO2 photocatalyst. Process Saf. Environ. Prot. 2015, 95, 247–254. [Google Scholar] [CrossRef]
  6. Zhang, Y.C.; Li, J.; Zhang, M.; Dionysiou, D.D. Size-tunable hydrothermal synthesis of SnS2 nanocrystals with high performance in visible light-driven photocatalytic reduction of aqueous Cr(VI). Environ. Sci. Technol. 2011, 45, 9324–9331. [Google Scholar] [CrossRef] [PubMed]
  7. Xu, X.Y.; Zhou, X.S.; Zhang, L.L.; Xu, L.M.; Ma, L.; Luo, J.; Li, M.J.; Zeng, L.H. Photoredox degradation of different water pollutants (MO, RhB, MB, and Cr(VI)) using Fe-N-S-tri-doped TiO2 nanophotocatalyst prepared by novel chemical method. Mater. Res. Bull. 2015, 70, 106–113. [Google Scholar] [CrossRef]
  8. Meng, X.D.; Zhang, G.K.; Li, N. Bi24Ga2O39 for visible light photocatalytic reduction of Cr(VI): Controlled synthesis, facet-dependent activity and DFT study. Chem. Eng. J. 2017, 314, 249–256. [Google Scholar] [CrossRef]
  9. Wan, Z.; Zhang, G.K.; Wu, X.Y.; Yin, S. Novel visible-light-driven Z-scheme Bi12GeO20/g-C3N4 photocatalyst: Oxygen-induced pathway of organic pollutants degradation and proton assisted electron transfer mechanism of Cr(VI) reduction. Appl. Catal. B 2017, 207, 17–26. [Google Scholar] [CrossRef]
  10. Wang, P.; Ji, W.D.; Li, M.M.; Zhang, G.K.; Wang, J.L. Bi25VO40 microcube with step surface for visible light photocatalytic reduction of Cr(VI): Enhanced activity and ultrasound assisted regeneration. Ultrason. Sonochem. 2017, 38, 289–297. [Google Scholar] [CrossRef] [PubMed]
  11. Vera, M.L.; Traid, H.D.; Henrikson, E.R.; Ares, A.E.; Litter, M.I. Heterogeneous photocatalytic Cr(VI) reduction with short and long nanotubular TiO2 coatings prepared by anodic oxidation. Mater. Res. Bull. 2018, 97, 150–157. [Google Scholar] [CrossRef]
  12. Sun, B.; Reddy, E.P.; Smirniotis, P.G. Visible light Cr(VI) reduction and organic chemical oxidation by TiO2 photocatalysis. Environ. Sci. Technol. 2005, 39, 6251–6259. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, L.H.; Chan, Q.Z.; Wu, X.J.; Wang, H.J.; Liu, Y.L. The simultaneous photocatalytic degradation of phenol and reduction of Cr(VI) by TiO2/CNTs. J. Ind. Eng. Chem. 2012, 18, 574–580. [Google Scholar] [CrossRef]
  14. Liu, F.H.; Yu, J.; Tu, G.Y.; Qu, L.; Xiao, J.C.; Liu, Y.D.; Wang, L.Z.; Lei, J.Y.; Zhang, J.L. Carbon nitride coupled Ti-SBA15 catalyst for visible-light-driven photocatalytic reduction of Cr(VI) and the synergistic oxidation of phenol. Appl. Catal. B 2017, 201, 1–11. [Google Scholar] [CrossRef]
  15. Li, X.F.; Zhen, X.Z.; Meng, S.G.; Xian, J.J.; Shao, Y.; Fu, X.Z.; Li, D.Z. Structuring β-Ga2O3 photonic crystal photocatalyst for efficient degradation of organic pollutants. Environ. Sci. Technol. 2013, 47, 9911–9917. [Google Scholar] [CrossRef] [PubMed]
  16. Shao, T.; Zhang, P.Y.; Jin, L.; Li, Z.M. Photocatalytic decomposition of perfluorooctanoic acid in pure water and sewage water by nanostructured gallium oxide. Appl. Catal. B 2013, 142–143, 654–661. [Google Scholar] [CrossRef]
  17. Girija, K.; Thirumalairajan, S.; Mastelaro, V.R.; Mangalaraj, D. Photocatalytic degradation of organic pollutants by shape selective synthesis of β-Ga2O3 microspheres constituted by nanospheres for environmental remediation. J. Mater. Chem. A 2015, 3, 2617–2627. [Google Scholar] [CrossRef]
  18. Pan, Y.X.; Sun, Z.Q.; Cong, H.P.; Men, Y.L.; Xin, S.; Song, J.; Yu, S.H. Photocatalytic CO2 reduction highly enhanced by oxygen vacancies on Pt-nanoparticle-dispersed gallium oxide. Nano Res. 2016, 9, 1689–1700. [Google Scholar] [CrossRef]
  19. Chen, S.L.; Li, D.; Liu, Y.X.; Huang, W.X. Morphology-dependent defect structures and photocatalytic performance of hydrogenated anatase TiO2 nanocrystals. J. Catal. 2016, 341, 126–135. [Google Scholar] [CrossRef]
  20. Liu, J.; Lu, W.; Tian, B.S.; Hu, B.; Jin, L.; Shi, Y.R.; Li, L.; Wang, Z.L. Shape-controlled synthesis and facet-dependent performance of single-crystal Bi25GaO39 photocatalysts. CrystEngComm 2016, 18, 7715–7721. [Google Scholar] [CrossRef]
  21. Liu, J.; Lu, W.; Zhong, Q.; Jin, X.D.; Wei, L.Y.; Wu, H.Z.; Zhang, X.L.; Li, L.L.; Wang, Z.L. Single-crystal Bi2Ga4O9 nanoplates with exposed {110} facets for photocatalytic degradation of Acid Red 1. Mol. Catal. 2017, 433, 354–362. [Google Scholar] [CrossRef]
  22. Parlett, C.M.A.; Wilson, K.; Lee, A.F. Hierarchical porous materials: Catalytic applications. Chem. Soc. Rev. 2013, 42, 3876–3893. [Google Scholar] [CrossRef] [PubMed]
  23. Deng, Y.C.; Tang, L.; Zeng, G.M.; Zhu, Z.J.; Yan, M.; Zhou, Y.Y.; Wang, J.J.; Liu, Y.N.; Wang, J.J. Insight into highly efficient simultaneous photocatalytic removal of Cr(VI) and 2,4-diclorophenol under visible light irradiation by phosphorus doped porous ultrathin g-C3N4 nanosheets from aqueous media: Performance and reaction mechanism. Appl. Catal. B 2017, 203, 343–354. [Google Scholar] [CrossRef]
  24. Zhang, M.; Xu, J.; Zong, R.L.; Zhu, Y.F. Enhancement of visible light photocatalytic activities via porous structure of g-C3N4. Appl. Catal. B 2014, 147, 229–235. [Google Scholar] [CrossRef]
  25. Liu, J.; Lu, W.; Zhong, Q.; Wu, H.Z.; Li, Y.L.; Li, L.L.; Wang, Z.L. Effect of pH on the microstructure of β-Ga2O3 and its enhanced photocatalytic activity for antibiotic degradation. J. Colloid Interface Sci. 2018, 519, 255–262. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, J.; Lu, W.; Wu, H.Z.; Jin, L.; Hu, B.; Li, L.L.; Wang, Z.L. In situ synthesis of rice-like ZnGa2O4 for the photocatalytic removal of organic and inorganic pollutants. Mater. Sci. Semicond. Process. 2016, 56, 251–259. [Google Scholar] [CrossRef]
  27. Wang, X.; Xu, Q.; Li, M.R.; Shen, S.; Wang, X.L.; Wang, Y.C.; Feng, Z.C.; Shi, J.Y.; Han, H.X.; Li, C. Photocatalytic overall water splitting promoted by an α-β phase junction on Ga2O3. Angew. Chem. Int. Ed. 2012, 51, 13089–13092. [Google Scholar] [CrossRef] [PubMed]
  28. Machon, D.; McMillan, P.F.; Xu, B.; Dong, J.J. High-pressure study of the β-to-α transition in Ga2O3. Phys. Rev. B 2006, 73, 094125. [Google Scholar] [CrossRef]
  29. Hou, Y.D.; Wu, L.; Wang, X.C.; Ding, Z.X.; Li, Z.H.; Fu, X.Z. Photocatalytic performance of α-, β-, and γ-Ga2O3 for the destruction of volatile aromatic pollutants in air. J. Catal. 2007, 250, 12–18. [Google Scholar] [CrossRef]
  30. Guo, S.; Yuan, N.; Zhang, G.K.; Yu, J.C. Graphene modified iron sludge derived from homogeneous Fenton process as an efficient heterogeneous Fenton catalyst for degradation of organic pollutants. Microporous Mesoporous Mater. 2017, 238, 62–68. [Google Scholar] [CrossRef]
  31. Girija, K.; Thirumalairajan, S.; Patra, A.K.; Mangalaraj, D.; Ponpandian, N.; Viswanathan, C. Enhanced photocatalytic performance of novel self-assembled floral β-Ga2O3 nanorods. Curr. Appl. Phys. 2013, 13, 652–658. [Google Scholar] [CrossRef]
  32. Barrera-Díaz, C.E.; Lugo-Lugo, V.; Bilyeu, B. A review of chemical, electrochemical and biological methods for aqueous Cr(VI) reduction. J. Hazard. Mater. 2012, 223–224, 1–12. [Google Scholar] [CrossRef] [PubMed]
  33. Alidokht, L.; Khataee, A.R.; Reyhanitabar, A.; Oustan, S. Reductive removal of Cr(VI) by starch-stabilized Fe0 nanoparticles in aqueous solution. Desalination 2011, 270, 105–110. [Google Scholar] [CrossRef]
  34. Liang, R.W.; Shen, L.J.; Jing, F.F.; Wu, W.M.; Qin, N.; Lin, R.; Wu, L. NH2-mediated indium metal-organic framework as a novel visible-light-driven photocatalyst for reduction of the aqueous Cr(VI). Appl. Catal. B 2015, 162, 245–251. [Google Scholar] [CrossRef]
  35. Wang, H.; Yuan, X.Z.; Wu, Y.; Zeng, G.M.; Chen, X.H.; Leng, L.J.; Wu, Z.B.; Jiang, L.B.; Li, H. Facile synthesis of amino-functionalized titanium metal-organic frameworks and their superior visible-light photocatalytic activity for Cr(VI) reduction. J. Hazard. Mater. 2015, 286, 187–194. [Google Scholar] [CrossRef] [PubMed]

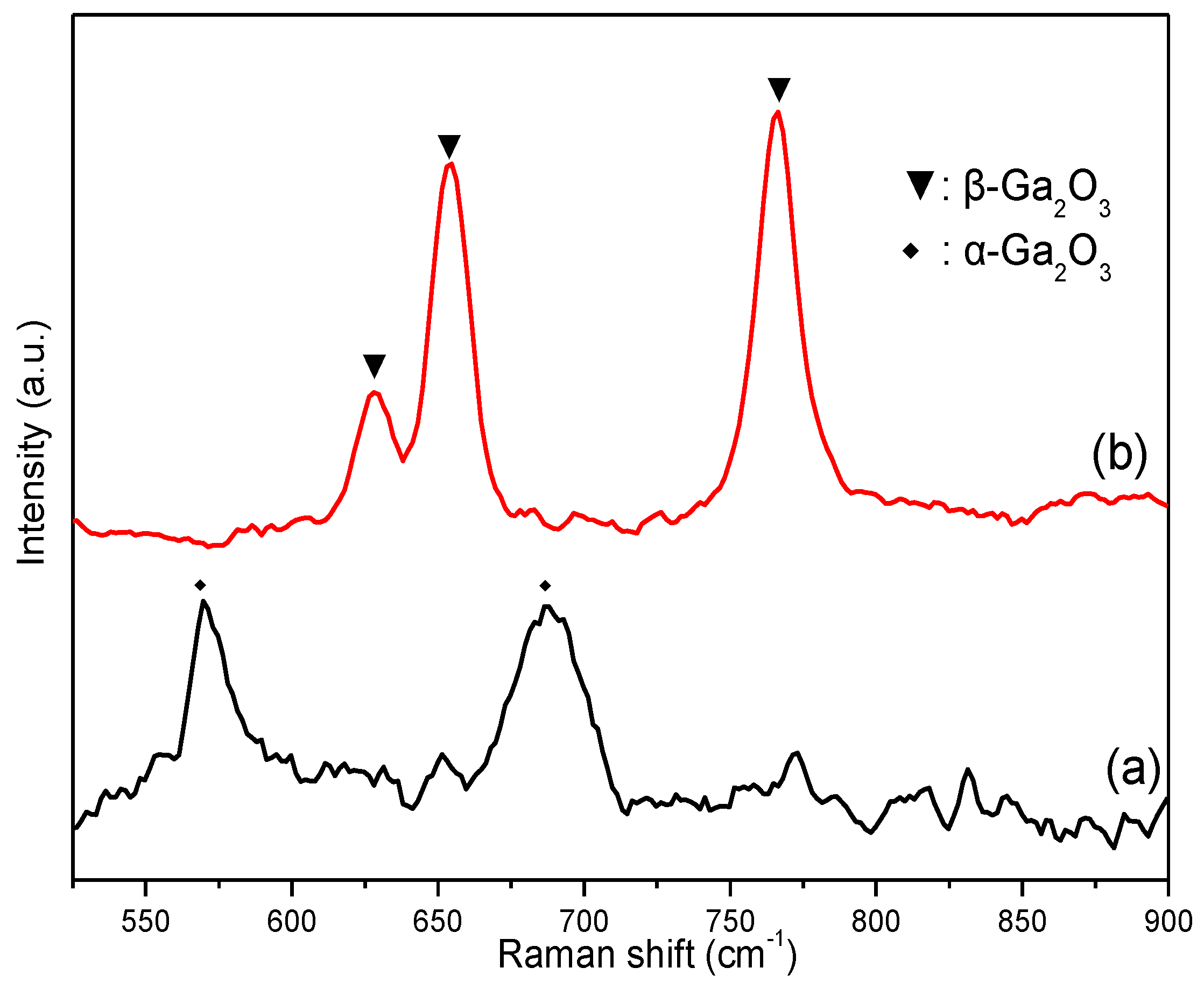

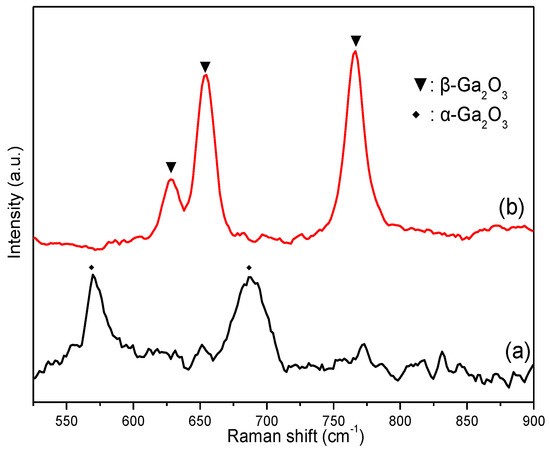

Figure 1. Raman spectra of Ga2O3 from the GaOOH precursor calcined at (a) 600 °C and (b) 700 °C.
Figure 1. Raman spectra of Ga2O3 from the GaOOH precursor calcined at (a) 600 °C and (b) 700 °C.
Nanomaterials 08 00263 g001

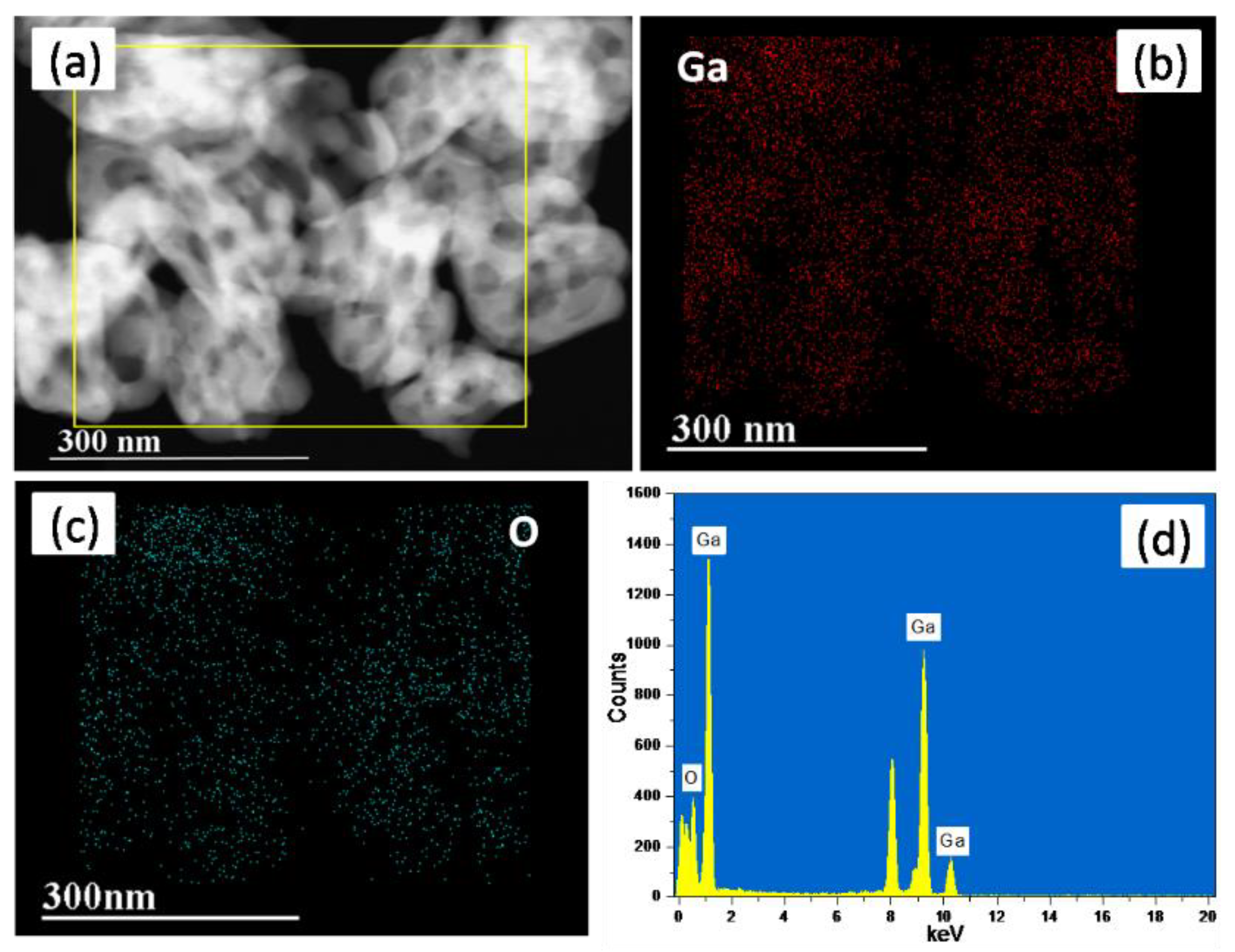

Figure 2. (a) Scanning transmission electron microscopy (STEM) image, (b,c) energy-dispersive X-ray spectroscopy (EDS) elemental mapping images and (d) EDS spectrum of Ga2O3.
Figure 2. (a) Scanning transmission electron microscopy (STEM) image, (b,c) energy-dispersive X-ray spectroscopy (EDS) elemental mapping images and (d) EDS spectrum of Ga2O3.
Nanomaterials 08 00263 g002
Figure 3. Transmission electron microscopy (TEM) and high-resolution transmission electron microscopy (HRTEM) images of (a,b) GaOOH and (c,d) Ga2O3.
Figure 3. Transmission electron microscopy (TEM) and high-resolution transmission electron microscopy (HRTEM) images of (a,b) GaOOH and (c,d) Ga2O3.
Nanomaterials 08 00263 g003
Figure 4. Scanning electron microscope (SEM) image of Ga2O3 nanoparticles.
Figure 4. Scanning electron microscope (SEM) image of Ga2O3 nanoparticles.
Nanomaterials 08 00263 g004

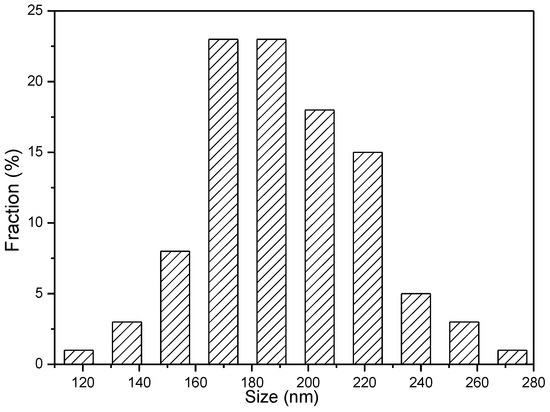

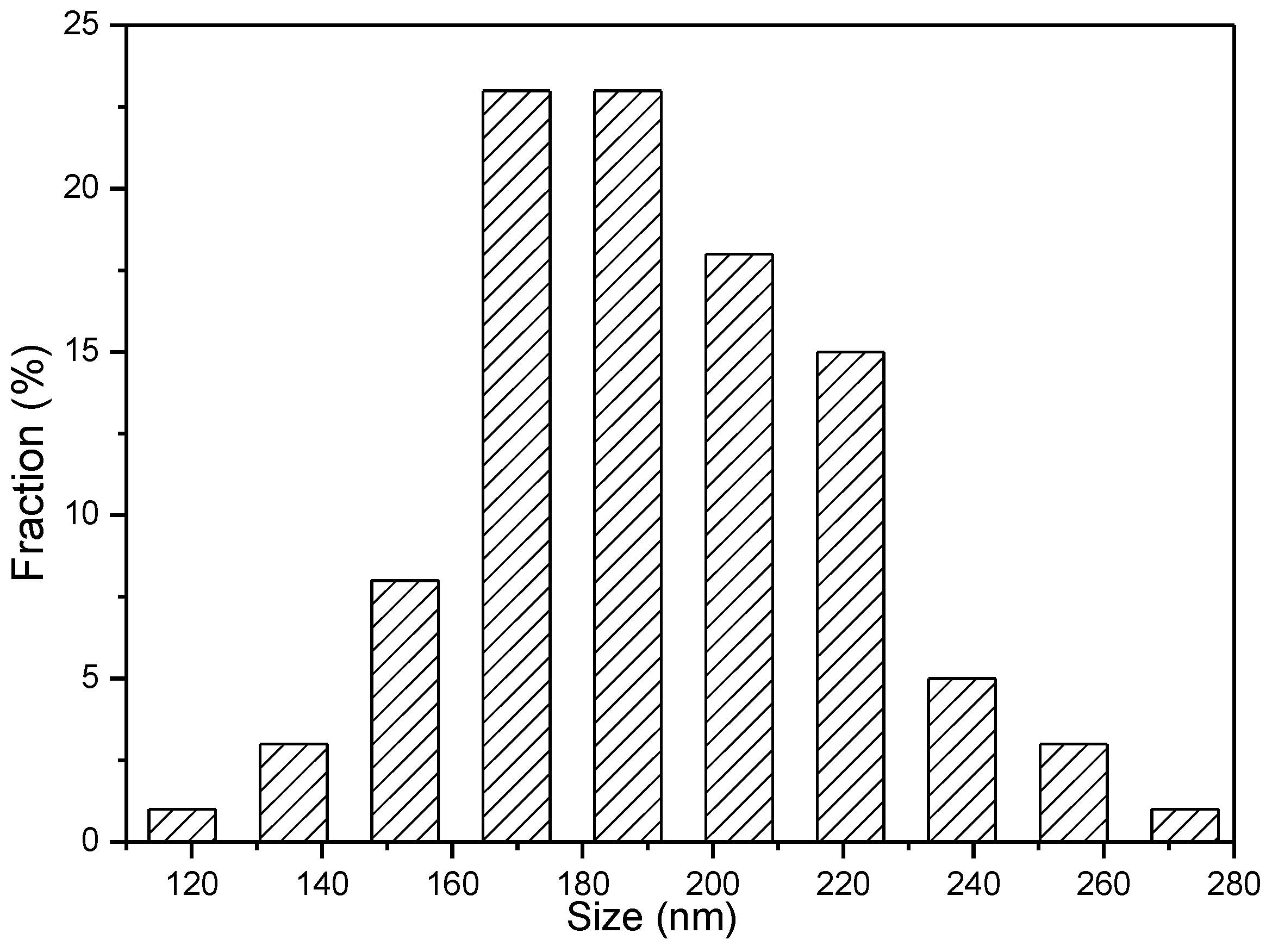

Figure 5. The size distribution of Ga2O3 nanoparticles.
Figure 5. The size distribution of Ga2O3 nanoparticles.
Nanomaterials 08 00263 g005

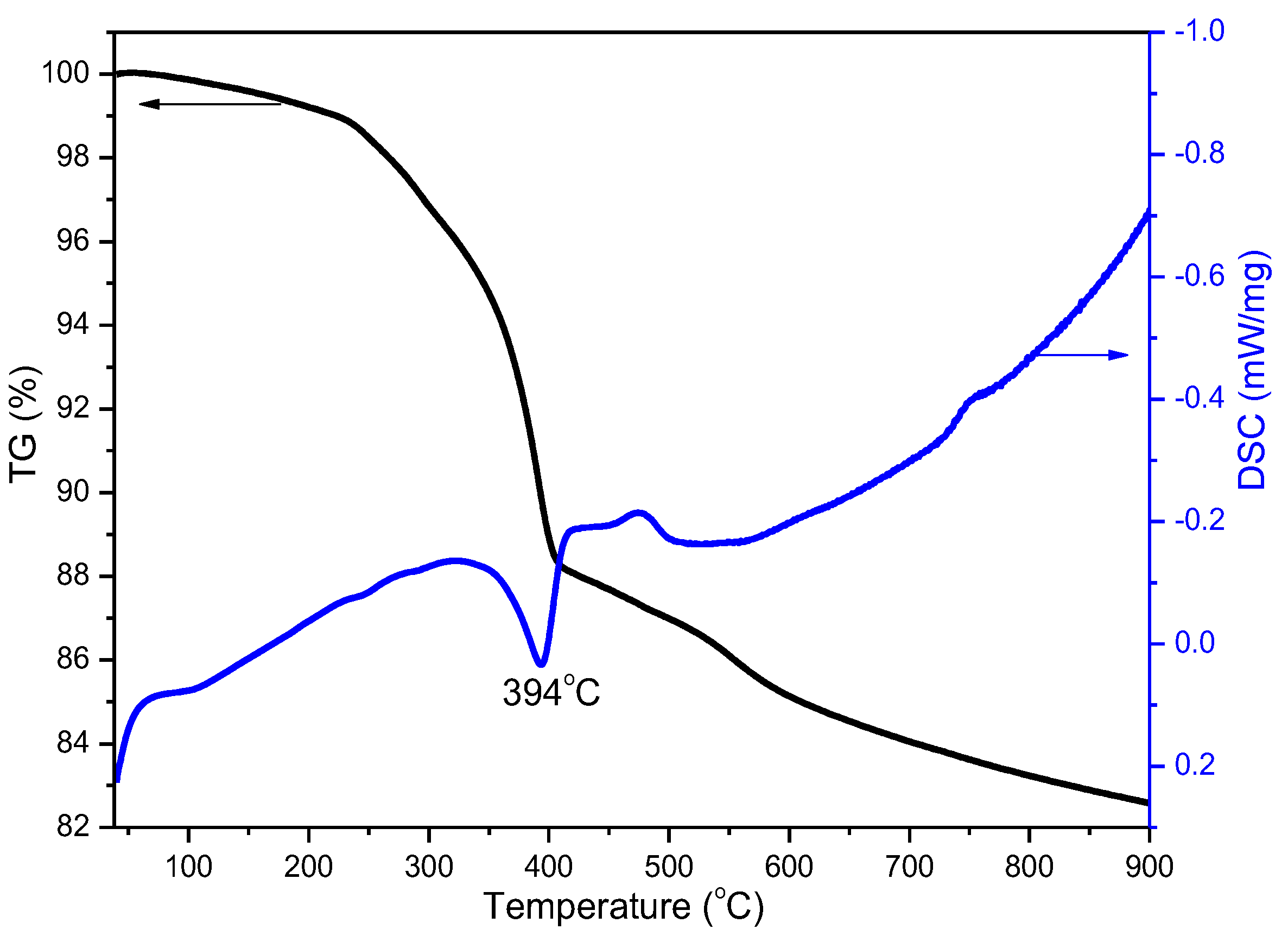

Figure 6. Hermogravimetry and Differential Scanning Calorimetry TG-DSC curve of the GaOOH precursor.
Figure 6. Hermogravimetry and Differential Scanning Calorimetry TG-DSC curve of the GaOOH precursor.
Nanomaterials 08 00263 g006

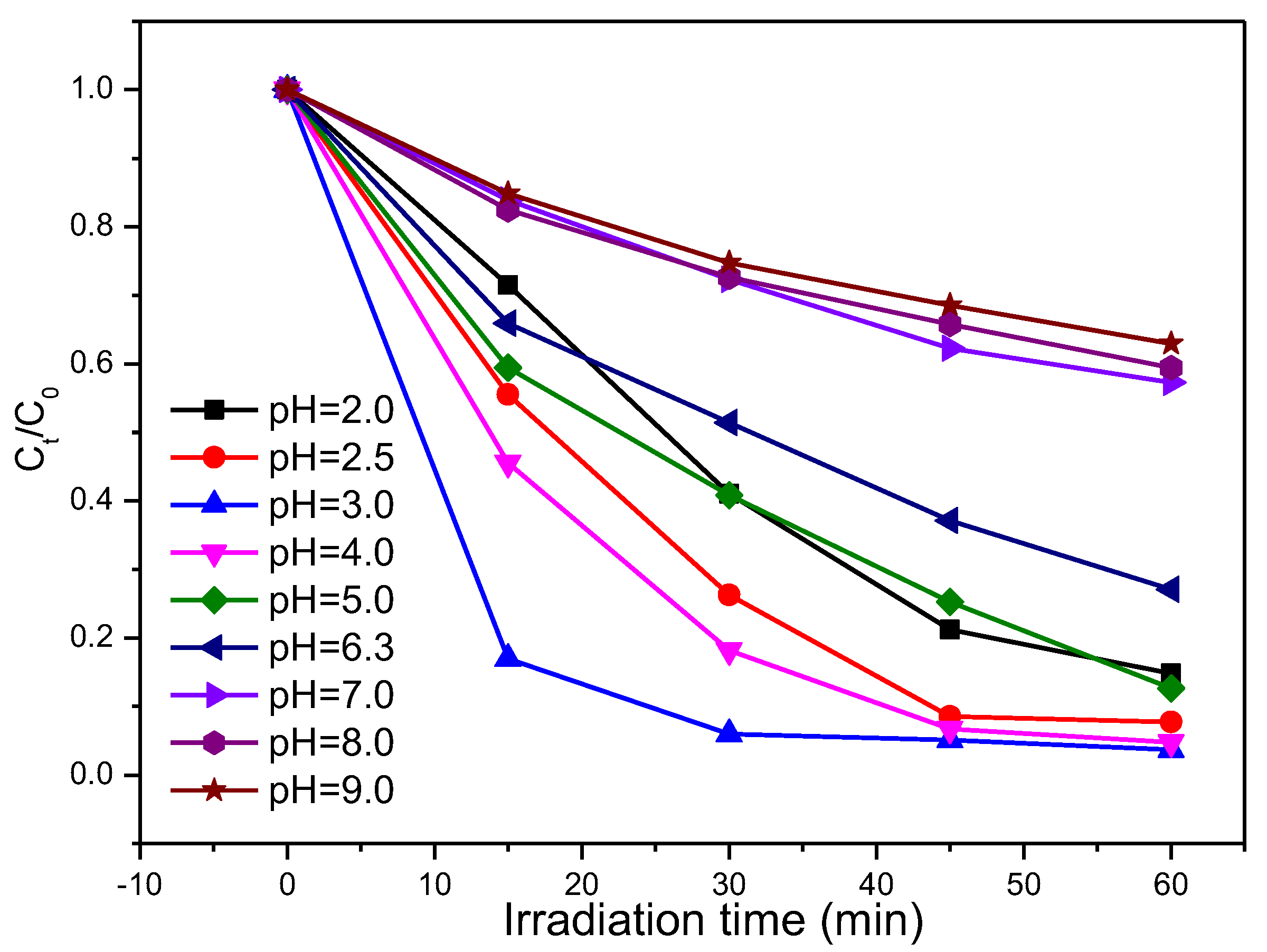

Figure 7. Photocatalytic reduction of Cr(VI) by Ga2O3 at different initial pH.
Figure 7. Photocatalytic reduction of Cr(VI) by Ga2O3 at different initial pH.
Nanomaterials 08 00263 g007

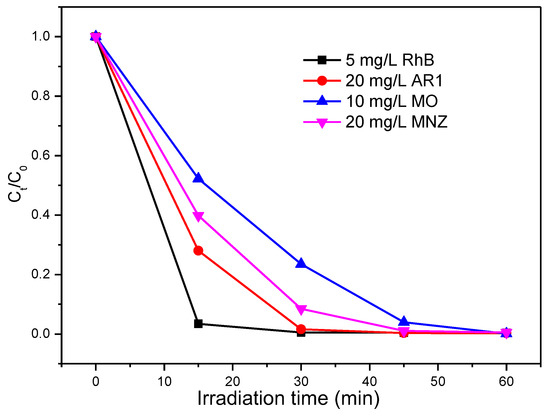

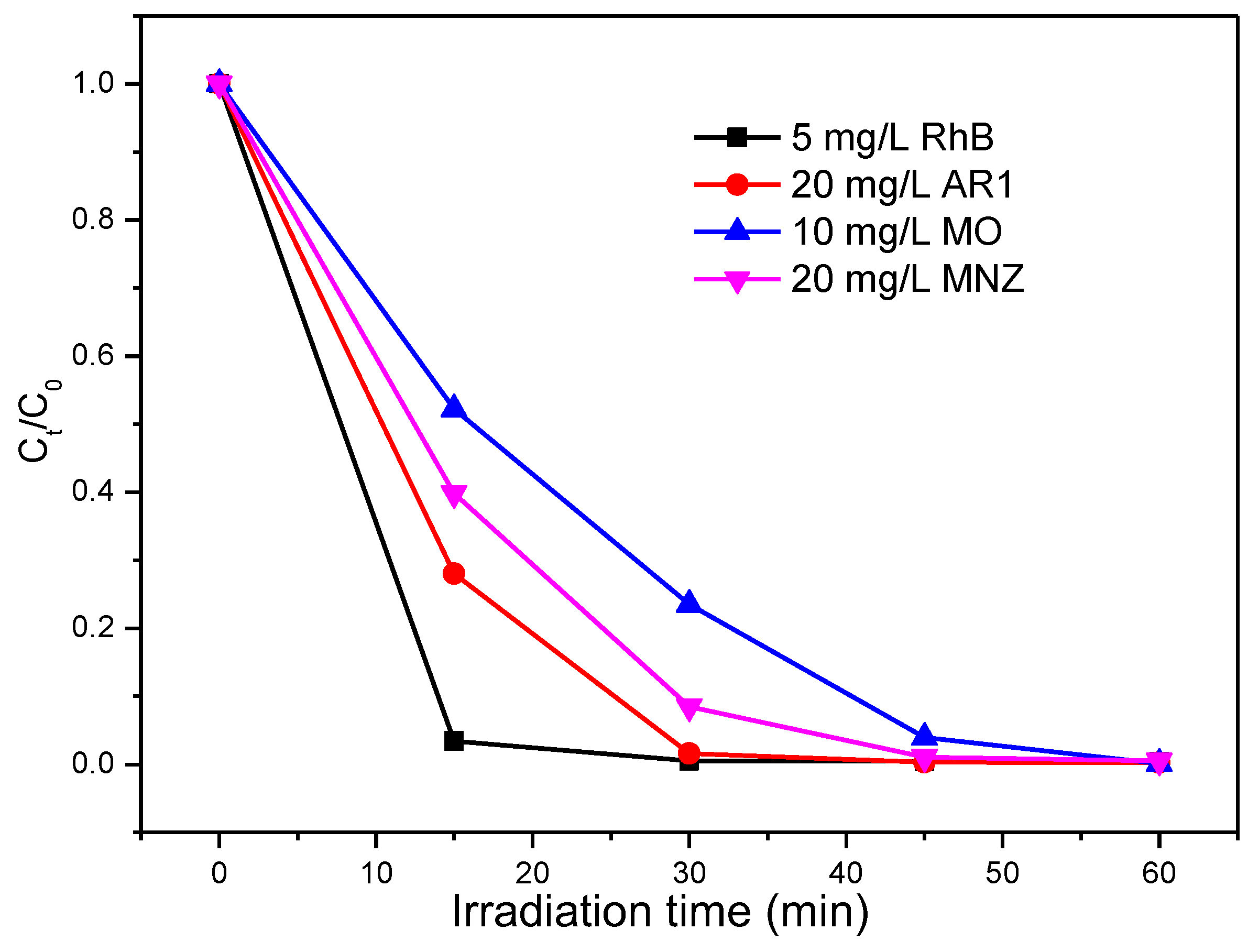

Figure 8. Photocatalytic degradation of single pollutant by Ga2O3.
Figure 8. Photocatalytic degradation of single pollutant by Ga2O3.
Nanomaterials 08 00263 g008

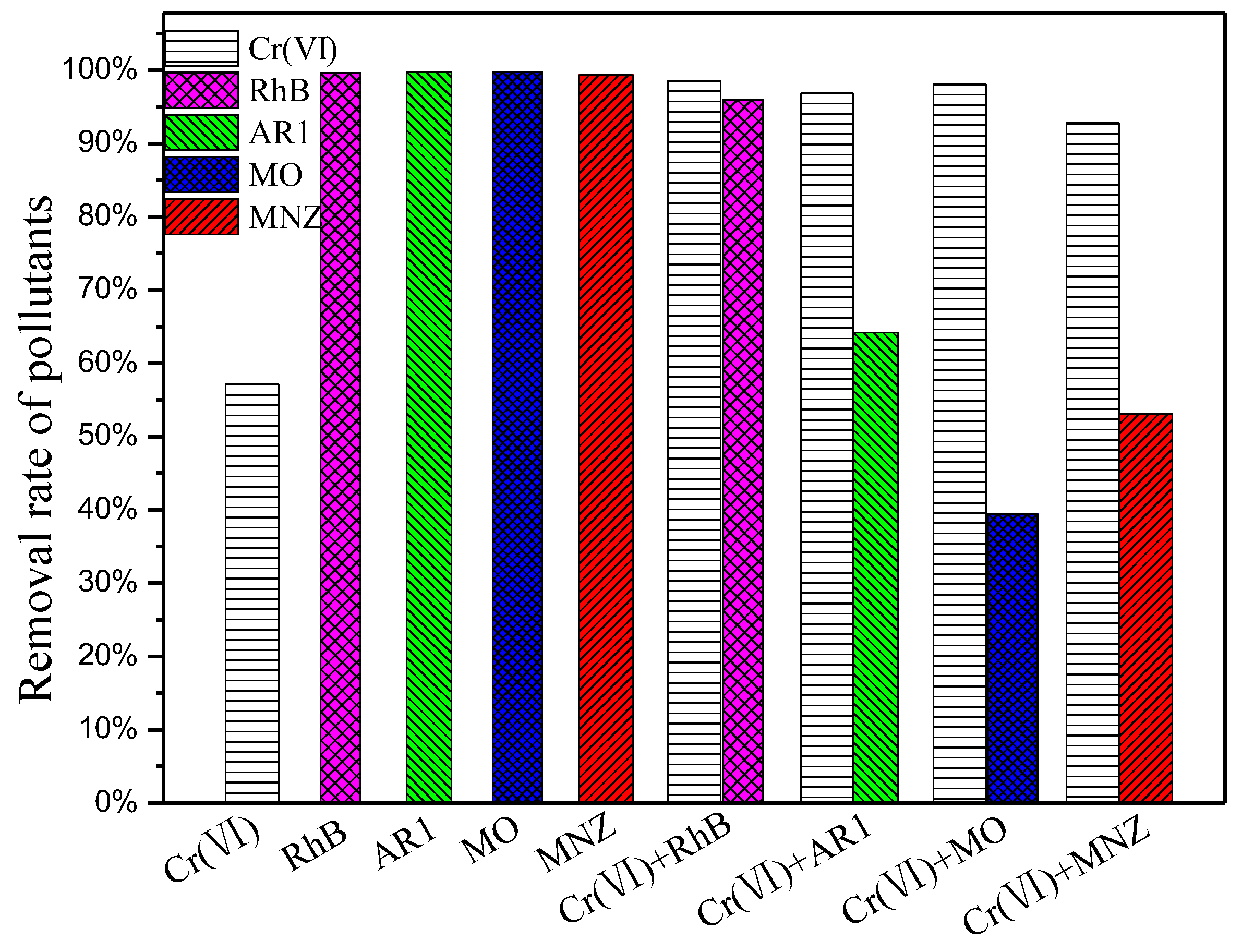

Figure 9. Photocatalytic treatment of single and binary pollutant system by Ga2O3.
Figure 9. Photocatalytic treatment of single and binary pollutant system by Ga2O3.
Nanomaterials 08 00263 g009

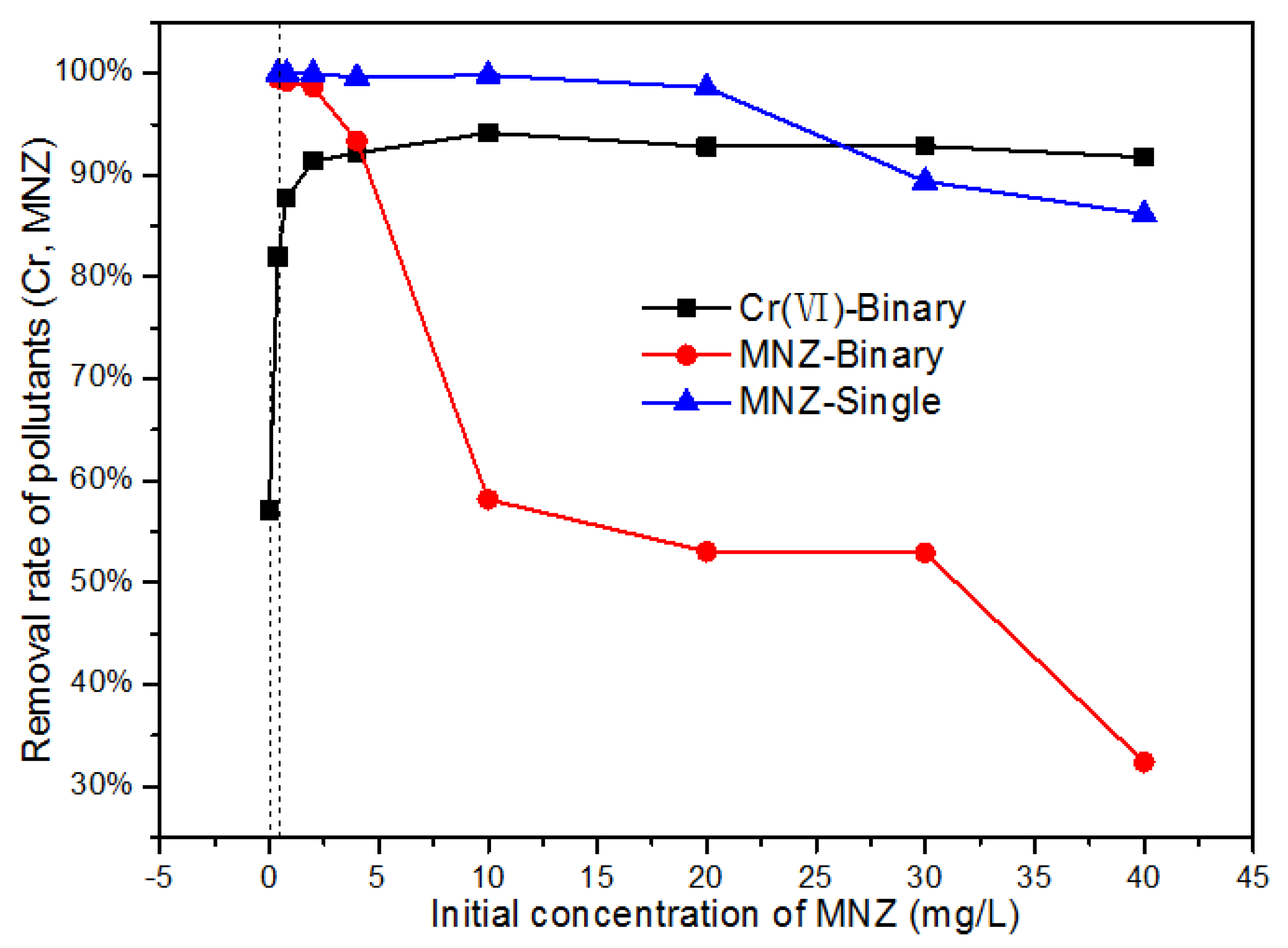

Figure 10. Photocatalytic treatment of Cr(VI) and MNZ in single and binary pollutant system.
Figure 10. Photocatalytic treatment of Cr(VI) and MNZ in single and binary pollutant system.
Nanomaterials 08 00263 g010
Table 1. The concentration of Cr(VI) and organics in single and binary pollutant system.
Table 1. The concentration of Cr(VI) and organics in single and binary pollutant system.
NameSingle Pollutant System, mg/LBinary Pollutant System, mg/L
RhB + Cr(VI)AR1 + Cr(VI)MO + Cr(VI)MNZ + Cr(VI)
Cr(VI)2.52.52.52.52.5
RhB55×××
AR120×20××
MO10××10×
MNZ20×××20
