Electrochemical Synergies of Heterostructured Fe2O3-MnO Catalyst for Oxygen Evolution Reaction in Alkaline Water Splitting

by
Junyeong Kim
,
Jun Neoung Heo
,
Jeong Yeon Do
*,
Rama Krishna Chava
and
Misook Kang
*
Department of Chemistry, College of Natural Sciences, Yeungnam University, Gyeongsan, Gyeongbuk 38541, Korea
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(10), 1486; https://doi.org/10.3390/nano9101486
Submission received: 7 September 2019 / Revised: 14 October 2019 / Accepted: 16 October 2019 / Published: 18 October 2019
(This article belongs to the Special Issue Nanostructured Catalysts for Sustainable Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
For efficient electrode development in an electrolysis system, Fe2O3, MnO, and heterojunction Fe2O3-MnO materials were synthesized via a simple sol–gel method. These particles were coated on a Ni-foam (NF) electrode, and the resulting material was used as an electrode to be used during an oxygen evolution reaction (OER). A 1000-cycle OER test in a KOH alkaline electrolyte indicated that the heterojunction Fe2O3-MnO/NF electrode exhibited the most stable and highest OER activity: it exhibited a low overvoltage (n) of 370 mV and a small Tafel slope of 66 mV/dec. X-ray photoelectron spectroscopy indicated that the excellent redox performance contributed to the synergy of Mn and Fe, which enhanced the OER performance of the Fe2O3-MnO/NF electrode. Furthermore, the effective redox reaction of Mn and Fe indicated that the structure maintained stability even under 1000 repeated OER cycles.

Graphical Abstract

1. Introduction

Hydrogen has the highest energy density per unit mass and is known as a clean energy source that does not emit any exhaust gas except for water when used as a fuel. Although significant amounts of H2 have been produced through the modification of fossil fuels [1], global warming and depletion of fossil fuels have recently led to attempts to obtain H2 via new conversion methods in various countries around the world. In particular, the method of electrolyzing water to produce H2 is an innovative and ecofriendly technology because it uses the cleanest and abundant resource on earth—water—as a raw material for H2 [2]. The water electrolysis reaction, which is described by 2H2O ↔ H2 + O2, consists of two half reactions: the hydrogen evolution reaction (HER) and the oxygen evolution reaction (OER) [3]. HERs are one-electron reactions, and catalysts that exhibit excellent activity have been reported because of the relatively simple mechanism of the reaction: Pt electrodes with a high reduction potential are widely used [4], and in recent years, C-doped electrodes with excellent conductivity, such as graphene, have been introduced [5]. In contrast, the OERs are four-electron reactions, and the reaction mechanism is complex; many overvoltages are required in the O2-generating reaction [6]. Over the years, many researchers performed the experiments related to electrochemical oxygen evolution reactions (OER). Typically, noble metal oxides such as RuO2 [7] and IrO2 [8] have shown excellent catalytic activity and stability in both acidic and alkaline electrolytes. However, because of the scarcity and high cost of metals, there are limitations in usage for industrial applications. Therefore, considerable research efforts have been made to explore the inexpensive transition metal oxides toward OER catalysts [9,10]. Recently, research has been carried out on hybrid materials using transition metal dichalcogenide (TMD) based catalysts containing highly conductive carbon materials or nitrogen-doped multi-walled carbon nanotubes (NWCNTs) functionalized with nitrogen-rich emeraldine salts [11,12]. In addition, there have been active researches on electrocatalysts using colloidal synthesis to increase the electrical properties by controlling the composition, size, and conductivity of nanoparticles [13,14]. As a result, it is essential to develop an OER catalyst having low cost, high electrolysis efficiency, and excellent stability for an efficient energy conversion and storage system such as a fuel cell based on electrolysis of water. In particular, RuO2 and IrO2 precious metal oxides do not show long-term stability under alkaline electrolytic conditions [15]. Therefore, in order to produce a large amount of hydrogen at low cost, it is very important to develop a new catalyst material capable of lowering the OER overvoltage in the alkaline medium. Recently, cobalt-based composite materials [16], steel materials [17], and alloy materials have been studied as OER catalysts, and activity according to the modification of the catalyst surface and the pH of the medium has been studied [18]. The aim of this study is to develop a highly efficient OER catalyst with good stability based on inexpensive transition metals under alkaline electrolytic conditions. Here, two particles with different structures were combined to design an electrochemical OER catalyst for the efficient electrolysis of water. In recent years, heterojunction particles have exhibited various properties at the junction interface, such as an increase in the amount of surface active sites, electron-rich interface formation, effective charge separation, and suppression of exciton recombination; consequently, they have led to performance improvements in various application fields [19,20,21]. The following three points were considered when designing the OER electrode material: (1) the position of the bandgap of the two heterojunction bands was arranged to facilitate the flow of electrons; this can improve OER activity by lowering the activation energy of electron transfer to improve electrical conductivity [22]. (2) The voltage in the heterojunction particles was maintained above 1.2 V; in the application of the entire system of water electrolysis, the appropriate band gap of the material can balance the OER and HER. When voltage is applied from outside, electrons are transferred from VB to CB. The electrons in CB are transferred to the cathode, and the holes in VB are transferred to the anode, where the HER and OER reactions take place, respectively. However, if the band gap is too narrow, the cathode may be resisted and electrons may fall back to VB, reducing the reaction activity;. and (3) the active metals of the heterojunction particles were configured to have a redox reaction, taking into account the reduction potential. The relative difference in redox capacity of the active metals accelerates the reaction. The redox couple metals were investigated considering the reduction potential of the active metal, and the electron transport was facilitated by the heterojunction particles made of these redox couples. The redox couple metals selected in this study were Fe and Mn, which are the most inexpensive and abundant transition metals present in Earth’s crust. In addition, the mixed Fe/Mn oxide is an n-type semiconductor with a fermi level close to CB [23]. This causes easy electron transfer and can promote redox reaction. The metal oxides Fe2O3 and MnO were mixed, and the resulting material was used as an efficient, durable, and ecofriendly electrode catalyst for water electrolysis. During water electrolysis, it was expected that the redox reaction would proceed on its own—the ferrous metal with a slightly decreased potential value is reduced to Fe3+ → Fe2+, E0 = 0.77 V, while the Mn is oxidized to Mn2+ → Mn3+ (Mn2+ → Mn0, E0 = −1.18 V, too difficult)—and that the electronic cycle would be maintained continuously [24]. Pure Fe2O3 and MnO were synthesized via the sol–gel method, which is the simplest synthesis method, and an Fe2O3-MnO hetero-mixture grafted with the two oxides was also synthesized via the sol–gel method. Subsequently, the two types of metal-oxide powders were dispersed/coated on Ni foam (NF) to fabricate the final electrode. The objective of this study was to evaluate the synergy of Fe and Mn as a redox couple.

2. Experimental

2.1. Synthesis of MnO, Fe2O3, and Fe2O3-MnO Materials

MnO and Fe2O3 materials were prepared via the typical sol–gel method, as follows. For the synthesis of MnO, 4.0 g of manganese dichloride tetrahydrate (MnCl2·4H2O, ≥97%, Sigma-Aldrich., MO, USA) was dissolved in 100 mL of distilled (DI) water with stirring for approximately 2 h. The resulting homogeneous mixture was heated at 70 °C for 4 h to evaporate the DI water solvent and obtain a brown precipitate. The resulting precipitate was washed several times with water and ethanol alternately and dried overnight at 70 °C. MnO crystalline catalysts were finally synthesized via sintering at 500 °C for 4 h in an Ar gas atmosphere to prevent the Mn from being oxidized into trivalent or tetravalent ions.
Fe2O3 was prepared via a similar procedure. First, 6.0 g of ferric chloride hexahydrate (FeCl3·6H2O, ≥99%, Sigma-Aldrich., MO, USA) was dissolved in 100 mL of DI water. After approximately 2 h of stirring, ammonia water (NH4OH, ≥25% NH3 in H2O, Sigma-Aldrich., MO, USA) was added dropwise until the pH of the solution was 8.0. The orange precipitate was washed several times with DI water and ethanol and dried overnight at 70 °C. The resulting powder was sintered at 500 °C for 4 h to produce an Fe2O3 crystalline catalyst.
Finally, the heterojunction Fe2O3-MnO material was prepared via impregnation, as follows. The prepared crystalline Fe2O3 and MnO were mixed with absolute ethanol (CH3CH2OH, ≥99.8%, Sigma-Aldrich., MO, USA) at a weight ratio of 1:1, followed by stirring for 2 h to obtain a homogeneous solution. Then, a red-brown-colored powder was obtained through evaporation at 70 °C. The obtained powder was heat-treated at 400 °C for 3 h in an Ar atmosphere to produce the heterojunction Fe2O3-MnO crystal.
This study focused on identifying the synergistic effects of Fe and Mn. Although the manuscript did not include data, the OER reactions were already performed by varying the mass ratio of Fe2O3 to MnO (Fe2O3:MnO = 1:2, 1:1 and 2:1). As a result, the catalyst with 1:1 mass ratio exhibited the higher catalytic activity. This is probably due to the difference in particle size or shape of Fe2O3 and MnO, which may have disrupted the synergistic effect with other particles as more molecules aggregated among themselves. Therefore, when Fe2O3 and MnO were mixed in a 1:1 ratio, it was determined that the synergistic effect was increased with the most uniform and stable heterojunction. In other words, in order to clearly compare the performance of bimetallic and monometallic materials, only one Fe2O3-MnO material mixed in a 1:1 ratio was presented in this study and the synergy effect was clarified.

2.2. Fabrication of MnO/NF, Fe2O3/NF, and Fe2O3-MnO/NF Electrodes

The electrodes for OER were prepared as follows in Scheme 1a: The surface was treated with 5.0% HCl for approximately 30 min to remove surface impurities on the substrate, i.e., NF (1.0 cm × 1.0 cm). The surface of the NF was then washed with DI water and absolute ethanol and dried at room temperature. The coating solution was prepared by mixing 30 mg of the synthesized catalyst powder (MnO, Fe2O3, and Fe2O3-MnO) with 600 μL of ultrapure water, 600 μL of absolute ethanol, and 60 μL of a 5.0 wt.% Nafion solution (Sigma-Aldrich., MO, USA), followed by dispersion for 3 h. The coating solution was evenly coated onto the surface-treated NF using a dip-coating method and then dried at 70 °C. Subsequently, MnO/NF, Fe2O3/NF, and Fe2O3-MnO/NF electrodes were prepared via heat treatment at 200 °C for 3 h.

2.3. Characterizations

The crystal structures of the MnO, Fe2O3, and Fe2O3-MnO electrodes were examined via X-ray diffraction (XRD) analysis (Miniflex, Rigaku, Tokyo, Japan) using Ni-filtered CuKα radiation (30.0 kV, 15.0 mA) in the 2θ range of 20°–90°. The surface morphology of the particles was observed using a Hitachi S-4100 field-emission scanning electron microscope. Energy-dispersive X-ray spectroscopy (EDS) and EDS elemental mapping of the particles were performed using EDAX (EX-250, Horiba). Transmission electron microscopy (TEM) was performed using an H-7600 (Hitachi, Tokyo, Japan) instrument. X-ray photoelectron spectroscopy (XPS) was performed using an AXIS-NOVA (Kratos Inc., San Diego, USA) equipped with AlKα (1486.6 eV) radiation.

2.4. Electrochemical Measurements

All electrochemical measurements were performed at room temperature (25 °C) using an electrochemical cell test system and IVIUMnSTAT (Ivium Technologies, The Netherlands). The electrochemical OER activity was tested in an alkaline electrolyte (1 M KOH, pH = 14) using a standard electrochemical device (Scheme 1b): MnO/NF, Fe2O3/NF, and Fe2O3-MnO/NF were used as the working electrode, and Hg/Hg2Cl2 (saturated calomel electrode, SCE) and Pt wire were used as the reference and counter electrodes, respectively. The measured potential was converted into the potential of a reversible hydrogen electrode (VRHE) using the following calibration equation [25].
VRHE = VSCE + 0.241 + 0.059 × pH
For the initial stabilization of the electrode, 100 cycles of cyclic voltammetry (CV) scans (50.0 mV/s) were performed at approximately 1.0–1.7 V (vs. RHE). Linear sweep voltammetry (LSV) was performed at a scan rate of 5.0 mV/s in 1 M KOH. All electrochemical data was obtained with iR compensation by automatic current interrupt.

3. Result and Discussion

Figure 1A,B shows the XRD pattern and TEM image of the powder particles before the electrode assembly. The XRD pattern of MnO is consistent with the cubic structure with the Fm-3 space group, and the peaks corresponding to the (111), (200), and (220) diffraction planes are observed at 2θ = 34°, 40°, and 58°, respectively (JCPDS card no. 01-072-1533) [26]. The XRD peaks of Fe2O3 correspond to the diffraction planes attributed to the rhombohedral structure of the R-3c spatial group and were observed at 2θ = 24° (012), 33° (104), 35° (110), and 40° (JCPDS card no. 01-089-0598) [27]. The heterojunction Fe2O3-MnO particles exhibited the crystal-structure patterns of both MnO and Fe2O3. Unexpectedly, the intensity of the XRD peaks was increased overall for the heterojunction Fe2O3-MnO particles. This may be due to the further growth of crystals during the sintering process for grafting the two types of pure crystals. The peak corresponding to Fe2O3 was more distinct, suggesting that the Fe2O3 crystals entirely covered the MnO crystals. This is confirmed by the TEM image in Figure 1B; the MnO sample exhibited a broad and thin sheet shape (approximately 400–500 nm thick), and in the Fe2O3 sample, a thin cloth piece of approximately 100 nm was rounded to a 15 × 100 nm rod shape. Eventually, it appeared similar to a petal. In the heterojunction Fe2O3-MnO sample, a piece of Fe2O3 covered the MnO sheet, which is consistent with the XRD results.
Figure 2A shows the results of EDS analysis of selected surfaces of the film-type electrodes assembled using the manufactured powders. According to the EDS analysis results, the atomic ratio of Mn:O on the surface of MnO was approximately 1.0:1.2, and the atomic ratio of Fe:O on the Fe2O3 surface was approximately 2.0:3.3. This indicates that the metals were stoichiometrically contained in the particles and that the metal oxides were manufactured reliably. In the case of Fe2O3-MnO, the ratio of Mn:Fe:O was 1.2:1.0:5.5, although it was physically grafted. Figure 2B shows a scanning electron microscopy (SEM) image of the surface of the electrode coated with catalyst particles on the NF substrate. Regardless of the type of catalyst, the catalyst uniformly covered the NF. Compared with the powder catalyst form in Figure 1, the catalyst was evenly coated on the NF in its original shape, without deformation. Figure 2C shows the element mapping of the electrode surface, confirming that Mn, Of, and Fe were uniformly distributed. The intensity of the color is proportional to the concentration of the element, and the color intensity changes stoichiometrically. In particular, the color of Fe in the Fe2O3-MnO heterojunction is similar to that of Fe2O3, indicating that the Fe2O3 crystal covered the surface of MnO, which agrees with the results of XRD and TEM.
Figure 3 shows CV curves obtained when NF, MnO/NF, Fe2O3/NF, and Fe2O3-MnO/NF samples were used as the working electrode. Generally, NFs exhibit characteristic oxidation and reduction peaks of Ni at 1.4 and 1.3 V [28]. Repeated CV tests for 100 cycles were performed to evaluate the stability of the electrodes for oxidation–reduction. In addition, CV cycle repetition is necessary for the full activity of the electrode. As the number of CV scans increased, the oxidation and reduction peaks of the NF were shifted to a positive voltage, and after about 100 cycles the CV curve was constantly stabilized [29]. However, no potential change was observed in the MnO/NF, Fe2O3/NF, and Fe2O3-MnO/NF electrodes assembled here, despite cycling. This indicates that the MnO, Fe2O3, and Fe2O3-MnO catalysts formed a stable structure at the beginning, suggesting that they contributed to the activity of the catalyst. Notably, for the heterojunction Fe2O3-MnO catalyst, no peak change was observed during the 100 cycles, and the current density was more stable than those of the other two samples. This indicates that the MnO and the Fe2O3 particles were very stable and strongly bonded to each other; thus, there was little loss of catalytic active sites. The current density and peak area in the CV curve are closely related to the reversible redox reaction and the electrical active surface area [30]. In all NF-based catalysts, the peak area is expanded by increasing the volume of Ni(OH)2/NiOOH with cyclic repetition according to the following equations [31].
Ni0 + 2OH → Ni(OH)2 + 2e−
Ni(OH)2 ↔ NiOOH + e− + H+
Furthermore, the overall current-density range for the NF electrode coated with the catalyst was significantly increased compared with that of pure NF, which may be related to the catalytic activity. A uniformly dispersed metal or metal oxide has been reported to provide a large number of active sites in the electrocatalytic reaction, resulting in a significant increase in the current density [32]. Both the current density and the peak area of the heterojunction Fe2O3-MnO/NF electrodes were significantly increased. This is presumably due to the excellent redox performance of Mn and Fe, and it is expected that the junction of the heterojunction structure generated more active sites and had a high electron density to promote electron transfer during the catalytic reaction [33].
The LSV curves were measured at the 100-cycle OER test. The results are shown in Figure 4A. In general, the activity of electrocatalysts is compared according to the overvoltage at a current density of 10 mA/cm2 in a water electrolysis reaction [34]. For a pure NF electrode, an overvoltage (η) of 430 mV was needed to reach a current density of 10 mA/cm2. In contrast, the MnO/NF and Fe2O3/NF electrodes exhibited relatively low over-voltages of 410 and 400 mV, respectively, indicating that they had better activity than the pure NF. The heterojunction Fe2O3-MnO/NF exhibited an overvoltage of 370 mV, confirming that it had the best OER activity among the electrodes examined in this study. Figure 4B shows the Tafel slopes derived from the LSV polarization curves. The Tafel slope indicates the inherent characteristics of electrocatalysts, and a smaller Tafel slope corresponds to better water oxidation reaction kinetics [35]. As shown in Figure 4B, the Tafel slope for the Fe2O3-MnO/NF electrode was 66 mV/dec, which was significantly smaller than those for the NF (100 mV/dec), MnO/NF (74 mV/dec), and Fe2O3/NF (78 mV/dec) electrodes. The stability of the electrocatalyst is very important for the long life of the water electrolysis system. In order to assess the durability of the MnO/NF, Fe2O3/NF, and Fe2O3-MnO/NF electrodes, a chronopotentiometry test was performed for 20 h, and the applied current density was set to 10 mA cm−2. Figure 4C shows the chronopotentiometric curves of water electrolysis for different catalyst electrodes with a constant current density of 10 mA cm−2. The potentials required to achieve a current density of 10 mA cm−2 at the MnO/NF, Fe2O3/NF, and Fe2O3-MnO/NF electrodes were ~1.64, 1.63, and 1.60 V, respectively; the potential was maintained the same throughout the 20 h electrolysis reaction. Looking closely at the results of the first two hours of the reaction of all the electrodes, the catalyst was stably activated as the potential gradually decreased. This showed that the NF used as the substrate electrode was partially exposed to improve the electrical conductivity of the catalyst and can easily transfer the current density. Jaramillo et al. [36] reported that OER stability losses could be due to many factors such as corrosion, material degradation, surface passivation, and so on. As demonstrated in the SEM image of the electrode surface after OER, the catalyst developed in this study was stably bound to the NF surface without any leaching or collapsing during the reaction. Thus, these results show that Fe2O3-MnO/NF electrodes can exhibit good electrochemical durability and excellent OER activity in practical alkaline aqueous solutions.
Figure 5A,B shows the LSV curves at 1000 cycle for the OER and SEM images of the electrode surface before and after the 1000 cycled OER when the heterojunction Fe2O3-MnO/NF was used as the working electrode. Surprisingly, when the Fe2O3-MnO/NF electrodes were used, the LSV curve retained its performance as early as in the 1000-cycle OER test. The Tafel plots obtained after 1000 cycles exhibited negligible slope differences, indicating that the Fe2O3-MnO/NF electrode had very good durability. Figure 5B shows an SEM image of the Fe2O3-MnO/NF electrode surface before and after 1000 cycles in the OER. On the surface of the NF electrode after the OER, the Fe2O3-MnO heterojunction particles were well attached equally before the reaction, and they surprisingly had a similar size and shape to the fresh Fe2O3-MnO particles. This is presumably because the heterojunction structure was well maintained owing to the self-redox reaction of Mn and Fe, which facilitated the electron transfer, and the voltage application did not damage the NF electrode as a substrate.
Figure 6 shows the XPS results of Fe2p, Mn2p, Ni2p, and O1s for the Fe2O3-MnO/NF electrode after the OER. An Ni2p3/2 peak corresponding to metal Ni appeared at 852.6 eV, and an Ni2p3/2 peak corresponding to Ni2+ appeared at 855–856 eV [37]. Unfortunately, no complete metal-Ni component was observed in the NF electrode before the OER. This is evidence that the NF was partially oxidized during the process of coating the particles on the NF. Perhaps the OER performance could have been improved if the NF used as the substrate electrode had maintained a perfect metal state. However, only the Ni2p3/2 highest occupied molecular orbital peak attributed to Ni2+ was broadly observed at 856.1 eV for NF before the reaction (fortunately, NF was not completely oxidized to NiO, as lowest unoccupied molecular orbital (LUMO) moiety was not observed). After the OER, the binding energy shifted slightly to a higher value (856.4 eV), and the peak shape changed sharply. Furthermore, the Ni2p1/2 peak corresponding to the LUMO was observed at 874.1 eV after the reaction. This indicates that some of the Ni in the NF was oxidized to Ni2+ during the OER. The Fe2p3/2 peak for fresh Fe2O3-MnO/NF was separated into peaks in various oxidation states, and peaks attributed to Fe0, Fe2+, and Fe3+ were observed at binding energies of 706.4, 708.5, and 711.2 eV, respectively [38]. Additionally, the Fe2p1/2 peak corresponding to Fe3+ was observed at 724.9 eV. The observation of Fe0 and Fe2+ in the XPS analysis indicates that the Fe3+ accepted electrons from the NF, becoming reduced and oxidizing the NF, during the loading of the Fe2O3-MnO particles onto the NF. However, after the OER, the isolated peaks converged to one peak at 711.2 eV. This suggests that the oxidation state of Fe during the OER was stable at 3+ [39]. In the high-resolution Mn2p XPS spectrum obtained before the OER, two main spin-orbitals corresponding to Mn2p3/2 and Mn2p1/2 (indicating the presence of Mn2+) were observed at 641.6 and 653.6 eV, respectively [40]. Additionally, the Mn2p3/2 peak attributed to Mn3+ exhibited a low binding energy (644.7 eV). After the OER, the Mn2p3/2 peak corresponding to Mn2+ converged at 641.6 eV as a single peak, the intensity of the peak decreased, and the peak width increased, similar to the results for Fe2p. This indicates that the oxidation state of Mn was stabilized to 2+ during the OER. According to the XPS results for Fe2p and Mn2p, the active metals that constituted the electrode during the OER were reduced to Fe3+ → Fe2+ (Mn2+ → Mn3+) when charged, and the electrons moved in the opposite direction during discharging. At this time, redox couples were formed between Fe3+ and Mn2+, and they were repeatedly oxidized–reduced and then restored. It was confirmed that their redox reaction was fairly stable and that the OER performance continued to be maintained after 1000 cycles, indicating a synergy caused by the coexistence of Mn and Fe. Before the OER, the XPS spectra of O1s were separated by various binding energies at 529.9, 531.9, and 533.8 eV, which can be attributed to M–O, H2Oads, and M–OH, respectively [41]. After the OER, the peaks were slightly shifted to higher binding energies. The H2Oads peak because of adsorbed water was stronger than the M–O peak corresponding to O2 in the lattice. This is because during the OER, when the active metals underwent repeated oxidation–reduction reactions, a part of the M–O bond of the lattice was broken. The ratio of H2Oads peak and lattice M–O peak after OER changed significantly. It can be expected as a result derived from the partial participation in the reaction in which the surface lattice oxygen atoms of the metal oxide are exchanged with the oxygen atoms of the electrolyte solution. OH- species adsorb to MO via one electron transfer, and then O–O bonds of MO(OH) are formed. Here, additionally, OH− species were adsorbed to generate MOO(OH). At this time, a portion of the surface lattice oxygen may be released as the higher valent oxide is transferred to the lower valent oxide. It is believed that the OER and the redox transition of the transition metal oxide in the alkaline medium are correlated. Moreover, recent research papers [42] have demonstrated that oxidation of lattice oxygen in metal oxides can enhance the OER activity and induce non-concerted proton–electron transfer.
However, this did not appear to be a major factor affecting the oxidation state of Mn or Fe; rather, it may have been related to the partially damaged NF electrode.

4. Conclusions

Fe2O3 and MnO were synthesized via a sol–gel method, and an Fe2O3-MnO heterojunction mixture was prepared. These particles were coated onto NF electrodes, and the electrochemical properties of the resulting materials were evaluated. XRD patterns and TEM images of the powder particles were analyzed to confirm their crystallinity and shape. Through SEM and elemental mapping of the NF surface after a 1000-cycle OER test, the adhesion degree of the particles on the NF was examined. The change in and stability of the oxidation state of the active metals were determined based on the XPS spectra before and after the OER. As a result of the OER, a lower overvoltage (1.60 V/10 mAcm−2) was obtained for the Fe2O3-MnO/NF (containing the heterojunction of the two oxides) than for the pure Fe2O3/NF and MnO/NF, and the Tafel slope for the heterojunction electrode was as small as 66 mV/dec. Even after 1000 cycles, the OER performance of Fe2O3-MnO/NF remained stable, without deterioration. These results indicate that during Mn and Fe self-redox reactions in Fe2O3-MnO/NF hetero-electrodes, the Mn oxidizes O2 in water and the Fe reduces H2, facilitating the migration of electrons. Eventually, it appears that this is a synergistic effect in the OER.

Author Contributions

Data curation, J.K. and J.Y.D.; formal analysis, J.K.; investigation, J.K. and J.N.H.; methodology, J.K., J.N.H., J.Y.D. and R.K.C.; supervision, R.K.C. and M.K.; writing—original draft, J.K. and M.K.; writing—review and editing, J.Y.D. and M.K.

Funding

This work was supported by the National Research Foundation (NRF) of Korea grant funded by the Korea government (MSIT) (No: 2019R1A5A8080290), for which authors are very grateful.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hisatomi, T.; Domen, K. Reaction systems for solar hydrogen production via water splitting with particulate semiconductor photocatalysts. Nat. Catal. 2019, 2, 387–399. [Google Scholar] [CrossRef]
  2. Yan, H.; Xie, Y.; Wu, A.; Cai, Z.; Wang, L.; Tian, C.; Zhang, X.; Fu, H. Anion-Modulated HER and OER Activities of 3D Ni–V-Based Interstitial Compound Heterojunctions for High-Efficiency and Stable Overall Water Splitting. Adv. Mater. 2019, 31, 1901174. [Google Scholar] [CrossRef] [PubMed]
  3. Bu, X.; Wei, R.; Gao, W.; Lan, C.; Ho, J.C. A unique sandwich structure of a CoMnP/Ni2P/NiFe electrocatalyst for highly efficient overall water splitting. J. Mater. Chem. A 2019, 7, 12325–12332. [Google Scholar] [CrossRef]
  4. Roger, I.; Shipman, M.A.; Symes, M.D. Earth-abundant catalysts for electrochemical and photoelectrochemical water splitting. Nat. Rev. Chem. 2017, 1, 0003. [Google Scholar] [CrossRef]
  5. Hou, Y.; Lohe, M.R.; Zhang, J.; Liu, S.; Zhuang, X.; Feng, X. Vertically oriented cobalt selenide/NiFe layered-double-hydroxide nanosheets supported on exfoliated graphene foil: An efficient 3D electrode for overall water splitting. Energy Environ. Sci. 2016, 9, 478–483. [Google Scholar] [CrossRef]
  6. Wang, W.; Xu, X.; Zhou, W.; Shao, Z. Recent Progress in Metal-Organic Frameworks for Applications in Electrocatalytic and Photocatalytic Water Splitting. Adv. Sci. 2017, 4, 160037. [Google Scholar] [CrossRef]
  7. Liu, J.; Zheng, Y.; Jiao, Y.; Wang, Z.; Lu, Z.; Vasileff, A.; Qiao, S. NiO as a Bifunctional Promoter for RuO2 toward Superior Overall Water Splitting. Small (Weinheim an der Bergstrasse Germany) 2018, 14, 1704073. [Google Scholar] [CrossRef]
  8. Yu, F.; Zhou, H.; Huang, Y.; Sun, J.; Qin, F.; Bao, J.; Goddard, W.A.; William, A.; Chen, S.; Ren, Z. High-performance bifunctional porous non-noble metal phosphide catalyst for overall water splitting. Nat. Commun. 2018, 9, 2551. [Google Scholar] [CrossRef]
  9. Suen, N.T.; Hung, S.F.; Quan, Q.; Zhang, N.; Xu, Y.J.; Chen, H.M. Electrocatalysis for the oxygen evolution reaction: Recent development and future perspectives. Chem. Soc. Rev. 2017, 46, 337–365. [Google Scholar] [CrossRef]
  10. McCrory, C.C.L.; Jung, S.; Peters, J.C.; Jaramillo, T.F. Benchmarking Heterogeneous Electrocatalysts for the Oxygen Evolution Reaction. J. Am. Chem. Soc. 2013, 135, 16977–16987. [Google Scholar] [CrossRef] [PubMed]
  11. Cheng, L.; Huang, W.; Gong, Q.; Liu, C.; Liu, Z.; Li, Y.; Dai, H. Ultrathin WS2 nanoflakes as a high-performance electrocatalyst for the hydrogen evolution reaction. Angew. Chem. Int. Ed. 2014, 53, 7860–7863. [Google Scholar] [CrossRef] [PubMed]
  12. Davodi, F.; Mühlhausen, E.; Tavakkoli, M.; Sainio, J.; Jiang, H.; Gökce, B.; Marzun, G.; Kallio, T. Catalyst Support Effect on the Activity and Durability of Magnetic Nanoparticles: Toward Design of Advanced Electrocatalyst for Full Water Splitting. ACS Appl. Mater. Interfaces 2018, 10, 31300–31311. [Google Scholar] [CrossRef] [PubMed]
  13. Luo, Z.; Martí-Sànchez, S.; Nafria, R.; Joshua, G.; de la Mata, M.; Guardia, P.; Flox, C.; Martínez-Boubeta, C.; Simeonidis, K.; Llorca, J. Fe3O4@NiFexOy Nanoparticles with Enhanced Electrocatalytic Properties for Oxygen Evolution in Carbonate Electrolyte. ACS Appl. Mater. Interfaces 2016, 8, 29461–29469. [Google Scholar] [CrossRef]
  14. Zaho, W.; Dong, B.; Guo, Z.; Su, G.; Gao, R.; Wang, W.; Cao, L. Colloidal synthesis of VSe2 single-layer nanosheets as novel electrocatalysts for the hydrogen evolution reaction. Chem. Commun. 2016, 52, 9228–9231. [Google Scholar] [CrossRef] [PubMed]
  15. Lyons, M.E.G.; Floquet, S. Mechanism of oxygen reactions at porous oxideelectrodes. Part 2—Oxygen evolution at RuO2, IrO2 and IrxRu1−xO2 electrodes in aqueous acid and alkaline solution. Phys. Chem. Chem. Phys. 2011, 13, 5314–5335. [Google Scholar] [CrossRef]
  16. Schäfer, H.; Sadaf, S.; Walder, L.; Kuepper, K.; Dinklage, S.; Wollschlager, J.; Schneider, L.; Steinhart, M.; Hardege, J.; Daum, D. Stainless steel made to rust: A robust water-splitting catalyst with benchmark characteristics. Energy Environ. Sci. 2015, 8, 2685–2697. [Google Scholar] [CrossRef]
  17. Schäfer, H.; Chevrier, D.M.; Kuepper, K.; Zhang, P.; Wollschlaeger, J.; Daum, D.; Steinhart, M.; He, C.; Krupp, U.; Buschbaum, K.; et al. X20CoCrWMo10-9//Co3O4: A metal-ceramic composite with unique efficiency values for water-splitting in the neutral regime. Energy Environ. Sci. 2016, 9, 2609–2622. [Google Scholar] [CrossRef]
  18. Schäfer, H.; Chatenet, M. Steel: The Resurrection of a Forgotten Water-Splitting Catalyst. ACS Energy Lett. 2018, 33, 574–591. [Google Scholar] [CrossRef]
  19. Wu, A.; Xie, Y.; Ma, H.; Tian, C.; Gu, Y.; Yan, H.; Zhang, X.; Yang, G.; Fu, H. Integrating the active OER and HER components as the heterostructures for the efficient overall water splitting. Nano Energy 2018, 44, 353–363. [Google Scholar] [CrossRef]
  20. Zhu, C.; Wang, A.; Xiao, W.; Chao, D.; Zhang, X.; Tiep, N.H.; Chen, S.; Kang, J.; Wang, X.; Ding, J.; et al. In Situ Grown Epitaxial Heterojunction Exhibits High-Performance Electrocatalytic Water Splitting. Adv. Master. 2018, 30, 170551. [Google Scholar] [CrossRef]
  21. Ouyang, T.; Ye, Y.; Wu, C.; Xiao, K.; Liu, Z. Heterostructures Composed of N-Doped Carbon Nanotubes Encapsulating Cobalt and β-Mo2C Nanoparticles as Bifunctional Electrodes for Water Splitting. Angew. Chem. Int. Ed. 2019, 58, 4923–4928. [Google Scholar] [CrossRef] [PubMed]
  22. Li, X.; Jinag, L.; Zhou, C.; Liu, J.; Zeng, H. Integrating large specific surface area and high conductivity in hydrogenated NiCo2O4 double-shell hollow spheres to improve supercapacitors. NPG Asia Mater. 2015, 7, 165–173. [Google Scholar] [CrossRef]
  23. Nagamuthu, S.; Vijayakumar, S.; Lee, S.H.; Ryu, K.-S. Hybrid supercapacitor devices based on MnCo2O4 as the positive electrode and FeMn2O4 as the negative electrode. Appl. Surf. Sci. 2016, 390, 202–208. [Google Scholar] [CrossRef]
  24. Peng, X.; Qu, J.; Tian, S.; Ding, Y.; Hai, X.; Jiang, B.; Wu, M.; Qiu, J. Green fabrication of magnetic recoverable graphene/MnFe2O4 hybrids for efficient decomposition of methylene blue and the Mn/Fe redox synergetic mechanism. RSC Adv. 2016, 6, 104549–104555. [Google Scholar] [CrossRef]
  25. Choi, S.Y.; Kim, C.; Han, D.S.; Park, H. Facilitating hole transfer on electrochemically synthesized p-type CuAlO2 films for efficient solar hydrogen production from water. J. Master. Chem. A 2017, 5, 10165–10172. [Google Scholar] [CrossRef]
  26. Qiu, D.; Ma, L.; Zheng, M.; Lin, Z.; Zhao, B.; Wen, Z.; Hu, Z.; Pu, L.; Shi, Y. MnO nanoparticles anchored on graphene nanosheets via in situ carbothermal reduction as high-performance anode materials for lithium-ion batteries. Mater. Lett. 2012, 84, 9–12. [Google Scholar] [CrossRef]
  27. Tadic, M.; Panjan, M.; Damnjanovic, V.; Milosevic, I. Magnetic properties of hematite (α-Fe2O3) nanoparticles prepared by hydrothermal synthesis method. Appl. Surf. Sci. 2014, 320, 183–187. [Google Scholar] [CrossRef]
  28. Shalom, M.; Ressnig, D.; Yang, X.; Clavel, G.; Fellinger, T.P.; Antonietti, M. Nickel nitride as an efficient electrocatalyst for water splitting. J. Mater. Chem. A 2015, 3, 8171–8177. [Google Scholar] [CrossRef] [Green Version]
  29. Huang, C.; Zou, Y.; Ye, Y.; Ouyang, T.; Xiao, K.; Liu, Z. Unveiling the active sites of Ni-Fe phosphide/metaphosphate for efficient oxygen evolution under alkaline conditions. Chem. Commun. 2019, 55, 7687–7690. [Google Scholar] [CrossRef]
  30. Ullah, N.; Zhao, W.; Lu, X.; Oluigbo, C.J.; Shah, S.A.; Zhang, M.; Xie, J.; Xu, Y. In situ growth of M-MO (M = Ni, Co) in 3D graphene as a competent bifunctional electrocatalyst for OER and HER. Electrochim. Acta 2019, 298, 163–171. [Google Scholar] [CrossRef]
  31. Urso, M.; Torrisi, G.; Boninelli, S.; Bongiorno, C.; Priolo, F.; Mirabella, S. Ni(OH)2@Ni core-shell nanochains as low-cost high-rate performance electrode for energy storage applications. Sci. Rep. 2019, 9, 7736. [Google Scholar] [CrossRef] [PubMed]
  32. Moosavifard, S.E.; Shamsi, J.; Fani, S.; Kadkhodazade, S. 3D ordered nanoporous NiMoO4 for high-performance supercapacitor electrode materials. RSC Adv. 2014, 4, 52555–52561. [Google Scholar] [CrossRef]
  33. Li, X.; Antonietti, M. Metal nanoparticles at mesoporous N-doped carbons and carbon nitrides: Functional Mott–Schottky heterojunctions for catalysis. Chem. Soc. Rev. 2013, 42, 6593–6604. [Google Scholar] [CrossRef] [PubMed]
  34. Liang, H.; Gandi, A.N.; Xia, C.; Hedhili, M.N.; Anjum, D.H.; Schwingenschlögl, U.; Alshareef, H.N. Amorphous NiFe-OH/NiFeP Electrocatalyst Fabricated at Low Temperature for Water Oxidation Applications. ACS Energy Lett. 2017, 2, 1035–1042. [Google Scholar] [CrossRef]
  35. Han, A.; Chen, H.; Sun, Z.; Xu, J.; Du, P. High catalytic activity for water oxidation based on nanostructured nickel phosphide precursors. Chem. Commun. 2015, 51, 11626–11629. [Google Scholar] [CrossRef] [PubMed]
  36. Li, N.; Xia, W.-Y.; Wang, J.; Liu, Z.-L.; Li, Q.-Y.; Chen, S.-Z.; Xu, C.-W.; Lu, X.-H. Manganese oxides supported on hydrogenated TiO2 nanowire array catalysts for the electrochemical oxygen evolution reaction in water electrolysis. J. Mater. Chem. A 2015, 3, 21308–21313. [Google Scholar] [CrossRef]
  37. Xu, T.; Li, G.; Zhao, L. Ni-Co-S/Co(OH)2 nanocomposite for high energy density all-solid-state asymmetric supercapacitors. Chem. Eng. J. 2018, 336, 602–611. [Google Scholar] [CrossRef]
  38. Wang, Y.; Liu, D.; Liu, Z.; Xie, C.; Huo, J.; Wang, S. Porous cobalt–iron nitride nanowires as excellent bifunctional electrocatalysts for overall water splitting. Chem. Commun. 2016, 52, 12614–12617. [Google Scholar] [CrossRef]
  39. Zhang, C.; Zhang, C.; Xie, Y.; Deng, H.; Su, J.; Dong, Y.; Lin, J. Ternary nickel iron phosphide supported on nickel foam as a high-efficiency electrocatalyst for overall water splitting. Int. J. Hydrogen Energy 2018, 43, 7299–7306. [Google Scholar] [CrossRef]
  40. Li, X.; Xin, M.; Guo, S.; Guo, W.; Cai, T.; Du, D.; Xing, W.; Zhao, L.; Xue, Q.; Yan, Z. Insight of synergistic effect of different active metal ions in layered double hydroxides on their electrochemical behaviors. Electrochim. Acta 2017, 253, 302–310. [Google Scholar] [CrossRef]
  41. Luo, Z.; Miao, R.; Huan, T.D.; Mosa, I.M.; Poyraz, A.S.; Zhong, W.; Cloud, J.E.; Kriz, D.A.; Thanneeru, S.; He, J.; et al. Mesoporous MoO3−x Material as an Efficient Electrocatalyst for Hydrogen Evolution Reactions. Adv. Energy Master. 2016, 6, 160052. [Google Scholar] [CrossRef]
  42. Grimaud, A.; Diaz-Morales, O.; Han, B.; Hong, W.T.; Lee, Y.L.; Giordano, L.; Stoerzinger, K.A.; Koper, M.T.M.; Shao-Horn, Y. Activating lattice oxygen redox reactions in metal oxides to catalyse oxygen evolution. Nat. Chem. 2017, 9, 457–465. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 09 01486 sch001 550

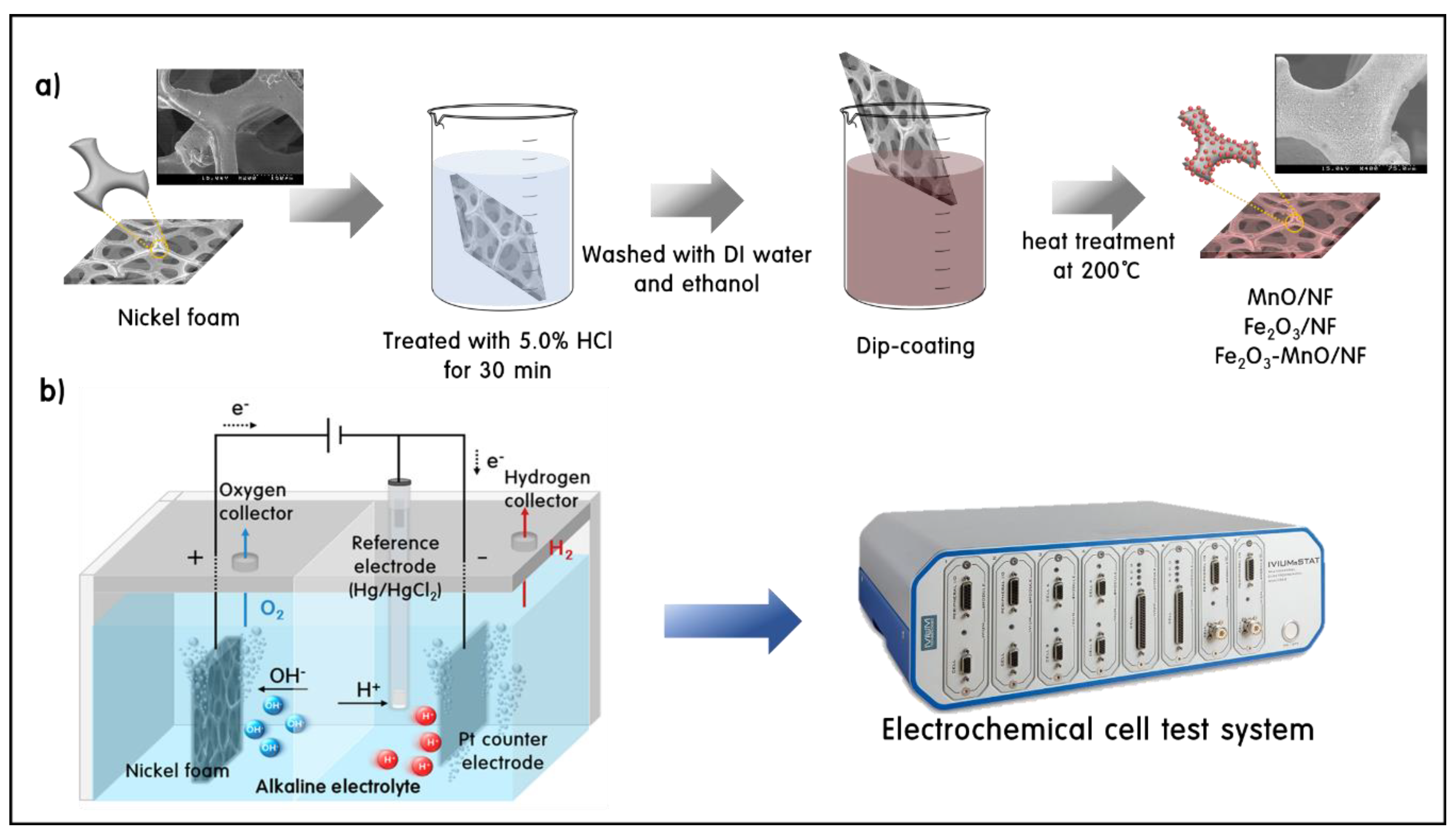

Scheme 1. Electrode fabrication sequence (a) and electrochemical device image for oxygen evolution reaction (OER) test (b).
Scheme 1. Electrode fabrication sequence (a) and electrochemical device image for oxygen evolution reaction (OER) test (b).
Nanomaterials 09 01486 sch001
Nanomaterials 09 01486 g001 550

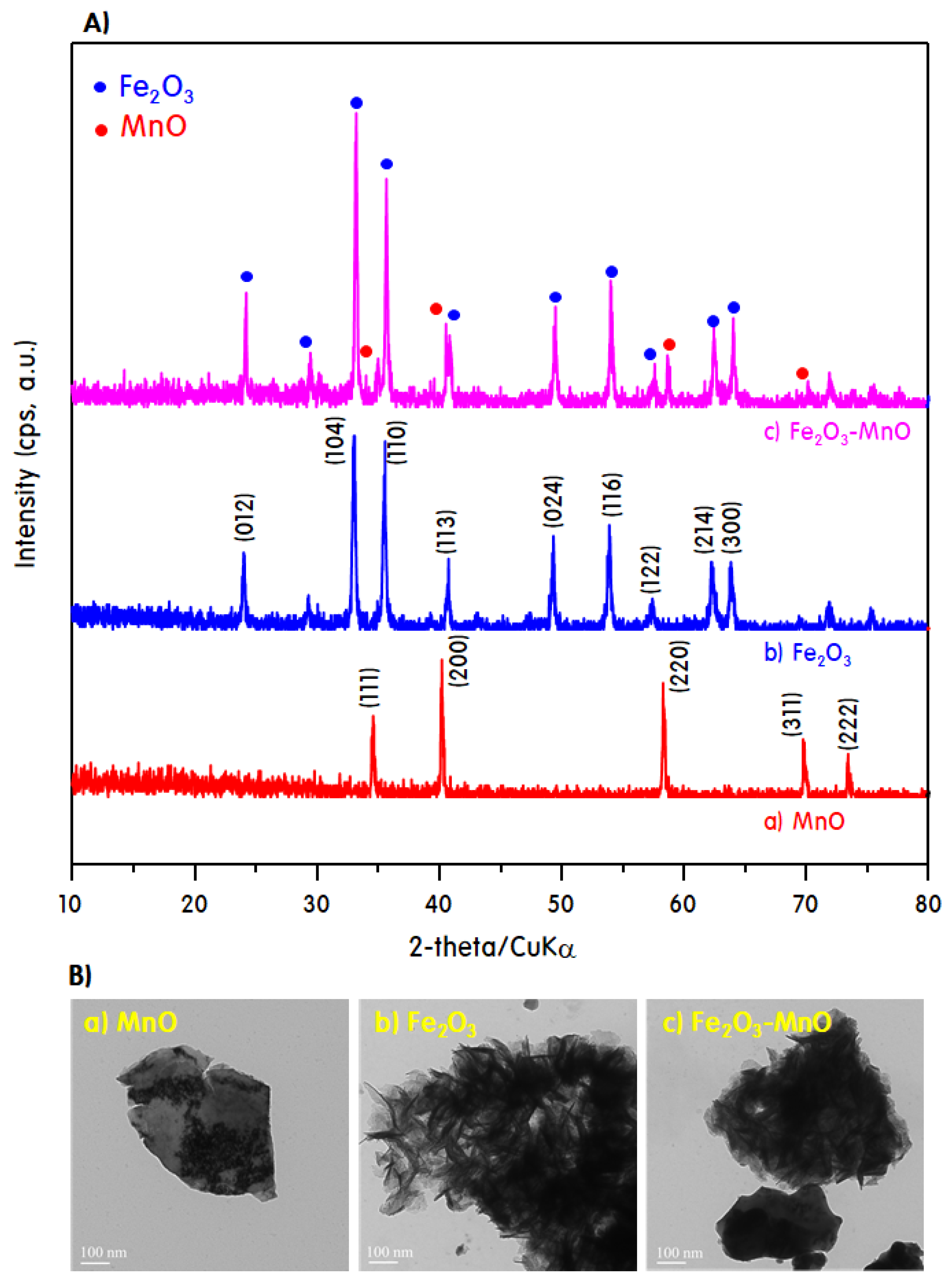

Figure 1. X-ray diffraction (XRD) patterns (A) and transmission electron microscopy (TEM) images (B) of the powder particles before the electrode assembly.
Figure 1. X-ray diffraction (XRD) patterns (A) and transmission electron microscopy (TEM) images (B) of the powder particles before the electrode assembly.
Nanomaterials 09 01486 g001
Nanomaterials 09 01486 g002 550

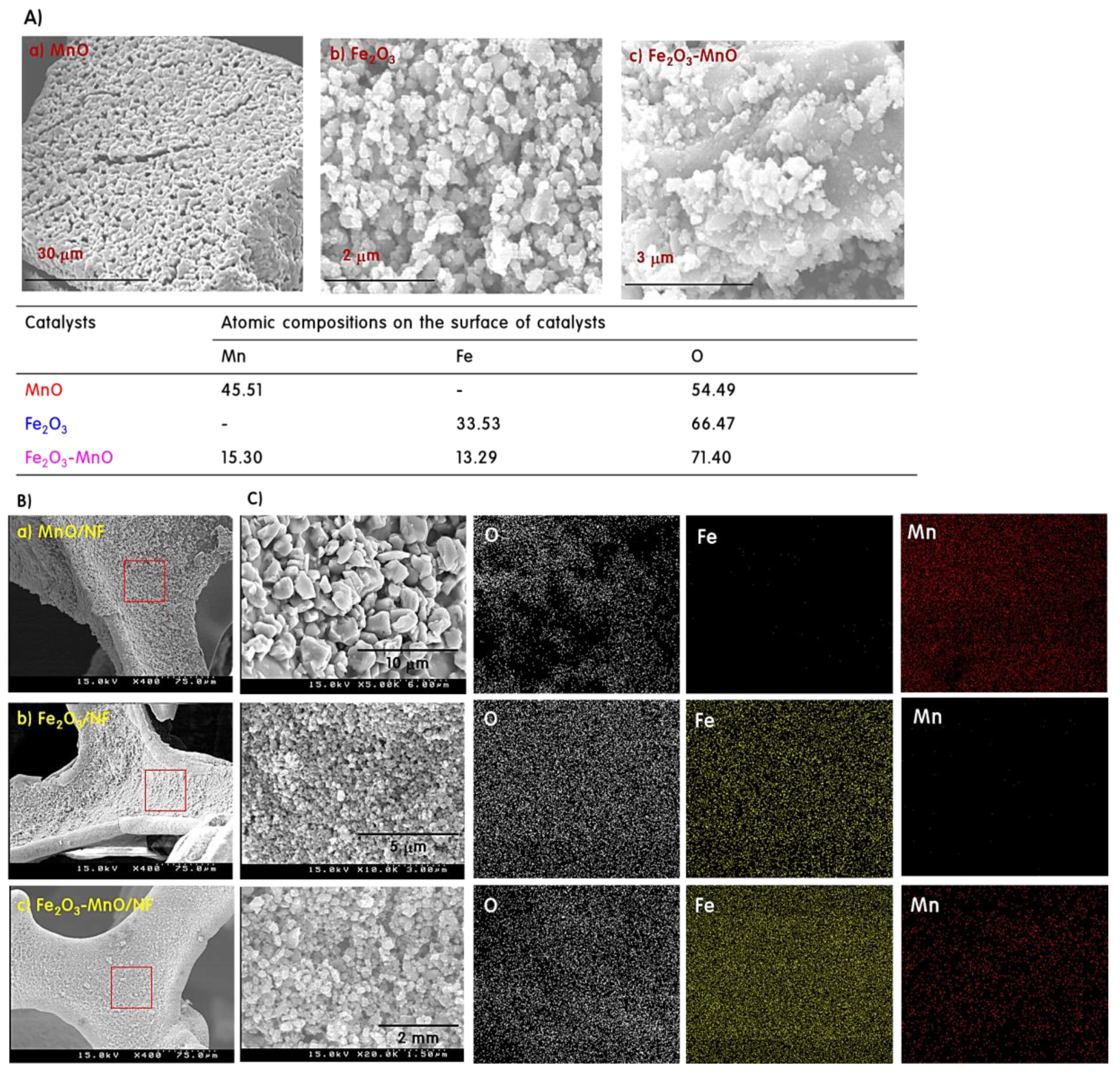

Figure 2. Energy-dispersive X-ray spectroscopy (EDS) analysis of selected surfaces of the film-type electrodes (A), and the images of scanning electron microscopy (SEM) (B) and element mapping on the surface of the electrode (C).
Figure 2. Energy-dispersive X-ray spectroscopy (EDS) analysis of selected surfaces of the film-type electrodes (A), and the images of scanning electron microscopy (SEM) (B) and element mapping on the surface of the electrode (C).
Nanomaterials 09 01486 g002
Nanomaterials 09 01486 g003 550

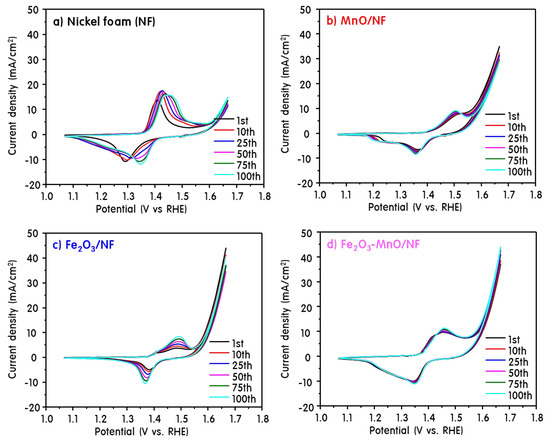

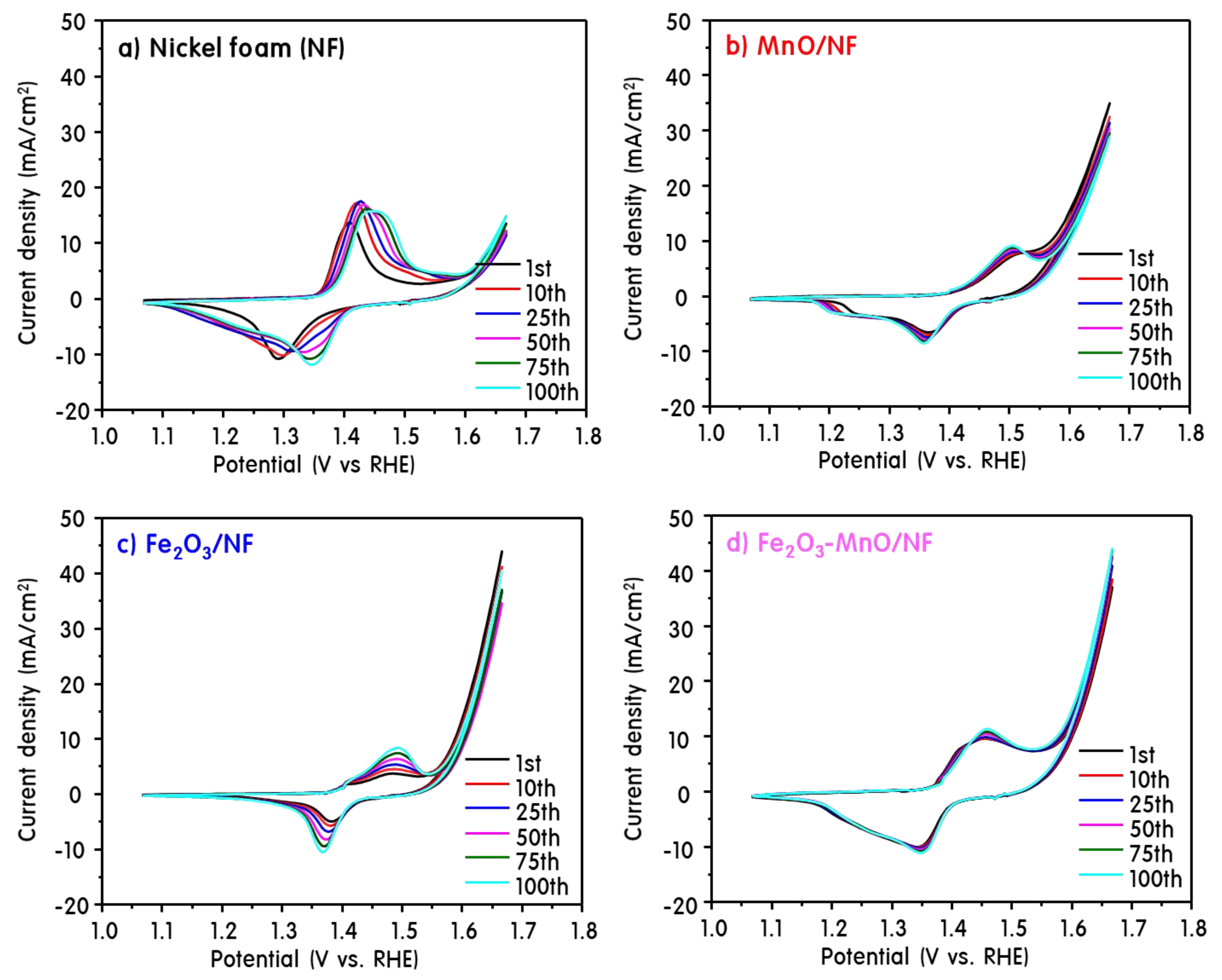

Figure 3. Cyclic voltammetry (CV) curves obtained when NF (a), MnO/NF (b), Fe2O3/NF (c), and Fe2O3-MnO/NF (d) samples were used as the working electrode.
Figure 3. Cyclic voltammetry (CV) curves obtained when NF (a), MnO/NF (b), Fe2O3/NF (c), and Fe2O3-MnO/NF (d) samples were used as the working electrode.
Nanomaterials 09 01486 g003
Nanomaterials 09 01486 g004 550

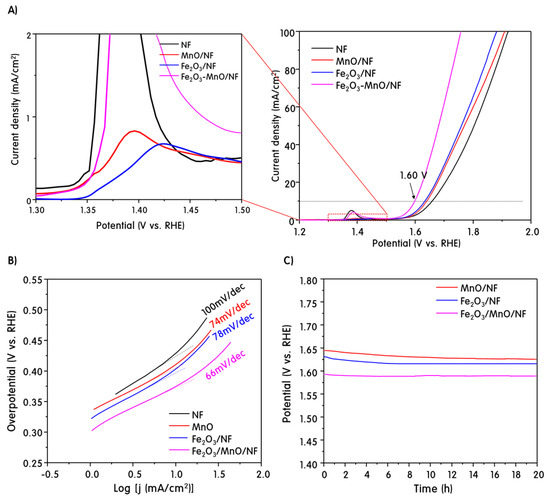

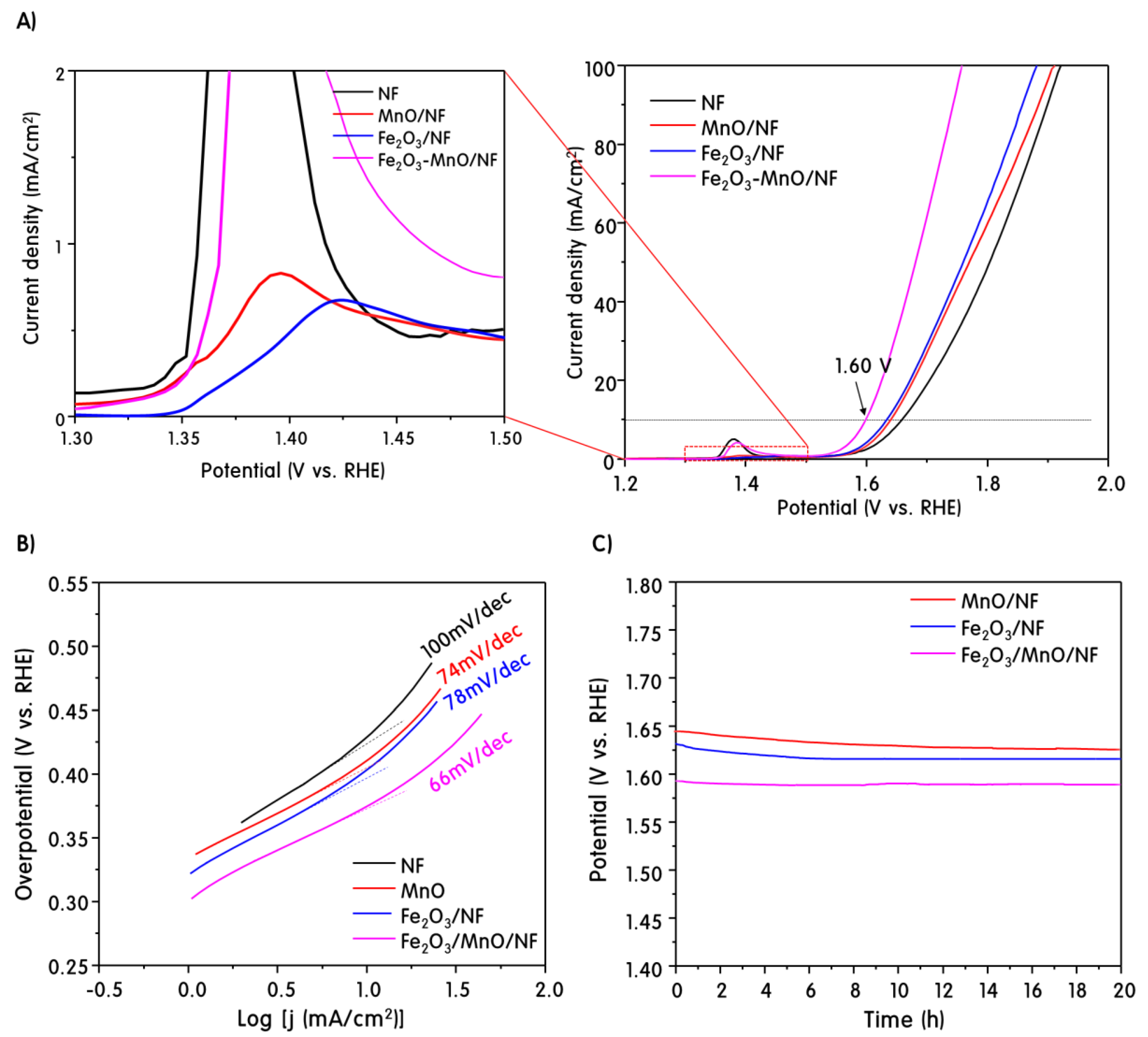

Figure 4. Linear sweep voltammetry (LSV) curves measured at the 100-cycle OER test (A), Tafel slopes derived from the LSV polarization curves (B), and chronopotentiometric curves of water electrolysis for different catalyst electrodes with a constant current density of 10 mA cm−2 (C).
Figure 4. Linear sweep voltammetry (LSV) curves measured at the 100-cycle OER test (A), Tafel slopes derived from the LSV polarization curves (B), and chronopotentiometric curves of water electrolysis for different catalyst electrodes with a constant current density of 10 mA cm−2 (C).
Nanomaterials 09 01486 g004
Nanomaterials 09 01486 g005 550

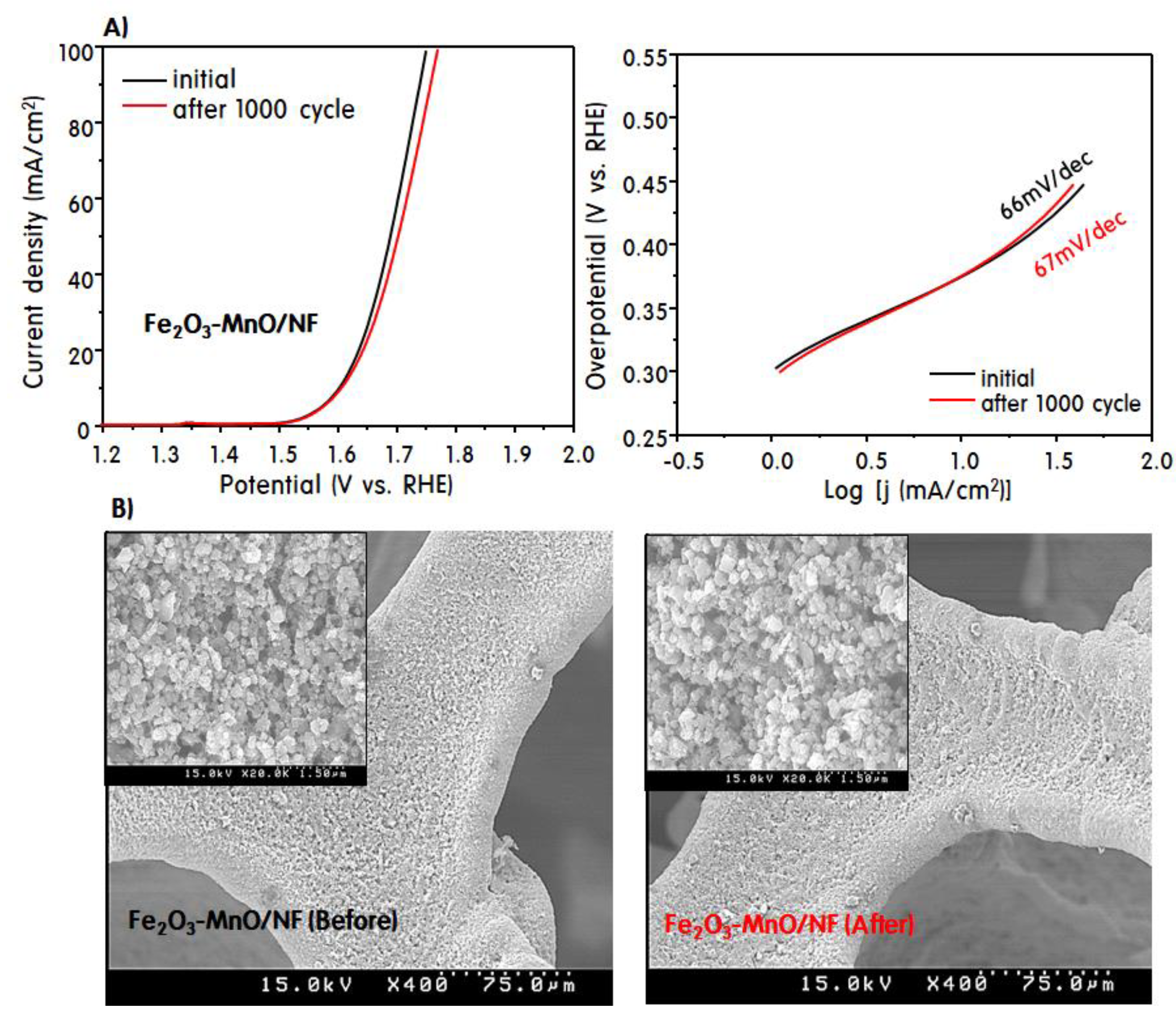

Figure 5. LSV curves at 1000 cycle for the OER (A) and SEM images of the electrode surface before and after the 1000 cycled OER (B).
Figure 5. LSV curves at 1000 cycle for the OER (A) and SEM images of the electrode surface before and after the 1000 cycled OER (B).
Nanomaterials 09 01486 g005
Nanomaterials 09 01486 g006 550

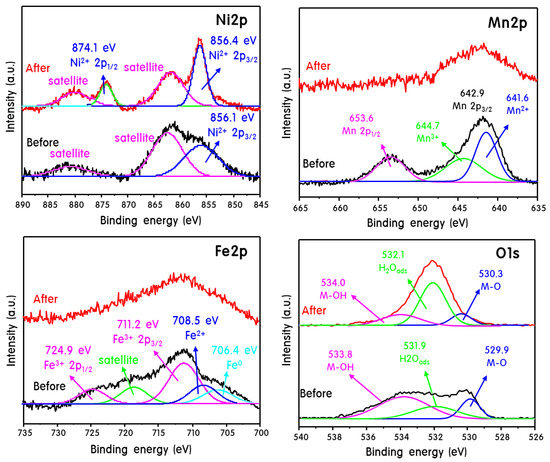

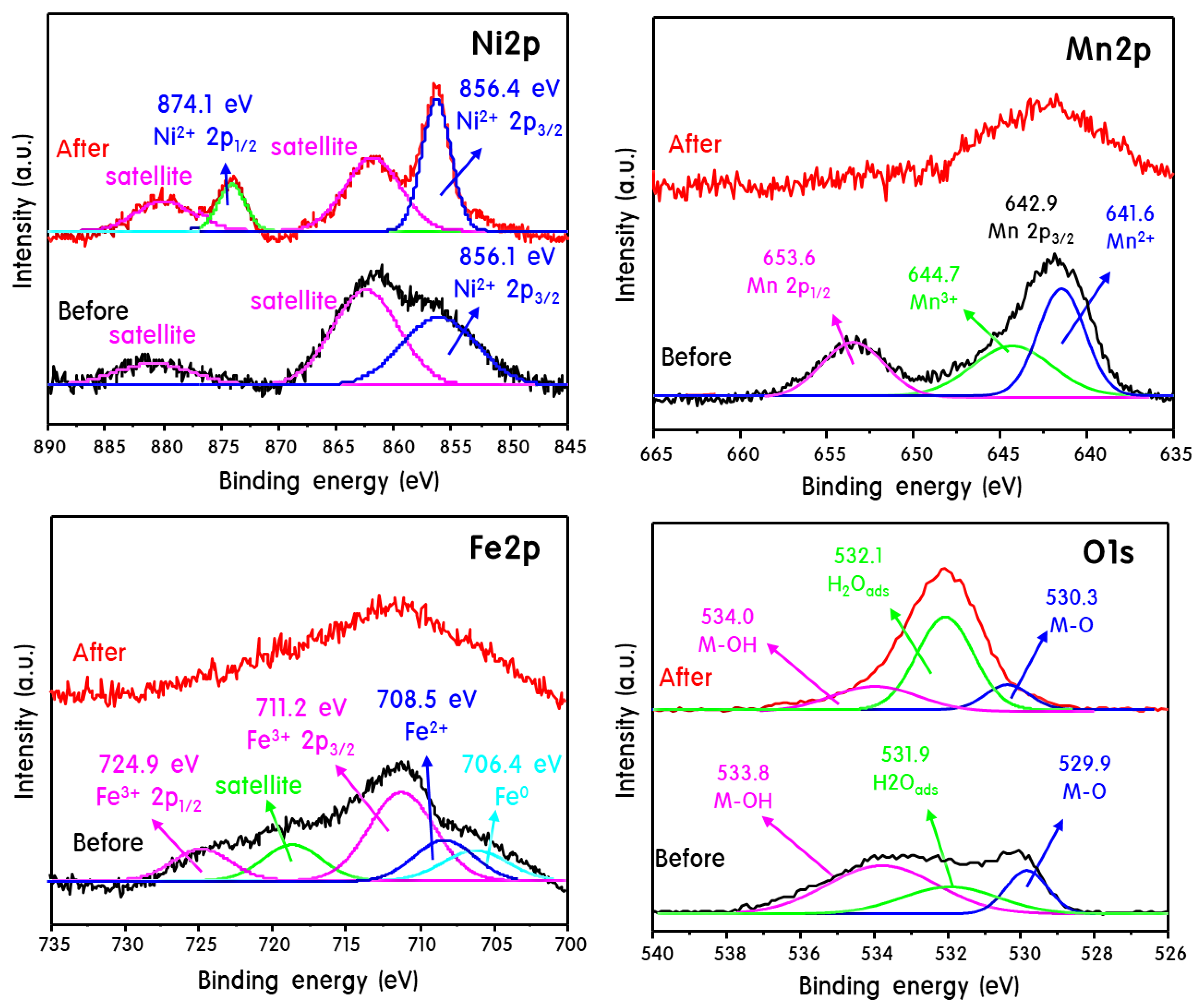

Figure 6. XPS curves of Fe2p, Mn2p, Ni2p, and O1s for the Fe2O3-MnO/NF electrode after the OER.
