A Wash of Ethyl Acetoacetate Reduces Externally Added Salmonella enterica on Tomatoes

by
Shelley M. Horne
and
Birgit M. Prüß
*
Department of Microbiological Sciences, North Dakota State University, Fargo, ND 58108, USA
*
Author to whom correspondence should be addressed.
Antibiotics 2022, 11(8), 1134; https://doi.org/10.3390/antibiotics11081134
Submission received: 26 July 2022 / Revised: 13 August 2022 / Accepted: 18 August 2022 / Published: 21 August 2022
(This article belongs to the Section Novel Antimicrobial Agents)
Browse Figures
Review Reports Versions Notes

Abstract

:
The continuously high numbers of food-borne disease outbreaks document that current intervention techniques are not yet satisfactory. This study describes a novel wash for tomatoes that can be used as part of the food processing chain and is designed to prevent contamination with serovars of Salmonella enterica. The wash contains ethyl acetoacetate (EAA) at a concentration of 8% in H2O. This wash reduced live bacterial counts (on Salmonella Shigella agar) of externally added S. Newport MDD14 by 2.3 log, counts of S. Typhimurium ATCC19585 by 1.5 log, and counts of S. Typhimurium FSL R6-0020 by 3.4 log. The naturally occurring background flora of the tomatoes was determined on plate count agar. The log reduction by EAA was 2.1. To mimic organic matter in the wash, we added 1% tomato homogenate to the 8% EAA solution. Prior to using the wash, the tomato homogenate was incubated with the EAA for 2 h. In the presence of the tomato homogenate, the log reductions were 2.4 log for S. Newport MDD14 and 3 log for S. Typhimurium FSL R6-0020. It seems like tomato homogenate did not reduce the efficacy of the EAA wash in the two S. enterica serovars tested. We propose the use of EAA as a wash for tomatoes to reduce bacterial counts of S. enterica well as naturally occurring background flora.

1. Introduction

In the context of healthy eating habits, produce has become more important in recent years. This raises the question of how to keep produce microbiologically safe. The Centers for Disease Control and Prevention (CDC; www.cdc.gov, accessed on 31 July 2022) list numerous outbreaks of Salmonella enterica in conjunction with produce, including onions (S. Oranienburg, 2022; S. Newport, 2020), pre-packaged salads (S. Typhimurium, 2021), peaches (S. Enteriditis, 2020), alfalfa sprouts (S. Newport, 2010; S. StPaul, 2009; S. I 4,[5],12:i:, 2011) and tomatoes (S. Typhimurium, 2006). In the United States, the estimated annual number of infections by Salmonella, caused primarily by the consumption of food runs, is approximately 1.35 million infections, 26,500 hospitalizations, and 420 deaths (CDC).
The four outbreaks of S. enterica in Virginia that were associated with tomatoes (Lycopersicon esculentum) are examples of contamination in the pre-harvest environment [1]. Among several factors that were investigated after these outbreaks, untreated pond water as irrigation water and fresh poultry litter as soil amendment increased the likelihood of S. enterica in tomato plots. The spread of S. enterica within agricultural fields can be facilitated by rain that permits the formation of Salmonella aerosols [2]. Post-harvest contamination with S. enterica can occur during the slicing of tomatoes [3] or by means of cross-contamination from meat on kitchen equipment [4].
Decontamination efforts in personal homes include rinsing tomatoes. Also a point-of-use UV appliance could be used in homes [5]. Additional physical decontamination methods include high hydrostatic pressure [6]. Among the chemical decontaminations, a brush roller and spray system that uses sodium hypochlorite (NaOCl) at 100 mg/mL reduced S. enterica by 4 log at 15 s of treatment, while 80 mg/mL of peroxyacetic acid (PAA) reduced S. enterica by 3 log, also at 15 s of treatment [7]. Simulated chlorine washes at 25 to 150 mg of free chlorine reduced S. enterica by 2 to 3 log in a commercial setting [8]. Altogether, it seems like there are ample decontamination methods for tomatoes, and yet outbreaks still happen. In this study, we present our evidence towards a new food anti-microbial, ethyl acetoacetate.
An early study by our own research laboratory identified ß-phenylethylamine and acetoacetate as inhibitors of growth and biofilm in liquid beef broth growth medium and refrigeration temperature [9]. Ethyl acetoacetate (EAA) is chemically and structurally similar to acetoacetate but was more effective at reducing growth, live bacterial counts, and biofilm in three bacterial pathogens [10]. It is also more cost-effective. Since its first identification as an anti-microbial, EAA has been used in one clinical application [11] and two food safety applications, where it was effective at reducing spoilage bacteria on beef [12] and chicken [13]. For beef, EAA was proposed as an additive [12]. For chicken [13] and this study on tomatoes, EAA was suggested as a food processing aid, where the residual concentration that remains on the food from washing is much smaller. According to the FDA (www.fda.gov, accessed on 31 July 2022), processing aids do not have to be included on the label but will still require FDA approval. The current approval of EAA is for use as a flavoring additive under 21CFR172.515. EAA is used under Flavis No. 9.402. Since food preparation often includes cooking, the heat stability of EAA has been determined at 165 F (73.9 °C; inside of a burger) and 190 F (87.8 °C; outside of a burger). EAA was stable chemically and as an anti-microbial up to 190 F [14]. This study describes EAA as a wash for tomatoes that reduces counts of S. enterica by three serovars.

2. Results

2.1. A Concentration of 8% Was Effective for EAA at Reducing the Number of S. Enterica after an Incubation of 5 Minutes

S. Typhimurium FSL R6-0020 and S. Typhimurium ATCC 19585 were grown to an OD600 of 1.0 and incubated for 5 min with increasing concentrations of EAA in H2O. The log10 CFU/mL of S. Typhimurium FSL R6-0020 decreased to 78% at a concentration of 7% EAA and reached the detection limit (2 log) at a concentration of 8% EAA (Figure 1). The log10 CFU/mL of S. Typhimurium ATCC19855 declined to 45% at a concentration of 7%. At a concentration of 8%, the number of bacteria had also reached the detection limit. It was concluded to use a concentration of 8% EAA for this study because this was the lowest concentration at which the log10 CFU/mL dropped to the detection limit.

2.2. The EAA Wash Reduced Counts of Externally Added S. enterica and Counts of Naturally Occurring Background Flora

Tomatoes were inoculated with ~109 bacteria of each of three S. enterica serovars and consecutively washed with either H2O or 8% EAA in H2O. A control group that received PBS instead of bacteria was included. Natural occurring background flora was enumerated on Plate count agar (PCA) plates, and S. enterica on Shigella-Salmonella Agar (SSA) plates. The log10 CFU/g tomato data are summarized in Figure 2. The one-way ANOVA yielded a p-value < 0.0001, indicating that there are statistically significant differences between the groups.
For S. Newport MDD14 (Figure 2), there is a 2.3 ± 1.7 log reduction when comparing the S. enterica counts from the SSA plates between H2O and EAA wash (first set of bars in Figure 2). The p-value from the unpaired, one-tailed t-test that compared the CFU/g tomato data from the H2O and the EAA wash was 0.025, indicating the statistical significance of the difference.
For S. Typhimurium ATCC 19585 (second set of bars in Figure 2), the EAA wash reduced the S. enterica counts from the SSA plates by 1.5 ± 1.5 log. The p-value from the t-test was 0.063, which is not indicative of the statistical significance of the difference. Since the p-value from the parametric t-test is close to the cut-off of 0.05 and the sample size is too small to calculate normality, we also used the non-parametric Wilcoxon test. The p-value from this test was 0.069, which is very similar to the p-value from the t-test and also not significant. When looking at the distribution of the data from the water wash, it is notable that in two of five experiments, there were few bacteria recovered already after the H2O wash. We believe that this serovar may have a reduced ability to attach to the tomatoes and therefore got washed off by H2O in some but not all of the experiments. For the three experiments that permitted the recovery of S. enterica from the H2O-washed tomatoes, we calculated a log reduction of 2.5 ± 0.8 at a p-value from the t-test of 0.053, which is just outside the significance cut-off.
For S. Typhimurium FSL R6-0020 (third set of bars in Figure 2), the log reduction by the presence of EAA in the wash was calculated at 3.4 ± 0.95. This was the highest log reduction in our experiments, which was accompanied by a very low p-value from the t-test of 0.0033.
The background experiment with PBS was analyzed on PCA plates as we did not add any S. enterica serovars (fourth set of bars in Figure 2). Counts of naturally occurring background flora were reduced by 2.13 ± 0.95 log. The p-value from the t-test was very low at 0.0009.

2.3. Recovery of Bacteria with 0.1% Silwet Leads to a Smaller Recovery of S. enterica from the Tomatoes

For the past experiment, bacteria were recovered from the tomatoes by homogenizing the whole tomatoes and plating serial dilutions onto selective agar plates. To test the possibility that recovering the bacteria from the tomatoes with detergent might lead to an increased (relative to homogenization) recovery of the inoculated S. enterica, we repeated the experiment with S. Typhimurium FSL R6-0020 and recovered bacteria with a solution of 0.1% silwet L-77. The log10 CFU/g data are presented in Figure 3. A one-way ANOVA yielded a p-value of <0.0001, indicating statistically significant differences between some of the test groups of this experiment.
The first observation from this experiment is that the recovery of bacteria with silwet L-77 (Figure 3) is much reduced when compared to the recovery of bacteria by means of tomato homogenization (Figure 2). When bacteria were recovered by homogenization of the tomatoes, the S. enterica count on the SSA plates for S. Typhimurium FSL R6-0020 after H2O wash was 4.37 log10 CFU/g (Figure 2). When bacteria were recovered with silwet L-77, the S. enterica count on the SSA plates after H2O wash was 3.08 log10 CFU/g (Figure 3, second grey bar). This is a 1.3 log difference in recovery between the two methods. Moreover, the recovery of S. Typhimurium FSL R6-0020 was better when the bacteria were recovered from the tomatoes with H2O that did not contain silwet L-77. For this test group, the recovery was 3.5 log10 CFU/g (Figure 3, first gray bar).
As a second observation, log reductions caused by the EAA wash were smaller than those obtained from the previous experiment, where bacteria were recovered by homogenizing the tomatoes. When comparing the H2O-washed and the EAA-washed tomatoes, the log reduction after silwet L-77 recovery (bars 3 and 4 in Figure 3) was 1.8 ± 0.75 with a p-value of 0.0004, which is indicative of the statistical significance of the difference. In comparison, in the previous experiment, the respective log reduction was 3.4 ± 0.95 (Figure 2). S. enterica counts from the PBS samples (bars 5 and 6 in Figure 3) were below the detection limit of 14 CFU/g for both washed and a p-value could not be computed. It seems like recovery of bacteria by tomato homogenization is preferable over recovery with silwet L-77 with respect to both the total number of recovered S. enterica and log reductions in response to 8% EAA.

2.4. The Effectiveness of EAA Ws Not Reduced in the Presence of 1% Tomato Homogenate in the Wash

The initial experiment was repeated with S. Newport MDD14 (Figure 4) and S. Typhimurium FSL R6-0020 (Figure 5). In this experiment, the 8% EAA wash also contained 1% of tomato homogenate to test for the effect of organic load on the EAA wash. The one-way ANOVA comparing all groups yielded a p-value of 0.2206, but Bartlett’s correction yielded a p-value < 0.0001. We did perform one-tailed unpaired t-tests for all relevant comparisons.
For the S. Newport MDD14 serovar (Figure 4), there is a reduction of 1.6 ± 1.2 log when comparing the bacterial counts from the PCA plates between the H2O and the EAA wash (first set of bars in Figure 4). For the S. enterica counts from the SSA plates (second set of bars in Figure 4), this log reduction was 2.6 ± 0.7 log. The unpaired, one-tailed t-test that was performed on the CFU/g tomato data was not indicative of the statistical significance of this difference in both of those comparisons. When the wash contained 1% tomato homogenate (the third set of bars in Figure 4), the bacterial counts from the PCA plates were reduced by 2.55 ± 0.65 log by the EAA wash. Comparing the CFU/g tomato data from the H2O and the EAA washes, the p-value from the parametric t-test was 0.039, which is indicative of the statistical significance of the difference. The S. enterica counts from the SSA plates (final set of bars in Figure 4) were reduced by 2.4 ± 0.7 log with a p-value from the t-test of 0.021. In summary, the EAA wash was effective in the presence of 1% tomato homogenate (log reduction on SSA of 2.4, Figure 4) to the extent that it was effective in the absence of tomato homogenate (where we calculated a log reduction of 2.3 in Figure 2 and a log reduction of 2.6 in Figure 2).
While performing the experiments, we noticed that the tomato homogenate itself seemed to have a small effect on the resulting bacterial counts. The largest of these reductions was the total bacterial count from the PCA plates when comparing the EAA wash and the EAA/tomato wash (first and third white bars in Figure 4). The log reduction was 1.2 ± 1.2 with a p-value from the t-test of 0.1793, which is indicative of a lack of statistical significance of the difference. However, at this point, we can not exclude the possibility that the presence of the tomato homogenate in the wash itself may have a small reduction effect on the bacterial counts recovered from the tomatoes.
The one-way ANOVA for the S. Typhimurium FSL R6-0020 group of samples was 0.0023, indicating statistically significant differences between some of the samples. When comparing the bacterial counts from the PCA plates between the H2O and the EAA wash (first set of bars in Figure 5), the log reduction was 1.74 ± 0.36 log. For the S. enterica counts from the SSA plates (second set of bars in Figure 5), this log reduction was 2.64 ± 0.7 log. The t-test that was performed on the first of these comparisons (PCA plates) was 0.0293, which is indicative of a statistical significance between the two groups. For the second of these comparisons (SSA plates), the p-value was 0.0427, which is also indicative of the statistical significance of the difference between the two groups.
When the wash contained 1% tomato homogenate (the third set of bars in Figure 5), the bacterial counts from the PCA plates were reduced by 1.85 ± 1.2 log by EAA. This is slightly higher than the log reduction of 1.7 in the absence of tomato homogenate. Compared to the CFU/g tomato data from the H2O and the EAA washes on the PCA plates, the p-value from the parametric t-test was 0.0506, which is a borderline significance for the difference. The S. enterica counts from the SSA plates (final set of bars in Figure 5) were reduced by 3 ± 0.6 log with a significant p-value from the t-test of 0.0175. This log reduction is very similar to or even slightly higher than that from the experiment that did not include tomato homogenate (2.6 log, Figure 5). In summary, the EAA wash had an effectiveness in reducing externally added S. Typhimurium R6-0020 in the presence of 1% tomato homogenate that was similar to or even higher than that of EAA (3 log vs. 2.8 log) at the same concentration of 8% EAA but in the absence of tomato homogenate.

3. Discussion

The current study describes a novel wash for tomatoes to prevent contamination with S. enterica. At a concentration of 8%, a wash of EAA reduced live bacterial counts (on SSA plates) of externally added S. Newport MDD14 by 2.3 log (Figure 2). Counts of S. Typhimurium ATCC19585 were reduced by 1.5 log (Figure 2), while counts of S. Typhimurium FSL R6-0020 were reduced by the EAA wash by 3.4 log (Figure 2). Naturally occurring background microorganisms from PCA plates were reduced by 2.1 log (Figure 2). An alternative method of recovering bacteria from tomatoes yielded no improvement in either the total number of recovered bacteria or log reductions (Figure 3). To determine whether the efficacy of EAA would withstand tomato exudates, the experiment was repeated in the presence of 1% tomato homogenate in the 8% EAA wash (Figure 4 and Figure 5). The tomato homogenate had been incubated with the EAA for 2 h. In the presence of the tomato homogenate, the log reductions were 2.4 log for S. Newport MDD14 (vs. 2.6 log in the same experiment, Figure 4) and 3.1 for S. Typhimurium FSL R6-0020 (vs. 2.64 from the same experiment, Figure 5). It seems like tomato homogenate did not reduce the efficacy of the EAA wash in the two S. enterica serovars tested. We propose the use of EAA as a wash for tomatoes to reduce bacterial counts of S. enterica.
As a note on the inconsistent data that were obtained with S. Typhimurium ATCC19585, this is a serovar of the LT2 clade that carries a defect within the rpoS gene [15]. The defect renders the entire LT2 clade avirulent [15]. In addition, rpoS is a positive regulator of the curli operon, which is involved in attachment [16,17]. In agreement with this, an rpoS mutant exhibited a reduced ability to attach to alfalfa plant tissue [18]. The reason for the lack of reproducibility of our data with this serovar is that in two of the five experiments, the bacteria got washed off the tomatoes with H2O already and, hence, the addition of EAA to the wash could not cause any further reduction. We believe the reduced ability of this specific serovar of S. enterica to attach could be the cause of the occasional removal of the bacteria from the tomato surface by pure H2O. In the three experiments where we were able to retrieve bacteria after the H2O wash, the log reduction caused by EAA was 2.5. This is within the range of log reductions we obtained from the other two serovars. We conclude that EAA was effective against all three of our tested S. enterica serovars.
In order to assess the usefulness of EAA relative to existing technologies that aim to reduce S. enterica on tomatoes, one has to compare the log reductions obtained in this study with those obtained from currently used anti-microbial intervention techniques. Examples of such techniques are summarized in Table 1.
A commonly used chemical that is added to the tomato wash is chlorine, which is most active as free chlorine or hypochlorite (HOCl). In two independent studies, free chlorine was incubated with the tomatoes for 1 and 2 min, resulting in log reductions of between 2 and 3 log [8,19]. This is similar to our log reductions for S. Newport MDD14 and S. Typhimurium FSL R6-0020. Problems with chlorine washes for produce include the consumption of free chlorine that is necessary to reduce bacterial numbers by fresh-cut produce exudates [27] and the production of stronger biofilm by the bacteria upon chlorine stress via induction of the oxidative stress response [28]. In tomatoes, it has been shown that field debris and defective tomatoes at less than 1% make up for 55.5% of the chlorine demand in the wash [29]. In our study, the addition of 1% tomato homogenate to the 8% EAA wash did not reduce the efficacy of the wash, which is an advantage of EAA overusing chlorine. In addition, EAA was identified as an inhibitor of biofilm on polystyrene plates by three pathogens [10] and an inhibitor of biofilm in silicone tubing by several pathogens, including S. enterica [11]. This is the second advantage of EAA over chlorine that induced the formation of biofilm [28]. EAA does have FDA approval as a flavoring agent under 21CFR172.515 and is used under Flavis No. 9.402.
The remaining anti-microbial intervention techniques that aim at reducing S. enterica on tomatoes and are listed in Table 1 include chlorine dioxide (ClO2), peroxyacetic acid (PAA), numerous other acids, UV light, and phages. For the latter [26], the incubation time was very long, and the study may not be very suitable to be compared to ours; the concept may be interesting, however. For the remaining technologies, the log reductions are all in the range of the ones that we determined for S. Newport MDD14 and S. Typhimurium FSL R6-0020 or smaller than those.
The experiment in Figure 2 also included a comparison of naturally occurring background flora as enumerated on PCA plates and included many of the naturally found spoilage microorganisms and pathogenic bacteria in the presence and absence of EAA in the wash water. Spoilage bacteria on tomatoes include many molds, fungi, and yeast. Specific examples include Alternaria alternata and Stemphylium vesicarium, against which ClO2 has been successfully used as well [30]. Similar to that described above for S. enterica, the anti-microbial activity against yeast and molds of some of the sanitizers (e.g., sulfuric acid) can be reduced by organic load (e.g., tomato debris) in the wash. Bacterial background flora can include Pseudomonas syringae pv tomato, which causes bacterial speck disease on tomatoes [31,32]. Pseudomonas floridensis is a novel bacterial pathogen that has been isolated from tomatoes just recently.
In our study, EAA reduced the live bacterial counts of naturally occurring microflora on the tomatoes by 2.1 log (Figure 2). This log reduction was obtained from PCA plates, which are a non-selective growth medium that permits the growth of many microorganisms under the indicated temperature and under aerobic conditions. Since Pseudomonas can sometimes be found on tomatoes (see above), we enumerated bacteria on PSA (pseudomonas agar base) plates as part of the same experiment (data not shown). In three of the five experiments, we were unable to detect Pseudomonads in even the undiluted samples (lower limit of detection = 49 CFU/g). In the remaining two experiments, the log reductions were 1.6 and 1.2 log. We conclude that Pseudomonads were either not very prevalent on our tomatoes or got washed off already with pure water. In cases of presence, EAA was able to reduce the number of Pseudomonads by 1.4 ± 0.2 log. Altogether, the effectiveness of 8% EAA in the wash water was similar or slightly less for the naturally occurring background flora than it was against the externally added S. enterica serovars. This is different from using EAA on chicken or beef, where we observed a strong effect against the background flora but a much lesser effect against externally added pathogens [12,13].
In conclusion, we believe that it will be a worthwhile endeavor to include EAA on the list of antimicrobials that are worth future research, in particular in a setting that is closer to an actual food processing chain.

4. Materials and Methods

4.1. Bacterial Serovars and Growth Conditions

Three serovars of S. enterica were used in this study (Table 2). S. Typhimurium FSL R6-0020 is also designated TB0041 [33]. S. Typhimurium ATCC 19585 (ex Kauffmann and Edwards) Le Minor and Popoff is also designated LT2 [34,35,36] and was obtained from the American Type Culture Collection (ATCC; www.atcc.org, accessed on 25 October 2021). S. Newport MDD14 is also designated TB0581 [37]. For the overnight cultures, bacteria were grown at 34 °C in Brain Heart Infusion (DifcoTM BHI; BD Life Sciences, Gurgaon, India).

4.2. Determine the Effective Concentration of EAA against Salmonella

Overnight cultures of S. Typhimurium FSL R6-0020 and S. Typhimurium ATCC 19585 were diluted 1:10 into BHI, grown at 34 °C for 2 h, and adjusted to an OD600 of 1.0, at which time cultures contained approximately 108 to 109 colony forming units (CFU)/mL. Solutions of 0%, 5%, 6%, 7%, 8%, 9%, and 10% EAA (Alfa Aesar, Ward Hill, MA, USA) were produced in H2O. In total, 1 mL of bacterial culture was added to 9 mL of EAA at the indicated concentrations. The solutions were incubated for 5 min. Serial dilutions were produced, 10 µL of each dilution was plated onto Salmonella Shigella Agar (BBLTM SSA; BD Life Sciences, St. Louis, MO, USA).

4.3. Performance of the Tomato Experiment

Overnight cultures of each of the three S. enterica serovars were diluted 1:10 in BHI and grown for 2 h at 34 °C. Cultures were adjusted to an OD600 of 1.0. To concentrate the bacteria, these cultures were centrifuged and resuspended in 100 µL PBS. The starting concentrations of the bacteria were determined by plating serial dilutions onto SSA plates. Inocula contained ~109 CFU.
Unwaxed, organic grape tomatoes were purchased from a local grocery store. Tomatoes were weighed before use. For each wash, two tomatoes were spot inoculated in modification of a previously described protocol [38]. Briefly, tomatoes were located on weighing dishes during the inoculation with 100 µL of a culture containing approximately 109 CFU of the respective S. enterica serovar in PBS. For each negative control, two tomatoes received 100 µL of PBS without bacteria. Tomatoes were dried for 2 h under the BSL2 biosafety cabinet with airflow. EAA washes were performed at a concentration of 8% EAA in H2O, the control wash was H2O. The two tomatoes that had been inoculated with the same S. enterica serovar (or negative control) were transferred into the same Ziploc bag, where they received 10 mL of wash (EAA or H2O) and were incubated for 5 min at room temperature. For 1 min, tomatoes were agitated in the Ziploc bags. Tomatoes were dried for 10 min on sterile drying racks.

4.4. Production of the Tomato Homogenate

The tomato experiment was repeated in the absence and presence of 1% tomato homogenate in the H2O or 8% EAA wash. Four to six grape tomatoes were transferred into a stomacher bag and homogenized in the Seward Stomacher for 30 s at 230 rpm. This solution was directly used as homogenate and added to the EAA washes at a concentration of 1%.

4.5. Recovery of Bacteria from the Tomatoes

Bacteria were recovered from the tomatoes by means of homogenization. In one experiment, bacteria were recovered by means of 0.1% silwet L-77.

4.5.1. Recovery by Eans of Homogenization

Tomatoes that had received identical treatment combinations (S. enterica or BPS/EAA or H2O) were transferred into a stomacher bag. In total, 10 mL of Maximum Recovery Diluent (MRD; Millipore Sigma, St. Louis, MO, USA) was pipetted into the bag. Tomatoes were homogenized in the Seward Stomacher 400 Circulator (Cole Parmer, Vernon Hills, IL, USA) stomacher for 30 s at 230 rpm. Homogenates were removed from the bags and serially diluted at steps of 1:10. Of each dilution, 100 µL were plated onto plate count agar (Difco PCA; BD Life Sciences, St. Louis, MO, USA) to determine the aerobic bacterial count and SSA to determine the S. enterica count.

4.5.2. Recovery of Bacteria from the Tomatoes by Means of 0.1% silwet L-77 wash

One tomato was transferred into a new Ziploc bag and supplemented with 5 mL of 0.1% silwet L-77 (PlantMedia, Dublin, Ireland) in MRD. Tomatoes were agitated in the bags for 2 min and incubated for another 3 min. In total, 1 mL of the solution was removed, and serial dilutions were produced at steps of 1:10. Dilutions were plated onto PCA and SSA plates as described in the homogenization paragraph (4.4.1).

4.6. Enumeration of Bacteria

Naturally occurring background flora were calculated from the PCA plates, S. enterica counts were taken from the SSA plates. Colonies from each of the dilutions were counted and converted to CFU/mL, CFU/g tomato, and log10 CFU/g tomato. Log reductions were calculated for each of the comparisons, using the log10 (a/b) formula, where ‘a’ is the CFU/g tomato count from the H2O control wash and ‘b’ the CFU/g tomato count from the EAA wash. Each experiment was performed in 4 to 5 biological replicates. CFU/mL, CFU/g tomato, log10 CFU/g tomato, and log reductions were calculated separately for each replicate. Averages and standard deviations were calculated for log10 CFU/g tomato and log reduction data.
Statistical analysis was started with a one-way ANOVA and followed with the parametric, unpaired, one-tailed t-test. Both the ANOVA and the t-test were performed using GraphPad Prism 9 (GraphPad Software, version 9.4.1, San Diego, CA, USA). Comparisons that were calculated include the H2O and EAA washes for each of the serovars (Figure 2, Figure 3, Figure 4 and Figure 5) or absence or presence of tomato homogenate (Figure 4). For one comparison, the non-parametric Wilcoxon test was used in addition to the t-test. This was performed in Visual Basics through Excel. For both, the t-test and Wilcoxon, a p-value of 0.05 was used as a cut-off to define the statistical significance of the respective difference.

5. Patents

This work did not result in any patents. However, there is a patent pending from research that led to the question addressed by this study. The patent application is listed as US 2019/0082688, published on 21 March 2019.

Author Contributions

Conceptualization, B.M.P.; methodology, S.M.H.; software, B.M.P.; validation, B.M.P. and S.M.H.; formal analysis, B.M.P.; investigation, B.M.P. and S.M.H.; resources, B.M.P. and S.M.H.; data curation, B.M.P.; writing—original draft preparation, B.M.P.; writing—review and editing, B.M.P. and S.M.H.; visualization, S.M.H.; supervision, B.M.P.; project administration, B.M.P.; funding acquisition, B.M.P. All authors have read and agreed to the published version of the manuscript.

Funding

The research was funded by grant 21-170 from the North Dakota Agricultural and Products Commission. B.M.P. was funded by hatch grant 02438 from USDA/NIFA.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors like to thank Teresa Bergholz (Michigan State University, East Lansing, MI) for providing serovars and helpful discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gu, G.; Strawn, L.K.; Oryang, D.O.; Zheng, J.; Reed, E.A.; Ottesen, A.R.; Bell, R.L.; Chen, Y.; Duret, S.; Ingram, D.T.; et al. Agricultural practices influence Salmonella contamination and survival in pre-harvest tomato production. Front. Microbiol. 2018, 9, 2451. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Cevallos-Cevallos, J.M.; Gu, G.; Danyluk, M.D.; Dufault, N.S.; van Bruggen, A.H. Salmonella can reach tomato fruits on plants exposed to aerosols formed by rain. Int. J. Food Microbiol. 2012, 158, 140–146. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, H.; Ryser, E.T. Quantitative transfer of Salmonella Typhimurium LT2 during mechanical slicing of tomatoes as impacted by multiple processing variables. Int. J. Food Microbiol. 2016, 234, 76–82. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Gkana, E.; Lianou, A.; Nychas, G.J. Transfer of Salmonella enterica Serovar Typhimurium from beef to tomato through kitchen equipment and the efficacy of intermediate decontamination procedures. J. Food Prot. 2016, 79, 1252–1258. [Google Scholar] [CrossRef]
  5. Yao, S.; Chen, H. Development and evaluation of a point-of-use UV appliance for fresh produce decontamination. Int. J. Food Microbiol. 2021, 339, 109024. [Google Scholar] [CrossRef]
  6. Maitland, J.E.; Boyer, R.R.; Eifert, J.D.; Williams, R.C. High hydrostatic pressure processing reduces Salmonella enterica serovars in diced and whole tomatoes. Int. J. Food Microbiol. 2011, 149, 113–117. [Google Scholar] [CrossRef]
  7. Chang, A.S.; Schneider, K.R. Evaluation of overhead spray-applied sanitizers for the reduction of Salmonella on tomato surfaces. J. Food Sci. 2012, 77, M65–M69. [Google Scholar] [CrossRef]
  8. Bolten, S.; Gu, G.; Luo, Y.; Van Haute, S.; Zhou, B.; Millner, P.; Micallef, S.A.; Nou, X. Salmonella inactivation and cross-contamination on cherry and grape tomatoes under simulated wash conditions. Food Microbiol. 2020, 87, 103359. [Google Scholar] [CrossRef]
  9. Lynnes, T.; Horne, S.M.; Prüß, B.M. β-phenylethylamine as a novel nutrient treatment to reduce bacterial contamination due to Escherichia coli O157:H7 on beef meat. Meat Science 2014, 96, 165–171. [Google Scholar] [CrossRef]
  10. Horne, S.M.; Schroeder, M.; Murphy, J.; Prüß, B.M. Acetoacetate and ethyl acetoacetate as novel inhibitors of bacterial biofilm. Lett. Appl. Microbiol. 2018, 66, 329–339. [Google Scholar] [CrossRef]
  11. Schroeder, M.L. Investigation of Nutrients as Treatments of Bacterial Biofilms. Ph.D. Thesis, North Dakota State University, Fargo, ND, USA, 2018. [Google Scholar]
  12. Horne, S.M.; Khadem, E.; Prüß, B.M. Ethyl acetoacetate and ß-phenylethylamine inhibit spoilage bacteria in ground beef. EC Microbiol. 2020, 16, 6–18. [Google Scholar]
  13. Bauer, E.S.; Horne, S.M.; Prüß, B.M. Ethylacetoacetate added to the wash water of chicken reduces spoilage bacteria, as well as externally added Salmonella spec. and Campylobacter spec. EC Microbiol. 2021, 17, 18–28. [Google Scholar]
  14. Horne, S.M.; Ugrinov, A.; Prüß, B.M. The food anti-microbials β-phenylethylamine (-HCl) and ethyl acetoacetate do not change during the heating process. Antibiotics 2021, 10, 418. [Google Scholar] [CrossRef] [PubMed]
  15. Swords, W.E.; Cannon, B.M.; Benjamin, W.H., Jr. Avirulence of LT2 strains of Salmonella typhimurium results from a defective rpoS gene. Infect. Immun. 1997, 65, 2451–2453. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Prigent-Combaret, C.; Brombacher, E.; Vidal, O.; Ambert, A.; Lejeune, P.; Landini, P.; Dorel, C. Complex regulatory network controls initial adhesion and biofilm formation in Escherichia coli via regulation of the csgD gene. J. Bacteriol. 2001, 183, 7213–7223. [Google Scholar] [CrossRef] [Green Version]
  17. Ibanez-Ruiz, M.; Robbe-Saule, V.; Hermant, D.; Labrude, S.; Norel, F. Identification of RpoS (sigma(S))-regulated genes in Salmonella enterica serovar typhimurium. J. Bacteriol. 2000, 182, 5749–5756. [Google Scholar] [CrossRef] [Green Version]
  18. Barak, J.D.; Gorski, L.; Naraghi-Arani, P.; Charkowski, A.O. Salmonella enterica virulence genes are required for bacterial attachment to plant tissue. Appl. Environ. Microbiol. 2005, 71, 5685–5691. [Google Scholar] [CrossRef] [Green Version]
  19. Gurtler, J.B.; Dong, X.; Zhong, B.; Lee, R. Efficacy of a mixed peroxyorganic acid antimicrobial wash solution against Salmonella, Escherichia coli O157:H7, or Listeria monocytogenes on cherry tomatoes. J. Food Prot. 2022, 85, 773–777. [Google Scholar] [CrossRef]
  20. Park, S.H.; Kang, D.H. Effect of temperature on chlorine dioxide inactivation of Escherichia coli O157:H7, Salmonella typhimurium, and Listeria monocytogenes on spinach, tomatoes, stainless steel, and glass surfaces. Int. J. Food Microbiol. 2018, 275, 39–45. [Google Scholar] [CrossRef]
  21. Kang, C.; Sloniker, N.; Ryser, E.T. Use of a novel sanitizer to inactivate Salmonella Typhimurium and spoilage microorganisms during flume washing of diced tomatoes. J. Food Prot. 2020, 83, 2158–2166. [Google Scholar] [CrossRef]
  22. Mukhopadhyay, S.; Sokorai, K.; Ukuku, D.O.; Jin, T.; Fan, X.; Olanya, M.; Juneja, V. Inactivation of Salmonella in grape tomato stem scars by organic acid wash and chitosan-allyl isothiocyanate coating. Int. J. Food Microbiol. 2018, 266, 234–240. [Google Scholar] [CrossRef] [PubMed]
  23. White, E.; Kumar, G.D.; da Silva, A.; Kerr, W.L.; Cimowsky, S.; Widmer, J.A.; Dunn, L.L. Postharvest reduction of Salmonella enterica on tomatoes using a pelargonic acid emulsion. Foods 2021, 10, 178. [Google Scholar] [CrossRef] [PubMed]
  24. Berrios-Rodriguez, A.; Ukuku, D.O.; Olanya, M.; Cassidy, J.; Orellana, L.E.; Mukhopadhyay, S.; Niemira, B.A. Nisin-based organic acid inactivation of Salmonella on grape tomatoes: Efficacy of treatment with bioluminescence ATP assay. J. Food Prot. 2020, 83, 68–74. [Google Scholar] [CrossRef] [PubMed]
  25. Huang, R.; de Vries, D.; Chen, H. Strategies to enhance fresh produce decontamination using combined treatments of ultraviolet, washing and disinfectants. Int. J. Food Microbiol. 2018, 283, 37–44. [Google Scholar] [CrossRef] [PubMed]
  26. El-Dougdoug, N.K.; Cucic, S.; Abdelhamid, A.G.; Brovko, L.; Kropinski, A.M.; Griffiths, M.W.; Anany, H. Control of Salmonella Newport on cherry tomato using a cocktail of lytic bacteriophages. Int. J. Food Microbiol. 2019, 293, 60–71. [Google Scholar] [CrossRef]
  27. Abnavi, M.D.; Alradaan, A.; Munther, D.; Kothapalli, C.R.; Srinivasan, P. Modeling of free chlorine consumption and Escherichia coli O157:H7 cross-contamination during fresh-cut produce wash cycles. J. Food Sci. 2019, 84, 2736–2744. [Google Scholar] [CrossRef]
  28. Dhakal, J.; Sharma, C.S.; Nannapaneni, R.; Mc, D.C.; Kim, T.; Kiess, A. Effect of chlorine-induced sublethal oxidative stress on the biofilm-forming ability of Salmonella at different temperatures, nutrient conditions, and substrates. J. Food Prot. 2019, 82, 78–92. [Google Scholar] [CrossRef]
  29. Zhou, B.; Luo, Y.; Teng, Z.I.; Nou, X.; Millner, P. Factors impacting chemical and microbiological quality of wash water during simulated dump tank wash of grape tomatoes. J. Food Prot. 2021, 84, 695–703. [Google Scholar] [CrossRef]
  30. Trinetta, V.; Linton, R.H.; Morgan, M.T. Use of chlorine dioxide gas for the postharvest control of Alternaria alternata and Stemphylium vesicarium on Roma tomatoes. J. Sci. Food Agric. 2013, 93, 3330–3333. [Google Scholar] [CrossRef]
  31. Elsharkawy, M.M.; Khedr, A.A.; Mehiar, F.; El-Kady, E.M.; Baazeem, A.; Shimizu, M. Suppression of Pseudomonas syringae pv. tomato infection by rhizosphere fungi. Pest Manag. Sci. 2021, 77, 4350–4356. [Google Scholar] [CrossRef]
  32. Chai, A.L.; Ben, H.Y.; Guo, W.T.; Shi, Y.X.; Xie, X.W.; Li, L.; Li, B.J. Quantification of viable cells of Pseudomonas syringae pv. tomato in tomato seed using propidium monoazide and a real-time PCR assay. Plant Dis. 2020, 104, 2225–2232. [Google Scholar] [CrossRef]
  33. Taormina, P.J.; Beuchat, L.R. Comparison of chemical treatments to eliminate enterohemorrhagic Escherichia coli O157:H7 on alfalfa seeds. J. Food Prot. 1999, 62, 318–324. [Google Scholar] [CrossRef] [PubMed]
  34. Tindall, B.J.; Grimont, P.A.D.; Garrity, G.M.; Euzéby, J.P. Nomenclature and taxonomy of the genus Salmonella. Int. J. Syst. Evol. Microbiol. 2005, 55, 521–524. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Judicial Commission of The International Committee on Systematics of Prokaryotes. The type species of the genus Salmonella Lignieres 1900 is Salmonella enterica (ex Kauffmann and Edwards 1952) Le Minor and Popoff 1987, with the type strain LT2T, and conservation of the epithet enterica in Salmonella enterica over all earlier epithets that may be applied to this species. Opinion 80. Int. J. Syst. Evol. Microbiol. 2005, 55, 519–520. [Google Scholar] [CrossRef]
  36. Zinder, N.D.; Lederberg, J. Genetic exchange in Salmonella. J. Bacteriol. 1952, 64, 679–699. [Google Scholar] [CrossRef] [Green Version]
  37. Shah, M.K.; Bradshaw, R.; Nyarko, E.; Millner, P.D.; Neher, D.; Weicht, T.; Bergholz, T.M.; Sharma, M. Survival and growth of wild-type and rpoS-deficient Salmonella Newport strains in soil extracts prepared with heat-treated poultry pellets. J. Food Prot. 2019, 82, 501–506. [Google Scholar] [CrossRef]
  38. Trinetta, V.; Morgan, M.T.; Linton, R.H. Use of high-concentration-short-time chlorine dioxide gas treatments for the inactivation of Salmonella enterica spp. inoculated onto Roma tomatoes. Food Microbiol. 2010, 27, 1009–1015. [Google Scholar] [CrossRef]
Antibiotics 11 01134 g001 550

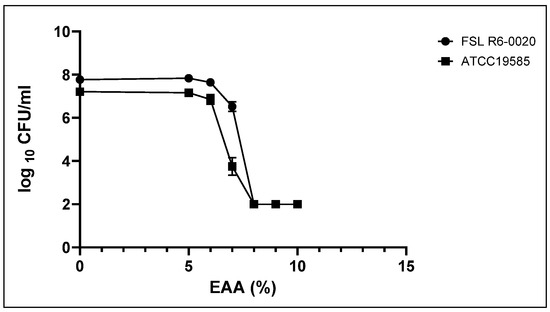

Figure 1. Concentration dependence of the survival of Salmonella after 5 min of incubation with EAA. Data are expressed in CFU/mL from three replicate experiments.
Figure 1. Concentration dependence of the survival of Salmonella after 5 min of incubation with EAA. Data are expressed in CFU/mL from three replicate experiments.
Antibiotics 11 01134 g001
Antibiotics 11 01134 g002 550

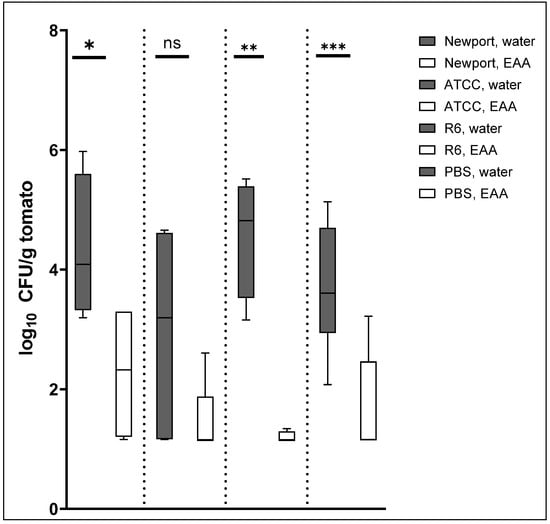

Figure 2. Effect of EAA on externally added S. enterica and naturally occurring background flora. Newport, S. Newport MDD14; ATCC, S. Typhimurium ATCC 19585; R6, S. Typhimurium FSL R6-0020. The log10 CFU/g tomato data are plotted for each of the samples (grey bars, H2O white bars, EAA). The S. enterica counts were taken from the SSA plates, the counts for naturally occurring background flora from the PBS tomatoes were taken from the PCA plates. The asterisks are indicative of the significance of the p-values from the t-test in ranked order (*** 0.0009, ** 0.0033, * 0.025, ns not significant).
Figure 2. Effect of EAA on externally added S. enterica and naturally occurring background flora. Newport, S. Newport MDD14; ATCC, S. Typhimurium ATCC 19585; R6, S. Typhimurium FSL R6-0020. The log10 CFU/g tomato data are plotted for each of the samples (grey bars, H2O white bars, EAA). The S. enterica counts were taken from the SSA plates, the counts for naturally occurring background flora from the PBS tomatoes were taken from the PCA plates. The asterisks are indicative of the significance of the p-values from the t-test in ranked order (*** 0.0009, ** 0.0033, * 0.025, ns not significant).
Antibiotics 11 01134 g002
Antibiotics 11 01134 g003 550

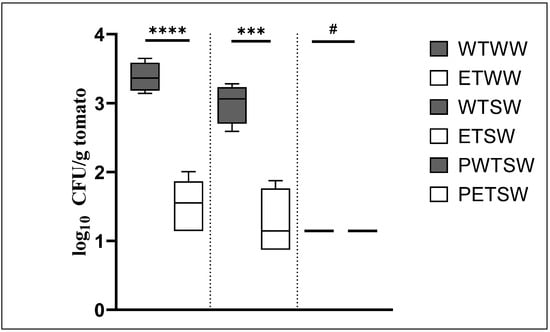

Figure 3. Recovery of S. Typhimurium FSL R6-0020 from the tomatoes by means of silwet L-77. Log reductions were calculated between the 8% EAA wash and the H2O wash. The log10 CFU/g tomato data are plotted for each of the samples (grey bars, H2O; white bars, EAA). The asterisks are indicative of the significance of the p-values from the t-tests (**** < 0.001, *** 0.0004, # not applicable as both groups yield identical data). WTWW, FSL R6-0020 with H2O wash and H2O recovery; ETWW, FSL R6-0020 with EAA wash and H2O recovery; WTSW, FSL R6-0020 with H2O wash and silwet L-77 recovery; ETSW, FSL R6-0020 with EAA wash and silwet L-77 recovery; PWTSW, PBS with H2O wash and silwet L-77 recovery; PETSW, PBS with EAA wash and silwet L-77 recovery.
Figure 3. Recovery of S. Typhimurium FSL R6-0020 from the tomatoes by means of silwet L-77. Log reductions were calculated between the 8% EAA wash and the H2O wash. The log10 CFU/g tomato data are plotted for each of the samples (grey bars, H2O; white bars, EAA). The asterisks are indicative of the significance of the p-values from the t-tests (**** < 0.001, *** 0.0004, # not applicable as both groups yield identical data). WTWW, FSL R6-0020 with H2O wash and H2O recovery; ETWW, FSL R6-0020 with EAA wash and H2O recovery; WTSW, FSL R6-0020 with H2O wash and silwet L-77 recovery; ETSW, FSL R6-0020 with EAA wash and silwet L-77 recovery; PWTSW, PBS with H2O wash and silwet L-77 recovery; PETSW, PBS with EAA wash and silwet L-77 recovery.
Antibiotics 11 01134 g003
Antibiotics 11 01134 g004 550

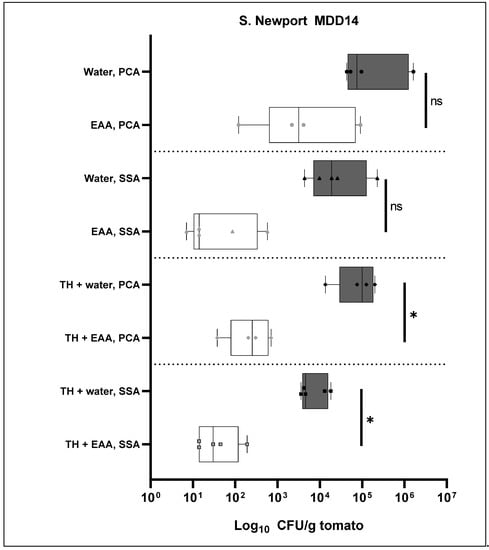

Figure 4. Effect of % tomato homogenate in the 8% EAA wash for the S. Newport MDD14 serovar. The log10 CFU/g tomato data are plotted for each of the samples (grey bars, H2O; white bars, EAA). The asterisks are indicative of the significance of the p-values from the t-test (* 0.039 and 0.021, ns not significant). TH, 1% tomato homogenate was added to the 8% EAA solution or H2O.
Figure 4. Effect of % tomato homogenate in the 8% EAA wash for the S. Newport MDD14 serovar. The log10 CFU/g tomato data are plotted for each of the samples (grey bars, H2O; white bars, EAA). The asterisks are indicative of the significance of the p-values from the t-test (* 0.039 and 0.021, ns not significant). TH, 1% tomato homogenate was added to the 8% EAA solution or H2O.
Antibiotics 11 01134 g004
Antibiotics 11 01134 g005 550

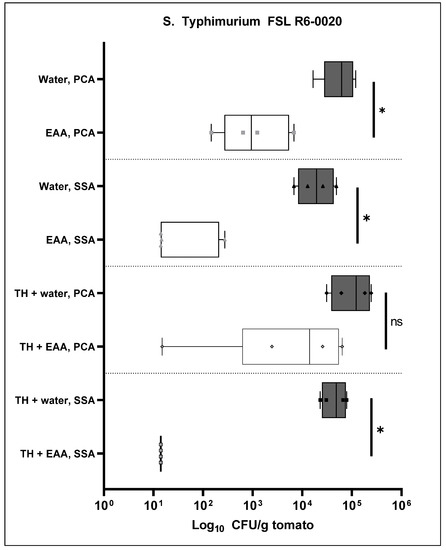

Figure 5. Effect of 1% tomato homogenate in the 8% EAA wash for the and S. Typhimurium FSL R6-0020 serovar. The log10 CFU/g tomato data are plotted for each of the samples (grey bars, H2O; white bars, EAA). The asterisks are indicative of the significance of the p-values from the t-tests (* 0.0293, 0.0426, 0.0175, ns not significant). TH, 1% tomato homogenate was added to the 8% EAA solution or H2O.
Figure 5. Effect of 1% tomato homogenate in the 8% EAA wash for the and S. Typhimurium FSL R6-0020 serovar. The log10 CFU/g tomato data are plotted for each of the samples (grey bars, H2O; white bars, EAA). The asterisks are indicative of the significance of the p-values from the t-tests (* 0.0293, 0.0426, 0.0175, ns not significant). TH, 1% tomato homogenate was added to the 8% EAA solution or H2O.
Antibiotics 11 01134 g005
Table
Table 1. Examples of currently used anti-microbials to reduce S. enterica on tomatoes.
Table 1. Examples of currently used anti-microbials to reduce S. enterica on tomatoes.
Anti-MicrobialConcentrationIncubation TimeLog ReductionReference
EAA8%5 min1.5 to 3.4This study
Chlorine-simulated wash25 to 150 mg/L free chlorine1 min2 to 3 log[8]
Chlorine8 ppm free chlorine2 min2.6 log[19]
ClO2~12 g/m330 min~3 log at 15 °C[20]
Peroxyacetic acid (PAA)8 ppm free chlorine plus 1% PAA2 min~1.7 log at 25 °C[19]
PAA plus sulfuric acid90 ppm60 s1.75 log[21]
Varies organic acids0.5%1 min2.7 log[22]
Pelargonic acid0.5%0 h>1 log[23]
Nisin based organic acid10%5 to 30 min~ 2 log[24]
Water-assisted UV (WAV)NA 3.6 log[25]
Mycoviridae/Syphoviridaecocktail3 days>4 log[26]
Table
Table 2. Bacterial serovars for our study.
Table 2. Bacterial serovars for our study.
Bacterial SerovarAlternative DesignationATCC IDReference
S. Typhimurium FSL R6-0020TB0041Not depositedwww.foodmicrobe-tracker.com, accessed on 25 August 2021 [33]
S. Typhimurium LT2 (ATCC 19585)
LT2ATCC 19585[34,35,36]
S. Newport MDD14TB0581Not deposited[37]
