Development of the Zn-ZnO(Nw)@CuMnO₂ Heterojunction by Low Temperature Zn Foil Oxidation for Gas Sensor Fabrication

Abstract

In this study, the Zn-ZnO(Nw)@CuMnO₂ heterostructure was successfully achieved by deposition of a bidimensional CuMnO₂ film on the ZnO nanowires (NWs) layer, by the spin coating method. The novelty of this research is related to the growth of ZnO NWs by thermal oxidation at low temperatures, below the melting point of the Zn foil in a controlled atmosphere consisting of a mixed flow gas, Ar and O₂. The structural and morphological properties of the heterostructures were assessed by XRD, UV-Vis, and SEM techniques. The as-obtained gas sensors based on Zn-ZnO(Nw)@CuMnO₂ heterostructures were tested to detect 400 ppm. CO₂ concentration at variable testing temperatures inside the testing chamber. The maximum sensibility value of 85.5% was obtained at the lowest operating temperature of 150 °C for the ZnO_Nw5@CMO sensor, and when the temperature was increasing to 200 °C the sensibility response of 95.4% was recorded for the ZnO_Nw7@CMO sensor. Current-voltage and current-time measurements were performed under different conditions to assess the heterojunction behavior and sensibility of the gas sensor.

1. Introduction

Due to the progress of society and the development of technology, the considerable problems of air pollution have raised increasing problems in the environment and especially in human life. In recent decades, low-cost, small, sensitive, selective, and reliable gas sensors with reduced power consumption and enhanced performance have received a lot of attention because of their usefulness for detecting flammable or toxic gases. Today, several research efforts have been conducted to help develop and improve different types of gas sensors.

The increase in the concentration of CO₂ in the atmosphere is one of the main causes of climate change, leading to global warming. Furthermore, long-term exposure to high concentrations of CO₂ can be lethal to humans. Carbon dioxide (CO₂) sensors play an important role in various applications, such as air quality and greenhouse gas monitoring, fire detection, intelligent food packaging, medical diagnosis, and electronics [1,2]. Currently, many researchers have pursued the development of inexpensive and miniaturized CO₂ sensors, so there are many types of CO₂ gas sensors, such as gas chromatography (GC) and mass spectrometer (MS) [3], Severinghaus electrode [4], optical [5], electrochemical [6], acoustic [7], work function [8], and capacitive-based sensors [9,10]. Therefore, it is necessary to implement a sensor that can detect CO₂ in the air with excellent sensitivity and with good response and recovery times. Metal oxides that are characterized as semiconducting transition (TiO₂, Fe₂O₃, NiO, Cr₂O₃) and post-transition (ZnO, SnO₂) are good candidates to be used as gas sensors. Moreover, these oxides are presented in different morphologies, sizes, and nanostructures (nanoparticles (NP), nanotubes (NT), nanocenters and nanowires (NWs)), they are found at low cost and flexible production, show high sensitivity and portability [11,12]. Due to their remarkable performance in electronics, optics, and photonics, ZnO nanoparticles are attractive candidates for many applications such as UV lasers, light-emitting diodes, solar cells, nanogenerators, gas sensors, photodetectors, and photocatalysts [13]. ZnO nanostructures with various morphologies, including wires [14], belts [15], tubes [16], rods [17], rings [18], sheets [19], and tetrapods [20] can be easily synthesized using chemical vapor deposition (CVD) [21], infrared irradiation, thermal evaporation, and thermal decomposition [22], laser-assisted vapor–liquid–solid growth [23], electrochemical deposition, sol-gel method and hydrothermal process [24,25]. The thermal oxidation technique can be used to fabricate ZnO nanowires because it is a relatively facile, low-cost, nonhazardous, and high-quality technique. In this case, temperature plays an important role in the thermal oxidation process, usually varying from 200 °C to 1000 °C [26]. Depending on the melting temperature (420 °C) and the boiling temperature (907 °C) of zinc, its oxidation mechanism can vary with the annealing temperature, so the morphology of the grown ZnO nanostructures can be changed from nanowires to tetrapods. This happens when the applied temperatures are below the zinc melting point or between the melting and boiling points of zinc or above the Zn boiling point, respectively. ZnO NWs are one of the most studied metal oxide nanostructures due to their wide potential applications in electronics, optoelectronics, sensors, energy harvesting devices, superhydrophobic surfaces, etc. [27,28]. The synergy between ZnO and other metal oxides forms a heterojunction that enhances gas-sensing properties. B. Huang et al. prepared n-ZnO@n-In₂O₃ core–shell nanofibers by electrospinning and demonstrated that since the Fermi level of In₂O₃ is higher than that of ZnO, electrons will be transferred from In₂O₃ to ZnO until the Fermi level of the two materials reaches equilibrium, and thus the depleted electron layer is formed on the In₂O₃ side. The formation of the depleted electron layer affects the barrier and electron transport of the material, thereby improving the gas sensitivity. The test results also indicated that the response of 57.98 of the ZnO@In₂O₃ core–shell nanofibers to 200 ppm ethanol at 225 °C was reached [29]. C.-J. Chang et al. successfully synthesized some structures based on ZnO nanorods [30] and Ce-doped ZnO nanorods, respectively, for fabrication of NO₂ gas sensors at low temperature of 100 °C [31]. C. Han et al. combined electrospinning, atomic layer deposition technology, and calcination to controllably prepare one-dimensional hollow p-CuO/n-ZnO nanofibers and analyzed the gas sensing properties of H₂S. The results showed that the construction of the CuO/ZnO heterostructure was approximately 6 and 45 times higher than that of pure ZnO and pure CuO [32,33,34]. C. L. Hsu et al. have synthesized nanostructured n-ZnO/p-CuMnO₂ core–shell nanowires by the sol-gel method that can improve the gas detection and photoresponse of these nanomaterials [35].

CuMnO₂ is a p-type of metal oxides known as the delafossite type and in combination with n-type oxides (e.g., TiO₂, ZnO), the resulting heterojunctions have high sensing properties for application in sensor devices [36]. M. Nicolaescu et al. obtained good results in the field of light detection by synthesizing UV photodetectors based on n-type TiO₂ and p-type CuMnO₂ heterojunction through a simple and low-cost method [37]. Furthermore, C. Lazau et al. reported the fabrication of a self-powered photodetector with the FTO/n-TiO_2/p-CuMnO₂ configuration, which demonstrated that the transparent heterojunction device of n-TiO_2/p-CuMnO₂ exhibited excellent properties in the self-powered mode with high sensitivity [38]. Taking into account the previous research results [36,37,38], within this paper, the research results are related to the growth of ZnO NWs by thermal oxidation at low temperature, to achieve the heterostructure type on Zn-ZnO(Nw)@CuMnO₂ with application as gas sensors for CO₂ detection.

2. Materials and Methods

2.1. Chemicals

All reagents were of analytical purity grade and used without further purification, as follows: Zn foil (thickness 0.25 mm, 99.9% purity), α-terpinol, ethyl cellulose, acetone, ethyl alcohol, Cu(NO₃)₂·3H₂O, Mn(NO₃)₂·4H₂O, sodium hydroxide were purchased from Sigma-Aldrich Company (St. Louis, MO, USA). The CuMnO₂ nanocrystalline compound used in this research was obtained by microwave-assisted hydrothermal method at 180 °C for 5 min using Cu(NO₃)₂·3H₂O, Mn(NO₃)₂·4H₂O and sodium hydroxide, as previously reported [39].

2.2. Fabrication of Zn-ZnO(Nw)@CuMnO₂ Heterostructures

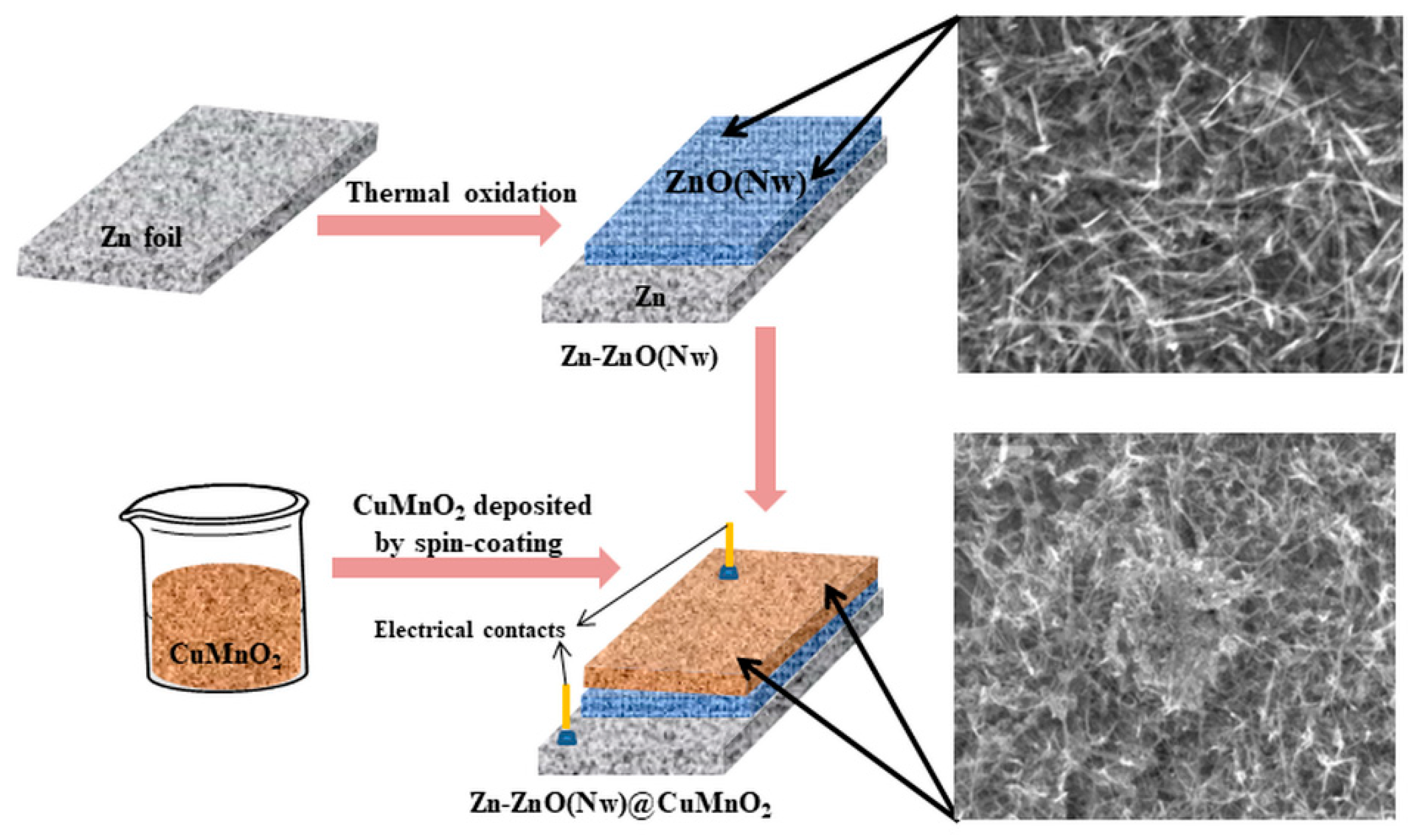

The achievement process of the Zn-ZnO(Nw)@CuMnO₂ heterostructures for the fabrication of the gas sensor is schematically illustrated in Figure 1. Initially, the Zn foil (an effective area of 1 × 1 cm) was cleaned with acetone, ethanol, and DI water in an ultrasonic bath, followed by drying at room temperature and treated for 30 min in UV ozone Cleaner (Ossila Producer). For the formation of Zn-ZnO (NW) structures, the thermal oxidation of Zn foil was performed in a tubular furnace in a controlled atmosphere of mixed gas flow Ar and O₂, with a controlled flow of 100 mL/min. The working parameters (temperature and time) and sample codes are presented in

Table 1. The working parameters for the thermal oxidation of the Zn foil, ZnO crystallite sizes, the average length of ZnO NWsand sensor code.

Sample Support	ZnO Crystallite Size (nm)	ZnO (NWs) Length (nm)	Temperature (°C)	Time (h)	Sensor Code
Zn-ZnONw1	15.40	-	300	6	ZnONw1@CMO
Zn-ZnONw2	15.40	54.49	350	2	ZnONw2@CMO
Zn-ZnONw3	16.20	46.18		4	ZnONw3@CMO
Zn-ZnONw4	17.70	62.17		6	ZnONw4@CMO
Zn-ZnONw5	22.06	91.03	400	2	ZnONw5@CMO
Zn-ZnONw6	23.28	134.33		4	ZnONw6@CMO
Zn-ZnONw7	22.34	85.29		6	ZnONw7@CMO

. The as-obtained Zn-ZnO (NW) structures were used for sensor fabrication, except for the support obtained at 300 °C for 6 h (Zn-ZnO_Nw1), as it was observed that the ZnO layer grew insufficiently for the studies proposed in this work. The deposition of the CuMnO₂ film (0.1 g of CuMnO₂ solution diluted with 1 mL ethanol) on the Zn-ZnO (NW) structures was achieved by the spin-coating method (WS-400-6NPPB Spin Coater-Laurell Technology Corporation), with a speed rotation of 2000 rpm for 10 s, the process being repeated twice. The deposition solution based on the 0.3 g CuMnO₂ powder, ethylcellulose (6 mL) and α-terpinol (6 mL) was mixed in the ball mill (Lab Mills lx QM vertical planetary ball mill) at a frequency of 40 kHz for 15 h. Finally, a thermal treatment at 250 °C for 1 h was applied to the as-obtained Zn-ZnO(Nw)@CuMnO₂ heterostructures. To collect measurement parameters, metal wires were affixed with silver paste, as follows, one wire on the Zn foil (in contact with ZnO “n” component) and the other on the CuMnO₂ film (“p” component).

2.3. Sensor Testing

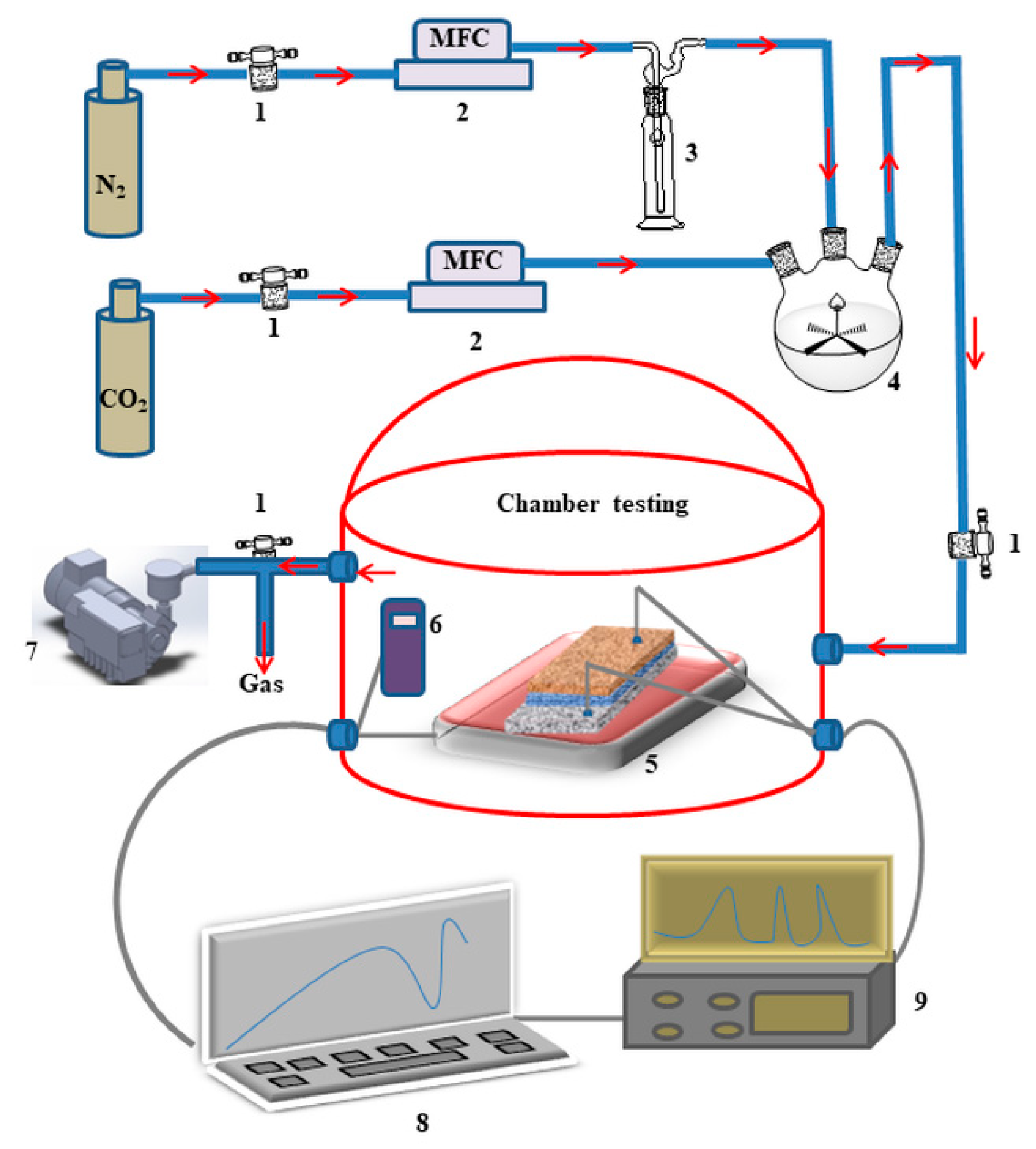

To measure the response of the sensors, experiments were carried out in which the CO₂ gas concentration of 400 ppm was kept constant, and the working temperatures varied as follows: 25, 50, 100, 150, and 200 °C. All tests were performed in continuous gas flow with an applied voltage to the sensors of about 2 V and a humidity in the test chamber of about 50%. For assessment of response performance, the sensors were placed in a testing chamber equipped with humidity and temperature controllers. Thus, the heater (equipped with a temperature controller) was placed below the as-obtained sensor (ZnO_NW@CMO). To increase the flow turbulence and maximize the mixing of the gases, a mixer was placed prior to testing chamber. All components of the sensor testing installation are presented in Figure 2.

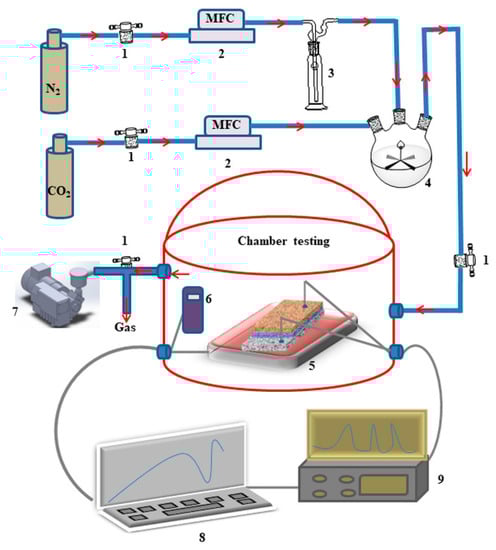

The sensor testing experiment consisted of the following steps: (a) the sensor was placed and connected to the measuring devices in the test room; (b) vacuum was created in the installation; (c) argon was introduced, in flow, to clean the installation and the surface of the sensor; (d) vacuum was created in the installation; (e) the humidified CO₂-N₂ mixture was introduced and when the equilibrium state was reached. Before the next sensor testing experiment, the installation was extensively purged with nitrogen, and all previously presented steps were followed again.

2.4. Morpho-Structural, Electrical and Optical Characterization

X-ray diffraction analysis (XRD, PANalytical X’Pert PRO MPD Diffractometer, Almelo, The Netherlands) with Cu-Kα radiation (λ = 1.5418 Å) in the range of 2theta = 20–80° was used for the structural characterization of the samples. The morphological properties of the as-obtained structures were studied by scanning electron microscopy (SEM, FEI Inspect S model, Eindhoven, The Netherlands) both for Zn-ZnO (NW) structures and for ZnO_Nw@CMO sensors. Electrical measurements of the as-obtained gas sensors were performed using the Keithley 2450 SourceMeter SMU Instrument (Keithley Company, Cleveland, OH, USA). Current-voltage (I–V) measurements were achieved for Zn-ZnO(Nw)@CuMnO₂ heterostructures in forward bias with ‘−’ in the ‘n’ area (Zn electrode), and ‘+’ in the metallic wire placed on the p-type semiconductor layer (CuMnO₂), applied voltage range between −2 V and + 2 V, with a step rate of 10 mV/s. To determine the band gap E_g by plotting Kubelka-Munk function against energy (eV), the optical analysis was recorded by UV-VIS analysis (PerkinElmer Lambda 950 UV/Vis spectrophotometer, Shelton, CT, USA).

3. Results and Discussion

3.1. Structural and Morphological Characteristics

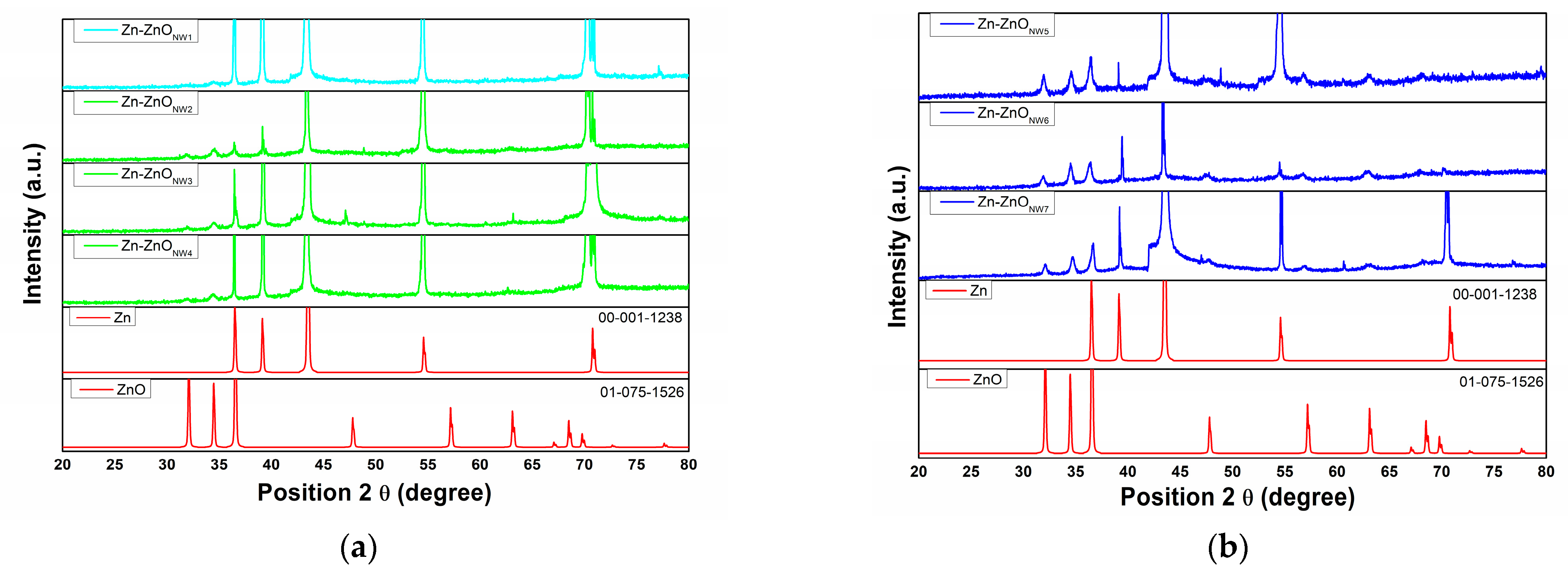

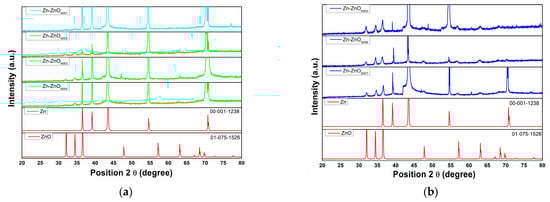

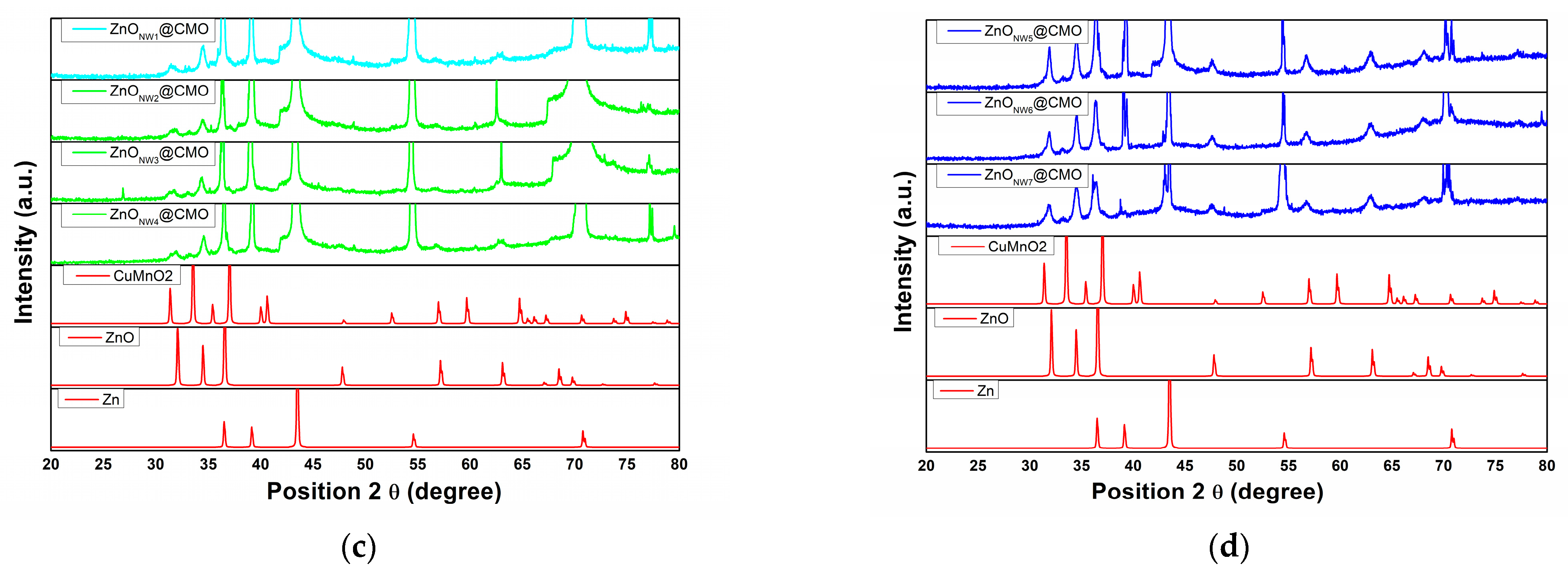

Figure 3 shows the X-ray patterns for the as-synthesized heterostructures. In Figure 3a,b are presented the XRD spectra for Zn-ZnO (NW) structures obtained under different synthesis conditions, as presented in the experimental program described in Table 1. Thus, all peaks observed for the different Zn-ZnO (NW) supports presented at 2theta: 31.6°, 34.4°, 36.2° and 47.5° (JCPDS 01-079-0205), respectively, confirmed the hexagonal structure of the ZnO crystal. Additionally, specific peaks of Zn from substrate foil were identified at 2theta: 36.2°, 38.9° and 43.2° (JCPDS 00-001-1238). As can be seen, in all XRD patterns, a partial transformation from Zn to ZnO (NW) occurred due to the low working temperatures below the melting point of Zn (419 °C) [40]. With increasing oxidation temperature, ZnO peaks are more pronounced, and according to literature data the total transformation of Zn to ZnO is achieved at a temperature of 550 °C [41]. Additionally, the average crystallite sizes of the ZnO NWs presented in Table 1 were calculated using the Debye–Scherrer formula.

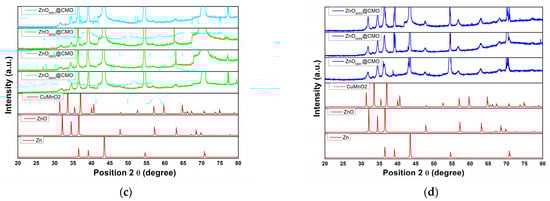

The XRD patterns of the as-synthesized sensors based on Zn-ZnO(Nw)@CuMnO₂ heterostructures presented in Figure 3c,d show that the specific peaks for CuMnO₂ (crednerite phase) at 2theta are identified: 33.0°, 35.30°, 39.36°, 79.36° (JCPDS 01-071-1143) and Zn, ZnO, respectively, which proves the deposition of the CuMnO₂ films on the Zn-ZnO (NW) layers.

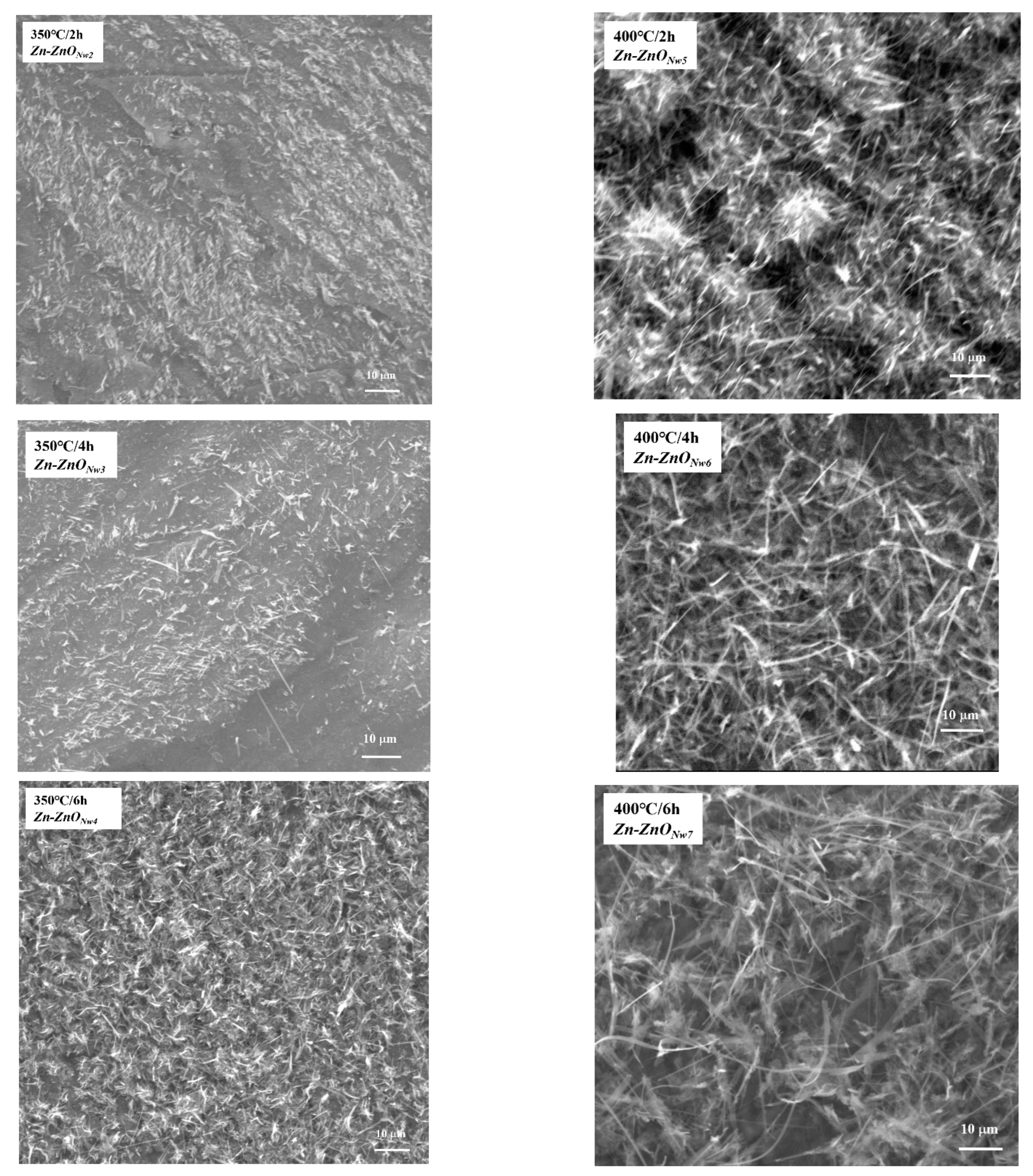

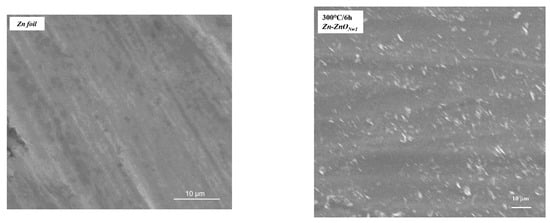

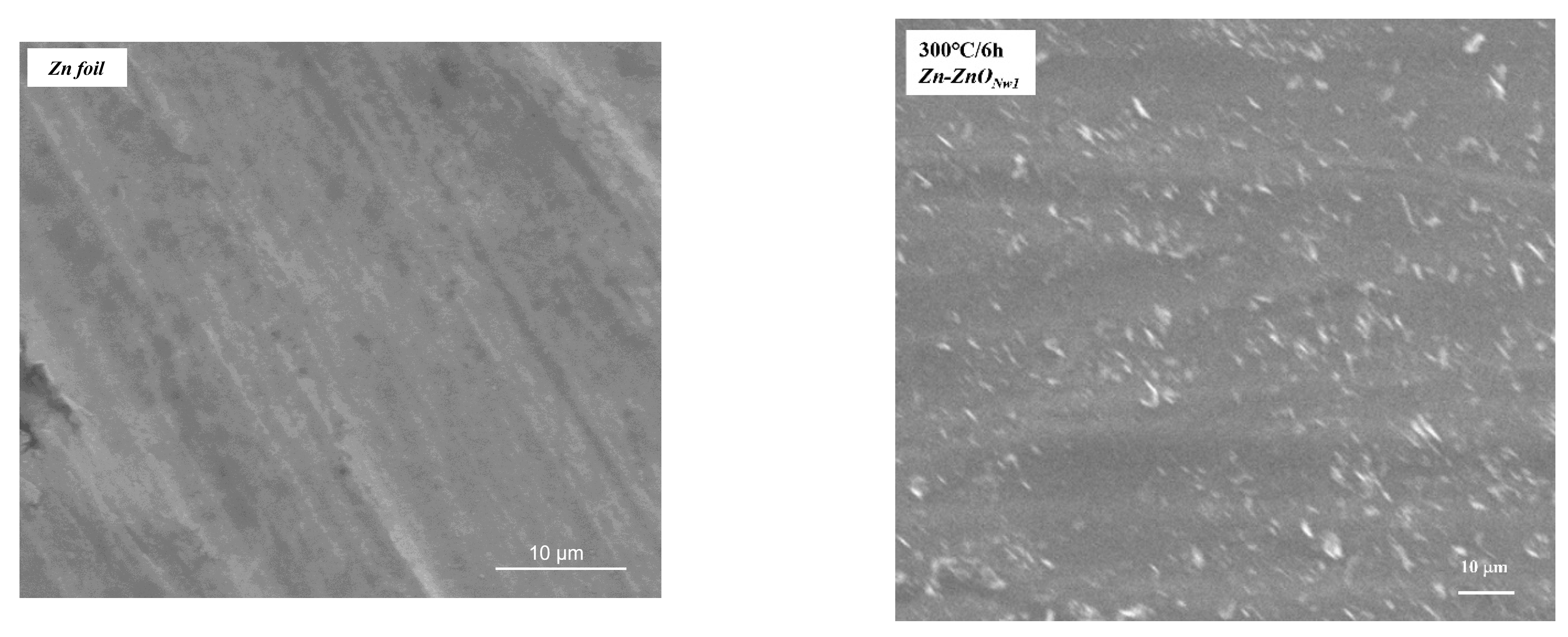

Figure 4 shows the SEM morphologies of the Zn-ZnO (NW) layers obtained at different temperatures and times, according to the experimental program shown in Table 1. Moreover, the average length of ZnO NWs was measured from SEM images using imageJ software, presented Table 1. From the SEM image, it can be seen that at an oxidation temperature of 300 °C for 6 h, there is an easy transition from nanoparticles to ZnO NWs on the surface of the Zn foil. By increasing the oxidation temperature to 350 °C, the ZnO NWs almost completely cover the surface of the Zn foil, and at the time of 6 h, the nanowires are well defined. At an oxidation temperature of 400 °C, the surface of the Zn foil is covered with a dense layer of ZnO and the growth directions of the nanowires are randomly oriented. Therefore, the length of ZnO NWs is directly proportional to the treatment time at an oxidation temperature of 400 °C.

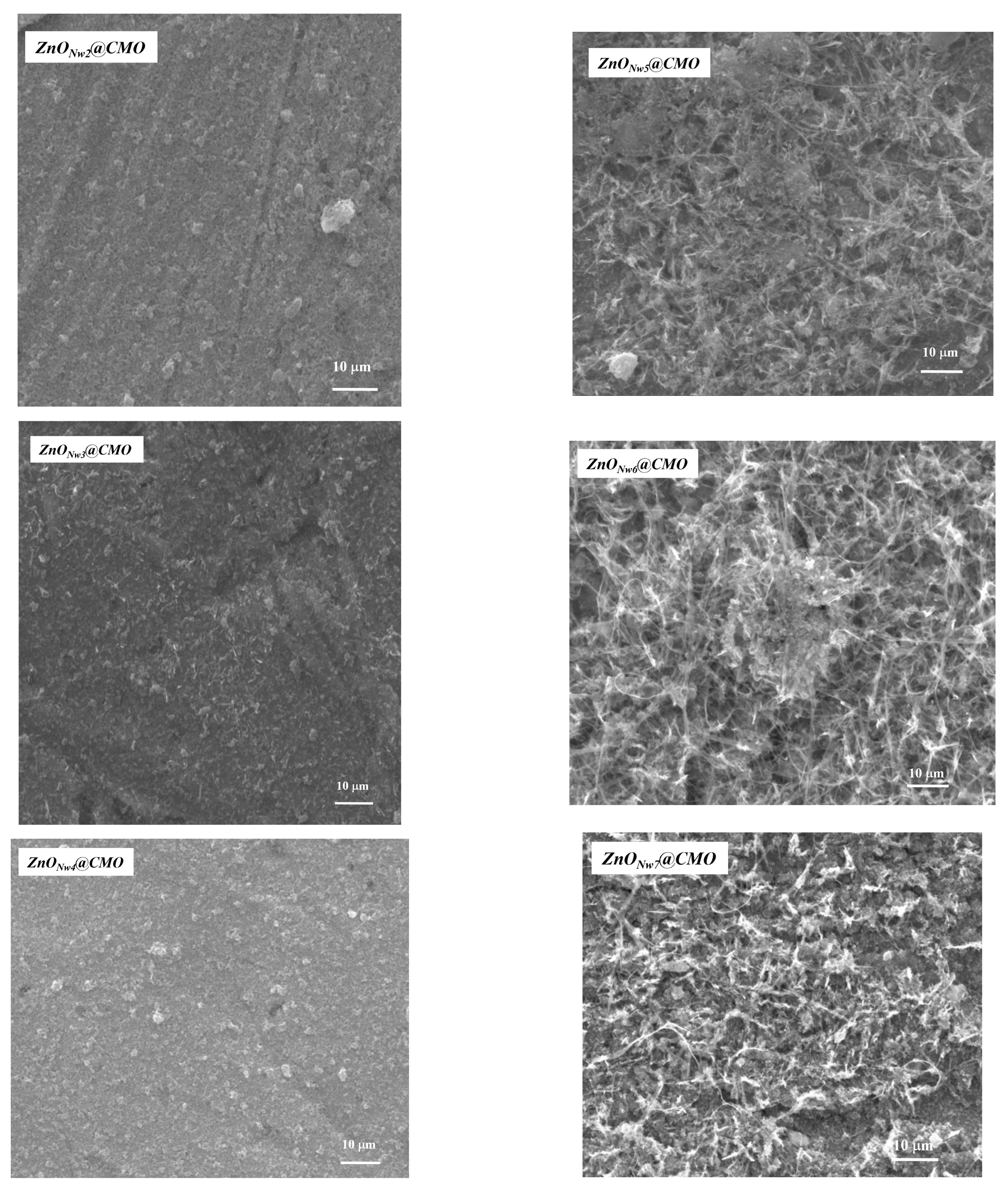

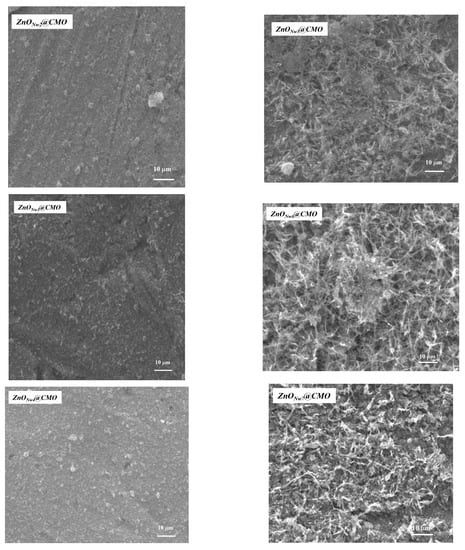

The morphologies of the as-obtained ZnO_Nw@CMO sensors are presented in Figure 5. From the images, it can be observed that CuMnO₂ films completely coated the Zn-ZnO (NW) layers in the case of the ZnO_Nw2@CMO, ZnO_Nw3@CMO and ZnO_Nw4@CMO sensors, instead of the ZnO_Nw5@CMO, ZnO_Nw6@CMO and ZnO_Nw7@CMO sensors the CuMnO₂ film presents a nonuniform coating on the ZnO NWs, because of random growing of the ZnO NWs on the Zn foil surface.

3.2. Optical and Electrical Properties

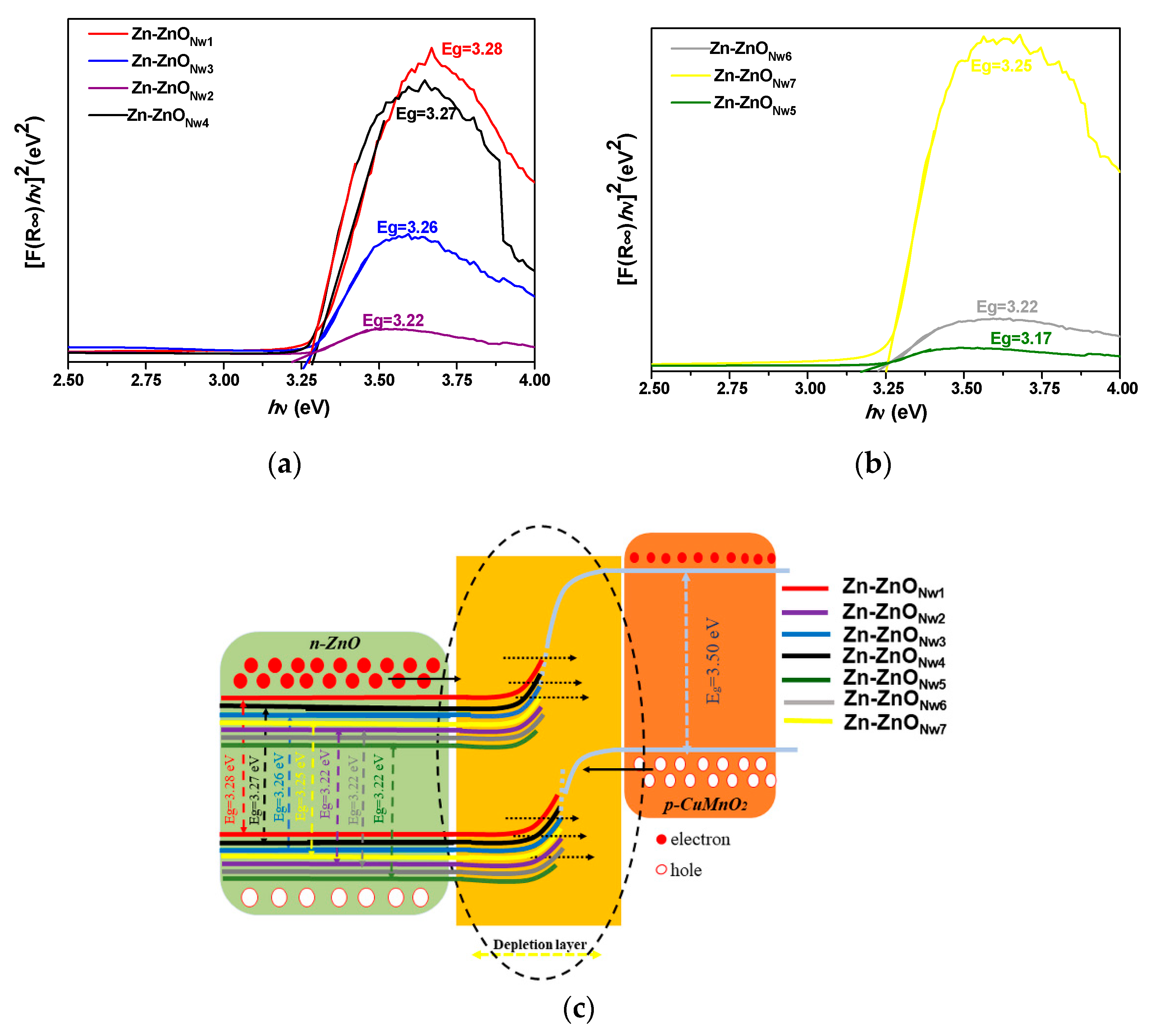

Figure 6 shows the optical band gap energy of the as-synthesized Zn-ZnO (NW) structures calculated by the Tauc plot using Equations (1) and (2), where α, hυ, A and n denote the absorption coefficient, photon energy, a constant and an exponent, respectively. The Eg optical band gap energy is derived from the intersection of the straight line with the hυ-axis of the Tauc plot [37] (Figure 6a,b).

𝐸𝑔 = 1240/𝛾

(1)

𝛼h𝑣 = 𝐴(h𝑣 − 𝐸𝑔 ) ^𝑛

(2)

The minimum and maximum band gaps of ZnO (NWs) are between 3.17 and 3.28 eV, for the samples synthesized at 300 °C and 400 °C. The band gap is slightly lower than the band gap energy at 3.37 eV of a perfect ZnO crystal [25]. Moreover, the thermal energy produced by heating the sample leads to a slight increase in the energy bandgap [42]. The p-type CuMnO₂ semiconductor has a slightly wide band gap at 3.5 eV [39]. The energy diagram of ZnO(NW)@CuMnO₂ heterojunction is presented in Figure 6c. Heterojunction metal oxide sensors compared with a single metal oxide sensor show improved performance in sensing targeted gases. When a different semiconductor is in contact, because of the different Fermi levels of the metal oxide in the as-constructed junctions lead to the formation at the interface of a depletion layer and an accumulation layer. Because of the inconsistent Fermi levels of the metal oxide, the electrons will be transferred from the higher to lower Fermi levels until the junction reaches an equilibrium state, resulting in the formation of a potential barrier between them. The inflexion of the accumulation layer thickness influences the conductivity of the sensors; therefore, improving the gas sensitivity. Furthermore, the metal oxide heterojunction shows a higher specific surface area compared to single metal oxides. The higher specific surface area allows gas molecules to diffuse more lightly to the surface and have a higher probability of interaction with the junction, and it also ensures a more active surface [43].

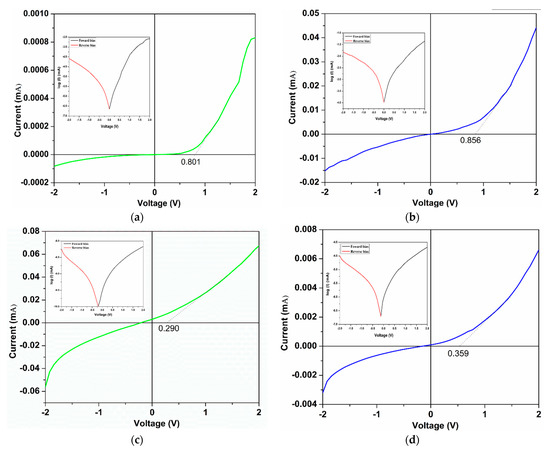

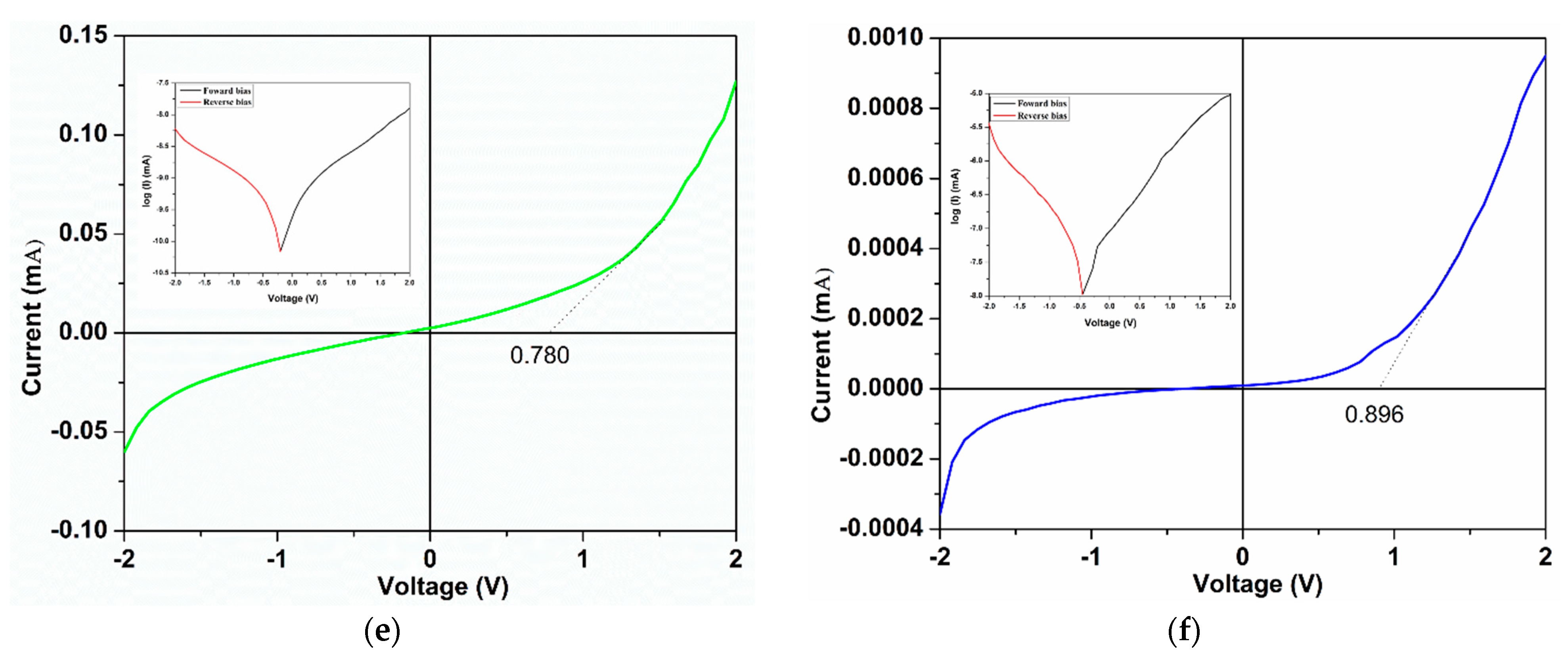

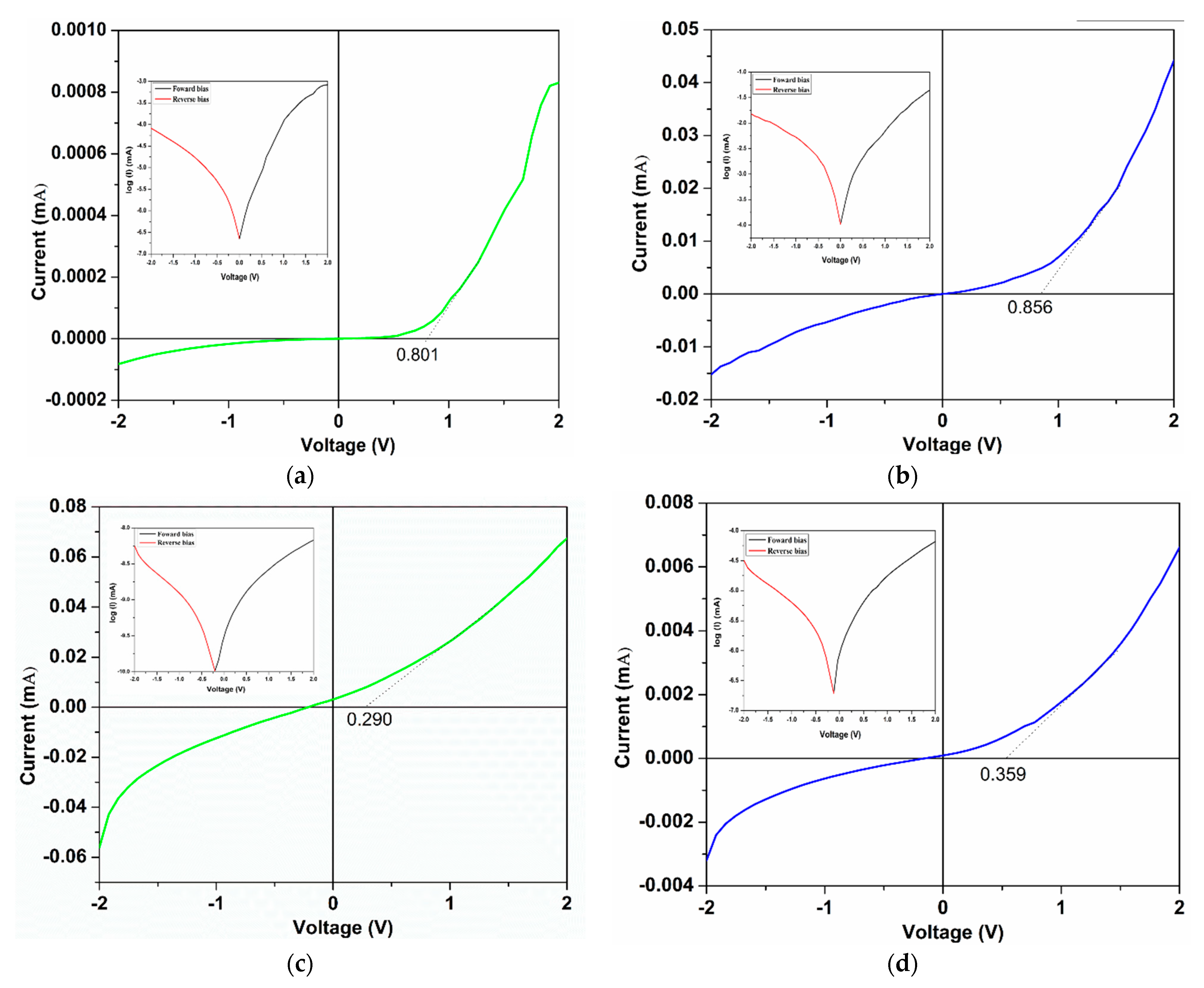

Figure 7a–f presents the I-V curves of the experimental sensor type on ZnO_Nw@CuMnO₂ heterojunction, revealing a good rectifying behavior and demonstrating that the working parameters for the fabrication of the supports directly influence the electrical parameters. Thus, an increase in the forward bias current can be seen from 0.0082 mA for the ZnO_Nw2@CMO to 0.12 mA for the ZnO_Nw4@CMO sample, this increasing more than 100 times is due to the large number of charger carriers generated by the growth of ZnO on the Zn surface (Figure 7a–c). Instead, a decrease in current was observed for ZnO_Nw5@CMO from 0.043 mA to 0.0095 mA, probably generated by the narrowed heterojunction interface (Figure 7d). The I-V results show that the turn-on voltages vary nonlinear according to the holding time of the thermal oxidation process of the Zn foil, with a slight increase for the samples oxidized at 400 °C, this aspect can be associated with the increase in the specific surface area generated from the process parameters (Figure 7e,f). The high surface area to volume ratio of the ZnO_NWs@CuMnO₂ heterojunction enhances surface absorption, increasing charge carrier concentration in the depletion region. The rectifying behavior and an increase in the asymmetry between the forward and reverse bias are due to the n-ZnO/p-CuMnO₂ heterojunction, as ohmic contacts have been established between the electrodes and the semiconductor [44,45].

The thermionic emission relation was used to evaluate the current-voltage relationship of the characteristics of the established junction. The reverse saturation current (I₀) and the ideality factor (n) can be calculated as in our previous paper [38] from the line region of forward bias in the Log (I)–V plot, presented in the inset of Figure 7. The reverse saturation current (I₀) and the ideality factor (n), along with previous electrical parameters such as: turn-on voltage (V_T), current under forward bias (I_F), current under reverse bias (I_R) for all as-obtained sensors, are presented in

Table 2. Electrical parameters of the as-obtained ZnO_Nws@CMO sensor.

Sensors	VT (V)	IF (mA)	IR (mA)	n	I0 (A)
ZnONW2@CMO	0.801	8.2 × 10−4	8.9 × 10−5	4.17	8.41 × 10−7
ZnONw3@CMO	0.290	6.7 × 10−2	5.6 × 10−2	23.03	130 × 10−7
ZnONw4@CMO	0.780	12 × 10−2	6.0 × 10−2	27.81	134 × 10−7
ZnONw5@CMO	0.856	4.3 × 10−2	1.5 × 10−2	11.45	0.52 × 10−7
ZnONw6@CMO	0.359	6.6 × 10−3	3.1 × 10−3	21.16	3.72 × 10−7
ZnONw7@CMO	0.896	9.5 × 10−4	3.5 × 10−4	32.71	11.69 × 10−7

.

The results show that for the as-obtained ZnO_Nw3@CMO, ZnO_Nw4@CMO, ZnO_Nw6@CMO, and ZnO_Nw7@CMO sensors, the large ideality factor (1 < n < 2) indicates that the junction is far from ideal [46,47]. In the case of ZnO NWs, the zinc and oxygen layers parallel to the basal plane produce a dipole moment that leads to a potential gradient that influences the symmetry of the current flow along the c-axis [47,48]. However, in this study because the dipole orientation does not vary statistically between the wires, another explanation could be that different barrier heights are formed on both ends of the nanorod [49,50]. Breitenstein et al. introduced a mechanism to describe ideality factors, which is based on defects of the quasi-neutral zone and pair recombination from the junction [51]. Based on our results, the ideality factors increase proportionally with the working parameters for the Zn-ZnO_Nws supports sensor, confirming Breitenstein et al.’s model because with zinc oxidation, a greater number of defects appear [50,51]. Thus, the lower factor n at 4.17 for the heterojunction n-ZnO/p-CuMnO₂ is obtained for the ZnO_Nw2@CMO sensor (Zn foil at 350 °C/2 h) and the largest at 32.71 for the ZnO_Nw7@CMO sensor (Zn foil at 400 °C/6 h). The reverse saturation current is also directly proportional to the holding time and decreases at a higher oxidation temperature. This change in the reverse saturation current is the attribute of diffusion of minority charger carriers from the neutral region to the depletion region, generating a narrowed or increased heterojunction interface. Furthermore, from the semilogarithmic forward and reverse biases for the as-obtained ZnO_Nws@CMO sensors, a high increase in asymmetry between the forward and reverse biases is observed, showing that all heterojunctions work at a higher rectification value.

3.3. Sensing Properties of the ZnO_Nw@CMO Sensors

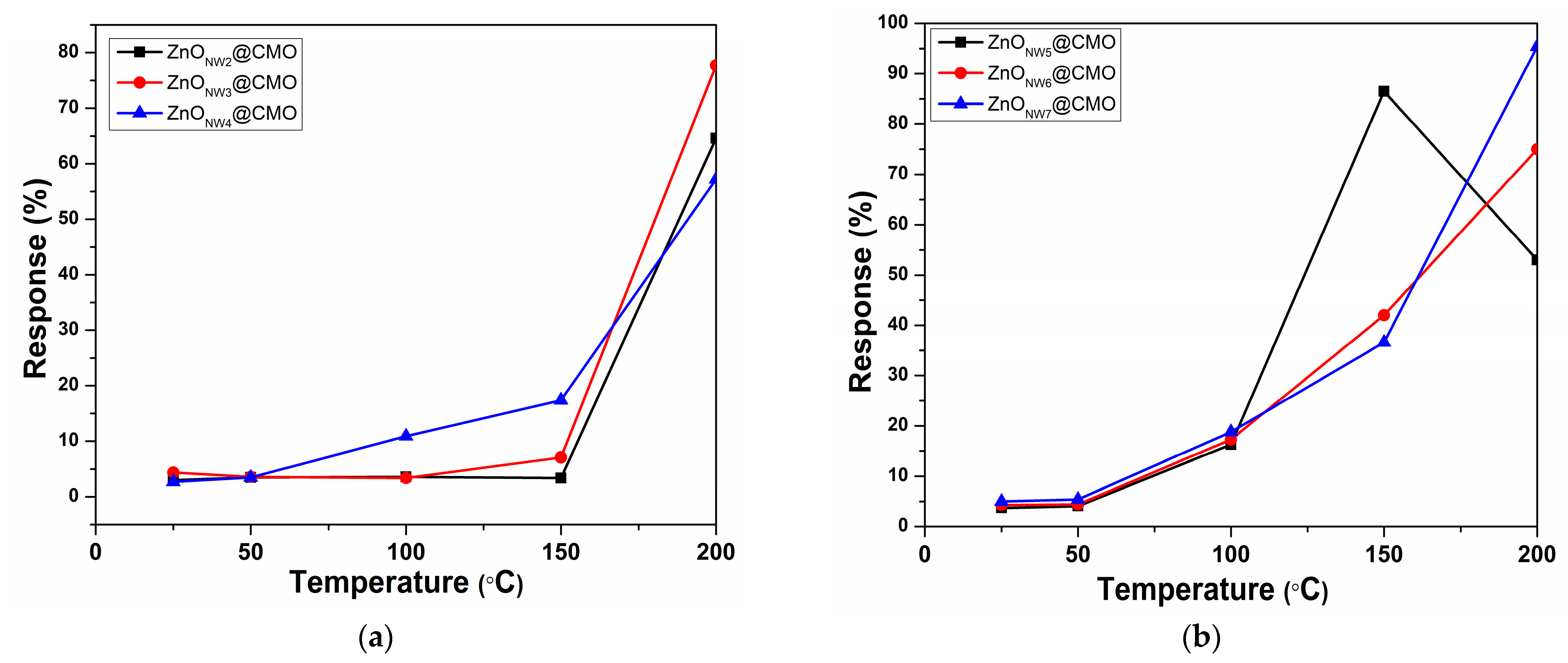

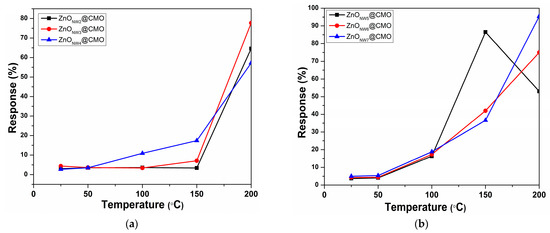

The sensing characteristics of the as-obtained ZnO_Nws@CMO sensors at 400 ppm CO₂ concentration and variable testing temperatures are presented in Figure 8. Response (R) was calculated based on Equation (3) [52], where I_CO2 and I_N2 indicate the current generated during the flow of CO₂ and N₂, respectively.

$$\mathrm{R} = (I_{CO2}-I_{N2})/I_{N2} \times 100$$

(3)

Figure 8a presents a plot of the testing temperature versus the response of the as-obtained sensors where the ZnO NWs were grown at 350 °C, demonstrating that a very low reaction occurred at a temperature below 100 °C. The response increased rapidly depending on the test sensor with increasing testing temperature, the maximum response value being obtained at 200 °C for all test sensors. The ZnO_Nw4@CMO sensor shows a high response at low temperature below 150 °C, but the maximum response is reached by the ZnO_Nw3@CMO sensor at a response value of approximately 77.5%, showing a dependence between the working parameters and the testing temperature in the testing chamber. Figure 8b presents the results of the testing temperatures versus the response of the ZnO NWs heterojunction sensor grown at 400 °C. A reduced response occurs at a temperature below 100 °C, where all tested sensors have approx. 17% response values. For the ZnO_Nw5@CMO sensor, the maximum value is at 150 °C and after that the response value declined. Instead, for the ZnO_Nw6@CMO and ZnO_Nw7@CMO sensors, the maximum values of the responses are at 200 °C, and these values linearly increase directly proportional to the testing temperature. The maximum response is obtained for the ZnO_Nw7@CMO sensor at 95.4%, indicating that a high surface area to volume ratio of ZnO_NW improves the response values.

Table 3. Different structures for CO and CO₂ detection.

Material	Morphologies	CO2 (ppm)	Operating Temperature (℃)	Response (%)	Reference
Ti/TiO2/LSCNO	Nanotubes	400	200	38.41	[52]
rGO/NiO-In2O3	Nanospheres	50	25	40	[53]
Au-ZnO	Nanowires	200	250	80	[54]
La-ZnO	Nanorods	5000	400	65	[55]
SnO2/CuO	nanofilm	500	180	12	[56]
Zn/ZnO/CuMnO2	Nanowires	400	150	85.5	This work
Zn/ZnO/CuMnO2	Nanowires	400	200	95.4	This work

summarize different morphologies and operating temperatures for CO and CO₂ detection.

A low crystallite size of ZnO NWs between 15 and 23 nm was obtaining by thermal oxidation of zinc plate (presented in Table 1). According to Hung et al., an exponentially enhanced of the sensitivity is obtained when the grain size and the space-charge length are in the same range. Thus, for SnO₂ sensor the range of grain size/space-charge length was about 6 nm, this ratio allowing the sensors to be operated in the grain-controlled mode [57]. Moreover, Chen et al. presented a significantly improved in the gas sensitivity by decreasing the grain size (about 15 nm) of the ZnO NWs [58]. In our study, since a low increase in crystallite size is generated by the oxidation parameter, we do not find a direct relation of the crystallite size to sensor response. Thus, for the as-synthesized sensors we believe that the high response of the CO₂ sensor can be attributed to the small crystallite size and high surface-to-volume ratios associated with the poly-crystalline nanowires. Additionally, the surface-to-volume ratios of NWs generate by increasing the oxidation temperature is the principal parameter which improve the response in our case. For the as-described sensors, it is believed that the high sensitivity and reversibility under ambient conditions can be attributed to the intrinsically small crystallite size and high surface-to-volume ratios associated with the polycrystalline nanowires.

Because the working mechanism of the junction is not like a classical p-n junction, and the junction works more based on defects in the quasineutral zone and pair recombination from the interface, the junction parameter does not directly influence the response of the gas sensor. The heterojunction sensor in this study worked on the conductance of the film, and by the difference potential barrier of the n-p metal oxide. The oxidant gas is adsorbed on the CuMnO₂ surface and introduces a potential barrier. Thus, a high-conductivity zone is formed that facilitates the mechanics of transport to the junction interface and generates an enlargement of the heterojunction interface, resulting in a good response device.

4. Conclusions

This work reports, for the first time, the growth of ZnO NWs by thermal oxidation in a mixed gas flow of 95% Ar and 5% O₂ at low temperature (300 °C and 400 °C) below the melting point of the Zn. Moreover, as-obtained sensors (ZnONw@CMO based on n-ZnO and p-CuMnO₂) with high detection response of CO₂ were successfully produced. The structural, morphological, optical, and electrical properties of the Zn-ZnO_Nw and ZnO_Nw@CMO structures were studied. From X-ray patterns, the hexagonal structure of the ZnO crystal and the specific peaks for CuMnO₂ (crednerite phase) were identified. The SEM morphology highlights that the transition from ZnO nanoparticles to ZnO NWs on the surface of the Zn foil is done gradually, depending on the treatment time and oxidation temperatures. Additionally, it was observed that the CuMnO₂ film was differently coated on the Zn-ZnO (NW) structures due to the density and random growth of the ZnO NWs on the Zn foil surface. From the optical measurements of ZnO NWs, a slightly higher band gap value at 3.28 eV is obtained for the sample synthesized at low temperature, probably because of the thermal energy of the treated sample. From the I–V measurement of heterojunctions, it was found that there is a directed correlation between the ideality factors and reverse saturation current and of the thermal oxidation process parameters of the Zn foil. The sensors tested in the experimental installation highlighted that at a CO₂ concentration of 400 ppm, the maximum response was 95.4%, obtained at a testing temperature of 200 °C for the ZnO_Nw7@CMO sensor. However, for the ZnO_Nw5@CMO sensor, the maximum value of 85.5% is at an operating temperature of 150 °C. Future studies will focus on the optimization of sensors with the ZnO_Nw@CMO structure and on the testing at different concentrations of gasses.
