Article

Paper Coatings Based on Polyvinyl Alcohol and Cellulose Nanocrystals Using Various Coating Techniques and Determination of Their Barrier Properties

by
Alicja Tarnowiecka-Kuca
1,*,
Roos Peeters
2,
Bram Bamps
2,
Magdalena Stobińska
1,*,
Paulina Kamola
1,
Artur Wierzchowski
1,
Artur Bartkowiak
1 and
Małgorzata Mizielińska
1
1
Center of Bioimmobilisation and Innovative Packaging Materials, West Pomeranian University of Technology, Klemensa Janickiego 35, 71-270 Szczecin, Poland
2
Materials and Packaging Research & Services, Hasselt University, Wetenschapspark 27, 3590 Diepenbeek, Belgium
*
Authors to whom correspondence should be addressed.
Coatings 2023, 13(11), 1975; https://doi.org/10.3390/coatings13111975
Submission received: 15 October 2023 / Revised: 13 November 2023 / Accepted: 14 November 2023 / Published: 20 November 2023
(This article belongs to the Special Issue Advanced Coatings and Films for Food Packing and Storage)

Abstract

:
The goal of this work was to improve the barrier properties of selected papers against water, grease and oil or gases (water vapor and oxygen) by covering them with biodegradable commercial coating carriers based on cellulose nanocrystals (CNCs) and polyvinyl alcohol (PVOH). The aim was also to obtain cellulose recyclable packaging materials with improved barrier characteristics. The properties of paper coatings based on CNCs and PVOH were characterized. Various paper coating techniques (flexographic printing, rotogravure printing and blade printing) were evaluated with respect to the final properties of the surface-modified paper with different starting grammages (40 g/m2, 70 g/m2, 100 g/m2). Functional properties, such as the barrier against oxygen, water vapor, water and grease; mechanical properties; and seal characterization of coated paper were examined. The results of this study demonstrated that the covering of the paper may improve the water, grease and oil barrier and that the best results were obtained for Gerstar 70 g/m2 coated with J12 coatings using the flexographic technique.

1. Introduction

Food packaging is one of the most important processes in the food supply chain. The main function of the packaging materials is to protect and preserve the quality and safety of food products. It is also important for extending their shelf life [1]. Currently, the food packaging sector is faced with the necessity of the proper selection of the most appropriate eco-packaging materials taking into account the recent changes in both regulations with respect to circular economy and end-user sustainability expectations. Packaging materials that are nontoxic, recyclable and biodegradable and have high barrier properties against moisture, gas, and oil are in high demand. Paper as a sustainable packaging material arouses great interest, but due to inadequate barriers against water vapor and oxygen, its application in the processed food packaging sector is very limited [2]. EU policy requires a gradual increase in the amount of recycled materials used in packaging [3]. It should be noted that packaging made of cellulose in the form of paper or cardboard is one of the oldest types of packaging and has been successfully recycled for a long time [2,3].
Unmodified paper is characterized by its fiber-based and as a result porous structure. It can easily absorb moisture due to its hygroscopic structure, providing a low barrier against water, water vapor, oxygen or grease. These characteristics disqualify it as a material for use in a wide range of applications. To overcome this limitation, paper is usually coated with other materials, including plastics or aluminum, that provide improvements in the barrier properties at the expense of its eco-friendly and biodegradable nature [4].
One of the final processes that affects paper properties is calendering. During the calendering process, a paper sheet is pressed between two or more cylinders at a certain pressure and temperature [5]. The main purpose of calendering is to modify the surface structure [6]. In the case of printing on either cardboard or paper, the main calendering effect is the tightening of the holes, which reduces the surface roughness to achieve a good print quality.
In this case, various treatments are used to obtain a cellulose material with enhanced measurable barrier properties. To be applicable as food packaging, these materials are covered with one or more coatings offering separate barrier properties against gases and moisture and good sealing and mechanical properties. The barrier properties of the packaging materials define the level of resistance of the materials to various external and internal factors. In modified packaging materials, all substances that have contact with food products should be approved for contact with food [7]. All technological processes, with precautions taken for writing paper as well as packaging paper in general, depending on the area of application, are designed to prevent the penetration of certain chemical or physical agents.
Naturally renewable biopolymers including proteins, polysaccharides, lipids or combinations of those components have already been evaluated as barrier coatings for various paper materials. In most cases, they maintain the favorable recyclable and environmentally friendly characteristics of the paper packaging materials [8]. Biopolymers such as polysaccharides and proteins are regarded as the most promising substances due to their advantages of providing an appropriate barrier against gases and having a positive effect on mechanical properties [9]. Cellulose nanocrystals are bio-based nanoparticles of high crystallinity obtained from a cellulosic material (e.g., wood, cotton). The amorphous part of cellulose is removed by acid hydrolysis, and pure nanocrystals are obtained after the sonication of the batch. CNCs are biodegradable materials with excellent mechanical properties. In some studies, they were evaluated as coating additives in the investigation of the surface and barrier properties of paper [10].
Poly(vinyl alcohol) (PVOH) is a synthetic water-soluble polymer. It is mainly known for its high barrier capacity against oxygen, good thermal resistance, great adhesive properties and biocompatibility. Other characteristics it displays are good water solubility and biodegradability, excellent film-forming capacity and transparency [11]. Polyvinyl alcohol coatings have been implemented in a variety of applications. It is an ideal coating material to use in applications such as paper-based packaging and barrier materials due to its high content of hydroxyl groups. Additionally, the flexibility, high mechanical strength and long-term thermal stability of PVOH are the most important beneficial properties for the aforementioned applications [12].
The goal of this work was to improve the barrier properties of selected types of paper against water, grease and oil or gases (water vapor and oxygen) by covering them with biodegradable commercial coating carriers based on CNCs and PVOH.

2. Materials and Methods

2.1. Materials

Three commercial types of paper (reference papers) were used in this research:
-
Kraft paper (grammage 40 g/m2), (Nordic Paper, Greåker, Norway);
-
White paper (grammage 70 g/m2), (Gerstar HDS, Ahlstrom, France);
-
Kraft paper (grammage 100 g/m2), (Mondi, Poperinge, Belgium).
Two commercial coating carriers were used to cover the papers:
-
C03—aqueous dispersion of cellulose nanocrystals (CNCs) (Eurikas, Vilvoorde, Belgium);
-
J12—aqueous dispersion of polymers based on polyvinyl alcohol (FOBARO GROUP, Poznań, Poland).
The chemical composition of both coating carriers (C03 and J12) was not disclosed by the producer.

2.2. Coating Carrier Preparations

The aqueous solution/suspension of CNCs (C03) and the aqueous dispersion of PVOH were diluted with distilled water at a ratio of 4:1. Additionally, the C03 coating carrier was diluted with distilled water at a ratio of 1:1.

2.3. Coating Carrier Analysis

The coating carriers were analyzed by determination of solid content (moisture analyzer, Radwag, Radom, Poland), pH (Elmetron, Zabrze, Poland), appearance and viscosity. The viscosity was analyzed using two methods. As the first step of the experiments, a Ford viscosity cup No. 4 was used. Next, the viscosity was analyzed using an AR-G2 Rheometer (TA Instruments, New Castle, DE, USA) at 25 °C.

2.4. Paper Covering

A4 sheets of selected papers were covered with the coatings using three different types of coaters: Unicoater 409 (Erichsen, Hemer, Germany) with 4, 6, 12 and 24 μm diameter bars; SUMET (Messtechnik, Freiburg, Germany) with 25° and 40° blades using the drawn down speed 5 m/min; the hand flex-coating K-lox manual applicator (RK Print Coat Instrument, Royston, UK) with 400/5 (transfer volume 4.3 m3/m2) and 100/185 (application volume 39.1 m3/m2) engraved rollers. The coating was performed at 25 °C. All coated materials were dried for 4 min at a temperature of 80 °C.

2.5. Uncoated and Coated Paper Property Analysis

In this study, 3 types of uncoated (control samples) papers and paper covered with the C03 and the J12 coatings using different methods were thoroughly characterized. The following tests were performed: thickness (Sylvac, Yverdon-les-Bains, Switzerland), paper grammage and grammage of the obtained coatings according to PN-EN ISO 536:2020-08 [13]. Water absorption (Cobb60) analysis was carried out according to ISO 535:2023 [14]. This analysis allowed the determination of the water barrier properties. Grease barrier properties were measured using the KIT test according to ISO 16532-2-2007—oil and grease resistance [15].
The coating samples with a grammage lower than 5% of the total paper grammage were selected for further analysis. The oxygen transmission rate (OTR) of these samples was measured according to the ASTM F1927-20 [16] method (temperature 23 °C, 0% RH). The water vapor transmission rate (WVTR) was measured according to ASTM F1249-20 standard [17] (temperature 23 °C, 85% RH).
To analyze the structure of the uncoated paper and to verify the presence and integrity of the obtained coatings, a microscopic analysis of the selected papers was performed. The paper/coated paper samples were then placed on pin stubs, and a thin layer of gold in a sputter coater was used to cover them at room temperature (Quorum Technologies Q150R S, Laughton, UK). Then, the samples were analyzed with a scanning electron microscope (SEM). The microscopic analysis of the samples was carried out through the use of a Vega 3 LMU microscope (Tescan, Brno, Czech Republic). The analysis took place at 24 °C with the use of a tungsten filament with an accelerating voltage of 10 kV to create SEM images of the uncoated and covered papers. The specimens were then examined from above.
The seal strength of coated surfaces was determined in accordance with the ASTM F88/F88M-21 standard [18] using the RDM HSE-3 sealer with flat bars. Following the sealing of 30 mm wide samples, the central 15 mm width was subsequently excised for the assessment of seal strength, 4 h after sealing. The temperature of the bars was varied, while seal time and pressure were maintained at 0.3 s and 2.0 N/mm², respectively. An average and standard deviation were calculated based on three individual measurements.

3. Results

The results of this study demonstrated that C03 and J12 coating carriers were characterized by a high viscosity (Table 1). Unfortunately, it is impossible to cover paper with too-viscous carriers (Ford cup 4.0 > 60 s) using flexographic coating techniques. In order to decrease the viscosity of both the C03 and J12 aqueous dispersions, the analyzed dispersions were diluted with distilled water at a ratio of 4:1. As was shown in Table 1, a viscosity lower than 30 s was observed for diluted J12 carrier, while no significant decrease in viscosity was noticed for C03 diluted carrier. Therefore, in the case of C03, a 1:1 dilution was applied. Unfortunately, the high dilution of C03 did not decrease its viscosity but resulted in an undesirable decrease in the dry mass of the aqueous coating dispersion.
Three types of unmodified paper were characterized as control samples in relation to the modified papers (Table 2). It was important to analyze the paper before covering it. The results of this study demonstrated that the grease barrier of the uncoated paper was very low (Table 2). The highest water absorption was noticed for the uncovered Gerstar, while the lowest water absorption was observed for the Kraft paper (grammage 40 g/m2) samples. In summary, none of the analyzed papers had a barrier against both grease/oil and water.
It was assumed in this study that an expected, upper mass limit/grammage of the surface modification/coating should be lower than 5% wt. of the mass/grammage of the paper (before covering). Based on this assumption, the possible coating grammage for the three types of paper should be ≤2.0 g/m2 for Kraft 40 g/m2, ≤3.5 g/m2 for Gerstar 70 g/m2, and ≤5.0 g/m2 for Kraft 100 g/m2.
The results of the experiments that were performed using the UNICOATER 409 demonstrated that the grammage values of the J12 and C03 layers applied on the surface of the Kraft 40 g/m2 paper were 4.2 g/m2 (J12) and 8.7 g/m2 (C03) (Table 3). This means that the coatings’ grammages/weights exceeded 5% of the paper grammage even when the smallest application bar thickness (4 µm) was used. Similar results were noticed for the Gerstar 70 g/m2 paper that was covered with the C03 layer (Table 4). The obtained findings resulted in the rejection of the covered Kraft 40 g/m2 paper and Gerstar 70 g/m2 paper coated with the C03 layer for further analysis (Table 3 and Table 4). The results of the experiments led to the observation that none of the obtained J12 coatings applied on the surface of the Gerstar 70 g/m2 paper was higher than 3.5 g/m2. This means that none of them exceeded 5% of the paper grammage. Additionally, it was observed that covering the Gerstar 70 g/m2 paper with J12 coatings improved its barrier properties. In the analysis of the grease and oil barrier changes, it was noticed that these barriers increased from 1 to 5 or from 1 to 12 when compared to uncoated Gerstar 70 g/m2 paper. As was emphasized in Table 3, the use of a 4 µm thickness bar allowed a J12 layer of 1.2 g/m2 grammage to be obtained. The thinnest coating improved the grease and oil barrier properties, but a higher improvement was observed for the layers with higher grammages. Comparing the J12 layers that were obtained using 6 µm, 12 µm and 24 µm thickness bars, it was demonstrated that the grease and oil barrier increased from 1 to 12, confirming that the grammage of the coating (in the range of 1.9–3.5 g/m2) had no influence on the barrier improvement. Comparing the water barrier properties of J12 coatings, it was observed that the increase in the water barrier was the highest for the coating with the grammage of 3.5 g/m2. The lowest improvement was observed for the layer with the grammage of 1.2 g/m2. The findings proved that the grammage of the J12 coating on the surface of Gerstar 70 g/m2 paper had an influence on its water barrier properties. It is worth mentioning that the grease and oil barrier properties and water barrier properties observed for the J12 coating with the grammage of 1.9 g/m2 and the J12 coating with the grammage of 3.3 g/m2 were the same. This means that from the economical point of view, it would be better to use a 6 µm thickness bar than a 12 µm thickness bar to cover Gerstar 70 g/m2 paper with the J12 coating.
The results of the work indicated that in the case of Kraft 100 g/m2 paper, covering the paper with the J12 and C03 coatings using 4 µm and 6 µm thickness bars decreased the water barrier properties of the paper and increased the grease and oil barrier properties but not significantly (Table 3 and Table 4). Similar results were noticed for the C03 layer that was applied on the surface of the Kraft 100 g/m2 paper using a 12 µm thickness bar. As shown in Table 3, the grease and oil barrier increased from 1 to 5 and 6 when 12 µm and 24 µm thickness bars were used to coat the analyzed paper with the J12 layers, meaning that the coatings improved the barrier properties of the paper. Moreover, these coatings caused a decrease in water absorption (Table 3) from 32.4 g/m2 to 4 g/m2, meaning that the improvement of the water barrier properties observed for these two coatings was significant. However, it has to be underlined that both of the J12 coatings (with grammages of 5.5 g/m2 and 6.1 g/m2) exceeded 5% of the paper grammage.
Surface modification using flexographic printing is an effective and economically feasible technique only when the applied coatings have low viscosities (Ford cup < 30 s) and optimum high dry mass contents (>40% d.m.). The results of this study confirmed that the viscosity of the C03 coating carrier was higher than 60 s when measured using a Ford cup. It was described above that the dilution of the carrier did not decrease its viscosity but resulted in an undesirable decrease in the dry mass of the aqueous coating dispersion. This is why the C03 coating carrier was rejected and omitted from the further tests using K-lox. Table 5 summarizes the results observed for the J12 coatings applied on the surfaces of three analyzed papers. The results of the work indicated that the grammages of the Gerstar 70 1 g/m2 paper and of the Kraft 100 1 g/m2 paper were not changed when an anilox 4.3 cm3/m2 coater was used to cover the paper samples. As shown in Table 5, the J12 coating grammages applied on the surfaces of all papers for a theoretical applicator volume of 39.1 cm3/m2 were noticed to be lower than 1 g/m2. It is worth mentioning that the grammages of the coatings obtained using the flexographic technique were lower than the grammages of J12 layers obtained using the UNICOATER 409.
In an analysis of the water absorption of the J12 layers obtained using the flexographic method, it was determined that coatings applied on the surface of the Kraft 40 g/m2 paper and on the surface of the Gerstar 70 g/m2 paper improved the water barrier properties of the paper samples. However, this coating increased the water absorption of the Kraft 100 g/m2 paper. Even though the grammage of the J12 coatings on the surface of the Kraft 40 g/m2 paper and on the surface of the Gerstar 70 g/m2 paper was low (Table 5), these coatings significantly improved the grease and oil barrier properties of these papers. It was shown that the grease and oil barrier increased from 1 to 6 for the Kraft 40 g/m2 samples, while a higher increase (from 1 to 12) in grease and oil barrier properties was noticed for the Gerstar 70 g/m2 paper. In summary, the highest barrier property improvements were observed for the Gerstar 70 g/m2 paper covered with J12 coating. Comparing the J12 coatings applied on the surface of Gerstar 70 g/m2 paper, it should be underlined that the layers with the grammages of 1.9 g/m2 and 3.3 g/m2 (obtained using the UNICOATER 409) and with the grammage of 0.2 g/m2 (obtained using the K-lox) influenced the decrease in the grease and oil permeability and the water absorption (Table 3 and Table 5), confirming that the coatings’ barrier property improvement did not depend on their grammages significantly.
As shown in Table 6, the grammages of the J12 and C03 coatings applied on the surfaces of Kraft 40 g/m2, Gerstar 70 g/m2 and Kraft 100 g/m2 papers using the blade technique did not exceed 5% of the papers’ grammages. In a comparison of the three covering techniques that were used in this study, it was confirmed that the lowest coating grammages (lower than 1 g/m2) were obtained when the flexographic technique was used (Table 4, Table 5 and Table 6).
The results of this study indicated that the water absorption of the Kraft 100 g/m2 paper increased when it was covered with the C03 layer. However, the water slightly decreased after it was covered with the J12 coating. It was also observed that neither of these two coatings influenced the grease and oil barrier improvement (Table 6). As shown in Table 6, the grease and oil barrier of the Kraft 40 g/m2 paper increased from 1 to 4 (J12 layer) and to 6 (C03 layer). Despite the grease and oil barrier improvement, both of these coatings were found to increase the water absorption of these paper samples. Opposite results were obtained for the Gerstar 70 g/m2 paper covered with the J12 layer, which caused a decrease in water absorption when compared to uncovered paper. Additionally, the J12 coating applied on the surface of the Gerstar 70 g/m2 paper was observed to improve the paper’s grease and oil barrier properties.
To perform SEM analysis, Kraft 40 g/m2 paper and Gerstar 70 g/m2 paper coated with J12 layers were selected. The Kraft 100 g/m2 paper covered with a C03 layer was selected as well. The paper samples were coated using a Sumet blade coater. It should be underlined that the SEM analysis was carried out to demonstrate if the coatings were present on the surface of the papers. The goal was also to show if the coatings were smooth and if they covered the whole surface of the papers. The results of the work demonstrated that the whole surface of the Gerstar 70 g/m2 paper was covered with the J12 coatings. Although the grammage of the J12 coating was low (1.4 g/m2, Table 6), the cellulose fibers were not visible, meaning that the coating carrier was well distributed on the surface of the paper (Figure 1b). It is worth mentioning that covering the Gerstar 70 g/m2 paper with the J12 coatings led to the improvement of the water, grease and oil barrier. It can be suggested that the smooth and well-distributed coating had a significant influence on the water absorption and grease and oil permeability decrease. An SEM image (Figure 1b) shows that small breaks and scratches were visible on the coating’s surface. This may lead to the conclusion that if the breaks and scratches had not been visible on the J12 surface, the barrier property improvement would have been higher. Different results were obtained for the Kraft 40 g/m2 paper covered with a J12 layer. SEM analysis confirmed that the whole surface of the paper was not covered with the J12 coating. Partially covered paper samples and uncoated cellulose fibers are well visible in Figure 1a. In summary, the SEM analysis confirmed that the Kraft 40 g/m2 paper surface was not completely covered with the J12 coating, which could have resulted in increased absorption of water by the paper (Table 2 and Table 6).
Similar results were observed for the Kraft 100 g/m2 paper covered with a C03 layer. SEM analysis indicated that uncovered cellulose fibers were well visible, as shown in Figure 1c. The high viscosity of the C03 coating carrier could lead to difficulties during surface covering which could have resulted in the increase in the absorption of water by the analyzed paper.
The barrier properties against water vapor and oxygen were analyzed only for selected samples. The results of the WVTR and OTR analysis showed (Table 7) that the water vapor and oxygen permeability of the Kraft 40 and Kraft 100 papers covered with the J12 and C03 coatings decreased when compared to uncoated paper samples. However, it was confirmed that neither covered papers nor uncoated samples have a gas barrier against both water vapor and oxygen.
In Figure 2, the sealing results are presented for both paper coatings. One notable observation is the shift of the sealing curve towards higher temperatures in the case of C03. Apart from the distinct coating, which likely implies differences in glass transition and melting temperatures, the choice of paper also plays a significant role. For C03, a paper with a substantially higher basis weight of 100 g/m2 was utilized, whereas a paper with a weight of 40 g/m2 was employed for J12. Due to the brief sealing time of 0.3 s and the insulating properties of paper, it is rational that heavier papers necessitate more energy to attain a sufficient temperature at the interface where sealing occurs. For both C03 and J12, following the initiation of sealing, there exists a temperature window within which a maximum plateau value appears to be attained. In the case of C03, this plateau appears to persist, although there is, of course, a subsequent decrease in strength after temperatures at which the coating material would be pushed away or degrade. However, this decline is not discernible in the graph due to the limitation of not further elevating the temperature, as temperatures exceeding 250 °C are not employed in industrial packaging processes. In the case of J12, a decline is already evident at 180 °C, indicating that this material is optimally sealed at a lower temperature.
Additionally, it is crucial to highlight the seal failure mechanisms as they are linked to the numerical values for strengths. The C03-coated paper exhibited a peeling mechanism at all temperatures, whereas the J12-coated paper demonstrated fiber tearing starting from temperatures of 115 °C. In prior studies, fiber tearing has been acknowledged as a favorable outcome after sealing [19,20]. While peeling primarily involves the failure of the coating, in the case of fiber tearing, it is the paper itself that becomes the weak factor during the peel test.

4. Discussion

Water-soluble polymer and biobased filler coatings on paper packaging materials are very promising solutions for the future improvement of food packaging. They have potential environmental advantages over conventional synthetic paper coatings. Additionally, low cost, availability and renewability expand the use of nanocellulose as a coating carrier. It is a nontoxic, biobased substance that can be chosen as a coating component among other green alternatives [21,22,23,24,25]. Furthermore, CNCs have a high modulus of elasticity and a high tensile strength, demonstrating excellent mechanical properties [18]. The C03 carrier used in this study is a commercial coating carrier that has good oxygen barrier properties according to its producer. The results of the experiments that were performed using the UNICOATER 409 demonstrated that the layers obtained by covering papers with C03 layers decreased the water barrier properties of the paper and increased the grease and oil barrier properties, but not significantly. In the analysis of the use of the flexographic technique, it has to be highlighted that the C03 coating carrier was rejected and omitted from the tests using the K-lox due to its high viscosity. It was observed in this study that the C03 coatings that were applied on the surfaces of Kraft 40 g/m2, Gerstar 70 g/m2 and Kraft 100 g/m2 papers using the Sumet blade technique did not exceed 5% of the papers’ grammages. The results also indicated that the water absorption of the Kraft 100 g/m2 paper increased when it was coated with the C03 layer, but the coating influenced the grease and oil barrier improvement. The results were confirmed by SEM analysis, which indicated the presence of uncovered cellulose fibers. The SEM analysis performed by Mazega et al. [26] confirmed that not all cellulose nanofibrils (CNFs) remained on the surface of the paper as a coating. Many of them penetrated the sheet transversally, established hydrogen bonds with inner fibers and increased the amount of bound water. The high viscosity of a CNC-based coating carrier could lead to difficulties during surface coating processes which could cause an increase in the absorption of water by the paper. Additionally, the C03 coating was confirmed to improve the barrier against gases (water vapor and oxygen). However, the improvement was not significant enough. These results were in agreement with those of Mazega et al. [26]. The results of this study indicated that the C03 coating applied on the surface of the paper had no barrier against water vapor and oxygen. Nair et al. [27] suggested that films made purely of mechanically fibrillated CNFs may have very high air and oxygen barrier properties. However, Tayeb et al. [28] mentioned that they can lose their barrier properties once placed in humid conditions. Herrera et al. [4] improved the oxygen and water vapor barrier properties of coatings applied on the surface of paper with the addition of sorbitol as a plasticizer and cross-linking. It is worth mentioning that due to the properties of CNCs, it may be proposed to use them in multilayer systems or in mixed systems, e.g., with shellac, which reduces water vapor permeability [22]. An increase in water barrier properties can also be noticed when CNCs are used together with Ag organic and beeswax particles. Coating paper with such a mixture leads to a modification of the paper surface towards an increase in its hydrophobicity [23]. Therefore, it may be concluded and even suggested that CNC coating is still a promising material with high potential for modification of cellulosic packaging materials [24].
Many scientific reports indicate that PVOH coatings have good properties against oxygen, water vapor, grease and oil. The commercial J12 coating used in this study is a mixture of polyvinyl alcohols. According to the producer protocol, the J12 coating carrier should provide both a close surface and an oxygen barrier on packaging materials. It can be applied by a variety of methods, including gravure roller (forward, reverse and offset, flex), return roller, air knife or Mayer bar. Polyvinyl alcohol (PVA) is a suitable coating carrier with good film-forming and biodegradable properties [29]. Additionally, one of the most important factors affecting the barrier properties of coated paper is the coating grammage. In this study, it was assumed that from the economical point of view, the coating grammage should not exceed 5% of the paper grammage, which is also important from an environmental point of view, meaning these materials may be recyclable.
The results of this study demonstrated that that the J12 coatings applied (using the UNICOATER 409) on the surface of the Gerstar 70 g/m2 did not exceed 5% of the paper grammage. Additionally, this coating improved the paper’s barrier properties against water, grease and oil. The coating grammage of the Gerstar 70 g/m2 paper covered with the J12 coating using the K-lox was noticed to be lower than 1 g/m2, which was important from the economical point of view, and it meant that the grammages of the coatings obtained using the flexographic technique were lower than the grammages of J12 layers obtained using the UNICOATER 409. Additionally, J12 coatings applied on the surface of the Kraft 40 g/m2 paper and on the surface of the Gerstar 70 g/m2 paper improved the water, grease and oil barrier properties of these papers. The Gerstar 70 g/m2 paper covered with a J12 layer using a Sumet blade coater was also confirmed to exhibit decreased water absorption and decreased grease and oil permeability. It was also determined that covering the selected papers with the coatings based on PVOH influenced the WVTR and OTR of the papers. However, the barrier of the coatings against water vapor and oxygen was not high enough. Many authors confirmed that PVOH coatings may improve the barrier properties of paper; however, modification of a PVOH carrier can provide additional advantages. Christophliemk et al. [30] confirmed that an ethylene-modified PVOH grade was found to provide lower oxygen transmission rates at high relative humidity, as compared to a standard PVOH grade. Shuman et al. [31] have shown that calendering of a paper substrate at high roll temperatures improved the homogeneity of a PVOH coating that was applied on the paper surface. The authors suggested that the improved homogeneity was reflected in better barrier properties of the coated paper, such as lower OTR and WVTR and better grease and oil resistance.
In summary, the results of this study confirmed that the J12 coating carrier was a better carrier than the C03 coating carrier due to its lower viscosity and the possibility of the development of effective coatings (against water, grease and oil) with a low grammage. This is why it can be concluded that a PVOH coating carrier is a promising material with a high potential for modification of cellulosic packaging materials for food product application.

5. Conclusions

The results of this study demonstrated that C03 and J12 coating carriers were characterized by a high viscosity. The dilution of the carriers with distilled water at a ratio of 4:1 led to a decrease in the viscosity, but only for the J12 carrier. Kraft 40 g/m2, Kraft 100 g/m2 and Gerstar 70 g/m2 papers were found to have a low grease and oil barrier and a high water absorption. The results of the experiments led to the observation that J12 coatings applied on the surface of the Gerstar 70 g/m2 did not exceed 5% of the paper grammage. Additionally, this paper covered with J12 layers exhibited a significant improvement in its barrier properties against water, grease and oil. Moreover, the grammage of the coating (in the range of 1.9–3.5 g/m2) had no influence on the barrier improvement. On the other hand, coating the Kraft 100 g/m2 paper with J12 and C03 coatings decreased the water barrier properties of the paper and increased the grease and oil barrier properties but not significantly. Similar results were noticed for the C03 layer that was applied on the surface of the Kraft 100 g/m2 paper using a 12 µm thickness bar. The paper samples covered with a J12 layer but with a higher grammage exhibited improved barrier properties. However, both of the J12 coatings exceeded 5% of the paper grammage.
The coating grammage of Gerstar 70 g/m2 paper covered with the J12 coating using the K-lox with a theoretical applicator volume of 39.1 cm3/m2 was noticed to be lower than 1 g/m2. This means that the grammages of the coatings obtained using the flexographic technique were lower than the grammages of J12 layers obtained using the UNICOATER 409. Additionally, J12 coatings applied on the surface of the Kraft 40 g/m2 paper and on the surface of the Gerstar 70 g/m2 paper improved the water, grease and oil barrier properties of these papers. It has to be mentioned that the highest barrier property improvements were observed for the Gerstar 70 g/m2 paper coated with J12 and that they did not depend on the grammage significantly. The Gerstar 70 g/m2 paper covered with a J12 layer using a Sumet blade coater was also found to exhibit decreased water absorption and decreased grease and oil permeability when compared to uncovered paper. SEM analysis of the three paper samples demonstrated that only Gerstar 70 g/m2 paper was well coated with J12 layers and that the coating carrier was well distributed on the whole surface of the paper samples even if the grammage of the J12 coating was low (1.4 g/m2). It was also demonstrated that covering the selected papers with the coatings based on CNCs and PVOH influenced the WVTR and OTR of the Kraft 40 and Kraft 100 papers. However, it was confirmed that neither covered papers nor uncoated samples have a barrier against water vapor and oxygen. Sealing test results for papers coated with J12 and C03 layers indicated that in the case of C03, the sealing curve shifted towards higher temperatures. In the case of J12, a decline was already observed at 180 °C, indicating that this material was optimally sealed at a lower temperature. Additionally, paper covered with the C03 layer exhibited a peeling mechanism at all temperatures, whereas the J12-coated paper demonstrated fiber tearing starting from temperatures of 115 °C.

Author Contributions

Conceptualization, R.P., A.B., A.T.-K., M.S. and P.K.; methodology, A.T.-K., P.K. and B.B.; validation, M.S. and P.K.; analysis, A.T.-K., M.S., P.K., B.B. and A.W.; data curation, M.M.; writing—original draft preparation, A.T.-K.; writing—review and editing, M.M. and M.S.; supervision, R.P. and A.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded in whole by the National Centre for Research and Development (NCBR), Poland within Project Repac2 no. CORNET/31/11/REPAC2/2022 (CORNET-31).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Robertson, G.L. Food Packaging and Shelf Lifee: A Practical Guide; CRC Press: Boca Raton, FL, USA, 2009; pp. 1–16. [Google Scholar]
  2. Saroha, V.; Khan, H.; Raghuvanshi, S.; Dutt, D. Preparation and characterization of PVOH/kaolin and PVOH/talc coating dispersion by one-step process. J. Coat. Technol. Res. 2022, 19, 1171–1186. [Google Scholar] [CrossRef]
  3. European Commission. Towards a Circular Economy: A Zero Waste Programme for Europe; European Commission: Brussels, Belgium, 2014. [Google Scholar]
  4. Herrera, M.A.; Mathew, A.P.; Oksman, K. Barrier and mechanical properties of plasticized and cross-linked nanocellulose coatings for paper packaging applications. Cellulose 2017, 24, 3969–3980. [Google Scholar] [CrossRef]
  5. Granberg, A.; Nylund, T.; Rigdahl, M. Calendering of a moistened woodfree uncoated paper. Nord. Pulp Pap. Res. J. 1996, 11, 132–136. [Google Scholar] [CrossRef]
  6. Sönmez, S.; Özen, Ö. Barrier Properties of Paper and Cardboard. Acad. Res. Archit. Eng. Plan. Des. Eng. Plan. Des. 2018, 171–183. [Google Scholar]
  7. Regulation (EU) 2019/1381 of the European Parliament and of the Council of 20 June 2019 on the Transparency and Sustainability of the EU Risk Assessment in the Food Chain and Amending Regulations (EC) No 178/2002, (EC) No 1829/2003, (EC) No 1831/2003, (EC) No 2065/2003, (EC) No 1935/2004, (EC) No 1331/2008, (EC) No 1107/2009, (EU) 2015/2283 and Directive 2001/18/EC; The European Parliament and the Council of the European Union: Luxembourg, 2019.
  8. Khwaldia, K.; Arab-Tehrany, E.; Desobr, S. Biopolymer Coatings on Paper Packaging Materials. Compr. Rev. Food Sci. Food Saf. 2010, 9, 85–91. [Google Scholar] [CrossRef] [PubMed]
  9. He, Y.; Li, H.; Fei, X.; Peng, L. Carboxymethyl cellulose/cellulose nanocrystals immobilized silver nanoparticles as an effective coating to improve barrier and antibacterial properties of paper for food packaging applications. Carbohydr. Polym. 2021, 252, 117–156. [Google Scholar] [CrossRef] [PubMed]
  10. Shen, Z.; Rajabi-Abhari, A.; Oh, K.; Yang, G.; Youn, H.J.; Lee, H.L. Improving the Barrier Properties of Packaging Paper by Polyvinyl Alcohol Based Polymer Coating—Effect of the Base Paper and Nanoclay. Polymers 2021, 13, 1334. [Google Scholar] [CrossRef]
  11. Idris, A.; Muntean, A.; Mesic, B.; Lestelius, M.; Javed, A. Oxygen Barrier Performance of Poly(vinyl alcohol) Coating Films with Different Induced Crystallinity and Model Predictions. Coatings 2021, 11, 1253. [Google Scholar] [CrossRef]
  12. Niinivaara, E.; Desmaisons, J.; Dufresne, A.; Bras, J.; Cranston, E.D. Thick Polyvinyl Alcohol Films Reinforced with Cellulose Nanocrystals for Coating Applications. ACS Appl. Nano Mater. 2021, 4, 8015–8025. [Google Scholar] [CrossRef]
  13. PN-EN ISO 536:2020-08; Paper and Cardboard—Determination of Grammage. Polish Committee for Standardization: Warszawa, Poland, 2020.
  14. ISO 535:2023; Determination of Water Absorptiveness. Cobb Method. ISO: Genève, Switzerland, 2023.
  15. ISO 16532-2:2007; Paper and Board Determination of Grease Resistance. ISO: Genève, Switzerland, 2007.
  16. ASTM F 1927-20; Standard Test Method for Determination of Oxygen Gas Transmission Rate, Permeability and Permeance at Controlled Relative Humidity Through Barrier Materials Using a Coulometric Detector. American Society for Testing Materials: Philadelphia, PA, USA, 2020.
  17. ASTM F 1249; Standard Test Method for Water Vapor Transmission Rate Through Plastic Film and Sheeting Using a Modulated Infrared Sensor. American Society for Testing Materials: Philadelphia, PA, USA, 2020.
  18. ASTM F88/F88M-21; Standard Test Method for Seal Strength of Flexible Barrier Materials. American Society for Testing Materials: Philadelphia, PA, USA, 2021.
  19. Lahtinen, K.; Kotkamo, S.; Koskinen, T.; Auvinen, S.; Kuusipalo, J. Charachterization for water vapor barrier and heat sealability properties of heat-treated paperboard/polylactide structure. Packag. Technol. Sci. 2009, 22, 451–460. [Google Scholar] [CrossRef]
  20. Tuominen, M.; Ek, M.; Saloranta, P.; Toivakka, M.; Kuusipalo, J. The effect of flame treatment on surface properties and heat sealability of low-density polyethylene coating. Packag. Technol. Sci. 2013, 26, 201–214. [Google Scholar] [CrossRef]
  21. Spagnuolo, L.; D’Orsi, R.; Operamolla, A. Nanocellulose for Paper and Textile Coating: The Importance of Surface Chemistry. Chem. Eur. Chem. Plus Chem. 2022, 87, 4–26. [Google Scholar] [CrossRef] [PubMed]
  22. Yang, S.Y.; Jeong, K.M.; Won, J.M.; Kyu, L.Y. Application of CNC as a Coating Additive. J. Korea Tech. Assoc. Pulp Pap. Ind. 2019, 51, 114–120. [Google Scholar]
  23. Hult, E.L.; Iotti, M.; Lenes, M. Efficient Approach to High Barrier Packaging Using Microfibrillar Cellulose and Shellac. Cellulose 2010, 17, 575–586. [Google Scholar] [CrossRef]
  24. Liu, K.; Liang, H.; Nasrallah, J.; Chen, L.; Huang, L.; Ni, Y. Preparation of the CNC/Ag/Beeswax Composites for Enhancing Antibacterial and Water Resistance Properties of Paper. Carbohydr. Polym. 2016, 142, 183–188. [Google Scholar] [CrossRef]
  25. Gicquel, E.; Martin, C.; Yanes, J.G.; Bras, J. Cellulose nanocrystals as new bio-based coating layer for improving fiber-based mechanical and barrier properties. J. Mater. Sci. 2017, 52, 3048–3061. [Google Scholar] [CrossRef]
  26. Mazega, A.; Tarrés, Q.; Aguado, R.; Pèlach, M.À.; Mutjé, P.; Ferreira, P.J.T.; Delgado-Aguilar, M. Improving the Barrier Properties of Paper to Moisture, Air, and Grease with Nanocellulose-Based Coating Suspensions. Nanomaterials 2022, 12, 3675. [Google Scholar] [CrossRef]
  27. Nair, S.S.; Zhu, J.; Deng, Y.; Ragauskas, A.J. High performance green barriers based on nanocellulose. Sustain. Chem. Process. 2014, 2, 23. [Google Scholar] [CrossRef]
  28. Tayeb, H.A.; Tajvidi, M.; Bousfield, D. Enhancing the Oxygen Barrier Properties of Nanocellulose at High Humidity: Numerical and Experimental Assessment. Sustain. Chem. 2020, 1, 198–208. [Google Scholar] [CrossRef]
  29. Huang, S.; Wang, X.; Zhang, Y.; Meng, Y.; Hua, F.; Xia, X. Water and Oil-Grease Barrier Properties of PVA/CNF/MBP/AKD Composite Coating on Paper. Sci. Rep. 2023, 13, 12292. [Google Scholar] [CrossRef]
  30. Christophliemk, H.; Johansson, C.; Ullsten, H.; Järnström, L. Oxygen and water vapor transmission rates of starch-poly(vinyl alcohol) barrier coatings for flexible packaging paper. Prog. Org. Coat. 2017, 113, 218. [Google Scholar] [CrossRef]
  31. Schuman, T.; Wikström, M.; Rigdahl, M. Coating of surface-modified papers with poly(vinyl alcohol). Surf. Coat. Technol. 2004, 183, 96. [Google Scholar] [CrossRef]
Figure 1. SEM images of papers covered with coatings using a Sumet blade coater: (a) J12 applied on Kraft 40 g/m2, (b) J12 applied on Gerstar 70 g/m2, (c) C03 applied on Kraft 100 g/m2.
Figure 1. SEM images of papers covered with coatings using a Sumet blade coater: (a) J12 applied on Kraft 40 g/m2, (b) J12 applied on Gerstar 70 g/m2, (c) C03 applied on Kraft 100 g/m2.
Coatings 13 01975 g001

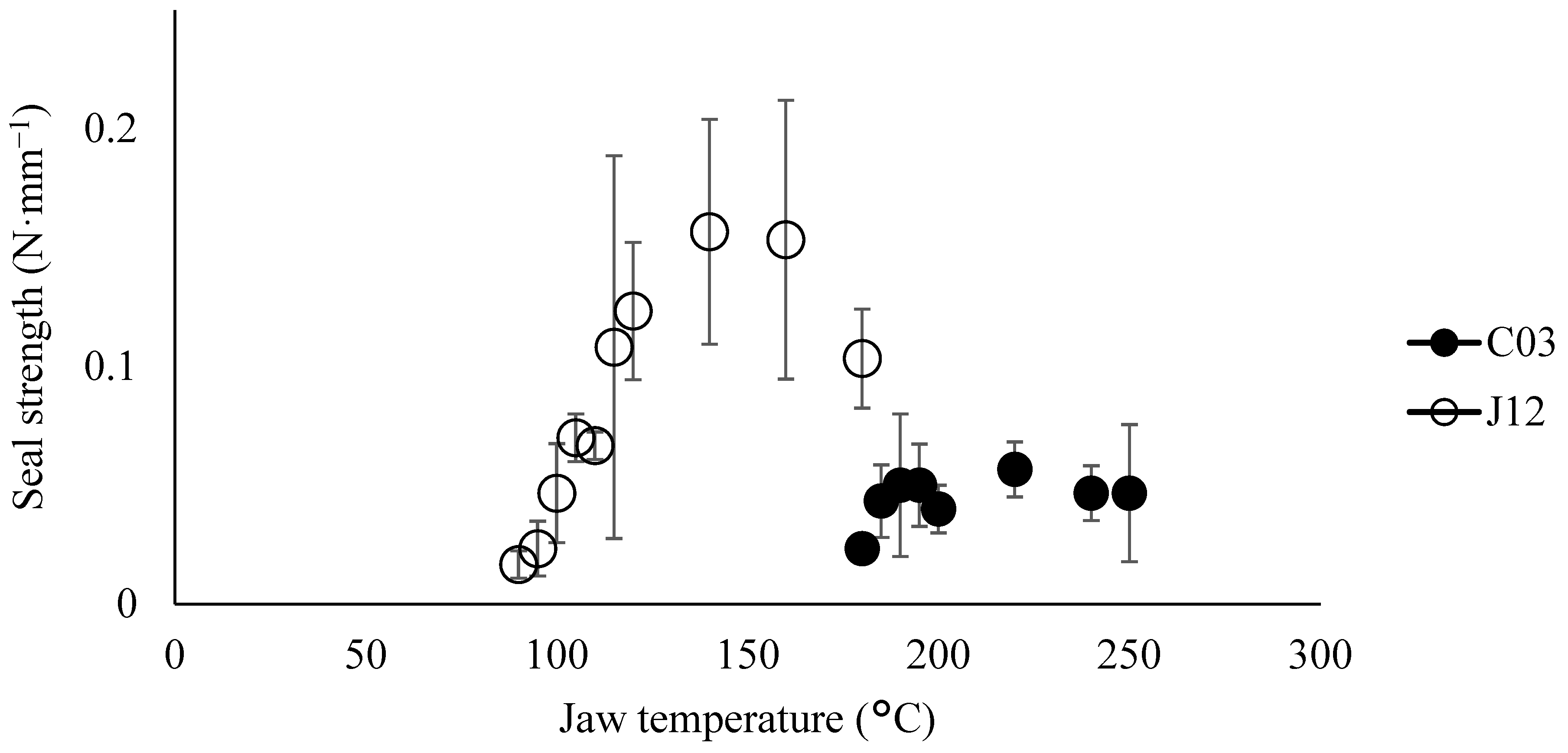

Figure 2. The influence of jaw temperature on seal strength of coated papers.
Figure 2. The influence of jaw temperature on seal strength of coated papers.
Coatings 13 01975 g002
Table 1. Characteristics of the commercial coating carriers.
Table 1. Characteristics of the commercial coating carriers.
SpecificationsC03J12
Solid content (%)
After dilution
25.6
20.0
18
pH2.5–6.55.5
AppearanceLiquid,
transparent
Liquid, yellow−transparent
Viscosity (mPa·s at 23 °C)
After dilution
800
800
500
180
Viscosity (s at 23 °C)
After dilution
>60
>60
>60
<30
Table 2. Characteristics of the uncoated papers.
Table 2. Characteristics of the uncoated papers.
No.NameGrammage
(g/m2)
Thickness
(mm)
KIT Test *Cobb60
(g/m2)
1Kraft40 ± 1.1400.064 ± 0.002127.4 ± 1.853
2Gerstar70 ± 0.7130.065 ± 0.003136.3 ± 0.192
3Kraft100 ± 1.1410.143 ± 0.003132.4 ± 3.412
* 1 = low grease and oil barrier. 12 = high grease and oil barrier.
Table 3. Characterization of the papers coated with J12 layers using a laboratory coater (UNICOATER 409 Erichsen).
Table 3. Characterization of the papers coated with J12 layers using a laboratory coater (UNICOATER 409 Erichsen).
No.SampleWet Coating Thickness
(µm)
Paper Grammage (g/m2)Thickness
(mm)
Coating Grammage (g/m2)KIT Test *Cobb60
(g/m2)
1Kraft
40 g/m2
444 ± 1.8860.073 ± 0.0034.2 ± 1.886
2Gerstar 70 g/m2471 ± 0.8250.069 ± 0.0031.2 ± 0.825522.9 ± 0.409
671 ± 0.2360.070 ± 0.0011.9 ± 0.8251220.2 ± 1.677
1273 ± 0.5890.070 ± 0.0023.3 ± 0.5891220.2 ± 0.147
2473 ± 0.1180.074 ± 0.0033.5 ± 0.1181219.0 ± 0.071
3Kraft 100 g/m24105 ± 2.1210.169 ± 0.0045.5 ± 2.121539.1 ± 1.387
6106 ± 1.4140.170 ± 1.4146.3 ± 1.414637.9 ± 3.928
12105 ± 0.4710.172 ± 0.0045.5 ± 0.47154.0 ± 0.318
24106 ± 1.0610.174 ± 0.0096.1 ± 1.06164.0 ± 0.078
* 1 = low grease and oil barrier. 12 = high grease and oil barrier.
Table 4. Characterization of the papers coated with C03 layers using a laboratory coater (UNICOATER 409 Erichsen).
Table 4. Characterization of the papers coated with C03 layers using a laboratory coater (UNICOATER 409 Erichsen).
No.SampleWet Coating Thickness
(µm)
Paper Grammage (g/m2)Thickness
(mm)
Coating Grammage (g/m2)KIT Test *Cobb60
(g/m2)
1Kraft
40 g/m2
448 ± 1.8750.071 ± 0.0028.7 ± 1.875
2Gerstar 70 g/m2478 ± 1.8750.077 ± 0.0028.2 ± 1.711
3Kraft 100 g/m24106 ± 2.8280.169 ± 0.0066.0 ± 2.282137.4 ± 5.091
6105 ± 2.4750.170 ± 0.0065.8 ± 2.475539.3 ± 3.323
12106 ± 1.3670.172 ± 0.0086.0 ± 1.367535.7 ± 1.131
24107 ± 2.6630.74 ± 0.010
* 1 = low grease and oil barrier. 12 = high grease and oil barrier.
Table 5. Characterization of the papers coated with J12 layers using a hand K-lox manual flex-coating applicator.
Table 5. Characterization of the papers coated with J12 layers using a hand K-lox manual flex-coating applicator.
No.SampleApplication Volume
(cm3/m2)
Paper Grammage (g/m2)Thickness
(mm)
Coating Grammage (g/m2)KIT Test *Cobb60
(g/m2)
1Kraft
40 g/m2
4.340 ± 0.1180.067 ± 0.0030.4 ± 0.118613.9 ± 0.212
2Gerstar 70 g/m270 ± 0.3540.067 ± 0.003
3Kraft 100 g/m2100 ± 0.3540.158 ± 0.003
1.1Kraft
40 g/m2
39.140 ± 0.3540.067 ± 0.0040.4 ± 0.354613.9 ± 0.212
2.1Gerstar 70 g/m270 ± 0.1180.068 ± 0.0030.2 ± 0.1181214.4 ± 0.141
3.1Kraft 100 g/m2101 ± 0.7070.147 ± 0.0020.8 ± 0.707145.3 ± 1.125
* 1 = low grease and oil barrier. 12 = high grease and oil barrier.
Table 6. Characterization of the papers coated with J12 and C03 layers using a SUMET blade coater.
Table 6. Characterization of the papers coated with J12 and C03 layers using a SUMET blade coater.
No.SampleCoatingBlade
(°)
Paper Grammage (g/m2)Thickness
(mm)
Coating Grammage (g/m2)KIT Test *Cobb60
(g/m2)
1Kraft
40 g/m2
J124041 ± 0.3540.072 ± 0.0031.0 ± 0.354429.7 ± 2.192
2Gerstar 70 g/m22571 ± 0.7530.066 ± 0.0021.4 ± 0.753722.5 ± 2.893
3Kraft 100 g/m2103 ± 1.6330.150 ± 0.0053.5 ± 1.633123.6 ± 1.485
1.1Kraft
40 g/m2
C034041 ± 0.9370.064 ± 0.0041.3 ± 0.354631.0 ± 1.872
3.1Kraft 100 g/m2103 ± 1.2670.160 ± 0.0093.5 ± 1.633140.2 ± 0.849
* 1 = low grease and oil barrier. 12 = high grease and oil barrier.
Table 7. WVTR and OTR results for papers covered with J12 and C03 coatings.
Table 7. WVTR and OTR results for papers covered with J12 and C03 coatings.
Coated PaperWVTR
(g/m2·day)
OTR
(cm3/m2·day)
Uncoated Kraft 40 g/m2 J12>5000.0>20,000.0
Uncoated Kraft 100 g/m2>5000.0>20,000.0
Kraft 40 g/m2 coated with J12>1000.0>10,000.0
Kraft 100 g/m2 coated with C03>1000.0>10,000.0
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tarnowiecka-Kuca, A.; Peeters, R.; Bamps, B.; Stobińska, M.; Kamola, P.; Wierzchowski, A.; Bartkowiak, A.; Mizielińska, M. Paper Coatings Based on Polyvinyl Alcohol and Cellulose Nanocrystals Using Various Coating Techniques and Determination of Their Barrier Properties. Coatings 2023, 13, 1975. https://doi.org/10.3390/coatings13111975

AMA Style

Tarnowiecka-Kuca A, Peeters R, Bamps B, Stobińska M, Kamola P, Wierzchowski A, Bartkowiak A, Mizielińska M. Paper Coatings Based on Polyvinyl Alcohol and Cellulose Nanocrystals Using Various Coating Techniques and Determination of Their Barrier Properties. Coatings. 2023; 13(11):1975. https://doi.org/10.3390/coatings13111975

Chicago/Turabian Style

Tarnowiecka-Kuca, Alicja, Roos Peeters, Bram Bamps, Magdalena Stobińska, Paulina Kamola, Artur Wierzchowski, Artur Bartkowiak, and Małgorzata Mizielińska. 2023. "Paper Coatings Based on Polyvinyl Alcohol and Cellulose Nanocrystals Using Various Coating Techniques and Determination of Their Barrier Properties" Coatings 13, no. 11: 1975. https://doi.org/10.3390/coatings13111975

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
