Calcium Hydroxyapatite Coatings: Low-Temperature Synthesis and Investigation of Antibacterial Properties

by
Laura Lukaviciute
1,
Justina Karciauskaite
1,
Inga Grigoraviciute
1,
Dovile Vasiliauskiene
2,
Denis Sokol
1 and
Aivaras Kareiva
1,*
1
Institute of Chemistry, Vilnius University, Naugarduko 24, LT-03225 Vilnius, Lithuania
2
Department of Chemistry and Bioengineering, Vilnius Gediminas Technical University, Saulėtekio al. 11, LT-10223 Vilnius, Lithuania
*
Author to whom correspondence should be addressed.
Coatings 2023, 13(12), 1991; https://doi.org/10.3390/coatings13121991
Submission received: 23 October 2023 / Revised: 20 November 2023 / Accepted: 20 November 2023 / Published: 23 November 2023
(This article belongs to the Special Issue Advances in Surface Engineering and Biocompatible Coatings for Biomedical Applications)
Browse Figures
Versions Notes

Abstract

:
In the present work, the low-temperature synthesis of substituted calcium hydroxyapatite (Ca10(PO4)6(OH)2, HAP) with copper and zinc ions on titanium substrates was performed. Initially, CaCO3 coatings were synthesised on titanium substrate using the sol-gel method at 550 °C in a CO2 atmosphere. Crystalline calcium hydroxyapatite was then synthesised from these CaCO3 coatings through the dissolution-precipitation method at low temperature (80 °C). X-ray diffraction (XRD) analysis, FTIR and Raman spectroscopies, and scanning electron microscopy (SEM) were employed to evaluate the phase composition, surface functional groups, crystallinity, and morphology of the coatings. The results showed the formation of hexagonal HAP particles with a size of 20 nm at low temperature, exhibiting high homogeneity in particle size distribution. In the calcium hydroxyapatite, some of the Ca2+ ions were replaced by Cu2+ ions. Heating the mixture of Ca(NO3)2 and Cu(NO3)2 solutions at 550 °C in a CO2 atmosphere led to the formation of copper hydroxide carbonate (malachite, Cu2(OH)2CO3) along with CaCO3. The reaction between the sol-gel precursor obtained and Na2HPO4 resulted in the formation of copper-substituted hydroxyapatite (Cu-HAP). Different synthesis methods were tested with Zn2+ ions, and on the surface of the coating, Zn(OH)(NO3)(H2O), Zn3(OH)4(NO3)2, and unreacted CaCO3 were formed. Antibacterial properties of the coatings were tested using the inhibition zone method. No inhibition zones were observed for HAP. However, in the Cu and Zn containing coatings, inhibition zones were observed in the presence of a colony of B. subtilis bacteria. However, no inhibition zones were detected in the presence of E. coli bacteria.

1. Introduction

Calcium hydroxyapatite (Ca10(PO4)6(OH)2, HAP) constitutes the primary inorganic component of bone tissue and exhibits exemplary biocompatibility [1]. Morphologically, hydroxyapatite particles in bone can manifest in diverse geometries—spherical, plate-like, or needle-like—and typically exhibit dimensions on the order of 40–60 nm in length, 20 nm in width, and 1.5–5 nm in thickness [2,3]. Hydroxyapatite accounts for up to 60% of bone tissue by weight and as much as 97% in tooth enamel [1]. Due to its high surface-area-to-volume ratio, reactivity, and biomimetic properties, nano-HAP serves as an optimal material for orthopaedic implant coatings and bone-substitute fillers [4].
Hydroxyapatite-based implant materials often feature a porous, interlinked architecture that mimics the intracellular matrix, thus facilitating cellular proliferation and tissue regeneration [5,6]. This structural design also enhances osseointegration by establishing a rigid mechanical interface with the surrounding biological tissues, thereby minimising fibrous tissue formation [7,8].
This ionic flexibility is in alignment with the naturally occurring human bone mineral, which comprises non-stoichiometric nanocrystalline apatites. These apatites possess structural imperfections owing to the substitution of calcium, phosphate, and hydroxide ions by a range of ions such as Na, Mg, Zn, Sr, K, F, Cl, Si, and CO32− [9,10,11]. Such adaptability underlines the modifiable bioactive properties of HAP through lattice incorporation of diverse substituents [12,13].
Despite the promise of hydroxyapatite coatings, challenges persist in optimising their synthesis and functional properties. Various substrates such as titanium, quartz, and silicon have been employed for the deposition of HAP coatings via the aqueous sol-gel method, which is contingent upon precise control of temperature, pH, and precursor concentrations [14]. This technique, however, typically necessitates elevated temperatures to facilitate the crystallisation of hydroxyapatite, potentially resulting in heterogeneous coatings with domains of varying grain sizes [14]. Furthermore, synthesis of hydroxyapatite coatings on titanium substrates at elevated temperatures may induce the formation of a TiO2 phase, thereby compromising adhesion to the substrate [15]. Consequently, there is an ongoing pursuit to develop innovative methodologies for synthesising hydroxyapatite coatings that faithfully replicate the characteristics of natural bone tissue.
The objective of this study is to investigate the potential of substituting Ca2+ ions with Zn2+ and Cu2+ ions in HAP coatings using a low-temperature sol-gel dissolution-precipitation deposition approach. The suggested method is promising for the preparation of Cu-HAP coatings; however, the formation of Zn-HAP did not proceed. It was found that in the Cu and Zn containing coatings, inhibition zones were observed in the presence of a colony of B. subtilis bacteria. However, no inhibition zones were detected in the presence of E. coli bacteria.

2. Materials and Methods

2.1. Synthesis and Materials

2.1.1. Synthesis of Calcium Carbonate

The synthesis of the HAP porous layers was carried out on Ti (Thermo Scientific, Waltham, MA, USA; 1.0 mm thick, 99.2%; CAS 7440-32-6) wafers, which were laser cut (1 × 1 cm) in the open access mechanics centre. The titanium wafers were mechanically abraded to remove the oxide film formed in the air and surface scratches. The titanium plates were mechanically abraded with sandpaper of different grit sizes (1000–2500 grit). The plates were scrubbed for 1 min on each side. The plates were then chemically treated by soaking for 30 min at 70 °C in a solution of 96% 5 mL H2SO4 (Chempur, Karlsruhe, Germany, 99.7%) and 7% 0.35 mL HCl (Chempur, 37%). After soaking, the plates were washed in an ultrasonic bath with distilled water and ethanol for 5 min. The cleaned plates were dried overnight at room temperature. The prepared plates were used for the synthesis of CaCO3 and HAP.
For the preparation of the solution, 11.807 g of Ca(NO3)2·4H2O (Alfa Aesar, Ward Hill, MA, USA, 99.6%) was weighed and dissolved in 100 mL of ethanol (Vilniaus degtine, Vilniaus, Lithuania, 99.8%). Concentration was 0.5 mol/l. The solution was subjected to magnetic stirring at a temperature of 30 °C until complete dissolution was confirmed. The submerged plates were then placed in a furnace, manufactured by Nabertherm, New Castle, Germany, for heat treatment. A CO₂-rich environment within the furnace was established by positioning ceramic plates coated with activated carbon adjacent to the submerged plates. The furnace was programmed to elevate its internal temperature from an initial 20 °C to 550 °C at a rate of 3 °C/min. Upon reaching 550 °C, this temperature was maintained for a duration of 5 h. During the reaction, Ca(NO3)2 was thermally decomposed into CaO, followed by a reaction of the CaO with the CO2 to form calcite. Before removal from the furnace, the furnace was cooled by lowering the temperature to 20 °C at a rate of 3 °C/min.

2.1.2. Synthesis of Calcium Hydroxyapatite

For the synthesis of HAP, a solution was prepared by weighing 0.14 g of Na2HPO4 (Carl Roth, Karlsruhe, Germany, 99%) and 0.6057 g of TRIS (C4H11NO3) (Carl Roth, 99%) buffer. The weighed materials were dissolved in 100 mL of distilled water. The solution was stirred on a magnetic stirrer until dissolved and maintained at 30 °C. The pH of the solution was alkaline (approximately 9–10). After the dissolution of the materials, the solution was poured onto CaCO3-synthesised plates and soaked for 7 days at 80 °C. After removal from the solution, the samples were washed with distilled water, dried, and used for further analysis. The formation of HAP follows this reaction:
10 CaCO3 + 6Na2HPO4 + 2 H2O = Ca10(PO4)6(OH)2 + 8 NaHCO3 + 2 Na2CO3

2.1.3. Synthesis of Substituted Calcium Hydroxyapatite

In order to introduce Cu2+ ions, a mixture of Ca(NO3)2 and Cu(NO3)2 was prepared at a concentration of 0.5 mol/l. 5.9036 g of Ca(NO3)2·4H2O and 5.814 g of Cu(NO3)2·2.5H2O (Sigma-Aldrich, St. Louis, MO, USA, 99.8%) were weighed. The substances were dissolved in 100 mL of ethanol. After the solution had been prepared, the chemically and mechanically treated titanium plates were dropped into the solution in a porcelain dish to submerge. This was then heated in an oven under a CO2 atmosphere in a previously mentioned manner. After the heating procedure, the plates were dipped into a solution of 0.14 g Na2HPO4 + 0.6057 g TRIS buffer (dissolved in distilled water) and soaked for one week at 80 °C. A similar procedure was repeated for the introduction of Zn2+ ions (weighed 7.4365 g Zn(NO3)2·6 H2O; Chempur, 99.7%). To successfully alloy Zn2+ ions, the synthesis was also carried out by direct dropping of already synthesised HAP onto titanium plates into Zn(NO3)2·6H2O solution. In total, 7.4365 g of the material was weighed and dissolved in 100 mL of distilled water. A further modification of the Zn-HAP synthesis was also performed. First, CaCO3 was synthesised according to the methodology described for the synthesis of CaCO3 on Ti substrates, then Ti plates containing the synthesised calcium carbonate were dipped into a solution of 0.14 g Na2HPO4 + 0.6057 g TRIS buffer + 7.4365 g Zn(NO3)2·6 H2O, which was prepared by dissolving these materials in distilled water.

2.2. Characterisation

X-ray diffraction measurements were carried out to determine the phase composition of the synthesised products. This method of analysis is used to study the crystalline structure. The measurements were carried out on a Rigaku miniFlex II diffractometer (Applied Rigaku Technologies, Inc., Cedar Park, TX, USA) (Cu-Kα radiation, λ = 0.1542 nm at 30 kV 15 mA). The diffracted X-rays were recorded between 10° and 70° (2θ). A Hitachi TM3000 and a Hitachi SU70 (Tokyo, Japan) scanning electron microscope were used to study the morphology and microstructure of the samples. These microscopes were used for EDX analysis of the samples. Raman spectra were recorded at room temperature using a combined Raman and scanning near-field optical microscope (SNOM) WiTec Alpha 300 R (WiTec, Ulm, Germany) with a 532 nm excitation laser source (power 40.9 mW). Fourier transform infrared (FTIR) spectroscopy measurements were carried out on an FTIR spectrometer (PerkinElmer, Inc., Waltham, MA, USA). Evaluation of the antibacterial properties of synthesised coatings on Ti substrates revealed no zones of hydroxyapatite (HAP) inhibition in the presence of Gram-negative Escherichia coli and Gram-positive Bacillus subtilis bacteria. The cultures of E. coli and B. subtilis bacteria were incubated overnight in liquid LB medium, 10 g/L NaCl, 5 g/L yeast extract, at 37 ° C temperature. After this the culture of bacteria were centrifuged and diluted in sterile 0.9% NaCl to 106 units/mL. 100 µL of pre-pared bacteria culture were inoculated in LB agar medium. Plates with HAP, Cu-HAP, and Zn3(OH)4(NO3)2 were placed on these E. coli and B. subtilis inoculants; prepared samples were incubated at 37 °C temperature for 24 h. After these hours emerges zone of inhibition of HAP, Cu-HAP, and Zn3(OH)4(NO3)2 coatings.
Two or three measurements were conducted in all of the sample preparation and any data processing steps.

3. Results

3.1. Synthesis and Characterization of HAP

The phase composition of the coatings was determined by XRD. The XRD patterns showed that a layer of CaCO3 [PDF:96-154-7348] was formed on the Ti substrate. At 2θ = 29.4°, the most intense peak characteristic of calcite (CaCO3) was visible. The data were in a good agreement with literature [16]. Crystalline calcium hydroxyapatite was then synthesised from these CaCO3 coatings through the dissolution-precipitation method at low temperature (80 °C). The XRD results clearly showed the formation of HAP [PDF: 96-431-7044] with characteristic reflections in the 31–32.5° 2θ angle range (Figure 1). The peaks of CaCO3 [PDF: 96-154-7348] are also identified, proving that some CaCO3 still remains unreacted. In addition, intense diffraction peaks of the Ti substrate are visible. Thus, it can be concluded that a layer of calcium hydroxyapatite has formed on the titanium substrate, which is supported by the literature data [17]. The Raman absorption bands (1084 cm-1, symmetric stretching), (716 cm-1, in-plane bending), (276 and 146 cm- 1, lattice modes) of CaCO3 coating are consistent with calcite [18]. Figure 1 also shows Raman spectrum of HAP coating. The PO43− peaks at 590, 950, and 1085 cm−1 of the phosphate group oscillations belonging to HAP. The peak around 285 cm−1 is attributed to Ca-PO4 and Ca-OH bonds. The FTIR spectrum of the calcium hydroxyapatite layer on a Ti substrate is depicted in Figure 1 as well. The FTIR spectra shown here identify absorption peaks for PO43- (560–600 cm−1, ~600 cm−1 and 1000–1100 cm−1), OH- (3600–3500 cm−1 and 630 cm−1), CO32- (1460–1530 cm−1), as well as for HPO42− (610–615 cm−1) [19]. Thus, it can be concluded that the Raman and FTIR spectroscopy results obtained confirmed the X-ray diffraction data for the successful formation of Ca10(PO4)6(OH)2 coatings on the Ti substrate.
The morphological features of the CaCO3 and Ca10(PO4)6(OH)2 coatings were investigated by SEM. The calcium carbonate layers were composed of sub-micrometre (up to 1 µm) rhombohedral particles which form a continuous calcite layer. Hexagonal HAP particles of 20 nm in size were formed at low temperature. A particular morphological feature of the synthesised HAP (Figure 1) is that a very high degree of homogeneity and distribution of particle size is achieved.

3.2. Synthesis and Characterization of Cu-HAP

The phase crystallinity and purity of Cu2+-substituted HAP specimens synthesised by low-temperature sol-gel and dissolution-precipitation method were also investigated by means of XRD analysis. It was determined that during the heating of mixture of Ca(NO3)2 and Cu(NO3)2 solutions in a CO2 atmosphere, in addition to CaCO3, a copper hydroxide carbonate Cu2(OH)2CO3 (malachite) had also formed. It is not surprising, since it is known that pure CuCO3 does not form in an aqueous media under normal conditions:
2 Cu(NO3)2 + CO2 + 4 NaOH → Cu2(OH)2CO3 + 4 NaNO3 + H2O
Figure 2 represents the XRD patterns of the HAP coatings where Ca2+ ions are substituted by Cu2+ ions.
The XRD results indicate that the low-temperature precipitation-dissolution method can be successfully used for the synthesis of partially Cu2+ ion-substituted HAP. Treatment of CaCO3 containing a small amount of impure Cu2(OH)2CO3 with sodium hydrogen phosphate produces copper-substituted hydroxyapatite (Cu-HAP):
10−x CaCO3 + x Cu2(OH)2CO3 + 6 Na2HPO4 + 2 H2O =
Ca10−xCux(PO4)6(OH)2 + x Cu(OH)2 + 8 NaHCO3 + 2 Na2CO3

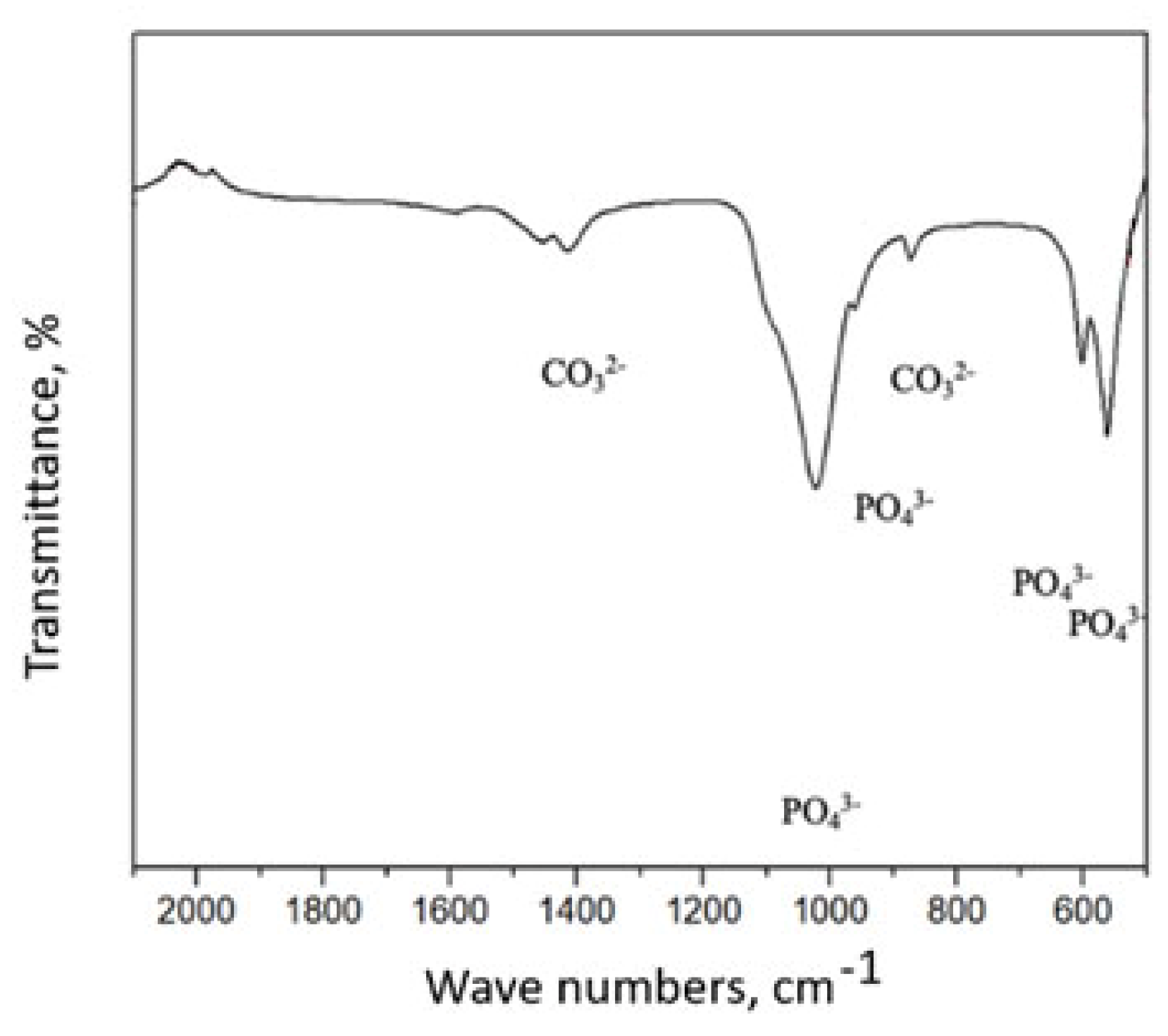

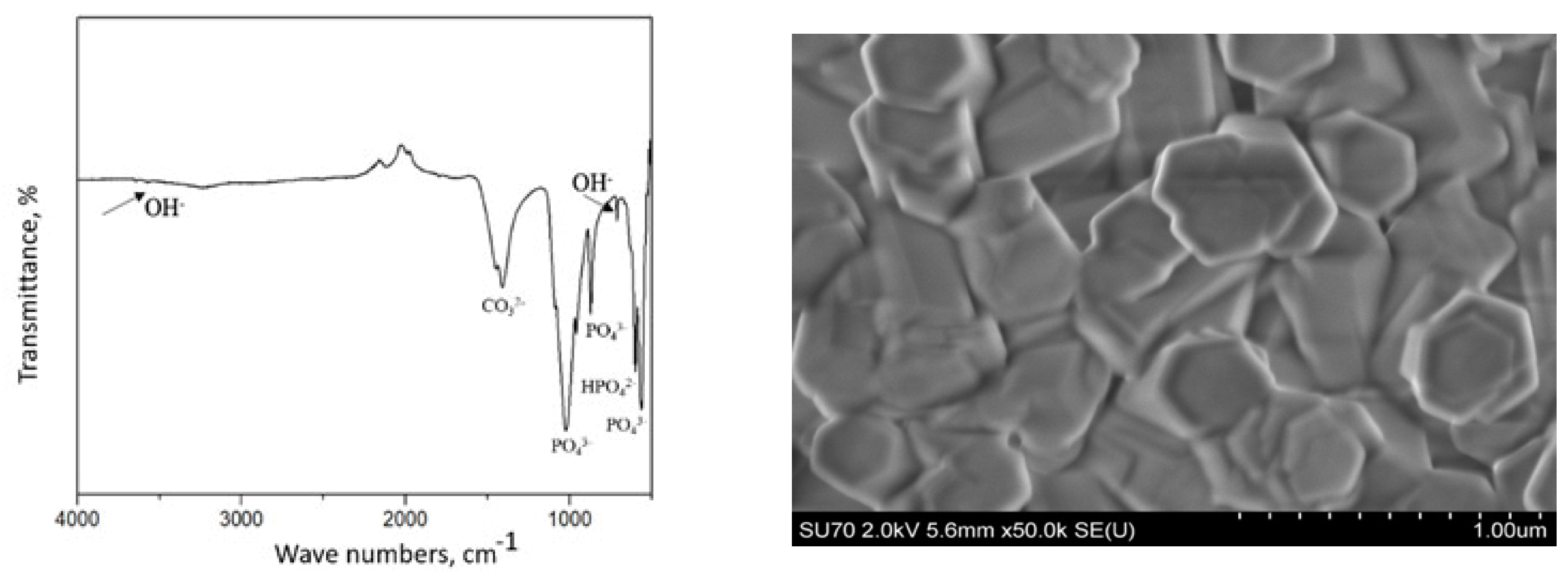

Figure 3 shows the FTIR spectrum of the Cu-HAP coating. The absorption bands at 970 and 1031 cm−1 correspond to symmetric and asymmetric vibrations in the PO43− ion. Bending vibrations in the PO43− ion correspond to absorption bands at 599-567 cm−1. The absorption bands of carbonate are at 870 and 1400 cm−1 [20].

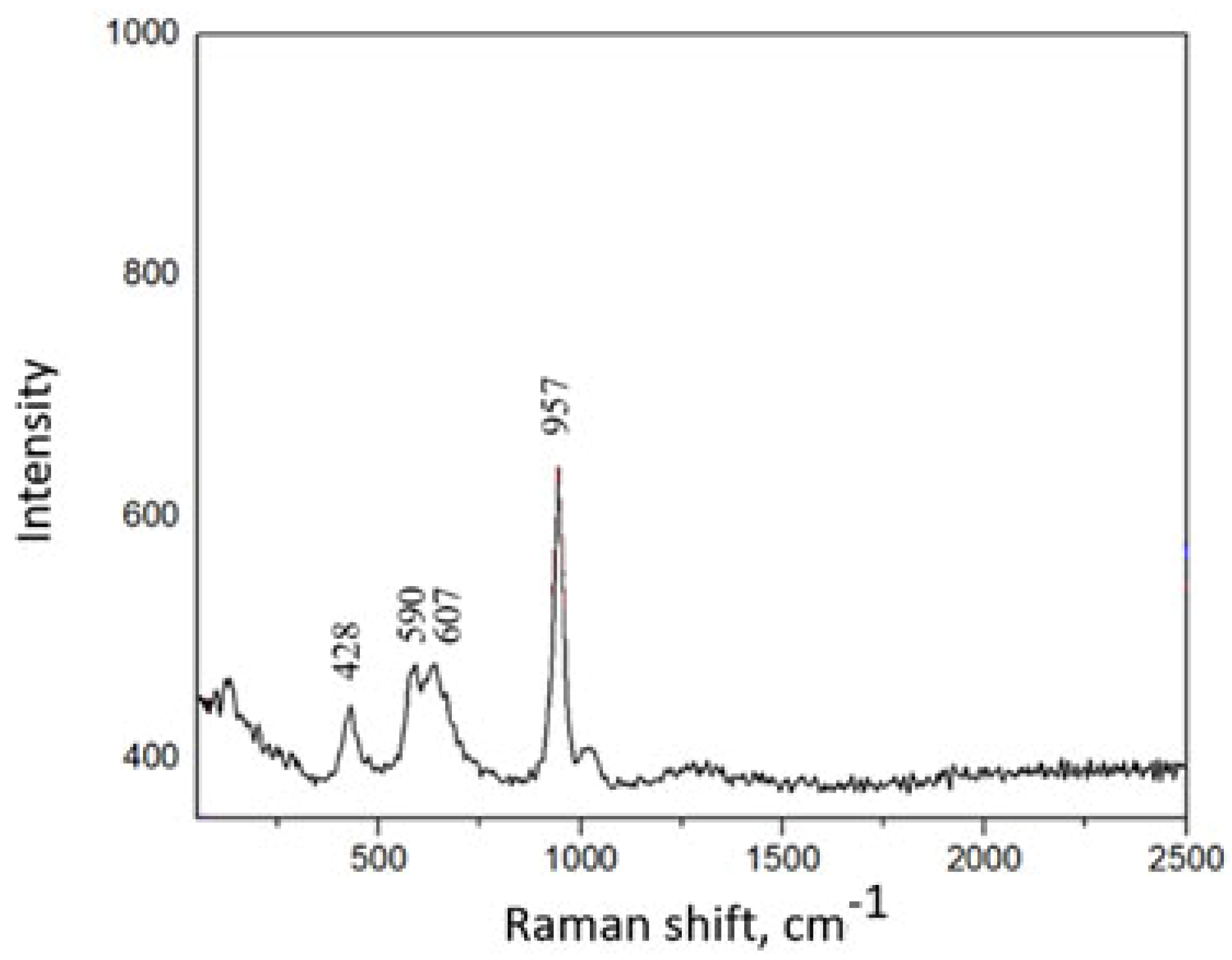

Figure 4 represents the Raman spectrum of a HAP coating substituted with Cu2+ ions. In this Raman spectrum, the band at 428 cm−1 of the phosphate group vibrations are visible, while the bands at 590, 607 cm−1 also belong to the PO43− asymmetric vibrations of the HAP. The band at 957 cm−1 corresponds to a fully symmetric stretching of PO43−. The sharpness of this band confirms a good crystallinity of the Cu-HAP coating [21].

3.3. Synthesis and Characterization of Zn-HAP

However, the formation of HAP coatings substituted with Zn2+ ions by the above preparation method did not proceed. The results presented in the XRD pattern of the coating synthesised by the low-temperature precipitation-dissolution method (by forming mixed carbonates from a mixture of Zn(NO3)2·6H2O and Ca(NO3)2·4H2O and dropping the product into Na2HPO4 + TRIS buffer solution) confirmed only formation of calcite which was not transformed to the Zn-HAP. Once again, we can conclude that HAP substituted by zinc ions has not formed by this synthesis method. The XRD patterns contained only diffraction reflections of calcium carbonate.
Therefore, different variations of the proposed synthesis method were tested to obtain a Zn-HAP coating on Ti substrate. An attempt was made to synthesise the Zn-HAP coating by direct immersing of the already synthesised HAP coating on Ti into Zn(NO3)2 solution. The reaction was carried out under the same conditions at 80 °C for one week. The XRD pattern of the resulting product is shown in Figure 5.
Unexpectedly, the Zn-HAP did not form, and also the HAP coating dissolved, although the solubility of HAP is very low. An even more unexpected result was the formation of almost single phase zinc hydroxide nitrate monohydrate Zn(OH)(NO3)(H2O) on the Ti substrate. Thus, during this synthetic approach almost monophasic Zn(OH)(NO3)(H2O) instead of Zn-HAP has formed on Ti substrate.
A third synthetic approach was also selected to obtain the Zn-HAP coating. The CaCO3 coating synthesised on Ti substrate was dipped into a solution of Na2HPO4 + TRIS buffer + Zn(NO3)2·6H2O and stored therein for one week at 80 °C. Again, instead of Zn-HAP, the formation of Zn(OH)(NO3)(H2O) along with small amount of Zn3(OH)4(NO3)2 and unreacted calcium carbonate was observed on the Ti surface.

3.4. SEM and EDX Analysis

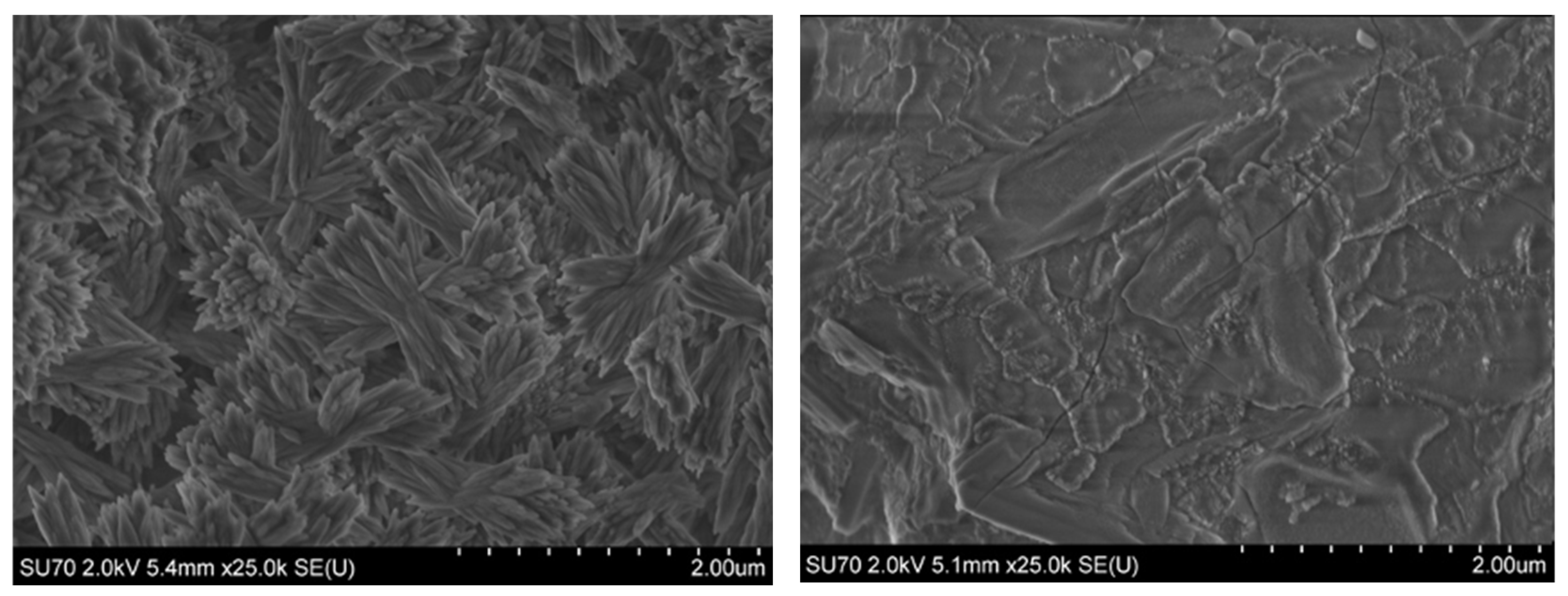

The SEM images clearly showed that the addition of copper to the HAP also changes the morphology of the particles. Instead of the hexagonal 20 nm particles of HAP, fibrous crystallites with a snowflake shape of about 1 µm have formed (see Figure 6). The volumetric snowflake crystallites are composed of interlocking needles between 0.5 nm and 1 nm in size. Both the partially altered Cu-HAP samples are characterised by a high degree of homogeneity in particle size distribution. The morphology of the Zn2+-containing samples synthesised by forming mixed carbonates from a mixture of Zn(NO3)2·6H2O and Ca(NO3)2·4H2O and immersing the product into a Na2HPO4 + TRIS buffer solution differs considerably from that of the HAP and Cu-HAP. The representative SEM image of this sample is also shown in Figure 6. It can be seen that homogeneous coatings with some cracks have formed. The coatings are composed of planar crystals larger than 1 µm forming a continuous coating. Few accumulations of smaller particles are also visible on the Ti surface.

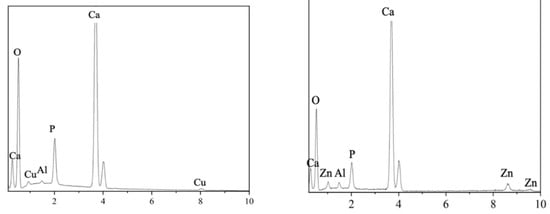

Elemental analysis of the synthesised Cu and Zn containing coatings was carried out using EDX analysis. The EDX spectra of both samples are presented in Figure 7.
In the case of Cu-HAP coating, the Ca/P ratio of ~1,62 was found to be almost identical to the calcium/phosphorus ratio in stoichiometric HAP (1,67). The molar ratio of calcium to copper was Ca:Cu = 1:0.033, i.e., about 3.3 mol% of the calcium was likely replaced by copper. The formula for the synthesis product could then be written Ca9,7Cu0,3(PO4)6(OH)2 or Ca9,85Cu0,15(PO4)6(OH)2, if the reaction (see Equation (3)) produced a further stoichiometric amount of copper hydroxide. From the EDX measurements of the sample with zinc, the Ca/P ratio determined was completely unreasonable as it did not correspond to any possible calcium/phosphorus ratio in known phosphates. Although calcium and phosphorus were detected in the synthesised coating, XRD analysis failed to detect calcium phosphate crystalline phases. It is likely that a significant amount of amorphous calcium carbonate and/or a very small amount of calcium hydroxyapatite remained in the coating. The EDX spectrum shows that the coating synthesised contains a significant amount of zinc.

3.5. Antibacterial Properties

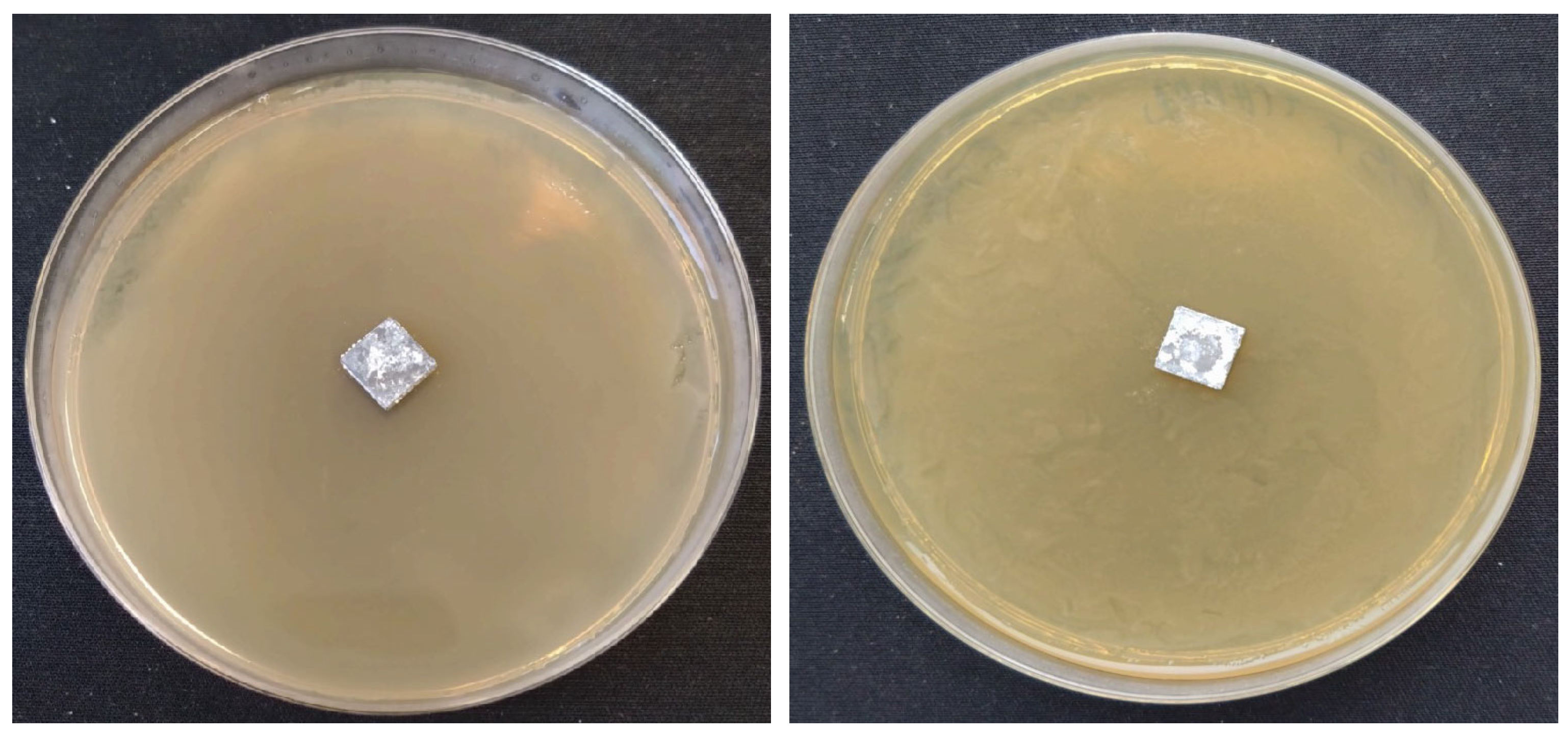

Evaluation of the antibacterial properties of synthesised coatings on Ti substrates revealed no zones of hydroxyapatite (HAP) inhibition in the presence of Gram-negative Escherichia coli and Gram-positive Bacillus subtilis bacteria (Figure 8).
Subsequent microbiological tests conducted after 24 h of incubation at 37 °C demonstrated zones of inhibition in samples containing Cu-HAP when exposed to a colony of B. subtilis (see Figure 9).
According to existing literature [22], Gram-positive bacteria possess a negatively charged cell surface and a substantial peptidoglycan membrane, ranging from 20 to 80 nm in thickness. In contrast, Cu2+ ions are positively charged and adhere to these negatively charged surfaces, thereby inducing apoptosis in Gram-positive bacteria. Similar observations on the effects of Cu-doped titanium alloy coatings on Gram-positive bacteria have been reported in a study by Kalaivani, S. et al. [23]. Figure 10 illustrates the zones of inhibition associated with samples doped with Zn2+ ions when exposed to a B. subtilis colony. However, no zones of inhibition were observed in the presence of E. coli.

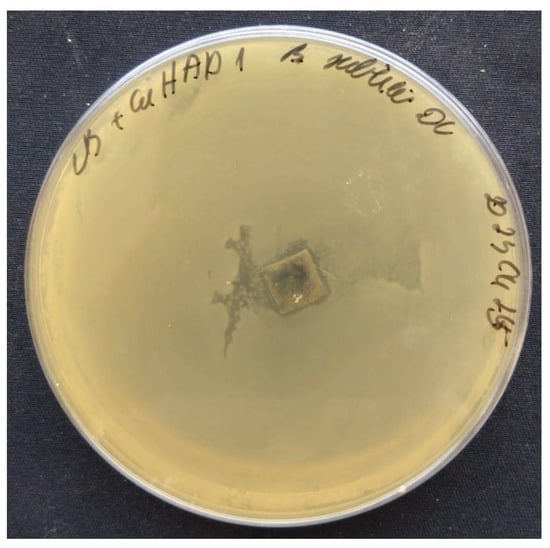

Inhibition zone of coating with Cu-HAP coating on Ti were 10.5mm ± 0.5 mm average from nine measurement; the plate with the Zn3(OH)4(NO3)2 coatings were 15 mm ± 1.8 mm. Several factors may explain the lack of inhibition zones in some cases with Cu2+ and Zn2+ ion coatings. One plausible explanation is that materials from coatings do not substantially diffuse into the medium; the fraction that does diffuse exhibits inhibitory effects solely against B. subtilis. Another possibility is the absence of direct contact between the metal ions and the bacteria. Alternatively, the concentrations of metal ions may be insufficient for inhibition.

4. Discussion

Bone is a biologically rigid and strong material that lasts for more than 50 years without damage in human bodies [24]. However, an array of factors, including mechanical trauma, age-related weakening, and pathological conditions, necessitate the implantation of synthetic prostheses. [25]. There are different types of bone implants that can be used to help restore or replace bone tissue. The most common are:
  • Metal implants. These implants are usually made of titanium or stainless steel and are used for fracture fixation, joint replacement, and spinal surgery [26].
  • Ceramic implants. These implants are usually made of zirconium and are used for joint replacement surgery [27].
  • Polymer implants. These implants are routinely made of polyethylene and are used for joint replacement surgery, particularly in hips and knees [28].
  • Bone grafts. Bone tissue is taken from another part of the patient’s body or from a donor and is used to promote healing of damaged or missing bone [29].
Titanium and calcium phosphate ceramics have emerged as the gold standard in orthopaedic applications. Titanium alloys exhibit commendable mechanical strength and resistance to physiological corrosion, courtesy of an intrinsic oxide layer. Calcium phosphates, particularly hydroxyapatite (HAP), offer unparalleled biocompatibility, accelerating biological responses and promoting strong bone-implant interfaces. Despite their advantages, calcium phosphates are mechanically inferior, leading to research efforts focused on material modification for enhanced bioavailability [25]. HAP has strong osteopermeability properties, making it particularly attractive for biomedical applications [30]. When HAP-based ceramics are implanted, a fibrous layer is formed on the surface of the ceramics, which helps the implant to bond to the living bone. This stabilises the implant and anchors it to the surrounding tissue. Synthetic HAPs are also used to cover metal implants or bone grafts. In addition, a PhD thesis [13] suggests that HAP particles can inhibit the growth of various types of cancer cells. HAP-based materials find utilisation in medical and dental fields as bone graft substitutes, dental implant coatings, and even as facial fillers [31,32,33].
Various synthesis methodologies have been explored, including wet, dry, and high-temperature techniques, sometimes leveraging bio-waste as precursors, which offers an economical and sustainable approach [34]. Bio-wastes include vertebrate bones, eggshells, and marine shells, the use of which is not only cost-effective but also contributes to sustainability and adds value. The properties of the final product produced depend on the type of precursor used and the synthesis protocols used. Wet methods are further subdivided into precipitation, sol-gel, hydrothermal, microwave, and sonochemical methods. The precipitation method remains the prevalent approach for synthesising hydroxyapatite (HAP). This technique involves the incremental addition of precursors under constant mixing, while maintaining an alkaline pH. Subsequent to reaction completion, the precipitate is isolated via centrifugation, oven-dried, and mechanically processed. Key variables influencing the material’s characteristics include the Ca/P ratio, rate of precursor addition, reaction temperature, and pH, as well as any added dispersants [35]. Advantages of this methodology encompass simplicity, low-temperature synthesis, cost-effectiveness, and high product purity. Limitations include particle non-uniformity and agglomeration, which can be mitigated through meticulous control of reaction parameters [36]. The sol-gel synthesis method is a method for the synthesis of HAP under mild conditions. When the crystallisation of the calcium and phosphate precursors takes place in a mild environment, the resulting HAP has high purity. The rate of gel formation and HAP growth depends on the type of solvent, the precursors used, the pH, and the temperature used in the process. Inaccuracies in these parameters lead to the formation of calcium-containing impurities during the process [37]. Another disadvantage of the sol-gel method is that it is time consuming.
Another widely used method for the preparation of HAP is the hydrothermal method, which involves chemical reactions between calcium and phosphate precursors at temperatures and pressures above ambient conditions. This method produces HAP with high crystallinity and stoichiometry. The morphology, crystallinity, and porosity of the HAP can be controlled by proper control of the pressure and temperature of the reaction vessel [37]. In the microwave (MW) irradiation method, a rapid heating source is used and monodisperse HAP nanoparticles can be synthesised in a short time. In addition, MW methods are energy efficient, the results are reproducible, and the final product has high crystallinity. The method can also be integrated with traditional methods (such as MW-deposition, MW-sol-gel, MW-hydrothermal, etc.) [38]. Research has shown that MW heating can enhance the antibacterial properties of HAP [39]. The sonochemical method is very fast and energy efficient, using ultrasound to synthesise HAP. It has been shown that prolonging the duration of the ultrasound produces small rod-shaped HAP nanoparticles of almost uniform size [40]. Naturally occurring biological resources like animal bones, eggshells, and plant extracts serve as viable precursors for hydroxyapatite (HAP) synthesis. These resources offer cost-effectiveness and waste treatment benefits, alongside yielding biomimetic, biocompatible, and bioactive HAP that is non-stoichiometric due to trace elements, making it analogous to human bone composition [36,41]. Mammalian bones, such as those from cows and pigs, are particularly favoured for their physicochemical resemblance to human bone. The extraction process involves a pre-processing step of cleaning and boiling, followed by high-temperature burning to remove organic compounds [42]. The resultant HAP’s properties are influenced by the heating parameters [43,44,45]. Eggshells, predominantly composed of calcium carbonate, undergo cleaning and heating to form CaO, which is then converted to Ca(OH)2. This is mixed with a phosphorus precursor to synthesise HAP [46]. Plant-derived biomolecules like pectin can modulate HAP morphology. For example, pectin from banana bark has been demonstrated to produce low-crystalline HAP with uniformly distributed nanoparticles [47,48,49].
In our study, the incorporation of Zn2+ ions into hydroxyapatite (HAP) was investigated. Zinc (Zn) is a critical trace element in humans, constituting approximately 3 g in the adult body. It serves both catalytic and structural roles in various biological processes, including metabolism, cell division, and gene transcription. Zinc deficiency is detrimental, particularly affecting the immune system [12]. Zinc is found as a trace element in bone. The introduction of Zn cations into the HAP structure is a popular area of research. The substitution of Zn2+ ions for Ca2+ results in a decrease in the lattice parameters a and c. This is due to the difference in the ionic radii of these cations (Zn2+ (0.074 nm) and Ca2+ (0.099 nm)). Scientific publications have reported that zinc stimulates bone formation by activating osteoblast proliferation and differentiation [50,51]. Zn-HAP also has antibacterial properties against Gram-negative and Gram-positive bacteria. HAP doped with less than 1% zinc ions exhibits effective biological activity [12].
In previous studies, Zn-HAP coatings have been obtained by different methods, e.g., plasma spraying, sputtering, sol-gel method, magnetron sputtering. The Zn-HAP samples obtained by the different methods show a different distribution of zinc in the coating. For example, sputtering produces homogeneous Zn-HAP coatings, whereas magnetron sputtering produces Zn-HAP coatings with a higher concentration of zinc ions on the coating surface [12]. The dependence of the Zn-HAP biological response on the zinc content has been investigated in various experiments. Webster et al. have shown that even small amounts of Zn (from 1.3%) increase the osteoblast response [52]. In vitro adhesion and proliferation studies have shown that human osteoblast cells respond better to Zn-HAP layers compared to pure HAP coatings. Zn substitution was shown to affect the adhesion of HAP coatings on Ti substrates.
Another cation included in our research was Cu2+. The introduction of Cu ions into the HAP structure also provides antibacterial properties to the HAP, which reduces the risk of inflammation after implantation. Additionally, our research examines the incorporation of Cu2+ ions into hydroxyapatite (HAP). Copper ions enhance protein absorption and osteogenic differentiation, and facilitate bone-like apatite formation at implant sites [53]. While Cu-based nanoparticles have catalytic applications due to copper’s variable oxidation states (0, I, II, III) [54], the impact of Cu2+ substitution on HAP structure remains understudied. Cu has antibacterial properties, promotes angiogenesis, and has low cytotoxicity. Despite promising applications in orthopaedics, the literature shows that commercial success is still a long way off. This is not only due to the burden of the regulatory processes involved in bringing metal-doped materials to the health market, but also due to the difficulty in proving the effect of the element experimentally. Today’s challenges are to combine in the same study all the characteristics related to the element: material studies (chemical composition, phase composition, formation, biomechanical aspects, brittleness, mechanical strength, and oxidation resistance) and biological aspects (cytotoxicity, bactericidal, osteogenic and angiogenic properties) [55]. Cu is a trace element essential for numerous physiological functions, including respiration, energy production, and tissue formation [56]. It is crucial for bone collagen maturation and osteoblast function [57,58]. In a 70 kg adult, approximately 100 mg of Cu is distributed primarily in the skeleton, muscles, liver, and brain [59]. While the maximum adult dose is 10 mg/day, deficiency can result in conditions like anaemia, leucopenia, and bone fragility [55]. Prado et al. demonstrated experimentally that after 48 h, MRSA, Klebsiella pneumoniae, and Acinetobacter baumannii did not adhere to Cu-containing samples, unlike stainless steel [60]. Another study investigated the incidence of infections over one year in an intensive care unit. Some patients were placed in wards with Cu-alloy surfaces and others in conventional wards. The proportion of patients who developed an infection with MRSA or VRE (vancomycin-resistant enterococcus) was compared between the two types of wards. In wards with Cu, 7.1% of patients developed nosocomial infection, compared with 12.3% in standard wards, indicating that Cu-alloy surfaces significantly reduced nosocomial infections [61]. Three main mechanisms are described in the literature: (a) membrane and cell wall damage due to direct interaction with microbial surfaces; (b) release of component divalent metal ions; (c) generation of reactive oxygen species (ROS), which are known to be toxic to bacteria.
In 2008, the EPA acknowledged copper’s antimicrobial properties, leading to its incorporation in various biomedical materials, including calcium phosphate bioceramics [62,63]. Key studies have substantiated the antimicrobial efficacy of Cu-doped hydroxyapatite (HAP). For instance, Stanic et al. reported a 95% reduction in Escherichia coli, S. aureus, and Candida albicans [64], while Li et al. found less than a 1% survival rate of E. coli after 24 h [64]. In 2019, Bhattacharjee et al. confirmed the material’s effectiveness against E. coli and S. aureus [65]. In 2015, Huang et al. synthesised Cu-doped HAP coatings on titanium. The coatings were found to have an antimicrobial effect of >75% against E. coli [66]. In a study by Kalaivani et al., copper-doped CaSiO3 coatings were synthesised and evaluated for their antibacterial properties against E. coli and S. aureus. The results showed that the pure powder did not exhibit antibacterial properties, but the antibacterial activity gradually increased with increasing Cu content in the doped coatings [23]. Ghosh et al. coated Cu-doped hydroxyapatite on titanium with varying Cu content and tested these samples against E. coli and S. aureus. Their results showed that the number of viable bacteria decreased as the Cu content of the coatings increased, while the antibacterial activity of the Cu-free hydroxyapatite was very low. After 8 h of cultivation, the antibacterial activity of E. coli on Cu-HAP was 78% and that of S. aureus was 83%. Wolf-Brandstetter et al. performed similar studies with titanium implants coated with Cu-HAP layers. After 2 h of cultivation with E. coli, the coatings with the highest Cu content showed a significantly lower number of viable bacteria and this effect was prolonged to 12 h. The results also showed a reduction in adherent bacteria on implant surfaces after 12 h [67]. Although Cu-based biomaterials are generally effective against bacteria, the efficacy is influenced by various parameters, such as bacterial type (Gram-positive or Gram-negative), testing methodologies, experimental conditions, and Cu content variation. The ion release rate in biological media also plays a role. Gram-positive bacteria, with their negatively charged and thick peptidoglycan membranes (20–80 nm), are more susceptible to Cu-induced apoptosis, whereas Gram-negative bacteria possess a thinner peptidoglycan layer (6–15 nm) and an outer membrane that can act as a diffusion barrier [22,68]. A paramount strength of this study resides in its innovative approach to the low-temperature synthesis of hydroxyapatite (HAP) coatings; thereby the adhesion to titanium substrate is better and formation of TiO2 is avoided. The incorporation of copper and zinc ions as dopants not only adds complexity to the material but also offers a platform for the exploration of multifunctional properties. Significantly, the study takes the crucial step of evaluating the antibacterial efficacy of these doped coatings, filling a gap in current research on HAP-based biomaterials. Analytical methods used in the study provide a robust foundation for the reported findings. Nevertheless, the study is not devoid of limitations. A comprehensive analysis of the coatings’ mechanical properties, aside from their antibacterial attributes, could provide a more holistic understanding of their potential applications [69,70,71]. Moreover, the study would benefit from a broader comparative framework that situates the findings in relation to existing methods and materials for HAP coatings.

5. Conclusions

A crystalline calcium hydroxyapatite (HAP) with a very high homogeneity and degree of particle size distribution was successfully synthesised from CaCO3 coatings by a dissolution-precipitation method at low temperature of 80 °C in aqueous media. The low-temperature precipitation-dissolution method was successfully used for the synthesis of partially Cu2+ ion-substituted HAP. However, the formation of HAP coatings doped with Zn2+ ions by the above method did not proceed as smoothly as expected. The different synthesis methods tested resulted in the formation of Zn(OH)(NO3)(H2O), Zn3(OH)4(NO3)2 on the surface of the coating, leaving unreacted calcium carbonate. Antibacterial property tests showed that no zones of inhibition were detected in pure HAP. In the Cu-HAP and Zn-HAP coating, after incubation for 24 h at 37 °C, zones of inhibition were detected in the presence of a colony of B. subtilis bacteria. However, no zones of inhibition were detected in the presence of Escherichia coli.

Author Contributions

Conceptualisation, I.G. and D.S.; methodology, A.K.; formal analysis, L.L., D.V. and J.K. resources, A.K.; writing—original draft preparation, A.K and L.L.; writing—review and editing, A.K.; visualisation, I.G.; supervision, A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. In, Y.; Amornkitbamrung, U.; Hong, M.H.; Shin, H. On the Crystallization of Hydroxyapatite under Hydrothermal Conditions: Role of Sebacic Acid as an Additive. ACS Omega 2020, 5, 27204–27210. [Google Scholar] [CrossRef]
  2. Szewczyk, A.; Skwira, A.; Ginter, M.; Tajer, D.; Prokopowicz, M. Microwave-Assisted Fabrication of Mesoporous Silica-Calcium Phosphate Composites for Dental Application. Polymers 2020, 13, 53. [Google Scholar] [CrossRef] [PubMed]
  3. Teotia, A.K.; Raina, D.B.; Singh, C.; Sinha, N.; Isaksson, H.; Tagil, M.; Lidgren, L.; Kumar, A. Nano-Hydroxyapatite Bone Substitute Functionalized with Bone Active Molecules for Enhanced Cranial Bone Regeneration. ACS Appl. Mater. Interfaces 2017, 9, 6816–6828. [Google Scholar] [CrossRef] [PubMed]
  4. Tas, A.C. Synthesis of biomimetic Ca-hydroxyapatite powders at 37 degrees C in synthetic body fluids. Biomaterials 2000, 21, 1429–1438. [Google Scholar] [CrossRef] [PubMed]
  5. Kumar, M.; Kumar, R.; Kumar, S. Coatings on orthopedic implants to overcome present problems and challenges: A focused review. Mater. Today Proc. 2021, 45, 5269–5276. [Google Scholar] [CrossRef]
  6. Cheng, Y.; Zhao, G.; Liu, H. Histological evaluation of collagen-hydroxyapatite composite as osseous implants in the repair of mandibular defect. Chin. J. Reparative Reconstr. Surg. 1998, 12, 74–76. [Google Scholar]
  7. Park, J.; Kim, B.J.; Hwang, J.Y.; Yoon, Y.W.; Cho, H.S.; Kim, D.H.; Lee, J.K.; Yoon, S.Y. In-Vitro Mechanical Performance Study of Biodegradable Polylactic Acid/Hydroxyapatite Nanocomposites for Fixation Medical Devices. J. Nanosci. Nanotechnol. 2018, 18, 837–841. [Google Scholar] [CrossRef] [PubMed]
  8. Shi, P.; Liu, M.; Fan, F.; Yu, C.; Lu, W.; Du, M. Characterization of natural hydroxyapatite originated from fish bone and its biocompatibility with osteoblasts. Mater. Sci. Eng. C Mater. Biol. Appl. 2018, 90, 706–712. [Google Scholar] [CrossRef]
  9. Eliaz, N.; Metoki, N. Calcium Phosphate Bioceramics: A Review of Their History, Structure, Properties, Coating Technologies and Biomedical Applications. Materials 2017, 10, 334. [Google Scholar] [CrossRef]
  10. Yasukawa, A.; Gotoh, K.; Tanaka, H.; Kandori, K. Preparation and structure of calcium hydroxyapatite substituted with light rare earth ions. Colloids Surf. A: Physicochem. Eng. Asp. 2012, 393, 53–59. [Google Scholar] [CrossRef]
  11. Lin, K.; Chang, J. Structure and properties of hydroxyapatite for biomedical applications. In Hydroxyapatite (HAp) for Biomedical Applications; Elsevier: Amsterdam, The Netherlands, 2015; pp. 3–19. [Google Scholar]
  12. Arcos, D.; Vallet-Regi, M. Substituted hydroxyapatite coatings of bone implants. J. Mater. Chem. B 2020, 8, 1781–1800. [Google Scholar] [CrossRef] [PubMed]
  13. Trinkunaite-Felsen, J. Investigation of Calcium Hydroxyapatite Synthesized Using Natural Precursors. Ph.D. Thesis, Vilnius University, Vilnius, Lithuania, 2014. [Google Scholar]
  14. Ishikawa, K.; Kareiva, A. Sol–gel synthesis of calcium phosphate-based coatings—A review. Chemija 2020, 31, 25–41. [Google Scholar] [CrossRef]
  15. Jonauske, V.; Stanionyte, S.; Chen, S.-W.; Zarkov, A.; Juskenas, R.; Selskis, A.; Matijosius, T.; Yang, T.C.; Ishikawa, K.; Ramanauskas, R. Characterization of sol-gel derived calcium hydroxyapatite coatings fabricated on patterned rough stainless steel surface. Coatings 2019, 9, 334. [Google Scholar] [CrossRef]
  16. Shi, R.; Hayashi, K.; Bang, L.T.; Ishikawa, K. Effects of surface roughening and calcite coating of titanium on cell growth and differentiation. J. Biomater. Appl. 2020, 34, 917–927. [Google Scholar] [CrossRef] [PubMed]
  17. Yanyan, S.; Guangxin, W.; Wuhui, L.; Yaming, W.; Hayakawa, S.; Osaka, A. Conversion of sub-µm calcium carbonate (calcite) particles to hollow hydroxyapatite agglomerates in K2HPO4 solutions. Nanotechnol. Rev. 2020, 9, 945–960. [Google Scholar] [CrossRef]
  18. Harris, J.; Mey, I.; Hajir, M.; Mondeshki, M.; Wolf, S.E. Pseudomorphic transformation of amorphous calcium carbonate films follows spherulitic growth mechanisms and can give rise to crystal lattice tilting. CrystEngComm 2015, 17, 6831–6837. [Google Scholar] [CrossRef]
  19. Gheisari, H.; Karamian, E.; Abdellahi, M. A novel hydroxyapatite—Hardystonite nanocomposite ceramic. Ceram. Int. 2015, 41, 5967–5975. [Google Scholar] [CrossRef]
  20. Shanmugam, S.; Gopal, B. Copper substituted hydroxyapatite and fluorapatite: Synthesis, characterization and antimicrobial properties. Ceram. Int. 2014, 40, 15655–15662. [Google Scholar] [CrossRef]
  21. Unabia, R.B.; Bonebeau, S.; Candidato Jr, R.T.; Jouin, J.; Noguera, O.; Pawłowski, L. Investigation on the structural and microstructural properties of copper-doped hydroxyapatite coatings deposited using solution precursor plasma spraying. J. Eur. Ceram. Soc. 2019, 39, 4255–4263. [Google Scholar] [CrossRef]
  22. Bari, A.; Bloise, N.; Fiorilli, S.; Novajra, G.; Vallet-Regi, M.; Bruni, G.; Torres-Pardo, A.; Gonzalez-Calbet, J.M.; Visai, L.; Vitale-Brovarone, C. Copper-containing mesoporous bioactive glass nanoparticles as multifunctional agent for bone regeneration. Acta Biomater. 2017, 55, 493–504. [Google Scholar] [CrossRef]
  23. Kalaivani, S.; Singh, R.K.; Ganesan, V.; Kannan, S. Effect of copper (Cu(2+)) inclusion on the bioactivity and antibacterial behavior of calcium silicate coatings on titanium metal. J. Mater. Chem. B 2014, 2, 846–858. [Google Scholar] [CrossRef]
  24. Chandra, G.; Pandey, A. Biodegradable bone implants in orthopedic applications: A review. Biocybern. Biomed. Eng. 2020, 40, 596–610. [Google Scholar] [CrossRef]
  25. León, B.; Jansen, J.A. Thin Calcium Phosphate Coatings for Medical Implants; Springer: Berlin/Heidelberg, Germany, 2009; Volume 309. [Google Scholar]
  26. Prasad, K.; Bazaka, O.; Chua, M.; Rochford, M.; Fedrick, L.; Spoor, J.; Symes, R.; Tieppo, M.; Collins, C.; Cao, A.; et al. Metallic Biomaterials: Current Challenges and Opportunities. Materials 2017, 10, 884. [Google Scholar] [CrossRef]
  27. Rieu, J.; Goeuriot, P. Ceramic composites for biomedical applications. Clin. Mater. 1993, 12, 211–217. [Google Scholar] [CrossRef]
  28. Tang, X.; Thankappan, S.K.; Lee, P.; Fard, S.E.; Harmon, M.D.; Tran, K.; Yu, X. Polymeric biomaterials in tissue engineering and regenerative medicine. In Natural and Synthetic Biomedical Polymers; Elsevier: Amsterdam, The Netherlands, 2014; pp. 351–371. [Google Scholar]
  29. De Long, W.G., Jr.; Einhorn, T.A.; Koval, K.; McKee, M.; Smith, W.; Sanders, R.; Watson, T. Bone grafts and bone graft substitutes in orthopaedic trauma surgery. A critical analysis. J. Bone Jt. Surg. Am. 2007, 89, 649–658. [Google Scholar] [CrossRef]
  30. Fox, K.; Tran, P.A.; Tran, N. Recent advances in research applications of nanophase hydroxyapatite. Chemphyschem 2012, 13, 2495–2506. [Google Scholar] [CrossRef] [PubMed]
  31. Siddiqui, H.A.; Pickering, K.L.; Mucalo, M.R. A Review on the Use of Hydroxyapatite-Carbonaceous Structure Composites in Bone Replacement Materials for Strengthening Purposes. Materials 2018, 11, 1813. [Google Scholar] [CrossRef] [PubMed]
  32. Nasar, A. Hydroxyapatite and its coatings in dental implants. In Applications of Nanocomposite Materials in Dentistry; Elsevier: Amsterdam, The Netherlands, 2019; pp. 145–160. [Google Scholar]
  33. Jeong, S.H.; Fan, Y.F.; Baek, J.U.; Song, J.; Choi, T.H.; Kim, S.W.; Kim, H.E. Long-lasting and bioactive hyaluronic acid-hydroxyapatite composite hydrogels for injectable dermal fillers: Physical properties and in vivo durability. J. Biomater. Appl. 2016, 31, 464–474. [Google Scholar] [CrossRef] [PubMed]
  34. Sadat-Shojai, M.; Khorasani, M.T.; Dinpanah-Khoshdargi, E.; Jamshidi, A. Synthesis methods for nanosized hydroxyapatite with diverse structures. Acta Biomater. 2013, 9, 7591–7621. [Google Scholar] [CrossRef] [PubMed]
  35. Ma, G. Three common preparation methods of hydroxyapatite. Proc. IOP Conf. Ser. Mater. Sci. Eng. 2019, 688, 033057. [Google Scholar] [CrossRef]
  36. Pu′ad, N.M.; Haq, R.A.; Noh, H.M.; Abdullah, H.; Idris, M.; Lee, T. Synthesis method of hydroxyapatite: A review. Mater. Today Proc. 2020, 29, 233–239. [Google Scholar] [CrossRef]
  37. Fihri, A.; Len, C.; Varma, R.S.; Solhy, A. Hydroxyapatite: A review of syntheses, structure and applications in heterogeneous catalysis. Coord. Chem. Rev. 2017, 347, 48–76. [Google Scholar] [CrossRef]
  38. Kalita, S.J.; Verma, S. Nanocrystalline hydroxyapatite bioceramic using microwave radiation: Synthesis and characterization. Mater. Sci. Eng. C Mater. Biol. Appl. 2010, 30, 295–303. [Google Scholar] [CrossRef] [PubMed]
  39. Lamkhao, S.; Phaya, M.; Jansakun, C.; Chandet, N.; Thongkorn, K.; Rujijanagul, G.; Bangrak, P.; Randorn, C. Synthesis of Hydroxyapatite with Antibacterial Properties Using a Microwave-Assisted Combustion Method. Sci. Rep. 2019, 9, 4015. [Google Scholar] [CrossRef] [PubMed]
  40. Utara, S.; Klinkaewnarong, J. Effect of sonication time on the characteristics of nanophase hydroxyapatite crystals synthesised by the sol–gel technique. Micro Nano Lett. 2015, 10, 1–4. [Google Scholar] [CrossRef]
  41. Akram, M.; Ahmed, R.; Shakir, I.; Ibrahim, W.A.W.; Hussain, R. Extracting hydroxyapatite and its precursors from natural resources. J. Mater. Sci. 2014, 49, 1461–1475. [Google Scholar] [CrossRef]
  42. Sun, R.-X.; Lv, Y.; Niu, Y.-R.; Zhao, X.-H.; Cao, D.-S.; Tang, J.; Sun, X.-C.; Chen, K.-Z. Physicochemical and biological properties of bovine-derived porous hydroxyapatite/collagen composite and its hydroxyapatite powders. Ceram. Int. 2017, 43, 16792–16798. [Google Scholar] [CrossRef]
  43. Googerdchian, F.; Moheb, A.; Emadi, R.; Asgari, M. Optimization of Pb(II) ions adsorption on nanohydroxyapatite adsorbents by applying Taguchi method. J. Hazard. Mater. 2018, 349, 186–194. [Google Scholar] [CrossRef] [PubMed]
  44. Khoo, W.; Nor, F.; Ardhyananta, H.; Kurniawan, D. Preparation of natural hydroxyapatite from bovine femur bones using calcination at various temperatures. Procedia Manuf. 2015, 2, 196–201. [Google Scholar] [CrossRef]
  45. Öksüz, K.E.; Kilinç, S.; Özer, A. Effect of calcination on microstructure development and properties of hydroxyapatite powders extracted from human and bovine bones. Trans. Indian Ceram. Soc. 2019, 78, 41–45. [Google Scholar] [CrossRef]
  46. Varadavenkatesan, T.; Vinayagam, R.; Pai, S.; Kathirvel, B.; Pugazhendhi, A.; Selvaraj, R. Synthesis, biological and environmental applications of hydroxyapatite and its composites with organic and inorganic coatings. Prog. Org. Coat. 2021, 151, 106056. [Google Scholar] [CrossRef]
  47. Gopi, D.; Kanimozhi, K.; Bhuvaneshwari, N.; Indira, J.; Kavitha, L. Novel banana peel pectin mediated green route for the synthesis of hydroxyapatite nanoparticles and their spectral characterization. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2014, 118, 589–597. [Google Scholar] [CrossRef] [PubMed]
  48. Gopi, D.; Kanimozhi, K.; Kavitha, L. Opuntia ficus indica peel derived pectin mediated hydroxyapatite nanoparticles: Synthesis, spectral characterization, biological and antimicrobial activities. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2015, 141, 135–143. [Google Scholar] [CrossRef]
  49. Begum, Y.; Deka, S. Green synthesis of pectin mediated hydroxyapatite nanoparticles from culinary banana bract and its characterization. Acta Aliment. 2017, 46, 428–438. [Google Scholar] [CrossRef]
  50. Yamaguchi, M.; Oishi, H.; Suketa, Y. Stimulatory effect of zinc on bone formation in tissue culture. Biochem. Pharmacol. 1987, 36, 4007–4012. [Google Scholar] [CrossRef]
  51. Yamaguchi, M. Role of zinc in bone formation and bone resorption. J. Trace Elem. Exp. Med. Off. Publ. Int. Soc. Trace Elem. Res. Hum. 1998, 11, 119–135. [Google Scholar] [CrossRef]
  52. Webster, T.J.; Massa-Schlueter, E.A.; Smith, J.L.; Slamovich, E.B. Osteoblast response to hydroxyapatite doped with divalent and trivalent cations. Biomaterials 2004, 25, 2111–2121. [Google Scholar] [CrossRef] [PubMed]
  53. Bulina, N.V.; Eremina, N.V.; Vinokurova, O.B.; Ishchenko, A.V.; Chaikina, M.V. Diffusion of Copper Ions in the Lattice of Substituted Hydroxyapatite during Heat Treatment. Materials 2022, 15, 5759. [Google Scholar] [CrossRef]
  54. Othmani, M.; Bachoua, H.; Ghandour, Y.; Aissa, A.; Debbabi, M. Synthesis, characterization and catalytic properties of copper-substituted hydroxyapatite nanocrystals. Mater. Res. Bull. 2018, 97, 560–566. [Google Scholar] [CrossRef]
  55. Jacobs, A.; Renaudin, G.; Forestier, C.; Nedelec, J.M.; Descamps, S. Biological properties of copper-doped biomaterials for orthopedic applications: A review of antibacterial, angiogenic and osteogenic aspects. Acta Biomater. 2020, 117, 21–39. [Google Scholar] [CrossRef]
  56. Chellan, P.; Sadler, P.J. The elements of life and medicines. Philos. Trans. A Math. Phys. Eng. Sci. 2015, 373, 20140182. [Google Scholar] [CrossRef] [PubMed]
  57. Opsahl, W.; Zeronian, H.; Ellison, M.; Lewis, D.; Rucker, R.B.; Riggins, R.S. Role of copper in collagen cross-linking and its influence on selected mechanical properties of chick bone and tendon. J. Nutr. 1982, 112, 708–716. [Google Scholar] [CrossRef] [PubMed]
  58. Lowe, N.M.; Lowe, N.M.; Fraser, W.D.; Jackson, M.J. Is there a potential therapeutic value of copper and zinc for osteoporosis? Proc. Nutr. Soc. 2002, 61, 181–185. [Google Scholar] [CrossRef]
  59. Ingle, A.P.; Paralikar, P.; Shende, S.; Gupta, I.; Biswas, J.K.; da Silva Martins, L.H.; Rai, M. Copper in medicine: Perspectives and toxicity. In Biomedical Applications of Metals; Springer: Berlin/Heidelberg, Germany, 2018; pp. 95–112. [Google Scholar]
  60. Prado, J.V.; Esparza, M.M.; Vidal, A.R.; Duran, T.C. Adherence to copper and stainless steel metal coupons of common nosocomial bacterial strains. Rev. Med. Chil. 2013, 141, 291–297. [Google Scholar] [CrossRef]
  61. Salgado, C.D.; Sepkowitz, K.A.; John, J.F.; Cantey, J.R.; Attaway, H.H.; Freeman, K.D.; Sharpe, P.A.; Michels, H.T.; Schmidt, M.G. Copper surfaces reduce the rate of healthcare-acquired infections in the intensive care unit. Infect. Control Hosp. Epidemiol. 2013, 34, 479–486. [Google Scholar] [CrossRef] [PubMed]
  62. Prather, V. Copper, brass and bronze kill pathogens-including "superbug" MRSA-responsible for hospital- and community-acquired infections. CDA Press Release 2008, 25, 1. [Google Scholar]
  63. Dorozhkin, S.V. Calcium orthophosphates. J. Mater. Sci. 2007, 42, 1061–1095. [Google Scholar] [CrossRef]
  64. Stanić, V.; Dimitrijević, S.; Antić-Stanković, J.; Mitrić, M.; Jokić, B.; Plećaš, I.B.; Raičević, S. Synthesis, characterization and antimicrobial activity of copper and zinc-doped hydroxyapatite nanopowders. Appl. Surf. Sci. 2010, 256, 6083–6089. [Google Scholar] [CrossRef]
  65. Bhattacharjee, A.; Fang, Y.; Hooper, T.J.N.; Kelly, N.L.; Gupta, D.; Balani, K.; Manna, I.; Baikie, T.; Bishop, P.T.; White, T.J.; et al. Crystal Chemistry and Antibacterial Properties of Cupriferous Hydroxyapatite. Materials 2019, 12, 1814. [Google Scholar] [CrossRef] [PubMed]
  66. Huang, Y.; Zhang, X.; Zhao, R.; Mao, H.; Yan, Y.; Pang, X. Antibacterial efficacy, corrosion resistance, and cytotoxicity studies of copper-substituted carbonated hydroxyapatite coating on titanium substrate. J. Mater. Sci. 2015, 50, 1688–1700. [Google Scholar] [CrossRef]
  67. Wolf-Brandstetter, C.; Beutner, R.; Hess, R.; Bierbaum, S.; Wagner, K.; Scharnweber, D.; Gbureck, U.; Moseke, C. Multifunctional calcium phosphate based coatings on titanium implants with integrated trace elements. Biomed. Mater. 2020, 15, 025006. [Google Scholar] [CrossRef] [PubMed]
  68. Nan, L.; Liu, Y.; Lu, M.; Yang, K. Study on antibacterial mechanism of copper-bearing austenitic antibacterial stainless steel by atomic force microscopy. J. Mater. Sci. Mater. Med. 2008, 19, 3057–3062. [Google Scholar] [CrossRef] [PubMed]
  69. Thakur, A.; Sharma, S.; Ganjoo, R.; Assad, H.; Kumar, A. Anti-Corrosive Potential of the Sustainable Corrosion Inhibitors Based on Biomass Waste: A Review on Preceding and Perspective Research. J. Phys. Conf. Series 2022, 2267, 012079. [Google Scholar] [CrossRef]
  70. Hikku, G.S.; Arthi, C.; Jeen Robert, R.B.; Jeyasubramanian, K.; Murugesan, R. Calcium phosphate conversion technique: A versatile route to develop corrosion resistant hydroxyapatite coating over Mg/Mg alloys based implants. J. Magnes. Alloys 2022, 10, 1821–1845. [Google Scholar] [CrossRef]
  71. Singh, J.; Singh Chatha, S.; Singh, H. Microstructural and in-vitro characteristics of functional calcium silicate topcoat on hydroxyapatite coating for bio-implant applications. Prog. Biomater. 2022, 11, 95–108. [Google Scholar] [CrossRef]
Coatings 13 01991 g001aCoatings 13 01991 g001b

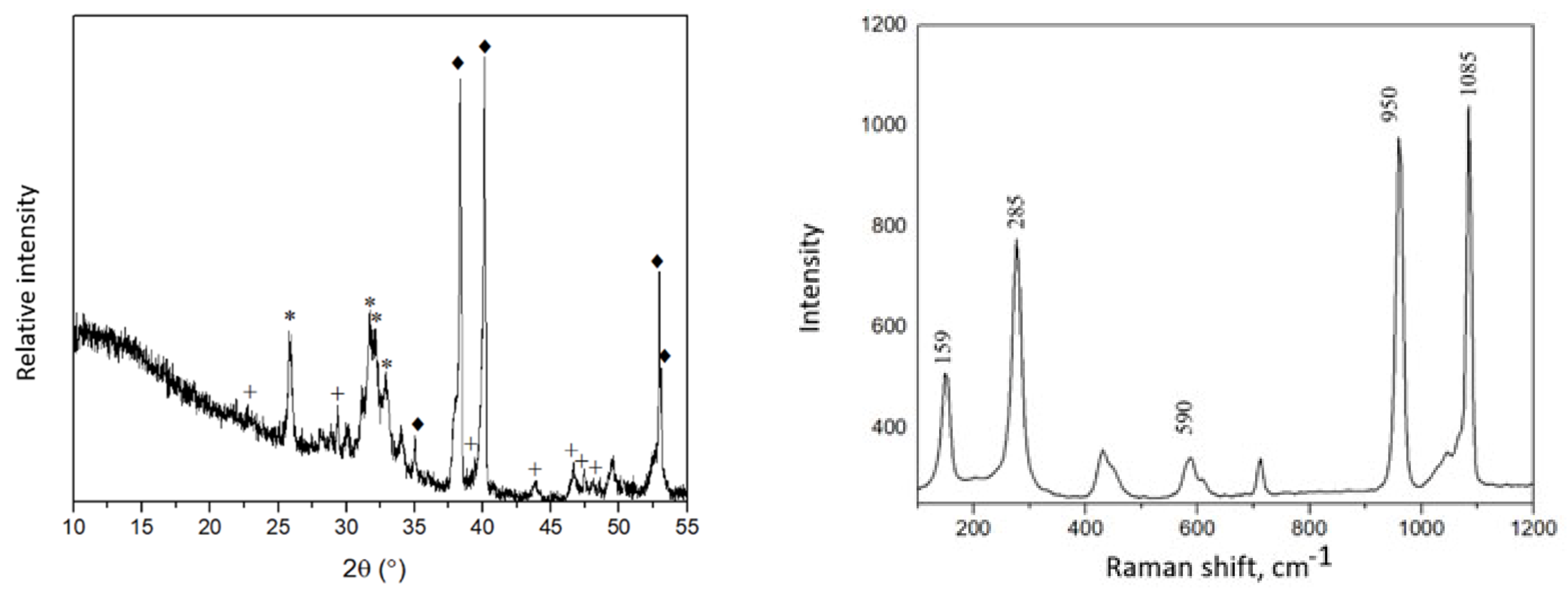

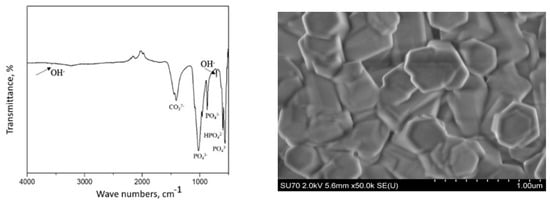

Figure 1. XRD pattern (top, left), Raman spectrum (top, right), FTIR spectrum (bottom, left), and SEM micrograph (bottom, right) of a calcium hydroxyapatite coating on a Ti substrate. Diffraction reflections: *—HAP [PDF: 96-431-7044]; ♦—Ti [PDF: 96-901-6191]; +—CaCO3 [PDF: 96-154-7348].
Figure 1. XRD pattern (top, left), Raman spectrum (top, right), FTIR spectrum (bottom, left), and SEM micrograph (bottom, right) of a calcium hydroxyapatite coating on a Ti substrate. Diffraction reflections: *—HAP [PDF: 96-431-7044]; ♦—Ti [PDF: 96-901-6191]; +—CaCO3 [PDF: 96-154-7348].
Coatings 13 01991 g001aCoatings 13 01991 g001b
Coatings 13 01991 g002

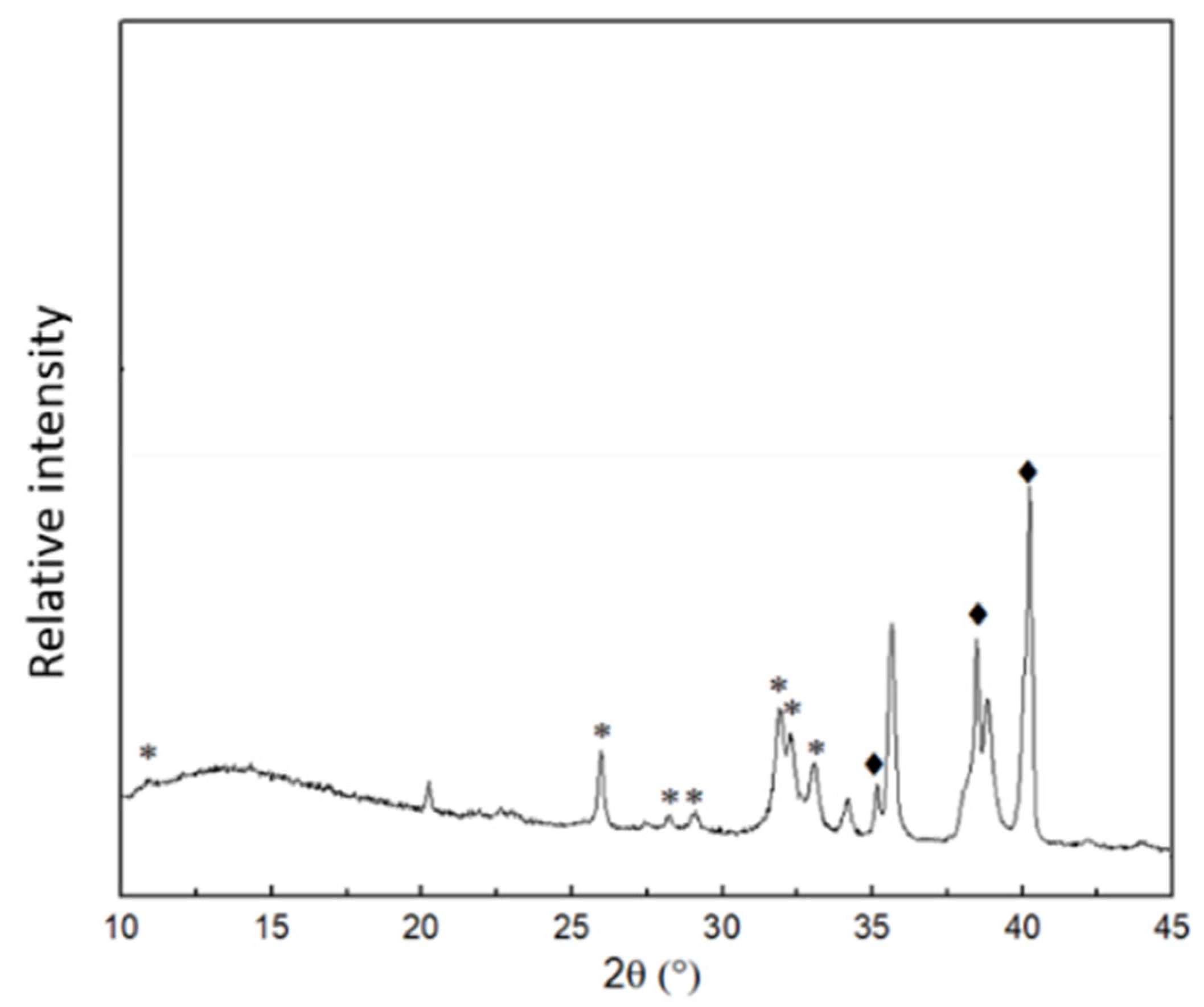

Figure 2. XRD pattern of the Cu-HAP coating obtained on the Ti substrate. Diffraction reflections: *—HAP [PDF: 96-431-7044]; ♦—Ti [PDF:96-901-6191.
Figure 2. XRD pattern of the Cu-HAP coating obtained on the Ti substrate. Diffraction reflections: *—HAP [PDF: 96-431-7044]; ♦—Ti [PDF:96-901-6191.
Coatings 13 01991 g002
Coatings 13 01991 g003
Figure 3. FTIR spectrum of the Cu-HAP coating obtained on the Ti substrate.
Figure 3. FTIR spectrum of the Cu-HAP coating obtained on the Ti substrate.
Coatings 13 01991 g003
Coatings 13 01991 g004
Figure 4. Raman spectrum of the Cu-HAP coating obtained on the Ti substrate.
Figure 4. Raman spectrum of the Cu-HAP coating obtained on the Ti substrate.
Coatings 13 01991 g004
Coatings 13 01991 g005

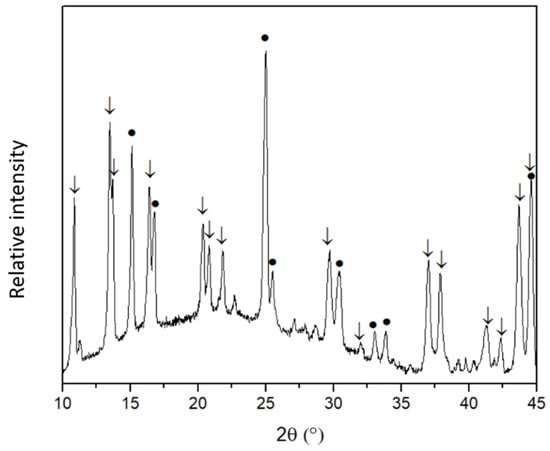

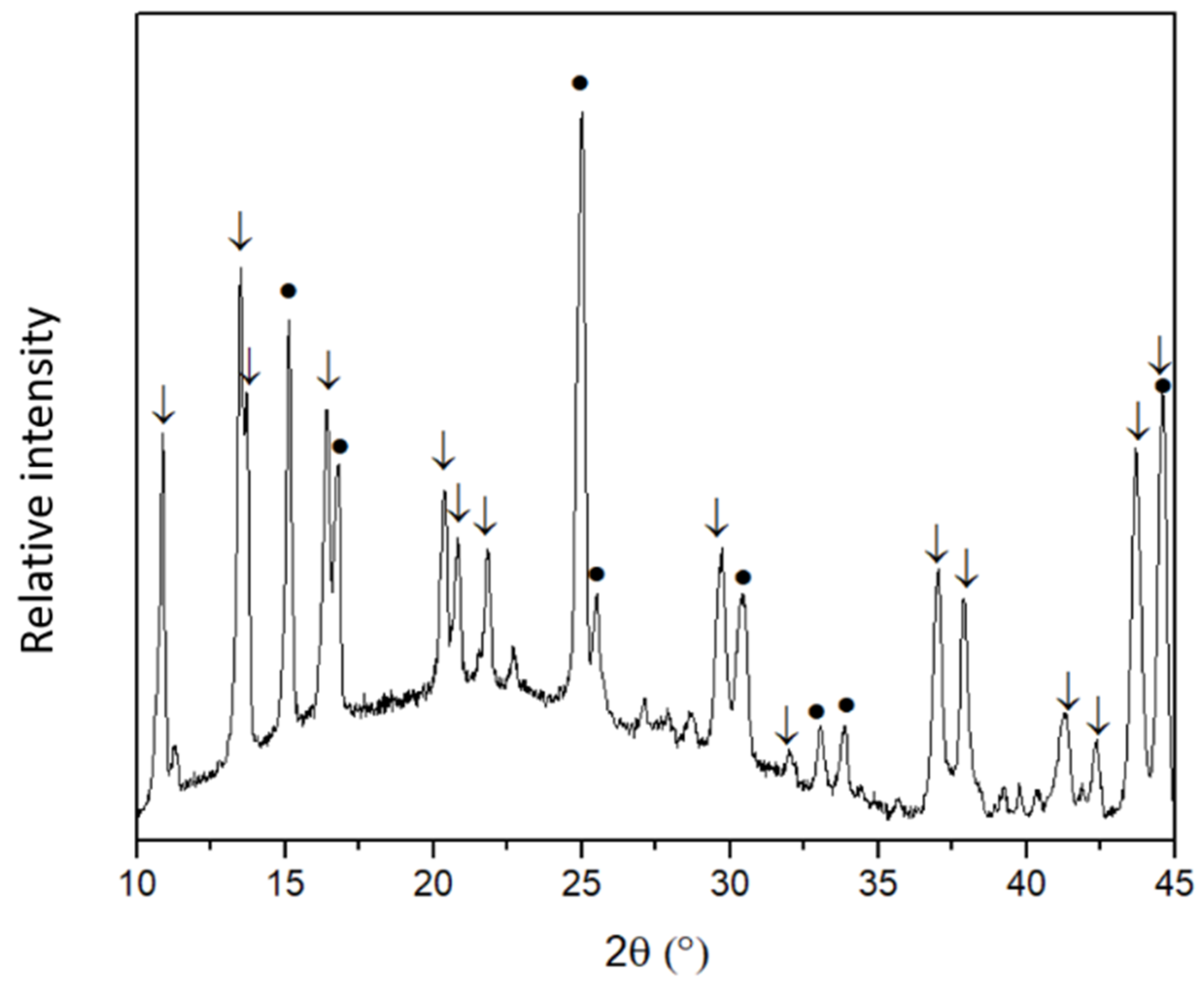

Figure 5. XRD pattern of HAP doped with Zn2+ coatings synthesised by immersing the HAP coating on Ti in zinc nitrate solution. Diffraction reflections: ●—TiO2 [PDF: 96-152-8779]; ↓—Zn(OH)(NO3)(H2O) [PDF:96-152-9913].
Figure 5. XRD pattern of HAP doped with Zn2+ coatings synthesised by immersing the HAP coating on Ti in zinc nitrate solution. Diffraction reflections: ●—TiO2 [PDF: 96-152-8779]; ↓—Zn(OH)(NO3)(H2O) [PDF:96-152-9913].
Coatings 13 01991 g005
Coatings 13 01991 g006
Figure 6. SEM micrographs of Cu-HAP (left) of Zn3(OH)4(NO3)2 coatings (right) fabricated on Ti substrate.
Figure 6. SEM micrographs of Cu-HAP (left) of Zn3(OH)4(NO3)2 coatings (right) fabricated on Ti substrate.
Coatings 13 01991 g006
Coatings 13 01991 g007
Figure 7. EDX spectra of Cu-HAP (left) of Zn3(OH)4(NO3)2 coatings (right) fabricated on Ti substrate.
Figure 7. EDX spectra of Cu-HAP (left) of Zn3(OH)4(NO3)2 coatings (right) fabricated on Ti substrate.
Coatings 13 01991 g007
Coatings 13 01991 g008
Figure 8. Results of antibacterial performance tests of low-temperature synthesised HAP coatings on Ti with (left) B. subtilis and (right) E. coli bacteria.
Figure 8. Results of antibacterial performance tests of low-temperature synthesised HAP coatings on Ti with (left) B. subtilis and (right) E. coli bacteria.
Coatings 13 01991 g008
Coatings 13 01991 g009
Figure 9. Results of antibacterial performance tests of low-temperature synthesised Cu-HAP coating on Ti with B. subtilis.
Figure 9. Results of antibacterial performance tests of low-temperature synthesised Cu-HAP coating on Ti with B. subtilis.
Coatings 13 01991 g009
Coatings 13 01991 g010
Figure 10. Results of antibacterial performance tests of low-temperature synthesised coatings with Zn2+ ions on Ti with (left) B. subtilis and (right) E. coli bacteria.
Figure 10. Results of antibacterial performance tests of low-temperature synthesised coatings with Zn2+ ions on Ti with (left) B. subtilis and (right) E. coli bacteria.
Coatings 13 01991 g010
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lukaviciute, L.; Karciauskaite, J.; Grigoraviciute, I.; Vasiliauskiene, D.; Sokol, D.; Kareiva, A. Calcium Hydroxyapatite Coatings: Low-Temperature Synthesis and Investigation of Antibacterial Properties. Coatings 2023, 13, 1991. https://doi.org/10.3390/coatings13121991

AMA Style

Lukaviciute L, Karciauskaite J, Grigoraviciute I, Vasiliauskiene D, Sokol D, Kareiva A. Calcium Hydroxyapatite Coatings: Low-Temperature Synthesis and Investigation of Antibacterial Properties. Coatings. 2023; 13(12):1991. https://doi.org/10.3390/coatings13121991

Chicago/Turabian Style

Lukaviciute, Laura, Justina Karciauskaite, Inga Grigoraviciute, Dovile Vasiliauskiene, Denis Sokol, and Aivaras Kareiva. 2023. "Calcium Hydroxyapatite Coatings: Low-Temperature Synthesis and Investigation of Antibacterial Properties" Coatings 13, no. 12: 1991. https://doi.org/10.3390/coatings13121991

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
