Effect of Oxygen Vacancy Ratio on a GaZTO Solar-Blind Photodetector

Abstract

A gallium-zinc-tin-oxide (GaZTO) solar-blind photodetector was fabricated via radio frequency sputtering. The transmittance of the GaZTO thin film was >80% in the visible light region, and its energy bandgap ranged from 4.11 to 4.23 eV. Manipulating the oxygen flows changed the ratio of oxygen vacancies, which was confirmed by X-ray photoelectron spectroscopy. The ratio of oxygen vacancies in the GaZTO thin films impacted the performance of the photodetectors. The photocurrent, responsivity, and ultraviolet–visible rejection ratio of the GaZTO solar-blind photodetector were 1.23 × 10⁻⁶ A, 9.12 × 10⁻² A/W, and 3.48 × 10⁴, respectively, at a 10 V bias under 280 nm light illumination. The transient responses of the synthesized photodetectors were measured and discussed.

1. Introduction

Currently, photodetectors are utilized in many fields, such as pollution detection, flame detection, space communication, light-wave communication, and missile-launch detection [1,2,3]. Ultraviolet (UV) light is categorized into UV-A, UV-B, and UV-C, whose wavelength ranges are 320–400 nm, 280–320 nm, and 200–280 nm, respectively. Photodetectors sensitive to UV-A and UV-B light are called visible-blind photodetectors. A solar-blind photodetector is specifically sensitive to UV-C radiation. As the detection of UV light requires the assistance of wide-bandgap materials, scientists endeavor to find suitable materials that can be applied for UV light detection.

The semiconducting materials commonly used to detect UV-C light are MgZnO [4], Ga₂O₃ [5], and AlGaN [6]. The bandgaps of MgZnO and AlGaN are 3.3–7.8 and 3.44–6.28 eV, respectively, and can be tuned by adjusting the chemical content of the materials [4,7]. Owing to its high transmittance in the visible light region and wide-bandgap nature, ZnO has been employed for many photoelectronic components, such as solar cells, light-emitting diodes, and UV photodetectors [8,9,10]. According to Hosono’s previous work, a metal cation whose electronic configuration is (n − 1)d¹⁰ns⁰, where n ≥ 5, can improve the carrier mobility [11]. Due to the ns spherical orbitals of a heavy-metal cation, the adjacent ns orbitals overlap on the amorphous nature, and carriers in the amorphous oxide semiconductor move more smoothly than those in amorphous silicon, whose electronic configuration is sp³ [11]. Accordingly, numerous amorphous oxides containing heavy metals, such as Tin (Sn) and indium (In), have drawn attention and scientists are showing a tendency of doping suitable metals into ZnO. Selecting Sn as the dopant is expected to enhance the mobility of ZnO-based components because of its desirable ionic electronic configuration ([Kr] 4d¹⁰). Zinc tin oxide (ZTO) is an attractive photo-sensing material. With its bandgap of 3.37–3.93 eV, it is able to detect UV-B, UV-C, and part of UV-A radiation. To allow for the detection of only UV-B and UV-C light, gallium is doped into ZTO to form the quaternary metal oxide GaZTO. Carriers of ZnO, originating from oxygen vacancies and zinc interstitials, can be suppressed by appropriately doping metal elements to alter the device performance [11,12]. Gallium is an alternative candidate as a suppressor of oxygen vacancies. GaZTO is a novel material that is still seldom studied in academia. It is expected that the bandgap of GaZTO can be engineered by changing the composition of gallium, zinc, and tin [13].

In this study, we fabricated GaZTO solar-blind photodetectors using a radiofrequency (RF)-sputtering system. The optical characteristics, chemical-bonding states, and electrical performances of the devices were investigated in detail.

2. Materials and Methods

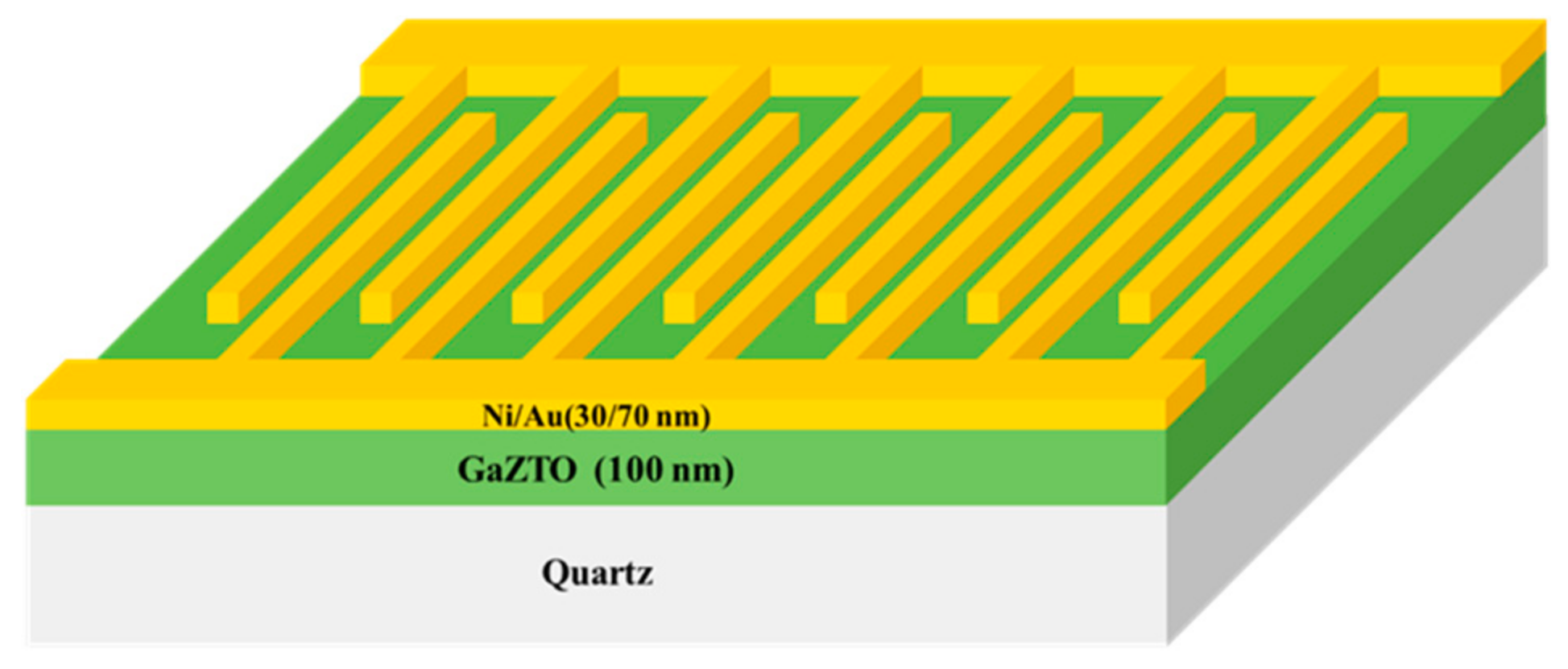

The structure of the GaZTO solar-blind photodetector is shown in Figure 1. Quartz substrates were cleaned using acetone, isopropyl alcohol, and deionized water sequentially with an ultrasonicator and then dried with a nitrogen flow. A 100 nm GaZTO thin film was grown on the substrate using an RF-sputtering system (KD-SPUTTER, Kao Duen Technology Corp., New Taipei City, Taiwan) with a single GaZTO target (molar ratio of Ga:Zn:Sn = 1:1:1). The RF power was 80 W, and the working pressure was 5 mTorr. The sputtering was performed in argon/oxygen gas mixtures. Herein, we denote thin films deposited at argon-to-oxygen flow ratios of 50:0, 48:2, and 45:5 as Samples A, B, and C, respectively. After the thin-film deposition, the samples were annealed at 300 °C for 1 h in a furnace. Finally, nickel/gold (30 nm/70 nm) was thermally deposited to serve as the interdigitated electrodes (by ULVAC thermal evaporation system, ULVAC, Methuen, MA, USA), which were defined by the shadow mask. The finger width and the finger spacing were 100 and 200 μm, respectively. I–V curves were measured in the dark at room temperature using an Agilent B1500 semiconductor parameter analyzer (Agilent Technologies, Santa Clara, CA, USA). The illumination was generated from a 250 W Xe lamp via a monochromator (H10 UV, HORIBA Jobin Yvon, Edison, NJ, USA) to create the monochromatic light. The illumination area of a photodetector was 2200 μm × 2000 μm. To observe the film transparency and determine the elemental compositions, three types (Samples A, B, and C) of 100 nm GaZTO thin films were prepared via the same process, without the patterning of the metals. The transmittance and absorption spectra were recorded using a UV-3101 UV–Visible (Vis)–near-infrared spectrophotometer (Shimadzu UV-3101PC, SHIMADZU Corp., Kyoto, Japan), and X-ray photoelectron spectroscopy (XPS) (VG ESCALAB220i-XL, Thermo Scientific, Waltham, MA, USA) was performed to analyze the chemical-bonding state of oxygen.

3. Results and Discussion

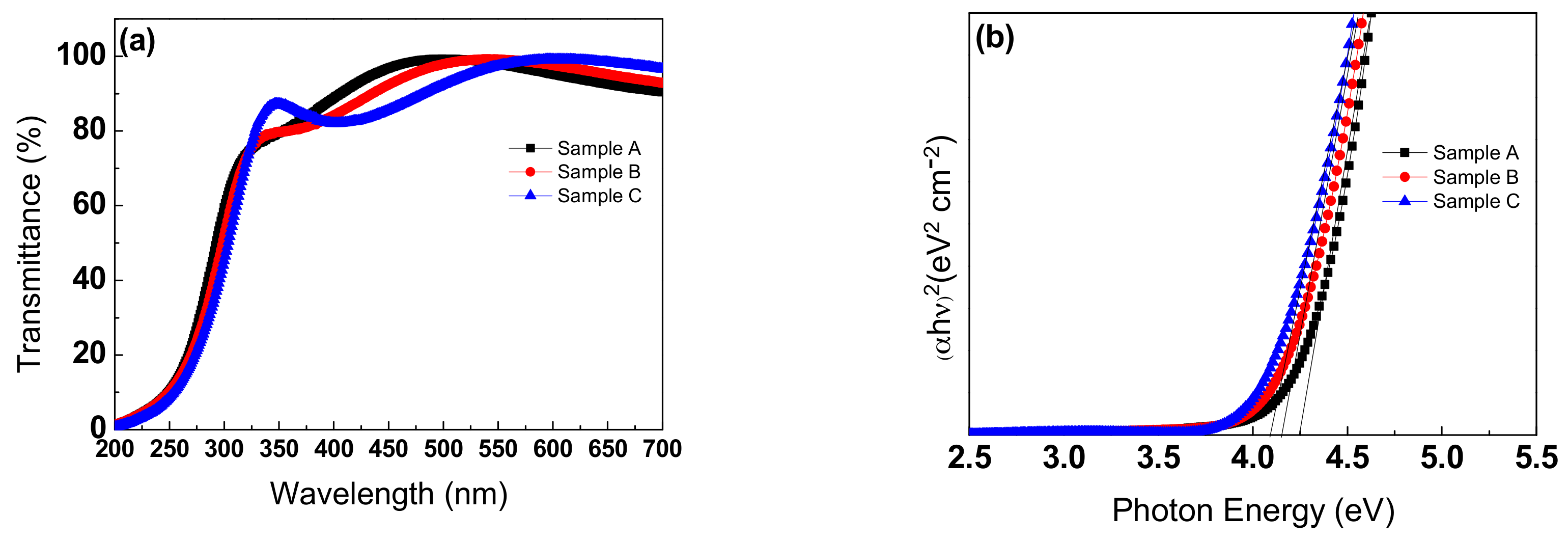

Figure 2a shows the transmittance of the GaZTO thin films (Samples A, B, and C). All films clearly showed a transmittance of >80% in the visible light region. To extract the optical bandgap of the GaZTO thin film, the relationship between the absorption coefficient and the incident photon energy was plotted, as shown in Figure 2b. The bandgaps were determined according to Tauc’s Law [14], as follows:

$${\left(\mathsf{\alpha }h\nu \right)}^2=B\left(h\mathsf{\nu }-E_{\mathrm{g}}\right)$$

(1)

where α is the absorption coefficient, h is Planck’s constant, ν is the frequency of incident light, B is a constant, and E_g is the bandgap of the material. By extrapolating the linear part of the curve to intersect with the x-axis, the bandgap was determined to be 4.11–4.23 eV and found to increase with the decreasing oxygen flow. The transmittance decreases dramatically when the light wavelength is <300 nm, which corresponds to the calculated bandgap values. All of the GaZTO thin films exhibit a relatively high bandgap energy and desirable transmittance, which are beneficial for optoelectronic applications.

The decrease of the optical bandgap of the GaZTO thin film with the increasing oxygen flow ratio results from the variation of the elemental composition of GaZTO. As shown in

Table 1. Atomic composition of the GaZTO thin film with different oxygen flow ratios, confirmed via X-ray photoelectron spectroscopy (XPS).

Sample	Zn (%)	Ga (%)	Sn (%)	O (%)
A	6.3	19.9	23.0	50.7
B	9.6	19.3	14.8	56.4
C	10.1	18.4	15.2	56.4

, with the increase of the oxygen flow ratio, the atomic ratio of Zn increases, and those of Ga and Sn decrease. It is possible that the deposition rate of ZnO increases while those of Ga₂O₃ and SnO₂ decrease with the increasing oxygen flow ratio [15]. It is known that the bandgap of ZnO (3.3 eV) is lower than those of Ga₂O₃ (4.99 eV) and SnO₂ (3.93 eV); thus, the bandgap of the GaZTO thin film decreased with the increasing oxygen flow ratio.

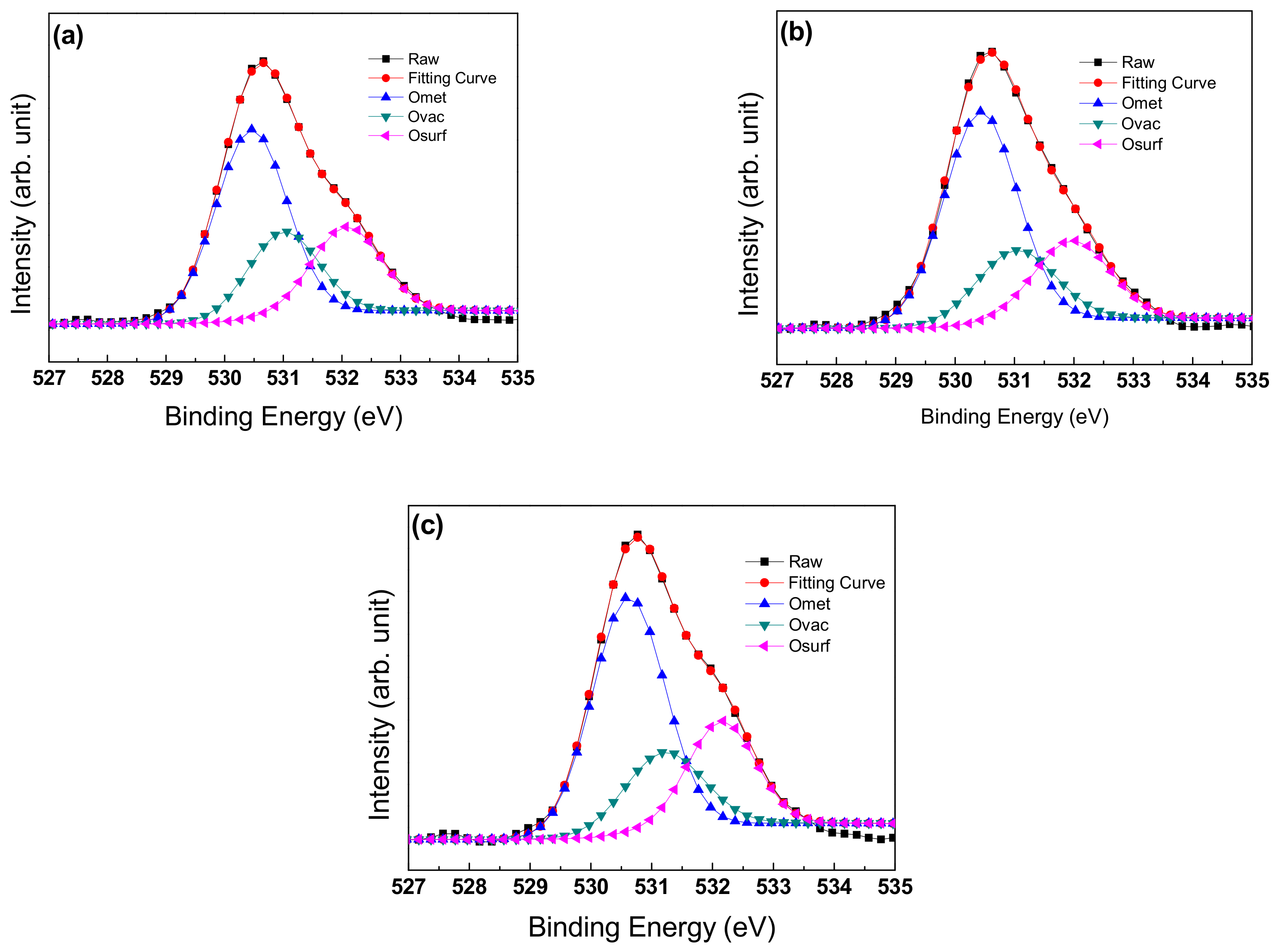

The number of oxygen vacancies in a ZnO-based material significantly affects the carrier concentration [11]. The XPS O 1s spectra of Samples A, B, and C—which are presented in Figure 3—were used to analyze the variation in the quantity of oxygen vacancies. The raw data curve can be deconvoluted into three peaks via Gaussian fitting, which are assigned to metal–oxygen bonding (O_met, centered at 530.6 eV), oxygen vacancies (O_vac, centered at 531.1 eV), and bonding with a hydroxyl group or the H₂O from the surface of the thin film (O_surf, centered at 532.1 eV) [16]. The ratios of O_met, O_vac, and O_surf for each sample are listed in

Table 2. Relative peak area ratio of the GaZTO thin films.

Sample	Omet (%)	Ovac (%)	Osurf (%)
A	53.3	23.4	23.3
B	57.6	20.5	21.9
C	56.9	20.0	23.1

. Notably, the ratio of oxygen vacancies decreases from 23.4% to 20.0% with the increasing oxygen flow ratio. That is, the relative amount of oxygen vacancies is reduced when the oxygen flow ratio is increased. This is an important issue for the device performance, which is discussed later.

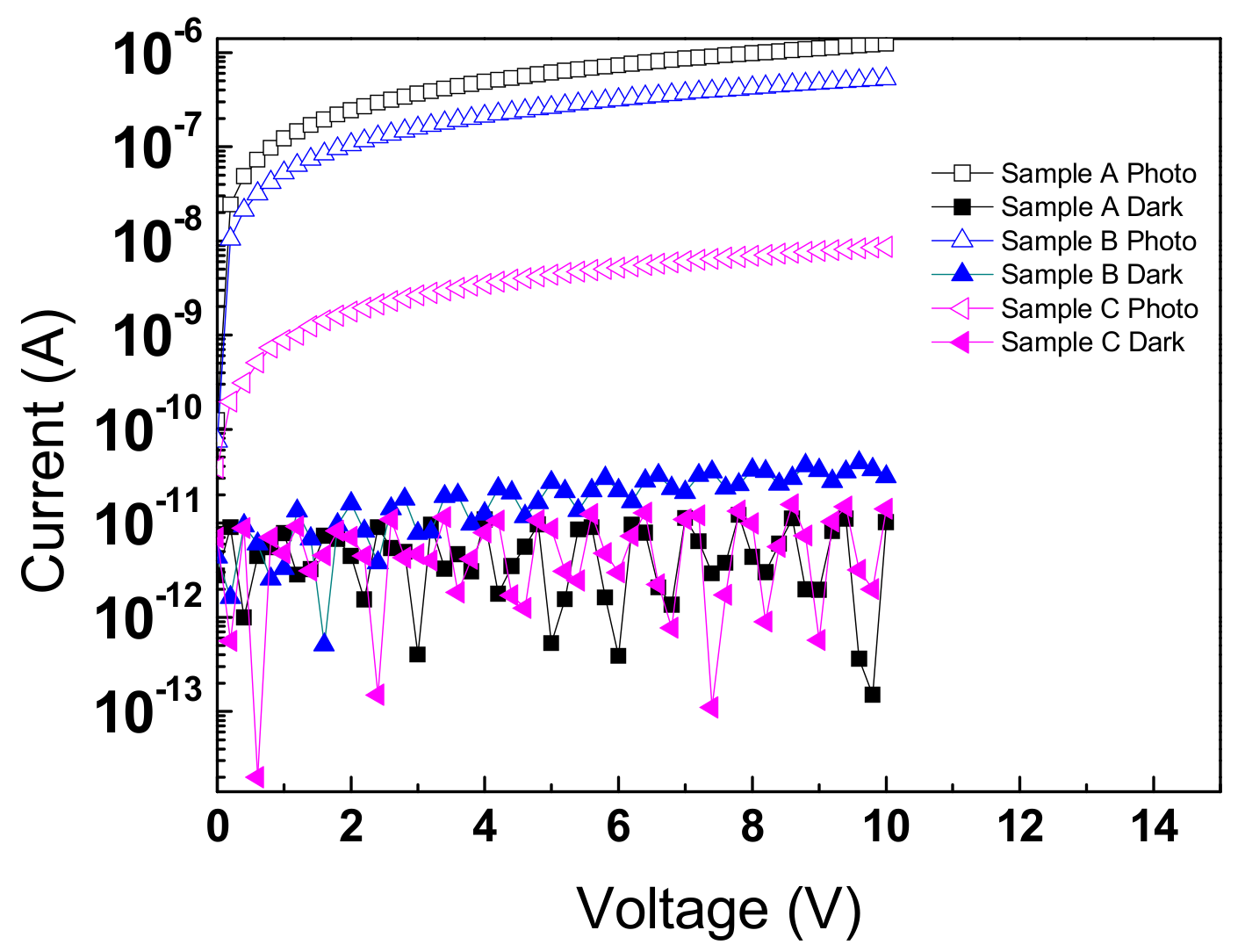

Figure 4 plots the photocurrents and dark currents of GaZTO photodetectors with different oxygen flow ratios. The wavelength of light irradiation was 280 nm. The fabricated photodetectors were subject to light illumination with different wavelengths for 1 min each time and then immediately probed for I–V measurement to ascertain their performances. For all samples, the order of magnitude of the dark currents is −11, indicating that the GaZTO devices have acceptable turn-off characteristics. When the devices are measured in the dark, the oxygen molecules in the air are absorbed by the GaZTO thin film. The absorbed oxygen molecules capture the free electrons in the thin film, contributing to the generation of a depletion region near the film surface [3]. Hence, the dark current is suppressed. The photocurrents of Samples A, B, and C at 10 V are summarized in

Table 3. Photocurrent, responsivity, rejection ratio, rise time, and fall time of the GaZTO photodetectors with different oxygen flow ratios.

Sample	Photocurrent at 10 V (A)	Responsivity at 280 nm (A/W)	Rejection Ratio	Growth Time Constant (s)	Decay Time Constant (s)
A	1.23 × 10−6	9.12 × 10−2	3.48 × 104	125.8	30.4
B	5.26 × 10−7	3.9 × 10−2	5.65 × 104	77.8	9.6
C	8.63 × 10−9	6.4 × 10−4	1.14 × 103	66.1	11.9

. The photocurrent gradually decreased because the quantity of carriers was reduced. Owing to the increased amount of photo-generated carriers due to oxygen vacancies under light illumination, the photocurrent was enhanced with the decreasing oxygen flow ratio [17].

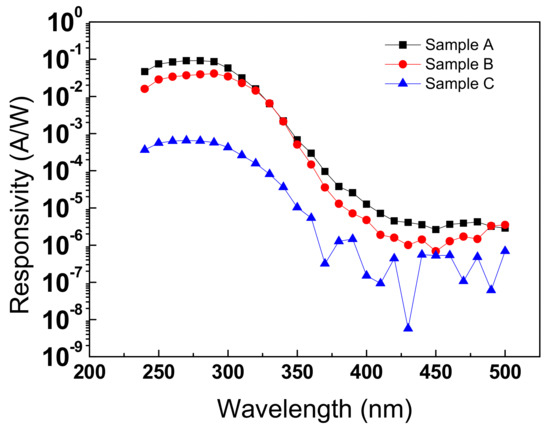

The responsivity of the GaZTO photodetectors as a function of the wavelength is illustrated in Figure 5. Responsivity (R) is one of the crucial parameters for quantifying the performance of a photodetector. It is defined as the generated photocurrent per unit of incident UV light power, as follows:

R = (I_photo − I_dark)/P_photo

(2)

where I_photo is the photocurrent, I_dark is the dark current, and P_photo is the power of the incident light. With a 10 V bias, the responsivity of Samples A, B, and C is 9.12 × 10⁻², 3.9 × 10⁻², 6.4 × 10⁻⁴ A/W, respectively, at 280 nm. Notably, when the wavelength is <280 nm, the responsivity is higher than those at other wavelengths in the visible light region. This suggests that our GaZTO photodetectors are applicable for solar-blind detection. We also employed the UV–V is rejection ratio to determine whether a photodetector can more effectively reject the interference of visible light. This ratio is defined as the responsivity at 280 nm divided by the responsivity at 450 nm. Table 3 summarizes the responsivity and rejection ratios of the GaZTO photodetectors. Sample B exhibits the highest rejection ratio, indicating that it can distinguish UV light from visible light more effectively than the other two samples.

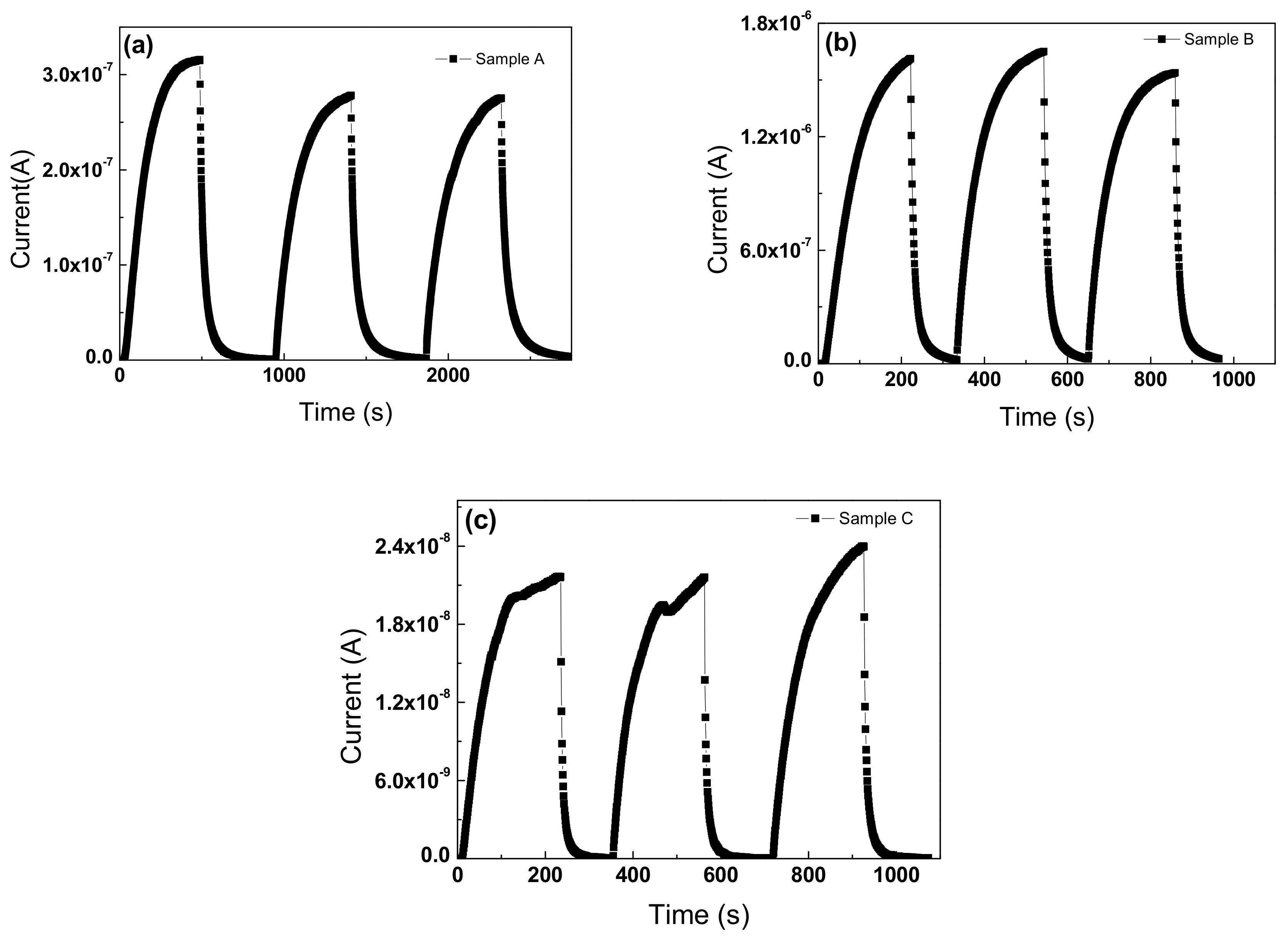

Figure 6 shows the transient characteristics of each sample under periodic UV illumination of 280 nm at a 10 V bias. The turn-on time intervals for Samples A, B, and C were 450, 250, and 250 s, respectively. The turn-off time intervals were 450, 100, and 150 s, respectively. The transient responses are reproducible. The exponential relaxation model can be used for the switching time measurement. Curve fitting was implemented to the first switching period of both Samples A and B, and to the third switching period of Sample C. The growth time/decay time constants can be extracted from the model, and the two constants are used to evaluate the performance of the switching characteristics of devices [18]. The growth/decay time constants of the three samples are listed in Table 3. Sample C has better transient characteristics; it is faster. The growth/decay time constants of Sample C are 66.1 and 11.9 s, respectively. Although the constants of Sample C are relatively desirable, Sample C demonstrated an unstable behavior upon UV light illumination, which is considered to be related to oxygen flow ratio of 10% and inferior thin film electrical performance.

Table 2 and Table 3 reveal that a high relative amount of oxygen vacancies leads to a high photocurrent, which is attributed to the photo-generated carriers induced by light irradiation [17]. Oxygen vacancies can induce an increase in the photocurrent, but they are a type of defect and influence the device performance to some extent. Increasing the ratio of oxygen vacancies leads to the deterioration of the rise time and fall time, as shown in Table 2 and Table 3. The photoexcited oxygen vacancies capture carriers, which is time-consuming [17]. As a result, if the ratio of oxygen vacancies increases, the rise and fall times increase. Thus, there is a tradeoff between the response time and the photocurrent. In addition, it is known that passivation can ameliorate the performance of an electronic device. Even though our devices do not have passivation, Samples A and B still performed very well and functionally. Achievement of advanced device performance by passivating devices will be our next issue to be investigated.

Table 4. Responsivity of photodetectors fabricated with different materials using various methods. It is noted that RF-MBE stands for radio-frequency plasma assisted molecular beam epitaxy, MOCVD for metal-organic chemical vapor deposition, L-MBE for laser molecular beam epitaxy, and VLS for vapor-liquid-solid technique.

Material	Method	Responsivity (mA/W)	Incident Wavelength (nm)	Ref.
Mg0.55Zn0.45O	RF-MBE	22	270	[19]
Mg0.48Zn0.52O	MOCVD	16	283	[20]
Sn Doped β-Ga2O3	L-MBE	36	254	[21]
β-Ga2O3	VLS	0.372	255	[22]
BeMgZnO	RF-MBE	18	241	[23]
GaZTO	RF-sputter	91.2	280	this study

lists previous works focusing on solar-blind photodetectors. Compared with these photodetectors, Sample A exhibits a higher responsivity than the devices synthesized with other materials, revealing that GaZTO is a promising candidate for solar-blind detection.

4. Conclusions

We proposed a simple, cost-effective approach to fabricate solar-blind photodetectors with a GaZTO sensing layer using an RF-sputtering system. The optical characteristics were measured to ascertain the bandgap and transmittance. The energy bandgap of the GaZTO thin film was 4.11–4.23 eV, indicating that the film can be applied for solar-blind detection. Adjusting the oxygen flow ratio during sputtering resulted in the variation of the number of oxygen vacancies, which is a key factor influencing the device performance. The photocurrent, responsivity, rejection ratio, and time response were measured in this study. The sample with an oxygen ratio of 4% exhibited excellent performance, with a photocurrent of 1.23 × 10⁻⁶ A and responsivity of 9.12 × 10⁻² A/W. In the transient-response measurement, the sample with an oxygen ratio of 10% exhibited the shortest rise and fall times. Furthermore, it was discovered that varying the ratio of oxygen vacancies could enhance the performance of the GaZTO photodetectors. The responsivity of the sample with an oxygen ratio of 4% exceeded that of previously reported devices.
