Boron and Nitrogen Co-Doped Porous Carbons Synthesized from Polybenzoxazines for High-Performance Supercapacitors

Abstract

Boron and nitrogen co-doped porous carbons (BNPC-X) were synthesized from boron-containing polybenzoxazines through carbonization and chemical activation, where X represents the weight ratio of boric acid to benzoxazine resin. The as-prepared BNPC-X were characterized by X-ray diffraction, scanning electron microscopy, X-ray photoelectron spectroscopy, element analysis and electrochemical measurements. The results show that the BNPC-0.15 possesses relatively high weight fractions of boron (2.97 wt %) and nitrogen (2.43 wt %), a homogeneous pore distribution, and remarkable electrochemical capacitive performance. It exhibits high specific capacitance (286 F·g⁻¹ at 0.05 A·g⁻¹), excellent rate capability (at A·g⁻¹), and good charge–discharge stability (>92% capacitance retention after 1,000 cycles at 1.0 A·g⁻¹) in 6 M KOH aqueous solution.

1. Introduction

Supercapacitors have gained more and more attention in the field of energy storage for electronic devices, electric vehicles and industrial equipment because they possess a high specific power density, rapid charge–discharge rate and stable cycling life compared with lithium batteries [1,2,3]. Porous carbons, metal oxides, and conducting polymers are the most commonly used electrode materials for supercapacitors [4,5,6,7]. Among these materials, porous carbons with large specific surface areas and suitable pore structures are regarded as the most hopeful electrode materials owing to their stable physicochemical properties, extensive sources, good electrical conductivity, easy processability, and low cost [8,9,10]. Nevertheless, traditional porous carbon-based supercapacitors show a small energy density from 5 to 10 Wh/kg, which seriously restricts their practical application in energy capture and storage [11,12,13,14]. Therefore, great efforts have been devoted to the synthesis of the high specific capacitance of new carbon materials to enhance their energy density [15,16,17].

Heteroatoms (such as boron, nitrogen, oxygen, phosphorus, and sulfur) doped into the carbon framework have been regarded as an effective strategy to enhance the specific capacitance of carbon materials [18]. These heteroatoms can supply a reversible pseudocapactiance from Faradaic electrochemical reactivity, increase electrical conductivity, and promote interface wettability [19]. More efforts have been dedicated to incorporating electron-deficient boron and electron-rich nitrogen into carbon materials for supercapacitors in recent years, which may tune their electronic structure and density of state due to the synergetic effect [20,21,22,23,24,25]. For example, Li et al. reported that boron and nitrogen co-doped graphene-like carbon (BNC) was synthesized by ball-milling and calcination two-step methods. The BNC-900 can display a high specific capacitance of 254  F·g⁻¹ at 0.25  A·g⁻¹ and reach a good capacitance retention of 78.2% at 100 A·g⁻¹ [20]. Zhou et al. prepared boron and nitrogen co-doped porous carbon (BNC-OA) by the carbonization of the mixture of boric acid and oxidized asphaltene (OA) at 1173 K in an argon atmosphere, which shows the highest capacitance of 335 F g⁻¹ at a current density of 0.1 A·g⁻¹ and a capacitance retention of 83% at 1 A g⁻¹ [21]. Yang et al. prepared boron and nitrogen-containing porous carbon nanofibers (BN-CNFs) through one-step electrospinning using boric acid (H₃BO₃) and urea as boron and nitrogen precursors. The specific capacitance of the BN-CNFs was 180 F·g⁻¹ at 1 mA·cm⁻² [22]. You et al. reported a novel and facile method for the synthesis of B and N co-doped carbon networks by the pyrolysis of agarose hydrogel containing TBE buffer (Tris (tris (hydroxymethyl) aminomethane)/Boric acid/EDTA (ethylenediaminetetra acetic acid)) and chemical activation (KOH), which exhibits a high specific capacitance of 214 F·g⁻¹ at 0.2 A·g⁻¹ in 6 M KOH electrolyte [23]. Jiang et al. synthesized nitrogen and boron co-doped activated porous carbons (BKACS) by carbonization, KOH chemical activation and a subsequent hydrothermal doping reaction using chitosan as a carbon source. BKACS can reach a high specific capacitance of 316 F·g⁻¹ at 0.2 A·g⁻¹ and exhibits a good capacitance retention of 94.08% after 10,000 cycles at 10 A·g⁻¹ in the 6 M KOH electrolyte [24]. Dai et al. synthesized vertically aligned boron carbon nitride nanotubes (VA-BCNs) from a melamine diborate precursor. The resultant VA-BCNs grown at 1000 °C show the highest specific capacitance (321.0 F·g⁻¹ at 0.2 A·g⁻¹) due to synergetic effects [25]. Therefore, developing novel B and N co-doped carbon materials with a high specific capacitance, good rate performance, and excellent cycle stability for supercapacitors remains a challenge [26].

In this paper, we synthesized boron and nitrogen co-doped nanoporous carbons (BNPC-X) derived from the boron-containing polybenzoxazines by carbonization and KOH chemical activation. The boron-containing polybenzoxazines were prepared from benzoxazine resin and boric acid. In the BNPC-X, benzoxazine resin functions as a carbon and nitrogen precursor, while boric acid acts as the boron source. The BNPC-X are found to possess an enhanced electrochemical performance in supercapacitors compared with the NPC in the absence of boron acid in terms of specific capacitance, rate capability, and cycling stability.

2. Experimental

2.1. Synthesis

Benzoxazine resin was purchased from Kerrben Polymer New Material Co. Ltd. (Zibo, China) All of the other chemicals were used without further purification. Nanoporous carbons with different boron and nitrogen contents were prepared from boron-containing polybenzoxazines by adjusting the weight ratio of boric acid to benzoxazine resin (5:100, 10:100, 15:100). In a typical process, 10.0 g of benzoxazine resin and 0.5 g of boric acid were dissolved in 40 mL DMF. Then, the solution was heated at 80 °C for 6 h to vaporize the DMF, and then cured at 200 °C for 2 h. The obtained polybenzoxazine was further carbonized at 500 °C for 2 h with a heating rate of 5 °C·min⁻¹ in the nitrogen flow. Subsequently, the obtained carbonized material was mixed with KOH at a mass ratio of 1:1, and the mixture was heated in a tube furnace at 700 °C for 1 h with a heating rate of 5 °C·min⁻¹ under a nitrogen atmosphere. Finally, the obtained sample was repeatedly washed with dilute HCl solution and deionized water until the pH reached 7 and dried at 120 °C for 12 h. The as-prepared nanoporous carbons were denoted as BNPC-X (where X represents the weight ratio of boric acid to benzoxazine resin). For comparison, the nanoporous carbon (NPC) was synthesized by the above strategy in the absence of boric acid.

2.2. Characterization

Powder X-ray diffraction (XRD) patterns were determined with a D8 Advance diffractometer (Bruker, Germany) with using mono-chromated Cu Kα radiation (λ = 0.15406 nm). Scanning electron microscopy (SEM) and energy dispersive X-ray spectrometry (EDS) investigations were carried out with a S-4800 microscope (JEOL, Tokyo, Japan) and GENENIS-4000 instrument (EDAx, Berwyn, Pennsylvania, USA), respectively. X-ray photoelectron spectroscopy (XPS) were obtained on an AXIS Ultra DLD spectrometer (Kratos, Manchester, UK) with an Mg Kα exciting source (1253.6 eV). The spectra were referenced to C 1s peak at 284.5 eV. Elemental analysis was further performed by an Vario Macro Cube micro-analyzer (Elementar, langenselbold, Germany). The element content was calculated by different detection modes.

2.3. Electrochemical Measurements

For this measurement, 80 wt % electroactive materials, 10 wt % carbon black and 10 wt % polytetrafluoroethylene were uniformly mixed and then pressed on nickel foam (1 cm × 1 cm). The mass loading of electroactive materials on the nickel foam was about 4 mg·cm⁻². The electrochemical performances of the as-prepared electrode were tested in a three-electrode system with 6 M KOH aqueous electrolyte at room temperature. Cyclic voltammetry (CV) and the galvanostatic charging–discharging test (GCD) were performed within the same voltage window—between −1.0 and 0 V (vs·SCE). Electrochemical impedance spectra (EIS) were conducted on an open circuit potential in the frequency range from 1 mHz to 100 kHz with a 5 mV alternating current amplitude.

3. Results and Discussion

Structure and Morphology Characterization

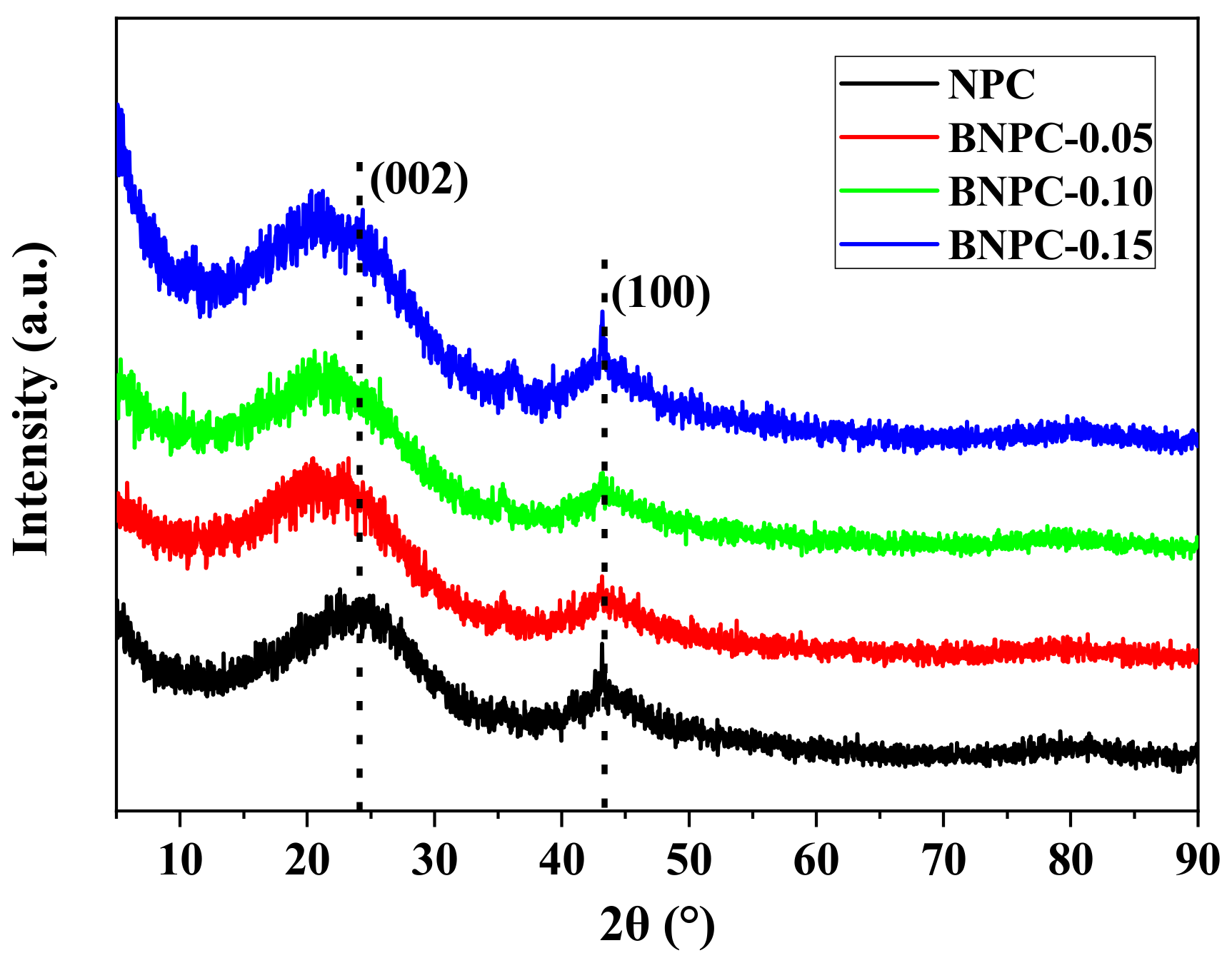

The crystalline structure of the NPC and BNPC-X were determined by XRD, and the results are displayed in Figure 1. It is found that all the samples exhibit two broad and low-intensive diffraction peaks centered at 2θ = 20°–26° and 43°–44°, which can be attributed to the (002) and (100) diffractions of the hexagonal graphitic carbon lattice, clearly indicating an amorphous nature and low graphitization degree of the nanoporous carbon materials [27,28]. The BNPC-X exhibit a gradual left shift of (002) and (100) peaks with the increase of the boron acid mass ratio, indicating a slight damage of the micro-graphitic structure of carbon materials [29,30]. Moreover, the intensity of the diffraction peak of BNPC-0.15 at a low angle is significant, showing the existence of abundant pores.

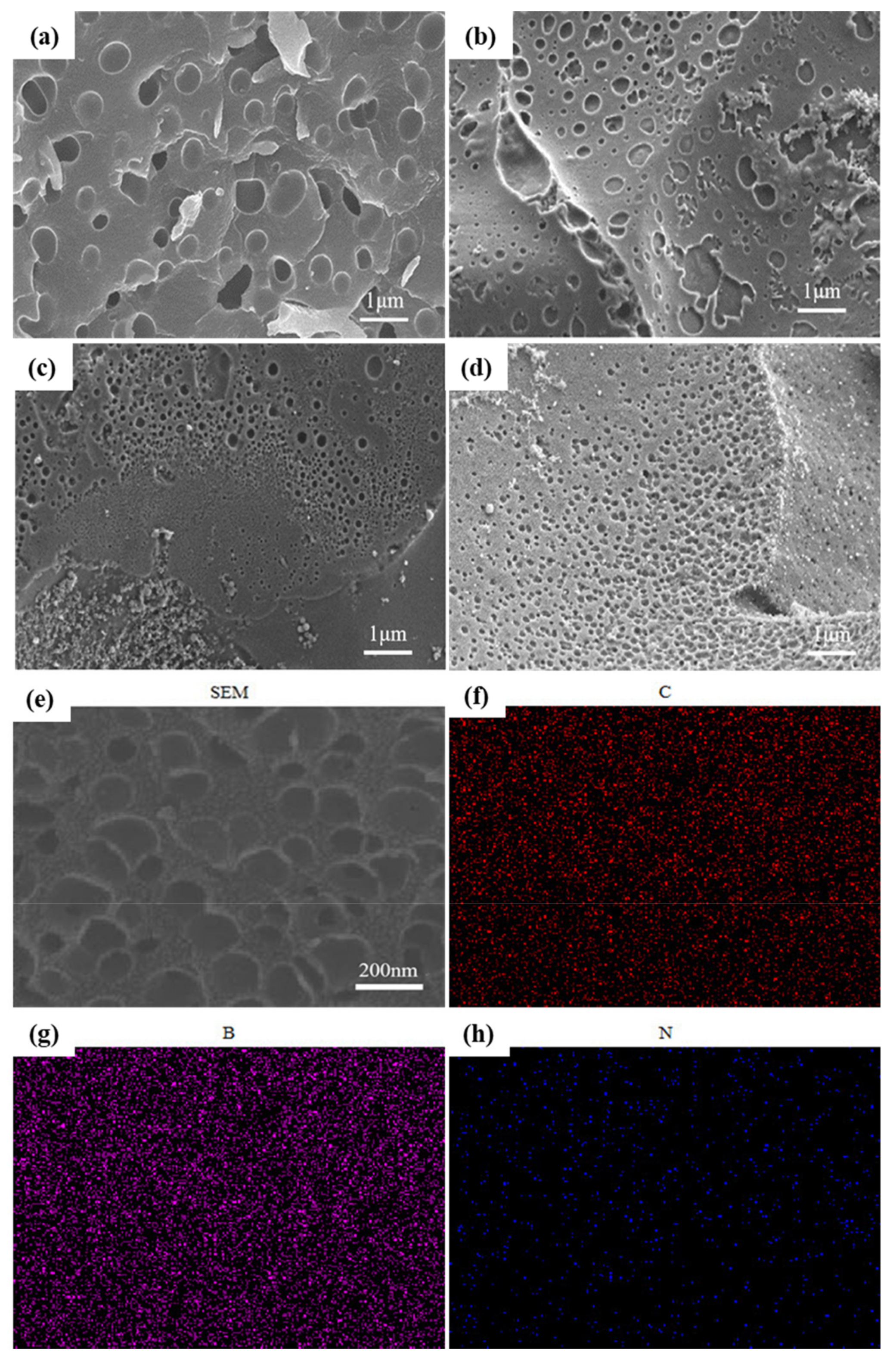

The morphology and microstructure of the NPC and BNPC-X were characterized by scanning electron microscopy (SEM) and energy dispersive X-ray spectrometry (EDS), as shown in Figure 2. It can be seen that the NPC exhibits a rough surface with a few cavities or macropores in 0.2 μm pore sizes, which results from the violent etching between carbon and KOH at high temperature (Figure 2a). However, the pore sizes of the BNPCs evidently became smaller, and more microporous channels can be developed and even interconnected with each other as the mass ratio increases from 0.05 to 0.15 (Figure 2b–d). It is reasonable that boron atoms are considered to be beneficial for KOH chemical activation for developing the micropores [31]. BNPC-0.15 possesses abundant mesopores and significant micropores with a diameter of appropriately 10 nm, which are helpful for the fast transportation of electrolyte ions into the inner nanoporous carbon by minimizing the ion diffusion distance (Figure 2e) [32]. Besides this, the nature of doping in BNPC-0.15 can be clarified by the element mapping measurements according to the SEM image (Figure 2f–h), which clearly indicates the presence of C, B, and N.

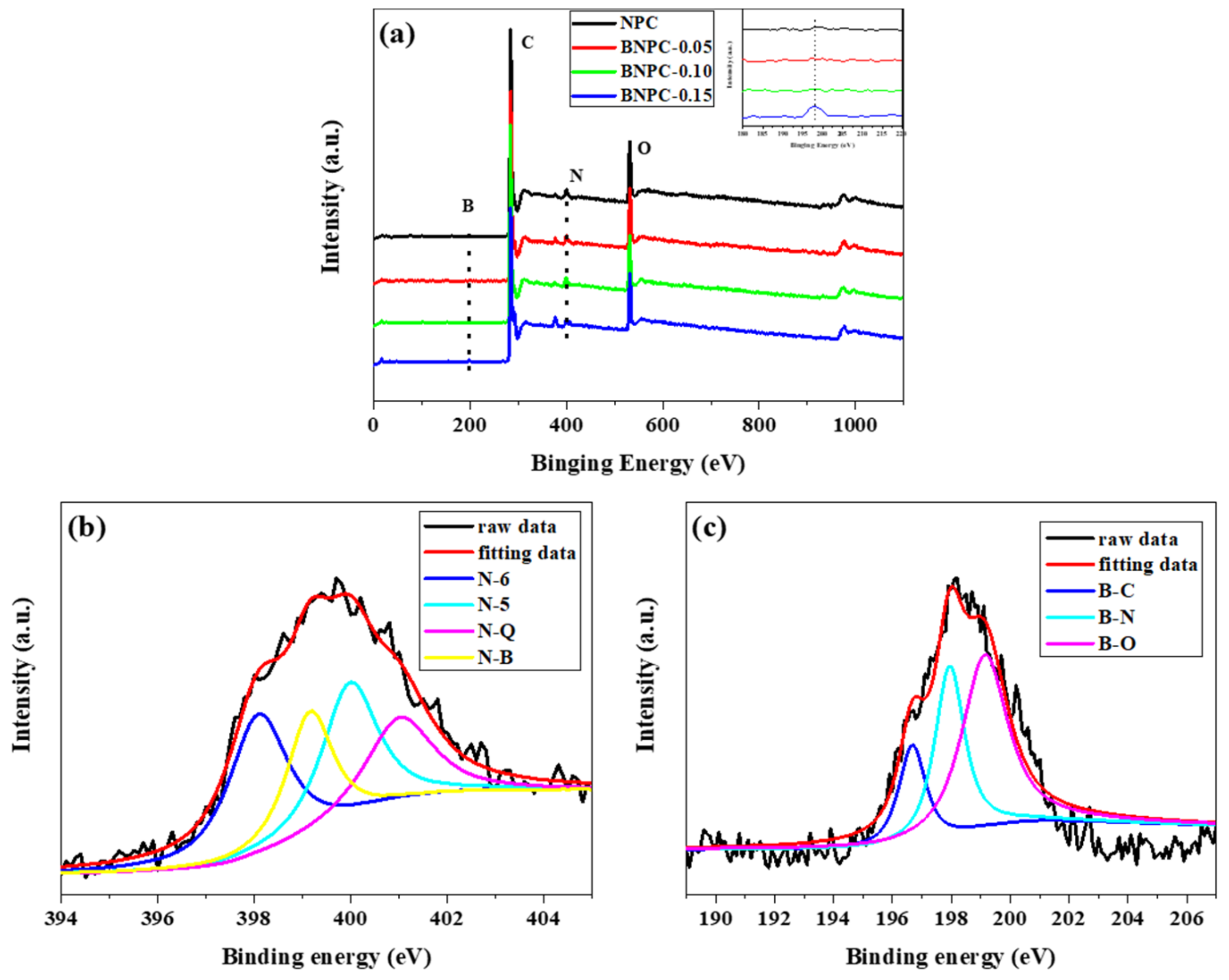

The surface electronic state and composition of the NPC and BNPC-X were analyzed by X-ray photoelectron spectroscopy (XPS) and elemental analysis. Figure 3 exhibits the wide-scan XPS spectrum of all the samples and the fitted N1s and B1s XPS spectra of BNPC-0.15. As shown in Figure 3a, the NPC contains C, N, and O elements. Moreover, the BNPCs contain C, N, B and O atoms, indicating that boron can be successfully introduced into the carbon framework. As the initial weight ratio of boron acid to benzoxazine resin increased from 0.05 to 0.15, the nitrogen content of BNPC-X decreased, and the boron element content increased gradually (

Table 1. Textural properties and elemental content of the NPC and BNPC-X.

Name	XPS (wt %)		EA (wt %)
	N	B	N	B
NPC	3.25	0	3.42	0
BNPC-0.05	2.84	1.02	3.07	1.15
BNPC-0.10	2.73	1.88	2.95	2.03
BNPC-0.15	2.25	2.75	2.43	2.97

). Three different types of nitrogen species can be distinguished on the N 1s spectrum: pyridinic nitrogen (N-6 at 398.5 eV), pyrrolic or pyridonic nitrogen (N-5 at 400.3 eV), and quaternary nitrogen (N-Q at 401.4 eV), respectively [28]. However, it can be found that the peak at 396.6 eV could be assigned to the B 1s signal related to N–B bonding, which is characteristic for boron nitride. The B 1s XPS spectrum is deconvoluted into three peaks (Figure 3c). The peaks located at 398.5, 399.6, and 401.2 eV can be assigned to B–N, B–C, and B–O species, respectively, demonstrating that the boron atoms are incorporated into the carbon network [33]. The nitrogen and boron-containing groups cannot only enhance the specific capacitance but can also improve the surface wettability at the electrode/electrolyte interface. The element composition of the NPC and BNPC-X is seen in Table 1. The element percentage of boron in NPC, BNPC-0.05, BNPC-0.10, and BNPC-0.15 is calculated from the XPS survey spectra to be about 0, 1.02, 1.88 and 2.75 wt %, respectively, which is consistent with the elemental analysis results. Thereby, the XPS results prove that the boron and nitrogen atoms were successfully incorporated in the carbon lattice, which can generate primary pseudo-capacitance in an alkaline aqueous electrolyte.

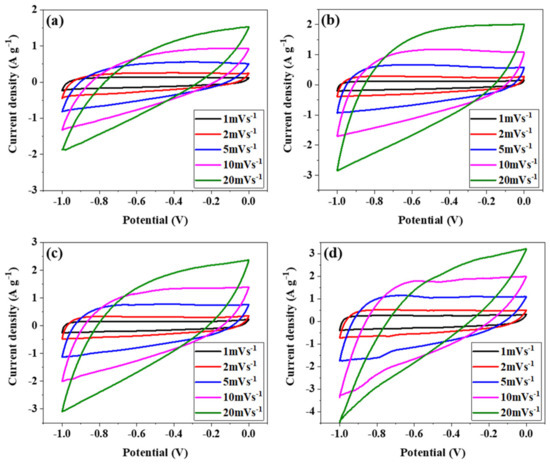

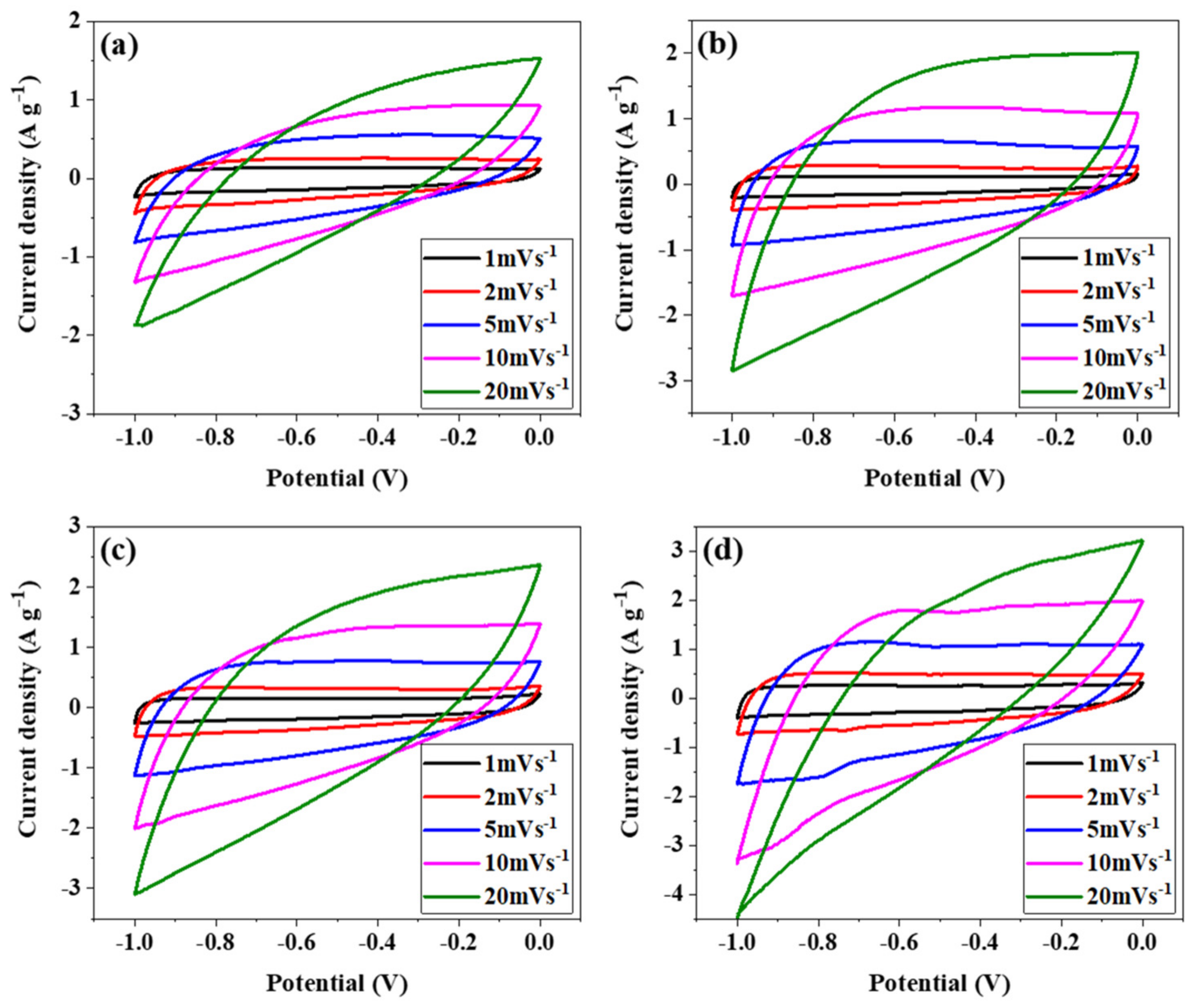

Cyclic voltammetry (CV) was used to probe the electrochemical capacitive behavior of the NPC and BNPC-X electrodes in a potential window from −1.0 to 0 V·vs·SCE in the 6 M·KOH electrolyte. Figure 4 shows the CV curves of the NPC and BNPC-X electrodes at different scanning rates from 1 to 20 mV·s⁻¹. As shown in Figure 4a, the CV curve of the NPC electrode shows a small deviation from the rectangular shape, with no obvious redox peaks. It can be discerned that the BNPC-X electrodes exhibit an ambiguous rectangular shape with a pair of obvious peaks, which may be caused by some pseudocapacitive effects with the increased the mass ratio of boron acid (Figure 4b–d). As the scanning rate increases, the rectangular shape becomes more distorted and the enclosed area decreases. This is due to the internal resistance of the current collector, electrode, and electrolyte, or the diffusion resistance at the electrode/electrolyte interface [34]. In particular, it can be noted that BNPC-0.15 can reach the largest specific capacitance among all the electrodes, and this may be attributed to the electrical double layer capacitance due to its own porous structure and additional pseudocapacitance resulting from the boron doping in the carbon electrodes (Figure 4d).

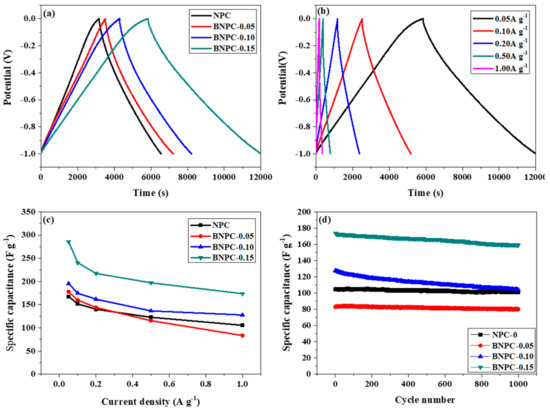

The galvanostatic charging–discharging (GCD) test is the most practical tool to research the electrochemical behaviors of supercapacitors. Figure 5a exhibits the GCD curves of the NPC and BNPC-X electrodes at a current density of 0.05 A·g⁻¹. The charge curves are nearly symmetrical to the corresponding discharge ones, suggesting that all the electrodes have typical electrical double layer capacitive behavior and good electrochemical reversibility. Moreover, the BNPC-0.15 electrode exhibits the largest discharge time, indicating the largest specific capacitance, which is consistent with the CV results. The charge–discharge curves of the BNPC-0.15 electrode at different current densities from 0.05 to 1 A g⁻¹ are shown in Figure 5b. All the curves exhibit a nearly symmetric triangular shape with slight curvature. The deviation from linearity for all charge–discharge curves is characteristic of a typical pseudo-capacitive behavior, which may be attributed to the boron-enriched groups by the carbonization of benzoxazine resin and boric acid. Besides this, the specific capacitance of the BNPC-0.15 electrode decreases gradually with the increasing discharge current density, suggesting that the electrolyte ion cannot transfer well into the inner structure of active materials due to the limited ion diffusion at a large current density. The specific capacitance (C_g) was calculated according to C_g (F·g⁻¹) = I × Δt/ΔE, where I is the discharge current density (A·g⁻¹), Δt is the discharge time (s), and ΔE is the potential window after the IR drop. Figure 5c exhibits the specific capacitance at different current densities. The specific capacitances of all the electrodes decrease gradually with the increase of current density from 0.05 to 1 A·g⁻¹. The BNPC-0.15 can reach a highest specific capacitance of 286 F·g⁻¹ at 0.05 A·g⁻¹, higher than the capacitance of NPC (167 F·g⁻¹), BNPC-0.05 (178 F·g⁻¹) and BNPC-0.10 (196 F·g⁻¹), indicating that the boron doping may enhance the specific capacitance by pseudo-capacitance reaction. The enhancement of specific capacitance might be ascribed that the role of boron doping changes the surface performance to form more active centers, which could attract more anions from the electrolyte compared to carbon atoms [35]. Because long cycling stability is crucial for supercapacitor applications, the BNPC-0.15 electrode was tested by using GCD cycles at a current density of 1 A·g⁻¹. As shown in Figure 5d, the specific capacitance is 173 F·g⁻¹ in the first cycle and still remains at 160 F·g⁻¹ after 1000 cycles. Additionally, the capacitance retention stays at 92%, suggesting excellent cycle stability. However, BNPC-0.05 generally has worse performance than the NPC in Figure 5c,d, which is attributed to the redox reaction not having enough time to occur on the surface of the electrode/electrolyte at high current densities [22].

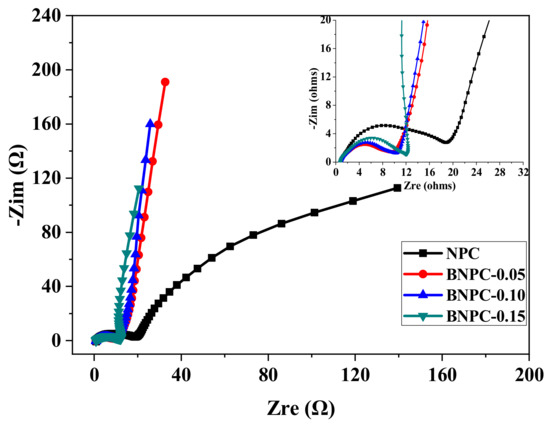

Electrochemical impedance spectra (EIS) are further used to analyze the electrochemical performance of the electrode materials for supercapacitors. Figure 6 exhibits the AC impedance spectroscopy (Nyquist plots) of all the NPC and BNPC-X electrodes with an open circuit. Obviously, all the curves present a similar shape, which contain a semicircle at high frequency, a nearly 45° sloped line at medium frequency and a nearly vertical line at low frequency. The straight line in the low-frequency area presents the specific capacitance of the carbon electrode [36]. It can be found that the BNPC-0.15 electrode exhibits the shortest line length in the low-frequency area, suggesting the highest specific capacitance. The semicircle presents the interfacial charge transfer resistance of the carbon electrode in the high-frequency region [37]. The smaller the diameter, the lower the interfacial charge transfer resistance. The BNPC-0.15 electrode exhibits low charge transfer resistance and Warburg impedance in the high-frequency area, implying the fastest ion migration. This is not only due to the suitable pore structure of the carbon materials promoting the ion diffusion and transport, but is also because of the enhanced surface wettability after boron and nitrogen doping.

4. Conclusions

In summary, boron and nitrogen co-doped nanoporous carbons were prepared from boron-containing polybenzoxazines by KOH chemical activation, in which benzoxazine resin functioned as a carbon and nitrogen precursor while boric acid acted as the boron source. Boron and nitrogen-containing functionalities can not only make the BNPC-X electrodes interact with the electrolyte easily but also enhance the specific capacitance of the BNPC-X electrodes through redox reaction. As the initial weight ratio of boron acid to benzoxazine resin increased from 0.05 to 0.15, the nitrogen content of BNPC-X decreased, and the boron content increased gradually. BNPC-0.15 possessed relatively high mass fractions of boron (2.97 wt %) and nitrogen (2.43 wt %) with uniform distribution. Besides this, BNPC-0.15 possessed a very good capacitive performance of 286 F·g⁻¹ at 0.05 A·g⁻¹ and an excellent rate capability (174 F·g⁻¹ at 1 A·g⁻¹) and reached 92% capacitance retention after 1000 cycles. This makes it a promising alternative as a high-performance electrode material in supercapacitors.
