Antimicrobial Paper Coatings Containing Microencapsulated Cymbopogon citratus Oil

by
Boštjan Šumiga
1,
Barbara Šumiga
2,
David Ravnjak
3 and
Bojana Boh Podgornik
1,*
1
Faculty of Natural Sciences and Engineering, University of Ljubljana, 1000 Ljubljana, Slovenia
2
Pulp and Paper Institute, 1000 Ljubljana, Slovenia
3
Papirnica Vevče d. o. o., 1262 Ljubljana–Dobrunje, Slovenia
*
Author to whom correspondence should be addressed.
Coatings 2019, 9(8), 470; https://doi.org/10.3390/coatings9080470
Submission received: 18 June 2019 / Revised: 22 July 2019 / Accepted: 23 July 2019 / Published: 25 July 2019
(This article belongs to the Special Issue Surface Modification of Cellulose Fibres)
Browse Figures
Versions Notes

Abstract

:
Essential oils are environmentally friendly candidates for antimicrobial smart packaging systems. Encapsulation is needed to reduce their volatility and achieve controlled release. Within this study, the essential oil of Cymbopogon citratus (citronella oil) was microencapsulated and applied in pressure-sensitive antimicrobial functional coatings on papers for secondary packaging. Two microencapsulation methods were used: complex coacervation of gelatine with carboxymethylcellulose or with gum arabic, and in situ polymerization of melamine-formaldehyde prepolymers with a polyacrylic acid modifier. Minimum inhibitory concentrations of citronella oil microcapsules were determined for Bacillus subtilis (B. subtilis), Escherichia coli (B. subtilis), Pseudomonas aeruginosa (P. aeruginosa) and Saccharomyces cerevisiae (S. cerevisiae). Microcapsule suspensions were coated on papers for flexible packaging, 2 and 30 g/m2, and mechanically activated in the weight pulling test. A novel method on agar plates in sealed Petri dishes was developed to evaluate the antimicrobial activity of released citronella vapours on E. coli and S. cerevisiae. The results showed that both microencapsulation methods were successful and resulted in a container type single-core microcapsules. In situ microcapsule suspensions had better paper coating properties and were selected for industrial settings. The antimicrobial activity of 2 g/m2 coatings was not detected; however, the antimicrobial activity of 30 g/m2 partially activated coated papers was confirmed. The product enabled a prolonged use with the gradual release of citronella oil at multiple exposures of functional papers to pressure, e.g., by a human hand during product handling.

Graphical Abstract

1. Introduction

1.1. Microencapsulation in Paper Industries

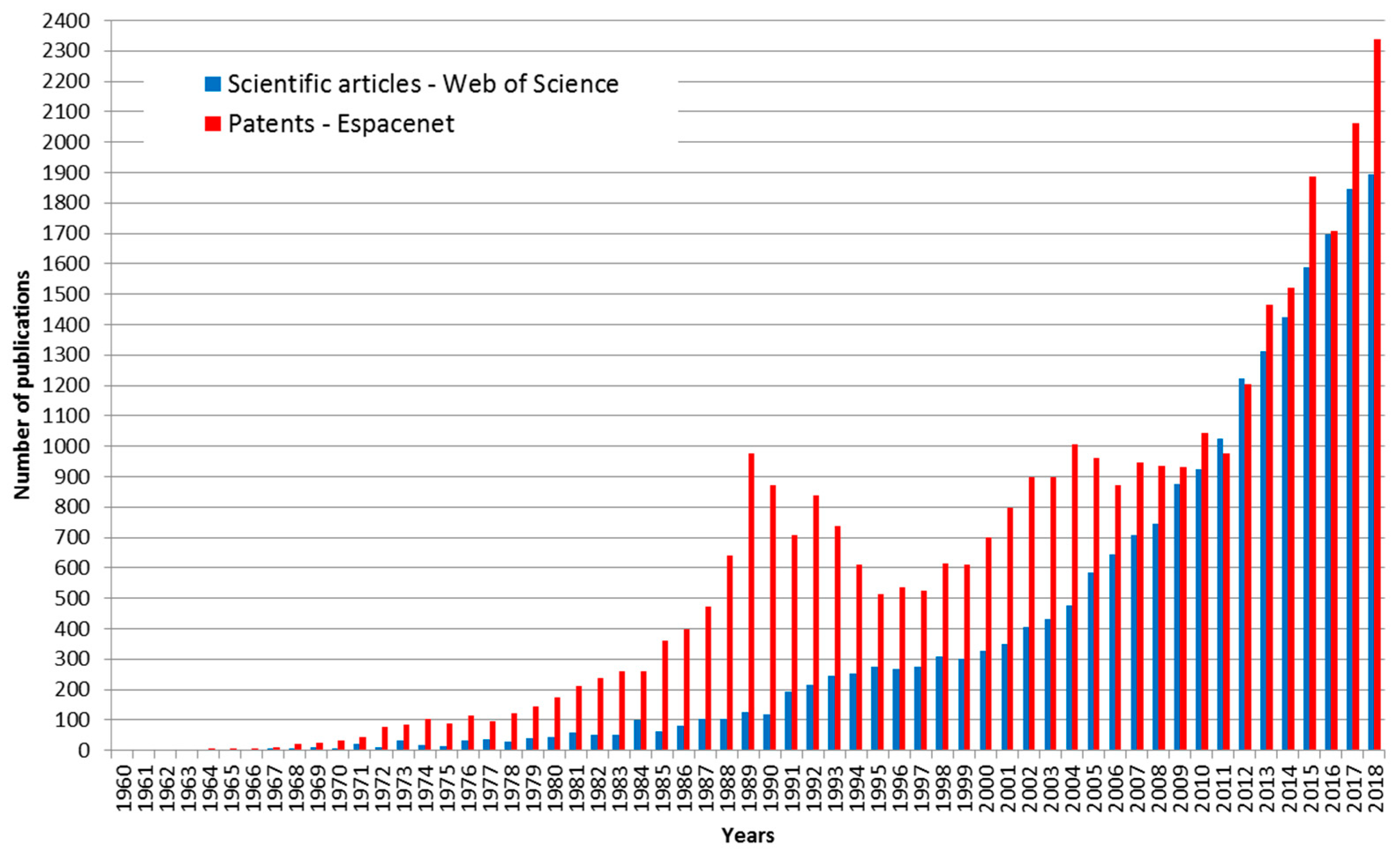

The first commercialization of the microencapsulation technology comes from the paper industry, from the production of pressure-sensitive carbonless copy papers in 1951. By the end of the 1950s, microencapsulation found its use in the pharmaceutical industry, as well as in technical applications. Since then, the technology has been constantly improving, modified and adapted for a variety of purposes and uses. In the beginning, microencapsulation was viewed more as art or technical know-how than as a “real” science with fundamental academic research. However, recent trends in patents and scientific journal articles on microencapsulation show balanced growth of both, scientific research and patented industrial inventions (cf. Figure 1).
Many microencapsulation processes and applications have been developed and described [1,2,3]. In paper industries, typical microencapsulation applications include pressure-sensitive copying papers, thermochromic and photosensitive papers, electronic paper, fragranced papers, antimicrobial paper products and additives for smart packaging (cf. Table 1).

1.2. Microencapsulated Antimicrobial Essential Oils

During recent years, the interest in the bio-efficacy of essential oils and their uses as natural antimicrobials in environmentally friendly products has rapidly increased. Several authors have reported on innovations in smart packaging food systems based on essential oils [35,36,37,38,39,40,41]. Among essential oils, the oil obtained from lemongrass plants of genus Cymbopogon, particularly of C. citratus (CAS RN 8000-29-1) known as citronella or lemongrass oil, has been studied and used due to its broad-spectrum antimicrobial activity, pleasant aroma and uses in food, pharmaceutical and cosmetic products, as well as in mosquito repellents and natural pesticides.
Citronella oil predominantly consists of monoterpenes, such as citral (synonym geranial) (39%–48%), neral (32%–35%), mircen (11%–15%) and geraniol (3%–5%) [42,43,44,45] and has a boiling point at 222 °C, specific weight 0.897 and oral LD50 for rat 4400 mg/kg [46]. As the components of essential oil are volatile and subject to degradation under environmental influences, encapsulation techniques and delivery systems may be applied to provide protection and prolonged or controlled release, including microcapsules and microspheres, nanoparticles and nanospheres, liposomes, microemulsions, gels and molecular inclusions [47,48,49,50,51]. Among them, microcapsules seem to be the first choice for technical applications, including in paper and print industries [52].
The analysis of scientific literature reveals that citronella oil can be microencapsulated for different applications and by using various microencapsulation methods (cf. Table 2). Nevertheless, the antimicrobial evaluation of citronella oil in microencapsulated forms or products seems to be more complex and was reported only in few publications (cf. Table 3). None of them reported on the antimicrobial evaluation of citronella oil, encapsulated in impermeable yet pressure-sensitive microcapsules that require a mechanical activation to release the active ingredient.
Authors have used different antimicrobial tests and methodologies to evaluate the antimicrobial activity of citronella oil, mainly in the non-encapsulated form. Vázquez-Sánchez et al. [67] evaluated the activity of 19 essential oils against pathogenic Staphylococcus aureus biofilms in food-processing facilities and demonstrated that citronella oil was the second most effective, with the minimum inhibitory concentration (MIC) being 0.06%, after thyme oil (MIC 0.04%). Saddiq and Khayyat [68] determined the biological activity of citronella oil with the agar-well diffusion method; the inhibition zones 3.5, 2.6 and 1.8 mm were detected for Staphylococcus aureus, Penicillium italicum and Rhizopus stolonifer, respectively. The study by Ohno et al. [69] demonstrated that lemongrass oil was able to inhibit growth of Helicobacter pylori, a pathogen responsible for gastroduodenal diseases, at 0.01% concentration. The resistance did not develop even after 10 sequential passages, whereas the resistance to antibiotic clarithromycin developed under the same conditions. Naik et al. [70] determined MIC and minimum bactericidal concentration (MBC) values of citronella oil for pathogenic microorganisms Staphylococcus aureus (MIC 0.03%, MBC 0.06%), Bacillus cereus (MIC 0.03%, MBC 0.06%), Bacillus subtilis (MIC 0.06%, MBC 0.12%), Escherichia coli (MIC 0.06%, MBC 0.12%) and Klebsiella pneumoniae (MIC 0.25%, MBC 0.50%). For Pseudomonas aeruginosa, MIC and MBC could not be determined in the applied concentration range. Citronella oil was also effective against some microorganisms resistant to antibiotics; therefore, the authors suggested using citronella oil in the treatment of infections caused by multidrug-resistant organisms. The results also suggested that Gram-positive organisms were more sensitive to citronella oil than Gram-negative organisms and that the values also depended on the method used—the microorganisms were inhibited at lower concentrations using the broth dilution method as compared to the agar diffusion method.

1.3. Research Aim and Objectives

The aim of our research was to develop a pressure-sensitive controlled-release microencapsulated form of citronella oil to use it as a functional additive in paper and cardboard secondary packaging systems for food and pharmaceuticals. The objectives were (a) synthesis of microcapsules with two methods, complex coacervation and in situ polymerization, (b) preparation of coating formulations and implementation of coating on paper, (c) characterisation of microcapsules and of coated papers, (d) mechanical activation of pressure-sensitive microcapsules on papers, and (e) antimicrobial evaluation of citronella oil microcapsules and coated papers.

2. Materials and Methods

2.1. Microencapsulation with Complex Coacervation

Microencapsulation of essential oils with complex coacervation has already been described [55,62,63]. In our modified complex coacervation process, acid-treated gelatine (Gelatin from porcine skin, gel strength 30, type A; Sigma-Aldrich, St. Louis, MO, USA), and low viscosity carboxymethylcellulose, type 7L (Hercules, Wilmington, DE, USA), or gum arabic (Gum arabic from acacia tree, Sigma-Aldrich, Saint-Quentin Fallavier, France), were used as macromolecular colloids with opposite charges for the formation of microcapsule walls. Citronella oil–Java (Sigma-Aldrich, St. Louis, MO, USA) was used as the microcapsule core in all experiments except in the case of a blank for antimicrobial testing where microcapsules without a core were produced in a thermostated reactor vessel (Termoproc VKNO, Labo, Ljubljana, Slovenia) with an overhead stirrer turbine impeller (Heidolph RZR 2020, Heidolph Instruments, Schwabach, Germany). The temperature was maintained at T = 50 °C. The emulsification took place at 600–800 rpm, 10–30 min. To form microcapsules, the coacervation was initiated with dilution with water and by lowering pH to 3.9–4.3 (1–2 h, T = 50 °C, 600–800 rpm). After cooling the system to room temperature (1 °C/min, 600–800 rpm), the coacervate walls were crosslinked by glutaraldehyde (Acros Organics, Geel, Belgium) or by tannin (Tanin Sevnica, Sevnica, Slovenia); the process was completed after 2 h. Detailed parameters of coacervation experiments are provided in Table 4. Experiments without the addition of the core material were performed under the same conditions.

2.2. Microencapsulation with In Situ Polymerization

In the in situ polymerization microencapsulation process, Citronella oil–Java (Sigma-Aldrich) was used as the core material, melamine-formaldehyde precondensate (Melamin, Kočevje, Slovenija) as the wall material and polyacrylic acid as the modifier (BASF, Ludwigshafen, Germany). All other used chemicals were laboratory grade. A laboratory reactor (Reactor-Ready, Radleys, Saffron Walden, UK) was equipped with a 1000 mL and 2000 mL vessel, a heating/cooling system and a Heidolph mixer (Heidolph overhead stirrer Hei-TORQUE 400, Heidolph Instruments, Schwabach, Germany) with the adjustable speed 0–2000 rpm. The microencapsulation process consisted of the following steps: (a) preparation of an aqueous solution of the modifier; (b) emulsification of citronella oil and formation of an oil-in-water emulsion; (c) addition of a melamine-formaldehyde precondensate; (d) induction of polymerisation by raising the temperature to 70–80 °C; (e) microcapsule formation at elevated temperature for 1 h; and (f) termination of polymerization reaction with the addition of ammonia and sodium hydroxide, and cooling down to room temperature. The experiments without the core material were performed under the same conditions and the empty microcapsules were used as a blank in antimicrobial testing. The main process parameters are presented in Table 5. The size distribution measurement of microcapsules in the suspension was performed with a high-resolution laser granulometer (Mastersizer 2000, Malvern instruments Ltd., Malvern, England).

2.3. Paper Coating with Microcapsule Suspensions

The suspensions of citronella microcapsules were applied to paper surface by means of a lab-scale rod coater (K Control Coater, RK PrintCoat Instruments Ltd., Litlington, UK), ranging from 2 to 30 g of microcapsules per m2. Firstly, coating formulations similar to industrial processes were composed. Aqueous microcapsule suspensions from coacervation and from in situ processes were formulated with water-soluble starch or with carboxymethylcellulose (ratios 1:1 and 1:2), and coated on papers (label paper, 70 g/m2, and paper for flexible packaging, 50 g/m2) in the amount of 2 g formulation/m2. Secondly, the water suspension of in situ microcapsules (43% dry weight) without any other additives was applied with a rod coater No. 8 on a 53 g/m2 paper basis at the speed setting 4. The coated sheets were dried in a lab dryer for 2 min at 110 °C. The maximum coating contained 30 g of dry microcapsules per m2 with optimum quality in terms of equal coat weight across the whole paper sheet.

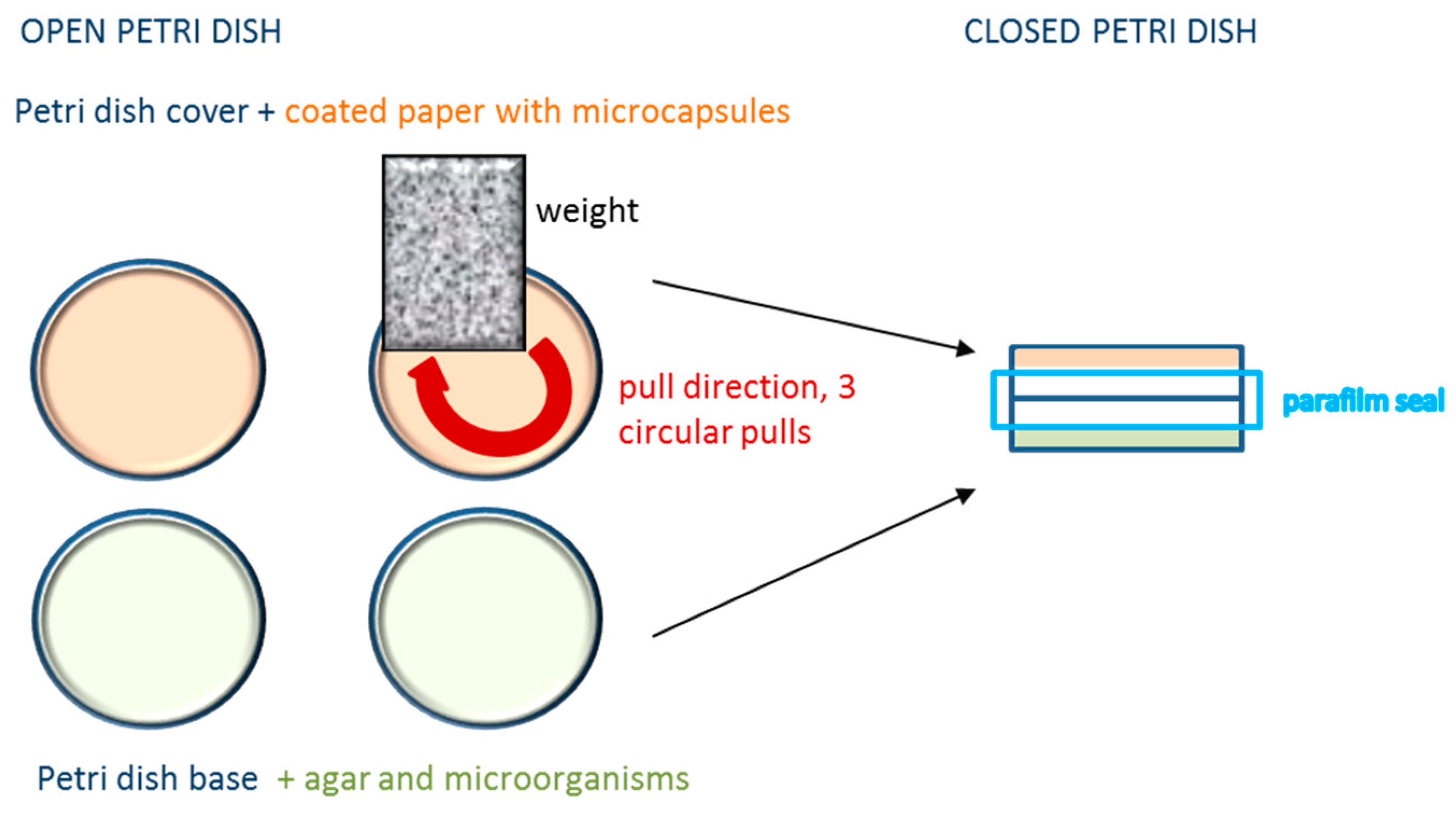

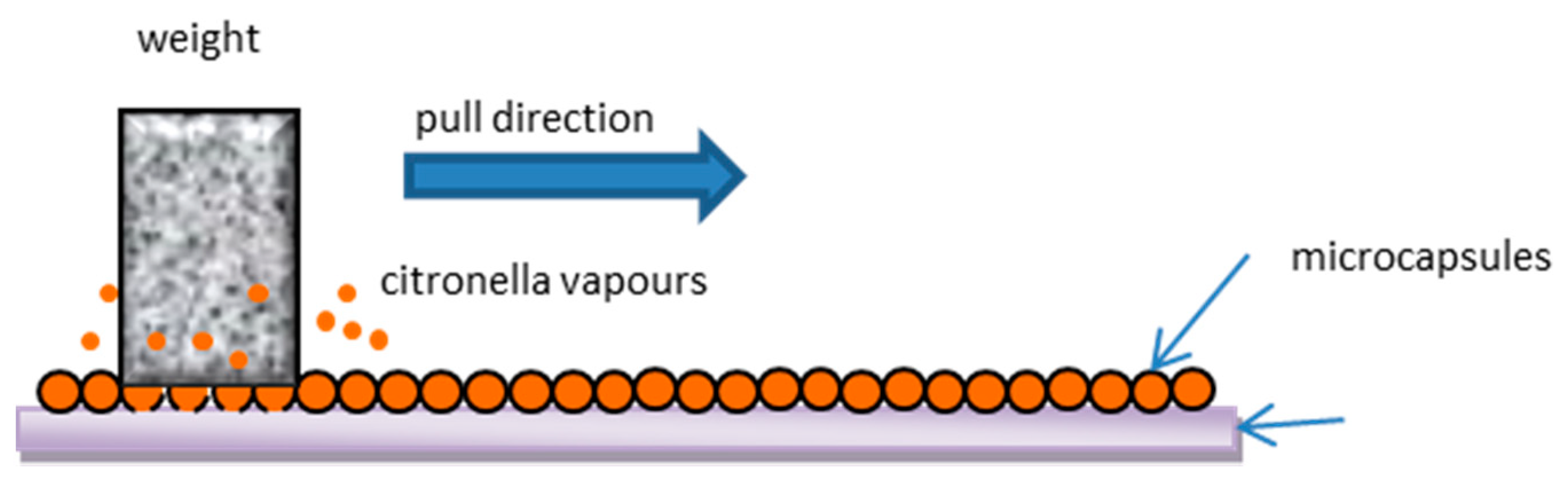

2.4. Pressure-Activation of Microcapsules—Weight Pulling Test

The mechanical activation of coated papers containing citronella oil microcapsules was performed with weight pulling tests (Figure 2 and Figure 3)—a modification of a smudging colouration test used in pressure-sensitive copying papers for the evaluation of the microcapsule wall resistance to mechanical stress [71]. Weights were pulled three times along the coated paper test specimens. A sterile 5 kg square shape weight was applied with three straight pulls for the visual evaluation of the mechanical activation of microcapsules, and in antimicrobial testing for the activation of coated papers in 140 mm Petri dishes (Deltalab, Barcelona, Spain) (cf. Figure 2). A sterile 3 kg weight in the form of a cylinder was used with three round pulls for the activation of microcapsules on coated papers in antimicrobial testing using standard 94 mm Petri dishes (Brand, Wertheim, Germany) (cf. Figure 3).

2.5. Morphology and Visualization of Microcapsules

A transmission light microscope (TLM) (Bresser Researcher Trino 40–1000× with MicroCam, Bresser GmbH, Rhede, Germany) was used for the visualisation of microcapsule formation during the microencapsulation process, and for the final aqueous suspensions of microcapsules. A scanning electron microscope (SEM) (JEOL JSM 6060LV, Tokyo, Japan) was used for the visualisation and morphological characterisation of microcapsules and coated papers. The samples were coated with an ultra-thin coating of carbon, gold and platinum with high vacuum evaporation. The observations were performed at 10 kV. Bright images of microcapsules were obtained.

2.6. Determination of Minimum Inhibitory Concentrations (MIC) of Encapsulated and Non-Encapsulated Citronella Oil in Liquid Media

The antimicrobial effects of free and microencapsulated citronella oil were determined as the minimum inhibitory concentration (MIC) in a liquid medium on Bacillus subtilis, Escherichia coli, Pseudomonas aeruginosa and Saccharomyces cerevisiae, with 2,3,5-triphenyltatrazolium chloride (TTC) added as an indicator. All MIC values were calculated according to the concentration of citronella oil in the microcapsule core. Microorganisms were cultivated on standard count agar, 37 °C, 24 h (E. coli, S. aureus, B. subtilis) and Sabouraud 2% dextrose agar, 29 °C, 24 h (S. cerevisiae). The samples of microorganisms were inoculated in the concentration ~1 × 106 CFU/mL. Six tubes, each with 8 mL of prepared microorganisms, were used for the addition of 2 mL of pure non-encapsulated or suspension of microencapsulated citronella oil, with the dilution system 1:4. For example, 2 mL of pure citronella oil (1% emulsion of citronella oil in water was used) were added to the first tube and mixed, then 2 mL from the first tube was added to the second tube and mixed, etc. The last tube was blank and used as a negative control. The colour indicator TTC (1 mL) was added into tubes, which were then immediately closed, mixed and incubated at 37 °C (E. coli, S. aureus, B. subtilis) or 29 °C (S. cerevisiae) in a dark place. In the case of live microorganisms, their dehydrogenases reduce the colourless TTC indicator into a red coloured triphenyl formazan. The results were observed as the colour change of samples after 24 h. MIC was determined as the interval between the lowest concentration, where no colour developed, and the first concentration with a developed colour.

2.7. Coated Papers Antimicrobial Activity Tests on Agar Plates in Petri Dishes

The following protocol was developed and applied to evaluate the antimicrobial activity of citronella oil vapours released from the core of microcapsules in mechanically activated coated papers. The antimicrobial activity was tested on agar plates in 94 and 140 mm Petri dishes with E. coli (selected bacteria) and S. cerevisiae (selected yeast). E. coli was cultivated in the medium Standard count agar, 37 °C, 24 h, and S. cerevisiae on Sabouraud 2% dextrose agar, 29 °C, 24 h. After 24 h, 2 mL of Ringer solution was added. The inoculum ~1 × 106 CFU/mL was diluted to the range of concentrations from 105 to 100. Due to the high overgrowth, the concentrations of microorganisms ≥ 103 CFU/mL were too high to detect the effects. The concentrations of microorganisms 102 and 101 CFU/mL were found optimal to detect the activity of citronella oil vapours released from microcapsules in activated coated papers in Petri dishes. The prepared microorganism suspensions (0.1 mL) were put in a Petri dish. The samples of coated papers with microcapsules were circularly cut to fit the entire inside of the Petri dish cover. The paper coated with microcapsules, attached to the inner part of the Petri dish cover, was mechanically activated with a 3 or 5 kg weight with three circular pulls of the weight. The activation of microcapsules was performed just before the closure and the Petri dishes were then immediately sealed with parafilm (cf. Figure 3). The coated papers did not touch the agar plate. Mechanically activated microcapsules only released vapours of citronella oil into the atmosphere of the Petri dish, thus affecting the growth of microorganisms. For control, the tests were performed without the coated paper in a Petri dish. The results were evaluated after 24 h and 48 h of incubation. The tests were performed in triplicates for each sample.

2.8. Statistical Analysis

The results of antimicrobial testing performed in triplicates were statistically analysed and presented as a mean ± standard deviation (SD). The t-test: two-sample assuming unequal variances was used to evaluate the differences in the antimicrobial activity between blank samples and samples containing papers with activated citronella oil microcapsules.

3. Results and Discussion

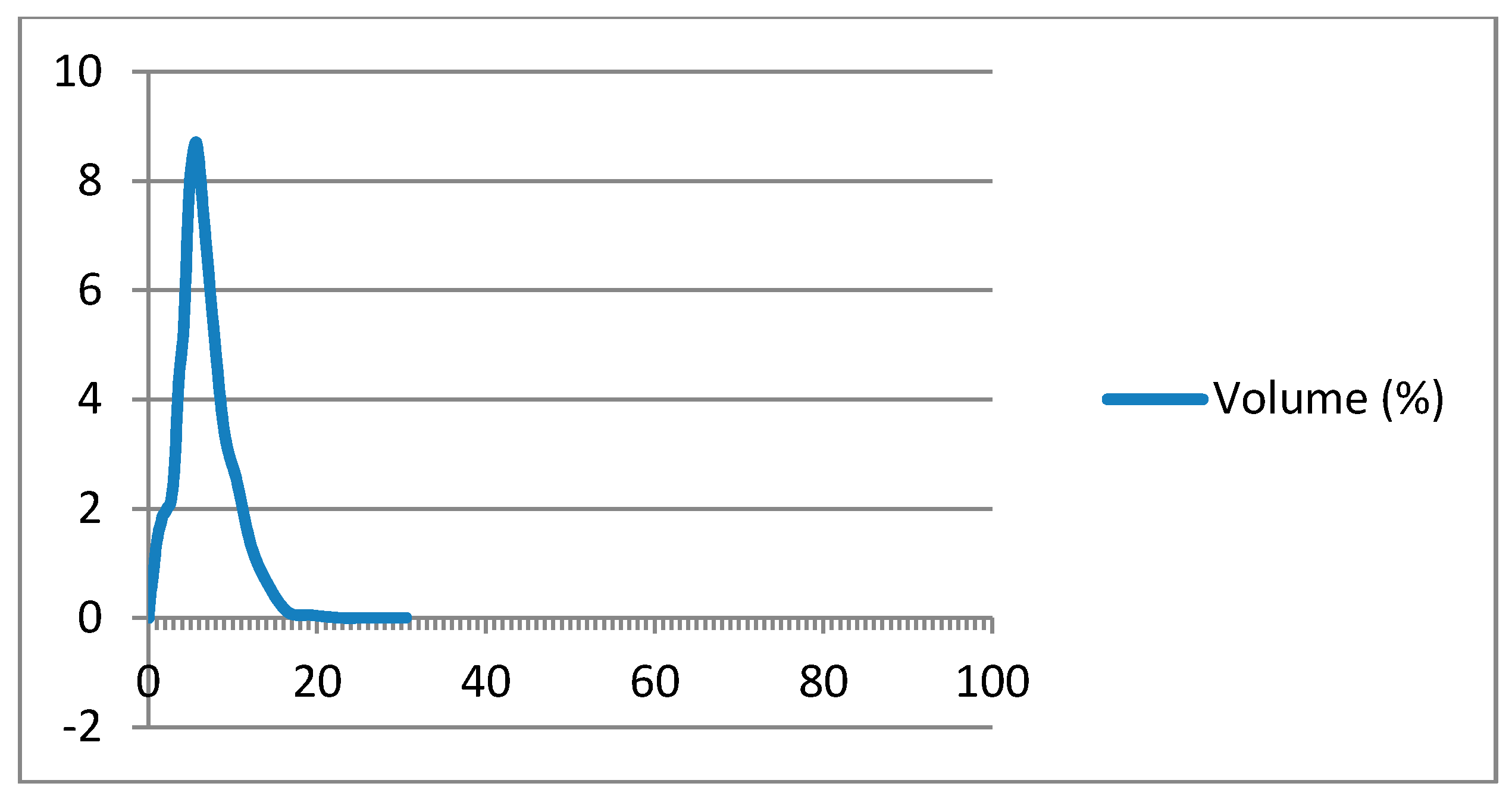

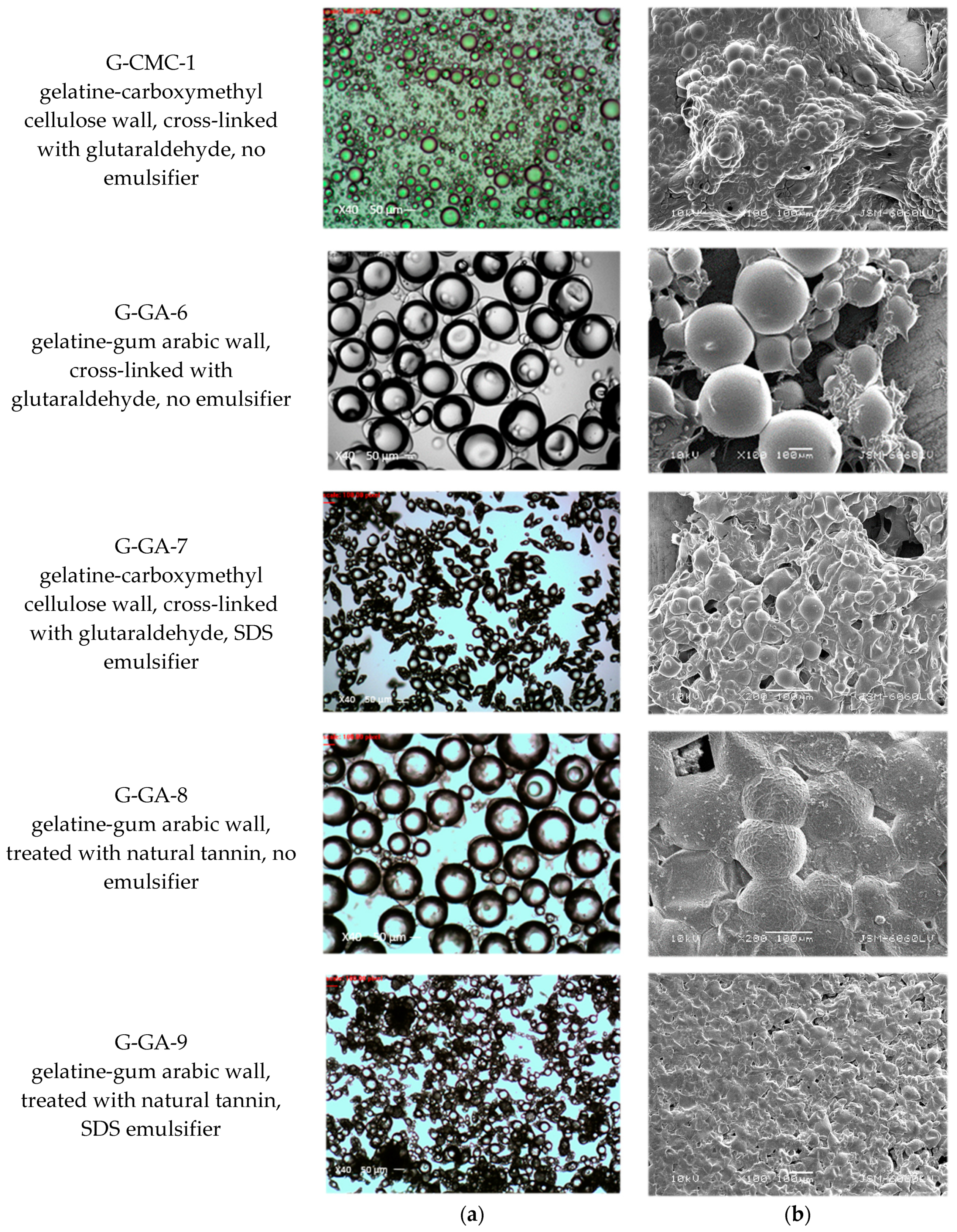

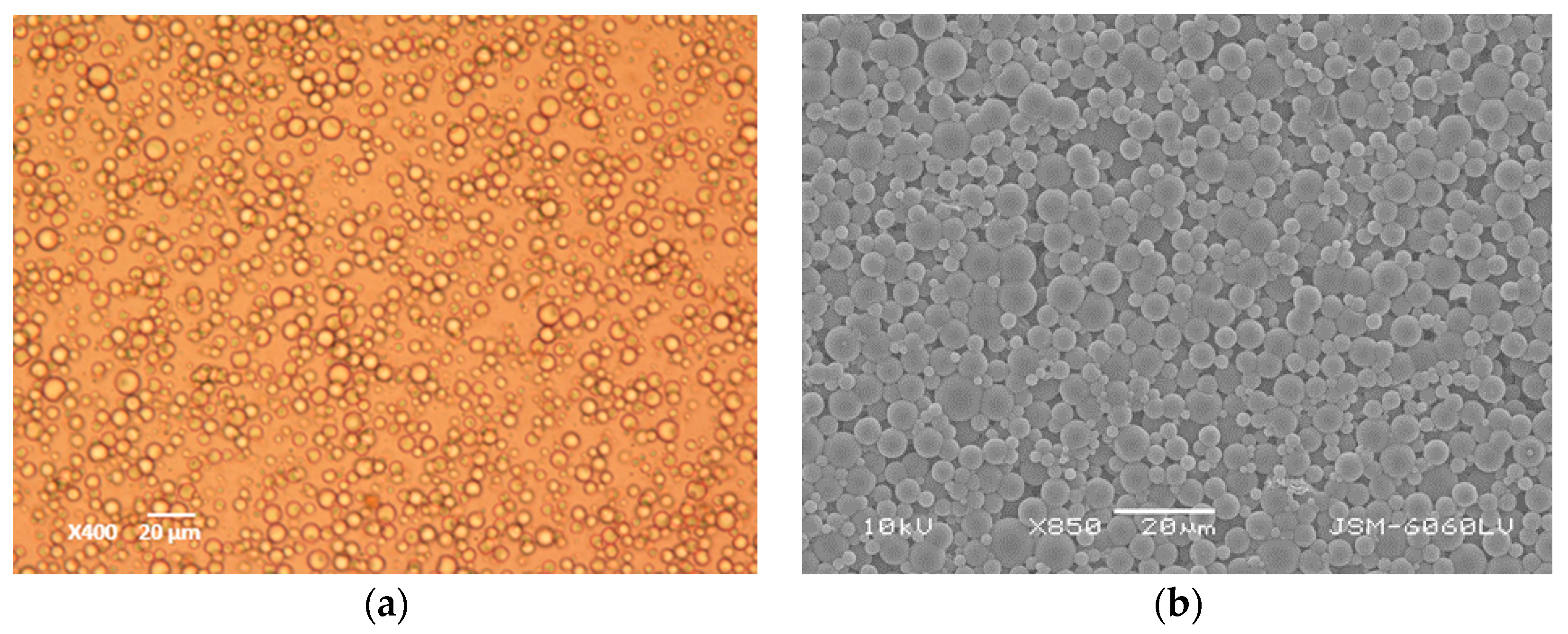

3.1. Citronella Oil Microcapsules Produced with Complex Coacervation

Microcapsules containing non-diluted citronella oil were successfully produced with complex coacervation in both combinations of wall materials, i.e., gelatine-carboxymethyl cellulose and gelatine-gum arabic. Microcapsules resulting from five different batches are presented in Figure 4. The container type structure with a liquid core and distinct thin elastic solid wall was evident with TLM. The microcapsule diameters ranged from 10 to 200 μm, depending on emulsification conditions and the addition of SDS emulsifier (cf. G-GA-7 and G-GA-9). Both wall hardening agents worked well, i.e., glutaraldehyde for covalent cross-linking (cf. G-CMC-1, G-GA-6, G-GA-7) and natural tannin for wall hardening via hydrogen bonds (cf. G-GA-8, G-GA-9). Microcapsule walls remained stable during air-drying and withstood vacuum conditions during the SEM microscopy.
The results are comparable with those from similar previous research, although there are no records in the available literature on the preparation of coacervate Cymbopogon citratus oil microcapsules in the same way and for the same purpose. Songkro et al. [63] prepared complex coacervation gelatine-acacia microcapsules of Cymbopogon winterianus oil for mosquito repellents. Magnetic stirrers were used, formaldehyde was employed as a hardening agent, the core-to-wall ratio was fixed to 1:2, and citronella oil dissolved in coconut oil was used. One of the findings was that citronella oil at 100% produced unstable microcapsules and the strength of microcapsule shells needed improvement. This problem seems to be resolved in our research (comparable batches G-GA-6 and G-GA-8), where stable microcapsules were prepared with 100% citronella oil and a high core-to-wall ratio (6:1) by using a powerful overhead stirrer with a turbine impeller, and glutaraldehyde or tannin wall hardening. The results of the batch G-GA-6 can also be compared with the research of Miro Specos et al. [55], who produced gelatine-gum arabic microcapsules of Cymbopogon nardus oil, cross-linked with glutaraldehyde, for mosquito repellent finishing of cotton textiles. Multi-core microcapsules with a blackberry-like morphology with diameters 25–100 µm were obtained. Our microcapsules were single core and 50–200 µm in diameter, presumably due to different mixing conditions. While in our research, an overhead stirrer with a turbine impeller at 600 rpm was used throughout the process, in the research above [55], a homogeniser at 18,500 rpm was used during emulsification, a pitched blade impeller during coacervation and a magnetic stirrer during hardening. This suggests that mixing conditions significantly affect the coacervation process and morphology of microcapsules.
For applications to textile carriers, researchers often used emulsifiers to achieve smaller dimensions of microcapsules. However, there seems to be no agreement about the best emulsifier for the citronella-gelatine-gum arabic coacervation system. Bezerra et al. [59] produced gelatine-gum arabic citronella microcapsules with 1–18 µm in diameter by applying sodium lauryl sulphate (SLS) emulsifier and glutaraldehyde for wall crosslinking. In our batches, G-GA-7 and G-GA-9, microcapsules of similar sizes and elongated ellipsoidal shapes were obtained by using SDS as an emulsifier. Liu et al. [57] reported on a successful preparation of 10 μm citronella microcapsules with complex coacervation of gelatine and gum arabic, using Tween-80 and Span-80 emulsifiers, and glutaraldehyde for cross-linking. The microcapsules were formulated with 2D resin and grafted to cotton fabrics with the immersion method.
Regarding the replacement of glutaraldehyde cross-linking with tannins, the idea is not completely new, although it has been rarely used. Xing et al. [72] prepared gelatine-gum arabic capsaicin nanocapsules and treated them with hydrolysable tannins. According to their study, tannins had a protein precipitating ability due to the function of hydrogen bonding and hydrophobic effects and also influenced the morphology and nanoparticle dispersion. In our batches G-GA-8 and G-GA-9, tannins successfully replaced glutaraldehyde hardening. Thus, we obtained microcapsule suspensions containing only natural materials.
Microcapsule suspensions of all batches were homogeneous at the end of the microcapsule production process. However, with days and weeks of storage, the suspensions of gelatine-carboxymethyl cellulose microcapsules became viscous and slightly gelled throughout the continuous phase. The gelatine-gum arabic microcapsule suspensions did not show any increased viscosity; however, a layering process occurred with ageing, with larger citronella oil microcapsules floating at the top and smaller microcapsules being gathered at the bottom. It is therefore recommended that freshly prepared coacervation microcapsule suspensions are used for paper coating.

3.2. Citronella Oil Microcapsules Produced with In Situ Polymerization

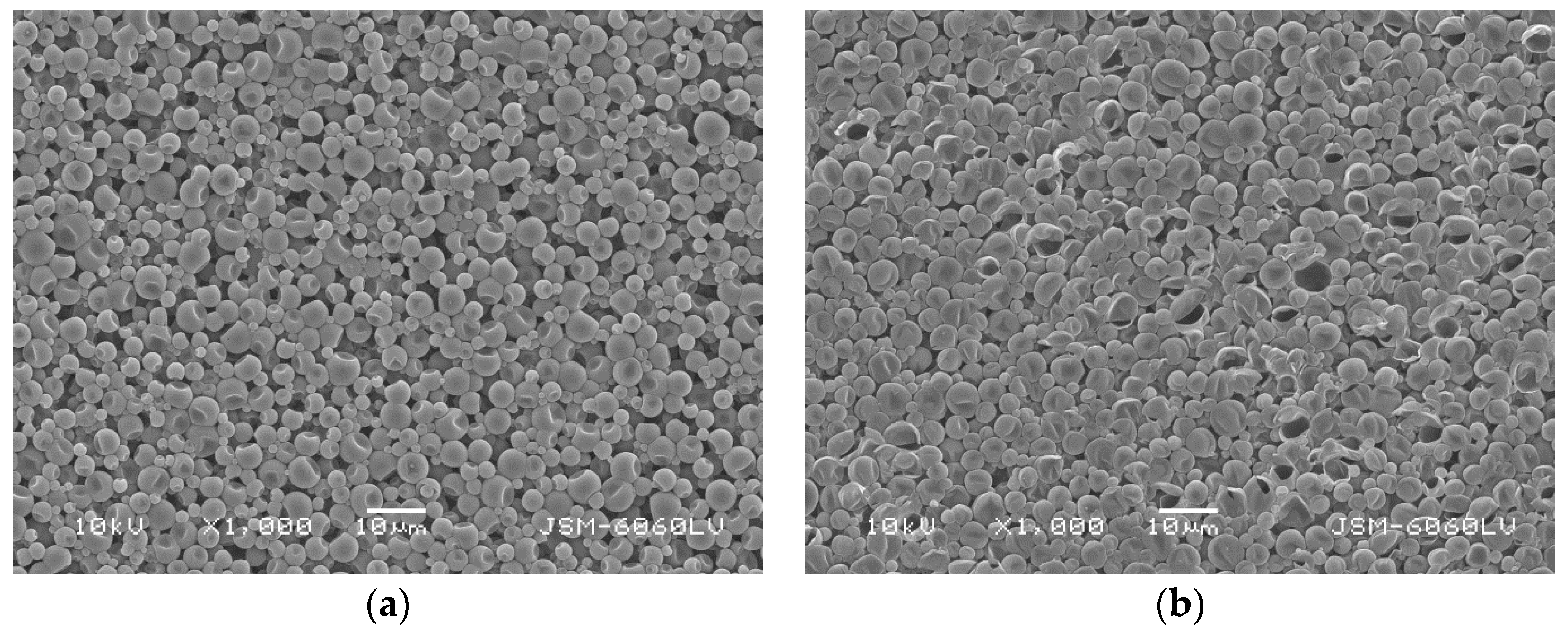

Citronella oil was successfully microencapsulated with the in situ polymerisation method. The properties of in situ microcapsule suspensions are summarized in Table 6. Compared to coacervation microcapsules, the in situ citronella microcapsules were smaller and had spherical rigid walls with a smooth surface (cf. Figure 5). This observation is in accordance with Sun and Zhang [73], who compared the mechanical strengths of in situ and coacervation microcapsules with the micromanipulation technique, and found out that in situ microcapsules showed viscoelastic behaviour at small deformations, plastic at relatively large deformations, and had a clear bursting under compression, while the coacervation microcapsules showed elastic behaviour and did not show clear bursting under compression. Their findings coincide with our observations of microcapsule activation with the weight pulling test, where compression and shear forces were needed for a successful activation to release citronella oil. An important role in the activation of microcapsules is played also by their size, which can be adjusted with process parameters [74,75]. According to the particle size distribution measurements, the average size of our in situ microcapsules containing citronella oil was 6 μm, with the range 1–15 μm (cf. Figure 6). Sizes and morphology of produced microcapsules were similar to those done by Chung et al. [76], who used the in situ polymerization technology to prepare microcapsules with thyme oil for an insect repellent in food packaging.
The in situ microcapsule suspensions were homogeneous at the end of the production process and stable for days and weeks. After the six-month storage at room temperature, the in situ microcapsules slowly accumulated in a layer on the surface, but were easily re-mixed and their morphology did not change. It is assumed that the shelf life could be at least 2 years, which is in accordance with the results of the time-release analysis done by Zhao et al. [77], who calculated 1.65 years as the theoretical storage time.

3.3. Coated Papers

Both types of microcapsules were tested and used in paper coatings (cf. Figure 7). Coacervation microcapsules demonstrated some deficiencies during the coating—suspensions were prone to agglomeration and larger particles were removed by the coating rod during the coating process. In consequence, due to smaller dimensions (below 10 μm), superior suspension stability and formulation mixing, the in situ polymerization citronella oil microcapsules were selected as a priority for paper coatings in industrial settings. With the maximum achieved coating weight (30 g/m2) on paper, even without any binders added, the adherence of in situ microcapsules to paper was surprisingly good, with superior quality in terms of equal coat weight across the whole paper sheet.

3.4. Mechanical Activation of Microcapsules on Paper

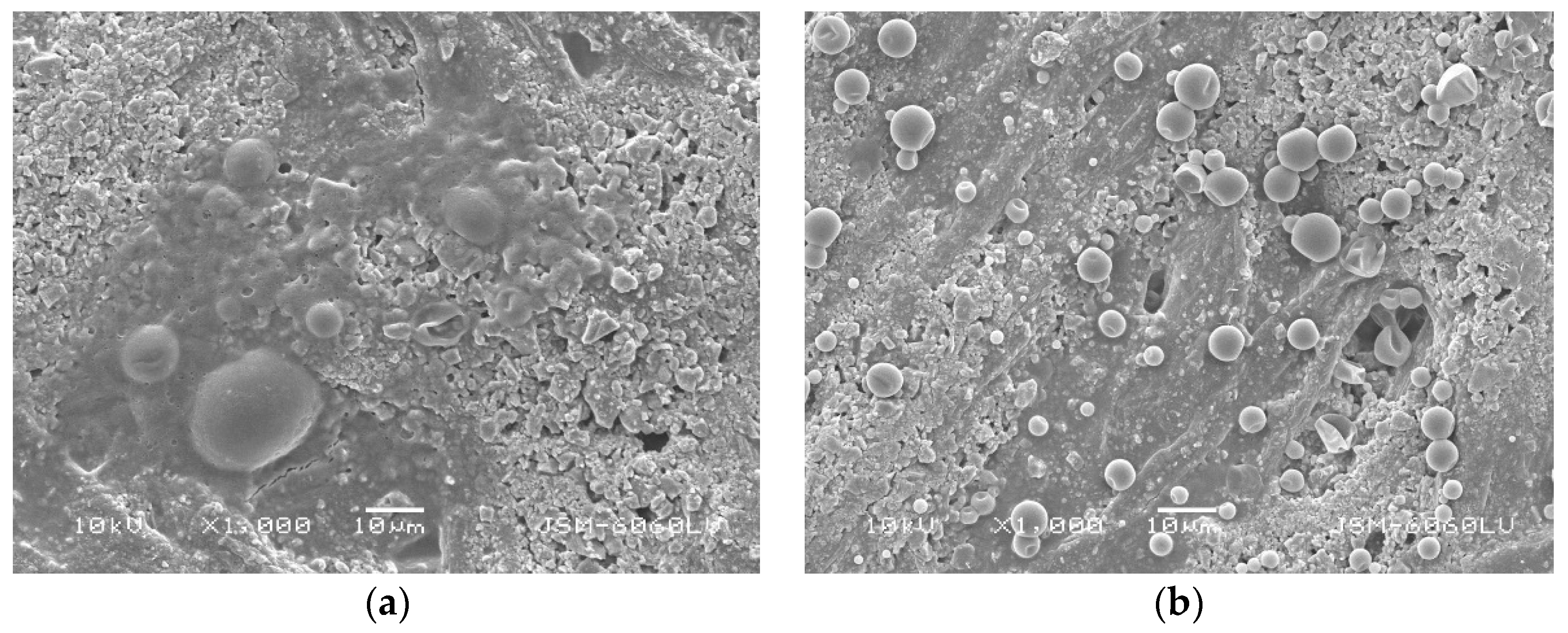

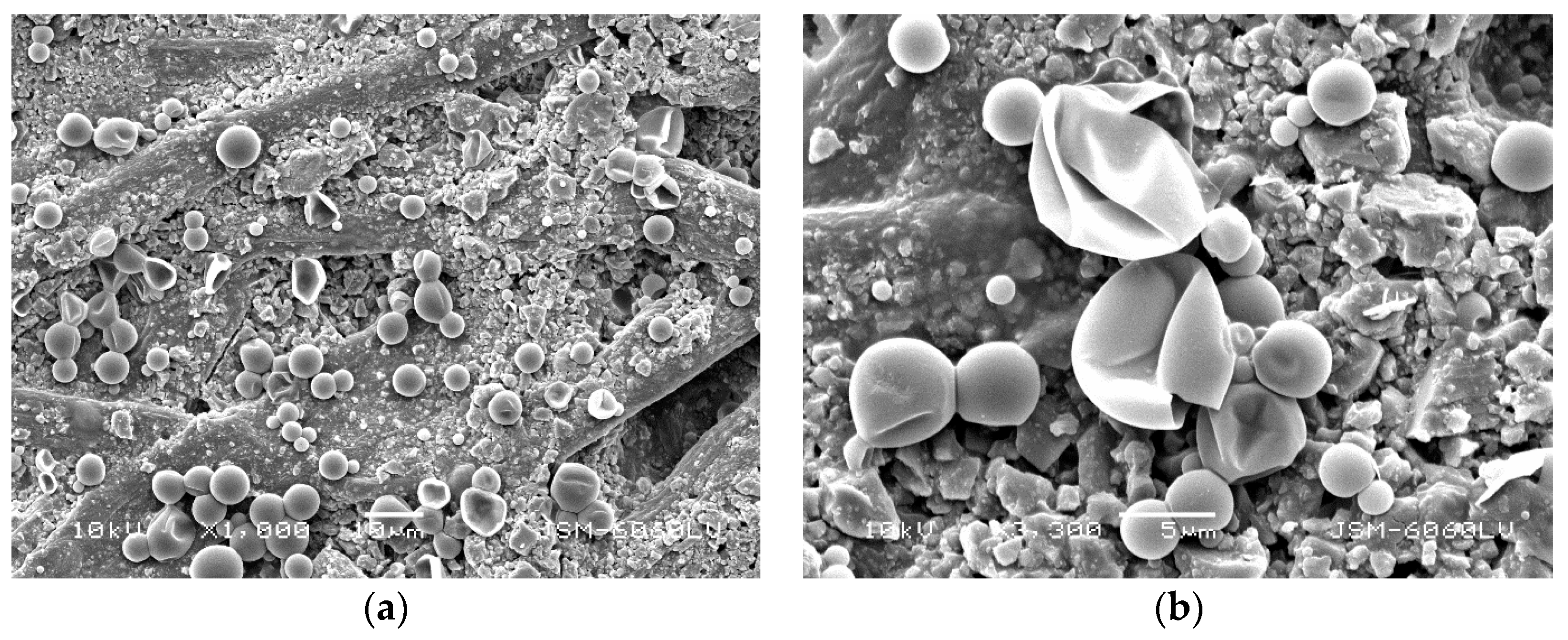

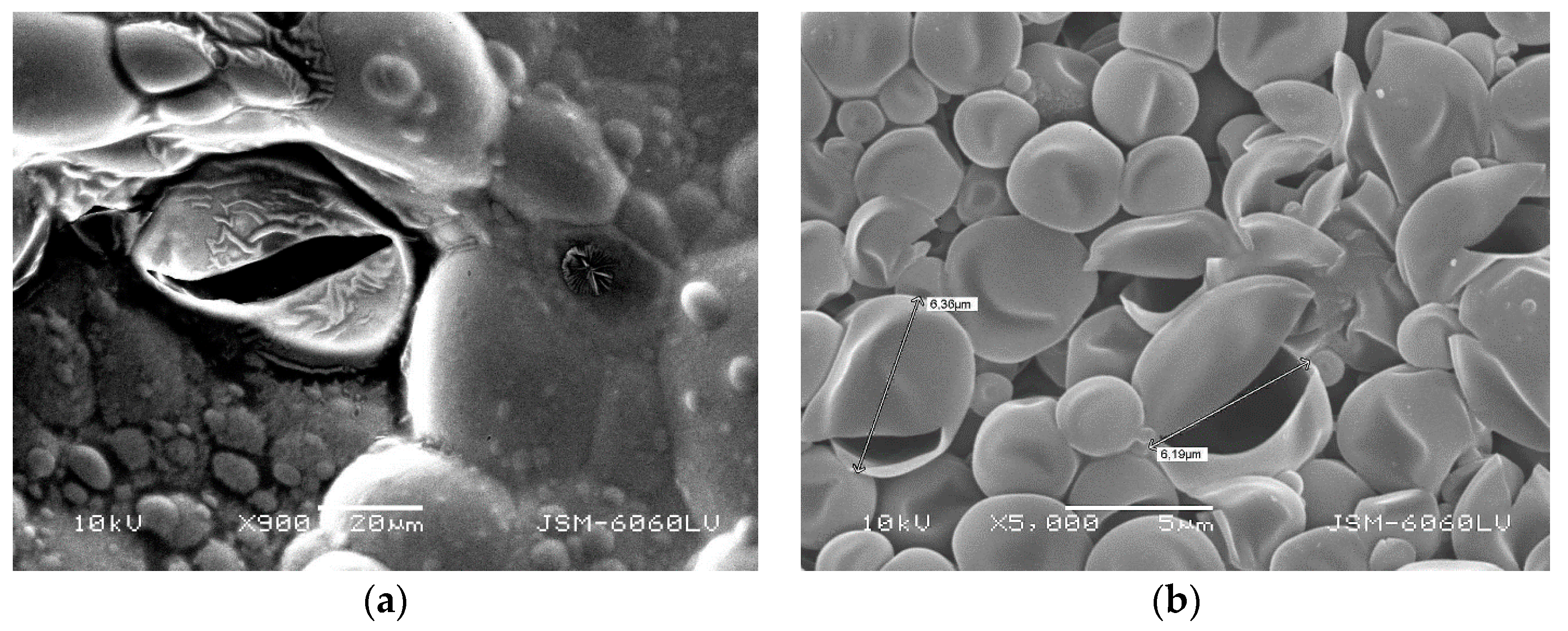

The SEM photomicrographs of microcapsules activated by mechanical pressure confirmed the pressure-activation mechanism by rupturing microcapsule walls of both, coacervation and in situ, citronella microcapsules (cf. Figure 8).
Furthermore, the SEM morphological characterisation of papers coated with formulations containing in situ polymerization citronella microcapsules activated with the 5 kg weight pulling test revealed a partial pressure-activation of in situ polymerization microcapsules—some microcapsules with broken walls and empty cores were visible, while others remained intact (cf. Figure 9 and Figure 10). This indicated that not all essential oil was released from microcapsules at once and suggested the possibility of prolonged use, with the gradual release of citronella oil at multiple exposures to pressure.
The results suggested that the mechanism of citronella oil release by mechanical pressure was suitable for the intended application. Nevertheless, the question remained whether the amount of released citronella oil is sufficient to achieve the antimicrobial effect.

3.5. Antimicrobial Activity

3.5.1. MIC of Non-Encapsulated and Microencapsulated Citronella Oil

The MIC values of the antimicrobial testing of citronella oil, non-activated coacervation microcapsules and in situ microcapsules in a liquid medium collected after 24 h of incubation are presented in Table 7. To exclude potential influences of other chemicals used in the microencapsulation process, empty microcapsules were also prepared without the citronella oil core and used as a blank in antimicrobial testing.
For the non-activated coacervation microcapsules with citronella oil, the MIC values were detected within the range 0.07% < MIC > 0.014% for bacterial species B. subtilis, E. coli, P. aeruginosa, while for the yeast S. cerevisiae, a higher value, 1.72% < MIC > 0.34%, was determined. Empty coacervation microcapsules without the citronella core (blank) caused no inhibition on E. coli and S. cerevisiae, or a higher MIC > 1.72% was detected with B. subtilis and P. aeruginosa, possibly due to some glutaraldehyde remains in the suspension. The observed antimicrobial activity of the citronella oil coacervation microcapsules can be attributed to partially permeable walls, releasing the core substance. The obtained MIC values are comparable to the results by Wang et al. [66], who produced citronella oil microcapsules with hydroxyapatite/quaternary ammonium salt of chitosan/sodium alginate walls, and determined MIC 0.0625% for E. coli and S. aureus. For E. coli and B. subtilis, the results also coincide with literature data for the non-capsulated citronella oil—MIC 0.06% was determined by Naik et al. [70].
In contrast, in the case of non-activated in situ polymerization microcapsules, the range 1.72% < MIC > 0.34% was determined for B. subtilis, and MIC > 1.72% for E. coli, P. aeruginosa and S. cerevisiae. Empty in situ microcapsules without the citronella core (blank) caused no inhibition on E. coli, P. aeruginosa and S. cerevisiae. With B. subtilis, a higher MIC > 1.72% was determined, presumably due to some traces of formaldehyde in the suspension. The results suggested that the in situ polymerization microcapsule walls were impermeable and that no residual non-encapsulated citronella oil was present in the suspension.
For non-encapsulated citronella oil, the range 0.2% < MIC > 0.04% was determined for E. coli and B. subtilis, while for S. cerevisiae MIC > 0.2% and for P. aeruginosa MIC > 0.11% were observed. It is known that the antimicrobial testing of non-encapsulated oil in aqueous systems is problematic due to its water insolubility. In addition, citronella oil is composed of several substances with different solubility factors and different activities. In the preparation of samples and during antimicrobial testing, the separation of oil and water phases occurs. Therefore, microorganisms in aqueous media are in limited contact with the oil. Consequently, the higher MIC, determined for non-encapsulated citronella oil, in comparison with some results of microencapsulated citronella oil may be attributed to the fact that in partially permeable microcapsules, the active ingredient is more homogeneously distributed through the whole liquid media. This observation is also in alignment with Donsi et al. [78], who noticed that the antimicrobial activity of essential oils was limited by their solubility and availability for interaction with microorganism cells.

3.5.2. Antimicrobial Activity of Coated Papers

Two series of coated papers were used in antimicrobial testing, i.e., minimum coatings of 2 g/m2 and maximum coatings of 30 g/m2. In the case of 2 g of applied coating formulation/m2 of paper, the determination of aerobic mesophilic bacteria on Standard count agar (for E. coli, P. aeruginosa, B. subtilis) and determination of yeast on Sabouraud 2% glucose agar (for S. cerevisiae) revealed no significant difference between the uncoated paper matrices and papers coated with the formulation containing in situ polymerization microcapsules with citronella, without or with pressure-activation. The result could be expected, as the 2 g/m2 coating only contained approximately 1.44 g of encapsulated citronella oil per m2. Furthermore, according to the protocol, the 1 cm2 testing sample on agar plate contained only 1.4 × 10−4 g of citronella oil in microcapsules.
In the second part of the research, the maximum coating of 30 g/m2 with in situ microcapsules were used and the coated paper of the whole Petri dish cover size was applied in the protocol. 140 and 94 mm Petri dishes were used. The samples were activated with a weight pulling test, which opened a part of microcapsules, and the results were compared to blank Petri dishes with no paper added. The calculation shows that if all microcapsules had been opened, the 30 g/m2 coated paper would have released 0.13137 g of citronella oil from the in situ microcapsules cores in the 94 mm Petri dish, and 0.32307g in the 140 mm Petri dish.
In all blank samples, microbial growth was observed already after 24 h of incubation.

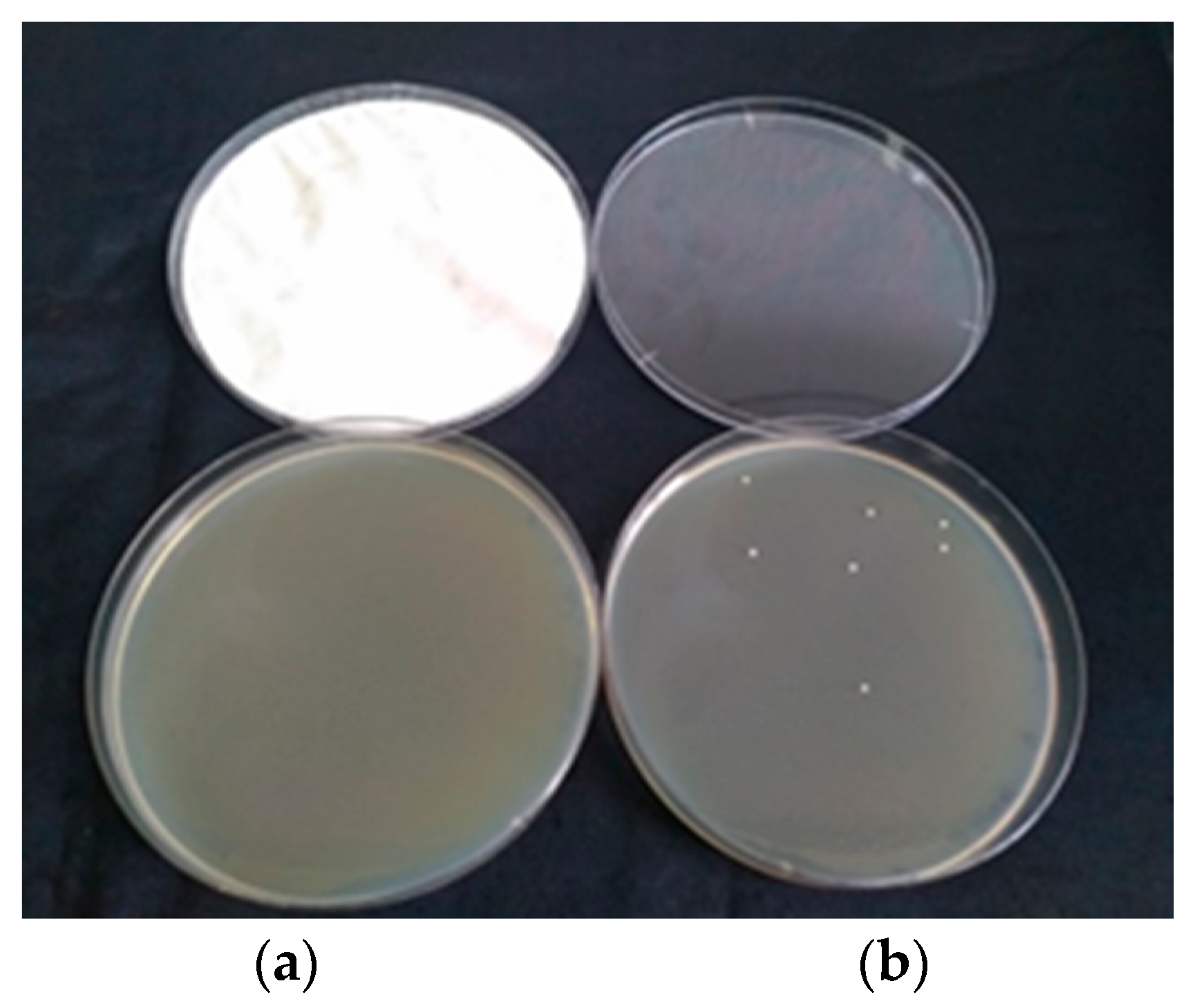

In the experiments with coated papers in 140 mm Petri dishes, no microorganism growth was observed either after 24 or 48 h of incubation. This suggested that the concentration of citronella oil vapours released from the activated paper coating was sufficient for the total inhibition of microorganisms, and the antimicrobial activity of 30 g/m2 coated papers was confirmed for both tested microorganisms, i.e., E. coli and S. cerevisiae. An example of antimicrobial testing results for S. cerevisiae after 48 h of incubation is presented in Figure 11.
In the experiments with coated papers in 94 mm Petri dishes, there was no growth in the samples with activated coated papers after 24 h of incubation for either tested microorganisms, E. coli or S. cerevisiae. After 48 h of incubation, microorganism growth occurred, but substantially smaller with E. coli than with S. cerevisiae (cf. Table 8), which indicated their different susceptibility or resistance to citronella oil components. According to the statistical evaluation using the t-test, two-sample assuming unequal variances, a significant difference in the antimicrobial activity was confirmed between blank samples and samples with papers coated with activated citronella microcapsules in all cases after 24 h of incubation (p two-tail < 0.05). After 48 h of incubation, the difference was statistically significant in all but two cases (S. cerevisiae 102 and E. coli 101).

4. Conclusions

The research project aimed to develop a pressure-sensitive controlled-release microencapsulated form of a natural antimicrobial agent, which could be used as a functional additive in food or pharmaceutical secondary packaging products made of paper or cardboard. In a series of research steps, presented in Figure 12, this aim was successfully achieved.
The essential oil of Cymbopogon citratus (citronella oil), known for its antimicrobial properties and pleasant aroma, was selected as the priority active compound. Due to its lipophilic nature and high volatility, citronella oil was microencapsulated with two alternative methods, i.e., complex coacervation of gelatine in combination with carboxymethylcellulose or gum arabic, and with in situ polymerization of melamine-formaldehyde prepolymers with a polyacrylic acid modifier. Both microencapsulation methods were successful and resulted in a container type microcapsules with a distinct liquid core and solid wall. The coacervate microcapsules were larger, with elastic natural polymer walls and partial permeability, while the in situ polymerization microcapsules were smaller, with spherical, rigid and impermeable pressure-sensitive synthetic polymer walls.
Aqueous microcapsule suspensions were formulated with water soluble binders or were used directly for paper coatings. The suspensions of in situ microcapsules were chosen as a priority candidate for paper coatings in industrial settings since the in situ process was robust, the suspensions were homogeneous, showed good storage stability, formulation compatibility, small microcapsule dimensions (preferably below 10 μm), no aggregation and excellent coating properties. The suspensions of gelatine-carboxymethyl cellulose coacervation microcapsules tended to become viscous and gelled with time, and the gelatine-gum arabic microcapsule suspensions were prone to layering. Hence, the coacervation microcapsule suspensions should be used freshly prepared. In packaging applications, where only natural materials are preferred, gelatine-gum arabic citronella oil microcapsules hardened with tannin seem to be the preferred choice.
The antimicrobial testing in liquid media confirmed the antimicrobial activity (MIC) of non-encapsulated citronella oil and of citronella coacervation microcapsules, while for the non-activated in situ citronella microcapsules, MIC was due to impermeable microcapsule walls not detected.
The maximum achieved paper coating contained 30 g/m2 of in situ citronella oil microcapsules with no binders added. Pressure-sensitive microcapsules were activated with a metal weight test and the SEM characterisation after three pulls revealed that some microcapsules released the core, whereas others remained intact. This suggested the possibility of prolonged product use, with gradual release of citronella oil at multiple exposures of functional papers to pressure, e.g., by a human hand during product handling.
Coacervate citronella oil microcapsules have partially permeable walls and could be more suitable for applications with the gradual release of the essential oil without a mechanical activation, while the in situ polymerization microcapsules are impermeable and appropriate for products where long-term retention is desired, and the release of the active substance by mechanical pressure is planned. It can be speculated that the combination of both microcapsule types could have a combined effect—the slow sustained release of citronella oil, and planned quick pressure-activated release when used after prolonged storage.
A new protocol was developed to test the antimicrobial activity of activated coated papers containing pressure-sensitive citronella oil microcapsules. Citronella oil vapours released after the mechanical activation from microcapsule cores into the sealed Petri dish successfully inhibited the growth of microorganisms under experimental conditions. According to our best knowledge, this is the first description of the experimental setting to test and prove the antimicrobial activity of released vapours from microcapsule cores in pressure-sensitive antimicrobial papers.
