Creating Customized CGRAs for Scientific Applications

Abstract

Executing complex scientific applications on Coarse Grain Reconfigurable Arrays (CGRAs) offers improvements in the execution time and/or energy consumption when compared to optimized software implementations or even fully customized hardware solutions. In this work, we explore the potential of application analysis methods in such customized hardware solutions. We offer analysis metrics from various scientific applications and tailor the results that are to be used by MC-Def, a novel Mixed-CGRA Definition Framework targeting a Mixed-CGRA architecture that leverages the advantages of CGRAs and those of FPGAs by utilizing a customized cell-array along, with a separate LUT array being used for adaptability. Additionally, we present the implementation results regarding the VHDL-created hardware implementations of our CGRA cell concerning various scientific applications.

1. Introduction

Specialized hardware accelerators of scientific applications often improve the performance and reduce energy consumption [1]. However, designing and implementing accelerators is a difficult process that requires in-depth knowledge of the application, multiple programming languages, and software tools. Throughout the years, several alternatives have been proposed in order to make this process easier. The dataflow paradigm is a promising and well-established alternative towards customized hardware solutions. Several frameworks that create dataflow graphs (Dataflow Graphs (DFGs)) and map them on specialized hardware have been proposed [2,3,4,5].

Still, the direct mapping of complex DFGs on FPGAs is a tedious process. A more convenient alternative target platform is Coarse-Grain Architectures (CGAs). CGAs exploit hardware customization to achieve faster and more energy efficient execution. While they are appropriate and efficient for many applications (especially with loop-based parallelism), their main drawback is the use of fixed and pre-defined hardware that limits their flexibility and versatility when compared to other solutions. Coarse-Grain Reconfigurable Architectures (CGRAs) are a step towards adding flexibility while retaining many of the efficiency advantages of CGAs. Being reconfigurable, CGRAs can be re-defined to better match particular applications or domains. Typical CGRAs are template architectures, with some degrees of customization.

A key disadvantage of current CGRA approaches stems from the underlying mapping algorithm that is used to map the compute functions/operations of the original application on computational nodes of the CGRA architecture. Because early reconfigurable architectures, e.g., programmable logic arrays (PLA), typically this mapping used 1-to-1 to fashion a single application gate/function onto a single gate of the architecture. CGRA application mapping, although improved, continues to follow this paradigm limiting the capabilities of CGRAs. This is due to the design premise of CGRA cells that typically include a single compute element, i.e., an ALU or a micro-processor, an instruction/configuration memory and input/output registers. Additionally despite their massive customization CGRAs still strive to achieve efficient mapping while being as generic as possible. This intentional lack of customized hardware leads to sub-optimal designs in terms of offered acceleration and general execution time. Therefore, we need a CGRA definition framework that is able to: (a) map multiple nodes in one cell and (b) offer customized cell functionality, while maintaining a degree of flexibility.

Before exploring the ways to map applications on CGRAs, one must be able to tailor the underlying framework and be able to construct a feasible and effective way to determine how the compute element of the CGRA is defined. In order to achieve this, the researchers focus on application graph analysis used to extract all of the necessary information. However, this approach may not always be feasible or even effective. The nodes appearing in an application data-flow graph can yield misleading results in terms of frequency of appearance when compared to the physical resources used. In this paper, being motivated by this conundrum, we attempt to use preliminary application analysis before building our framework in order to tailor it and create a more accurate algorithm when defining the CGRA cells. This preliminary analysis aids in determining how particular application nodes impact the application’s resource utilization and which nodes appear frequently across applications from different domains. Additionally, because this analysis is integrated in our framework, it aids the user in predicting the resource utilization of an application using only a specific DFG representation, without requiring the expensive and time-consuming step of implementation on the actual platform.

The obtained results are then integrated to our CGRA definition framework, MC-DeF (Mixed-CGRA Definition Framework). MC-DeF is a novel framework that performs all of the necessary steps in order to define a customized CGRA for a target application utilizing a mixed-CGRA architecture. A mixed-CGRA architecture combines the advantages from both the CGRA and the FPGA paradigms, using both a coarse-grain cell structure and an amount of (LUT-based) reconfigurable logic, for added flexibility, connected with a fast and high-bandwidth communication infrastructure. Once defined, the Mixed-CGRA can be implemented either as an ASIC or as an overlay in FPGA technology. The ASIC approach transforms the CGRA into a CGA as the cell functionality cannot be adapted any more. In this case, the array retains some flexibility through the use of the adjacent reconfigurable LUT array. The overlay option creates a reconfigurable CGRA design that is able to map a target application; each new targeted application must be recompiled and configured again on the FPGA. Additionally, by fine-tuning the threshold values that are used by MC-DeF, the user can perform design space exploration in order to find a suitable hardware solution based on area or energy restrictions. Our work stands in the boundary of this space: prototyping with overlays is great for verifying the results of the design-space exploration and an ASIC is the ideal final product. However, the overlay approach still has an advantage from the tools/programming perspective.

This paper expands our previous work [6], making the following contributions:

• an application analysis methodology and results that helped to define the functionality and fine-tune our framework, and
• a complete description of the created framework and baseline results showcasing its use, and
• VHDL implementation results of implemented CGRA cells created by MC-DeF.

The rest of the paper is structured, as follows: Section 2 presents related work on the field of CGRA architectures and graph analysis tools, while Section 3 presents the preliminary application analysis and the obtained results. MC-DeF and the targeted Mixed-CGRA are described in Section 4. Section 5 presents a set of evaluations of MC-DeF and CGRA architectures produced with its use. Moreover, in Section 6, we present the VHDL implementation results of MC-DeF created CGRA architectures, and Section 7 concludes our work and presents our final remarks.

2. Related Work

Several novel Coarse-Grain Architectures have been proposed and the respective field is active for many years. More recently, the emergence of High-Performance Computing and its accompanying applications have led to a rekindling of the CGRA approach. This is due to the large amount of commonalities between HPC applications and also their ability to be easily implemented while using the data-flow paradigm. The presented related work for this paper can be divided in two different parts, works that propose novel CGRA architectures and works that address application analysis and static source code analysis techniques.

2.1. CGRA Architectures

Stojilovic et al. present a technique to automatically generate a domain-specific coarse-grained array from a set of representative applications [7]. Their technique creates a shortest common super-sequence found among all of the input applications based on weighted majority merge heuristic. Using this super-sequence, the framework creates a cell array that is able to map the application’s instructions.

In [8], the authors present REDIFINE, a polymorphic ASIC in which specialized hardware units are replaced with basic hardware units. The basic hardware units are able to replicate specialized functionality through runtime re-composition. The high-level compiler invoked creates substructures containing sets of compute elements. An enhancement of REDIFINE is presented in [9]. In this work, HyperCell is a framework used to augment the CGRA compute elements with reconfigurable macro data-paths that enable the exploitation of fine grain and pipeline parallelism at the level of basic instructions in static dataflow order.

In [10], the authors present RaPiD, a novel architecture that was designed to implement computation intensive and highly regular systolic streaming applications while using an array of computing cells. The cell consists of a multiplier unit, two ALUs, six registers, and three small memories. The connectivity of RaPiD is based on 10 basses connecting the cells through connectors in a Nearest-Neighbor (NN) fashion.

The SCGRA overlay [11] was proposed to address the FPGA design productivity issue, demonstrating a 10–100× reduction in compilation times. Additionally, application specific SCGRA designs that were implemented on the Xilinx Zynq platform achieved a 9× speed-up compared to the same application running on the embedded Zynq ARM processor. The FU used in the Zynq based SCGRA overlay operates at 250 MHz and it consists of an ALU, multiport data memory (256 × 32 bits), and a customised depth instruction ROM (72-bit wide instructions), which results in the excessive utilization of BRAMs.

QUKU [12] is a rapidly reconfigurable coarse-grained overlay architecture that aims to bridge the gap between soft-core processors and customized circuit. QUKU consists of a dynamically reconfigurable, coarse-grained FU array with an adjacent soft-core processor for system support. QUKU’s evaluation was done using Sobel and Laplace kernels, and the generated QUKU overlay was designed based on datapath merging of the two kernels. QUKU’s datapath merging overlay on top of FPGA fabric paves the way for fast context switching between kernels.

FPCA [13] uses a PE that can either be a Computation Element (CE) or a Local Memory Unit (LMU). FPCA takes advantage of the Dataflow Control Graph of the application to create even more customized elements for the reconfigurable array. Customizable elements are a category of CE’s in the FPCA architecture, with the other being heterogeneous ALUs. The communication network is divided in two different parts, first one is used for transferring data between LMUs and CEs and it is a permutation network, while the other one is a global NN network for general PE communication.

2.2. Application Analysis and Static Source Code Analysis

As mentioned, MC-DeF can be used for static source code analysis and for the definition of application or domain specific CGRAs. Static source code analysis is quite common in software applications, and many language-specific tools have been released.

LLVM is one of the earliest approaches in source code analysis [14]. LLVM is a collection of modular and reusable compiler and tool-chain technologies. Through code analysis, LLVM is able to provide the user transparent support life-long program analysis and transformation for arbitrary programs. Additionally, LLVM support libraries are able to perform extensive static optimization, online optimization using information from the LLVM code, and idle-time optimization while using profile information that is gathered from programmers in the field.

However, the cases that our work mostly relates to are those of VHDL or hardware code analysis. A similar approach is that of the SAVE project [15], which is a static source analysis tool used to measure and compare models to assure the satisfaction of quality requirements of VHDL descriptions. Similarly to SAVE, RAT [16] uses static source code analysis in order to maximize the probability of success for an application’s migration to an FPGA. Efficient post-synthesis resource estimation has been the target of Xilinx research groups.

Schumacher and Jha formulate a fast and accurate prediction method for the resource utilization of RTL-based designs targeting FPGAs in [17]. Their work utilizes Verific [18], which is a parser/elaborator tool, to parse and elaborate RTL-based designs. The presented results record 60 times faster tool run-time as compared to a typical synthesis process and slice utilization within 22% of the actual hardware design.

Finally, Quinpu [19] is a novel high-level quantitative prediction modelling scheme that accurately models the relation between hardware and software metrics, based on statistical techniques. The error in utilization prediction that is recorded by Quinpu ranges from 15% to 34%.

3. Application Analysis

A key aspect of this work is to find out whether modern applications can actually benefit from a coarse-grained reconfigurable architecture. To answer this, the first step of our research was extensive application analysis. The performed analysis is valuable in creating the underlying framework that will ultimately be able to map modern scientific applications in a customized CGRA architecture. Additionally, the intention of the analysis is to find similarities in the composition of these application or to find "key" functionality that often appears in the application’s dataflow graph.

This part of the work is done in collaboration with Maxeler Technologies Ltd., a UK-based HPC company that specializes in Multiscale Dataflow Computing (MDC). Maxeler offers the Maxeler Platform board solution, which provides the user with multiple dataflow engines as shared resources on the network, allowing for them to be used by applications running anywhere in a cluster. In their platform, they also implement various HPC applications using the MDC paradigm. Their platform allows for high-speed communication between CPUs and the data-flow engines (DFEs). One Maxeler Dataflow Engine (DFE) combines 104 arithmetic units with ${10}^7$ bytes of local fast SRAM (FMEM) and 1011 bytes of six-channel large DRAM (LMEM) [20].

Maxeler Technologies provided us with a large number of application Dataflow Graphs (DFG) that we later performed analysis on to find similarities between different applications or DFG nodes that have a high frequency of appearance. Additionally, we performed memory analysis, closely monitoring the applications’ needs in memory space and distinguishing the needed memory in FIFO, RAM, and ROM structures. Finally, we recorded the input and output nodes of the graphs and measured the amount of input and output bits at each clock tick in order to determine the I/O needs of the applications at hand.

In this section, we first present a preliminary analysis to support our claim that a CGRA definition framework can indeed provide a viable hardware implementation solution for modern scientific applications. Subsequently, we will present the four applications used to demonstrate the usage of Impact Factor, a metric that is used to differentiate a node’s frequency of appearance in the application’s DFG with the actual resource utilization of said application. Additionally, we will present the results that were obtained that demonstrate how the Impact Factor metric can accurately indicate the resource utilization coverage of an application. The following step in our application analysis is to perform Resource Utilization Prediction to demonstrate how MC-DeF can accurately predict an application’s resource utilization by using the application’s data-flow graph and the built-in resource usage node library created after our Impact Factor analysis. Finally, we steer a discussion summarizing the key findings and observations of our analysis.

3.1. Preliminary Analysis

We have obtained over 10 commercial applications from Maxeler to perform application profiling. MaxCompiler, i.e., the high-level synthesis tool that was developed by Maxeler, outputs in an .xml file, a detailed graph representation of an application and the hardware modules it uses, at a higher abstraction level. The modules used in this abstract representation are high-level constructs, such as adders, counters, multipliers, etc. This graph representation makes it easier to profile and find similarities among applications from different domains. In this section, we present the results that were obtained by resource profiling of these applications.

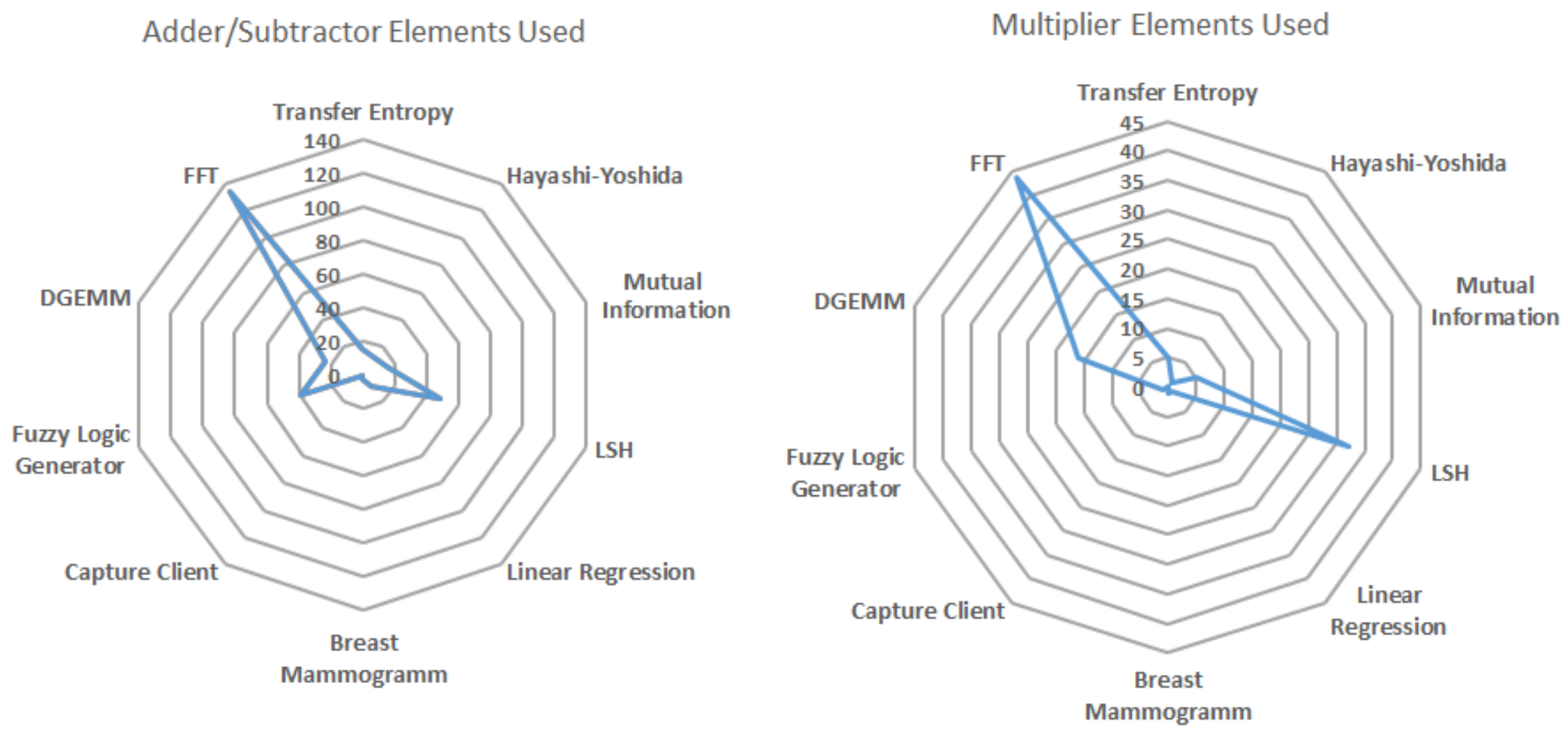

The preliminary resource analysis has made apparent that the research performed shows promising results. First, we found that some hardware modules are used in every profiled application, indicating the necessity of including them in our CGRA cells. The variance in the numbers is due to the application size, e.g., Spec-FEM 3D is the largest and most computationally intensive application that we have profiled scoring off the charts in almost all element categories. As stated, we also opt for fine-grain reconfigurability within a CGRA cell. This is necessary, because some hardware elements appear in several applications, but they have a high variance in their number—such as multipliers—as we can see in Figure 1 and Figure 2. We can see that, generally, FIFO elements are used in all of the application cases studies; this is clear in Figure 2, where the usage of FIFO elements in all of the available applications is shown.

The above graphs represent a sub-set of the applications that were used for analysis in order to define the key features that we wanted to include in MC-DeF. A first observation that was important in the early stages of development was that the number of instances of a particular node type does not correlate with high LUT consumption. For example, the Hayashi-Yoshida application has 80 nodes that implement some type of logic gate in its DFG, five adder or subtractor nodes, and two multiplier. However, analysis showed that logic gate elements only occupy 12% of the total application’s LUT utilization while the adder and subtractor nodes make up for 94%.

3.2. Benchmark Description

We used four scientific applications in order to carry out our preliminary analysis. The applications used were provided by Maxeler and they were FPGA-ready application designs. In this section, we will give brief descriptions of the applications used.

• Hayashi-Yoshida coefficient estimator: the Hayashi-Yoshida coefficient estimator [21] is a measurement of the linear correlation between two asynchronous diffusive processes, e.g., stock market transactions. This method is used to calculate the correlation of high-frequency streaming financial assets. Hayashi-Yoshida does not require any prior synchronization of the transaction-based data; hence, being free from any overheads that are caused by it. The estimator is shown to have consistency as the observation frequency tends to infinity. The Maxeler implementation [22] for this application creates 270 Nodes in total.
• Mutual Information: mutual Information of two random variables is a measure of the mutual dependence between the two variables. More specifically, it quantifies the "amount of information" (in units, such as shannons, more commonly called bits) obtained approximately one random variable, through the other random variable. This is commonly used in the detection of phase synchronization in time series analysis in social networks, financial markets, and signal processing. This is the smallest of the applications analyzed in terms of DFG nodes, with 199 Nodes [23].
• Transfer Entropy: transfer entropy was designed in order to determine the direction of information transfers between two processes, by detecting asymmetry in their interactions. Specifically, it is a Shannon information-theory quantity that measures directed information between two time series. This type of metric is used for measuring, information flow between financial markets or measuring influence in social networks. Formally, transfer entropy shares some of the desired properties of mutual information, but it takes the dynamics of information transport into account. Similar to Mutual Information, the Transfer Entropy has 225 Nodes [23].
• SpecFEM3D: SpecFEM3D [24] is a geodynamic code that simulates three-dimensional (3D) seismic wave propagation. The algorithm can model seismic waves that propogate in sedimentary basins or any other regional geological model following earthquakes. It can also be used for non-destructive testing or ocean acoustics. This application is the largest and most complex of the ones that we analyzed with MC-DeF. The DFG of this application contains 4046 Nodes.
• LSH: Locality Sensitive Hashing (LSH) is a common technique in data clustering, nearest neighbor problem, and high dimension data indexing. The application uses a hash function h(x) and combination of several hash functions to make sure that similar data have a larger possibility to be in the same bucket after hashing.
• Capture Client: this is the client’s hardware implementation of a Line Rate Packet Capture application. The Line Rate Packet Capture is able to perform logging on all of the incoming data.
• Linear Regression: linear regression is a compute intensive statistical method that creates a linear model between a scalar response variable y, and one or more explanatory variables x. The goal is forecasting or regression for values of y for which no data are available yet.
• Fuzzy Logic Generator: fuzzy logic extends boolean logic with probability. Instead of just 1 or 0, every truth value may be any real number between 0 and 1. The numbers are often replaced by linguistic terms.
• Breast Mammogram: Breast Mammogram is an image segmentation application used to simplify the representation of an image into something that is easier to analyze. In this case image segmentation is used to detect microcalcification in the mammography images in order to detect and treat lesions.
• FFT 1D: a one-dimension Fast Fourier Transformation application. It computes the discrete Fourier transform, converts signal from its original domain (e.g., time, space) into the frequency domain. It is widely used in engineering, science, and mathematics.

3.3. Impact Factor and Sub-Graph Analysis Results

As mentioned during our preliminary analysis, we observed that, while certain nodes appear many times in an application’s DFG, their contribution in the application’s resources is minimum. This is often the case with logic gates and/or support logic nodes that are used to transform signals to a different bit-width, dubbed as Reinterpret nodes. By making this observation we decided to create a metric, called Impact Factor, which will accurately measure the impact that a DFG node has on the application’s resources.

How repetitive is an application’s DFG is another factor that can aid in the creation of a CGRA architecture and its definition. The authors, instead of searching for nodes commonly found in a graph, focus on node sequences that are common, as shown in [7]. In a similar fashion, we made an analysis in order to see whether there are frequently appearing sub-graphs in our target applications. In this sub-section, we present the results that demonstrate how, by using the Impact Factor metric, we can observe how resources of an application are used over a variety of different nodes and memory elements.

First, we create coverage graphs for each of our applications. MC-DeF through resource analysis computes the Impact Factor of each node in the application DFG. Cumulative impact factors for each resource are collected and presented in graph form for better readability. These graphs demonstrate how much high-resource utilizing nodes take up from the total resources used for application implementation. The results of this analysis are presented in

Table 1. Synthesis (Dataflow Graph (DFG) nodes) and Overall (FPGA resources) resource utilization for each application.

	Resource Utilization
Applications	FIFOs	Add.	Sub.	Mult.	Div.
Hayashi-Yoshida	22	1	5	2	0
Mutual Information	15	6	9	15	9
Transfer Entropy	17	6	9	15	9
SpecFEM3D	530	193	18	271
	Logic Gates	LUT	DSP	BRAM
Hayashi-Yoshida	48	3912	4	0
Mutual Information	23	17,533	24	2
Transfer Entropy	17	17,677	24	1
SpecFEM3D	227	315,475	1080	1180

. With analysis the user can make some first observations regarding the application, whether it is arithmetically intensive or not, or if different applications have similarities in their hardware implementation.

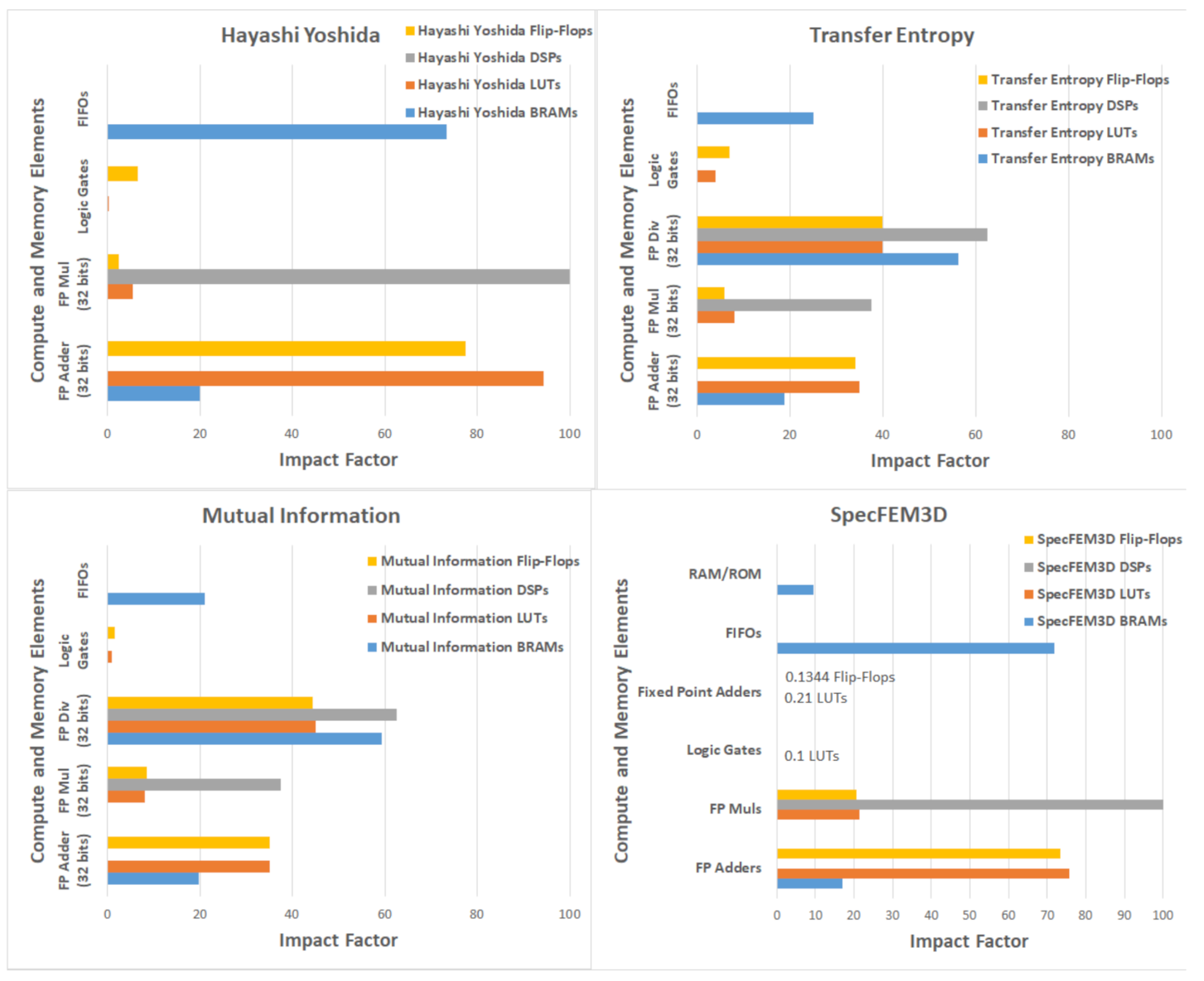

In Figure 3, we present the impact factor for each application and FPGA resource type. We group node resources according to their type, distinguishing arithmetic units (FP adders, multipliers, etc.), random logic, FIFOs, and memory (BRAMs), and then plot them in the x axis. The y axis indicates the effect of that node type on each resource (LUTs, DSPs, BRAMs, Flip-Flops), as expressed in their impact factor. Each coloured bar shows the percentage of coverage/contribution a node has on a specific physical resource. For example, in the Hayashi-Yoshida application, the 32-bit FP Adder node utilizes 20% of the application’s BRAMs (blue bar). The 32-bit FP Multiplier utilizes no BRAM resources; as a result, there is no blue bar for that compute element. These results showcase the ability of MC-DeF to identify the hot-spots in terms of resources in an application. Moreover information regarding the code line these hot-spots appear is also provided in text form.

In the case of Hayashi-Yoshida, Mutual Information, and Transfer Entropy, we can see in the corresponding figures that the 32-bit Floating-Point Adders created utilize BRAM resources. This is evident since the impact factor for the adders is above zero. However, Synthesis reports that are provided by the vendor tools do not stress this fact, but state that all of the BRAM utilization is for memory purposes. This information is not provided to the user in the post-synthesis report. However, in the MC-DeF resource analysis report, the user can see the correct BRAM utilization and the line/node that it originates from.

Regarding sub-graph analysis, we created an algorithm to extract sub-graphs from the DFG of the application that are frequently based on a frequency threshold. The nodes that are selected for frequent sub-graphs are identical in terms of functionality as well as for the operands’ bitwidth. With this process, we try to extrapolate information regarding the connectivity of the application’s design.

During our research, we concluded that sub-graphs that have a high occurrence frequency consist of simple logic gates and/or reinterpret nodes. On the other hand, by broadening the search space in lower frequency of appearance, we were able to discover more complex constructs and sub-graphs that utilize more resources.

Table 2. Frequent sub-graph characteristics for each application.

	Highest Frequency
Applications	Frequency	#Nodes	Resource Utilization (LUT, DSP, BRAM)
Hayashi-Yoshida	11	2	2	0	0
Mutual Information	9	2	2	0	0
Transfer Entropy	11	2	2	0	0
SpecFEM3D	162	3	4	0	0
	Highest Utilization
	Frequency	#Nodes	Resource Utilization (LUT, DSP, BRAM)
Hayashi-Yoshida	4	7	615	2	0
Mutual Information	4	2	615	2	0
Transfer Entropy	5	2	615	2	0
SpecFEM3D	95	2	290	0	4

shows the results obtained for each application’s highest frequency and highest utilization sub-graphs.

The highest frequency sub-graphs for all applications consist of simple nodes, like reinterpret nodes, logic gates, slices, and multiplexers. The highest utilization sub-graphs usually contain complex abstract nodes, like FIFOs and subtractors (Mutual Information, Transfer Entropy, and Hayashi Yoshida), or add-multiply chains (SpecFEM3D). In the case of Hayashi-Yoshida, besides complex abstract nodes, the highest utilization sub-graph contains low-resources nodes, like multiplexers and reinterpret nodes.

3.4. Resource Utilization Prediction

The aforementioned analysis yields another attribute of MC-DeF, that of utilization prediction. During the initial steps of our analysis we used a Maxeler Compiler generated resource annotated source code file to extrapolate information regarding the DFG nodes’ resource utilization. The resource annotated source code provides information on physical resources (LUTs, Flip-Flops, BRAMs, DSPs) used per line. However, the user cannot perform a one-to-one match between the physical resources and nodes. This is due to the fact that many nodes can be instantiated in one line of code.

However, MC-DeF is able to perform application analysis and cell definition without the source-annotated code. Through extensive testing, we were able to measure the LUT, DSP, and BRAM resource utilization of key computation elements, such as adder nodes, multiplier nodes, etc. Based on this pre-analysis, MC-DeF is able to extrapolate data for unknown nodes and create a “resource library” of nodes that is also bit-width dependent. Accordingly, for every new application entered by the user, if no source annotated code exists, MC-DeF uses its own “resource library” during the CSFD phase.

This “resource library” has lead our research in an interesting side-product, resource utilization prediction. By only the application’s DFG, the user can have an early prediction of how much resources will be utilized. This can be prove to be useful in early stages of application development and for scheduling algorithms developers. In order to examine the validity of the prediction performed by MC-DeF, we test its accuracy when compared to a commercial tool. The current Maxeler framework uses the Altera Synthesis toolchain. Based on the baseline models, the resource annotated source files, and the MC-DeF’s “resource library”, we measured MC-DeF’s error margin from 5–10% as compared to the actual synthesized design, while the execution time of the resource analysis step is 40 times faster than the Synthesis process. When comparing with other resource prediction tools, we find that MC-DeF achieves 2–3 times better error margin as compared to [17] and Quinpu [19], while being slower when compared to [17].

Additionally, a case can be made on the amount of abstract nodes covered by the highest frequency sub-graphs as compared to the total nodes of the application. On average, according to the applications analyzed, the highest frequency sub-graphs cover ≈ 10% of the total application nodes.

The resulting frequent sub-graphs can aid the user in identifying patterns in the high-level code and common sequences of arithmetic operations. However, frequent sub-graphs are more useful when considering a CGRA implementation of the application. First a high-utilization sub-graph, when replicated, can cover a large amount of the application’s total resources. For example, the Hayashi-Yoshida highest utilization sub-graph uses 615 LUTs and appears four times; this results in an impact factor of 57%. The other applications’ high-utilization subgraphs have an impact factor of approximately 10%. The nodes used for the common sub-graph combined with the ones that were discovered as high impact factor nodes during the resource analysis can lead to an almost 100% application coverage and create a CGRA "cell" that is capable of accommodating the target application.

3.5. Discussion

So far, we have described the preliminary analysis used to tailor MC-DeF and provided results regarding the Impact Factor metric and the Sub-graph mining process. The applications that are used for our experiments can be divided into three categories, a large complex application (SpecFEM3D), two similar applications (Transfer Entropy, Mutual Information), and a low resources application (Hayashi-Yoshida).

The execution time of MC-Def is dependant on the DFG size and the frequency threshold that is applied for sub-graph mining. For the small and medium sized graphs used (Hayashi Yoshida, Mutual Information, and Transfer Entropy), execution time was recorded at an average of 10 s, while, for SpecFEM3D, was 30 s when the frequency thresholds for frequent occurring sub-graphs was set at 95. We observed that, when lowering the frequency threshold, execution time further increased since the tool needed to process and extrapolate an increasing number of sub-graphs.

When considering the Impact Factor analysis results, we make the following observations: (a) In small or medium applications it is evident which nodes have a clear impact to the physical resource utilization, and (b) BRAM modules are primarily used by memory related nodes, such as FIFOs and RAM/ROM memories, with a small fraction used by some floating-point arithmetic nodes, and (c) DSP resources are solely used by floating-point multiply and division units.

Point (a) is evident in the Hayashi-Yoshida coverage graph, where we can see most of the LUT resources on floating point addition, the impact factor of the 32-bit adder node is 86%. Transfer Entropy and Mutual Information spend their LUT resources in a common way. Most of the LUTs are utilized for floating-point division and addition nodes, a combined impact factor of 78%. Additionally, point (b) can also be observed in the Hayashi-Yoshida application, 20% of the available BRAMs are used for arithmetic operations, with the rest being used for pipelining, input/output and FIFOs. Finally, for point (c), we can see that in the Transfer Entropy coverage graph floating-point division units use more than 60% of the DSPs, while the rest are used by floating-point multipliers.

The same observations hold for our largest application, SpecFEM3D. Nodes that perform 60-bit floating-point addition and multiplication take up to 90% of the applications total LUTs used, when we include the 64-bit floating-point units, and the impact factor increases to 96.7%. The multiply units used for 60-bits operation combined with the ones for 64-bits use is 99.9% of the application’s DSPs. The BRAM usage distribution is unique, since, in the Maxeler case, BRAM circuitry is used for memory related nodes, i.e., FIFOs and RAM/ROM memories, but also from some addition units. The impact factor of FIFO nodes on the BRAMs is 67.56% and, for RAM/ROM memories, is 14.18%, while the rest spans across the addition units of the DFG.

The analysis that was performed by our tool shows how physical resources are distributed across the application’s nodes offer unique information not provided by other vendor tools. Moreover, the prediction error recorded by MC-DeF is, on average, within 10% of the application’s actual resource utilization, the smaller compared to other related works in the field [17,19]. Finally, after analyzing four scientific application, we have demonstrated that:

• MC-DeF helps the user identify, abstract nodes with the highest contribution to the application’s resource utilization,
• MC-DeF finds not only frequent, but also sub-graphs with high resource utilization,
• the high impact factor nodes and sub-graphs discovered by MC-DeF can create a CGRA capable for accommodating the target application, and
• MC-DeF helps the user identify similarities in applications without looking at their high-level source files.

4. Mixed-CGRA Definition Framework

This section presents the Mixed-CGRA Definition Framework and its associated processes and algorithms, this is done in order to offer the reader a holistic view of the framework.

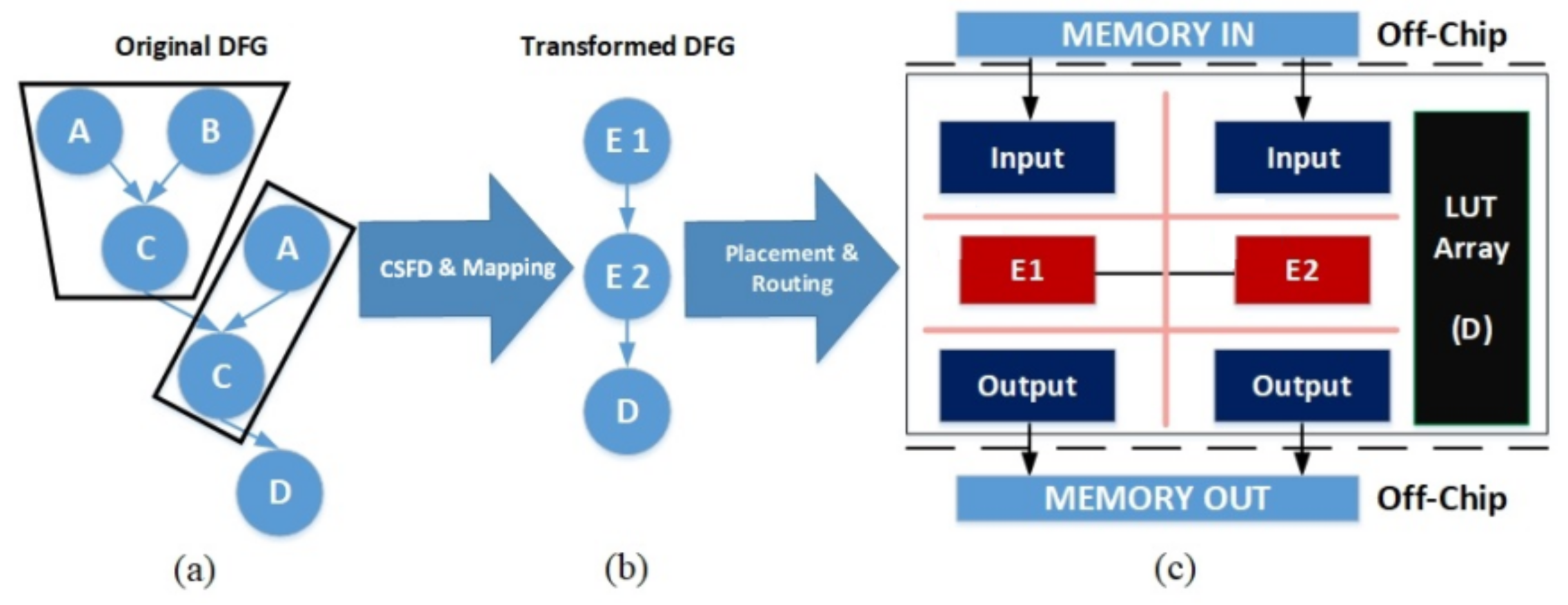

Figure 4 shows the complete process carried out by MC-DeF. The grey rectangles denote the phases of MC-DeF: (a) CSFD phase (Section 4.1) decides on the contents of the CGRA cell, (b) the Node mapping phase (Section 4.2) creates a modified DFG graph using the resulting CGRA cell, (c) the Routing phase (Section 4.3) creates a mapped and routed design that is ready to place on an FPGA device and, (d) Energy & Area Estimation phase (Section 4.4) presents the user with estimates of the created CGRA design.

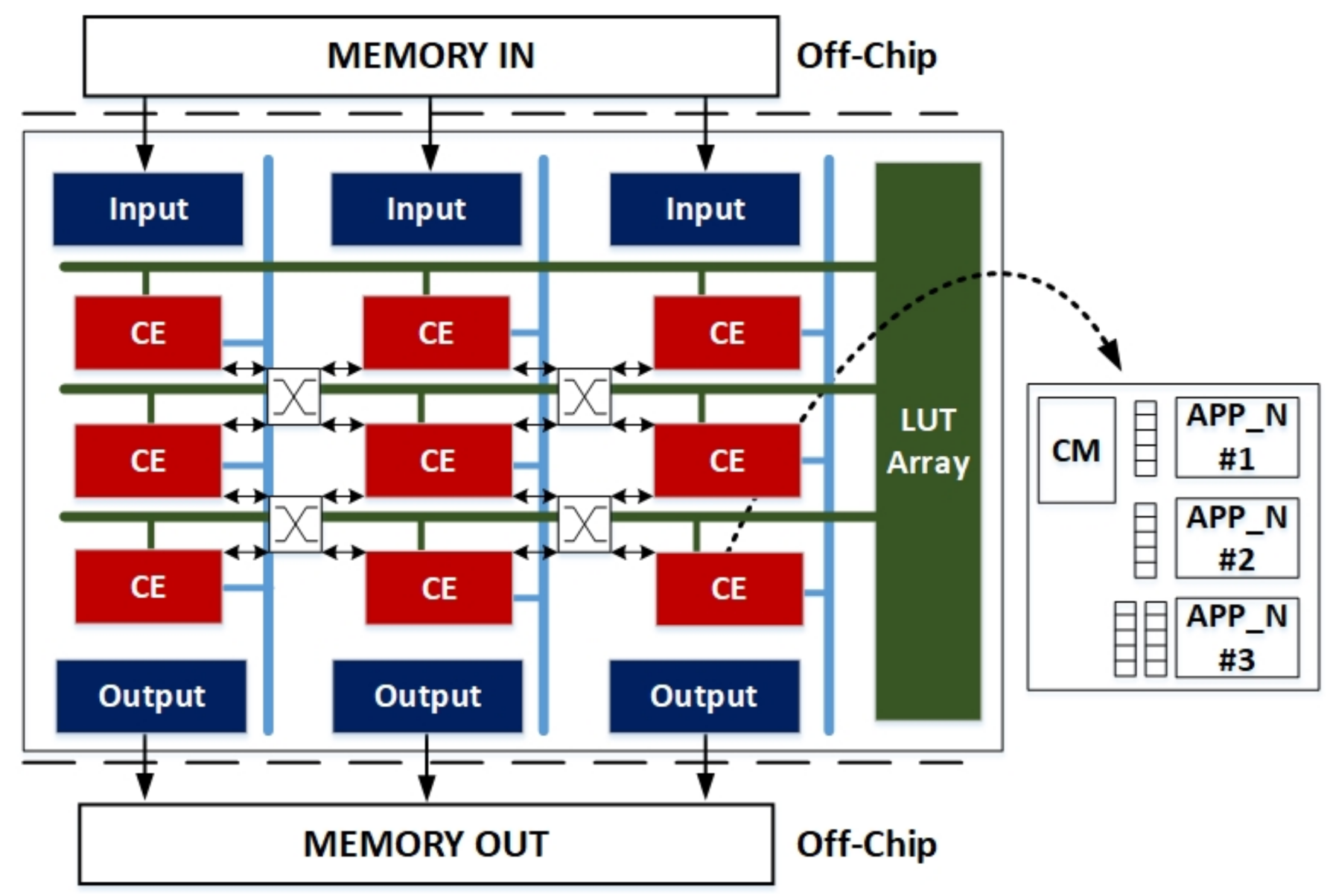

Figure 5 shows the resulting CGRA design. The figure depicts the cell array (CE grid), the connectivity network, and the adjacent LUT array that enables mapping arbitrary functions that are not very common in the application. The picture also depicts the internal structure of the cell with the network configuration memory (CM), the implemented application nodes (APP_N), and the necessary FIFOs.

4.1. Cell Structure and Functionality Definition (CSFD) Phase

The majority of current CGRA architectures use a static and pre-defined set of compute elements, soft-core processors, and/or ALU elements coupled with instruction memories to create a compute cell. While these kind of approaches have proven highly flexible and are general enough to map a wide range of application they lack in: (a) application scaling (b) resource utilization, and (c) the total number of operation performed in parallel. With MC-DeF we opt towards a CGRA cell able to perform more than one operation in parallel, includes high abstraction hardware modules and is able to implement a wide range of applications through cell-network communication reconfiguration.

MC-DeF utilizes three techniques to create highly customized cells optimized to the target application’s characteristics. The first one is the Impact Factor metric, introduced in [6], which denotes the estimated resource impact that a DFG node has on the actual resource utilization of the application, i.e., percentage of LUTs, FIFOs, BRAMs, and DSPs used by a node, over the total resource usage of the application. Nodes with high Impact Factor are labeled for inclusion in the cell structure.

Frequent Sub-Graphs Discovery is the second technique, a process baring strong similarity to the one that was used to identify frequent chains of instructions [25]. In [6], the authors run a modified version of GraMi [26], an algorithm for extracting frequent sub-graphs from a single large graph. A graph is only extracted if it exceeds a frequency and a resource utilization threshold, thus limiting the search space to sub-graphs that have high occurrence frequency and use the most hardware resources.

The third technique deals with a critical issue in CGRA design: often times nodes have the same sequence of operations, but apply it on different bit-widths. The naive approach considers these nodes as separate, leading to CGRA designs that are harder to route due to cell heterogeneity. To address this, we include in the CSFD phase Node Merging; an algorithm that is designed to find whether two nodes with the same functionality should be merged under the same bit-width and what the optimal bit-width for the current application is described in detail in [27]. We use two metrics for Node Merging: the bit-width difference between the two nodes and the Percentage Gain of merging these two nodes.

Through the CSFD phase MC-DeF decides which DFG nodes will be implemented within the CGRA cell and ensures that the functionality of the CGRA-cell is beneficial in terms of resources, frequency of occurrence in the DFG, and bandwidth achieved among cell communication. The threshold values applied are subject to change according the user needs and design restrictions.

4.2. Node Mapping

Node mapping is the process of assigning DFG nodes of an application in CGRA cells. However, CGRA cells may contain multiple independent or chained functions, which makes the problem of mapping nodes to cells a difficult algorithmic process.

We implement a novel Node Mapping algorithm in order to efficiently allocate the DFG nodes on the CGRA cells. Starting from an application DFG using nodes N = A, B, C, D, MC-DeF decides on the contents of the CGRA cell on the CSFD phase, the resulting CGRA cell contains one stand-alone node and a sub-graph (right arrow notation denotes a sub-graph inclusion in the CGRA cell), i.e., E = A → C, B. In the mapping phase of MC-DeF, we want to create a new graph that emits the nodes included in the CGRA cell and substitutes them with a new node, Node E, which describes the resulting CGRA cell, as shown in Figure 6. Ultimately, the hardware elements included in E1 and E2 are the same but their utilization differs, as seen only with the sub-graph A → C being used in E2. Node Mapping finds and evaluates possible coverings/mappings of the DFG using two cost functions:

• Unutilized cell resources: this cost function measures the amount of unused resources among all of the CGRA cells. A CGRA cell consisting of three nodes, with only two of them used, will have unutilized cell resources count equal to one.
• Connections between cells: this cost function measures wire connections between different CGRA cells.

The mapping algorithm considers all of the nodes or chains of nodes implemented in the customized CGRA cell. If the CGRA cell contains a sub-graph, i.e., two or more nodes explicitly connected, the algorithm finds all the corresponding nodes (nodes between the source and destination nodes and then places them in a cell structure. Subsequently, for each of the nodes placed already in the cell, the algorithms records all of the DFG nodes that are adjacent, i.e., with a direct connection, or close, with minimum distance, to the ones already in the cell, and stores them in the extra_nodes structure. These nodes are then checked against all other placed nodes in the cell array, and the ones already placed are removed from the structure. The remaining nodes are all inserted in the cell provided adequate available logic, or, if not, the algorithm chooses, at random, which ones to insert in the current CGRA cell.

At this stage, non-inserted nodes are stored and prioritized for inclusion in subsequent runs of the mapping algorithm. The same process is repeated if the current processed CGRA cell logic is not a chain of nodes. For each unique mapping created, the algorithm measures the Unutilized cell resources and the Connections between cells cost functions and chooses the mapping that best minimizes them. This process is repeated for 100 mappings. This number is a design time parameter that can be fixed accordingly by the user, depending on the required effort tht was spent by the framework to find an optimal solution. Finally, with the use of the search_non_mapped function, the mapping process records all of the nodes not able to be placed within a cell, these node will later be placed in the LUT structure available.

Even though some nodes are not directly mapped to CGRA cells, e.g., node D in Figure 6, CSFD phase strives to ensure that these node are but a small fraction of the total resources used by the application. However, it is necessary to map these nodes in the Mixed-CGRA design. MC-DeF offers the user two alternatives for “rogue” nodes.

• LUT array: an adjacent LUT array able to accommodate all the DFG nodes not directly mapped to the cell logic.
• LUTs-in-cell: the remaining rogue nodes are implemented in small LUT array structures placed inside the CGRA cells.

The LUT-array approach is straightforward in terms of implementation from MC-DeF. First, during the Node Mapping phase any node that is not included in the cell array is labeled for LUT-based implementation on the LUT-array. Subsequently, the Routing phase establishes the grid network that is responsible for transferring data to and from the LUT-array. Node implementation and mapping within the LUT array structure is similar to mainstream FPGAs. The LUT array is not treated as a CE, because the intention is to offer a degree of reconfigurability that CGRA cells do not.

The LUTs-in-cell (L-i-C) option is more complex. First, we have to take the size of the individual LUT-structures into consideration and keep an almost uniform distribution among the CGRA cells. The inspiration for this idea was the Stitch architecture [28] and its ability to create heterogeneous and configurable core-tiles. Additionally, we ideally want to place rogue nodes inside cells that have a direct connection with, e.g., RN 1 takes inputs and gives output to nodes that are placed in Cell 2, so we intuitively want to place it in the cell’s 2 LUT structure.

For more complex decisions, we invoke the cost functions implemented in the Routing phase of MC-DeF and make placement decisions accordingly. The routing cost functions are taken in consideration, because, for rogue nodes, there are no resource-related restrictions. For routing purposes, a separate network is implemented working transparently from the cell network. The two networks communicate via dedicated buffers.

The algorithm tries to find a mapping that minimizes the cost functions and terminates its execution after discovering at least 100 mappings. Each mapping is different, depending on which of the adjacent nodes will be selected for cell inclusion. The above number is empirically used through experimentation with the applications used to evaluate MC-DeF. A further increase of the number of minimum mappings discovered could yield better overall mapping results but at the cost of increased execution time. This number can be tailored by the end user of the framework.

4.3. Cell Routing

In this phase, MC-DeF establishes the connections that are needed to route the cell array, as well as the input/output infrastructure of the design. The Routing phase of MC-DeF uses two cost functions in order to create designs with low communication overhead: the number and size of synchronization FIFOs used in each cell and the distance of two communicating cells.

Dataflow execution dictates that operands arrive at compute nodes synchronized. However, operands from different paths may observe different compute and communication latencies. MC-DeF uses synchronization FIFOs where needed to re-time inputs in each CGRA cell. Synchronizing cell-node inputs could be remedied—but not fully solved—by latency-aware mapping of the cells; however, this would lead to increasing the overall latency of all the cell-array. By inserting synchronization FIFOs inside the cells, we ensure unobstructed parallel and pipelined execution.

Cells are recognised by their position in the array, i.e., vertical and horizontal coordinates. For two cells that exchange data between them, their distance is equal to the number of D-Mesh bi-directional crossbar switches between them. For example, the distance of cell A (0, 0) and cell B (2, 1) is 2. After calculating the cell distance between two connecting cells, the synchronization FIFOs are formulated accordingly. Distance between cells and Input/Output nodes and the LUT array is three, since communication is achieved over the slower grid network. The distance between the nodes within the LUT array is not considered.

These cost functions are used for improving the communication infrastructure. The next step of the routing process is to minimize them using a Mapping Improvement algorithm. Through multiple trials, we observed that simultaneously minimizing both of the metrics is not possible. Instead, we focused the minimization on the metric with the largest variance among its values. Consequently, the Mapping Improvement Algorithm focuses on minimizing the distance of two communicating cells.

For the two cells mentioned before, we move one of them along the axis that shows the largest distance. For example, moving Cell A to the (1, 0) position reduces the distance by 1. After this cell movement, we need to re-calculate the average distance per cell compared with the previous value and perform more cell movements if necessary. The process is repeated until a local minimum value is found, after a finite number of movements.

4.4. Area & Energy Estimations

The overall cost of the resulting CGRA architecture is evaluated by measuring the area of the resulting architecture and the energy consumption. Similar to other state of the art related works [29,30], we estimate the area occupancy of our architecture while assuming a 7 nm lithography technology. Thus, a 6T SRAM bit cell unit’s size is 30 nm${}^2$, i.e., 38.5 Mb in 1 mm${}^2$. For example, a 1 k × 8 bit FIFO will occupy approximately 250 m${}^2$, while the area needed to implement a fused double precision Multiply-Accumulate on 7 nm is 0.0025 mm${}^2$. Additionally, we consider two 19.5 mm${}^2$ Input/Output infrastructures at the top and bottom of the CGRA with 13 mm length and 1.5 mm width. Additionally, the LUT array area is calculated based on [31,32]. The numbers reported by the area evaluation phase of MC-DeF are: CGRA-only, CGRA+I/O and Total (CGRA+I/O+LUT) Area in mm${}^2$.

Calculating the energy consumption of the resulting Mixed-CGRA design is based on the individual computing elements used. Bill Dally, in [33], shows how the 64-bit double precision operation energy halved from 22 nm to 10 nm. Additionally, in [34], Dally et al., accurately measure the energy consumption of several electronic circuits on a 10 nm lithography technology. The numbers reported in this study are the basis of our energy consumption estimations and they constitute a pessimistic estimate for a 7 nm lithography.

In

Table 3. Energy Consumption of Electronic Circuits used in MC-DeF

Circuit (32-Bit Double Percision)		Energy (pJ)
Node Add/Sub		10
Node Multiply		9
Node Division		13
Logic Gates Nodes		0.5
64-bit read from an 8-KB SRAM		2.4
Data movement between cells		0.115 pJ/bit/mm

and

Table 4. Area Occupancy Estimations of Electronic Circuits used in MC-DeF

Circuit		Area (μm${}^2$)
Node Add/Sub Node Multiply/Divide		2500
FIFO (Bits)
Width	Depth
≤8	≤1000	250
>8	≤1000	250
≤8	>1000	$[Depth/1000]$× 250
>8	>1000	$[Depth/1000]$×$[Width/8]$× 250

, we present the area and energy estimations that were considered by our MC-DeF framework. The nodes presented in these tables are the ones found in the application DFGs used for our studies and initial calibration of the MC-DeF. The system interconnect access requires 1000 pJ. Additionally, in the MC-DeF energy and area consumption estimations, we assume 100% utilization of the Cell and LUT arrays on a fully utilized pipeline dataflow path. These values are worst case scenarios, so they correspond to highly overestimated scenarios. Additional optimizations at the implementation level would allow for more efficient designs.

4.5. Discussion

The Mixed-CGRA reconfigurable designs that are produced by MC-DeF are technology agnostic. Two main avenues for the implementation of these designs are (a) on FPGAs and (b) as custom ASICs. The former option is typical in the CGRA research field and we can take advantage of the FPGA reprogramming and use MC-DeF results as an overlay structure. The overlay, together with the data transfer protocol and framework, forms a complete system. The latter option is to produce a highly optimized, one time programmable accelerator for a specific application domain. However, the certain level of reconfigurability remains in the LUT array and the programmability of the Cell Array switch boxes.

Throughout its execution, MC-DeF uses several metrics, thresholds, and cost-functions. In

Table 5. MC-DeF metrics, thresholds and cost-functions. Entries annotated with * are used for Communication infrastructure optimization, and with † for CGRA array optimization.

Name	Type	MC-DeF Phase
Impact Factor ${}^{†}$	metric	CSFD Application Analysis
Utilization of frequently occurring sub-graphs ${}^{†}$	threshold	CSFD Sub-graph Discovery
Frequency of frequently occurring sub-graphs ${}^{†}$	threshold	CSFD Sub-graph Discovery
Percentage Gain ${}^{†}$	metric (threshold applied)	CSFD Node Merging
Bit-difference ${}^{†}$	metric (threshold applied)	CSFD Node Merging
Connections between Cells ${}^{*}$	cost function	Mapping
Unutilized Cell Resources ${}^{†}$	cost function	Mapping
Cell Distance ${}^{*}$	cost function	Routing
Number and Size of Sync. FIFOs ${}^{*}$	cost function	Routing

, we list the name, type, and MC-DeF phase each of them is used. The parameters used can be divided in two categories: those used to create a more compact and resource efficient array and those that are used to create a fast and high bandwidth communication framework.

The applied threshold values can be used for design space exploration in order for the user to find a hardware solution that is tailored to either area or energy restrictions. This feature is also aided by the fast execution and simulation times of MC-DeF averaging below two minutes.

5. MC-DeF Baseline Results

We verified MC-DeF’s functionality using nine scientific applications’ DFGs that were provided by Maxeler Ltd. Initially, MC-DeF determines the structure and functionality of a CGRA cell, as well as the in-cell LUTs or the adjacent LUT-array used for mapping non-cell nodes. Afterwards, the MC-DeF continues to map the nodes to cells and eventually specify the connectivity network of the design and finalize the mapping of the cells while using the novel Mapping Improvement Technique. Finally, MC-DeF provides the user with area occupancy and energy consumption estimations and presents a final report.

Using the finalised MC-DeF reports from each of the nine applications, we report the customized CGRA cell functionality, the size of the cell array, the mapping of non-cell nodes, the utilization of a cell in the array, i.e., average output/cell, and the achieved clock frequency. Also, MC-DeF provides the user with insight regarding the communication network’s utilization we report the average distance/cell, synchronization FIFO size/cell and finally the internal bandwidth recorded. Energy consumption of the resulting designs is calculated using the amount of input data of each application supplied by the user. Energy consumption estimations is based on the amount of floating-point operations performed and the cell array’s network energy consumption, i.e., the energy required for transferring the data through the cell array. Each cell of the cell array performs pipelined and parallel operations. MC-DeF design can be implemented either as a overlay or a standalone design following the architecture shown in Figure 6, for this case the target board for our designs is a Stratix V FPGA. MC-DeF design results for all nine applications are presented in

Table 6. MC-DeF experimental results.

	Hayashi Yoshida	Mutual Information	Transfer Entropy
Resources (LUT, BRAM, DSP)	(3912, 0, 4)	(17,677, 2, 4)	(17,533, 2, 4)
DFG Nodes	270	225	199
Cell Structure	NodeEq → NodeAnd NodeAdd/Sub	NodeAdd/Sub NodeMul → NodeDiv	NodeAdd/Sub NodeMul → NodeDiv
CGRA Dimensions	6 × 6	4 × 4	4 × 4
Clock Frequency	290 MHz	270 MHz	270 MHz
LUT Array size	357	320	399
Total chip area mm${}^2$	144	125	125
Energy Consumption	22.165 J	22.245 J	22.245 J
Avg. distance/cell	3	5.4	5.6
Avg. FIFO size/cell	4	9.4	10.9
Avg. Outputs/cell	1	2.5	2.5
Internal Bandwidth	29 GB/s	43.2 GB/s	43.2 GB/s
	Linear Regression	Fuzzy Logic Generator	Breast Mammogram
Resources (LUT, BRAM, DSP)	(6841, 22, 10)	(26,442, 66, 29)	(3410, 24, 0)
DFG Nodes	87	199	109
Cell Structure	NodeAdd/Sub NodeEq → NodeMux	NodeBits → NodeAdd	NodeAnd → NodeMux NodeDiv NodeGte → NodeAnd
CGRA Dimensions	4 × 4	7 × 7	4 × 4
Clock Frequency	270 MHz	250 MHz	270 MHz
LUT Array size	881	1073	803
Total chip area mm${}^2$	122	184	122
Energy Consumption	21.793 J	21.650 J	21.830 J
Avg. distance/cell	7.1	3.4	7
Avg. FIFO size/cell	15.3	6.6	2.5
Avg. Outputs/cell	1.5	1	2.5
Internal Bandwidth	19.4 GB/s	38 GB/s	19.4 GB/s
	LSH	Capture Client	FFT 1D
Resources (LUT, BRAM, DSP)	(36,488, 144, 112)	(170, 0, 0)	(68,003, 285, 44)
DFG Nodes	294	118	3209
Cell Structure	NodeAdd/Sub NodeMul	NodeBits → NodeEq	NodeAdd/Sub → NodeCat NodeAdd/Sub
CGRA Dimensions	9 × 9	3 × 3	12 × 12
Clock Frequency	270 MHz	320 MHz	270 MHz
LUT Array size	3525	85	15,374
Total chip area mm${}^2$	227	121	293
Energy Consumption	23.519 J	32.848 J	32.522 J
Avg. distance/cell	8.8	3	10.03
Avg. FIFO size/cell	18.9	0	0
Avg. Outputs/cell	1.2	1	1.5
Internal Bandwidth	70.2 GB/s	15.3 GB/s	80.2 GB/s

.

For each of the cell structures implemented, we calculate the energy consumption and area occupancy based on the tables presented in Section 4.4, for nodes that do not appear in this section we use energy and area estimation as derived from simple VHDL implementation of the node, such as equality nodes. The right arrow annotation between certain nodes denotes a sub-graph inclusion in the cell, e.g., NodeEq → NodeAnd in the Hayashi Yoshida application.

For the majority of applications, the communication infrastructure is configured using 32-bit channels (breast mammogram and client server use 8 and 24-bit channels respectively). MC-DeF decides on the communication infrastructure after enumerating input and output bit-widths for each node implemented in the cell array. Also this choice is made considering that the majority of operations performed for each application, which, in most cases, is 32-bit double precision floating-point.

The obtained results verify the correct functionality of our framework. For each application, we can see that cells perform different operations which results in different clock frequencies achieved. The highest frequency, 320 MHz, is achieved in the smallest application, High-Speed Capture Client, while Fuzzy Logic Generator records the lowest frequency, 250 MHz. Additionally, fluctuations in area occupancy and energy consumption estimations are based on the type of operations performed and the size of the cell array; the most expensive application in terms of energy and area is the FFT one. Some interesting observations we can make by analyzing the results that are shown in the tables is the energy and area trade-off evident in the Hayashi Yoshida application. As seen in Table 6, Hayashi Yoshida has similar energy consumption with the Mutual Information and Transfer Entropy application; this is due to the larger cell array size of Hayashi Yoshida when compared to the other two application and the fact that the Equality and logical AND operations are 64-bit wide, thus utilizing two 32-bit circuits for each operation.

6. A Mixed-CGRA VHDL Implementation

The main objective of our work is to provide a tool that creates CGRA architectures efficient enough that will bridge the gap between FPGA and ASIC design, as mentioned in Section 1. This is why great effort while developing MC-DeF was spent in creating abstractions from the user while transparently using the abstracted knowledge to create energy, area, and/or performance efficient CGRA designs.

The last step to complete this process is the extension of MC-DeF with the ability to create synthesizable VHDL descriptions of the identified structures. Although this is a challenging process, in this chapter we present the first crucial steps towards this direction, i.e., in creating a framework that is not only able to define a CGRA architecture, but also working alongside a commercial toolflow, like Xilinx, to create downloadable bitstream design files for the targeted application.

The target applications for which we performed VHDL implementations of their MC-DeF defined CGRA cells are: Hayashi Yoshida, Mutual Information, and Transfer Entropy. In Table 6, we can see the nodes that are contained in each CGRA cell. For each node, we first created the correct VHDL code and verified its correct execution. Subsequently, for each node we used several implementation strategies, which were provided in the Xilinx toolflow, to explore trade-offs between performance, area, and energy. The implementation strategies used are:

• Area_Explore: Uses multiple optimization algorithms to get potentially fewer LUTs
• Area_ExploreWithRemap: Similar to Area_Explore but adds the re-map optimization to compress logic level
• Power_DefaultOpt: Adds power optimization (power_opt_design) to reduce power consumption
• Power_ExploreArea: Combines sequential area optimization with po-wer optimization (power_opt_design) to reduce power consumption
• Performance_Retiming: Combines retiming in phys_opt_design with extra placement optimization and higher router delay cost
• Performance_ExtraTimingOpt: Runs additional timing-driven optimi-zations to potentially improve overall timing slack
• Performance_ExploreWithRemap: Uses multiple algorithms for optimization, placement, and routing to get potentially better results, also adds the remap optimization to compress logic level

For each implementation strategy, we record resources utilization (LUT, Flip-Flops, DSP, and BRAM), the Clock Frequency, and, finally, power usage, both passive and active, as seen in Vivado’s post-implementation report. All of the nodes were implemented as synchronous designs using clocked registers, and the designs for the cells are also synchronous using the appropriate synchronization FIFOs wherever needed. For Hayashi Yoshida CGRA cell, we implement the NodeAnd → NodeEquality as asynchronous gates that receive and deliver inputs/outputs from/to clocked registers. In

Table 7. Comparative results between MC-DeF VHDL implementation and the Maxeler MAX4. * Operations are 32-bit floating point (24-bit mantissa, 8 bit exp.) ** Positive numbers are favorable to the MC-DeF implementation.

	MC-DeF
Node (FP 32-bit) *	LUT	FF	DSP	BRAM	Clock (MHz)
Node Add	790	130	0	0	250
Node Sub	790	130	0	0	250
Node Multiply	42	119	2	0	302
Node Divide	247	271	0	0	1912
Mutual Information Cell	1047	506	2	0	254
Transfer Entropy Cell	1047	506	2	0	254
Hayashi Yoshida Cell	786	236	2	0	291
	MAX 4 Implementation
Node (FP 32-bit) *	LUT	DSP	BRAM	Clock (MHz)	LUT Difference (%) **
Node Add	615	0	1	-	−28.46
Node Sub	615	0	1	-	−28.46
Node Multiply	107	1	0	-	60.75
Node Divide	193	5	5	-	−27.98
Mutual Information Cell	915	6	6	200	−14.43
Transfer Entropy Cell	915	6	6	200	−14.43
Hayashi Yoshida Cell	740	1	1	150	−6.22

* Operations are 32-bit floating point (24-bit mantissa, 8 bit exp.) ** Positive numbers are favorable to the MC-DeF implementation.

, we can see the results of the Power_DefaultOpt implementation strategy as compared to the results that were recorded when the same node/cell is implemented using the Maxeler framework on a MAX4 technology device.

For the applications’ cell implementations, we use the Maxeler generated nodes, and their resource utilizations, combine them in a cell structure, and then record the results. From the results above, we can see that the overall the VHDL code produced for the purposes of an MC-DeF CGRA design is on par with the commercial Maxeler FPGA implementation. For every application cell, we can see that MC-DeF creates designs with higher clock frequency; for Mutual Information and Transfer Entropy, we have a 21.26% improvement and for Hayashi Yoshida 48.45%. Additionally the resource overhead is negligent, 14.43% for Mutual Information and Transfer entropy and 6.22% for Hayashi Yoshida. The resource overhead that is reported in Table 7 only refers to LUT resources. Regarding DSP resources, we can see that, for Mutual Information and Transfer Entropy, MC-DeF uses 2 as compared to MAX4 6, while, for Hayashi Yoshida, MC-DeF again uses 2 DSPs compared to 1. For BRAMs, we can observe a big difference in the two implementations, since MC-DeF uses no BRAMs, while, for Mutual Information and Transfer Entropy, MAX4 uses 6 BRAM instances and for Hayashi Yoshida 1.

The results obtained during the VHDL implementations of three CGRA cells and the comparisons performed with a commercial FPGA tool leads us to believe that the LUT/area overhead and subsequent improvement in clock frequency, MC-DeF CGRA designs are similar in performance and area with the MAX4 FPGA ones. Additionally, different implementation strategies from the MC-DeF’s side yield different utilization, clock frequency, and power estimation results, which provide the user with a variety of trade-off choices and metrics in order to choose the appropriate scenario implementation for the specified design requirements and restrictions.

7. Conclusions

Coarse-grained FPGA overlays have emerged as one good solution to virtualize FPGA resources, offering a number of advantages for general purpose hardware acceleration, because of software-like programmability, fast compilation, application portability, and improved design productivity. As a result, these architectures allow for rapid hardware design at a higher level of abstraction. However, this comes at the cost of area and performance overheads. Moreover, in this work we wanted to present the preliminary analysis methodology and the results obtained that aided towards designing such a CGRA definition framework, a process that is often not mentioned in related works. In this paper using an application’s DFG representation, we create a customized CGRA design, to summarize the key aspects of our research presented in this paper are:

• The application analysis made in order to tailor our CGRA definition framework,
• a holistic description of MC-DeF, our Mixed-CGRA Definition Framework, and the key algorithms and techniques used in its execution flow,
• a set of baseline results that were obtained by creating customized CGRA designs for nine scientific applications, and
• a set of VHDL implementation results showcasing the validity and performance increase of our generated CGRAs as compared to a commercial solution.

The preliminary analysis results showed the necessity of distinction between high frequency and high importance nodes. This observation leads us to define the Impact Factor metric, a number used to define the importance of a DFG node when defining the contents of the CGRA cell. Moreover, we observed that several design aspects and thresholds used during the execution of MC-DeF are a matter of choice and preference of the end-user. Finally, the preliminary analysis revealed that MC-DeF is capable of predicting the resource utilization of an application by using just the input DFG.

The baseline results showcased the validity of our framework and presented several CGRA designs. Moreover, by presenting and analyzing the VHDL implementation results, we see that, in terms of resources, MC-DeF designs are marginally less efficient than those of a ready-to-use commercial solution. Specifically, a MC-DeF design is, at most, 14% more expensive than a MAX4 implementation while recording better clock frequency. These results can be further improved by using an ASIC-only implementation or further improving the currently created FPGA overlay structure.

The communication infrastructure is a key issue that we plan on working in the future. Currently, MC-DeF uses a 2D-Mesh network with diagonal connections. Drawing inspiration from other CGRAs in the field and considering the uniqueness of each application’s DFG shape and structure, we plan to explore and evaluate alternative network topologies, connectivity, etc. Additionally we want to observe how our designs scale in terms of resources and performance, either by creating duplicate CGRAs that execute in parallel or by creating a larger CGRA that is able to utilize the entirety of the available hardware for better bandwidth and execution times. Finally, we want to create a suite of available Mixed-CGRA designs from various benchmark scientific applications.
