Novel Magnetic Field Modeling Method for a Low-Speed, High-Torque External-Rotor Permanent-Magnet Synchronous Motor

Abstract

In view of the unstable electromagnetic performance of the air gap magnetic field caused by the torque ripple and harmonic interference of a multi-slot and multi-pole low-speed, high-torque permanent magnet synchronous motor, we propose a simplified model of double-layer permanent magnets. The model is divided into an upper and a lower subdomain, with the upper subdomain being an ideal circular ring and the lower subdomain being a segmented sector ring. Moreover, we develop an exact analytical model of the motor that predicts the magnetic field distribution based on Laplace’s and Poisson’s equations, which is solved using the method of separating variables. Taking a 40p168s low-speed, high-torque permanent magnet synchronous motor as an example, the accuracy of the model is verified by comparison with an ideal circular ring model, a segmented sector ring model, and the finite element method. Based on the proposed simplified model, three combined permanent magnets considering both edge-cutting and polar arc cutting structures are proposed, which are chamfered, rounded, and rectangular combinations. Under the premise of a consistent edge-cutting amount, the electromagnetic characteristics of the three combination types of permanent magnets are compared using the finite element method. The results show that the electromagnetic characteristics of the chamfered combination PM are superior to those of the other two combinations. Finally, a prototype is manufactured and tested to validate the theoretical analysis.

1. Introduction

Direct-drive, low-speed, and high-torque permanent magnet synchronous motors (LHPMSMs) are increasingly used in industrial applications, such as wind power generation, hydro generators, and mine transportation, due to the advantages of high efficiency, low energy consumption, and high power density [1,2,3]. However, LHPMSMs also have multiple poles and multiple slots, as well as low assembly accuracy [4,5,6]. Therefore, in the motor design process, larger design margins are often needed to compensate for the performance losses caused by these errors. This inevitably leads to an increase in effective material usage and manufacturing costs.

An Integrated LHPMSM for a mine hoist was proposed in [7]. The mechanical transmission structure of the motor does not adopt a reducer and coupling. Consequently, the volume and assembly cost of the motor can be significantly reduced. However, the motor has a large outer diameter and axial length, which will give rise to a multi-pole and axial segmented arrangement to improve the utilization of permanent magnets (PMs). Moreover, the outer diameter of the stator core will also be large to reduce magnetic leakage. Therefore, the shapes of PMs and stator slots have more significant impacts on the electromagnetic performance of the system, such as through cogging torque, torque ripple, and eddy current loss compared to small- and medium-sized motors.

Many optimization methods for PMs have been developed to reduce cogging torque. These can be summarized into two categories: the spatial arrangement of PMs and the shape design of PMs. For the former, the segmented skewed magnetic pole is an effective method by which to reduce cogging torque and torque ripple [8], but the function will be greatly weakened as the degree of motor saturation increases, and this can have a negative effect [9]. Therefore, it is also essential to optimize both the tilt angle and the current phase lead angle so that an effective result can be obtained. In [10], an axial arrangement model of PMs with unequal pole arc coefficients was studied. A calculation model for the cogging torque of uniformly segmented PMs and axially unequal pole arc coefficient segmented PMs was proposed based on the analytical method. The effects of different combinations of skewed angles and pole arc coefficients on the cogging torque were compared, and the results show that the latter can significantly reduce the fundamental wave component of the cogging torque. However, the assembly cost of this method will rise evidently with the number of PMs. In this article, congruent PMs with a uniformly segmented axis are adopted.

The shape design of the PMs can be summarized into two types: pole arc cutting and pole edge cutting. In respect of the former, an analytical model for cogging torque was established in [11], which implied that the amplitude of the cogging torque is positively correlated with the fifth power of the ratio of the actual thickness of PMs to their maximum thickness. Therefore, a concentric tile-shaped PM has the maximum cogging torque. Namely, the cogging torque can be effectively reduced by changing the magnetization thickness of the PM. In [12], outer arc eccentric pole-shaped PMs and inner arc eccentric pole-shaped PMs were presented, and it was suggested that the thickness of the PM can change the amplitude of the air gap flux density, while the eccentricity can affect its spatial distribution. However, the relationship between the two parameters was not clarified. In [13], the eccentric PM subdomain is equivalent to a multi-segment ideal circular ring with radial non-uniform thickness, and a magnetic field prediction model is established based on the SD method. However, this model is more suitable for situations where the number of PMs is small, the width is large, and the pole arc coefficient is large. In [14], an eccentric PM magnetic field prediction model with regular edges is established using an improved conformal mapping method, which can significantly improve the calculation accuracy of the armature reaction magnetic field and the load air gap magnetic field. However, this method is only applicable to the case of parallel magnetization of PMs. Moreover, when the edge lines of the PM are irregular, it will be difficult to represent the coordinates of the mapping points. In [15], an eccentric surface-inset Halbach magnet is proposed for solving the magnetic fields in a brushless permanent magnet. Using a subdomain model with an equivalently split method, the 2D magnetic fields in the surface-inset PM machine with eccentric Halbach magnets are analytically derived. Compared with the finite element model, the magnetic field prediction model obtained using the equivalently split method has high accuracy. In [16], a hybrid analytical model combining the subdomain method is presented. The rectangular spoke magnets, eccentric magnetic poles, and rotor slots are approximated using multiple layers of ideal arc-shaped subdomains. The analytical results match well with the FEM and experiment results, and the error of the calculation is less than 5%. In [17], an eccentric PM with parallel edges is studied based on the aforementioned two types of PMs. The effects of the magnetization angle, pole arc width, and inner arc radius on the electromagnetic characteristics are studied using the multi-objective optimization design method, and it is shown that the cogging torque, unbalanced magnetic pull (UMP), and torque ripple can be effectively suppressed by the proposed PM. In [18], a PM cutting structure with the same radius of the inner arc and the outer arc is proposed. It is suggested that when the eccentric distance is equal to the maximum magnetization thickness of the PM, not only can the amount of PMs be reduced, but the total harmonic distortion (THD) of the air gap flux density and the cogging torque can also be significantly weakened. In addition, other methods, such as sine cutting [19,20], inverse cosine cutting [21], and third harmonic cutting [22,23], can also improve the air gap magnetic flux density waveform toward a sinusoidal distribution, thereby reducing its low harmonic content and decreasing the cogging torque and torque ripple. However, for a multi-pole LHPMSM, the complex shape of PMs will greatly increase the production cost, with a large amount of material waste. Therefore, the eccentric PM described in [17,18] is suitable for an integrated LHPMSM. Nevertheless, the cutting amount of the PM will decrease if the magnetization thickness of the PM is much smaller than the diameter of the inner and outer arcs so that the weakening effect on the cogging torque will also be reduced.

In terms of PM edge cutting, three types of PM with different edge shapes, i.e., chamfered cutting, circular internal cutting, and rounded cutting, are proposed in [24]. The influence of the key parameters of the three structures on the cogging torque is analyzed. The results show that the chamfered PM has the best weakening effect on the cogging torque. In [25], it is shown that a tile-shaped PM with chamfered edges can effectively reduce the torque ripple under different load conditions. However, a magnetic field model of the PMs is not established, which is essential to the design and optimization. In [15,26,27], the eccentric magnetic pole is equivalent to N segments of micro-units with equal thickness and equal electrical angle, and the magnetization strength of the PM can be obtained using the superposition method. Then, the magnetic vector potential of the PM subdomain can be derived. The same method is applied to a chamfered PM in [28]. Since the relative permeability of the PM is close to that of air, the PM subdomain is usually regarded as an ideal circular ring when calculating the magnetic vector potential. For eccentric magnetic poles, geometric relationships are usually employed to calculate the magnetization thickness of the PM as a function of the electrical angle, and then the air gap magnetic flux density function is derived using the air gap magnetic permeability method. Therefore, in this article, we consider a situation where the arc diameter of the PM in an LHPMSM is much larger than the magnetization thickness, and a simple model of the magnetization thickness function is proposed.

The rest of this paper is organized as follows. Section 2 introduces the structure of the LHPMSM, as well as the exact SD model of the motor. Section 3 describes the modeling process of magnetic fields in double-layer subdomains, as well as the rest of the SD model. In Section 4, the accuracy of the analytical model in Section 3 is verified using the finite element method (FEM). Next, in Section 5, three composite cutting PMs that meet the requirements of the simplified model are proposed, and the electromagnetic characteristics of the three structures are compared. Moreover, the influence of the composite structural parameters of the PM is analyzed, and the optimal structure is obtained under the same cutting amount condition. The fabrication and testing of a 40-pole/168-slot prototype is discussed in Section 6. Conclusions are drawn in Section 7.

2. Structure and Analytical Model

2.1. The Structural Composition of LHPMSM

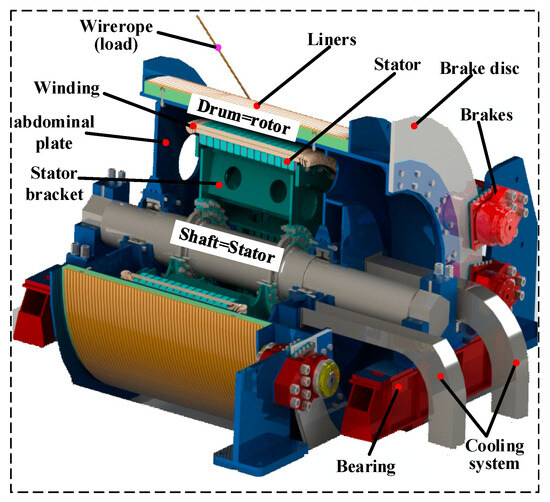

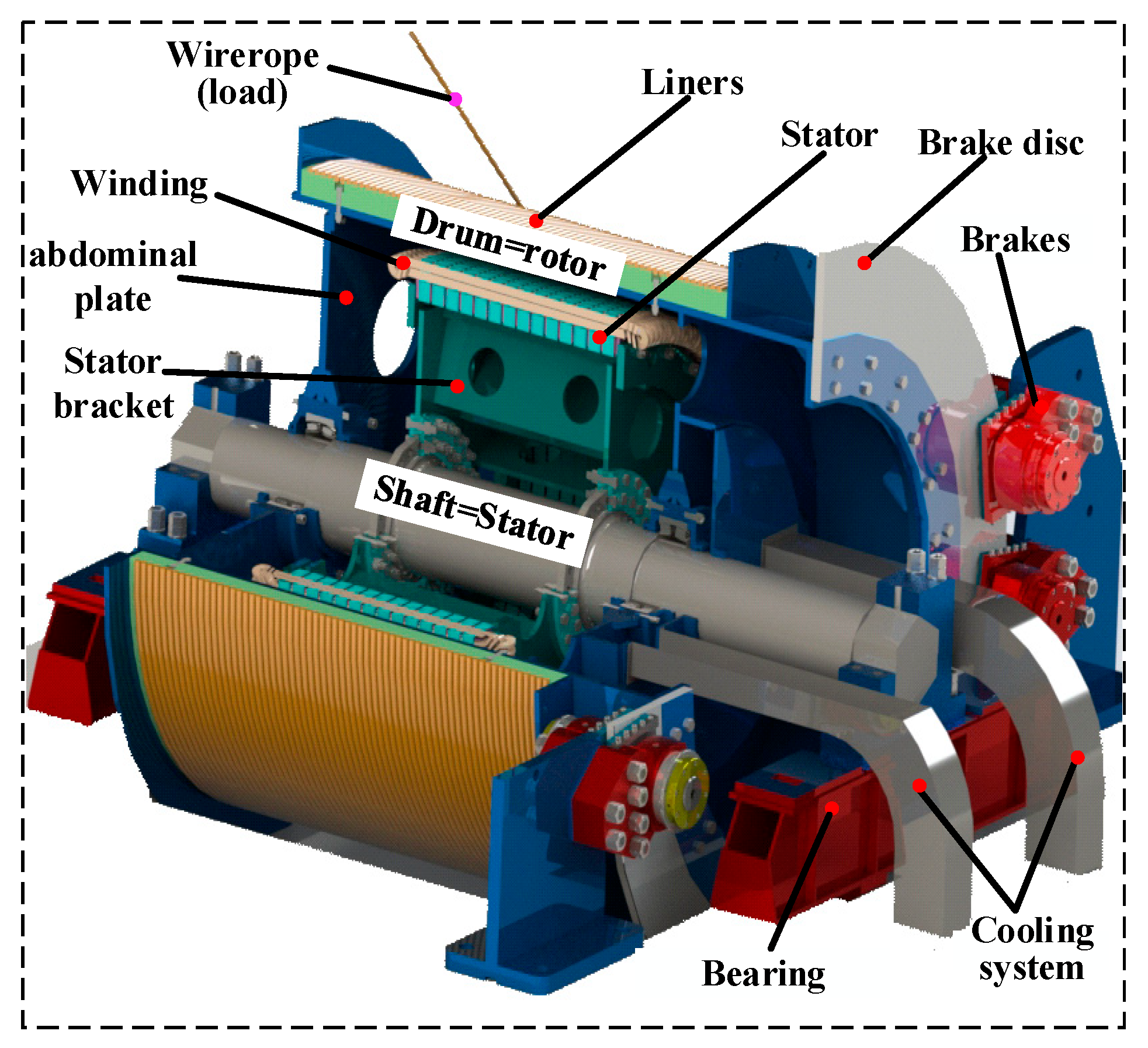

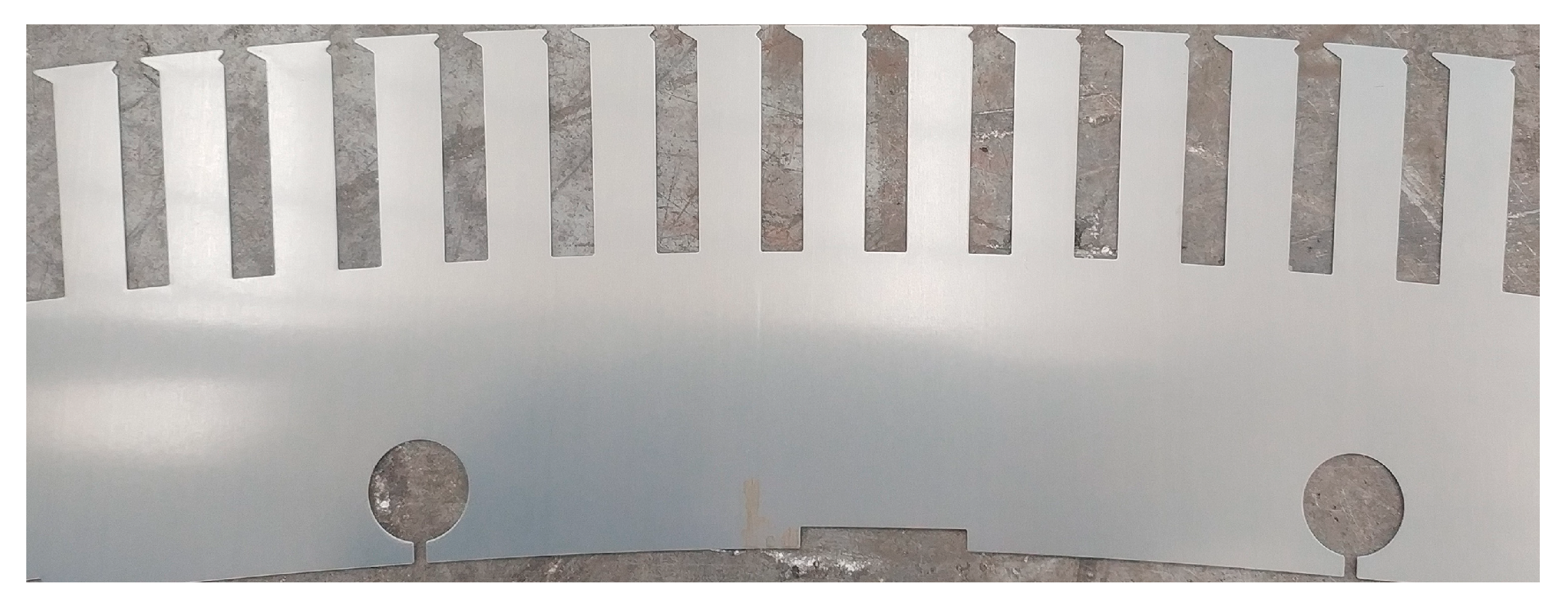

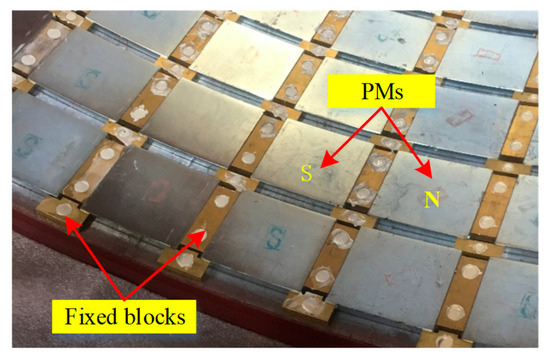

Figure 1 shows the three-dimensional (3D) structure of a 168-slot/40-pole LHPMSM for a mine hoist. The rotor system consists of rollers, support structures, and bearings. There are four sets of brakes on both sides of the rotor system. The stator system consists of a stator core, a main shaft, and an adapter flange. The two sides of the main shaft adopt hexagonal anti-torsion structures with interference fitting, which are assembled with a bearing seat that is fixed on the ground. Two air-cooled channels are installed on one side of the stator system. Figure 2 depicts the axial segmented arrangement and the permanent magnet fixed with non-magnetic wedge blocks. Figure 3 displays the shape of the stator slot.

2.2. Analytical Model

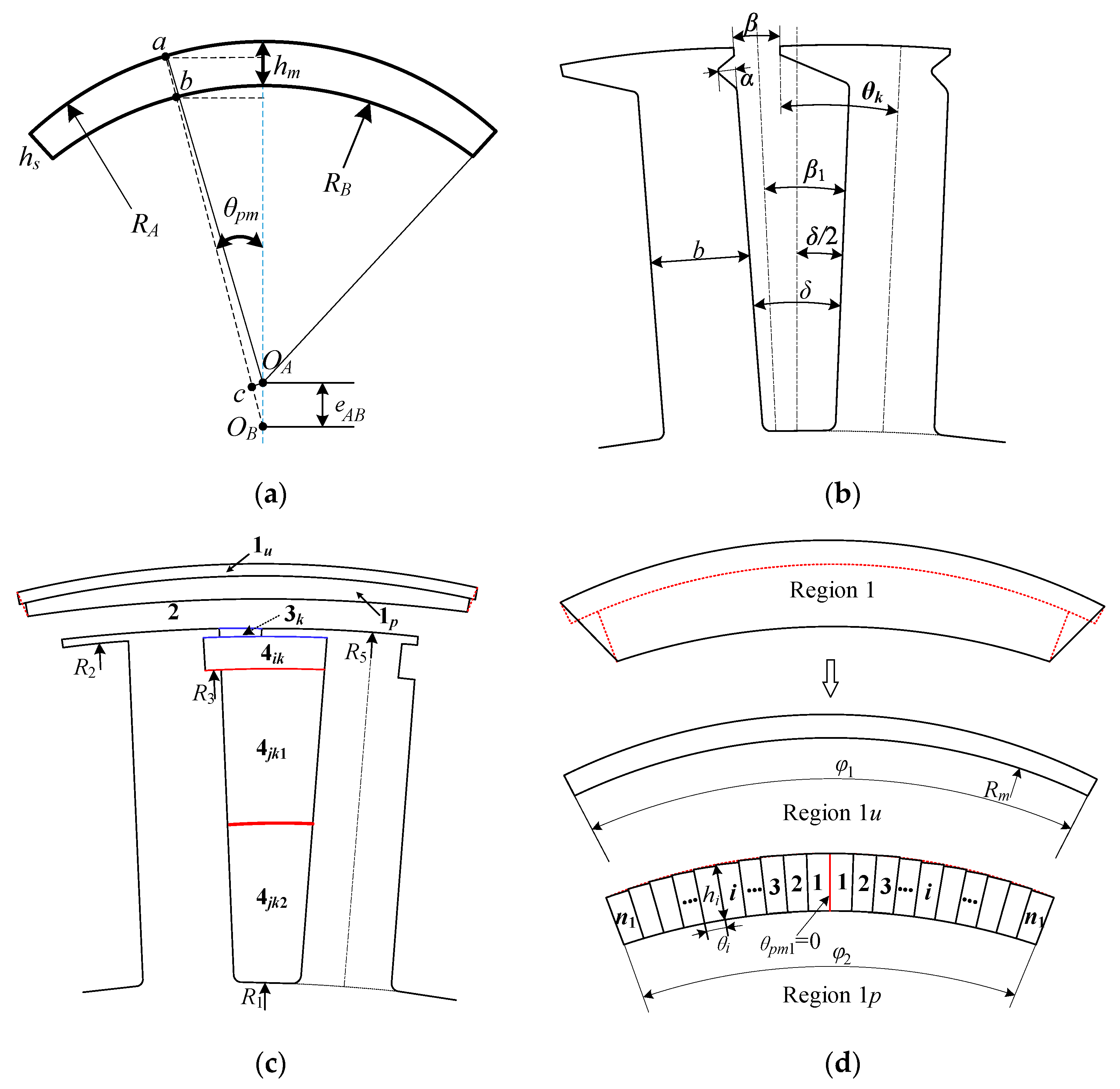

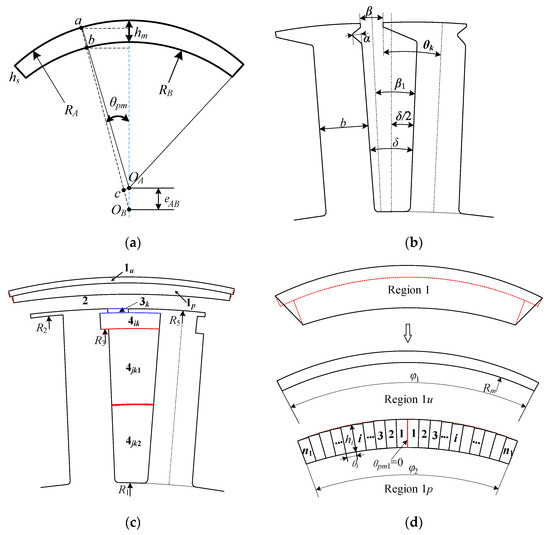

Figure 4a presents the eccentric cutting of the outer pole arc PM model for which the radius of the outer arcs R_A and the inner arcs R_B of the PMs are equal. Moreover, the maximum radial magnetization thickness h_m and eccentricity e_AB of the PM are equal. It is clear that the magnetization thickness ab of the PM varies with θ_pm, which can be given by

$$\begin{array}{l}ab({\theta }_{pm})=a{O}_B-b{O}_B=ac+c{O}_B-b{O}_B\\ =\sqrt{R_A^2-{(e_{AB}\sin {\theta }_{pm})}^2}+e_{AB}\cos {\theta }_{pm}-R_B\end{array}$$

(1)

The arc diameter R_A is much larger than the magnetization thickness h_m or the eccentricity e_AB, R_A >> e_AB. Therefore, Equation (1) can be equivalent to a simple sine function related to e_AB and θ_pm:

$$ab({\theta }_{pm})=e_{AB}\cos {\theta }_{pm}$$

(2)

Figure 4b depicts the single stator slot parametric model, which has a semi-open slot structure. The slot opening and the slot body for installing magnetic slot wedges comprise the asymmetric structure. As shown in Figure 4c, to facilitate modeling, the irregular region in the slot is simplified as the sector annular area and we define the asymmetry of the slot opening λ and the asymmetry of the inside slot ξ, which can be expressed as in [7].

$$\lambda =\frac{2{\beta }_1}{\delta }=\frac{2\delta -\beta }{\delta }\hspace{1em}\left(\frac{\delta }{2}\le \beta <\delta , 1.5\le \lambda <2\right)$$

(3)

$$\xi =\frac{\alpha +\beta }{\delta }\hspace{1em}\left(0\le \alpha <\delta , 1<\xi <2\right)$$

(4)

where α is the angle of the U-shaped groove inside the slot, °; δ is the slot angle, °.

Figure 4c shows the subdomains of the motor, which including five regions: PMs, air gap, asymmetric slot opening, asymmetric slot body, and symmetrical slot body, denoted by subdomains 1u, 1p, 2, 3k, 4ik, 4jk1, 4jk2. The parameters in the model are the radius of the slot bottom, R₁, inner radius of the slot opening, R₂, outer radius of the symmetrical slot body, R₃, inner radius of PMs, R_B, outer radius of the slot opening, R₅, outer radius of the PMs, R_A, and the initial position of the kth slot, θ_k.

Furthermore, considering the edge cutting of PMs, there is not always an ideal fan-ring structure. We divided the PM region into double-layer subdomains, with the upper layer being an ideal fan ring and the lower layer being a pole arc cutting structure without considering edge cutting. However, the center angles of the two regions are different. As shown in Figure 4a,d, the intersection points of the Region 1u and Region 1p edges are O_A, and the center angles are φ₁ and φ₂, respectively. Region 1p can be divided into 2n₁ segments with equal center angles θ_i, the thickness of the ith segment is h_i, and θ and h_i are satisfied:

$${\theta }_i=\frac{{\alpha }_p\pi }{4np}$$

(5)

$$h_i=e_{AB}\cos {\theta }_i-(R_A-R_B)$$

(6)

where α_p is the pole arc coefficient of Region 1p; R_m is the inner arc radius of Region 1u, mm.

3. Modeling and Analysis of Magnetic Fields

To simplify the analysis process, the following assumptions have been made: (1) the end effect is neglected; (2) the PMs adopt radial magnetization; (3) the permeability of the stator iron is infinite; (4) the saturation effect is neglected. According to (3) and (4), θ_k and β can be rewritten as

$$\beta =(2-\lambda )\delta$$

(7)

$${\theta }_k=\frac{k\pi }{Q}+\left(\frac{\delta }{2}-\beta \right)=\frac{k\pi }{Q}+\left(\lambda -\frac{3}{2}\right)\delta$$

(8)

The sth region magnetic vector potential A_s satisfies the following control function as

$${\nabla }^2{A}_s=\left\{\begin{array}{ll}0& s=2, 3k,4ik\\ \frac{{\mu }_0}{r}\cdot \frac{\mathit{\partial }{M}_{rs}}{\mathit{\partial }\theta }& s=1\mathrm{u},1\mathrm{p}\\ -{\mu }_0{J}_s& s=4jk1,4jk2\end{array}\right.$$

(9)

where μ₀, M_rs, and J_s are the permeability of the vacuum, the radial component of magnetization in the PM region, and the current density in the slot region, respectively.

The analytical solutions of A_s can be expressed as follows [29]:

$$\begin{array}{l}{A}_s(r,\theta )=A_{s0}+B_{s0}\ln r\\ +{\displaystyle \sum _{n=1}^{\infty }\left(A_{sn}{f}_{sa}(r)+B_{sn}{f}_{sb}(r)\right)}\cdot \cos (p_s{\theta }_s)\\ +{\displaystyle \sum _{n=1}^{\infty }\left(C_{sn}{f}_{sa}(r)+D_{sn}{f}_{sb}(r)\right)}\cdot \sin (p_s{\theta }_s)+A_{sp}\end{array}$$

(10)

where A_s0, B_s0, A_sn, B_sn, C_sn, and D_sn are integral constants; f_sa and f_sb are functions of r; θ_s is the angle of the sth subdomain and θ_s = θ − θ_s0, where θ_s0 is the initial phase angle of the sth subdomain, °; η_s is the Fourier series period. The f_sa, f_sb, and p_s can be expressed as follows

$$f_{sa}(r)={\left(\frac{r}{R_{sO}}\right)}^{\frac{2n\pi }{{\eta }_s}},f_{sb}(r)={\left(\frac{r}{R_{sI}}\right)}^{-\frac{2n\pi }{{\eta }_s}}\hspace{1em}and\hspace{1em}{p}_s=\frac{2n\pi }{{\eta }_s},$$

where R_sO and R_sI are the outside semidiameter and inside semidiameter of the sth regions, mm, respectively.

3.1. PM Region

According to (10), the magnetic vector potential A_1u expressions of Region 1u are given by

$$\left\{\begin{array}{l}\frac{{\mathit{\partial }}^2{A}_{1u}(r, \theta )}{\mathit{\partial }{r}^2}+\frac{1}{r}\frac{\mathit{\partial }{A}_{1u}(r, \theta )}{\mathit{\partial }r}+\frac{1}{r^2}\frac{{\mathit{\partial }}^2{A}_{1u}(r, \theta )}{\mathit{\partial }{\theta }^2}=\frac{{\mu }_0}{r}\cdot \frac{\mathit{\partial }{M}_{ru}}{\mathit{\partial }\theta }\\ R_m\le r\le R_A, 0\le \theta \le 2\pi \end{array}\right.$$

(11)

where M_ru is the radial component of the magnetization vectors in Region 1u, A/m, which can be expressed by

$$\begin{array}{l}{M}_{ru}={\displaystyle \sum _{n/p=1,3,5}^{\infty }{M}_{run}}\cos n(\theta -{\theta }_0)\\ M_{run}=\left\{\begin{array}{ll}\frac{4p{B}_r}{n\pi {\mu }_0}\sin \left(\frac{n\pi {\alpha }_p}{2p}\right),& -\frac{i{\phi }_1}{2}<{\theta }_{pm}<\frac{i{\phi }_1}{2}\\ 0& \frac{i{\phi }_1}{2}<{\theta }_{pm}<i\left(\frac{\pi }{2p}-\frac{i{\phi }_1}{2}\right)\end{array}\right.\end{array}$$

(12)

The PM in Region 1p is segmented into 2n₁ uniform pieces. The magnetic vector potential A_1pi expressions of Region 1p can be expressed by

$$\left\{\begin{array}{l}\frac{{\mathit{\partial }}^2{A}_{1pi}(r, \theta )}{\mathit{\partial }{r}^2}+\frac{1}{r}\frac{\mathit{\partial }{A}_{1pi}(r, \theta )}{\mathit{\partial }r}+\frac{1}{r^2}\frac{{\mathit{\partial }}^2{A}_{1pi}(r, \theta )}{\mathit{\partial }{\theta }^2}=\frac{{\mu }_0}{r}\cdot \frac{\mathit{\partial }{M}_{rpi}}{\mathit{\partial }\theta }\\ R_m-h_i\le r\le R_m, 0\le \theta \le 2\pi \end{array}\right.$$

(13)

The magnetization vectors of the ith piece can be expressed by

$$\begin{array}{l}{M}_{rpi}={\displaystyle \sum _{n/p=1,3,5}^{\infty }{M}_{rpin}}\cos n(\theta -{\theta }_0)\\ M_{rpin}=\left\{\begin{array}{ll}\frac{4p{B}_{rpi}}{n\pi {\mu }_0}\sin \left(\frac{n\pi {\alpha }_{pi}}{2p}\right),& \frac{(i-1){\alpha }_p\pi }{4np}<{\theta }_{pm}<\frac{i{\alpha }_p\pi }{4np}\\ 0& \frac{i{\phi }_2}{2}<{\theta }_{pm}<i\left(\frac{\pi }{2p}-\frac{i{\phi }_2}{2}\right)\end{array}\right.\end{array}$$

(14)

where M_rpi is the radial component of the magnetization vectors of the ith piece in Region 1p, A/m; n/p = 1, 3, 5, …; α_pi is the pole arc coefficient of the ith piece, α_pi = α_p/2n.

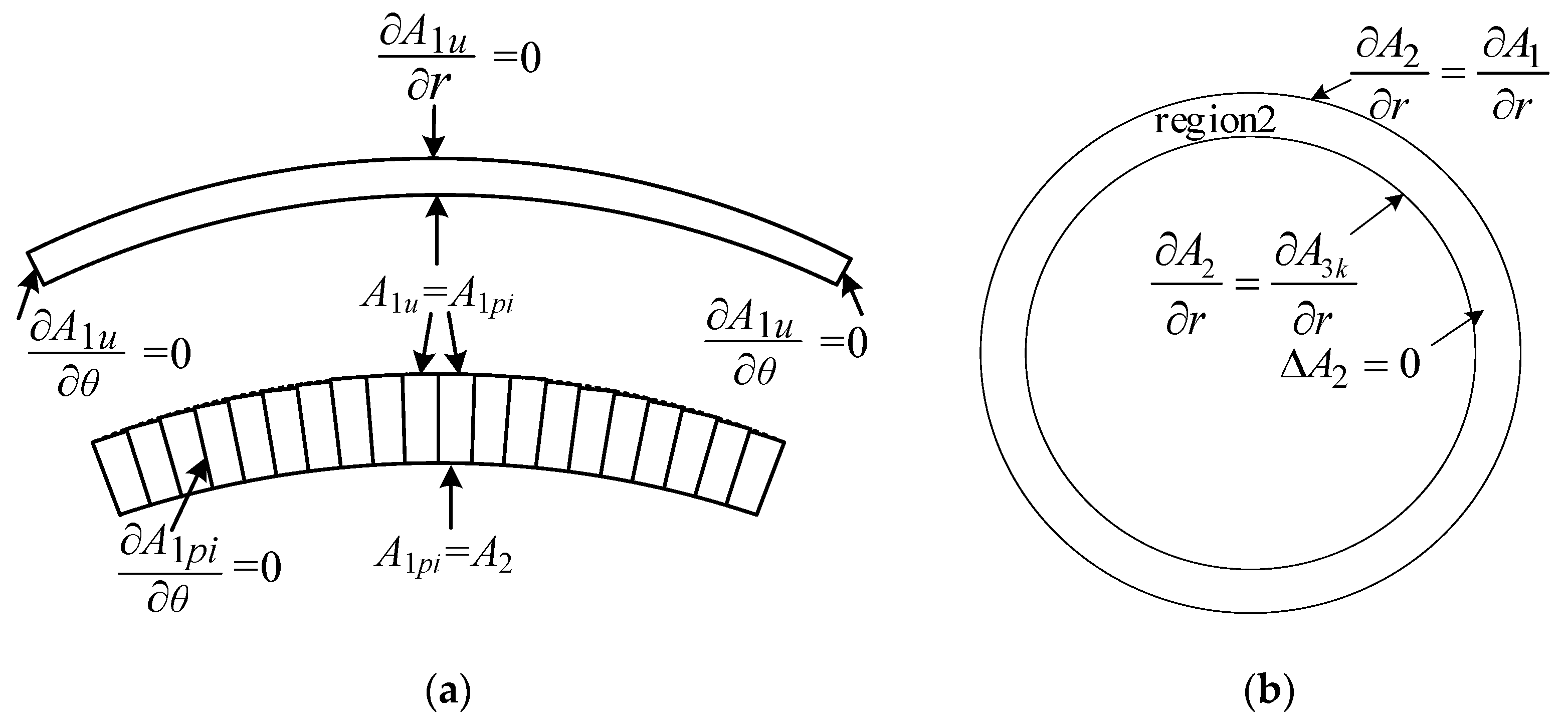

In Figure 5a, the boundary conditions of the PM region can be obtained as follows:

$$\mathrm{region}1\mathrm{u}:{\left.\frac{\mathit{\partial }{A}_{1u}}{\mathit{\partial }r}\right|}_{r=R_A}=0$$

(15)

$${\left.A_{1\mathrm{u}}(r,\theta )\right|}_{r=R_m}={\left.A_{1pi}(r,\theta )\right|}_{r=R_m}$$

(16)

$${\left.H_{1u}(r,\theta )\right|}_{r=R_m}={\left.H_{1pi}(r,\theta )\right|}_{r=R_m}$$

(17)

$${\left.\frac{\mathit{\partial }{A}_{1u}}{\mathit{\partial }\theta }\right|}_{r=\pm \frac{{\phi }_1}{2}+\frac{z\pi }{p}}=0,\hspace{1em}z=1,2,\dots ,p$$

(18)

$$\mathrm{region}1pi:{\left.\frac{\mathit{\partial }{A}_{1pi}}{\mathit{\partial }\theta }\right|}_{\theta ={\theta }_i}=0,\hspace{1em}i=1,2,\dots ,n$$

(19)

$${\left.A_{1pi}(r,\theta )\right|}_{r=R_B}={\left.A_2(r,\theta )\right|}_{r=R_B}$$

(20)

$${\left.H_{1pi}(r,\theta )\right|}_{r=R_B}={\left.H_2(r,\theta )\right|}_{r=R_B}$$

(21)

The analytical solutions of A_1u and A_1pi can be derived as

$$\begin{array}{cc}\hfill A_{1u}(r,\theta )& ={\displaystyle \sum _{n=1}^{\infty }\left(A_{1un}{\left(\frac{r}{R_A}\right)}^n+B_{1un}{\left(\frac{r}{R_m}\right)}^{-n}\right)}\cdot \cos n\theta \hfill \\ & +{\displaystyle \sum _{n=1}^{\infty }\left(C_{1un}{\left(\frac{r}{R_A}\right)}^n+D_{1\mathrm{u}n}{\left(\frac{r}{R_m}\right)}^{-n}\right)}\cdot \sin n\theta +A_{1p}\hfill \\ \hfill A_{1us}(r,\theta )& =\left\{\begin{array}{c}{\displaystyle \sum _{n=1}^{\infty }\left[\frac{{\mu }_{0}n{M}_{run}r}{n^2-1}\left(-\cos (n\theta )+\sin (n\theta )\right)\right]}\hspace{1em}n\ne 1\\ {\displaystyle \sum _{n=1}^{\infty }\left[\frac{{\mu }_0{M}_{run}r\ln r}{2}\left(\cos (n\theta )-\sin (n\theta )\right)\right]}\hspace{1em}n=1\end{array}\right.\hfill \end{array}$$

(22)

$$\begin{array}{cc}\hfill A_{1pi}(r,\theta )& ={\displaystyle \sum _{n=1}^{\infty }\left(A_{1pin}{\left(\frac{r}{R_m}\right)}^n+B_{1pin}{\left(\frac{r}{R_B}\right)}^{-n}\right)}\cdot \cos n\theta \hfill \\ & +{\displaystyle \sum _{n=1}^{\infty }\left(C_{1pin}{\left(\frac{r}{R_m}\right)}^n+D_{1pin}{\left(\frac{r}{R_B}\right)}^{-n}\right)}\cdot \sin n\theta +A_{1pis}\hfill \\ \hfill A_{1pis}(r,\theta )& =\left\{\begin{array}{l}{\displaystyle \sum _{n=1}^{\infty }\left[\frac{{\mu }_{0}n{M}_{rpin}r}{n^2-1}\left(-\cos (n\theta )+\sin (n\theta )\right)\right]}\hspace{1em}n\ne 1\\ {\displaystyle \sum _{n=1}^{\infty }\left[\frac{{\mu }_0{M}_{rpin}r\ln r}{2}\left(\cos (n\theta )-\sin (n\theta )\right)\right]}\hspace{1em}n=1\end{array}\right.\hfill \end{array}$$

(23)

3.2. The Other Regions

According to (9), the magnetic vector potential expressions of the air gap subdomain, the asymmetric slot opening subdomain, the asymmetric slot body region, and the symmetrical slot body region can be expressed as follows:

$$region 2:\left\{\begin{array}{l}\frac{{\mathit{\partial }}^2{A}_2(r,\theta )}{\mathit{\partial }{r}^2}+\frac{1}{r}\frac{\mathit{\partial }{A}_2(r,\theta )}{\mathit{\partial }r}+\frac{1}{r^2}\frac{{\mathit{\partial }}^2{A}_2(r, \theta )}{\mathit{\partial }{\theta }^2}=0\\ R_5\le r\le R_B, 0\le \theta \le 2\pi \end{array}\right.$$

(24)

$$region 3k: \left\{\begin{array}{l}\frac{{\mathit{\partial }}^2{A}_{3k}}{\mathit{\partial }{r}^2}+\frac{1}{r}\frac{\mathit{\partial }{A}_{3k}}{\mathit{\partial }r}+\frac{1}{r^2}\frac{{\mathit{\partial }}^2{A}_{3k}}{\mathit{\partial }{\theta }^2}=0\\ R_2\le r\le R_5, {\theta }_k\le \theta \le {\theta }_k+\beta \end{array}\right.$$

(25)

$$region 4ik: \left\{\begin{array}{l}\frac{{\mathit{\partial }}^2{A}_{4ik}}{\mathit{\partial }{r}^2}+\frac{1}{r}\frac{\mathit{\partial }{A}_{4ik}}{\mathit{\partial }r}+\frac{1}{r^2}\frac{{\mathit{\partial }}^2{A}_{4ik}}{\mathit{\partial }{\theta }^2}=0\\ R_3\le r\le R_2, {\theta }_k-(\lambda -1)\delta \le \theta \le {\theta }_k+\delta \xi -(\lambda -1)\delta \end{array}\right.$$

(26)

$$region 4jk1: \left\{\begin{array}{l}\frac{{\mathit{\partial }}^2{A}_{4jk1}(r, \theta )}{\mathit{\partial }{r}^2}+\frac{1}{r}\frac{\mathit{\partial }{A}_{4jk1}(r, \theta )}{\mathit{\partial }r}+\frac{1}{r^2}\frac{{\mathit{\partial }}^2{A}_{4jk2}(r, \theta )}{\mathit{\partial }{\theta }^2}=-{\mu }_0{J}_{4jk1}\\ R_{4jk12}\le r\le R_3, {\theta }_k-(\lambda -1)\delta \le \theta \le {\theta }_k+(2-\lambda )\delta \end{array}\right.$$

(27)

$$region 4jk2:\left\{\begin{array}{l}\frac{{\mathit{\partial }}^2{A}_{4jk2}(r, \theta )}{\mathit{\partial }{r}^2}+\frac{1}{r}\frac{\mathit{\partial }{A}_{4jk2}(r, \theta )}{\mathit{\partial }r}+\frac{1}{r^2}\frac{{\mathit{\partial }}^2{A}_{4jk2}(r, \theta )}{\mathit{\partial }{\theta }^2}=-{\mu }_0{J}_{4jk2}\\ R_1\le r\le R_{4jk12}, {\theta }_k-(\lambda -1)\delta \le \theta \le {\theta }_k+(2-\lambda )\delta \end{array}\right.$$

(28)

where J_4jk1 and J_4jk2 denote the current density, A/m².

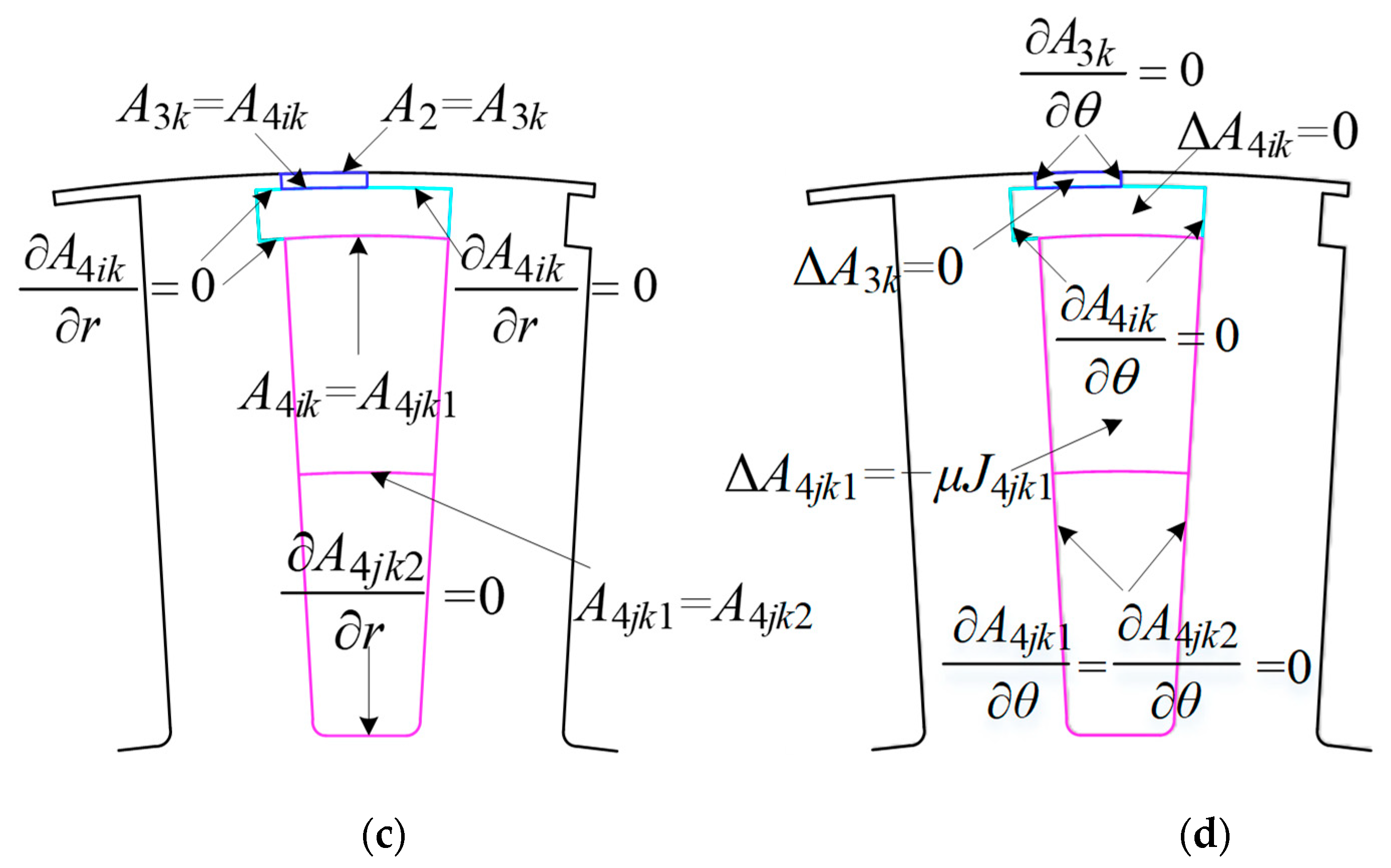

In Figure 5b–d, the boundary conditions of Region 2, Region 3k, Region 4ik, Region 4jk1, and Region 4jk2 can be written as

$$\mathrm{region}2:{\left.\frac{\mathit{\partial }{A}_2}{\mathit{\partial }r}\right|}_{r=R_5}=\left\{\begin{array}{ll}{\left.\frac{\mathit{\partial }{A}_{3k}}{\mathit{\partial }r}\right|}_{r=R_5}& {\theta }_k\le \theta \le {\theta }_k+\beta \\ 0& \mathrm{elsewhere}\end{array}\right.$$

(29)

$${\left.A_2(r,\theta )\right|}_{r=R_5}=\left\{\begin{array}{ll}{\left.A_{3k}(r,\theta )\right|}_{r=R_5}& {\theta }_k\le \theta \le {\theta }_k+\beta \\ 0& \mathrm{elsewhere}\end{array}\right.$$

(30)

$$\mathrm{region}3k:{\left.A_{3k}(r, \theta )\right|}_{r=R_2}={\left.A_{4ik}(r, \theta )\right|}_{r=R_2}$$

(31)

$${\left.A_{3k}(r, \theta )\right|}_{r=R_5}={\left.A_2(r, \theta )\right|}_{r=R_5}$$

(32)

$$\mathrm{region}4ik:{\left.\frac{\mathit{\partial }{A}_{4ik}}{\mathit{\partial }\theta }\right|}_{\theta ={\theta }_k-(\lambda -1)\delta }=0,{\left.\frac{\mathit{\partial }{A}_{4ik}}{\mathit{\partial }\theta }\right|}_{\theta ={\theta }_k+\delta \xi -(\lambda -1)\delta }=0$$

(33)

$${\left.A_{4ik}(r ,\theta )\right|}_{r=R_3}={\left.A_{4jk1}(r ,\theta )\right|}_{r=R_3}$$

(34)

$$\mathrm{region}4jk1:{\left.\frac{\mathit{\partial }{A}_{4jk1}}{\mathit{\partial }r}\right|}_{r=R_3}=\left\{\begin{array}{ll}{\left.\frac{\mathit{\partial }{A}_{4ik}}{\mathit{\partial }r}\right|}_{r=R_3}& {\theta }_k-(\lambda -1)\delta \le \theta \le {\theta }_k+(2-\lambda )\delta \\ 0& \mathrm{elsewhere}\end{array}\right.$$

(35)

$${\left.A_{4jk1}(r,\theta ) \right|}_{r=R_3}={\left.A_{4ik}(r,\theta ) \right|}_{r=R_3}, {\theta }_k-(\lambda -1)\delta \le \theta \le {\theta }_k+(2-\lambda )\delta$$

(36)

$${\left.\frac{\mathit{\partial }{A}_{4jk1}}{\mathit{\partial }r}\right|}_{r=R_{4jk13}}={\left.\frac{\mathit{\partial }{A}_{4jk2}}{\mathit{\partial }r}\right|}_{r=R_{4jk13}}$$

(37)

$${\left.A_{4jk1}(r,\theta ) \right|}_{r=R_{4jk13}}={\left.A_{4jk2}(r,\theta ) \right|}_{r=R_{4jk13}}$$

(38)

$${\left.\frac{\mathit{\partial }{A}_{4jk1}}{\mathit{\partial }\theta }\right|}_{\theta ={\theta }_k-(\lambda -1)\delta }=0,{\left.\frac{\mathit{\partial }{A}_{4jk1}}{\mathit{\partial }\theta }\right|}_{\theta ={\theta }_k+\delta \xi -(\lambda -1)\delta }=0$$

(39)

$$\mathrm{region}4jk2:{\left.\frac{\mathit{\partial }{A}_{4jk1}}{\mathit{\partial }r}\right|}_{r=R_1}=0$$

(40)

$${\left.\frac{\mathit{\partial }{A}_{4jk2}}{\mathit{\partial }\theta }\right|}_{\theta ={\theta }_k-(\lambda -1)\delta }=0,{\left.\frac{\mathit{\partial }{A}_{4jk2}}{\mathit{\partial }\theta }\right|}_{\theta ={\theta }_k+\delta \xi -(\lambda -1)\delta }=0$$

(41)

where $R_{4jk13}=\sqrt{(R_1^2+R_3^2)/2}$, mm.

On the basis of (10), the general solution of vector potentials A₂, A_3k, A_4ik, A_4jk1, A_4jk2 can be derived as

$$\begin{array}{cc}\hfill region 2:A_2(r,\theta )& ={\displaystyle \sum _{n=1}^{\infty }\left(A_{2n}{\left(\frac{r}{R_4}\right)}^n+B_{2n}{\left(\frac{r}{R_5}\right)}^{-n}\right)}\cdot \cos n\theta \hfill \\ & +{\displaystyle \sum _{n=1}^{\infty }\left(C_{2n}{\left(\frac{r}{R_4}\right)}^n+D_{2n}{\left(\frac{r}{R_5}\right)}^{-n}\right)}\cdot \sin n\theta \hfill \end{array}$$

(42)

$$region 3\mathrm{k}: A_{3k}(r,\theta )=A_{3k}+B_{3k}\ln r+{\displaystyle \sum _{m=1}^{\infty }\left(A_{3km}{f}_{3ka}(r)+B_{3km}{f}_{3kb}(r)\right)}\cdot \cos (p_{3k}{\theta }_{3k})$$

(43)

$$region 4\mathrm{ik}: A_{4ik}(r,\theta )=A_{4ik}+B_{4ik}\ln r+{\displaystyle \sum _{u=1}^{\infty }\left(A_{4iku}{f}_{4ikua}(r)+B_{4iku}{f}_{4ikub}(r)\right)}\cdot \cos (p_{4iku}{\theta }_{4ik})$$

(44)

$$\begin{gathered} region 4jk1: A_{4jk1}(r,\theta )=A_{4jk1}+{\displaystyle \sum _{u=1}^{\infty }\left(A_{4jku1}{f}_{4jkua1}(r)+B_{4jku1}{f}_{4jkub1}(r)\right)} \\ \cdot \cos (p_{4jku1}{\theta }_{4jk1})+A_{4jk1up} \\ \begin{array}{cc}\hfill f_{4jkua1}(r)=& {\left(\frac{r}{R_3}\right)}^{\frac{u\pi }{\delta }}, f_{4jkub1}(r)={\left(\frac{r}{R_{4jk13}}\right)}^{-\frac{u\pi }{\delta }}\hfill \\ \hfill {\theta }_{4jk1}=& \left(\theta -{\theta }_k+(\lambda -1)\delta \right)\hfill \\ \hfill p_{4jku1}=& \frac{u\pi }{\delta }\hfill \end{array} \end{gathered}$$

(45)

$$\begin{gathered} region 4jk2: A_{4jk2}(r,\theta )=A_{4jk2}+{\displaystyle \sum _{u=1}^{\infty }\left(A_{4jku2}{f}_{4jkua2}(r)+B_{4jku2}{f}_{4jkub2}(r)\right)} \\ \cdot \cos (p_{4jku2}{\theta }_{4jk2})+A_{4jku2p} \\ \begin{array}{cc}\hfill f_{4jkua2}(r)=& {\left(\frac{r}{R_{4jk13}}\right)}^{\frac{u\pi }{\delta }}, f_{4jkub2}(r)={\left(\frac{r}{R_1}\right)}^{-\frac{u\pi }{\delta }}\hfill \\ \hfill {\theta }_{4jk2}=& \left(\theta -{\theta }_k+(\lambda -1)\delta \right)\hfill \\ \hfill p_{4jku2}=& \frac{u\pi }{\delta }\hfill \end{array} \end{gathered}$$

(46)

$$A_{4jku1p}=\frac{1}{2}{\mu }_0{J}_{4jk1}(R_{4jk13}^2 \ln r-\frac{1}{2}{r}^2)+\frac{1}{2}{\mu }_0{J}_{4jk2}\left(R_1^2-R_{4jk13}^2\right)\ln r\left(\theta -{\theta }_k+(\lambda -1)\delta \right)$$

(47)

$$A_{4jku2p}=\frac{1}{2}{\mu }_0{J}_{4jk2}(R_1^2\ln r-\frac{1}{2}{r}^2)$$

(48)

The integral constants of Region 1u and Region 1p, and Region 1p and Region 2, are shown in Appendix A. The integral constants of the other regions are given in [7].

3.3. Cogging Torque

In the polar coordinate system, the magnetic flux density can be obtained by

$$B_{rs}(r,\theta )=\frac{1}{r}\frac{\mathit{\partial }{A}_s(r,\theta )}{\mathit{\partial }\theta },B_{\theta s}(r,\theta )=-\frac{\mathit{\partial }{A}_s(r,\theta )}{\mathit{\partial }r}$$

(49)

where B_rs and B_θs are the radial and tangential flux density at the radius r of the sth region, respectively, T.

Based on the Maxwell stress tensor method, a circle with the semidiameter of r_ag in the air gap region is regard as the path of integration. The cogging torque can be calculated as follows:

$$T_c=\frac{L_{ef}{r}_{ag}^2}{{\mu }_0}{\displaystyle {\int }_0^{2\pi }{B}_{rs}(r_{ag},\theta )\cdot B_{\theta s}(r_{ag},\theta )d\theta }$$

(50)

where L_ef is the axial length of the stator, mm; r_ag is the semidiameter of the air gap, mm.

4. FEM Results and Comparative Analysis

In order to validate the presented theoretical research, an LHPMSM with outer arc eccentric pole-shaped PMs and asymmetric slots was chosen for the prototype. Three analytical models, the ideal circular ring model (AM1), the direct segmented model (AM2), and the proposed double-layer model (AM3), were adopted to compare the air gap flux density with the FEA models at no-load and on-load conditions. The FEA models of the prototype and mesh density are given in Figure 6. Structural parameters of the prototype are shown in

Table 1. Specification of the prototype.

Parameter	Item	Value
p	Number of pole pairs	20
Q	Number of slots	168
R1	Semidiameter of slot bottom	764 mm
R2	Inside semidiameter of slot opening	824 mm
R3	Outside semidiameter of slot body	821 mm
RB	Inside semidiameter of PMs	840 mm
R5	Outside semidiameter of slot opening	825 mm
RA	Outside semidiameter of PMs	840 mm
Rm	Inner arc radius of Region 1u	variable
φ2	Center angles of Region 1p	variable
hm	Maximum thickness of PM	12 mm
b	Tooth width of stator	20 mm
h0	Toothed boot height	1 mm
l	Depth of U-shaped groove	1.29 mm
hs1	Width of U-shaped groove	3 mm
hs2	Stator tooth height	57 mm
g	Air gap length	3 mm
αp	Pole arc coefficient	0.94
λ	Asymmetry of slot opening	variable
ξ	Asymmetry of inside slot	variable
δ	Slot pitch angle of stator	2.14°

. Operating parameters of the machine are described in

Table 2. Operating parameters of prototype.

Parameters	Items	Value
UN	Nominal voltage	1140 V
IN	Nominal current	171 A
PN	Nominal frequency	9.16 Hz
nN	Nominal rotating speed	26.5 r/min
RN	Resistance per phase	1.05 Ω
/	Number of conductors	28
/	Number of parallel branches	8

. The materials of PMs and stator cores are NdFeB35 and DW465-50, respectively. The grade of the PMs is N38SH. The specific simulation process is as follows:

(1)

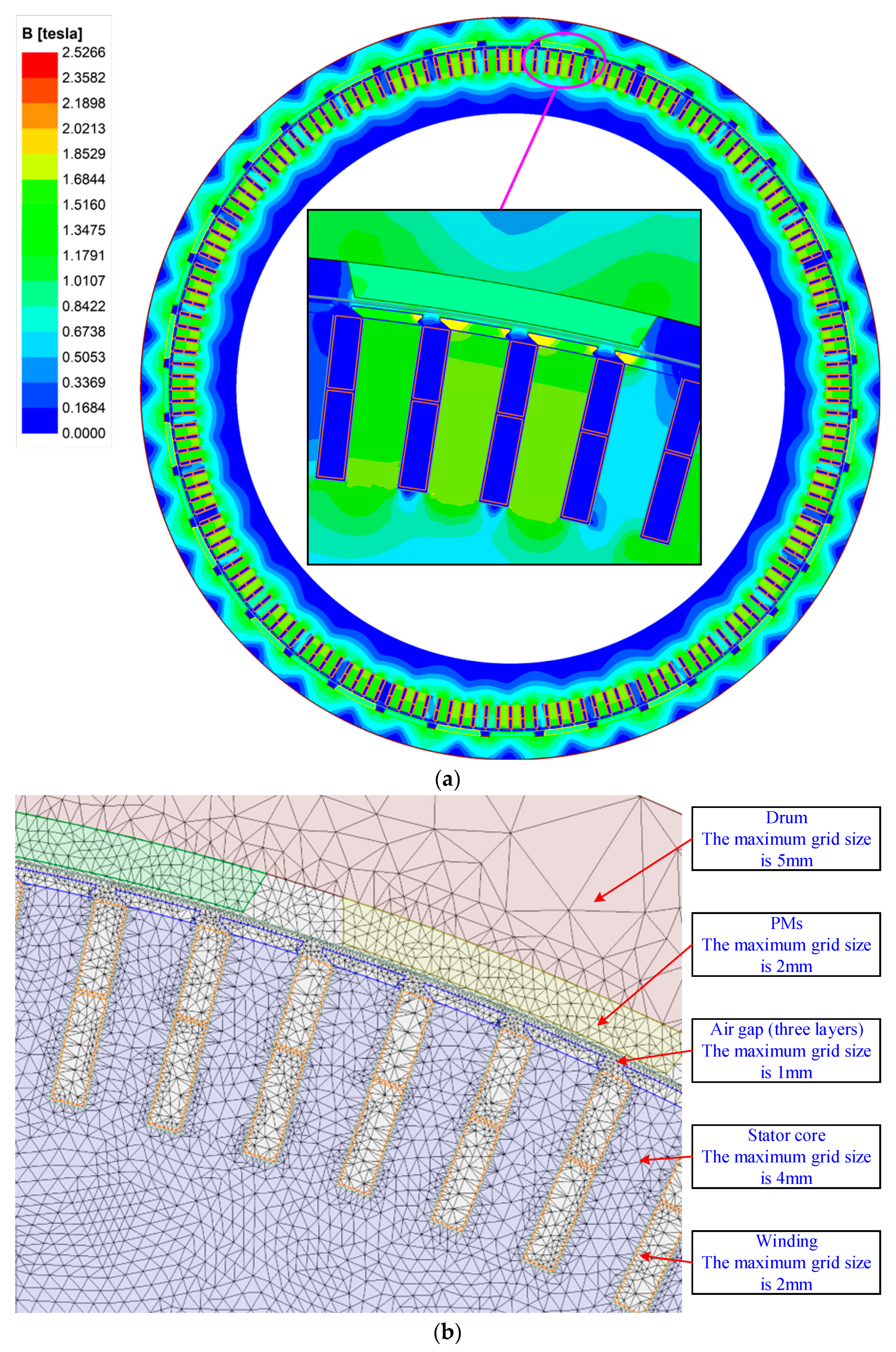

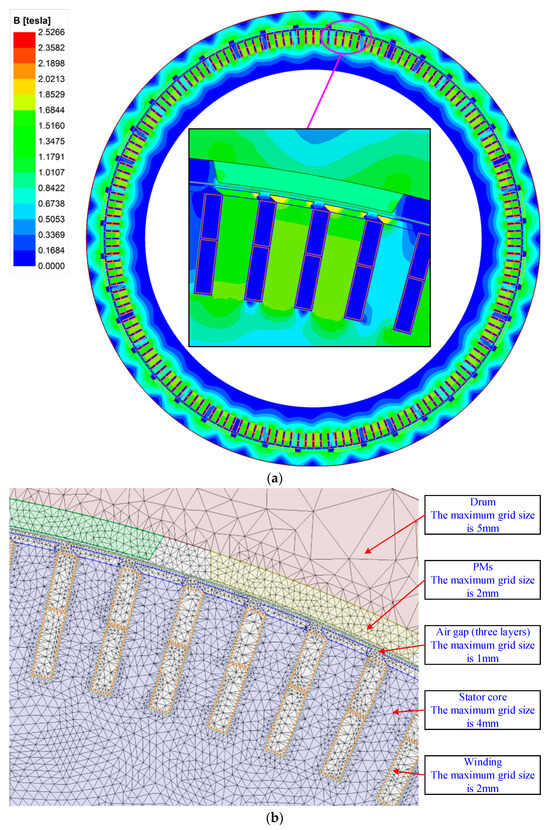

Establish the FEM of the prototype based on the parameters shown in Table 1. Magnetostatic analysis is conducted to obtain the calculation results the air gap flux density under no-load conditions.

(2)

During the transient analysis process, set the prototype operating parameters shown in Table 2 and add ideal three-phase alternating current excitation. The radial and tangential air gap magnetic flux density and electromagnetic torque under load conditions can be obtained.

(3)

Still conducting the analysis in transient mode, removing the excitation source, modifying the speed to 1 r/s, and dividing the air gap domain into three layers with a maximum grid size of 1 mm, the distribution of the cogging torque can be obtained.

4.1. Air Gap Flux Density

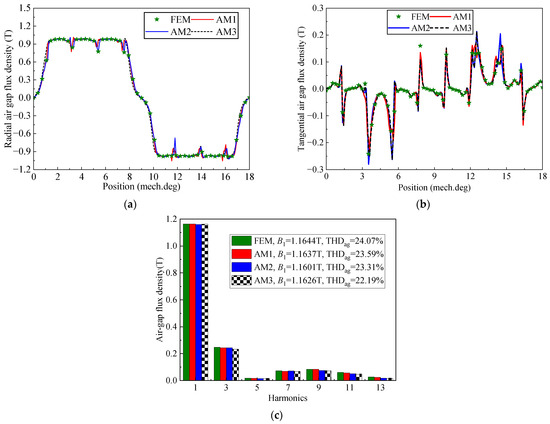

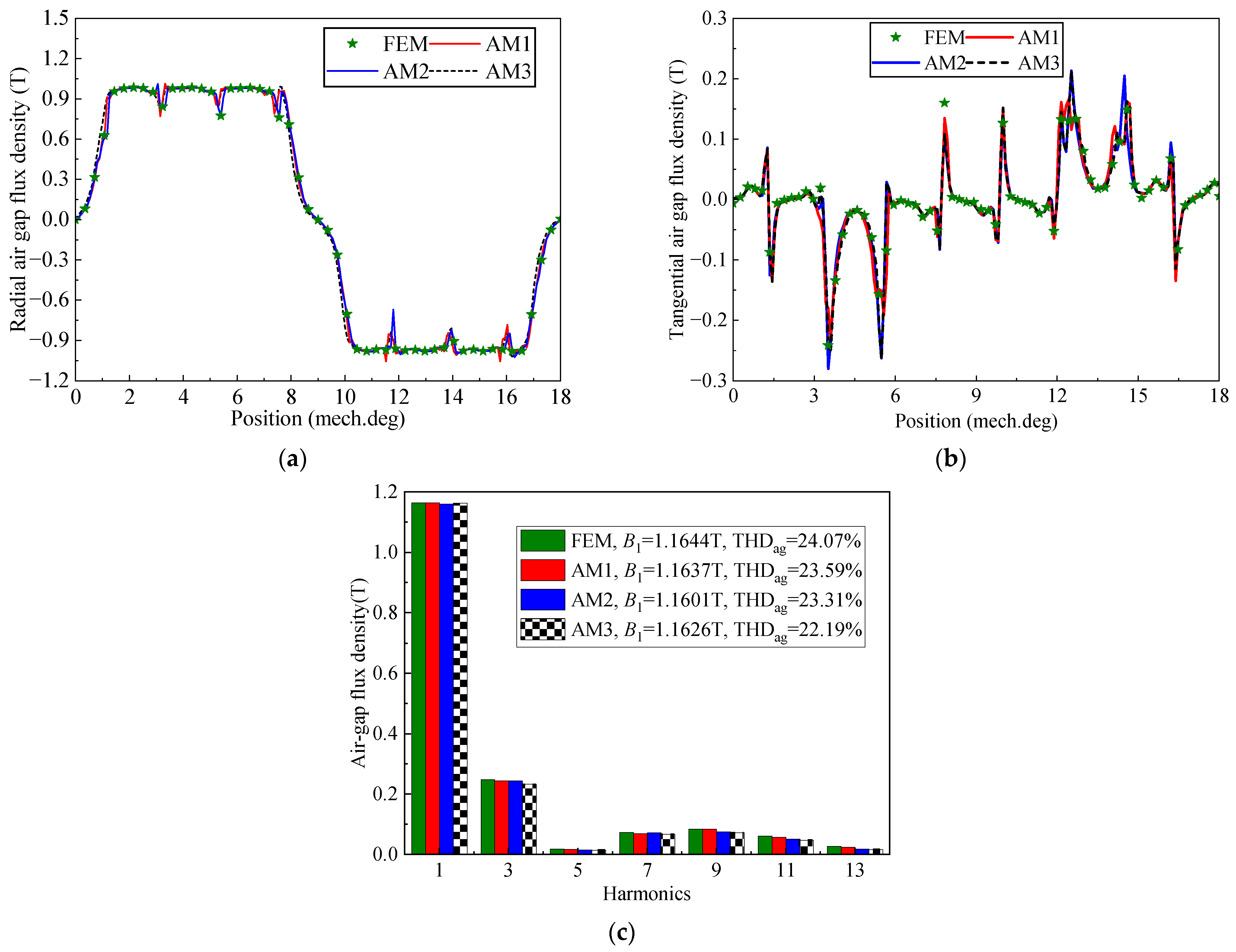

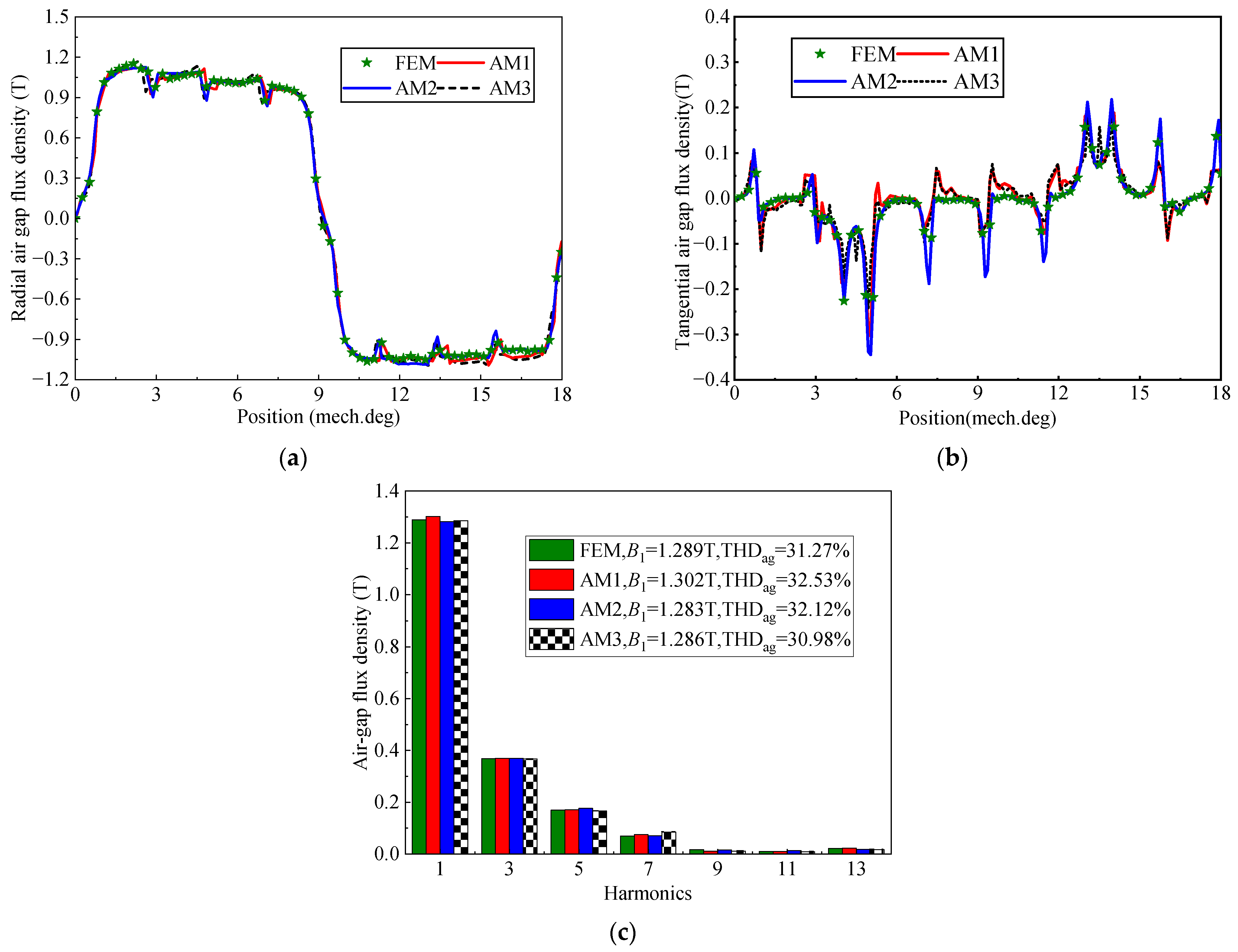

Three sets of AM and FEM results for the radial and tangential flux density at r = 826.5 mm under no-load conditions are illustrated in Figure 7. In Figure 7a,b, the air gap flux density waveforms obtained using the AMs and FEM have a higher degree of coincidence under no-load conditions. Therefore, all three AMs can accurately predict the magnetic field characteristics of the motor. However, the slotting effect can cause distortion of the flux density waveforms. Peaks and troughs of AM1 are slightly higher than those of AM2 and AM3 in some special locations. Due to AM1 not considering the shape of the PM, this gives rise to the radial component of the magnetization vector of the PM being higher than that of AM2 and AM3. In addition, the waveforms of AM2 and AM3 only have differences at the ends of the flat top position of the curve, as the latter takes into account the edge shape of the PM.

$$TH{D}_{ag}=\frac{\sqrt{{\displaystyle \sum _{\nu =1}^{\infty }{B}_{{}_{2\nu +1}}^2}}}{B_1}\times 100\%$$

(51)

where B₁ is the fundamental amplitude of the air gap flux density, T; B_2ν+1 denotes the (2ν + 1)th harmonic contents of the air gap flux density, T.

The harmonic analysis results of the air gap flux density for the three AM models and FEM under no-load conditions are shown in Figure 7c. The AM1 has the highest fundamental amplitude of the air gap flux density compared to the other three models. The fundamental amplitude and lower harmonic amplitude values of AM2 are similar to the FEM results, which is consistent with the research results in [25]. The harmonic amplitude of the air gap flux density of AM3 is slightly lower than those of the other three models, which is related to the values of R_m and φ₂. Therefore, the effects of these two parameters on the electromagnetic characteristics are discussed in Section 5. Furthermore, the total harmonic distortion (THD) rates of the air gap flux density for AM1, AM2, AM3, and the FEM can be calculated using (51); these are 23.59%, 23.31%, 22.19% and 24.07%, respectively. It can be seen that the THD comparison results are consistent with B₁.

Figure 8a,b displays the AMs and FEM results for the radial and tangential flux density in the middle of at r = 826.5 mm under on-load conditions. The waveform distortion at the tip of the stator teeth is more severe than under no-load conditions, which is due to the more significant impact of the armature reaction compared to the no-load conditions. The result is also demonstrated in the harmonic analysis of Figure 8c. The THD_ag values of the air gap flux density for AM1, AM2, AM3, and FEM can be calculated using (51); these are 32.53%, 32.12%, 30.98%, and 31.27%, respectively. Moreover, the B₁ under on-load conditions is higher than under no-load conditions.

4.2. Torque Characteristics

The LHPMSM often bears heavy loading and vibration during operation. Consequently, the motor requires an excellent output stability, which depend on the low torque ripple ratio. However, the cogging torque can bring about significant torque ripple, especially at low speeds.

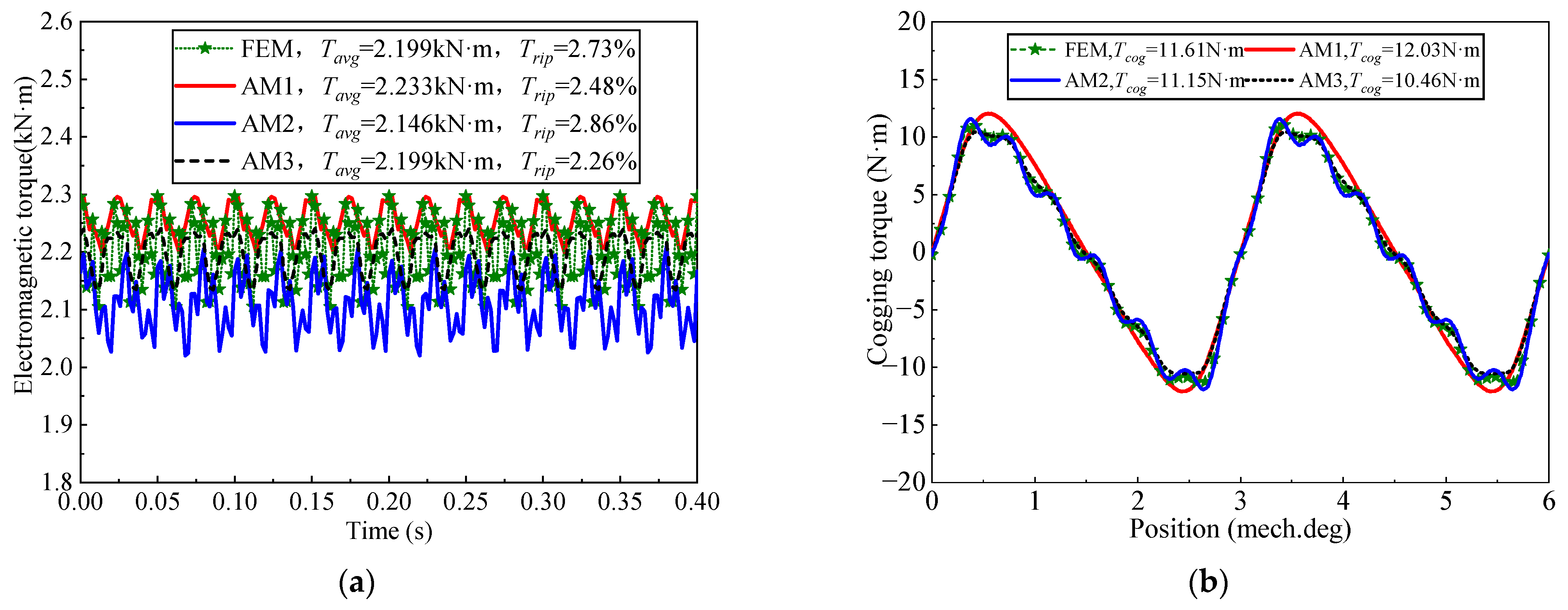

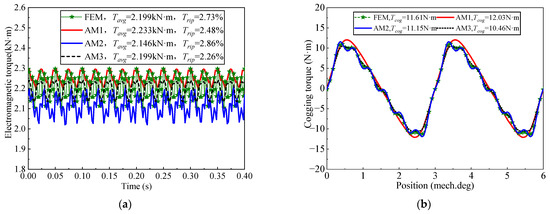

Figure 9a shows the electromagnetic torque of the three AMs and FEM. The average electromagnetic torques of the AM1, AM2, AM3, and FEM are 2.233 kN·m, 2.146 kN·m, 2.199 kN·m, and 2.199 kN·m, respectively. The corresponding torque ripples of the four models are 2.48%, 2.86%, 2.26%, and 2.73%, respectively.

Figure 9b depicts the cogging torque of the three AMs and FEM. The peak values of the cogging torque of the AM1, AM2, AM3, and FEM are 11.15 N·m, 11.61 N·m, 10.46 N·m, and 12.03 N·m, respectively. The cogging torque T_cog of the four models are similar to B₁.

5. Edge Cutting Models for PM

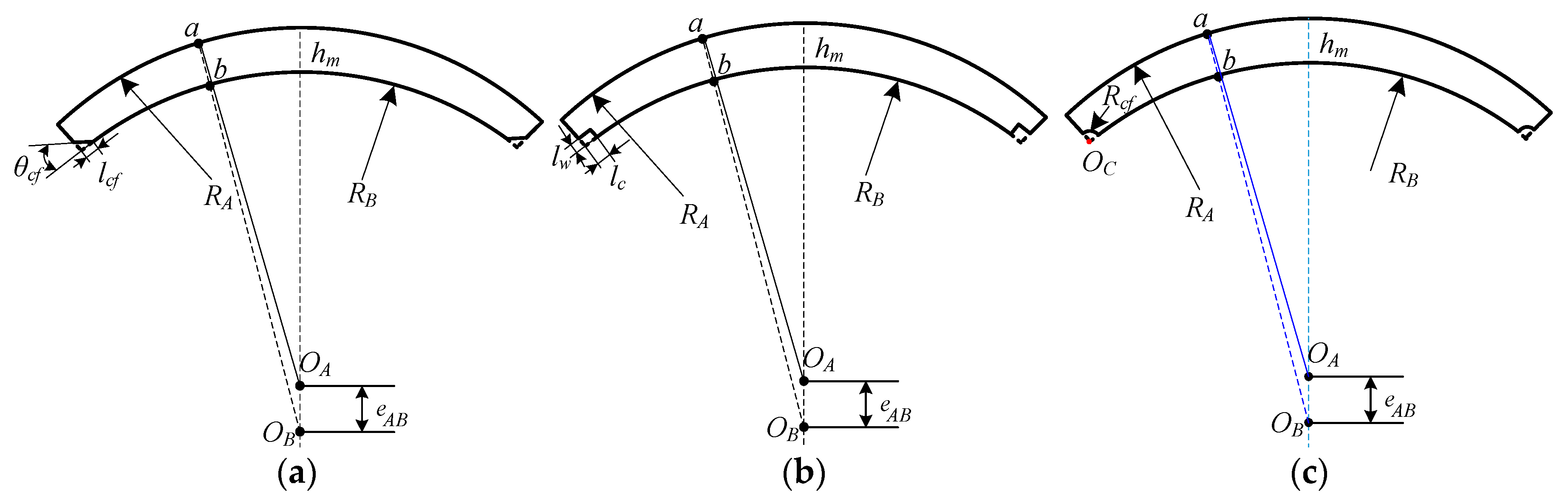

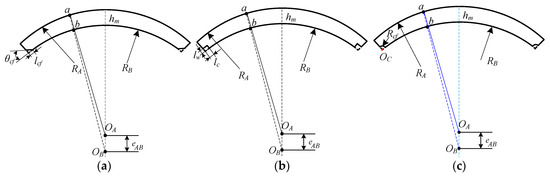

Three combination models based on AM3 with the eccentric cutting of the outer pole arc PM model are proposed in this article. The structures have the same polar arc coefficient and edge thickness with different cutting shapes at the edges of the inner arc, which are chamfer cutting, rectangular cutting, and fillet cutting. As shown in Figure 10, the chamfer shape in Figure 10a can be approximated as a right-angled triangle, where the cutting angle is θ_cf and the cutting width is l_cf. The chamfer shape in Figure 10b can be regarded as rectangular, where the length and width are l_c and l_w, respectively. As shown in Figure 10c, the chamfer shape can be considered equivalent to a quarter circle, where the radius is R_cm. The edge cutting amounts of the three types are equal, with the edge structural parameters given by Equation (52). Obviously, there are countless parameter combinations that meet the conditions. However, a magnetic field prediction model with any edge cutting size can be obtained by controlling R_m and φ₂ in the proposed model. Therefore, we adopt the multi-objective optimization design method proposed in [30], where R_m and φ₂ are set as optimization variables, and the average value of the electromagnetic torque, the peak value of the cogging torque, and the THD of the no-load back electromotive force are set as objective functions. The optimal parameter combination was obtained as φ₂ = 7.125°, R_m = 834 mm, and the edge cutting dimensions of the three PMs are shown in

Table 3. Edge cutting parameter combinations of three types of combined PMs.

Type	Symbol	Value
Chamfer combination	lcf	5 mm
	θcf	30°
Fillet combination	Rcf	5.2 mm
Rectangular combination	lw	1.4 mm
	lc	5 mm
Axial length of PM	lpm	98 mm

.

$$V_{cf}=\frac{1}{2}{l}_{ef}^2\cdot \tan {\theta }_{cf}\cdot l_{pm}=l_w\cdot l_c\cdot l_{pm}=\frac{1}{4}\pi R_{cf}^2\cdot l_{pm}$$

(52)

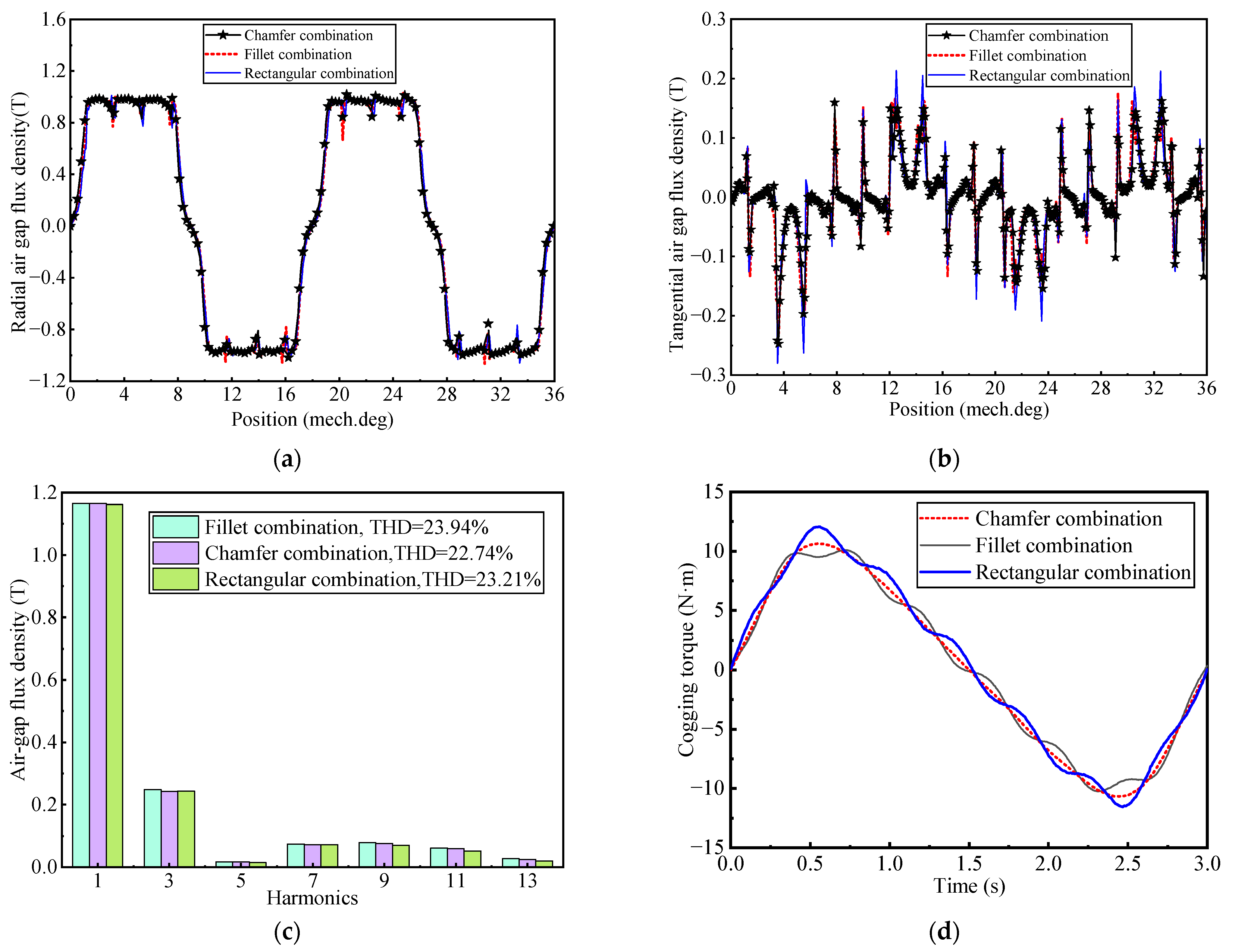

Figure 11a,b shows the air gap flux density and the harmonic analysis for three types of combined PMs. It can be seen that there are slight differences in the radial and tangential air gap magnetic flux density at the slot opening, with the waveform of the chamfer-cutting PM transitioning smoother compared to the other two types. This is because the change in unit thickness of the chamfer-cutting PM is smoother. The rectangular cutting type has a sudden change in the thickness of the PM, which can cause a deeper “depression” in the waveform at the slot opening, resulting in more severe distortion of the air gap magnetic field. From Figure 11c, the fundamental amplitudes of the air gap flux density for the chamfered cutting, rounded cutting, and rectangular cutting are 1.165 T, 1.165 T, and 1.162 T, respectively. The total harmonic distortion rates (THD_ag) of the air gap magnetic flux density obtained from Equation (52) are 23.4%, 23.9%, and 24.5%, respectively.

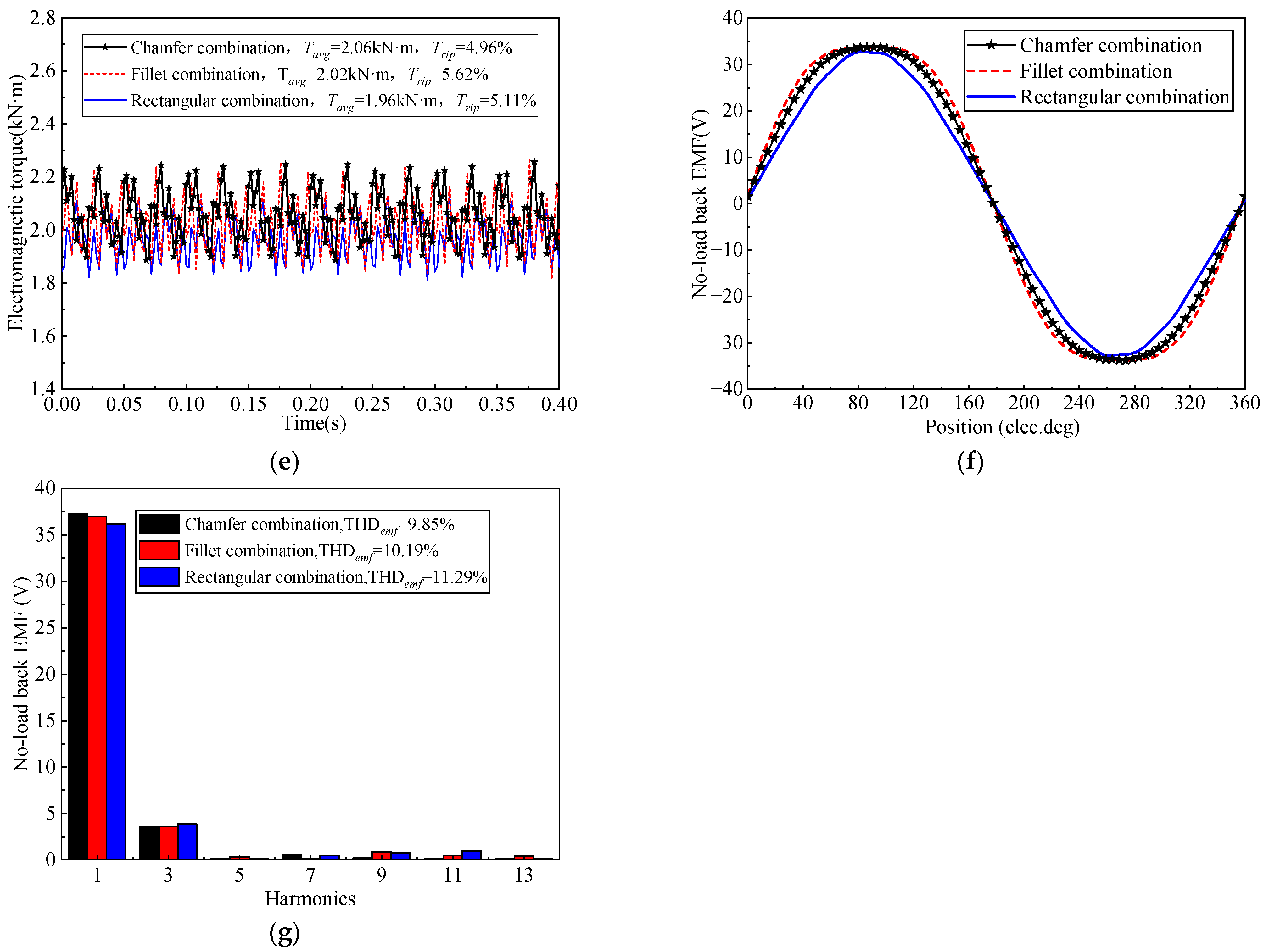

Figure 11d illustrates the electromagnetic torque analysis of three types of combined PMs. It can be observed that the maximum electromagnetic torque of the chamfer cutting is 45.58 kN·m, which is slightly higher than the 44.29 kN·m of the fillet cutting and the 44.21 kN·m of the rectangular cutting. Meanwhile, the torque ripple of the chamfer cutting is 4.96%, which is also slightly lower than those of the other two types. This proves that the chamfer-cutting PM can yield higher electromagnetic torque and have lower torque ripple under the same usage.

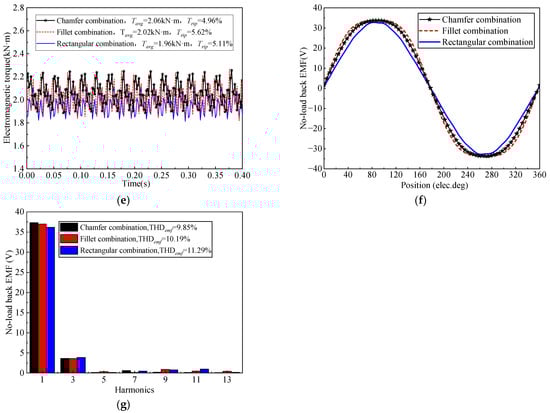

Figure 11e depicts a comparative analysis of the cogging torque of three types of combined PMs. As can be seen, the peak values of cogging torque that are derived from the chamfer cutting, rectangular cutting, and fillet cutting are 10.09 N·m, 12.06 N·m, and 10.46 N·m, respectively. This is mainly because the change in magnetic field energy on both sides of the chamfer cutting PM is relatively gentle compared to the other two types. The magnetic field energy of the edges of the rectangular-cutting PM undergoes sudden change. The magnetic field energy changes more sharply at the edges of the fillet-cutting PM. Therefore, the lowest cogging torque is generated by the chamfer-cutting PM under the same usage.

Figure 11f shows the no-load back EMF results of three types of combined PMs. It can be seen that the amplitudes of chamfer cutting, rectangular cutting, and fillet cutting are 33.81 V, 33.69 V, and 32.76 V, respectively. In addition, the harmonic analysis results are shown in Figure 11g; the THD values of the no-load back EMF for three types of combined PMs are 9.85%, 10.19%, and 11.29%, respectively.

In summary, comparisons of electromagnetic characteristics for three types of combined PMs are shown in

Table 4. Comparison of electromagnetic characteristics for three types of combined PMs.

Comparison	Air Gap Flux Density (T)		Air Gap Flux Density THD THDag (%)	Average Value of Electromagnetic Torque Tavg (kN·m)	Torque Ripple Trip (%)	Cogging Torque Tcog (N·m)	No-Load Back EMF THD
	Br	Bt					THDemf (%)
Chamfer cutting	1.165	0.0482	23.4%	2.06	4.96%	10.09	9.85
Rectangular cutting	1.165	0.0512	23.9%	2.02	5.62%	12.06	10.19
Fillet cutting	1.162	0.0481	24.5%	1.96	5.11%	10.64	11.29

.

6. Experimental Results

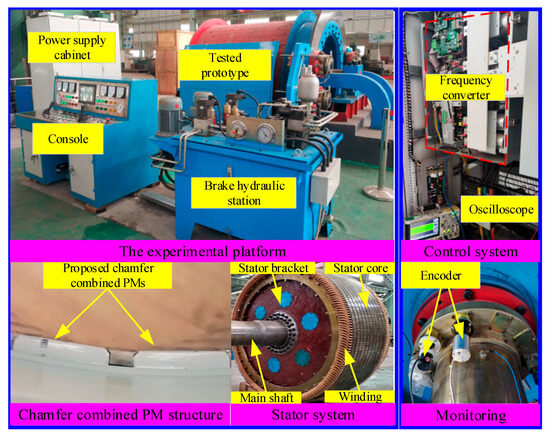

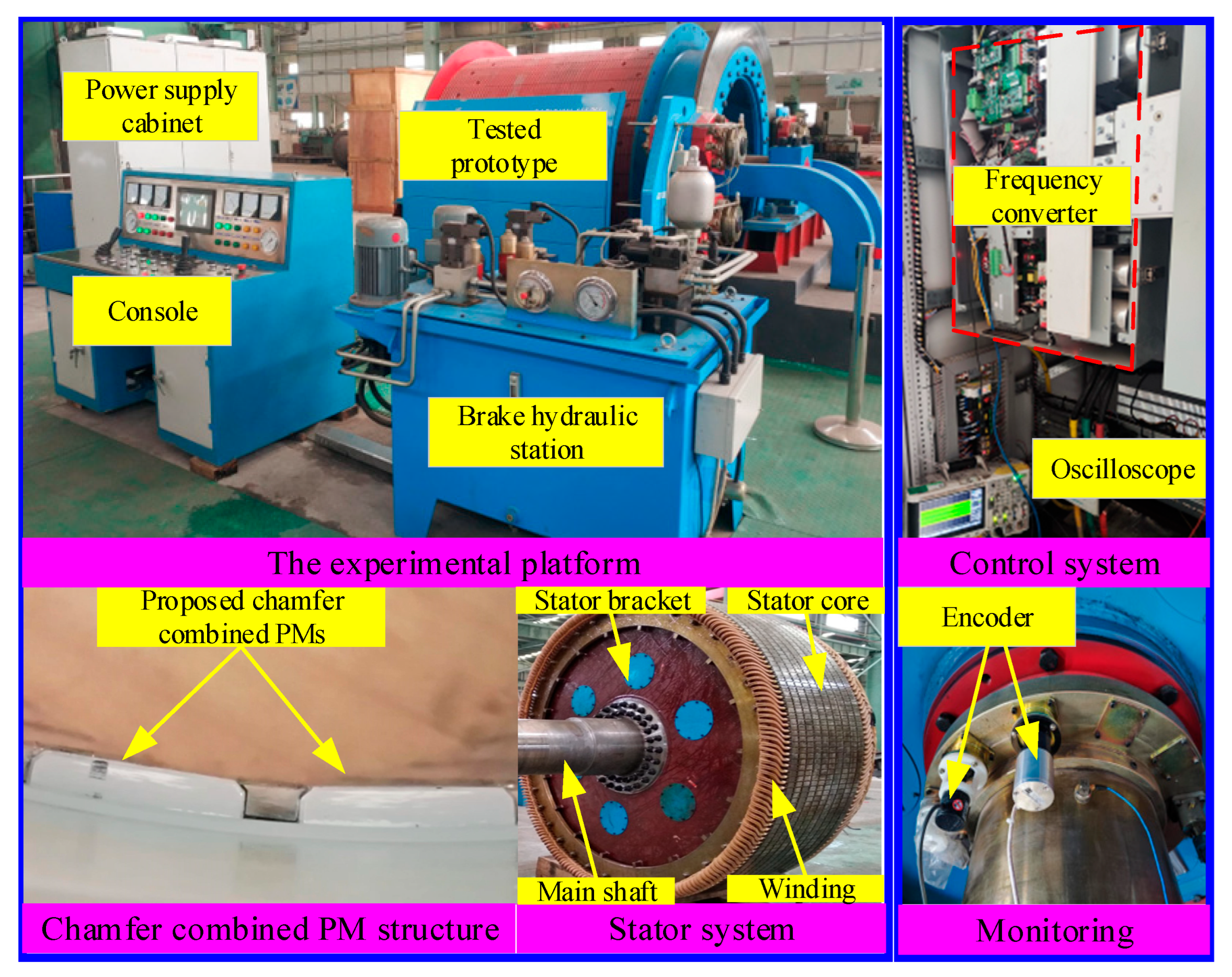

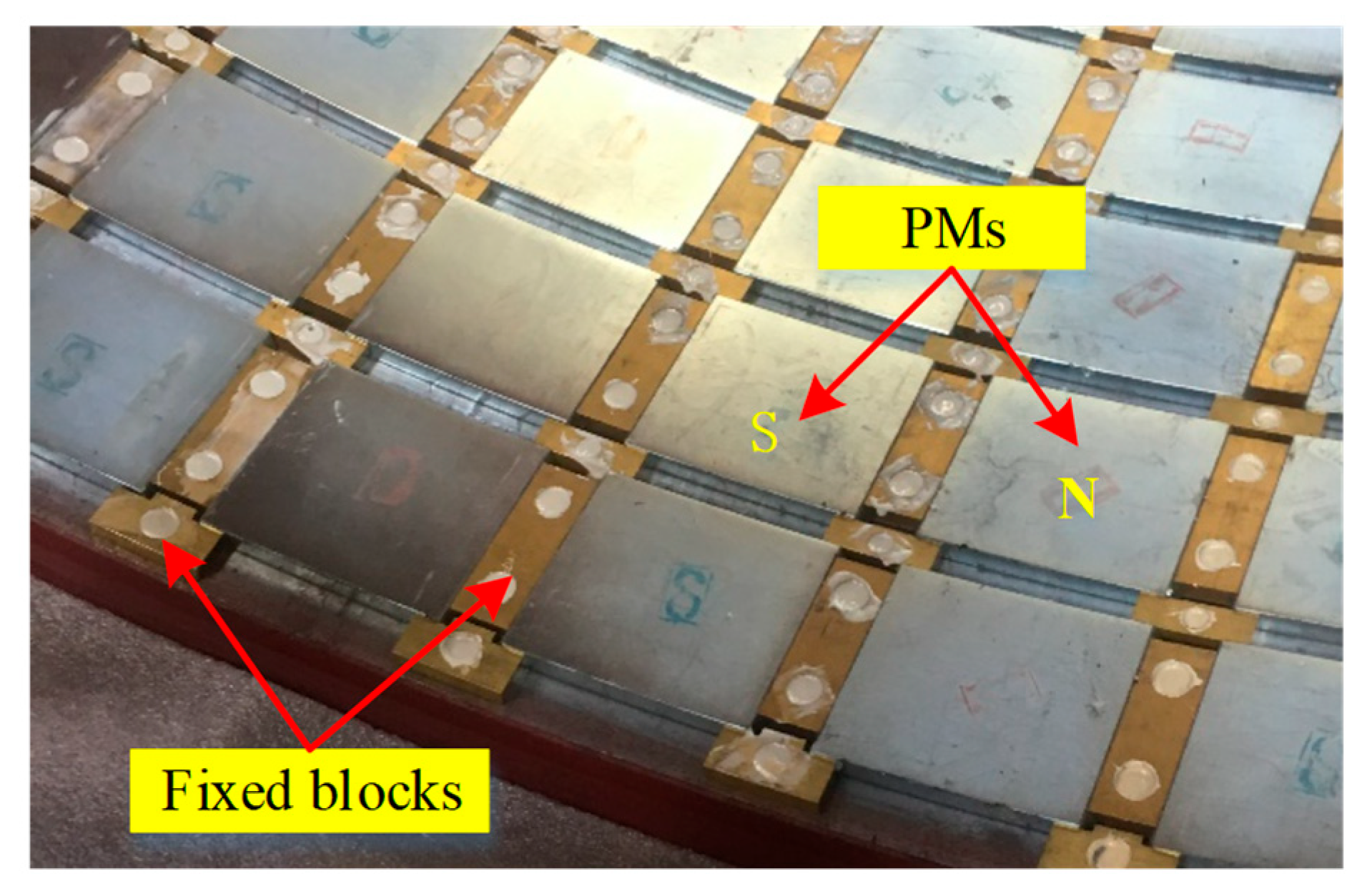

To confirm electromagnetic characteristics of the motor, a prototype of LHPMSM was manufactured according to Table 1 and the optimized results. As predicted in Figure 12, the experimental platform consists of the prototype, worktop, hydraulic system, electric source, frequency transformer, power analyzer, current Sensor, and encoder.

The outer surface of the rotor was not winding the steel wire rope, which could be regarded as no-load working conditions. The chamfered combination PMs was adopted. The frequency transformer was set to the LOCAL mode, and signal were transmitted to the computer through a Bluetooth interface; the encoder signals were received, filtered, and converted by the control board to the oscilloscope through an Ethernet cable.

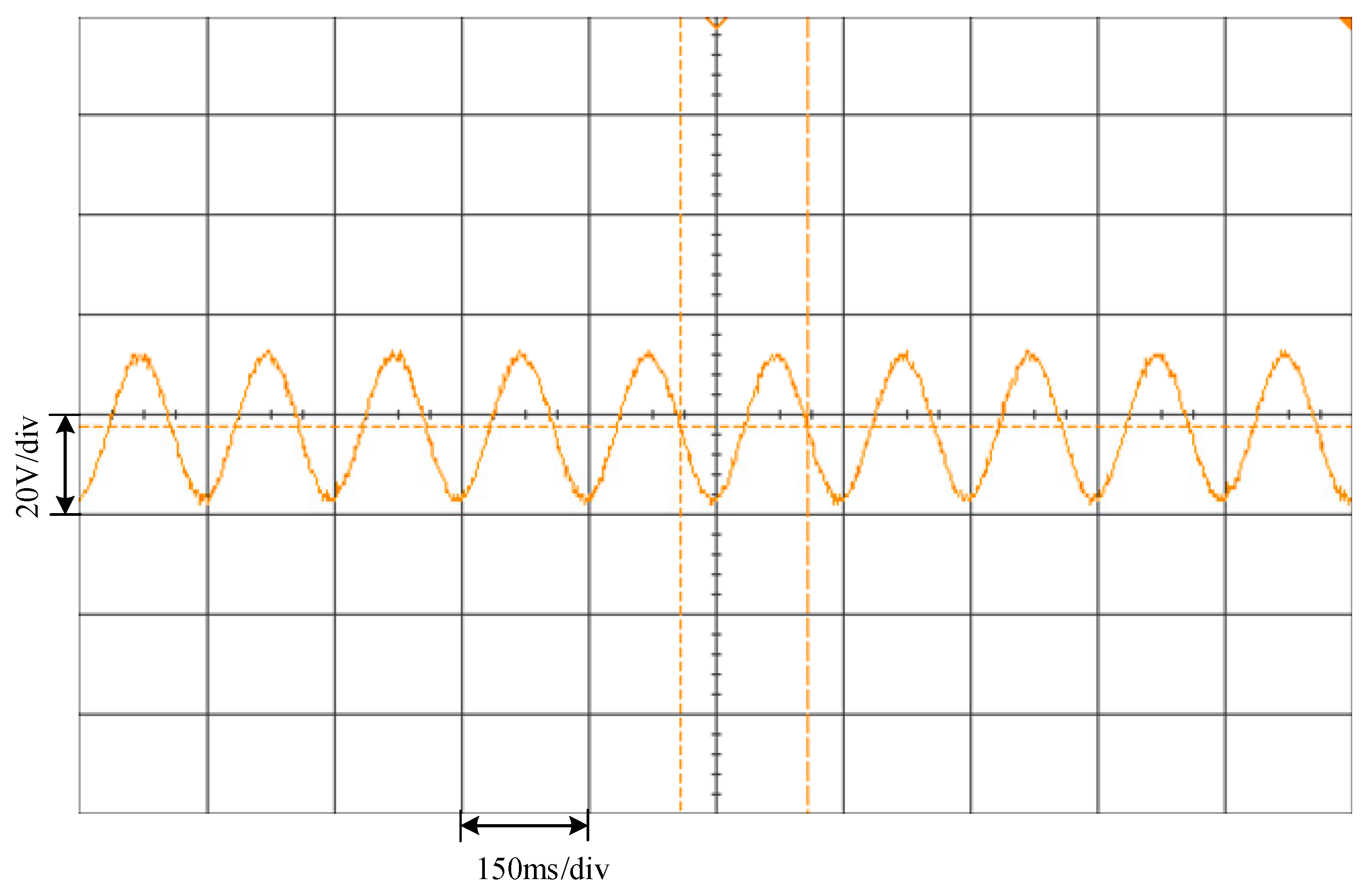

The LHPMSM was operated at 26.5 r/min and the no-load back-EMF can be seen in Figure 13. It was found that the proposed chamfered combination PM has sinusoidal and symmetric no-load back EMF. Therefore, the measured waveform confirms the simulation result given in Figure 11f.

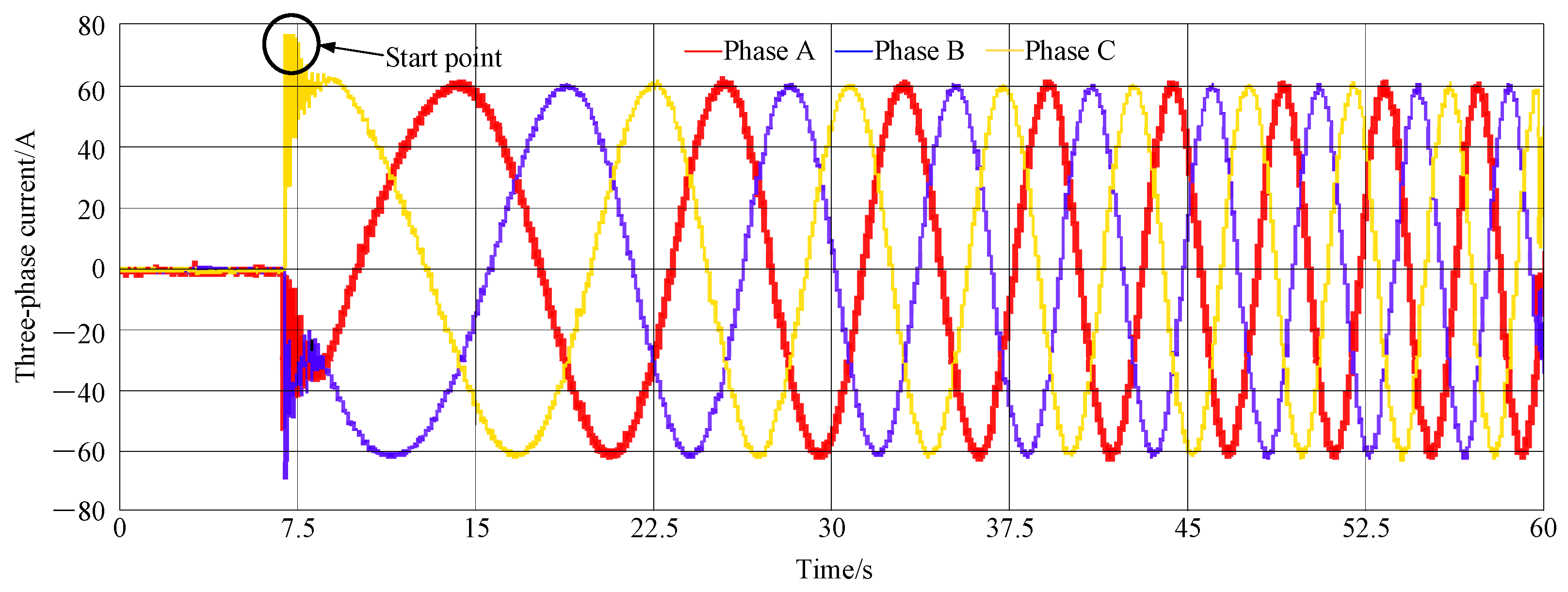

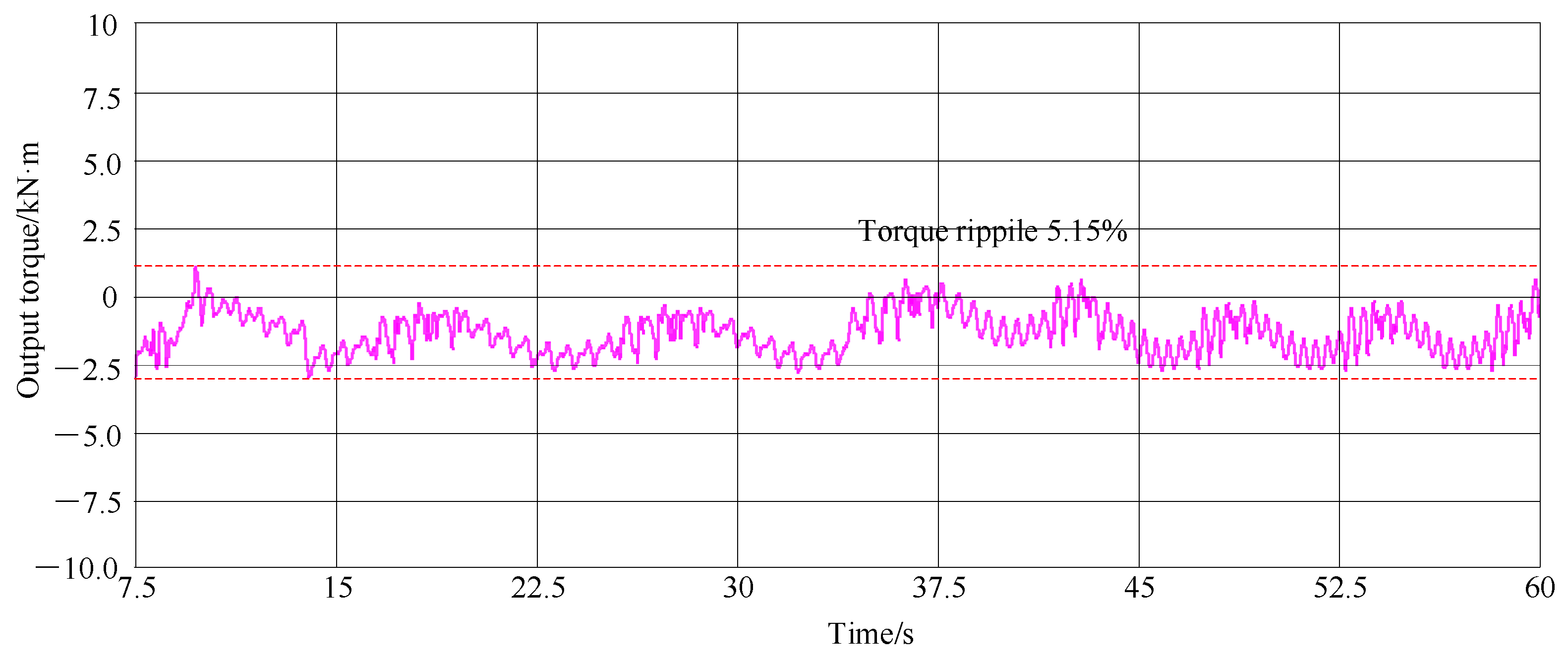

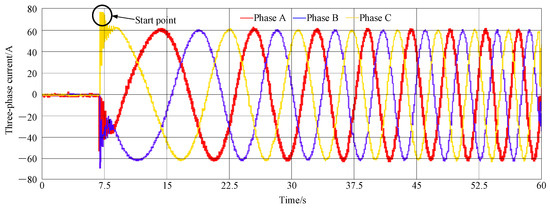

In Figure 14, it can be seen that the amplitude of phase current is 60 A. The electromagnetic torque test results of the motor are described in Figure 15, with the torque ripple is about 5.15% during the stable operation of the prototype. The error between the simulation result and the experimental result is about 3.6%, which verifies the correctness of the FEA result.

7. Conclusions

A dual-layer simplified model for the eccentric cutting of an outer pole arc PM was proposed, which can simplify the irregular boundaries of the PM into upper and lower regular edges. By optimizing the inner ring radius of the upper subdomain and the center angle of the lower subdomain, a simplified model with any edge shape can be obtained. Compared with traditional ideal circular ring, segmented fan ring, and finite element models, this model also has high accuracy in magnetic field prediction. Three application forms based on this simplified model were presented, including three combined chamfer, fillet, and rectangle shapes with an eccentric cutting of the outer pole arc PM. The electromagnetic characteristics of the three types of PMs were compared using the FEM, and the results show that the chamfer combination PM is the best choice. The prototype was manufactured and the theoretical analysis was validated through experiments. The following conclusions were obtained:

(1)

Compared to the ideal circular ring model (AM1) and segmented circular ring model (AM2), the dual-layer permanent magnet simplified model (AM3) shows a higher degree of agreement with the FEM. Its average electromagnetic torque is equal to the FEM calculation result, but the torque ripple is the lowest among the four models (the average electromagnetic torque values for AM1, AM2, AM3, and FEM are 2.233 kN·m, 2.146 kN·m, 2.199 kN·m, and 2.199 kN·m, respectively; the torque ripple values are 2.48%, 2.86%, 2.26%, and 2.73%, respectively). Moreover, the THD of the air gap flux density of AM3 is the lowest under both no-load and load conditions.

(2)

Under the premise of the same amount of PM usage, the chamfered combination PM has superior electromagnetic characteristics. Specifically, the THD of the air gap flux density is 2% and 4% lower than the fillet and rectangular combinations, the average electromagnetic torque is higher by 1.9% and 4.8%, the torque ripple is lower by 11.7% and 2.9%, and the cogging torque is lower by 16.3% and 5.1%.
