A 96 dB DR Second-Order CIFF Delta-Sigma Modulator with Rail-to-Rail Input Voltage Range

by
Juncheol Kim
1,
Neungin Jeon
1,
Wonkyu Do
2,
Euihoon Jung
2,
Hongjin Kim
2,
Hojin Park
2 and
Young-Chan Jang
1,*
1
Department of Electronic Engineering, Kumoh National Institute of Technology, Gumi 39177, Gyungbuk, Republic of Korea
2
ABOV Semiconductor, 330, Yeongdong-daero, Gangnam-gu, Seoul 06177, Republic of Korea
*
Author to whom correspondence should be addressed.
Electronics 2024, 13(6), 1084; https://doi.org/10.3390/electronics13061084
Submission received: 8 February 2024 / Revised: 7 March 2024 / Accepted: 13 March 2024 / Published: 15 March 2024
(This article belongs to the Special Issue Design of Mixed Analog/Digital Circuits, Volume 2)
Browse Figures
Review Reports Versions Notes

Abstract

:
A second-order delta-sigma modulator (DSM) is proposed for readout integrated circuits of sensor applications requiring a small area and low-power consumption. The proposed second-order CIFF DSM with the architecture of cascaded-of-integrator feedforward (CIFF) basically consists of two integrators, a 3-bit quantizer, data-weighted averaging (DWA) circuit, and clock generator. The use of the 3-bit quantizer instead of the single-bit quantizer reduces the size of the feedback capacitor in the first integrator. The 3-bit quantizer is designed based on a successive approximation register analog-to-digital converter for small area and low power implementation. Furthermore, the proposed second-order CIFF DSM has a single supply without an additional reference driver while having a wide analog input voltage range with rail to rail. The proposed second-order CIFF DSM, implemented using a 130 nm 1-poly 6-metal CMOS process with a supply of 1.5 V, has an area of 0.096 mm2. It has a sampling frequency of 500 kHz for the implementation of an input bandwidth of 2 kHz and an oversampling ratio of 125. The measured peak signal-to-noise and distortion ratio is approximately 90 dB when the differential analog input signal has a frequency of 353 Hz and an amplitude of 1.2 Vpp. The measured dynamic range is approximately 96.3 dB.

1. Introduction

Recently, various sensors have been used in biomedical applications and internet-of-things (IoT) devices [1,2,3]. Among the various signals in the natural world, sensor devices that acquire signals such as temperature, pressure, and geometers require the acquisition of low-frequency signals, including DC signals [4,5,6]. As the characteristics of these sensor devices continue to be advanced, their analog output signals have high dynamic characteristics. Therefore, high-resolution analog-to-digital converters (ADCs) are required for the implementation of readout integrated circuits (ROICs) for these sensors. To reduce the power and area of the ROIC for sensors while having high resolution characteristics, successive approximation register (SAR) ADCs and delta-sigma ADCs can be used. SAR ADCs use a minimal number of analog blocks, which is advantageous for implementing low-power, small-area ADCs [7,8]. However, the area and mismatch of the digital-to-analog converter (DAC) makes it difficult to achieve high-resolution characteristics. SAR ADCs using noise shaping (NS) have been proposed as an alternative to the resolution enhancement limitations of SAR ADCs [9,10], but there are still structural difficulties in implementing resolutions above 14–16 bits. Delta-sigma ADCs typically use analog integrators with op amps, which have the disadvantage of relatively increased power consumption and area, but they have been widely used in high-performance sensor interfaces because they have a suitable structure to achieve high resolution [1,2,3,4,5,6,11,12]. In particular, noise shaping by delta-sigma modulation (DSM) and oversampling schemes enable the implementation of high resolution.
In general, a variable gain amplifier (VGA) located between the sensor and the ADC increases the voltage range of the analog signal supplied by the sensor [13,14,15]. As a result, the ADC may be required to have a rail-to-rail input voltage range to improve the dynamic performance of the ADC. On the other hand, a DSM has a feedback loop that includes an integrator, where the range of the reference voltage used in the feedback path of the DSM determines the range of the analog input voltage of the DSM. Due to the structural characteristics of the DSM, when an analog input voltage corresponding to the full range of the reference is input to the DSM, the output of the integrator of the DSM is saturated and its stability deteriorates. This causes the dynamic characteristics of the DSM to deteriorate rapidly. Considering this, when the reference used in the DSM has a rail-to-rail range, the delta-sigma ADC will be able to perform stable data conversion even if the VGA using the same supply voltage as the delta-sigma ADC supplies an analog signal with a maximum voltage range. However, the generation of a reference voltage with a rail-to-rail range may increase the design complexity of the reference driver.
In this work, a DSM is proposed that has a wide analog input voltage range of rail-to-rail while using a single supply without any additional reference driver. The proposed DSM has a second-order cascaded-of-integrator feedforward (CIFF) structure, which allows the two stages of integrators to have a small output range. In addition, the 3-bit quantizer used in the proposed DSM reduces the size of the capacitors used in the integrators, which reduces the overall area and power consumption of the DSM.

2. Behavioral Model of Second-Order CIFF DSM with 3-Bit Quantizer

In general, since DSMs have a feedback structure unlike Nyquist ADCs, it is necessary to verify the characteristics of the overall structure, including the stability of the DSM structure, and the design specification of each block. Therefore, the structure of the DSM is designed through a behavioral model to implement the design specification. Figure 1a shows the block diagram using the MATLAB Simulink version R2015b for behavioral simulation of the proposed second-order CIFF DSM. The behavioral model of the proposed second-order CIFF DSM basically consists of two integrators, a 3-bit quantizer, and a data-weighted averaging (DWA) block. Each integrator can be implemented using the Add, Unit Delay, and Gain blocks. The gain error of each integrator due to the finite voltage gain of the operational amplifier is set by the parameters K1 and K2 in the Gain block, respectively. Thus, the behavioral model of the first integrator is derived as Equation (1). If the operational amplifier used in the first integrator has a voltage gain at low frequencies of 60 dB, then K1 is set to 1 − 1/1000 in the behavioral model.
V I N T 1 n V S n = Z − 1 1 − K 1 · Z − 1
The CIFF architecture for the DSM reduces the design complexity of the operational amplifier by making the output voltage range of the integrator smaller [16,17,18,19]. Furthermore, the use of the 3-bit quantizer instead of the single-bit quantizer reduces the size of the integration capacitor in the first integrator. The two structural design techniques mentioned above can simultaneously reduce the power consumption of the operational amplifier and the area of the capacitor used for the integrator. However, the use of the 3-bit quantizer requires a 3-bit DAC in the feedback path of the DSM. The nonlinearity of the 3-bit DAC causes distortion noise at the output of the DSM by the signal transfer function. Typically, capacitor-based DACs (CDACs) use 2N − 1 unit capacitors to achieve N-bit resolution, and the mismatch between these unit capacitors degrades the linearity of the CDAC. In this work, the DWA block is used as a feedback path to the first integrator to reduce the effect of mismatch in the 3-bit DAC [20,21,22].
Figure 1b shows the simulated dynamic performance about the behavioral model of the second-order CIFF DSM with 3-bit quantizer shown in Figure 1a. The simulation was performed for an analog input signal with a frequency of 100 Hz and an oversampling ratio of 125. The signal-to-noise and distortion ratio (SNDR) of the output signal of the proposed DSM as a function of the magnitude of the analog input signal was plotted. When both operational amplifiers used in the two integrators have a voltage gain of 60 dB, the maximum SNDR is 110.5 dB. Although this is a simple model that does not include the modeling of various noises, it is verified that the proposed second-order CIFF DSM structure with a 3-bit quantizer is a suitable structure for monitoring the DC voltage.
The DWA used in this work consists of a 3-bit full adder, a 3-to-7 binary to thermometer decoder, and a logarithmic shifter, as shown in Figure 2. The DWA is designed to sequentially rotate and select all the unit elements of the 3-bit DAC. For example, when the 3-bit quantizer of the DSM outputs 3b’001 in the first timing, the DWA selects one unit element of the 3-bit DAC, and when the 3-bit quantizer of the DSM outputs 3b’101 in the second timing, the DWA selects the next five unit-elements of the 3-bit DAC selected in the previous timing. If the 3-bit quantizer of the DSM continues to output 3b’110 at the next timing, the DWA selects the last six unit-elements of the 3-bit DAC selected at the previous timing, starting with the last unit element. Figure 3 shows the simulated SNDR performances of the DSM according to applying the DWA for the mismatches between each unit element that occur randomly in the 3-bit DAC. To investigate the change in the dynamic characteristics of the DSM with respect to the mismatch of the 3-bit DAC, the simulation was performed by using the behavioral model designed in the MATLAB Simulink shown in Figure 1a. The mismatch between the unit elements of the 3-bit DAC is designed to be determined by a random function with a specified maximum mismatch value. Mismatches of 0.1%, 1%, and 5% between the unit elements of the 3-bit DAC worsen the average SNDR of the DSM to 77.37 dB, 56.25 dB, and 42.40 dB. The standard deviations in these cases are 5.25, 5.84, and 5.29, respectively, as shown in Figure 3a. The DWA improves the dynamic performances of the DSM, which are worsened by the mismatch of the 3-bit DAC, and Figure 3b shows the improved SNDR of the DSM when the DWA is applied for a 3-bit DAC with mismatches. When the mismatch between the unit elements of the 3-bit DAC is 0.1% and 1%, the average SNDR of the DSM is 108.74 dB and 108.37 dB, respectively. Even when the mismatch between the unit elements of the 3-bit DAC is 5%, the average SNDR of the DSM remains at 104.57 dB. The use of DWA also improves the deviation to 0.84, 1.2, and 1.76 in each case.

3. Transistor-Level Design of Second-Order CIFF DSM with 3-Bit Quantizer

The proposed second-order CIFF DSM with a 3-bit quantizer, shown in Figure 4a, consists of a first integrator including a 3-bit capacitor array, a second integrator, and a 3-bit successive approximation register (SAR) ADC for the 3-bit quantizer [23,24,25]. The CDAC capacitor array used for the operation of the 3-bit SAR ADC also performs the summation operations required by the CIFF structure. This can reduce the area of the DSM using the CIFF structure. The 3-bit capacitor array in the first integrator is used as a sampling capacitor for sampling an analog input signal and a CDAC for feedback corresponding to the 3-bit quantization. Therefore, it consists of seven unit capacitors, which are connected in parallel and controlled equally when used as sampling capacitors, and act as a 3-bit CDAC for the feedback operation of the DSM. The mismatch between the seven unit capacitors causes distortion in the output of the DSM when the 3-bit capacitor array operates as a 3-bit CDAC. To reduce this effect, a DWA circuit is used in this work for dynamic element matching of the capacitors of the seven units. On the other hand, the proposed second-order CIFF DSM has a full rail-to-rail range of analog input signals. For its implementation, the reference voltage of the full rail-to-rail input is typically supplied to a 3-bit capacitor array used as a 3-bit CDAC. If the full rail-to-rail reference voltage is generated via a reference driver, the implementation of the reference driver requires a supply voltage range that is larger than the range of the reference voltage, i.e., an additional supply voltage separate from the supply voltage for the DSM must be supplied to the reference driver. This can be a burden in system designs that use DSMs. Therefore, this design does not use a separate reference driver and uses the supply voltage used for the second-order CIFF DSM as the reference voltage for the 3-bit capacitor array. The output voltage of the first integrator is defined as shown in Equation (2), where CS1 and CI1 have the same value, and k is the decimal value of the digital output of the 3-bit SAR ADC, from 0 to 7. Therefore, the proposed CIFF DSM has a full rail-to-rail input range.
V I N T 1 n = V I N T 1 n − 1 + C S 1 C I 1 · V I N n + C S 1 C I 1 · ( 7 − 2 k 7 ) · ( V D D − V S S )
The second-order CIFF DSM using the proposed 3-bit quantizer performs the sampling of the differential analog input signal (INP and INM) and its quantization into a 3-bit digital signal every six cycles of the external clock (EX_CLK), as shown in Figure 4b. The differential analog input signal is sampled into the 3-bit capacitor array and the CDAC capacitor array during one cycle of EX_CLK, and then the signal sampled into the CDAC capacitor array is quantized through the operation of the SAR ADC for three cycles of EX_CLK and output as a 3-bit digital code. The 3-bit digital code is supplied to the 3-bit capacitor array during the Φ2 section through the DWA operation performed during one cycle of EX_CLK to perform the feedback operation of the DSM with the 3-bit quantizer.

3.1. CDAC Capacitor Array

The CDAC capacitor array consists of a total of 16 unit capacitors to achieve a voltage gain of 1:2:1 for the analog input signal, the first integrator output, and the second integrator output. For sampling the analog input signal, 4 CUs of capacitors CA2, CA1, and CA0 are used. Overall, 8·CU of CB and 4·CU of CC are used to sum the first integrator output signal and the second integrator output signal to perform the operation of the DSM with CIFF structure. Figure 5a shows the circuit connections of the CDAC capacitor array for the sampling operation as a first step to proceed with the quantization along with the summation of the three analog signals. During the Φ1 interval shown in Figure 4b, the tops of all capacitors of the CDAC capacitor array are connected to the VCM, while the bottoms of CA2, CA1, and CA0 are connected to the analog input signal, the bottom of CB is connected to the first integrator output signal, and the bottom of CC is connected to the second integrator output signal. This results in a summed sampling of the three analog signals with a voltage gain of 1:2:1. Through this process, the summation behavior required by the CIFF structure of the DSM is performed. The operation of the SAR ADC for 3-bit quantization is performed using 4 CUs of the 16 CUs of the CDAC capacitor array, which are the capacitors of CA1 to CA3. The operation of the SAR ADC utilizes a VCM-based CDAC [26], where all 16 CUs are switched to VCM voltage, as shown in Figure 5b, after the sampling operation of the analog signals shown in Figure 5a. Figure 5c shows the VREF switching for the operation of a 3-bit SAR ADC. CA2 is then connected to VREFP or VREFM depending on the value of the D [2], which is the result of the comparator for the values of VDACP and VDACM. D [1], the result of the comparison of the values of VDACP and VDACM, updated by the previous CDAC operation, determines the reference value that drives CA1. Finally, after the CDAC is converted a second time, the comparator determines D [0], the value of the LSB of the final 3-bit quantizer. In this 3-bit quantization operation, CA0 is still connected to the voltage of the VCM.

3.2. Operational Amplifier for Integrator

Figure 6 shows the circuit diagram of the operational amplifier for the first and second integrators, the basic architecture of a two-stage operational amplifier. In the two-stage operational amplifier, RZ and CZ are added for frequency compensation to improve the stability of the frequency response due to the operation of the two-stage amplification. The CMFB voltage generated by the common-mode feedback circuit of the switching capacitor structure controls the output common-mode voltage of the fully differential structure operational amp to be half VDD. Furthermore, to reduce the input referred noise, the transistors used for the first stage in the operational amplifier have a length of 2 μm, which is approximately 15 times larger than the minimum length of the CMOS process used in this work. The two-stage operational amplifier is designed at 70 dB to achieve an open-loop voltage gain of over 60 dB, determined by behavioral simulation, and has a phase margin of over 60 degrees with frequency compensation.

4. Chip Implement and Measurement Results

The proposed second-order CIFF DSM with 3-bit quantizer was fabricated using a 130 nm 1-poly 6-metal CMOS process with a 1.5 V supply voltage. The sampling frequency of the proposed second-order CIFF DSM is 500 kHz to implement an input bandwidth of 2 kHz and an oversampling ratio of 125. To implement this, the EX_CLK signal with a frequency of 3 MHz is fed to the implemented second-order CIFF DSM.
The proposed second-order CIFF DSM has an active area of 359 μm × 267 μm, as shown in Figure 7a. The first integrator, including the 3-bit capacitor array, occupies an area of 22,320 μm2, making it the largest area in the implemented second-order CIFF DSM. The second integrator has an area of 18,600 μm2, and the CDAC capacitor array and comparator have an area of 7800 μm2. Finally, the digital blocks of the SAR logic and DWA are implemented using an area of 20,300 μm2. The digital blocks were separated from the two integrators to reduce the impact of digital noise. Figure 7b through Figure 7d show the layout of the first integrator, second integrator, and CDAC capacitor array and comparator for the 3-bit SAR ADC, respectively. The same operational amplifier with an area of 183 μm × 50 μm was used for both integrators. The capacitors for the first integrator including the 3-bit capacitor array and the second integrator including the second sampling capacitor were designed using stacked metal–insulator–metal capacitors (MIMs) as unit capacitors to reduce the possible area, as shown in Figure 7b,c. The unit stacked MIM capacitor realized by the 4 μm × 4 μm area, the smallest size supported by the process used in this work, has a capacitance of 66 fF. On the other hand, the CDAC capacitor array used for the operation of the 3-bit SAR ADC and the summation operation of the CIFF uses a conventional MIM shown in Figure 7d instead of a stacked MIM to reduce power consumption, reducing the capacity of the unit capacitor to 33 fF.
As shown in Table 1, the power consumption of the proposed second-order CIFF DSM is 304.6 μW. The analog block, including the two integrators, consumes 294.8 μW, accounting for 96.8% of the total. In this work, the proposed second-order CIFF DSM did not use a reference driver separately although having the range of a full rail-to-rail analog input signal. Instead, decoupling capacitors between the two power voltages were placed in the empty space between the circuits and under the power lines to stabilize VDD and VSS, which are used as reference voltages. Therefore, the area and power consumption due to the reference driver are not increased.
Figure 8 shows the test environment for the implemented second-order CIFF DSM with 3-bit quantizer. The analog differential input signal was sourced from Audio Precision equipment (Beaverton, OR, USA). The NI PXIe-5451 was used to supply the external clock signal (EX_CLK) for the second-order CIFF DSM with a 3-bit quantizer and acquire the 3-bit output digital code. The performance of the implemented second-order CIFF DSM was analyzed through signal processing using LabVIEW 2021 software for the acquired digital output code.
Figure 9 and Figure 10 show the measured results of the proposed second-order CIFF DSM with 3-bit quantizer. The measurements of the fabricated second-order CIFF DSM were performed with a sampling rate of 500 kHz to realize an oversampling ratio of 125 for an input bandwidth of 2 kHz. For this evaluation, the frequency of EX_CLK was determined to be 3 MHz. In addition, a differential analog input signal with a frequency of 353 Hz and an amplitude of 1.2 Vpp was supplied for evaluation. Figure 9 shows the real-time waveform of the measured 3-bit output of the proposed second-order CIFF DSM, expressed as a decimal value. The digital output of the second-order CIFF DSM is a PWM signal with eight voltage levels, ranging from 0 to 7, as decimal values for a sinusoidal analog input signal. The measured dynamic performances of the implemented second-order CIFF DSM are shown in Figure 10. Figure 10a is the power spectral density obtained by performing a fast Fourier transform on the measured 3-bit output of the second-order CIFF DSM. The spectral density increased with increasing frequency after 2 kHz with a slope of 40 dB/dec. This validates the behavioral of noise shaping by the second-order structure of the proposed DSM. The measured peak SNDR for a bandwidth of 2 kHz is approximately 90 dB. Figure 10b shows the power spectrum density for the measured output code of the second-order CIFF DSM when the two signals for the differential analog inputs are shorted to a voltage in common mode. This measurement shows the noise of the implemented second-order CIFF DSM itself, without the influence of the differential analog input signal. The measured power spectrum density for the noise of the 3-bit output of the second-order CIFF DSM is the same as in Figure 10a, showing that noise shaping is performed as the frequency increases. However, within a bandwidth of 2 kHz, the harmonic components for the analog input signal do not appear. Also, the measured noise floor over the frequency range of DC to 2 kHz is approximately 120 dB. In addition, the measured dynamic range (DR) over a bandwidth of 2 kHz is approximately 96.3 dB.
Figure 11 shows the dynamic performance as a function of the amplitude of the analog input signal. From the results shown in Figure 10b, when an analog signal of −96.3 dB is supplied, the implemented second-order CIFF DSM has a SNDR of 0 dB. As the magnitude of the analog signal increases, the dynamic performance of the second-order CIFF DSM increases, with a maximum SNDR of 90.16 dB when the analog signal is −1.94 dB, as shown in Figure 10a. In this case, the analog input signal of the second-order CIFF DSM has a voltage range of 0.15 V to 1.35 V. If an analog input voltage greater than this was fed to the second-order CIFF DSM, the two integrator outputs of the DSM would saturate and the SNDR characteristics of the second-order CIFF DSM would deteriorate rapidly.
Table 2 compares the performance of the proposed second-order CIFF DSM with reported CIFF DSMs implemented using a similar process. The CIFF DSMs presented in [27] and [28] have large bandwidths above 20 kHz and SNDR characteristics above 90 dB. The large bandwidth implementation results in relatively high-power consumption. The CIFF DSMs presented in [29,30] have small bandwidths of less than 1 kHz while consuming less power. These CIFF DSMs also utilize a third-order CIFF structure, similar to the structure of the CIFF DSM in [28], and have an area at least four times larger than the area of the second-order CIFF DSM proposed in this work. The CIFF DSM reported in [31] has a similar second-order structure and multi-bit quantizer to the CIFF DSM proposed in this work, with comparable design specifications. It is characterized by an SNDR of up to 93.9 dB with smaller power consumption than the proposed second-order CIFF DSM, but with a relatively large area.

5. Conclusions

The second-order CIFF DSM with 3-bit quantizer was implemented using a 130 nm 1-poly 6-metal CMOS process with a supply of 1.5 V. It was designed using the two integrators, the 3-bit quantizer, the DWA circuit, and the clock generator to have a small area and low power characteristics to be suitable for ROICs in sensor applications. The SAR ADC-based 3-bit quantizer was used to reduce the integration capacitor size of the first integrator to implement a small area and low power second-order CIFF DSM. The CDAC capacitor array used for the operation of the 3-bit SAR ADC also performs the summing operation. This eliminates the additional circuit for summation required by the DSM in the CIFF structure. An additional 3-bit CDAC was used to feedback the results of the 3-bit quantizer to the first integrator. On the other hand, while the nonlinearity of the 3-bit CDAC within the SAR ADC does not significantly affect the overall characteristics of the DSM, the nonlinearity of the 3-bit DAC for feedback to the first integrator on the output of the 3-bit quantizer significantly worsens the dynamic characteristics of the DSM. In this work, the DWA circuit was used to prevent the deterioration of the characteristics of the proposed second-order CIFF DSM due to the nonlinearity of the 3-bit DAC. In addition, the proposed second-order CIFF DSM does not use an additional reference driver despite having a full rail-to-rail analog input range. As a result, the proposed second-order CIFF DSM further reduces area and power consumption due to the elimination of the reference driver. The proposed second-order CIFF DSM has an area of 0.096 mm2. Its input bandwidth and OSR are 2 kHz and 125, respectively. The DR and peak SNDR of the implemented second-order CIFF DSM were measured to be approximately 96.3 dB and 90 dB, respectively, when of the differential analog input signal has a frequency of 353 Hz. The proposed second-order CIFF DSM, implemented with digital filters, can be used as a high-resolution ADC for small areas and low power ROIC.

Author Contributions

Conceptualization, J.K., N.J., W.D. and Y.-C.J.; Design and implementation, J.K., N.J. and W.D.; Measurement, J.K. and N.J.; Writing and editing, all authors; Supervision, Y.-C.J.; Funding acquisition, Y.-C.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Priority Research Centers Program (2018R1A6A1A03024003) and Basic Science Research Program (2020R1I1A3071634) through the NRF funded by the Ministry of Education, and Innovative Human Resource Development for Local Intellectualization Program (IITP-2024-2020-0-01612) through the IITP funded by the MSIT, Republic of Korea.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The EDA tool was supported by the IC Design Education Center, Republic of Korea.

Conflicts of Interest

Authors Wonkyu Do, Euihoon Jung, Hongjin Kim and Hojin Park were employed by the company ABOV Semiconductor. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Marefat, F.; Erfani, R.; Mohseni, P. A 1-V 8.1-μW PPG-Recording Front-End with >92-dB DR Using Light-to-Digital Conversion with Signal-Aware DC Subtraction and Ambient Light Removal. IEEE Solid-State Circ. Lett. 2020, 3, 17–20. [Google Scholar] [CrossRef]
  2. Greenwald, E.; So, E.; Wang, Q.; Mollazadeh, M.; Maier, C.; Etienne-Cummings, R.; Cauwenberghs, G.; Thakor, N. A Bidirectional Neural Interface IC with Chopper Stabilized BioADC Array and Charge Balanced Stimulator. IEEE Trans. Biomed. Circuits Syst. 2016, 10, 990–1002. [Google Scholar] [CrossRef] [PubMed]
  3. Gagnon-Turcotte, G.; Khiarak, M.N.; Ethier, C.; De Koninck, Y.; Gosselin, B. A 0.13-μm CMOS SoC for Simultaneous Multichannel Optogenetics and Neural Recording. IEEE J. Solid-State Circuits 2018, 53, 3087–3100. [Google Scholar] [CrossRef]
  4. Lakdawala, H.; Li, Y.W.; Raychowdhury, A.; Taylor, G.; Soumyanath, K. A 1.05 V 1.6 mW, 0.45 °C 3σ Resolution ΣΔ Based Temperature Sensor with Parasitic Resistance Compensation in 32 nm Digital CMOS Process. IEEE J. Solid-State Circuits 2009, 44, 3621–3630. [Google Scholar] [CrossRef]
  5. Pan, S.; Makinwa, K.A.A. A 0.25 mm2-Resistor-Based Temperature Sensor with an Inaccuracy of 0.12 °C (3σ) from −55 °C to 125 °C. IEEE J. Solid-State Circuits 2018, 53, 3347–3355. [Google Scholar] [CrossRef]
  6. Maruyama, M.; Taguchi, S.; Yamanoue, M.; Iizuka, K. An Analog Front-End for a Multifunction Sensor Employing a Weak-Inversion Biasing Technique with 26 nVrms, 25 aCrms, and 19 fArms Input-Referred Noise. IEEE J. Solid-State Circuits 2016, 51, 2252–2261. [Google Scholar] [CrossRef]
  7. Mao, W.; Li, Y.; Heng, C.-H.; Lian, Y. A Low Power 12-bit 1-kS/s SAR ADC for Biomedical Signal Processing. IEEE Trans. Circuits Syst. I Regul. Pap. 2019, 66, 477–488. [Google Scholar] [CrossRef]
  8. Harikumar, P.; Wikner, J.J.; Alvandpour, A. A 0.4-V Subnanowatt 8-Bit 1-kS/s SAR ADC in 65-nm CMOS for Wireless Sensor Applications. IEEE Trans. Circuits Syst. II Express Briefs 2016, 63, 743–747. [Google Scholar] [CrossRef]
  9. Li, H.; Shen, Y.; Xin, H.; Cantatore, E.; Harpe, P. A 7.3-μW 13-ENOB 98-dB SFDR Noise-Shaping SAR ADC with Duty-Cycled Amplifier and Mismatch Error Shaping. IEEE J. Solid-State Circuits 2022, 57, 2078–2089. [Google Scholar] [CrossRef]
  10. Hu, J.; Li, D.; Liu, M.; Zhu, Z. A 10-kS/s 625-Hz-Bandwidth 65-dB SNDR Second-Order Noise-Shaping SAR ADC for Biomedical Sensor Applications. IEEE Sens. J. 2020, 20, 13881–13891. [Google Scholar] [CrossRef]
  11. Chen, C.-H.; He, T.; Zhang, Y.; Temes, G.C. Incremental Analog-to-Digital Converters for High-Resolution Energy-Efficient Sensor Interfaces. IEEE J. Emerg. Sel. Top. Circuits Syst. 2015, 5, 612–623. [Google Scholar] [CrossRef]
  12. Tao, S.; Rusu, A. A Power-Efficient Continuous-Time Incremental Sigma-Delta ADC for Neural Recording Systems. IEEE Trans. Circuits Syst. I Regul. Pap. 2015, 62, 1489–1498. [Google Scholar] [CrossRef]
  13. Deligoz, I.; Naqvi, S.R.; Copani, T.; Kiael, S.; Bakkaloglu, B.; Je, S.-S.; Chae, J. A MEMS-Based Power-Scalable Hearing Aid Analog Front End. IEEE Trans. Biomed. Circuits Syst. 2011, 5, 201–213. [Google Scholar] [CrossRef]
  14. Park, S.Y.; Cho, J.; Na, K.; Yoon, E. Modular 128-Channel ∆-∆Σ Analog Front-End Architecture Using Spectrum Equalization Scheme for 1024-Channel 3-D Neural Recording Microsystems. IEEE J. Solid-State Circuits 2018, 53, 501–514. [Google Scholar] [CrossRef]
  15. Chen, M.-C.; Perez, A.P.; Kothapalli, S.-R.; Cathelin, P.; Cathelin, A.; Gambhir, S.S.; Murmann, B. A Pixel Pitch-Matched Ultrasound Receiver for 3-D Photoacoustic Imaging with Integrated Delta-Sigma Beamformer in 28-nm UTBB FD-SOI. IEEE J. Solid Circuits 2017, 52, 2843–2856. [Google Scholar] [CrossRef]
  16. Silva, J.; Moon, U.; Steensgaard, J.; Temes, G.C. Wideband low-distortion delta-sigma ADC topology. Electron. Lett. 2001, 37, 737. [Google Scholar] [CrossRef]
  17. Wang, Y.; Hanumolu, P.K.; Temes, G.C. Design Techniques for Wideband Discrete-Time Delta-Sigma ADCs with Extra Loop Delay. IEEE Trans. Circuits Syst. I Regul. Pap. 2011, 58, 1518–1530. [Google Scholar] [CrossRef]
  18. Nam, K.; Lee, S.-M.; Su, D.K.; Wooley, B.A. A Low-Voltage Low-Power Sigma-Delta Modulator for Broadband Analog-to-Digital Conversion. IEEE J. Solid-State Circuits 2005, 40, 1855–1864. [Google Scholar] [CrossRef]
  19. Lee, I.; Kim, B.; Lee, B.-G. A Low-Power Incremental Delta-Sigma ADC for CMOS Image Sensors. IEEE Trans. Circuits Syst. II Express Briefs 2016, 63, 371–375. [Google Scholar] [CrossRef]
  20. Baird, R.; Fiez, T. Linearity enhancement of multibit ΔΣ A/D and D/A converters using data weighted averaging. IEEE Trans. Circuits Syst. II Analog. Digit. Signal Process 1995, 42, 753–762. [Google Scholar] [CrossRef]
  21. Markus, J.; Silva, J.; Temes, G.C. Theory and Applications of Incremental ΔΣ Converters. IEEE Trans. Circuits Syst. I Regul. Pap. 2004, 51, 678–690. [Google Scholar] [CrossRef]
  22. Chen, A.J.; Xu, Y.P. Multibit Delta-Sigma Modulator with Noise-Shaping Dynamic Element Matching. IEEE Trans. Circuits Syst. I Regul. Pap. 2009, 56, 1125–1133. [Google Scholar] [CrossRef]
  23. Liu, L.; Li, D.; Ye, Y.; Chen, L.; Wang, Z. A 95 dB SNDR audio ΔΣ modulator in 65 nm CMOS. In Proceedings of the 2011 IEEE Custom Integrated Circuits Conference, San Jose, CA, USA, 19–21 September 2011. [Google Scholar] [CrossRef]
  24. Samid, L.; Manoli, Y. A multibit continuous time sigma delta modulator with successive-approximation quantizer. In Proceedings of the 2006 IEEE International Symposium on Circuits and Systems, Kos, Greece, 21–24 May 2006. [Google Scholar] [CrossRef]
  25. Ma, S.; Liu, L.; Fang, T.; Liu, J.; Wu, N. A Discrete-Time Audio ΔΣ Modulator Using Dynamic Amplifier with Speed Enhancement and Flicker Noise Reduction Techniques. IEEE J. Solid-State Circuits 2020, 55, 333–343. [Google Scholar] [CrossRef]
  26. Zhu, Y.; Chan, C.H.; Chio, U.F.; Sin, S.W.; Seng-Pan, U.; Martins, R.P.; Maloberti, F. A 10-bit 100-MS/s reference-free SAR ADC in 90 nm CMOS. IEEE J. Solid-State Circuits 2010, 45, 1111–1121. [Google Scholar] [CrossRef]
  27. Suanes, A.; Terés, L.; Dei, M.; Serra-Graells, F. A 0.8 mW 50 kHz 94.6 dB-SNDR Bootstrapping-Free SC Delta-Sigma Modulator ADC with Flicker Noise Cancellation. In Proceedings of the 2021 IEEE International Symposium on Circuits and Systems, Daegu, Republic of Korea, 22–28 May 2021. [Google Scholar] [CrossRef]
  28. Kumar, R.S.A.; Krishnapura, N.; Banerjee, P. Analysis and Design of a Discrete-Time Delta-Sigma Modulator Using a Cascoded Floating-Inverter-Based Dynamic Amplifier. IEEE J. Solid-State Circuits 2022, 57, 3384–3395. [Google Scholar] [CrossRef]
  29. Boni, A.; Giuffredi, L.; Pietrini, G.; Ronchi, M.; Caselli, M. A Low-Power Sigma-Delta Modulator for Healthcare and Medical Diagnostic Applications. IEEE Trans. Circuits Syst. I Regul. Pap. 2022, 69, 207–219. [Google Scholar] [CrossRef]
  30. Zhao, M.; Zhao, Y.; Zhang, H.; Hu, Y.; Bao, Y.; Ye, L.; Qu, W.; Tan, Z. A 4-μW Bandwidth/Power Scalable Delta–Sigma Modulator Based on Swing-Enhanced Floating Inverter Amplifiers. IEEE J. Solid-State Circuits 2022, 57, 709–718. [Google Scholar] [CrossRef]
  31. Han, J.-H.; Cho, K.-I.; Kim, H.-J.; Boo, J.-H.; Kim, J.S.; Ahn, G.-C. A 96 dB Dynamic Range 2 kHz Bandwidth 2nd Order Delta-Sigma Modulator Using Modified Feed-Forward Architecture with Delayed Feedback. IEEE Trans. Circuits Syst. II Express Briefs 2021, 68, 1645–1649. [Google Scholar] [CrossRef]
Electronics 13 01084 g001

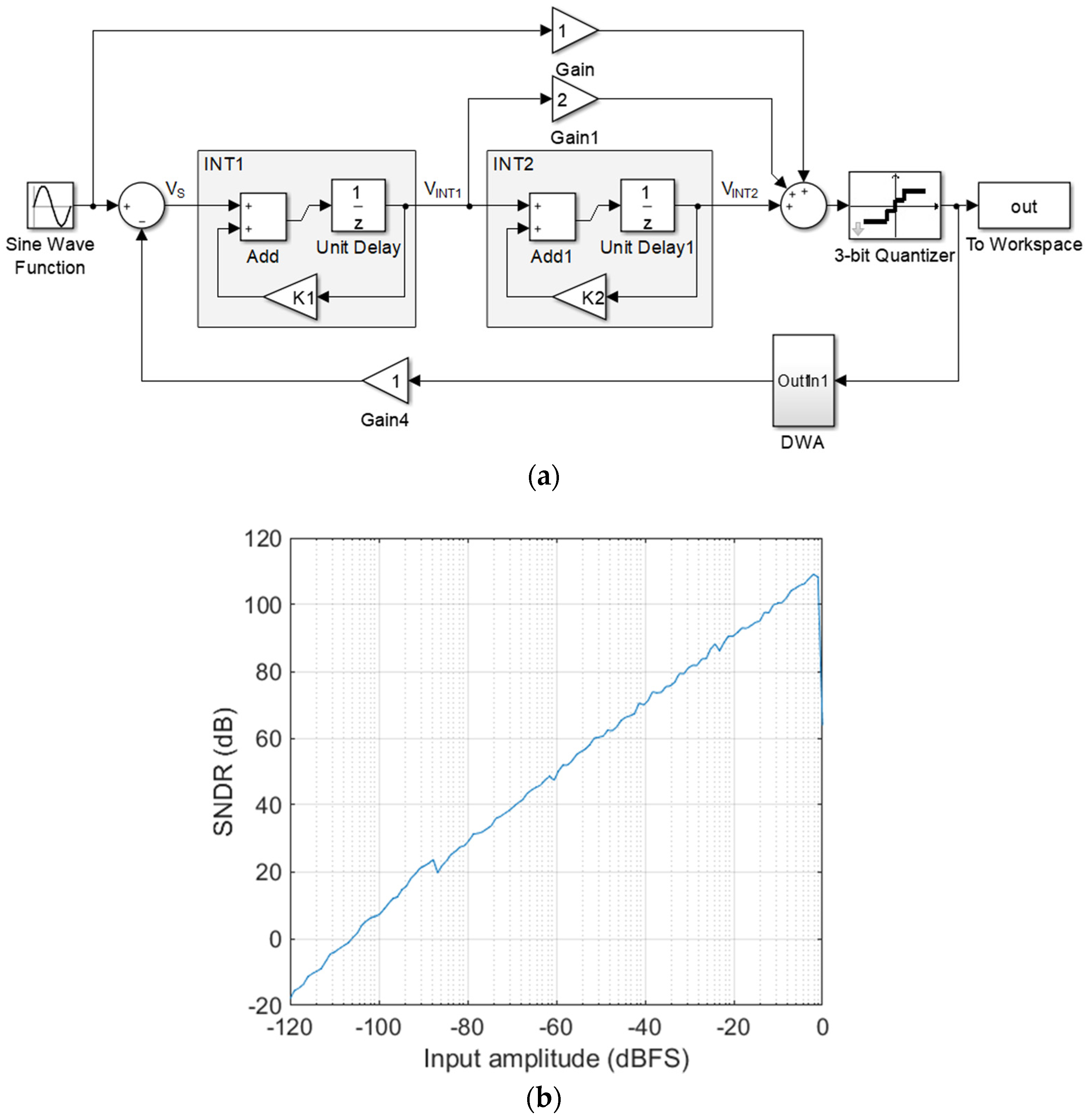

Figure 1. Behavioral design of second-order CIFF DSM: (a) block diagram; (b) simulated dynamic performance.
Figure 1. Behavioral design of second-order CIFF DSM: (a) block diagram; (b) simulated dynamic performance.
Electronics 13 01084 g001
Electronics 13 01084 g002

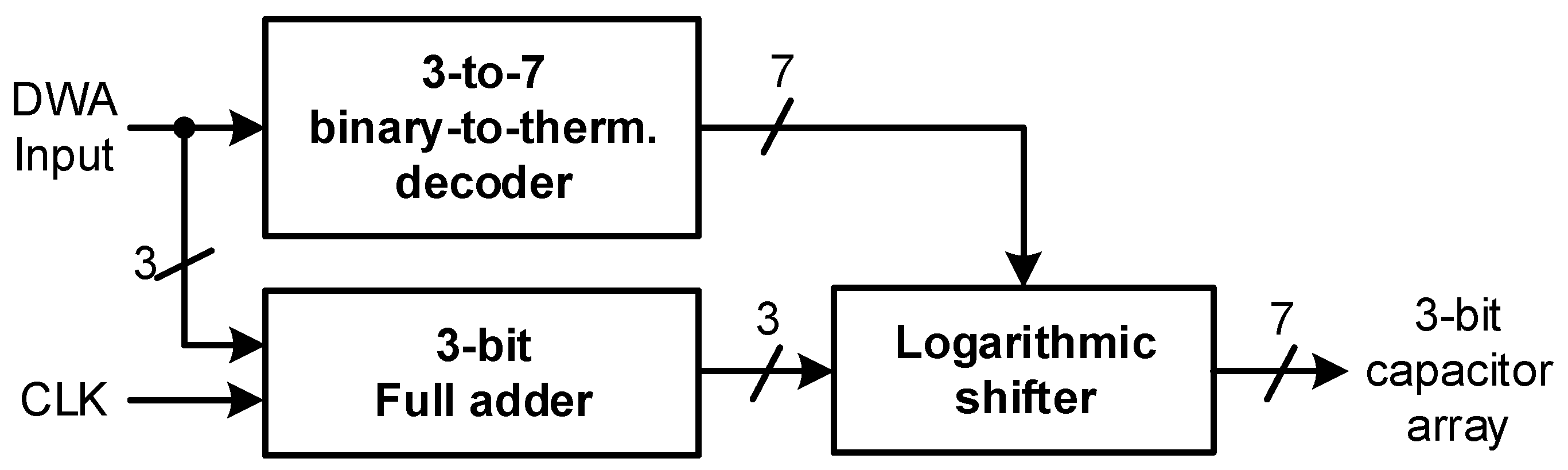

Figure 2. Block diagram of DWA.
Figure 2. Block diagram of DWA.
Electronics 13 01084 g002
Electronics 13 01084 g003aElectronics 13 01084 g003b

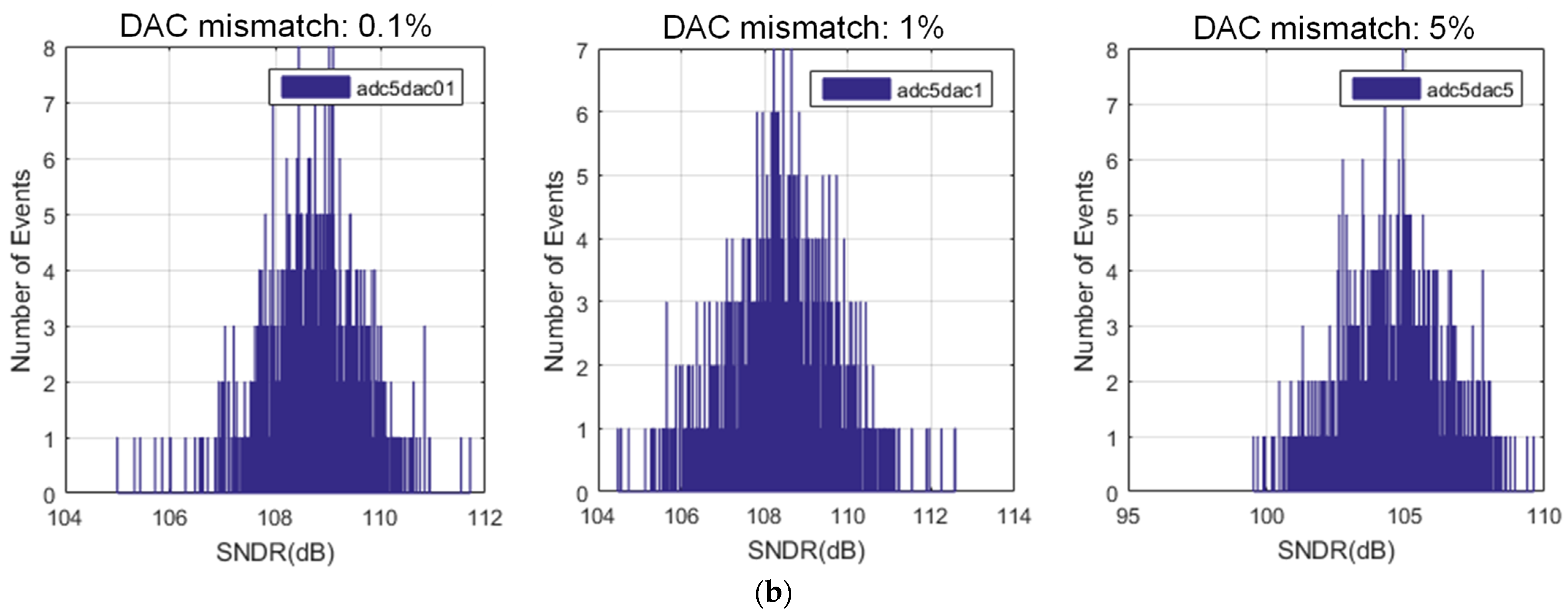

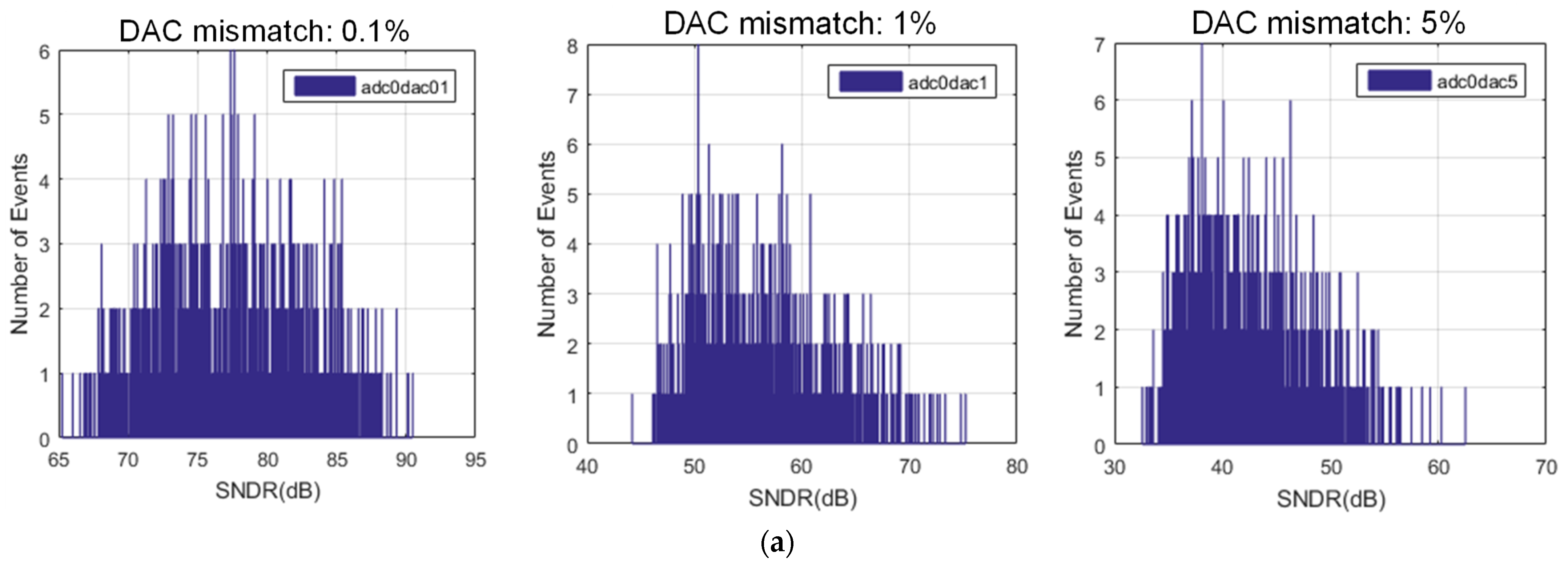

Figure 3. SNDR performances of DSM for DAC mismatch: (a) w/o DWA; (b) w/ DWA.
Figure 3. SNDR performances of DSM for DAC mismatch: (a) w/o DWA; (b) w/ DWA.
Electronics 13 01084 g003aElectronics 13 01084 g003b
Electronics 13 01084 g004

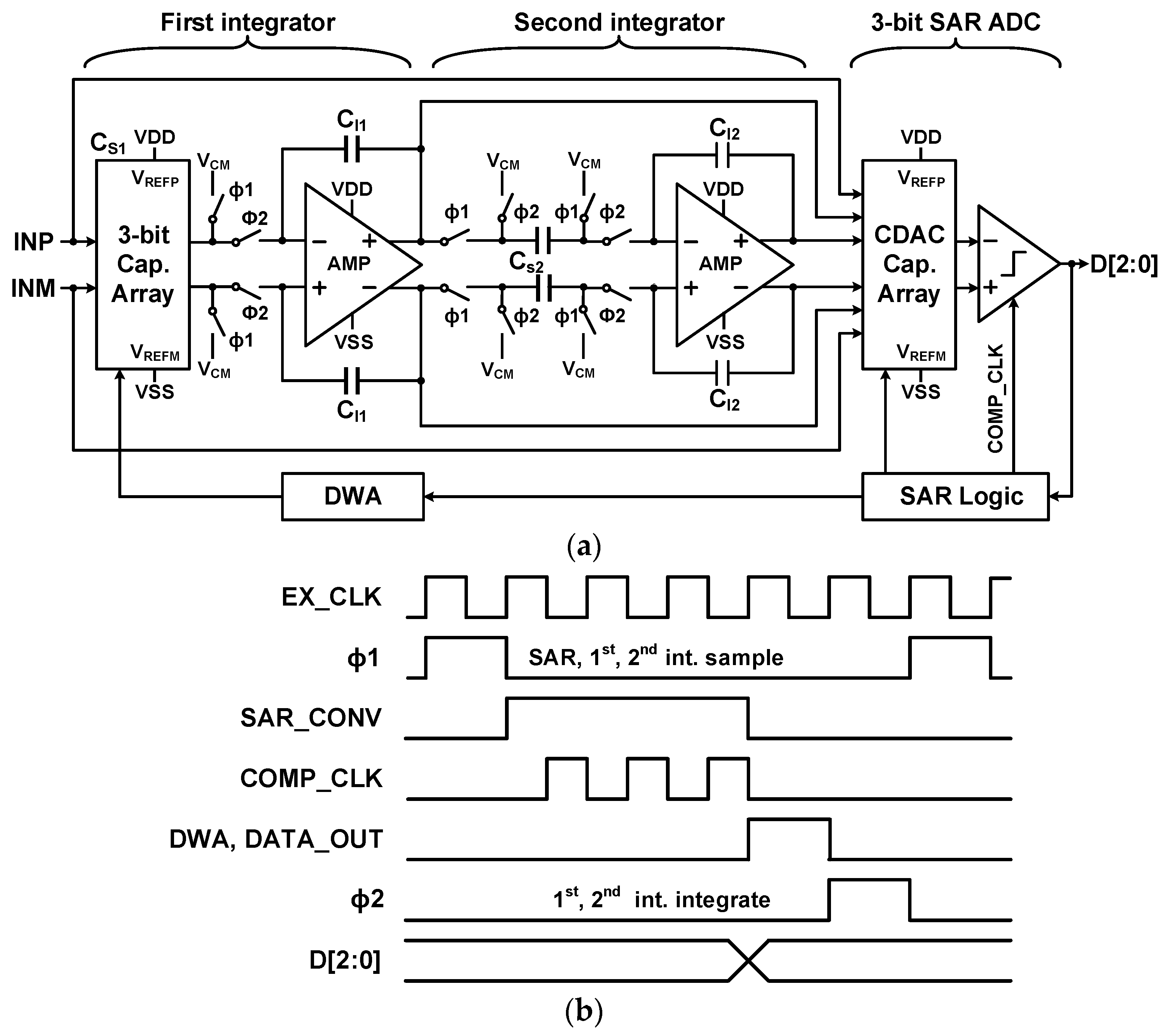

Figure 4. Transistor-level design of second-order CIFF DSM: (a) block diagram; (b) timing diagram.
Figure 4. Transistor-level design of second-order CIFF DSM: (a) block diagram; (b) timing diagram.
Electronics 13 01084 g004
Electronics 13 01084 g005

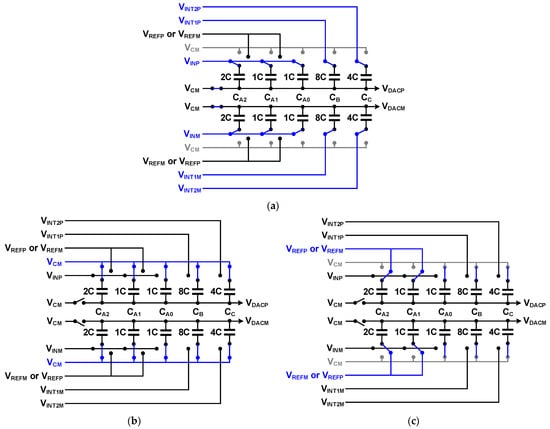

Figure 5. Configuration and behavior of CDAC capacitor array: (a) sampling mode; (b) VCM switching for 3-bit quantization; (c) VREF switching for 3-bit quantization.
Figure 5. Configuration and behavior of CDAC capacitor array: (a) sampling mode; (b) VCM switching for 3-bit quantization; (c) VREF switching for 3-bit quantization.
Electronics 13 01084 g005
Electronics 13 01084 g006

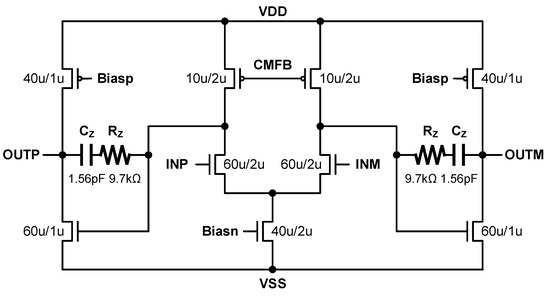

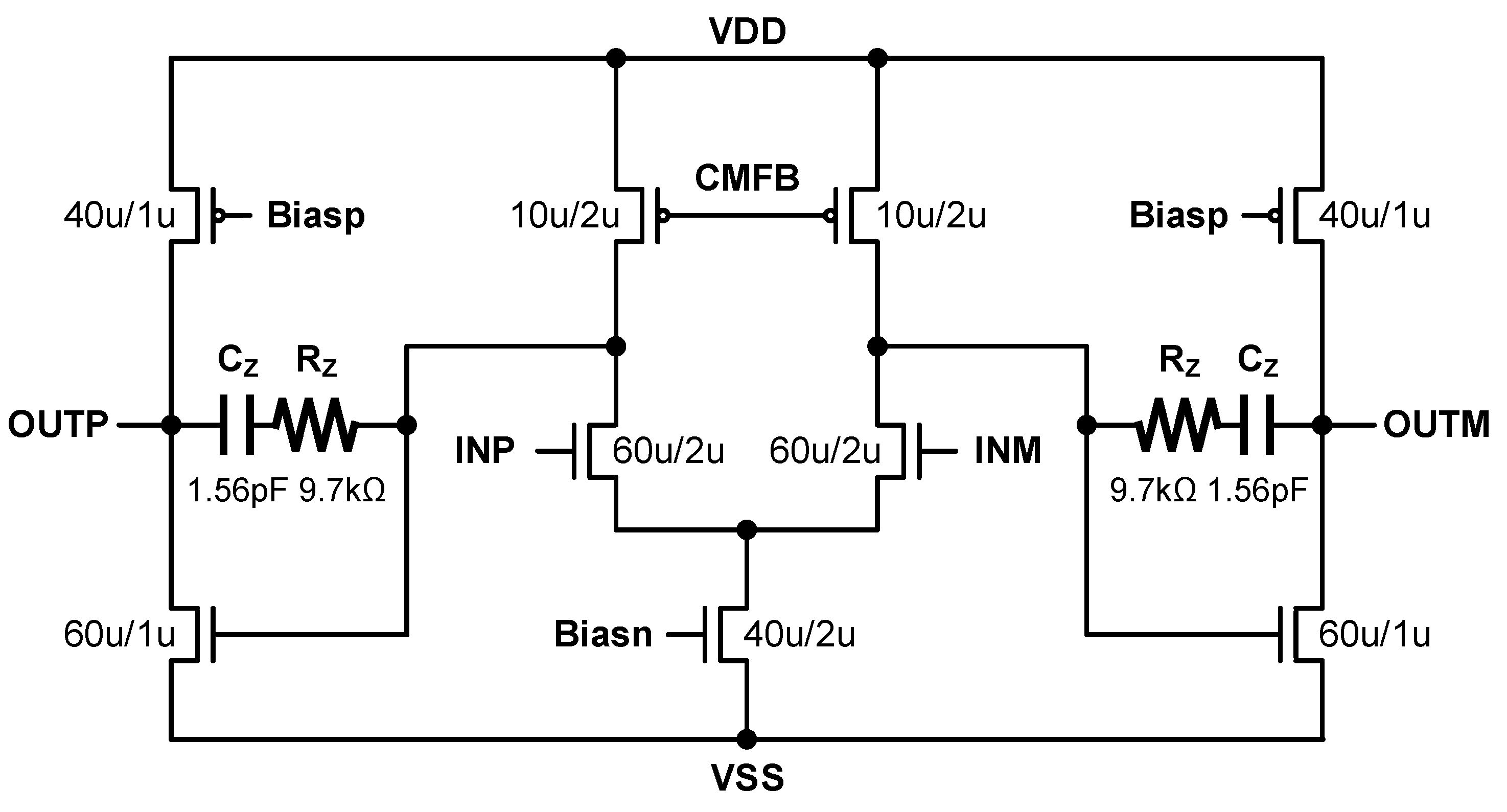

Figure 6. Circuit diagram of operational amplifier for integrator.
Figure 6. Circuit diagram of operational amplifier for integrator.
Electronics 13 01084 g006
Electronics 13 01084 g007

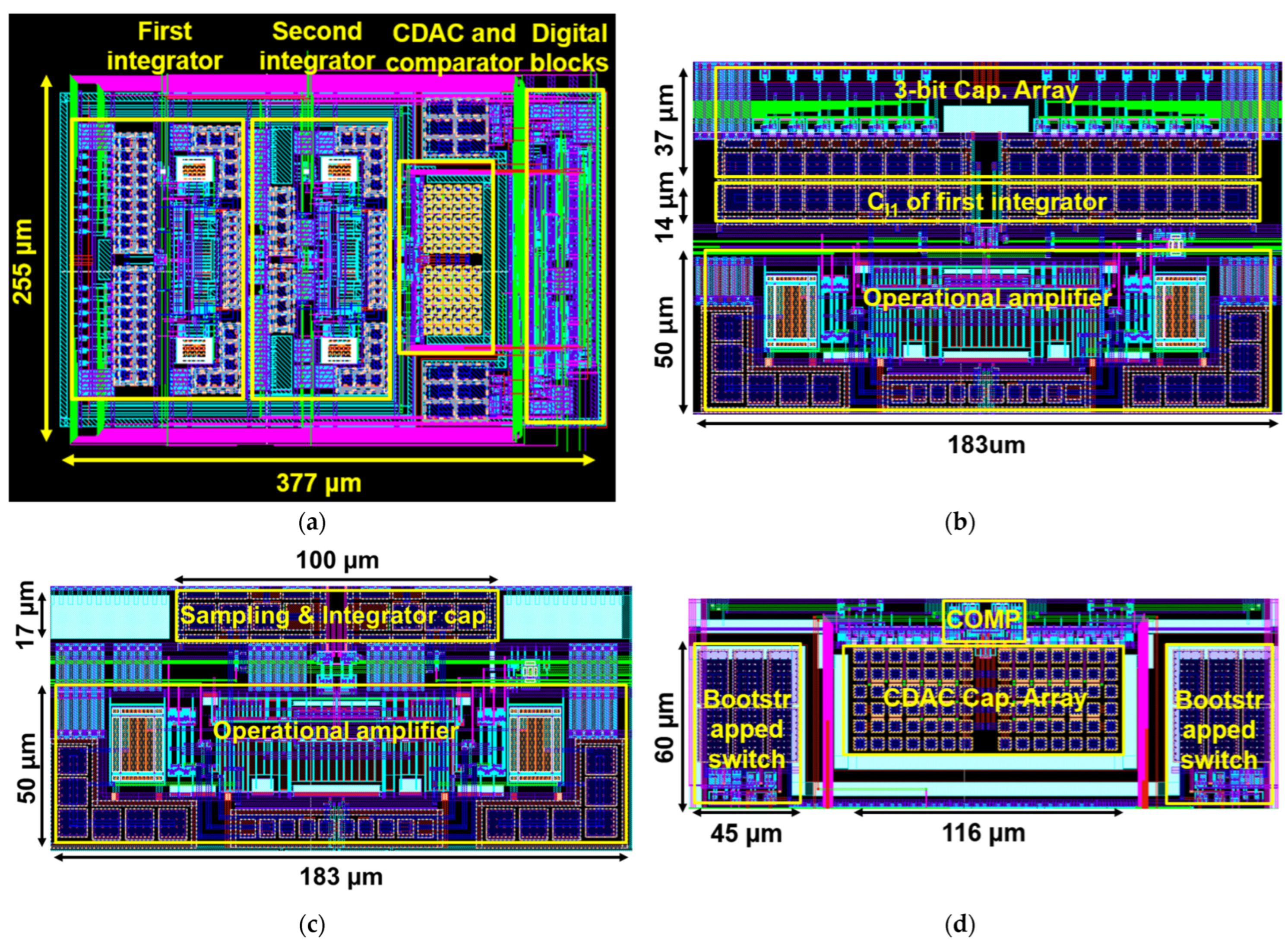

Figure 7. Layout of implemented second-order CIFF DSM (a) entire block; (b) first integrator; (c) second integrator; (d) CDAC capacitor array and comparator for 3-bit SAR ADC.
Figure 7. Layout of implemented second-order CIFF DSM (a) entire block; (b) first integrator; (c) second integrator; (d) CDAC capacitor array and comparator for 3-bit SAR ADC.
Electronics 13 01084 g007
Electronics 13 01084 g008

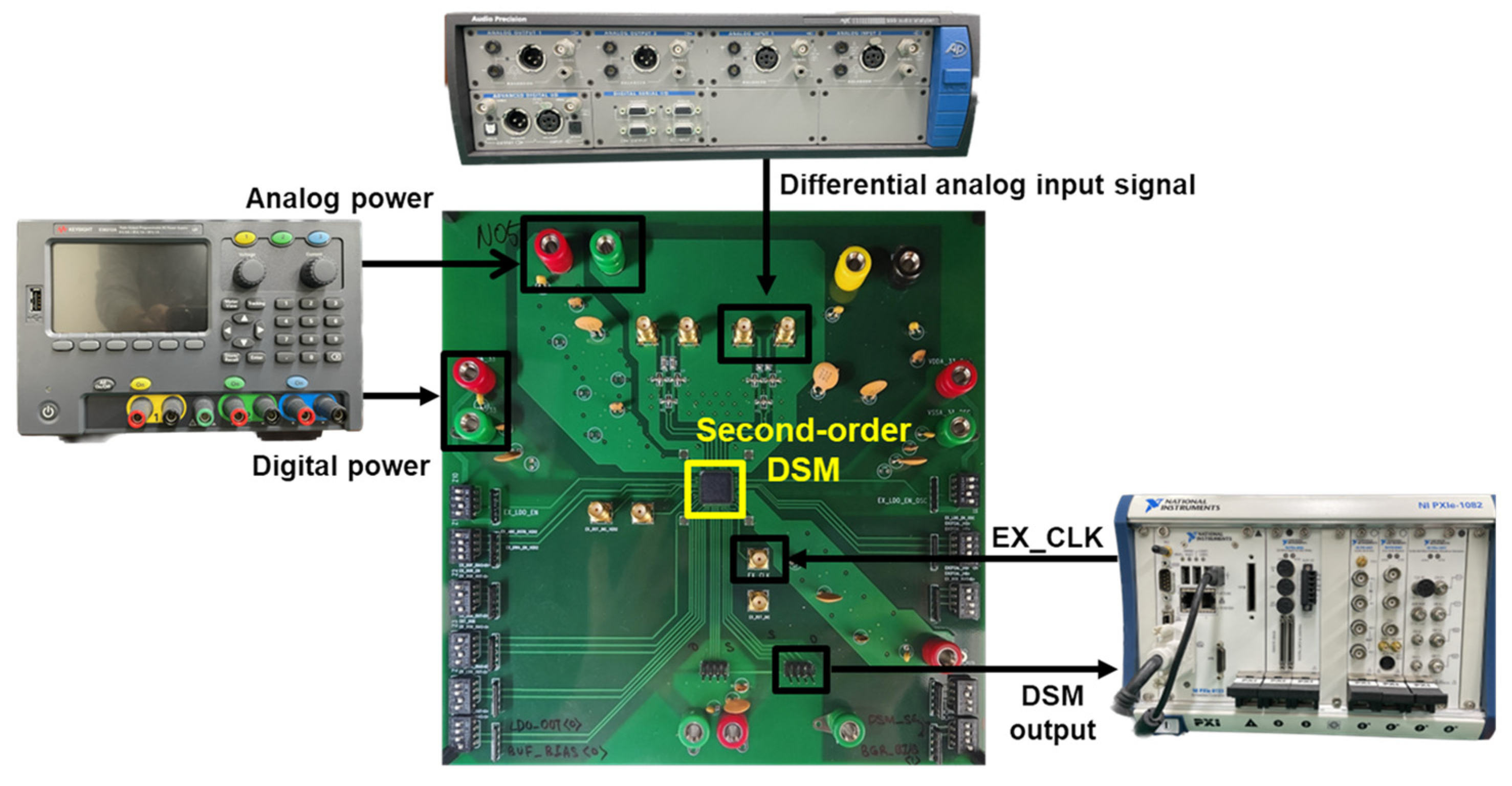

Figure 8. Test environment of implemented second-order CIFF DSM.
Figure 8. Test environment of implemented second-order CIFF DSM.
Electronics 13 01084 g008
Electronics 13 01084 g009

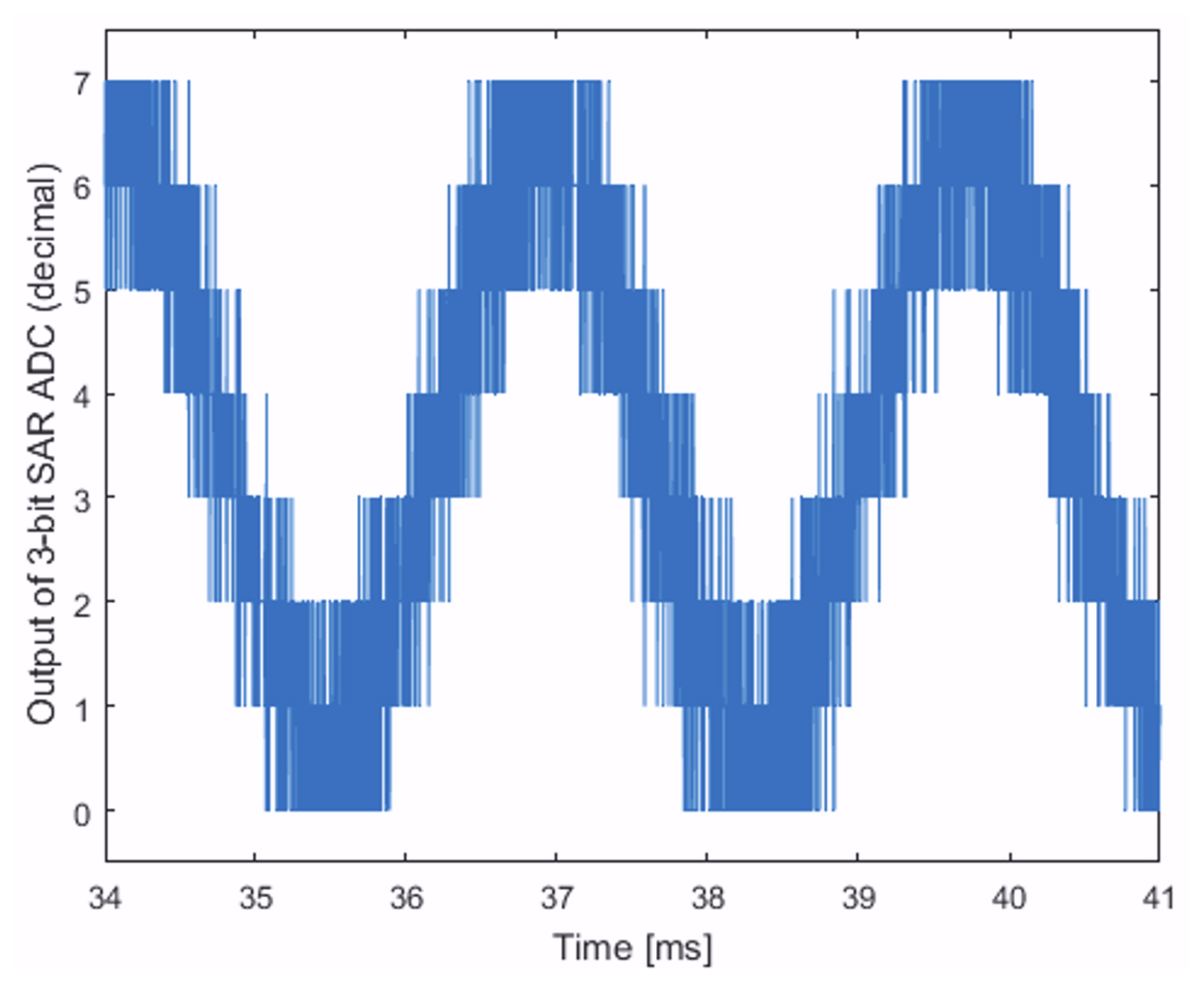

Figure 9. Measured digital output of second-order CIFF DSM.
Figure 9. Measured digital output of second-order CIFF DSM.
Electronics 13 01084 g009
Electronics 13 01084 g010

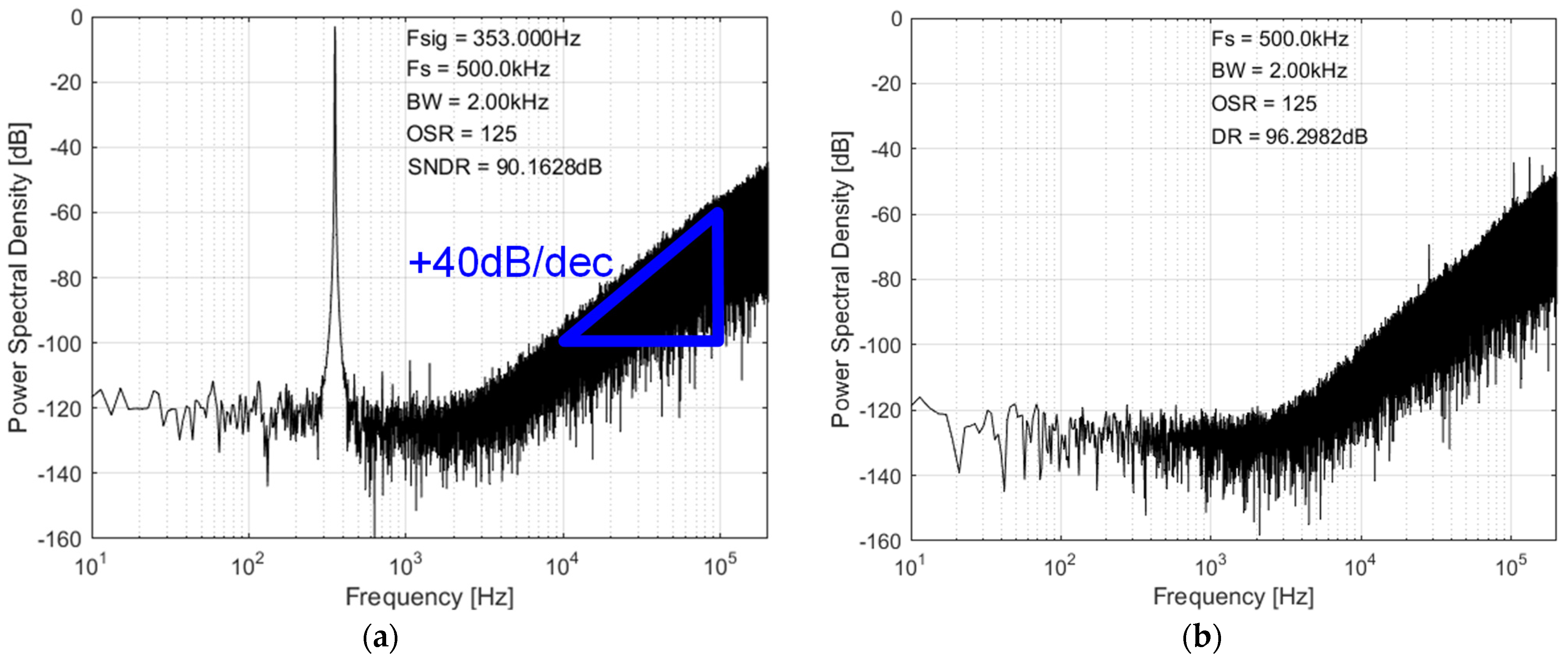

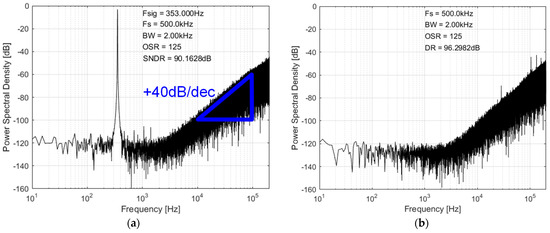

Figure 10. Measured dynamic performances of second-order CIFF DSM: (a) differential analog input signal with frequency of 353 Hz and amplitude of 1.2 Vpp; (b) no differential analog input signal.
Figure 10. Measured dynamic performances of second-order CIFF DSM: (a) differential analog input signal with frequency of 353 Hz and amplitude of 1.2 Vpp; (b) no differential analog input signal.
Electronics 13 01084 g010
Electronics 13 01084 g011

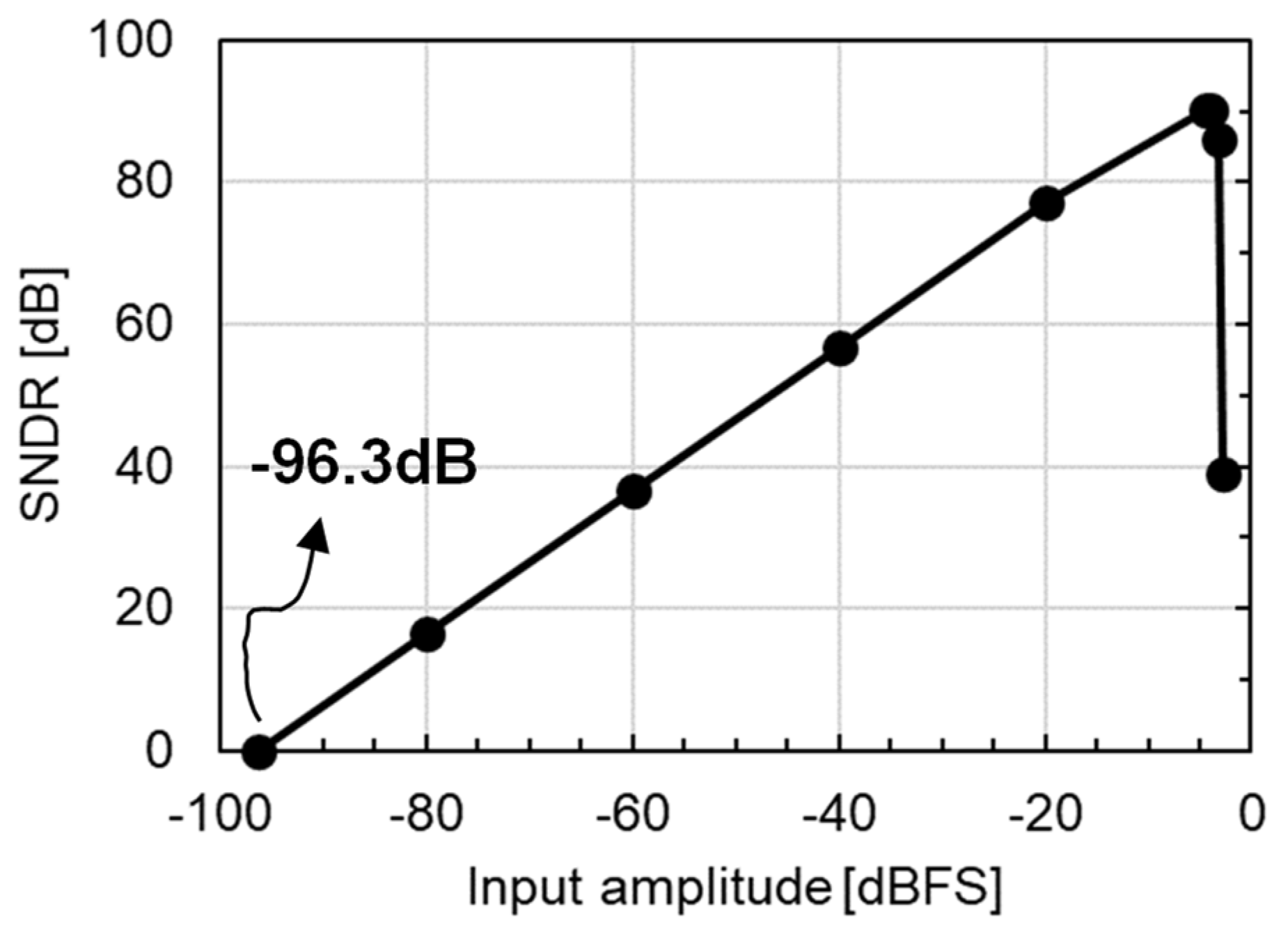

Figure 11. Dynamic performance according to amplitude of analog input signal.
Figure 11. Dynamic performance according to amplitude of analog input signal.
Electronics 13 01084 g011
Table 1. Measured digital output of second-order CIFF DSM.
Table 1. Measured digital output of second-order CIFF DSM.
BlockPower Consumption
AnalogFirst integrator147.9 μW
Second integrator146.7 μW
3-bit SAR ADC (w/o SAR Logic)227.5 nW
Digital blocks (w/SAR Logic)9.741 μW
Total304.6 μW
Table 2. Performance comparison of CIFF DSMs.
Table 2. Performance comparison of CIFF DSMs.
Item[27][28][29][30][31]This Work
Process [nm]18018090180110130
Supply voltage [V]1.81.81.21.51.51.5
Order of CIFF DSMSecondThirdThirdThirdSecondSecond
Power [μW]80034030462.43304.6
Sampling frequency [MHz]12.83.0720.250.20.5120.5
Oversampling ratio12864500125128125
Bandwidth [kHz]50240.250.822
DR [dB]-9895.694.196.394.36
SNDR [dB]94.696.29189.393.990.16
Area [mm2]0.20.80.390.750.1650.096
