1. Introduction
There is a rise in renewable energy (RE) due to the increase in the cost of fossil fuels and the environmental problems arising from their exploitation. Reports from International Energy Agency and Renewable Energy Policy Network show that the total installed capacity of solar PV systems in 2009 was 23 GW, which increased by five times, to 137 GW, in 2013 and to 177 GW in 2014. In 2016, the major contributions to the world’s built-in solar PV capacity of 303 GW came from the European Union with 106 GW (Germany 41.3 GW), followed by China with 77.4 GW, Japan with 42.8 GW and the USA with 40.9 GW [
1].
The DC/DC and DC/AC converters are the main devices used in clean energy management. In addition to the Voltage–Source Inverters (VSIs) and the Current–Source (CSIs), a new type of inverter has been recently proposed, the Impedance Source Inverter (ZSIs). The ZSIs are used to overcoming some of the limitations present in traditional inverters, for example, EMI noise vulnerability [
2]. On the other hand, the ZSIs present a high Total Harmonic Distortion (THD) with control strategies based on PWM [
3].
Typically, solar PVstring voltages are small and the traditional VSIs can only work in buck mode which needs a DC/DC converter to boost the input DC voltage [
4]. Nevertheless, the CSIs has integrated boost functionality and therefore, does not require an additional component for voltage boosting [
5]. This type of inverter has inherent short circuit protection owing to the presence of a DC link inductor which results in low harmonic distortion and better load voltage regulations [
6]. The general structure of a VSI for RE applications with boost stage is observed in
Figure 1.
Where represents the output voltage of the PV, represents the increase of the voltage input to the inverter () and represents the output voltage of the inverter.
Despite the advantages of its use, CSIs present a high THDin the output signal. This could be overcome by replacing the two-level topology with a multilevel topology [
7]. The multilevel topology offers a higher quality output signal than traditional CSIs due to the use of various current levels. Multilevel Current–Source Inverters (MCSIs) use switches with a lower current rating and can manage higher power than CSIs, since they distribute the current through a larger number of devices. In this way, a low THD is obtained in MCSI with more than 3 current levels [
8].
Generally, traditional MCSIs use large input inductors (100–1000 mH) that leads to a small input DC current ripple [
9]. According to Reference [
10], the input inductors must be large to permit a good operation of the MCSIs and a low THD at the output. However, an inductor with big inductance is bulky, large in size and expensive [
9]. As a summary, the main classifications of these power converters are presented in
Figure 2.
Grid-connected PV systems have the fastest growth rate in the international energy industry and this sector plays a dominant role in the global market. On-grid PV systems only generate energy when the utility power grid is available [
11]. This converters are traditionally voltage source [
12]. The ideal grid-connected PV inverter can not only provide high-quality power to the power grid but also can support the frequency and voltage amplitude of the power grid [
13]. In Reference [
14], the authors focused on various inverter technologies for connecting photovoltaic modules to a single-phase grid. Calais in Reference [
15] described an overview of different multilevel topologies and investigated their suitability for single-phase grid-connected photovoltaic systems.
In recent years, new control strategies have been studied for the power inverters. Some techniques used are: adaptive hysteresis current control, one-cycle control, parabolic current control, Sliding Mode Control (SMC) and PC. Adaptive hysteresis current control is applied in converters and uses digital calculation to predict the proper band amplitude, this technique is proposed in Reference [
16]. In Reference [
17], a Multi-Band Hysteresis Current Control (MB-HCC) for the Multi-Functional Inverter (MFI) is proposed which improves the efficiency of the MFI and also enhances the Power Quality (PQ) of the Low-voltage Distribution System (LVDS). One-cycle control is also used in converters, which is a nonlinear control strategy and takes advantage of the pulsed and nonlinear nature of switching converters to achieve instantaneous control of the average value of the chopped voltage or current, in Reference [
18], which is used with a fast dynamic response and good input-perturbation rejection. The parabolic current control is another method commonly used, which compares analog signals to generate the required control signals but noise from the control board impacts in the control precision. L. Zhang, in Reference [
19], explores the solution to this problem.
The SMC method attracted important attention due to its excellent properties such as the fast dynamic response, robustness against parameter variations and easy implementation. The SMC with these attractive properties is applied to control the three-phase rectifier, single-phase and three-phase grid-tied converters [
20]. In Reference [
21] a new approach to the sliding-mode control of single-phase inverters under linear and non-linear loads is introduced. The main idea behind this approach is to utilize a non-linear, flexible and multi-slope function in controller structure.
On the other hand, PC has different advantages and is currently a control technique that has gained the attention of the research community [
22]. The PC allows the formulation in the time domain, the use of linear and non-linear systems, the incorporation of restrictions into the synthesis of the controller and the law of control responds to optimization criteria [
23]. From the advantages mentioned before, the most important is the possibility of incorporating restrictions in the calculation, an aspect that classical control techniques do not allow. In the past, this control scheme has been used in motor control [
24], Pulse Width Modulation (PWM) voltage source converters [
25] and matrix converters [
26]. In Reference [
27] is proposed a Model Predictive Current Control method (MPCC) to improve performance in terms of efficiency and current harmonics. The proposed method reduces the total loss versus the conventional MPCC method with the same switching frequency due to the optimal process involved in selecting two vectors and their time durations. However, the method requires finding the mathematical model of the system.
In this paper a new control strategy for an MCSI topology of multiple inputs grid-connected is proposed. The control technique uses the advantages of the SMC for the balance of current in the input and PC to obtain a good signal of grid current, since it separates both functions. The PC-based technique is a modification of its original variant that does not require knowledge of the mathematical model of the system. This advantage of the proposed technique can be especially attractive, since finding the system model can be complex as seen in Reference [
28]. The topology and the proposed strategy allow the reduction of the input inductors compared to the results obtained in Reference [
29]. The simulation results obtained are analyzed.
2. Proposed Topology

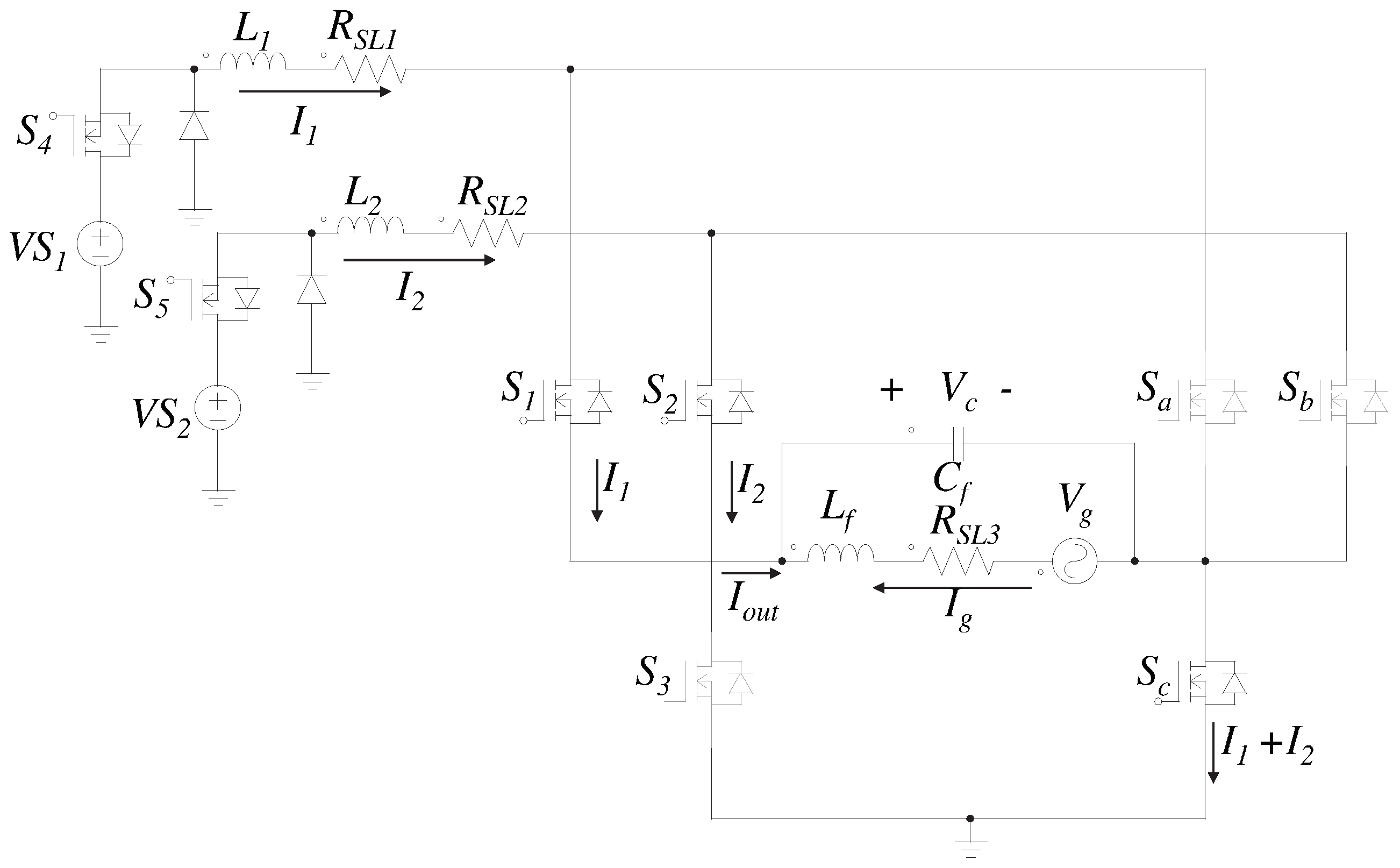

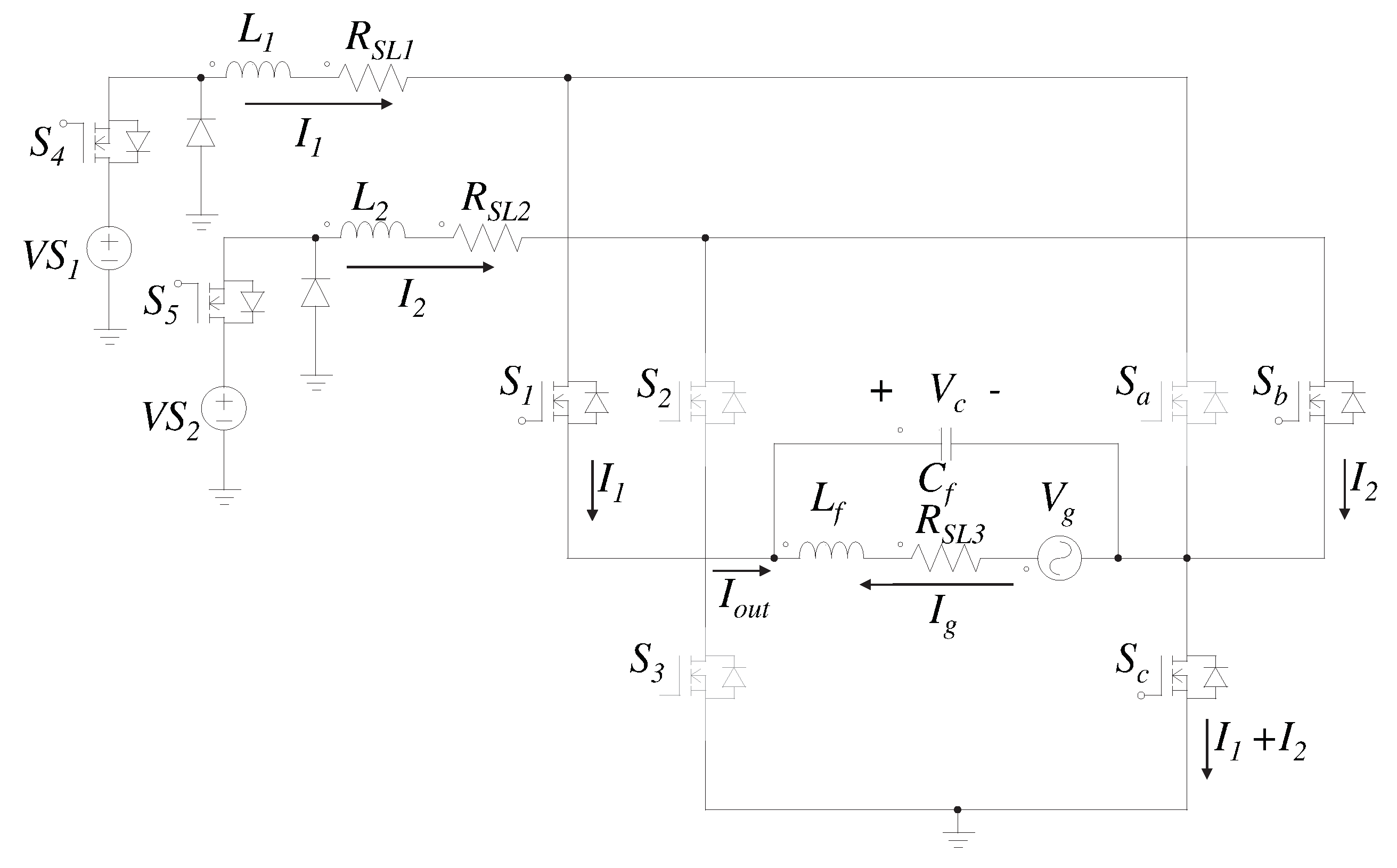

The proposed topology is shown in
Figure 3. It consists of eight unidirectional switches composed by MOSFET. The scheme has two supply sources provided by the inductors
and
that operate in Continuous Conduction Mode (CCM). The CCM is guaranteed since the control strategy balances the current in both inputs. The proposed control selects the input of greater energy, so when one inductor injects current into the grid and decreases its energy, the other increases it. On the other hand, the peak amplitude of the grid current reference is a function of the sum of current of both inputs as shown in
Figure A1. Each one of the inputs simulates the energy obtained from PV. This MCSI consists of two CSIs in parallel, obtaining a multilevel signal at the output. The design proposes five current levels and seven operation modes. In case that one of the sources does not provide the necessary amount of energy, the second source can provide it.
Where: and are the input voltage sources that simulate the sources of RE, and are the input inductors, and are the series resistors associated with the input inductors, and are the input currents to the inverter, is the grid current, is the grid voltage, is the inductor of the filter, is the series resistance associated to , is the capacitor of the filter and defines the polarity of the capacitor .
Operation Mode
The operation mode is similar to that described in Reference [
29]. The inverter switching states are shown in
Table 1. The switches
and
carry out the current balance in the input inductors using SMC. The balance in the inductors is required to guarantee a similar stress level in each one and a low THD in the output signal [
8]. On the other hand, the switches
,
and
work in a complementary manner to
,
and
. These switches control the current level that is injected into the grid. In a real scenario, the switching must be done with a small overlap time, in order to guarantee the continuity of the current flowing through the inductors
and
.
Figure 4 shows the sub-circuit that correspond to the generation of the positive level. It is considered that the inductor with the highest energy is
. In this case,
flows through
and
. The current of the second supply finds a path through
and
. In this operating mode (
) the energy increases in
and decreases in
.
For the generation of the double positive level (
), the current of both power supply (
and
) flows through the switches
,
and
and the energy of both inductors decreases. This operation mode is shown in
Figure 5. Negative levels are generated in a similar way using switches
,
and
.
3. Proposed Control Strategy
In general, predictive-type control strategies, use a mathematical model to predict the effect of the control action of the system. Traditional PC is computationally burdensome, especially for cascaded multilevel inverter topologies and other schemes with large sets of switching states and thus may not achieve feasible sampling frequencies [
30]. There are several approaches to dealing with the computational burden problem. In some cases, it is possible to solve the optimization problem offline by multi-parametric programming; thus, the implementation is reduced to some calculations and a look-up table [
22]. Previous works have developed PC for RE applications using inverters with satisfactory results [
31,
32,
33].
The control strategy developed in this paper consists of two parts. The first employ a SMC, this strategy aims to achieve a correct balance in the input inductors to reduce stress in the switches and decrease the THD of the output signal. It is applied to the input stage and acts on switches
and
. The second technique is a modification of the PC and it focuses on injecting the appropriate level of current into the grid. This technique evaluates which of the modes (
) will be the most suitable to apply, according to the error between the grid current reference and the estimated value for each mode. The strategy seeks the simplicity of the calculation using equations developed from conventional KVL. This scheme does not need the precise model of the system, in this way the calculations are simpler.
Figure 6 summarizes the techniques used.
3.1. Sliding Mode Control
SMC is used to achieve the current balance in the input inductors. This control strategy provides a dynamic response to the nonlinear systems with the property of hysteresis. It offers stability to variations in system parameters and easy implementations [
6]. The control technique is applied on a buck converter, as shown in
Figure 7. This converter is obtained by applying the different operation mode of the inverter. The model of the converter is obtained by considering the input
. The procedure is similar for input
.
The control scheme requires knowledge of the converter model. The model of a buck converter in differential equations is shown below:
where:
is the inductor current in
and
is the voltage in the filter capacitor.
From Equation (
1), applying superposition and without taking into account the corresponding entry to “
u”:
The idea of the SMC is to force the trajectories of operation of the system on a sliding surface and force them to evolve on it. Thus, the dynamic behavior of the plant in these conditions is determined by the equations that define this surface. The proposed surface is shown in Equation (
3). This paper considers an input voltage source of 140 V and a peak grid voltage of 180 V.
where:
is a controller parameter.
The condition of existence is checked from Equation (
6).
If
is greater than 0,
must be less than zero to meet the existence condition and
. As shown in Equation (
7),
is less than 0 if
.
On the other hand, if
is less than 0,
must be greater than zero to meet the existence condition and
. As shown in Equation (
8),
is greater than 0 if
since
will always be less than
.
A general scheme of the control developed for the input current is illustrated in
Figure 8. The SMC achieves correct control of
and
at the inputs of the inverter using a switching frequency of 2 kHz. The technique presented is addressed in Reference [
34].
In this way, if the current value exceeds the reference, switch
will turn off. The current in the inductor
will begin to decrease and will be given by the delivery of current into the grid, without the presence of the voltage source. The control implemented in the PSIM simulation software is shown in
Figure 9.
3.2. Definition of Equations
For each operation mode described in
Table 1, an equivalent sub-circuit is obtained in the inverter. From these sub-circuits, the equations that describe the future behavior of the grid current are obtained. For the analysis performed, only the filtering stage and the grid were considered, the input components (voltage source and inductor), are considered as a current source of constant value during the estimation time. This consideration allows the simplification of the equations to be solved. An estimated time of 1
s was set in order to obtain a small error. Typically, actual devices use maximum working frequencies of around 40 MHz, therefore, this estimation time can be achieved.
The demonstration will be performed for the
mode (positive level), to exemplify the obtaining of the equations for each mode of operation. The sub-circuit obtained for
is presented in
Figure 10 and Equation (
9) is obtained by applying an KVL analysis.
where:
is the grid current.
,
,
,
and
are the measured values just before each estimate.
And replacing
by
:
where:
t is the estimation interval.
is the estimated grid current.
Clearing
, Equation (
14) is obtained. A similar analysis is made for each operation mode, beginning with
.
3.3. Predictive Control Strategy
Figure 11 shows a summary of the control sequence for the injection of current into the grid. The grid current reference is generated as shown in
Figure A1. Before estimating the grid current for each mode of operation, the values of
,
,
,
and
are measured. The calculation block of the estimated values is shown in
Figure A2. The error for each operation mode is determined between the estimated value for each mode and the grid current reference as shown in
Figure A3. At this point, it is decided whether the intermediate states
or those that inject the maximum current into the grid are used, this block is shows in
Figure A4. The last two stages are shown in
Figure A5 and
Figure A6, in which the operation mode to be applied is imposed.
The diagram of the
Figure 12 presents, as an example, the sequence of application of the operation modes. The unfiltered current values are shown to exemplify the operation of the control scheme: in position 1, the values of the variables are measured, then, the calculations of current values for each mode of operation are obtained and finally, it is decided which current level will be applied after the estimation time elapses. In position 2, the mode most appropriate is applied.

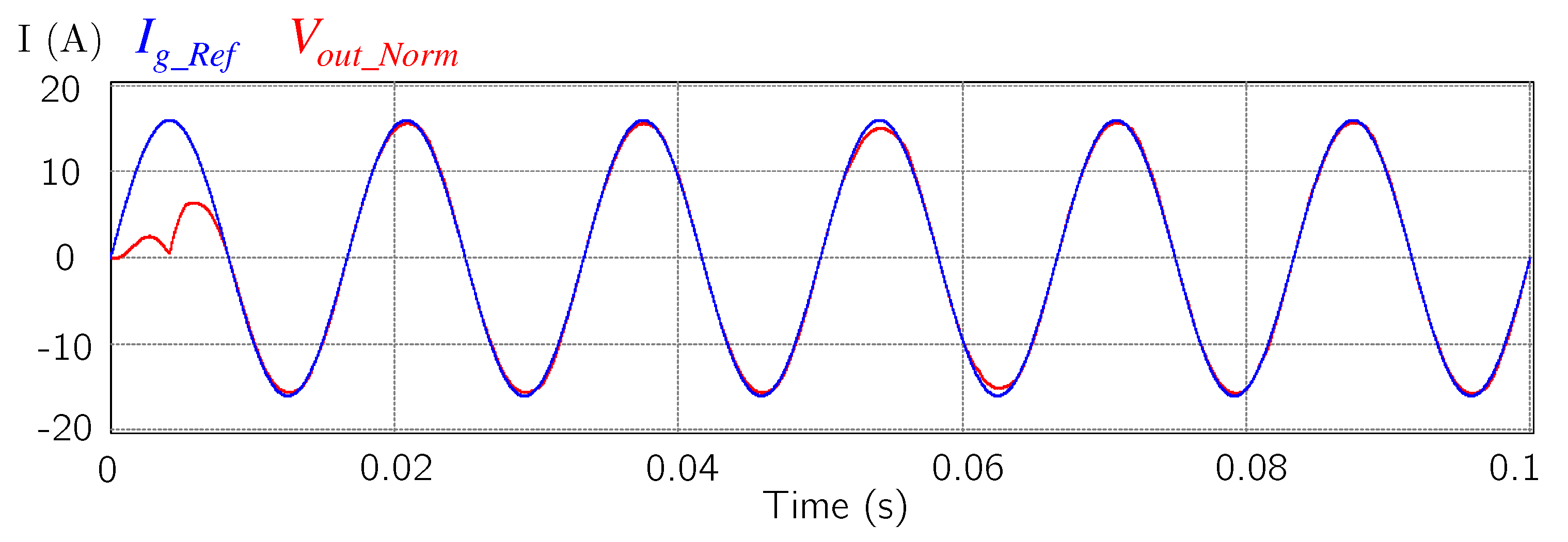

The output current of the inverter must be in phase with the mains voltage, to avoid the injection of harmonics into the grid. The current reference is generated from the measured of the voltage. After knowing the value of this variable, it is normalized and multiplied by a sinusoidal. The amplitude of this sinusoidal signal in phase with the mains voltage is determined by the amount of energy stored in the input inductors. In this way, a current reference signal in phase is achieved with the mains voltage.
The calculations are performed at the beginning of each estimation period and the results are held during this time. Before applying each level of current at the output of the inverter, it is decided which one is the most appropriate, based on the estimation made before. When solving each Equations (
11)–(
17) for a
= 1
s,

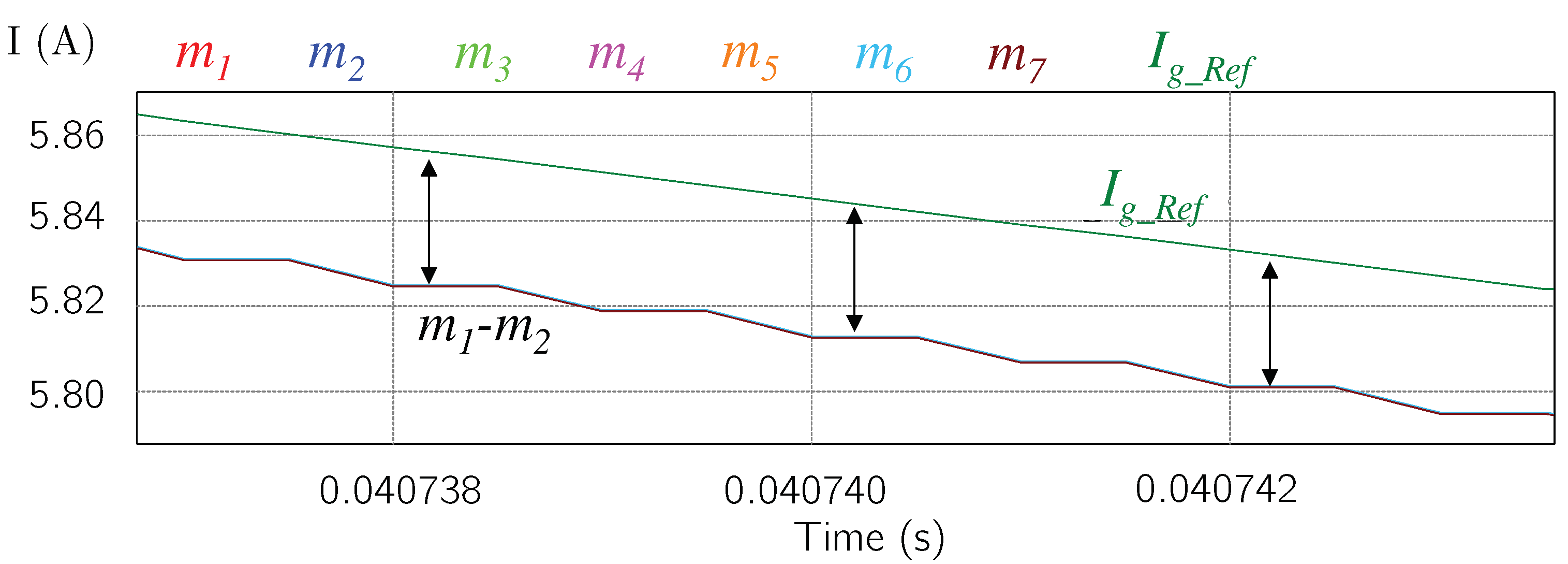

Figure 13 is obtained and corresponds to a small estimation interval. The change in the results of the equations is appreciated every 1
s. In
Figure 14 the currents of modes
and
and modes
and
are similar, which shows the correct balance of the input inductors. In addition, all the results are kept in a very close range.
The selection of the operation mode that guarantees the follow-up of the reference was made based on the mode that gives the least error in respect to the reference value. In general, the currents obtained from solving the equations of each mode are at one end of the current reference as shown in
Figure 13. If only the smallest error were taken into account, this behavior would cause the inverter to only work in modes
and
. This is not desired because it increases the stress caused by high currents in the switches, also increases the THD that is introduced into the grid. Therefore, to guarantee the use of the states that do not provide the maximum current output and considering that its use does not imply a greater error, a stage of selection of intermediate states was implemented. These states are chosen if the error between the reference and the grid current signal injected does not exceed a set maximum value. In this work, the maximum permissible error between the current injected in the previous state and the reference cannot exceed 0.3 A in order to select the intermediate states. If this value is exceeded, the maximum levels will be used to minimize the error.
Figure 15 presents the selection of the intermediate states from the error. The figure corresponds to the positive half cycle of the grid current. Therefore, only the modes that generate positive currents into the grid are used. It is observed that if the error is greater than 0.3, the maximum levels are used (double positive or double negative). The active switches are shown in the figure in each interval. It is necessary to highlight how the process occurs in an almost complementary manner, which is determined by the input that has the most energy. This mechanism helps to correct the balance of the inductors.
Figure A7 shows the general control diagram of the proposed inverter. The delays used in each sensor and the SMC applied to the input stage are presented.
3.4. Elements Design
The inputs voltage were selected from Equation (
18).
where:
is the power at the output of the inverter and w is the grid frequency,
is the angle offset voltage and
is the phase angle current.
Considering a unity power factor, only the non-variable term and without loss of power:
It is observed that the value of the input voltage may be less than the peak value of the grid voltage. On the other hand, the size of the input inductors is determined from Equation (
22). In this equation the critical operation mode for the discharge of the inductors is considered as shown in
Figure 16. This mode occurs when the inductor disconnects from the voltage source and injects energy into the grid. In this case, the maximum value of
is considered (
= 180 V).
where:
is the voltage in the inductor.
Taking into account that the switching frequency of the implemented SMC is 2 kHz, an
of 0.5 ms is used. In addition,
V,
= 1 A for a maximum current ripple in the inductor of 10%. From Equation (
24) the size of the input inductors is 90 mH.
The design of the output filter was established from Equation (
25). After selecting a cutoff frequency value, the inductor size was set and the capacitor value obtained.
By selecting = 12 mH with a cutoff frequency of 149 Hz, it is obtained a capacitor value of 94 F.
The elements design was made from practical considerations. Today’s single-phase commercial inverters manage an approximate power of up to 3 kW. To manage this output power, 140 V input voltage values were considered. The value of VS1 and VS2 was defined from Equation (
21) and taking into account Modulation Index (M) = 0.8, the current references were established at 10 A to manage a power close to 3 kW. A peak grid voltage of 180 V was considered since in the Latin American region it is the standardized grid value.
Nowadays there is a wide variety of commercial PV. A PV of 72 polyscrystalline cells such as the PV JKM325PP (Plus) from the manufacturer JinKO Solar can deliver at the Maximum Power Point (MPP) 8.66 A, reaching 9.1 A of Intensity Short Circuit (ISC). In addition, it is common to use PV arrays that are managed by the same controller. Therefore, it was decided to consider as a current output of the PV in the MPP a value of 10 A for each input to check the operation of the inverter. In addition, there is currently a wide variety of commercial PV. A PV of 72 polyscrystalline cells such as the PV JKM325PP (Plus) from the manufacturer JinKO Solar can deliver at the Maximum Power Point (MPP) 8.66 A, reaching 9.1 A of Short Circuit Current (ISC). In addition, it is common to use PV arrays that are managed by the same controller. Therefore, it was decided to consider as a current output of the PV in the MPP a value of 10 A for each input to check the operation of the inverter.
5. Conclusions
This paper presents a new predictive control strategy for the MCSI topology. The main advantage is the simplicity of the controller, together with the reduction in the size of the input inductors. The strategy does not require knowledge of the mathematical model of the system, this characteristic enables the simplicity of the calculations. This technique uses the combination of SMC and PC to achieve a good output signal. The SMC focuses on achieving a correct balance of the current in the input inductors, while the PC injects the appropriate level of current into the grid. The use of both control techniques provides robustness to the system, also achieves a low THD and allows the reduction of the input inductors.
The results obtained describe behaviors that can occur in a real scenario. PV arrangements are generally affected by weather conditions, so the control strategy must be able to maintain an adequate output signal, even when these changes occur. The paper also addresses the practical problems that arise in these devices. The aging of its components is a situation that affects the proper functioning. Therefore, tests were carried out that demonstrate that the controller responds adequately, even, to considerable changes in the physical system (capacitance, inductance and resistance variation). Therefore, the disturbances that simulate the behavior described above were made and the correct operation of the inverter was verified. In addition, the control strategy presented complies with the rules regarding THD. The permitted THD is found in the IEEE Std 519 of 1992, which establishes a THD of less than 5%. In the case of this article, it is 0.024%.
The presence of two totally independent sources offers the possibility of greater use of non-polluting energies. The MCSI proposal described before can be extrapolated to another converter with a greater number of output levels, in correspondence with the quantity of energy sources that are required to be exploited.
The results consider an estimation time of 1 s. In order to improve the features obtained in this work, this time could be reduced. However, it is possible to observe how, despite the variations made to the system, the control was able to correctly follow the established reference.
