1. Introduction
The application of artificial intelligence (AI) to healthcare has increased rapidly [
1]. AI involves the development of sophisticated algorithms to execute complex tasks efficiently and effectively. The main objective of applying AI to healthcare is to unfold hidden information from big data and assist healthcare policymakers and clinicians in making effective clinical decisions [
2]. However, the application of AI technology to disease detection, cancer patient screening, therapy selection, reducing medication errors, and productivity improvement is now growing [
3,
4,
5,
6].
Furthermore, AI application to COVID-19 research has increased, especially to the diagnosis, classification, detection, severity, and mortality risk [
7,
8,
9]. AI technology has already shown its potentiality to track the spread of coronavirus, as well as stratifying high-risk patients. It has also shown great effectiveness in predicting real-time infection rates by adequately analyzing the previous data [
10]. Bibliometric analysis is a quantitative analysis of academic literature to describe the trends in publications, the contributions of authors and journals, countries’ productivity, and information about research cooperations and collaborations [
11,
12,
13]. Bibliometric analysis can help to monitor the trends and patterns of effective literature in various areas, including healthcare [
14].
In this study, we conducted bibliometric analysis and network visualization to provide a complete overview of the research trends, research domains, publication patterns, emerging topics, and global collaborations in the field of AI on COVID-19. This is the first study to quantitatively analyze the application of AI and hot areas of COIVD-19 research. Our study exposes the contribution of scientific knowledge by pointing out the gaps and providing a meaningful direction for future research of AI on COVID-19.
2. Materials and Methods
2.1. Search Strategy
We systematically searched articles in the Web of Science (WOS) between 1 February 2020 and 1 February 2021. Key search terms included
COVID-19 diagnosis, detection, classification, risk factors, severity, mortality, hospital stay, vaccine development, drug repurposing, epidemic trend, artificial intelligence, machine learning, deep learning, convolutional neural network, neural network, logistic regression, random forest, support vector machine, etc. (
Supplementary Table S1). Two authors also checked the reference lists of the included studies to identify additional relevant studies. As WOS does not include any preprints (non-peer-reviewed articles), studies published in Medrxiv, Arxiv, and Biorxiv were not included in our search.
2.2. Inclusion and Exclusion Criteria
We included all relevant articles that described the application of AI to address COVID-19. Conference proceedings and early access articles were included in our study. We excluded studies if they were published as reviews, books, editorials, letters, and conference abstracts. Furthermore, articles not published in the English language were also excluded.
2.3. Data Extraction
We retrieved data from WOS as a bibliographic information file (.bib file). The data exported included: (a) authors, (b) abstracts, (c) addresses, (d) ISSNs/ISBNs, (e) IDS numbers, (f) funding information, (g) PubMed IDs, (h) titles, (i) cited references, (j) times cited, (k) cited reference counts, (l) languages, (m) sources, (n) document types, (o) keywords, (p) source abbreviations, (q) author identifiers, (r) conference information, (s) publisher information, (t) research areas, (u) usage counts, and (v) highly cited.
2.4. Bibliometric Analysis
Bibliometric analysis helps to provide a deep summary of the recent trends in scientific publications. In this study, we presented publication patterns (top 10 productive countries and journals), publish domains, research activities (top keywords for coronavirus disease, technology, research focus, and data), author contributions, global cooperations, and co-citing references of AI research on COVID-19. The VOSviewer software (Rapenburg 70, 2311 EZ Leiden, Netherlands) (
http://www.vosviewer.com/, accessed on 3 February 2021) was utilized to present the co-occurrence of authors’ keywords, authors’ contributions, global collaborations, and reference co-citation analyses. We also used the Bibliometrix R package (
https://www.bibliometrix.org/, accessed on 3 February 2021) to calculate the frequency, percentage, and citations of each journal and country. A global collaboration map and other visualizations (corresponding information, author cooperation) were done by “Biblioshiny”.
3. Results
3.1. Literature Outputs
The literature search of Web of Science (WOS) yielded 1697 articles. We excluded 127 articles published as review articles, letters, editorial materials, meeting abstracts, corrections, and retracted publications. Furthermore, we excluded 13 articles published in a non-English language (Spanish, France, Hungarian, Italian, Russian, and German). After screening all titles and abstracts, eight-hundred twenty-eight articles were excluded due to a lack of adherence to the inclusion criteria, and seven-hundred twenty-nine articles were included in our study (
Supplementary Figure S1).
3.2. Publication Patterns
Table 1 shows the distribution of articles in the top 10 countries. About 26.06% (190/729) of the articles were published in the Republic of China. The United States of America was the second highest country (173/729, 23.73%), followed by India (92/729, 12.62%). The number of citations was higher in the papers published from China and the USA, followed by Canada and Italy.
Two-hundred ninety-eight journals published 729 research articles. As shown in
Table 2,
PLOS One (
n = 33, 4.52%),
Chaos Solution Fractals (
n = 29, 3.97%), and
Journal of Medical Internet Research (
n = 29, 3.97%) were the three journals that published a higher number of articles; followed by
IEEE Access (27, 3.70%) and
Applied Intelligence (
n = 21, 2.88%). However, the
International Journal of Environmental Research and Public Health (
n = 221, 28.36%) had higher citations, followed by
Chaos Solution Fractals (
n = 201, 25.80%).
Table 3 shows the top 10 research areas, which published papers on AI and COVID-19. The research areas of
computer science artificial intelligence (
n = 85, 11.66%),
computer science information systems (
n = 77, 10.56%), and
multidisciplinary science (
n = 75, 10.28%) were the top ones on the application of AI to COVID-19. However,
radiology nuclear medicine imaging, and
computer science information systems had higher citations than the other research areas.
3.3. Research Activity
Table 4 presents the authors’ keywords used in the study of AI and COVID-19. It is divided into four groups: (1) disease (2) technology (3) types of data, and (4) research focus. In the disease group, COVID-19 was the most common keyword, followed by SARS-CoV-2 and coronavirus. Among all the keywords provided by authors on technology research, the top 5 technologies were deep learning, machine learning, artificial intelligence, convolutional neural networks, and transfer learning. The application of AI to COVID-19 was mainly focused on pandemics, prediction, classification, and diagnoses.

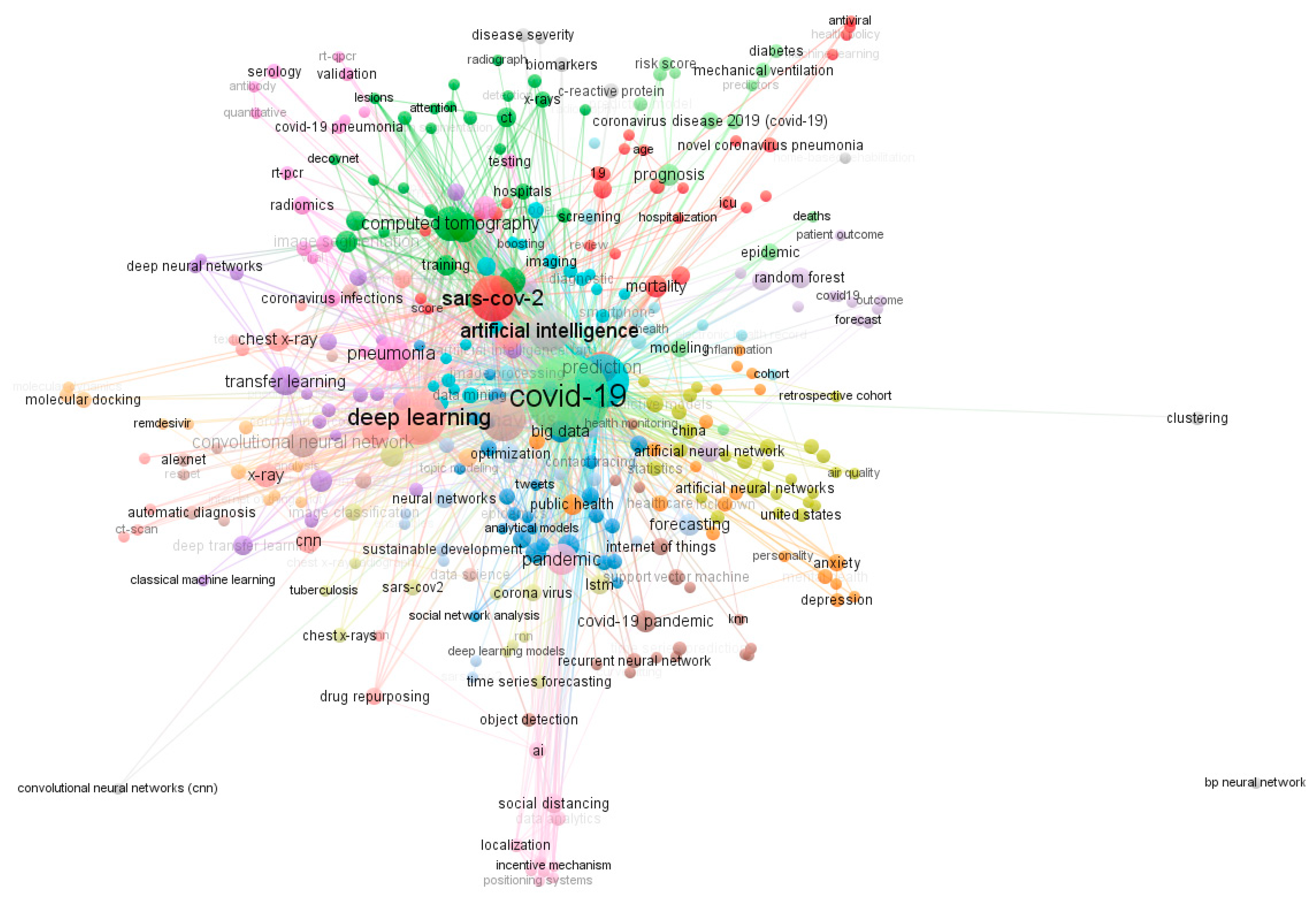

VOSviewer classified 1824 keywords into 22 clusters, as shown in
Figure 1. The strengths of the association of COVID-19, deep learning, machine learning, SARS-CoV-2, and coronavirus were 1429, 559, 515, 300, and 286.
Author contribution and global cooperation: We applied a cut-off of two papers per author and presented the global cooperation of authors visually. Among 4233 authors,

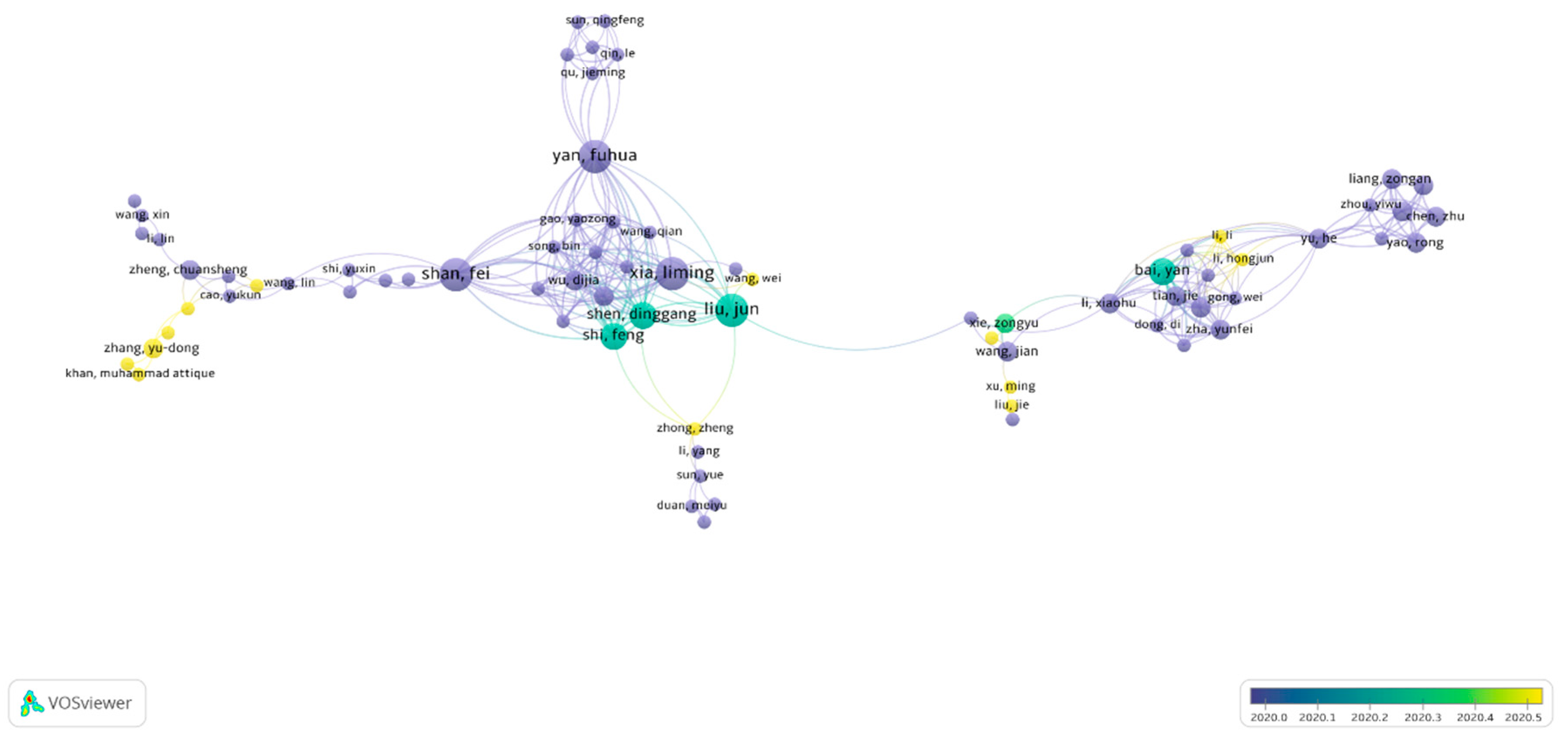

Figure 2 shows the cooperation of 315 authors globally. Nineteen authors had a strong collaboration with others and published at least four papers together. The thickness of the line shows the association among the authors, and the size of the circle shows the number of articles published together. For example, the authors Yan, Fuhua and Shan, Fei published more papers together than others.

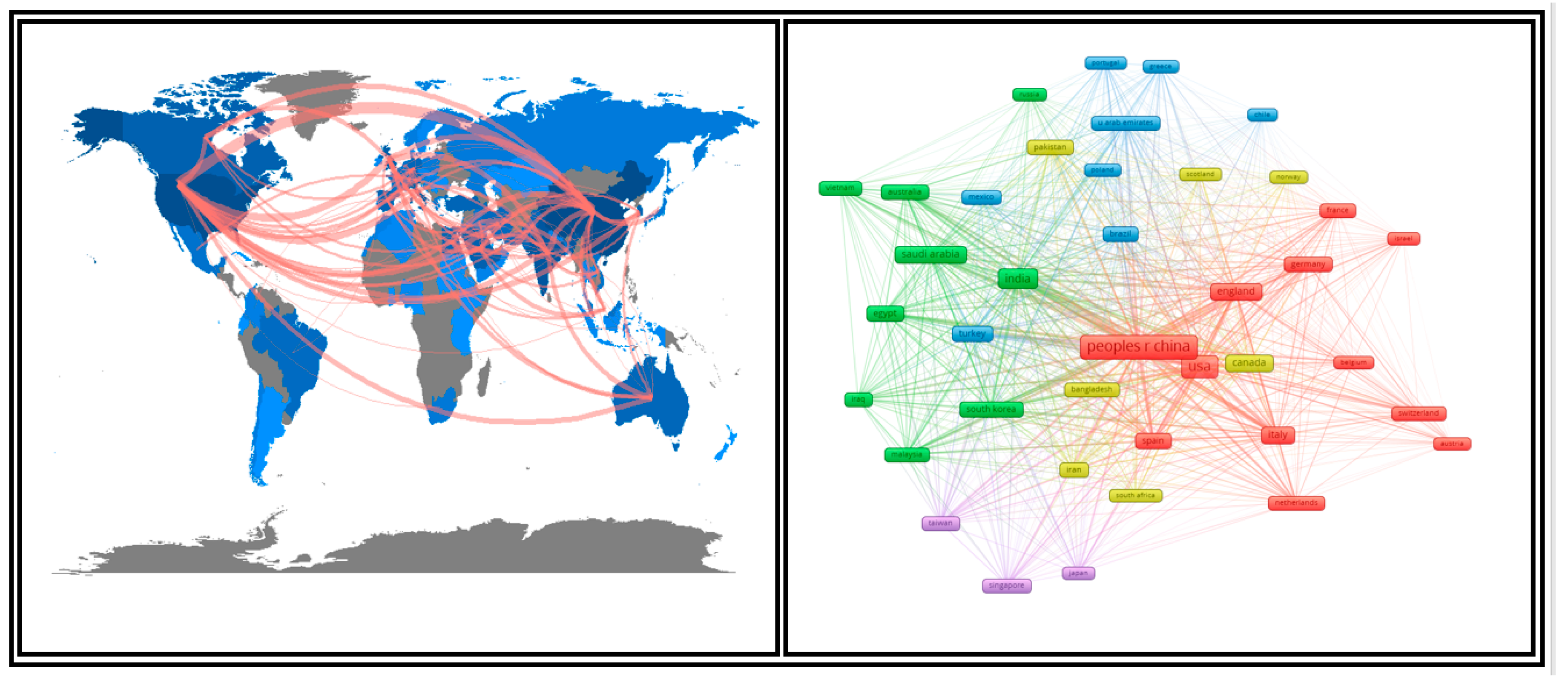

Figure 3 shows the visual network of the 39 countries that contributed a least five papers together. It also presents the strength of their partnership. For example, the Republic of China had a strong collaboration with the USA, Italy, Canada, Australia, India, and South Korea. India had a strong collaboration with England, Australia, South Korea, China, and Spain. Russia had a strong collaboration with England, Egypt, Turkey, and Saudi Arabia.
References co-citation analysis: In the co-citation analysis, we assessed all the cited references in the AI field. We identified 729 articles related to AI and COVID-19, with 20,959 articles cited, with an average of 29 references per article. The top 10 most frequently cited articles are presented in
Table 5. The most cited paper was from Huang Chaolin et al. 2020, which was published in Lancet and cited 150 AI-related papers. We selected 78 references on AI and COVID-19 that were cited at least 20 times and present them in

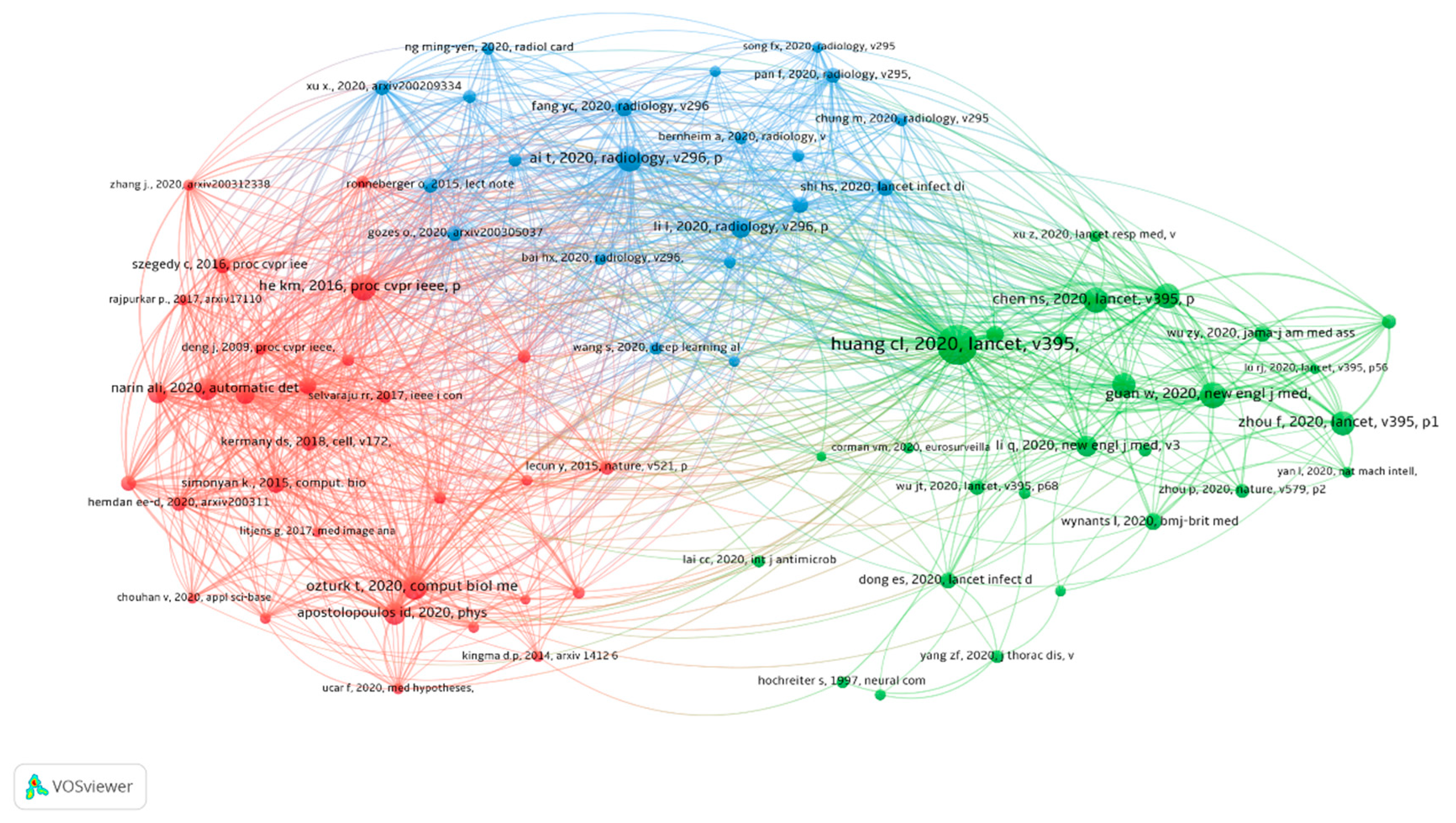

Figure 4. There are three clusters marked with different colors. The first cluster is in red color and contains 30 references, the second cluster in green containing 28 references, and the third cluster in blue containing 21 references.
4. Discussion
To our knowledge, this is the first intensive bibliometric study of scientific articles on the application of AI to address COVID-19. This study shows publication patterns, author cooperations, global collaborations, and research hotspot trends. The Republic of China was more prolific in publishing papers on AI and COVID-19, followed by the USA and India. PLOS One published a higher number of AI articles than Chaos Solution Fractals and Journal of Medical Internet Research. Most of the researchers published their articles in the area of computer science artificial intelligence, computer science information system, and multidisciplinary sciences. Furthermore, the Republic of China had a strong collaboration with the USA, Italy, Canada, Australia, and India.
4.1. Global Trends of AI Research on COVID-19
Since the number of COVID-19 cases has increased rapidly and it appeared as a lethal global pandemic; researchers from all over the world have been trying to focus on COVID-19 research and to tackle the situation using AI [
15,
16]. The main purposes of their research are to develop and validate potential models to diagnose, detect, and stratify COVID-19 patients quickly. Moreover, calculating epidemic trends, the identification of biomarkers, finding potential drugs, and mortality risk are the areas of interest [
17,
18,
19,
20]. There were over 700 AI publications focused on different areas of COVID-19.
For journal sources, the top 10 journals published approximately 30 percent (214/729) of the total publications. Among them, PLOS One, Chaos Solution Fractals, and Journal of Medical Internet Research were more productive than the other journals. More interestingly, the Radiology journal published only five articles, but had higher citations. Moreover, Journal of Thoracic Disease and IEEE Transactions on Medical Imaging were not in the top 10 most prolific journals lists, but in the top 10 journal citations lists. This is because researchers are more focused on image analysis research to screen COVID-19 patients more accurately and rapidly. Journals publishing AI research were almost all in the health domain, with more focus, as expected, on the fields of computer science, artificial intelligence, and computer science information systems.
4.2. The Coauthorship Networks of AI Research on COVID-19
AI is becoming more popular in the healthcare industry due to its ability to solve complex disease patterns, for earlier identification of risk, and for personalized treatment [
21,
22]. As an AI-based model can handle a huge amount of patient data and recognize patterns, AI-based technology has been utilized as a powerful solution for addressing the COVID-19 pandemic [
10,
23]. Previous studies reported getting the utmost benefits from AI, research collaborations for global consideration via data sharing, and technological supports [
1,
24,
25]. Our study showed that the Republic of China collaborated with more countries on AI-related COVID-19 research (Supplementary figures). In China,
Huazhong University of Science and Technology and
Wuhan University and, in Saudi Arabia,
King Saud University collaborated on more research with other institutions (Supplementary figures). We identified 4233 authors who were dedicated to publishing papers on AI and COVID-19. Of those authors, only seven authors published at least five papers, and eleven authors published at least four papers. While searching the areas of research interest, most of the authors focused on COVID-19 diagnosis, detection, and classification.
4.3. Limitations
Our study had several limitations. First, we only included studies published in English. Secondly, we did not include studies published in the Rxiv repository. We might have missed many studies related to AI and COVID-19; however, they were not fully peer-reviewed articles. Third, we only extracted and analyzed data from WOS; although WOS is a large database that offers a wide variety of research and includes all SCI and SSCI listed journal. Scopus and PubMed data will be used in a future study.
5. Conclusions
Literature in the field of AI on COVID-19 represented over 700 publications. This bibliometric analysis depicted a comprehensive overview of current research trends of AI application to COVID-19. The findings of this study also showed that the focus area of AI research mainly was on COVID-19 diagnosis, detection, epidemic trends, classification, and drug repurposing. Indeed, high-income countries such as the USA, China, Italy, and Spain conducted more research on the application of AI to COVID-19. The efficiency and diversity of applications of AI (e.g., machine learning and deep learning) to patient screening, early treatments, and improving patient care are already visible, and the further implementation of AI in real-world clinical practice is expected to increase, which ultimately will help to address any pandemic such as COVID-19.
Supplementary Materials
The following are available online at
https://www.mdpi.com/article/10.3390/healthcare9040441/s1, Table S1: Search strategy, Figure S1: Study selection, Figure S2= Distribution of countries’ contribution, Figure S3: Distribution of journal’s contribution, Figure S4: China’s collaboration with other countries, Figure S5: Distribution of institute’s contribution, Figure S6: Distribution of Huazhong University of Science and Technology collaboration.
Author Contributions
Conceptualization, M.M.I., T.N.P. and S.-C.C.; Formal analysis, M.M.I.; Investigation, S.-C.C. and J.-C.L.; Methodology, T.N.P. and J.-C.L.; Resources, B.A. and J.-C.L.; Software, L.-F.L.; Supervision, L.-F.L. and W.-S.J.; Writing—original draft, M.M.I. and B.A.; Writing—review & editing, W.-S.J. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded in part by the Ministry of Education (MOE) under Grants MOE 109-6604-001-400 and DP2-109-21121-01-A-01 and the Ministry of Science and Technology (MOST) under Grant MOST 109-2823-8-038-004.
Acknowledgments
This research is sponsored in part by Ministry of Science and Technology (MOST) under grant MOST 108-2745-8-038-003.
Conflicts of Interest
The authors declare no conflict of interest.
