Article

Cs4PMo11VO40-Catalyzed Glycerol Ketalization to Produce Solketal: An Efficient Bioadditives Synthesis Method

by
Márcio José da Silva
1,* and
Cláudio Júnior Andrade Ribeiro
2
1
Chemistry Department, Federal University of Viçosa, Viçosa 36570-00, Brazil
2
Chemistry Department, Federal Institute of Education, Science and Technology of Minas Gerais, São João Evangelista 39705-000, Brazil
*
Author to whom correspondence should be addressed.
Processes 2024, 12(5), 854; https://doi.org/10.3390/pr12050854
Submission received: 2 March 2024 / Revised: 16 April 2024 / Accepted: 22 April 2024 / Published: 24 April 2024
(This article belongs to the Special Issue Continuous Production and Catalysis Optimization of Chemical Industry Processes)
Browse Figures
Versions Notes

Abstract

:
In this work, a series of vanadium-substituted phosphomolybdic acids were synthesized and tested as the catalysts for the synthesis of solketal, a green fuel bioadditive, from the condensation reaction of glycerol with acetone. The objective was to demonstrate that an easily synthesizable solid catalyst can efficiently promote glycerol condensation with acetone at room temperature. The activity of pristine heteropolyacid (i.e., H3PMo12O40) and its vanadium-substituted cesium salts (Cs3+nPMo12-nVnO40; n = 0–3) was evaluated in condensation reactions carried out at room temperature. Among the catalysts tested, Cs4PMo11VO40 was the most active and selective towards a five-member ring solketal isomer (dioxolane). A high yield of solketal (i.e., 95% conversion and 95% selectivity to solketal) was achieved in glycerol condensation with acetone at room temperature within a short reaction time (2 h). The influence of the main reaction parameters, such as the acetone–glycerol molar ratio, catalyst load, and reaction temperatures, was investigated. The greatest activity of the Cs4PMo11VO40 catalyst was correlated to its greatest acidity.

1. Introduction

Nowadays, due to the inevitable depletion of fossil-origin resources, the production of green fuels such as biodiesel has become essential [1,2]. However, in these processes, glycerol is co-produced at 10 wt.%, making it an inexpensive and abundant platform molecule for biorefineries of the future [3,4,5]. Among the several routes to valorized glycerol is its conversion to solketal, a valuable fuel bioadditive (i.e., diesel and gasoline), through condensation reactions with an aldehyde (acetalization) or ketone (ketalization) [6,7,8].
Condensation reactions have commonly been carried out in the presence of homogeneous mineral liquid acids, which are corrosive and require neutralization steps which generate large amounts of effluent and residues [9]. Simple Lewis acid metal salts were demonstrated to be efficient in ketalization or acetalization glycerol reactions; however, most of them were soluble in reaction conditions [10,11,12,13]. Alternatively, these Lewis acid metal acids have been supported in different solid matrixes and used as heterogeneous catalysts in reactions to produce solketal from glycerol [14].
Several solid acid catalysts are also used in glycerol ketalization reactions, such as sulfonic resins [15,16], metal oxides [17], sulfonated carbonaceous materials [18], zeolites [19,20,21], molecular sieves [22,23], and solid-supported acid catalysts [24,25,26]. Nonetheless, the high polarity of the reaction medium, in addition to the water molecules generated as a co-product of the reaction, can contribute to the leaching of the active phase of solid-supported catalysts.
In this sense, Keggin heteropolyacids (HPAs) have risen to prominence as an attractive option to traditional solid-supported catalysts [27,28,29]. These compounds belong to a class of metal oxides characterized as solid clusters of metal–oxygen that when protonated have been demonstrated to be very active in acid-catalyzed reactions [30]. Although solid, HPAs have a low surface area and are soluble in polar solvents, hampering their use as solid catalysts. This drawback can be easily overcome if these HPAs are converted to solid salts [31]. If the protons of HPAs are exchanged with metal cations with low amounts of radium, lower than 1.3 Angstroms, the catalytic properties of HPAs can be improved; however, they will remain soluble [32]. This strategy has been explored in various reactions, in which the proton exchange with metals such as Al3+, Fe3+, Cu2+, and Sn2+ led to a noticeable increase in the activity of HPAs either in oxidation or acid-catalyzed reactions [33,34].
On the other hand, if the HPA protons are replaced with voluminous cations that have an ionic radium greater than 1.3 Angstroms, such as K+ or Cs+, the surface area of HPAs jumps from 1 to 3 m2 g−1 (i.e., acids) to 160 m2 g−1 (salts), making them efficient and recyclable heterogeneous catalysts which can be used in different reactions such as oxidation, esterification, or etherification reactions [35]. It is important to note that this modification is performed with Keggin heteropolyanions, keeping their primary structure intact, since the cations are placed on the secondary ones [36].
Conversely, there are three other strategies to modify the composition of the Keggin heteropolyanion, enhancing its catalytic properties but preserving its structure. However, all of them are internal modifications to the primary structure of the Keggin anion. The first can be undertaken by removing one unit MO (M = W, Mo), which turns the PM12O403− anion (saturated) into a PM11O397− lacunar anion (unsaturated) [37]. Lacunar HPAs are easily synthesized and are stable under acidic or oxidative conditions. The second approach is to fill this vacancy with transition metal cations (X+n), generating metal-doped heteropolyanions (PM11XO39(7-n)−) [38]. Both lacunar and metal-doped HPA salts have been effective catalysts in the oxidation reactions of alcohols and aldehydes [39,40,41,42,43].
The third strategy is to substitute Mo or W atoms with V, keeping the number of oxygen atoms of the heteropolyanion intact. Recently, vanadium-substituted HPA catalysts were synthesized from phosphomolybdic acid and successfully used as H3+nPMo12-nVnO40 acids with n = 1–3 [44]. However, despite the high conversion and selectivity achieved in these reactions, they were carried out in homogeneous conditions. To overcome this drawback, we recently prepared cesium phosphomolybdovanadate salts and used them as heterogeneous catalysts in benzaldehyde condensation reactions [45,46]. Therefore, the novelty of this work describes how two simple modifications (the replacement of protons of phosphomolybdic acid with cesium cations, and the exchange of molybdenum atoms with vanadium atoms) can transform the homogeneous acid into an active solid catalyst.
In this work, a series of cesium salts of vanadium-substituted phosphomolybdic acids with general formulae (Cs3+nPMo12-nVnO40 with n = 1–3) were synthesized and evaluated as catalysts in glycerol condensation reactions with acetone to produce solketal, a valuable fuel bioadditive.

2. Materials and Methods

2.1. Chemicals

All the chemicals received were used without any further treatment. Acetone (99.9 wt. %) and glycerol (99.5 wt. %) were obtained from Sigma-Aldrich (Burlington, MA, USA). The hydrated heteropolyacid (i.e., H3PMo12O40 n H2O; (99.9 wt. %), and the synthesis precursors V2O5 (99.6 wt. %), MoO3 (99.5 wt. %), H3PO4 (85 wt. %), NaVO3 (98 wt. %), CsCl (99 wt. %), and Na2MoO4 (≥98 wt. %), were from Sigma-Aldrich. Acetone and glycerol (99 wt. %) were also from Sigma-Aldrich.

2.2. Synthesis and Characterization of Unsubstituted and Vanadium-Substituted Cesium Phosphomolybdate Salts

The cesium phosphomolybdate salt was synthesized following a procedure described in the literature [44,45,46]. Typically, the catalyst was synthesized slowly by mixing 2 solutions, the first an aqueous solution of precursor H3PMo12O40 (4.20 g; 60 mL) and the second solution CsCl (1.14 g, 40 mL). The resulting solution was heated and stirred for 3 h at 373 K, giving a green precipitate (Cs3PMo11O40). After water vaporization at 373 K, the solid was dried in an oven at 393 K for 24 h.
All the vanadium-substituted phosphomolybdate cesium salts were synthesized starting from the respective acid, which was also prepared following the literature [44,45,46]. The H4PMo11VO40 (3.86 g) was converted to Cs4PMo11VO40 salt (yellow solid) after the slow addition of CsCl(aq) aqueous solution (20 mL, 1.46 g) The resulting suspension was stirred for 3 h and heated to 363 K. After water vaporization at 373 K, the solid Cs4PMo11VO40 salt was collected and dried in an oven at 393 K/24 h. An analogous procedure was used to obtain Cs5PMo10V2O40 from H5PMo10V2O40, only adjusting the stoichiometry; however, a brown solid was formed. When the precursor H6PMo9V3O40 was precipitated as Cs6PMo9V3O40 salt, a white solid was obtained. The characterization of cesium salts has been discussed by us previously [44,46].

2.3. Catalytic Runs

The catalytic tests were carried out in a stirred glass reactor (50 mL) three-necked glass flask. A homogenous solution containing glycerol and acetone at an adequate molar ratio was magnetically stirred at room temperature. Then, the addition of a solid catalyst started the reaction, which was allowed to proceed for 2 h. The catalyst load was expressed concerning the glycerol. Toluene was the internal standard (0.10 mL). Blank reactions were carried out using the same conditions, with both ketone and glycerol but in the absence of the catalyst.
The reactions were monitored through GC analyses of aliquots collected periodically (Shimadzu 2010 equipment, FID, capillary column). The conditions were 80 °C/3 min, 10 °C/min to 250 °C, hold time of 5 min. The injector and FID detector were kept at 250 and 280 °C, respectively. The GC was fitted with a DB5 capillary column (0.25 m × 0.25 mm × 30 m).
The recovery and reuse of the most active catalyst were evaluated. At the end of the run, the reaction solution was centrifugated, and the supernatant was removed. The solid resultant was washed with ethyl acetate and the catalyst was dried in an oven, weighted, and then reused in another catalytic run.
Analyses of mass spectrometry in a Shimadzu GC 2010 gas chromatograph coupled with MS-QP 2010A equipment (Tokyo, Japan) with a Carbowax capillary column (0.25 mm 9 0.25 mm 9 30 m) were identified as the main products. Helium was the carrier gas at 2 mL/min, and the temperatures of both the GC injector and MS ion source were kept at 250 and 260 °C, respectively. The MS detector operated in EI mode at 70 eV, with a scanning range of m/z 50–400. The products were co-injected into a GC chromatograph (Shimadzu 2010) with authentic samples previously synthesized. The conversion was calculated using a calibration curve built with the glycerol and solketal, allowing the mass balance of reactions to be checked.

3. Results and Discussion

3.1. Catalytic Characterization

Cesium phosphomolybdate catalysts containing vanadium were previously characterized by us [46]. However, in this present work, only the acidity measurements will be presented to support the discussions about their catalytic activity.
In Figure 1, the EDS MEV analyses of cesium phosphomolybdate salts are shown. The composition of catalysts was confirmed by EDS measurements. The microscopy data showed that a higher cesium load increased the particle sizes.
In Table 1, we summarize the characterization data previously described, which were obtained through the potentiometric titration curves with n-butylamine [46]. The measurement of the initial electrode potential (Ei) allows us to classify the strength of the acid sites of the catalyst as very strong (Ei > 100 mV), strong (0 < Ei < 100 mV), weak (−100 < Ei < 0 mV), and very weak (Ei < −100 mV). On the other hand, the minimum value of the second derived curve obtained from titration provides the acid site number (mEq/g).
An increase in vanadium load led to a decrease in Ei value, suggesting that the strength of acidity was being lowered. In addition, the acid site number was progressively diminished when a higher vanadium load was used. Similarly, if the cesium content was increased, the same happened.
In Table 2, the effects of proton exchange with cesium of the phosphomolybdic acid and the replacement of the molybdenum atom with vanadium on the surface area and porosity properties of catalysts are presented.
Phosphomolybdic acid has a very low surface area. When cesium cations replace their protons, they noticeably increase their surface area, as can be seen in the case of Cs3PMo12O40 and Cs4PMo11VO40 (Table 2). However, when the cesium load is increased, there is a notable diminishment in surface area. This probably happened due to the high ionic radium of the cesium cations. A greater cesium load hampered the packing of heteropolyanions and cesium cations.
The pore volumes were also impacted by the cesium load. The proton exchange with cesium increased the pore volume remarkably (H3PMo12O40 and Cs3PMo12O40, 1.7 and 37.3 m3·g−1 × 10−3). Nonetheless, similarly to the verified measurement of the surface area, a higher cesium load reduced the pore volume.

3.2. Catalytic Runs

3.2.1. The Effect of Catalyst Nature

The reaction conditions were defined according to the literature and were used for screening the most effective catalyst [46]. The kinetic curves are shown in Figure 2. Although acetone excess was found (1:30 glycerol–acetone molar ratio), only a poor conversion was achieved in the absence of a catalyst at room temperature after a 2 h reaction. Conversely, when the reactions were carried out in the presence of cesium phosphomolybdate or its derived vanadium-substituted salts, higher conversions were achieved. Among them, the Cs4PMo11VO40-catalyzed reaction was that with the greatest conversion result.
The superior performance of the Cs4PMo11VO40 catalyst can be correlated to its highest strength of acidity, the data of which are presented in Table 1. If a greater vanadium load is used, both acidity strength and acid site number become lower (Table 1). These results agree with the literature [10]. Curiously, if a 1:11 V:Mo molar ratio is used, the charge on the terminal oxygen is increased, making the new proton more acidic, since the exchanges of Mo6+ with V5+ in a Keggin anion weakens the P-Oa bond and its interaction with the di-H5O2+ cations, consequently increasing the strength of the acidity. Conversely, if a greater proportion is used, the total negative charge of the Keggin anions also increases, consequently reinforcing their interaction with the new protons, which become less acidic [45,46].
In all of the reactions, dioxolane was always the main product. Even though the thermodynamic stability of five-membered ring compounds is lower than that of six-membered ring ones, when the acetalization of glycerol is performed with an excess of acetone the main product generally formed has a five-membered ring (Scheme 1). The same result was observed by Yu et al. [47].
Figure 3 displays the conversion and selectivity reached after 2 h of reaction. Only the most active catalysts (i.e., Cs4PMo11VO40 > H3PMo12O40 > Cs3PMo12O40) converted the glycerol to the solketal isomers (i.e., dioxolane and dioxane). Cesium phosphomolybdate salts containing two or three vanadium atoms failed in this reaction and in these cases, only glycerol oligomers were formed, as demonstrated by the mass balance of the process. When solketal isomers were formed, the selectivity toward the dioxolane isomer (i.e., with a five-membered ring) was significantly higher. The higher selectivity toward solketal (i.e., with a five-membered ring) can be confirmed by checking the selectivity of the reactions described herein, and in the presence of other heteropolyacid catalysts [27]. A plausible explanation is depicted in Scheme 2 in Section 3.2.2.
The condensation of glycerol with acetone is a reaction commonly performed using Brønsted acids in a homogeneous phase [47]. Nonetheless, there are different solid catalysts used in this reaction [14]. Table 3 summarizes the main results.
The cesium monovanadate phosphomolybdate catalyst achieved the highest TON (mol of glycerol converted/mol catalyst) among the different solid catalysts (Table 3). Moreover, the reaction was carried out at the lowest temperature. These are positive aspects of this catalyst.

3.2.2. Mechanistic Insights

Typically, the first step in condensation reactions of alcohols with ketones or aldehydes in an acidic medium is the activation of the carbonyl group through the protonation (step I, Scheme 2). Although the protons of HPA have been exchanged with cesium, these metal cations react with hydration water molecules, generating hydronium cations that act as catalysts in glycerol condensation with acetone.
Processes 12 00854 sch002

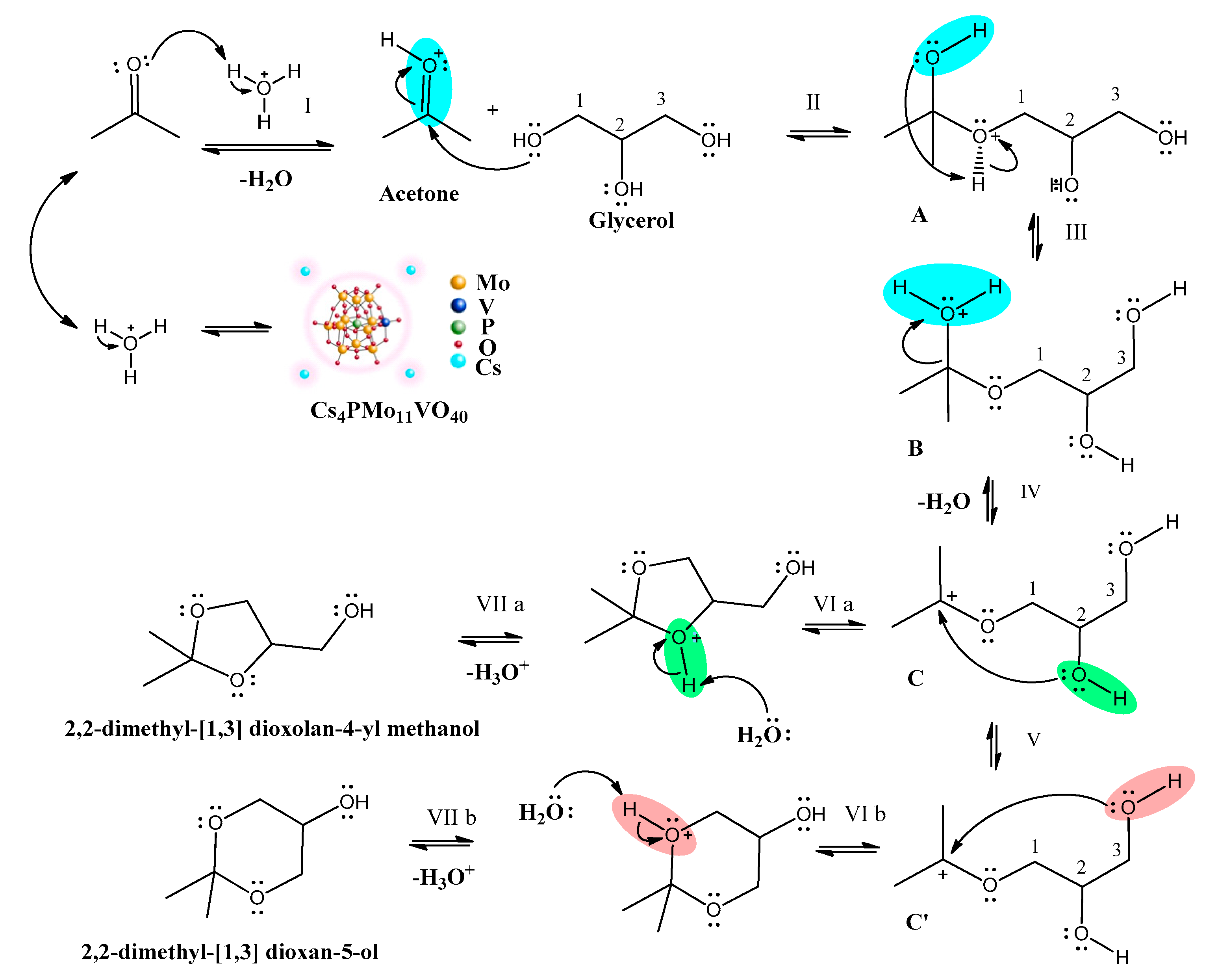

Scheme 2. Reaction pathway of Cs4PMo11VO40-catalyzed glycerol acetalization with acetone.
Scheme 2. Reaction pathway of Cs4PMo11VO40-catalyzed glycerol acetalization with acetone.
Processes 12 00854 sch002
The protonation of the carbonyl group makes its carbon more susceptible to the nucleophilic attack of the terminal hydroxyl group of glycerol, generating the A intermediate (step II, Scheme 2). After the prototropism step (step III), the B intermediate releases a water molecule, generating a C tertiary carbocation (step IV). This intermediate can undergo a nucleophilic attack of a secondary hydroxyl group of glycerol (step V), which after the water loss results in the dioxolane (five-membered ring) or of the secondary hydroxyl group of glycerol, which after the water elimination will generate the dioxane isomer (six-membered). These are the key steps (VIa or VIb steps) that govern the reaction selectivity. Since the secondary hydroxyl group is nearest to the positive carbon of carbocation if compared to the tertiary hydroxyl group, it is more stereochemically favorable and, therefore, the dioxolane (five-membered ring) is always predominant in the glycerol condensation of acetone.

3.2.3. The Effect of the Stoichiometry of Reactants

Glycerol acetone condensation is a reversible reaction, and therefore it is sensitive to the reactant concentration variations. An increase in the acetone amount shifted the reaction equilibrium toward products, in addition to enhancing the reaction rate (Figure 4).
Another effect observed was that the glycerol solubility was diminished when acetone was present in lower amounts. A biphasic system was formed at 1:5 molar proportions. It was favorable to the formation of polyglycerols, namely oligomers. For this reason, it is absent in Figure 5. Therefore, the reaction selectivity was impacted by the variation in reactant stoichiometry. It was verified that the higher the acetone excess, the lower the oligomer formation. Conversely, the solketal selectivity was progressively favored when the molar ratio of acetone to glycerol was increased. The same occurred with the reaction conversions.

3.2.4. The Effect of Catalyst Load

The impacts of catalyst load variation on the conversion and selectivity of glycerol condensation with acetone were studied at 298 K and 1:30 molar ratio (Figure 6).
An increase in catalyst load had a beneficial effect until 0.03 mol %; amounts greater diminished progressively in both initial rate and conversion. This was a consequence of the lower accessibility of reactant molecules to the active sites of the catalyst triggered by the higher presence of solids in the system.
A similar effect was verified in terms of selectivity (Figure 7); until 0.03 mol %, they progressively increased with an increase in load, and afterwards, with higher loads, both selectivity and conversion were lower.

3.2.5. The Effects of Temperature

The effects of temperature were evaluated in the range of 298 to 323 K and the kinetic curves are shown in Figure 8. Initially, the reactions were carried out at each temperature without a catalyst. Despite the acetone excess, it was verified that only a poor conversion was achieved. Indeed, the highest conversion (15%) in the absence of a catalyst was achieved at the highest temperature (323 K). It was omitted by simplification.
Conversely, in the presence of a catalyst, the temperature effect was more visible. The initial rates were increased and the higher temperatures accelerated the reactions, probably due to the higher number of effective collisions. The progressive increase in conversions occurred when the reactions were carried out at higher temperatures, suggesting an endothermic character (Figure 9).
Regardless of temperature, the reaction selectivity remained almost the same, with dioxolane as the major product.

3.2.6. Recovery and Reuse of the Cs4PMo11VO40 Catalyst

The recovery and reuse of the Cs4PMo11VO40 catalyst were assessed. The main results are shown in Table 4.
Initially, we investigated various solvents to select the most efficient to wash the catalyst, once the remaining glycerol had shown a strong interaction with the catalyst. Ethyl acetate was demonstrated to be the most effective solvent. Afterwards, the recovery and reuse of the catalyst were evaluated. The catalyst was easily separated through centrifugation. The catalyst was efficiently recovered, weighted, and reused without a loss of activity (Table 3). Moreover, the selectivity of solketal remained constant.

4. Conclusions

The activity of pristine heteropolyacid (i.e., H3PMo12O40) and its vanadium-substituted cesium salts (Cs3+nPMo12-nVnO40; n = 0–3) was evaluated in glycerol condensation reactions with acetone. Among the catalysts tested, the Cs4PMo11VO40 salt was the most active and selective towards the solketal. This superior activity was assigned to the highest strength of acidity when monosubstituted with vanadium, as well as the n-butylamine potentiometric titration analyses. The replacement of one molybdenum atom with vanadium increases the strength of acidity of cesium phosphomolybdate. However, if more molybdenum atoms are substituted, the heteropolyanion gains an increased negative charge; consequently, the strength of its acidity is reduced and it becomes a less efficient catalyst. Regardless of the reaction conditions or kind of catalyst, the five-membered ring isomer was always the major product, which could be attributed to the steric effects, as depicted in Scheme 2. Dioxolane was always the main product, probably due to the increased ease of attack of the secondary hydroxyl group of glycerol on the carbonylic carbon of an intermediate protonated and formed during the reaction. The impacts of the main reaction parameters were assessed. Most studies were carried out at room temperature, and it was verified that using 0.030 mol % of catalyst and 1:30 glycerol acetone molar ratio, conversion (90%) and selectivity above 90% towards dioxolane isomer were achieved. The reusability of the catalyst was evaluated. It was easily reversed and reused without loss of activity. This solid catalyst is an attractive option to the corrosive mineral acids normally used as catalysts in these reactions.

Author Contributions

Conceptualization, M.J.d.S.; methodology, M.J.d.S. and C.J.A.R.; investigation, M.J.d.S. and C.J.A.R.; resources, M.J.d.S. and C.J.A.R.; data curation, C.J.A.R.; writing—original draft preparation, C.J.A.R.; writing—review and editing, M.J.d.S.; supervision, M.J.d.S.; project administration, M.J.d.S.; funding acquisition M.J.d.S. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financed in part by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior—Brasil (CAPES)—Finance Code 001. The authors are grateful for the financial support from CNPq and FAPEMIG (Brazil).

Data Availability Statement

Data is contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Monteiro, M.R.; Kugelmeier, C.L.; Pinheiro, R.S.; Batalha, M.O.; da Silva, C.A. Glycerol from biodiesel production: Techno logical paths for sustainability. Renew. Sustain. Energy Rev. 2018, 88, 109–122. [Google Scholar] [CrossRef]
  2. Olson, A.L.; Tunér, M.; Verhelst, S. A concise review of glycerol derivatives for use as fuel additives. Heliyon 2023, 9, e13041–e13054. [Google Scholar] [CrossRef] [PubMed]
  3. Kong, P.S.; Aroua, M.K.; Daud, W.M.A.W. Conversion of crude and pure glycerol into derivatives: A feasibility evaluation. Renew. Sustain. Energy Rev. 2016, 63, 533–555. [Google Scholar] [CrossRef]
  4. Checa, M.; Nogales-Delgado, S.; Montes, V.; Encinar, J.M. Recent advances in glycerol catalytic valorization: A review. Catalysts 2020, 10, 1279–1320. [Google Scholar] [CrossRef]
  5. Rodrigues, A.; Bordado, J.C.; Santos, R.G. Upgrading the glycerol from biodiesel production as a source of energy carriers and chemicals-A technological review for three chemical pathways. Energies 2017, 10, 1817–1853. [Google Scholar] [CrossRef]
  6. Fatimah, I.; Sahroni, I.; Fadillah, G.; Musawwa, M.M.; Mahlia, T.M.I.; Muraza, O. Glycerol to solketal for fuel additive: Recent progress in heterogeneous catalysts. Energies 2019, 12, 2872–2886. [Google Scholar] [CrossRef]
  7. Tan, H.W.; Aziz, A.A.R.; Aroua, M.K. Glycerol production and its applications as a raw material: A review. Renew. Sustain. Energy Rev. 2013, 27, 118–127. [Google Scholar] [CrossRef]
  8. Trifoi, A.R.; Agachi, P.Ş.; Pap, T. Glycerol acetals and ketals as possible diesel additives. A review of their synthesis proto cols. Renew. Sustain. Energy Rev. 2016, 62, 804–814. [Google Scholar] [CrossRef]
  9. Mota, C.J.A.; da Silva, C.X.A.; Rosenbach, N.; Costa, J.; da Silva, F. Glycerin derivatives as fuel additives: The addition of glycerol/acetone ketal (solketal) in gasolines. Energy Fuels 2010, 24, 2733–2736. [Google Scholar] [CrossRef]
  10. Nanda, M.R.; Zhang, Y.; Yuan, Z.; Qin, W.; Ghaziaskar, H.S.; Xu, C. Catalytic conversion of glycerol for sustainable pro duction of solketal as a fuel additive: A review. Renew. Sust. Energy Rev. 2016, 56, 1022–1031. [Google Scholar] [CrossRef]
  11. Yadav, N.; Yadav, G.; Ahmaruzzaman, M. Camellia sinensis leaf-assisted green synthesis of SO3H-functionalized ZnS/biochar nanocatalyst for highly selective solketal production and improved reusability in methylene blue dye adsorption. Renew. Energy 2024, 224, 120179. [Google Scholar] [CrossRef]
  12. Zahid, I.; Ayoub, M.; Nazir, M.H.; Sher, F.; Shamsuddin, R.; Abdullah, B.; Ameen, M. Kinetic & thermodynamic studies of green fuel additive solketal from crude glycerol over metakaolin clay catalyst. Biomass Bioenergy 2024, 181, 107036. [Google Scholar]
  13. Kumawat, S.; Singh, S.; Bhatt, T.; Maurya, A.; Vaidyanathan, S.; Natte, K.; Jagadeesh, R.V. Valorization of bio-renewable glycerol by catalytic amination reactions. Green Chem. 2024, 26, 3021–3038. [Google Scholar] [CrossRef]
  14. Li, L.; Korányi, T.I.; Sels, B.F.; Pescarmona, P.P. Highly-efficient conversion of glycerol to solketal over heterogeneous Lewis acid catalysts. Green Chem. 2012, 14, 1611–1619. [Google Scholar] [CrossRef]
  15. Yang, J.; Li, N.; Ma, W.J.; Zhou, J.H.; Sun, H.Z. Synthesis of solketal with catalyst sulfonic acid resin. Adv. Mater. Res. 2013, 830, 176–179. [Google Scholar] [CrossRef]
  16. Nakajima, K.; Hara, M. Amorphous carbon with SO3H groups as a solid Brønsted acid catalyst. ACS Catal. 2012, 2, 1296–1304. [Google Scholar] [CrossRef]
  17. Rodrigues, R.; Mandelli, D.; Gonçalves, N.S.; Pescarmona, P.P.; Carvalho, W.A. Acetalization of acetone with glycerol catalyzed by niobium-aluminum mixed oxides synthesized by a sol-gel process. J. Mol. Catal. A Chem. 2016, 422, 122–130. [Google Scholar] [CrossRef]
  18. Gonçalves, M.; Rodrigues, R.; Galhardo, T.S.; Carvalho, W.A. Highly selective acetalization of glycerol with acetone to solketal over acidic carbon-based catalysts from biodiesel waste. Fuel 2016, 181, 46–54. [Google Scholar] [CrossRef]
  19. Kowalska-Kus, J.; Held, A.; Frankowski, M.; Nowinska, K. Solketal formation from glycerol and acetone over hierarchical zeolites of different structure as catalysts. J. Mol. Catal. A Chem. 2017, 426, 205–212. [Google Scholar] [CrossRef]
  20. Rahaman, M.S.; Phung, T.K.; Hossain, M.A.; Chowdhury, E.; Tulaphol, S.; Lalvani, S.B.; O’Toole, M.; Willing, G.A.; Jasinski, J.B.; Crocker, M.; et al. Hydrophobic functionalization of HY zeolites for efficient conversion of glycerol to solketal. Appl. Catal. A 2020, 592, 117369–117378. [Google Scholar] [CrossRef]
  21. Poly, S.S.; Jamil, M.A.R.; Touchy, A.S.; Yasumura, S.; Siddiki, S.M.A.H.; Toyao, T.; Maenoa, Z.; Shimizu, K.-I. Acetalization of glycerol with ketones and aldehydes catalyzed by high silica Hβ zeolite. Mol. Catal. 2019, 479, 110608–110614. [Google Scholar] [CrossRef]
  22. Stawicka, K.; Díaz-Álvarez, A.E.; Calvino-Casilda, V.; Trejda, M.; Bañares, M.A.; Ziolek, M. The role of Brønsted and Lewis acid sites in acetalization of glycerol over modified mesoporous cellular foams. J. Phys. Chem. C 2016, 120, 16699–16711. [Google Scholar] [CrossRef]
  23. Chen, L.; Nohair, B.; Zhao, D.; Kaliaguine, S. Glycerol acetalization with formaldehyde using heteropolyacid salts sup ported on mesostructured silica. Appl. Catal. A 2018, 549, 207–215. [Google Scholar] [CrossRef]
  24. Ferreira, P.; Fonseca, I.M.; Ramos, A.M.; Vital, J.; Castanheiro, J.E. Valorisation of glycerol by condensation with acetone over silica-included heteropolyacids. Appl. Catal. B Environ. 2010, 98, 94–99. [Google Scholar] [CrossRef]
  25. Abreu, T.H.; Meyer, C.I.; Padró, C.; Martins, L. Acidic V-MCM-41 catalysts for the liquid-phase ketalization of glycerol with acetone. Microporous Mesoporous Mater. 2019, 273, 219–225. [Google Scholar] [CrossRef]
  26. Li, X.; Jiang, Y.; Zhou, R.; Hou, Z. Acetalization of glycerol with acetone over appropriately-hydrophobic zirconium or organophosphonates. Appl. Clay Sci. 2020, 189, 105555–105563. [Google Scholar] [CrossRef]
  27. Kozhevnikov, I.V. Catalysis by heteropoly acids and multicomponent polyoxometalates in 424 liquid-phase reactions. Chem. Rev. 1998, 98, 171–198. [Google Scholar] [CrossRef] [PubMed]
  28. Pope, M.T.; Müller, A. Polyoxometalate chemistry: An old field with new dimensions in several disciplines. Angew. Chem. Int. Ed. Engl. 1991, 30, 34–48. [Google Scholar] [CrossRef]
  29. Li, D.; Ma, P.; Niu, J.; Wang, J. Recent advances in transition-metal-containing Keggin-type polyoxometalate-based coor dination polymers. Coord. Chem. Rev. 2019, 392, 49–80. [Google Scholar] [CrossRef]
  30. da Silva, M.J.; Liberto, N.A. Soluble and solid supported Keggin heteropolyacids as catalysts in reactions for biodiesel production: Challenges and recent advances. Curr. Org. Chem. 2016, 20, 1263–1283. [Google Scholar] [CrossRef]
  31. Devasan, R.; Gouda, S.P.; Halder, H.; Rokhum, S.L. Microwave-assisted valorization of biodiesel byproduct glycerol to solketal over Musa acuminata peel waste derived solid acid catalyst: Process optimization, kinetics, and thermodynamics. Energy Adv. 2024, 3, 316–329. [Google Scholar] [CrossRef]
  32. da Silva, M.J.; de Oliveira, C.M. Catalysis by Keggin Heteropolyacid Salts. Curr. Catal. 2018, 7, 26–34. [Google Scholar] [CrossRef]
  33. Gromov, N.V.; Medvedeva, T.B.; Lukoyanov, I.A.; Panchenko, V.N.; Prikhod’ko, S.A.; Parmon, V.N.; Timofeeva, M.N. Hydrolysis-oxidation of cellulose to formic acid in the presence of micellar vanadium-containing molybdophosphoric het eropoly acids. Results Eng. 2023, 17, 100913. [Google Scholar] [CrossRef]
  34. da Silva, M.J.; Teixeira, M.G.; Chaves, D.M.; Siqueira, L. An efficient process to synthesize solketal from glycerol over tin(II) silicotungstate catalyst. Fuel 2020, 281, 118724. [Google Scholar] [CrossRef]
  35. Budych, M.J.W.; Staszak, K.K.; Bajek, A.; Pniewski, F.; Jastrzab, R.; Staszak, M.; Tylkowski, B.; Wieszczycka, K. The future of polyoxymetalates for biological and chemical apllications. Coord. Chem. Rev. 2023, 493, 215306. [Google Scholar] [CrossRef]
  36. Castro, G.A.D.; Lopes, N.P.G.; Fernandes, A.S.; da Silva, M.J. Copper phosphotungstate-catalyzed microwave-assisted synthesis of 5-hydroxymethylfurfural in a biphasic system. Cellulose 2022, 29, 5529–5545. [Google Scholar] [CrossRef]
  37. Hombach, L.; Simitsis, N.; Vossen, J.T.; Vorhoit, A.J.; Beine, A.K. Solidified and Immobilized Heteropolyacids for the Valorization of Lignocellulose. ChemCatChem 2022, 14, e202101838. [Google Scholar] [CrossRef]
  38. Narasimharao, K.; Brown, D.; Lee, A.F.; Newman, A.; Siril, P.; Tavener, S.; Wilson, K. Structure–activity rela tions in Cs-doped heteropolyacid catalysts for biodiesel production. J. Catal. 2007, 248, 226–234. [Google Scholar] [CrossRef]
  39. Chen, Y.; Yang, Y.; Liu, X.; Shi, X.; Wang, C.; Zhong, H.; Jin, F. Sustainable production of formic acid and acetic acid from biomass. Mol. Catal. 2023, 545, 113199. [Google Scholar] [CrossRef]
  40. Pope, M.T.; Jeannin, Y.; Fournier, M. Heteropoly and Isopoly Oxometalates; Springer: Berlin/Heidelberg, Germany, 1983; Volume 8, p. 420. [Google Scholar]
  41. Mouanni, S.; Amitouche, D.; Mazari, T.; Rabia, C. Transition metal-substituted Keggin-type polyoxometalates as catalysts for adipic acid production. Appl. Petrochem. Res. 2019, 9, 67–75. [Google Scholar] [CrossRef]
  42. da Silva, M.J.; Andrade, P.H.S.; Ferreira, S.O.; Vilanculo, C.B.; Oliveira, C.M. Monolacunary K8SiW11O39-Catalyzed terpenic alcohols oxidation with hydrogen peroxide. Catal. Lett. 2018, 148, 2516–2527. [Google Scholar] [CrossRef]
  43. Wang, S.-S.; Yang, G.-Y. Recent advances in polyoxometalate-catalyzed reactions. Chem. Rev. 2015, 115, 4893–4992. [Google Scholar] [CrossRef] [PubMed]
  44. da Silva, M.J.; Ribeiro, C.J.; Vilanculo, C.B. How the content of protons and vanadium affects the activity of H3+nPMo12-nVnO40 (n = 0, 1, 2, or 3) catalysts on the oxidative esterification of benzaldehyde with hydrogen peroxide. Catal. Lett. 2023, 153, 2045–2056. [Google Scholar] [CrossRef]
  45. Tsigdinos, G.A.; Hallada, C.J. Molybdovanadophosphoric acids and their salts. I. Investigation of methods of preparation and characterization. Inorg. Chem. 1968, 7, 437–441. [Google Scholar] [CrossRef]
  46. da Silva, M.J.; Ribeiro, C.J.A.; de Araújo, E.N.; Torteloti, I.M. Acetalization of alkyl alcohols with benzaldehyde over cesium phosphor molybdovanadate salts. Processes 2023, 11, 2220. [Google Scholar] [CrossRef]
  47. Yua, B.-Y.; Tsenga, T.-Y.; Yanga, Z.-Y.; Shen, S.-J. Evaluation on the solketal production processes: Rigorous design, optimization, environmental analysis, and control. Process Saf. Environ. Prot. 2022, 157, 140–155. [Google Scholar] [CrossRef]
  48. Ray, P.C.; Roberts, S.M. Overcoming intrinsic diastereoselection using polyleucine as a chiral epoxidate ion catalyst. Tetrahedron Lett. 1999, 40, 1779–1782. [Google Scholar] [CrossRef]
  49. Deutsch, J.A.; Martin, A.; Lieske, H. Investigations on heterogeneously catalysed condensations of glycerol to cyclic acetals. J. Catal. 2007, 245, 428–435. [Google Scholar] [CrossRef]
  50. Roldán, L.L.; Mallada, R.; Fraile, J.M.; Mayoral, J.A.; Menéndez, M. Glycerol upgrading by ketalization in a zeolite membrane reactor. Asia-Pac. J. Chem. Eng. 2009, 4, 279–284. [Google Scholar] [CrossRef]
Processes 12 00854 g001

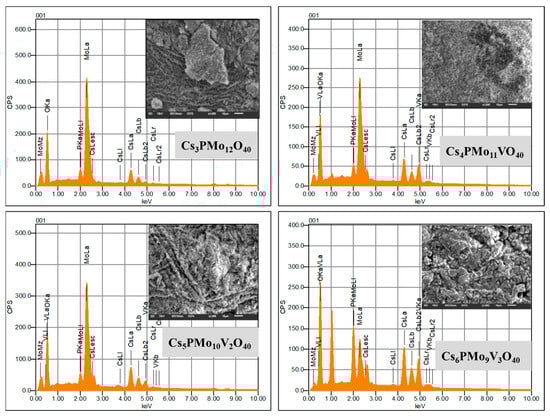

Figure 1. EDS-MEV analyses of cesium phosphomolybdates.
Figure 1. EDS-MEV analyses of cesium phosphomolybdates.
Processes 12 00854 g001
Processes 12 00854 g002

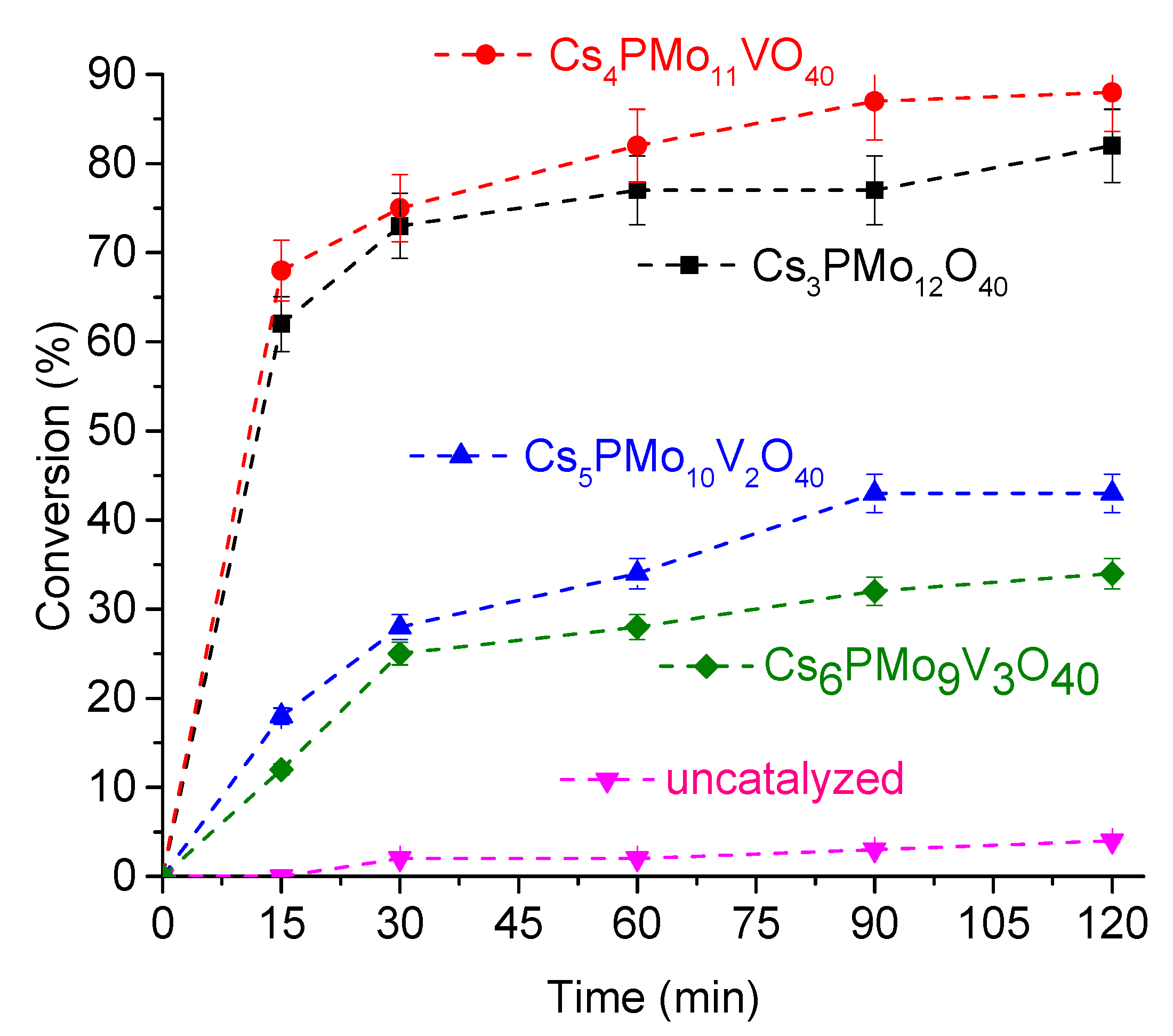

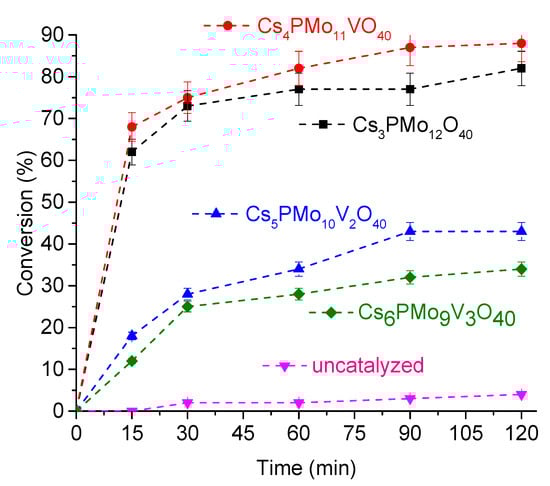

Figure 2. Effects of each kind of cesium catalyst on the kinetic curves of glycerol condensation with acetone a. a Reaction conditions: glycerol (6.0 mmol), acetone (180.0 mmol), temperature (298 K), catalyst (0.030 mol %), volume (10 mL).
Figure 2. Effects of each kind of cesium catalyst on the kinetic curves of glycerol condensation with acetone a. a Reaction conditions: glycerol (6.0 mmol), acetone (180.0 mmol), temperature (298 K), catalyst (0.030 mol %), volume (10 mL).
Processes 12 00854 g002
Processes 12 00854 sch001

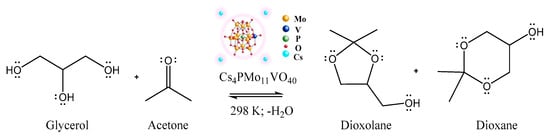

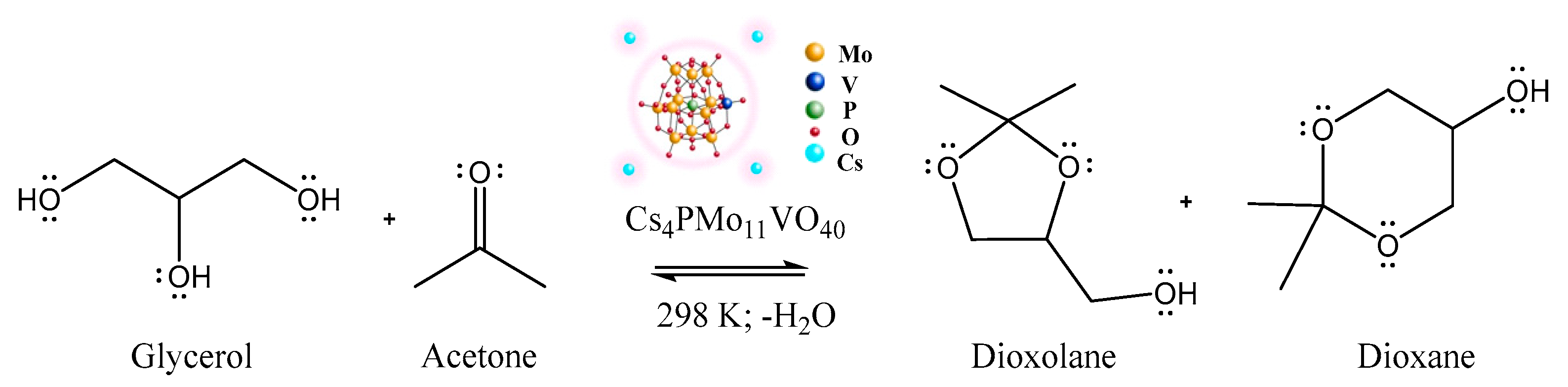

Scheme 1. Main products of Cs4PMo11VO40-catalyzed glycerol acetalization with acetone.
Scheme 1. Main products of Cs4PMo11VO40-catalyzed glycerol acetalization with acetone.
Processes 12 00854 sch001
Processes 12 00854 g003

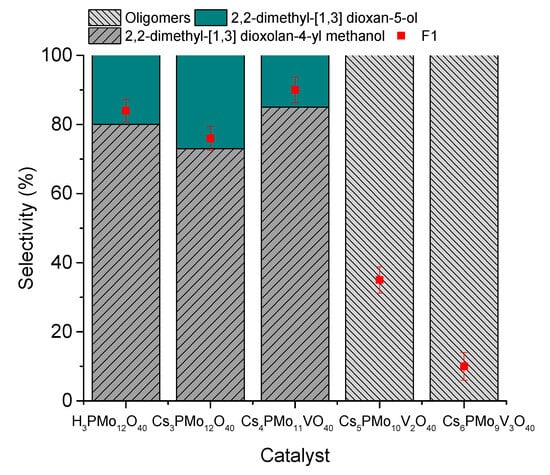

Figure 3. Conversions and selectivity of glycerol acetone condensation reactions reached after 2 h in the presence of phosphomolybdic acid or its cesium salts a. a Reaction conditions: glycerol (6.0 mmol), acetone (180.0 mmol), temperature (298 K), catalyst (0.030 mol %), volume (10 mL).
Figure 3. Conversions and selectivity of glycerol acetone condensation reactions reached after 2 h in the presence of phosphomolybdic acid or its cesium salts a. a Reaction conditions: glycerol (6.0 mmol), acetone (180.0 mmol), temperature (298 K), catalyst (0.030 mol %), volume (10 mL).
Processes 12 00854 g003
Processes 12 00854 g004

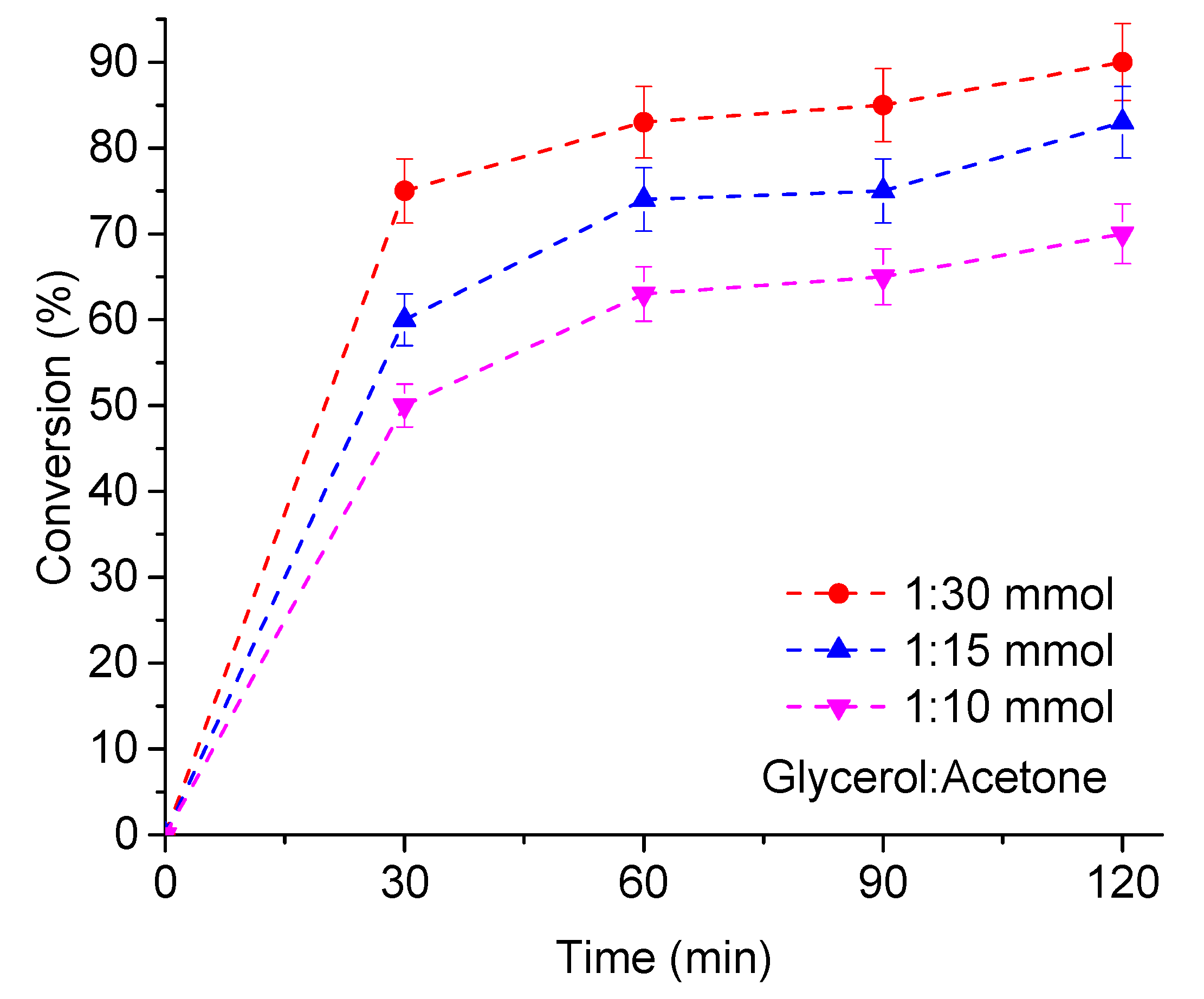

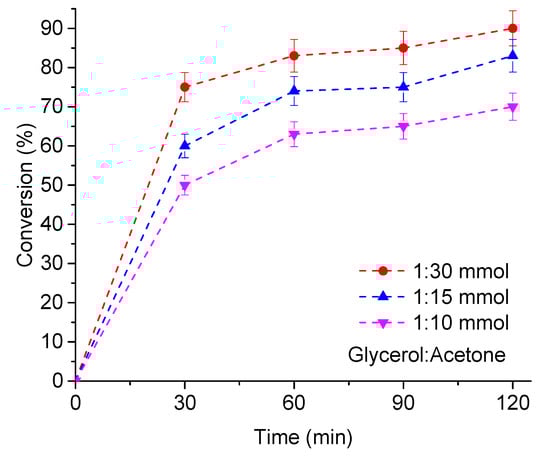

Figure 4. Effect of glycerol–acetone ratio on the kinetic curves of condensation reactions with acetone catalyzed by Cs4PMo11VO40 a. a Reaction conditions: glycerol (6.0; 12.0; 18.0 mmol), acetone (180.0 mmol), temperature (298 K), catalyst (0.030 mol %), volume (10 mL).
Figure 4. Effect of glycerol–acetone ratio on the kinetic curves of condensation reactions with acetone catalyzed by Cs4PMo11VO40 a. a Reaction conditions: glycerol (6.0; 12.0; 18.0 mmol), acetone (180.0 mmol), temperature (298 K), catalyst (0.030 mol %), volume (10 mL).
Processes 12 00854 g004
Processes 12 00854 g005

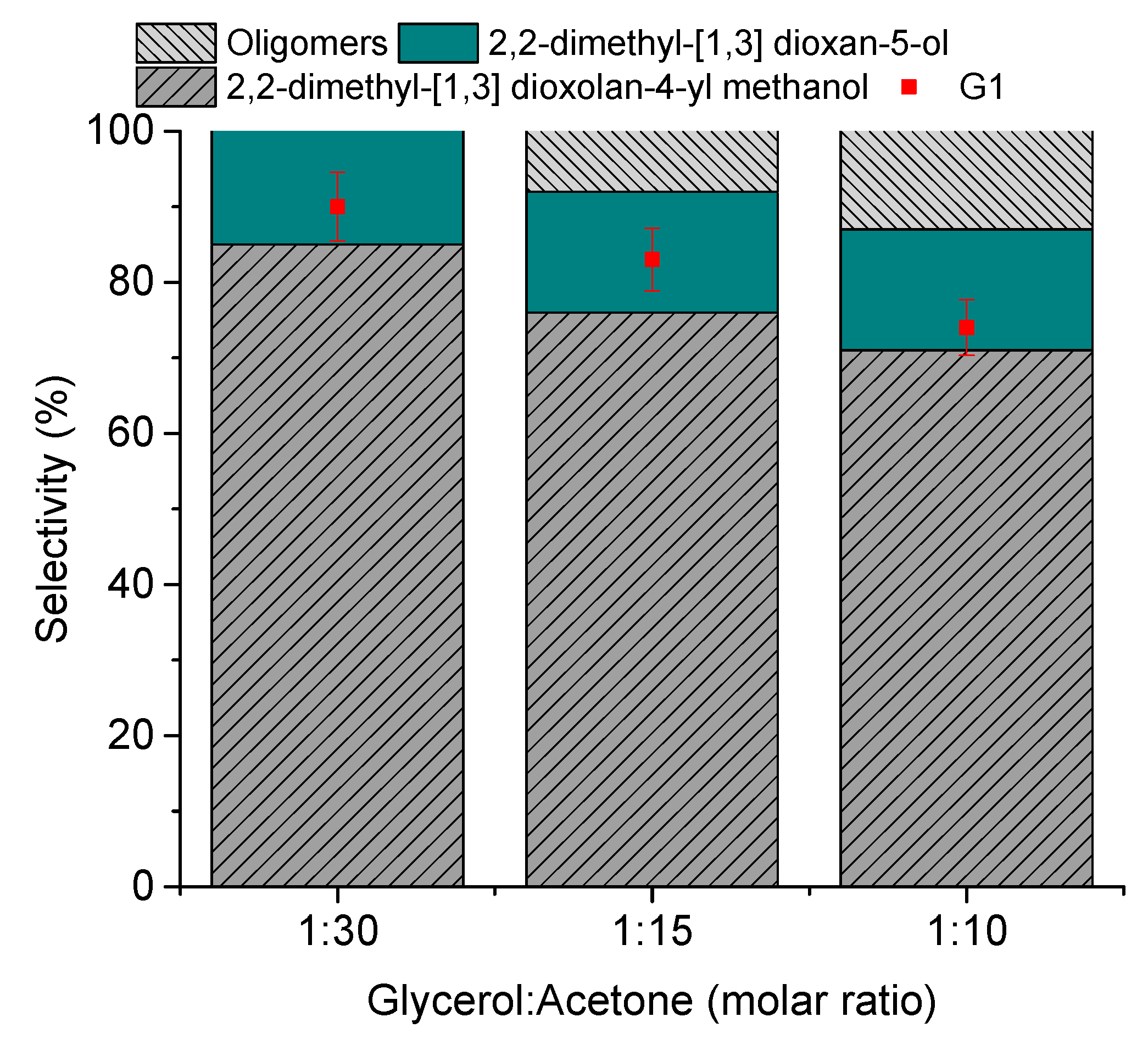

Figure 5. Effects of glycerol–acetone proportion on the conversion and selectivity of Cs4PMo11VO40-catalyzed glycerol acetone condensation after 2 h reaction a. a Reaction conditions: glycerol (6.0 mmol), acetone (variable), temperature (298 K), catalyst (0.030 mol %), volume (10 mL).
Figure 5. Effects of glycerol–acetone proportion on the conversion and selectivity of Cs4PMo11VO40-catalyzed glycerol acetone condensation after 2 h reaction a. a Reaction conditions: glycerol (6.0 mmol), acetone (variable), temperature (298 K), catalyst (0.030 mol %), volume (10 mL).
Processes 12 00854 g005
Processes 12 00854 g006

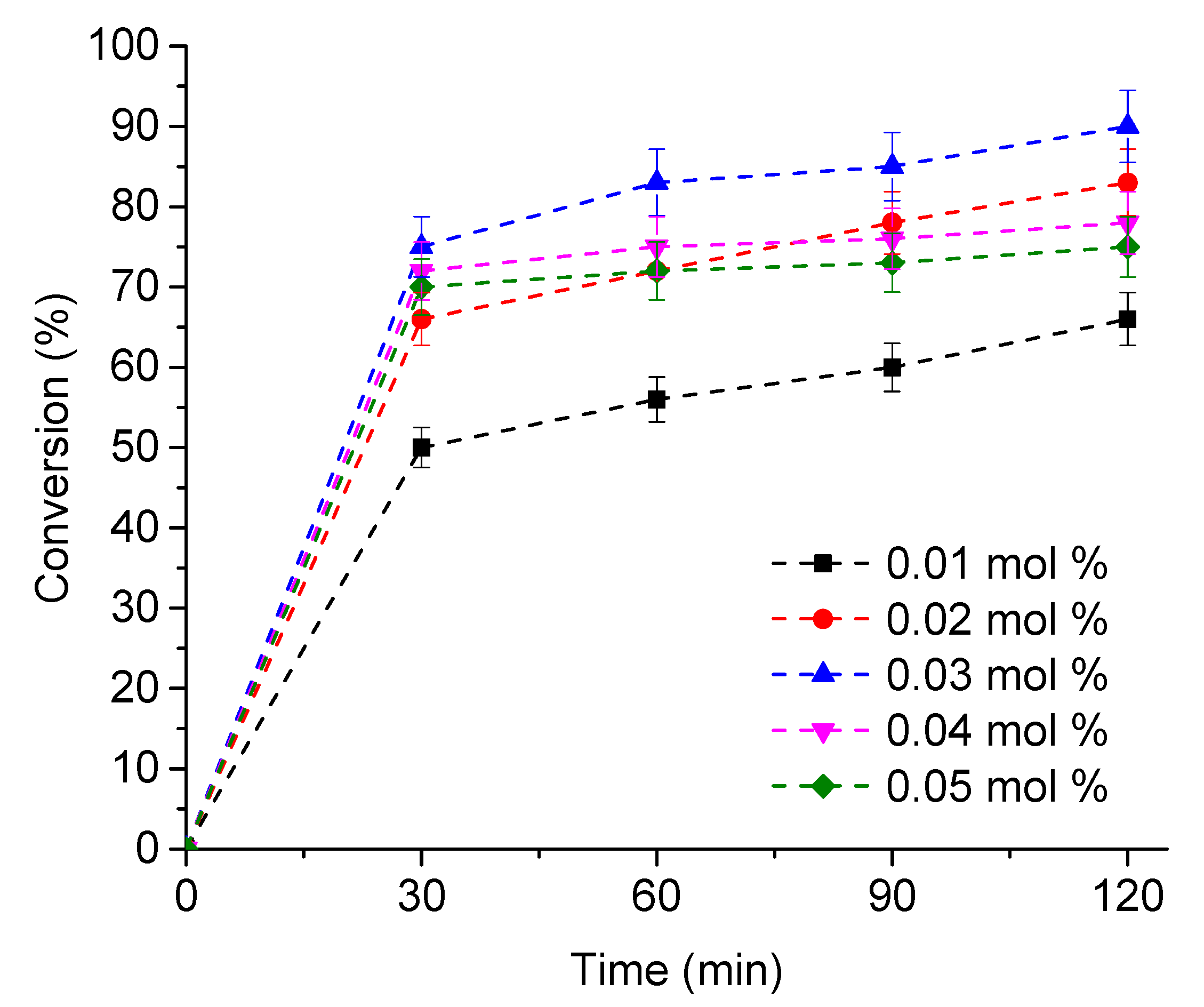

Figure 6. Effect of catalyst load on the kinetic curves of Cs4PMo11VO40-catalyzed glycerol acetone condensation reactions a. a Reaction conditions: glycerol (6.0 mmol), acetone (180 mmol), catalyst load (variable), temperature (298 K), volume (10 mL).
Figure 6. Effect of catalyst load on the kinetic curves of Cs4PMo11VO40-catalyzed glycerol acetone condensation reactions a. a Reaction conditions: glycerol (6.0 mmol), acetone (180 mmol), catalyst load (variable), temperature (298 K), volume (10 mL).
Processes 12 00854 g006
Processes 12 00854 g007

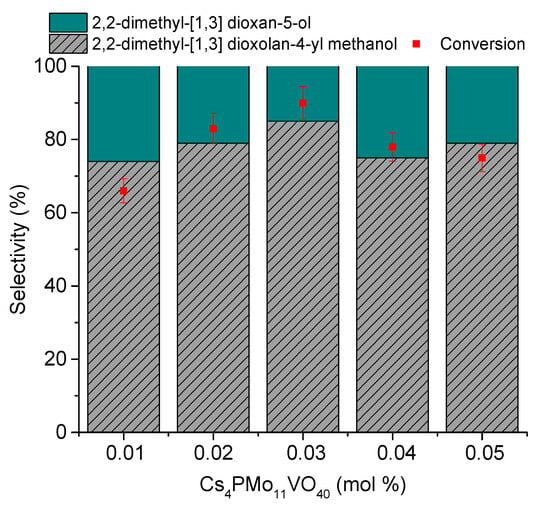

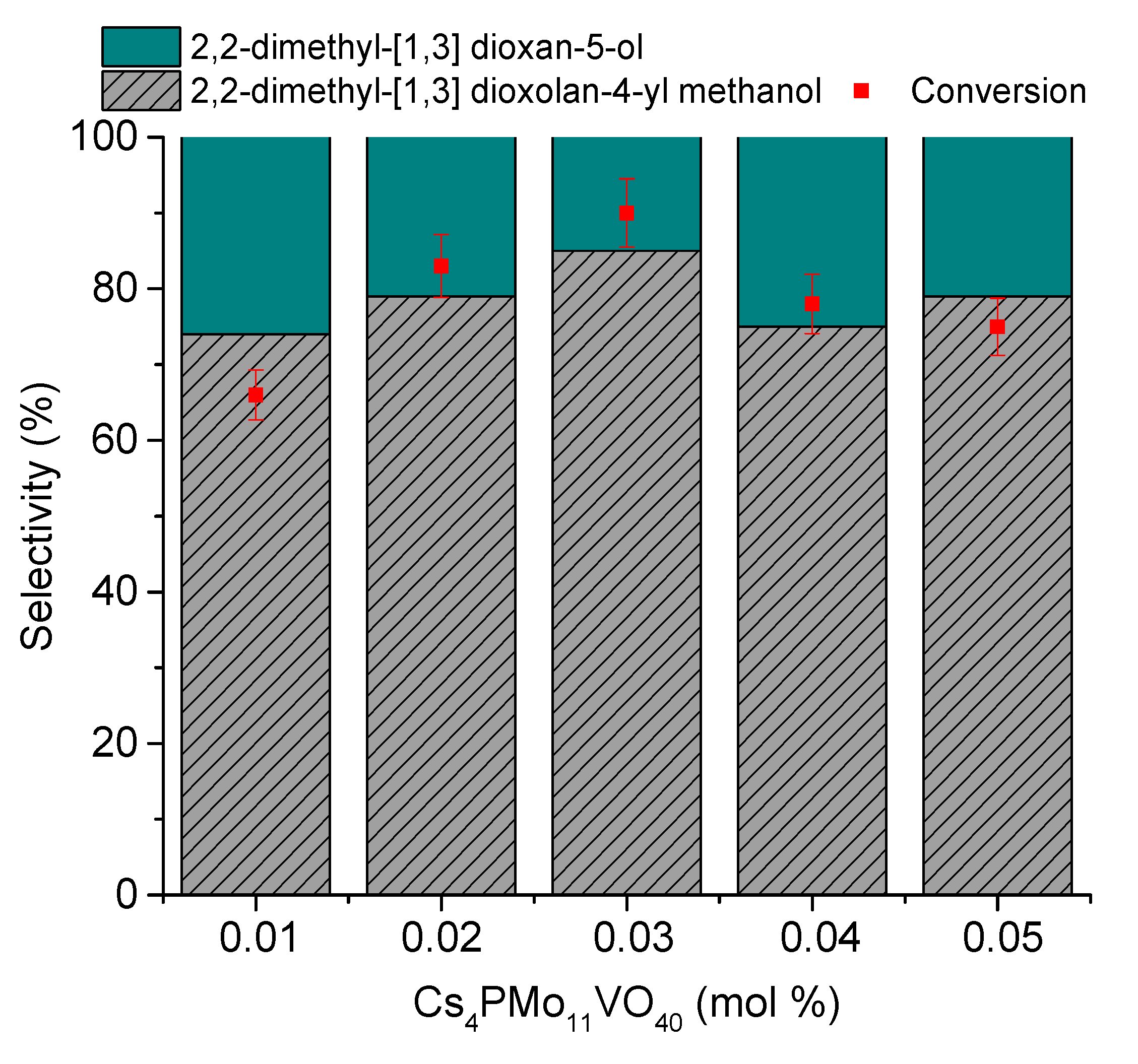

Figure 7. Effect of catalyst load on the conversion and selectivity of Cs4PMo11VO40-catalyzed glycerol acetone condensation after 2 h reaction a. a Reaction conditions: glycerol (6.0 mmol), acetone (180 mmol), catalyst load (variable), temperature (298 K), volume (10 mL).
Figure 7. Effect of catalyst load on the conversion and selectivity of Cs4PMo11VO40-catalyzed glycerol acetone condensation after 2 h reaction a. a Reaction conditions: glycerol (6.0 mmol), acetone (180 mmol), catalyst load (variable), temperature (298 K), volume (10 mL).
Processes 12 00854 g007
Processes 12 00854 g008

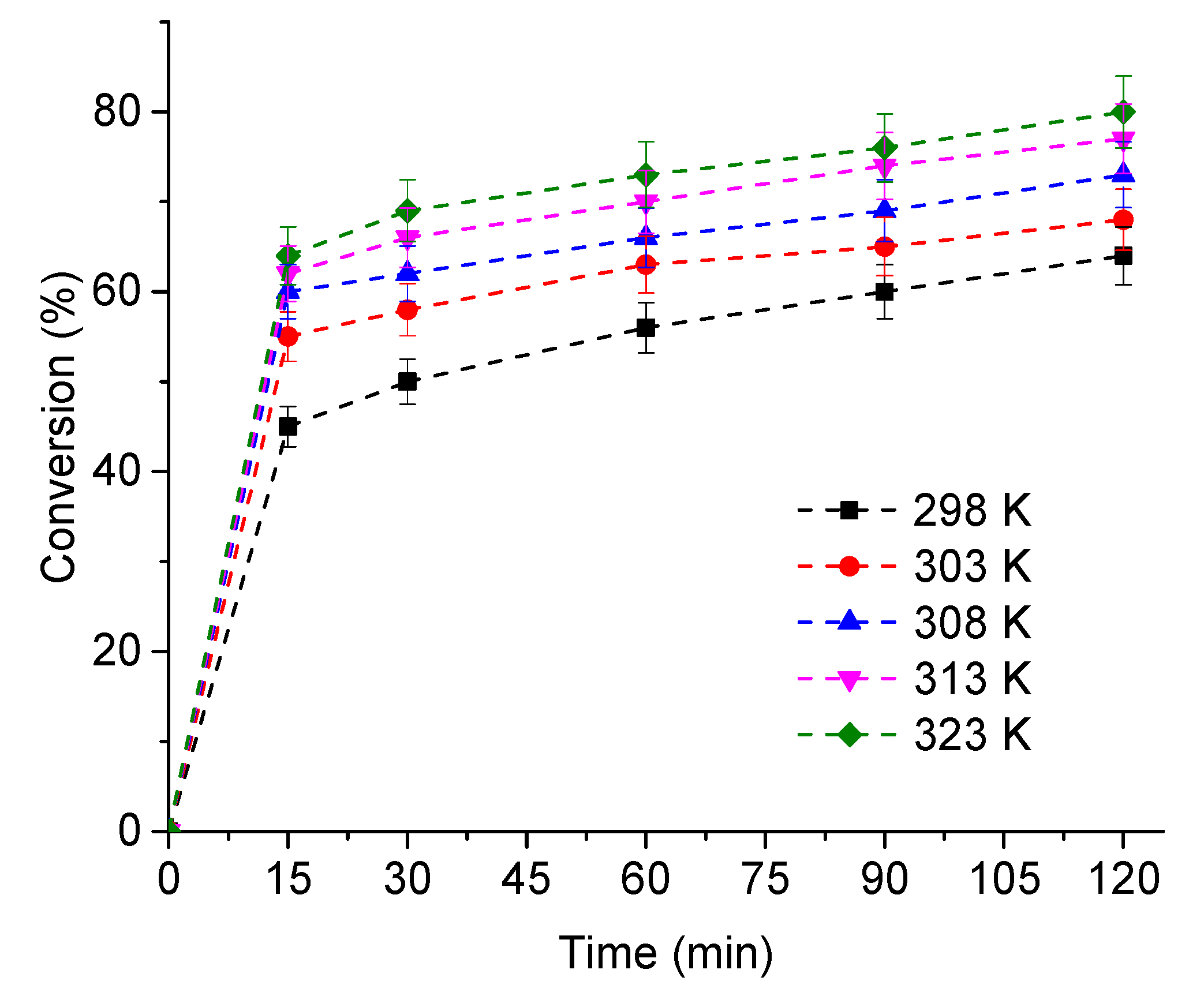

Figure 8. Effects of temperature on the kinetic curves of Cs4PMo11VO40-catalyzed glycerol acetone condensation reactions a. a Reaction conditions: glycerol (6.0 mmol), acetone (180 mmol), temperature (variable), catalyst load (0.010 mol %), volume (10 mL).
Figure 8. Effects of temperature on the kinetic curves of Cs4PMo11VO40-catalyzed glycerol acetone condensation reactions a. a Reaction conditions: glycerol (6.0 mmol), acetone (180 mmol), temperature (variable), catalyst load (0.010 mol %), volume (10 mL).
Processes 12 00854 g008
Processes 12 00854 g009

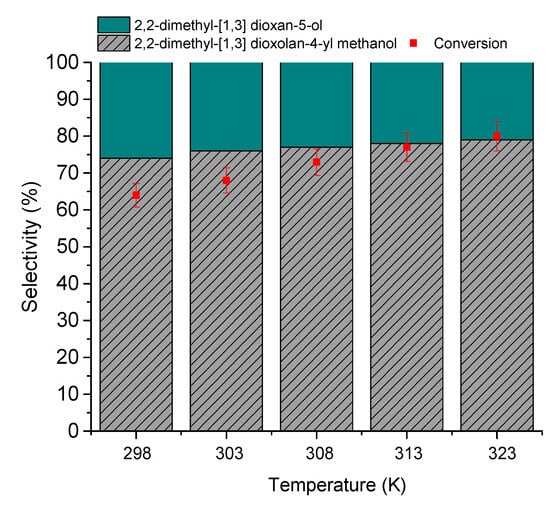

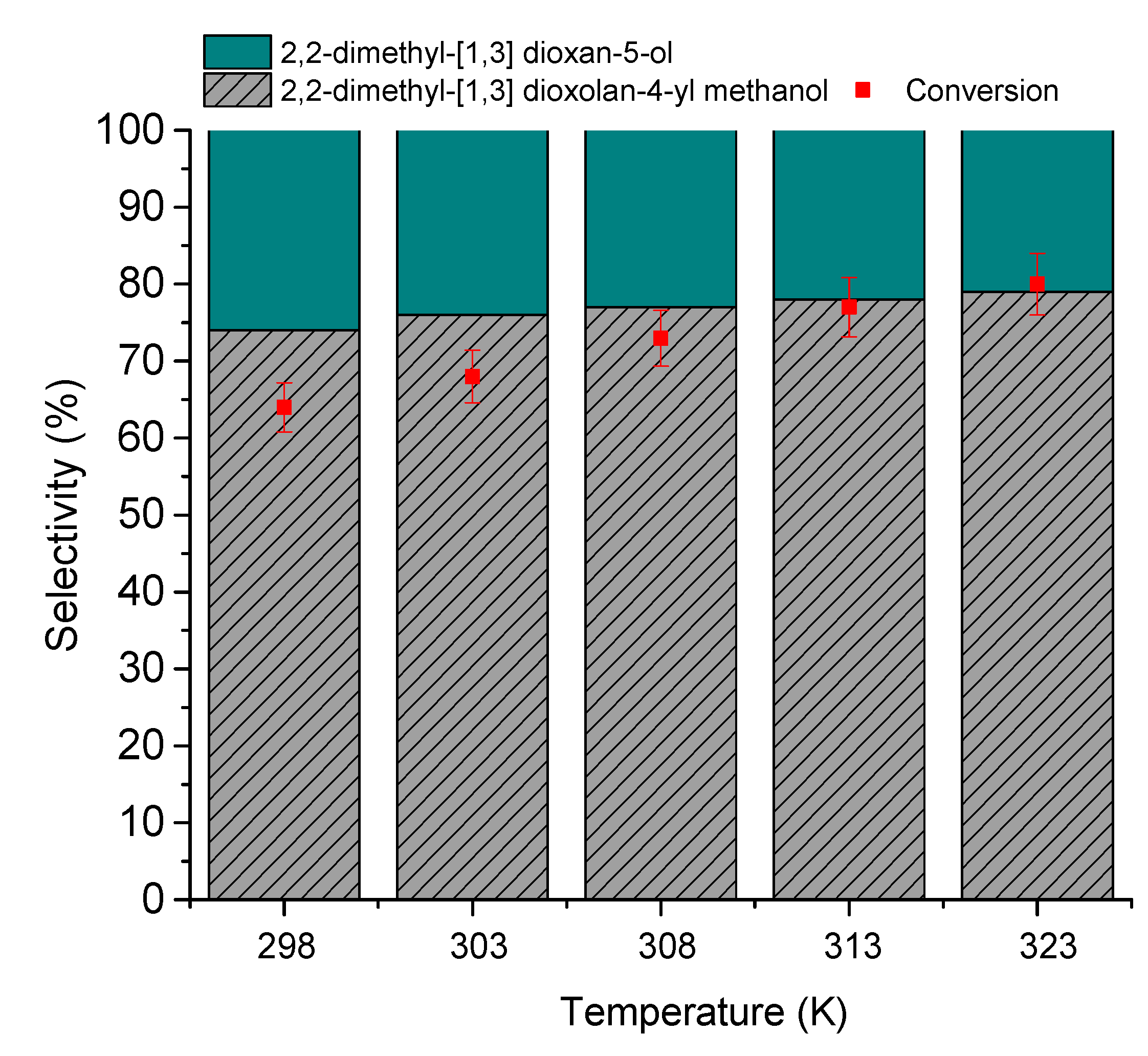

Figure 9. Impacts of temperature on the conversion and selectivity of Cs4PMo11VO40-catalyzed glycerol acetone condensation after 2 h reaction a. a Reaction conditions: glycerol (6.0 mmol), acetone (180 mmol), temperature (variable), catalyst (0.010 mol %), volume (10 mL).
Figure 9. Impacts of temperature on the conversion and selectivity of Cs4PMo11VO40-catalyzed glycerol acetone condensation after 2 h reaction a. a Reaction conditions: glycerol (6.0 mmol), acetone (180 mmol), temperature (variable), catalyst (0.010 mol %), volume (10 mL).
Processes 12 00854 g009
Table 1. Measurements of acidity of the phosphomolybdic acid and its cesium salts a.
Table 1. Measurements of acidity of the phosphomolybdic acid and its cesium salts a.
CatalystInitial Electrode
Potential (mV)		Acidity Strength aAcid Site Numbers
(mEq/g)
H3PMo12O40695Very strong1.3
Cs3PMo12O40450Very strong0.2
Cs4PMo11VO40460Very strong0.6
Cs5PMo10V2O40330Very strong0.2
Cs6PMo9V3O4090strong0.1
a Classified according to ref [34]; measured in acetonitrile solution (50 mg catalyst) by potentiometric titration with n-butylamine 0.025 mol L−1 (adapted from ref [46]).
Table 2. Measurements of surface area and porosity of the phosphomolybdic acid and its cesium salts.
Table 2. Measurements of surface area and porosity of the phosphomolybdic acid and its cesium salts.
CatalystSurface Area
(m2·g−1)		Pore Volume
(m3·g−1) × 10−3		Diameter Pore
(Å)
H3PMo12O402.81.73.8
Cs3PMo12O40104.137.32.0
Cs4PMo11VO4055.617.43.5
Cs5PMo10V2O404.11.03.1
Cs6PMo9V3O403.00.53.1
Table 3. Comparison of heterogeneous catalysts for the conversion of glycerol to solketal.
Table 3. Comparison of heterogeneous catalysts for the conversion of glycerol to solketal.
CatalystLoad
(wt. %)		Temperature (K)Conv.TONRef.
Amberlyst-3653138833[48]
Zeolite beta133436022[49]
Zeolite USY193439033[49]
H3PW12O40/SiO25343100121[50]
Cs4PMo11VO400.3629890180This work
Table 4. Recovery and reuse of the Cs4PMo11VO40 catalyst in condensation reactions of glycerol with acetone a.
Table 4. Recovery and reuse of the Cs4PMo11VO40 catalyst in condensation reactions of glycerol with acetone a.
RunConversionSelectivity %
Dioxane/Dioxolane		Recovery %
18912/8897
28810/9098
38511/8997
48610/9097
a Reaction conditions: glycerol (6.0 mmol), acetone (180 mmol), catalyst load (0.03 mol %), temperature (298 K), time (2 h), volume (10 mL).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

da Silva, M.J.; Andrade Ribeiro, C.J. Cs4PMo11VO40-Catalyzed Glycerol Ketalization to Produce Solketal: An Efficient Bioadditives Synthesis Method. Processes 2024, 12, 854. https://doi.org/10.3390/pr12050854

AMA Style

da Silva MJ, Andrade Ribeiro CJ. Cs4PMo11VO40-Catalyzed Glycerol Ketalization to Produce Solketal: An Efficient Bioadditives Synthesis Method. Processes. 2024; 12(5):854. https://doi.org/10.3390/pr12050854

Chicago/Turabian Style

da Silva, Márcio José, and Cláudio Júnior Andrade Ribeiro. 2024. "Cs4PMo11VO40-Catalyzed Glycerol Ketalization to Produce Solketal: An Efficient Bioadditives Synthesis Method" Processes 12, no. 5: 854. https://doi.org/10.3390/pr12050854

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
