Communication

Non-Gaussian Signal Statistics’ Impact on LIBS Analysis

1
Prokhorov General Physics Institute, The Russian Academy of Sciences, 38 Vavilova Street, 119991 Moscow, Russia
2
School of Material Science and Engineering, Hefei University of Technology, Hefei 230009, China
*
Author to whom correspondence should be addressed.
Photonics 2024, 11(1), 23; https://doi.org/10.3390/photonics11010023
Submission received: 24 October 2023 / Revised: 28 November 2023 / Accepted: 5 December 2023 / Published: 27 December 2023
(This article belongs to the Special Issue Laser-Induced Damage)

Abstract

:
A detailed study has been carried out to reveal signal statistics’ impact on analysis sensitivity in laser-induced breakdown spectroscopy (LIBS) measurements. For several signals measured simultaneously, it was demonstrated that space-, spectra- and time-integrated plasma emission followed a normal distribution while the spectra- and time-resolved LIBS signal (atomic line intensity, plasma background emissions) distribution functions were biased compared to a Gaussian distribution function. For the first time in LIBS, the impact of a non-Gaussian distribution function on the limit of detection (LOD)’s determination has been studied in detail for single-shot spectra as well as for averaged spectra. Here, we demonstrated that the non-symmetrical distribution of the LIBS signals influenced the estimated LODs, so knowledge of a LIBS signal’s distribution function provides more reliable results, and the analysis sensitivity can be wrongly estimated if Gaussian distribution is presumed.

1. Introduction

Online or/and on-site elemental analysis is of high interest in modern industries like alloy production and additive manufacturing [1,2,3,4,5,6,7,8]. Laser-induced breakdown spectroscopy (LIBS) has become a “superstar” technique for online analysis due to its ability to analyze “photon-reachable” targets in almost any environment [9]. LIBS had poor sensitivity and accuracy compared to conventional laboratory-based techniques in atomic emission spectroscopy. However, the requirement for super-fast analysis has made LIBS a highly demanded technique in different fields, including industrial applications [2,6,10,11], agriculture, ecological monitoring [12,13,14] and medicine [15].
Online analysis requires continuous data acquisition, so single-shot or multiple-shot averaging is typically used in LIBS. Generally, in atomic emission spectroscopy (optical emission spectroscopy with spark or arc discharge, optical emission spectroscopy of inductively coupled plasma), the analytical signal follows a normal distribution, so the limits of detection can be estimated using “three-sigma” criteria. However, in some cases, the analytical signal does not follow a normal distribution. For example, K. Behrends experimentally demonstrated for different analytical methods that the deviations in analytical results do not always obey the Gaussian distribution [16]. In the case of LIBS measurements, the analytical signal distribution function should depend on different parameters, including the laser pulse energy variation, sample homogeneity, etc. Shot-to-shot LIBS signal fluctuations have been studied in detail by many research teams [17,18,19,20,21,22] supposing that LIBS signals follow the normal distribution. However, in 2007, A. Michel and A.D. Chave [23] clearly demonstrated that the atomic line signal follows a generalized extreme value distribution (GEVD) rather than a normal distribution. The first published results on the non-Gaussian distribution function of LIBS signals were presented by V. Lazic et al. [24], but only raw data were presented without any discussion on this issue. Surprisingly, however, the LIBS community did not pay much attention to the non-Gaussian distribution of LIBS signals, and 10 years later, only two papers have followed. Klus et al. [25,26] studied the atomic and ionic line emission statistics and demonstrated that some lines were distributed according to the GEVD while other signals could be described using the normal distribution. The same team simultaneously measured atomic line intensities, gated plasma images, shockwaves and acoustic waves and demonstrated that the distribution functions for all the signals did not follow a normal distribution [27]. The authors indicated that the non-Gaussian distribution of LIBS signals will have an impact on analysis results but have not published any proof.
In the current manuscript, we made the next step and systematically studied the LIBS signal statistics’ (distribution functions) influence on the analysis sensitivity (limits of detection). Single-variable calibration curves were plotted for the non-Gaussian distributed signals with different spectra averaging and the limits of detection were estimated. It is generally accepted in analytical atomic spectroscopy methods that atomic/ionic line emission follows a Gaussian distribution, so the limit of detection (LOD) is estimated supposing the normal distribution condition is fulfilled. However, in LIBS, blank samples may not always be available, so low-contamination samples (pseudo-blanks) can be used. In such cases, histograms of blank (pseudo-blank) samples should be compared to quantify the LOD. Signal averaging is a widely utilized procedure in the LIBS community to improve the measurement reproducibility. The second aim of the study is to estimate the impact of spectra averaging on LIBS signal distribution functions and measured LODs.

2. Experiment

The LIBS signal statistics were studied with a conventional experiment setup (Figure 1) which is based on a flash-lamp-pumped solid-state Nd:YAG laser [28]. A laser beam of 1064 nm wavelength was focused using a quartz lens (F = 100 mm) onto the sample surface (laser spot 120 μm) at an angle of 90 degrees. The laser beam waist was located 1 mm below the sample surface to improve the measurement reproducibility. The laser pulse duration was measured as 10 ns using a fast photodiode (11HSP-FS, <1 ns, Standa Ltd., Vilnius, Lithuania) and digital oscilloscope (XSD3302, Owon, 300 MHz, 2.5 GS/s, Owon Ltd., Zhangzhou, China). The laser pulse energy was controlled using a thermal energy meter (QE25LP-S-MB, Gentec, Gentec Electro-Optics, Inc., Quebec City, QC, Canada). The laser beam quality was estimated as M2 = 2. The laser ran at a 5 Hz rate. The plasma emission was collected from the side using a quartz lens located at double focal length from the plasma (F = 45 mm), so the plasma image was transferred onto the spectrograph slit at a scale of 1:1. A spectrograph (2400 grooves/mm, λ/δλ = 3500 Shamrock 303i, Andor, Andor Technology Ltd, Belfast, UK) was equipped with an intensified CCD camera (ICCD) (iStar, Andor, Andor Technology Ltd, Belfast, UK). An additional CMOS camera (acA1920-40um, Basler, Basler AG, Ahrensburg, Germany) was utilized to capture the time- and spectra-integrated plasma images (exposure time 500 µs, 350–800 nm spectral range). In order to monitor the shot-to-shot laser pulse energy repeatability, we installed a glass plate and measured the laser beam fleck using a CMOS camera (acA1920-40um, Basler, Basler AG, Ahrensburg, Germany). The laser and intensified CCD (ICCD) and CMOS cameras were synchronized using a digital pulse generator (DG-535, Stanford Research, Sunnyvale, CA, USA). The computer controlled the data acquisition with custom-written software developed in the LabVIEW 2014 environment (National Instruments, Austin, TX, USA). The sample was installed in a holder so that the lens-to-sample distance was the same throughout the experiments. The holder was built into a two-axis motorized stage (8MT173-30, Standa Ltd., Vilnius, Lithuania) to ensure the same lens-to-sample distance during sample movement. Low-alloy steel samples (see Table 1) were chosen for their suitability in estimating LIBS sensitivity in terms of the limits of detection (LODs). Before measurements, a sample surface was polished using sandpaper (grit P2400, Dexter Pro, Gdansk, Poland) to remove the slag layers and then washed with ethanol.

3. Results and Discussion

The choice of analytical lines in LIBS measurements depends on several factors, such as the absence of spectral interference and self-absorption as well as the high signal-to-noise ratio of the selected line. Typically, the shot-to-shot fluctuations in LIBS measurements can be compensated by an analytical line normalization procedure [29]: the analytical line is normalized on major component line intensity or plasma background emission. According to the current study goal, we focused on measuring LIBS signal distribution functions and the impact on analysis results. To study the non-Gaussian LIBS signal distribution impact on analysis results, we utilized low-alloy steels and quantified Si I 288.16 (analyte) and the Fe I 281.33 line (matrix) intensities in the spectral range of 280–290 nm (Figure 2). The Si I 288.16 nm line is a resonant line so its intensity is the largest between silicon atomic lines in the plasma spectrum. Additionally, the Si I 288.16 nm line has no spectral interference with the iron atomic lines. The Fe I 281.33 nm line had high intensity and did not spectrally interfere with the other lines so it is a good choice. The atomic line integral with background correction was defined as the corresponding line LIBS signal. In order to measure limits of detection, the background signal was defined as continuous wave plasma emission with the same spectral width as the analyte line at FWHM but shifted toward the free-of-lines spectral region. Laser pulses triggered all the processes in laser ablation so it was convenient to monitor the laser pulse energy during experiments. To do so, a glass plate was installed after the laser output and a neutral density glass filter was installed before the CMOS camera which digitized the laser beam fleck profile (Figure 2a). The resulting laser beam image was used to define the laser pulse energy as the rectangular area where pixel intensity drops to 1/10 from the beam maximum (white dashed line in Figure 2a). The spectra- and time-integrated plasma images have also been captured by another CMOS camera since plasma imaging can be a simple but effective way for atomic/ionic line normalization. The plasma imaging signal was defined as the sum of the pixel counts in the rectangular area at the 1/10 level from the maximum amplitude (white dashed line in Figure 2b).
The following sampling strategy was used in the experiments: 10 laser pulses were used to ablate the same spot and every spectrum (or plasma image) was captured; then, the sample was moved to another spot for the next 10 single-shot LIBS measurements; a matrix of 20 × 20 spots was sampled so 4000 LIBS spectra and plasma images were acquired. A 300 μm distance was set between laser spot centers to avoid any possible influence of reablation at the crater border between the measurements. The Nd:YAG laser generated pulses at a 5 Hz rate, thus 2 s were needed for single-spot measurements but a few hundred milliseconds were needed to move the stage so the duration of a single sample scan took almost 20 min. Supposing that cleaning procedures (grinding, polishing and ethanol cleaning) can pollute the sample surface, it would be convenient to study the impact of the pulse number on the captured LIBS spectrum. To do so, we measured Si I 288.16 and Fe I 281.33 signals (corresponding integrals with the background correction were quantified by a self-written program in the LabVIEW environment) for the first, the second, etc. until the tenth pulse for every spot and then the signal distribution functions were plotted for all the scans (400 points) corresponding to the shot number in the spot (Figure 3). Supposing that silicon pollution will have a greater impact on low-Si samples, we have measured the samples for the lowest (0.013% wt.) and highest (0.67% wt.) concentrations available. For the low-Si-concentration sample, the Si I 288.16 signal increased for the first and the second laser shots but stabilized after the fourth shot. For samples with high Si concentration, the first shot signal was comparable to the fifth and following shot spectra but the second and the third shot spectra deviated a lot. In the case of the matrix element, the first-pulse Fe I 281.33 nm signal was systematically lower than the next shot signals: the second shot signal was slightly greater and then it stabilized. The systematical increase in the Si I 288.16 signal for the sample with the lowest concentration should be attributed to contamination. According to these results, we skipped the LIBS data for the first five laser shots in a spot and took the next shots (from the 6th to the 10th shots) so a 1000-spectra dataset per sample was processed.
The datasets for laser pulse energy (in counts), plasma imaging signal, Si I 288.16, Fe I 281.33 and plasma background emission signals are presented in Figure 4 and the corresponding distributions in Figure 5. The laser energy signal was rather stable during the measurements and the relative standard deviation (RSD) was better than 1.2%. The plasma imaging signal reproducibility was 6-fold poorer (RSD = 7%) compared to the laser energy signal. The Si I 288.16, Fe I 281.33 and plasma background emission signals were rather randomly distributed with the largest variations (RSD ~ 20%).
Interestingly, the distributions for laser energy signals and LIBS signals were rather different. The signals were not distributed normally except the plasma imaging signal (space-, spectra- and time-integrated signal). The laser energy mean was non-symmetric with the median shifted toward larger values (Weibull distribution function). LIBS signal (Si I 288.16, Fe I 281.33, plasma background emission) distribution functions were also non-symmetric with the median shifted to the lower values (Frechet distribution function). The different vectors of the median biases for the laser pulse energy signal and LIBS signals are the indicator of low impact of the laser pulse energy variation on the gated plasma emission. The distribution functions were tested for normality by the Anderson–Darling test [30] to quantitatively compare the biased and the Gaussian distributions. The Kolmogorov–Smirnov normality test can provide unreliable results so we did not use it [31]. According to the presented results, the only signal which follows the normal distribution was the plasma imaging signal (space, spectra and time integrated). All other signals were significantly biased from the Gaussian distributions (p-value smaller than 0.05).
The similarity of the distribution functions for Si I 288.16, Fe I 281.33 and plasma background emission signals is a good indicator of the signals’ correlation. Indeed, cross-correlation analysis of all the datasets revealed that the strongest correlation (the largest Spearman correlation coefficient) was measured for the Si I 288.16, Fe I 281.33 and plasma background emission signals (ρ = 0.8 and 0.9, respectively). For better normalization, we plotted the calibration curves for the Si I 288.16 signal as well as Si I 288.16 normalized on Fe I 281.33 and plasma background emission signals.
A good question is how the analytical signal distribution functions will be changed after the normalization procedure: the normalized signal can have a normal distribution function due to the similarity of the bias in distribution functions of original signals (Si I 288.16 and Fe I 281.33 signals; Si I 288.16 and plasma background signals). Another question is how spectra averaging will influence the LIBS signal distribution functions: the signal-to-noise ratio will increase as the square root of the measurement number so it will have an impact on LIBS signal distribution function. To answer this, we plotted the distribution functions for the Si I 288.16 signal and corresponding normalized signals in the case of the sample with the lowest Si content (0.014% wt. Si). We also carried out spectra averaging for 5, 20 and 100 shots, calculated the signals and plotted the corresponding distribution functions in Figure 6. The normalization procedure did not have a large impact on the normalized signal distribution function—the distribution did not pass the Anderson–Darling test. However, the p-value was greater for the normalized signals, thus normalization had a tendency to provide “more normally distributed” signals.
Spectra averaging changed the LIBS signal distribution functions (Figure 6). First, the median value increased as the number of averaged spectra enlarged due to the signal-to-noise ratio increment. For example, the Si I 288.16 signal median increased by almost 20% if 100 spectra were averaged. Second, spectra averaging had a much greater tendency to transform the distribution function profile closer to the Gaussian one. In the case of the Si I 288.16 signal, the distribution function did not pass the Anderson–Darling test (p-value smaller than 0.05) until 100 spectra were averaged though only 20 data points were available for distribution function construction. For normalized LIBS signals, the distribution functions passed the Anderson–Darling test for the data obtained from the averaging of 20 spectra.
In order to quantify the impact of non-Gaussian distribution functions and spectra averaging on LIBS analysis performance, we plotted the calibration curves for the Si I 288.16 nm signal, as well as for analytical signals after normalizing on the Fe I 281.33 nm line and background signals (Figure 7). For each sample, we obtained 2000 single-shot LIBS measurements or 10,000 data points in total for the calibration curve. Drawing all the data points in the calibration plot resulted in total confusion of the data so we have not presented data points in Figure 7. The calibration curves were plotted for all the data points. In the Supplementary Materials (Figure S1), we present calibration curves with the data points (100 per concentration value) in the case of 100 averaged spectra. The calibration curve linearity was poor for the Si I 288.16 signal and after normalizing on the plasma background signal (R2 = 0.693 and 0.621, respectively). However, normalizing on the Fe I 281.33 nm signal significantly improved the calibration plot linearity and R2 reached values of 0.922. Interestingly, linear fits were almost the same for the averaged spectra signals. For example, in Figure 7a four linear fits were plotted but only the “single-shot signal” line differed visually from the “5, 20 and 100 averaged” linear functions. Limits of detection (LODs) were determined for each calibration curve by “3σ criteria”, in accordance with the recommendations of the IUPAC [32,33]. The LOD was calculated using the formula LOD = 3σ/s, where σ represents the standard deviation of the background signal for the sample with the lowest analyte content, and s denotes the sensitivity, which corresponds to the slope of the calibration curve. The obtained LOD values for different analytical signals and different amounts of spectral averaging are presented in Table 2. The LOD values range from 0.11 to 0.22 wt.% Si and the smallest one was obtained for the calibration curve based on the Si I 288.16 signal.
The spectra averaging (5, 20 and 100) had a small impact on the calibration curves. We found out that averaging improves the calibration curve performance in case of linearity (R2), but it also makes the lines merge and it was not possible to detect the difference between the averaging of 5 pulses and 100 pulses. The linearity (R2) of the calibration curve for the Si I 288.16 nm signal increases smoothly from 0.693 to 0.813 with an increasing number of averaged spectra. The best results were achieved for Si I 288.16 normalized on Fe I 281.33 signals. The LODs were also improved 3 times as the averaged spectra signals were utilized for silicon line intensity as well as after the normalizing procedure.
According to the IUPAC recommendation, the practice of accurately metering the LOD involves distribution plot construction for both blank and signal data and considering the probabilities of false-positive and false-negative decisions [34,35]. In this paper, we focus on how the non-Gaussian distributed signal will impact on LOD estimation. Since spectra averaging makes the analytical signal closer to the Gaussian distribution (see above), then it will be interesting to plot blank and analytical signal histograms to estimate the LOD for averaged spectra as well. In the context of LIBS, obtaining a signal from a blank sample can be quite challenging because analyte-free samples may not always be available. In such a case, the blank signal can be determined for the sample with the lowest analyte concentration as continuous wave plasma emission with the same spectral width as the analyte line at FWHM but shifted toward the region without any spectral lines. Generally in LIBS, the atomic/ionic line integral distribution function sets are not checked for normality but a priori assumed to follow a normal distribution, so mean values are plotted in a calibration curve rather than data points of the parallel measurements. In our experiment, we found out that LIBS signals followed a normal distribution only for a large number of averaged spectra (see Figure 6). Therefore, except for a few tens to hundreds of averaged spectra, the non-Gaussian fitting functions like GEVD should be used. The signals (without and with normalization) for blank and analyte for the sample with the lowest concentration (0.014% wt. Si) are shown in Figure 8. In the case of single-shot measurements for Si I 288.16 and normalized signals, the blank and analyte distribution function curves overlap so the 5% confidence limit requirement is not fulfilled [35]. In other words, the Si LOD is greater than 0.014% wt. for single-shot LIBS measurements. As the number of averaged spectra increased, the analyte signal distribution function profile changed to the Gaussian profile and its FWHM decreased. The blank signal distribution width also decreased as the spectra were averaged but the mean value did not change, nor did the distribution profile. Consequently, the blank and analyte signal distribution functions became less overlapped as the number of averaged spectra increased. According to Figure 8a,c,e, the fulfillment of the 5% confidence limit was not achieved for single-shot LIBS spectra, i.e., the limit of detection for Si was greater than the 0.014% wt. value. However, spectra averaging improves the situation and LOD values should almost reach the 0.014% wt. values.
In accordance with the IUPAC recommendation [32] (“detection limits cannot be derived in the absence of known (or assumed) distributions”), we carried out the following. First, the critical value should be determined for false positives (“type I” error) based on the blank signal distribution function. Then, the signal distribution should be fitted with the appropriate function and the fit curve should be shifted to higher signal values in such a way that only 5% of the area is located below the critical value, therefore setting the false negative threshold (“type II” error) of 0.05 according to IUPAC [32]. The new centroid positions of the shifted curve were determined (see Figure 8b,d,f), and its values were converted to silicon concentration by using the corresponding calibration curves. For a better view, we present distribution functions for the LIBS signal and corresponding blank only for single-shot and 100-shot averaging while we made a calculation for 5- and 20-shot averaging as well and present LOD values in Table 2. For single-shot LIBS signals (largest bias from the Gaussian distribution function), the difference between the LOD determined by calibration curves and histogram plotting was significant. Careful metering of the LOD according to histogram plotting provided systematically lower values (up to 3-fold) compared to the LODs determined from the calibration curves. Such a difference can be easily understood by fitting the Frechet distribution with the Gaussian function—the Gaussian function fit FWHM will be greater for non-symmetric distribution so the σ-value will be greater than its true value due to poor choice of the fit function. Plotting histograms and fitting them with appropriate functions provided more reliable results for LOD determination in accordance with the IUPAC definition discussed above. Spectra averaging transforms the LIBS signal distribution functions and makes them more similar to the Gaussian distribution function so the difference between the LOD determined by “calibration curves” and “histogram plotting” became smaller as the number of averaged spectra grew. LODs are improved up to 20-fold as the number of averaged spectra increases due to a better signal-to-noise ratio in the averaged spectra (20-fold improvement for the 100 spectra averaged). It should be noted that the LOD improvement by spectra averaging was different for “calibration curve” and “histogram plotting” approaches: 3- and 20-fold improvement, respectively.

4. Conclusions

For the first time, a detailed study of laser pulse energy and laser-induced breakdown spectroscopy (LIBS) signals has been carried out to reveal the non-Gaussian signal distribution function impact on analysis sensitivity. The laser pulse energy statistics did not follow the Gaussian distribution and were biased to the larger mean values. Space-, spectra- and time-integrated plasma emission followed the normal distribution while gated LIBS signals (atomic line intensity, plasma background emission) were biased from the Gaussian distribution. The similarity in bias of the LIBS signal distribution functions reflected the correlation between these signals. The normalization procedure on the plasma emission signal or matrix signal (Fe line) did not significantly change the distribution function profile so the non-Gaussian still should be taken into account for estimating LIBS analytical capabilities. Alternatively, the spectra-averaging procedure changes the LIBS signal distribution function, making it normally distributed after tens to hundreds of averaged spectra. For the first time, the impact of a non-Gaussian distribution function on limit of detection (LOD) determination has been studied for single-shot spectra as well as for averaged spectra. We demonstrated that careful metering by histogram plotting (according to the IUPAC recommendation for non-Gaussian distributed analytical signals) provided systematically lower values (up to 3-fold) compared to the LODs determined from the calibration curves. The spectra-averaging procedure improved the estimated LOD for both “calibration curve” and “histogram plotting” approaches but to a different extent: 3- and 20-fold improvement, respectively.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/photonics11010023/s1, Figure S1: Calibration curves for Si for 100 averaged spectra: (a)—Si I 288.16 nm signal (green color); (b) Si I 288.16 nm signal normalized on Fe I 281.33 nm line (brown color); (c) Si I 288.16 nm signal normalized on plasma background signal (blue color).

Author Contributions

V.N.L.: Conceptualization, Investigation, Writing—Original Draft, Supervision; P.A.S.: Investigation, Formal Analysis, Visualization, Writing—Original Draft; D.L.: Investigation, Data Curation; S.M.P.: Writing—Review and Editing; S.V.G.: Writing—Review and Editing, Supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a grant of the Ministry of Science and Higher Education of the Russian Federation (075-15-2022-315) for the organization and development of a world-class research center “Photonics”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Noll, R.; Bette, H.; Brysch, A.; Kraushaar, M.; Mönch, I.; Peter, L.; Sturm, V. Laser-Induced Breakdown Spectrometry—Applications for Production Control and Quality Assurance in the Steel Industry. Spectrochim. Acta Part B At. Spectrosc. 2001, 56, 637–649. [Google Scholar] [CrossRef]
  2. Noll, R.; Fricke-Begemann, C.; Connemann, S.; Meinhardt, C.; Sturm, V. LIBS Analyses for Industrial Applications—An Overview of Developments from 2014 to 2018. J. Anal. At. Spectrom. 2018, 33, 945–956. [Google Scholar] [CrossRef]
  3. Lednev, V.N.; Sdvizhenskii, P.A.; Asyutin, R.D.; Tretyakov, R.S.; Grishin, M.Y.; Stavertiy, A.Y.; Pershin, S.M. In Situ Multi-Elemental Analysis by Laser Induced Breakdown Spectroscopy in Additive Manufacturing. Addit. Manuf. 2019, 25, 64–70. [Google Scholar] [CrossRef]
  4. Lednev, V.N.; Sdvizhenskii, P.A.; Asyutin, R.D.; Tretyakov, R.S.; Grishin, M.Y.; Stavertiy, A.Y.; Fedorov, A.N.; Pershin, S.M. In Situ Elemental Analysis and Failures Detection during Additive Manufacturing Process Utilizing Laser Induced Breakdown Spectroscopy. Opt. Express 2019, 27, 4612. [Google Scholar] [CrossRef] [PubMed]
  5. Lednev, V.N.; Sdvizhenskii, P.A.; Stavertiy, A.Y.; Grishin, M.Y.; Tretyakov, R.S.; Asyutin, R.D.; Pershin, S.M. Online and in Situ Laser-Induced Breakdown Spectroscopy for Laser Welding Monitoring. Spectrochim. Acta Part B At. Spectrosc. 2021, 175, 106032. [Google Scholar] [CrossRef]
  6. Legnaioli, S.; Campanella, B.; Poggialini, F.; Pagnotta, S.; Harith, M.A.; Abdel-Salam, Z.A.; Palleschi, V. Industrial Applications of Laser-Induced Breakdown Spectroscopy: A Review. Anal. Methods 2020, 12, 1014–1029. [Google Scholar] [CrossRef]
  7. Dong, F.-Z.; Chen, X.-L.; Wang, Q.; Sun, L.-X.; Yu, H.-B.; Liang, Y.-X.; Wang, J.-G.; Ni, Z.-B.; Du, Z.-H.; Ma, Y.-W.; et al. Recent Progress on the Application of LIBS for Metallurgical Online Analysis in China. Front. Phys. 2012, 7, 679–689. [Google Scholar] [CrossRef]
  8. Lorenzetti, G.; Legnaioli, S.; Grifoni, E.; Pagnotta, S.; Palleschi, V. Laser-Based Continuous Monitoring and Resolution of Steel Grades in Sequence Casting Machines. Spectrochim. Acta Part B At. Spectrosc. 2015, 112, 1–5. [Google Scholar] [CrossRef]
  9. Winefordner, J.D.; Correll, T.; Gibb, E.; Smith, W.B.; Omenettoa, N. Comparing Several Atomic Spectrometric Methods to the Super Stars: Special Emphasis on Laser Induced Breakdown Spectrometry, LIBS, a Future Super Star. J. Anal. Atom. Spectrom. 2004, 19, 1061. [Google Scholar] [CrossRef]
  10. Lednev, V.N.; Sdvizhenskii, P.A.; Grishin, M.Y.; Stavertiy, A.Y.; Tretyakov, R.S.; Asyutin, R.D.; Pershin, S.M. Laser Welding Spot Diagnostics by Laser-Induced Breakdown Spectrometry. Phys. Wave Phenom. 2021, 29, 221–228. [Google Scholar] [CrossRef]
  11. Chen, L.; Deng, H.; Xiong, Z.; Guo, J.; Liu, Q.; Li, G.; Shang, L. Investigation of Shielding Effects on Picosecond Laser-Induced Copper Plasma Characteristics under Different Focusing Distances. Photonics 2021, 8, 536. [Google Scholar] [CrossRef]
  12. Lednev, V.N.; Sdvizhenskii, P.A.; Grishin, M.Y.; Nikitin, E.A.; Gudkov, S.V.; Pershin, S.M. Improving Calibration Strategy for LIBS Heavy Metals Analysis in Agriculture Applications. Photonics 2021, 8, 563. [Google Scholar] [CrossRef]
  13. Zhang, Y.; Zhang, T.; Li, H. Application of Laser-Induced Breakdown Spectroscopy (LIBS) in Environmental Monitoring. Spectrochim. Acta Part B At. Spectrosc. 2021, 181, 106218. [Google Scholar] [CrossRef]
  14. Zorov, N.B.; Popov, A.M.; Zaytsev, S.M.; Labutin, T.A. Qualitative and Quantitative Analysis of Environmental Samples by Laser-Induced Breakdown Spectrometry. Russ. Chem. Rev. 2015, 84, 1021. [Google Scholar] [CrossRef]
  15. Gaudiuso, R.; Melikechi, N.; Abdel-Salam, Z.A.; Harith, M.A.; Palleschi, V.; Motto-Ros, V.; Busser, B. Laser-Induced Breakdown Spectroscopy for Human and Animal Health: A Review. Spectrochim. Acta Part B At. Spectrosc. 2019, 152, 123–148. [Google Scholar] [CrossRef]
  16. Behrends, K. Folgen Analytische Fehlerkurven Einer GaußVerteilung? Fresenius’ Z. Anal. Chem. 1968, 235, 391–401. [Google Scholar] [CrossRef]
  17. Carranza, J.E.; Hahn, D.W. Sampling Statistics and Considerations for Single-Shot Analysis Using Laser-Induced Breakdown Spectroscopy. Spectrochim. Acta Part B At. Spectrosc. 2002, 57, 779–790. [Google Scholar] [CrossRef]
  18. Michel, A.P.M. Review: Applications of Single-Shot Laser-Induced Breakdown Spectroscopy. Spectrochim. Acta Part B At. Spectrosc. 2010, 65, 185–191. [Google Scholar] [CrossRef]
  19. Diwakar, K.P.; Loper, H.K.; Matiaske, A.-M.; Hahn, W.D. Laser-Induced Breakdown Spectroscopy for Analysis of Micro and Nanoparticles. J. Anal. At. Spectrom. 2012, 27, 1110–1119. [Google Scholar] [CrossRef]
  20. Xu, L.; Bulatov, V.; Gridin, V.V.; Schechter, I. Absolute Analysis of Particulate Materials by Laser-Induced Breakdown Spectroscopy. Anal. Chem. 1997, 69, 2103–2108. [Google Scholar] [CrossRef]
  21. Shi, M.; Wu, J.; Zhou, Y.; Qiu, Y.; Zhang, Z.; Li, X. Parametric Study of Spot Size and Multi-Elemental Quantification of Geomaterials under Complex Matrix Conditions Using Fiber-Optic Laser-Induced Breakdown Spectroscopy. Spectrochim. Acta Part B At. Spectrosc. 2022, 192, 106428. [Google Scholar] [CrossRef]
  22. Li, X.; Wei, W.; Wu, J.; Jia, S.; Qiu, A. The Influence of Spot Size on the Expansion Dynamics of Nanosecond-Laser-Produced Copper Plasmas in Atmosphere. J. Appl. Phys. 2013, 113, 243304. [Google Scholar] [CrossRef]
  23. Michel, A.P.M.; Chave, A.D. Analysis of Laser-Induced Breakdown Spectroscopy Spectra: The Case for Extreme Value Statistics. Spectrochim. Acta Part B At. Spectrosc. 2007, 62, 1370–1378. [Google Scholar] [CrossRef]
  24. Lazic, V.; Colao, F.; Fantoni, R.; Spizzicchino, V. Recognition of Archeological Materials Underwater by Laser Induced Breakdown Spectroscopy. Spectrochim. Acta Part B At. Spectrosc. 2005, 60, 1014–1024. [Google Scholar] [CrossRef]
  25. Klus, J.; Pořízka, P.; Prochazka, D.; Novotný, J.; Novotný, K.; Kaiser, J. Effect of Experimental Parameters and Resulting Analytical Signal Statistics in Laser-Induced Breakdown Spectroscopy. Spectrochim. Acta Part B At. Spectrosc. 2016, 126, 6–10. [Google Scholar] [CrossRef]
  26. Képeš, E.; Pořízka, P.; Kaiser, J. On the Application of Bootstrapping to Laser-Induced Breakdown Spectroscopy Data. J. Anal. At. Spectrom. 2019, 34, 2411–2419. [Google Scholar] [CrossRef]
  27. Buday, J.; Prochazka, D.; Záděra, A.; Kaňa, V.; Pořízka, P.; Kaiser, J. Correlation of Characteristic Signals of Laser-Induced Plasmas. Spectrochim. Acta Part B At. Spectrosc. 2022, 194, 106476. [Google Scholar] [CrossRef]
  28. Lednev, V.N.; Sdvizhenskii, P.A.; Grishin, M.Y.; Gudkov, S.V.; Dorokhov, A.S.; Bunkin, A.F.; Pershin, S.M.; Dorohov, A.S.; Bunkin, A.F.; Pershin, S.M.; et al. Improving the LIBS Analysis of Heavy Metals in Heterogeneous Agricultural Samples Utilizing Large Laser Spotting. J. Anal. At. Spectrom. 2022, 37, 2563–2572. [Google Scholar] [CrossRef]
  29. Guezenoc, J.; Gallet-Budynek, A.; Bousquet, B. Critical Review and Advices on Spectral-Based Normalization Methods for LIBS Quantitative Analysis. Spectrochim. Acta Part B At. Spectrosc. 2019, 160, 105688. [Google Scholar] [CrossRef]
  30. Anderson, T.W.; Darling, D.A. Asymptotic Theory of Certain “Goodness of Fit” Criteria Based on Stochastic Processes. Ann. Math. Stat. 1952, 23, 193–212. [Google Scholar] [CrossRef]
  31. Henderson, A.R. Testing Experimental Data for Univariate Normality. Clin. Chim. Acta 2006, 366, 112–129. [Google Scholar] [CrossRef]
  32. Currie, L.A. Nomenclature in Evaluation of Analytical Methods Including Detection and Quantification Capabilities (IUPAC Recommendations 1995). Pure Appl. Chem. 1995, 67, 1699–1723. [Google Scholar] [CrossRef]
  33. McNaught, A.D.; Wilkinson, A. Compendium of Chemical Terminology: IUPAC Recommendations; Blackwell Science: Hoboken, NJ, USA, 1997. [Google Scholar]
  34. Allegrini, F.; Olivieri, A.C. IUPAC-Consistent Approach to the Limit of Detection in Partial Least-Squares Calibration. Anal. Chem. 2014, 86, 7858–7866. [Google Scholar] [CrossRef]
  35. Olivieri, A.C. Practical Guidelines for Reporting Results in Single- and Multi-Component Analytical Calibration: A Tutorial. Anal. Chim. Acta 2015, 868, 10–22. [Google Scholar] [CrossRef]

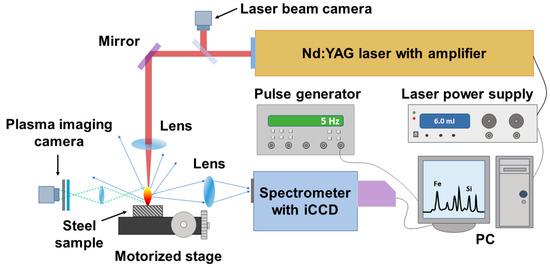

Figure 1. The laser-induced breakdown spectroscopy (LIBS) experimental setup scheme.
Figure 1. The laser-induced breakdown spectroscopy (LIBS) experimental setup scheme.
Photonics 11 00023 g001

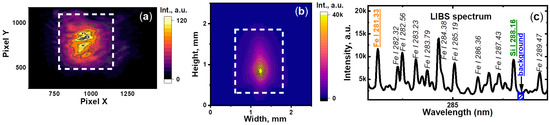

Figure 2. Signals definitions: (a)—laser energy signal is defined as the sum of the pixels in the area marked with a dashed white line in the laser beam flare image; (b)—plasma imaging signal is defined as the sum of the pixels marked by a dashed white line in the side-view plasma image (exposure time 500 μs, camera was started 200 μs before the laser pulse); (c)—laser-induced plasma spectrum for the low-alloy steel sample (gate 5 μs, delay 0.5 μs): atomic lines utilized for LIBS signals are underlined and background signals are marked with the blue hatched area.
Figure 2. Signals definitions: (a)—laser energy signal is defined as the sum of the pixels in the area marked with a dashed white line in the laser beam flare image; (b)—plasma imaging signal is defined as the sum of the pixels marked by a dashed white line in the side-view plasma image (exposure time 500 μs, camera was started 200 μs before the laser pulse); (c)—laser-induced plasma spectrum for the low-alloy steel sample (gate 5 μs, delay 0.5 μs): atomic lines utilized for LIBS signals are underlined and background signals are marked with the blue hatched area.
Photonics 11 00023 g002

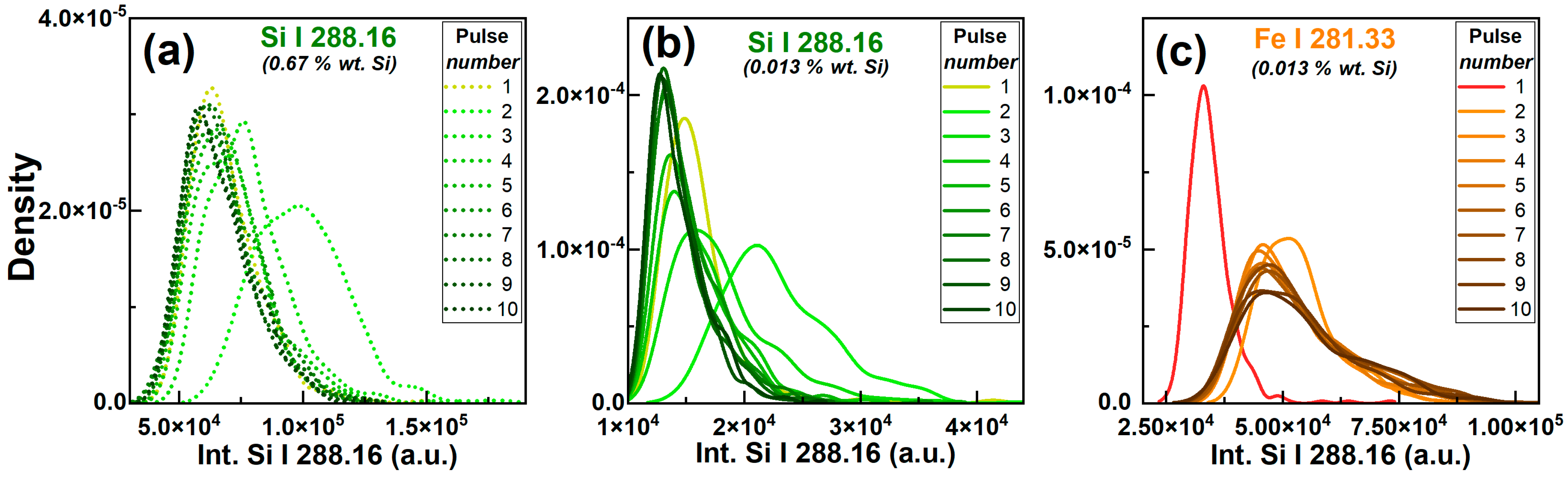

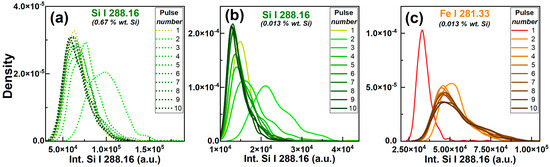

Figure 3. Distribution function for Si I 288.16 and Fe I 281.33 signals as a function on the laser shot number in a spot: (a)—Si I 288.16 signal distribution function (green color, dotted line) for the sample with 0.67 % wt. Si; (b)—Si I 288.16 signal distribution function (green color, solid line) for the sample with 0.013 % wt. Si; (c)—major component LIBS signal (Fe I 281.33) distribution function for sample with 0.013 % wt. Si (brown color, solid line). The greater the laser ablation pulse number is, the more saturated the color of the distribution curve.
Figure 3. Distribution function for Si I 288.16 and Fe I 281.33 signals as a function on the laser shot number in a spot: (a)—Si I 288.16 signal distribution function (green color, dotted line) for the sample with 0.67 % wt. Si; (b)—Si I 288.16 signal distribution function (green color, solid line) for the sample with 0.013 % wt. Si; (c)—major component LIBS signal (Fe I 281.33) distribution function for sample with 0.013 % wt. Si (brown color, solid line). The greater the laser ablation pulse number is, the more saturated the color of the distribution curve.
Photonics 11 00023 g003

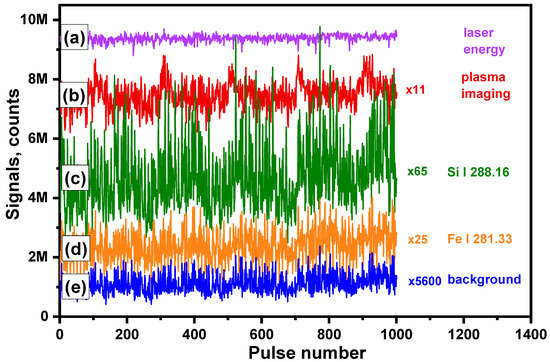

Figure 4. Data series for laser pulse energy and LIBS signals for sample 2 (0.67% wt. Si): (a)—laser pulse energy (violet color); (b)—the plasma image signal (red color); (c)—the integral of the Si I 288.16 nm line (green color); (d)—the integral of the Fe I 281.33 nm line (brown color); (e)—background plasma emission signal (blue color). For better view, the signal data series were multiplied to obtain the comparable range and plotted from zero to the maximum values.
Figure 4. Data series for laser pulse energy and LIBS signals for sample 2 (0.67% wt. Si): (a)—laser pulse energy (violet color); (b)—the plasma image signal (red color); (c)—the integral of the Si I 288.16 nm line (green color); (d)—the integral of the Fe I 281.33 nm line (brown color); (e)—background plasma emission signal (blue color). For better view, the signal data series were multiplied to obtain the comparable range and plotted from zero to the maximum values.
Photonics 11 00023 g004

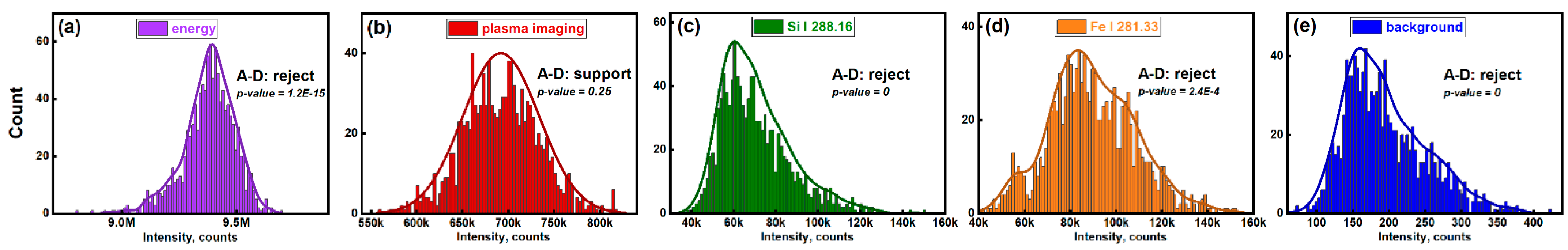

Figure 5. Distribution functions for laser pulse energy and LIBS signals for sample 2 (0.67% wt. Si): (a)—laser pulse energy (violet color); (b)—the plasma image signal (red color); (c)—the integral of the Si I 288.16 nm line (green color); (d)—the integral of the Fe I 281.33 nm line (brown color); (e)—background plasma emission (blue color). The results of normality Anderson-Darling (A-D) tests are plotted in the figure’s insets as well as the corresponding p-values.
Figure 5. Distribution functions for laser pulse energy and LIBS signals for sample 2 (0.67% wt. Si): (a)—laser pulse energy (violet color); (b)—the plasma image signal (red color); (c)—the integral of the Si I 288.16 nm line (green color); (d)—the integral of the Fe I 281.33 nm line (brown color); (e)—background plasma emission (blue color). The results of normality Anderson-Darling (A-D) tests are plotted in the figure’s insets as well as the corresponding p-values.
Photonics 11 00023 g005

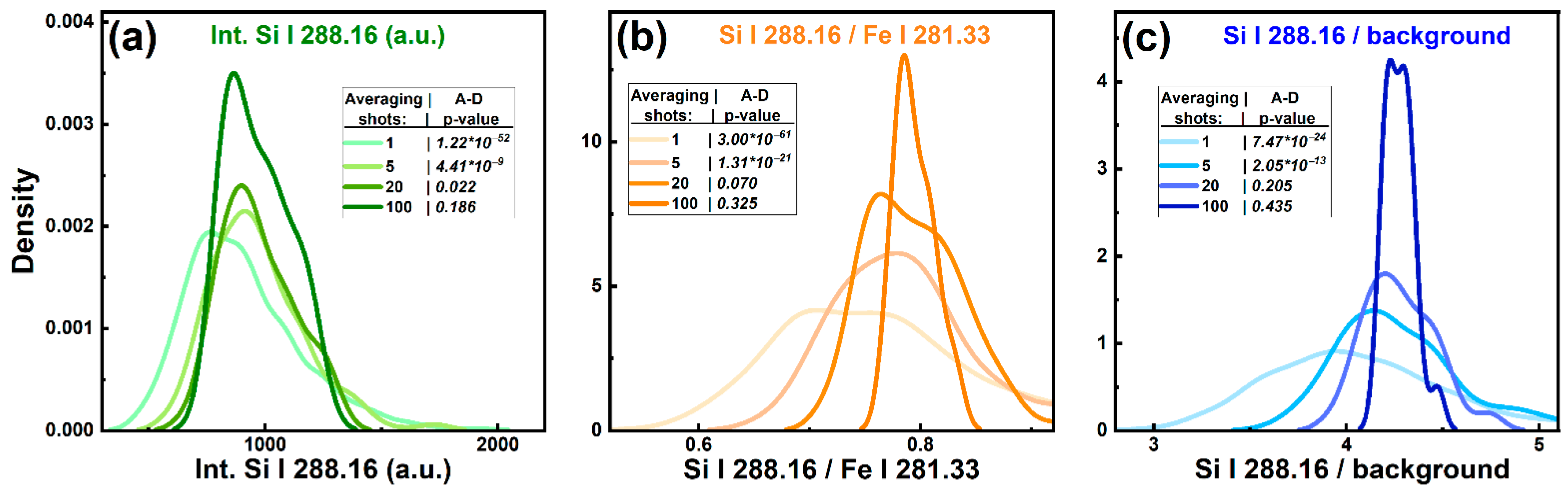

Figure 6. Distribution function profiles (smoothed curves) for raw and normalized LIBS signals for different spectra averaging: (a)—Si I 288.16 nm signal (green color, color intensity reflects the number of averaged spectra); (b)—Si I 288.16 nm signal normalized on Fe I 281.33 nm signal (brown color, color intensity reflects the number of averaged spectra); (c)—Si I 288.16 nm signal normalized on background plasma signal (blue color, color intensity reflects the number of averaged spectra). The spectra were averaged for 5, 20 and 100 laser shots. The results of Anderson-Darling (A-D) normality test (the distribution is normal if p-value > 0.05) are plotted in the figure’s insets.
Figure 6. Distribution function profiles (smoothed curves) for raw and normalized LIBS signals for different spectra averaging: (a)—Si I 288.16 nm signal (green color, color intensity reflects the number of averaged spectra); (b)—Si I 288.16 nm signal normalized on Fe I 281.33 nm signal (brown color, color intensity reflects the number of averaged spectra); (c)—Si I 288.16 nm signal normalized on background plasma signal (blue color, color intensity reflects the number of averaged spectra). The spectra were averaged for 5, 20 and 100 laser shots. The results of Anderson-Darling (A-D) normality test (the distribution is normal if p-value > 0.05) are plotted in the figure’s insets.
Photonics 11 00023 g006

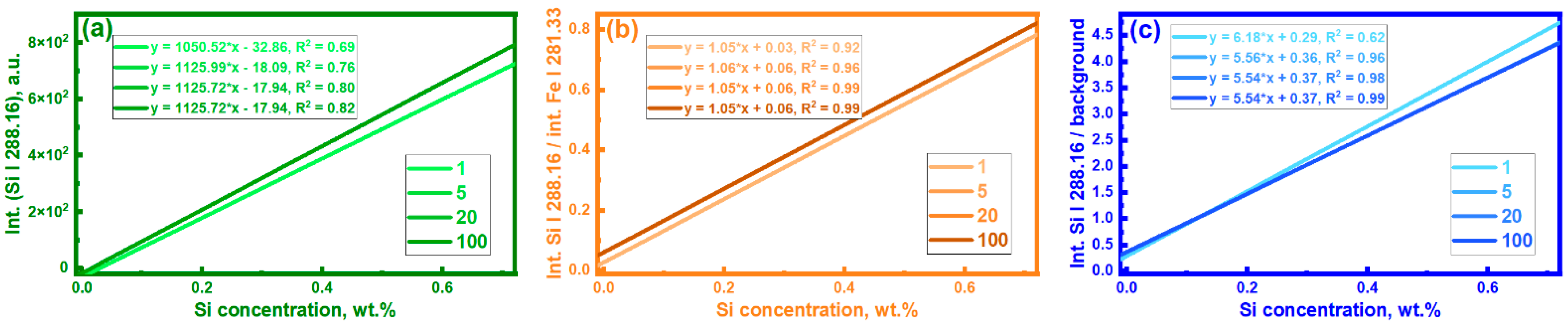

Figure 7. Calibration curves for Si for different spectra averaging (5, 20 and 100 averaged): (a)—Si I 288.16 nm signal (green color, color intensity corresponds to the number of averaged spectra); (b)—Si I 288.16 nm signal normalized on Fe I 281.33 nm line (brown color, color intensity corresponds to the number of averaged spectra); (c)—Si I 288.16 nm signal normalized on plasma background signal (blue color, color intensity corresponds to the number of averaged spectra). Four linear fits are presented in each figure but three of the linear functions (5, 20 and 100 averaged) were almost the same and visually merged in the plot. We skipped plotting data points (almost 13,000 points per graph) for a better view but added the calibration curve for “100 averaged spectra” with data points in Supplementary Materials (Figure S1).
Figure 7. Calibration curves for Si for different spectra averaging (5, 20 and 100 averaged): (a)—Si I 288.16 nm signal (green color, color intensity corresponds to the number of averaged spectra); (b)—Si I 288.16 nm signal normalized on Fe I 281.33 nm line (brown color, color intensity corresponds to the number of averaged spectra); (c)—Si I 288.16 nm signal normalized on plasma background signal (blue color, color intensity corresponds to the number of averaged spectra). Four linear fits are presented in each figure but three of the linear functions (5, 20 and 100 averaged) were almost the same and visually merged in the plot. We skipped plotting data points (almost 13,000 points per graph) for a better view but added the calibration curve for “100 averaged spectra” with data points in Supplementary Materials (Figure S1).
Photonics 11 00023 g007

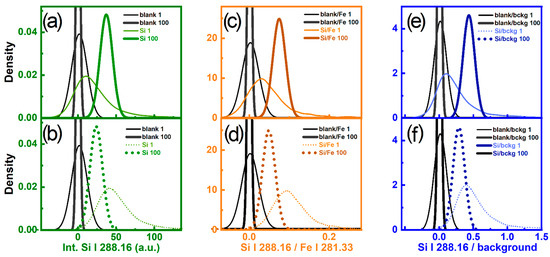

Figure 8. Metering limits of detection for non-Gaussian distributed LIBS signals with different spectra averaging: (a)—blank (black color) and Si I 288.16 signal distribution functions for single shot (narrow line) and 100 spectra (bold line) averaged (green color); (b)—blank (black color) and Si I 288.16 nm signals shifted to fulfill the limit of detection (LOD) definition by IUPAC (green color, dotted line); (c)—blank (black color) and Si I 288.16/Fe I 281.33 signal distribution functions for single shot (narrow line) and 100 spectra (bold line) averaged (brown color); (d)—blank (black color) and Si I 288.16/Fe I 281.33 signals shifted to fulfill the IUPAC definition of LOD (brown color, dotted line); (e)—blank (black color) and Si I 288.16/(plasma background signal) signal distribution functions for single shot (narrow line) and 100 spectra (bold line) averaged (blue color); (f)—Si I 288.16/(plasma background signal) signal distribution function shifted to fulfill the IUPAC definition of LOD (blue color, dotted line).
Figure 8. Metering limits of detection for non-Gaussian distributed LIBS signals with different spectra averaging: (a)—blank (black color) and Si I 288.16 signal distribution functions for single shot (narrow line) and 100 spectra (bold line) averaged (green color); (b)—blank (black color) and Si I 288.16 nm signals shifted to fulfill the limit of detection (LOD) definition by IUPAC (green color, dotted line); (c)—blank (black color) and Si I 288.16/Fe I 281.33 signal distribution functions for single shot (narrow line) and 100 spectra (bold line) averaged (brown color); (d)—blank (black color) and Si I 288.16/Fe I 281.33 signals shifted to fulfill the IUPAC definition of LOD (brown color, dotted line); (e)—blank (black color) and Si I 288.16/(plasma background signal) signal distribution functions for single shot (narrow line) and 100 spectra (bold line) averaged (blue color); (f)—Si I 288.16/(plasma background signal) signal distribution function shifted to fulfill the IUPAC definition of LOD (blue color, dotted line).
Photonics 11 00023 g008
Table 1. Reference low-alloy steel elemental composition, % wt. (Si concentration is marked with bold in the table for better view).
Table 1. Reference low-alloy steel elemental composition, % wt. (Si concentration is marked with bold in the table for better view).
SampleCSiMnCrNiCuAlTiVMoAsSnPbZn
sample 10.1660.581.520.660.1330.1650.0330.0030.0410.0130.0090.0070.0030.011
sample 20.3280.670.960.0380.0600.0590.0050.00170.0040.0090.002---
sample 30.1050.301.630.1010.0930.1840.0390.0230.0820.0100.0070.0090.0050.010
sample 40.0910.551.490.0530.0860.1980.0360.0230.0030.0060.0070.0130.0040.015
sample 50.00340.0140.1320.0170.0140.0200.0330.0650.0040.0020.0020.004--
Table 2. Limits of detection (LODs) for silicon in low-alloy steel for single-shot and averaged spectra as determined by calibration curves (“3-sigma criteria” marked as “Calib. Curve” in table) and by signal histogram plotting (“Distrib. Function” in table).
Table 2. Limits of detection (LODs) for silicon in low-alloy steel for single-shot and averaged spectra as determined by calibration curves (“3-sigma criteria” marked as “Calib. Curve” in table) and by signal histogram plotting (“Distrib. Function” in table).
LOD, % wt. SiLOD, % wt. SiLOD, % wt. Si
Signal Si I 288.16Si I 288.16/Fe I 281.33Si I 288.16/Background
Averaged Spectra
Calib. CurveDistrib. FunctionCalib. CurveDistrib. FunctionCalib. CurveDistrib. Function
10.110.070.220.060.160.02
50.060.040.120.020.130.01
200.040.030.090.0080.100.01
1000.030.030.070.0030.080.003
