Modulation of Ferrocene–Ferrocene Interactions by Varying Their Reciprocal Positions in L-Dap/Aib Helical Peptides

by
Annalisa Bisello
1,
Barbara Biondi
2,
Roberta Cardena
1,
Renato Schiesari
1,
Marco Crisma
2,
Fernando Formaggio
1 and
Saverio Santi
1,*
1
Department of Chemical Sciences, University of Padova, via Marzolo 1, 35131 Padova, Italy
2
Institute of Biomolecular Chemistry, Padova Unit, Consiglio Nazionale delle Ricerche (CNR), via Marzolo 1, 35131 Padova, Italy
*
Author to whom correspondence should be addressed.
Inorganics 2023, 11(12), 482; https://doi.org/10.3390/inorganics11120482
Submission received: 12 November 2023 / Revised: 10 December 2023 / Accepted: 13 December 2023 / Published: 16 December 2023
(This article belongs to the Special Issue 10th Anniversary of Inorganics: Organometallic Chemistry)
Browse Figures
Versions Notes

Abstract

:
In this work, we developed two new polyfunctional hybrid systems in which the presence of Fc redox “antennas” on peptide scaffolds allows for a modulation of their electronic properties. Specifically, we synthesized two helical hexapeptides containing four Aib (α-amionoisobutyric acid) and two L-Dap (2,3-diamino propionic acid) residues. L-Dap side chains were then functionalized with Fc moieties. The structures of the two 310 helical peptides, namely Z-Aib-L-Dap(Fc)-Aib-Aib-L-Dap(Fc)-Aib-NH-iPr and Z-Aib-L-Dap(Fc)-Aib-L-Dap(Fc)-Aib-Aib-NH-iPr, were investigated by X-ray diffraction, 2D-NMR, CD and IR spectroscopies. Due to the helical conformation, in Z-Aib-L-Dap(Fc)-Aib-Aib-L-Dap(Fc)-Aib-NH-iPr, the Fc groups are located on the same face of the helix, but in Z-Aib-L-Dap(Fc)-Aib-L-Dap(Fc)-Aib-Aib-NH-iPr, they are located on opposite faces. Surprisingly, two bands were found through DPV for Z-Aib-L-Dap(Fc)-Aib-L-Dap(Fc)-Aib-Aib-NH-iPr, indicating an electrostatic interaction between the Fc groups despite their longer reciprocal distance with respect to that in Z-Aib-L-Dap(Fc)-Aib-Aib-L-Dap(Fc)-Aib-NH-iPr. CD experiments at different concentrations evidenced aggregation for Z-Aib-L-Dap(Fc)-Aib-L-Dap(Fc)-Aib-Aib-NH-iPr, even at high dilutions, thus suggesting that the Fc-Fc electrostatic interaction could be of an intermolecular nature.

Graphical Abstract

1. Introduction

Systems containing both ferrocene (Fc) and biomolecules, such as amino acids, peptides, and nucleic acids, arise in conjugated organometallic compounds possessing novel properties. For instance, Fc-peptide conjugates were synthetized to exploit the intramolecular H-bonding network of foldamers and the Fc redox properties, with the aim of studying the electronic interactions in peptide chains.
Bio-organometallics containing pendant ferrocenyl peptide conjugates were widely investigated [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22], allowing for the design of systems with new redox-activated properties, among which were chirality organization [1,11], chirality dependence charge transfer rate [2], photodynamic anticancer [3,7], antibacterial [4,10], antimicrobial [6] and antimalarial [7] activities, supramolecular gelation [8,18], potential bioinspired electronic materials [9], changes in the self-assembly [12], sensory applications [13,14,19], enzymatic fuel cells [15,16] and bioelectrocatalysts [22].
In particular, we functionalized, with one Fc group acting as a probe, peptides displaying different secondary structures, such as 310-helices [23,24] with α-amino isobutyric acid (Aib) [25] or L-2,3-diamino propionic (L-Dap) acid [26], and the 2.05-helix [24,27] based on Cα,β-didehydroalanine (ΔAla) [28]. Conversely, there are only a few reports of bis-ferrocenyl peptides. To our knowledge, the unique examples of end-capped homopeptides were reported by us, namely Fc-CO-(Aib)n-NH–Fc (n = 1–5) [29], Fc-CO-(ΔAla)n-NH–Fc (n = 1–4) [30] and Fc-CO-[L-Dap(Boc)]n-NH-Fc [31]. Moreover, two dinuclear ferrocene-based conjugates containing a sequence of two amino acids (Fc–CO–L-Pro–L-Ala–NH–Fc and Fc–CO–D-Pro–D-Ala–NH–Fc) were synthetized by Nuskol et al. [32]. An intramolecular Fc-N-H···O=C-Fc hydrogen bond (β-turn) [33] is responsible for dipeptide folding.
By exploiting the terminal, redox-active Fc groups and utilizing electrochemical techniques, we were able to investigate the end-to-end effects of the positive charges generated by single and double oxidations. We demonstrated that charge transfer along the peptide chain is hugely affected by the nature and length of the peptide 3D structure.
The aim of the present work is the synthesis of new polyfunctional hybrid systems behaving as “electron reservoirs” in which the simultaneous presence of Fc redox “antennas” inserted on peptide scaffolds can allow for a realistic modulation of their electronic properties as a function of the applied electric potential. In particular, we designed and synthesized two helical hexapeptides containing different Aib/L-Dap sequences but each with two Fc moieties covalently bound. The L-Dap side chain allowed Fc functionality to be introduced. This is the first example of a helical peptide containing two Fc moieties appended laterally and not at the peptide ends, as so far reported by us and others. Aib, a highly helicogenic amino acid, was used exactly with the purpose of promoting and stabilizing the peptide helical structure, in particular a 310-helix.
The two hexapeptides have the following sequences: Z-Aib-L-Dap(Fc)-Aib-Aib-L-Dap(Fc)-Aib-NH-iPr (1) and Z-Aib-L-Dap(Fc)-Aib-L-Dap(Fc)-Aib-Aib-NH-iPr (2) (Scheme 1).
The two ferrocenes are linked to the side chain of L-Dap at the reciprocal positions 1,4 and 1,3. Due to the peptide conformation, a 310-helix, the Fc groups are expected to be spatially placed on the same side of the 310-helix in (1) and on opposite sides in (2), as clearly shown in Figure 1.
Information on each peptide’s secondary structure in a solution was obtained by means of NMR, IR and circular dichroism measurements. We were also able to determine the solid-state conformation of an intermediate peptide, namely Z-Aib-L-Dap(Boc)-Aib-NHiPr, by means of a single-crystal X-ray diffraction analysis.
The metal-metal electronic interaction was assessed by electrochemical studies (CV and DPV).

2. Results and Discussion

2.1. Peptide Synthesis

The peptides were synthesized by solution methods, step-by-step, starting from the C-terminal residue. The formation of all the amide bonds was achieved by activating the carboxylic function with EDC [1-ethyl-3-(3-dimethylaminopropyl)carbodiimide] in the presence of HOBt (1-hydroxybenzotriazole). HOBt is a racemization suppressant, but it also has a catalytic effect towards amide bond formation [34]. Therefore, it was also used in the coupling steps involving the achiral Aib residue. Yields were, in general, above 70%. This is a satisfactory result in view of the presence of four sterically hindered Aib residues in each hexapeptide. Only in the last step of the two hexapeptide syntheses, i.e., the one-shot incorporation of two bulky Fc moieties, did we obtain moderate yields (35% and 34%). In both cases, silica gel flash chromatography was required to isolate the pure, doubly Fc-labelled hexapeptides. Experimental details of the synthetic procedures and characterizations of the peptides synthesized are given in the Supporting Information.

2.2. Crystal-State Conformational Analysis

The molecular structure of Z-Aib-L-Dap(Boc)-Aib-NHiPr, as determined by a single-crystal X-ray diffraction analysis, is illustrated in Figure 2 with atom numbering. Relevant crystal data and structure refinement parameters are listed in Table S1.
The relevant backbone and side-chain torsion angles are listed in Table S2. Intra- and intermolecular H-bond parameters are reported in Table S3.
The peptide backbone is folded and stabilized by two intramolecular N-H···O=C H-bonds, one between the N3-H group and O0 urethane carbonyl oxygen, and the other between the C-terminal isopropylamido NT-H group and Aib(1) carbonyl oxygen (Figure 2 and Table S3).
Two consecutive β-turns [33] are thus formed, which give rise to an incipent 310-helix [23]. Indeed, the sets of ϕ,ψ backbone torsion angles adopted by Aib(1) [ϕ1,ψ1 = −51.5(2)°, −37.7(2)°], L-Dap(2) [ϕ2,ψ2 = −64.3(2)°, −26.2(2)°] and Aib(3) [ϕ3,ψ3 = −77.9(2)°, −15.9(3)°] are not far from those of a regular, right-handed 310-helix (ϕ,ψ = −57°, −30°) [24]. The largest distortion is shown by Aib(3), with ϕ,ψ values in between those typical for the i+2 corner position of a type-III β-turn (the building unit of the 310-helix) and a type-I β-turn (ϕ,ψ = −90°, 0°) [33].
As for the Nγ Boc-protected side chain of the L-Dap residue, the χ1 torsion angle is found in the g+ disposition, and the value of the torsion angle about the Cβ–Nγ bond is 107.0(2)° (Table S2). As a result, the potential H-bond donor and acceptor of the protected L-Dap side chain point away from the peptide backbone. In conclusion, the crystal-state structure of this tripeptide amide supports the scope of our design, i.e., building stable 310-helical structures to the side of which append the Fc groups.

2.3. Solution Conformational Analysis

We investigated the preferred conformations of 1 and 2 in a solvent of low polarity (CDC13) by means of FT-IR absorption and 1HNMR. We also carried out circular dichroism measurements, but in this case, we used MeOH as the solvent because chloroform does not allow us to examine the amide absorption region (190–250 nm), with it not being transparent at those wavelengths.
Figure 3 shows the FT-IR absorption spectra in the N-H stretching region (amide A) of Fc-hexapeptides 1 and 2 and of their shorter intermediates (from dimer to hexamer) at a 1 mM concentration in CDCl3. In most cases, two bands are present above 3400 cm−1 (free, solvated NH groups) and one major band in the range 3375–3310 cm−1 (H-bonded NH groups). The intensity of the low-frequency band increases, and, concomitantly, the absorption maximum shifts to lower wavenumbers as the main-chain length increases. At 0.1 mM concentrations, only minor changes occur in the spectra (Figure S2). Therefore, the observed H-bonding bands below 3375 cm−1 should be interpreted as arising almost exclusively from intramolecular NH···O=C interactions. This conclusion clearly supports the view that Fc-hexapeptides 1 and 2 adopt a helical conformation, most likely of the 310 type. Indeed, at the level of the dipeptide amides, Z-L-Dap-Aib-NHiPr and Z-(Aib)2-NHiPr (“di” in Figure 3, left and right panel, respectively), a β-turn is clearly formed. Obviously, it is more stable for Z-(Aib)2-NHiPr (“di” in the right panel) because of the presence of two turn inducers, Aib residues. The absorptions above 3400 cm−1 are ascribable to the N-terminal amide NHs, not involved in a β-turn or a 310-helix, and to the Dap side-chain amide or urethane NHs.
Interestingly, while the H-bonding band at about 3320 cm−1 is relatively sharp for 1, in the case of 2, it is wide and displays a shoulder at about 3350 cm−1. Taking into account that the solution of 2 was cloudy, it is very likely that the shape of the curve is due to aggregation. When this occurs through NH···O=C intermolecular H-bonds, a tenfold dilution dissolves the aggregates, and the curves change dramatically. However, this is not the case for 2: at a 0.1 mM peptide concentration, the broad curve is still there (Figure S2). Therefore, it is possible that 2 forms aggregates, and it is reasonable to assume that 2 behaves differently from 1 if we consider the spatial arrangements shown in Figure 1. To gain a deeper insight into the different behaviors of peptides 1 and 2, we recorded the 1H-NMR spectra of the two compounds at 5, 25 and 45 °C (Figures S3 and S4). By raising the temperature, some NH resonances move to higher fields, as expected. Indeed, the H-bonds become looser, and consequently, protons are more shielded. However, while the resolution improves in the spectra of 1, by increasing the temperature, there are no substantial changes in the spectra of 2, which appears poorly resolved even at 45 °C. We tentatively ascribe this behavior to the possible formation of aggregates. Generally, by raising the temperature, the mobility of the molecules increases as well. Therefore, aggregates are partly corrupted, and the signal dispersion is reduced.
We were able to assign the 1H resonances of all the Fc-peptide conjugates by 2D-NMR analysis. In particular, we evaluated the conformational preferences of 1 in a CDCl3 solution. A helical structure is clearly present. Indeed, we observed sequential cross-peaks α/βCHi→NHi+1 and NHi→NHi+1 (Figure 4) and two types of long-range α/βCHi→NHi+2 connectivity. These cross-peaks, involving Dap2 and Aib4 and Aib1 and Aib3 (Figure 5), are typical of the 310-helix. This finding is in agreement with the conformational properties observed in our FT-IR absorption analysis and also detected by CD spectroscopy.
Under the same conditions, peptide 2 exhibited a high overlapping of signals in the amide region, thus preventing a complete assignment of all resonances. This evidence may be ascribed to aggregation phenomena, which is in agreement with the conclusions of our FT-IR and CD analyses.
The far-UV CD spectrum of 1 in a methanol solution (Figure 6, left panel) displays two negative maxima at 218 and 205 nm, assigned to the n → π* transition and to the parallel component of the π → π* transition. The positive maximum at 190 nm is due to the antiparallel component of the π → π* transition. The presence of these three bands denotes that a peptide is folded into a helix of type α or 310.
At 0.5 mM concentrations, both peptides display the typical curve of a helical peptide. However, for 2, the intensity of the maximum at 220 nm is more pronounced than that at 205 nm. The θ220/θ205 ratio is much higher than for 1. This behavior is usually attributed to peptide aggregation [35,36]. Indeed, upon dilution, the θ220/θ205 ratio drops below 1, thus confirming the hypothesis of aggregation for 2 at a 0.5 mM concentration.
The CD spectra in the 300–600 nm region (Figure 6, right panel) display a similar behavior for both compounds, with two positive maxima at 344 nm and 407 nm, together with two negative maxima at 307 nm and 468 nm, arising from achiral Fc chromophore transitions. These induced CD bands are brought about by the ordered conformation of the host peptide. At 322 nm and 420 nm, corresponding to the UV absorptions of the ferrocene moiety, the CD signals for both compounds cancel out due to the Cotton effect.

2.4. CV and DPV Analyses

Ferrocene is known to be very stable in solutions and air and easy to functionalize, and it displays a reversible electrochemical behavior, making it suitable for labeling biomolecules [37]. Moreover, the electrochemistry of Fc-peptides gives insights into the effect of folding and the length of the peptide chain [25,26,27,28,29,30,31,32].
A cyclic voltammetry (CV) of the bis-Fc hexapeptides 1 and 2, recorded under argon in CH2Cl2/0.1 M nBu4B(C6F5)4 at potential scan rates in the range 0.1–5 Vs−1, shows reversible oxidation waves with an oxidation potential Ep = 0.54 and 0.62 V vs. SCE, respectively (Figure 7a), consistent with the chemical reversibility criteria in the range of scan rates of 0.1–5 V s−1, as they all showed cathodic/anodic peak current ratios of ia/ic = 1. The use in the supporting electrolyte of a weakly coordinating anion with highly delocalized negative charges, such as B(C6F5)4−, minimized the nucleophilic attack on the radical cations, which undergo much weaker ion pairing than the traditional anions in low-polarity solvents and provide evidence of the existence of electrostatic interactions.
However, at first glance, a comparison of the two curves suggests the presence of an incipient splitting in 2, thus implying that the ferrocenyl groups are electrochemically distinguishable in this peptide. However, the 2:1 (1.97) ratio of the two peaks’ areas (0.67 and 0.58 V), as evidenced by a Gaussian deconvolution of the differential pulse voltammetry (DPV) analysis reported in Figure 7b, indicates that the two different species are present.
The FT-IR and CD analyses indicate that 2 undergoes intermolecular aggregation. Therefore, the splitting of the DPV peak may arise from different intermolecular electrostatic interactions between Fc groups belonging to different peptide molecules.
A possible interpretation of the DPV peaks is sketched in Figure 8, which could explain the 2:1 ratio. In fact, the three-peptides aggregation of 2 in an antiparallel orientation (Figure 8a) would result in two different relative positions of Fc, one with two couples of Fc in close proximity (red), responsible for a 1:1 splitting of the DPV peaks at Ep = 0.54 and 0.62 V due to an electrostatic interaction (two one-electron waves), and the other possessing two far-away disposed Fc (blue) positions, causing a single peak superposed at 0.54 V (one two-electron wave). Conversely, the aggregation of only two peptides (Figure 8b) should produce a 3:1 ratio.

2.5. Vis-MIR-IR Chemical Oxidation

The UV-vis spectra of 1 and 2 in CH2Cl2, reported in Figure S5, display almost identical responses. Oxidized species production was examined in the visible (Figure 8) and IR (Figure 9) regions. Stable solutions of 12+ and 22+ in CH2Cl2/0.1 M nBu4B(C6F5)4 were obtained through the successive addition of increasing amounts of acetylferrocenium[BF4] (up to 2 equivalent) to the neutral peptides. In the visible region, the absorption band appearing at 620 nm is due to the Fc+-CO- group [26]. For example, the visible spectra acquired by the stepwise oxidation of 1 (bold black line, Figure 9) clearly indicate the formation of 12+ dication (bold red line) due to the simultaneous oxidation of both Fc groups.
Upon oxidation with acetylferrocenium[BF4] of 1 and 2, the bands in the range 3440–3400 cm−1, due to a non-H-bonded amide N–H (Dap side-chain NH and the two N-terminal amides NH), are insensitive to oxidation (Figure 10a,b). As for the amide A of 1 at 3315 cm−1 (NHpept/H-bond), arising from the intramolecular H-bonds stabilizing the peptide helix, a split in two components is observed. A Gaussian deconvolution of the spectra obtained through the incremental addition of the oxidant agent reveals that the intensity of the high-energy band linearly decreases, and its frequency varies from 3360 to 3347 cm−1. Differently, the intensity of the low-energy band firstly decreases and then grows, while its energy diminishes from 3310 to 3284 cm−1 (Figure S6). This suggests a release (3347 cm−1) and a reinforcement (3284 cm−1) of H-bonds due to the presence of positive charges on the Fc groups, with a fast equilibrium between bonded and non-bonded conformations.
The amide A band of 2 at 3330 cm−1 (NHpept/H-bond) is larger, and the split is absent, indicating that the H-bonds stabilizing the helical conformation are not affected by the presence of the positive charges.

3. Materials and Methods

3.1. Syntheses and Analyses

The syntheses of the peptides were performed by solution methods in an oxygen- and moisture-free atmosphere. Solvents were dried by reflux over the appropriate drying agent and distilled under a stream of argon. Ferrocenecarboxylic acid was an Alfa Aesar product; 1-hydroxy-benzotriazole hydrate (HOBt), diisopropylethylamine (DIEA) and 2-aminopropane were Sigma Aldrich products; and 1-(3-dimethylaminopropyl)-3-ethylcarbodiimide (EDC) and Nα-benzyloxycarbonyl-Nβ-(t-butyloxycarbonyl)-L-2,3-diaminopropionic acid [Z-L-Dap(Boc)-OH] were Iris Biotech products. Z-Aib-OH and Z-Aib-NHiPr were prepared by the reported procedure. Microanalyses were performed at the Department of Chemical Sciences, University of Padova. MS spectra were obtained using an Agilent 6130 ESI-TOF mass spectrometer coupled to an HPLC system, collecting data in the positive mode. All compounds were analyzed by analytical HPLC and were >95% pure.

3.2. X-ray Diffraction

Crystals of Z-Aib-L-Dap(Boc)-Aib-NHiPr were grown by slow evaporation from an ethyl acetate/hexane solvent mixture. X-ray diffraction data were collected with a Gemini E four-circle kappa diffractometer (Agilent Technologies) equipped with a 92 mm EOS CCD detector using graphite monochromated Cu Kα radiation (λ = 1.54184 Å). Data collection and reduction were performed with the CrysAlisPro software system (version 1.171.40.60a, Rigaku Corporation, Wroclaw, Poland). A semi-empirical absorption correction based on the multi-scan technique using spherical harmonics, implemented in the SCALE3 ABSPACK scaling algorithm, was applied. The structure was solved by the ab initio procedures of the SIR 2014 program [38]. The trial solution with the best combined figure of merit allowed all non-H-atoms to be located. Refinement was carried out by full-matrix least-squares on F2, using all data, through the application of the SHELXL-2014 program [39], with the anisotropic displacement parameters for all of the non-H-atoms. H-atoms were calculated at idealized positions and refined using a riding model. Relevant crystal data and structure refinement parameters are listed in Table S1. CCDC 2306243 contains the supplementary crystallographic data for this paper. The data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/structures (accessed on 11 November 2023).

3.3. Nuclear Magnetic Resonance

1H spectra were obtained on a Bruker Avance NEO-600 spectrometer operating at 600 MHz and equipped with a Prodigy cryoprobe and on a Bruker Avance III HD spectrometer operating at 400.13 MHz (T = 298K). The peptide concentration in solution was 1 mM in spectrograde CHCl3-d1 (99.8% d1 silver foils as stabilizers and 0.03% (v/v) tetramethylsilane—Eurisotop, subsidiary of Cambridge Isotope Laboratories, Inc., Tewksbury, MA, USA)) and DMSO-d6 (99.96% D-Eurisotop). The processing and evaluation of the experimental data were carried out using the TOPSPIN software packages. All homonuclear spectra were acquired by collecting 400 experiments, each consisting of 32 scans and 2K data points. The spin systems of the coded amino acid residues were identified using standard double-quantum filtered COSY [40] and clean TOCSY spectra [41]. In the latter case, the spin-lock pulse sequence was 70 ms long. NOESY experiments were utilized for sequence-specific assignments [42,43].

3.4. Cyclic Voltammetry

The experiments were performed in an air-tight three-electrode cell connected to a vacuum/argon Schlenk line. Dichloromethane solvent was pre-dried with anhydrous calcium chloride, refluxed over calcium hydride and distilled under a stream of Argon. Solvent and nBu4B(C6F5)4 were degassed in a Schlenk flask by manifold freeze–pump–thaw cycles and transferred by cannula in the cell. The reference electrode was an SCE (Tacussel ECS C10) separated from the solution by a bridge compartment filled with the same solvent/supporting electrolyte solution used in the cell. The counter electrode was a platinum spiral with around a 1 cm2 apparent surface area. The working electrode was a disk obtained from the cross section of a gold wire with 0.5 and 0.125 mm diameters sealed in glass. Between successive scans, the working electrode was polished on alumina according to standard procedures and sonicated before use. An EG&G PAR-175 signal generator was used. The currents and potentials were recorded on a Lecroy 9310L oscilloscope. The potentiostat was home-built with a positive feedback loop for compensation of the ohmic drop [44].

3.5. Differential Pulse Voltammetry

An Autolab PGSTAT 30 potentiostat/galvanostat (EcoChemie, Utrecht, The Netherlands) run by a PC with GPES software was used for the DPV experiments. The measurements were conducted in an air-tight three-electrode cell, the same as those used for the CV experiments, with a peak amplitude of 50 mV, a pulse width of 0.05 s, a 2 mV increment per cycle and a pulse period of 0.1 s.

3.6. UV-Vis Analysis

Solution absorption spectra in the UV-vis region were recorded at 293 K with a JASCO V770 double-beam spectrophotometer using quartz cells with 1 mm optical paths. A spectrum of CH2Cl2 (baseline) was recorded under the same conditions. Oxidation was achieved in an air-tight container connected to a vacuum/argon line through the incremental addition of an oxidizing agent solution (acetylferrocenium[BF4]/CH2Cl2 from 0.1 to 2.0 equivalents). HPLC-grade CH2Cl2 ≥ 99% was purchased from Carlo Erba and distilled on CaH2 (≥97% powder, Sigma Aldrich). Cells with path lengths of 1 mm (with quartz windows) were used.

3.7. FT-IR Analysis

Solution FT-IR absorption spectra were recorded at 293 K using an FT-IR Nicolet Nexus 670 spectrophotometer, nitrogen-flushed and equipped with a sample shuttle device, at a 2 cm−1 nominal resolution, averaging 25 scans. Solvent (baseline) spectra were recorded under the same conditions. Spectrograde CHCl3-d1 (99.8%, d) was used. HPLC-grade CH2Cl2 ≥ 99% was purchased from Carlo Erba and distilled on CaH2 (≥97% powder Sigma Aldrich). For spectral elaboration, the software SpectraCalc provided by Galactic (Salem, MA, USA) was employed. Cells with path lengths of 1 mm (with CaF2 windows) were used.

3.8. Circular Dichroism

The CD spectra were obtained on a Jasco (Tokyo, Japan) model J-1500 spectropolarimeter. Cylindrical fused quartz cells (Hellma, Müllheim, Germany) of a 0.02 cm path length and rectangular cells of a 0.1 cm path length were used. The values are expressed in terms of [θ]T (deg × cm2 × dmol−1). Spectrograde CH3OH (Merck, Albany, GA, USA) was used as a solvent.

4. Conclusions

Surprisingly, two bands were found through the DPV for 2, indicating an electrostatic interaction between the Fc groups despite their longer reciprocal distance, whereas a single and narrow peak was observed for 1. Circular dichroism (CD) and FT-IR absorption experiments at different concentrations confirmed the tendency of 2 to aggregate, even at high dilutions, a behavior that is compatible with the presence of intermolecular Fc-Fc electrostatic interactions.
To conclude, we reported for the first time the synthesis and spectroscopic characterizations of helical peptides with two Fc moieties appended to their sides, not to their ends. We observed quite different behaviors, primarily depending on the spatial localization of the two Fc groups (same or opposite sides of the peptide helix). In particular, we hypothesized the possible formation of aggregates in which couples of side-chain Fc molecules in close proximity electrostatically interact.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/inorganics11120482/s1: Synthetic details, Figure S1: Packing mode of Z-Aib-L-Dap(Boc)-Aib-NHiPr as viewed down the b axis. Intermolecular N-H···O=C H-bonds are indicated by dashed lines; Figure S2: FT-IR spectra in the amide A region of the Fc-hexapeptides 1 (left) and 2 (right) and of their shorter intermediates, from the dipeptide to the hexapeptide. Peptide concentration: 0.1 mM in CDCl3; Table S1: Crystal data and structure refinement for Z-Aib-L-Dap(Boc)-Aib-NHiPr; Table S2: Selected torsion angles [°] for Z-Aib-L-Dap(Boc)-Aib-NHiPr; Table S3: Hydrogen bonds for Z-Aib-L-Dap(Boc)-Aib-NHiPr [Å and °]; Figure S3: 1H-NMR spectra of 1 in the NH region at different temperatures and of their shorter intermediates. Peptide concentration: 0.1 mM in CDCl3; Figure S4: 1H-NMR spectra of 2 in the NH region at different temperatures and of their shorter intermediates. Peptide concentration: 0.1 mM in CDCl3; Figure S5: UV-vis spectra of 1 and 2 in CH2Cl2/0.1 M nBu4B(C6F5)4. Peptide concentration: 3.6 mM; Figure S6: Fitting of MIR spectra of 1 in CH2Cl2/0.1 M nBu4B(C6F5)4 and behavior of absorption intensities of band at around 3350 and 3300 cm−1 as a function of oxidant addition.

Author Contributions

Conceptualization, S.S. and F.F.; X-ray diffraction analysis, M.C.; solution conformational analyses, F.F., B.B., A.B., R.C. and R.S.; electrochemical studies, S.S. and R.C.; Circular dichroism F.F., R.S. and B.B.; data curation, S.S., B.B., A.B., R.C., R.S. and M.C.; writing—original draft preparation, S.S. and F.F.; writing—review and editing, S.S., B.B., A.B., M.C. and F.F.; funding acquisition, S.S. and F.F. All authors have read and agreed to the published version of the manuscript.

Funding

S.S. acknowledges the University of Padova, which funded this research through Grant P-DiSC-2018. S.S., B.B. and F.F. are grateful to the Italian Ministry of Research for the financial support through PRIN 2020 N. 2020833Y75.

Data Availability Statement

CCDC 2306243 contains the supplementary crystallographic data for this paper. The data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/structures (accessed on 11 November 2023).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Moriuchi, T. Helical Chirality of Ferrocene Moieties in Cyclic Ferrocene-Peptide Conjugates. Eur. J. Inorg. Chem. 2022, e202100902. [Google Scholar] [CrossRef]
  2. Tassinari, F.; Jayarathna, D.R.; Kantor-Uriel, N.; Davis, K.L.; Varade, V.; Achim, C.; Naaman, R. Chirality Dependent Charge Transfer Rate in Oligopeptides. Adv. Mater. 2018, 30, 1706423. [Google Scholar] [CrossRef] [PubMed]
  3. Qin, Y.; Tong, F.; Zhang, W.; Zhou, Y.; He, S.Q.; Xie, R.; Lei, T.; Wang, Y.S.; Peng, S.J.; Li, Z.F.; et al. Self-Delivered Supramolecular Nanomedicine with Transformable Shape for Ferrocene-Amplified Photodynamic Therapy of Breast Cancer and Bone Metastases. Adv. Funct. Mater. 2021, 31, 2104645. [Google Scholar] [CrossRef]
  4. Gómez, J.; Sierra, D.; Ojeda, C.; Thavalingam, S.; Miller, R.; Guzmán, F.; Metzler-Nolte, N. Solid-phase synthesis and evaluation of linear and cyclic ferrocenoyl/ruthenocenoyl water-soluble hexapeptides as potential antibacterial compounds. J. Biol. Inorg. Chem. 2021, 26, 599–615. [Google Scholar] [CrossRef] [PubMed]
  5. Gurunarayanan, V.; Ramapanicker, R. Amphiphilic conjugates of ferrocene with amino acids and peptides: Design, synthesis, and studies on their aggregation behavior. J. Pep. Sci. 2021, 27, e3332. [Google Scholar] [CrossRef] [PubMed]
  6. Costa, N.C.S.; Piccoli, J.P.; Santos-Filho, N.A.; Clementino, L.C.; Fusco-Almeida, A.M.; De Annunzio, S.R.; Fontana, C.R.; Verga, J.B.; Eto, S.F.; Pizauro-Junior, J.M.; et al. Antimicrobial Activity of RP-1 Peptide Conjugate with Ferrocene Group. PLoS ONE 2020, 15, e0228740. [Google Scholar] [CrossRef]
  7. Peter, S.; Aderibigbe, B.A. Ferrocene-Based Compounds with Antimalaria/Anticancer Activity. Molecules 2019, 24, 3604. [Google Scholar] [CrossRef]
  8. Falcone, N.; Kraatz, H.-B. Ferrocene Peptide-based Supramolecular Gels: Current Trends and Applications. In Advances in Bioorganometallic Chemistry; Hirao, T., Moriuchi, T., Eds.; Elsevier: Amsterdam, The Netherlands, 2019; Chapter 3; pp. 57–74. [Google Scholar]
  9. Yu, J.; Horsley, J.R.; Abell, A.D. Peptides as Bio-Inspired Electronic Materials: An Electrochemical and First-Principles Perspective. Acc. Chem. Res. 2018, 51, 2237–2246. [Google Scholar] [CrossRef]
  10. Albada, B.; Metzler-Nolte, N. Highly Potent Antibacterial Organometallic Peptide Conjugates. Acc. Chem. Res. 2017, 50, 2510–2518. [Google Scholar] [CrossRef]
  11. Hirao, T.; Moriuchi, M.; Groß, A. Functionalized Redox Systems. Synthetic Reactions and Design of π- and Bio-Conjugates. In Functionalized Redox Systems Chp. 4 Bioconjugates to Induce Chirality Organization; Hirao, T., Ed.; Springer: Berlin/Heidelberg, Germany, 2015; Chapter 4; pp. 111–150. [Google Scholar]
  12. Adhikariab, B.; Kraatz, H.-B. Redox-triggered changes in the self-assembly of a ferrocene–peptide conjugated. Chem. Commun. 2014, 50, 5551–5553. [Google Scholar] [CrossRef]
  13. Takahashi, S.; Anzai, J.-I. Recent Progress in Ferrocene-Modified Thin Films and Nanoparticles for Biosensors. Materials 2013, 6, 5742–5762. [Google Scholar] [CrossRef] [PubMed]
  14. Zuccarello, L.; Barbosa, C.; Todorovic, S.; Silveira, C.M. Electrocatalysis by Heme Enzymes—Applications in Biosensing. Catalysts 2021, 11, 218. [Google Scholar] [CrossRef]
  15. Huang, J.; Zhao, P.; Jin, X.; Wang, Y.; Yuan, H.; Zhu, X. Enzymatic biofuel cells based on protein engineering: Recent advances and future prospects. Biomater. Sci. 2020, 8, 5230–5524. [Google Scholar] [CrossRef] [PubMed]
  16. Yu, S.Y.; Myung, N.V. Recent Advances in the Direct Electron Transfer-Enabled Enzymatic Fuel Cells. Front. Chem. 2021, 8, 620153. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, L.; Yagnik, G.; Peng, J.; Wang, J.; Xu, H.H.; Hao, Y.; Liu, Y.-N.; Zhou, F. Kinetic Studies of Inhibition of the Aβ(1–42) Aggregation Using a Ferrocene-tagged β-Sheet Breaker Peptide. Anal Biochem. 2013, 434, 292–299. [Google Scholar] [CrossRef] [PubMed]
  18. Afrasiabi, R.; Kraatz, H.B. Stimuli-Responsive Supramolecular Gelation in Ferrocene–Peptide Conjugates. Chem. Eur. J. 2013, 19, 17296–17300. [Google Scholar] [CrossRef]
  19. Martić, S.; Labib, M.; Shipman, P.-O.; Kraatz, H.-B. Ferrocene-peptido conjugates: From synthesis to sensory applications. Dalton Trans. 2011, 40, 7264–7290. [Google Scholar] [CrossRef]
  20. Moriuchi, T.; Kikushima-Honda, N.; Ohmura, S.D.; Hirao, T. Design and characterization of ferrocene–peptide–oligoaniline conjugates. Tetrahedron Lett. 2010, 51, 4530–4533. [Google Scholar] [CrossRef]
  21. Okamoto, S.; Morita, T.; Kimura, S. Electron Transfer through a Self-Assembled Monolayer of a Double-Helix Peptide with Linking the Terminals by Ferrocene. Langmuir 2009, 25, 3297–3304. [Google Scholar] [CrossRef]
  22. Adachi, T.; Kitazumi, Y.; Shirai, O.; Kano, K. Direct Electron Transfer-Type Bioelectrocatalysis of Redox Enzymes at Nanostructured Electrodes. Catalysts 2020, 10, 236. [Google Scholar] [CrossRef]
  23. Toniolo, C.; Benedetti, E. The polypeptide 310-helix. Trends Biochem. Sci. 1991, 16, 350–353. [Google Scholar] [CrossRef] [PubMed]
  24. Aravinda, S.; Datta, S.; Shamala, N.; Balaram, P. Hydrogen-Bond Lengths in Polypeptide Helices: No Evidence for Short Hydrogen Bonds. Angew. Chem. Int. Ed. 2004, 43, 6728–6731. [Google Scholar] [CrossRef] [PubMed]
  25. Donoli, A.; Marcuzzo, V.; Moretto, A.; Toniolo, C.; Cardena, R.; Bisello, A.; Santi, S. Charge Mapping in 310-Helical Peptide Chains by Oxidation of the Terminal Ferrocenyl Group. Org. Lett. 2011, 13, 1282–1285. [Google Scholar] [CrossRef] [PubMed]
  26. Biondi, B.; Bisello, A.; Cardena, R.; Schiesari, R.; Facci, M.; Cerveson, L.; Rancan, M.; Formaggio, F.; Santi, S. Conformational Analysis and Through-Chain Charge Propagation in Ferrocenyl-Conjugated Homopeptides of 2,3-Diaminopropionic acid (Dap). Eur. J. Inorg. Chem. 2022, e202100966. [Google Scholar] [CrossRef]
  27. Crisma, M.; Formaggio, F.; Alemán, C.; Torras, J.; Ramakrishnan, C.; Kalmankar, N.; Balaram, P.; Toniolo, C. The fully-extended conformation in peptides and proteins. Pept. Sci. 2018, 110, e23100. [Google Scholar] [CrossRef]
  28. Biondi, B.; Bisello, A.; Cardena, R.; Schiesari, R.; Cerveson, L.; Facci, M.; Rancan, M.; Formaggio, F.; Santi, S. Flat, Ferrocenyl-Conjugated Peptides: A Combined Electrochemical and Spectroscopic Study. ChemElectroChem 2021, 8, 2693–2700. [Google Scholar] [CrossRef]
  29. Donoli, A.; Marcuzzo, V.; Moretto, M.; Crisma, M.; Toniolo, C.; Cardena, R.; Bisello, A.; Santi, S. New bis-Ferrocenyl End-Capped Peptides: Synthesis and Charge Transfer Properties. Pept. Sci. 2012, 100, 14–24. [Google Scholar] [CrossRef]
  30. Santi, S.; Bisello, A.; Cardena, R.; Tomelleri, S.; Schiesari, R.; Biondi, B.; Crisma, M.; Formaggio, F. Flat, Cα,β-Didehydroalanine Foldamers with Ferrocene Pendants: Assessing the Role of α-Peptide Dipolar Moments. ChemPlusChem 2021, 86, 723–730. [Google Scholar] [CrossRef]
  31. Santi, S.; Biondi, B.; Cardena, R.; Bisello, A.; Schiesari, R.; Tomelleri, S.; Facci, M.; Crisma, F.; Formaggio, F. Helical versus Flat Bis-Ferrocenyl End-Capped Peptides: The Influence of the Molecular Skeleton on Redox Properties. Molecules 2022, 27, 6128. [Google Scholar] [CrossRef]
  32. Nuskol, M.; Studen, M.; Meden, A.; Kodrin, I.; Cakic Semencic, M. Tight turn in dipeptide bridged ferrocenes: Synthesis, X-ray structural, theoretical and spectroscopic studies. Polyhedron 2019, 161, 137–144. [Google Scholar] [CrossRef]
  33. Venkatachalam, C.M. Stereochemical criteria for polypeptides and proteins. V. Conformation of a system of three linked peptide units. Biopolymers 1968, 6, 1425–1436. [Google Scholar] [CrossRef] [PubMed]
  34. König, W.; Geiger, R. A new method for synthesis of peptides: Activation of the carboxyl group with dicyclohexylcarbodiimide using 1-hydroxybenzotriazoles as additives. Chem. Ber. 1970, 103, 788–798. [Google Scholar] [CrossRef] [PubMed]
  35. Zhou, N.E.; Kay, C.M.; Hodges, R.S. Synthetic model proteins: The relative contribution of leucine residues at the nonequivalent positions of the 3-4 hydrophobic repeat to the stability of the two-stranded α-helical coiled-coil. Biochemistry 1992, 31, 5739–5746. [Google Scholar] [CrossRef]
  36. Wallimann, P.; Kennedy, R.J.; Kemp, D.S. Large Circular Dichroism Ellipticities for N-Templated Helical Polypeptides Are Inconsistent with Currently Accepted Helicity Algorithms. Angew. Chem. Int. Ed. 1999, 38, 1290–1292. [Google Scholar] [CrossRef]
  37. Metzler-Nolte, N.; Salmain, M. Ferrocenes: Ligands, Materials and Biomolecules; Štepnicka, P., Ed.; Wiley: Chichester, UK, 2008; pp. 499–639. [Google Scholar]
  38. Burla, M.C.; Caliandro, R.; Carrozzini, B.; Cascarano, G.L.; Cuocci, C.; Giacovazzo, C.; Mallamo, M.; Mazzone, A.; Polidori, G. Crystal structure determination and refinement via SIR2014. J. Appl. Crystallogr. 2015, 48, 306–309. [Google Scholar] [CrossRef]
  39. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. C 2015, 71, 3–8. [Google Scholar] [CrossRef]
  40. Rance, M.; Sørensen, O.W.; Bodenhausen, G.; Wagner, G.; Ernst, R.R.; Wüthrich, K. Improved spectral resolution in COSY 1H NMR spectra of proteins via double quantum filtering. Biochem. Biophys. Res. Commun. 1983, 117, 479–485. [Google Scholar] [CrossRef]
  41. Griesinger, C.; Otting, G.; Wüthrich, K.; Ernst, R.R. Clean TOCSY for proton spin system identification in macromolecules. J. Am. Chem. Soc. 1988, 110, 7870–7872. [Google Scholar] [CrossRef]
  42. Wüthrich, K. NMR of Proteins and Nucleic Acids; Wiley: Chichester, UK, 1991. [Google Scholar]
  43. Boros, S.; Gáspári, Z.; Batta, G. Accurate NMR Determinations of Proton-Proton Distances. Annu. Rep. NMR Spectro. 2018, 94, 1–39. [Google Scholar]
  44. Amatore, C.; Lefrou, C.; Pflüger, F. On-line compensation of ohmic drop in submicrosecond time resolved cyclic voltammetry at ultramicroelectrodes. J. Electroanal. Chem. 1989, 270, 43–59. [Google Scholar] [CrossRef]
Inorganics 11 00482 sch001

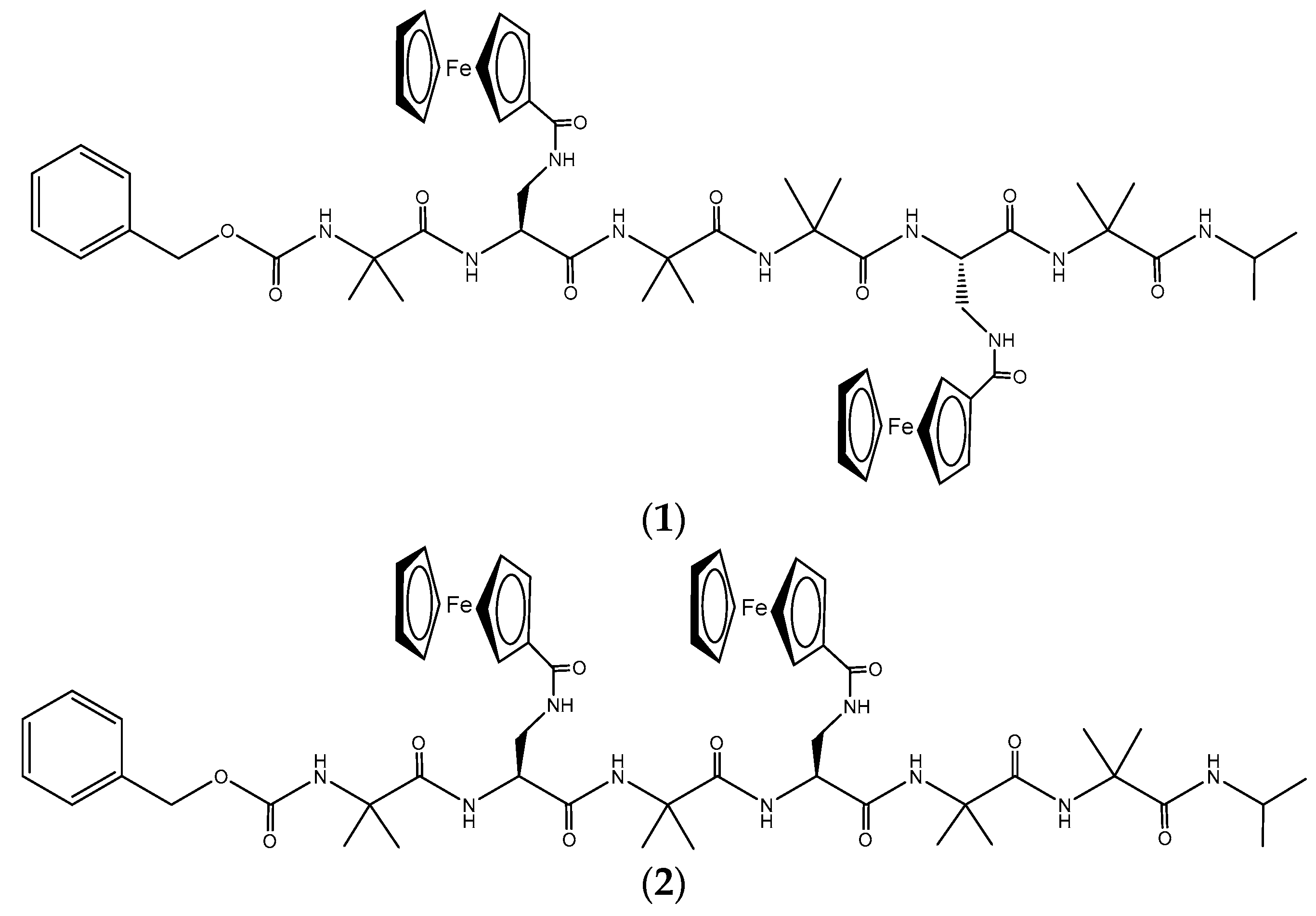

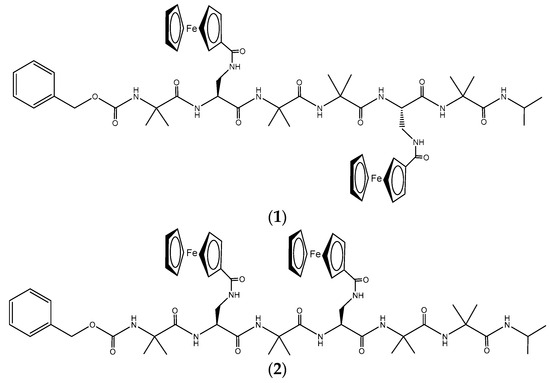

Scheme 1. Molecular structures of the two Fc hexapeptides investigated.
Scheme 1. Molecular structures of the two Fc hexapeptides investigated.
Inorganics 11 00482 sch001
Inorganics 11 00482 g001

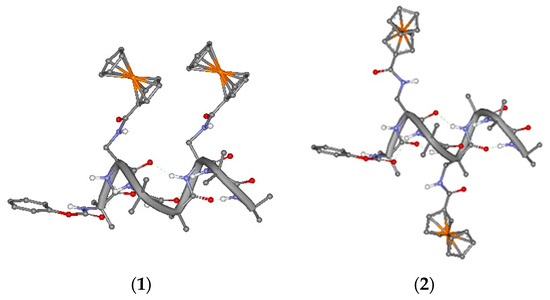

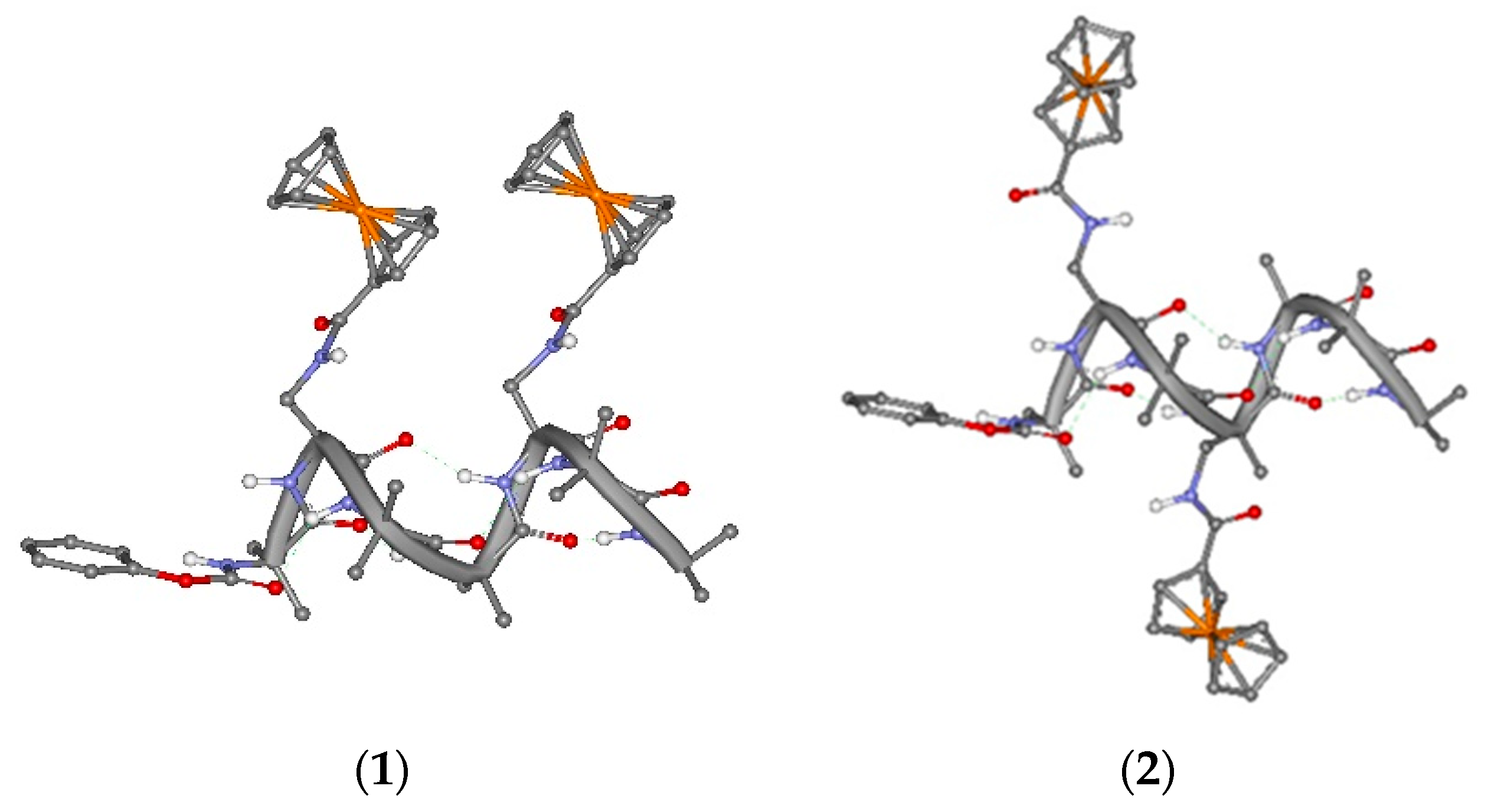

Figure 1. Molecular models of (1) and (2) folded into a 310-helix.
Figure 1. Molecular models of (1) and (2) folded into a 310-helix.
Inorganics 11 00482 g001
Inorganics 11 00482 g002

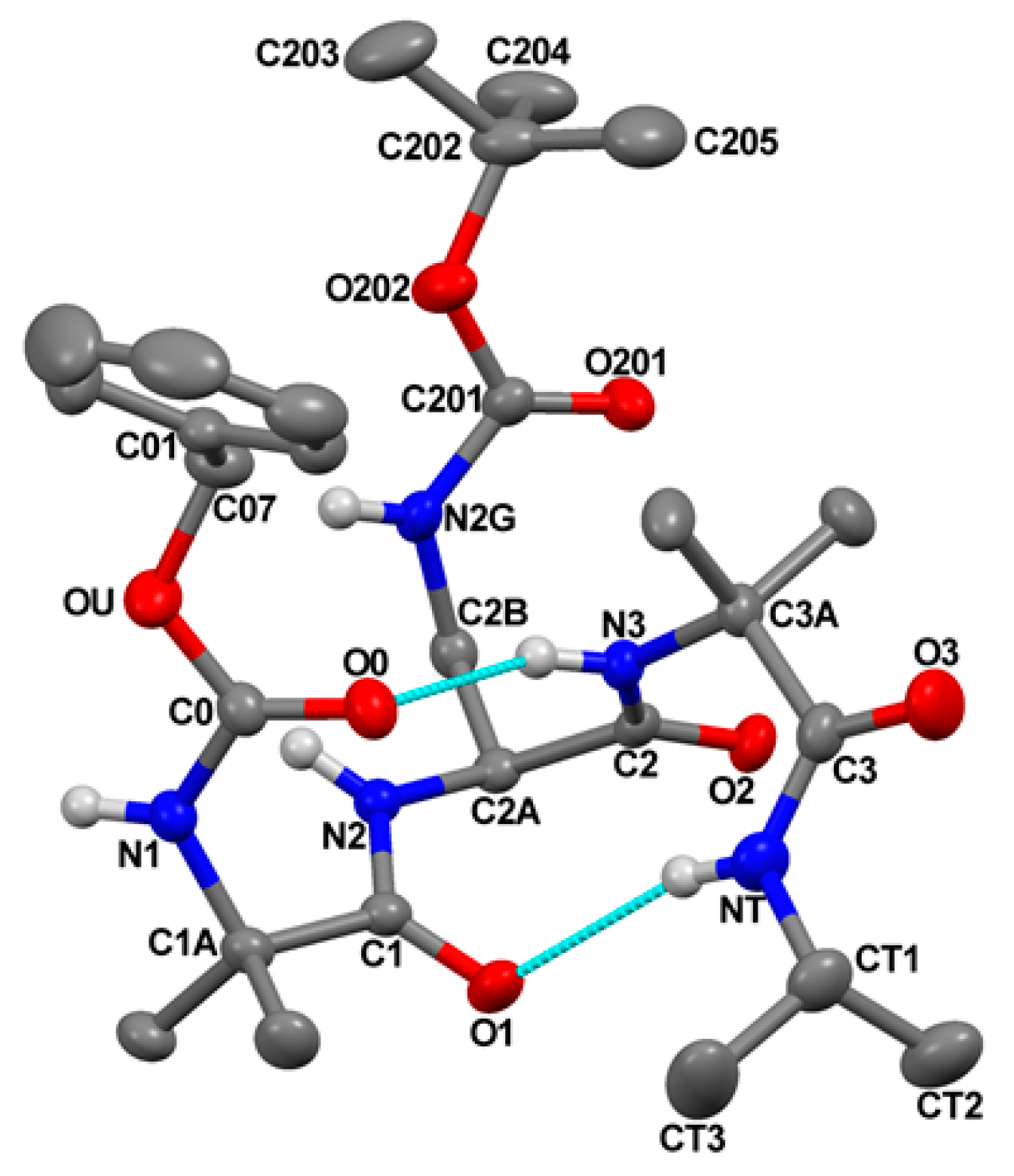

Figure 2. X-ray diffraction structure of Z-Aib-L-Dap(Boc)-Aib-NHiPr. Most of the H-atoms are omitted for clarity. Anisotropic displacement ellipsoids for the non-H-atoms are drawn at the 30% probability level. The two intramolecular N-H···O=C H-bonds are indicated by turquoise lines.
Figure 2. X-ray diffraction structure of Z-Aib-L-Dap(Boc)-Aib-NHiPr. Most of the H-atoms are omitted for clarity. Anisotropic displacement ellipsoids for the non-H-atoms are drawn at the 30% probability level. The two intramolecular N-H···O=C H-bonds are indicated by turquoise lines.
Inorganics 11 00482 g002
Inorganics 11 00482 g003

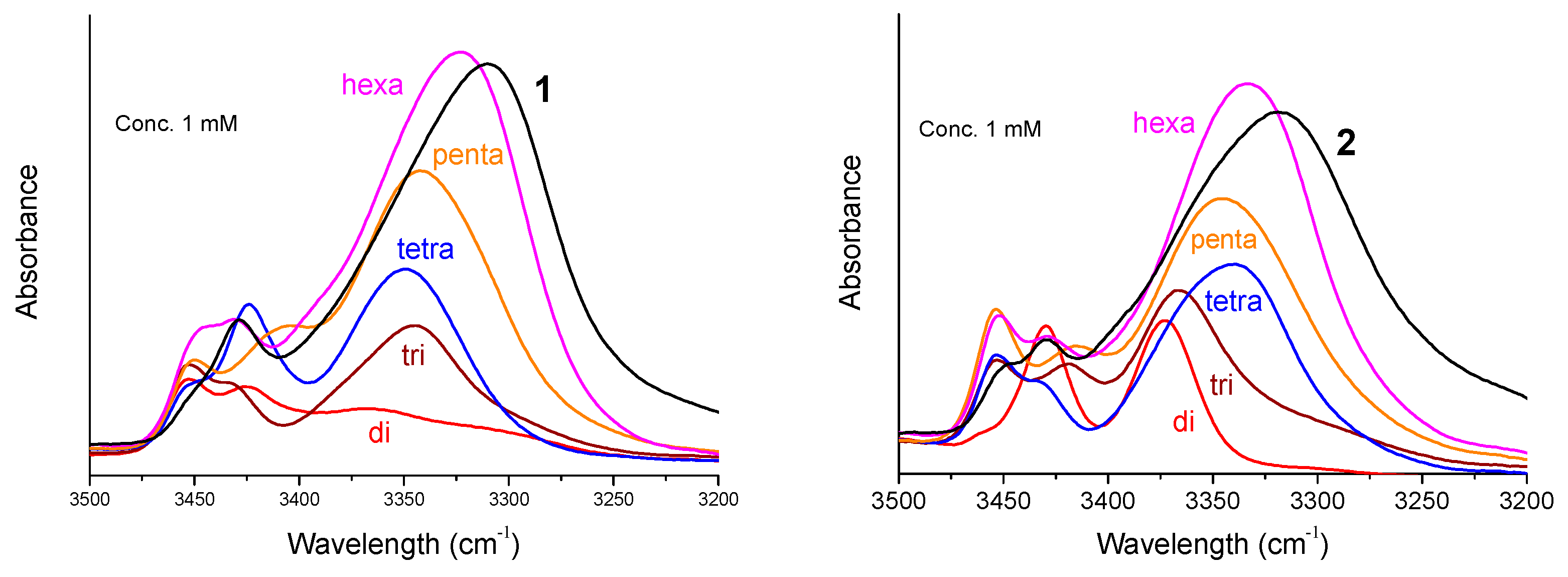

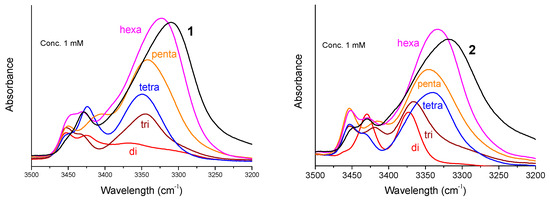

Figure 3. FT-IR spectra in the amide A region of the Fc-hexapeptides (1) (left) and (2) (right) and of their shorter intermediates, from the dipeptide to the hexapeptide. Peptide concentration: 1 mM in CDCl3.
Figure 3. FT-IR spectra in the amide A region of the Fc-hexapeptides (1) (left) and (2) (right) and of their shorter intermediates, from the dipeptide to the hexapeptide. Peptide concentration: 1 mM in CDCl3.
Inorganics 11 00482 g003
Inorganics 11 00482 g004

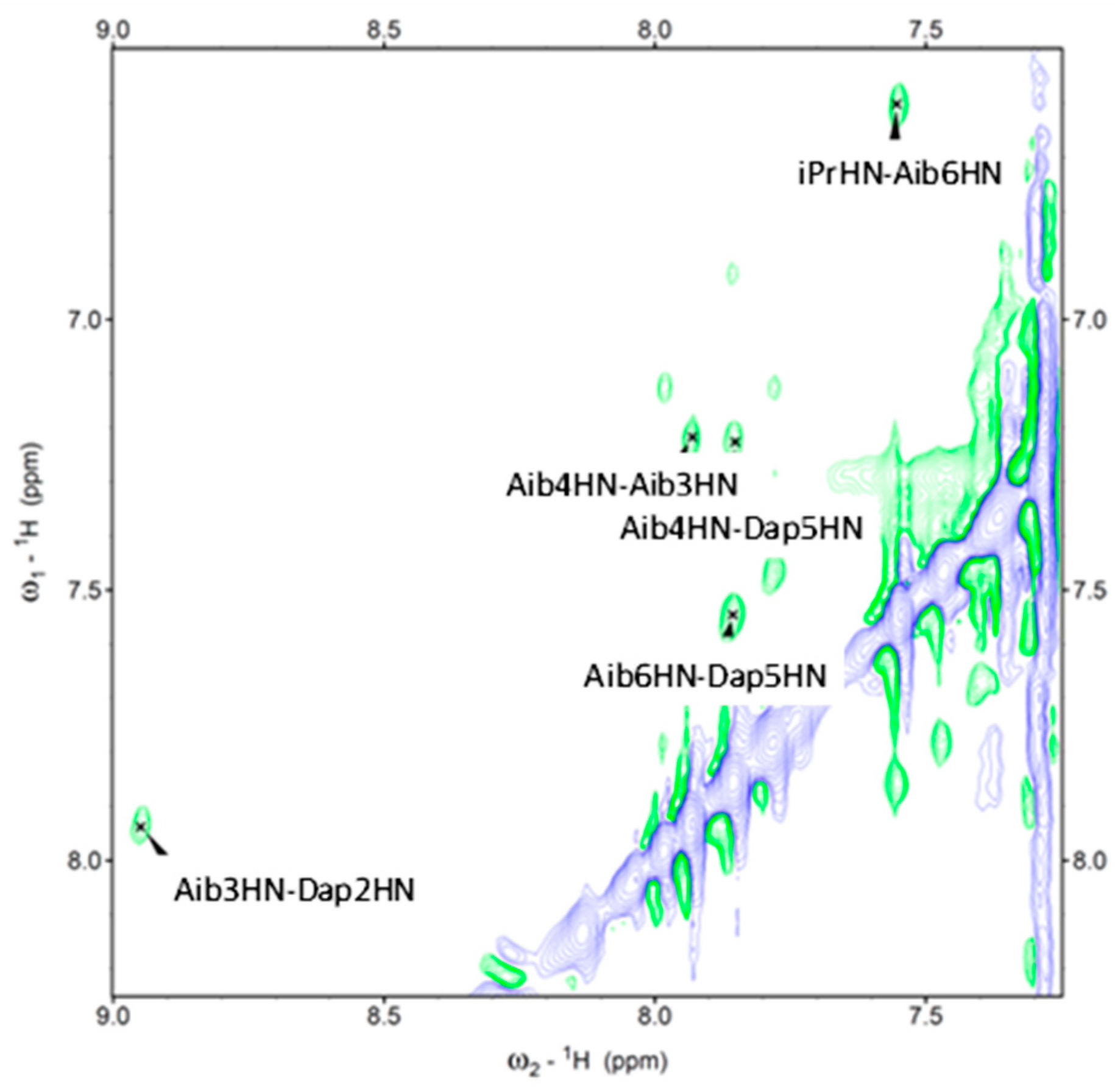

Figure 4. Amide protons region of the NOESY spectrum of 1 in CDCl3 solution, T = 25 °C.
Figure 4. Amide protons region of the NOESY spectrum of 1 in CDCl3 solution, T = 25 °C.
Inorganics 11 00482 g004
Inorganics 11 00482 g005

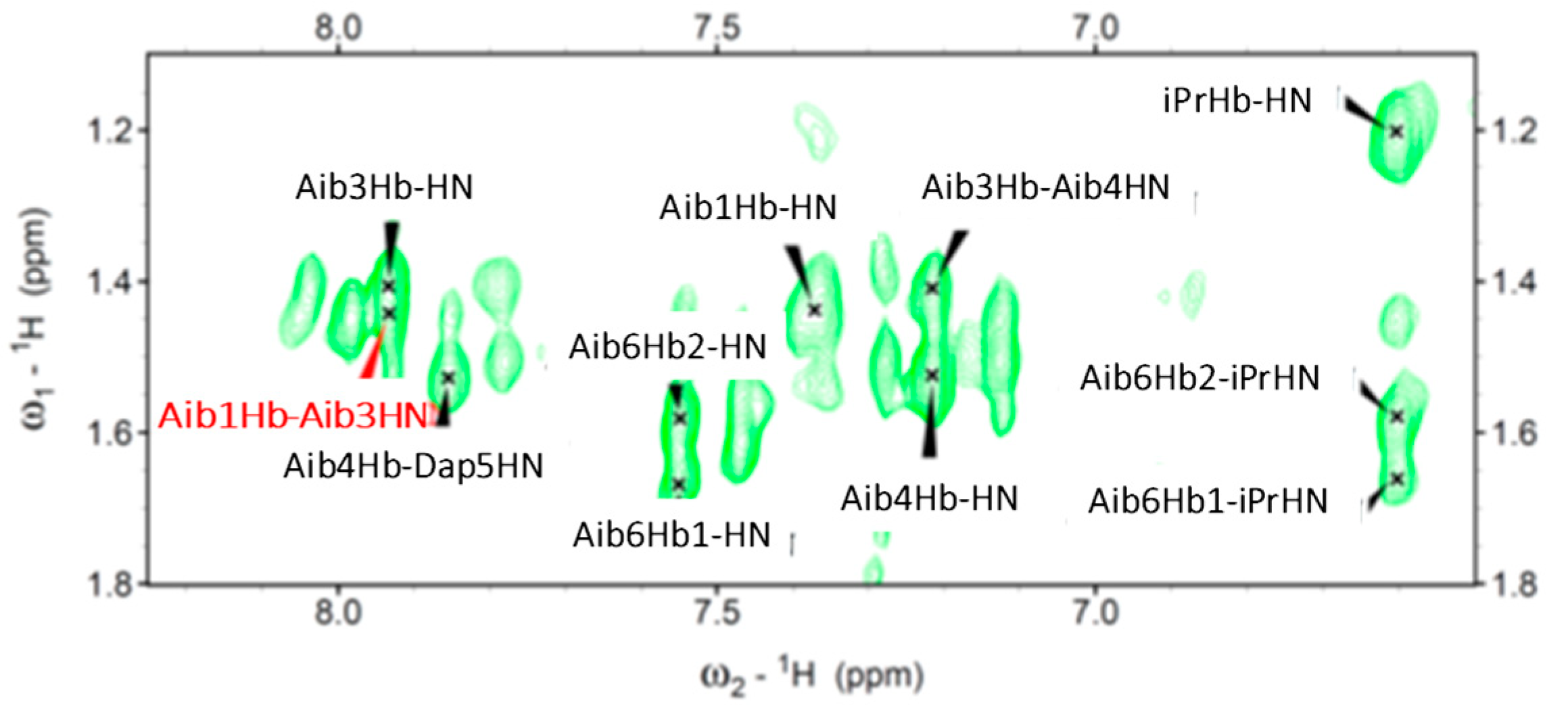

Figure 5. Cβ/NH region of the NOESY spectrum of 1 in CDCl3 solution; T = 25 °C.
Figure 5. Cβ/NH region of the NOESY spectrum of 1 in CDCl3 solution; T = 25 °C.
Inorganics 11 00482 g005
Inorganics 11 00482 g006

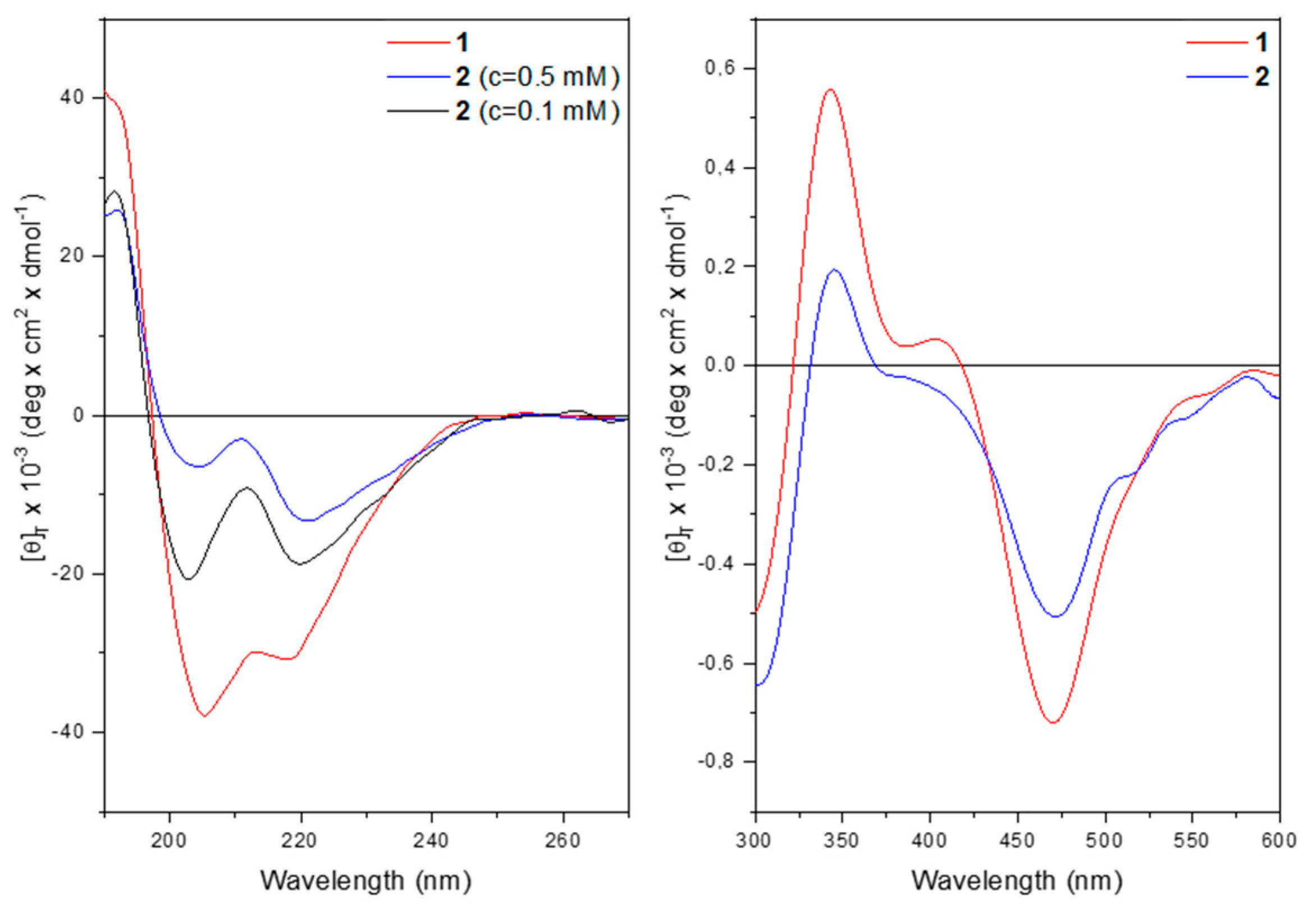

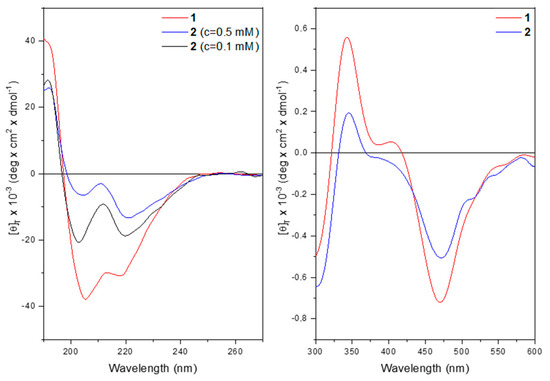

Figure 6. Left: far-UV CD spectra of 1 (red) and 2 (blue) at 0.5 mM concentration and of 2 at 0.1 mM concentration in MeOH. Right: near UV and visible CD spectra of 1 and 2 at 0.5 mM concentration in CH3OH.
Figure 6. Left: far-UV CD spectra of 1 (red) and 2 (blue) at 0.5 mM concentration and of 2 at 0.1 mM concentration in MeOH. Right: near UV and visible CD spectra of 1 and 2 at 0.5 mM concentration in CH3OH.
Inorganics 11 00482 g006
Inorganics 11 00482 g007

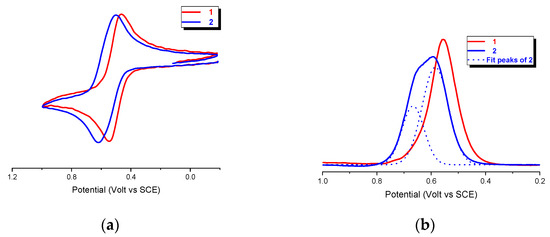

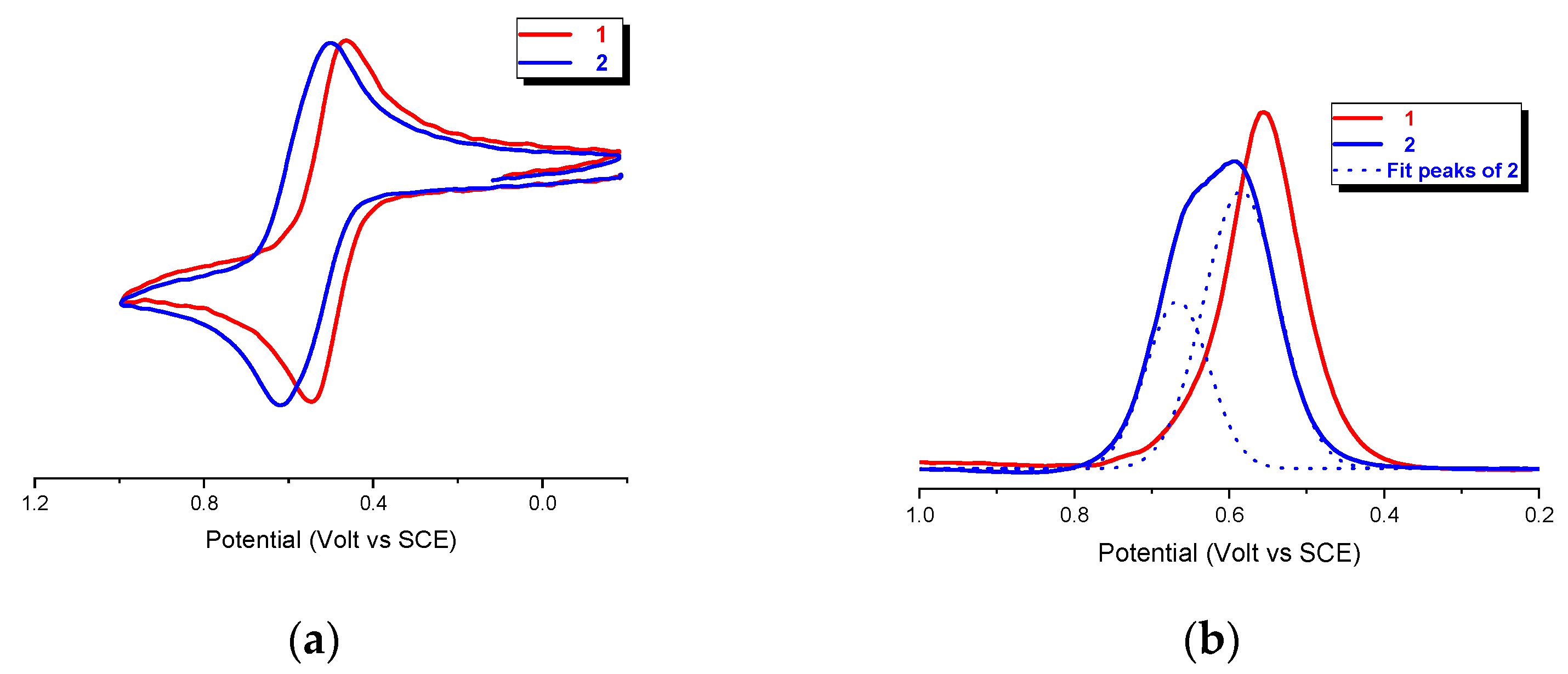

Figure 7. (a) Cyclic voltammetry, scan rate 0.1 Vs−1, and (b) DPV of 1 (bold red line) and 2 (bold blue line) in CH2Cl2 containing 0.1 M of nBu4B(C6F5)4 as the supporting electrolyte; Au disk electrode (d = 0.5 mm); T = 20 °C. The current, i, is normalized according to the equation iv−1/2c−1, as for a diffusion-controlled current variation, with concentrations c = 0.4 and 1.7 mM.
Figure 7. (a) Cyclic voltammetry, scan rate 0.1 Vs−1, and (b) DPV of 1 (bold red line) and 2 (bold blue line) in CH2Cl2 containing 0.1 M of nBu4B(C6F5)4 as the supporting electrolyte; Au disk electrode (d = 0.5 mm); T = 20 °C. The current, i, is normalized according to the equation iv−1/2c−1, as for a diffusion-controlled current variation, with concentrations c = 0.4 and 1.7 mM.
Inorganics 11 00482 g007
Inorganics 11 00482 g008

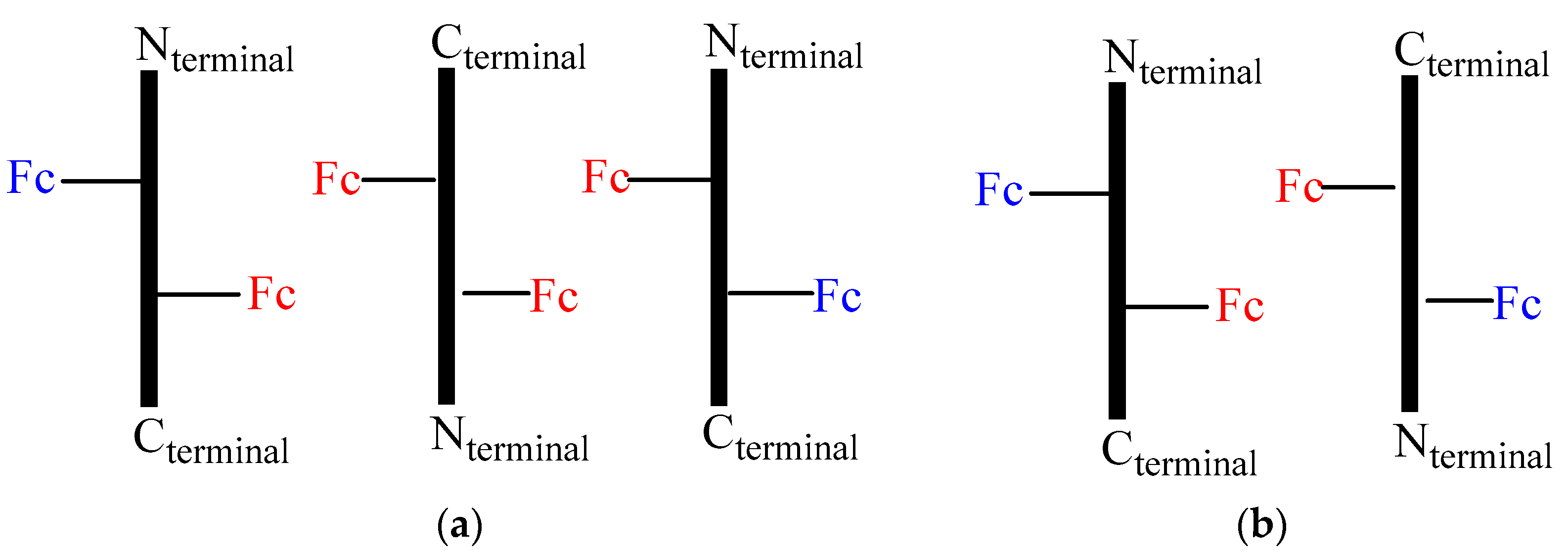

Figure 8. Schematic representation of possible aggregation modes of 2: (a) three-peptides aggregation, (b) two-peptides aggregation.
Figure 8. Schematic representation of possible aggregation modes of 2: (a) three-peptides aggregation, (b) two-peptides aggregation.
Inorganics 11 00482 g008
Inorganics 11 00482 g009

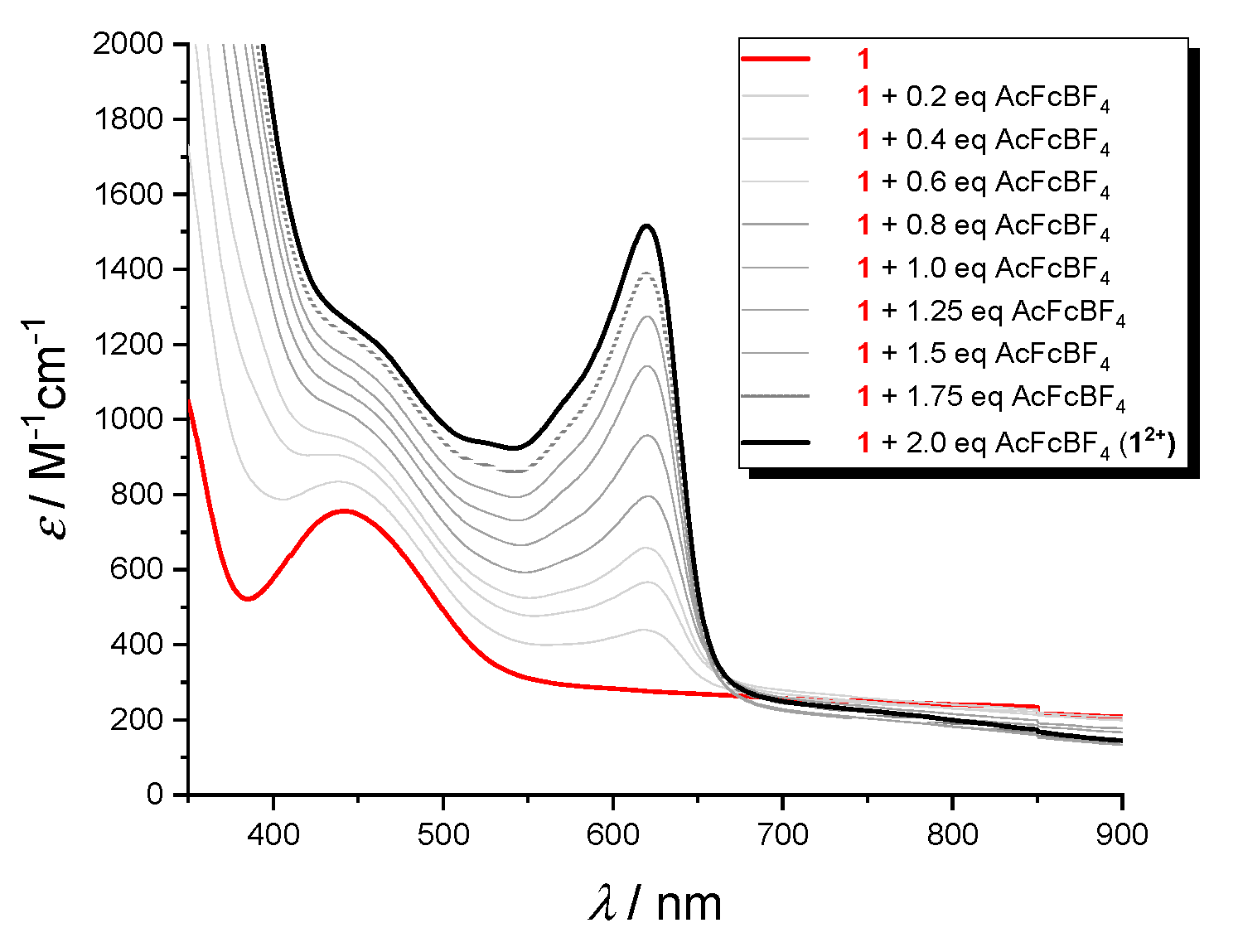

Figure 9. Visible absorption spectra in CH2Cl2/0.1 M nBu4B(C6F5)4 of 1 obtained through the oxidation of the neutral parent compound with up to 2 equivalents of acetylferrocenium[BF4]; c = 3.0 mM.
Figure 9. Visible absorption spectra in CH2Cl2/0.1 M nBu4B(C6F5)4 of 1 obtained through the oxidation of the neutral parent compound with up to 2 equivalents of acetylferrocenium[BF4]; c = 3.0 mM.
Inorganics 11 00482 g009
Inorganics 11 00482 g010

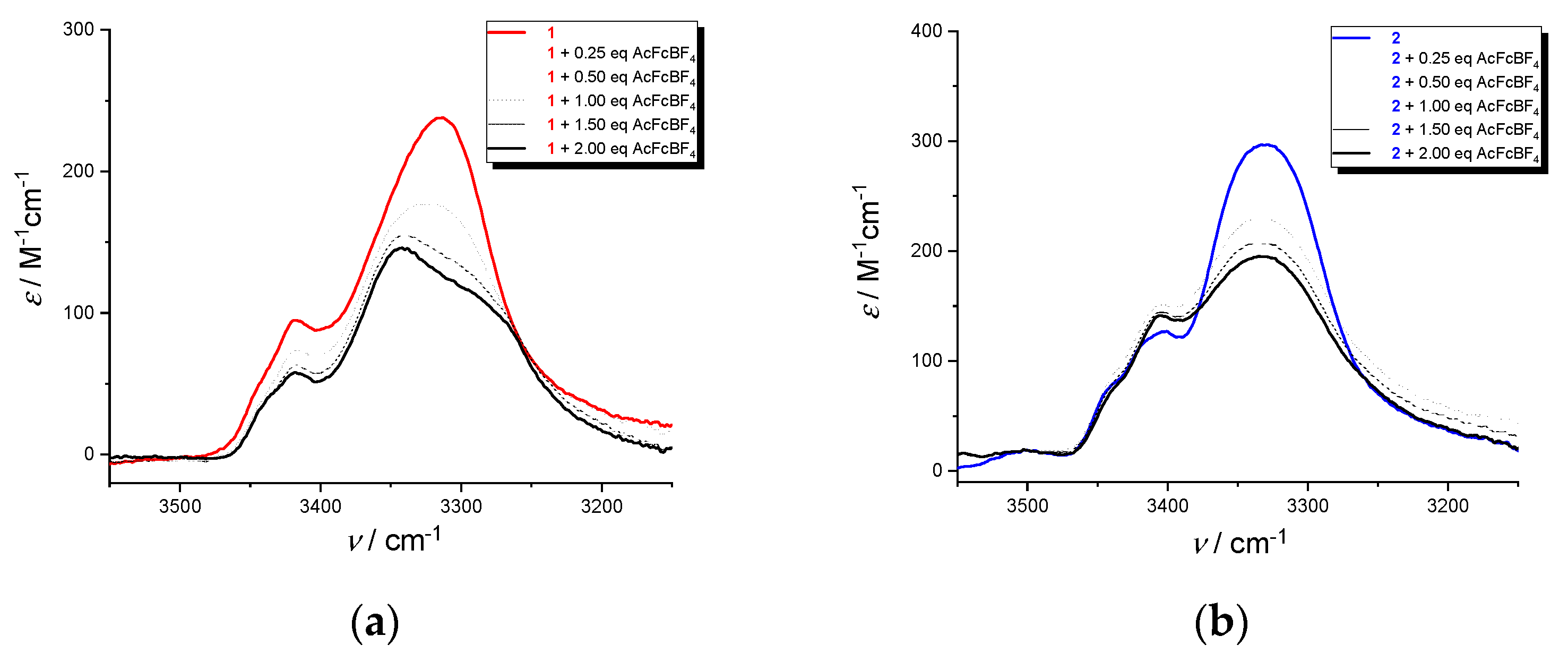

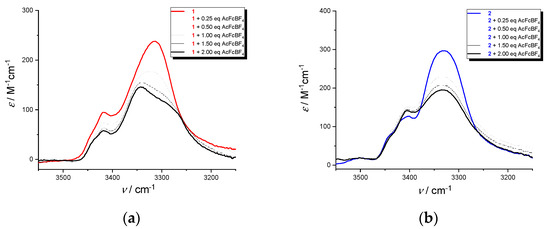

Figure 10. IR absorption spectra in the amide A region in CH2Cl2/0.1 M nBu4B(C6F5)4 of 12+ (a) and 22+ (b) obtained through the addition of 2 equivalents of acetylferrocenium[BF4] to 1 and 2; c = 1.4 mM.
Figure 10. IR absorption spectra in the amide A region in CH2Cl2/0.1 M nBu4B(C6F5)4 of 12+ (a) and 22+ (b) obtained through the addition of 2 equivalents of acetylferrocenium[BF4] to 1 and 2; c = 1.4 mM.
Inorganics 11 00482 g010
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bisello, A.; Biondi, B.; Cardena, R.; Schiesari, R.; Crisma, M.; Formaggio, F.; Santi, S. Modulation of Ferrocene–Ferrocene Interactions by Varying Their Reciprocal Positions in L-Dap/Aib Helical Peptides. Inorganics 2023, 11, 482. https://doi.org/10.3390/inorganics11120482

AMA Style

Bisello A, Biondi B, Cardena R, Schiesari R, Crisma M, Formaggio F, Santi S. Modulation of Ferrocene–Ferrocene Interactions by Varying Their Reciprocal Positions in L-Dap/Aib Helical Peptides. Inorganics. 2023; 11(12):482. https://doi.org/10.3390/inorganics11120482

Chicago/Turabian Style

Bisello, Annalisa, Barbara Biondi, Roberta Cardena, Renato Schiesari, Marco Crisma, Fernando Formaggio, and Saverio Santi. 2023. "Modulation of Ferrocene–Ferrocene Interactions by Varying Their Reciprocal Positions in L-Dap/Aib Helical Peptides" Inorganics 11, no. 12: 482. https://doi.org/10.3390/inorganics11120482

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
