Article

Synthesis, Crystal Structure and Photoluminescent Properties of Red-Emitting CaAl4O7:Cr3+ Nanocrystalline Phosphor

1
Semiconductor Electronics Department, Lviv Polytechnic National University, 12 Bandera Str., 79013 Lviv, Ukraine
2
Department of Physical, Analytical and General Chemistry, Lviv Polytechnic National University, 12 Bandera Str., 79013 Lviv, Ukraine
3
Institute of Physics, Polish Academy of Sciences, Al. Lotników 32/46, 02-668 Warsaw, Poland
4
Department of Sensor and Semiconductor Electronics, Ivan Franko National University of Lviv, Tarnavskogo Str., 107, 79017 Lviv, Ukraine
5
Diamond Light Source, Harwell Campus, Didcot OX11 0DE, UK
6
Physics Department, University of Oxford, Keble Rd., Oxford OX13 RH, UK
*
Author to whom correspondence should be addressed.
Inorganics 2023, 11(5), 205; https://doi.org/10.3390/inorganics11050205
Submission received: 30 March 2023 / Revised: 25 April 2023 / Accepted: 3 May 2023 / Published: 9 May 2023
(This article belongs to the Special Issue Mixed Metal Oxides II)

Abstract

:
Calcium dialuminate, CaAl4O7, nanopowders with a grossite-type structure, doped with chromium ions, were synthesized via the combined sol–gel solution combustion method. The evolution of phase composition, crystal structure, and microstructural parameters of the nanocrystalline materials depending on the temperature of the thermal treatment was investigated via X-ray powder diffraction and applying the Rietveld refinement technique. The photoluminescent properties of CaAl4O7 nanophosphors activated with Cr3+ ions were studied over the temperature range of 4.5–325 K. The samples show deep red and near-infrared luminescence due to the 2E → 4A2 and 4T24A2 energy level transitions of Cr3+ ions under excitation in the two broad emission bands in the visible spectral region. The R lines emission reveals a strong temperature dependence. The feasibility of the material for non-contact luminescence sensing is investigated, and good sensitivity is obtained based on the (R2/R1) luminescence intensity ratio and the lifetime of the emission.

1. Introduction

Calcium dialuminate, CaAl4O7 (grossite), with a monoclinic C2/c structure has been intensively studied during recent decades as a promising rare-earth (RE)-free host material for diverse luminescent applications [1,2,3,4,5,6,7,8,9,10]. CaAl4O7-based phosphors doped with rare-earth elements (Nd, Sm, Eu, and Yb) and bismuth have attracted significant attention due to their high quantum efficiency, long persistence of phosphorescence, and suitable emitting color. In particular, Sm3+-doped CaAl4O7 yielding an intense orange-red emission under violet excitation [1] was proposed for lighting and display applications [2]. Calcium aluminate powders co-doped with Yb3+ and Eu3+ exhibit the near-infrared-to-red up-conversion luminescence of Eu3+ [3,4]. The luminescence of Bi3+ ions in a CaAl4O7 matrix is suitable for improving the rendering index of white LEDs, whereas the emission of Bi2+ at 720–850 nm appearing in the 1st biological window is attractive for bioimaging applications [5]. Mn4+- or Cr3+-doped materials are considered as alternatives to RE-activated phosphors for use as cheap near-IR and deep-red emitting phosphors (see [6] and the references herein). As expected, a number of studies on Mn4+-doped CaAl4O7-based luminophores emerged during the last decade [7,8,9,10]. In particular, just recently, a CaAl12O19–CaAl4O7–MgAl2O4:Mn4+ (CCM:Mn4+) red-emitting phosphor with excellent quantum efficiency and superior color purity was reported [10]. There, the great potential for using CCM:Mn4+ phosphors for plant growth LEDs and white light-emitting diode (WLED) applications was demonstrated. However, to the best of our knowledge, no information is available in the scientific literature on chromium-doped CaAl4O7 phosphors. To fill this gap, we conducted this study that encompasses the precise structural characterization of Cr3+-doped CaAl4O7 nanopowders synthesized via a facile sol–gel combustion method and the study of their photoluminescent properties with temperature, aiming to develop new deep-red emitting phosphors that are potentially suitable for non-contact luminescence thermometry.

2. Results and Discussion

2.1. Phase Composition, Crystal Structure, and Microstructural Parameters

The X-ray diffraction (XRD) of the product of nominal composition CaAl3.9995Cr0.0005O7 obtained after a spontaneous auto-combustion process at 800 °C (see Section 3.1) revealed the formation of an X-ray amorphous material (Figure 1, top panel).
The crystallization of CaAl4O7 and formation of a phase-pure grossite-type material with an average grain size <Dave> of 76 nm occurs after annealing the powder at 900 °C. The grain size was evaluated from the angular dependence of the shape of Bragg’s maxima via full-profile Rietveld refinement. Further heat treatments of the powder at 1000, 1100, 1200, and 1300 °C do not impact on the phase composition of the material, but they significantly improve the crystallinity of the sample. This is reflected by a gradual decrease of the lattice strains <ε> in CaAl4O7:Cr3+ structure from 0.157% to 0.113% and the simultaneous increase in the average grain size of up to 166–198 nm (see Figure 2a). The last tendency was also confirmed via scanning electron microscopy (SEM) examinations of the powders heat treated at different temperatures. The obtained SEM images (Figure 2b–d) confirm an essential increase in the sizes of the weakly faceted and strongly agglomerated grains from about 100 nm for the powder calcined at 1000 °C up to ≥200 nm for the powder calcined at 1300 °C.
Full-profile Rietveld refinement was also conducted for the evaluation of precise structural parameters of the CaAl4O7:Cr3+ series. As the initial model for the refinement, atomic coordinates in a nominally pure CaAl4O7 (CaO·2Al2O3) compound derived from single crystal diffraction data in Ref. [11] were used. In the refinement procedure, the unit cell dimensions, coordinates, and displacement parameters of metal and oxygen atoms were refined together with the profile parameters and corrections for absorption and the instrumental sample shift. In all cases, we achieved an excellent agreement between the calculated and experimental diffraction profiles. Example results of the Rietveld refinement of CaAl4O7:Cr3+ structures are presented in Figure 3. Obtained structural parameters for CaAl4O7:Cr3+ powders annealed at 1200 °C and the corresponding interatomic distances calculated from these data are presented in Table 1 and Table 2, respectively.
Aluminum atoms in the CaAl4O7 structure occupy two different general 8f positions and are characterized by a distorted tetrahedral environment of oxygen atoms at distances of 1.72–1.79 Å and 1.73–1.82 Å away from the central atoms for the positions Al(1) and Al(2), respectively (Table 2, Figure 4). What is peculiar about the Al(2) position is the presence of five remote oxygen atoms located at 2.69 Å away from a central Al atom; there are three Al atoms located at the distances of 2.91–3.13 Å (see Table 2). In contrast, in the Al(1) site, the second coordination environment is formed by five Al atoms located at 3.13–3.21 Å; there are no extra atoms between the first tetrahedral and second coordination spheres.
Calcium atoms in the CaAl4O7 structure are located at the centers of trigonal bipyramids formed by five oxygens located at distances of 2.36–2.51 Å away from the central atoms (Table 2). Two remote oxygen atoms located at distances of 2.89 Å could also be assigned to the nearest coordination sphere of Ca atoms. In this case, the coordination number (CN) of Ca becomes seven, and the corresponding polyhedron is shaped as a pentagonal bipyramid, which is similar to Sr atoms in the related SrAl4O7 compound [12,13]. Thus, the crystal structure of CaAl4O7 can be seen as a 3D grid of CaO7 polyhedra connected with two kinds of apex-shared AlO4 tetrahedra (Figure 4). As it was shown in earlier work on CaAl4O7 and SrAl4O7 structures [14], due to the 7:4 oxygen-to-aluminum ratio in this structure type, one oxygen atom (O4) is bonded to three aluminum atoms, thus connecting three AlO4 tetrahedra via a common corner. To obtain a complete network of AlO4 tetrahedra, in which each oxygen atom is bonded to only two aluminum atoms, a 2:1 ratio would be required.
The detailed analysis of the obtained structural parameters of materials heat treated at different temperatures revealed minor, but detectable anisotropic behaviors of the lattice parameters of the CaAl4O7:Cr3+ structure. The lattice parameters a and b, as well as the monoclinic angle β slightly decrease with an increasing annealing temperature, while the c parameter increases (see Figure 5). As a result, the unit cell volume is nearly independent of the heat treatment temperature (see Figure 5, bottom panel).

2.2. Luminescent Properties

Photoluminescence excitation (PLE) and corresponding photoluminescence (PL) spectra of CaAl4O7: Cr3+ nanocrystalline phosphors annealed at 1200 °C are shown in Figure 6. The sample calcined at 1200 °C reveals two types of Cr3+ emission. The first one has narrow lines (R lines) at 692.5 and 693.9 nm at room temperature, which are undoubtedly caused by 2E → 4A2 spin-forbidden transitions in the Cr3+ ion in a strong octahedral crystal field (O-Cr-A type, according to Refs. [15,16]). The inset in Figure 6b shows the R lines of this center in comparison with a similar center previously observed by us in SrAl4O7:Cr3+ [13]. The second one also has two narrow lines at 683.3 and 686.7 nm, which are superimposed on a broad emission band stretching up to 800 nm. The excitation bands caused by 4A24T1 and 4A24T2 transitions in the octahedrally coordinated Cr3+ ion for the second-type center are somewhat shifted towards longer wavelengths (see Figure 6a). The broad emission band of the second-type center also caused by spin-allowed 4T24A2 transitions points towards a lower crystal field strength experienced by this type of Cr3+ ions in the studied material (O-Cr-B type, according to Refs. [15,16]).
It should be mentioned that the Cr3+ center in a weak crystal field exhibiting a broad-band emission was not discussed in our recent study of SrAl4O7:Cr3+ [13]. Having observed this new center in the studied calcium aluminate, we revisited the earlier results and carried out additional measurements for SrAl4O7:Cr3+ samples calcined at 1400 °C. The examinations confirmed that the Cr center in a weak crystal field does exist in this host (see Figure 7). This center marked as Cr2 in SrAl4O7:Cr3+ manifests a broad emission band centered at about 780 nm, with excitation bands at about 470 and 630 nm.
Judging from the presented photoluminescence spectra of SrAl4O7:Cr3+ and CaAl4O7:Cr3+ nanocrystalline phosphors, one can expect that the observed two types of non-equivalent octahedrally coordinated Cr3+ centers (in the stronger (Cr1) and weaker (Cr2) crystal fields) are formed on the sites of Al3+ and Ca2+/Sr2+ ions, respectively. A significant shift in the emission and excitation bands of the Cr2 center towards near-infrared with respect to the Cr1 center in SrAl4O7 compared to those of CaAl4O7 suggests that in the SrAl4O7 host, the Cr2 center experiences much weaker crystal field strength than it does in CaAl4O7. Taking into account the fact that the ionic radius of Sr2+ cation is larger than that of Ca2+, it is sensibly to anticipate that the Cr3+ center (Cr2) in a weak crystal field observed both in SrAl4O7 and CaAl4O7 most likely is localized at the sites of the alkaline earth cations. However, it is not obvious given the crystal structure of the CaAl4O7 lattice described above. The origin of the Cr3+ centers in (Ca/Sr)Al4O7 is discussed below.
Figure 8 demonstrates an evolution of the Cr-related emission of the studied material as a function of the annealing temperature. As it is clearly seen from the figure, the samples calcined at 900–1000 °C show a structureless broad-band emission at around 700 nm of relatively low intensity, which was caused by the poor crystallinity of the material. Narrow emission lines appear in the powder treated at 1100 °C. The material calcined at 1200 °C shows high-intensity photoluminescence, as described above. It is of interest to note that further increasing the annealing temperature up to 1300 °C results in a complete disappearance of the Cr2 centers, so that only the Cr1 centers remain without further increasing the emission intensity. Therefore, the material calcined at 1200 °C with two types of Cr centers was chosen to be studied in detail in the temperature range from about 4 to 325 K.
Figure 9 shows the detailed temperature dependence of the PL spectra in the vicinity of R lines of CaAl4O7:Cr3+ calcined at 1200 °C. The corresponding temperature dependences of the R2/R1 intensity ratios and R lines positions for the Cr1 and Cr2 centers are analyzed in the next section.
The decay curves of both types of Cr3+ luminescence centers in the temperature range from 4.5 to 325 K are shown in Figure 10. As can be seen from the figures, the Cr2 center emission registered at 686 nm exhibits a single instance of exponential decay. Cr1 emission decays are essentially non-single exponential ones caused by spectral overlap with the Cr2 emission spectrum. To estimate the characteristic decay times of the observed emissions, we first derived the decay time constant of the Cr2 center. Next, the decay time of the Cr2 center was used as a fixed parameter to fit the decay curves of the Cr1 emission by a sum of two exponential functions. In this way, the decay time of the Cr1 centers was reliably estimated.
It is noteworthy that the position of the R lines and their intensity ratio for the Cr1 center in the studied material are remarkably similar, if not identical, to those observed in ruby α-Al2O3:Cr3+ [17]. This similarity suggests that the Cr1 center may be related to α-Al2O3, which is likely present as an unintentional impurity phase in the studied materials. However, XRD studies did not detect any traces of the α-Al2O3 phase. Furthermore, a similar, albeit non-identical, “ruby-type” Cr3+ center was also observed in isostructural SrAl4O7 (see Figure 6b). This suggests that Cr3+ ions, when they are introduced to the (Ca/Sr)Al4O7 lattice, form octahedrally coordinated centers similar to those in ruby. It is logical to assume that this type of centers is formed in locations of Al3+ ions. Due to the tetrahedral environment of Al3+ ions in the CaAl4O7 structure, it can be assumed that a Cr3+ ion, when it enters into an Al site, attracts two oxygens from the coordination environment of the two nearest calcium atoms, thus forming CrO6 octahedra. A similar scenario of CrO6 octahedral complex formation, i.e., the generation of distorted octahedra as Cr3+ ions replaced Ga3+ ions in an SrGa4O7 structure, was recently reported for isostructural SrGa4O7 in [18].
Another type of Cr3+ center (Cr2), which showed up in the studied material at calcination temperatures ≤ 1200 °C and is attributed to Cr3+ in a somewhat weaker crystal field (larger Cr–O distances), is logically assigned to the centers formed at Ca2+ ions sites. The presence of the corresponding Cr2 center, in a much weaker crystal field in SrAl4O7 as shown above, confirms this assignment. Note that a similar mechanism of the formation of distorted octahedral Mn4+ complexes due to substitution for Ca sites was proposed in CaAl4O7:Mn phosphors [8]. Owing to the peculiarity of the grossite structure, both scenarios of the formation of octahedral Cr3+ centers in a CaAl4O7 host structure are possible. To shed light on this problem, a thorough study of the local structure of Cr3+-doped Ca(Sr)Al4O7 materials via complementary techniques is required.

2.3. Evaluation of Feasibility of CaAl4O7:Cr3+ for Non-Contact Luminescence Thermometry

The detailed investigation of changes observed in the spectroscopic characteristics of CaAl4O7:Cr3+ with temperature indicates that alike of many other chromium-doped oxides, this material can be used as non-contact luminescence sensor for temperature monitoring. One key advantage of materials doped with ions of transition metals is the ability to employ various modalities for temperature sensing based on monitoring different temperature-dependent luminescence characteristics, such as the intensity ratio of R lines, their spectral shift, and decay time. All these characteristics exhibit notable changes with temperature [17], making multimodal non-contact luminescence measurements of temperature highly attractive. Multimodal sensing improves the accuracy and reliability of the technique by enabling the cross-referencing of results produced by different readout techniques. Recently, we demonstrated that further enhancement of the technique can be achieved by using two transition metal ions, Cr3+ and Mn4+, in an Al2O3 host [19]. However, the practical usefulness of this dual-emitter concept is limited due to the difficulty of accommodating ions with different valence states in one host. An alternative approach to this concept is to use one transition metal ion to form two types of emission centers with distinct spectral and decay characteristics. As is demonstrated above, CaAl4O7:Cr3+, exhibiting the emissions of two types of Cr3+-centers, is well suited to test this idea. This section analyzes the luminescence characteristics of CaAl4O7:Cr3+ from the viewpoint of their application for thermometry.
The spectra presented in Figure 9 reveal significant changes in the intensity distribution of steep R lines and their shift with temperature. A rapid decrease in the intensity of the R2 lines with respect to R1 during cooling is due to an increase in the population of the lower exited state that is governed by Boltzmann statistics. The thermal shift of the lines results from the interaction of electronic states of impurity ions with acoustic phonons of the host matrix. That is explained within the framework of the Debye theory of solids. Consequently, both observed dependencies can be used for temperature monitoring.
The plots in Figure 11 show the variation in the ratio of intensities, F = I R 2 / I R 1 , of R2 and R1 lines with temperature, which is widely used in ratiometric optical thermometry. The experimental results were fitted by the equation that describes the temperature variation in the population of the emitting levels using Boltzmann statistics:
F ( T ) = A exp ( D k T ) ,
where A is a constant, D is the activation energy for the transition between the two emitting levels, k is the Boltzmann constant, and T is the absolute temperature. As can be seen from the results of fitting the Boltzmann distribution, it effectively describes the observed temperature changes in the intensity ratio of R lines emitted by both centers (Cr1 and Cr2) in CaAl4O7:Cr3+. Deviations from the theoretical model observed at high temperatures (above 250 K) are due to the depopulation of emitting levels occurring via non-radiative decay processes. The values for the energy gap D between the emitting levels, E ¯ and 2 A ¯ , derived from the fittings are 4.7 ± 0.3 and 11.8 ± 0.4 meV for Cr1 and Cr2 centers, respectively. The larger energy gap obtained for Cr2 emission centers results in enhanced sensitivity of the ratiometric optical thermometer over a broader range of temperatures.
Figure 12 shows the temperature dependence of the spectral position of the R1 and R2 lines. The Debye theory gives the following expression to describe the thermal shift of the lines, Δv:
Δ v ( T ) = α ( T T D ) 4 0 T D / T x 3 exp ( x ) 1 d x
where α is the coupling coefficient for electron–phonon interactions, and TD is the Debye temperature. We performed a correlated fit of the observed temperature dependences of R line positions, which allowed us to derive individual values for the parameter α of each line and the Debye temperature, TD, common for both lines. The fitting yielded α R 1 = −531.1 cm−1, α R 2 = −515.4 cm−1, and TD = 858 K for Cr1 centers and α R 1 = −379.3 cm−1, α R 2 = −498.7 cm−1, and TD = 792 K for Cr2 centers. From the data shown in Figure 12, it is obvious that at low temperatures, the emission peaks exhibit a small thermal shift. Measurable changes in the peak positions are observed as the temperature exceeds 100 K. This sets a natural low-temperature limit for the application of the method for non-contact temperature measurements.
Complementary to the spectroscopic methods of non-contact temperature sensing is a technique that takes advantage of the changes of the decay rate of Cr3+-emission with temperatures. The luminescence decay time constant of Cr2 center exhibits strong changes with temperature in contrast to the weak thermal dependence of the decay time constant observed for Cr1 center (refer to Figure 13). Furthermore, the decay rate of Cr1 centers is noticeably faster and not a single exponential function, indicating the presence of energy transfer processes. Consequently, only the temperature dependence of the luminescence decay of the Cr2 center is conducive for practical application in non-contact thermometry.
The temperature dependences displayed in Figure 13 can be explained by considering the main processes affecting the population of emitting level 2E, including thermalization, phonon-assisted interaction with lattice vibrations, and thermally induced depopulation. Assuming that there is thermal equilibrium between states E ¯ , 2 A ¯ , and 4T2 involved in the transitions and considering interactions with lattice vibrations, the expression for the temperature dependence of the decay time of Cr3+ is given as follows [17]:
τ ( T ) = 1 + exp ( D k T ) + exp ( Δ E 1 k T ) 1 τ 1 coth ( E p 2 k T ) + 1 τ 2 coth ( E p 2 k T ) exp ( D 2 k T ) + 1 τ 3 exp ( Δ E 1 k T )
where 1/τi (i = 1, 2 and 3) is the radiative decay rates of the involved states, respectively, k is the Boltzmann constant, D is the energy split of the 2E levels, ΔE1 is the energy difference between the 2E and the upper state, and Ep stands for “effective energy” of the phonons responsible for the exchange with sidebands. The correlation coefficient of the fit shown in Figure 13 is 0.999, evidencing that the used model perfectly represents the measured temperature dependences of the decay time constants of the Cr2 center.
Interestingly, the decay time of the lower emitting level, E ¯ , is longer than that for 2 A ¯ , and due to this, the heating results in a gradual increase in the overall transition rate from the two levels. This is in contrast to the situation in many other Cr-doped oxides, where a decrease in the rate observed during heating in the low-temperature range is due to the shorter decay time of the lower E ¯ level, which is depopulated through thermally activated transition to the upper 2 A ¯ level [17]. This relationship of two parameters (τ1 > τ2) has a quite important implication for temperature sensing, resulting in the monotonous decrease in the decay time constant and improved sensitivity over a broader range.
The discussion of the performance of the material for thermometry typically considers two parameters, i.e., absolute sensitivity, Sa, and relative sensitivity, Sr, which are defined as follows:
S a = | d Q d t |
and
S r = | d Q d t | Q 1
where Q is the absolute thermometric parameter of interest. The calculated values of these parameters are summarized in Figures S1–S4.
Finally, to compare the performances of different methods, we determined the temperature uncertainty of each method, δT, from the uncertainty of the measured parameter (δQ) using the equation and approach developed earlier in [20]:
δ T = δ Q | d Q d T | 1
where |dQ/dT| is the absolute sensitivity of the thermometric parameter. The obtained characteristic can be readily used for the comparison of different temperature measurement methods. The plots in Figure 14 display the variation in uncertainty with temperature, δT = f(T), calculated for different methods of non-contact sensing when CaAl4O7:Cr3+ is used. The graphs illustrate that the accuracy of various measurement methods depends heavily on the temperature range. At low temperatures (10–140 K), measurements of the intensity ratio of emission peaks from the Cr2 center yields the lowest degree of uncertainty. As the temperature increases, more accurate measurements can be obtained by monitoring the changes in the luminescence decay time constant of Cr2 centers. In fact, using this method of temperature monitoring with CaAl4O7:Cr3+ allows us to achieve a temperature resolution of more than ±1 K above 200 K. This performance is comparable to that of Ga2O3-Cr, which has been identified as one of the most sensitive Cr-doped compounds for non-contact luminescence thermometry in this temperature range [17]. Finally, it should be noted that the accuracy of temperature determination based on the shift of peak positions is much lower compared to those of other techniques.

3. Materials and Methods

3.1. Samples Preparation

A series of nanocrystalline Cr3+-doped CaAl4O7 powders of nominal composition, CaAl3.9995Cr0.0005O7, was obtained via a combined sol–gel solution combustion method, following by heat treatment at temperatures of 900 °C, 1000 °C, 1100 °C, 1200 °C, and 1300 °C. For this purpose, the following substances were used: Ca(NO3)2·4H2O (Sfera Sim, Lviv, Ukraine), Al(NO3)3·9H2O (Alfa Aesar, Haverhill, MA, USA), and Cr(NO3)3·9H2O (Alfa Aesar, Haverhill, MA, USA), which were used as soluble salts of metal sources, citric acid C6H8O7 (CA), and ethylene glycol C2H6O2 (EG) (Sfera Sim, Lviv, Ukraine), which was used as a chelating agent and fuel. A total of 25 wt. % ammonia solution (Sfera Sim, Lviv, Ukraine) was used as a regulator of pH media (the concentrated solution was used to minimize the resulting mixture volume). All substances were of an analytical grade of purity. The molar ratio of total metal ions, CA, and EG were kept as follows: n(ΣMen+):n(CA):n(EG) = 1:2:8. Each component was dissolved in a separate 100 mL flask, except for EG, to obtain a concentrated solution. Aliquots of each agent’s solution were calculated according to their nominal composition, considering the desired mass of final products (typically from 0.75 to 2.0 g) and mixed in evaporating ceramic dishes with a volume of up to 200 mL. The obtained mixture of components was placed in an oven, pre-heated to ≈363 K for 15–30 min for it to completely dissolve, followed by neutralization of the resulting mixture to a pH equal to 7.0. After pH value correcting, to remove residual water and ensure the completeness of the esterification process, solutions were placed again in an oven heated to 398–423 K for 5–7 h. The process completion was monitored visually by the appearance of the gel, which changed from transparent to a brownish-black color. The obtained gel-like mixture of initial components was then cooled and placed into a muffle furnace preheated to 1073 K, which is necessary to initiate the component’s decomposition and spontaneous combustion processes. Due to the rapid thermal decomposition and self-combustion of the reaction mixture, the formation of a bulky foamy product was observed. After furnace cooling, the obtained material was ground in a porcelain mortar, and subsequently, calcined in air at temperatures 900 °C, 1000 °C, 1100 °C, 1200 °C, and 1300 °C in order to reveal the impact of the heat treatment temperature on the crystal structure parameters, the average crystallite size of the powders, and luminescent characteristics of the prepared materials. The technological scheme of the sol–gel solution combustion synthesis of Cr3+-doped CaAl4O7 is presented in Figure 15.

3.2. Physical–Chemical Characterization

The phase composition, crystal structure, and microstructural parameters of the materials were investigated via X-ray powder diffraction using the Aeris Research benchtop powder diffractometer (Malvern Panalytical, Almero, The Netherlands). XRD patterns were collected by analyzing Cu Kα radiation (λ = 1.54456 Å) in the 2θ range of 10–110 degrees, with a step of 0.02 deg. Analysis of the collected diffraction data was carried out using the WinCSD program package [21]. A full-profile Rietveld refinement technique was used for the evaluation of lattice parameters and positional and displacement parameters of atoms in CaAl4O7:Cr3+ structures after heat treatment at different temperatures. The latest method was also used for the evaluation of average crystallite sizes and micro-strain values. To correct instrumental peak broadening, the LaB6 external standard was used.
A Carl Zeiss AURIGA CrossBeam Workstation was used for the scanning electron microscope studies.
Photoluminescence and photoluminescence excitation spectra were measured using an Horiba/Jobin-Yvon Fluorolog-3 spectrofluorometer with a 450 W continuous spectrum xenon lamp for excitation and optical detection with a Hamamatsu R928P photomultiplier operating in photon counting mode. The measured photoluminescence excitation spectra were corrected with the emission spectrum from a xenon lamp. Photoluminescence spectra were corrected for the spectral response of the used spectrometer system. Luminescence decay kinetics were measured using the same Fluorolog-3 spectrofluorometer, with the excitation light modulated with a mechanical modulator (chopper). Spectroscopic measurements in the temperature range between about 4 and 325 K were acquired with a Janis continuous-flow liquid helium cryostat using a Lake Shore 331 temperature controller.

4. Conclusions

A series of Cr3+-doped CaAl4O7 nanocrystalline powders with an average grain size of ~80 nm were obtained via a facile sol–gel combustion route, followed by successive heat treatments in air at 900, 1000, 1100, 1200, and 1300 °C. The formation of single-phase materials with a monoclinic grossite-type structure was proved via X-ray powder diffraction, which was supported by full-profile Rietveld refinement technique. Precise values of the lattice parameters, coordinates, and displacement parameters of atoms were derived for CaAl4O7:Cr samples annealed at the above five temperatures. A minor, but detectable, anisotropic effect of the annealing temperature on the unit cell dimensions of the CaAl4O7:Cr structure was found: a minor decrease in a and b lattice parameters, and the monoclinic angle β was accompanied by a small enhancement of the c parameter. A much more pronounced impact of the heat treatment temperature was revealed by studying the crystallinity of the samples, i.e., a detectable increase in the average grain size from 80 nm up to 170–190 nm, accompanied with a gradual decrease in micro strain values from 0.16% to 0.11% for samples annealed at 900 and 1300 °C, respectively. The peculiar part of the grossite structure is a presence of two non-equivalent tetrahedral positions of Al3+ ions and one position of Ca ions in pentagonal bipyramidal coordination, all of which are, in principle, suitable for the incorporation of Cr3+ ions into a CaAl4O7 lattice.
CaAl4O7:Cr3+ powder exhibits NIR emission related to 4T24A2 and 2E → 4A2 transitions in Cr3+ ions. The temperature dependences of the R line positions, the luminescence intensity ratio of the R lines, and the decay time of Cr3+ ions were studied. The luminescence intensity of Cr3+ ions, which forms two types of centers in the CaAl4O7 structure, occupying sites in the aluminum (Cr1) and calcium (Cr2) octahedron, can be changed by amending the calcination temperature. Temperature-dependent luminescent spectra show different changes in the intensity of the Cr3+ emission related to Cr1 and Cr2 centers in the temperature range 4.5–300 K. We evaluated the luminescence characteristics of CaAl4O7:Cr3+ nanocrystalline phosphor to assess its potential for non-contact temperature monitoring. Our findings suggest that, such as other Cr-doped oxides, this material can be utilized via various modes of non-contact temperature sensing. It has been shown that the material enabled us to achieve a temperature resolution of more than ±1 K over a range of 200–300 K when using the luminescence decay time technique.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/inorganics11050205/s1.

Author Contributions

Conceptualization, L.V. and Y.Z.; validation, L.V. and A.S.; investigation, V.S., V.H., A.L. and Y.Z.; data analysis, V.M. and H.K.; writing—original draft preparation, L.V. and V.M.; writing—review and editing, L.V., V.M. and Y.Z.; visualization, V.S. and V.H.; supervision, L.V.; project administration, L.V.; funding acquisition, L.V. and Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Research Foundation of Ukraine under grant no. 2020.02/0373 “Crystalline phosphors’ engineering for biomedical applications, energy saving lighting and contactless thermometry” and by the Polish National Science Centre (project nos. 2018/31/B/ST8/00774 and 2021/40/Q/ST5/00336).

Data Availability Statement

Data are available on a request on corresponding author.

Acknowledgments

The work was funded by the National Research Foundation of Ukraine under grant no. 2020.02/0373 “Crystalline phosphors’ engineering for biomedical applications, energy saving lighting and contactless thermometry” and by the Polish National Science Centre (project nos. 2018/31/B/ST8/00774 and 2021/40/Q/ST5/00336). The authors are grateful to Tomasz Wojciechowski from the Institute of Physics PAS for the SEM studies.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Puchalska, M.; Zych, E. The effect of charge compensation by means of Na+ ions on the luminescence behavior of Sm3+-doped CaAl4O7 phosphor. J. Luminesc. 2012, 132, 826–831. [Google Scholar] [CrossRef]
  2. Singh, V.; Kaur, S.; Jayasimhadri, M. Luminescence properties of orange emitting CaAl4O7:Sm3+ phosphor for solid state lighting applications. Solid State Sci. 2019, 101, 106049. [Google Scholar] [CrossRef]
  3. Puchalska, M.; Zych, E.; Sobczyk, M.; Watras, A.; Dereń, P. Effect of charge compensation on up-conversion and UV excited luminescence of Eu3+ in Yb3+–Eu3+ doped calcium aluminate CaAl4O7. Mater. Chem. Phys. 2014, 147, 304–310. [Google Scholar] [CrossRef]
  4. Puchalska, M.; Sobczyk, M.; Targowska, J.; Watras, A.; Zych, E. Infrared and cooperative luminescence in Yb3+ doped calcium aluminate CaAl4O7. J. Luminesc. 2013, 143, 503–509. [Google Scholar] [CrossRef]
  5. Puchalska, M.; Zych, E.; Bolek, P. Luminescences of Bi3+ and Bi2+ ions in Bi-doped CaAl4O7 phosphor powders obtained via modified Pechini citrate process. J. Alloys Compd. 2019, 806, 798–805. [Google Scholar] [CrossRef]
  6. Adachi, S. Review—Mn4+ vs. Cr3+: A comparative study as activator ions in red and deep red-emitting phosphors. ECS J. Solid State Sci. Technol. 2020, 9, 026003. [Google Scholar] [CrossRef]
  7. Park, J.; Kim, G.; Kim, Y.J. Luminescent properties of CaAl4O7 powders doped with Mn4+ ions. Ceram. Int. 2013, 39, S623–S626. [Google Scholar] [CrossRef]
  8. Li, P.; Peng, M.; Yin, X.; Ma, Z.; Dong, G.; Zhang, Q.; Qiu, J. Temperature dependent red luminescence from a distorted Mn4+ site in CaAl4O7:Mn4+. Opt. Expr. 2013, 21, 18943–18948. [Google Scholar] [CrossRef]
  9. Liu, S.X.; Xiong, F.B.; Lin, H.F.; Meng, X.G.; Lian, S.Y.; Zhu, W.Z. A deep red-light-emitting phosphor Mn4+:CaAl4O7 for warm white LEDs. Optik 2018, 170, 178–184. [Google Scholar] [CrossRef]
  10. Huyen, N.T.; Tu, N.; Quang, N.V.; Trung, D.Q.; Tran, M.T.; Du, N.V.; Hung, N.D.; Viet, D.X.; Kien, N.D.T.; Huy, P.T. Excellent Quantum Efficiency and Superior Color Purity Red-Emitting CaAl12O19–CaAl4O7–MgAl2O4:Mn4+ Phosphors for Plant Growth and High Color Rendering Index White Light-Emitting Diode Applications. ACS Appl. Electron. Mater. 2022, 4, 4322–4331. [Google Scholar] [CrossRef]
  11. Goodwin, D.W.; Lindop, A.J. The crystal structure of CaO.2Al2O3. Acta Crystallogr. B 1970, 26, 1230–1235. [Google Scholar] [CrossRef]
  12. Lindop, A.J.; Goodwin, D.W. The refined structure of SrO.2Al2O3. Acta Crystallogr. B 1972, 28, 2625–2626. [Google Scholar] [CrossRef]
  13. Stadnik, V.; Hreb, V.; Luchechko, A.; Zhydachevskyy, Y.; Suchocki, A.; Vasylechko, L. Sol-gel combustion synthesis, crystal structure and luminescence of Cr3+ and Mn4+ ions in nanocrystalline SrAl4O7. Inorganics 2021, 9, 89. [Google Scholar] [CrossRef]
  14. Boyko, E.R.; Wisnyi, L.G. The optical properties and structures of CaO.2A12O3 and SrO⋅2A12O3. Acta Cryst. 1958, 11, 444–445. [Google Scholar] [CrossRef]
  15. Adachi, S. Review—Photoluminescence properties of Cr3+-activated oxide phosphors. ECS J. Solid State Sci. Technol. 2021, 10, 026001. [Google Scholar] [CrossRef]
  16. Adachi, S. Luminescence spectroscopy of Cr3+ in an oxide: A strong or weak crystal-field phosphor? J. Lumin. 2021, 234, 117965. [Google Scholar] [CrossRef]
  17. Mykhaylyk, V.; Kraus, H.; Zhydachevskyy, Y.; Tsiumra, V.; Luchechko, A.; Wagner, A.; Suchocki, A. Multimodal Non-Contact Luminescence Thermometry with Cr-Doped Oxides. Sensors 2020, 20, 5259. [Google Scholar] [CrossRef] [PubMed]
  18. Lai, J.; Qiu, J.; Wang, Q.; Zhou, D.; Long, Z.; Yang, Y.; Hu, S.; Li, X.; Pi, J.; Wang, J. Disentangling site occupancy, cation regulation, and oxidation state regulation of the broadband near infrared emission in a chromium-doped SrGa4O7 phosphor. Inorg. Chem. Front. 2020, 7, 2313–2321. [Google Scholar] [CrossRef]
  19. Mykhaylyk, V.; Kraus, H.; Bulyk, L.-I.; Lutsyuk, I.; Hreb, V.; Vasylechko, L.; Zhydachevskyy, Y.; Luchechko, A.; Wagner, A.; Suchocki, A. Al2O3 co-doped with Cr3+ and Mn4+, a dual-emitter probe for multimodal non-contact luminescence thermometry. Dalton Trans. 2021, 50, 14820. [Google Scholar] [CrossRef]
  20. Mykhaylyk, V.B.; Kraus, H.; Bobb, L.; Gamernyk, R.; Koronski, K. Megahertz non-contact luminescence decay time cryothermometry by means of ultrafast PbI2 scintillator. Sci. Rep. 2019, 9, 5274. [Google Scholar] [CrossRef]
  21. Akselrud, L.; Grin, Y. WinCSD: Software package for crystallographic calculations (Version 4). J. Appl. Crystallogr. 2014, 47, 803–805. [Google Scholar] [CrossRef]

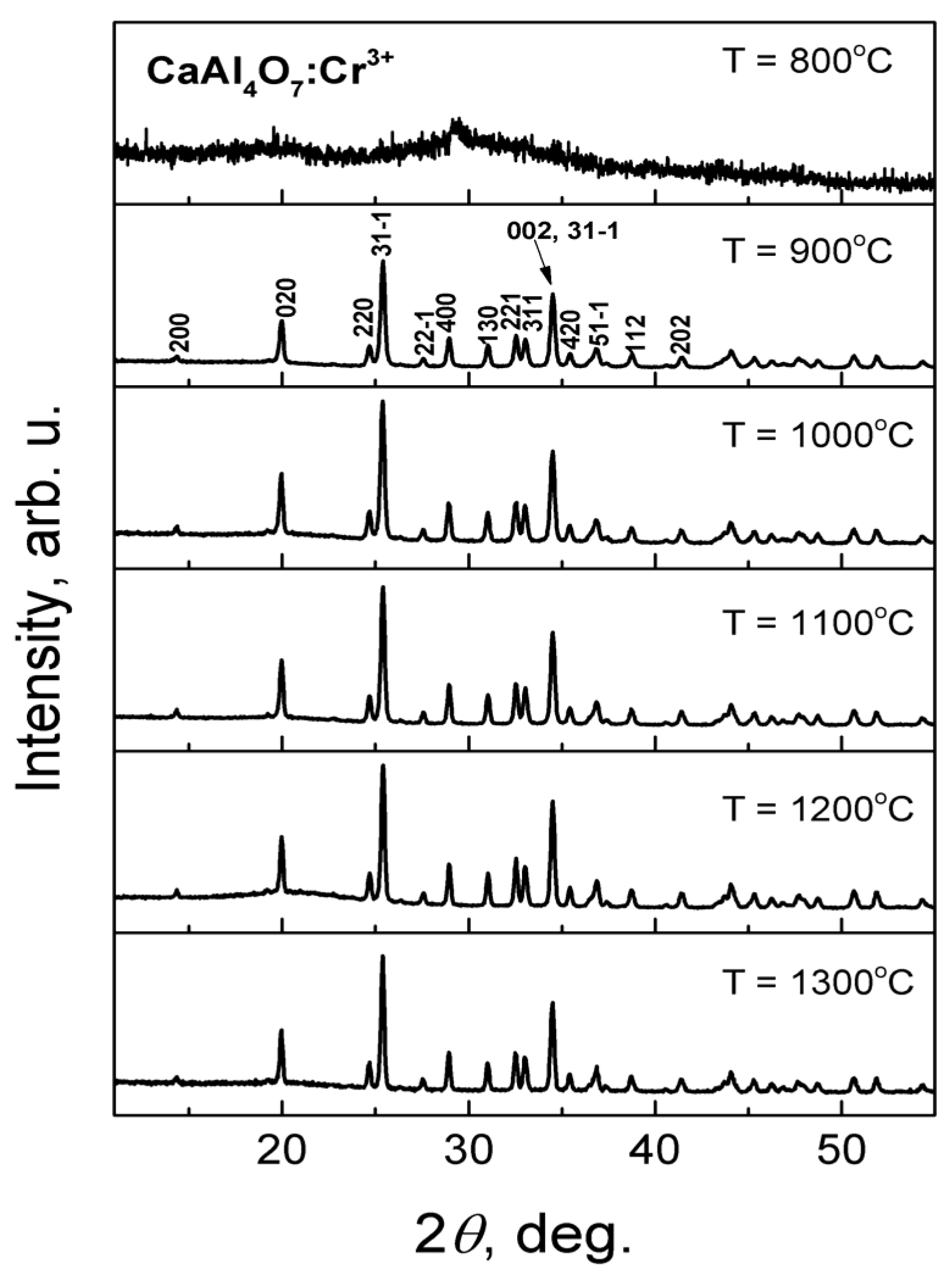

Figure 1. Evolution of XRD patterns of CaAl4O7:Cr3+ powders, which were successively annealed at different temperatures. Miller’s indices for the monoclinic CaAl4O7 structure are given on the T = 900 °C diffractogram.
Figure 1. Evolution of XRD patterns of CaAl4O7:Cr3+ powders, which were successively annealed at different temperatures. Miller’s indices for the monoclinic CaAl4O7 structure are given on the T = 900 °C diffractogram.
Inorganics 11 00205 g001

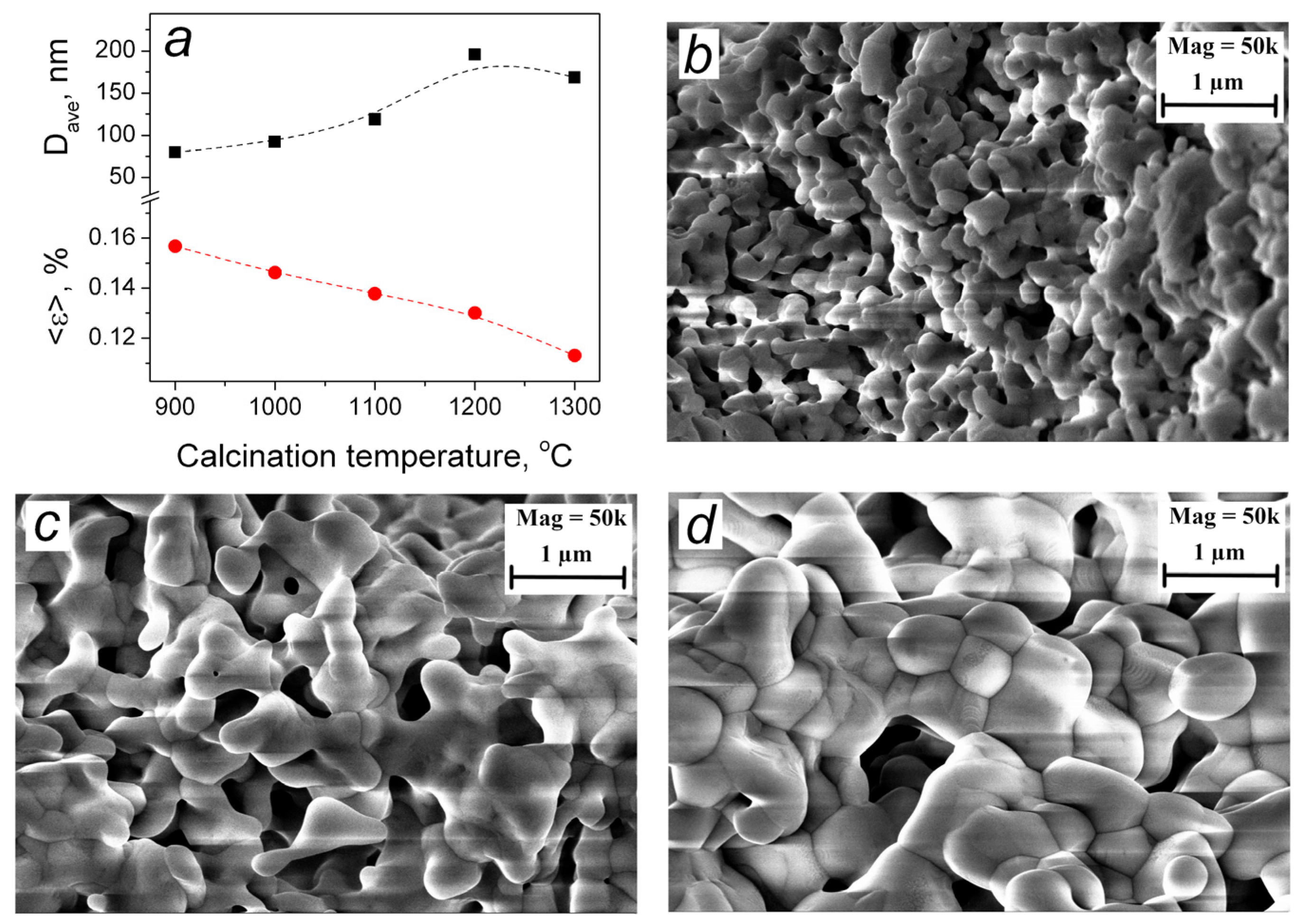

Figure 2. (a) Lattice strain values <ε> and average crystallite size Dave of CaAl4O7:Cr3+ powders, depending on the annealing temperature. Dashed B-Spline lines are provided as a guide to the eye. (bd) SEM images of the studied CaAl4O7:Cr3+ powder samples calcined at 1000 °C (a), 1200 °C (b), and 1300 °C (c).
Figure 2. (a) Lattice strain values <ε> and average crystallite size Dave of CaAl4O7:Cr3+ powders, depending on the annealing temperature. Dashed B-Spline lines are provided as a guide to the eye. (bd) SEM images of the studied CaAl4O7:Cr3+ powder samples calcined at 1000 °C (a), 1200 °C (b), and 1300 °C (c).
Inorganics 11 00205 g002

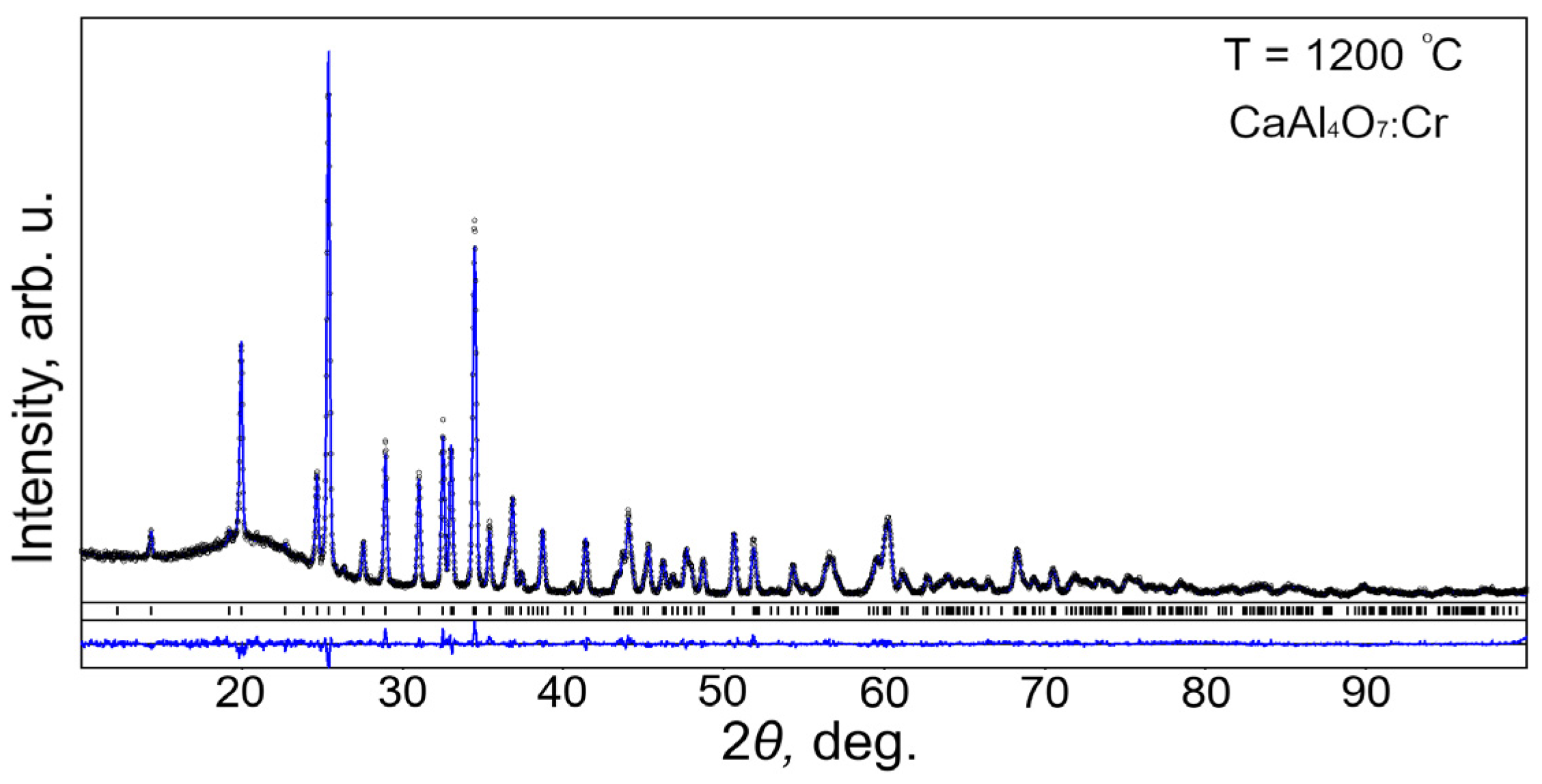

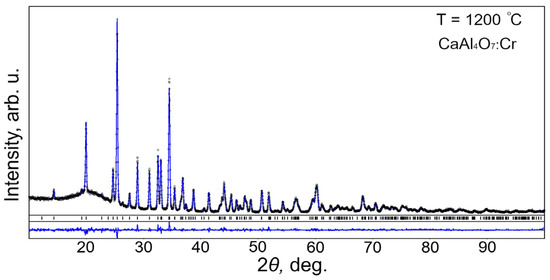

Figure 3. Experimental X-ray diffractogram of CaAl4O7:Cr3+ powder annealed at 1200 °C (black circles) in comparison with calculated XRD pattern (blue lines). The difference curve between the two graphs is shown at the bottom. Vertical bars pointing to Bragg’s maxima indicate the positions in the monoclinic grossite-type structure.
Figure 3. Experimental X-ray diffractogram of CaAl4O7:Cr3+ powder annealed at 1200 °C (black circles) in comparison with calculated XRD pattern (blue lines). The difference curve between the two graphs is shown at the bottom. Vertical bars pointing to Bragg’s maxima indicate the positions in the monoclinic grossite-type structure.
Inorganics 11 00205 g003

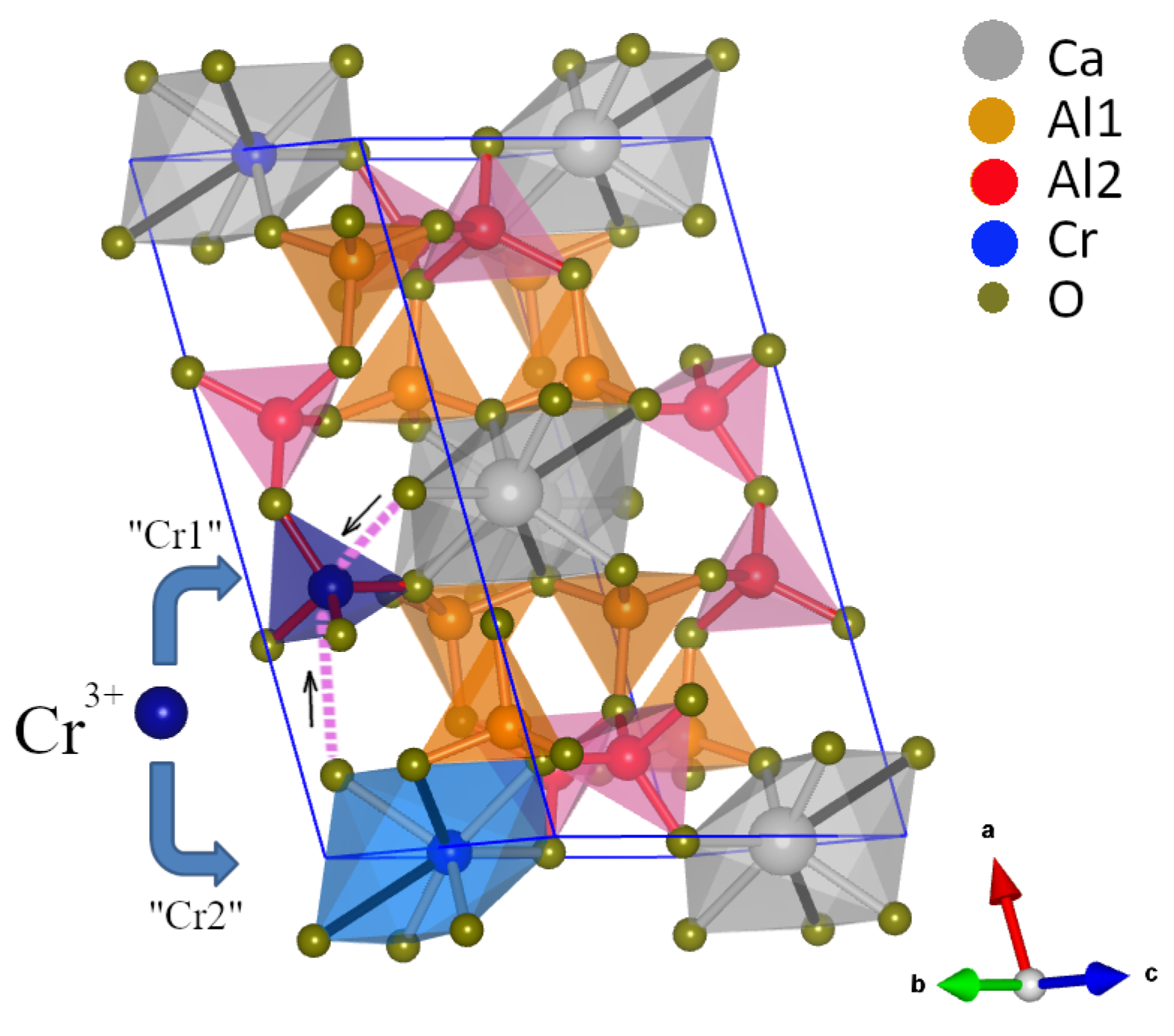

Figure 4. Polyhedral view of the CaAl4O7 structure as a framework of two types of vertices-shared AlO4 tetrahedra linked with CaO7 pentagonal bipyramids. Two possible sites for incorporation of Cr3+ ions into CaAl4O7 lattice are shown.
Figure 4. Polyhedral view of the CaAl4O7 structure as a framework of two types of vertices-shared AlO4 tetrahedra linked with CaO7 pentagonal bipyramids. Two possible sites for incorporation of Cr3+ ions into CaAl4O7 lattice are shown.
Inorganics 11 00205 g004

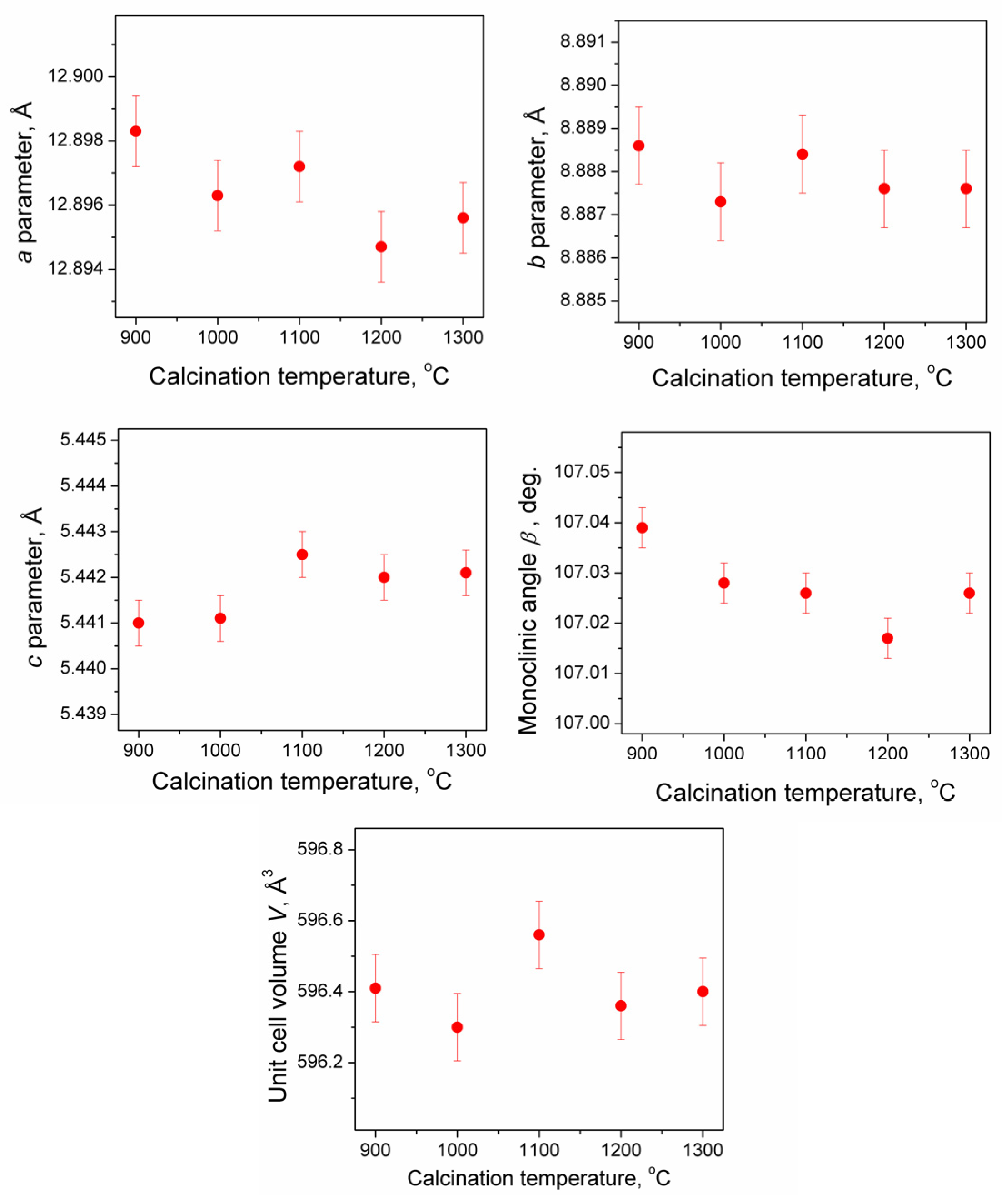

Figure 5. Dependencies of the lattice parameters, a, b, and c, monoclinic angle, β, and unit cell volume, V, of CaAl4O7:Cr3+ on the annealing temperature of the powders.
Figure 5. Dependencies of the lattice parameters, a, b, and c, monoclinic angle, β, and unit cell volume, V, of CaAl4O7:Cr3+ on the annealing temperature of the powders.
Inorganics 11 00205 g005

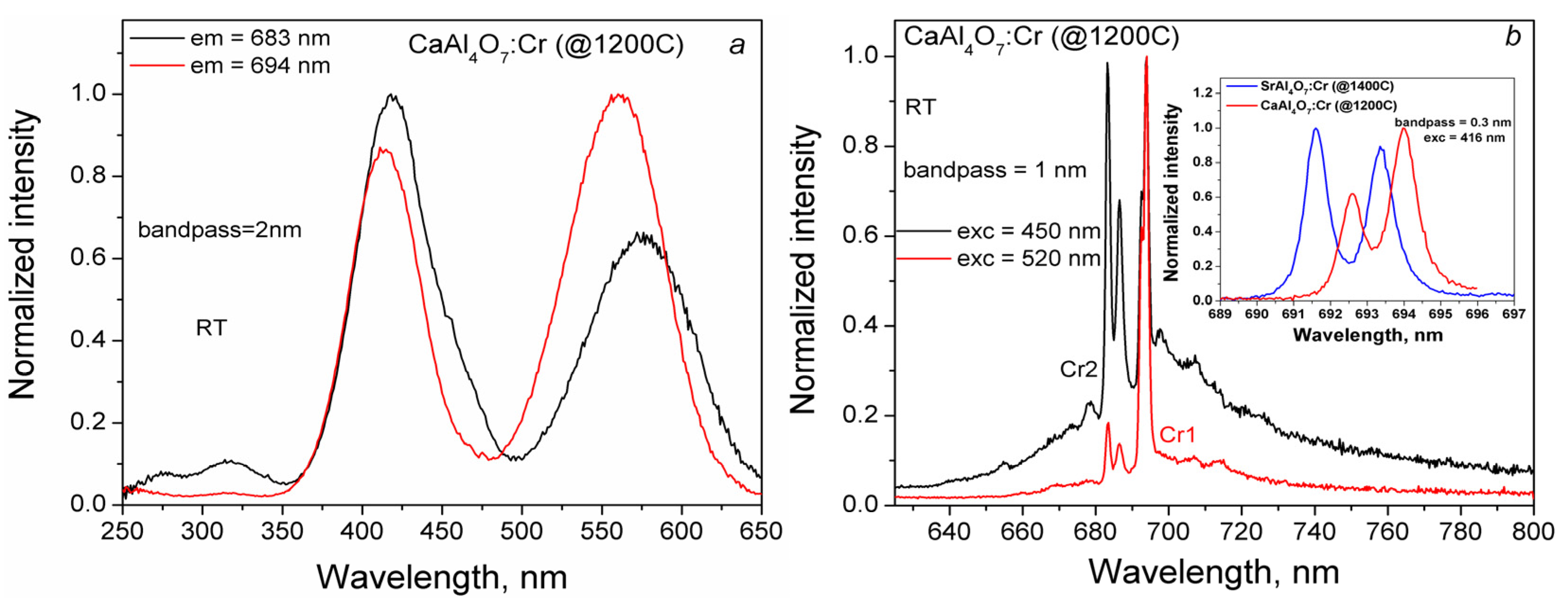

Figure 6. The room temperature PLE (a) and photoluminescence (b) spectra of CaAl4O7:Cr3+ nanocrystalline powders calcined at 1200 °C. The inset in (b) demonstrates the R lines of Cr1 center at T = 300 K in CaAl4O7:Cr3+ in comparison with those of SrAl4O7:Cr3+ studied in [13] (red and blue lines, respectively).
Figure 6. The room temperature PLE (a) and photoluminescence (b) spectra of CaAl4O7:Cr3+ nanocrystalline powders calcined at 1200 °C. The inset in (b) demonstrates the R lines of Cr1 center at T = 300 K in CaAl4O7:Cr3+ in comparison with those of SrAl4O7:Cr3+ studied in [13] (red and blue lines, respectively).
Inorganics 11 00205 g006

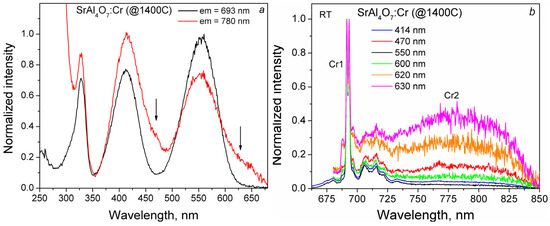

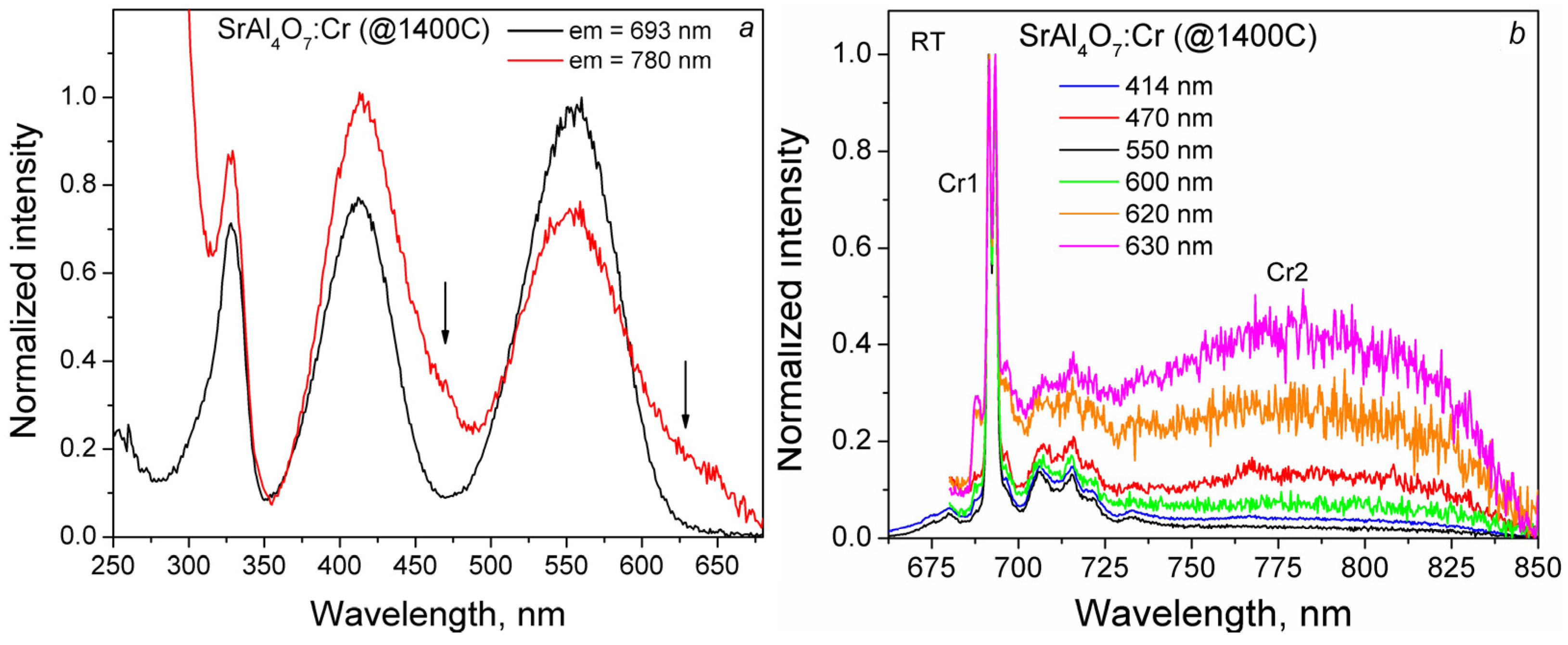

Figure 7. The room temperature PLE (a) and PL (b) spectra of SrAl4O7:Cr3+ nanocrystalline powder calcined at 1400 °C.
Figure 7. The room temperature PLE (a) and PL (b) spectra of SrAl4O7:Cr3+ nanocrystalline powder calcined at 1400 °C.
Inorganics 11 00205 g007

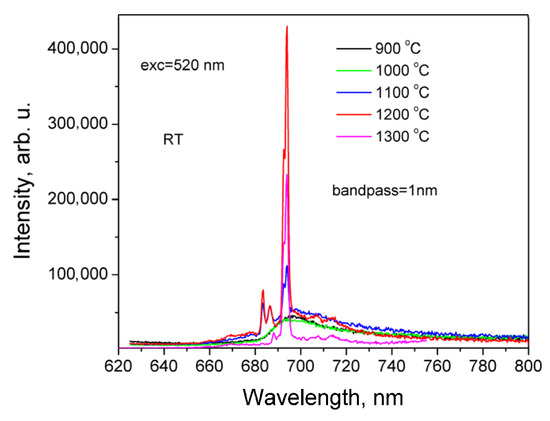

Figure 8. The room temperature photoluminescence spectra of CaAl4O7:Cr3+ nanocrystalline powders at different calcination temperatures.
Figure 8. The room temperature photoluminescence spectra of CaAl4O7:Cr3+ nanocrystalline powders at different calcination temperatures.
Inorganics 11 00205 g008

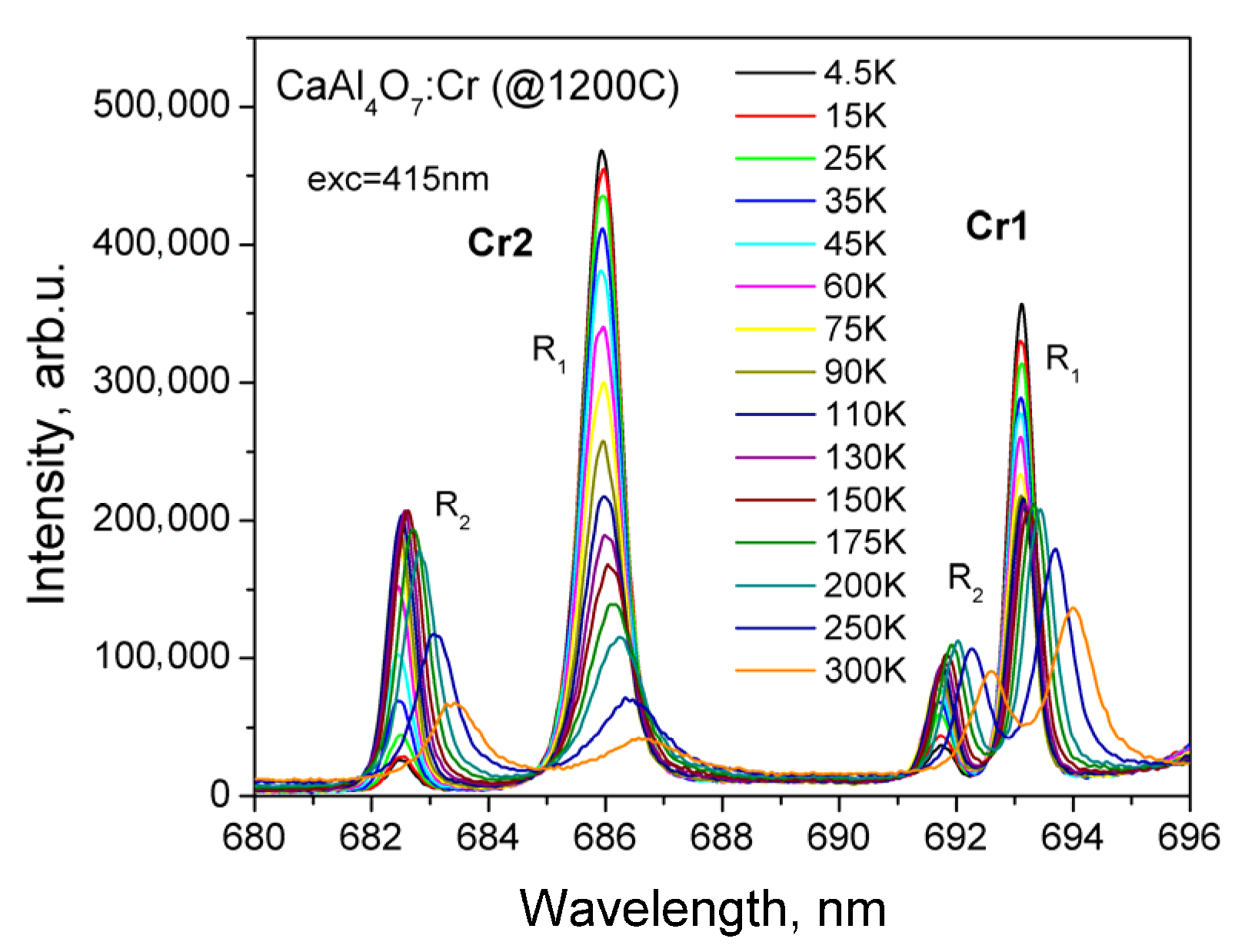

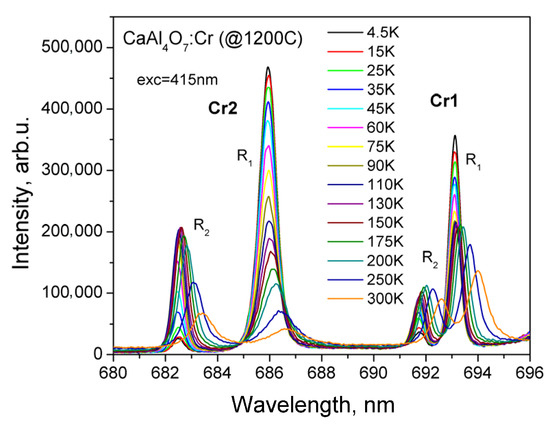

Figure 9. The temperature dependence of R line emission spectra of CaAl4O7:Cr3+ calcined at 1200 °C.
Figure 9. The temperature dependence of R line emission spectra of CaAl4O7:Cr3+ calcined at 1200 °C.
Inorganics 11 00205 g009

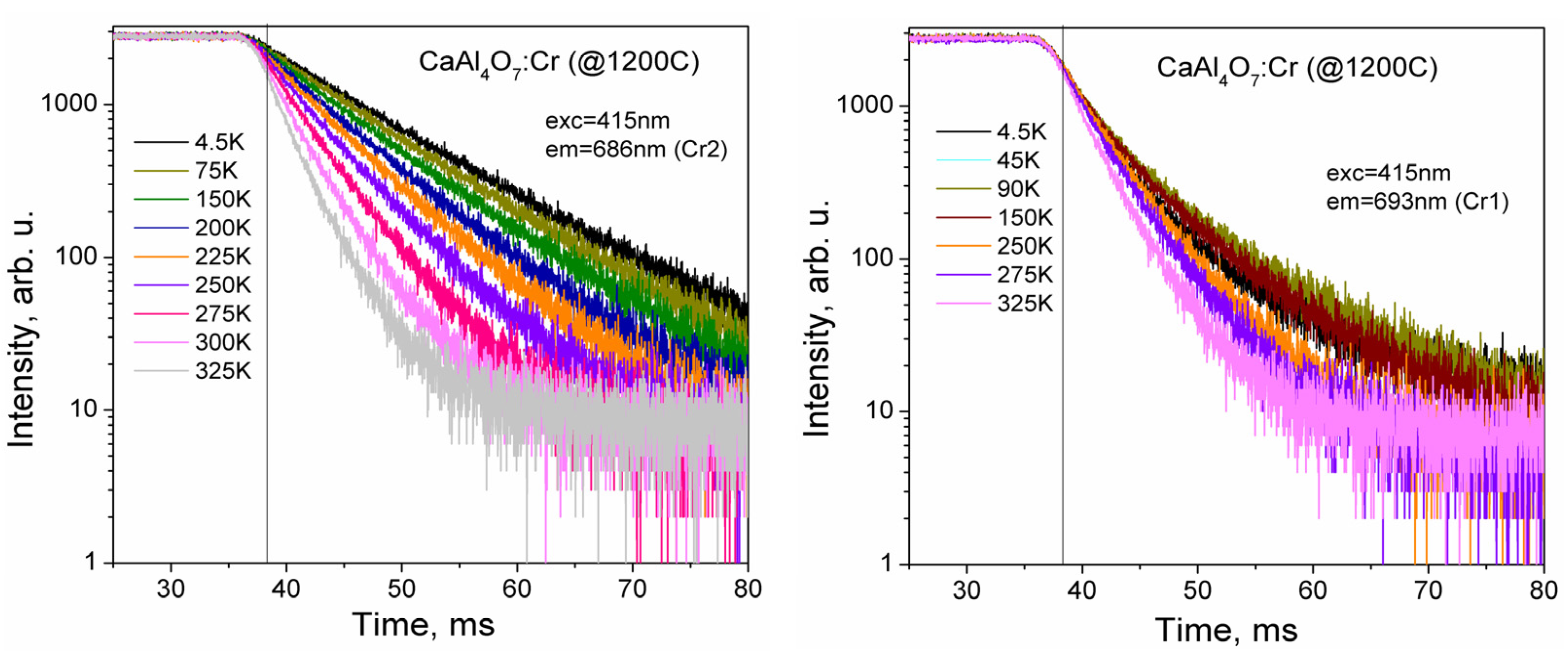

Figure 10. The temperature dependence of the luminescence decay curves of Cr1 and Cr2 centers in CaAl4O7:Cr3+ calcined at 1200 °C.
Figure 10. The temperature dependence of the luminescence decay curves of Cr1 and Cr2 centers in CaAl4O7:Cr3+ calcined at 1200 °C.
Inorganics 11 00205 g010

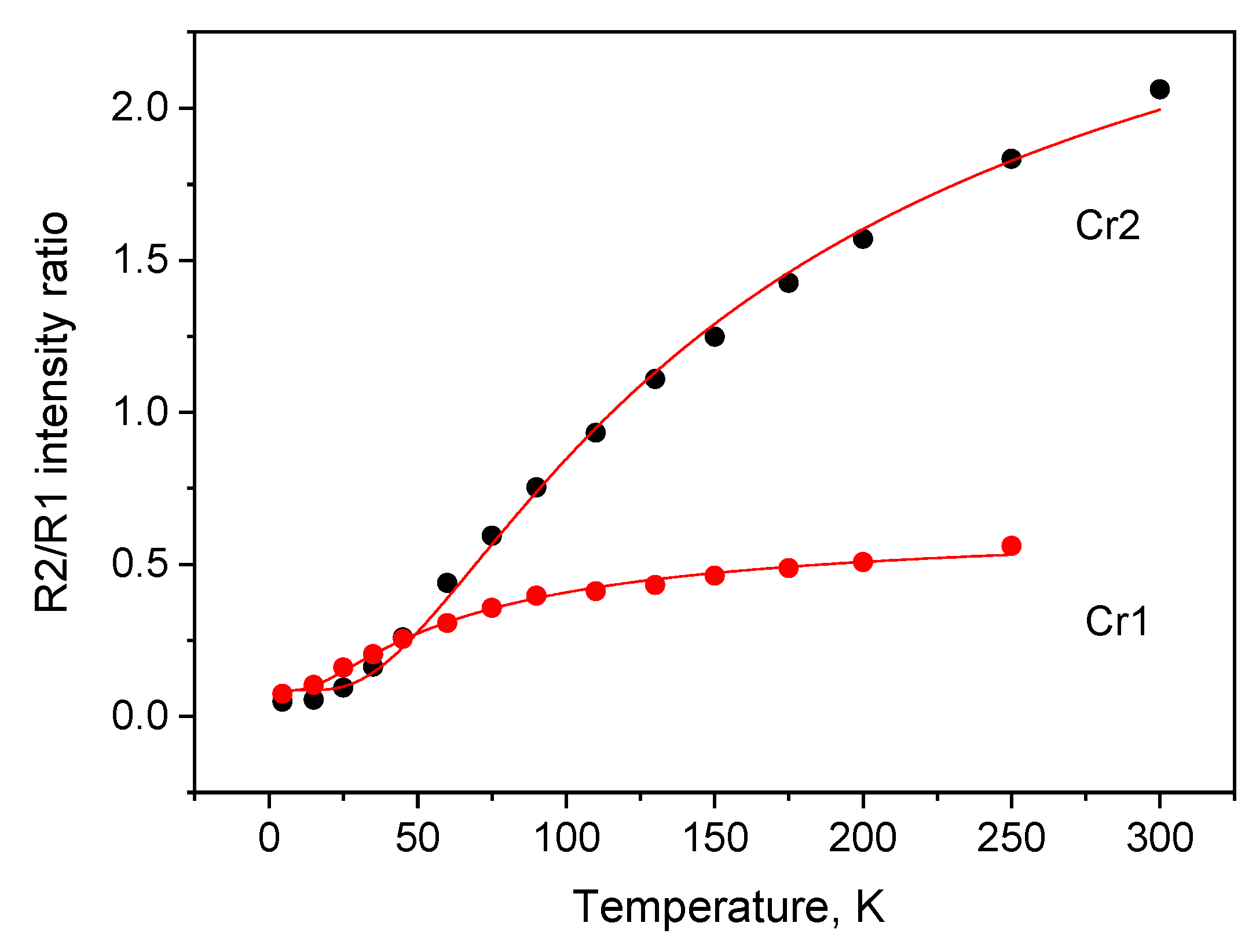

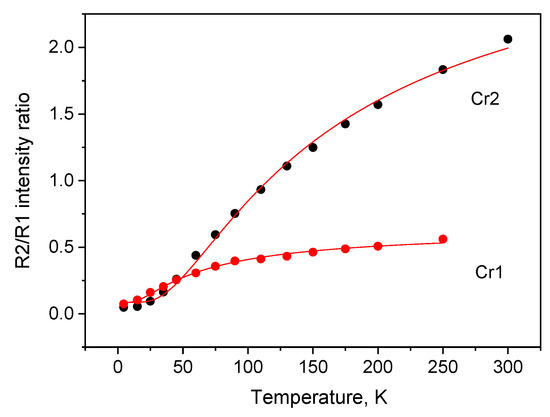

Figure 11. The luminescence intensity ratio of R lines ( F = I R 2 / I R 1 ) emitted by Cr1 and Cr2 centers in CaAl4O7:Cr3+ as a function of temperature. The red lines show the best fit of experimental results (dots) to Equation (1).
Figure 11. The luminescence intensity ratio of R lines ( F = I R 2 / I R 1 ) emitted by Cr1 and Cr2 centers in CaAl4O7:Cr3+ as a function of temperature. The red lines show the best fit of experimental results (dots) to Equation (1).
Inorganics 11 00205 g011

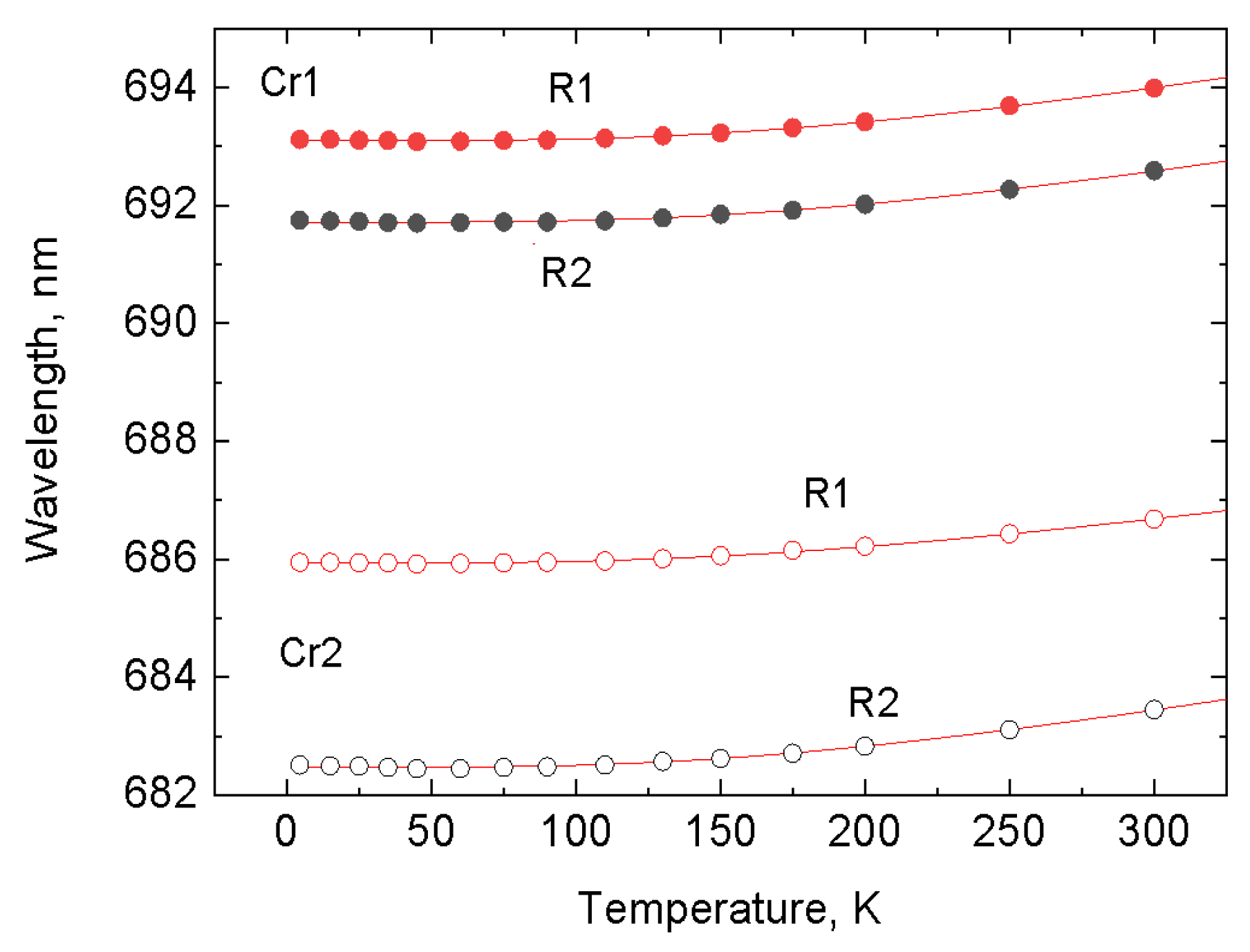

Figure 12. Temperature shift of the R lines of Cr1 and Cr2 emission centers in CaAl4O7:Cr3+. The dots are the experimental data points, and the solid lines show the best fit of the experimental results to Equation (2).
Figure 12. Temperature shift of the R lines of Cr1 and Cr2 emission centers in CaAl4O7:Cr3+. The dots are the experimental data points, and the solid lines show the best fit of the experimental results to Equation (2).
Inorganics 11 00205 g012

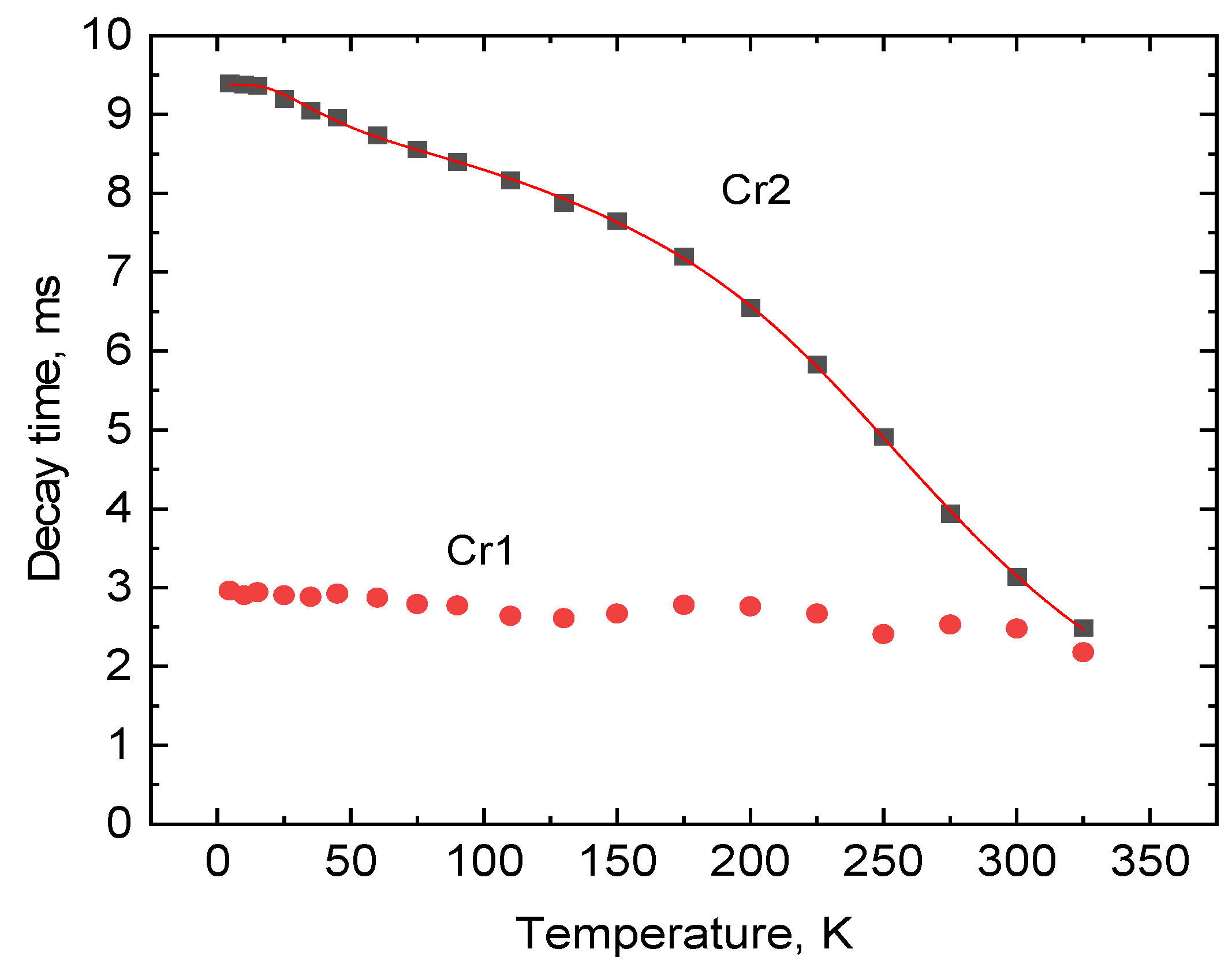

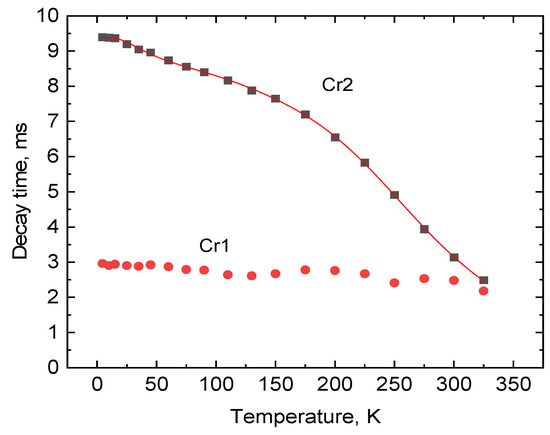

Figure 13. Temperature dependence of the luminescence decay time constant of Cr1 and Cr2 centers in CaAl4O7:Cr3+. The solid lines show the best fit of Equation (3) to the experimental results (dots) using the following parameters: τ1 = 9.33 ± 0.02 ms, τ2 = 6.41 ± 0.08 ms, τ3 = 0.067 ± 0.013 ms, Ep = 46 ± 1 meV, E = 152 ± 5 meV, and D = 9 meV.
Figure 13. Temperature dependence of the luminescence decay time constant of Cr1 and Cr2 centers in CaAl4O7:Cr3+. The solid lines show the best fit of Equation (3) to the experimental results (dots) using the following parameters: τ1 = 9.33 ± 0.02 ms, τ2 = 6.41 ± 0.08 ms, τ3 = 0.067 ± 0.013 ms, Ep = 46 ± 1 meV, E = 152 ± 5 meV, and D = 9 meV.
Inorganics 11 00205 g013

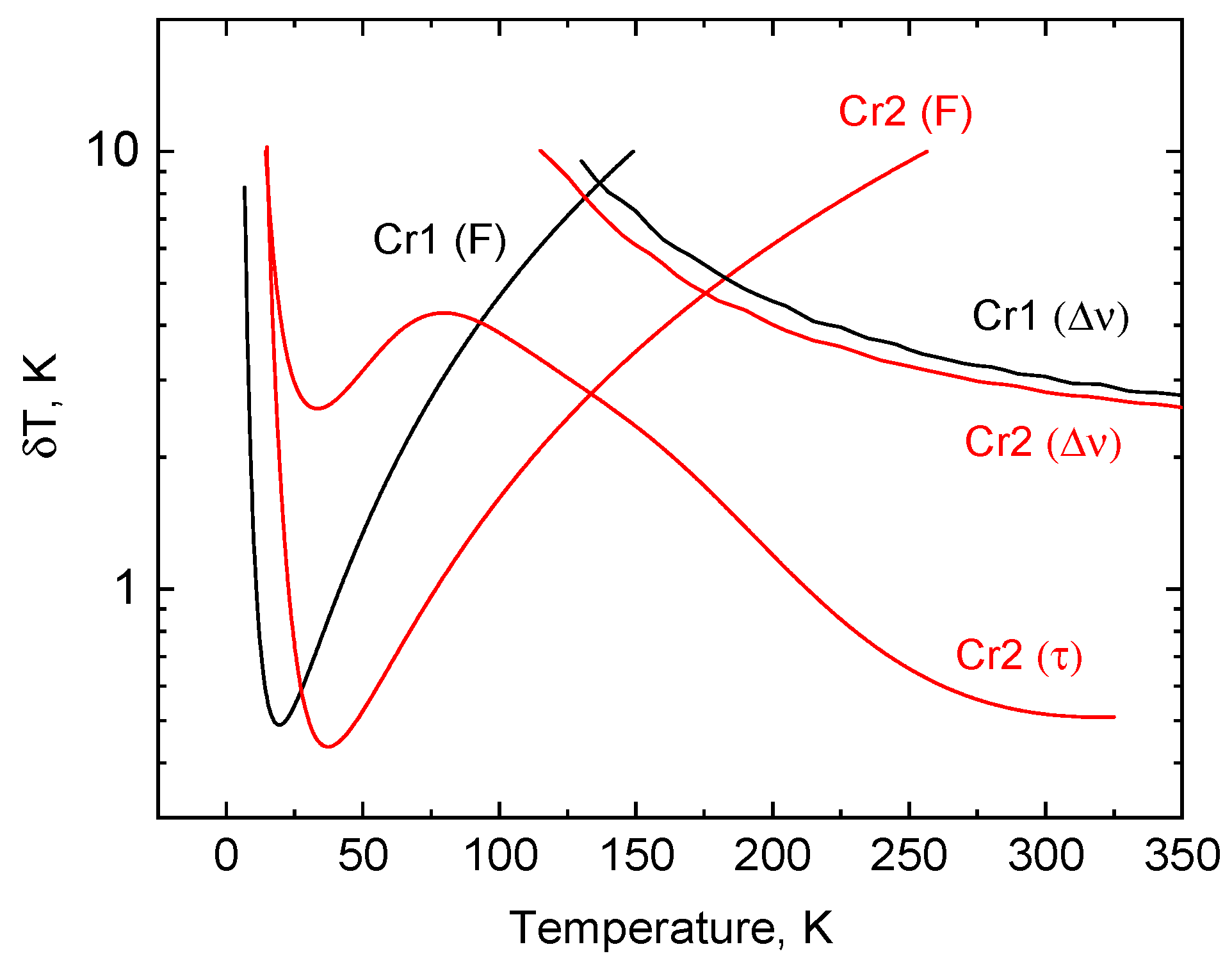

Figure 14. The uncertainty of temperature sensing of CaAl4O7:Cr3+ using different modes of non-contact luminescence thermometry. F—luminescence intensity ratio; Δ v —spectral shift; τ—decay time constant.
Figure 14. The uncertainty of temperature sensing of CaAl4O7:Cr3+ using different modes of non-contact luminescence thermometry. F—luminescence intensity ratio; Δ v —spectral shift; τ—decay time constant.
Inorganics 11 00205 g014

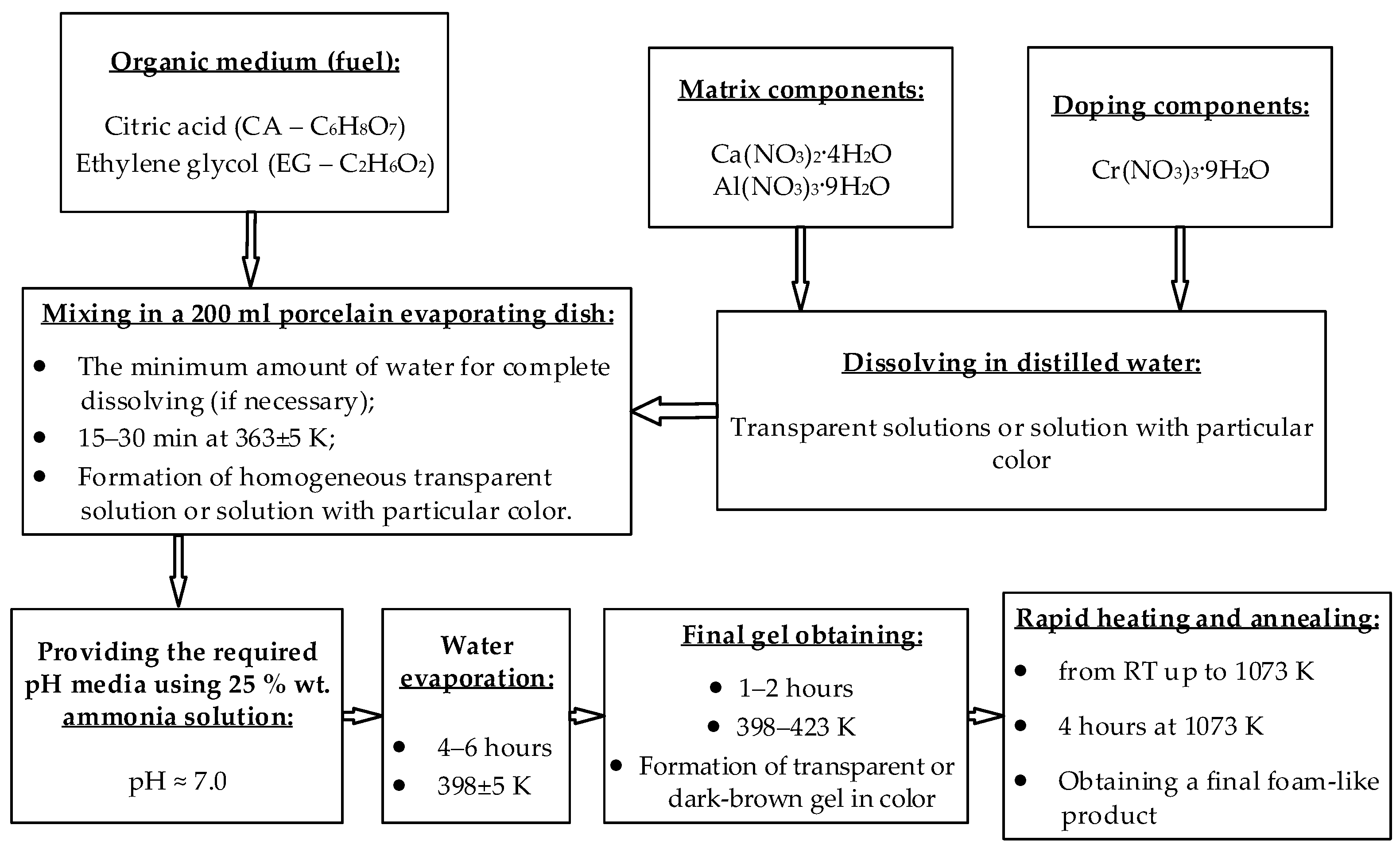

Figure 15. Technological scheme of sol–gel solution combustion synthesis of Cr3+-doped CaAl4O7.
Figure 15. Technological scheme of sol–gel solution combustion synthesis of Cr3+-doped CaAl4O7.
Inorganics 11 00205 g015
Table 1. Lattice parameters, coordinates and displacement parameters of atoms in a CaAl4O7:Cr3+ structure (SG C2/c, Z = 4) after heat treatment at 1200 °C.
Table 1. Lattice parameters, coordinates and displacement parameters of atoms in a CaAl4O7:Cr3+ structure (SG C2/c, Z = 4) after heat treatment at 1200 °C.
Lattice Parameters, ResidualsAtom, Sitesx/ay/bz/cBiso/eq, Å2
CaAl4O7:Cr3+ @ 1200 °C; RI = 0.038, RP = 0.109
a = 12.8947(6) Å
b = 8.8876(4) Å
c = 5.4420(3) Å
β = 107.017(1)°
V = 596.36(9) Å3
Ca, 4e00.8102(3)1/41.02(6)
Al1, 8f0.1634(2)0.0864(3)0.3036(6)0.95(6)
Al2, 8f0.1204(2)0.4420(3)0.2427(5)0.78(6)
O1, 4e00.5275(7)1/41.0(2)
O2, 8f0.1164(4)0.0543(5)0.5669(9)0.73(12)
O3, 8f0.1213(3)0.2553(5)0.1551(10)0.88(11)
O4, 8f0.1931(4)0.4400(5)0.5836(10)0.85(12)
Table 2. The nearest interatomic distances (up to 4.0 Å) in CaAl4O7:Cr3+ sample annealed at 1200 °C.
Table 2. The nearest interatomic distances (up to 4.0 Å) in CaAl4O7:Cr3+ sample annealed at 1200 °C.
AtomsDistances [Å]AtomsDistances [Å]AtomsDistances [Å]
CaAl4O7:Cr3+ @ 1200 °C
Ca-O3 ×22.361(5)Al1-O31.716(5)Al2-O31.727(5)
Ca-O2 ×22.372(5)Al1-O21.735(5)Al2-O11.739(4)
Ca-O12.512(6)Al1-O21.770(5)Al2-O41.790(5)
Ca-O2 ×22.902(5)Al1-O41.786(5)Al2-O41.818(6)
Ca-Al1 ×23.193(3)Al1-Al1 ×23.125(4)Al2-O12.690(3)
Ca-Al1 ×23.263(3)Al1-Al23.146(4)Al2-Al2 ×22.910(4)
Ca-Al2 ×23.491(3)Al1-Al23.147(4)Al2-Al23.128(4)
Ca-Al2 ×23.627(4)Al1-Al23.208(4)Al2-O23.246(5)
Ca-O4 ×23.644(5)Al1-O43.441(5)Al2-O33.501(5)
Ca-Al1 ×23.766(3)Al1-O43.464(5)Al2-O13.551(3)
