Manganese(I) Diamine Electrocatalysts: Electrochemical Carbon Dioxide Reduction to Carbon Monoxide

Abstract

Novel organometallic complexes Mn(benzene-1,2-diamine)(CO)₃Br, Mn-1, Mn(3-methylbenzene-1,2-diamine)(CO)₃Br, Mn-2, and Re(benzene-1,2-diamine)(CO)₃Cl, Re-1, have been synthesized and characterized by IR, UV/Vis, ¹H-NMR, EA and HRMS. The structures of Mn-2 and Re-1 were confirmed by X-ray crystallography. The three novel compounds were studied for their electrocatalytic reduction of carbon dioxide to carbon monoxide using cyclic voltammetry in acetonitrile solutions. Controlled potential electrolysis was used to obtain information on faradaic yield, with product formation being confirmed by GC. Using earth-abundant manganese, compounds Mn-1 and Mn-2 display turnover frequencies of 108 s⁻¹ and 82 s⁻¹, respectively, amid selective production of carbon monoxide (faradaic yields ~85%), with minimal co-production of dihydrogen (<2%), and low overpotential of 0.18 V. The rhenium congener, Re-1, displays no activity as an electrocatalyst for carbon dioxide reduction under identical conditions.

1. Introduction

Activation and utilization of carbon dioxide [1], a major greenhouse gas, has the potential to address two key contemporary environment related problems: global warming due to increasing CO₂ emission and provision of carbon-neutral energy [2]. Electrocatalytic conversion of carbon dioxide to carbon monoxide [3] is considered one of the viable options for CO₂ fixation [4], where liquid fuels [5] and other commodity chemicals can be made from the resulting carbon monoxide in combination with hydrogen gas using the Fischer–Tropsch technique [6].

Molecular organometallic electrocatalysts [7] for electroreduction of carbon dioxide [8] have been extensively reviewed [9], and trends within d-block metals have been elaborated [10,11,12]. Considering the need for ultimate scale-up of the catalytic process for CO₂ reduction, designing catalysts using earth abundant transition metals [13], such as Fe [14,15], Ni [16,17], and Co [18,19], has received significant interest. Manganese is one of the most Earth abundant transition metals [20], and has been shown to replace rhenium [21] in CO₂ reduction catalysts [22,23]. Hence, a wide-range of ligands have been attached to a manganese tricarbonyl halide core [24,25,26], including N-heterocyclic carbene [27,28], non-aromatic diamine [29], pincer ligands [30], and P-coordinating ligands [31]. There are a wide range of recent examples exploring structure-activity and mechanistic questions of these organomanganese electrocatalysts [32,33,34,35,36,37,38,39].

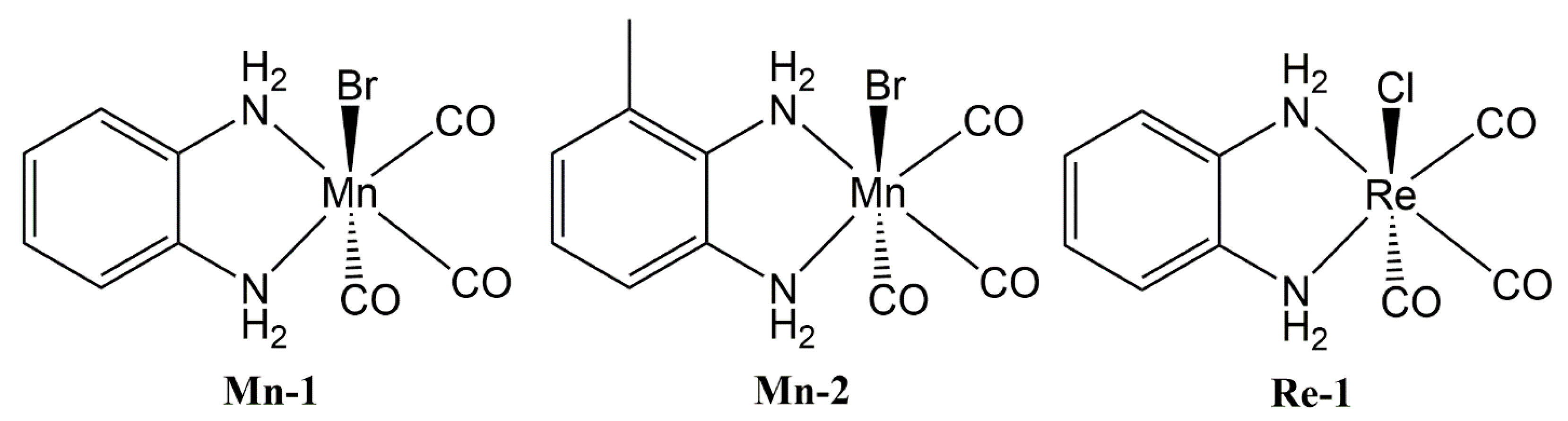

Thus, we began a study of aromatic diamine ligands, attached to either a manganese or rhenium tricarbonyl halide core. We report the novel compounds Mn(benzene-1,2-diamine)(CO)₃Br, Mn-1, Mn(3-methylbenzene-1,2-diamine)(CO)₃Br, Mn-2, and Re(benzene-1,2-diamine)(CO)₃Cl, Re-1 (Figure 1). The historical compounds Mn(benzene-1,2-diamine)(CO)₄ [40] and Re(o-benzoquinone diimine)(CO)₃Cl [41] have each been reported on a single occasion, without any analysis for carbon dioxide electroreduction. In addition to synthesis and characterization, X-ray crystallography (Mn-2 and Re-1), electrochemistry, and electrocatalytic studies for the reduction of CO₂ to CO by three novel organometallic diamine complexes are presented. The use of ligands bound to a metal via an amine group in successful organometallic electrocatalysts for carbon dioxide reduction is reported herein [42].

Electrochemistry will be utilized to determine turnover frequency (TOF) and overpotential from cyclic voltammetry (CV) of solutions of the compounds under an atmosphere of CO₂.

$$\mathrm{T}\mathrm{O}\mathrm{F}=0.1992\left(\frac{F\nu }{RT}\right)\left(\frac{n_p^3}{n_{cat}^2}\right){\left(\frac{i_{cat}}{i_p}\right)}^2$$

(1)

CO₂ (g) + 2HA (CH₃CN) + 2e⁻ ⇋ CO (g) + H₂O (CH₃CN) + 2A⁻ (CH₃CN)
E°^′ = −0.12 (−0.0592 pK_a) V vs. Fc⁺/Fc

(2)

where i_cat is the peak current of the catalyzed reaction and n_cat is the number of electrons involved in that catalytic process, while i_p is the peak current of the compound under non-catalytic conditions and n_p is the number of electrons involved in that process. F is the Faraday constant, ν is the applied scan rate, R is the universal gas constant, and T is the temperature in Kelvin. Subsequently, TOFs may be determined using Equation (1) [43].

Overpotential is also a useful metric for analysis of electrocatalysts, indicating how much additional potential is required beyond the thermodynamic amount for a given reaction. As we are exploring the reduction of carbon dioxide to carbon monoxide in the presence of a proton source, we will use Equation (2), where the thermodynamic potential is known to change with the strength of the acid chosen as the proton source [44].

2. Results and Discussion

2.1. Synthesis

Complexes Mn-1 and Mn-2 were synthesized by combining manganese pentacarbonyl bromide and the appropriate benzenediamine ligand in THF at reflux under an inert atmosphere. Complex Re-1 was synthesized by combining rhenium pentacarbonyl chloride and benzene-1,2-diamine in toluene at reflux under an inert atmosphere. Metal pentacarbonyl halide to ligand ratios were 1:1 to avoid the formation of complex salts, such as [Re(benzene-1,2-diamine)₂(CO)₃]Br [45]. Upon removal of THF/toluene by rotary evaporation, resolvation in minimal acetone was followed by crystallization from pentane, yielding dark green manganese compounds and a pale purple rhenium product.

2.2. Solid State Structure

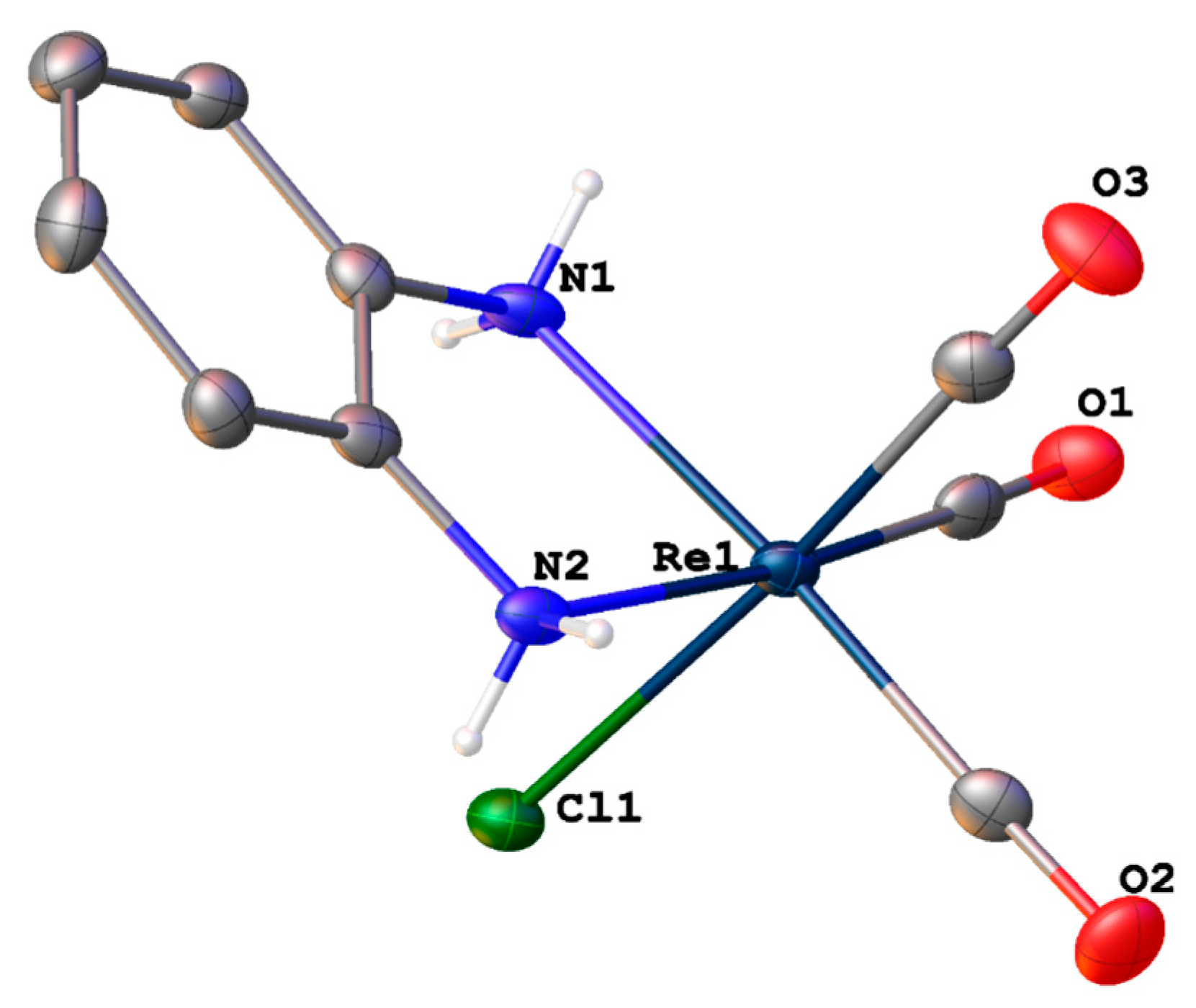

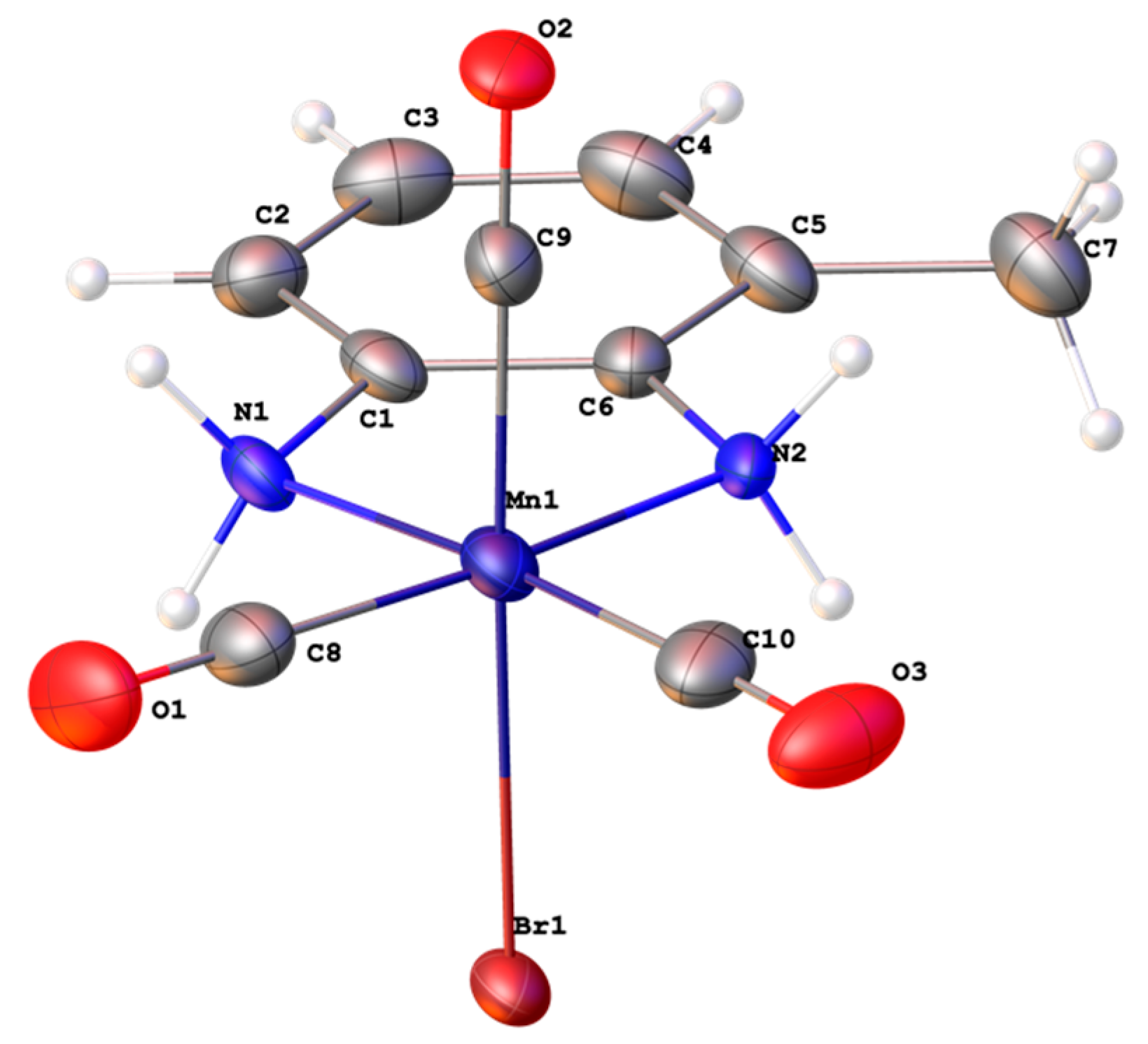

Single crystals suitable for X-ray diffraction studies were grown via hexane vapor diffusion into a dichloromethane solution of Mn-2, and via slow evaporation of a diethyl ether solution of Re-1. Structures displayed tricarbonyl fac orientation (Figure 2 and Figure 3), with an average metal–carbon bond length of 1.79 Å for Mn-2 and 1.91 Å for Re-1, and metal–halide bond lengths of 2.55 Å and 2.51 Å, respectively.

2.3. Spectroscopy

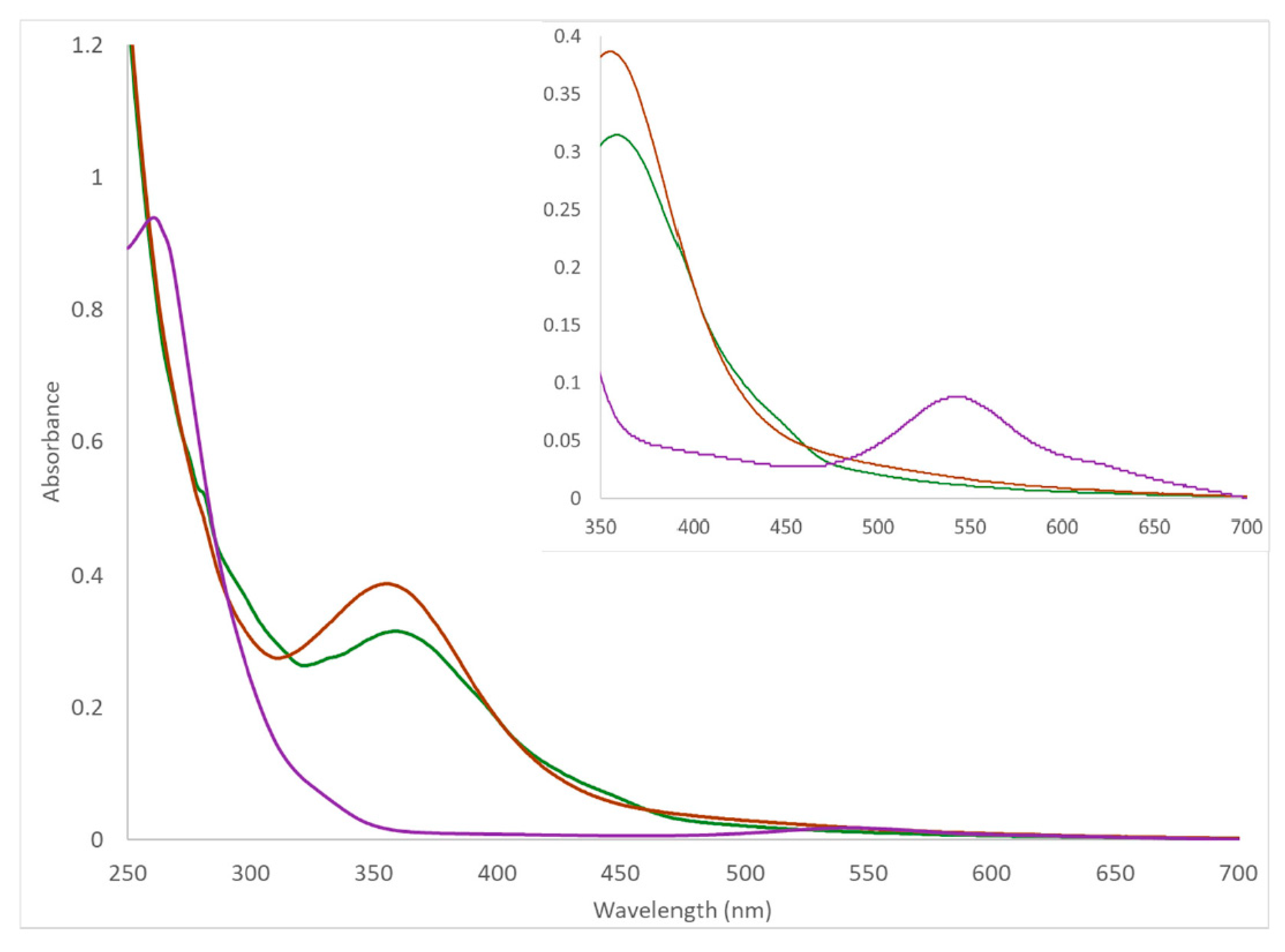

UV/Visible absorption spectroscopy reveals similar MLCT bands for Mn-1 and Mn-2, with a molar attenuation coefficient ~20% greater for Mn-2 (Figure 4). Studies of tricarbonyl halide diimine compounds saw blue-shifts of 30–60 nm for replacement of Mn with Re [46]. Specifically with phenanthroline ligands, blue-shifts of ~45 nm are concomitant with a cathodic shift in reduction potential of ~250 mV [47]. As Re is switched to Mn herein, a cathodic shift in reduction potential of 450 mV is observed (

Table 1. Reduction/oxidation potentials, infrared and UV/Vis data for Mn-1, Mn-2, and Re-1. IR absorption peaks are attributed to CO stretching modes.

Complex	Epc1 (V) a	Epa1 (V) a	ṽCO (cm−1) b	Mean ṽCO (cm−1)	MLCT (nm) c	ϵ M−1 cm−1
Mn-1	−2.30	0.60	2028, 1931, 1890	1950	359	1580
Mn-2	−2.35	0.62	2030, 1932, 1888	1950	355	1930
Re-1	−2.75	0.89	2025, 1915, 1861	1934	261, 543	4700, 88

^a Potential at peak of first reduction/oxidation wave vs. Fc/Fc⁺ at 0.100 V s⁻¹ in 0.100 M n-Bu₄NPF₆ in anhydrous acetonitrile. ^b Recorded in solid state. ^c Recorded in acetonitrile.

), allowing a possible assignment of an MLCT to the absorption peak at 261 nm, a 98 nm blue shift (although IL π to π* absorptions are common in this region). This Re-1 putative MLCT has a molar attenuation coefficient of ~3-fold that of the manganese compounds, and is similar in magnitude to Re tricarbonyl halide diimines (~5000 M⁻¹ cm⁻¹) [48]. A weak absorption feature (88 M⁻¹ cm⁻¹) is seen for Re-1, occurring at ~180 nm red-shift compared to the MLCT of the manganese compounds (Figure 4, inset), which is likely a low probability MLCT [49], occurring at a wavelength very close to that seen for a much stronger MLCT seen in Re(o-benzoquinone diimine)(CO)₃Cl [50].

IR spectroscopy of the carbonyl region displays three absorption peaks for all three compounds studied, displaying near identical wavenumbers for Mn-1 and Mn-2, correlating well to near identical reduction and oxidation potentials. Re-1 has a mean ṽ_CO some 16 cm⁻¹ lower than the manganese compounds, indicative of stronger carbonyl binding due to greater electron density upon the central metal (supported by the observation of a more cathodic reduction). IR spectroscopy also displays the expected N-H bond absorbances in the 3100–3300 cm⁻¹ region (Figures S9–S11), further supporting structural assignment.

NMR spectroscopy in acetone-d6 also confirms structural assignment, most clearly in the large downfield shift and loss of symmetry of the amine protons, seen in a single broad peak at 3.98 ppm in free benzene-1,2-diamine. Upon attachment of the ligand to the metal, the amine protons are seen as two equal integration irregular peaks at 6.58 and 4.88 ppm in Mn-1, and 6.88 and 5.50 ppm in Re-1 (Figures S12–S15). Attachment of 3-methylbenzene-1,2-diamine ligand (broad doublet at 3.87 ppm in free ligand) sees a similar shift upon attachment to manganese, yielding four equal integration irregular doublets at 6.58, 6.38, 4.88, and 4.67 ppm for Mn-2 with approximate splitting constants of 5 to 10 Hz (Figure S14). ¹³C NMR of Mn-2 (Figure S15) displays the anticipated 6 unique aromatic carbon atoms in the 140 to 127 ppm range, and a methyl carbon at 16.9 ppm (typically weak carbonyl carbon signals are obscured by the solvent).

The integration for the amine protons in Mn-1 and Re-1 is ~25% lower than anticipated, a feature that is preliminarily ascribed to exchangeability of these protons (the four amine proton peaks in the asymmetrical Mn-2 have only ~5% lower integration than expected). While no additional peaks are visible, concerns have been raised that this observation indicates that the benzene-1,2-diamine ligand is attached in a diimine manner. HRMS displayed two major peaks of similar size, one corresponding to the loss of halide and addition of an acetonitrile molecule, the second corresponding to just loss of halide [51]. No peaks were observed corresponding to compounds containing an o-benzoquinone diimine. Rhenium was confirmed by HRMS as present in Re-1 due to the observation of the predicted peak ratio due to the two primary rhenium isotopes. Elemental analysis also confirms the diamine molecular assignment of the three compounds studied herein. Table S1 details how alternative o-benzoquinone diimine compounds would not match the elemental analysis results for our compounds, lacking a match to the experimentally obtained values for hydrogen percentage. Additional evidence for diamine (rather diimine) ligands is seen in the bond lengths observed in the Xray crystallographic structures of Mn-2 and Re-1, where C-N bond lengths are 1.45 to 1.47 Å, matching the 1.47 Å average seen in amines, and far from the 1.28 Å average seen in imines [52].

2.4. Photochemistry

Organomanganese carbonyl compounds have long been reported as unstable upon light exposure [53], such that we carried out all our reactions and analyses with our compound in foil-wrapped glassware. Acetonitrile solutions of our three compounds were tracked for decomposition by UV/Vis over 90 min of exposure to ambient lab lighting. While Re-1 was unchanged, Mn-1 had a small amount degradation, ~3% change at λ_max of 359 nm, and a small feature grew in at ~770 nm beyond 60 min of exposure. Mn-2 was more prone to decomposition, with ~5% change at λ_max of 355 nm, and a degree of broadening of the main absorption feature (Figure S17).

Mn-1 and Mn-2 both display fluorescence upon excitation at their λ_max wavelengths, 359 and 355 nm, respectively (Figure S18). Mn-1 emission is centered at 522 nm, while Mn-2 emission is centered at 541 nm, indicating greater energy loss to relaxation prior to emission, perhaps due to the lower symmetry molecule having more vibrational modes. Both manganese compounds had a minor (~20% the intensity of the main peak) secondary peak at longer wavelengths of 715 and 710 nm, respectively. Re-1 did not display any fluorescence upon excitation at either 261 or 543 nm.

2.5. Electrochemistry

All complexes exhibit a single irreversible reduction peak during cyclic voltammetry (CV), occurring at −2.30 V vs. Fc⁺/Fc under an argon atmosphere for Mn-1 (Figure S1), with the reduction potential of Mn-2 being slightly (50 mV) more negative than Mn-1 (Figure S2), indicative of a very modest increase in electron density, due to methylation upon the benzene ring [54] of the diamine. Support for this assignment can be found in the carbonyl group IR absorbance, where wavenumbers vary by just 2 cm⁻¹ for the most labile CO. The reduction of Re-1 occurs a further 300 mV more negative, indicating more challenging reduction, and suggestive of more electron density upon the Re atom (as also indicated by the IR spectra of the carbonyl groups). Reductions are irreversible at the scan rates studied, appearing to be two-electron processes (based upon exhaustive controlled potential electrolysis of the compounds) and are assigned to loss of the halide ligand and formation of an anion [55].

The oxidation potential of the manganese compounds are almost identical at ~0.6 V vs. Fc⁺/Fc, while the oxidation of Re-1 occurs almost 300 mV more positive (Figure S3). All oxidations are irreversible and show large currents (greater than one or two electron processes) indicative of compound decomposition.

2.6. Electrocatalysis

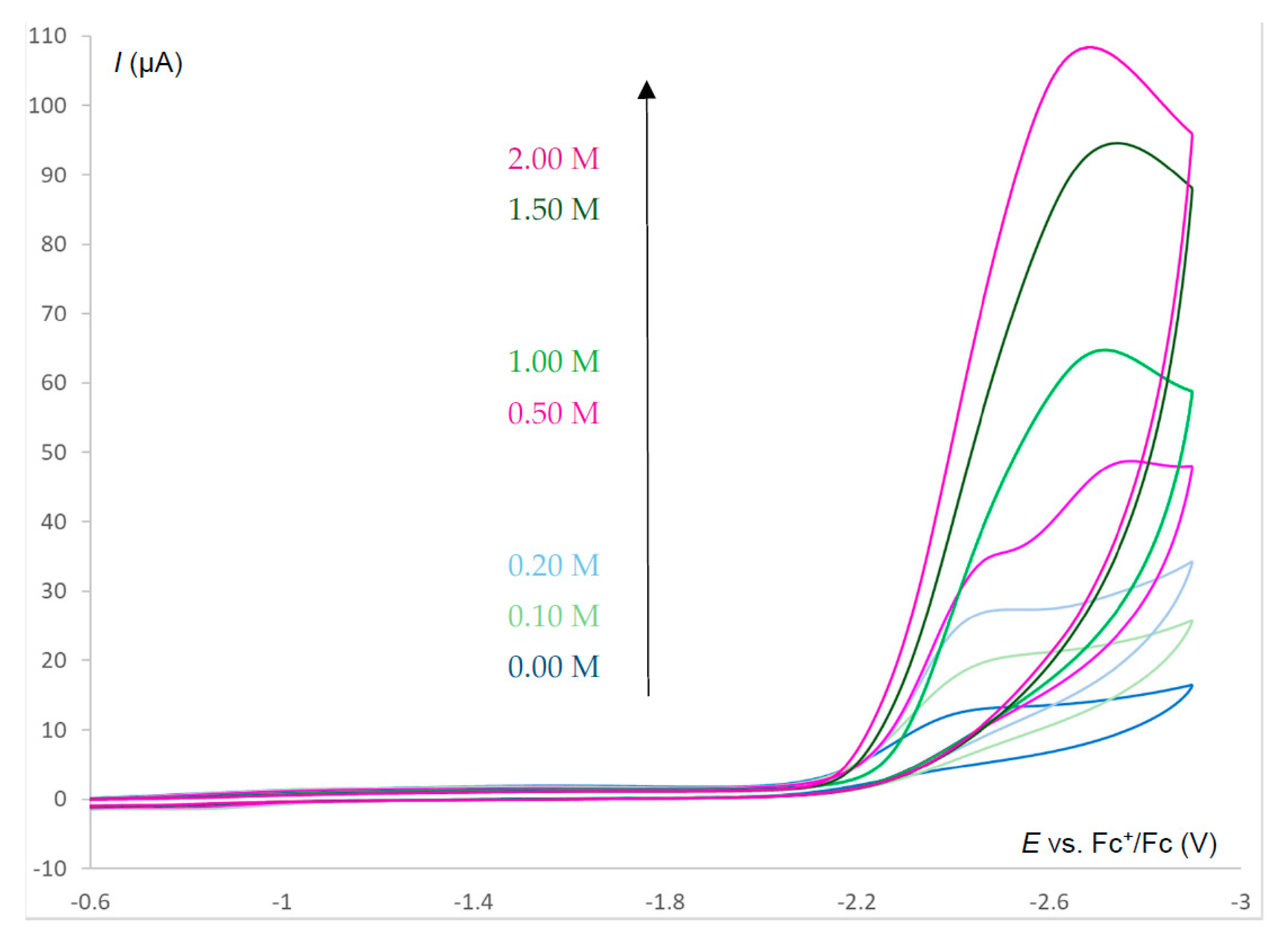

All complexes were studied in acetonitrile under an atmosphere of CO₂ in the presence of a proton source, trifluoroethanol (TFE). Addition of TFE to a solution of Mn-1 yielded enhancement in current at ca. −2.5 V (Figure 5), broadly similar to the effect seen with Mn-2 (Figure S4). The proposed catalytic mechanism (Scheme S1) suggests that initial reduction yields a catalyst that then cycles via a two electron two proton catalytic cycle, hence an enhancement of current is commonly interpreted as a catalytic process [8]. The reduction feature of Mn-1 (and Mn-2) occur at the same potential under a CO₂ atmosphere; however, there is a change from a distinct peak under argon to a plateau under carbon dioxide, suggestive that the reduced complex binds substrate but no catalytic conversion occurs. This reduction feature is then seen to increase with increased concentration of TFE, an effect that is broadly absent in a similar study with Re-1 (Figure S5), and completely absent in the catalyst-free control experiment (Figure S6).

The addition of an external proton source to a solution of Mn-1 yields an increase in current due to the electrocatalytic reduction of carbon dioxide to carbon monoxide (vide infra). Homogeneous organometallic CO₂ reduction electrocatalysts require either an internal proton source [56] or deliberate addition of an external proton source. The catalytically active species, obtained from electrochemical reduction, binds carbon dioxide but is unable to cleave one of the subsequent C-O bonds without the addition of a proton [57]. The catalytic current produced increases with increasing proton concentration (affected by either increased acid concentration or increased acid strength) [58]. A study of Mn-2 under a CO₂ atmosphere with additions of water showed only a limited catalytic current (Figure S7); hence, our study focused upon the use of a stronger proton source, TFE. Additionally, a catalyst concentration study of Mn-2 in the presence of a fixed concentration of TFE shows a near linear response to increasing catalyst concentration, indicating a first-order process (Figure 6), and that catalysis is dependent upon the presence of the organomanganese electrocatalyst. The transfer of the working electrode used in a CO₂/TFE study (with each manganese catalyst) into a catalyst-free solution containing CO₂ and TFE displayed no catalytic process, supportive of assignment of homogeneous catalysis.

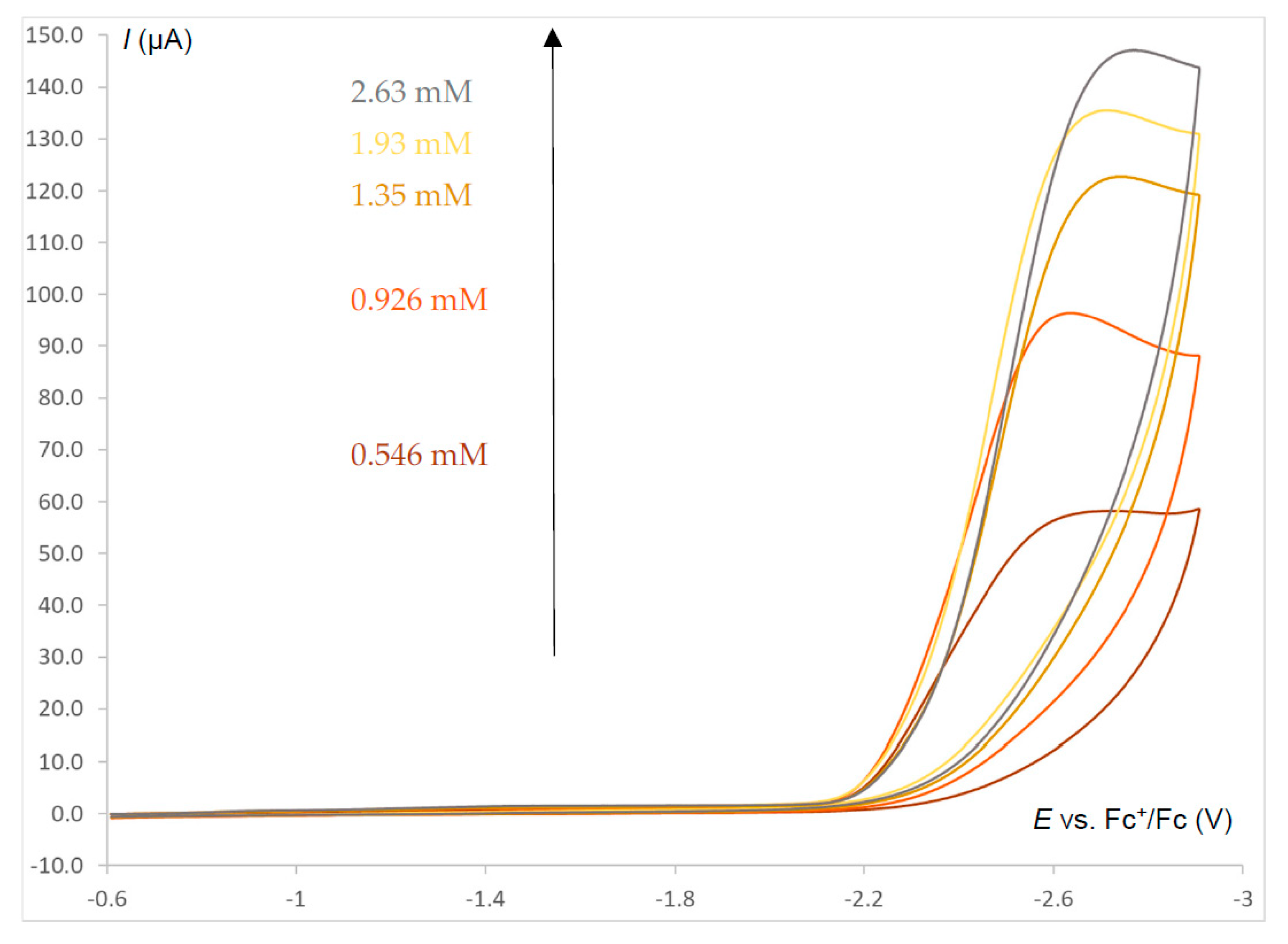

The i_cat/i_p can be determined from CV data in the acid-independent region of catalysis [59], where i_cat and i_p are the peak current of the catalyzed and non-catalyzed reactions, respectively. Entry into a true acid-independent region (by sufficient addition of acid to obtain a plateau in current) was not possible for our catalysts, due to solubility of the compounds becoming a problem at high values of added TFE. One solution to this problem would be to use less of a stronger (more acidic) proton source, although our concern preventing this was the competing reduction of the acid (or, rather, the carbonic acid that is made in situ) to hydrogen, due to our catalysts only being active at negative potentials where such competing reduction is an issue. However, the largest addition of TFE where no precipitation occurred (2.0 M) can be used as a proxy for the acid independent region by providing a reasonable minimum value for an i_cat/i_p, and hence a minimum value for a TOF for our catalysts.

The i_cat/i_p for Mn-1 was 8.3 and for Mn-2 it was 7.7 (Figure 7). These values may then be used in Equation (2) to find a turnover frequency (TOF) for the catalyst being studied [60], yielding values of 108 s⁻¹ for Mn-1 and 82 s⁻¹ for Mn-2. CV of Mn-1 vs. Mn-2 under catalytic conditions (in the presence of proton source and CO₂) indicates that Mn-1 is the better catalyst, with an i_cat/i_p value that is ~8% greater than for Mn-2. Given an electron donating methyl group on the ligand platform, Mn-2 was expected to produce a higher catalytic current than that of Mn-1 through a mild electronic effect that would enhance electron density upon the metal center and increase nucleophilic attacks upon the CO₂ (Scheme S1) [61]. This lack of improvement suggests that the binding of CO₂ by the catalyst is not rate-determining, but rather that the rate-determining step may be reductive cleavage of the Mn-CO (intermediate D to intermediate A, Scheme S1), a step that would be slower when metal center electron density is increased. With increased electron density on the metal, the Mn-CO bond would be stronger in Mn-2 due to greater back-bonding from metal to ligand, as compared to the case of Mn-1. The TOF values for our manganese compounds are somewhat low compared with the majority of published systems, with catalysis occurring at a disappointingly negative potential [62]. However, this initial example of diamine ligand use in carbon dioxide electrocatalyst design, as a proof of concept, could lead to exploration of the use of similar ligand platforms.

Our use of a weak acid proton source, namely trifluoroethanol (TFE) allows us to use Equation (2), with an estimated pKa of 35.4 for TFE [63], to arrive at a thermodynamic potential of −2.22 V. The potential at half peak height of the catalytic peak is used as a proxy for the E_1/2 in irreversible systems (which the catalytic peak represents); in our case, a value ca. −2.4 V is observed, which represents a relatively low overpotential of ca. 0.18 V.

The limited electrocatalysis observed with Re-1 is consistent with examples where Re catalysts have TOF values around an order of magnitude lower than the analogous Mn compound [64]. In particular, in our case, Re-1 appears to reduce at too negative a potential, such that should any Re-CO adduct be forming, its reduction potential lies too negative (at/beyond the solvent window). Given that there is only a small increase in current at the edge of our solvent window (Figure S5), it is not possible to obtain an accurate i_cat/i_p for Re-1, although it is likely <1.5.

CV of solutions of each catalyst in acetonitrile under argon with 2.00 M TFE displayed no peak, indicating that there is no competing proton reduction directly of the TFE [65]. Additionally, a CV of an acetonitrile electrolyte solution containing the same increments of TFE additions and saturated with carbon dioxide displays only a minor response (Figure S6), indicative of a negligible direct electrode response [66].

Controlled Potential Electrolysis (CPE) was performed upon all three compounds, as well as upon “catalyst-free” control experiment conditions, with the electrocatalysis products being quantified by headspace Gas Chromatography (GC) [67]. Comparison to authentic samples of CO and H₂ (Figure S19) allowed the confirmation and quantification of the formation of carbon monoxide under these conditions with both manganese compounds. The performance of Mn-1 and Mn-2 are equivalent after electrolysis for 90 min, displaying faradaic yields of ~85% for CO production, with minimal co-production of H₂ (

Table 2. CPE data for Mn-1, Mn-2, and Re-1, compared to catalyst-free conditions ^a.

	Q (C)	µmol CO	FE b CO (%)	µmol H2	FE b H2 (%)
Mn-1	35 ± 1.4	157 ± 5	86 ± 3	2.9 ± 0.9	1.6 ± 0.8
Mn-2	33 ± 2	148 ± 6	85 ± 4	2.6 ± 0.7	1.5 ± 0.7
Re-1	2.2 ± 0.6	3.1 ± 0.5	27 ± 5	2.4 ± 0.4	21 ± 4
Catalyst-free	1.6 ± 0.4	0.6 ± 0.4	7 ± 4	5.4 ± 0.8	65 ± 10

^a 0.500 mM (20.0 µmol) of catalyst in each case, in 1.50 M TFE, 0.100 M Bu₄NPF₆ in dry CO₂-saturated acetonitrile on a carbon rod electrode at −2.20 V vs. Fc/Fc⁺ for 90 min (mean of three trials). ^b FE = Faradaic efficiency = charge to form product/total charge passed.

). An effective turnover of ~7.5 for the manganese catalysts, where turnover is moles product divided by moles catalyst, establishes true catalysis with these manganese compounds, and given our 90 min CPE, equates to a turnover number (TON) of 5 h⁻¹. Re-1 is inactive under the study conditions, producing ~2% the CO of the manganese compounds. CPE confirms the lack of activity of Re-1 that is implied by our earlier CV analysis.

CPE was stopped after 90 min for convenience and a desire to not cause pressure leaks in our reaction vessel during electrolysis. The organomanganese compounds were still active at this 90 min time point. Currents drop to around 80% of their initial value within a few minutes of initiation of electrolysis, and are from then mostly stable, slowly dropping to around 70–75% by the 90 min mark. If catalysis had ceased, then current would drop to zero, as it almost does for Re-1 and catalyst-free CPE. CV of the electrolysis solution upon completion of CPE still retains the catalytic peak, albeit somewhat diminished, to around 70% of the initial current value, indicative of some loss of organomanganese catalyst. An example FTIR spectra of a post electrolysis solution of Mn-2 clearly displays a tricarbonyl pattern (Figure S11). The pattern has peaks that are 1–2 cm⁻¹ different from solid Mn-2, which could be an artefact of instrument precision or solvation, but does not preclude the formation of Mn(3-methylbenzene-1,2-diamine)(CO)₃(CH₃CN) [68].

3. Experiment/Characterization

Materials: All the reagents were used as received from the following: tetrabutylammonium hexafluorophosphate (Bu₄APF₆, Sigma, St. Louis, MI, USA), anhydrous acetonitrile (Sigma), manganese pentacarbonyl bromide (Mn(CO)₅Br, Strem), rhenium pentacarbonyl chloride (Re(CO)₅Cl, Sigma), benzene-1,2-diamine (TCI), 3-methylbenzene-1,2-diamine (Acros Organics).

Synthesis: All reactions were carried out in an inert atmosphere of argon using standard Schlenk techniques. All reactions involving manganese complexes were protected from light during reaction, storage and electrochemistry (using aluminum foil wrap).

Mn(benzene-1,2-diamine)(CO)₃Br (Mn-1): Mn(CO)₅Br (0.2020 g, 0.733 mmol) and 1,2-phenylenediamine (0.0800 g, 0.740 mmol) were combined in tetrahydrofuran (30 mL), and the mixture was purged in argon for 10 min before being stirred at reflux for one hour. A color change occurred during reflux, changing from the faint orange to black/green. The tetrahydrofuran was removed by use of a rotary evaporator until dryness, and acetone (2 mL) and pentane (50 mL) were added, forming a green precipitate. The product was cooled in an isotemperature freezer (−20 °C) and then filtered and rinsed with pentane. The final green solid was dried under reduced pressure for approximately 24 h, obtaining an 76% yield. IR (solid, ṽ_CO): 2028 cm⁻¹, 1931 cm⁻¹, 1890 cm⁻¹. MS (m/z): calc: 246.9915, found: 246.9913 (M-Br)⁺, calc: 288.0181, found: 288.0176 (M-Br+MeCN)⁺. UV/Vis in MeCN (ϵ, M⁻¹ cm⁻¹): 359 nm (1580). ¹H NMR (300 MHz, (CD₃)₂CO, ppm) δ: 7.49 (2H, s), 7.30 (2H, s), 6.58 (2H, m), 4.88 (2H, m). Anal. Calc. for C₉H₈BrN₂O₃Mn: C, 33.06; H, 2.47; N, 8.57. Anal. Found: C, 33.34; H, 2.65; N, 8.42.

Mn(3-methylbenzene-1,2-diamine)(CO)₃Br (Mn-2): Mn(CO)₅Br (0.2010 g, 0.730 mmol) and 2,3-diaminotoluene (0.0901 g, 0.738 mmol) were combined in tetrahydrofuran (30 mL), and the mixture was purged with argon for ten minutes before stirring at reflux for one hour. A color change occurred during reflux from pale orange to dark green. The tetrahydrofuran was removed by rotary evaporator until dryness, and acetone (2 mL) and pentane (50 mL) were added, forming a brown/green precipitate. The product was cooled in an isotemp freezer (−20 °C) and then filtered and rinsed with pentane. The final brown/green solid was dried under reduced pressure for approximately 24 h, obtaining an 86% yield. IR (solid, ṽ_CO): 2030 cm⁻¹, 1932 cm⁻¹, 1888 cm⁻¹. MS (m/z): calc: 261.0071, found: 261.0064 (M-Br)⁺, calc: 302.0337, found: 302.0334 (M-Br+MeCN)⁺. UV/Vis in MeCN ((ϵ, M⁻¹ cm⁻¹): 355 nm (1930). ¹H NMR (300 MHz, (CD₃)₂CO, ppm) δ: 7.32 (1H, m), 7.18 (2H, m), 6.58 (1H, d, 5.1 Hz), 6.38 (1H, d, 10.5 Hz) 4.88 (1H, d, 9 Hz), 4.67 (1H, d, 9.3 Hz), 2.54 (3H, s). ¹³C NMR (75 MHz, (CD₃)₂CO, ppm) δ: 139.7, 138.2, 135.6, 128.4, 126.9, 124.2, 16.9 (carbonyl C obscured by solvent). Anal. Calc. for C₁₀H₁₀BrMnN₂O₃: C, 35.22; H, 2.96; N, 8.21. Anal. Found: C, 35.50; H, 2.94; N, 8.06. Crystals suitable for X-ray diffraction were obtained by vapor diffusion of hexane into a solution of the complex in dichloromethane at −20 °C, CCDC 1893661.

Re(benzene-1,2-diamine)(CO)₃Cl (Re-1): Re(CO)₅Cl (0.2002 g, 0.553 mmol) and 1,2-phenylenediamine (0.0607 g, 0.562 mmol) were combined in toluene (50 mL) and the mixture was purged with argon for 10 min before being stirred at reflux for two hours. A color change occurred during reflux, changing from uncolored to purple. The toluene was removed by use of a rotary evaporator until dryness, and acetone (2 mL) and pentane (50 mL) were added, forming a pale purple precipitate. The product was cooled in an isotemperature freezer (−20 °C), and then filtered and rinsed with pentane. The final solid was dried under reduced pressure for approximately 24 h, obtaining an 80% yield. IR (solid, ṽ_CO): 2025 cm⁻¹, 1915 cm⁻¹, 1861 cm⁻¹. UV/Vis in MeCN (ϵ, M⁻¹ cm⁻¹): 261 nm (4700), 543 nm (88). ¹H NMR (400 MHz, (CD₃)₂CO, ppm) δ: 7.50 (2H. m), 7.31 (2H, m), 6.88 (2H, d), 5.50 (2H, d). MS (m/z): calc: 379.0093, found: 379.0106 (M-Cl)⁺, calc: 420.0358, found: 420.0365 (M-Cl+MeCN)⁺. Anal. Calc. for C₉H₈ClN₂O₃Re: C, 26.12; H, 1.95; N, 6.77. Anal. Found: C, 26.37; H, 1.88; N, 6.82. Crystals suitable for X-ray diffraction were obtained by evaporation of diethyl ether solution of the complex at −20 °C, CCDC 1893660.

Electrochemistry: All cyclic voltammograms (CVs) were obtained by using a CHI Model 600E Potentiostat 3-electrode cell with a glassy carbon 3 mm diameter working electrode, platinum wire counter electrode, and silver external reference electrode (10 mM AgNO₃ in electrolyte solution). The electrolyte solution for all experiments was 0.10 M tetra-n-butylammonium hexafluorophosphate (Bu₄NPF₆) in anhydrous acetonitrile (Aldrich). The potentials (E) at the working electrode in all CV’s are reported with respect to the ferrocenium/ferrocene couple in electrolyte solution. The ferrocenium/ferrocene couple data was collected daily at the end of each experiment, confirming potential and that appropriate resistance compensation had been applied. All CVs reported are background corrected, i.e., the scan with only electrolyte present was subtracted from the raw data. All background scans confirmed the sufficient removal of O₂ as seen (Figure S20) by the absence of a reduction peak ca. −1.2 V [69]. CVs were collected under the flow of ultra-high purity argon or bone-dry carbon dioxide gases. Controlled Potential Electrolysis (CPE) experiments were performed using a two-compartment cell: one compartment containing a carbon rod working electrode (effective surface area = 5.5 cm²) and an Ag/AgNO₃ pseudo-reference electrode, the other compartment containing a carbon rod counter electrode (effective surface area = 8.0 cm²). Head-space gas was tested after 90 min of electrolysis.

Instrumentation: NMR spectra were recorded on a 300 or 400 MHz Bruker NMR spectrometer. Mass spectra were recorded on an Agilent 6500 Series Q-TOF LC/MS in acetonitrile solution. Electronic absorption spectra were recorded on a Shimadzu UV-2600 UV-visible spectrometer. FTIR data was obtained using a Perkin Elmer 100 spectrometer, at 1.0 cm⁻¹ resolution. Elemental analysis was carried out by Atlantic Microlabs (Norcross, GA, USA).

4. Conclusions

Two new earth abundant metal-based catalysts, Mn(benzene-1,2-diamine)(CO)₃Br (Mn-1) and Mn(3-methylbenzene-1,2-diamine)(CO)₃Br (Mn-2) have been synthesized and characterized, which rapidly catalyze the reduction of carbon dioxide to carbon monoxide at low overpotential. The novel Re congener Re(benzene-1,2-diamine)(CO)₃Cl (Re-1) has been synthesized and characterized, but lacks such electrocatalytic activity. The reduction of Re-1 occurs 0.40 V more cathodic than the manganese complexes, likely indicating that if Re-1 were to undergo a similar mechanism, a catalytic peak further cathodic than the one seen for the manganese compounds would occur. We would likely not be able to see such a process due to competing direct reduction and the cathodic limit of the solvent window. [23,70] Use of diamine ligands could lead to an expansion of ligand options for organomanganese carbon dioxide reduction electrocatalysts.
