Review

Pyridinesilver Tetraoxometallate Complexes: Overview of the Synthesis, Structure, and Properties of Pyridine Complexed AgXO4 (X = Cl, Mn, Re) Compounds

by
Fernanda Paiva Franguelli
1,2,
Kende Attila Béres
2,3 and
Laszló Kótai
2,*
1
Department of Inorganic and Analytical Chemistry, Budapest University of Technology and Economics, Muegyetem Rakpart 3, 1111 Budapest, Hungary
2
Institute of Materials and Environmental Chemistry, Research Centre for Natural Sciences, ELKH, 1117 Budapest, Hungary
3
Institute of Chemistry, ELTE Eötvös Loránd University, Pázmány Péter s. 1/A, 1117 Budapest, Hungary
*
Author to whom correspondence should be addressed.
Inorganics 2021, 9(11), 79; https://doi.org/10.3390/inorganics9110079
Submission received: 12 October 2021 / Revised: 28 October 2021 / Accepted: 29 October 2021 / Published: 30 October 2021
(This article belongs to the Special Issue Cornerstones in Contemporary Inorganic Chemistry)

Abstract

:
We reviewed the synthesis, structure, and properties of pyridine complexes of AgXO4 (X = Cl, Mn, and Re) compounds with various compositions ([AgPy2] XO4, [AgPy2XO4]·0.5Py, [AgPy4] XO4, and 4 [AgPy2XO4] [AgPy4] XO4). We also clarified the controversial information about the existence and composition of pyridine complexes of silver permanganate, used widely as mild and selective oxidants in organic chemistry. We discussed in detail the available structural and spectroscopic (IR, Raman, and UV) data and thermal behavior, including the existence and consequence of quasi-intramolecular reactions between the reducing ligand and anions containing oxygen.

Graphical Abstract

1. Introduction

Silver permanganate, perchlorate, and perrhenate (AgXO4, X = Cl, Mn, and Re) are well soluble in pyridine, and various complexes with studied and unknown chemical nature were isolated even in the 19th and the beginning of the 20th century [1,2,3]. The composition and purity of the complexes strongly depend on the conditions of synthesis, and even small changes in reaction conditions lead to the formation of other (or a mixture of) compounds [4]. In principle, silver can formally form two, three, or four-coordinated pyridine complexes. However, single-crystal studies [5,6] showed that the complexes with 2.4 or 2.5 pyridine/silver atom ratios always contain 2- and 4-coordinated silver atoms.
Considering the wide use of silver permanganate complexes in organic chemistry, as mild and selective oxidants, and that literature sources contain controversial or incorrect information about these compounds, we discuss the chemistry of pyridine complexes of AgXO4 (X = Cl, Mn, and Re) in detail. We also comprehensively summarized their synthesis, composition, structure, and redox properties, including the occurring quasi-intramolecular redox reactions between the reducing pyridine ligand and oxidizing XO4 anions and the existence of hydrogen bonds between the acidic C–H and polarized X–O bonds.
The compounds were prepared and their labels are given in Table 1.

2. Synthesis and Composition of AgPynXO4 (X = Mn, Cl, and Re) Complexes

2.1. Pyridine Complexes of Silver Permanganate

The first pyridine complexes of silver permanganate were described by Klobb in 1886 [1], when a small amount of pyridine (20% aq.) was dissolved in an equivalent solution of silver sulfate and potassium permanganate. Based on chemical analysis, two complexes were isolated with formulas AgPy2MnO4 and AgPy2.5MnO4 with decomposition points of 65 and 103 °C, respectively. Almost one hundred years later, Firouzabadi et al. (1982) [4] reported an easy preparation of a purple crystalline material in high yield (90%), which was believed to be AgPy2MnO4. They prepared this compound by adding AgNO3 dissolved in ten times more water and three equivalent of pyridine to a KMnO4 solution. The crystalline precipitate was recrystallized from acetone–benzene and its decomposition point was found to be 104–105 °C. Lee (2001) [7] reproduced the method described previously [4] to check the oxidation property of this material in several organic reactions.
Kotai et al. [8] reproduced the methods described by Klobb [1] and Firouzabadi [4] and found that AgPy2MnO4 (compound 2a) and 4[AgPy2MnO4] [AgPy4]MnO4 (compound 4a) (it is equal to the formula AgPy2.4MnO4) could be isolated as the main products in Klobb’s methods, but a mixture containing 2a, 3a (2a 0.5Py), and 4a formed in Firouzabadi’s experiments. Recrystallization of the reaction product from acetone–benzene depending on the acetone–benzene solvent concentration and recrystallization conditions, led to pure 2a, 3a, or 4a, or mixtures of these with different 2a:3a:4a ratios.
To study the interconversion of compounds 2a5a, and further characterize these complexes, Sajó et al. (2018) [9] created new methods for the isolation of pure compounds (Figure 1). They isolated bis (pyridine)silver permanganate (2a) in a pure form by reacting [AgPy2]NO3 with a concentrated sodium permanganate solution and crystallizing it with a high temperature gradient. To prepare pure 4[AgPy2MnO4]·[AgPy4]MnO4 (4a), they added 10 volumes of water to a pyridine solution containing AgMnO4 (Py:Ag = 50) [9]. First, silver (I) permanganate was obtained from a saturated solution of AgNO3 and 40% aq. NaMnO4 in an Ag:MnO4 ratio of 1:1. The freshly prepared compound 1a (wet) bookmark0 was dissolved in pure pyridine, resulting in a saturated purple solution (the surface of the dried (old form) AgMnO4 crystals (decomposed by sunlight with the formation of catalytically active Ag-Mn oxides) can catalyze the oxidation of heterocycles containing nitrogen. Sometimes it resulted in the inflammation of the pyridine on dissolution of “old” dry AgMnO4 in dry pyridine). Sajó et al. immediately diluted it with water to reach a pyridine content of 10%, allowing the formation of the pure double salt (4a). Using one volume of benzene as a salting-out solvent, however, they prepared compound [AgPy4] MnO4 (5a) in a pure state. Another way to prepare compound 5a is to cool down a concentrated solution of AgMnO4 (1a) in pyridine to −18 °C overnight. The authors [8] reported a recrystallization route to synthesize pure [AgPy2MnO4]·0.5Py (3a). They recrystallized the mixture of AgPy2MnO4 and 4[AgPy2MnO4][AgPy4] MnO4 in various ratios from a 1:1 (v/v) acetone–benzene mixture. This led to the formation of a large quantity of platelet-like purple monoclinic single crystals, and some amount of amorphous brown decomposition product.
Compound 5a, containing the highest amount of pyridine (Py/Ag = 4), decomposes into the double salt-type compound (4a) (Py/Ag = 2.4), which contains less pyridine, or into its mixture with 2a (Py/Ag = 2) by controlled evaporation of the solvent. The removal of pyridine from compound 4a in a vacuum, however, did not give the expected compound 2a. Surprisingly, compound 2a decomposed into compound 4a in vacuum or by recrystallization from dichloromethane. It means that compound 2a decomposes in a vacuum or on dissolution with liberation of free pyridine, which recombines with the silver and permanganate ions into 4a.

2.2. Pyridine Complexes of Silver Perchlorate

Macy (1925) [3] constructed the silver perchlorate-pyridine-water ternary phase diagram at 25 °C. Four compounds, including three pyridine complexes, namely [AgPy2]ClO4 (2b) AgPy2.25ClO4 (later it was proved to be compound 4b with the formula AgPy2.4ClO4), [AgPy4]ClO4 (5b), and AgClO4⋅H2O (1b.H2O) were described in the system as shown in Figure 2. The author claimed that these materials could be isolated under different temperatures from a saturated solution of silver perchlorate in pyridine. The important features regarding the solubility curve are presented in Figure 2.
There are four invariant equilibriums (1–4) and an unsaturated solution (L). The amount of water in the system can directly affect the solubility of AgClO4 in pyridine. Line d–e specifies the solubility of AgClO4, whereas line b–c represents the composition of the solid phases. Macy found that [AgPy2]ClO4 (2b) was the most stable solid phase with a melting point between 144 and 147 °C, whereas AgPy2.25ClO4 and [AgPy4]ClO4 (5b) are unstable solid phases, which melt at 68 °C and 95.6 °C, respectively.
The complex [AgPy2]ClO4 (2b) was prepared by Kauffman and Pinnell (1960) [10] in the reaction of AgNO3 with NaClO4 in an aqueous pyridine solution in an Ag+:ClO4:Py = 1:1.3:6 (molar) and pyridine/H2O = 5/9 (v/v) ratio. Cooling the solution at 10 °C produced a white precipitate, which was recrystallized from a chloroform–pyridine mixture (5:1 (v/v)). Dyason et al. (1985) [11] determined the composition of this product and found it to be compound 4b instead of 2b. However, vacuum treatment of compound 4b produced pure compound 2b. Chen et al. (2007) [12] emphasized that different stoichiometry of silver (I) pyridine adducts could be obtained depending on preparation conditions and also reinforced the importance of a vacuum system to form compound 2b during the drying process [10,11]. Hollo et al. (2019) [13] reported that a mixture containing compound 4 and compound 5 could be easily prepared from an aqueous solution of Ag2SO4, pyridine, and NaClO4 (20% aq. pyridine and 0.2 M of aq. NaClO4) at lower temperatures (5–8 °C). If the container is left open, [AgPy4] ClO4 (compound 5b) completely transforms into [AgPy2.4] ClO4 (compound 4b) at lower temperatures, while at room temperature or vacuum, compound 2b was the final product.
Nilson and Oskarsson (1982) [5] reported the preparation of pure [AgPy4] ClO4 by dissolving silver (I) perchlorate in pyridine solution at −18 °C. It slowly loses pyridine at room temperature and transforms into 2b. Dyason et al. and Bowmaker et al. also proved that compound 4b is also converted to compound 2b [11,12].
Sajó et al. (2018) [9] reproduced the method described by Kauffman and Pinnell [10]. They found that the raw product consists of a mixture of compounds 2a and 4a. A new compound was also identified as [AgPy2ClO4]·0.5Py (compound 3b), which formed when a mixture of compounds 2b and 4b were triturated (1:1 mixture) with an acetone:benzene solution (1:1, v/v). They mentioned that the free pyridine to form 3b from 2b or 4b came from the decomposition of compound 4b. Compound 3b is stable only in the presence of the mother liquor, but decomposes to [AgPy2]ClO4 when it is kept in air.
The interconversions of compound 1b5b can be seen in Figure 3.

2.3. Pyridine Complexes of Silver Perrhenate

This group of complexes has not been extensively studied so far. Wilke-Dörfurt and Gunzert (1933) [14] performed the first attempt to prepare it. [AgPy4]ReO4 (5c) formed when they combined silver nitrate, pyridine, and perrhenic acid in a ratio of 1:10:1 at the low temperature. However, since that time, no detailed information regarding its structure and properties has been available in the literature.
Recently, Sajó et al. (2018) [8] synthesized the previously unknown [AgPy2]ReO4 (2c) in a pure form, and studied its properties. This complex was formed from a mixture of Ag2SO4, 0.2 M aq. NaReO4, and 10% aq. pyridine. A white precipitate was obtained after the reaction mixture was cooled to 0 °C. Another way to produce the same compound was to dissolve silver (I) perrhenate (1c) in pyridine, and completely remove the solvent by vacuum treatment at room temperature. Efforts to isolate complexes (3c) and (4c) have been unsuccessful until now. The existence of two AgPynReO4 compounds with 3 and 5 pyridines was mentioned without any characterization by Woolf [15].

3. Thermal Analysis of Pyridine Complexes of AgXO4 Compounds (X = Mn, Cl, and Re)

3.1. Pyridine Complexes of AgMnO4

Pyridine complexes of silver permanganate decompose in exothermic reactions on slow heating. Fast heating causes explosion-like decomposition with flames. Decomposition points of compounds 2a and 4a are 65 and 103 °C, respectively [1,2].
Kotai et al. performed thermogravimetric and mass spectrometry analysis on compound 3a obtained by the recrystallization of a mixture of compound 2a and 4a from acetone–benzene [8], under an Ar atmosphere. A small amount of benzene was evolved at the beginning of thermal decomposition, with a maximum rate at 73 °C. They attributed the presence of benzene to the presence of a pyridine solvate substituent in the lattice. They also reported the thermal behaviors of compounds 2a and [AgPy2.25]MnO4 (it was later proved to be a pyridine-deficient compound 4a [6]) under an inert atmosphere. Both complexes started to decompose at 50 °C with a maximum mass loss achieved at 78. They observed unusual phenomena, such as the lack of oxygen evolution and the appearance of free pyridine (m/z = 79) and pyridine oxidation products, such as CO2 (m/z = 44), CO (m/z = 28), H2O (m/z = 18), and NO (m/z = 30). They attributed the presence of the pyridine ring oxidation products to the partial oxidation of the pyridine ligands by the permanganate ion (the experiments were done in an inert atmosphere). This quasi-intramolecular redox reaction took place in the solid phase between the permanganate anion and the coordinated pyridine, even below the temperature of the pyridine loss of the AgPy2+ cation (Tdec > 147 °C) of other compounds containing an [AgPy2]-cation with thermally stable and non-reactive anions [10,14]. The mechanism proposed is shown in Figure 4. The decomposition center is the hydrogen bond between the α-CH of the pyridine ring and an oxygen of permanganate ion. Rearrangement via transition states TS1 and TS2 due to thermal activation results in a 2-hydroxypyridine derivative (TS2). They assumed tautomerization and a Dewar benzene-type ring (TS4) and the transformation of Dewar-C5H5NO to HNCO and “C4H4”. The decomposition of these intermediates result in CO, CO2, NO, and H2O as reaction products [16,17].
The thermal analysis of 4a was studied in detail by Kovács et al. [6] under an inert (He) and an oxidizing atmosphere. They observed a strongly exothermic reaction during the decomposition process even under an inert atmosphere. It indicates that the O2 present in the gas phase does not play a key role in starting the decomposition reaction. Thermal decomposition occurred mainly in one step at 85 °C. Metallic silver and manganese oxides formed as solid decomposition products. An intermediate that formed at 300 °C contained metallic silver, MnO, Mn3O4, and Mn2O3. Based on the decomposition temperatures of MnO2 → Mn2O3 → Mn3O4 → MnO [18] reactions, which are 542, 918, and 1027 °C, respectively, they concluded that these oxide phases could form only in a redox reaction and not in the thermal decomposition of the intermediate manganese oxide phases.

3.2. Pyridine Complexes of AgClO4

The thermal properties of 4b were investigated by Holló et al. (2019) [13]. The authors studied the decomposition of the compound under an argon and an air atmosphere. They observed that in the inert atmosphere, the compound started to decompose above 45 °C. The first decomposition intermediate was proved to be stable and was isolated at 85 °C as [AgPy2]ClO4 (2b). Compound 2b was found to be stable up to 105 °C. Decomposition continued with the formation of pyridine and pyridine oxidation products (NO, H2O, and CO2). The authors also investigated in detail the decomposition products prepared at 350 °C and 500 °C. The first decomposition product consist of mainly AgClO4 and AgCl. The final residue was AgCl. The m/z = 44 (CO2) sign in the third decomposition peak around 320 °C was attributed to the oxidation of carbon residues that is formed from pyridine degradation by AgClO4 [19]. The unreacted AgClO4 decomposed into AgCl and O2, which suggests the presence of a complex decomposition process with simultaneous pyridine ligand loss with AgClO4 formation, and a redox reaction between pyridine and AgClO4 in the solid phase.
The thermal decomposition of 4b was also investigated under an oxidizing atmosphere [13]. The presence of O2 in the gas phase accelerated the decomposition reaction and provided the required activation energy (~60 kJ mol−1) [19] for that decomposition. Another essential feature reported is the low mass of the residue obtained at 400 °C, which was less than the total amount of Ag in the initial compound. This suggests that AgCl partly evaporated in the decomposition process [13]. The proposed reaction route is shown in Figure 5.

3.3. Pyridine Complexes of AgReO4

No available literature data about thermal decomposition of the pyridine complexes of silver perrhenate. Our preliminary studies on the thermal decomposition of 2c showed the lack of the redox reactions between the pyridine ligand and perrhenate ion.

4. Crystallographic Structure of Pyridine Complexes of AgXO4 Compounds (X = Mn, Cl, and Re)

The crystallographic parameters of pyridine complexes of AgXO4 are summarized in Table 2.
Holló et al. [13] and Dyason et al. [11] crystallized compound 4b in a tetragonal system containing one [AgPy2ClO4] and one-quarter of [AgPy4]ClO4 units in the asymmetric unit. The permanganate analog of this compound (compound 4a) [6] is isostructural with compound 4b. The Cα–H⋯O permanganate distance (3.121 Å) is longer (consequently bond strength is weaker) than the Cα–H⋯O perchlorate distance in the perchlorate (compound 4b, 2.645 Å), as presented in Table 2.
Compound 3a ([AgPy2MnO4]·0.5Py) crystallizes as platelets [9] belonging to the monoclinic crystal system. The shortest argentophilic interaction between the neighboring fragments in the unit cell (Ag⋯Ag = 3.421 Å) is stronger than what was found in [4AgPy2MnO4]·[AgPy4]MnO4 (Ag⋯ Ag = 4.822 Å) [11,13].
The compound [AgPy2]ClO4 (2b) crystallizes in an orthorhombic crystal system [20]. The argentophilic interaction in this compound (Ag⋯ Ag = 2.9997) provides a closer contact between [AgPy2]+ ions than in compounds 3a, 4a, or 4b. The two coordinated pyridine ligands seem to be coplanar and the Ag-N bond distances were reported as 2.126 (4) and 2.133 (4) Å. The linear N-Ag-N bond angles are 173.83 (17°).
Nilsson and Oskarsson (1982) [4] described the crystal system of [AgPy4]ClO4 (compound 5b) as tetragonal. The structure of this compound is shown in Figure 6, where pyridine molecules are in almost parallel planar dispositions. The structure and packing of compounds 3a, 3b, and 4a, 4b can be seen in Figure 7 and Figure 8, respectively.
The [Agpy2]+ units in compounds 2b, 3a, 3b, 4a, and 4b show weak Ag…O coordination with anions, and π–π stacking between the neighboring pyridine rings, whereas the [Agpy4]+ units in 3a, 3b, and 4b do not show these kinds of interactions.
The lattice parameters of the known AgXO4 complexes with pyridine were studied by Sajó et al. [9]. The single crystal study results are summarized in Table 3.

5. Spectroscopic Properties of Pyridine Complexes of AgXO4 Compounds (X = Mn, Cl, and Re)

5.1. Infrared and Raman Spectra

Sajó et al. assigned and evaluated, in detail, the IR and Raman band frequencies of the known pyridine complexes of AgXO4 (X = Mn, Cl, Re) compounds [9]. Kovács et al. assigned Ag–N vibrations, arising from the di- and tetracoordinated [AgPyn]+ cations in compound 4a (2019) [6]. The far-IR spectra revealed the symmetric and the antisymmetric ν (AgN) modes of the [AgPy2]+ ion at 246 and 166 cm−1, respectively. Possibly, the deviation along with the ideal (linear) N–Ag–N angle of [Agpy2]+ ion was sufficient to activate the νs (AgN) mode in the IR spectrum [9,12]. Similar spectral characteristics were found in the case of compound 4b [12,13]. The far-IR and Raman spectrum of compound 4b showed three Ag-N modes, which correspond to the asymmetric and symmetric Ag-N modes of [AgPy2]+ and ν (AgN) of [AgPy4]+ [12,13]. The coordinated perchlorate ion (C1 site) and non-coordinated (S4 site) perchlorate ions were distinguished spectroscopically. The symmetric deformations modes of perchlorates ν2 (E) appeared as a singlet band (459 cm−1) in IR spectra and as a doublet in Raman analysis (460 and 417 cm−1) in which the higher wave number was correlated to coordinate perchlorate ions (C1 site) and the lower to perchlorates in the S4 site [12]. The asymmetric Cl–O stretching bands ν3 (F2) resulted in two weak and two very intensive bands in the IR spectra [13].

5.2. UV-Vis Spectra

There are not many studies reporting on the spectral characteristics of pyridine complexes of AgXO4 (X = Cl, Mn, Re) compounds [17]. Holló et al. [13] reported the diffuse reflection UV-Vis of compound 4b and confirmed that [AgPy2]+ and [AgPy4]+ cations are present in the lattice of this compound. However, they assigned a band system containing pyridine n–π* and Ag+-Py electronic charge transfer from metal to ligand (MLCT) [9,21,22]. The bands with band maxima at 218.9 and 295.2 nm are the CT band, and the maximum at 251.5 nm is a pyridine ring (1A1g–1B2u (π–π*)) transition.
Kovács et al. [6] reported the diffuse reflection UV-Vis spectroscopic data for compound 4b and found the presence of the same band system as mentioned above (pyridine n–π* and Ag+-Py MLCT), and also the permanganate transitions t1-4t2, 3t2-2e. The authors reported three different groups of band maxima, namely (i) 219.9 nm assigned to combined bands of Ag-Py (CT) and MnO4 ((1A1-1T2(t1-4t2)); (ii) 258.4 nm regarding the components of pyridine ((1A1-1B2(n–π*)) and MnO4 (1A1-1T2(3t2-2e)) transitions; (iii) and 521.9 and 710.1 nm assigned to the components of MnO4, (1A1-1T2(t1-2e)) and ((1A1-1T1(t1-2e)), respectively.

6. Organic Oxidation Reactions with Pyridine-Silver Permanganate Complexes

A large number of studies report the use of AgPy2MnO4 as an oxidative medium in organic reactions. However, in almost all publications, Firouzabadi’s procedure [4] was used to synthesize compound 2a. Thus, the reaction products were probably mixtures of compounds 2a, 3a, and 4a. The first approach was made by Firouzabadi et al. [4,23], and later, Lee [7] used compound 2 in various oxidation reactions. The conversion of polycyclic aromatic hydrocarbons (e.g., anthracene, phenanthrene) [4,23] in dichloromethane resulted in diketones with high yield. The oxidation of diphenylacetylene resulted in 95% benzyl, and in the case of phenylacetylene (nonterminal alkyne), coupling reactions took place with the formation of 1,4-diphenyl-1,3-butadiyne. The conversion of benzocyclobutadiene resulted in 2,3-dibenzoylnaphthalene accompanied by carbon–carbon bond cleavage.
Compound 2a (or its mixtures with 3a and 4a) converted primary and secondary alcohols into aldehydes and ketones, respectively, e.g., piperonol into piperonal (81%) and benzyl alcohol into benzaldehyde (100%). Coupling reactions were performed with 4-chloroaniline and 4-nitroaniline [4,23]. Besedin et al. (2000) [24] studied nucleophilic substitution of 6,8-dimethylpyrimido[4,5-c]pyridazine-5,7(6H,8H)-dione by reacting it with α,ω-diamines, as a result of which, polycyclic heterocycles formed. Gulevskaya et al. [25] reported the oxidative substitution of the pyridazine ring at C-H sites with a secondary amine in the presence of compound 2a (or its mixture with 3a and 4a). The complete reaction was performed at 20 °C for 168 h and the final product was 6,8-dimethyl-3-ethylpyrrolo[1,2,2,3]pyridazino[6,5-d]pyrimidine7,9(6H,8H)-dione with a yield of 42%.
Compound 2a (or its mixture with 3a and 4a) was used by Kesenheimer and Growth (2006) [26] in the synthesis of a natural antibiotic (-)-8-O-methyltetrangomycin, in a multistep process. The oxidation of tetrahydrobenz[a]anthracene into tetrahydrobenz[a]anthraquinone in this reaction had a yield of 65%.
Banerji et al. (2012) [27] reported the oxidation of sulfides into sulfoxides in aqueous acetic acid solutions and achieved a yield of 80% over the conversion of dimethyl sulfide into dimethyl sulfoxide.
Kovács et al. [6] studied the oxidation abilities of 2a, 3a, and 4a in the conversion of benzyl alcohol to benzaldehyde and benzoic acid in various solvents. A higher yield of benzaldehyde was achieved in chloroform as a solvent medium.

7. Conclusions

We comprehensively reviewed the synthesis, structure, and properties of four series of pyridine complexes of AgXO4 with 2, 2.4, 2.5, and 4 pyridines (X = Cl, Mn) and 2 or 4 pyridines (X = Re) per AgXO4 unit. The controversial pieces of information about the existence and composition of pyridine complexes of silver permanganate, used widely as mild and selective oxidants in organic chemistry, was evaluated and clarified in detail. We discussed the available structural and spectroscopic (IR, Raman, and UV) data and thermal behavior, including the existence and consequence of quasi-intramolecular reactions between the reducing ligand and anions containing oxygen. The present review clearly shows that two members of the pyridine complexes of AgXO4 (X = Cl, Mn, and Re, Py/Ag = 2, 2.4, 2.5, and 4) compounds have not been prepared and characterized yet (X = Re and Py/Ag = 2.4 and 2.5). For the members of AgXO4-pyridine complexes with unknown crystal structures and thermal properties, structure elucidation and thermal studies are planned. Clarification of the phase relations and the chemical nature of AgMnO4 pyridine complexes provide new and prosperous perspectives for studying AgMnO4-pyridine complexes in organic reactions, in which only a mixture of these compounds was used earlier.

Author Contributions

Conceptualization, L.K. and F.P.F.; resources, K.A.B.; writing—original draft preparation, F.P.F.; writing—review and editing, K.A.B. and L.K.; visualization, F.P.F. and K.A.B.; supervision, L.K.; project administration, F.P.F. and L.K.; funding acquisition, L.K. and K.A.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the European Union and the State of Hungary, co-financed by the European Regional Development Fund, grant number VEKOP-2.3.2-16-2017-00013 and New National Excellence program of the Ministry for Innovation and Technology from the source of the National Research, Development, and Innovation Fund, grant number ÚNKP-21-3.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Klobb, T. Combinaisons de la pyridine avec les permanganates. C. R. Chim. 1886, 118, 1271–1273. [Google Scholar]
  2. Klobb, T. Compounds of pyridine and permanganates. Bull. Soc. Chim. Paris 1894, 11, 604–609. [Google Scholar]
  3. Macy, R. The ternary system: Silver perchlorate, pyridine and water. J. Am. Chem. Soc. 1925, 47, 1031–1036. [Google Scholar] [CrossRef]
  4. Firouzabadi, H.; Vessal, B.; Naderi, M. Bispyridinesilver permanganate [Ag(C5H5N)2]MnO4: An efficient oxidizing reagent for organic substrates. Tetrahedron Lett. 1982, 23, 1847–1850. [Google Scholar] [CrossRef]
  5. Nilson, K.; Oskarsson, A. The crystal structure of tetrapyridine copper (I) perchlorate and tetrapyridine silver (I) perchlorate at 260 K. Acta Chem. Scand. Ser. A Phys. Inorg. Chem. 1982, 37, 605–610. [Google Scholar] [CrossRef]
  6. Kovács, G.B.; May, N.V.; Bombicz, P.A.; Klébert, S.; Németh, P.; Menyhárd, A.; Novodárszki, G.; Petrusevski, V.; Franguelli, F.P.; Magyari, J.; et al. An unknown component of a selective and mild oxidant: Structure and oxidative ability of a double salt-type complex having κ1O-coordinated permanganate anions and three- and four-fold coordinated silver cations. RSC Adv. 2019, 9, 28387–28398. [Google Scholar] [CrossRef] [Green Version]
  7. Lee, D.G. Bis(pyridine) silver(I) Permanganate. In Encyclopedia of Reagents for Organic Synthesis; John Wiley and Sons Inc.: New York, NY, USA, 2001; Print ISBN: 9780471936237|Online ISBN: 9780470842898. [Google Scholar] [CrossRef]
  8. Kótai, L.; Sajó, I.; Fodor, J.; Szabó, P.; Jakab, E.; Argay, G.; Holly, S.; Gács, I.; Banerji, K.K. Reasons for and Consequences of the Mysterious Behaviour of Newly Prepared Hemipyridine Solvate of Bis(pyridine)silver(I) Permanganate, Agpy2MnO4*0.5py. Trans. Met. Chem. 2005, 30, 939–943. [Google Scholar] [CrossRef]
  9. Sajó, I.E.; Kovács, G.B.; Pasinszki, T.; Bombicz, P.A.; May, Z.; Szilágyi, I.M.; Jánosity, A.; Banerji, K.K.; Kant, R.; Kótai, L. The chemical identity of “[Ag(py)2]MnO4” organic solvent soluble oxidizing agent and new synthetic routes for the preparation of [Ag(py)n]XO4 (X = Mn, Cl, and Re, n = 2–4) complexes. J. Coord. Chem. 2018, 71, 2884–2904. [Google Scholar] [CrossRef]
  10. Kauffman, G.B.; Pinnell, R.P.; Stone, R.D. Dipyridinesilver(I) Perchlorate. In Inorganic Synthesis, 6th ed.; McGraw-Hill: New York, NY, USA, 1925. [Google Scholar]
  11. Dyason, J.; Healy, P.; Engelhardt, L.; White, A. Lewis-Base Adducts of Group 1B Metal(I) Compounds. XXII. Crystal Structure of ’Bis(pyridine)silver(I) Perchlorate. Aust. J. Chem. 1985, 38, 1325–1328. [Google Scholar] [CrossRef]
  12. Bowmaker, G.A.; Effendy, M.S.; Skelton, B.W.; White, A.H. Syntheses, structures and vibrational spectroscopy of some 1:1 and 1:2 adducts of silver(I) oxyanion salts with 2,2′-bis(pyridine) chelates. Inorg. Chim. Acta 2005, 358, 4371–4388. [Google Scholar] [CrossRef]
  13. Holló, B.B.; Petrusevski, V.M.; Kovács, G.B.; Franguelli, F.P.; Farkas, A.; Menyhárd, A.; Lendvay, G.; Sajó, I.E.; Nagy-Bereczki, L.; Pawar, R.P.; et al. Thermal and spectroscopic studies on a double-salt-type pyridine–silver perchlorate complex having κ1-O coordinated perchlorate ions. J. Therm. Anal. Calorim. 2019, 138, 1193–1205. [Google Scholar] [CrossRef] [Green Version]
  14. Wilke-Dörfurt, E.; Gunzert, T. Über Neue Salze der Perrheniumsäure. Z. Anorg. Allg. Chem. 1933, 215, 369–387. [Google Scholar] [CrossRef]
  15. Woolf, A.A. A comparison of silver perrhenate with silver perchlorate. J. Less Common Met. 1978, 61, 151–160. [Google Scholar] [CrossRef]
  16. Kótai, L.; Fodor, J.; Jakab, E.; Sajó, I.E.; Sazbó, P.; Lónyi, F.; Valyon, J.; Gács, I.; Argay, G.; Banerji, K.K. A Thermally Induced Low-temperature Intramolecular Redox Reaction of bis(pyridine)silver(I) Permanganate and its hemipyridine Solvate. Trans. Met. Chem. 2006, 31, 30–34. [Google Scholar] [CrossRef]
  17. Buck, R.P.; Singhadeja, S.; Rogers, L.B. Ultraviolet Absorption Spectra of Some Inorganic Ions in Aqueous Solutions. Anal. Chem. 1954, 26, 1240–1242. [Google Scholar] [CrossRef]
  18. Larbi, T.; Doll, K.; Manoubi, T. Density functional theory study of ferromagnetically and ferrimagnetically ordered spinel oxide Mn3O4. A quantum mechanical simulation of their IR and Raman spectra. J. Alloys Compd. 2016, 688, 692–698. [Google Scholar] [CrossRef]
  19. Solymosi, F. The Thermal Stability and Some Physical Properties of Silver Chlorite, Chlorate and Perchlorate. Z. Phys. Chem. 1968, 57, 1–18. [Google Scholar] [CrossRef]
  20. Chen, T.Y.; Zeng, J.Y.; Lee, H.M. Argentophilic interaction and anionic control of supramolecular structures in simple silver pyridine complexes. Inorg. Chem. Acta 2007, 360, 21–30. [Google Scholar] [CrossRef]
  21. Bando, Y.; Nagakura, S. The electronic structure and spectrum of the silver(I)perchlorate-pyridine complex. Theor. Chem. Acta 1968, 9, 210–221. [Google Scholar] [CrossRef]
  22. Boopalachandran, P.; Laane, J. Ultraviolet absorption spectra of pyridine-d0 and -d5 and their ring-bending potential energy function in the S1 (n,π*) state. Chem. Phys. Lett. 2008, 462, 178–182. [Google Scholar] [CrossRef]
  23. Firouzabadi, H.; Sardarian, A.R. Facile oxidation od polycyclic arenes and acetylenic hydrocarbons with Bis(pyridine)silver permanganate and Bis(2,2’-bipyridil)copper(II)permanganate under mild and neutral conditions. Synth 1986, 946–948. [Google Scholar] [CrossRef]
  24. Besedin, D.V.; Gulevskaya, A.V.; Pozharskii, A.F. Reaction of 6,8-dimethylpyrimido[4,5- c]pyridazine-5,7(6 H,8 H)-dione with α,ω-diamines as the first example of tandem nucleophilic substitution in neutral azines. Mendeleev Commun. 2000, 10, 150–151. [Google Scholar] [CrossRef]
  25. Gulevskaya, A.V.; Besedin, D.V.; Pozharskii, A.F.; Starikova, Z.A. 6,8-Dimethylpyrimido[4, 5-c]pyridazine-5,7(6H,8H)-dione: A novel method of pyrrole-ring annulation to an azine nucleus based on a tandem SNH–SNH process. Tetrahedron Lett. 2001, 42, 5981–5983. [Google Scholar] [CrossRef]
  26. Kesenheimer, C.; Groth, U. Total synthesis of (-)-8-O-methyltetrangomycin (MM47755). Org. Lett. 2006, 8, 2507–2510. [Google Scholar] [CrossRef] [Green Version]
  27. Banerji, J.; Kótai, L.; Sharma, P.K.; Banerji, K.K. Kinetics and mechanisms of the oxidation of substituted benzaldehydes with bis(pyridine) silver permanganate. Eur. Chem. Bull. 2012, 1, 135–140. [Google Scholar]

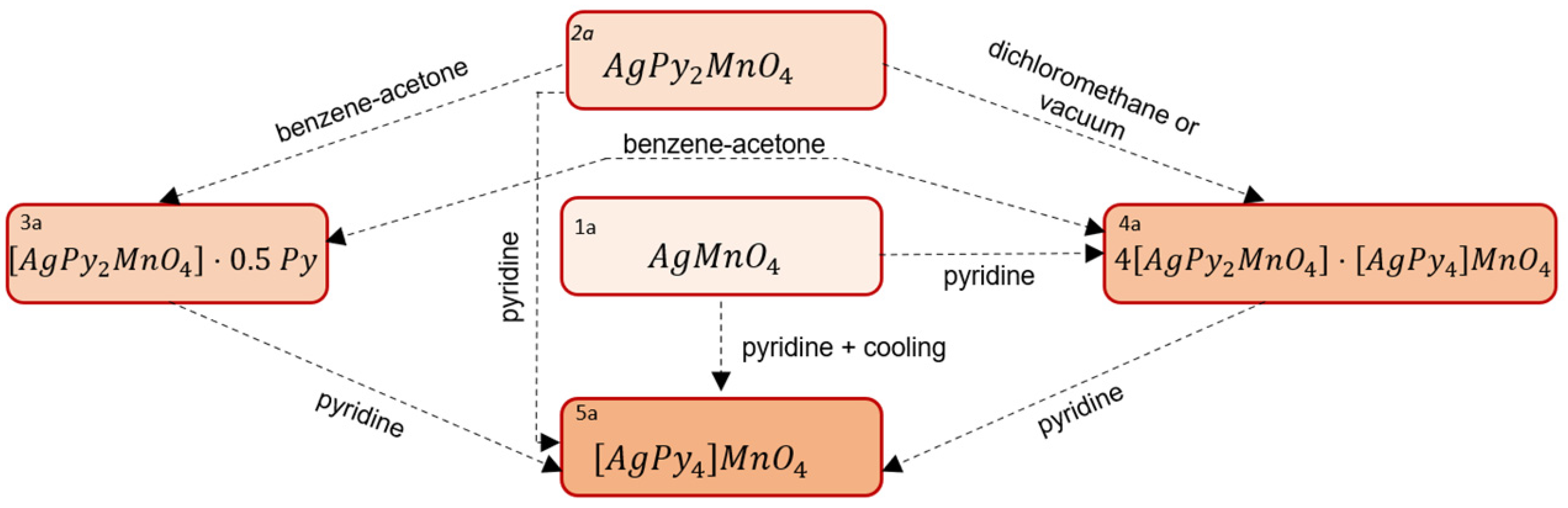

Figure 1. Interconversion scheme of permanganate complexes [9].
Figure 1. Interconversion scheme of permanganate complexes [9].
Inorganics 09 00079 g001

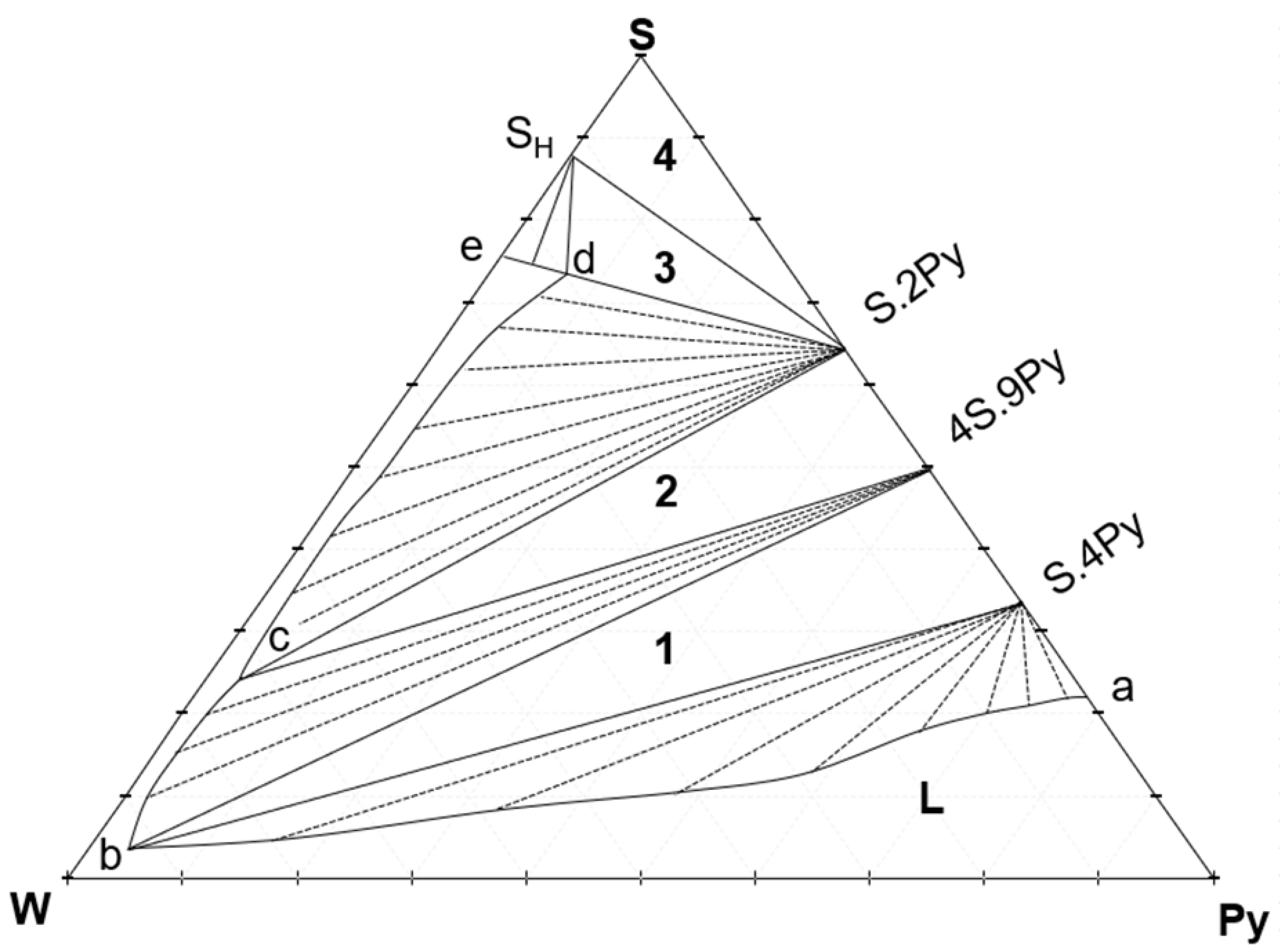

Figure 2. Ternary phase diagram of the AgClO4–pyridine–H2O system [3] (W—water, Py—pyridine, S—salt (AgClO4)). Areas of invariant equilibria are marked with letters a–e.
Figure 2. Ternary phase diagram of the AgClO4–pyridine–H2O system [3] (W—water, Py—pyridine, S—salt (AgClO4)). Areas of invariant equilibria are marked with letters a–e.
Inorganics 09 00079 g002

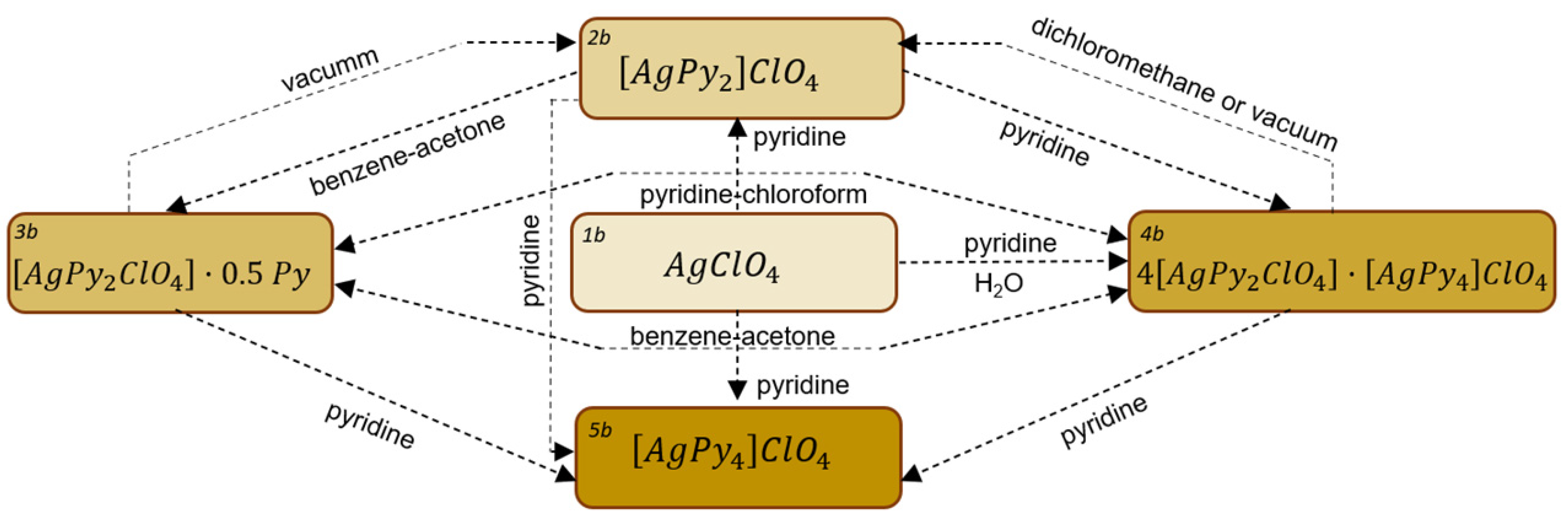

Figure 3. Interconversion scheme of perchlorate complexes [9].
Figure 3. Interconversion scheme of perchlorate complexes [9].
Inorganics 09 00079 g003

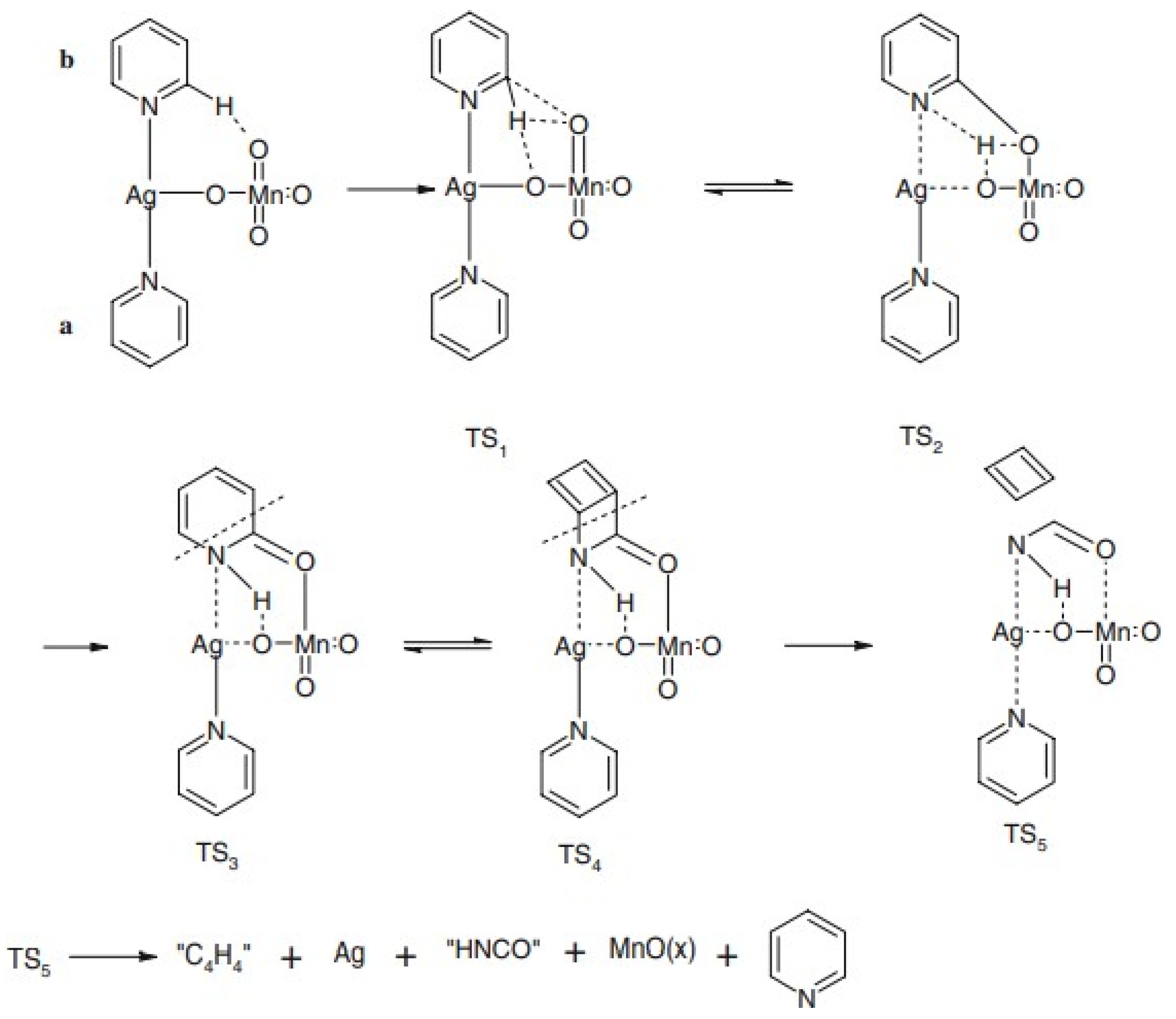

Figure 4. Proposed mechanism for the thermal decomposition of AgPy2MnO4 [16]. a -non-hydrogen bound pyridine ring: b-hydrogen bound pyridine ring.
Figure 4. Proposed mechanism for the thermal decomposition of AgPy2MnO4 [16]. a -non-hydrogen bound pyridine ring: b-hydrogen bound pyridine ring.
Inorganics 09 00079 g004

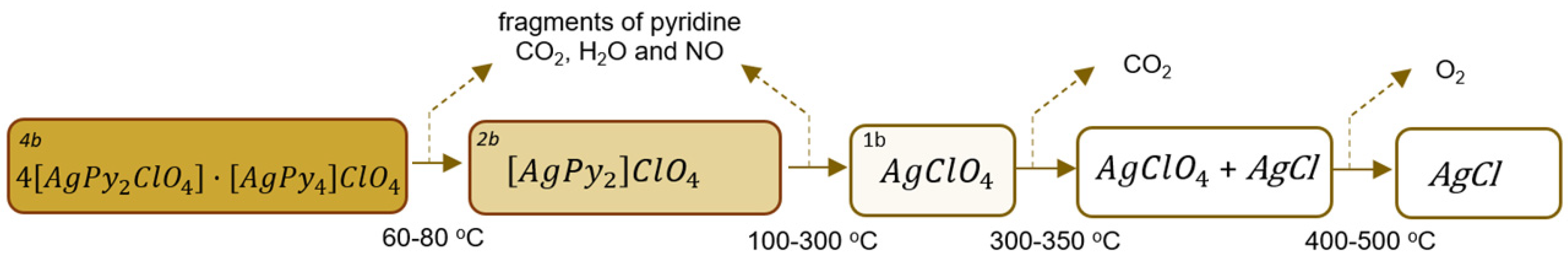

Figure 5. Proposed mechanism for the thermal decomposition of 4b in argon [13].
Figure 5. Proposed mechanism for the thermal decomposition of 4b in argon [13].
Inorganics 09 00079 g005

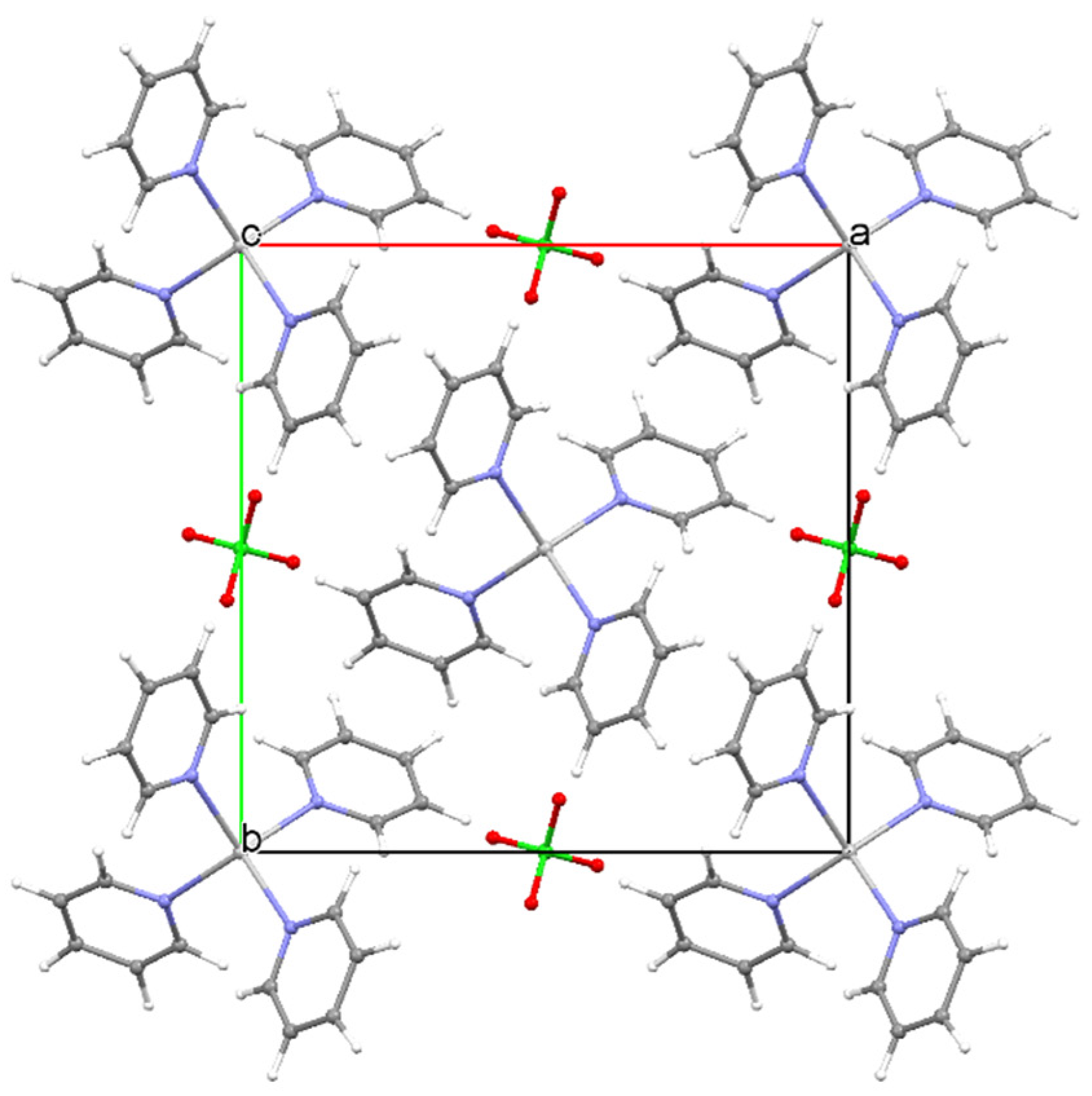

Figure 6. Structure and packing in compound 5b [9].
Figure 6. Structure and packing in compound 5b [9].
Inorganics 09 00079 g006

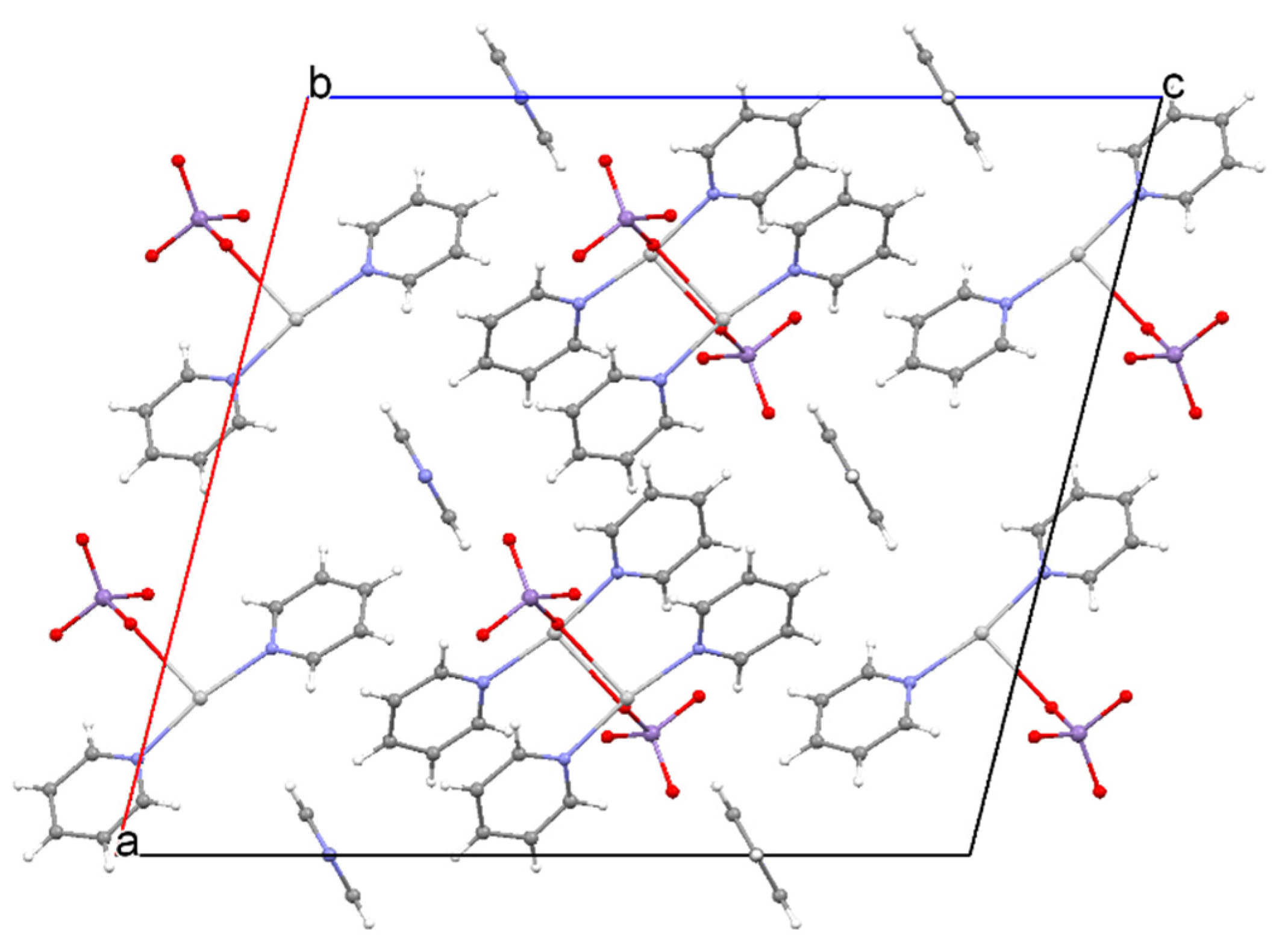

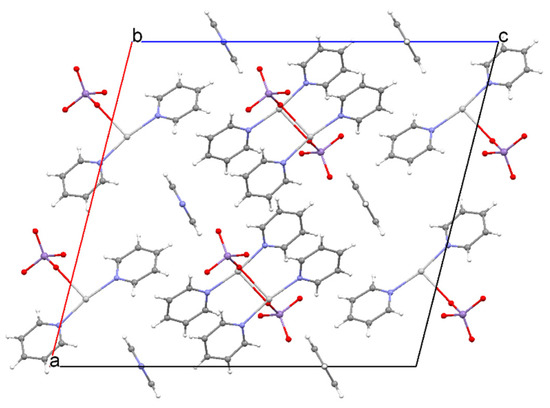

Figure 7. Structure and packing of compounds 3a and 3b [9].
Figure 7. Structure and packing of compounds 3a and 3b [9].
Inorganics 09 00079 g007

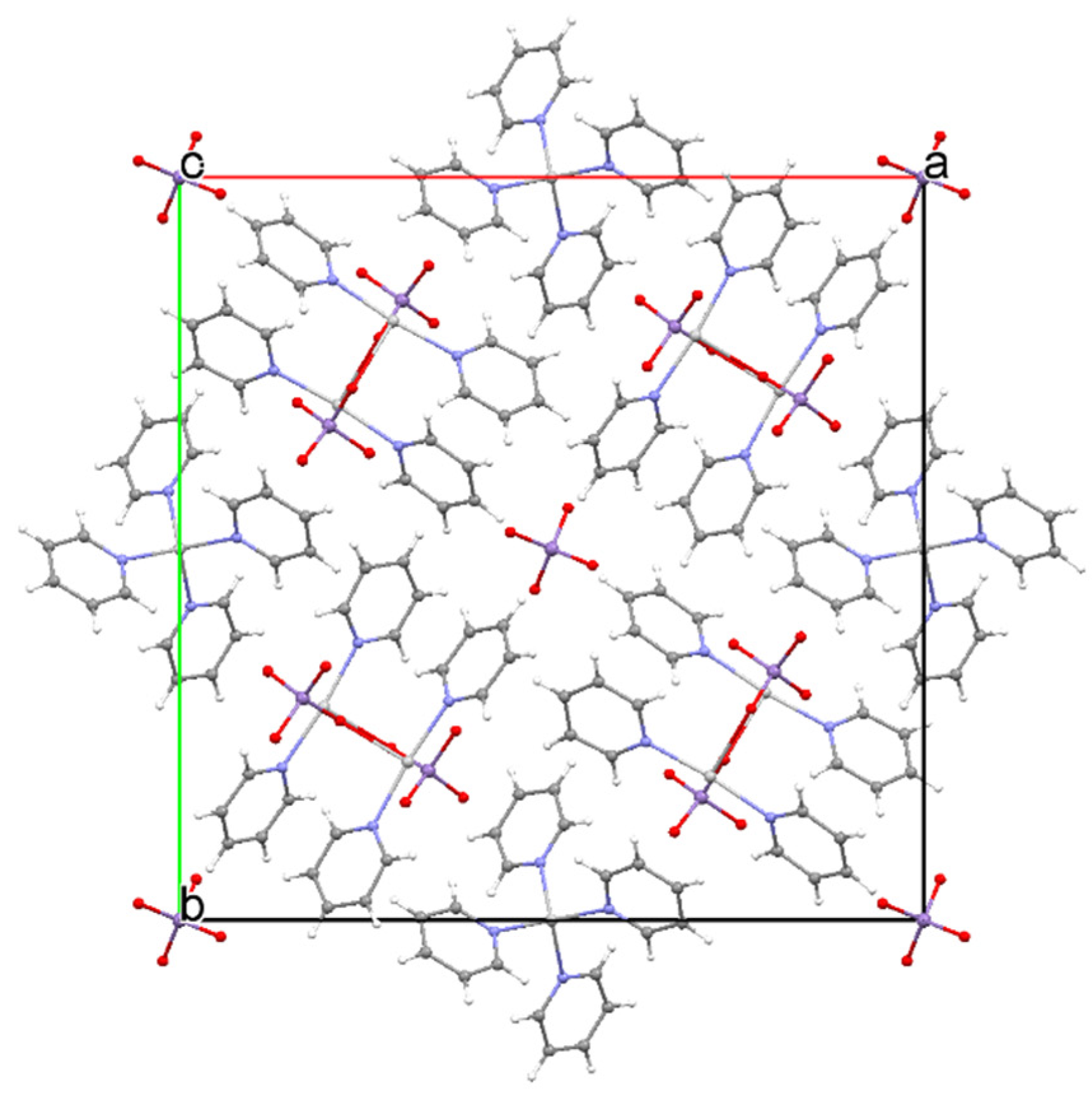

Figure 8. Structure and packing of compounds 4a and 4b [9].
Figure 8. Structure and packing of compounds 4a and 4b [9].
Inorganics 09 00079 g008
Table 1. Labels and Ag: Py ratios in pyridine complexes of AgXO4 (X = Mn (a), Cl (b), and Re (c)) complexes.
Table 1. Labels and Ag: Py ratios in pyridine complexes of AgXO4 (X = Mn (a), Cl (b), and Re (c)) complexes.
CompoundLabelPy:Ag Ratio
AgMnO41a-
AgClO41b-
AgReO41c-
AgPy2MnO42a2
[AgPy2]ClO42b2
[AgPy2]ReO42c2
[AgPy2MnO4]·0.5Py3a2.5
[AgPy2ClO4]·0.5Py3b2.5
AgPy2ReO4·0.5Py3c2.5
4[AgPy2MnO4]·[AgPy4]MnO44a2.4
4[AgPy2ClO4]·[AgPy4]ClO44b2.4
4AgPy2ReO4·AgPy4ReO44c2.4
[AgPy4]MnO45a4
[AgPy4]ClO45b4
[AgPy4]ReO45c4
Table 2. Crystallographic parameters of Ag-Py-XO4 (X = Mn, Cl, and Re) compounds.
Table 2. Crystallographic parameters of Ag-Py-XO4 (X = Mn, Cl, and Re) compounds.
Empirical FormulaLabelSpace GroupUnit Cell
Dimensions,
(Å or °)
ZD
(g·cm−3)
T (K)V (Å)3Reference
Agpy2MnO42aCca = 22.875
b = 12.266
c = 20.225
β = 62.361
161.9702985191.2[9]
[Agpy2]ClO42bPnn2/Pnnma = 20.138
b = 12.694
c = 10.125
81.8762982588.3[9]
[Agpy2]ClO42bPbcna = 19.958 (2)
b = 10.0034 (13)
c = 12.3082 (16)
81.9761502457.3 (5)[20]
[Agpy2]ReO42c-a = 7.140
b = 8.616
c = 10.827
α = 102.20
β = 96.25
γ = 105.58
22.655298645.85[9]
4[Agpy2MnO4
[Agpy4]MnO4
4a I 4 a = 22.01
c = 7.6075
10
(1)
1.8772983685.4[9]
4[Agpy2MnO4
[Agpy4]MnO4
4a I 4 a = 21.982 (3)
b = 21.982 (3)
c = 7.5974 (15)
21.8852933671.13[6]
4[Agpy2ClO4
[Agpy4]ClO4
4b I 4 a = 21.95 (1)
c = 7.6843 (3)
-1.782953702 (2)[11]
4[Agpy2ClO4
[Agpy4]ClO4
4b I 4 -----[13]
[Agpy2MnO4]·0.5Py3aC2/ca = 19.410 (1)
b = 7.788 (1)
c = 21.177 (1)
α = 90.00
β = 104.20 (1)
γ = 90.00
41.8172933103.4 (5)[9]
[Ag(py)4]MnO45aP21a = 15.24
b = 13.89
c = 5.31
β = 84.13o
2-2981117[9]
[Ag(py)4]ClO45b I 4 ,
I 4 / m
a = 12.874 (1)
c = 6.748 (4)
21.552601118.4[5]
Table 3. The main crystallographic parameters of [Ag(py)2]MnO4, [Ag(py)2]ClO4, [Ag(py)2]ReO4, and [Ag(py)2.4]MnO4.
Table 3. The main crystallographic parameters of [Ag(py)2]MnO4, [Ag(py)2]ClO4, [Ag(py)2]ReO4, and [Ag(py)2.4]MnO4.
Compounds/Pace Group.LabelAg-Ag (Å) Ag-N (Å)α-CH…O-X/F-X (Å)Reference
4[Agpy2]ClO4·[Agpy4]ClO4, I-44b4.8432.740
2.15
2.645
2.645
[13]
4[Agpy2]ClO4·[Agpy4]ClO4, I-44b4.8432.16
2.30
2.753
2.781
[11]
4[Agpy2]MnO4·[Agpy4]
MnO4, I-4
4a4.8222.6013.121[6]
[Agpy2MnO4]·0.5Py C2/c3a3.4212.166
2.174
2.602
2.770
[9]
[Agpy2]ClO4, Pbcn2b2.9992.126
2.133
2.672
2.581
2.700
2.566
[20]
[Agpy4]ClO4, I-42b6.7482.3222.712
3.237
[5]
