Review

Algal Carotenoids: Chemistry, Sources, and Application

by
Ivana Generalić Mekinić
1,*,
Vida Šimat
2,*,
Nikheel Bhojraj Rathod
3,
Imen Hamed
4 and
Martina Čagalj
2
1
Department of Food Technology and Biotechnology, Faculty of Chemistry and Technology, University of Split, R. Boškovića 35, HR-21000 Split, Croatia
2
University Department of Marine Studies, University of Split, R. Boškovića 37, HR-21000 Split, Croatia
3
Department of Post Harvest Management of Meat, Poultry and Fish, PG Institute of Post Harvest Technology & Management (Dr. Balasaheb Sawant Konkan Krishi Vidyapeeth, Dapoli), District Raigad, Killa-Roha 402 116, Maharashtra State, India
4
Department of Biotechnology and Food Science, NTNU—Norwegian University of Science and Technology, 7491 Trondheim, Norway
*
Authors to whom correspondence should be addressed.
Foods 2023, 12(14), 2768; https://doi.org/10.3390/foods12142768
Submission received: 6 July 2023 / Revised: 18 July 2023 / Accepted: 18 July 2023 / Published: 20 July 2023

Abstract

:
Recently, the isolation and identification of various biologically active secondary metabolites from algae have been of scientific interest, with particular attention paid to carotenoids, widely distributed in various photosynthetic organisms, including algal species. Carotenoids are among the most important natural pigments, with many health-promoting effects. Since the number of scientific studies on the presence and profile of carotenoids in algae has increased exponentially along with the interest in their potential commercial applications, this review aimed to provide an overview of the current knowledge (from 2015) on carotenoids detected in different algal species (12 microalgae, 21 green algae, 26 brown algae, and 43 red algae) to facilitate the comparison of the results of different studies. In addition to the presence, content, and identification of total and individual carotenoids in various algae, the method of their extraction and the main extraction parameters were also highlighted.

Graphical Abstract

1. Introduction

Carotenoids are the most widely distributed lipid-soluble pigments in nature. They are common in various photosynthetic organisms (higher plants, fungi, algae, and bacteria), where they are primarily biosynthesized and are responsible for the various colors, hues, and shades [1]. They play several roles: during photosynthesis they act as accessory pigments for light collection, they are involved in preventing damage from excess light and serve as one of the most important cell antioxidants, they are important in the reproductive cycle as their color attracts pollinators, they are provitamins, etc. [2,3]. Carotenoids are a very complex and heterogeneous group of compounds whose greatest structural diversity is found in organisms of the marine environment. Some carotenoids are restricted exclusively to aquatic sources. Complex habitats and harsh conditions have led algae to produce a wide range of specific and bioactive compounds. Due to the diverse bioactivity of algae and their use in food, medicine, and cosmetics, they are currently being intensively studied for the production of carotenoid compounds [4,5,6,7].
Currently, commercially available carotenoids are usually produced by chemical synthesis, which involves high economic costs and has a negative impact on the environment. These facts have led to a significant increase in demand for natural sources of carotenoids, with a focus on marine organisms, especially algae. According to the Scopus database, the number of publications and citations related to carotenoids in algae has increased in the last decade, and it is still permanently increasing (Figure 1).

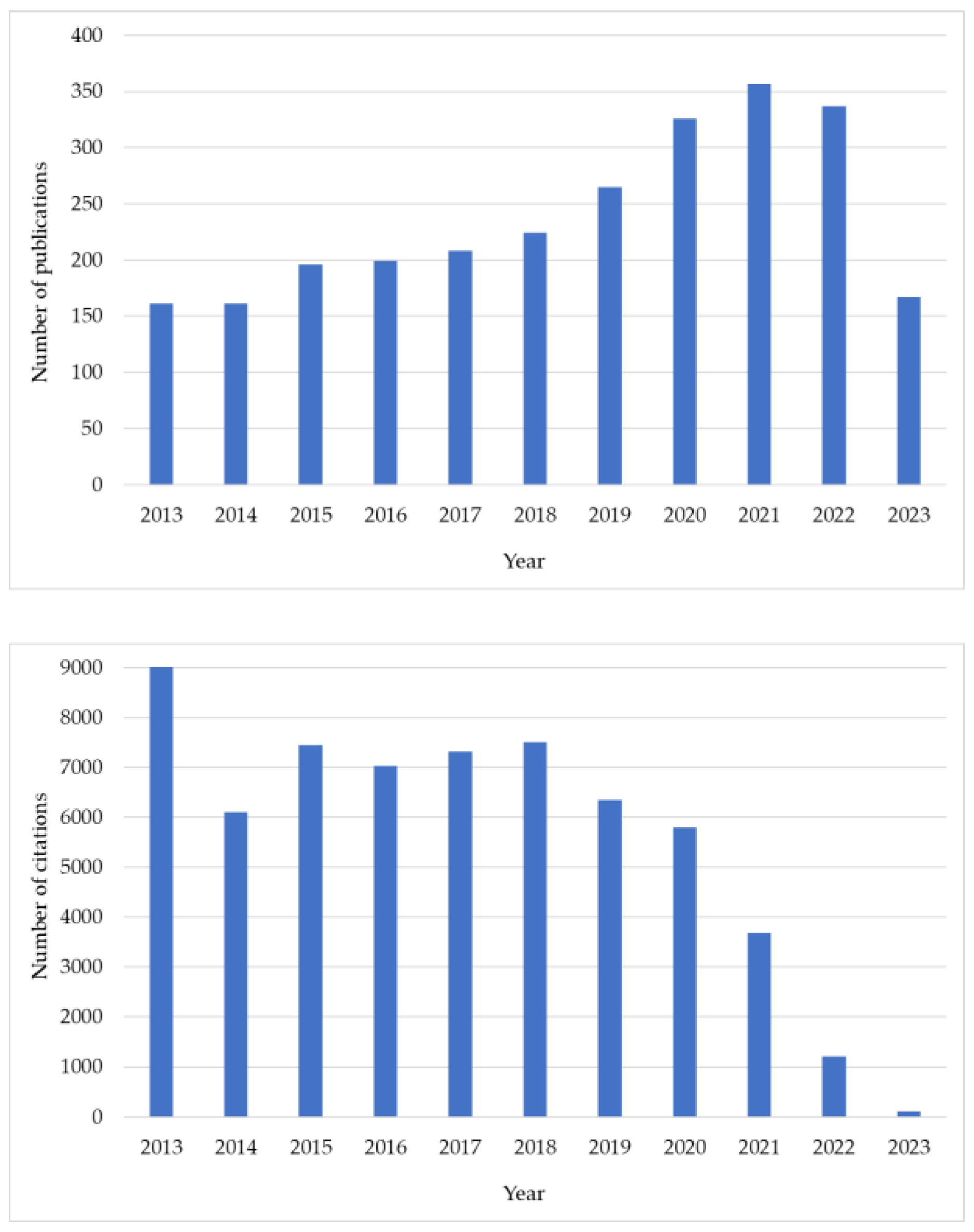

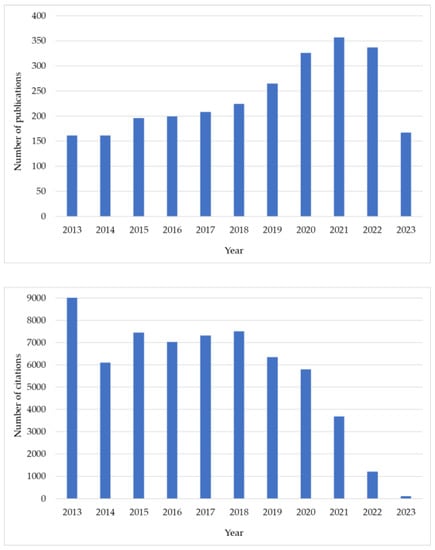

In this review, articles published from 2015 (via keyword searches in the Scopus and Science direct databases) on the presence, isolation, and detection of carotenoid compounds (total and individual) in various microalgal and macroalgal species (green, brown, and red algae and seaweeds) are summarized and discussed. Particular attention was paid to the extraction solvent and procedure used, as well as the method/technique used for detection and the concentrations reported.

2. Carotenoids

2.1. Chemistry

Chemically, carotenoids are isoprenoid polyenes. Their structure consists of isoprene (C5) units that are attached to each other, so we usually divide them into C30 (6 units, apocarotenoids), C40 (8 units), C45 (9 units), and C50 (10 units). However, the most abundant carotenoids in nature are the carotenoids with 40 C atoms (tetraterpenoids). Their molecule is symmetrical as the isoprenes are connected in a head-to-tail manner except in the center of the molecule, where the order is reversed (tail to tail). One can also distinguish carotenoids with allenic (C=C=C), and acetylenic (C≡C) groups, which are found in various marine organisms [5,8,9].
Carotenoids are generally classified as carotenes and xanthophylls. Carotenes are hydrocarbons (C40H56), while xanthophylls are their oxygenated derivatives that have one or more oxygen-containing functional groups, such as methoxy- (e.g., rhodovibrin and spirilloxanthin), hydroxy- (e.g., criptoxanthin, zeaxanthin, and lutein), keto- (e.g., astaxanthin and canthaxanthin), epoxy- (e.g., violaxanthin, neoxanthin, and fucoxanthin), carboxy- (e.g., bixin and crocetin), oxo- (e.g., capsanthin and rhodoxanthin), and ester (xanthophyll esterification with fatty acids) forms. Xanthophylls are usually formed from the basic structure by enzymatic reactions that undergo hydrogenation, dehydrogenation, cyclization, and oxidation, and the oxygen-containing functional groups in the xanthophyll structure affect their biological properties and solubility, making them more polar than carotenes [1,8,9,10]. They can also be classified as acyclic, monocyclic, and bicyclic, based on the number of molecular terminal rings [11].
Due to the presence of double bonds in the carotene molecule, they often exhibit cis-trans isomerization. In nature, however, carotenoids exist predominantly in trans- form. This structural feature also makes them susceptible to oxidation (autooxidation, photooxidation, and enzymatic oxidation) [8]. Carotenoids are mostly stable as long as the integrity of the cell and chromoplast is maintained. However, when this is disturbed, they are susceptible to the exposure to oxygen and oxidizing enzymes, light, elevated temperatures, the presence of metal ions, prooxidants, etc., leading to their degradation. Carotenoids are also important from a nutritional point of view. The chemical diversity of carotenoids leads to their various biochemical and physiological functions, such as antioxidant, anticancer, chemoprotective, lipotoxic, anti-inflammatory, neuroprotective, antidiabetic, etc. [2,3,9,10].

2.2. Extraction

The polyene chain in the structure of carotenoids is responsible for their characteristic yellow, orange, and red colors, while the nature of the oxygenated groups is responsible for their solubility, polarity, and general chemical properties. The extraction of liposoluble pigments from plant material usually involves the use of vegetable oils and various organic solvents [10].
Carotenes such as β-carotene, α-carotene, and lycopene are the most widely distributed nonpolar carotenoids, while the presence of polar functional groups in xanthophyles increases the polarity of these compounds [11].
Therefore, carotenoids are liposoluble: carotenes in nonpolar or medium-polar solvents (such as hexane, ethyl acetate, and petroleum ether) and xanthophylls in polar solvents such as alcohols or acetone [8,12]. In most studies, mixtures of acetone, ethanol/methanol, and hexane are used for the extraction of carotenoids from various matrices, but ethanol and acetone prove to be very efficient when large amounts of water are present, as in algal samples. In terms of safety and environmental protection, these two solvents are also the best choices for food applications [11,12,13,14,15].
Prior to extraction, the often dry algal samples are homogenized and then extracted with an organic solvent/solvent mixture, usually applied in one step. The choice of solvent is a critical factor for efficient carotenoid extraction. Since carotenoids are susceptible to degradation reactions and enzymatic oxidation, extractions should be performed in a short time and under suitable temperature conditions [11,12].
In line with the principles of environmentally friendly extraction, extraction processes have recently been developed that minimize the use of organic solvents, utilize renewable resources, and also ensure a high content of extracted compounds and their quality. Various methods have been developed for the rapid and efficient extraction of carotenoids from algae, usually combined with cell disruption to facilitate the release of carotenoid pigments [16,17,18,19]. Strategies involving mechanical disruption followed by solvent extraction have increased the yield of extracted carotenoid compounds [20,21,22]. However, considering the risks associated with mechanical cell disruption, enzymes have also been used as cell wall disruption technology [23]. Considering the risks associated with the use of harmful solvents and with advanced nonthermal technologies, these are also being investigated for the extraction of bioactive compounds [24], as novel technologies using high pressure, ultrasound, microwaves, pulsed electric fields, supercritical fluids, pressurized fluids, moderate electric fields, enzymes, etc. [11,12,17,25,26,27,28,29]. Recent reviews [16,18,20,30,31,32,33] compared the different conventional and novel methods for the extraction of carotenoids from algae, such as physical, chemical, mechanical (grinding, milling, pressure), microwave-assisted extraction, ultrasound-assisted extraction, enzymatic hydrolysis, application of electric fields, ionic liquids, deep eutectic solvents, chemical solvation, extraction with supercritical fluids, etc.
Carotenoid extraction often involves the extraction of other compounds such as chlorophylls, lipids, and esters, so saponification (alkaline hydrolysis) is an important step to remove these compounds that could interfere with the analysis. During saponification, the fatty acids bound to the target molecules are broken up and released. This process thus separates other lipid compounds, especially triglycerides, from the carotenoids. While carotenes do not form esters, xanthophylls do, so one of the main advantages of saponification is the release of esterified xanthophylls through the hydrolysis [11,34]. Also, this step is often used to remove interfering chlorophylls. From the above, it can be concluded that saponification is usually required for the hydrolysis of carotenoid-esterified forms (in samples containing xanthophyll esters), for the separation of chlorophylls, or in samples with high contents of lipids and low contents of carotenoids [34]. Saponification can be performed during sample homogenization, before or after extraction, and involves the addition of a basic solvent (e.g., methanolic sodium or potassium hydroxide). This step does not affect most carotenoids as they are alkali-stable, but some of them such as astaxanthin and fucoxanthin are susceptible to this reaction. It has also been reported that saponification leads to the degradation of carotenoids (isomerization, decomposition by high temperatures, long time and high alkali concentration, oxidation, etc.), so it should be omitted if possible [35,36].

2.3. Identification, Separation, and Quantification

Prior to quantification, carotenoids are usually identified by UV/Vis spectrophotometry (detection of absorption maxima at specific wavelengths), Fourier transform infrared spectroscopy (FTIR) (determination of the nature of functional groups), and nuclear magnetic resonance (NMR) (conjugation of double bonds) [37]. Nonspecific spectrophotometric methods are used for the rapid screening and determination of total carotenoid content in the samples, while chromatographic techniques are used for the separation, identification, and quantification of individual compounds [10,11,38].
Carotenoids are able to absorb ultraviolet (UV) and light in the visible region of the spectrum because they have conjugated double bonds in their structure (chromophore). They usually have three absorption maxima in the visible region of the spectrum (between 430 and 480 nm), and only a few of them have maxima in the UV region (e.g., phytoene). Therefore, the differences in the spectral characteristics of individual carotenoids are often small but very important for their identification. Carotenoid absorption maximums depend on the nature of the carotenoid (polyenic extremity, presence of the C=O conjugated groups, and the cistrans configuration of the molecule). It should also be noted that the used solvent has a great influence on the absorption maximum of the compound [38,39,40]. The total carotenoid content of isolates is usually determined by measuring the absorbance of the sample at a specific wavelength and calculating it from the absorbance values reported in the literature. In this method, the content of total carotenoids is usually expressed as equivalents of β-carotene [8,10,11,37,39,40].
The separation and quantification of carotenoids is usually performed by high-performance liquid chromatography (HPLC) using different stationary phases (octyl-C8, octadecyl-C18, and C30), with C18 being the most commonly used and C30 being more efficient in separating the geometric isomers. Their separation can be performed by normal and reversed phase HPLC, but the separation of carotenes by normal phase HPLC is usually not good [41]. The most common detectors are ultraviolet (UV), visible (Vis), and diode array detector (DAD). In these methods, carotenoids are identified based on their retention times, UV/visible spectral characteristics, and/or mass spectra and compared with data obtained for standard compounds tested under the same conditions. Since some carotenoids cannot be identified from their absorbance or spectrum alone, mass spectrometry (MS), MS/MS, electrospray ionization (ESI), time-of-flight (TOF) MS, etc., are often used [11,37,42].
The great diversity of carotenoid structures and their susceptibility to degradation make their identification and quantification very difficult. In addition, there is no reference method for their extraction and detection, they are often present at low concentrations and surrounded by numerous interfering substances, and commercial standards are often not available, further complicating their identification and quantification.

3. Algal Carotenoids

The carotenoid profile of algae is similar to that of higher plants in terms of their species, location, and distribution [1]. However, carotenoid composition varies qualitatively and quantitatively among different species, especially since the extraction method is not generally standardized. Various abiotic and biotic factors such as the growth stage, harvest location and period, depth, nutrient quantity and quality, temperature, salinity, light exposure, etc. also vary. The most important carotenoids from microalgae and macroalgae are astaxanthin, fucoxanthin, β-carotene, lutein, siphonaxanthin, zeaxanthin, violaxanthin, neoxanthin, and antheraxanthin [4,5,43,44].

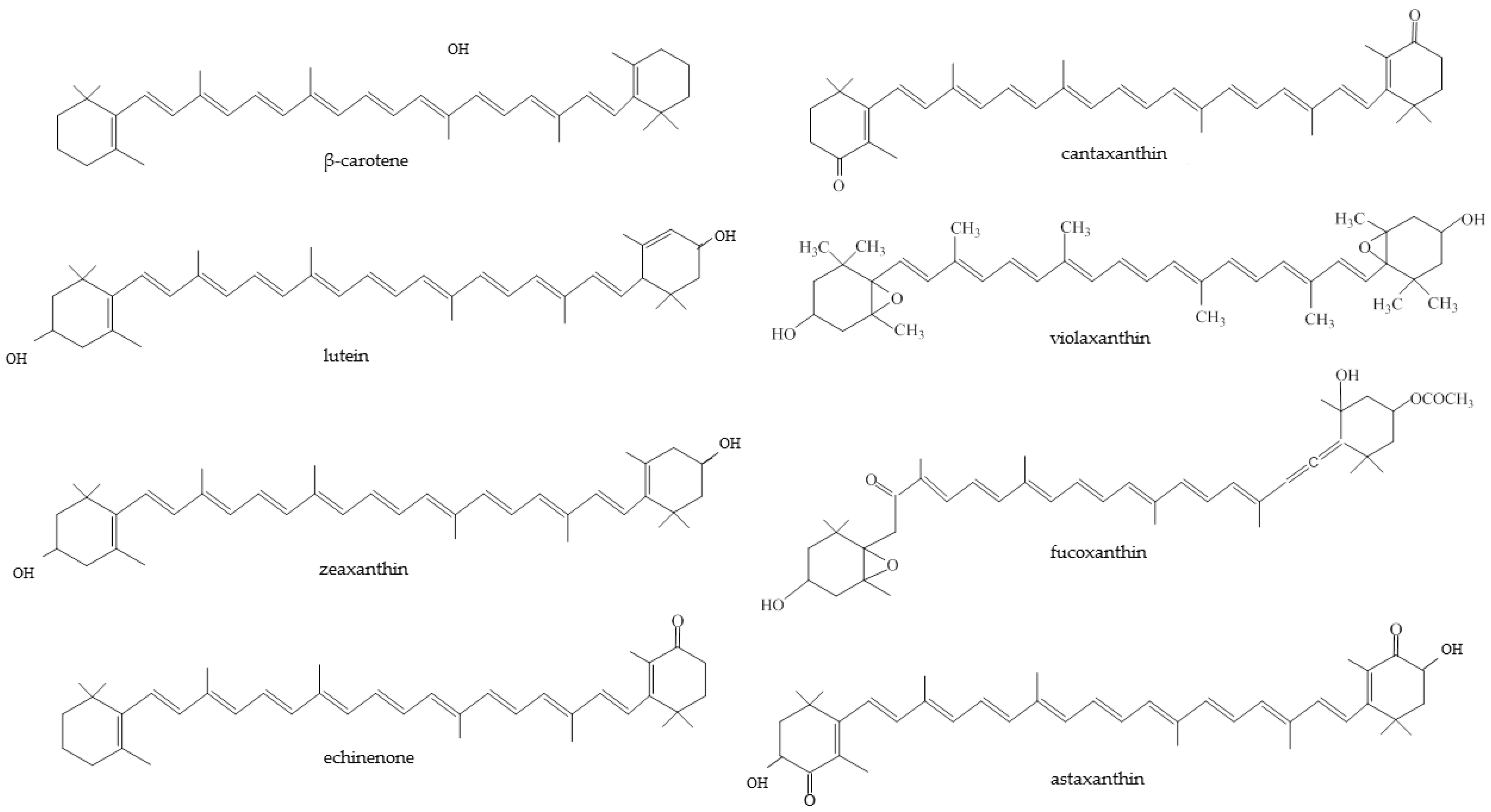

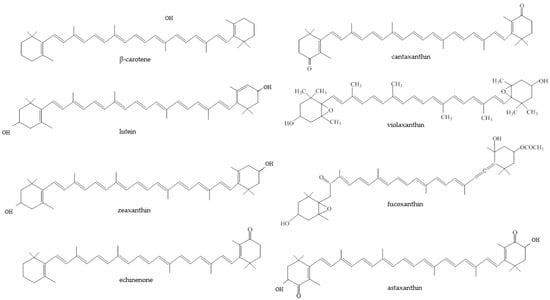

Figure 2 shows the chemical structures of selected carotenoids that have been detected in algae.

3.1. Carotenoids in Microalgae

The main carotenoids produced by marine microalgae are β-carotene, astaxanthin, lutein, fucoxanthin, zeaxanthin, echinenone, and violaxanthin [45], but various environmental factors such as temperature, light, salinity, and nutrient content affect their production [46]. The cell walls of microalgae are an obstacle to the extraction of carotenoids. Therefore, to increase extraction yield, cell disruption (by mechanical or nonmechanical methods) is required, which is often combined with other methods to weaken and/or break the cell walls. Various nonconventional extraction techniques are also commonly used for the extraction of carotenoids from microalgal samples, e.g., supercritical fluid extraction [47], ultrasound-assisted extraction [21,26,27,28,48,49], microwave-assisted extraction [21], pulsed electric field [50], pressurized fluid extraction [22,51], magnetic-field-assisted extraction [21], etc.
Table 1 provides an overview of the studies on the extraction of carotenoids from microalgae. As can be seen, various microalgae species have been studied, and the presence of different carotenoids has been reported, such as fucoxanthin, lutein, neoxanthin, violaxanthin, α-carotene, β-carotene, etc.
Astaxanthin is an orange-red-colored xanthophyll with hydroxyl- and keto- groups [52,53,54]. Among algal species, Haematococcus pluvialis has the highest ability to biosynthesize astaxanthin and the greatest potential for its accumulation [5], while the microalga Dunaliella salina has been recognized as an important industrial source of β-carotene, a carotene with two beta rings at both ends of the molecule (β-ionone ring substitutions), especially due to its wide geographic distribution, ease of cultivation, and ability to exist under extreme environmental conditions. Its major advantage is that it serves as a precursor of vitamin A [5,46,55]. As for the solvents used, Table 1 shows that alcoholic solvents and acetone are the most commonly used.
Table 1. Overview of the studies on microalgal carotenoids.
Table 1. Overview of the studies on microalgal carotenoids.
SpeciesOriginSolventExtraction MethodExtraction ConditionsDetection
Method
ResultReference
Amphora sp.-ACEPLEPressure (1500 and 2000 psi); heating time (5 min); flushing solvent volume (6.6 mL); nitrogen purging (1 min)UV/Vis, HPLC-DADFucoxanthin (1.21 mg/g)[51]
Chaetoceros muelleriNorth PacificACEPLEPressure (1500 and 2000 psi); heating time (5 min); flushing solvent volume (6.6 mL); nitrogen purging (1 min)UV/Vis, HPLC-DADFucoxanthin (2.92 mg/g)[51]
Chlorella salinaIndiaMetOHUAMESonication (35 kHz, 30 min, 40 °C) HPLC-DADLutein (2.92 mg/g)[26]
Chlorella vulgarisCzech RepublicHep-EtOH-water, THF, DCMCSE, UAECSE: maceration (30 min); UAE: sonication (38 kHz, 47.7707 W/cm, 10, 20 and 30 min, 25 °C)HPLC-DADLutein (0.22–3.20 mg/g)[28]
SpainEtOHPEFPEF pretreatment: temperature (10, 25 and 40 °C), distance between electrodes (0.25 cm), area (1.76 cm); maceration (dark); centrifugationHPLC-DADLutein (0.75 mg/g)[50]
Chlorococcum humicolaThailandLiquefied DME, MetOH, ACELiquefied DME extraction, CSEDME: time (6–60 min); temperature (30–47 °C); CSE: magnetic stirring (400 rpm); time (6–60 min); temperature (30–47 °C)UV/Vis, HPLC-DADTotal carotenoids (4.14 mg/g)[56]
IndiaEtOHCSE HPLC-UV/VisViolaxanthin (24.98 mg/g fw), astaxanthin (37.31 mg/g fw), lutein (48.36 mg/g fw), zeaxanthin (22.98 mg/g), α-carotene (32.90 mg/g), β-carotene (46.31 mg/g)[57]
Chrysotila carteraeUSAACEPLEPressure (1500 and 2000 psi); heating time (5 min); flushing solvent volume (6.6 mL); nitrogen purging (1 min)UV/Vis, HPLC-DADFucoxanthin (1.04 mg/g)[51]
Desmodesmus sp. F51Taiwan-Pressure applicationHigh-pressure homogenization (10–40 kpsi, cycles 1 to 4)UV/Vis, HPLC-UV/VisTotal carotenoids (0.6–8.2 mg/g), neoxanthin, violaxanthin, lutein, α-carotene, β-carotene[58]
Dunaliella salina-CO2 with EtOH/MetOHSFEPressure (20 and 30 MPa); temperature (308.15, 318.15, and 328.15 K); co-solvent (5%)UV/VisTotal carotenoids (4–25 mg/g)[47]
IndiaACEUAEVortexing (15 s); sonication (10 min); homogenization with solvent (4 days)UV/VisTotal carotenoids (3.2–13.9 µg/mL)[48]
Haematococcus pluvialisCanadaACE, MetOH, EtOHUAESonication (35% amplitude at 20 kHz, 5, 15, 25, and 35 min)UV/VisTotal astaxanthin (0.15–0.36 mg/g)[27]
Czech RepublicEtOHCSEVortexing (5 min) with glass beads; centrifugation (3000 rpm, 3 min)HPLC-DAD, LC-QTOF-MSLutein (1.12 mg/g), β-carotene (0.89 mg/g), adonixanthin (0.17 mg/g), antheraxanthin (0.04 mg/g), neoxanthin (0.44 mg/g), astaxanthin (0.06 mg/g), echinenone (0.06 mg/g), total carotenoids (3.62 mg/g)[59]
ItalyACE, EtOH, Hex, Chl/MetOHPLEPressure (50 and 100 bar); temperature (20–100 °C); heating time (5 min); time (20 min); flushing solvent volume (6.6 mL); nitrogen purging (1 min)HPLC-DADAstaxanthin (3.96–30.02 µg/g)[22]
ChinaEtOAcCSE, UAE, MAE, MFAECSE: maceration with stirring (230 rpm, 50 min, 50 °C); UAE: sonication (100 W, 60 min, 40 °C); MAE: (30 min; 45 °C); MFAE: (field 20 mT; 50 MHz; 60 min, RT)HPLC-DADAstaxanthin (76.5–111.2 mg/g)[21]
BrazilDCMEnzymatic lysis
(β-1,3-glucanase, xylanes, and protease)
Enzymatic lysis in combination with ultrasonication (40 kHz)UV/VisTotal carotenoids (0.50–1.25 mg/g)[23]
Isochrysis galbana- SFEPressure (30 MPa); temperature (50 °C), co-solvent (4% ethanol); CO2 flow rate (7.2 g/min for 120 min)UV/VisFucoxanthin (7.5 mg/g)[60]
Navicula sp.-ACEPLEPressure (1500 and 2000 psi); heating time (5 min); flushing solvent volume (6.6 mL); nitrogen purging (1 min)UV/Vis, HPLC-DADFucoxanthin (1.49 mg/g)[51]
Nanofrustulum shiloiTurkeyEtOHUAEUltrasonic bath, 50 °C, 15 min HPLC-DADFucoxanthin (19.75–38.06 mg/g)[61]
Pheodactylum tricornutumUnited KingdomACEPLEPressure (1500 and 2000 psi); heating time (5 min); flushing solvent volume (6.6 mL); nitrogen purging (1 min)UV/Vis, HPLC-DADFucoxanthin (1.87 mg/g)[51]
Tisochrysis luteaTahitiACEPLEPressure (1500 and 2000 psi); heating time (5 min); flushing solvent volume (6.6 mL); nitrogen purging (1 min)UV/Vis, HPLC-DADFucoxanthin (2.05 mg/g)[51]
UV/Vis—ultraviolet-visible; HPLC—high-performance liquid chromatography; LC—liquid chromatography; DAD—diode array detector; MS—mass spectrometry; QTOF—quadrupole time-of-flight; MetOH—methanol; ACE—acetone; EtOH—ethanol; Chl—chloroform; DCM—dichloromethane; DME—dimethyl ether; EtOAc—ethyl acetate; Hex—hexane; Hep—heptane; SFE—supercritical fluid extraction; CSE—conventional solvent extraction; PLE—pressurized liquid extraction; UAME—ultrasound-assisted microextraction; UAE—ultrasound-assisted extraction; PEF—pulsed electric field; MAE—microwave-assisted extraction; MFAE—magnetic-field-assisted extraction; RT—room temperature; fw—fresh weight.
From the reported results, the content of total carotenoids varied in the different studies and the highest content was found in D. salina (up to 25 mg/g) in the study by Tirado and Calvo [47]. The authors used supercritical fluid extraction as a green method for the extraction of carotenoids, while supercritical CO2 with EtOH/MetOH was used as the extraction solvent. Zhao et al. [21] reported an extremely high concentration of astaxanthin in H. pluvialis (111.2 mg/g), Ishika et al. [51] reported a similarly high concentration of fucoxanthin in Chaetoceros muelleri (2.92 mg/g), and Gayathri et al. [26] reported similar results for lutein in Chlorella salina (2.76 mg/g). Other studies also reported the presence of other carotenoids in microalgae samples: β-carotene, adonixanthin, antheraxanthin, neoxanthin, and echinenone in H. pluvialis [59] and neoxanthin, violaxanthin, α-carotene, and β-carotene in Desmodesmus sp. F51 [58].

3.2. Carotenoids in Green Algae (Chlorophyta)

The most abundant carotenoids in green algae are β-carotene, lutein, violaxanthin, and zeaxanthin, which are more widely distributed in green algal species than in higher plants [1]. As can be seen from the studies reported in Table 2, conventional extraction methods are generally used for the isolation and extraction of carotenoids from green algae, while only two studies [62,63] used extraction methods with ultrasound. Again, acetone is the most commonly used extraction solvent.
In the case of green algae, there are also large differences between reported results among studies, especially among studied species. Compared with microalgae, the total content of carotenoids is significantly lower (results are often reported in µg/g). The highest concentration was determined by Ak and Turker [64] in Ulva rigida (0.41 mg/g). Among the individual carotenoids detected by HPLC, neoxanthin was detected in Bryopsis sp., Caulerpa sertularioides, Chaetomorpha antennina, Ulva fasciata, Ulva lactuca, and Ulva prolifera [65,66,67] with the highest amount of 8.84 µg/g detected in U. prolifera in the study of Bhat et al. [65]; violaxanthin in Bryopsis sp., Caulerpa lentillifera, C. sertularioides, C. antennina, Rhizoclonium riparium, U. lactuca, and U. prolifera [65,66,67,68] with the highest amount of 8.93 µg/g detected in C. lentillifera in the study by Othman et al. [68]; zeaxanthin in Bryopsis sp., C. lentillifera, Cladophora sp., C. antennina, U. fasciata, U. lactuca, and U. prolifera [65,66,68,69] with the highest amount of 50.20 µg/g detected in Cladophora sp. in the study by Bhat et al. [65]; lutein in Bryopsis sp., C. lentillifera, C. sertularioides, Cladophora sp., C. antennina, Monostroma nitidum, R. riparium, U. fasciata, U. lactuca, U. rigida, and U. prolifera [65,66,67,68,70,71] with the highest amount of 0.30 mg/g detected in Monostroma nitidum in the study by Kanda et al. [70]; and β-carotene in C. lentillifera, Caulerpa racemosa, C. sertularioides, Chaetomorpha linum, C. antennina, M. nitidum, R. riparium, and U. fasciata [63,65,66,67,68,69,70,71,72] with the highest amount of 17.26 mg/g detected in C. racemose in the study by Magdugo et al. [63]. Among other compounds, the presence of fucoxanthin [65], neoxanthin [65,66], astaxanthin [66,67,69,72], canathaxanthin [69], β-cryptoxanthin [69], siphoxathin [66], siphonein [66], and siphonaxanthin [73] were also reported.
Table 2. Overview of the studies on green algae carotenoids.
Table 2. Overview of the studies on green algae carotenoids.
SpeciesOriginSolventExtraction MethodExtraction ConditionsDetection
Method
ResultReference
Bryopsis sp.IndiaACECSEMacerationHPLC-DADFucoxanthin (3.44 µg/g), neoxanthin (2.11 µg/g), violaxanthin (0.84 µg/g), lutein (4.06 µg/g), zeaxanthin (1.62 µg/g) [65]
Caulerpa lentilliferaIndonesia---UV/VisTotal carotenoids (1.31–2.29 µg/g)[74]
MalaysiaACE, HexCSEMixing; centrifugationUV/Vis, HPLC-DADTotal carotenoids (63.5 µg/g), zeaxanthin (21.30 µg/g), lutein (21.13 µg/g), β-carotene (10.7 µg/g), violaxanthin (8.93 µg/g)[68]
MalaysiaEtOHCSEStirring (24 h, RT)HPTLC, UHPLC-ESI/HRMS/MSβ-carotene (0.19 mg/g), astaxanthin (0.03 mg/g), canathaxanthin (0.15 mg/g), β-cryptoxanthin (0.013 mg/g), zeaxanthin (0.036 mg/g)[69]
Caulerpa racemoseIndiaACECSEHomogenization (24 h, dark, RT); centrifugation (5000 rpm, 15 min)UV/VisTotal carotenoids (0.04 mg/g)[75]
PhilippinesACEUAESonication (pulse 2, amplitude 100, 2 min), maceration (dark, 4 °C, 24 h); centrifugation (36,000× g, 4 min)HPLC-UV/Visβ-carotene (17.26 mg/g)[63]
IndonesiaEtOHCSEMaceration (24 h, dark, RT, with stirring), sonication (40 °C, 30 min), filtrationUHPLC-ESI/HRMS/MSβ-carotene (0.06–0.21 mg/g), β-cryptoxanthin (0.02–0.07 mg/g), fucoxanthin (0.01–0.06 mg/g), astaxanthin (0.03–0.08 mg/g), canthaxanthin (0.04–0.16 mg/g), zeaxanthin (0.05–0.09 mg/g), lutein (0.02–0.06 mg/g)[76]
Cladophora rivularisPolandEtOH-waterSoxhlet, UAE, MAE, SFESoxhlet; sonication using ultrasonic bath; MAE (800 W, yield 100%); SFE (CO2, flow 10 mL/min; co-solvent: ethanol, flow 1 mL/min, dynamic mode (25 min), static mode (10 min), dynamic mode (25 min), pressure 350 bar) UV/VisTotal carotenoids: Soxhlet (0.9 µg/mL), UAE (0.6 µg/mL), MAE (1.0 µg/mL), SFE (0.3 µg/mL)[77]
Caulerpa scalpelliformisIndiaACECSEHomogenization (24 h, dark, RT); centrifugation (5000 rpm, 15 min)UV/VisTotal carotenoids (≈0.028 mg/g)[75]
Caulerpa sertularioidesMexicoACECSEMaceration; incubation (4 °C, 24 h); centrifugation (3200× g, 10 min, 4 °C)HPLC-DADSiphoxanthin (3.64% fw), neoxanthin (3.66% fw), violaxanthin (8.05% fw), lutein (2.38% fw), siphonein (5.8% fw), α-carotene (1.13% fw), β-carotene (5.58% fw)[66]
Cladophora glomerataLithuanianEtOH, ACECSEShaking; centrifugationUV/VisTotal carotenoids (0.17–0.23 mg/g), lutein (0.11–0.17 mg/g)[78]
PolandEtOH-WaterSoxhlet, UAE, MAE, SFESoxhlet; sonication using ultrasonic bath; MAE (800 W, yield 100%); SFE (CO2, flow 10 mL/min; co-solvent: ethanol, flow 1 mL/min, dynamic mode (25 min), static mode (10 min), dynamic mode (25 min), pressure 350 bar) UV/VisTotal carotenoids: Soxhlet: 1.7 µg/mL; UAE: 0.5 µg/mL, MAE: 3.0 µg/mL, SFE: 1.0 µg/mL[77]
Cladophora sp.IndiaACECSEMacerationHPLC-DADLutein (248.67 µg/g), zeaxanthin (50.20 µg/g) [65]
Chaetomorpha antenninaIndiaACECSEHomogenization (24 h, dark, RT); centrifugation (5000 rpm, 15 min)UV/VisTotal carotenoids (≈0.027 mg/g)[75]
IndiaACECSEMacerationHPLC-DADNeoxanthin (2.11 µg/g), violaxanthin (0.84 µg/g), lutein (4.06 µg/g), zeaxanthin (1.62 µg/g) [65]
Chaetomorpha linumBulgariaMetOH, Hex-DCMCSEHomogenization (3 min) HPLC-UV/FLDAstaxanthin (0.15 µg/g), β-carotene (0.17 µg/g)[72]
Coelastrella sp.JapanEt2O-Chl-MetOHCSEHomogenization by glass beads; centrifugationHPLCAstaxanthin (31.5%), β-carotene (0.25%)[79]
Codium cylindricumJapanHex-ACECSEMaceration with stirring (overnight, 4 °C)HPLC-DAD Siphonaxanthin (68% of the total lipid fraction)[73]
Codium fragileIndonesia --UV/VisTotal carotenoids (4.28–6.05%)[80]
Enteromorpha intestinalis (Linnaeus) NeesTurkeyACE--UV/VisTotal carotenoids (4.21 µg/g)[81]
Enteromorpha intestinalisTurkeyWaterCSEBoiling (1 h)UV/VisTotal carotenoids (0.49 mg/g)[64]
Halimeda opuntia (Linnaeus) LamourouxMalaysiaChl-MetOHCSEMixing (15 min); filtering; centrifugation (2000 rpm, 8 min)UV/VisTotal carotenoids (0.12 mg/g)[82]
Monostroma nitidumJapanDME-Liquified DME extraction (vapor pressure 0.79 ± 0.02 MPa, flow 10 ± 1 mL/min, 33 min, 35 ± 1 °C)HPLCLutein (0.30 mg/g)[70]
Rhizoclonium ripariumMexicoACECSEMaceration; incubation (4 °C, 24 h); centrifugation (3200× g, 10 min, 4 °C)HPLC-DADViolaxanthin (6.12% fw), lutein (15.62% fw), dehydrolutein (2.50% fw), astaxanthin (1.52% fw), α-carotene (1.22% fw), β-carotene (1.86% fw)[66]
Scenedesmus sp.TurkeyEtOH-water (3:1 v/v), EtOAc, Hex, waterUAESonication (20 min), stirring (1 h, RT), centrifugation (3800× g, 10 min)UV/VisTotal carotenoids (0.02–0.80 mg/g)[83]
Trentepohlia abietinaIndiaACE with BHTCSEHomogenization using mortar (dark); centrifugation; filtrationHPLC-UV/Visβ-cryptoxanthin (0.15–0.34 µg/g), lutein (0.003–0.006 µg/g), β-carotene (230–585 µg/g)[84]
Trentepohlia arborumIndiaACE with BHTCSEHomogenization using mortar (dark); centrifugation; filtrationHPLC-UV/Visβ-cryptoxanthin (0.006–0.625 µg/g), lutein (0.002–0.006 µg/g), β-carotene (291–606 µg/g)[84]
Trentepohlia diffractaIndiaACE with BHTCSEHomogenization using mortar (dark); centrifugation; filtrationHPLC-UV/Visβ-cryptoxanthin (0.47–2.31 µg/g), lutein (0.001–0.005 µg/g), β-carotene (331–974 µg/g)[84]
Trentepohlia umbrinaIndiaACE with BHTCSEHomogenization using mortar (dark); centrifugation; filtrationHPLC-UV/Visβ-cryptoxanthin (0.007–0.069 µg/g), lutein (0.001–0.003 µg/g), β-carotene (149–520 µg/g)[84]
Ulva fasciataSri LankaACECSEHomogenization using mortar; centrifugation (3000 rpm, 15 min)UV/VisTotal carotenoids (0.17 µg/g)[85]
PhilippinesACEUAESonication (pulse 2, amplitude 100, 2 min), left in the dark (4 °C, 24 h); centrifugation (36000× g, 4 min)HPLC-UV/Visβ-carotene (0.72 mg/g)[63]
IndiaACECSEMacerationHPLC-DADNeoxanthin (0.26 µg/g), lutein (0.90 µg/g), zeaxanthin (0.25 µg/g) [65]
Ulva flexuosaPolandEtOH-waterSoxhlet, UAE, MAE, SFESoxhlet; sonication using ultrasonic bath; MAE (800 W, yield 100%); SFE (CO2, flow 10 mL/min; co-solvent: ethanol, flow 1 mL/min, dynamic mode (25 min), static mode (10 min), dynamic mode (25 min), pressure 350 bar) UV/VisTotal carotenoids: Soxhlet (1.3 µg/mL), UAE: 2.2 µg/mL, MAE (2.1 µg/mL), SFE (0.9 µg/mL)[77]
Ulva lactucaIndiaACECSEHomogenization (24 h, dark, RT); centrifugation (5000 rpm, 15 min)UV/VisTotal carotenoids (≈0.024 mg/g)[75]
PortugalMetOHUAEStirring (1 h); sonication; centrifugation (2935× g, 10 min)UV/VisTotal carotenoids (0.20 mg/g)[62]
PortugalWater, EtOAc, EtOHCSEMagnetic stirring (12 h, 25 °C); centrifugation (4000 rpm, 15 min)UV/Vis, HPLC-DADTotal carotenoids (≈0.14–0.32 mg/g), neoxanthin, violaxanthin, astaxanthin, lutein[67]
Sri LankaACECSEHomogenization using mortar; centrifugation (3000 rpm, 15 min)UV/VisTotal carotenoids (0.17 µg/g)[85]
IndiaACECSEMacerationHPLC-DADNeoxanthin (0.47–0.61 µg/g), violaxanthin (0.02–0.03 µg/g), lutein (21.13–23.54 µg/g), zeaxanthin (11.26–12.14 µg/g) [65]
Ulva ohnoiBrazilLiquid N2, MetOHCSEMaceration; incubation (1 h, dark); centrifugation (12000× g, 10 min)UV/VisTotal carotenoids (18.90–32.20 µg/g)[86]
Ulva rigidaTurkeyWaterCSEBoiling (1 h)UV/VisTotal carotenoids (0.41 mg/g)[64]
PortugalACECSEMaceration (24 h)UHPLC-DAD-ESI-MSLutein (0.42–1.20 µg/mg)[71]
Ulva proliferaChinaACECSEMaceration (4 °C, 12 h); centrifugation (10,000 rpm, 20 min)UV/VisTotal carotenoids (2.80–4.72 µg/mL) [87]
IndiaACECSEMacerationHPLC-DADFucoxanthin (0.69 µg/g), neoxanthin (8.84 µg/g), violaxanthin (3.66 µg/g), lutein (10.23 µg/g), zeaxanthin (9.47 µg/g) [65]
ChinaEtOH, PETCSEMaceration (60 °C, 3 min)HPLCLutein (4.84–5.91 µg/g), β-carotene (0.26–1.10 µg/g)[88]
Valoniopsis pachynemaIndiaACECSEHomogenization (24 h, dark, RT); centrifugation (5000 rpm, 15 min)UV/VisTotal carotenoids (≈0.022 mg/g)[75]
≈—approximately (data from graphical presentation of the results); UV/Vis—ultraviolet-visible; HPLC—high-performance liquid chromatography; UHPLC—ultra-high-performance liquid chromatography; DAD—diode array detector; FLD—fluorescence detector; HPTLC—high-performance thin layer chromatography; HRMS—high- resolution mass spectrometry; ESI—electrospray ionization; MS—mass spectrometry; MetOH—methanol; ACE—acetone; EtOH—ethanol; Chl—chloroform; DCM—dichloromethane; DME—dimethyl ether; Et2O—diethyl ether; EtOAc—ethyl acetate; Hex—hexane; PET—petroleum ether; CSE—conventional solvent extraction; UAE—ultrasound-assisted extraction; BHT—butylated hydroxyl toluene; RT—room temperature; fw—fresh weight.

3.3. Carotenoids in Brown Algae (Phaeophyta)

Brown algae contain more xanthophylls than carotenes, and this prevalence is responsible for their coloration and activity [89]. The major pigments in brown algae are fucoxanthin, β-carotene, and violaxanthin [1]. Fucoxanthin is the major carotenoid in brown algae. It is an allelic carotenoid, a 5,6-monoepoxide that has nine conjugated double bonds and oxygen-containing functional groups (hydroxyl, epoxy, carbonyl, and carboxyl groups). This unique structure distinguishes it from other carotenoids [5,90,91]. Its content varies greatly depending on location, season, and other factors (pH and salinity). For example, fucoxanthin concentration has been found to increase in winter in response to sunlight limitation [90,91].
Fucoxanthin and the other carotenoids were isolated from different species of brown algae using different extraction and detection methods that resulted in different concentrations. Again, the most commonly used method to isolate carotenoids was CSE, followed by UAE [62,92,93,94], but the use of other methods has also been reported [94,95,96]. In addition, hexane and alcoholic solvents were used in most cases (Table 3).
The total carotenoid content in the reported studies ranged from 57 µg/g in Padina pavonica [68] to 406 mg/g in Dictyota dentata [97]. The highest fucoxanthin content (27.40 mg/g) was detected in Sargassum polycystum [69]. Other carotenoids were detected at lower concentrations in brown algae. Tabakaeva and Tabakaev [98] analyzed the carotenoid composition of Sargassum miyabei, which was as follows: fucoxanthin (57.9%), zeaxanthin (12.5%), violaxanthin (4.9%), neoxanthin (3.1%), β-carotene (2.4%), and α-carotene (0.2%). Garcia-Perez et al. [89] detected seven carotenoids in nine brown algae; six xanthophylls (fucoxanthin, violaxanthin, auroxanthin, dihydrolutein, zeaxanathin, and fucoxanthin derivative) and one carotene (β-carotene). Lourenço-Lopes et al. [92] reported the content of fucoxanthin (between 0.67 and 9.54 mg/g) and β-carotene (between 0.01 and 0.30 mg/g) in nine brown algae, namely, Ascophyllum nodosum, Bifurcaria bifurcate, Fucus spiralis, Himanthalia elongate, Laminaria ochroleuca, Laminaria saccharina, Pelvetia canaliculata, Sargassum muticum, and Undaria pinnatifida. Astaxantin was found in Cystoseira barbata and Cystoseira crinita in the study by Dobreva et al. [72], D. dentata and Padina durvillaei in the study by Osuna-Ruiz et al. [66], and Sargassum polycystum in the study by Balasubramaniam et al. [69]. Among other carotenoids, lutein was found in Fucus vesiculosus [71], S. polycystum [69], and P. pavonica [68]; violaxanthin and 19-Hex-fucoxanthin were found in P. durvillaei [66]; zeaxanthin was found in P. pavonica [68] and S. polycystum [69]; and canathaxanthin and cryptoxanthin were found in S. polycystum [69].
Table 3. Overview of the studies on brown algae carotenoids.
Table 3. Overview of the studies on brown algae carotenoids.
SpeciesOriginSolventExtraction MethodExtraction ConditionsDetection
Method
ResultReference
Ascophyllum nodosumSpainEtOHUAEVortexing (30 s); sonication (500 W, 55 min); centrifugation (8400 rpm, RT, 7 min)HPLC-DADFucoxanthin (2 mg/g), β-carotene (0.05 mg/g), other carotenoids (1.2 mg of fucoxanthin equivalents/g)[92]
Bifurcaria bifurcataSpainEtOHUAEVortexing (30 s); sonication (500 W, 55 min); centrifugation (8400 rpm, RT, 7 min)HPLC-DADFucoxanthin (0.71 mg/g), β-carotene (0.08 mg/g), other carotenoids (1.52 mg of fucoxanthin equivalents/g)[92]
Cystoseira barbataTurkeyWaterCSEBoiling (1 h)UV/VisTotal carotenoids (2.195 mg/g)[64]
BulgariaMetOH, Hex-DCM CSEHomogenization (3 min); saponification (50 °C, 30 min); extracted twice in n-hexaneHPLC-UV/FLDAstaxanthin (3.0 µg/g fw), β-carotene (55.7 µg/g fw)[72]
Cystoseira crinitaBulgariaMetOH, Hex-DCM CSEHomogenization (3 min); saponification (50 °C, 30 min); extracted twice in n-hexaneHPLC-UV/FLDAstaxanthin (1.39 µg/g fw), β-carotene (18.8 µg/g fw)[72]
Dictyota dentataIndonesiaACE-MetOHCSEHomogenization using mortar; vortexing; centrifugation; drying with N2UV/Vis, HPLC-DADTotal carotenoids (4.06 mg/g), fucoxanthin (4.11 mg/g, 0.29 mg/g fw)
β-carotene (0.78 mg/g, 0.08 mg/g fw)
[97]
Fucus spiralisSpainEtOHUAEVortexing (30 s); UAE: sonication (500 W, 55 min); centrifugation (8400 rpm, RT, 7 min)HPLC-DADFucoxanthin (2.48 mg/g), β-carotene (0.08 mg/g), other carotenoids (1.41 mg of fucoxanthin equivalents/g)[92]
Fucus vesiculosusPortugalACECSEMaceration (24 h)UHPLC-DAD-ESI-MSLutein (0.03–0.18 µg/mg), β-carotene (0.24–0.55 µg/mg), fucoxanthin (0.78–1.79 µg/mg)[71]
Himanthalia elongataIrelandHex, Et2O, ChlCSEMaceration, filtration, centrifugation (9168× g, 15 min)LC-ESI-MSFucoxanthin (18.6 mg/g)[99]
SpainEtOHUAEVortexing (30 s); sonication (500 W, 55 min); centrifugation (8400 rpm, RT, 7 min)HPLC-DADFucoxanthin (0.67 mg/g), β-carotene (0.01 mg/g), other carotenoids (0.33 mg of fucoxanthin equivalents/g)[92]
Laminaria ochroleucaSpainEtOHUAEVortexing (30 s); sonication (500 W, 55 min); centrifugation (8400 rpm, RT, 7 min)HPLC-DADFucoxanthin (4.35 mg/g), β-carotene (0.03 mg/g), other carotenoids (0.48 mg of fucoxanthin equivalents/g)[92]
Laminaria saccharinaSpainEtOHUAEVortexing (30 s); sonication (500 W, 55 min); centrifugation (8400 rpm, RT, 7 min)HPLC-DADFucoxanthin (9.54 mg/g), β-carotene (0.07 mg/g), other carotenoids (0.48 mg of fucoxanthin equivalents/g)[92]
Padina australisIndonesiaACE-MetOHCSEHomogenization using mortar; vortexing; centrifugation; drying with N2UV/Vis, HPLC-DADTotal carotenoids (3.56 mg/g), fucoxanthin (1.64 mg/g, 0.22 mg/g fw), β-carotene (0.35 mg/g, 0.08 mg/g fw)[97]
Padina durvillaeiMexicoACECSEHomogenization; incubation (24 h, 4 °C); centrifugation (3200× g, 10 min, 4 °C)HPLC-DADFucoxanthin (33.9% fw), violaxanthin (4.5% fw), 19-Hex-fucoxanthin (5.80% fw), astaxanthin (0.42% fw), β-carotene (4.16% fw)[66]
Padina pavonicaMalaysiaACE, ChlCSESaponification; mixing; centrifugationUV/Vis, HPLC-DADTotal carotenoids (0.1 mg/g), zeaxanthin (10.87 µg/g), lutein (7.21 µg/g), β-carotene (9.14 µg/g)[68]
Pelvetia canaliculataSpainEtOHUAEVortexing (30 s); sonication (500 W, 55 min); centrifugation (8400 rpm, RT, 7 min)HPLC-DADFucoxanthin (2.07 mg/g), β-carotene (0.06 mg/g), other carotenoids (0.45 mg of fucoxanthin equivalents/g)[92]
Saccharina japonicaSouth KoreaSupercritical CO2SFETemperature (40–50 °C), pressure (200–300 bar), mixing ratio (27–75%)HPLCFucoxanthin (2.08 mg/g)[95]
Sargassum crassifoliumIndonesiaACE-MetOH Homogenization using mortar; vortexing; centrifugation; drying with N2UV/Vis, HPLC-DADTotal carotenoids (1.01 mg/g), fucoxanthin (0.75 mg/g), fucoxanthin (0.09 mg/g fw), β-carotene (0.31 mg/g fw, 0.07 mg/g)[97]
Sargassum fusiformeChinaEthyl lactateUAEMaceration (2 h, dark); sonication (500 W, 20 kHz), centrifugation (9000× g, 10 min, 4 °C)HPLCFucoxanthin (0.6 mg/g by ethyl lactate)[93]
Sargassum miyabei Me2CO, HexCSEHomogenization using mortar; filtration; separation over Al2O3HPLC-DADIn the thallus (fucoxanthin: 57.9%, zeaxanthin: 12.5%, violaxanthin: 4.9%, neoxanthin: 3.1%, β-carotene: 2.4%, α-carotene: 0.2%)
In the phylloids (fucoxanthin: 63.2%, zeaxanthin: 10.8%, violaxanthin: 2.7%, neoxanthin: 7.7%, β-carotene: 3.6%)
[98]
Sargassum muticumSpainEtOHUAEVortexing (30 s); sonication (500 W, 55 min); centrifugation (8400 rpm, RT, 7 min)HPLC-DADFucoxanthin (5.79 mg/g), β-carotene (0.06 mg/g), other carotenoids (0.94 mg of fucoxanthin equivalents/g)[92]
Sargassum polycystumMalaysiaACE, EtOH, MetOHCSEShaking (40 °C, 24 h), centrifugation (2072× g, 10 min); filtration, dryingHPLCFucoxanthin (0.28 mg/g)[100]
MalaysiaEtOHCSEStirring (24 h, RT), filtration HPTLC, UHPLC-ESI/HRMS/MSAstaxanthin (0.26 mg/g), canathaxanthin (0.22 mg/g), β-cryptoxanthin 0.06 mg/g), fucoxanthin: 27.40 mg/g), zeaxanthin (0.14 mg/g), lutein (0.12 mg/g)[69]
Sargassum sp.MexicoEtOHUAE, shock wave-assisted extractionUAE: sonication (40 kHz, 160 W, 30 min); shock wave-assisted extraction: (delay between waves 50 and 950 μs, wave rate 0.5 Hz, voltage 3 and 6 kV, duration 404 ± 8 ns and 196 ± 8 ns)UV/Vis, HPLC-UV/VisFucoxanthin (UV/Vis: 0.29–0.39 mg/g, HPLC: 0.29–0.41 mg/g)[94]
Scytosiphon lomentariaTurkeyWaterCSEBoiling (1 h)UV/VisTotal carotenoids (0.794 mg/g)[64]
Sphaerotrichia divaricataJapanChl-MetOHCSEPrecipitation from lipid fractionHPLC-DADFucoxanthin (1.15 mg/g)[101]
Turbinaria conoidesIndonesiaACE-MetOH Homogenization using mortar; vortexing; centrifugation; drying with N2UV/Vis, HPLC-DADTotal carotenoids (0.55 mg/g), fucoxanthin (0.43 mg/g, 0.13 mg/g fw)
β-carotene (0.16 mg/g, 0.07 mg/g fw)
[97]
Undaria pinnatifidaJapanEtOHSFE-CO2Pressure (4000 psi), temperature (40 °C), Time (150 min); CO2 flow rate (1 mL/min)HPLC-UV/VisFucoxanthin (22.09 mg/g) [96]
SpainEtOHUAEVortexing (30 s); sonication (500 W, 55 min); centrifugation (8400 rpm, RT, 7 min)HPLC-DADFucoxanthin (6.15 mg/g), β-carotene (0.30 mg/g), other carotenoids (2.42 mg of fucoxanthin equivalents/g)[92]
Zonaria tournefortiiPortugalMetOHUAEStirring (1 h); sonication; centrifugation (2935× g, 10 min)UV/VisTotal carotenoids (2.98 mg/g)[62]
UV/Vis—ultraviolet-visible; HPLC—high-performance liquid chromatography; LC—liquid chromatography; UHPLC—ultra-high-performance liquid chromatography; DAD—diode array detector; HPTLC—high-performance thin layer chromatography; HRMS—high- resolution mass spectrometry; ESI—electrospray ionization; MS—mass spectrometry; FLD—fluorescence detector; DCM—dichloromethane; MetOH—methanol; ACE—acetone; EtOH—ethanol; Chl—chloroform; Et2O—diethyl ether; Hex—hexane;; SFE—supercritical fluid extraction; CSE—conventional solvent extraction; UAE—ultrasound-assisted extraction; RT—room temperature; fw—fresh weight.

3.4. Carotenoids in Red Algae (Rhodophyta)

The dominant carotenoids in red algae are zeaxanthin, lutein, and α- and β-carotene, but in contrast to the α-:β-carotene ratio typical of higher plants, the α-carotene content is much higher in red algae [1]. A review of recent studies identifying carotenoids in red algae is presented in Table 4. Red algal carotenoids were mostly extracted by conventional extraction with solvents (alcohols, acetone, hexane, ethyl acetate, or water), while only some studies used ultrasound to assist the extraction [62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102].
The highest reported total carotenoid content from Table 4 was reported by Hossain et al. [103] in acetone extracts of Gelidium pusillum from Bangladesh (52.7 mg/g). Lutein was found in Ahnfeltia plicata, Ceramium sp., Chondrus crispus, Delesseria sanguinea, Dilsea carnosa, Eucheuma denticulatum, Furcellaria lumbricalis, Furcellaria lumbricalis, Gracilaria changii, Gracilaria corticata, Gracilaria tikvahiae, Kappaphycus alvarezii, Odonthalia dentate, Palmaria palmate Pyropia yezoensis, and Spyridia filamentosa [65,68,69,102,104]. In addition to lutein being present in all nine algae studied by Razi Parjikolaei et al. [104] (A. plicata, C. crispus, D. sanguinea, D. carnosa, F. lumbricalis, Gracilaria vermiculophylla, O. dentate, P. palmata, and Phycodrys rubens), the presence of zeaxanthin (from 0.66 to 1.7 µg/g) and β-carotene (from 2.2 to 8.8 µg/g) was also confirmed. Balasubramaniam et al. [69] also detected astaxanthin, β-cryptoxanthin, and fucoxanthin in Eucheuma denticulatum. The presence of astaxanthin in red algae was also reported by Dobreva et al. [72] in Gelidium crinale. Among others, neoxanthin and violaxanthin were found in Grateloupia filicina [65], while α-cryptoxanthin, β-cryptoxanthin, lutein-5,6-epoxide, and antheraxanthin were detected in P. yezoensis [105].
Table 4. Overview of the studies on red algae carotenoids.
Table 4. Overview of the studies on red algae carotenoids.
SpeciesOriginSolventExtraction MethodExtraction ConditionsDetection
Method
ResultReference
Ahnfeltia plicataDenmarkACNCSEHomogenization using mortarHPLC-MSLutein (≈1.8 µg/g), zeaxanthin (≈1.7 µg/g), β-carotene (≈2.2 µg/g)[104]
Amphiroa rigidaPortugalACECSEHomogenization using mortar (10 min); stirring (30 min); centrifugation (12,500× g, 20 min, 4 °C)UV/Vis Total carotenoids (1.05 µg/g fw)[106]
Asparagopsis taxiformisPortugalMetOHUAEStirring (1 h); sonication; centrifugation (2935× g, 10 min)UV/Vis Total carotenoids (0.13 mg/g) [62]
Ceramium ciliatumPortugalACECSEHomogenization using mortar (10 min); stirring (30 min); centrifugation (12,500× g, 20 min, 4 °C)UV/Vis Total carotenoids (0.32 µg/g fw)[106]
Ceramium rubrumTurkeyACE -UV/VisTotal carotenoids (2.14 µg/g)[81]
Ceramium sp.IndiaACECSEMacerationHPLC-DADFucoxanthin (4.85 µg/g), lutein (3.26 µg/g), zeaxanthin (0.66 µg/g) [65]
Chondrus crispusPortugalACECSEHomogenization using mortar (10 min); stirring (30 min); centrifugation (12,500× g, 20 min, 4 °C)UV/Vis Total carotenoids (0.12 µg/g fw)[106]
PortugalMetOHUAEStirring (1 h); sonication; centrifugation (2935× g, 10 min)UV/Vis Total carotenoids (0.21 mg/g) [62]
DenmarkACNCSEHomogenization using mortarHPLC-MSLutein (≈3.0 µg/g), zeaxanthin (≈2.6 µg/g), β-carotene (≈7.8 µg/g)[104]
Corallina mediterraneaEgyptACECSEMaceration (72 h, RT, dark) with
intermittent shaking
UV/Vis Total carotenoids (≈0.02 mg/g fw)[107]
Delesseria sanguineaDenmarkACNCSEHomogenization using mortarHPLC-MSLutein (≈3.7 µg/g), zeaxanthin (0.9 µg/g), β-carotene (≈4.2 µg/g)[104]
Dilsea carnosaDenmarkACNCSEHomogenization using mortarHPLC-MSLutein (≈7.0 µg/g), β-carotene (≈3.8 µg/g)[104]
Ellisolandia elongataPortugalACECSEHomogenization using mortar (10 min); stirring (30 min); centrifugation (12,500× g, 20 min, 4 °C)UV/Vis Total carotenoids (0.89 µg/g fw)[106]
Eucheuma denticulatumMalaysiaEtOHCSEStirring (24 h, RT)HPTLC, UHPLC-ESI/HRMS/MSβ-carotene (0.047 mg/g), astaxanthin (0.03 mg/g), β-cryptoxanthin 0.036 mg/g), zeaxanthin (0.21 mg/g), lutein (0.88 mg/g), fucoxanthin (0.04 mg/g)[69]
MalaysiaACE, HexCSEMixing; centrifugationUV/Vis, HPLC-DADTotal carotenoids (33 µg/g), zeaxanthin (3.61 µg/g), lutein (9.57 µg/g), β-carotene (2.44 µg/g)[68]
Furcellaria lumbricalisDenmarkACNCSEHomogenization using mortarHPLC-DADLutein (13 µg/g), β-carotene (≈0.008 µg/g)[104]
Gelidium crinaleBulgariaMetOH, Hex-DCMCSEHomogenization (3 min)HPLC-UV/FLDAstaxanthin (2.0 µg/g), β-carotene (33.8 µg/g)[72]
Gelidium pusillumBangladeshACECSEIncubation with shaking (250 rpm, 90 min, 20 °C); centrifugation (3000 rpm, 15 min)UV/VisTotal carotenoids (52.7 mg/g) [103]
Gigartina acicularisTurkeyWaterCSEBoiling (1 h)UV/Vis Total carotenoids (0.59 µg/g)[64]
Gracilaria changiiMalaysiaHex-ACE-EtOHCSEShaking; centrifugation (3000 rpm, 5 min, 4 °C)UV/Vis Total carotenoids (7.34 mg β-carotene equivalent/g)[108]
IndonesiaACECSEMaceration (24 h, dark)UV/Vis Total carotenoids (0.24 µg/g)[109]
Gracilaria corticataIndiaACECSEIncubation (45 min, dark); centrifugation (10,000× g, 5 min)UV/VisTotal carotenoids (12.82 µg/g)[110]
IndiaACECSEMacerationHPLC-DADFucoxanthin (6.06 µg/g), lutein (0.26 µg/g), zeaxanthin (0.65 µg/g) [65]
Gracilaria edulisIndiaACECSEIncubation (dark, 45 min); centrifugation (10,000× g, 5 min)UV/Vis Total carotenoids (2.99 µg/g)[110]
Gracilaria tikvahiaeMalaysiaACE, HexCSEMixing; centrifugationUV/Vis, HPLC-DADTotal carotenoids (25.1 µg/g), zeaxanthin (4.15 µg/g), lutein (8.86 µg/g), β-carotene (3.05 µg/g)[68]
Gracilaria vermicu-lophyllaDenmarkACNCSEHomogenization using mortarHPLC-DADZeaxanthin (0.93 µg/g), β-carotene (≈8.8 µg/g)[104]
MexicoACECSEMaceration; incubation (24 h, 4 °C); centrifugation (3200× g, 10 min, 4 °C)HPLC-DADZeaxanthin (7.83% fw), β-carotene (6.93% fw)[66]
Grateloupia filicinaIndiaACECSEMacerationHPLC-DADFucoxanthin (3.45 µg/g), neoxanthin (2.04 µg/g), violaxanthin (20.65 µg/g), lutein (18.38 µg/g), zeaxanthin (2.16 µg/g) [65]
Grateloupia sp.IndiaACECSEMacerationHPLC-DADLutein (166.58 µg/g), zeaxanthin (36.34 µg/g) [65]
Halymenia durvilleiIndonesiaHex, ACE, EtOHCSEIncubation (overnight, RT, dark)UV/Vis Total carotenoids (2.64–28.65 µg/g)[111]
Hypnea musciformisBangladeshACECSEIncubation with shaking (250 rpm, 90 min, 20 °C); centrifugation (3000 rpm,15 min)UV/Vis Total carotenoids (31.6 mg/g)[103]
Jania rubensEgyptACECSEMaceration (72 h, RT, dark) with
intermittent shaking
UV/Vis Total carotenoids (≈0.02 mg/g fw)[107]
PortugalACECSEHomogenization using mortar (10 min); stirring (30 min); centrifugation (12,500× g, 20 min, 4 °C)UV/Vis Total carotenoids (1.88 µg/g fw)[106]
Kappaphycus alvareziiBrazilHex-ACEUAESonication (2.5 GHz, 1 h, dark); centrifugation (4000 rpm, 10 min)UV/Vis, HPLC-UV/VisLutein (112.02 µg/g), zeaxanthin (32.15 µg/g), α-carotene (13.36 µg/g), β-carotene (0.60 mg/g), β-carotene (0.24 mg/g)[102]
Kappaphycus striatumMalaysiaACE, HexCSEMixing; centrifugationUV/Vis, HPLC-DADTotal carotenoids (57.0 µg/g), zeaxanthin (4.47 µg/g), lutein (38.60 µg/g), β-carotene (7.59 µg/g)[68]
Liagora viscidaPortugalACECSEHomogenization using mortar (10 min); stirring (30 min); centrifugation (12,500× g, 20 min, 4 °C)UV/Vis Total carotenoids (≈0.55 µg/g fw)[106]
Nemalion elminthoidesPortugalMetOHUAEStirring (1 h); sonication; centrifugation (2935× g, 10 min)UV/Vis Total carotenoids (0.09 mg/g)[62]
Neopyropia yezoensisChinaACE, EtOAc, waterCSEVortexing (15 s); centrifugation (10,000× g, 5 min, 4 °C)HPLC-DADLutein (5.0 mg/g), β-carotene (0.6 mg/g), zeaxanthin (0.2 mg/g), α-carotene (0.14 mg/g)[112]
Mesophyllum lichenoidesPortugalACECSEHomogenization using mortar (10 min); stirring (30 min); centrifugation (12,500× g, 20 min, 4 °C)UV/Vis Total carotenoids (0.15 µg/g fw)[106]
Odonthalia dentataDenmarkACNCSEHomogenization using mortarHPLC-MSLutein (1.4 µg/g), zeaxanthin (≈4.0 µg/g), β-carotene (≈2.2 µg/g)[104]
Osmundea pinnatifidaPortugalACECSEHomogenization using mortar (10 min); stirring (30 min); centrifugation (12,500× g, 20 min, 4 °C)UV/Vis Total carotenoids (≈0.75 µg/g fw)[106]
Palmaria palmataDenmarkACNCSEHomogenization using mortarHPLC-MSLutein (≈1.9 µg/g), β-carotene (1.9 µg/g)[104]
Phycodrys rubensDenmarkACNCSEHomogenization using mortarHPLC-MSLutein (15.2 µg/g), zeaxanthin (≈3.2 µg/g), β-carotene (15.7 µg/g)[104]
Plocamium cartilagineumPortugalACECSEHomogenization using mortar (10 min); stirring (30 min); centrifugation (12,500× g, 20 min, 4 °C)UV/Vis Total carotenoids (0.40 µg/g fw)[106]
Porphyra umbilicalisPortugalACECSEHomogenization using mortar (10 min); stirring (30 min); centrifugation (12,500× g, 20 min, 4 °C)UV/Vis Total carotenoids (1.88 µg/g fw)[106]
Pterocladia capillaceaEgyptACECSEMaceration (72 h, RT, dark) with
intermittent shaking
UV/Vis Total carotenoids (0.092 mg/g)[107]
Pyropia orbicularisChileHex-ACE-EtOHCSEHomogenization; centrifugation (2130× g, 15 min)UV/Vis Total carotenoids (58.6 µg/g)[113]
Pyropia yezoensisJapanMetOH, ChlCSEMaceration (24 h, RT, dark)LC-MS, 1H-NMRLutein (3.46 mg/g), zeaxanthin, α-carotene, β-carotene, α-cryptoxanthin, β-cryptoxanthin, lutein-5,6-epoxide, antheraxanthin[105]
ChinaMetOH-ACECSEHomogenization; macerationHPLC-DADLutein, zeaxanthin, α-carotene, β-carotene [114]
Spyridia filamentosaMexicoACECSEMaceration; incubation (24 h, 4 °C); centrifugation (3200× g, 10 min, 4 °C)HPLC-DADLutein (33.28% fw), dihydrolutein (3.70% fw), astaxanthin (0.43% fw), α-carotene (2.30% fw), β-carotene (9.62% fw)[66]
Sphaerococcus coronopifoliusPortugalACECSEHomogenization using mortar (10 min); stirring (30 min); centrifugation (12,500× g, 20 min, 4 °C)UV/Vis Total carotenoids (0.70 µg/g fw)[106]
Spyridia filamentosaMexicoACECSEHomogenization using mortarHPLC-DADLutein (13 µg/g), β-carotene (≈0.008 µg/g)[104]
≈—approximately (data from graphical presentation of the results); UV/Vis—ultraviolet-visible; HPLC—high-performance liquid chromatography; LC—liquid chromatography; UHPLC—ultra-high-performance liquid chromatography; DAD—diode array detector; HPTLC—high-performance thin layer chromatography; HRMS—high-resolution mass spectrometry; ESI—electrospray ionization; MS—mass spectrometry; FLD—fluorescence detector; NMR—nuclear magnetic resonance; DCM—dichloromethane; MetOH—methanol; ACN—acetonitrile; ACE—acetone; EtOAc—ethyl acetate; EtOH—ethanol; Chl—chloroform; Hex—hexane; CSE—conventional solvent extraction; UAE—ultrasound-assisted extraction; RT—room temperature; fw—fresh weight.

4. Potential Applications of Algal Carotenoids

The most commercially interesting carotenoids include astaxanthin, β-carotene, lutein, and zeaxanthin, which are widely distributed in algae, making these organisms an important source of natural carotenoids. Fucoxanthin, abundant in brown algae, is considered a therapeutic and nutritional ingredient with a unique chemical structure that enables its reactions in many physiological functions and ensures its strong biological properties. Algal carotenoids (fucoxanthin and others) derived from Indian brown algae (Padina tetrastromatica) have been studied against oxidative stress in rats [115]. It was found that lipid oxidation induced by retinol deficiency (plasma and liver) was reduced by the supplementation of fucoxanthin (plasma 7–85% and liver 24–72%) versus β-carotene (plasma-51–76% and liver 33–65%) by enhancing the activity of catalase and glutathione transferase enzymes. Similarly, Jang et al. [116] reported the ability of fucoxanthin from Laminaria japonica to impart hepatoprotective effects under oxidative stress, suggesting its inclusion in the formulation of nutraceuticals. For other algae-derived carotenoids, protective properties such as cardioprotective, hepatoprotective, photoprotective, renal protective, and various health-promoting and beneficial properties such as antioxidant, anti-obesity, antitumor, antidiabetic, anti-inflammatory, and hepatoprotective have been confirmed in the literature [29,45,91,101,115,116,117,118,119,120,121,122,123]. Due to these properties, algae-derived carotenoids have been investigated for various applications. Most commonly, they are used as dietary supplements and food colorants, for the production of functional/nutraceutical foods and animal feeds, for the formulation of food packaging, in health care, and in cosmetics [65,124,125,126]. The main challenges for their industrial application are the extraction method, reported variations in yield, and their unstable nature [124,126,127,128]. Based on the proposed concerns, several studies have been conducted and reported on the ability of carotenoid-rich algae as a blend, coating, film, and additive to various food matrices, which have been carefully presented in previous reports [124,129,130,131].
Taking carotenoids from marine algae as natural antioxidants has been shown to be effective in reducing obesity and weight gain. The molecular mechanism of obesity has been linked to inflammation and oxidative stress, which lead to the development of other metabolic diseases (e.g., type 2 diabetes, hypertension, and liver disease). Antioxidants from marine algae have been suggested as potential replacements for conventional treatments such as surgery or drugs. Carotenoids from algae have been associated with the regulation of key factors in adipogenesis, glucose levels, and fatty acid metabolism [119]. In addition, algal carotenoids can be used for the nutrient fortification of foods. They have been incorporated as powders or oils into various food matrices such as pasta, bread, cookies, vegetable soup, and yogurt [132,133,134]. The formulation and dosage for each product still need to be optimized as high doses of some carotenoids or algae are considered unacceptable by consumers, mainly because of their color and flavor properties. However, in the right concentration, they could provide nutrient fortification and antioxidant activity and even prolong the shelf life of foods. On the contrary, there are studies confirming that a pigment such as fucoxanthin can be successfully used as a colorant to improve the appearance of and provide bioactivity to foods and beverages [90].
Algal carotenoids showed potential in food packaging film formulations. Films formulated with algal extract (Fucus vesiculosus) exhibited lower lipid oxidation in chicken breast samples, which was attributed to higher carotene content [135]. Similarly, Sáez et al. [136] reported the preservative action of carotenoid-rich water extracts from algae on rainbow trout fillets. The application inhibited the growth of total viable counts and lipid oxidation and helped to preserve the quality of fillets by improving their water holding capacity [136]. Recently, Pereira et al. [137] summarized studies and meta-analyses on the health-related properties and effects of marine-derived carotenoids.
Algae-derived carotenoids have also been added to feed to improve the color of fish (salmon and trout), crustaceans, and eggs [138]. These organisms represent a conventional food source for humans, and diets rich in carotenoids have been associated with health benefits. The carotenoid profile is largely dependent on feed composition [139]. Traditionally, carotenoids have been used extensively as colorants in foods; however, with the development of natural sources for the extraction of carotenoids and their extensive assimilability to synthetic forms, they found further applications in the feed industry [138]. The application of algal pigment extracts rich in carotenoids has shown the ability to enhance immunity to Vibrio infections and promote weight gain in shrimp production [140]. Another study by Abdel-Rahim et al. [141] concluded that dietary supplementation of algae apart from the findings of Aftab Uddin et al. [140] had imparted cold tolerance. In the case of beef feed supplemented with algae, it lowered the carbon footprint by lowering the methane production in vitro without loss of efficiency, which supported its use in feeds [142].
Pigments from marine algae are also used as active ingredients in cosmetics, where their addition delays skin aging and protects against UV radiation, which leads to the formation of reactive oxygen species. The formation of these components can damage DNA and lead to hyperpigmentation, premature aging, sunburn, and skin cancer [143]. The presence of carotenoids in skin tissue occurs through two mechanisms: diffusion from the body, e.g., adipose tissue and plasma, and/or secretion by sebaceous glands and reabsorption. In addition, the content and profile of carotenoids reflect those present in plasma, the most important being lutein, β-carotene, lycopene, zeaxanthin, β-cryptoxanthin, and colorless pigments (phytoene and phytofluene). The presence of carotenoids on the skin surface is associated with the reduction of oxidation and inflammation, leading to other effects such as inhibition of metalloproteases, inhibition of UVA-induced expression of heme oxygenase 1, prevention of mitochondrial DNA mutations, and photoimmunomodulation. In a study by Grether-Beck et al. [144], oral supplementation of lutein and lycopene was shown to result in photoprotection. The effect was at the molecular level by inhibiting UVA1 and UVA/B-induced gene expression. Astaxanthin was found to decrease the expression of matrix metalloproteinases that degrade collagen and elastin. It has also been associated with improvement in sebum oil levels, wrinkling, elasticity, and hydration [145].
Brown algae have also been used as fertilizers with improved effects on plants. Nurjannah et al. [146] used a fermented brown algae extract (Sargassum sp.) on Zea mays L. to test the effect on corn growth. Parameters such as the height, stem circumference, cob length, and diameter improved after spraying with algal extracts compared with the control and urea-phosphate-potassium fertilizer application. Baroud et al. [147] tested the effects of brown algal extracts (C. gibraltarica, F. spiralis, and Bifurcaria bifurcate) on the germination, growth, and biochemical profile of tomatoes. Improvements in the germination rate and seedling biomass were observed. Compared with the control, the biochemical composition was higher in terms of protein content (21.59 mg/g to 54.64 mg/g), pigments (0.38 mg/g to 0.61 mg/g), and polysaccharide content (21.04 mg/g to 56.38 mg/g). Brown algae were also used to improve the quality of postharvest products. Extracts of brown algae Sargassum crassifolium, S. cristaefolium, S. aquifolium, and Turbinaria murayana were used as sprays for tomatoes. More fruits (15 fruits/plant) were reported when algae were added to the urea than in the control (9 fruits/plant). In addition to harvest and storage, tomatoes sprayed with brown algae had better texture after 7 days of storage at room temperature [148].

5. Future Directions

The bioactivity of algal carotenoids and the increasing awareness of their potential health-promoting properties make them attractive for application in various industries and fields, including nutraceuticals, food, feed, pharmaceuticals, and cosmetics [53]. The global market for carotenoids is expected to grow from an estimated USD 1.5 billion in 2019 to USD 2.0 billion in 2026 [91]. Algae production is still concentrated in Asian countries, with China dominating with a total production of over 56% of global aquaculture [149]. Microalgae are already widely used for the commercial production of carotenoids, and their use is rapidly increasing in various sectors due to their fast growth rate, resource sustainability, significantly higher production of carotenoids compared with macroalgae or terrestrial plants, and ability to quickly adapt to new or changing growth conditions [20]. Macroalgae also produce more biomass than higher plants (they grow more than ten times faster) and can be grown in both fresh and marine water, and their cultivation is carried out without the use of pesticides and/or antibiotics, etc. [149], which in turn highlights their industrial potential for isolating valuable constituents. Therefore, future research in this field, especially to develop new technologies to improve the efficiency of algae extraction, is needed.
Accordingly, the production of carotenoids from algae has a bright future, but there are still some major challenges that need to be overcome, mainly related to the cost of algae production, optimization of harvesting and extraction of key compounds, and stability and storage of the isolated products. Also, the current issues of global warming and sea level rise are negatively impacting algal biomass production and quality, leading to losses and degradation of beneficial target components. The numerous current investigations in this scientific field are an indication that this industry is growing exponentially and will certainly lead to more competitive processes and final products with a wide range of applications.

Author Contributions

Conceptualization, I.G.M. and V.Š.; writing—original draft preparation, I.G.M., V.Š., N.B.R., I.H. and M.Č.; writing—review and editing, V.Š., I.G.M., N.B.R., I.H. and M.Č.; supervision, I.G.M. and M.Č. All authors have read and agreed to the published version of the manuscript.

Funding

This research is supported by the PRIMA program under project BioProMedFood (Project ID 1467). The PRIMA program is supported by the European Union.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

The authors would like to thank Olivera Politeo for her help in preparing the figure.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shahidi, F.; Brown, J. Carotenoid Pigments in Seafoods and Aquaculture. Crit. Rev. Food Sci. Nutr. 1998, 38, 1–67. [Google Scholar] [CrossRef] [PubMed]
  2. Schieber, A.; Weber, F. Carotenoids. In Handbook on Natural Pigments in Food and Beverages: Industrial Applications for Improving Food Color; Elsevier: Amsterdam, The Netherlands, 2016; pp. 101–123. [Google Scholar] [CrossRef]
  3. Ngamwonglumlert, L.; Devahastin, S.; Food, A. Carotenoids; Elsevier: Amsterdam, The Netherlands, 2018; pp. 1–14. [Google Scholar]
  4. Galasso, C.; Corinaldesi, C.; Sansone, C. Carotenoids from Marine Organisms: Biological Functions and Industrial Applications. Antioxidants 2017, 6, 96. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Viera, I.; Pérez-Gálvez, A.; Roca, M. Bioaccessibility of Marine Carotenoids. Mar. Drugs 2018, 16, 397. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Novoveská, L.; Ross, M.E.; Stanley, M.S.; Pradelles, R.; Wasiolek, V.; Sassi, J.F. Microalgal Carotenoids: A Review of Production, Current Markets, Regulations, and Future Direction. Mar. Drugs 2019, 17, 640. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Duan, X.; Xie, C.; Hill, D.R.A.; Barrow, C.J.; Dunshea, F.R.; Martin, G.J.O.; Suleria, H.A.R. Bioaccessibility, Bioavailability and Bioactivities of Carotenoids in Microalgae: A Review. Food Rev. Int. 2023, 1–30. [Google Scholar] [CrossRef]
  8. Gross, J. Pigments in Vegetables; Springer US: Boston, MA, USA, 1991. [Google Scholar] [CrossRef]
  9. Fernandes, A.S.; do Nascimento, T.C.; Jacob-Lopes, E.; De Rosso, V.V.; Zepka, L.Q. Carotenoids—A Brief Overview on Its Structure, Biosynthesis, Synthesis, and Applications. In Progress in Carotenoid Research; IntechOpen: London, UK, 2018; pp. 1–16. [Google Scholar] [CrossRef] [Green Version]
  10. Mezzomo, N.; Ferreira, S.R.S. Carotenoids Functionality, Sources, and Processing by Supercritical Technology: A Review. J. Chem. 2016, 2016, 3164312. [Google Scholar] [CrossRef] [Green Version]
  11. Regal, P.; Lamas, A.; Fente, C.A.; Franco, C.M.; Cepeda, A. Analysis and Metabolomics of Carotenoids. In Carotenoids: Properties, Processing and Applications; Academic Press: Cambridge, MA, USA, 2019; pp. 189–222. [Google Scholar]
  12. Cheng, S.-H.; Khoo, H.E.; Kong, K.W.; Nagendra Prasad, K.; Galanakis, C.M. Extraction of Carotenoids and Applications. In Carotenoids: Properties, Processing and Applications; Academic Press: Cambridge, MA, USA, 2019; pp. 259–288. [Google Scholar]
  13. Shankar, U.; Lenka, S.K.; Ackland, M.L.; Callahan, D.L. Comparison of Different Solvent Extraction Compositions for the Analysis of Phytoplankton Pigments and Lipids Using a Rapid and Sensitive LC-MS Method. Res. Sq. 2022, preprint. [Google Scholar] [CrossRef]
  14. Varaprasad, D.; Raga Sudha, N.; Nazaneen Parveen, S.; Chandrasekhar, T. Effect of Various Solvents on Chlorophyll and Carotenoid Extraction in Green Algae: Chlamydomonas Reinhardtii and Chlorella Vulgaris. Ann. Plant Soil Res. 2019, 21, 341–345. [Google Scholar]
  15. Valcareggi Morcelli, A.; da Silva Andrade, W.; Frankenberg, C.L.C.; Rech, R.; Marcílio, N.R. Extraction of Chlorophylls and Carotenoids from Microalgae: COSMO-SAC-Assisted Solvent Screening. Chem. Eng. Technol. 2021, 44, 1227–1232. [Google Scholar] [CrossRef]
  16. Poojary, M.; Barba, F.; Aliakbarian, B.; Donsì, F.; Pataro, G.; Dias, D.; Juliano, P. Innovative Alternative Technologies to Extract Carotenoids from Microalgae and Seaweeds. Mar. Drugs 2016, 14, 214. [Google Scholar] [CrossRef] [Green Version]
  17. Nejadmansouri, M.; Golmakani, M.-T.; Famouri, M. Comparison of Different Methods for Carotenoid Extraction from Dunaliella Salina. Int. J. Nutr. Sci. 2021, 6, 208. [Google Scholar] [CrossRef]
  18. Papapostolou, H.; Kachrimanidou, V.; Alexandri, M.; Plessas, S.; Papadaki, A.; Kopsahelis, N. Natural Carotenoids: Recent Advances on Separation from Microbial Biomass and Methods of Analysis. Antioxidants 2023, 12, 1030. [Google Scholar] [CrossRef]
  19. Mäki-Arvela, P.; Hachemi, I.; Murzin, D.Y. Comparative Study of the Extraction Methods for Recovery of Carotenoids from Algae: Extraction Kinetics and Effect of Different Extraction Parameters. J. Chem. Technol. Biotechnol. 2014, 89, 1607–1626. [Google Scholar] [CrossRef]
  20. Gong, M.; Bassi, A. Carotenoids from Microalgae: A Review of Recent Developments. Biotechnol. Adv. 2016, 34, 1396–1412. [Google Scholar] [CrossRef]
  21. Zhao, X.; Zhang, X.; Fu, L.; Zhu, H.; Zhang, B. Effect of Extraction and Drying Methods on Antioxidant Activity of Astaxanthin from Haematococcus Pluvialis. Food Bioprod. Process. 2016, 99, 197–203. [Google Scholar] [CrossRef]
  22. Molino, A.; Rimauro, J.; Casella, P.; Cerbone, A.; Larocca, V.; Chianese, S.; Karatza, D.; Mehariya, S.; Ferraro, A.; Hristoforou, E.; et al. Extraction of Astaxanthin from Microalga Haematococcus Pluvialis in Red Phase by Using Generally Recognized as Safe Solvents and Accelerated Extraction. J. Biotechnol. 2018, 283, 51–61. [Google Scholar] [CrossRef]
  23. Machado, F.R.S.; Trevisol, T.C.; Boschetto, D.L.; Burkert, J.F.M.; Ferreira, S.R.S.; Oliveira, J.V.; Burkert, C.A.V. Technological Process for Cell Disruption, Extraction and Encapsulation of Astaxanthin from Haematococcus Pluvialis. J. Biotechnol. 2016, 218, 108–114. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Vlčko, T.; Rathod, N.B.; Kulawik, P.; Ozogul, Y.; Ozogul, F. The Impact of Aromatic Plant-Derived Bioactive Compounds on Seafood Quality and Safety. In Advances in Food and Nutrition Research; Elsevier Inc.: Amsterdam, The Netherlands, 2022; pp. 275–339. [Google Scholar] [CrossRef]
  25. Reyes, F.A.; Mendiola, J.A.; Ibañez, E.; Del Valle, J.M. Astaxanthin Extraction from Haematococcus pluvialis Using CO2-Expanded Ethanol. J. Supercrit. Fluids 2014, 92, 75–83. [Google Scholar] [CrossRef] [Green Version]
  26. Gayathri, S.; Rajasree Radhika, S.R.; Suman, T.Y.; Aranganathan, L. Ultrasound-Assisted Microextraction of β, ε-Carotene-3, 3′-Diol (Lutein) from Marine Microalgae Chlorella salina: Effect of Different Extraction Parameters. Biomass Convers. Biorefinery 2018, 8, 791–797. [Google Scholar] [CrossRef]
  27. Haque, F.; Dutta, A.; Thimmanagari, M.; Chiang, Y.W. Intensified Green Production of Astaxanthin from Haematococcus pluvialis. Food Bioprod. Process. 2016, 99, 1–11. [Google Scholar] [CrossRef] [Green Version]
  28. Fábryová, T.; Cheel, J.; Kubáč, D.; Hrouzek, P.; Vu, D.L.; Tůmová, L.; Kopecký, J. Purification of Lutein from the Green Microalgae Chlorella vulgaris by Integrated Use of a New Extraction Protocol and a Multi-Injection High Performance Counter-Current Chromatography (HPCCC). Algal Res. 2019, 41, 101574. [Google Scholar] [CrossRef]
  29. Hwang, S.H.; Kim, J.M.; Kim, S.; Yoon, M.J.; Park, K.S. Chemical Transformation of Astaxanthin from Haematococcus pluvialis Improves Its Antioxidative and Anti-Inflammatory Activities. ACS Omega 2020, 5, 19120–19130. [Google Scholar] [CrossRef] [PubMed]
  30. Heffernan, N.; Smyth, T.J.; FitzGerald, R.J.; Vila-Soler, A.; Mendiola, J.; Ibáñez, E.; Brunton, N.P. Comparison of Extraction Methods for Selected Carotenoids from Macroalgae and the Assessment of Their Seasonal/Spatial Variation. Innov. Food Sci. Emerg. Technol. 2016, 37, 221–228. [Google Scholar] [CrossRef] [Green Version]
  31. Ashokkumar, V.; Flora, G.; Sevanan, M.; Sripriya, R.; Chen, W.H.; Park, J.-H.; Rajesh banu, J.; Kumar, G. Technological Advances in the Production of Carotenoids and Their Applications—A Critical Review. Bioresour. Technol. 2023, 367, 128215. [Google Scholar] [CrossRef]
  32. Yu, J.; Liu, X.; Zhang, L.; Shao, P.; Wu, W.; Chen, Z.; Li, J.; Renard, C.M.G.C. An Overview of Carotenoid Extractions Using Green Solvents Assisted by Z-Isomerization. Trends Food Sci. Technol. 2022, 123, 145–160. [Google Scholar] [CrossRef]
  33. Roselló-Soto, E.; Galanakis, C.M.; Brnčić, M.; Orlien, V.; Trujillo, F.J.; Mawson, R.; Knoerzer, K.; Tiwari, B.K.; Barba, F.J. Clean Recovery of Antioxidant Compounds from Plant Foods, by-Products and Algae Assisted by Ultrasounds Processing. Modeling Approaches to Optimize Processing Conditions. Trends Food Sci. Technol. 2015, 42, 134–149. [Google Scholar] [CrossRef]
  34. Machmudah, S.; Goto, M. Methods for Extraction and Analysis of Carotenoids. In Natural Products; Springer: Berlin/Heidelberg, Germany, 2013; pp. 3367–3411. [Google Scholar] [CrossRef]
  35. Biehler, E.; Mayer, F.; Hoffmann, L.; Krause, E.; Bohn, T. Comparison of 3 Spectrophotometric Methods for Carotenoid Determination in Frequently Consumed Fruits and Vegetables. J. Food Sci. 2010, 75, C55–C61. [Google Scholar] [CrossRef]
  36. Varzakas, T.; Kiokias, S. HPLC Analysis and Determination of Carotenoid Pigments in Commercially Available Plant Extracts. Curr. Res. Nutr. Food Sci. J. 2016, 4, 1–14. [Google Scholar] [CrossRef]
  37. Nagarajan, J.; Ramanan, R.N.; Raghunandan, M.E.; Galanakis, C.M.; Krishnamurthy, N.P. Carotenoids. In Nutraceutical and Functional Food Components: Effects of Innovative Processing Techniques; Elsevier Inc.: Amsterdam, The Netherlands, 2017; pp. 259–296. [Google Scholar] [CrossRef]
  38. Butnariu, M. Methods of Analysis (Extraction, Separation, Identification and Quantification) of Carotenoids from Natural Products. J. Ecosyst. Ecography 2016, 6, 1–19. [Google Scholar] [CrossRef]
  39. Scott, K.J. Detection and Measurement of Carotenoids by UV/VIS Spectrophotometry. Curr. Protoc. Food Anal. Chem. 2001, F2-2. [Google Scholar] [CrossRef]
  40. Lichtenthaler, H.K.; Buschmann, C. Chlorophylls and Carotenoids: Measurement and Characterization by UV-VIS Spectroscopy. Curr. Protoc. Food Anal. Chem. 2001, 1, F4.3.1–F4.3.8. [Google Scholar] [CrossRef]
  41. Gupta, P.; Sreelakshmi, Y.; Sharma, R. A Rapid and Sensitive Method for Determination of Carotenoids in Plant Tissues by High Performance Liquid Chromatography. Plant Methods 2015, 11, 5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Cavaliere, C.; Capriotti, A.; La Barbera, G.; Montone, C.; Piovesana, S.; Laganà, A. Liquid Chromatographic Strategies for Separation of Bioactive Compounds in Food Matrices. Molecules 2018, 23, 3091. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Maoka, T. Carotenoids in Marine Animals. Mar. Drugs 2011, 9, 278–293. [Google Scholar] [CrossRef] [PubMed]
  44. Miyashita, K.; Hosokawa, M. Health Impact of Marine Carotenoids. J. Food Bioact. 2018, 1, 31–40. [Google Scholar] [CrossRef] [Green Version]
  45. De Jesus Raposo, M.F.; De Morais, A.M.M.B.; De Morais, R.M.S.C. Carotenoids from Marine Microalgae: A Valuable Natural Source for the Prevention of Chronic Diseases. Mar. Drugs 2015, 13, 5128–5155. [Google Scholar] [CrossRef] [Green Version]
  46. Lafarga, T.; Clemente, I.; Garcia-Vaquero, M. Carotenoids from Microalgae. In Carotenoids: Properties, Processing and Applications; Academic Press: Cambridge, MA, USA, 2019; pp. 149–188. [Google Scholar]
  47. Tirado, D.F.; Calvo, L. The Hansen Theory to Choose the Best Cosolvent for Supercritical CO2 Extraction of Β-Carotene from Dunaliella salina. J. Supercrit. Fluids 2019, 145, 211–218. [Google Scholar] [CrossRef]
  48. Singh, P.; Baranwal, M.; Reddy, S.M. Antioxidant and Cytotoxic Activity of Carotenes Produced by Dunaliella salina under Stress. Pharm. Biol. 2016, 54, 2269–2275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Dey, S.; Rathod, V.K. Ultrasound Assisted Extraction of β-Carotene from Spirulina platensis. Ultrason. Sonochem. 2013, 20, 271–276. [Google Scholar] [CrossRef]
  50. Luengo, E.; Martínez, J.M.; Bordetas, A.; Álvarez, I.; Raso, J. Influence of the Treatment Medium Temperature on Lutein Extraction Assisted by Pulsed Electric Fields from Chlorella vulgaris. Innov. Food Sci. Emerg. Technol. 2015, 29, 15–22. [Google Scholar] [CrossRef]
  51. Ishika, T.; Moheimani, N.R.; Bahri, P.A.; Laird, D.W.; Blair, S.; Parlevliet, D. Halo-Adapted Microalgae for Fucoxanthin Production: Effect of Incremental Increase in Salinity. Algal Res. 2017, 28, 66–73. [Google Scholar] [CrossRef]
  52. Seabra, L.M.J.; Pedrosa, L.F.C. Astaxanthin: Structural and Functional Aspects. Rev. Nutr. 2010, 23, 1041–1050. [Google Scholar] [CrossRef] [Green Version]
  53. Fakhri, S.; Abbaszadeh, F.; Dargahi, L.; Jorjani, M. Astaxanthin: A Mechanistic Review on Its Biological Activities and Health Benefits. Pharmacol. Res. 2018, 136, 1–20. [Google Scholar] [CrossRef]
  54. Šimat, V.; Rathod, N.B.; Čagalj, M.; Hamed, I.; Generalić Mekinić, I. Astaxanthin from Crustaceans and Their Byproducts: A Bioactive Metabolite Candidate for Therapeutic Application. Mar. Drugs 2022, 20, 206. [Google Scholar] [CrossRef]
  55. Pourkarimi, S.; Hallajisani, A.; Nouralishahi, A.; Alizadehdakhel, A.; Golzary, A. Factors Affecting Production of Beta-Carotene from Dunaliella salina Microalgae. Biocatal. Agric. Biotechnol. 2020, 29, 101771. [Google Scholar] [CrossRef]
  56. Eghbali Babadi, F.; Boonnoun, P.; Nootong, K.; Powtongsook, S.; Goto, M.; Shotipruk, A. Identification of Carotenoids and Chlorophylls from Green Algae Chlorococcum humicola and Extraction by Liquefied Dimethyl Ether. Food Bioprod. Process. 2020, 123, 296–303. [Google Scholar] [CrossRef]
  57. Sivathanu, B.; Palaniswamy, S. Purification and Characterization of Carotenoids from Green Algae Chlorococcum humicola by HPLC-NMR and LC-MS-APCI. Biomed. Prev. Nutr. 2012, 2, 276–282. [Google Scholar] [CrossRef]
  58. Xie, Y.; Ho, S.H.; Chen, C.N.N.; Chen, C.Y.; Jing, K.; Ng, I.S.; Chen, J.; Chang, J.S.; Lu, Y. Disruption of Thermo-Tolerant Desmodesmus sp. F51 in High Pressure Homogenization as a Prelude to Carotenoids Extraction. Biochem. Eng. J. 2016, 109, 243–251. [Google Scholar] [CrossRef]
  59. Grujić, V.J.; Todorović, B.; Ambrožič-Dolinšek, J.; Kranvogl, R.; Ciringer, T. Diversity and Content of Carotenoids and Other Pigments in the Transition from the Green to the Red Stage of Haematococcus pluvialis Microalgae Identified by HPLC-DAD and LC-QTOF-MS. Plants 2022, 11, 1026. [Google Scholar] [CrossRef]
  60. Ruiz-Domínguez, M.C.; Rincón, B.; de los Ángeles Martín, M.; del Carmen Gutiérrez, M.; Salinas, F.; Medina, E.; Cerezal, P. Microalga Isochrysis galbana Biorefinery: Obtaining Fucoxanthin and Biogas after Supercritical Fluid Extraction. J. Appl. Phycol. 2022, 34, 1997–2014. [Google Scholar] [CrossRef]
  61. Erdoğan, A.; Karataş, A.B.; Demir, D.; Demirel, Z.; Aktürk, M.; Çopur, Ö.; Conk-Dalay, M. Manipulation in Culture Conditions of Nanofrustulum shiloi for Enhanced Fucoxanthin Production and Isolation by Preparative Chromatography. Molecules 2023, 28, 1988. [Google Scholar] [CrossRef] [PubMed]
  62. Nunes, N.; Ferraz, S.; Valente, S.; Barreto, M.C.; Pinheiro de Carvalho, M.A.A. Biochemical Composition, Nutritional Value, and Antioxidant Properties of Seven Seaweed Species from the Madeira Archipelago. J. Appl. Phycol. 2017, 29, 2427–2437. [Google Scholar] [CrossRef]
  63. Magdugo, R.P.; Terme, N.; Lang, M.; Pliego-Cortés, H.; Marty, C.; Hurtado, A.Q.; Bedoux, G.; Bourgougnon, N. An Analysis of the Nutritional and Health Values of Caulerpa racemosa (Forsskål) and Ulva fasciata (Delile)—Two Chlorophyta Collected from the Philippines. Molecules 2020, 25, 2901. [Google Scholar] [CrossRef]
  64. AK, I.; Turker, G. Antioxidant Activity of Five Seaweed Extracts. New Knowl. J. Sci. 2018, 7, 149–155. [Google Scholar]
  65. Bhat, I.; Haripriya, G.; Jogi, N.; Mamatha, B.S. Carotenoid Composition of Locally Found Seaweeds of Dakshina Kannada District in India. Algal Res. 2021, 53, 102154. [Google Scholar] [CrossRef]
  66. Osuna-Ruiz, I.; Nieves-Soto, M.; Manzano-Sarabia, M.M.; Hernández-Garibay, E.; Lizardi-Mendoza, J.; Burgos-Hernández, A.; Hurtado-Oliva, M.Á. Gross Chemical Composition, Fatty Acids, Sterols, and Pigments in Tropical Seaweed Species off Sinaloa, Mexico. Cienc. Mar. 2019, 45, 101–120. [Google Scholar] [CrossRef] [Green Version]
  67. Pappou, S.; Dardavila, M.M.; Savvidou, M.G.; Louli, V.; Magoulas, K.; Voutsas, E. Extraction of Bioactive Compounds from Ulva lactuca. Appl. Sci. 2022, 12, 2117. [Google Scholar] [CrossRef]
  68. Othman, R.; Amin, N.A.; Sani, M.S.A.; Fadzillah, N.A.; Jamaludin, M.A. Carotenoid and Chlorophyll Profiles in Five Species of Malaysian Seaweed as Potential Halal Active Pharmaceutical Ingredient (API). Int. J. Adv. Sci. Eng. Inf. Technol. 2018, 8, 1610–1616. [Google Scholar] [CrossRef]
  69. Balasubramaniam, V.; June Chelyn, L.; Vimala, S.; Mohd Fairulnizal, M.N.; Brownlee, I.A.; Amin, I. Carotenoid Composition and Antioxidant Potential of Eucheuma denticulatum, Sargassum polycystum and Caulerpa lentillifera. Heliyon 2020, 6, e04654. [Google Scholar] [CrossRef]
  70. Kanda, H.; Wahyudiono; MacHmudah, S.; Goto, M. Direct Extraction of Lutein from Wet Macroalgae by Liquefied Dimethyl Ether without Any Pretreatment. ACS Omega 2020, 5, 24005–24010. [Google Scholar] [CrossRef]
  71. Silva, A.F.R.; Abreu, H.; Silva, A.M.S.; Cardoso, S.M. Effect of Oven-Drying on the Recovery of Valuable Compounds from Ulva rigida, Gracilaria sp. and Fucus vesiculosus. Mar. Drugs 2019, 17, 90. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Dobreva, D.A.; Panayotova, V.Z.; Stancheva, R.S.; Stancheva, M. Simultaneous HPLC Determination of Fat Soluble Vitamins, Carotenoids and Cholesterol in Seaweed and Mussel Tissue. Bulg. Chem. Commun. 2017, 49, 112–117. [Google Scholar]
  73. Zheng, J.; Manabe, Y.; Sugawara, T. Siphonaxanthin, a Carotenoid from Green Algae Codium cylindricum, Protects Ob/Ob Mice Fed on a High-Fat Diet against Lipotoxicity by Ameliorating Somatic Stresses and Restoring Anti-Oxidative Capacity. Nutr. Res. 2020, 77, 29–42. [Google Scholar] [CrossRef]
  74. Syamsuddin, R.; Azis, H.Y.; Badraeni, R. Comparative Study on the Growth, Carotenoid, Fibre and Mineral Content of the Seaweed Caulerpa lentillifera Cultivated Indoors and in the Sea. IOP Conf. Ser. Earth Environ. Sci. 2019, 370, 012019. [Google Scholar] [CrossRef]
  75. Roy, S. Screening and Partial Characterization of Natural Antioxidants from Seaweeds Collected from, Rameshwaram Southeast Coast of India. J. Mar. Sci. Res. Oceanogr. 2020, 3, 1–12. [Google Scholar] [CrossRef]
  76. Kurniawan, R.; Nurkolis, F.; Taslim, N.A.; Subali, D.; Surya, R.; Ben Gunawan, W.; Alisaputra, D.; Mayulu, N.; Salindeho, N.; Kim, B. Carotenoids Composition of Green Algae Caulerpa racemosa and Their Antidiabetic, Anti-Obesity, Antioxidant, and Anti-Inflammatory Properties. Molecules 2023, 28, 3267. [Google Scholar] [CrossRef]
  77. Fabrowska, J.; Messyasz, B.; Szyling, J.; Walkowiak, J.; Łęska, B. Isolation of Chlorophylls and Carotenoids from Freshwater Algae Using Different Extraction Methods. Phycol. Res. 2018, 66, 52–57. [Google Scholar] [CrossRef]
  78. Nutautaitė, M.; Racevičiūtė-Stupelienė, A.; Bliznikas, S.; Jonuškienė, I.; Karosienė, J.; Koreivienė, J.; Vilienė, V. Evaluation of Phenolic Compounds and Pigments in Freshwater Cladophora glomerata Biomass from Various Lithuanian Rivers as a Potential Future Raw Material for Biotechnology. Water 2022, 14, 1138. [Google Scholar] [CrossRef]
  79. Saito, M.; Watanabe, H.; Sasaki, M.; Ookubo, M.; Yarita, T.; Shiraiwa, M.; Asayama, M. Coproduction of Lipids and Carotenoids by the Novel Green Alga Coelastrella sp. Depending on Cultivation Conditions. Biotechnol. Rep. 2023, 37, e00769. [Google Scholar] [CrossRef]
  80. Sunaryo; Syamsuddin, R.; Azis, H.Y.; Nur, M. Growth and Carotenoid Content of The Green Seaweed Codium fragile on Different Depth. Int. J. Sci. Res. Publ. 2022, 12, 230–235. [Google Scholar] [CrossRef]
  81. Turker, G.; Ak, I. Assesment of Antioxidant Actvity of Enteromoprha intestinalis (Linnaeus) Assesment of Antioxidant Actvity of Enteromoprha intestinalis (Linnaeus) Nees and Ceramium rubrum C. Agardh. In Proceedings of the International Conference on Science and Technology ICONST 2018, Prizren, Kosovo, 5–9 September 2018; pp. 729–734. [Google Scholar]
  82. Nazarudin, M.F.; Yasin, I.S.M.; Mazli, N.A.I.N.; Saadi, A.R.; Azizee, M.H.S.; Nooraini, M.A.; Saad, N.; Ferdous, U.T.; Fakhrulddin, I.M. Preliminary Screening of Antioxidant and Cytotoxic Potential of Green Seaweed, Halimeda opuntia (Linnaeus) Lamouroux. Saudi J. Biol. Sci. 2022, 29, 2698–2705. [Google Scholar] [CrossRef] [PubMed]
  83. Bulut, O.; Akın, D.; Sönmez, Ç.; Öktem, A.; Yücel, M.; Öktem, H.A. Phenolic Compounds, Carotenoids, and Antioxidant Capacities of a Thermo-Tolerant Scenedesmus sp. (Chlorophyta) Extracted with Different Solvents. J. Appl. Phycol. 2019, 31, 1675–1683. [Google Scholar] [CrossRef]
  84. Kharkongor, D.; Ramanujam, P. Spatial and Temporal Variation of Carotenoids in Four Species of Trentepohlia (Trentepohliales, Chlorophyta). J. Bot. 2015, 2015, 201641. [Google Scholar] [CrossRef] [Green Version]
  85. Egodavitharana, D.I.; Manori Bambaranda, B.V.A.S.; Mudannayake, D.C. Phytochemical Composition of Two Green Seaweeds (Ulva lactuca and Ulva fasciata) and Their Utilization as a Functional Ingredient in Crackers. J. Aquat. Food Prod. Technol. 2023, 32, 158–174. [Google Scholar] [CrossRef]
  86. Rocha, J.S.; Santos, D.; Candia, E.W.d.S.C.d.; Hayashi, L.; Bauer, C.M.; Maraschin, M.; Vieira, F.d.N. Composition Characterization of Ulva ohnoi Cultivated in a Biofloc System. Res. Sq. 2022, 1–22. [Google Scholar] [CrossRef]
  87. He, Y.; Ma, Y.; Du, Y.; Shen, S. Differential Gene Expression for Carotenoid Biosynthesis in a Green Alga Ulva prolifera Based on Transcriptome Analysis. BMC Genom. 2018, 19, 916. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  88. He, Y.; Li, M.; Wang, Y.; Shen, S. The R2R3-MYB Transcription Factor MYB44 Modulates Carotenoid Biosynthesis in Ulva prolifera. Algal Res. 2022, 62, 102578. [Google Scholar] [CrossRef]
  89. Garcia-Perez, P.; Lourenço-Lopes, C.; Silva, A.; Pereira, A.G.; Fraga-Corral, M.; Zhao, C.; Xiao, J.; Simal-Gandara, J.; Prieto, M.A. Pigment Composition of Nine Brown Algae from the Iberian Northwestern Coastline: Influence of the Extraction Solvent. Mar. Drugs 2022, 20, 113. [Google Scholar] [CrossRef]
  90. Din, N.A.S.; Mohd Alayudin, A.S.; Sofian-Seng, N.-S.; Rahman, H.A.; Mohd Razali, N.S.; Lim, S.J.; Wan Mustapha, W.A. Brown Algae as Functional Food Source of Fucoxanthin: A Review. Foods 2022, 11, 2235. [Google Scholar] [CrossRef]
  91. Miyashita, K.; Beppu, F.; Hosokawa, M.; Liu, X.; Wang, S. Nutraceutical Characteristics of the Brown Seaweed Carotenoid Fucoxanthin. Arch. Biochem. Biophys. 2020, 686, 108364. [Google Scholar] [CrossRef] [PubMed]
  92. Lourenço-Lopes, C.; Fraga-Corral, M.; Garcia-Perez, P.; Carreira-Casais, A.; Silva, A.; Simal-Gandara, J.; Prieto, M.A. A HPLC-DAD Method for Identifying and Estimating the Content of Fucoxanthin, Β-carotene and Chlorophyll a in Brown Algal Extracts. Food Chem. Adv. 2022, 1, 100095. [Google Scholar] [CrossRef]
  93. Nie, J.; Chen, D.; Ye, J.; Lu, Y.; Dai, Z. Optimization and Kinetic Modeling of Ultrasonic-Assisted Extraction of Fucoxanthin from Edible Brown Algae Sargassum fusiforme Using Green Solvents. Ultrason. Sonochem. 2021, 77, 105671. [Google Scholar] [CrossRef] [PubMed]
  94. Molina, G.A.; González-Reyna, M.A.; Loske, A.M.; Fernández, F.; Torres-Ortiz, D.A.; Estevez, M. Weak Shock Wave-Mediated Fucoxanthin Extraction from Sargassum spp. and Its Electrochemical Quantification. Algal Res. 2022, 68, 102891. [Google Scholar] [CrossRef]
  95. Getachew, A.T.; Saravana, P.S.; Cho, Y.J.; Woo, H.C.; Chun, B.S. Concurrent Extraction of Oil from Roasted Coffee (Coffea arabica) and Fucoxanthin from Brown Seaweed (Saccharina japonica) Using Supercritical Carbon Dioxide. J. CO2 Util. 2018, 25, 137–146. [Google Scholar] [CrossRef]
  96. Yin, S.; Niu, L.; Shibata, M.; Liu, Y.; Hagiwara, T. Optimization of Fucoxanthin Extraction Obtained from Natural By-Products from Undaria pinnatifida Stem Using Supercritical CO2 Extraction Method. Front. Nutr. 2022, 9, 981176. [Google Scholar] [CrossRef] [PubMed]
  97. Heriyanto; Juliadiningtyas, A.D.; Shioi, Y.; Limantara, L.; Brotosudarmo, T.H.P. Analysis of Pigment Composition of Brown Seaweeds Collected from Panjang Island, Central Java, Indonesia. Philipp. J. Sci. 2017, 146, 323–330. [Google Scholar]
  98. Tabakaeva, O.V.; Tabakaev, A.V. Carotenoid Profile and Antiradical Properties of Brown Seaweed Sargassum miyabei Extracts. Chem. Nat. Compd. 2019, 55, 364–366. [Google Scholar] [CrossRef]
  99. Rajauria, G.; Foley, B.; Abu-Ghannam, N. Characterization of Dietary Fucoxanthin from Himanthalia elongata Brown Seaweed. Food Res. Int. 2017, 99, 995–1001. [Google Scholar] [CrossRef]
  100. Shukor, M.I.; Darnis, D.S.; Sabarudin, N.S.; Normawaty, M.N.; Bakhtiar, M.T. Effects of Solvent Extraction and Drying Methods of Malaysian Seaweed, Sargassum polycystum on Fucoxanthin Content. AIP Conf. Proc. 2022, 2645, 030025. [Google Scholar]
  101. Maeda, H.; Hosokawa, M.; Sashima, T.; Funayama, K.; Miyashita, K. Fucoxanthin from Edible Seaweed, Undaria pinnatifida, Shows Antiobesity Effect through UCP1 Expression in White Adipose Tissues. Biochem. Biophys. Res. Commun. 2005, 332, 392–397. [Google Scholar] [CrossRef]
  102. La Macchia Pedra, A.G.; Ramlov, F.; Maraschin, M.; Hayashi, L. Cultivation of the Red Seaweed Kappaphycus alvarezii with Effluents from Shrimp Cultivation and Brown Seaweed Extract: Effects on Growth and Secondary Metabolism. Aquaculture 2017, 479, 297–303. [Google Scholar] [CrossRef]
  103. Hossain, M.S.; din Sifat, S.A.; Hossain, M.A.; Salleh, S.; Hossain, M.; Akter, S.; Hossain, M.B. Comparative Assessment of Bioactive Compounds, Antioxidant Capacity and Nutritional Quality of Red Seaweeds and Water Spinach. Reg. Stud. Mar. Sci. 2021, 46, 101878. [Google Scholar] [CrossRef]
  104. Parjikolaei, B.R.; Bruhn, A.; Eybye, K.L.; Larsen, M.M.; Rasmussen, M.B.; Christensen, K.V.; Fretté, X.C. Valuable Biomolecules from Nine North Atlantic Red Macroalgae: Amino Acids, Fatty Acids, Carotenoids, Minerals and Metals. Nat. Resour. 2016, 7, 157–183. [Google Scholar] [CrossRef] [Green Version]
  105. Koizumi, J.; Takatani, N.; Kobayashi, N.; Mikami, K.; Miyashita, K.; Yamano, Y.; Wada, A.; Maoka, T.; Hosokawa, M. Carotenoid Profiling of a Red Seaweed Pyropia yezoensis: Insights into Biosynthetic Pathways in the Order Bangiales. Mar. Drugs 2018, 16, 426. [Google Scholar] [CrossRef] [Green Version]
  106. Freitas, M.V.; Inácio, L.G.; Martins, M.; Afonso, C.; Pereira, L.; Mouga, T. Primary Composition and Pigments of 11 Red Seaweed Species from the Center of Portugal. J. Mar. Sci. Eng. 2022, 10, 1168. [Google Scholar] [CrossRef]
  107. Mohy El-Din, S.M.; El-Ahwany, A.M.D. Bioactivity and Phytochemical Constituents of Marine Red Seaweeds (Jania rubens, Corallina mediterranea and Pterocladia capillacea). J. Taibah Univ. Sci. 2016, 10, 471–484. [Google Scholar] [CrossRef] [Green Version]
  108. Chan, P.T.; Matanjun, P.; Yasir, S.M.; Tan, T.S. Antioxidant Activities and Polyphenolics of Various Solvent Extracts of Red Seaweed, Gracilaria changii. J. Appl. Phycol. 2015, 27, 2377–2386. [Google Scholar] [CrossRef]
  109. Arbit, N.I.S.; Omar, S.B.A.; Tuwo, A.; Soekendarsi, E. Effect of Global Warming Scenarios on Carotenoid Pigments Gracilaria changii. Int. J. Environ. Agric. Biotechnol. 2018, 3, 2039–2042. [Google Scholar] [CrossRef]
  110. Rosemary, T.; Arulkumar, A.; Paramasivam, S.; Mondragon-Portocarrero, A.; Miranda, J. Biochemical, Micronutrient and Physicochemical Properties of the Dried Red Seaweeds Gracilaria edulis and Gracilaria corticata. Molecules 2019, 24, 2225. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  111. Sanger, G.; Rarung, L.; Kaseger, B.; Timbowo, S. Composition of Pigments and Antioxidant Activity in Edible Red Seaweed Halimenia durvilae Obtained from North Sulawesi. Int. J. ChemTech Res. 2016, 10, 255–262. [Google Scholar]
  112. Zhao, W.; Hu, C.M.; Zhou, W.; Deng, Y.Y.; Xu, G.P.; Tian, C.C.; Lu, Q.Q.; Lu, S.; Zhang, M.R.; Yang, L.E. Carotenoids Participate in Adaptation/Resistance of Daily Desiccation in the Intertidal Red Alga Neopyropia yezoensis (Bangiales, Rhodophyta). Algal Res. 2022, 61, 102606. [Google Scholar] [CrossRef]
  113. Uribe, E.; Vega-Gálvez, A.; Heredia, V.; Pastén, A.; Di Scala, K. An Edible Red Seaweed (Pyropia orbicularis): Influence of Vacuum Drying on Physicochemical Composition, Bioactive Compounds, Antioxidant Capacity, and Pigments. J. Appl. Phycol. 2018, 30, 673–683. [Google Scholar] [CrossRef]
  114. Xie, X.; Lu, X.; Wang, L.; He, L.; Wang, G. High Light Intensity Increases the Concentrations of β-Carotene and Zeaxanthin in Marine Red Macroalgae. Algal Res. 2020, 47, 101852. [Google Scholar] [CrossRef]
  115. Sangeetha, R.K.; Bhaskar, N.; Baskaran, V. Comparative Effects of β-Carotene and Fucoxanthin on Retinol Deficiency Induced Oxidative Stress in Rats. Mol. Cell. Biochem. 2009, 331, 59–67. [Google Scholar] [CrossRef] [PubMed]
  116. Jang, E.J.; Kim, S.C.; Lee, J.-H.; Lee, J.R.; Kim, I.K.; Baek, S.Y.; Kim, Y.W. Fucoxanthin, the Constituent of Laminaria japonica, Triggers AMPK-Mediated Cytoprotection and Autophagy in Hepatocytes under Oxidative Stress. BMC Complement. Altern. Med. 2018, 18, 97. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  117. Preuss, H.G.; Echard, B.; Yamashita, E.; Perricone, N.V. High Dose Astaxanthin Lowers Blood Pressure and Increases Insulin Sensitivity in Rats: Are These Effects Interdependent? Int. J. Med. Sci. 2011, 8, 126–138. [Google Scholar] [CrossRef] [Green Version]
  118. Speranza, L.; Pesce, M.; Patruno, A.; Franceschelli, S.; de Lutiis, M.A.; Grilli, A.; Felaco, M. Astaxanthin Treatment Reduced Oxidative Induced Pro-Inflammatory Cytokines Secretion in U937: SHP-1 as a Novel Biological Target. Mar. Drugs 2012, 10, 890–899. [Google Scholar] [CrossRef]
  119. Ojulari, O.V.; Lee, S.G.; Nam, J.-O. Therapeutic Effect of Seaweed Derived Xanthophyl Carotenoid on Obesity Management; Overview of the Last Decade. Int. J. Mol. Sci. 2020, 21, 2502. [Google Scholar] [CrossRef] [Green Version]
  120. Choudhary, B.; Chauhan, O.P.; Mishra, A. Edible Seaweeds: A Potential Novel Source of Bioactive Metabolites and Nutraceuticals with Human Health Benefits. Front. Mar. Sci. 2021, 8, 740054. [Google Scholar] [CrossRef]
  121. Chao, P.C.; Hsu, C.C.; Liu, W.H. Renal Protective Effects of Porphyra dentate Aqueous Extract in Diabetic Mice. Biomedicine 2014, 4, 14–18. [Google Scholar] [CrossRef]
  122. Arunkumar, E.; Bhuvaneswari, S.; Anuradha, C.V. An Intervention Study in Obese Mice with Astaxanthin, a Marine Carotenoid—Effects on Insulin Signaling and pro-Inflammatory Cytokines. Food Funct. 2012, 3, 120–126. [Google Scholar] [CrossRef] [PubMed]
  123. Kim, K.-N.; Heo, S.-J.; Kang, S.-M.; Ahn, G.; Jeon, Y.-J. Fucoxanthin Induces Apoptosis in Human Leukemia HL-60 Cells through a ROS-Mediated Bcl-XL Pathway. Toxicol. Vitr. 2010, 24, 1648–1654. [Google Scholar] [CrossRef]
  124. Polat, S.; Trif, M.; Rusu, A.; Šimat, V.; Čagalj, M.; Alak, G.; Meral, R.; Özogul, Y.; Polat, A.; Özogul, F. Recent Advances in Industrial Applications of Seaweeds. Crit. Rev. Food Sci. Nutr. 2021, 63, 2010646. [Google Scholar] [CrossRef]
  125. Bose, I.; Sujatha, T.; Singh, R.; Sunder, J.; Samaddar, G. Preliminary Study on Exploration of Seaweed for an Alternative to Antibiotic Growth Promoter in Poultry Feed Additives. agriRxiv 2021, 20210373201. [Google Scholar] [CrossRef]
  126. Aryee, A.N.; Agyei, D.; Akanbi, T.O. Recovery and Utilization of Seaweed Pigments in Food Processing. Curr. Opin. Food Sci. 2018, 19, 113–119. [Google Scholar] [CrossRef]
  127. Yusof, Z.; Khong, N.M.H.; Choo, W.S.; Foo, S.C. Opportunities for the Marine Carotenoid Value Chain from the Perspective of Fucoxanthin Degradation. Food Chem. 2022, 383, 132394. [Google Scholar] [CrossRef]
  128. Hamed, I.; Moradi, M.; Ezati, P.; O’Higgins, L.; Meléndez-Martínez, A.J.; Frleta Matas, R.; Šimat, V.; McClements, D.J.; Jakobsen, A.N.; Lerfall, J. Encapsulation of Microalgal-Based Carotenoids: Recent Advances in Stability and Food Applications. Trends Food Sci. Technol. 2023, 138, 382–398. [Google Scholar] [CrossRef]
  129. Gullón, B.; Gagaoua, M.; Barba, F.J.; Gullón, P.; Zhang, W.; Lorenzo, J.M. Seaweeds as Promising Resource of Bioactive Compounds: Overview of Novel Extraction Strategies and Design of Tailored Meat Products. Trends Food Sci. Technol. 2020, 100, 1–18. [Google Scholar] [CrossRef]
  130. Morais, T.; Inácio, A.; Coutinho, T.; Ministro, M.; Cotas, J.; Pereira, L.; Bahcevandziev, K. Seaweed Potential in the Animal Feed: A Review. J. Mar. Sci. Eng. 2020, 8, 559. [Google Scholar] [CrossRef]
  131. Leandro, A.; Pacheco, D.; Cotas, J.; Marques, J.C.; Pereira, L.; Gonçalves, A.M.M. Seaweed’s Bioactive Candidate Compounds to Food Industry and Global Food Security. Life 2020, 10, 140. [Google Scholar] [CrossRef]
  132. Diprat, A.B.; Silveira Thys, R.C.; Rodrigues, E.; Rech, R. Chlorella Sorokiniana: A New Alternative Source of Carotenoids and Proteins for Gluten-Free Bread. LWT 2020, 134, 109974. [Google Scholar] [CrossRef]
  133. Lafarga, T.; Mayre, E.; Echeverria, G.; Viñas, I.; Villaró, S.; Acién-Fernández, F.G.; Castellari, M.; Aguiló-Aguayo, I. Potential of the Microalgae Nannochloropsis and Tetraselmis for Being Used as Innovative Ingredients in Baked Goods. LWT 2019, 115, 108439. [Google Scholar] [CrossRef]
  134. Lafarga, T.; Acién-Fernández, F.G.; Castellari, M.; Villaró, S.; Bobo, G.; Aguiló-Aguayo, I. Effect of Microalgae Incorporation on the Physicochemical, Nutritional, and Sensorial Properties of an Innovative Broccoli Soup. LWT 2019, 111, 167–174. [Google Scholar] [CrossRef]
  135. Andrade, M.A.; Barbosa, C.H.; Souza, V.G.L.; Coelhoso, I.M.; Reboleira, J.; Bernardino, S.; Ganhão, R.; Mendes, S.; Fernando, A.L.; Vilarinho, F.; et al. Novel Active Food Packaging Films Based on Whey Protein Incorporated with Seaweed Extract: Development, Characterization, and Application in Fresh Poultry Meat. Coatings 2021, 11, 229. [Google Scholar] [CrossRef]
  136. Sáez, M.I.; Suárez, M.D.; Alarcón, F.J.; Martínez, T.F. Assessing the Potential of Algae Extracts for Extending the Shelf Life of Rainbow Trout (Oncorhynchus mykiss) Fillets. Foods 2021, 10, 910. [Google Scholar] [CrossRef]
  137. Pereira, A.G.; Otero, P.; Echave, J.; Carreira-Casais, A.; Chamorro, F.; Collazo, N.; Jaboui, A.; Lourenço-Lopes, C.; Simal-Gandara, J.; Prieto, M.A. Xanthophylls from the Sea: Algae as Source of Bioactive Carotenoids. Mar. Drugs 2021, 19, 188. [Google Scholar] [CrossRef]
  138. Pangestuti, R.; Siahaan, E.A. Seaweed-Derived Carotenoids; Elsevier Inc.: Amsterdam, The Netherlands, 2018. [Google Scholar] [CrossRef]
  139. Zaheer, K. Hen Egg Carotenoids (Lutein and Zeaxanthin) and Nutritional Impacts on Human Health: A Review. CyTA J. Food 2017, 15, 474–487. [Google Scholar] [CrossRef] [Green Version]
  140. AftabUddin, S.; Siddique, M.A.M.; Habib, A.; Akter, S.; Hossen, S.; Tanchangya, P.; Abdullah Al, M. Effects of Seaweeds Extract on Growth, Survival, Antibacterial Activities, and Immune Responses of Penaeus monodon against Vibrio parahaemolyticus. Ital. J. Anim. Sci. 2021, 20, 243–255. [Google Scholar] [CrossRef]
  141. Abdel-Rahim, M.; Bahattab, O.; Nossir, F.; Al-Awthan, Y.; Khalil, R.H.; Mohamed, R. Dietary Supplementation of Brown Seaweed and/or Nucleotides Improved Shrimp Performance, Health Status and Cold-Tolerant Gene Expression of Juvenile Whiteleg Shrimp during the Winter Season. Mar. Drugs 2021, 19, 175. [Google Scholar] [CrossRef]
  142. Roque, B.M.; Venegas, M.; Kinley, R.D.; de Nys, R.; Duarte, T.L.; Yang, X.; Kebreab, E. Red Seaweed (Asparagopsis taxiformis) Supplementation Reduces Enteric Methane by over 80 Percent in Beef Steers. PLoS ONE 2021, 16, e0247820. [Google Scholar] [CrossRef]
  143. Jesumani, V.; Du, H.; Aslam, M.; Pei, P.; Huang, N. Potential Use of Seaweed Bioactive Compounds in Skincare—A Review. Mar. Drugs 2019, 17, 688. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  144. Grether-Beck, S.; Marini, A.; Jaenicke, T.; Stahl, W.; Krutmann, J. Molecular Evidence That Oral Supplementation with Lycopene or Lutein Protects Human Skin against Ultraviolet Radiation: Results from a Double-Blinded, Placebo-Controlled, Crossover Study. Br. J. Dermatol. 2017, 176, 1231–1240. [Google Scholar] [CrossRef] [Green Version]
  145. Davinelli, S.; Nielsen, M.E.; Scapagnini, G. Astaxanthin in Skin Health, Repair, and Disease: A Comprehensive Review. Nutrients 2018, 10, 522. [Google Scholar] [CrossRef] [Green Version]
  146. Nurjannah, K.A.; Amaliah, N.A.; Junda, M.; Iriany, N.; Makkulawu, A.T.; Karim, H.; Azis, A.A.; Djawad, Y.A.; Jumadi, O. The Influence of Fermented Brown Algae Extract (Sargassum sp.) on Corn Plant Growth (Zea mays L.). IOP Conf. Ser. Earth Environ. Sci. 2021, 911, 012051. [Google Scholar] [CrossRef]
  147. Baroud, S.; Tahrouch, S.; El Mehrach, K.; Sadki, I.; Fahmi, F.; Hatimi, A. Effect of Brown Algae on Germination, Growth and Biochemical Composition of Tomato Leaves (Solanum lycopersicum). J. Saudi Soc. Agric. Sci. 2021, 20, 337–343. [Google Scholar] [CrossRef]
  148. Widyastuti, S.; Geraldine, B.A.F.D.; Sunarwidhi, A.L.; Ariyana, M.D.; Prasedya, E.S.; Sunarpi, H. The Use of Brown Algae Extract to Extend Shelf Life and Improve Post Harvest Quality of Tomato Fruit. AIP Conf. Proc. 2019, 2199, 070008. [Google Scholar] [CrossRef]
  149. Zhang, L.; Liao, W.; Huang, Y.; Wen, Y.; Chu, Y.; Zhao, C. Global Seaweed Farming and Processing in the Past 20 Years. Food Prod. Process. Nutr. 2022, 4, 23. [Google Scholar] [CrossRef]
Figure 1. Number of publications and citations per year (until 23 May 2023) related to the carotenoids in algae. Data were obtained from Scopus with the following search criteria: Title, Abstract, Keyword; Carotenoids AND Algae.
Figure 1. Number of publications and citations per year (until 23 May 2023) related to the carotenoids in algae. Data were obtained from Scopus with the following search criteria: Title, Abstract, Keyword; Carotenoids AND Algae.
Foods 12 02768 g001
Figure 2. Major algal carotenoids.
Figure 2. Major algal carotenoids.
Foods 12 02768 g002
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Generalić Mekinić, I.; Šimat, V.; Rathod, N.B.; Hamed, I.; Čagalj, M. Algal Carotenoids: Chemistry, Sources, and Application. Foods 2023, 12, 2768. https://doi.org/10.3390/foods12142768

AMA Style

Generalić Mekinić I, Šimat V, Rathod NB, Hamed I, Čagalj M. Algal Carotenoids: Chemistry, Sources, and Application. Foods. 2023; 12(14):2768. https://doi.org/10.3390/foods12142768

Chicago/Turabian Style

Generalić Mekinić, Ivana, Vida Šimat, Nikheel Bhojraj Rathod, Imen Hamed, and Martina Čagalj. 2023. "Algal Carotenoids: Chemistry, Sources, and Application" Foods 12, no. 14: 2768. https://doi.org/10.3390/foods12142768

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
