Degradation of Aflatoxin B1 in Moldy Maize by Pseudomonas aeruginosa and Safety Evaluation of the Degradation Products

by
Yanhua Xu
,
Renyong Zhao
* and
Chenxi Liu
College of Food Science and Engineering, Henan University of Technology, Zhengzhou 450001, China
*
Author to whom correspondence should be addressed.
Foods 2023, 12(6), 1217; https://doi.org/10.3390/foods12061217
Submission received: 8 February 2023 / Revised: 4 March 2023 / Accepted: 10 March 2023 / Published: 13 March 2023
(This article belongs to the Section Food Toxicology)
Browse Figures
Versions Notes

Abstract

:
Aflatoxin B1 (AFB1) is the most harmful mycotoxin commonly found in food and feed. Pollution from AFB1 causes serious economic and health issues worldwide because it causes strong mutagenicity and carcinogenicity in humans and animals. In this study, Pseudomonas aeruginosa was used to degrade AFB1 in moldy maize, and the safety of this biological method was investigated using genotoxicity and cytotoxicity tests. Using response surface methodology, we established the optimal conditions for degrading AFB1 by the fermentation supernatant of P. aeruginosa. Under these conditions, the degradation rate of AFB1 reached 99.67%. Furthermore, the Ames mutagenicity test showed that AFB1 treated with P. aeruginosa fermentation supernatant for 72 h was not mutagenic. CCK-8 cell assay showed that AFB1 cytotoxicity was significantly reduced after degradation. Overall, our findings show that the fermentation supernatant of P. aeruginosa may be a good candidate for biodegradation of AFB1.

Graphical Abstract

1. Introduction

Aflatoxins (AFs) are a class of dihydrofuran coumarin derivatives with similar chemical structures. They are mainly secondary metabolites produced by Aspergillus flavus and A. parasiticus. Other Aspergillus also produce aflatoxins, such as A. noius, A. pseudotamarii, and A. fumigatus [1,2,3,4]. AFs can easily contaminate crops and agricultural products, such as grains, feeds, seasonings, and nuts, which can widely be infected by mold under appropriate temperature and humidity conditions [5,6,7]. The global prevalence of mycotoxins detected in food crops has been estimated to be 60–80%, and this causes huge economic losses to agriculture and industry [8,9,10,11]. Corn is an important source of feed for the animal husbandry and aquaculture industries, as well as an indispensable raw material for food, medical and health care, light, and chemical industries. Corn plays a pivotal role in the development of agricultural and rural economies, with the safety of corn directly affecting the quality of livestock and poultry products, as well as human health [12]. However, owing to the characteristics of large embryos, rich nutrients, vigorous respiration, and numerous bacteria, coupled with rainfall and high temperature during the harvest period, corn is prone to mildew and germination, which facilitates its contamination by mycotoxins to varying degrees [13,14].
Currently, there are more than 600 known mycotoxins, of which Aflatoxin B1 (AFB1) is the most common and most toxic [15]. AFB1 is 68 times more toxic than arsenic, 10 times more toxic than potassium cyanide, and 76 times more carcinogenic than dimethynitrosamine [16]. The International Agency for Research on Cancer (IARC) classified AFB1 as a group I carcinogen [17]. AFB1 may infect food crops at various stages of growth, harvesting, transportation, and storage, thus threatening human health throughout the food chain. It has relatively stable chemical properties and is difficult to dissolve in water; however, it easily to dissolves in methanol, chloroform, and other organic solvents. It can only be destroyed at or above 280 °C [3]. The removal of AFB1 in a sustainable (green and efficient) manner is a current issue that urgently requires attention. To this end, microbial degradation of mycotoxins has attracted wide attention because this process does not alter the nutritional value and sensory quality of raw materials, does not produce any harmful residues, and is of low cost [18].
Pseudomonas aeruginosa is a gram-negative bacterium that is widely distributed in nature [19]. It requires simple nutrition for growth, has strong adaptability to the natural environment, and can produce substances that promote biodegradation [20]. It is a commonly used strain for the biodegradation of organic pollutants [21]. P. aeruginosa can degrade various compounds including phenols, nitrophenols, alkanes, polycyclic aromatic hydrocarbons, and aromatic compounds [22,23]. The ability of P. aeruginosa to degrade AFB1 was first reported by Sangare et al., who proved that the active components of AFB1 degradation are proteases [24]. Although P. aeruginosa can effectively degrade AFB1, the toxicity of the degradation products is a key issue in this degradation procedure.
Generally, carcinogenic, cytotoxic, and animal tests are conducted to detect the associated metabolites of AFB1. The Ames test (Salmonella-microsomal screening system) is a mutagenic test developed by Ames et al. that has been widely used to economically and rapidly identify the mutagenic and carcinogenic potential of chemicals [25,26,27,28]. Currently, many researchers use this test to detect the toxicity of AFB1 degradation products [29,30,31]. When mutants are present, nutrition-deficient bacteria revert to wild-type strains, and thus can grow visible colonies. Based on this, it can be determined whether the subject matter has no mutants [32]. The human hepatocellular carcinoma cell line, HepG2, is widely used to evaluate the cytotoxicity of various compounds. When toxic substances come into contact with cells, the survival rate of cells is reduced, and cell morphology changes [33,34,35]. The presence of AFB1 reportedly reduces cell survival, which may be associated with the direct impairment of specific protein function or DNA damage caused by toxins, such as protein phosphorylation in the liver or cyclic nucleotide phosphodiesterase activity [36].
We previously screened a P. aeruginosa M-4 strain using coumarin as the sole carbon source; the fermentation supernatant of P. aeruginosa M-4 had a good degradation effect on AFB1. Further, the supernatant retained the degradation activity following high temperature treatment, making it widely applicable [37]. In this study, the fermentation supernatant of P. aeruginosa was used to degrade AFB1 in moldy corn, and the optimal operating parameters for the degradation process were explored using a single-factor and response surface method. Ames and CCK-8 tests were used to determine the overall toxicity of AFB1 degradation products. We aimed to investigate the feasibility and safety of using P. aeruginosa to degrade AFB1 in moldy maize.

2. Materials and Methods

2.1. Chemicals and Reagents

Corn was purchased from the Henan Fujitai Seed Co., Ltd. (Zhengzhou, China). A P. aeruginosa M-4 strain was cultured in our laboratory. Aspergillus flavus NRRL3357 was provided by the School of Bioengineering, Henan University of Technology (Zhengzhou, China). A standard sample of AFB1 (2,3,6α,9α-tetrahydro-4-methoxycyclopenta[c]furo [2,3:4,5]furo [2,3-h]chromone-1,11-dione, C17H12O6, purity > 98%) was obtained from the Sigma Chemical Co., Ltd. (St. Louis, MO, USA). High-performance liquid chromatography-grade methanol was purchased from Fisher Scientific (Waltham, MA, USA). Biological-reagent beef extract, peptone, and agar were purchased from the Beijing Aoboxing Biotechnology Co., Ltd. (Beijing, China). Analytical grade methylene chloride, sodium chloride, and potassium dihydrogen phosphate were purchased from the Tianjin Hengxing Chemical World Manufacturing Co., Ltd. (Tianjin, China). Iodine was purchased from the Tianjin Yongda Chemical Reagent Co., Ltd. (Tianjin, China). The Ames kit was purchased from the Beijing Huizhi Heyuan Biotechnology Co., Ltd. (Beijing, China). Fetal bovine serum was purchased from Capricorn Scientific GmbH (Ebsdorfergrund, Germany). Minimum essential medium was purchased from the American Corning Co., Ltd. (Shanghai, China). The CCK-8 kit was purchased from Invigentech (San Francisco, CA, USA). HepG2 cells were purchased from iCell Bioscience, Inc. (Shanghai, China).

2.2. Preparation of Moldy Corn Meal

Approximately 200 g of corn grain (free of toxins) was placed in a 1000 mL glass bottle, sealed with a breathable sealing film, placed into an autoclave, and sterilized at 121 °C for 20 min. Potato dextrose agar (PDA) was inoculated with Aspergillus flavus NRRL3357 and incubated at 30 °C until the whole plate was covered with yellow-green mycelium. The mycelium was gently scraped with a sterile scalpel and completely rinsed with sterile distilled water to prepare 300 mL of spore suspension (1 × 104 CFU/mL), which was then added to the glass bottle containing sterile corn and shaken to moisten the corn evenly. The glass bottle was sealed with a breathable sealing film and incubated statically at 28 °C. The following day, the glass bottle was shaken again to moisten the slightly dried corn grains on the top. After continuous culture for five days, the moldy corn grains were sterilized at 121 °C for 30 min to kill A. flavus. Following sterilization, the corn grains were transferred onto a tray, evenly paved to a thickness of approximately 2 cm, and placed in an oven set at 40 °C to dry for 2 h. After cooling to 25 °C, the corn grains were crushed using a multifunctional grinder.

2.3. Determination of Moisture in Corn Meal

Determination of moisture in corn meal was according to the GB/T10362-2008 “Grain and Oil inspection–corn moisture determination” as stipulated in the second drying method to determine the moisture of corn flour. Approximately 8 g (m1, accurate to 0.001 g) of corn meal was weighed in a constant weight aluminum box (m0, accurate to 0.001 g) and dried in an oven set at 130 °C (±1 °C). After 4 h, the aluminum box was covered and removed from the oven. The box was cooled to room temperature (25 °C) in a dryer and weighed (m2, accurate to 0.001 g). The formula below was used to calculate the moisture content in the corn meal as follows.
N = m 0 + m 1 − m 2 m 1 × 100 %
where N represents the moisture in the corn meal (%), m0 is the mass of the aluminum box baked to a constant weight (g), m1 is the mass of the corn meal (g), and m2 represents the mass (g) of the baked sample and aluminum box.

2.4. Preparation of P. aeruginosa Fermentation Supernatant

P. aeruginosa was streaked out onto an agar plate (0.3% beef extract, 0.5% peptone, 0.5% NaCl and 1.8% agar, pH 7.0) and placed in an incubator at 37 °C for 24 h. Subsequently, three to four colonies were picked up with a sterilized inoculation ring, and transferred into 250 mL triangular bottles containing 50 mL beef extract peptone (BEP: 0.3% beef extract, 0.5% peptone, 0.5% NaCl and 1.8% agar, pH 7.0) [38]. The triangular bottle was sealed with a breathable sealing film prior to being placed in a shaker to culture for 24 h at 37 °C and 160 r/min. Following incubation, 2.5 mL culture was accurately added into a 250 mL triangular bottle containing 50 mL fresh fermentation medium (0.3% beef extract, 1% peptone, 0.1% KH2PO4, 0.85% NaCl, and 0.2% glucose, pH 7.0), sealed with a breathable sealing film, and cultured for 48 h at 37 °C and 160 r/min. After the culture, the fermentation liquid was transferred to a 50 mL centrifuge tube and centrifuged at 8000× g for 10 min at 4 °C, and the fermentation supernatant was stored at 4 °C until further use.

2.5. Optimization of the Degradation Conditions of AFB1 in Moldy Maize

Twenty-five grams (dry base) of moldy corn (1131 μg/kg) were weighed into a 250 mL triangular bottle, 100 mL of fermentation supernatant was added, the bottle was sealed with a breathable sealing film, and placed in a shaker to degrade for 48 h. Simultaneously, the fermentation medium of uninoculated P. aeruginosa was used as the blank and was combined with the moldy corn under identical conditions. The optimized factors included temperature (30, 40, 50, 60, and 70 °C), solid–liquid ratio (10, 15, 20, 25, and 30 g/100 mL), pH of the fermentation supernatant (6.2, 7.2, 8.2, 9.2, 10.2, and 11.2), and degradation time (6, 12, 18, 24, 30, 36, 42, 48, and 54 h). The AFB1 residue in the moldy corn was analyzed by high-performance liquid chromatography (HPLC).
Based on the results of single-factor experiments, the degradation temperature (°C), pH, and degradation time (h) were considered as independent variables (Xi), and the degradation rate of AFB1 was considered as the response value (Y). Design Expert 8.0.6 software was used to create a Box–Behnken experimental design with three factors and three levels, with a total of 17 experimental runs being generated.

2.6. Determination of Residual AFB1 by HPLC

On completion of the degradation process, the triangular bottle was removed from the shaker and left to cool to 25 °C. Methylene chloride (three times the moldy corn, v/m) was then added to the triangular bottle in the ventilation cabinet, and the rotor was added and sealed with plastics wrap. The triangular bottle was placed on a magnetic agitator and stirred for 50 min. The mixture was transferred to a 100 mL centrifuge tube and centrifuged for 5 min at 5000× g and 4 °C twice to obtain the underlying organic phase liquid. Six milliliters of the organic phase were accurately transferred into a nitrogen blowpipe; after being dried with nitrogen at 50 °C and redissolved in a 2 mL mobile phase (methanol: water = 45:55, v/v), residual AFB1 was completely redissolved by vortex oscillation for 2 min. AFB1 was determined by HPLC after filtration through a 0.22 μm organic filter membrane. The system was equipped with a JADE-PAK AF-C18 column (250 mm × 4.6 mm, 5 μm) and fluorescence detector. The excitation and emission wavelengths of the detector were 360 nm and 440 nm, respectively. The mobile phase was methanol aqueous solution (methanol: water = 45:55, v/v) set at a flow rate of 0.8 mL/min. The analytical run time was 25 min, and the column temperature was set at 30 °C. Post-column derivatives were prepared using 0.05% iodine solution as the derivative solution. The flow rate of the derivative solution was set at 0.2 mL/min and the temperature of the derivative pool was 70 °C. A standard curve was prepared with the concentration of AFB1 as the abscissa and the peak area of the chromatograms as the ordinate. The AFB1 concentrations used in the standard curve were 1, 5, 10, 25, 50, 100, and 200 ng/mL. Consequently, the degradation rate of AFB1 in the moldy corn was calculated using the formula below.
Y = X 1 − X 2 X 1 × 100 %
where X1 is the amount of residual AFB1 in the control sample (ng), X2 is the amount of residual AFB1 in the test sample (ng), and Y is the degradation rate of AFB1 (%).

2.7. Ames Test for Mutagenicity

2.7.1. Sample Preparation

P. aeruginosa fermentation supernatant (975 μL) and 25 μL of AFB1 at different concentrations (0.1, 0.5, 2.5 μg/mL) were placed in 2 mL centrifuge tubes. After vortex oscillation, they were placed in a micro-oscillator set at 50 °C and 160 r/min for 0, 1, 2 and 3 days. After the reaction, the samples were freeze-dried and dissolved in 1 mL of dimethyl sulfoxide (DMSO) to maintain the same concentration as that of the initial AFB1. The solvent control was DMSO, the positive control of both strains was 2-aminofluorene when S9 was added, and the positive controls of TA98 and TA100 when S9 was not added were fenaminosulf and methyl methylsulfonate, respectively.

2.7.2. Determining Sample Mutagenicity

Mutagenicity was determined by plate incorporation according to the instructions of the Ames kit. Bacterial (Salmonella typhimurium testers strain TA98 or TA100) solution (0.1 mL) and a 0.1 mL of the sample were added to a 2.0 mL insulated top medium. S9 mixed solution (0.5 mL) was added to the metabolic activation group (0.5 mL blank S9 solution was added to the non-metabolic activation group), and was thoroughly mixed and quickly poured into the solidified bottom medium. The plate was gently rotated to evenly distribute the top medium and to lay flat for curing. Following this, the plates were transferred to an incubator and cultured inversely for 48 h at 37 °C, and the total number of colonies in each plate was counted.

2.8. Cytotoxicity Test

2.8.1. Sample Preparation

The fermentation supernatant of P. aeruginosa (975 μL) and 25 μL AFB1 at different concentrations (1, 2.5, 5, 10, and 20 μg/mL) were placed in a 2 mL centrifuge tube. After being uniformly oscillated, they were placed in a micro-oscillator under reaction conditions of 50 °C and 160 r/min for three days to facilitate degradation. After freeze-drying, AFB1 was dissolved in DMSO (1%), and then diluted to its initial concentration using cell complete medium and filtered through a 0.22 μm membrane for sterilization.

2.8.2. Measurement of Cell Viability

HepG2 cells at the logarithmic growth stage were counted, and the cell concentration was adjusted and then inoculated into 96-well plates at a density of 1.5 × 104 cells/well. Next, the 96-well plates were placed in an incubator maintained at 37 °C and a 5% CO2 atmosphere for 24 h. After the culture, the medium was gently removed and washed with phosphate-buffered saline (PBS) three times. Subsequently, 100 μL of 10% CCK-8 medium was added to each well ensuring that air bubbles were not generated. The 96-well plates were placed in an incubator set at 37 °C and a 5% CO2 atmosphere for 2 h. The absorbance at 450 nm was measured using a microplate reader. The cell survival rate was calculated using the formula below.
M = E x p e r i m e n t a l   s a m p l e − B l a n k   s a m p l e C o n t r o l   s a m p l e − B l a n k   s a m p l e × 100 %
where the experimental sample contained different concentrations of cell culture medium, the control sample contained 1% DMSO of cell culture medium, and the blank sample only contained CCK-8 reagent and medium.

2.9. Experimental Design and Statistical Analysis

SPSS software (version 20.0) was used for variance analysis of the experimental data. Origin 9.0 software was used for mapping analysis and Design Expert 8.0.6 was used to design the response surface experiment. All experimental data are presented as the mean ± standard error of at least two measurements unless otherwise stated.

3. Results and Discussion

3.1. Degradation of AFB1 in Moldy Maize by P. aeruginosa Fermentation Supernatant

3.1.1. Single-Factor Experiment

The effect of P. aeruginosa fermentation supernatant on AFB1 in moldy corn at different temperatures is shown in Figure 1A. Compared to the control sample, the degradation rate of AFB1 in moldy corn by the fermentation supernatant of P. aeruginosa increased with a temperature increase. The influence of macromolecules such as proteins and starch in moldy corn decreased the stability of AFB1. The activity of proteases in the fermentation supernatant was enhanced by temperature, which promoted the degradation of AFB1. When the temperature reached 60 °C, the degradation rate reached 71.70%, without any further significant degradation observed with an increasing temperature after this. Sangare et al. showed that the degradation rate of the AFB1 standard by the supernatant of P. aeruginosa N17-1 attained 90.2% at 55 °C, indicating that this strain additionally has the potential to tolerate a high temperature [24]. However, considering practical applications, 60 °C was selected for use in this study.
The solid–liquid ratio also had an impact on the degradation of AFB1 in moldy corn (Figure 1B). With an increasing solid–liquid ratio, the degradation rate of AFB1 decreased. There are two reasons for this trend. First, under the influence of the temperature, moldy corn meal absorbed water and expanded, turning the mixture in the triangle bottle into a paste or solid, in turn preventing the active proteases in the fermentation broth from fully being in contact with the AFB1 in the moldy corn. Second, the reaction system with large solid-liquid ratio has more AFB1 content, which will lead to the failure of AFB1 to degrade in time. In practical applications, both the AFB1 degradation rate and production efficiency should be considered; thus, a solid–liquid ratio of 25 g/100 mL was considered optimum for further experiments.
Enzyme activity is maximum only in a certain pH range; above or below this range, the activity is reduced. Based on previous research, the active component in the fermentation supernatant of P. aeruginosa is a protease [39]. The effects of the fermentation supernatant with different pH values on the degradation of AFB1 in moldy corn are shown in Figure 1C. The control group used a blank medium with the same pH value so that the effect of the alkali environment on the degradation of AFB1 could be excluded [40]. As depicted in Figure 1C, the degradation rate of AFB1 increased significantly with an increase in the pH in the range of 6.2–10.2. After a pH of 10.2, increasing the pH led to a decrease in the degradation rate, indicating that an excessively high pH value affected the activity of the degrading enzyme. Consequently, a pH of 10.2 for the fermentation supernatant of P. aeruginosa was selected for use in degrading AFB1 in moldy corn.
The degradation rate of AFB1 in moldy corn by the P. aeruginosa fermentation supernatant over time is shown in Figure 1D. In the first 18 h, the degradation rate of AFB1 was high, reaching more than 75% at 18 h. The degradation rate increased slowly between 18 h and 54 h. After 48 h, the degradation rate of AFB1 attained 90.64% and there was no significant difference between it and the degradation rate at 54 h. Thus, 48 h was selected as the optimal degradation time.

3.1.2. Response Surface Optimization

Based on the single-factor experiments, the degradation temperature, pH, and degradation time were selected as input variables to design the factor level table of the response surface (Table 1). Design Expert 8.0.6 software was used to conduct a Box–Behnken experiment with three factors at three levels, with a total of 17 experiments. The experimental results for the response surface are presented in Figure 2. Through quadratic multiple regression fitting of the data in Figure 2, the regression model relationship was generated and is depicted in the formula below.
Y = 94.50 + 15.15A + 13.04B + 5.65C − 14.73AB + 0.28AC − 0.45BC − 14.70A2 − 3.11B2 − 7.39C2
A significance test and variance analysis were conducted on the regression equation, and the results are presented in Table 2. The model p < 0.01 indicates that the model was very significant. The lack of fit was not significant (0.0515), indicating that the model was well fitted and that the experimental error was small. The determination coefficient R2 of the regression equation was 0.9904, indicating that the model could explain 99.04% of the variation in the response value [41]. The calibration determination coefficient R2Adj = 0.9782 was close to the determination coefficient R2, indicating that the model had a good fitting degree and high reliability. Furthermore, there is a clear linear relationship between the predicted and actual values (Figure 3); therefore, this regression equation could be used to predict and analyze the relationship between various factors and the degradation rate of AFB1. The significance test showed that the primary terms A, B, and C, secondary terms A2 and C2, and interaction term AB had significant effects on the degradation rate of AFB1 (p < 0.05), whereas the secondary term B2, interaction terms AC and BC had no significant effects on the degradation rate of AFB1 (p > 0.05). It can be observed that the influence of all factors on the degradation rate of AFB1 was not a simple linear relationship, and the order of the influence of all factors was as follows: degradation temperature > pH > degradation time.
The influence of various factors on the degradation of AFB1 in moldy corn by the fermentation supernatant of P. aeruginosa is shown in Figure 4, and the relationships between the factors are shown on the curved surface. As observed from the regression Equation (4), the coefficients of the quadratic terms A2, B2, and C2 are all negative, indicating that the response surface of the quadratic polynomial has a maximum value point. The steepness of the response surface reflects the influence of the independent variable on the degradation rate of AFB1. The steeper the surface, the greater is the influence and vice versa. Figure 4a shows that the response surface of AB has a large slope and strong interactions, indicating that the effects of pH and temperature on the degradation of AFB1 would have an effect on each other. Figure 4b,c is relatively flat, indicating that there was no interaction between the effect of the degradation time on the pH and the temperature on the degradation rate of AFB1, which is consistent with the ANOVA results in Table 2. Design Expert software was used to optimize the experimental results, and the optimal conditions for the degradation of AFB1 were as follows: temperature 63.13 °C, pH 10.95, and degradation time 51.50 h. Under these conditions, the degradation rate of AFB1 predicted by the model was 100.5%. To perform the actual test using model predicted conditions, we set the parameters as follows: temperature 63 °C, pH 10.95, and degradation time 51.50 h. The actual degradation rate of AFB1 was 99.67%, which was very close to the predicted value and showed no significant difference (p < 0.05). This indicates that the degradation conditions optimized by this model are reliable and authentic.

3.2. Ames

Strain TA98 was used to detect shift-code mutations while strain TA100 was used to detect base-displacement mutations. When no metabolic activators were added to activate the subjects (Figure 5), the number of revertant mutant colonies in the non-degraded group reached a maximum when the concentration of AFB1 was 2.5 μg/mL, and the revertant mutant colonies decreased significantly with an increase in the degradation time. After one day of degradation, the number of reverted colonies at the three different concentrations was more than twice of that in the solvent group, but there was no dose-response relationship between the concentration and the number of colonies. The results showed that the degradation products were extremely mutagenic. After two days of degradation, there was no proportional relationship between the revertant mutant colonies of the two strains. The revertant mutant colonies of TA98 and TA100 were both more than twice those of the solvent group. Although some AFB1 was degraded, the results indicated positive mutagenicity. After three days of degradation, the revertant mutant colonies of TA98 and TA100 were similar to those of the solvent control group, indicating that AFB1 degradation products had negative mutagenicity.
Many foreign chemicals are indirect mutagenic agents that can react with DNA only if they are transformed into electron-friendly carcinogens by metabolic activation, similarly to what occurs in vivo, thus causing mutagenesis. The metabolic activation system added in the Ames test is mainly a mixed functional oxidase system, usually an S9 mixture. S9 is the supernatant obtained after the centrifugation of rat liver homogenate induced by polychlorinated biphenyls. Some cofactors, such as coenzyme II (NADP+), glucose-6-phosphoric acid, K+, Mg2+, and buffer, were added to S9 to form an S9 mixture. A positive result indicates that the subject is an indirect carcinogen. In the presence of S9 (Figure 6), the number of revertant mutant colonies in the untreated group was generally higher than that in the group without metabolic activators. After degradation for one day, all the tested substances were mutagenic. After two days of degradation, AFB1 degradation products with initial concentrations of 0.5 and 2.5 μg/mL still showed mutagenicity. After three days of degradation, the tested substances showed negative mutagenicity. Similar results were observed in Alberts’s study; the biodegradation of AFB1 when treated with extracellular extracts from Rhodococcus erythropolis coincided with a loss of mutagenicity [42]. Rao et al. proved that the cell-free supernatant of Bacillus licheniformis CFR1 degraded AFB1, and the Ames experiment showed that the mutagenicity of the degradation product disappeared [43].

3.3. CCK-8

The survival rate of cells decreased with increasing AFB1 concentration, and the toxicity of the degraded samples was significantly lower than that of AFB1 at the same concentration (Figure 7). When the concentration of AFB1 was 20 μg/mL, the cell survival rate was less than 60%. The cell inhibition rate was less than 10% when the initial concentration of AFB1 was less than 5 μg/mL. After the degradation of AFB1 at an initial concentration of 10 μg/mL, the cell survival rate was still higher than 85%. Compared with the AFB1 standard, the cytotoxicity of the degradation solution was significantly reduced.
The effects of AFB1 and its degradation products on HepG2 cells are presented in Figure 8. HepG2 cells in the blank group were clumpy, multi-sided, and well grown. Following AFB1 treatment, the cell morphology changed, the surface shrank, some cells were no longer tightly grouped together, and refraction became poor. However, after AFB1 was degraded for 72 h, the cells still showed clumping growth, some individual cells were slightly changed, and the overall cytotoxicity was much lower than that of AFB1.

4. Conclusions

In this study, P. aeruginosa fermentation supernatant was used to degrade AFB1 in moldy corn, and the optimal degradation conditions were obtained using single-factor experiments and response surface methodology. Under the optimal conditions, the degradation rate of AFB1 reached 99.67%. The Ames test showed that the genetic toxicity of the degradation products was negative after 72 h of degradation. The CCK-8 assay results showed that the cytotoxicity of the degradation products decreased significantly with time. Although the Ames and CCK-8 results are generally used as preliminary assessments of AFB1 degradation products, they were useful in providing important information on the feasibility and safety of using P. aeruginosa fermentation supernatant for the degradation of AFB1 in moldy maize.

Author Contributions

Conceptualization, R.Z. and C.L.; Data curation, Y.X. and C.L.; Formal analysis, Y.X. and C.L.; Funding acquisition, R.Z.; Investigation, R.Z. and C.L.; Methodology, Y.X. and C.L.; Project administration, R.Z. and C.L.; Resources, R.Z.; Software, Y.X. and C.L.; Supervision, R.Z.; Validation, R.Z. and C.L.; Visualization, Y.X. and C.L.; Writing—original draft, Y.X.; Writing—review and editing, Y.X. and C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (U1604234), Henan Provincial Special Fund for the Construction of Modern Agricultural Industrial Technology Systems (HARS-22-02-G5), and the Natural Science Innovation Fund Support Program of Henan University of Technology (2021ZKCJ12).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Walte, H.G.; Schwake-Anduschus, C.; Geisen, R.; Fritsche, J. Aflatoxin: Food chain transfer from feed to milk. J. Consum. Prot. Food Saf. 2016, 11, 295–297. [Google Scholar] [CrossRef] [Green Version]
  2. Abrar, M.; Anjum, F.M.; Butt, M.S.; Pasha, I.; Randhawa, M.A.; Saeed, F.; Waqas, K. Aflatoxins: Biosynthesis, occurrence, toxicity, and remedies. Crit. Rev. Food Sci. Nutr. 2013, 53, 862–874. [Google Scholar] [CrossRef] [PubMed]
  3. Nakai, V.K.; de Oliveira Rocha, L.; Gonçalez, E.; Fonseca, H.; Ortega, E.M.M.; Corrêa, B. Distribution of fungi and aflatoxins in a stored peanut variety. Food Chem. 2008, 106, 285–290. [Google Scholar] [CrossRef]
  4. Mishra, H.N.; Das, C. A review on biological control and metabolism of aflatoxin. Crit. Rev. Food Sci. Nutr. 2003, 43, 245–264. [Google Scholar] [CrossRef]
  5. Qu, C.; Li, Z.; Wang, X. UHPLC-HRMS-based untargeted liqidomics reveal mechanism of antifungal activity of carvacrol against Aspergillus flavus. Foods 2022, 11, 93. [Google Scholar] [CrossRef] [PubMed]
  6. Yazdanpanah, H.; Eslamizad, S. Aflatoxins. In Toxinology; Springer: Berlin/Heidelberg, Germany, 2014; pp. 1–16. [Google Scholar] [CrossRef]
  7. Marin, S.; Ramos, A.J.; Cano-Sancho, G.; Sanchis, V. Mycotoxins: Occurrence, toxicology, and exposure assessment. Food Chem. Toxicol. 2013, 60, 218–237. [Google Scholar] [CrossRef]
  8. Alshannaq, A.; Yu, J.H. Occurrence, toxicity, and analysis of major mycotoxins in food. Int. J. Environ. Res. Public Health 2017, 14, 632. [Google Scholar] [CrossRef] [Green Version]
  9. Eskola, M.; Kos, G.; Elliott, C.T.; Hajslova, J.; Mayar, S.; Krska, R. Worldwide contamination of food-crops with mycotoxins: Validity of the widely cited ‘FAO estimate’ of 25%. Crit. Rev. Food Sci. Nutr. 2019, 60, 2773–2789. [Google Scholar] [CrossRef]
  10. Peng, K.; Chen, B.; Zhao, H.; Huang, W. Toxic effects of aflatoxin B1 in Chinese sea bass (Lateolabrax maculatus). Toxins 2021, 13, 844. [Google Scholar] [CrossRef] [PubMed]
  11. Di Paola, D.; Iaria, C.; Capparucci, F.; Cordaro, M.; Crupi, R.; Siracusa, R.; D’Amico, R.; Fusco, R.; Impellizzeri, D.; Cuzzocrea, S.; et al. Aflatoxin B1 toxicity in zebrafish larva (danio rerio): Protective role of hericium erinaceus. Toxins 2021, 13, 710. [Google Scholar] [CrossRef]
  12. Li, F.Q.; Yoshizawa, T.; Kawamura, O.; Luo, X.Y.; Li, Y.W. Aflatoxins and fumonisins in corn from the high-incidence area for human hepatocellular carcinoma in Guangxi, China. J. Agric. Food Chem. 2001, 49, 4122–4126. [Google Scholar] [CrossRef] [PubMed]
  13. da Costa, R.V.; Queiroz, V.A.V.; Cota, L.V.; da Silva, D.D.; Lanza, F.E.; de Almeida, R.E.M.; Pereira, A.A.; Alves, R.R.; Campos, L.J.M. Delaying harvest for naturally drying maize grain increases the risk of kernel rot and fumonisin contamination. Trop. Plant Pathol. 2018, 43, 452–459. [Google Scholar] [CrossRef] [Green Version]
  14. Kamala, A.; Kimanya, M.; Haesaert, G.; Tiisekwa, B.; Madege, R.; Degraeve, S.; Cyprian, C.; De Meulenaer, B. Local post-harvest practices associated with aflatoxin and fumonisin contamination of maize in three agro ecological zones of Tanzania. Food Addit. Contam. Part A 2016, 33, 551–559. [Google Scholar] [CrossRef] [PubMed]
  15. Richard, J.L. Some major mycotoxins and their mycotoxicoses—An overview. Int. J. Food Microbiol. 2007, 119, 3–10. [Google Scholar] [CrossRef]
  16. Rawal, S.; Kim, J.E.; Coulombe, R. Aflatoxin B1 in poultry: Toxicology, metabolism and prevention. Res. Vet. Sci. 2010, 89, 325–331. [Google Scholar] [CrossRef]
  17. International Agency for Research on Cancer (IARC). Some traditional herbal medicines, some mycotoxins, naphthalene and styrene. In IARC Monographs on the Evaluation of Carcinogenic Risks to Humans; IARC: Lyon, France, 2002; Volume 82, pp. 1–556. ISBN 9283212827. [Google Scholar]
  18. Loi, M.; Fanelli, F.; Liuzzi, V.C.; Logrieco, A.F.; Mule, G. Mycotoxin biotransformation by native and commercial enzymes: Present and future perspectives. Toxins 2017, 9, 111. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. El-Attar, M.S.; Sadeek, S.A.; Abd El-Hamid, S.M.; Elshafie, H.S. Spectroscopic analyses and antimicrobial activity of novel ciprofloxacin and 7-Hydroxy-4-methylcoumarin, the plant-based natural benzopyrone derivative. Int. J. Mol. Sci. 2022, 23, 8019. [Google Scholar] [CrossRef]
  20. Huang, W.T.; Yin, H.; Yu, Y.Y.; Lu, G.N.; Dang, Z.; Chen, Z.H. Co-metabolic degradation of tetrabromobisphenol A by Pseudomonas aeruginosa and its auto-poisoning effect caused during degradation process. Ecotoxicol. Environ. Saf. 2020, 202, 110919. [Google Scholar] [CrossRef]
  21. Arino, S.; Marchal, R.; Vandecasteele, J.P. Involvement of a rhamnolipid-producing strain of Pseudomonas aeruginosa in the degradation of polycyclic aromatic hydrocarbons by a bacterial community. J. Appl. Microbiol. 1998, 84, 769–776. [Google Scholar] [CrossRef]
  22. Afzal, M.; Iqbal, S.; Rauf, S.; Khalid, Z.M. Characteristics of phenol biodegradation in saline solutions by monocultures of Pseudomonas aeruginosa and Pseudomonas pseudomallei. J. Hazard. Mater. 2007, 149, 60–66. [Google Scholar] [CrossRef]
  23. Zheng, Y.L.; Liu, D.L.; Xu, H.; Zhong, Y.L.; Yuan, Y.Z.; Xiong, L.; Li, W.X. Biodegradation of p-nitrophenol by Pseudomonas aeruginosa HS-D38 and analysis of metabolites with HPLC–ESI/MS. Int. Biodeterior. Biodegrad. 2009, 63, 1125–1129. [Google Scholar] [CrossRef]
  24. Sangare, L.; Zhao, Y.J.; Folly, Y.M.E.; Chang, J.H.; Li, J.H.; Selvaraj, J.N.; Xing, F.G.; Zhou, L.; Wang, Y.; Liu, Y. Aflatoxin B1 degradation by a Pseudomonas strain. Toxins 2014, 6, 3028–3040. [Google Scholar] [CrossRef] [Green Version]
  25. Chung, H.J.; Chung, M.J.; Houng, S.J.; Jeun, J.; Kweon, D.K.; Choi, C.H.; Park, J.T.; Park, K.H.; Lee, S.J. Toxicological evaluation of the isoflavone puerarin and its glycosides. Eur. Food Res. Technol. 2009, 230, 145–153. [Google Scholar] [CrossRef]
  26. Liu, R.J.; Jin, Q.Z.; Huang, J.H.; Liu, Y.F.; Wang, X.G.; Mao, W.Y.; Wang, S.S. Photodegradation of aflatoxin B1 in peanut oil. Eur. Food Res. Technol. 2011, 232, 843–849. [Google Scholar] [CrossRef]
  27. Ames, B.N.; Durston, W.E.; Yamasaki, E.; Lee, F.D. Carcinogens are mutagens: A simple test system combining liver homogenates for activation and bacteria for detection. Proc. Natl. Acad. Sci. USA 1973, 70, 2281–2285. [Google Scholar] [CrossRef] [Green Version]
  28. Ames, B.N.; Mccann, J.; Yamasaki, E. Methoods for detecting carcinogens and mutagens with the Salmonella/Mammalian-microsome mutagenicity test. Mutat. Res. 1975, 31, 347–364. [Google Scholar] [CrossRef]
  29. Liu, R.J.; Wang, R.Q.; Lu, J.; Chang, M.; Jin, Q.Z.; Du, Z.B.; Wang, S.S.; Li, Q.; Wang, X.G. Degradation of AFB1 in aqueous medium by electron beam irradiation Kinetics pathway and toxicology. Food Control 2016, 66, 151–157. [Google Scholar] [CrossRef]
  30. Liu, R.J.; Lu, M.Y.; Wang, R.Q.; Wang, S.S.; Chang, M.; Jin, Q.Z.; Wang, X.G. Degradation of aflatoxin B1 in peanut meal by electron beam irradiation. Int. J. Food Prop. 2018, 21, 892–901. [Google Scholar] [CrossRef] [Green Version]
  31. Oliveira, R.C.; Cortés-Eslava, J.; Gómez-Arroyo, S.; Carvajal-Moreno, M. Mutagenicity assessment of aflatoxin B1 exposed to essential oils. LWT-Food Sci. Technol. 2021, 140, 110622. [Google Scholar] [CrossRef]
  32. Maron, D.M.; Ames, B.N. Revised methods for Salmonella mutagenicity test. Mutat. Res. 1983, 113, 173–215. [Google Scholar] [CrossRef] [PubMed]
  33. Renzulli, C.; Galvano, F.; Pierdomenico, L.; Speroni, E.; Guerra, M.C. Effects of rosmarinic acid against aflatoxin B1 and ochratoxin-A-induced cell damage in a human hepatoma cell line (Hep G2). J. Appl. Toxicol. 2004, 24, 289–296. [Google Scholar] [CrossRef]
  34. Ricordy, R.; Gensabella, G.; Cacci, E.; Augusti-Tocco, G. Impairment of cell cycle progression by aflatoxin B1 in human cell lines. Mutagenesis 2002, 17, 241–249. [Google Scholar] [CrossRef] [Green Version]
  35. Bremer-Boaventura, B.C.; de Mello Castanho Amboni, R.D.; da Silva, E.L.; Prudencio, E.S.; Di Pietro, P.F.; Malta, L.G.; Polinati, R.M.; Liu, R.H. Effect of in vitro digestion of yerba mate (Ilex paraguariensis A. St. Hil.) extract on the cellular antioxidant activity, antiproliferative activity and cytotoxicity toward HepG2 cells. Food Res. Int. 2015, 77, 257–263. [Google Scholar] [CrossRef]
  36. Viviers, J.; Schabort, J.C. Aflatoxin B1 alters protein phosphprylation in rat livers. Biochem. Biophys. Res. Commun. 1985, 129, 342–349. [Google Scholar] [CrossRef] [PubMed]
  37. Xu, Y.H.; Dong, H.Y.; Liu, C.X.; Lou, H.W.; Zhao, R.Y. Efficient aflatoxin B1 degradation by a novel isolate, Pseudomonas aeruginosa M-4. Food Control 2023, 149, 109679. [Google Scholar] [CrossRef]
  38. Xu, Y.H.; Lou, H.W.; Zhao, R.Y. Cloning and expression of the catalase gene (KatA) from Pseudomonas aeruginosa and the degradation of AFB1 by recombinant catalase. J. Sci. Food Agric. 2022, 103, 792–798. [Google Scholar] [CrossRef]
  39. Xu, Y.H.; Dong, H.Y.; Lou, H.W.; Wang, X.Y.; Zhao, R.Y. Purification of aflatoxin B1 degradation enzyme from Pseudomona aeruginosa and analysis of the degradation product. J. Chin. Cereals Oils Assoc. 2022, 1–18. (In Chinese) [Google Scholar] [CrossRef]
  40. Luo, Y.; Liu, X.J.; Li, J.K. Updating techniques on controlling mycotoxins—A review. Food Control 2018, 89, 123–132. [Google Scholar] [CrossRef]
  41. Kong, Y.; Zhang, Z.; Peng, Y. Multi-objective optimization of ultrasonic algae removal technology by using response surface method and non-dominated sorting genetic algorithm-II. Ecotoxicol. Environ. Saf. 2022, 230, 113151. [Google Scholar] [CrossRef]
  42. Alberts, J.F.; Engelbrecht, Y.; Steyn, P.S.; Holzapfel, W.H.; van Zyl, W.H. Biological degradation of aflatoxin B1 by Rhodococcus erythropolis cultures. Int. J. Food Microbiol. 2006, 109, 121–126. [Google Scholar] [CrossRef]
  43. Rao, K.R.; Vipin, A.V.; Hariprasad, P.; Appaiah, K.A.A.; Venkateswaran, G. Biological detoxification of aflatoxin B1 by Bacillus licheniformis CFR1. Food Control 2017, 71, 234–241. [Google Scholar] [CrossRef]
Foods 12 01217 g001 550

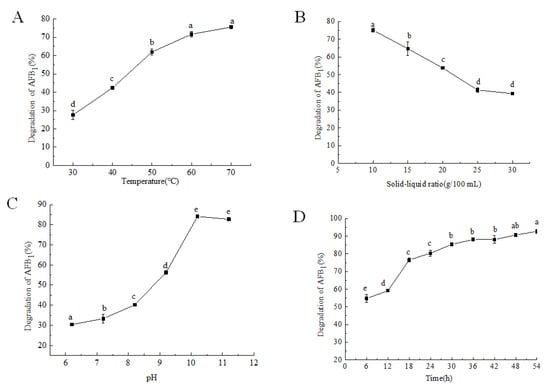

Figure 1. Effect of various factors on the degradation of AFB1 in moldy maize by fermentation supernatant. Note: (A–D) represent the effects of temperature, solid-liquid ratio, pH, and time on the degradation of AFB1, respectively. The different lowercase letters in each figure indicate significant differences (p < 0.05).
Figure 1. Effect of various factors on the degradation of AFB1 in moldy maize by fermentation supernatant. Note: (A–D) represent the effects of temperature, solid-liquid ratio, pH, and time on the degradation of AFB1, respectively. The different lowercase letters in each figure indicate significant differences (p < 0.05).
Foods 12 01217 g001
Foods 12 01217 g002 550

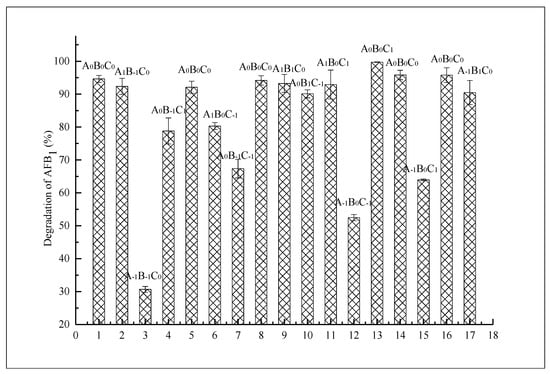

Figure 2. Results of response surface experiment. Note: The abscissa represents the 17 tests. In the figure, A, B, and C represent the test factors temperature, pH, and degradation time, respectively. The numbers at the lower right foot of the letter −1, 0, 1 represent the three levels of the factors, respectively.
Figure 2. Results of response surface experiment. Note: The abscissa represents the 17 tests. In the figure, A, B, and C represent the test factors temperature, pH, and degradation time, respectively. The numbers at the lower right foot of the letter −1, 0, 1 represent the three levels of the factors, respectively.
Foods 12 01217 g002
Foods 12 01217 g003 550

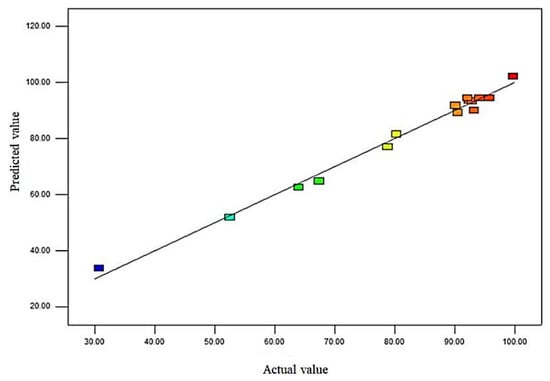

Figure 3. Linearity plot of the predicted and actual values. Note: Foods 12 01217 i001 Colors ranging from blue to red indicates low to high degradation rates.
Figure 3. Linearity plot of the predicted and actual values. Note: Foods 12 01217 i001 Colors ranging from blue to red indicates low to high degradation rates.
Foods 12 01217 g003
Foods 12 01217 g004 550

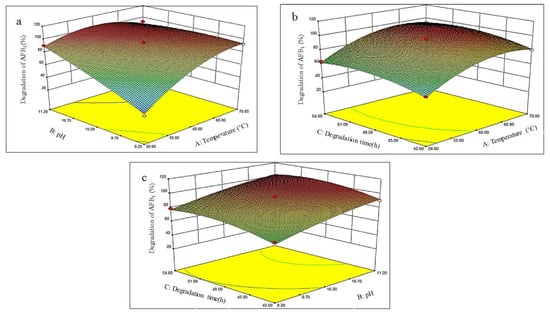

Figure 4. Response surface plots showing the interactive effects of various factors on the degradation rate of AFB1. Note: Figure (a) represents the effect of the interaction of the temperature and pH on the AFB1 degradation rate; Figure (b) represents the effect of the interaction of the temperature and degradation time on the AFB1 degradation rate; and Figure (c) represents the effect of the interaction of the degradation time and pH on the AFB1 degradation rate. Foods 12 01217 i001 Colors ranging from blue to red indicates low to high degradation rates. The lines in the y-coordinate have no real meaning.
Figure 4. Response surface plots showing the interactive effects of various factors on the degradation rate of AFB1. Note: Figure (a) represents the effect of the interaction of the temperature and pH on the AFB1 degradation rate; Figure (b) represents the effect of the interaction of the temperature and degradation time on the AFB1 degradation rate; and Figure (c) represents the effect of the interaction of the degradation time and pH on the AFB1 degradation rate. Foods 12 01217 i001 Colors ranging from blue to red indicates low to high degradation rates. The lines in the y-coordinate have no real meaning.
Foods 12 01217 g004
Foods 12 01217 g005 550

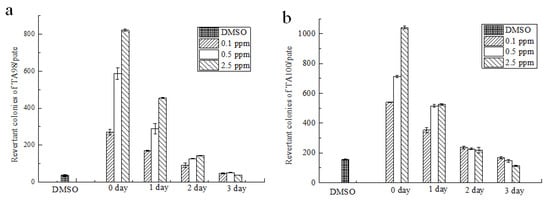

Figure 5. Test results of mutagenicity of AFB1 degradation products (−S9), Note: Figure (a,b) were mutagenicity of the degradation products of strains TA98 and TA100 after degradation for different times at initial AFB1 concentrations of 0.1, 0.5, and 2.5 μg/mL, respectively.
Figure 5. Test results of mutagenicity of AFB1 degradation products (−S9), Note: Figure (a,b) were mutagenicity of the degradation products of strains TA98 and TA100 after degradation for different times at initial AFB1 concentrations of 0.1, 0.5, and 2.5 μg/mL, respectively.
Foods 12 01217 g005
Foods 12 01217 g006 550

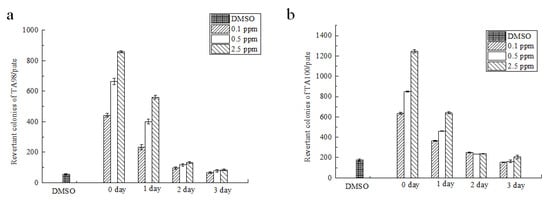

Figure 6. The results of mutagenicity of AFB1 degradation products (+S9); Note: Figure (a,b) is mutagenicity of the degradation products of strains TA98 and TA100 after degradation for different times at initial AFB1 concentrations of 0.1, 0.5, and 2.5 μg/mL, respectively.
Figure 6. The results of mutagenicity of AFB1 degradation products (+S9); Note: Figure (a,b) is mutagenicity of the degradation products of strains TA98 and TA100 after degradation for different times at initial AFB1 concentrations of 0.1, 0.5, and 2.5 μg/mL, respectively.
Foods 12 01217 g006
Foods 12 01217 g007 550

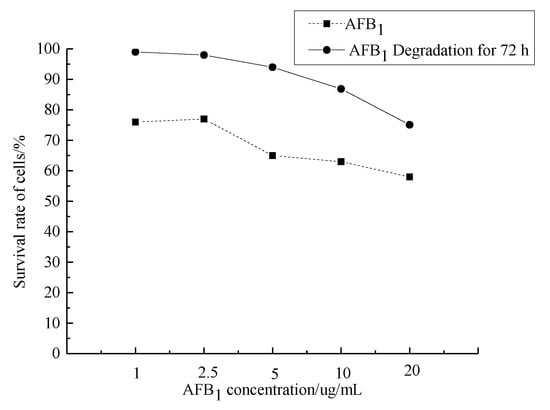

Figure 7. Effect of AFB1 and its degradation products on HepG2 viability.
Figure 7. Effect of AFB1 and its degradation products on HepG2 viability.
Foods 12 01217 g007
Foods 12 01217 g008 550
Figure 8. Effects of AFB1 and its degradation products on HepG2 morphology.
Figure 8. Effects of AFB1 and its degradation products on HepG2 morphology.
Foods 12 01217 g008
Table
Table 1. Variables and levels employed by the Box–Behnken.
Table 1. Variables and levels employed by the Box–Behnken.
VariablesLevels
−101
Temperature (A, °C)506070
pH (B)9.210.211.2
Degradation time (C, h)424854
Table
Table 2. Analysis of variance (ANOVA) of the regression equation.
Table 2. Analysis of variance (ANOVA) of the regression equation.
SourceSum of SquaresFreedom DegreeVarianceF-Valuep-ValueSignificance
Model5592.929621.4480.63<0.0001**
A1837.0911837.09238.36<0.0001**
B1361.1211361.12176.60<0.0001**
C254.931254.9333.080.0007**
AB867.601867.60112.57<0.0001**
AC0.3210.320.0420.8432
BC0.8310.830.110.7527
A2909.821909.82118.05<0.0001**
B240.72140.725.280.0551
C2230.091230.0929.850.0009**
Residual53.9577.71
Lack of fit44.73314.916.470.0515
Pure error90.2242.30
Total5646.8716
R2 = 0.9904, R2Adj = 0.9782
Note: ** indicates a significant difference (p < 0.001).
