1. Introduction
Soil pollution is a worldwide problem that draws its origins from anthropologic and natural sources. Urbanization, industrialization, and food-demand increases have required the use of compounds, substances, and chemical agents, which, over the years, have brought on the dispersion and accumulation of pollutants in the environment. The common pollutants present in the soil are heavy metals, polycyclic aromatic hydrocarbons (PAHs), or pesticides [
1].
Pesticides are chemical compounds used to eliminate pests. They are chemical or biological agents, that weaken, incapacitate, and kill pests. Based on the types of targeted pests, the pesticides can be divided into several groups, namely insecticides, herbicides, rodenticides, bactericides, fungicides, and larvicides.
During the 19th and 20th centuries, the extracts from plants, namely pyrethrins, were used as insecticides, fungicides, and herbicides. The increase in pesticide use happened with synthetic chemistry during the 1930s. In this period, inorganic chemicals such as arsenic and sulfur compounds were applied for crop protection. The arsenic poison was fatal to insects, while the sulfur was used as a fungicide. At the beginning of the Second World War, numerous pesticides were synthesized, mainly organic chemicals, such as dichlorodiphenyltrichloroethane (DDT), aldrin, and dieldrin used as insecticides, while 2-methyl-4-chlorophenoxyacetic acid (MCPA) and 2,4-dichlorophenoxyacetic acid (2,4-D) were used as herbicides [
2].
After 1945, there was a rapid development of the agrochemical field, characterized by the introduction of many insecticides, fungicides, herbicides, and other chemicals, to control pests and ensure the yields of agricultural production. Moreover, pesticides are applied in aquaculture, horticulture, and for various general household applications. They are also used to control vector-borne diseases (e.g., malaria and dengue) [
3].
From 1990 to 2018, there have been registered amounts of used pesticides by all countries in the world, especially in Asia and America. The world average quantity has increased from 1.55 kg·ha
−1 in 1990 to 2.63 kg·ha
−1 in 2018, as shown in
Figure 1. Looking at the types, fungicides and bactericides are used more than the others (
Figure 2).
There has been no decrease even over the years, and directives have been implemented in many countries around the world to reduce the use of pesticides, for example, the Regulation (EC) 1107/2009 [
5] of the European Union or the Stockholm Convention [
6], which focuses on eliminating or reducing of persistent organic pollutants (POPs). To this purpose, the governments have to take measures to eliminate or reduce the release of POPs into the environment.
When pesticides are used, a part of them remains in the soil, and the accumulation affects the microorganisms living there. Human exposure can occur through the ingestion of pesticide-contaminated water and food, the inhalation of pesticide-contaminated air, and directly from occupational, agricultural, and household use. The pesticides can enter the human body by dermal, oral, eye, and respiratory pathways [
7]. The toxicity of pesticides depends on the electronic properties and the structure of the molecule, dosage, and exposure times [
8,
9].
For these reasons, the residual pesticide concentration present in the soil must be reduced, and effective remediation techniques must be used to do this. An ecofriendly, cost-effective, rather efficient method is bioremediation, which is an alternative to more expensive and toxic approaches, such as chemical and physical methods. In biodegradation, the removal can be achieved by exploiting the microbial activity of microorganisms. The microorganisms, primarily bacteria [
10], or fungi [
11] transform pesticides into less complex compounds, CO
2, water, oxides, or mineral salts, which can be used as carbon, mineral, and energy source. In these reactions, the enzymes have an important role since they act as catalysts [
12].
Several techniques are available for the biodegradation of pesticides, which could develop in aerobic or anaerobic conditions based on types of microorganisms. Moreover, the bioremediation techniques can be divided into three categories depending on where the remediation treatment is done, namely in situ, ex situ, or on-site.
In the in situ approach, the treatment is involved in the contaminated zone, and usually, the process is aerobic. The main in situ techniques are natural attenuation, bioaugmentation, biostimulation, bioventing, and biosparging. In the ex situ methods, the contaminated soil is removed from polluted sites and transported to other places for treatment. Bioreactors, composting, landfarming, and biopiles are ex situ treatments. The on-site approach consists of the treatment of polluted soil on the surrounding site, to say the soil is removed from its original position but cleaned up in the neighborhood without any impact due to its transport.
In the literature, several reviews on pesticides have been published in the past years. Each of them is mainly focused on one topic. However, by this approach, the knowledge of the pesticide sector and its problems is lacking.
Table 1 reports a shortlist of these publications.
The current review aims to give an overview of the bioremediation of soils polluted with commercial pesticides, considering the features that characterize the main and most used ones, namely, their classification and their toxicological issues, together with some elements of legislation into force around the world.
3. Diffusion of Pesticides into the Environment and Their Toxicology
Pesticides aim to prevent, remove, and control harmful pests, but they may be harmful to the environment and human health. Their excessive use can give high concentrations of polluting substances in the environment. In the years, the World Health Organization ranked the pesticides and reported their toxicity and their effects on human health [
54].
Through time, several pesticides have been banned in some countries due to their high toxicity. However, at the moment, their production and use go on, especially in developing countries.
3.1. Presence and Distribution into the Environment
The pesticides persist in the environment and may bioaccumulate and contaminate the food chain, affecting human health and the environment as a whole. Pesticide tends to conserve its molecular integrity and chemical, physical, and functional characteristics for a certain time after being released into the soil [
55].
The parameter that can be considered to evaluate its persistence into the soil is the half-time (t1/2), that is, the time required for a compound to halve its initial concentration.
Pesticides with short half-times accumulate and persist less into the soil. By contrast, pesticides with long half-times are more persistent and this may increase the risk to contaminate the environment.
Altogether, they can be classified as [
56]:
nonpersistent pesticides, when t1/2 is lower than 30 days;
moderately persistent, when t1/2 is in the range 30–100 days;
persistent ones, whent1/2 is higher than 100 days.
Once present in the soil, pesticides may: (1) be adsorbed by soil particles; (2) be degraded by photochemical, chemical, and microbiological processes; and (3) move from soil to water.
3.1.1. Adsorption by Soil Particles
Pesticide molecules can be adsorbed physically (Van der Waals forces) or chemically (electrostatic interactions) on the soil particles. The process can be described with the adsorption isotherms [
57,
58,
59]. The adsorption constant is evaluated since it provides information about solute mobility. If pesticides have a low affinity for adsorption, they tend to spread more easily into the environment. Several soil parameters influence the adsorption process, namely soil organic matter content, clay content, clay mineralogy, and pH.
3.1.2. Degradation Processes
The pesticides can be degraded and transformed into one or more metabolites through photochemical, chemical, and microbiological processes.
Photodegradation is an abiotic process induced by the absorption of light energy that leads to the decomposition of the polluting molecules. This process takes place with more difficulty in the soil, being a heterogeneous system, and it is influenced by soil properties. For example, photodegradation is more efficient with particles having a large size and a high specific area since they promote light diffusion [
60]. Chemical and biological degradation occurs by reactions such as hydrolysis, oxidation, reduction, dehydrogenation, dehalogenation, decarboxylation, and condensation.
In the biodegradation process, pesticides are degraded by microbial organisms through metabolic or enzymatic action [
61]. The evaluation of the kinetics of these reactions gives information on the persistence of pesticides.
3.1.3. Leaching from Soil to Water
Leaching is the movement of pesticides within the soil. The soluble contaminants are carried by water downward through permeable soils. This phenomenon is responsible for the contamination of groundwater.
The extent of leaching is highly dependent on soil properties, pesticide physicochemical properties, formulation types, distribution of rainfall events or irrigation strategy, and hydrogeological processes [
62].
3.2. Toxicity and Short- and Long-Term Damages
Several studies report the toxic effects on human health associated with the use of pesticides. Typically, the main routes of human exposure to pesticides are inhalation, ingestion, and dermal contact. Each compound has its toxicity, but the risk increases with increasing dosage and exposure time.
The WHO provides guidelines for the classification of pesticides, dividing them into five categories, and considering the lethal dose 50 (LD
50) as a benchmark (
Table 7) [
54].
The LD50 value represents the dose required to kill half the tested population after a standardized test duration. The substance route can be given dermal and oral.
3.2.1. Organochlorines
Considering the mode of action, the organochlorines damage the nervous systems, since they alter the ion channels. The main effects are hyperexcitability of brain, convulsions, tremor, hyperreflexia, and ataxia.

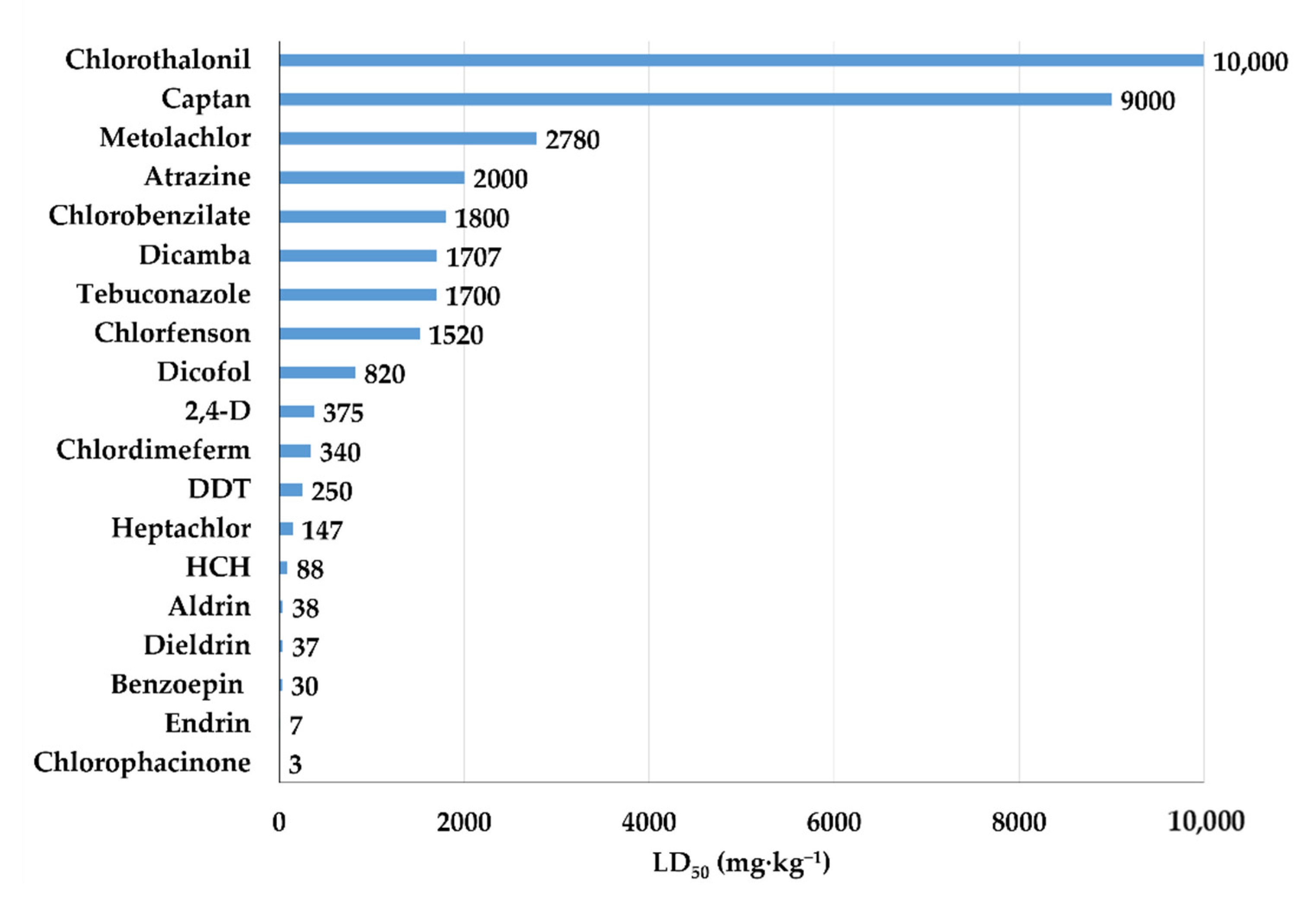

Organochlorines have high toxicity and fall into the first classes of WHO classification (
Figure 5).
It was noted that the major source for human exposure to organochlorines is food, particularly fish products [
63]. The OCs are accumulated in fish muscle, and then, they become bioaccessible to humans during gastrointestinal digestion.
Significant concentrations of OCs were found on dust particles. This type of exposition causes cytotoxic effects on human skin, leading to the development of carcinoma [
64].
3.2.2. Organophosphates

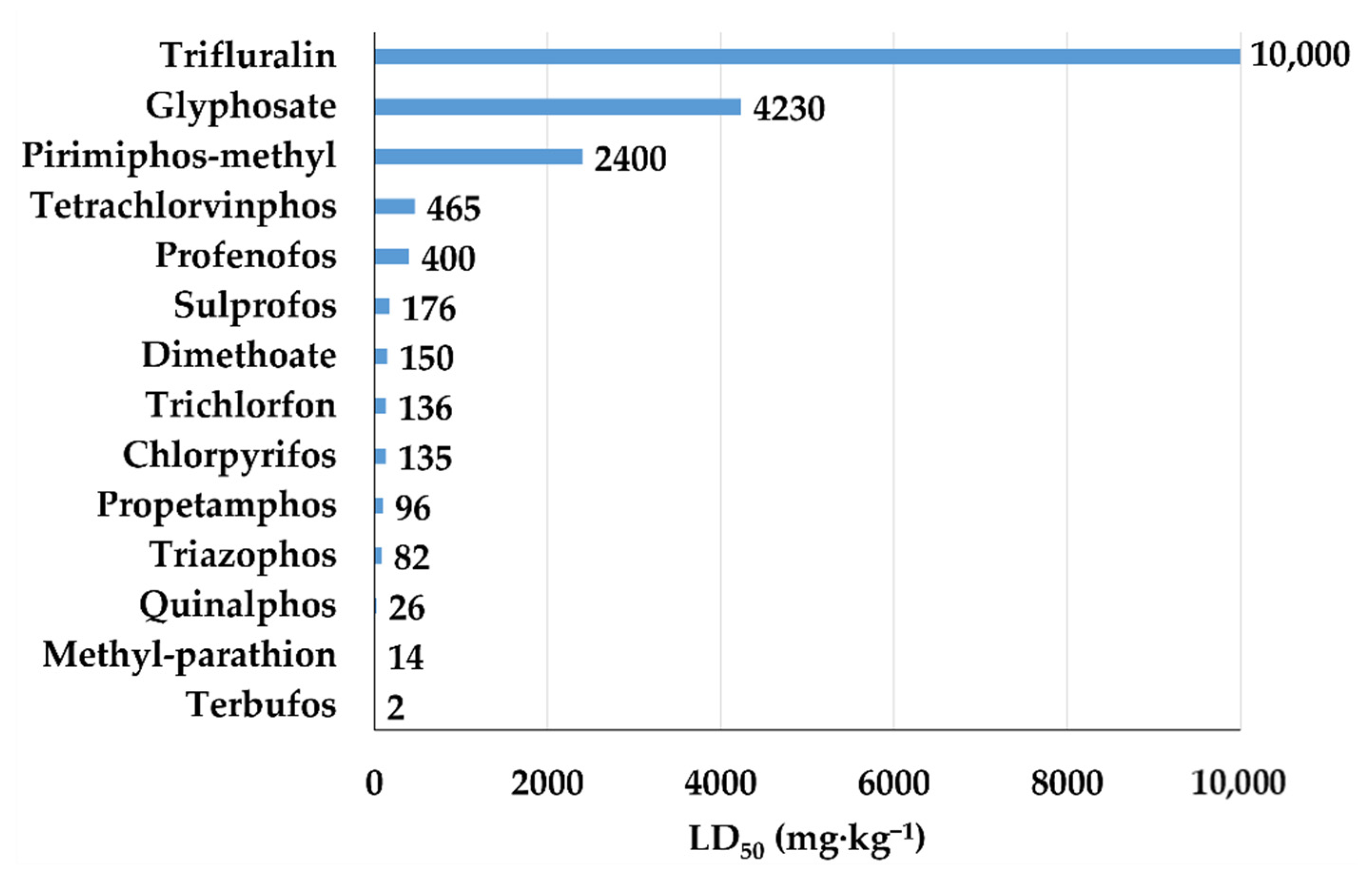

The organophosphates (OPs) are acetylcholinesterase inhibitors, which lead to having high levels of acetylcholine. The consequence is damage to several organs such as peripheral and central nervous systems, muscles, liver, pancreas, and brain. Most of them belong to the first classes (Ia, Ib, and II) of the WHO classification (
Figure 6).
High doses of organophosphate cause acute intoxication, which leads to pancreatitis. This is due to the AChE-inhibition-induced cholinergic overstimulation, which leads to increased intraductal pressure and excess pancreatic enzyme secretion [
65].
In the long term, one of the effects of organophosphate poisoning is a seizure disorder. Chuang et al. [
66] have shown that the risk of seizure development is greater in patients with organophosphate poisoning than in healthy individuals.
3.2.3. Carbamates

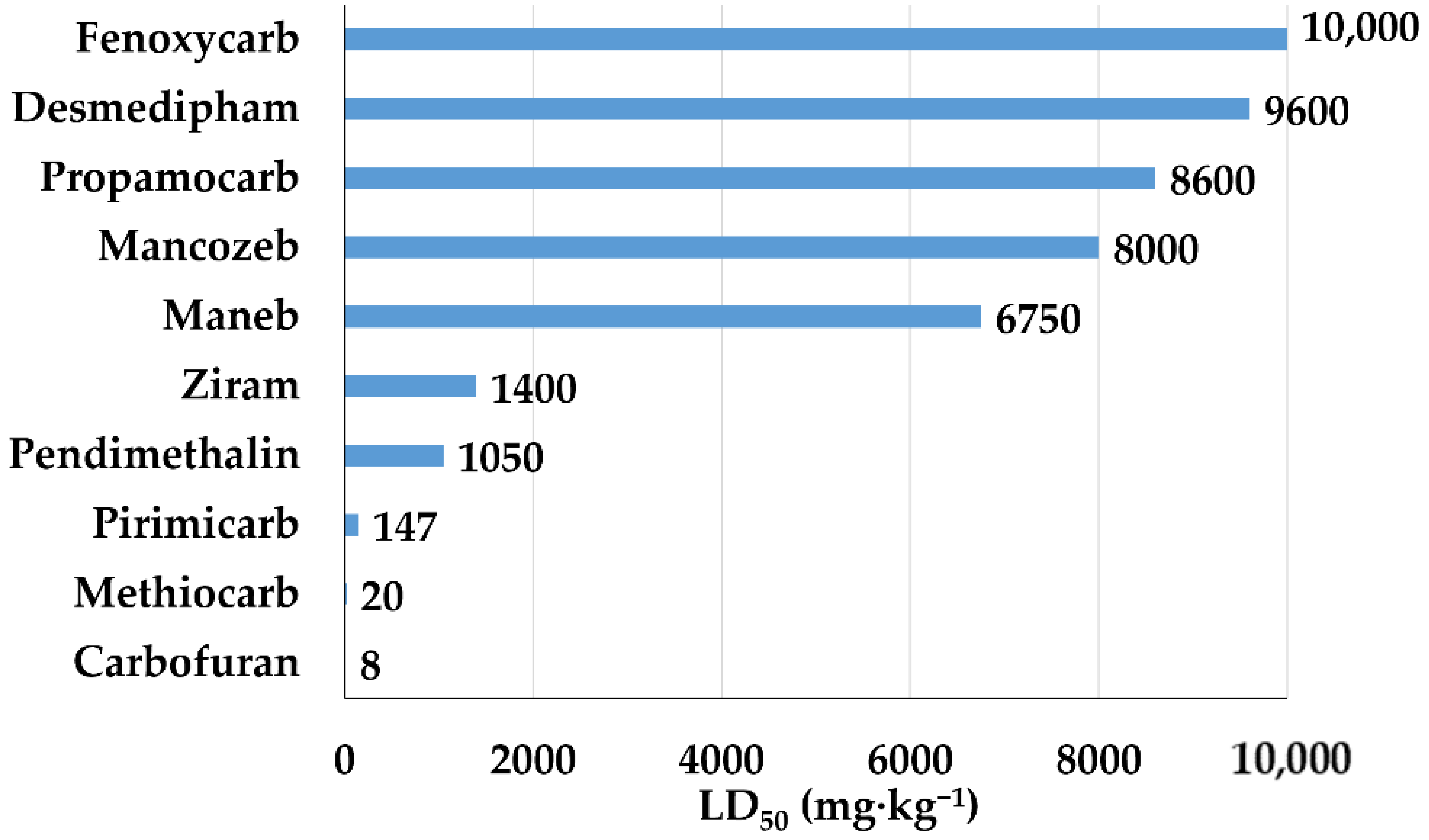

The toxicity of several carbamates is such as to make them moderately and slightly hazardous, in some cases unhazardous, as can be seen from the LD
50 values shown in
Figure 7.
The carbamates act as acetylcholinesterase inhibitors and endocrine disruptors. Exposure to carbamates causes respiratory diseases.
Toxicological experiments have shown that prenatal and postnatal exposure to carbamates can affect fetal and child development, causing damage to the hippocampus [
67,
68].
It was noted that many fruits and beverages are contaminated by ethyl carbamate, a carcinogenic chemical causing the development of cancers in various animal species and rarely in humans. In particular, this pesticide can induce the production of reactive oxygen species, depurination of DNAs, and mitochondrial dysfunction [
69,
70].
3.2.4. Pyrethroids and Pyrethrins
Pyrethrins and pyrethroids are less toxic to mammalian cells and less persistent in the environment than other pesticides. They can damage human health, mainly affecting the nervous system. The effects can be systemic, immunological, neurological, reproductive, developmental, genotoxic, and carcinogenic, and death [
40]. The neurobehavioral functioning of fetuses and children is damaged by the exposition to these pesticides, since they have an immature nervous system, and their brain still has to grow and develop [
71]. A correlation between pyrethroid exposure and the increased risk of diabetes in the adult population was found [
72].

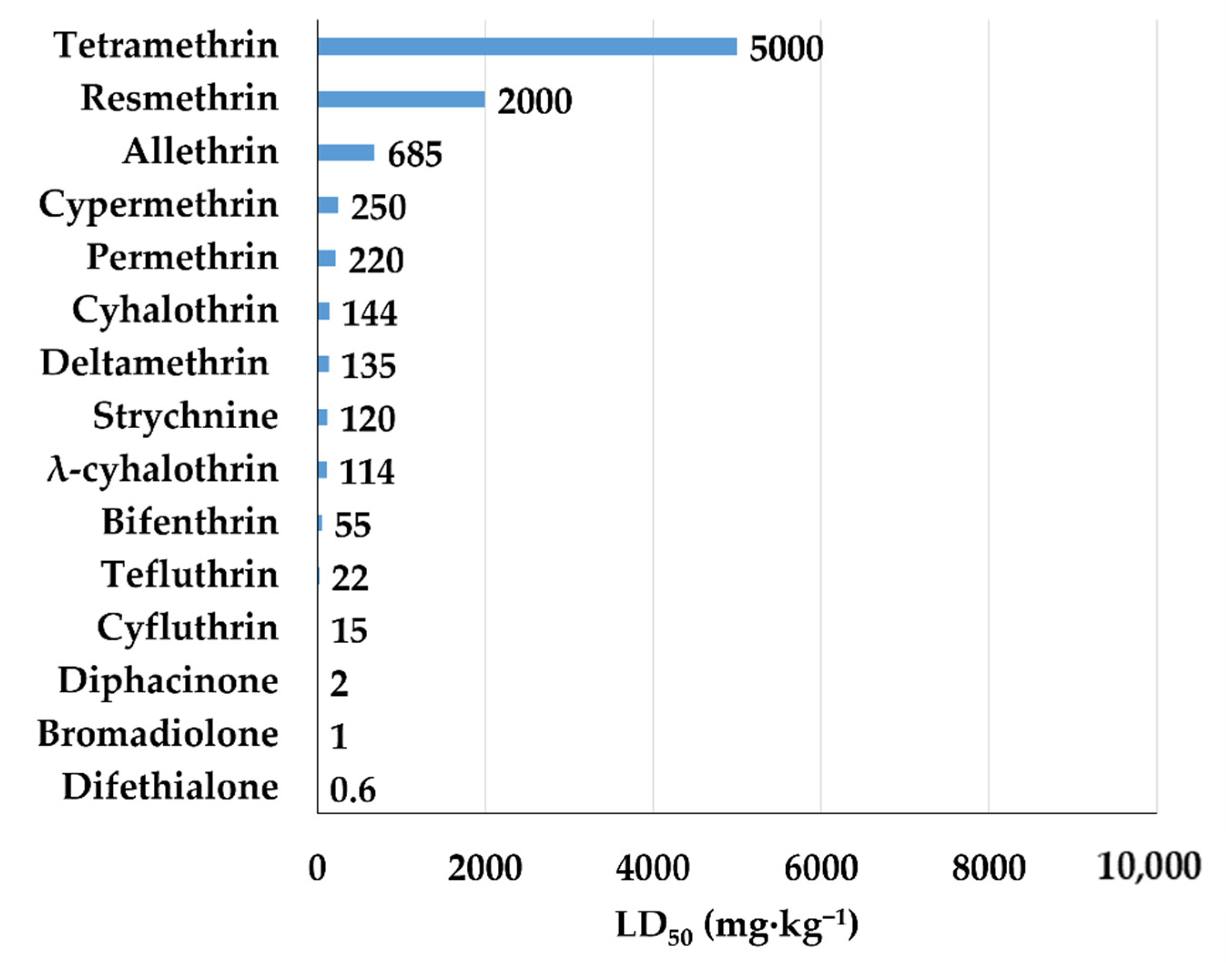

In
Figure 8, the LD
50 value of several pyrenoids is shown. These compounds are more toxic than pyrethrins since they are synthesized with the purpose of increasing their insecticidal power.
4. Biological Techniques for Pesticide Removal
Bioremediation reduces pesticide contamination of agricultural soils by biodegradation processes via the metabolic activities of microorganisms. It is an efficient, cost-effective, and environment-friendly treatment.
During the bioremediation processes, the microorganisms use the pesticides as cosubstrates in their metabolic reactions together with other nutrients, thus eliminating them from the environment. The efficiency of these processes depends on the characteristics of pesticides, such as their distribution, their bioavailability, and their persistence in soil. It is necessary to promote the availability of pesticides to microorganisms: this is negatively affected by the adhesion of pesticides to soil particles and their low water solubility [
73]. In addition, the soil characteristics and the environmental conditions, such as pH, water content, microbial diversity, and temperature, influence the bioremediation efficacy.
4.1. Mechanisms of Microbial Degradation
During biodegradation processes, pesticides are transformed into degradation products or completely mineralized by microorganisms, which use the pollutant compounds as nutrients for their metabolic reactions. A key role in the biotransformation mechanisms is carried out by enzymes, such as hydrolases, peroxidases, and oxygenases, that influence and catalyze the biochemical reactions.
The degradation process of pesticides can be divided into three phases, which can be summarized in:
Phase 1: Pesticides are transformed into more water-soluble and less toxic products through oxidation, reduction, or hydrolysis reactions.
Phase 2: The Phase-1 products are converted into sugars and amino acids, which have higher water solubility and lower toxicity.
Phase 3: Conversion of the Phase-2 metabolites into less toxic secondary conjugates.
The microorganisms involved in the degradation process are bacteria or fungi, which may generate intra- or extra-cellular enzymes.
The degradation time is a relevant parameter to be assessed when a bioremediation activity is planned. It is typically interpreted by the first-order model [
74], which depends on the pollutant concentration at the beginning and end of the process. This approach has limits because several parameters condition the process, such as microbial activity, temperature, water content, availability, and leaching of pesticide in the soil [
61].
4.1.1. Bacterial Degradation
In the years, several bacterial strains were identified as capable of degrading the pesticides present in the soils. Each bacterium has a specificity that makes it particularly suitable for a degradative process. The operative conditions, such as temperature, pH, water content, and types of pollutants, affect the adaptation, development, and role of a bacterial strain. Moreover, during the degradation process, metabolites can form and cause additional environmental problems, since they may be more difficult to remove than the original compound, and this must be considered a drawback. As an example, chlorpyrifos, an organophosphate used as an insecticide, is hydrolyzed by microorganisms, and the primary and major degradation product is 3,5,6-trichloro-2-pyridinol (TCP). TCP has greater water solubility than chlorpyrifos and causes widespread contamination in soils and aquatic environments. Few microorganisms can degrade the pesticide and its metabolite and among them the bacterium
Ochabactrum sp. JAS2 is capable of hydrolyzing both compounds [
75].
In many cases, the degradation is easier when a bacterial consortium is used compared to using an isolated pure culture [
76,
77]. In nature, the bacteria coexist and depend on each other for their viability. In the metabolic pathways of pesticide degradation, each bacterium can generate metabolites that may be used as a substrate by others.
4.1.2. Fungal Degradation
The agricultural soils are populated by many fungi, which can be exploited to biodegrade pesticides. This class of microorganisms includes yeast, molds, and filamentous fungi. Fungal degradation is promoted by its capacity to produce many enzymes involved in degradative processes [
78]. These microorganisms also can influence the soil properties, modifying soil permeability, and ion exchange capability.
Fungi can be better degraders than bacteria due to their characteristics, such as specific bioactivity, growth morphology, and high resistance even at high concentrations of pollutants.
A common approach is to use both fungi and bacteria to enhance degradation since fungi can transform pesticides into an easier and accessible form for bacteria [
79].
4.1.3. Enzymatic Degradation
Enzymatic biodegradation is due to the enzymes produced during the metabolic processes of microorganisms or plants. Enzymes are biological macromolecules that can catalyze biochemical reactions involved in pesticide degradation. These molecules act in the rate of reaction by lowering the activation energy of the reaction itself [
80].
The main metabolic reactions, where they are involved, are oxidation, hydrolysis, reduction, and conjugation.
Oxidation, which is the first step of the degradation of pesticides, consists of the transfer of an electron from reductants to oxidants. Oxygenase and laccase enzymes may be involved in this reaction. Oxygenases catalyze the oxidation reaction by incorporating one or two molecules of oxygen; laccases cleave the ring present in aromatic compounds and reduce oxygen to water and produce free radicals. During the reaction, heat or energy is generated, and it is utilized by microorganisms for their metabolic activities.
Hydrolysis permits the cleavage of bonds of the substrate by adding hydrogen or hydroxyl groups from water molecules. The pesticide molecules are thus divided into smaller chain compounds than the original ones. Typical enzymes involved in the hydrolysis pathways are lipases, esterases, and cellulases. For example, Luo et al. [
81] have identified and cloned an esterase gene from
Rhodopseudomonas palustris PSB-S capable of decomposing several synthetic pyrethroids, such as fenpropathrin, and tolerates temperature and pH changes. The enzyme is involved in the key step of hydrolysis, namely the cleavage of the ester bond in the fenpropathrin compound.
Reduction permits the transformation through reductive enzymes (nitroreductase).
The conjugation reaction is carried out using existing enzymes, and it is typical of fungal biodegradation. It involves the addition of exogenous or endogenous natural compounds to facilitate the mineralization of pesticides. This process includes reactions such as xyloxylation, alkylation, acylation, and nitrosylation.
Table 8 reports some microorganisms able to degrade widely used pesticides.
4.1.4. Mineralization
The mineralization process permits the degradation of pesticides into inorganic matter, namely, carbon dioxide, salts, minerals, and water. The microorganisms use the pesticide compounds as a source of nutrients.
Also in this case, the degradation is influenced by several factors, such as microbial species, soil characteristics, and type of pollutants. The mineralization rate depends on the concentration of microbial community; namely, a decrease in microbial population does not promote the degradation [
88]. For example, chlorothalonil (CTN), an organochlorine fungicide, is degraded in CO
2, but if the soil microbial community is reduced, several metabolites can form, which are more toxic, persistent, and mobile than CTN itself. This is due to the absence of actively-degrading groups or the decrease in soil biodiversity that leads to low microbial activity.
In glyphosate mineralization, the soil properties influence the mineralization process. Nguyen et al. [
89] have tested agricultural soils, differing for some soil parameters, such as soil texture, soil organic matter content, pH, and exchangeable ions. By the univariate and multiple regression analysis, they have found the parameters that influence the glyphosate mineralization, namely: the cation exchange capacity, determined as the sum of exchangeable base cations and exchanges acidity (expressed as Al
3+ and H
+); the exchangeable base cations (expressed as Ca
2+); and the available form of potassium, determined by ammonium lactate extraction. The low mineralization of glyphosate in soils with high exchangeable acidity could be due to either the formation of strong chemical bonds with the carboxylic or phosphonic acid groups of the glyphosate itself, reducing its bioavailability, or the toxic effects of exchangeable aluminum to soil microorganisms.
4.1.5. Co-Metabolism
Co-metabolism is the biotransformation, through a series of reactions, of an organic compound that is not used to support microbial growth. The pesticides are transformed by microorganisms and enzymes into useful compounds for other biological, chemical, and physical transformations, and finally degraded thanks to this synergistic effect [
90].
In the co-metabolic process, the involved enzymes can be:
hydrolytic enzymes (esterases, amidases, and nitrilases);
transferases (glutathione S-transferase and glucosyl transferases);
oxidases (cytochrome P-450s and peroxidase);
reductases (nitroreductases and reductive dehalogenases).
Ma et al. [
91] have studied the co-metabolic transformation of imidacloprid (IMI), an insecticide, testing different types of substrates used as an energy source: carbohydrates and organic acids.
P. indica CGMCC 6648 is the tested bacterium, capable of degrading IMI through the hydroxylation pathway, and forms two metabolites: one olefin and 5-hydroxy IMI.
4.2. Application of Microbial Remediation
The bioremediation techniques may be carried out in situ, ex situ, or on-site.
In the in situ approach, the treatment is carried out in the contaminated zone, and typically the process is aerobic. For this, it is necessary to provide oxygen to the soil. The main in situ techniques are:
Natural attenuation, which exploits the microflora present in the polluted soil.
Biostimulation, where the amounts and kind of nutrients to stimulate and promote the growth of indigenous microorganisms are optimized.
Bioaugmentation, which is the addition of microbial strains or enzymes into the polluted soils.
Bioventing, where oxygen is fed through unsaturated soil zones to stimulate the growth of indigenous microorganisms capable of degrading the contaminants.
Biosparging, based on the injection of air under pressure into the saturated soil zone to increase the oxygen concentration and stimulate the microorganisms to degrade the pollutant.
These methods are very effective and cheap. Their main advantage is that the polluted soil is not moved.
Vice versa, in ex situ techniques, the contaminated soil is removed from polluted sites and transported to the site where the clean-up will occur. The main techniques are:
Bioreactors, which treat the contaminated soil with wastewater to obtain a slurry and promote the microbial reactions capable of removing the pollutants.
Composting, where the contaminated soil is mixed with amendments to promote the aerobic degradation of the pesticides. Landfarming and biopiles are included in this technique.
In on-site methods, the soil is removed and processed in the area close to the polluted site. For example, the landfarming treatment can also be effectuated on-site, reducing the operation cost comparing to the ex situ approach.
In all bioremediation processes, nutrients, oxygen, pH, water content, and temperature must be controlled to maximize removal efficiency.
4.2.1. Natural Attenuation
Natural attenuation is a natural process where pollutants are degraded by indigenous microorganisms present in the soil. The natural processes include biological degradation, volatilization, dispersion, dilution, radioactive decay, and sorption of the contaminant onto the organic matter and clay minerals in the soil. For example, Guerin [
92] demonstrated that endosulfan diol and endosulfan sulfate, two metabolites of insecticide endosulfan, are both mineralized through the microbial activity present in the contaminated soils.
4.2.2. Biostimulation
The biostimulation process consists of the addition of nutrients (nitrogen, phosphorus, carbon, and oxygen) to promote the growth of the indigenous microorganisms. These nutrients are essential for the life of microorganisms and allow them to have energy, microbial population, and enzymes to degrade the pollutants.
Typically, nitrogen and phosphorus are added since they stimulate biodegradation and increase the diversity of microbial species. Betancur-Corredor et al. [
93] have studied the degradation of DDT, DDD, and DDE, stimulating the microbial population and adding a surfactant. The number of nutrients supplied must be kept under control throughout the process, since a reduced or excessive quantity of stimulants could reduce microbial activity and their diversity.
Baćmaga et al. [
94] have studied the degradation of tebuconazole in soil using the biostimulation process. The tebuconazole negatively influences the enzymatic activity and microbial proliferation; for this, its concentration in the soil must be reduced. A high concentration of pesticides leads to a decrease in the microbial population. The experimental tests by these authors have evaluated the effects of two different biostimulation substances (compost and bird droppings) on the remediation process. The results have shown that both substances had a positive effect on the development of soil microorganisms and enzymatic activity. The tebuconazole degradation was more intense in the soil fertilized with bird droppings than with compost.
4.2.3. Bioaugmentation
The bioaugmentation process involves the inoculation of microbial consortia or single strains into the soil, by augmenting the microbial diversity. In this way, microorganisms with specific metabolic capabilities promote the biodegradation processes.
The concentration of pesticides in the soils is a parameter that conditions the process since high doses of pesticides inhibit the vital functions of soil microorganisms. Doolotkeldieva et al. studied the bacterial degradation of pesticide-contaminated soils in dumping zones. In a preliminary study [
10], Doolotkeldieva et al. found that several bacterial strains were present in the studied soils. Then, they tested the degradation of aldrin, that is a diffused chlorinated hydrocarbon pesticide. The results have demonstrated that bacteria strains with specific genes (cytochrome P450), namely
Pseudomonas fluorescens and
Bacillus polymyxa, were capable of degrading aldrin in a relatively short time. The selection of specific bacterium, the optimization of soil conditions such as temperature, pH, and the nutrients available in the soil, were used for the development of the next experimental tests. In particular, mesocosms were set up with soil contaminated with several pesticides and inoculated with the microbial consortium [
76].
In contaminated soil, the pesticide concentrations can vary at different depths since the pesticides leach into the subsurface of soil and adsorb on the soil particles, making them less bioavailable. Odukkathil and Vasudevan [
95] have evaluated the bioaugmentation treatment in an experimental test set up in a glass column with a volume of 4500 cm
3. The results have shown that the pesticide concentrations in the bottom soil were high, due to the downward drift of pesticides during the water seepage, whereas the low concentrations in the central soil could be due to higher microbial activity favoring the degradation.
Application of Natural Attenuation, Biostimulation and Bioaugmentation
Several studies have been conducted to evaluate and compare the biodegradation of pesticides through natural attenuation, biostimulation, and bioaugmentation strategies. For example, Bhardawaj et al. [
96] have analyzed the biodegradation of atrazine with three different techniques. Each mesocosm was set up with 100 kg of soil and contaminated with a concentration of atrazine equal to 300 mg·kg
−1 of soil. They have found that despite the natural attenuation indicating that the soil microbiome possessed an inherent potential for atrazine biodegradation, the natural process was slow. Conversely, with biostimulation and bioaugmentation treatments, the atrazine was completely removed after 35 days. Moreover, the bioaugmentation strategy was more rapid than biostimulation since after 21 days the pollutant was degraded. Authors recommend this method for the treatment to be fast and cheap.
The bioremediation of contaminated soils might be more efficient when coupling bioaugmentation and biostimulation treatments [
97]. Raimondo et al. [
98] have tested 1 kg mesocosms polluted with lindane at a concentration equal to 2 mg·kg
−1 of soil. They have demonstrated that the removal of lindane increases and the half-life of pesticide can be reduced using simultaneously bioaugmentation and biostimulation.
4.2.4. Bioventing
Bioventing is an in situ bioremediation technique that promotes the degradation of organic pollutants adsorbed to the soil. The microbial activity is enhanced by the introduction of air or oxygen flow, and nutrients into the unsaturated zone of soil through specifically constructed wells into contaminated soils. The ventilation is light, and it is necessary to provide the only oxygen needed to sustain microbial activity and avoid the volatilization of contaminants.

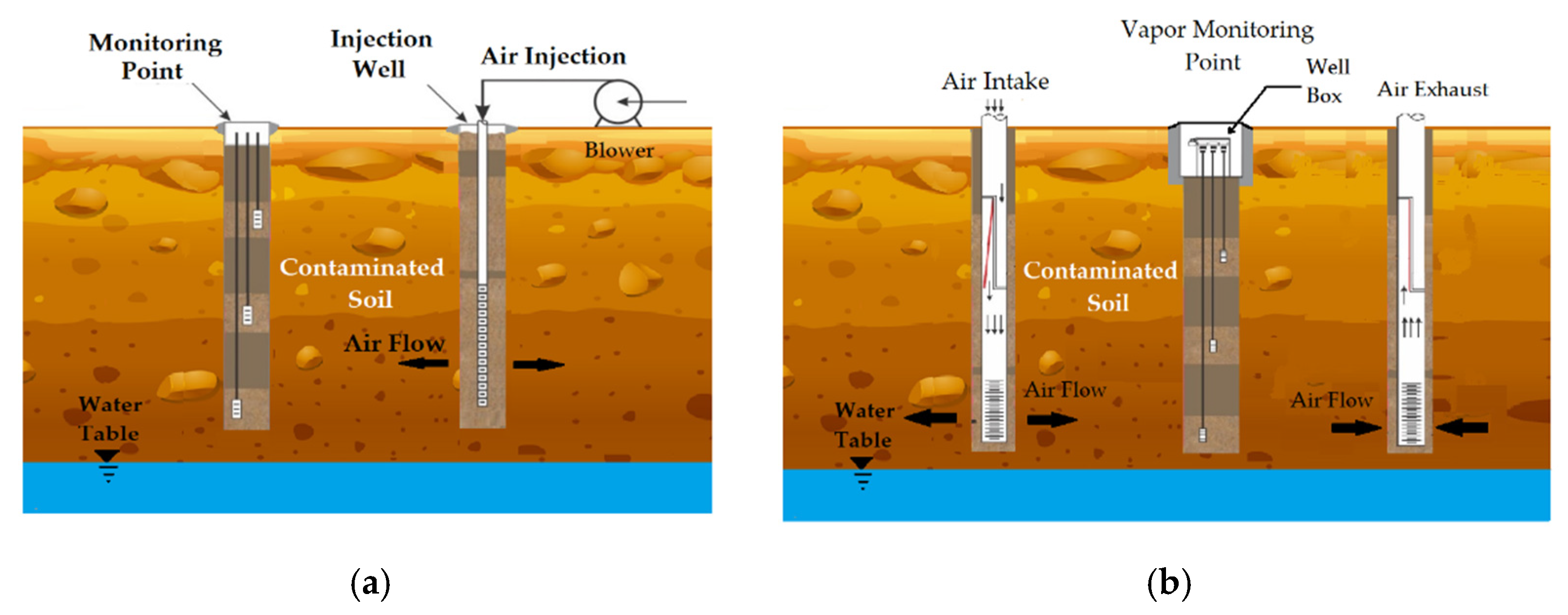

Bioventing can be realized in active or passive mode, with regards to the aeration: in the first case, the air is driven into the soil with a blower, while, in the passive method, the gas exchange through the vent wells occurs only by the effect of atmospheric pressure. The schemes of the two aeration methods are shown in
Figure 9.
Bioventing remediation may last from 6 months to 5 years, depending on the kind and concentration of contaminant, biodegradation rates, and characteristics of soil, such as permeability and water content.
4.2.5. Biosparging
In the biosparging technique, the biodegradation process occurs by stimulating the indigenous microorganisms through the injection of air in groundwater to increase the oxygen concentration. The method is similar to bioventing, except that in the biosparging the air is injected in the saturated zone. This can cause upward movement of volatile organic compounds to the unsaturated zone to promote biodegradation. Two parameters that influence the effectiveness of the process are (1) soil permeability, which determines pollutant bioavailability to microorganisms, and (2) pollutant biodegradability.
4.2.6. Composting
Composting is an approach for the bioremediation of pesticides. It consists of mixing the contaminated soil with nonhazardous organic amendments to promote the development of bacterial and/or fungi population, able to degrade the pesticides through a co-metabolic pathway.
This approach is particularly indicated when pesticide concentration is low. In composting, the microbial bioaccessibility to the pollutant is crucial. For this reason, it is important to control the water content, soil composition, and properties of the added amendment.
In contaminated soils, biochar can be used as an amendment to promote the degradation processes. Biochar is black carbon produced by the thermal conversions of biomass under limited oxygen conditions (gasification) or in the absence of oxygen (pyrolysis). It is characterized by high porosity and a large surface area; these two properties promote the adsorption of pesticides. Moreover, biochar is a carbon source that stimulates microbial activity, promoting biodegradation. It has been noted that biochar application increases the soil water holding capacity and improves aeration conditions in soil [
99]. Sun et al. [
100] have studied its application for the biodegradation of tebuconazole. This allowed the immobilization of
Alcaligenes faecalis WZ-2, the bacterial strain involved in the degradation process.
Composting can be carried out with two techniques: landfarming and biopiles.
Landfarming
Landfarming is an aerobic bioremediation process carried out for a long time. Contaminated soils are transported to a landfarming zone, incorporated into the soil surface over large areas, and periodically tilled to aerate the mixture. The kinetics of the degradation process is slow and may also take years. During the process, leaching and/or volatilization of toxic compounds (original compound and metabolites) must be controlled or prevented. To avoid any risk of infiltration, a waterproof cover must be in place on the soil before the start of the treatment. This treatment is applied especially to soils contaminated with a mixture of pollutants.
Biopiles
Biopiles are piles of contaminated soil, equipped with a piping system that permits the aeration. During the process, air or oxygen is sent, and a solution containing nutrients is applied to the soil surface to stimulate microbial activity. The parameters that influence the process are water contents, temperature, pH, and concentration of nutrients and oxygen that must be controlled to enhance biodegradation.
4.2.7. Slurry Bioreactors
In slurry bioreactors, the contaminated soil is mixed with wastewater up to obtain a slurry with aqueous suspensions between 10% and 30% w·v
−1. The bioreactor can be operating under aerobic or anaerobic conditions. Baczynski et al. [
101] studied the anaerobic biodegradation of organochlorine pesticides. They used methanogenic granular sludge as inoculum for anaerobic treatment of soil contaminated by γ-hexachlorocyclohexane, methoxychlor, o,p’- and p,p’-DDT. The pollutants were removed to a good extent at all tested temperatures (12, 22, and 30 °C) without a lag phase. Low temperature reduces the removal rates of pesticides. This might be due to the reduction of desorption rates of slowly desorbing fractions of these pollutants. In another study [
102], the same authors found that the rapidly desorbing fractions were not a good indicator for the evaluation of the bioremediation process. Instead, the determination of slowly desorbing fractions can be better used for this purpose.
4.3. In-Field Applications
At present, few studies report information on real case studies.
Table 9 summarizes some examples. Unfortunately, the findings and results of large-scale remediation are usually neither published nor widely publicized, limiting the knowledge of experiences on real cases. A similar situation occurs for the costs of the clean-up.
6. Conclusions
After the Second World War, the use of pesticides and plant protection products has grown heavily, both in developed and developing countries. Unfortunately, all these compounds are toxic to different extents and impact human health and the environment. Moreover, many of them are persistent; that is to say, their degradability is very limited and occurs for long times.
Soil bioremediation for their removal can be carried out exploiting either specific or indigenous microorganisms (bacteria and fungi), or enzymatic degradation.
While at a laboratory scale, many findings on soil bioremediation are available in the literature, few data on real-scale activities can be found. Unfortunately, this is mainly due to the poor cooperation among research laboratories, local authorities imposing a given soil clean-up, and companies involved in the sector of bioremediation in soils polluted with pesticides.
It would be beneficial that more and more this cooperation becomes united, to disseminate the experiences and results. Moreover, the cost data are lacking, too.
As for other pollutants, when required, the pesticide removal must take into account the chemical and toxicological characteristics of the compounds, without disregarding the national legislation. To this purpose, it must be outlined that several countries are still lacking in legislative acts, and this is the main drawback when polluted areas must be remediated.
