Lactide: Production Routes, Properties, and Applications

by
Bruna L. C. Cunha
1,
Juliana O. Bahú
2,*,
Letícia F. Xavier
1,
Sara Crivellin
2,
Samuel D. A. de Souza
2,
Leandro Lodi
3,
André L. Jardini
2,
Rubens Maciel Filho
2,
Maria I. R. B. Schiavon
2,
Viktor O. Cárdenas Concha
1,
Patricia Severino
4,5 and
Eliana B. Souto
6,7,*
1
School of Chemical Engineering, Federal University of São Paulo (UNIFESP), Diadema 09913-030, São Paulo, Brazil
2
School of Chemical Engineering, University of Campinas (UNICAMP), Campinas 13083-852, São Paulo, Brazil
3
Institute of Science and Technology, Federal University of Alfenas (UNIFAL), Poços de Caldas 37715-400, Minas Gerais, Brazil
4
Laboratory of Nanotechnology and Nanomedicine (LNMed), Institute of Technology and Research (ITP), Av. Murilo Dantas, 300, Aracaju 49010-390, Sergipe, Brazil
5
Industrial Biotechnology Program, University of Tiradentes (UNIT), Av. Murilo Dantas, 300, Aracaju 49010-390, Sergipe, Brazil
6
Department of Pharmaceutical Technology, Faculty of Pharmacy, University of Porto, Rua de Jorge Viterbo Ferreira, 228, 4050-313 Porto, Portugal
7
REQUIMTE/UCIBIO, Faculty of Pharmacy, University of Porto, Rua de Jorge Viterbo Ferreira, 228, 4050-313 Porto, Portugal
*
Authors to whom correspondence should be addressed.
Bioengineering 2022, 9(4), 164; https://doi.org/10.3390/bioengineering9040164
Submission received: 26 February 2022 / Revised: 20 March 2022 / Accepted: 28 March 2022 / Published: 7 April 2022
Browse Figures
Versions Notes

Abstract

:
Lactide dimer is an important monomer produced from lactic acid dehydration, followed by the prepolymer depolymerization process, and subsequent purification. As lactic acid is a chiral molecule, lactide can exist in three isomeric forms: L-, D-, and meso-lactide. Due to its time-consuming synthesis and the need for strict temperature and pressure control, catalyst use, low selectivity, high energy cost, and racemization, the value of a high purity lactide has a high cost in the market; moreover, little is found in scientific articles about the monomer synthesis. Lactide use is mainly for the synthesis of high molar mass poly(lactic acid) (PLA), applied as bio-based material for medical applications (e.g., prostheses and membranes), drug delivery, and hydrogels, or combined with other polymers for applications in packaging. This review elucidates the configurations and conditions of syntheses mapped for lactide production, the main properties of each of the isomeric forms, its industrial production, as well as the main applications in the market.

1. Introduction

Lactide (3,6-dimethyl-1,4-dioxane-2,5-dione) is a cyclic ester used as an intermediate product in the production of poly(lactic acid) (PLA), the desired monomer for high-molar mass PLA synthesis. This dimer has a high cost in the market, due to its expensive and time-consuming process for its synthesis. Factors such as racemization, low selectivity, and high energy consumption are associated with its production procedure [1]. Low molar mass PLA produces lactide, which is produced via depolymerization involving back-biting and end-biting reactions. In general, the back-biting reaction is an intramolecular reaction between the carboxylic terminal group and the ester bond, while end-biting refers to the ring closure of the chain [2]. The price increase of lactide (Table 1) translates into its commercial interest.
The lactide purity depends on the reaction conditions and the oligomer composition; therefore, both factors must be considered in the dimer production. Temperature, time, pressure, oligomer molecular weight, as well as the type and concentration of catalyst, are parameters that must be optimized to achieve a high yield of lactide with a low degree of racemization [2]. Once derived from lactic acid, which is a chiral molecule, the lactide has two stereocenters, existing as two enantiomers (L- and D-lactide, melting point (MP): 97 °C), besides its meso (MP: 53 °C) and racemic mixture (MP: 125 °C) [2]. The interest in its L- over D- isomer is related to the bioabsorbable and biocompatible characteristics of L-lactide, which are required for biomaterials to be metabolized by mammals [3]. The relevance of this product on the market, combined with its growing demand, is high [4]. A reasonable amount of work on the lactide, a monomer used in the PLA synthesis by ring-opening polymerization (ROP), can be seen in Figure 1. However, little information is found about the synthesis and processes for obtaining the lactide, with the majority of work related to its production found in patents. In this sense, a joint effort between industry and academia is necessary to fill this gap [5]. According to this, the present review presents aspects of lactide chain production and synthesis peculiarities. Here can also be found its applications, specifically in the medical area, in addition to some market considerations.

2. Synthesis

Pure lactic acid after fermentation of carbohydrates is required to produce lactide, because impurities (alcohols, carboxylic acids, etc.) in this process can negatively impact the lactide formation, which is also mandatory for a clean procedure to further produce high-quality polymers, especially for the medical area [6,7,8,9,10].
The lactide is a cyclic ester formed by two lactic acid molecules obtained via lactic acid polycondensation, followed by depolymerization of the PLA prepolymer under heating and reduced pressure (Figure 2) [11].

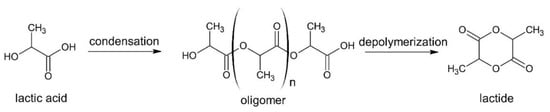

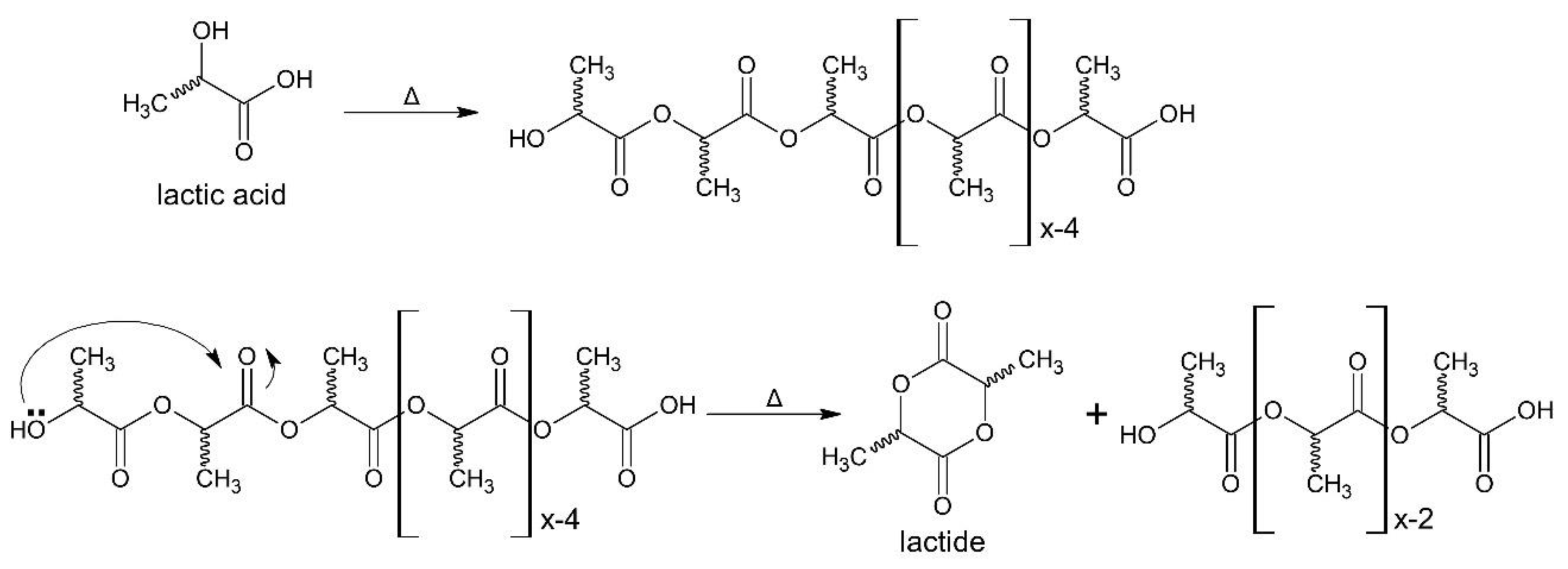

The lactide formation occurs in two steps: first, a prepolymer (oligomer) is obtained by lactic acid dehydration, then the lactide is synthesized through a depolymerization process. Generally, both steps take place at elevated temperatures (>200 °C), which implicates high energy consumption. In addition, the purification of the lactide is a crucial step that can lead to a cost increase in the production of PLA via ROP [13].
Another route for lactide production is using reverse engineering, that is, the depolymerization of the oligomeric PLA in reactions known as back-biting and end-biting. The back-biting reaction yields a cyclic compound via intramolecular reactions between the hydroxylic and the ester group of this oligomer chain (Figure 3) [14].
These are equilibrium reactions, dependent on the temperature and size of the cyclic compound. The “end-biting” reaction closes the linear chain to produce a lactide ring and water, while the “back-biting” produces cyclic and linear components [14]. Concerning the yield, the main factors that affect the lactide yield from the lactic acid oligomer are [16]:
  • Temperature, since the reaction rate, the vapor pressure of lactide from the reaction mixture, and the rate of racemization of lactide are proportional to heating;
  • Pressure is inversely proportional to the depolymerization rate of the prepolymer and lactide yield.

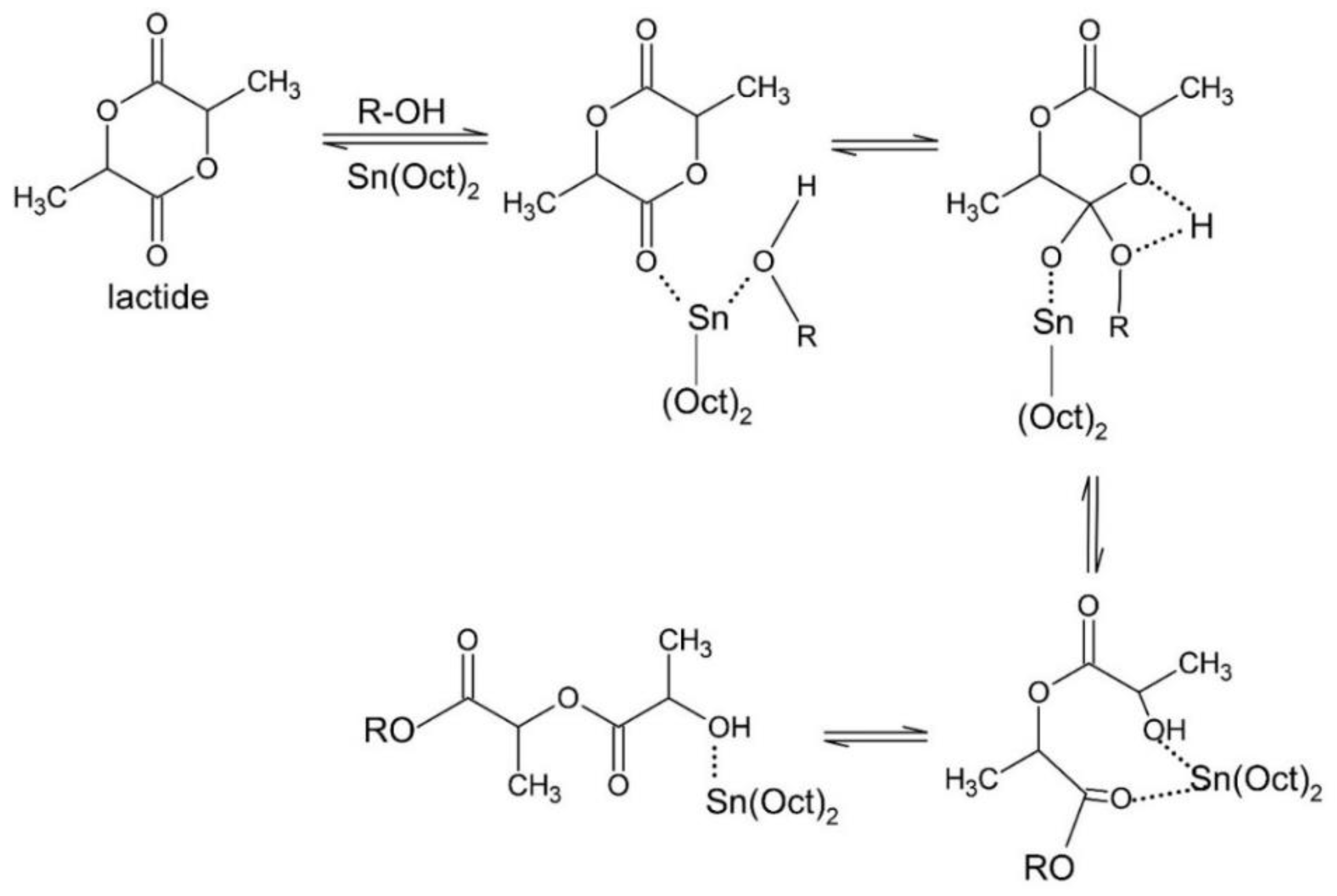

In the presence of a catalyst, here described as tin octoate (Sn(Oct)2), the lactide starts the process by ROP, through an insertion-coordination mechanism that increases the polymer chain, as shown in Figure 4. Such a catalyst is attractive, as the American Food and Drug Administration (USFDA) approved its use for lactide-based polymers as food additive, being suitable for contact with food, as polymeric packaging [17].

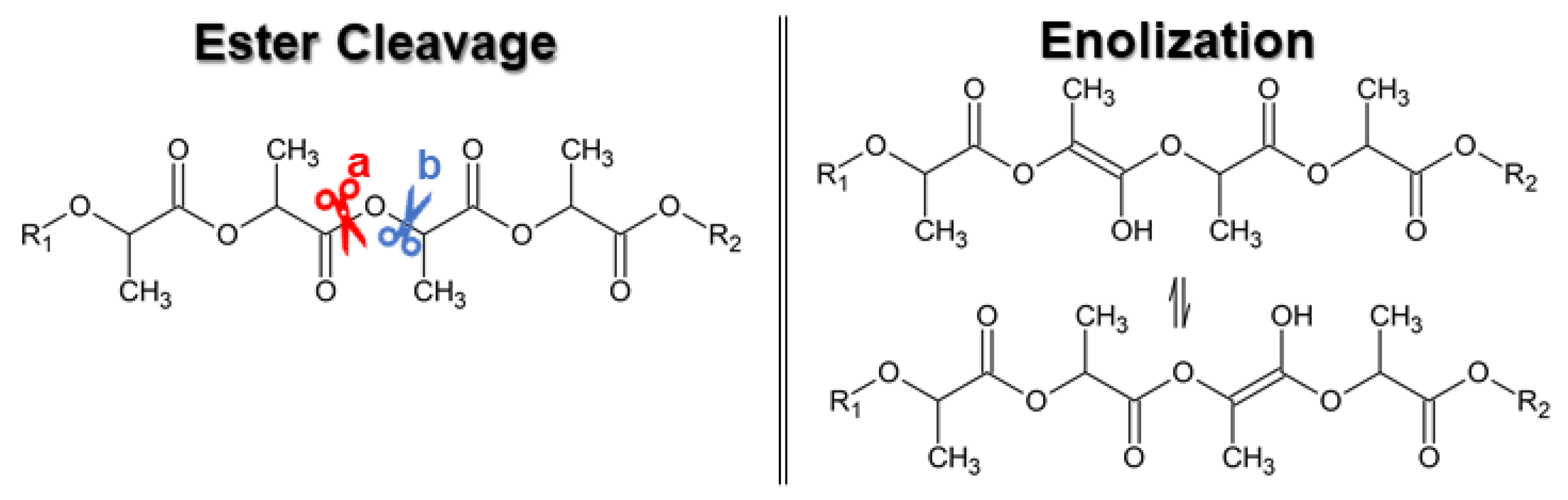

In literature, it is found that the depolymerization of the PLA oligomer is favored at high temperatures and low pressures, through thermal degradation reactions. A higher reaction temperature implies greater racemization and, therefore, lowers the purity of lactide, as presented in studies about the effect of catalysts and polymerization conditions [19]. Racemization occurs due to the cleavage of the ester group at two different points (Figure 5), and only at high temperatures there is a cleavage of the alkyl-oxygen bond. Additionally, the enolization of the ester group also contributes to racemization.
Regarding the use of acidic catalysts, it is described that strong acids (e.g., hydrochloric acid, HCl, or sulfuric acid, H2SO4) catalyze the carbonyl-oxygen bond cleavage, while Lewis acid-type catalysts promote the alkyl-oxygen bond cleavage [19].
As the molar mass, the crystallinity of the polymer influences its applications. The presence of lactide isomers is responsible for introducing irregularities in the polymer chains, which limits its crystallinity degree as well its application in the medical field. Thus, the cyclic dimer from the levogyre enantiomer of the lactide is the most suitable for applications that require a high degree of crystallinity and mechanical strength [20].
The lactide purity depends on the reactional conditions for lactide synthesis and the prepolymer composition obtained in the polycondensation stage; thus, both steps must be considered to optimize the process parameters. Lactide purification is a crucial step to produce PLA with adequate properties and performance, directly affecting the PLA’s final price. One of the main problems regarding the purity of the product is the racemization of the PLA, which occurs in the production step of the dimer and the PLA itself, which culminates in the production of PLA with inferior properties. Therefore, it is extremely important to understand the operational parameters’ effects on lactide production (yield) and purity (enantioselectivity) [21].

3. Properties

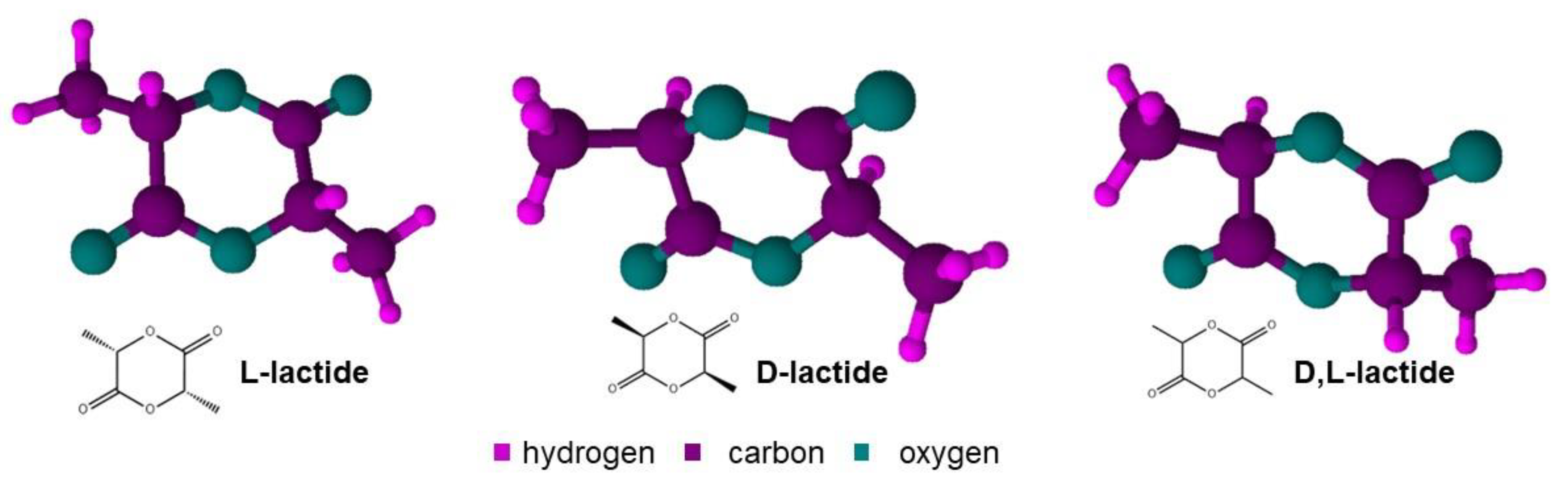

Lactide has three isomeric forms, (S,S)-L, (R,R)-D, and (S,R)/(R,S)-meso (Figure 6), which L-lactide is the most commercially readily available [22,23]. The lactic acid optical activity controls the isomerism of the synthesized lactide, which respectively dictates the properties of the final polymer [24].
The optical components of the lactic acid used in the lactide synthesis regulate its isomerism, which heads the final polymer properties [24]. The physicochemical properties of the lactide do not differ much between its isomeric forms but significantly affect the polymerization reactions in which poly(lactide) with different properties and characteristics are obtained, such as tactile structures, melting point (Tm), mechanical properties, degradation rate, crystallization rate, and the extent of crystallization, etc. [22,23,24,25,26]. Among these properties, the lactides’ Tm is considered one of the most interesting properties for polymer synthesis [23,27], since ROP occurs at temperatures above the lactides’ Tm and under the thermal degradation temperature of PLA [6], also interfering with polymer processing [23,27].
The lactides’ Tm range from: 95–98 °C, D- and L-lactide [23,27]; 53–54 °C, meso-lactide; and, 122–126 °C, rac-lactide [23]. Poly(L-lactic acid) (PLLA), for example, has an equilibrium melting point at approximately 207 °C, and practical Tm around 180 °C when crystallized at ≈100 °C. Whereas the minimum processing temperature for polymers is usually about 20 °C above the Tm, the processing temperature for PLLA is up to 200 °C [24]. Therefore, using different isomers for the poly(lactide) (copolymerization) synthesis results in copolymers of lactides with different thermal properties and macromolecular architectures [6,24,28,29]. These differences between the copolymers obtained are dependent on the reactions between the comonomers and the polymerization conditions, affecting the conversion and distribution of comonomers [6,24,28,29]. ROP allows greater control over the distribution of comonomers in the polymer chain [25,28], in addition to low polydispersity, high molar mass, and high levels of end-groups, when compared to polycondensation [28]. This type of polymerization can be performed in solution, bulk, melt, or suspension employing different polymerization mechanisms [29]. When it comes to enantiomerically pure monomers (L-lactide or D-lactide), there is a formation of a polymer chain of isotactic structure; using rac-lactide as a monomer can also be used to obtain an “isotatic” structure. Polymers formed by meso-lactide monomers can present a syndiotactic structure, with an alternating arrangement of D- and L-lactide isomers, or heterotactic, with a double arrangement of D- and L-lactide isomers [28]. Polymerization of L,L-lactide obtains a linear homopolymer chain architecture with high molar mass (above 70 kDa). The polymerization of L,L-lactide or D,D-lactide with meso-lactide gives a linear copolymer macromolecular architecture with high molar mass. Rac- and meso-lactide makes it possible to obtain linear copolymers with molar mass ranging from low (<20 kDa) to high molar mass (>70 kDa) [29]. In the literature, it is possible to observe the variety of molar mass obtained for these polymers since the use of catalysts, initiators, and different reaction conditions promote considerable differences in the molar mass of the polymers obtained. It is observed that each type of catalyst leads to a certain mechanism of polymerization, which can be ionic, coordination, or free radical [29]. Industrial processes using tin octanoate [Sn(Oct)2] as a catalyst of the polymerization reaction, by coordination-insertion mechanism, achieve polymers of molar mass above 100 kDa or even 1000 kDa when performed in the presence of alcohol. Coordination-insertion mechanisms are also explored using other types of catalysts, such as aluminum alkoxides. In this case, polymers of molar mass less than 100 kD are obtained, in reactions that can take days to occur [25]. In addition to these, other catalysts composed of transition metals are presented in the literature [29]. The possibility of using different racemic structures of lactides in polymer synthesis brings a significant benefit to polymer properties, such as the possibility of processing at lower temperatures and lower rates of hydrolytic and oxidative degradation [24]. However, the polymerization of cyclic monomers depends on thermodynamic and kinetic factors [30]. From a thermodynamic point of view, lactide is a singular six-membered ring that is polymerizable [25,30]. It exhibits negative polymerization enthalpy, indicating a high exothermic reaction, around −23 kJ/mol [25] to −27.0 kJ/mol, and entropy of −13.0 kJ/mol·K at 400 K [23]. Regarding solubility, lactide can be soluble in water, alcohols (methanol, isopropanol), oxygenated (ethyl acetate, acetone, butanone, tetrahydrofuran), and organochloride (methylene chloride, chloroform) solvents, besides the organic ones (benzene, toluene, xylene). In water, the lactide hydrolyzes to lactic acid at room temperature. The meso-lactide rate of hydrolysis is higher than the D/L-lactide. In other solvents, the lactide solubility is proportional to the subjected temperature [31]. Some properties of lactides found in the literature are presented in Table 2.
In a work carried out for PLGA synthesis by ROP, the characterization of the commercial L-lactide monomer (Purasorb® L) used in the development of the research was carried out [32]. The data obtained showed that L-lactide degrades completely at a temperature of 233 °C observed by thermogravimetric analysis, presenting a single stage of mass loss in the thermal profile. The infrared absorption analysis (FTIR) of the L-lactide shows strong absorption bands characteristics of L-lactide at approximately 935 cm−1 (ester group C-COO stretching), 1056 cm−1 (COO ring deformation), 1093 cm−1 (C-C stretching), 1240 cm−1 (symmetric COC lactone ring stretching), 1266 cm−1 (CH2 and CH wagging), and 1754 cm−1 (asymmetric CH3 deformation) [13,32,33]. The X-ray diffractogram presented in the same work shows the crystalline microstructure of L-lactide with intense peaks at approximately 2Ɵ equal to 8, 13, and 14° [13,33,34]. Complementing the lactide characterization topic, its nuclear magnetic resonance analysis (1H NMR) shows two signals in the L-lactide spectrum, one corresponds to a doublet at δ 1.6 ppm, and the other presents a quadruplet at δ 5.0 ppm, that are respective to the methine (CH) and methyl (CH3) groups of the L-lactide molecule [35]. The other lactide isomers present chemical shifts close to the values presented for the L-lactide, with a doublet signal at δ 1.4–1.8 ppm for D- and meso-lactides [36]. Some efforts to differentiate and quantify the lactide isomers via chromatographic techniques have been published [37].

4. Methods for Lactide Production

Obtaining lactide is an interesting process for high molar mass PLA via ROP, since lactide is the monomer of this polymerization. Few works are found in the literature about the process of obtaining this monomer. Several studies aimed the better comprehension of the experimental conditions, such as temperature, pressure, atmosphere, type, and quantity of catalyst, besides the purification method; on the yield, selectivity, and purity of the lactide produced.
The maximum yield of lactide via polycondensation occurs if the degree of polymerization is equal to 2, according to the patented procedure [38]. In addition, this patent claimed that the production of the dimer occurs through an “end-biting” reaction. They also suggested the recovery of the lactide from the low molar PLA mixture, ignoring the step in which the back-biting reaction occurs. They also pointed out that high temperatures are necessary to distill the lactide to increase viscosity and molar mass.
A patent for the production of lactide via PLA depolymerization by backbiting comprises [39]: (i) thermo-catalytic depolymerization of polylactide to produce lactide in the presence of cocatalyst; (ii) product vaporization occurs in the reaction stage; (iii) product recovery by condensation; (iv) separation of L-, D- or meso-lactide.
Metal complexes had been investigated to synthesize the lactide [2,40]. Tin-based catalysts at higher temperature and lower pressure conditions decreased the lactide yield and improved its purity [14]. This occurs because the depolymerization reaction rate is higher in high temperatures and low pressures accelerate the elimination of basic impurities, minimizing the racemization.
Some recognized processes published in the literature for lactide production are summarized in Table 3.

5. Lactide Industrial Production

For the current commercial production of lactide, the first step is to remove the water of lactic acid, without the use of solvents, to produce a low molar mass prepolymer (oligomer). The second step is the catalyzed depolymerization of the oligomer, forming the cyclic dimer (lactide), which is purified through distillation [72]. Both steps must be performed at vigorous heating and vacuum to aid the continuous removal of water and lactide. The L-lactide selectivity must be between 60 and 70% to avoid racemization and undesired products. These conditions are highly energy-intensive, requiring strenuous recycling and downstream purification steps, consequently turning this process expensive [44].

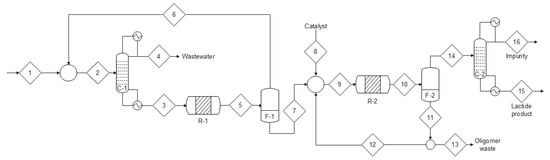

The conventional two-step lactide synthesis process for lactide production on an industrial scale is set up at 200 °C, 5 mmHg, and 0.25 %wt of catalyst (Sn(Oct)2) [21], as depicted in Figure 7. In this process, the reactor R-1 promotes lactic acid dehydration and polymerization, operating at low pressure (50–200 mmHg) and high temperature (200 °C), while the oligomers are formed by a self-catalyzed esterification reaction. Since these reactions are reversible, there is an equilibrium among monomers, oligomers, and water. Thus, to increase the conversion of lactic acid, the water vapor is removed from the reactor (stream 6) and fed into the water removal column (C-1) [48].
The lactic acid oligomers formed in R-1 are fed into R-2, where a catalytic depolymerization reaction occurs, producing lactide. This reactor operates at vacuum pressure (10–50 mmHg) and high temperature (200–240 °C) to facilitate the reaction, vaporize and remove the lactide [48]. The unreacted oligomers are recycled (stream 11), and the high molecular weight oligomers are discarded (stream 13). Lastly, the crude lactide goes to the purification column (C-2), where the lactide is purified [48].

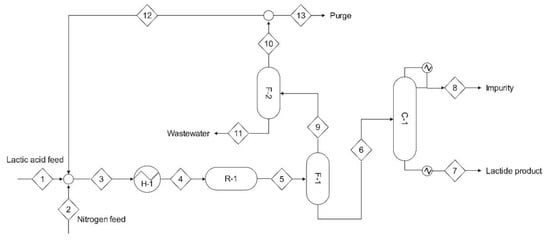

A one-step lactide synthesis process (Figure 8) involves lactic acid mixing with nitrogen. To minimize oligomers formation, this stream boils in the preheater, H-1 [48]. Then, it is fed into the reactor, R-1, which is supported with SiO2/Al2O3 catalyst, operates at a high temperature (220–240 °C), and can be operated at atmospheric pressure. The reactor product goes into the first flash drum, F-1, where nitrogen and water are separated from the other compounds, and goes to F-2, where the wastewater is condensed, discarded, while the nitrogen gas is partially recycled and purged. Finally, crude lactide that is left in F-1 is fed into the distillation unity C-1, which produces purified lactide.
Another process that can be used for lactide production is reactive distillation [73]; this is a good alternative since it is a one-step procedure, allowing chemical reaction (lactide synthesis) and physical separation (water removal), reducing cost and increasing productivity. In accord with the literature, the production of lactide via lactic acid distillation is an innovative process, as it is largely used for the purification of lactic acid produced by the fermentative route [74]. The reactive distillation to obtain lactide from the depolymerization of PLA (recycling) uses zinc (II) acetate as a catalyst at 200 °C, producing a lactide with great yield (98%) and purity [75].

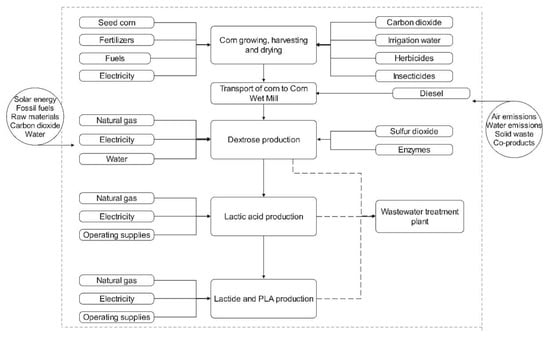

A simplified flow diagram of the life cycle production of PLA and lactide according to the Cargill Dow concept of sustainability is presented in Figure 9. Its operational supplies refer to chemicals inputs used in the process for controlling the temperature, atmosphere, and the synthesis’ materials in general (raw materials, catalysts, solvents for purification, etc.) [72,76].
In another study, it was analyzed the production of lactic acid, lactide, and PLA, using food residue as the input stream; the mass balance proved the viability of the sustainable cycle of lactide production with high yields for the desired products. Additionally, they estimated a minimum selling price for lactide as about $2073 TM [77]. The industrial plant design from NatureworksTM (Cargill Dow) to produce lactide and PLA via a solvent-free process is shown in Figure 10.

6. Applications in Bioengineering

Lactide is an intermediate for the production of the high molar mass PLA via ROP. This monomer has great importance since it controls the synthesis for polymer production. The processing, crystallization, and degradation behavior of PLA all depend on the structure and composition of the polymer chains, in particular, the PLA stereochemical structure, which is influenced by the lactide isomers [78]. The presence of L- or D- monomer affects the physical characteristics of the final polymer. PLLA polymer has the highest melting point among the other PLA types due to its crystalline nature. As D-isomer is incorporated in the PLA chain, it reduces its crystallinity, lowering the melting points of PLA copolymers until they become amorphous at D-contents higher than 12% [78]. As a consequence of lactide reactivity, it can also react with other monomers, yielding copolymers with variable properties, as the copolymerization procedure enables the obtention of a final material with target properties in accord to its application [79,80].

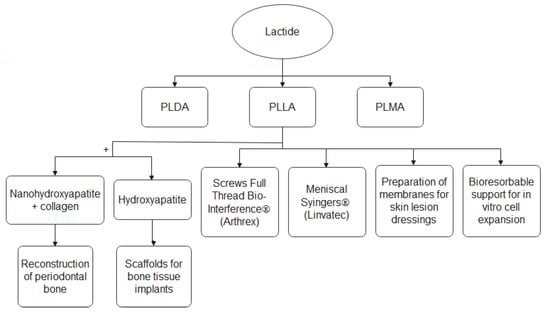

The main applications of this cyclic-dimer, lactide, are mainly for the production of the PLA polymer, taking into account which isomer of lactide is part of the synthesis and finally, some copolymers with trimethylene carbonate (TMC) [81], poly(ε-caprolactone) (PCL) [82], polyethylene glycol (PEG) [5], and polyglycolic acid (PGA) [2,3,5,83]. Mainly for medical purposes: tissue engineering, drug delivery, and medical devices [2,3] as described in Table 4.
Polymeric materials based on lactide and other hydroxy acids are widely used in the manufacture of medical products for general and reconstructive surgery, traumatology, and orthopedics, to restore vital human organs and tissues. The main advantage of these materials is biodegradation since the products from their degradation are not injurious to the human body. Thus, it is not necessary for an invasive procedure for implant removal, which is an economical advantage for both patients and physicians [16,84].
PLA is a good candidate for biopolymers to be used in medicine because of its biological, chemical, and physical properties; it has good thermal processability and can be processed by conventional polymer processing methods (injection, extrusion, thermoforming, spinning, etc.), requiring less energy demand when compared to petroleum-based polymers. In addition to that, poly(D-lactide acid) (PDLA) has slower biodegradation than PLLA, and for this reason, PLLA (higher crystallinity) is often more used than PDLA [84,85,86].
Medical products based on biopolymers assist in dysfunctions and diseases in the musculoskeletal and cardiovascular system, speeding up the tissue healing after an invasive procedure, and preventing post-surgical synechiae [16]. Some of the main polymers starting with lactide, and their medical applications are presented in Figure 11.
Low molar mass PLA has been used for drug delivery as well, for microencapsulation [87], and to release antibiotics against bone infection [88].
Beyond the medical area, PLA is commonly used to produce commodities such as bottles and films for food packaging, being its recyclability code “7” [89]. Moreover, it can partially replace some petroleum plastics, such as polyethylene (PE), polypropylene (PP), polystyrene (PS), and polyethylene terephthalate (PET) [21,90,91]. This biodegradable polymer has increased interest to replace commodity polymers since it is biobased, environmentally friendly, and possible for composting, mechanical, and chemical recycling, which valuate the carbon cycle [92,93].
The extensive application of PLLA highlights the importance of studying the L-lactide dimer since this is the starting monomer to produce this biopolymer.
Table
Table 4. Lactide as raw material for polymers production and their applications.
Table 4. Lactide as raw material for polymers production and their applications.
LactidePolymersApplicationsReferences
L-lactideL-lactide for producing PLLAMembranes and films for medical applications and 3D printing for prosthesis[94,95]
D-lactideD-lactide for producing PDLAHydrogel and particles for drug delivery[96]
L-lactideL-lactide with PEGMedical applications, drug vehicles, nanoparticles loaded with bioactive compounds, treatment for cancer and infections[97,98]
D-lactideD-lactide with PEGBiochemical device and packaging[25]
L-lactideL-lactide with poly(trimethylene carbonate)Biodegradable elastomeric scaffold for vascular engineering[99]
L-lactideL-lactide with PCLAbsorbable suture medical application due to good tensile properties
Packaging application thanks to tunable barrier properties		[100,101,102]
L-lactide/D-lactideLactide with ligninBio-based composite materials[103]
L-lactide/DL-lactideL-lactide with ε-caprolactone and hydroxyapatiteComposite materials for bone reconstruction[104]
L-lactideL-lactide with hydroxyapatiteComposite scaffolds for bone tissue engineering[105]
L-lactideL-lactide, glycolide, butyl succinate/citrateBioabsorbable block copolymers for tissue engineering[106]
L-lactideL-lactide with PGASmart polymer used as drug delivery device[83]

7. Conclusions

The eco-profile of lactides, biobased and biodegradable, has increased their market interest to produce PLA to minimize the dependence on petroleum-based materials, and to leverage the green economy. Such a sustainable approach can be found in the industrial-scale production of lactide by the Cargill-Dow process. The excellent properties of lactide-based polymers boosted numerous applications that have heated the economic market. There are several works about procedures for lactide synthesis, they have different routes, but primarily the lactic acid dehydration step needs considerable attention from the scientific community. Lactic acid dehydration is primordial since water hydrolysis of the lactide affects the posterior polymerization stage; additionally, it usually employs vacuum at high temperatures for considerable periods, which implies high energy consumption; that said, this step needs optimization. Heterogeneous and homogeneous catalysis, one-step continuous process, gas and/or liquid-liquid phase are some methods currently employed for lactide production. Metallic catalysts can limit the lactide application, i.e., in the medical area, if they cannot be removed. A one-step process is desirable, as stop procedures do not occur in this process, which might length the lactide production. The purification step is also crucial to guarantee the lactide stereochemical purity and impurities removal, being realized by distillation or crystallization. It is urgent to study environmentally-friendly solvents, with the possibility of recovery and reuse, and quicker purification methods to minimize ecological impact.

Author Contributions

B.L.C.C., J.O.B., L.F.X., S.C., S.D.A.d.S., L.L., A.L.J., M.I.R.B.S. and V.O.C.C. contributed to the conceptualization, methodology, validation, formal analysis, investigation, and writing—original draft. R.M.F., V.O.C.C., P.S. and E.B.S. contributed to the methodology, supervision, writing—review and editing, project administration, resources, and funding acquisition. All authors have made a substantial contribution to the work. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Council for Scientific and Technological Development (Conselho Nacional de Desenvolvimento Científico e Tecnológico—CNPq, Brazil), the Coordination for the Improvement of Higher Education Personnel (Coordenação de Aperfeiçoamento de Pessoal de Nível Superior—CAPES, Brazil), grant #2015/20630-4 São Paulo Research Foundation and grant #2021/05719-0 São Paulo Research Foundation, by the Portuguese Science and Technology Foundation (FCT/MCT) and European Funds (PRODER/COMPETE), under the project reference UIDB/04469/2020 (strategic fund) granted to EBS, co-financed by FEDER, under the Partnership Agreement PT2020, and by Fundação Carolina (Movilidad de profesorado Brasil-España, Movilidad. Estancias de Investigación, C.2020) granted to PS.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ghadamyari, M.; Chaemchuen, S.; Zhou, K.; Dusselier, M.; Sels, B.F.; Mousavi, B.; Verpoort, F. One-Step Synthesis of Stereo-Pure L,L Lactide from L-Lactic Acid. Catal. Commun. 2018, 114, 33–36. [Google Scholar] [CrossRef]
  2. Ehsani, M.; Khodabakhshi, K.; Asgari, M. Lactide Synthesis Optimization: Investigation of the Temperature, Catalyst and Pressure Effects. E-Polymers 2014, 14, 353–361. [Google Scholar] [CrossRef]
  3. Ceppatelli, M.; Frediani, M.; Bini, R. High-Pressure Reactivity of L,L-Lactide. J. Phys. Chem. B 2011, 8, 2173–2184. [Google Scholar] [CrossRef] [PubMed]
  4. Shen, L.; Haufe, J.; Patel, M.K. Product Overview and Market Projection of Emerging Bio-Based Plastics; Universiteit Utrecht: Utrecht, The Netherlands, 2009. [Google Scholar]
  5. Van Wouwe, P.; Dusselier, M.; Vanleeuw, E.; Sels, B. Lactide Synthesis and Chirality Control for Polylactic Acid Production. ChemSusChem 2016, 9, 907–921. [Google Scholar] [CrossRef]
  6. Groot, W.; Van Krieken, J.; Sliekersl, O.; de Vos, S. Production and Purification of Lactic Acid and Lactide. In Poly (Lactic Acid): Synthesis, Structures, Properties, Processing, and Applications; Auras, R., Lim, L.-T., Selke, S.E.M., Tsuji, H., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2011; pp. 3–16. ISBN 9780470293669. [Google Scholar]
  7. Komesu, A.; de Oliveira, J.A.R.; da Silva Martins, L.H.; Maciel, M.R.W.; Maciel Filho, R. Lactic Acid Production to Purification: A Review. BioResources 2017, 12, 4364–4383. [Google Scholar] [CrossRef] [Green Version]
  8. Alves De Oliveira, R.; Alexandri, M.; Komesu, A.; Venus, J.; Vaz Rossell, C.E.; Maciel Filho, R. Current Advances in Separation and Purification of Second-Generation Lactic Acid. Sep. Purif. Rev. 2020, 49, 159–175. [Google Scholar] [CrossRef]
  9. Itzinger, R.; Schwarzinger, C.; Paulik, C. Investigation of the Influence of Impurities on the Ring-Opening Polymerisation of L-Lactide from Biogenous Feedstock. J. Polym. Res. 2020, 27, 1–13. [Google Scholar] [CrossRef]
  10. Groot, W.J.; Borén, T. Life Cycle Assessment of the Manufacture of Lactide and PLA Biopolymers from Sugarcane in Thailand. Int. J. Life Cycle Assess. 2010, 15, 970–984. [Google Scholar] [CrossRef]
  11. Souza, R.V. Glycolide and Lactide Synthesis Process Study for Production of PLGA Poly(Lactic Acid-Co-Glycolic Acid) Used in Radioactive Sources Production; University of São Paulo (USP): São Paulo, Brazil, 2017. [Google Scholar]
  12. Lunt, J. Large-Scale Production, Properties and Commercial Applications of Polylactic Acid Polymers. Polym. Degrad. Stab. 1998, 59, 145–152. [Google Scholar] [CrossRef]
  13. Pattaro, A.F. Synthesis, Characterization and Processing of Bioreabsorbable Polymers to Use in Tissue Engineering; University of Campinas: Campinas, Brazil, 2016. [Google Scholar]
  14. Yoo, D.K.; Dukjoon, K.; Lee, D.S. Synthesis of Lactide from Oligomeric PLA: Effects of Temperature, Pressure, and Catalyst. Macromol. Res. 2006, 14, 510–516. [Google Scholar] [CrossRef]
  15. Van Nostrum, C.F.; Veldhuis, T.F.J.; Bos, G.W.; Hennink, W.E. Hydrolytic Degradation of Oligo(Lactic Acid): A Kinetic and Mechanistic Study. Polymer 2004, 45, 6779–6787. [Google Scholar] [CrossRef]
  16. Yarkova, A.V.; Novikov, V.T.; Glotova, V.N.; Shkarin, A.A.; Borovikova, Y.S. Vacuum Effect on the Lactide Yield. Procedia Chem. 2015, 15, 301–307. [Google Scholar] [CrossRef] [Green Version]
  17. Kaihara, S.; Matsumura, S.; Mikos, A.G.; Fisher, J.P. Synthesis of Poly(L-Lactide) and Polyglycolide by Ring-Opening Polymerization. Nat. Protoc. 2007, 2, 2767–2771. [Google Scholar] [CrossRef] [PubMed]
  18. Drumright, R.E.; Gruber, P.R.; Henton, D.E. Polylactic Acid Technology. Adv. Mater. 2000, 12, 1841–1846. [Google Scholar] [CrossRef]
  19. Hiltunen, K.; Seppälä, J.V.; Härkönen, M. Effect of Catalyst and Polymerization Conditions on the Preparation of Low Molecular Weight Lactic Acid Polymers. Macromolecules 1997, 30, 373–379. [Google Scholar] [CrossRef]
  20. Nofar, M.; Salehiyan, R.; Sinha Ray, S. Rheology of Poly(Lactic Acid)-Based Systems. Polym. Rev. 2019, 59, 465–509. [Google Scholar] [CrossRef]
  21. Xavier Moniz, A.M. Study of Lactic Acid Polycondensation and Lactide Production; Porto University: Porto, Portugal, 2010. [Google Scholar]
  22. Carpentier, J.; Kirillov, E. Stereoselective Polymerization. In Science of Synthesis; Thieme: New York, NY, USA, 2011; pp. 931–971. [Google Scholar]
  23. Masutani, K.; Kimura, Y. Chapter 1 PLA Synthesis. From the Monomer to the Polymer. In Poly(Lactic Acid) Science and Technology: Processing, Properties, Additives and Applications; Jiménez, A., Peltzer, M., Ruseckaite, R., Eds.; The Royal Society of Chemistry: London, UK, 2015; pp. 1–36. ISBN 978-1-84973-879-8. [Google Scholar]
  24. Kolstad, J.J. Crystallization Kinetics of Poly(L-Lactide-Co-Meso-Lactide). J. Appl. Polym. Sci. 1996, 62, 1079–1091. [Google Scholar] [CrossRef]
  25. Dechy-Cabaret, O.; Martin-Vaca, B.; Bourissou, D. Controlled Ring-Opening Polymerization of Lactide and Glycolide. Chem. Rev. 2004, 104, 6147–6176. [Google Scholar] [CrossRef]
  26. Grijpma, D.W.; Pennings, A.J. (Co)Polymers of L-Lactide, 2a) Mechanical Properties. Macromol. Chem. Phys. 1994, 195, 1649–1663. [Google Scholar] [CrossRef]
  27. Sedush, N.G.; Chvalun, S.N. Kinetics and Thermodynamics of L-Lactide Polymerization Studied by Differential Scanning Calorimetry. Eur. Polym. J. 2015, 62, 198–203. [Google Scholar] [CrossRef]
  28. Stanford, M.J.; Dove, A.P. Stereocontrolled Ring-Opening Polymerisation of Lactide. Chem. Soc. Rev. 2010, 39, 486–494. [Google Scholar] [CrossRef] [PubMed]
  29. Södergård, A.; Stolt, M. Properties of Lactic Acid Based Polymers and Their Correlation with Composition. Prog. Polym. Sci. 2002, 27, 1123–1163. [Google Scholar] [CrossRef]
  30. Odian, G. Ring-Opening Polymerization. In Principals of Polymerization; Odian, G., Ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2004; pp. 544–618. [Google Scholar]
  31. Jin, Z.; Tian, Y.; Wang, J. Chemistry and Thermodynamic Properties of Lactic Acid and Lactide and Solvent Miscibility. In Poly (Lactic Acid): Synthesis, Structures, Properties, Processing, and Applications; Auras, R., Lim, L.-T., Selke, S.E.M., Tsuji, H., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2010; pp. 19–25. [Google Scholar]
  32. Pattaro, A.F.; Bahú, J.O.; Schiavon, M.I.R.B.; Gabriel, L.P.; Concha, V.O.C.; Jardini, A.L.; Filho, R.M. Poly(L-Lactide-Co-Glycolide) (PLLGA)—Fast Synthesis Method for the Production of Tissue Engineering Scaffolds. Mater. Int. 2020, 2, 286–296. [Google Scholar] [CrossRef]
  33. Cunha, B.L.C. Síntese e Caracterização Do Dímero L-Lactídeo Para Produção Do Ácido Poli-L-Láctico Visando Sua Aplicação Na Área Médica; Federal University of São Paulo: São Paulo, Brazil, 2021. [Google Scholar]
  34. Botvin, V.; Karaseva, S.; Salikova, D.; Dusselier, M. Syntheses and Chemical Transformations of Glycolide and Lactide as Monomers for Biodegradable Polymers. Polym. Degrad. Stab. 2021, 183, 109427. [Google Scholar] [CrossRef]
  35. Wiegand, T.E. Resorbable Polymer-Hydroxyapatite Composites for Bone Trauma Treatment: Synthesis and Properties; University of Nebraska-Lincoln: Lincoln, NE, USA, 2011. [Google Scholar]
  36. Rahmayetty; Sukirno; Prasetya, B.; Gozan, M. Synthesis and Characterization of L-Lactide and Polylactic Acid (PLA) from L-Lactic Acid for Biomedical Applications. In Proceedings of the AIP Conference Proceedings; AIP Publishing LLC: Melville, NY, USA, 2017; Volume 1817, p. 020009. [Google Scholar]
  37. Feng, L.; Chen, X.; Bian, X.; Xiang, S.; Sun, B.; Chen, Z. Calculating D-Lactide Content by Probability Using Gas Chromatographic Data. Chemom. Intell. Lab. Syst. 2012, 110, 32–37. [Google Scholar] [CrossRef]
  38. Sinclair, R.G.; Markle, R.A.; Smith, R.K. Lactide Production from Dehydration of Aqueous Lactic Acid Feed. U.S. Patent 5,274,127, 2 April 1992. [Google Scholar]
  39. Penu, C.; Belloncle, B. Production of Meso-Lactide, D-Lactide, and L-Lactide by Back-Biting of Polylactide. U.S. Patent 9,850,224, 27 October 2016. [Google Scholar]
  40. Noda, M.; Okuyama, H. Thermal Catalytic Depolymerization of Poly(L-Lactic Acid) Oligomer into LL-Lactide: Effects of Al, Ti, Zn and Zr Compounds as Catalysts. Chem. Pharm. Bull. 1999, 47, 467–471. [Google Scholar] [CrossRef] [Green Version]
  41. Sanglard, P.; Adamo, V.; Bourgeois, J.-P.; Chappuis, T.; Vanoli, E. Poly(Lactic Acid) Synthesis and Characterization. Chim. Int. J. Chem. 2012, 66, 951–954. [Google Scholar] [CrossRef]
  42. Dusselier, M.; Van Wouwe, P.; Dewaele, A.; Jacobs, P.A.; Sels, B.F. Shape-Selective Zeolite Catalysis for Bioplastics Production. Science 2015, 349, 78–80. [Google Scholar] [CrossRef] [Green Version]
  43. Baick, I.H.; Luciani, C.V.; Park, S.Y.; Lim, T.; Choi, K.Y. Kinetics of Reversible Oligomerization of L-Lactic Acid with a SnCl2·2H2O/p-Toluenesulfonic Acid Catalyst. Ind. Eng. Chem. Res. 2012, 51, 16617–16625. [Google Scholar] [CrossRef]
  44. De Clercq, R.; Dusselier, M.; Makshina, E.; Sels, B.F. Catalytic Gas-Phase Production of Lactide from Renewable Alkyl Lactates. Angew. Chem.—Int. Ed. 2018, 57, 3074–3078. [Google Scholar] [CrossRef]
  45. Park, J.; Cho, H.; Hwang, D.; Kim, S.; Moon, I.; Kim, M. Design of a Novel Process for Continuous Lactide Synthesis from Lactic Acid. Ind. Eng. Chem. Res. 2018, 57, 11955–11962. [Google Scholar] [CrossRef]
  46. Upare, P.P.; Yoon, J.W.; Hwang, D.W.; Lee, U.H.; Hwang, Y.K.; Hong, D.Y.; Kim, J.C.; Lee, J.H.; Kwak, S.K.; Shin, H.; et al. Design of a Heterogeneous Catalytic Process for the Continuous and Direct Synthesis of Lactide from Lactic Acid. Green Chem. 2016, 18, 5978–5983. [Google Scholar] [CrossRef]
  47. Chang, J.-S.; Hwang, Y.-K.; Lee, J.; Lee, J.-M.; Jung, M.-H. Catalyst for Direct Conversion of Esters of Lactic Acid to Lactide and the Method for Producing Lactide Using the Same. U.S. Patent 8258317B2, 4 September 2012. [Google Scholar]
  48. Heo, S.; Park, H.W.; Lee, J.H.; Chang, Y.K. Design and Evaluation of Sustainable Lactide Production Process with an One-Step Gas Phase Synthesis Route. ACS Sustain. Chem. Eng. 2019, 7, 6178–6184. [Google Scholar] [CrossRef]
  49. Idage, B.B.; Idage, S.B.; Swaminathan, S. Process for the Preparation of L-Lactide of High Chemical Yield and Optical Purity. U.S. Patent 8895760B2, 25 November 2014. [Google Scholar]
  50. Li, H.; Zhang, Q.; Zhang, T.; Jiang, W.; Huang, W.; Pan, B. Technological Method for Synthesis of Optically Pure L-/D-Lactide Catalyzed by Biogenic Guanidine. U.S. Patent 9630942B2, 25 April 2017. [Google Scholar]
  51. Idage, B.B.; Idage, S.B.; Swaminathan, S. Improved Process for the Preparation of L-Lactide of High Chemical Yield and Optical Purity. U.S. Patent 8,895,760, 1 September 2011. [Google Scholar]
  52. Xu, Y.; Fang, Y.; Cao, J.; Sun, P.; Min, C.; Qi, Y.; Jiang, W.; Zhang, Q. Controlled Synthesis of L-Lactide Using Sn-Beta Zeolite Catalysts in a One-Step Route. Ind. Eng. Chem. Res. 2021, 60, 13534–13541. [Google Scholar] [CrossRef]
  53. Si-Hwan, K.; Chae-Hwan, H.; Do-Seok, H.; Ji-Yeon, S. A Method for Preparing Lactide Using a Ionic Solvent. KR101428340B1, 7 August 2014. [Google Scholar]
  54. Hwang, D.; Prabin, J.; Rei, W.; Hwang, W.; Kyu, H.Y. Method for Producing Directly Lactide from Lactic Acid and a Catalyst Used Therein. KR101376483B1, 4 March 2012. [Google Scholar]
  55. Shvets, V.F.; Kozlovsky, R.A.; Khlopov, D.S.; Kozlovsky, I.A.; Suchkov, Y.P. Method of Producing L-Lactide. RU2460726C1, 7 April 2011. [Google Scholar]
  56. Ikeda, T.; Kurashima, H.; Higuchi, Y.; Kurokawa, M. Production of Lactide and Catalyst for Producing Lactide. JPH11209370A, 21 January 1998. [Google Scholar]
  57. Obara, H.; Okuyama, H.; Oguchi, M.; Kawamoto, T.; Kawabe, T.; Horibe, Y. Rapid Producion of Lactide. JPH1192475A, 16 September 1997. [Google Scholar]
  58. Ito, T.; Kimura, K.; Aoyama, T.; Hotta, S.; Yuuchi, M.; Uno, K. Production of Lactide. JPH07304763A, 10 May 1994. [Google Scholar]
  59. Tsuda, A. Novel Lactide and Its Production. JPH05286966A, 9 April 1992. [Google Scholar]
  60. Benecke, H.P.; Markle, R.A.; Sinclair, R.G. Catalytic Production of Lactide Directly from Lactic Acid. U.S. Patent 5332839A, 26 July 1990. [Google Scholar]
  61. Muller, M. Process for the Preparation of Lactide. DE3708915C2, 19 March 1987. [Google Scholar]
  62. Yamaguchi, Y.; Arimura, T. Method for Purification of Lactide. EP0657447B1, 27 August 1997. [Google Scholar]
  63. Hirao, K.; Masutani, K.; Ohara, H. Synthesis of L,L-Lactide via Depolymerization of Oligo(L-Lactic Acid). J. Chem. Eng. Jpn. 2009, 42, 687–690. [Google Scholar] [CrossRef]
  64. Huang, W.; Qi, Y.; Cheng, N.; Zong, X.; Zhang, T.; Jiang, W.; Li, H.; Zhang, Q. Green Synthesis of Enantiomerically Pure L-Lactide and D-Lactide Using Biogenic Creatinine Catalyst. Polym. Degrad. Stab. 2014, 101, 18–23. [Google Scholar] [CrossRef]
  65. Huang, Q.; Li, R.; Fu, G.; Jiang, J. Size Effects of the Crystallite of ZSM-5 Zeolites on the Direct Catalytic Conversion of L-Lactic Acid to L, L-Lactide. Crystals 2020, 10, 781. [Google Scholar] [CrossRef]
  66. Krutas, D.S.; Brozek, J.; Benesová, V.; Zinovyev, A.L.; Novikov, V.T. Synthesis of L-Lactide Supplemented with Stage-Wise Analytical Control. Pet. Coal 2016, 58, 561–566. [Google Scholar]
  67. Tsuji, H.; Fukui, I.; Daimon, H.; Fujie, K. Poly(L-Lactide) XI. Lactide Formation by Thermal Depolymerisation of Poly(L-Lactide) in a Closed System. Polym. Degrad. Stab. 2003, 81, 501–509. [Google Scholar] [CrossRef]
  68. Upare, P.P.; Hwang, Y.K.; Chang, J.S.; Hwang, D.W. Synthesis of Lactide from Alkyl Lactate via a Prepolymer Route. Ind. Eng. Chem. Res. 2012, 51, 4837–4842. [Google Scholar] [CrossRef]
  69. Hong, C.H.; Kim, S.H.; Seo, J.Y.; Han, D.S. Manufacturing Method of Lactide from Lactic Acid. U.S. Patent 13/181,808, 29 November 2012. [Google Scholar]
  70. Zhang, Y.M.; Wang, P.; Han, N.; Lei, H.F. Microwave Irradiation: A Novel Method for Rapid Synthesis of D,L-Lactide. Macromol. Rapid Commun. 2007, 28, 417–421. [Google Scholar] [CrossRef]
  71. Zhang, Y.; Qi, Y.; Yin, Y.; Sun, P.; Li, A.; Zhang, Q.; Jiang, W. Efficient Synthesis of Lactide with Low Racemization Catalyzed by Sodium Bicarbonate and Zinc Lactate. ACS Sustain. Chem. Eng. 2020, 8, 2865–2873. [Google Scholar] [CrossRef]
  72. Vink, E.T.H.; Rábago, K.R.; Glassner, D.A.; Gruber, P.R. Applications of Life Cycle Assessment to NatureWorksTM Polylactide (PLA) Production. Polym. Degrad. Stab. 2003, 80, 403–419. [Google Scholar] [CrossRef]
  73. Carothers, W.H.; Dorough, G.L.; Natta, F.J. van Studies of Polymerization and Ring Formation. X. The Reversible Polymerization of Six-Membered Cyclic Esters. J. Am. Chem. Soc. 1932, 54, 761–772. [Google Scholar] [CrossRef]
  74. Komesu, A. Separation and Purification Strategies for Lactic Acid Produced by Fermentation; University of Campinas: Campinas, Brazil, 2015. [Google Scholar]
  75. Alberti, C.; Enthaler, S. Depolymerization of End-of-Life Poly(Lactide) to Lactide via Zinc-Catalysis. ChemistrySelect 2020, 5, 14759–14763. [Google Scholar] [CrossRef]
  76. Vink, E.T.H.; Rábago, K.R.; Glassner, D.A.; Springs, B.; Connor, R.P.O.; Kolstad, J.; Gruber, P.R. The Sustainability of NatureWorksTM Polylactide Polymers and IngeoTM Polylactide Fibers: An Update of the Future. Macromol. Biosci. 2004, 4, 551–564. [Google Scholar] [CrossRef]
  77. Kwan, T.H.; Hu, Y.; Lin, C.S.K. Techno-Economic Analysis of a Food Waste Valorisation Process for Lactic Acid, Lactide and Poly(Lactic Acid) Production. J. Clean. Prod. 2018, 181, 72–87. [Google Scholar] [CrossRef]
  78. Auras, R.; Harte, B.; Selke, S. An Overview of Polylactides as Packaging Materials. Macromol. Biosci. 2004, 4, 835–864. [Google Scholar] [CrossRef]
  79. Jaworska, J.; Sobota, M.; Pastusiak, M.; Kawalec, M.; Janeczek, H.; Rychter, P.; Lewicka, K.; Dobrzyński, P. Synthesis of Polyacids by Copolymerization of L-Lactide with MTC-COOH Using Zn[(Acac)(L)H2O] Complex as an Initiator. Polymers 2022, 14, 503. [Google Scholar] [CrossRef] [PubMed]
  80. Liu, X.; Hua, X.; Cui, D. Copolymerization of Lactide and Cyclic Carbonate via Highly Stereoselective Catalysts to Modulate Copolymer Sequences. Macromolecules 2018, 51, 930–937. [Google Scholar] [CrossRef]
  81. Abubekerov, M.; Wei, J.; Swartz, K.R.; Xie, Z.; Pei, Q.; Diaconescu, P.L. Preparation of Multiblock Copolymers via Step-Wise Addition of L-Lactide and Trimethylene Carbonate. Chem. Sci. 2018, 9, 2168–2178. [Google Scholar] [CrossRef] [Green Version]
  82. Hernández, J.F.; Espartero, A.L.; Oiz, J.R.S. Novel Random Terpolymers Based on D-Lactide and E-Caprolactone. WO2014135727A1, 3 April 2014. [Google Scholar]
  83. Emami, F.; Mostafavi Yazdi, S.J.; Na, D.H. Poly(Lactic Acid)/Poly(Lactic-Co-Glycolic Acid) Particulate Carriers for Pulmonary Drug Delivery. J. Pharm. Investig. 2019, 49, 427–442. [Google Scholar] [CrossRef] [Green Version]
  84. Li, Q. Biodegradation Study of Polymeric Material with Various Levels of Molecular Orientation Induced via Vibration- Assisted Injection Molding; Lehigy University: Bethlehem, PA, USA, 2011. [Google Scholar]
  85. Faisant, N.; Siepmann, J.; Richard, J.; Benoit, J.P. Mathematical Modeling of Drug Release from Bioerodible Microparticles: Effect of Gamma-Irradiation. Eur. J. Pharm. Biopharm. 2003, 56, 271–279. [Google Scholar] [CrossRef]
  86. Coltro, M.C.R.C. Síntese e Caracaterização de Polímeros Biodegradáveis Para Liberação Controlada de Dexametosana; Federal University of Goiás: Goiânia, Brazil, 2014. [Google Scholar]
  87. Wichert, B.; Rohdewald, P. Low Molecular Weight PLA: A Suitable Polymer for Pulmonary Administered Microparticles? J. Microencapsul. 1993, 10, 195–207. [Google Scholar] [CrossRef] [PubMed]
  88. Andreopoulos, A.G.; Hatzi, E.; Doxastakis, M. Synthesis and Properties of Poly(Lactic Acid). J. Mater. Sci. Mater. Med. 1999, 10, 29–33. [Google Scholar] [CrossRef] [PubMed]
  89. Tolinski, M.; Carlin, C.P. Plastics and Sustainability Grey Is the New Green: Exploring the Nuances and Complexities of Modern Plastics, 2nd ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2021; ISBN 9781119592013. [Google Scholar]
  90. Brito, G.F.; Agrawal, P.; Araújo, E.M.; Mélo, T.J.A. Biopolímeros, Polímeros Biodegradáveis e Polímeros Verdes. Rev. Eletrônica Mater. e Process. 2011, 6, 127–139. [Google Scholar]
  91. Jamshidian, M.; Tehrany, E.A.; Imran, M.; Jacquot, M.; Desobry, S. Poly-Lactic Acid: Production, Applications, Nanocomposites, and Release Studies. Compr. Rev. Food Sci. Food Saf. 2010, 9, 552–571. [Google Scholar] [CrossRef]
  92. Cosate de Andrade, M.F.; Souza, P.M.S.; Cavalett, O.; Morales, A.R. Life Cycle Assessment of Poly(Lactic Acid) (PLA): Comparison Between Chemical Recycling, Mechanical Recycling and Composting. J. Polym. Environ. 2016, 24, 372–384. [Google Scholar] [CrossRef]
  93. Vink, E.T.H.; Davies, S. Life Cycle Inventory and Impact Assessment Data for 2014 Ingeo® Polylactide Production. Ind. Biotechnol. 2015, 11, 167–180. [Google Scholar] [CrossRef] [Green Version]
  94. Bergström, J.S.; Hayman, D. An Overview of Mechanical Properties and Material Modeling of Polylactide (PLA) for Medical Applications. Ann. Biomed. Eng. 2016, 44, 330–340. [Google Scholar] [CrossRef]
  95. Lee, S.; Joshi, M.K.; Tiwari, A.P.; Maharjan, B.; Kim, K.S.; Yun, Y.H.; Park, C.H.; Kim, C.S. Lactic Acid Assisted Fabrication of Bioactive Three-Dimensional PLLA/Β-TCP Fibrous Scaffold for Biomedical Application. Chem. Eng. J. 2018, 347, 771–781. [Google Scholar] [CrossRef]
  96. Ikada, Y.; Tsuji, H. Biodegradable Polyesters for Medical and Ecological Applications. Macromol. Rapid Commun. 2000, 21, 117–132. [Google Scholar] [CrossRef]
  97. Avgoustakis, K. Pegylated Poly(Lactide) and Poly(Lactide-Co-Glycolide) Nanoparticles: Preparation, Properties and Possible Applications in Drug Delivery. Curr. Drug Deliv. 2004, 1, 13. [Google Scholar] [CrossRef] [PubMed]
  98. Cerral, P.; Tricoli, M.; Lelli, L.; Guerra, G.D.; Sbarbati Del Guerra, R.; Cascone, M.G.; Giusti, P. Block Copolymers of L-Lactide and Poly(Ethylene Glycol) for Biomedical Applications. J. Mater. Sci. Mater. Med. 1994, 5, 308–313. [Google Scholar] [CrossRef]
  99. Dargaville, B.L.; Vaquette, C.; Peng, H.; Rasoul, F.; Chau, Y.Q.; Cooper-White, J.J.; Campbell, J.H.; Whittaker, A.K. Cross-Linked Poly(Trimethylene Carbonate-Co-L-Lactide) as a Biodegradable, Elastomeric Scaffold for Vascular Engineering Applications. Biomacromolecules 2011, 12, 3856–3869. [Google Scholar] [CrossRef]
  100. Grijpma, D.W.; Pennings, A.J. Polymerization Temperature Effects on the Properties of L-Lactide and ε-Caprolactone Copolymers. Polym. Bull. 1991, 25, 335–341. [Google Scholar] [CrossRef]
  101. Sangroniz, A.; Sangroniz, L.; Hamzehlou, S.; del Río, J.; Santamaria, A.; Sarasua, J.R.; Iriarte, M.; Leiza, J.R.; Etxeberria, A. Lactide-Caprolactone Copolymers with Tuneable Barrier Properties for Packaging Applications. Polymer 2020, 202, 122681. [Google Scholar] [CrossRef]
  102. Sriyai, M.; Tasati, J.; Molloy, R.; Meepowpan, P.; Somsunan, R.; Worajittiphon, P.; Daranarong, D.; Meerak, J.; Punyodom, W. Development of an Antimicrobial-Coated Absorbable Monofilament Suture from a Medical-Grade Poly(l-Lactide-Co-ϵ-Caprolactone) Copolymer. ACS Omega 2021, 6, 28788–28803. [Google Scholar] [CrossRef] [PubMed]
  103. Chung, Y.L.; Olsson, J.V.; Li, R.J.; Frank, C.W.; Waymouth, R.M.; Billington, S.L.; Sattely, E.S. A Renewable Lignin-Lactide Copolymer and Application in Biobased Composites. ACS Sustain. Chem. Eng. 2013, 1, 1231–1238. [Google Scholar] [CrossRef]
  104. Wiegand, T.; Hiebner, K.; Gauza, L.; Schwartz, C.; Song, Z.; Miller, S.; Zacharias, N.; Wooley, P.H.; Redepenning, J. Biomimetic Composites by Surface-Initiated Polymerization of Cyclic Lactones at Anorganic Bone: Preparation and in Vitro Evaluation of Osteoblast and Osteoclast Competence. J. Biomed. Mater. Res. Part A 2014, 102, 1755–1766. [Google Scholar] [CrossRef] [PubMed]
  105. Cruz, F. Fabrication of HA/PLLA Composite Scaffolds for Bone Tissue Engineering Using Additive Manufacturing Technologies. In Biopolymers; Elnashar, M., Ed.; IntechOpen: London, UK, 2010; pp. 227–242. ISBN 978-953-307-109-1. [Google Scholar]
  106. Śmigiel-Gac, N.; Pamuła, E.; Krok-Borkowicz, M.; Smola-Dmochowska, A.; Dobrzyński, P. Synthesis and Properties of Bioresorbable Block Copolymers of L-Lactide, Glycolide, Butyl Succinate and Butyl Citrate. Polymers 2020, 12, 214. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Bioengineering 09 00164 g001 550

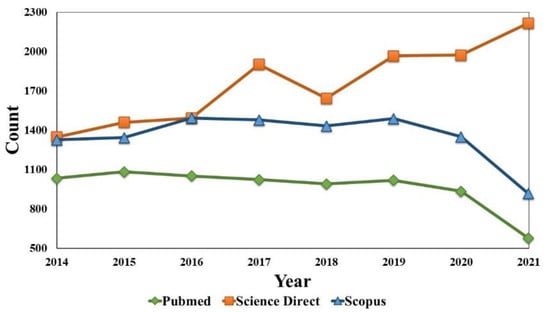

Figure 1. The number of publications about lactide in the last few years in common database research platforms for the search item “lactide”.
Figure 1. The number of publications about lactide in the last few years in common database research platforms for the search item “lactide”.
Bioengineering 09 00164 g001
Bioengineering 09 00164 g002 550
Figure 2. Lactide dimer synthesis (reprinted with permission [12], Copyright 1998 Elsevier).
Figure 2. Lactide dimer synthesis (reprinted with permission [12], Copyright 1998 Elsevier).
Bioengineering 09 00164 g002
Bioengineering 09 00164 g003 550
Figure 3. Back-biting reaction of the OH group in the PLA chain (reprinted with permission [15], Copyright 2004 Elsevier).
Figure 3. Back-biting reaction of the OH group in the PLA chain (reprinted with permission [15], Copyright 2004 Elsevier).
Bioengineering 09 00164 g003
Bioengineering 09 00164 g004 550
Figure 4. General lactide coordination-insertion mechanism with Sn(Oct)2 for PLA production (reprinted with permission [18], Copyright 2000 John Wiley & Sons Inc.).
Figure 4. General lactide coordination-insertion mechanism with Sn(Oct)2 for PLA production (reprinted with permission [18], Copyright 2000 John Wiley & Sons Inc.).
Bioengineering 09 00164 g004
Bioengineering 09 00164 g005 550
Figure 5. Ester cleavage: (a) carbonyl-oxygen bond, and (b) alkyl-oxygen bond (reprinted with permission [19], Copyright 1997 American Chemical Society); and enolization.
Figure 5. Ester cleavage: (a) carbonyl-oxygen bond, and (b) alkyl-oxygen bond (reprinted with permission [19], Copyright 1997 American Chemical Society); and enolization.
Bioengineering 09 00164 g005
Bioengineering 09 00164 g006 550
Figure 6. Chemical structure of D-, M-, and L-lactide, respectively (reprinted with permission [12], Copyright 1998 Elsevier).
Figure 6. Chemical structure of D-, M-, and L-lactide, respectively (reprinted with permission [12], Copyright 1998 Elsevier).
Bioengineering 09 00164 g006
Bioengineering 09 00164 g007 550
Figure 7. Conventional two-step lactide synthesis process (reprinted with permission [48], Copyright 2019 American Chemical Society): (1) lactic acid stream, (2) lactic acid + reflux mixed stream, (3) dehydrated lactic acid stream, (4) wastewater, (5) dehydrated lactic acid stream, (6) lactic acid recovery, (7) R-1 liquid phase, (8) catalyst feed stream, (9) lactic acid + catalyst mixed stream, (10) oligomers stream, (11) unreacted oligomers stream, (12) unreacted oligomer recovery, (13) high molar mass oligomers, (14) crude lactide stream, (15) purified lactide stream, (16) unpurified lactide stream, (C-1, C-2) distillation columns, (R-1, R-2) polycondensation and depolymerization reactors, respectively, (F-1, F-2) heating duties.
Figure 7. Conventional two-step lactide synthesis process (reprinted with permission [48], Copyright 2019 American Chemical Society): (1) lactic acid stream, (2) lactic acid + reflux mixed stream, (3) dehydrated lactic acid stream, (4) wastewater, (5) dehydrated lactic acid stream, (6) lactic acid recovery, (7) R-1 liquid phase, (8) catalyst feed stream, (9) lactic acid + catalyst mixed stream, (10) oligomers stream, (11) unreacted oligomers stream, (12) unreacted oligomer recovery, (13) high molar mass oligomers, (14) crude lactide stream, (15) purified lactide stream, (16) unpurified lactide stream, (C-1, C-2) distillation columns, (R-1, R-2) polycondensation and depolymerization reactors, respectively, (F-1, F-2) heating duties.
Bioengineering 09 00164 g007
Bioengineering 09 00164 g008 550
Figure 8. One-step lactide synthesis process (reprinted with permission [48], Copyright 2019 American Chemical Society): (1) lactic acid feed stream, (2) nitrogen stream, (3) lactic acid + N2 mixed stream, (4) vaporized mixed stream, (5) reactor outlet, (6) crude lactide stream, (7) purified lactide, (8) unpurified stream, (9) vapor outlet of the F-1 flash drum, (10) gas outlet, (11) waste water, (12) N2 gas recycling, (13) N2 purged, (R-1) fixed-bed plug flown reactor filled with SiO2/Al2O3, (H-1, F-1, F-2) heating duties, (C-1) distillation column.
Figure 8. One-step lactide synthesis process (reprinted with permission [48], Copyright 2019 American Chemical Society): (1) lactic acid feed stream, (2) nitrogen stream, (3) lactic acid + N2 mixed stream, (4) vaporized mixed stream, (5) reactor outlet, (6) crude lactide stream, (7) purified lactide, (8) unpurified stream, (9) vapor outlet of the F-1 flash drum, (10) gas outlet, (11) waste water, (12) N2 gas recycling, (13) N2 purged, (R-1) fixed-bed plug flown reactor filled with SiO2/Al2O3, (H-1, F-1, F-2) heating duties, (C-1) distillation column.
Bioengineering 09 00164 g008
Bioengineering 09 00164 g009 550
Figure 9. Simplified flow diagram of the life cycle Cargill Dow process for lactide and PLA production (reprinted with permission [72], Copyright 2003 Elsevier).
Figure 9. Simplified flow diagram of the life cycle Cargill Dow process for lactide and PLA production (reprinted with permission [72], Copyright 2003 Elsevier).
Bioengineering 09 00164 g009
Bioengineering 09 00164 g010 550
Figure 10. Industrial plant design of NatureworksTM (Cargill Dow) for the production of lactide and PLA (reprinted with permission [12], Copyright 1998 Elsevier).
Figure 10. Industrial plant design of NatureworksTM (Cargill Dow) for the production of lactide and PLA (reprinted with permission [12], Copyright 1998 Elsevier).
Bioengineering 09 00164 g010
Bioengineering 09 00164 g011 550
Figure 11. Application of PLA in medicine.
Figure 11. Application of PLA in medicine.
Bioengineering 09 00164 g011
Table
Table 1. Recent price market of L-lactide (3s-cis-3,6-dimethyl-1,4-dioxane-2,5-dione) with 98% of purity.
Table 1. Recent price market of L-lactide (3s-cis-3,6-dimethyl-1,4-dioxane-2,5-dione) with 98% of purity.
L-Lactide D-Lactide D,L-Lactide
ManufacturerProduct NumberPackaging (g)Price (U$D)Product NumberPackaging (g)Price (U$D)Product NumberPackaging (g)Price (U$D)
AK ScientificV2322500907.002682BB25269V3862114.00
Alfa AesarL090312566.40 L090261034.70
Alichem 1307617025156.00
Ambeed A17888425102.00
American Custom Chemicals CorporationCCH0039810251212.75CCH00074270.005502.59
Apollo scientificOR93333525115.00OR95952225370.00 2560.00
Arctom AS0273252542.00
Chem-Impex351862550.40
CrysdotCD450002852591.00CD11297333100371.00CD45000014500510.00
Matrix Scientific 2589.00 1724062589.00
Medical Isotopes, Inc.658052502200.00
Sigma-Aldrich3670442573.00 3031432571.70
SynQuest Laboratories2H25-1-2T25184.002H25-1-2925592.002H25-1-2U2596.00
TCI ChemicalL01152555.00 L00912562.00
TRCL11360025150.00L11360511135.00L1135180.570.00
Table
Table 2. Physical properties of the lactides.
Table 2. Physical properties of the lactides.
Physical PropertiesL-LactideD-LactideMeso-LactideRac-Lactide
Molecular weight (g/mol)144.12144.12144.12
Optical rotation in degrees−260+260
Specific rotation (polarimetry
toluene, 25 °C)		(−287)–(−300)°(+287)–(+300) (−1)–(+1)°
Appearance
(visual test)		White crystals
Melting point (°C)95–10095–10053–54122–128
Boiling point (°C)255 142
Heat of fusion (J/g)146 118; 128120–170 (DSC 10 °C/min)
Heat of vaporization (kJ/mol)63
Solid density (g/mL)1.32–1.38 1.32–1.38
Liquid viscosity (mPas) (110 °C)2.71
Liquid viscosity (mPas) (120 °C)2.23
Liquid viscosity (mPas) (130 °C)1.88
Table
Table 3. Chemical processes for lactide production.
Table 3. Chemical processes for lactide production.
Experimental ConditionsResultsReferences
Optimization of the conditions for lactide synthesis—Temperature: 195–230 °C, Pressure: 25–760 mmHg, Catalysts: SnO, SnCl2, Sn(Oct)2, Sb2O3, H2SO4, Atmosphere: with or without N2 flux.A higher conversion rate was found in the presence of SnCl2 and Sn(Oct)2, the synthesis rate increased with temperature, despite yielding impurities due to thermal degradation.[2]
Dehydration step—Temperature: 130–190 °C, Atmosphere: N2 flux. Lactide polycondensation: Temperature: 190–210 °C, Pressure: 5–25 mmHg, Catalyst: Sn(Oct)2, 0.25 %wt (present or absent).Lactide: 0.6–2.7 kDa.[21]
Different metallic catalysts for the PLA depolymerization to obtain lactide—Temperature: 190–245 °C, Pressure: 4 mmHg, Catalysts: Al, Ti, Zn, Zr.None of these catalysts achieved the lactide yield obtained by using only 0.2 mol% of Sn(Oct)2.[40]
The dehydration step occurs in a short-path distillator—Temperature: 120 °C, Pressure: 37.5 mmHg. Oligomerization step—Temperature: 170 °C, Pressure: 75 mmHg, Catalyst: Sn(Oct)2, 1 %wt. Reactive distillation in the short-path distillator—Temperature: 250 °C, Pressure: 3.7 mmHg, Catalyst: Sn(Oct)2, 2 %wt. Purification by crystallization. Lactide polymerization—Temperature: 170 °C, Pressure: 760 mmHg, Catalyst: Sn(Oct)2, 0.04 %wt.Purity: 99.9%.[41]
One-step heterogeneous catalytic process with Bronsted acidic zeolite to produce lactide (zeolite can be regenerated to six reactions consecutive)—Temperature: 150–220 °C, Catalyst: H-beta zeolite, 5 %wt, Lactic acid: 50 %aq.Yield: 83–97%.
Purity: 98%.		[42]
Depolymerization of low molar mass PLA—Temperature: 150–220 °C, Pressure: 2 mmHg, Catalyst: SnCl2·2H2O/p-toluenesulfonic acid, 0.25 %mol.Oligomer chain length: 4–5.[43]
One-step continuous catalytic gas-phase transesterification of alkyl lactates without solvents –Temperature: 220 °C, Catalyst: 5 %wt TiO2/SiO2, L-methyl lactate: 5.7% in N2.Selectivity ≈ 90%.[44]
Fast one-step continuous catalytic process (<1 s)—Temperature: 240 °C, Pressure: 760 mmHg, Catalyst: SnO2/SiO2 nanocomposite (SSO-80), N2 as carrier, Lactic acid: 75 %aq. The purification step used ethanol as solvent for lactide crystallization.Lactide yield: 94%.
Enantioselectivity: 99%.		[45]
One-step continuous catalytic process to produce lactide—Temperature: 240 °C, Pressure: 760 mmHg, Catalyst: SnO2/SiO2 nanocomposite (ϕ ≈ 2 nm), Lactic acid.Lactide yield: 94%.
Enantioselectivity: 99%.		[46]
Lactate transesterification—Temperature: 30–250 °C, Pressure: 1–750 mmHg, Catalyst: Ti-based (0.01–10 %mol), Inert atmosphere: N2.High yield.
meso-lactide.		[47]
One-step catalytic process in the gas phase to produce lactide—Temperature: 160–240 °C, Pressure: 760 mmHg, Catalyst: SiO2/Al2O3, Lactic acid, Inert atmosphere: N2.Yield: 75–90.
Lactide purity: 95–97%.		[48]
Lactic acid dehydration—Temperature: 150–160 °C, Pressure: 110–0.01 mmHg, Inert atmosphere: N2, Stirring: 60–70 rpm. Oligomerization step—Cooling the oligomer until room temperature, Catalyst: Zn/Sn (ϕ < 150 μm), 0.1–0.5 %wt. Depolymerization step—Temperature: 160–200 °C, Pressure: 110–0.1 mmHg, Inert atmosphere: N2. Purification—Crystallization with toluene and washing with ethyl acetate.Yield > 99%.
Optically pure L/D lactide.
Impurities < 0.01 %wt.		[49]
A biogenic guanidine creatine catalyst (human-body metabolite) is used to produce optically pure L/D-lactide in an environmentally-friendly synthesis approach (reactive reduced pressure distillation catalysis). Dehydration and polycondensation—L/D-lactide: 90 %wt, Temperature: 130–170 °C, Pressure: 30–60 mmHg. Oligomerization—Catalyst: Creatinine (1:100 to 1:10,000), Temperature: 150–260 °C, Pressure: 2–15 mmHg. Lactide neutralization—Washing with alkali (1–10 %wt) and deionized water; Drying: vacuum at 20–40 °C for 24–36 h.Optically pure L/D lactide.
Lactide: 0.6–1.5 kDa.
Free of toxicity and metals.		[50]
This procedure follows a series of steps to produce optically pure lactide:
Melt polymerization of the lactic acid—Temperature: 150–160 °C, Pressure: 100–0.1 mmHg, under stirring. Cooling until room temperature, Catalyst: Sn or Zn: 0.1–0.5 %wt, N2 atmosphere. Heating from 160–200 °C, under vacuum (110–0.01 mmHg). The purification step used ethyl acetate as solvent for lactide crystallization.		Yield: 99%.
L(+) Lactide optical purity: 100%.
Impurities: <0.01%.		[51]
One-step heterogeneous catalytic process with zeolite to produce lactide—Temperature: 110–165 °C, Pressure: 760 mmHg, Catalyst: Sn-beta zeolite, SnO2-SiO2 xerogel, supported SnO2/Si-beta, Sn-MCM-41 zeolite, Lactic acid: 50 %aq.Yield: 88.2–95.8%.
Pure L(+) lactide.		[52]
A continuous process to produce lactide from lactic acid in ionic solvent, reducing the temperature and moisture generated during the reaction, preventing the lactide degradation.
Temperature: 120–300 °C, Pressure: 1–500 mmHg, Time: 1–5 h.		Yield ≈ 85%.[53]
Single-step lactide production from aqueous lactic acid in the presence of a solid catalyst (Sn, Pb or their mixture)—Temperature: 170–250 °C, Pressure: 760 mmHg or vacuum, Atmosphere: N2, Time: until 100 h.Conversion rate ≈ 80%.
Selectivity ≈ 90%.		[54]
Lactide production through liquid phase depolymerization reaction of lactic acid with tin-derivatives—Temperature: 190–210 °C, Pressure: 760 mmHg, Catalyst: tin (IV) compounds, Additives: di- and trialkylphenols, 0.001–0.1 %wt, Time: 4.5 h.Yield ≈ 72%.[55]
Lactide production via lactic acid ester dealcoholization—Temperature: 120–230 °C, Pressure: 0.3–700 mmHg, Catalyst: monobutyl tin, Time: 3.5 h.Purity ≈ 99.4%.
Impurities: acids and moisture.		[56]
Rapid production of lactide from lactic acid or ammonium lactate—Temperature: 180 °C, Pressure: 30 mmHg, Time: 4 h.Yield ≈ 94%.[57]
Temperature: 200–250 °C, Pressure: 0.5–10 mmHg, Time: 3 h.Yield: 64%.
Impurities: low content.		[58]
Lactide production through butyl lactate—Temperature: 180 °C, Pressure: 0.7 mmHg, Catalyst: dibutyltin dichloride.Dehydrated lactide with low hygroscopicity.[59]
Lactide production from aqueous lactic acid, vaporized and transported with N2 to feed the reactor—Temperature: 150–225 °C, Catalyst: Al2O3.Lactide purity: 92%.
The ratio between the yield of lactide obtained and the molar percentage of lactic acid is 9.1:1.		[60]
Temperature: 130–230 °C, Pressure: 13–25 mmHg, Catalyst: carboxylic acid tin-derivative (≤20 carbon atoms), Lactic acid.Yield ≤ 80%.
Optical purity: 99%.		[61]
Preliminary study for lactide production under different reactional system configurations –Temperature: 185 °C, Pressure: 125 mmHg, Catalyst: Sn(Oct)2, 1 %wt, Time: 4 h.Yield ≈ 8%.[33]
Lactide purification method to obtain highly optical pure DL-lactide via meso-lactide hydrolysis followed by its removal—Dehydration and polycondensation step: Temperature: 180–230 °C, Pressure: 20 mmHg, Catalyst: SnO. The lactide vapor is distilled and condensed at 60–90 °C.Yield (D/L-lactide) ≈ 55%.[62]
Lactide production via lactide oligomer depolymerization using microwave irradiation—Temperature: 180 °C, Pressure: 25 mmHg, Lactic acid: 90 %aq, Time: 12 h, Irradiation: 2.45 GHz.2.7 times more lactide was obtained with microwave irradiation process in comparison to the method under conventional heating.[63]
Obtaining enantiomerically pure lactides through PLA-oligomer depolymerization using a green and non-toxic catalyst. Temperature: 220 °C, Pressure: 3 mmHg, Catalyst: biogenic creatinine, Time: 2 h.Yield: 68.5–69.5%.[64]
Heterogeneous catalysis using zeolite (ZSM-5) to obtain L-lactide—Temperature: 144 °C, L-Lactic acid: 98 %aq + solvent mixture: water and o-xylene, Catalyst: Zeolite ZSM-5, Time: 4 h.Yield ≈ 89%.[65]
Study of the lactide’ synthesis from lactic exploring different metallic catalysts—Temperature: 200–250 °C, Pressure: 1–2 mmHg, Catalyst: ZnO, (C2H5)2Mg, Sn(Oct)2, L-lactic acid: 85 %aq, Time: 2–30 minYield: 27–82%.[66]
L-lactic acid polycondensation—Temperature: 120–200 °C, Time: 9 h. PLA-oligomer depolymerization—Temperature: 210 °C, Pressure: 76 mmHg, Time: 3 h.Yield: 38.5%.[36]
L-lactide production via PLLA thermal depolymerization in a closed system—Temperature: 250–290 °C, Pressure: 3 mmHg, Time: 10 h.Yield: 8–14%.[67]
Lactide synthesis from alkyl lactate—Polycondensation—Temperature: 150–180 °C, Pressure: 10–720 mmHg, Atmosphere: N2, Alkyl lactate, Time: ≈ 24 h. Depolymerization—Temperature: 180–210 °C, Pressure: 10 mmHg, Catalyst: SnO, 0.5 %wt, Time: 5 h.Yield: 82%.[68]
D-lactide synthesis from D-lactic acid—Depolymerization process—Temperature: 230–240 °C, Pressure: 10–200 mmHg, Catalyst: ZnO, 0.01–1.5 %wt, D-lactic acid.Yield: 65–72%.[69]
Production of D,L-lactide from D,L-lactic acid with ZnCl2 and Cat-A under microwave irradiation: Pressure: 7.5–37.5 mmHg, Time: 1 h, Irradiation: 2.45 GHz.Yield (D,L-lactide): 36%.
Pure D,L-lactide.		[70]
Polycondensation step—Temperature: 150 °C, Pressure: 30 mmHg, Lactic acid, 92 %aq, Atmosphere: N2, Time: 5 h. Depolymerization step—Temperature: 130–195 °C, Pressure: 3 mmHg, Catalyst: Zn(la)2, NaHCO3, Time: 3–5 h.Yield: 95.6%.
Purity: 97.9%.		[71]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cunha, B.L.C.; Bahú, J.O.; Xavier, L.F.; Crivellin, S.; de Souza, S.D.A.; Lodi, L.; Jardini, A.L.; Filho, R.M.; Schiavon, M.I.R.B.; Concha, V.O.C.; et al. Lactide: Production Routes, Properties, and Applications. Bioengineering 2022, 9, 164. https://doi.org/10.3390/bioengineering9040164

AMA Style

Cunha BLC, Bahú JO, Xavier LF, Crivellin S, de Souza SDA, Lodi L, Jardini AL, Filho RM, Schiavon MIRB, Concha VOC, et al. Lactide: Production Routes, Properties, and Applications. Bioengineering. 2022; 9(4):164. https://doi.org/10.3390/bioengineering9040164

Chicago/Turabian Style

Cunha, Bruna L. C., Juliana O. Bahú, Letícia F. Xavier, Sara Crivellin, Samuel D. A. de Souza, Leandro Lodi, André L. Jardini, Rubens Maciel Filho, Maria I. R. B. Schiavon, Viktor O. Cárdenas Concha, and et al. 2022. "Lactide: Production Routes, Properties, and Applications" Bioengineering 9, no. 4: 164. https://doi.org/10.3390/bioengineering9040164

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
