Article

Identification and Characterization of Novel Candidate Effector Proteins from Magnaporthe oryzae

by
Di Liu
,
Zhiqin Lun
,
Ning Liu
,
Guixin Yuan
,
Xingbin Wang
,
Shanshan Li
,
You-Liang Peng
and
Xunli Lu
*
MOA Key Laboratory of Pest Monitoring and Green Management, China Agricultural University, Beijing 100193, China
*
Author to whom correspondence should be addressed.
J. Fungi 2023, 9(5), 574; https://doi.org/10.3390/jof9050574
Submission received: 31 March 2023 / Revised: 11 May 2023 / Accepted: 12 May 2023 / Published: 15 May 2023
(This article belongs to the Special Issue Pathogenic Mechanism and Control of Rice Blast Fungus)
Browse Figures
Versions Notes

Abstract

:
The fungal pathogen Magnaporthe oryzae secretes a large number of effector proteins to facilitate infection, most of which are not functionally characterized. We selected potential candidate effector genes from the genome of M. oryzae, field isolate P131, and cloned 69 putative effector genes for functional screening. Utilizing a rice protoplast transient expression system, we identified that four candidate effector genes, GAS1, BAS2, MoCEP1 and MoCEP2 induced cell death in rice. In particular, MoCEP2 also induced cell death in Nicotiana benthamiana leaves through Agrobacteria-mediated transient gene expression. We further identified that six candidate effector genes, MoCEP3 to MoCEP8, suppress flg22-induced ROS burst in N. benthamiana leaves upon transient expression. These effector genes were highly expressed at a different stage after M. oryzae infection. We successfully knocked out five genes in M. oryzae, MoCEP1, MoCEP2, MoCEP3, MoCEP5 and MoCEP7. The virulence tests suggested that the deletion mutants of MoCEP2, MoCEP3 and MoCEP5 showed reduced virulence on rice and barley plants. Therefore, those genes play an important role in pathogenicity.

1. Introduction

Plant pathogens including viruses, bacteria, oomycetes and fungi co-evolve with host plants in nature. To enable proliferation, plant pathogens secrete a large number of proteins into extracellular space or inside host cells to overcome physical barriers, subvert plant immunity, recruit nutrients and facilitate colonization. Those secreted proteins include plant cell wall degradative enzymes, virulence factors, avirulence effectors, toxins and elicitors [1,2,3,4,5]. To restrict pathogen growth, plants have evolved two layers of plant immunity. Firstly, host plasma membrane localized pattern recognition receptors (PRRs) detect extracellular-pathogen-associated molecular patterns (PAMPs) to trigger PAMP-triggered immunity (PTI); secondly, plant intracellular resistant proteins recognize avirulence effectors of pathogens to trigger effector-triggered immunity (ETI). The two plant immunity systems activate similar downstream signaling pathways with different strengths of output response [6,7].
Different from the secreted enzymes that contain notable function domains in cell wall degradation [8], most of the small secreted proteins containing enriched cysteine but with a lack of sequence similarity to known function domains, called effectors, play specific roles in pathogenicity [9,10,11]. Effectors can either interact with host-susceptible proteins to promote infection, or interfere with host-resistant components to overcome plant immunity. For example, the Puccinia striiformis effector Pst18363 promotes wheat rust disease by interacting with and stabilizing the negative immune factor TaNUD23 of wheat [12], while the Magnaporthe oryzae effector AvrPiz-t targets the rice RING-type E3 ligases APIP6 and APIP10 to suppress rice PTI [13,14]. Besides, AvrPiz-t structurally mimics rice RESISTANCE OF RICE TO DISEASES1 (ROD1), a Ca2+ sensor that activates a ROS-scavenging cascade, to suppress rice immunity [15]. Some effectors localize at the extracellular space surrounding host cells, such as the apoplastic proteases Sep1 and Mep1 from Fusarium oxysporum, which target a chitinase of tomato to destroy its function in fungal cell wall degradation [16]. Others enter into the host cells to target plant immune components, such as the Pseudomonas syringae HopAO1, which reduces the tyrosine phosphorylation of FLS2, a classical PRR in PTI signaling [17]. Some even enter the host cell nucleus to interfere with host transcription, for example, two nuclear effectors of M. oryzae, MoHTR1 and MoHTR2, function as transcription repressors to reprogram the expression of rice defense genes [18]. In turn, some apoplastic effectors trigger PTI in the host, such as XEG1, a virulence factor of Phytophthora sojae, which also acts as a novel PAMP to trigger innate immunity in soybean [19]. In addition, a group of cytoplasmic effectors are recognized by the plant R protein to trigger strong host cell death responses. For example, the RXLR effector AVR3a is recognized inside the cytoplasm of Nicotiana benthamiana and triggers a R3a-mediated hypersensitive response [20]. Overall, pathogen effector proteins often interact with host proteins, and this interaction facilitates either the pathogenicity of pathogens, or the immunity of host plants.
To understand the basis of pathogenicity, extensive studies have been carried out to identify novel effectors from different pathogens by characterizing their unique infection structures. Bacterial pathogens often use a type III secretion system (T3SS) to secrete effectors into host cells for colonization, such that the T3SS-deficient mutant hrcC completely lost virulence [21]. While fungal and oomycete pathogens penetrate the host cell wall and thereafter differentiate into parasitic structures such as invasive hyphae or haustoria, which are the key sites for secreting effectors into the apoplast before translocation into host cells during the infection process [22,23]. Microarrays or RNAseqs from infected leaf samples enriched with infection hyphae or haustoria have been performed to identify candidate effector proteins in several plant pathogens like Magnaporthe oryzae, Blumeria graminis and Phytophthora phaseoli [24,25,26,27].
The filamentous ascomycete Magnaporthe oryzae is the causal agent of blast disease, the most devastating disease of rice and other cereal crops, and especially the newly emerged wheat blast disease, which has become a serious threat to global wheat production [28,29,30]. Blast infection is initiated when an asexual spore adheres to the host surface, emerges from the germination tube and forms a special infection structure called appressorium to facilitate a penetration peg formation. The penetration peg then enters the host cells as a needle and differentiates to an initial bulbous infectious hypha, then develops into multiple-branched infectious hyphae within the first invaded plant cell, before expanding into neighboring cells [31,32]. Through genomic sequence analysis combined with RNAseq data of infection, more than 800 proteins are considered as potential candidate effectors [25,33,34,35,36]. Among these, around 50 effectors have been characterized, including different avirulence (Avr) effectors such as PWL1, PWL2, AVR-Pii, AVR-Pik, AVR-Pia, Avr-CO39, AVR-Pita, Avr-Pi9, AvrPiz-t and AVR-Pib [34,37,38,39,40,41,42,43]; a few virulence effectors, i.e., Slp1, MoChia1, MoNIS1, MoHTR1, MoHTR2, GAS1 and GAS2 [18,44,45,46,47]; and four biotrophy-associated secreted proteins, BAS1 to BAS4 [24]. Several effectors have been identified as cell death inducers such as MoCDIP1-13, MoNLP1, MoNLP2, MoNLP4, MoHrip1 and MoHrip2 [48,49,50,51,52]; and as cell death suppressors like SPD2, SPD4, SPD7, SPD8, SPD9 and SPD10 [53]. However, the vast majority of effectors in M. oryzae have not been identified and characterized.
In this study, we selected potential candidate effector genes from the genome of M. oryzae, field isolate P131, and cloned 69 putative effector genes. We applied a protoplast transient expression system and identified four candidate effector proteins that induce cell death in rice protoplasts, one of which also induced cell death in N. benthamiana leaves through Agrobacteria-mediated transient expression. In addition, we identified six candidate effector proteins that suppress the flg22-induced ROS burst. We further generated gene knockout mutants for five effector genes and validated the secretory function of encoding proteins. Three mutants exhibited impaired pathogenicity on host rice and barley plants. Our report here provides an efficient strategy for functional identification of fungal candidate effector proteins that are involved in plant and fungal interactions.

2. Materials and Methods

2.1. Plant and Fungal Strain Growth Conditions

The Magnaporthe oryzae field strain P131 was used as a wild type strain to generate mutants. All M. oryzae strains were cultured on oatmeal tomato agar (OTA) plates at 28 °C [54]. The colony growth and sporulation quantity assays were performed according to the previously described methods [55]. Barley (Hordeum vulgare cv E9) and N. benthamiana were grown in plant growth chambers at an ambient temperature of 23 °C under a 16 h light and 8 h dark cycle. Rice (Oryza sativa cv Nipponbare) was grown at 28–30 °C under a 16 h light and 8 h dark cycle.

2.2. Rice Protoplast Cell Death Assay

The rice protoplast cell death assay was performed as a per previously described method [56]. The open reading frame of full-length candidate effector genes was amplified from the M. oryzae P131 cDNA library with the primers (Table S2) and sub-cloned into the entry vector pENTRTM1A (A10462, Invitrogen, Waltham, MA, USA). Then, the gateway-compatible vector pIPKb002 was used for the expression of these candidate effector genes [57]. The stem and sheath of 14-day-old etiolated rice seedlings were cut into 1.5 mm strips and soaked in a protoplast isolation buffer for 3 h in the dark with gentle shaking (50 rpm/min). Then the recombinant vectors were transfected into rice protoplast, which was suspended in transfection buffer 1 to a concentration of 3.5 × 105 cells/mL. A firefly luciferase (LUC) reaction with the lysate was performed using the Luciferase Assay System (E1500, Promega, Madison, GA, USA), and the LUC activity was detected using a luminometer (F200, Tecan, Männedorf, ZRH, CH).

2.3. Agrobacterium Tumefaciens Infiltration Assay in N. benthamiana

The recombinant plasmids were transformed into Agrobacterium tumefaciens strain GV3101 for the agroinfiltration of N. benthamiana leaves. Agrobacterium strains were cultured in a YEB liquid medium with appropriate antibiotics and re-suspended in an infiltration buffer (10 mM MgCl2, 10 mM 2-[N-morpholino] ethanesulfonic (pH 5.6), 200 μM acetosyrigone) to a final OD600 of 1.0. After incubation in the dark for 3 h, the Agrobacterium tumefaciens suspensions were syringe-infiltrated into fully expanded five-week-old N. benthamiana leaves for transient expression.

2.4. Measurement of Reactive Oxygen Species (ROS)

The ROS assay was performed according to a previously described method [58] with minor modification. N. benthamiana leaves expressing the indicated constructs were cut into 3 mm disks and incubated overnight in sterile water under dark conditions. The discs were immersed into a 96-well plate containing 100 μL reaction mixture (50 μL sterile water, 400 mΜ luminol, 20 μg/mL peroxidase and 1 μΜ flg22). Luminescence was monitored continuously for a 30 min period at 1 min intervals by a multifunctional microplate reader.

2.5. RNA Extraction and Gene Expression Analysis by qRT-PCR

The total RNA was isolated from 100 mg of leaves of rice, barley or N. benthamiana using an RNA Kit (ZP405K, ZYMO Research, Beijing, China). A quantitative real-time reverse transcription polymerase chain reaction (qRT-PCR) was performed on an ABI7500 Fast Real-Time PCR system (Applied Biosystems Inc., Foster City, CA, USA) using a 2 × HQ SYBR qPCR Mix (ZF502-2, ZYMO Research, Beijing, China). The expression of the gene was normalized to the actin of N. benthamiana. The experiments were conducted with three biological replicates, and one representative result was shown. The corresponding primers are listed in Table S2.

2.6. Yeast Secretion Assays

The secretory ability of the candidate effectors was evaluated as described previously [59]. The vector pSUC2 contains a truncated invertase gene which lacks a start codon and signal peptide sequence. The fragments of the candidate effector genes were cloned into the EcoRI and XhoI of the vector pSUC2, and the recombinant vectors were transformed into the yeast strain YTK12. These transformants were grown on synthetic dropout medium tryptophan (SD-T) to ensure expression of the pSUC2-derived plasmids and then were plated on the YPRAA to detect invertase activity. The genes avr1b and mg87 were used as positive and a negative controls, respectively [60].

2.7. Extraction of Secreted Proteins of M. oryzae

Extraction of the secreted protein was carried out according to a previously described method [61]. In brief, fresh mycelia were grown in liquid CM for 24 h; then the liquid medium was filtrated through Miracloth (Merck Millipore, Burlington, MA, USA). The secreted proteins in the liquid medium were precipitated by adding 12.5% (v/v) trichloroacetic acid at 4 °C overnight. The pellets were harvested after centrifuging for 30 min at 12,000 rpm, and washed twice with acetone and dried. The protein samples were detected by Western blotting.

2.8. Gene Deletion and Pathogenicity Assays

To construct the replacement vector of candidate effector genes, 1.4~kb upstream (LB)/downstream (RB) flanking sequences of the gene were introduced into the vector pKOV21 using a one-step cloning kit (C112, Vazyme Biotech, Nanjing, China). Then the vectors were confirmed by sequencing, and subsequently were transformed into the protoplast of P131 via PEG-mediated transformation [62]. The deletion mutants were confirmed by Southern blot hybridization.
For the virulence test, four-week-old seedlings of rice and one-week-old seedlings of barley were used for pathogenicity assays. Conidia suspension of different M. oryzae strains were used for spray inoculation or drop inoculation, as described previously [62]. Leaves were photographed at 5 days post inoculation (dpi), and the lesion area and lesion numbers on leaves were calculated.

3. Results

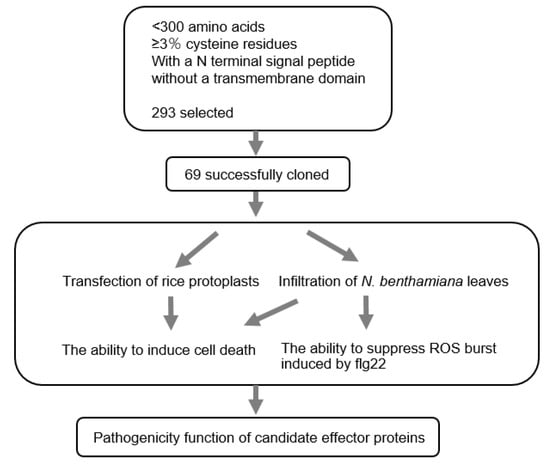

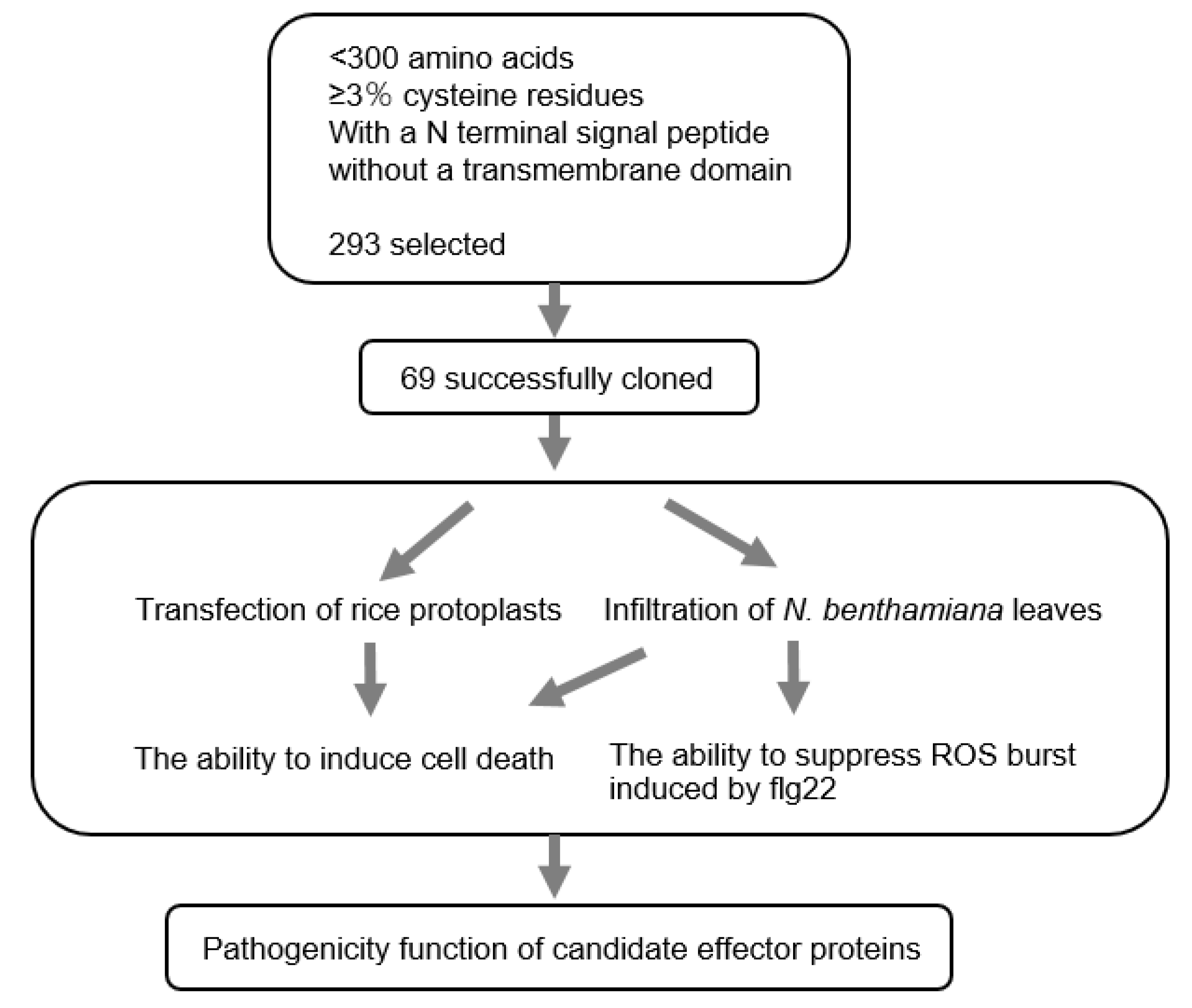

3.1. Selection of Potential Candidate Effector Genes from M. oryzae

We have previously reported the genomic sequence from the M. oryzae field isolate P131. Compared with the widely used laboratory strain 70-15, the field isolate exhibited a massive expansion of gene families that are likely involved in plant–fungal interactions [63]. In this study, potential candidate effector genes were selected from the genome of the P131 isolate, and were tested in their ability to trigger cell death responses in rice protoplast, or their ability to suppress flg22-induced ROS after transient expression in N. benthamiana leaves. To select the potential candidate effector genes, the following criteria were used: the genes should encode proteins containing fewer than 300 amino acids with enriched cysteine residues (≥3%) and carry an N terminal signal peptide, but without a transmembrane domain [64,65]. Based on those criteria, 293 genes were selected and 69 of them were successfully cloned from cDNA generated from the P131 isolate (Table S1). The CDS of those 69 genes were initially inserted into a pENTERTM1A entry vector, and then into the expression vector pIPKb002 with a maize ubiquitin promoter (pUbi) for further functional tests [57]. In the following up tests, transient transformation of those genes in rice protoplasts and N. benthamiana leaves was performed to determine whether those genes could induce plant cell death responses. We also investigated the ability of these candidate effectors to suppress the flg22-induced ROS responses in N. benthamiana. Eventually, the candidate effector genes were tested for their pathogenicity function (Figure 1).

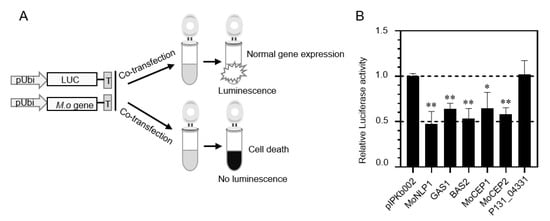

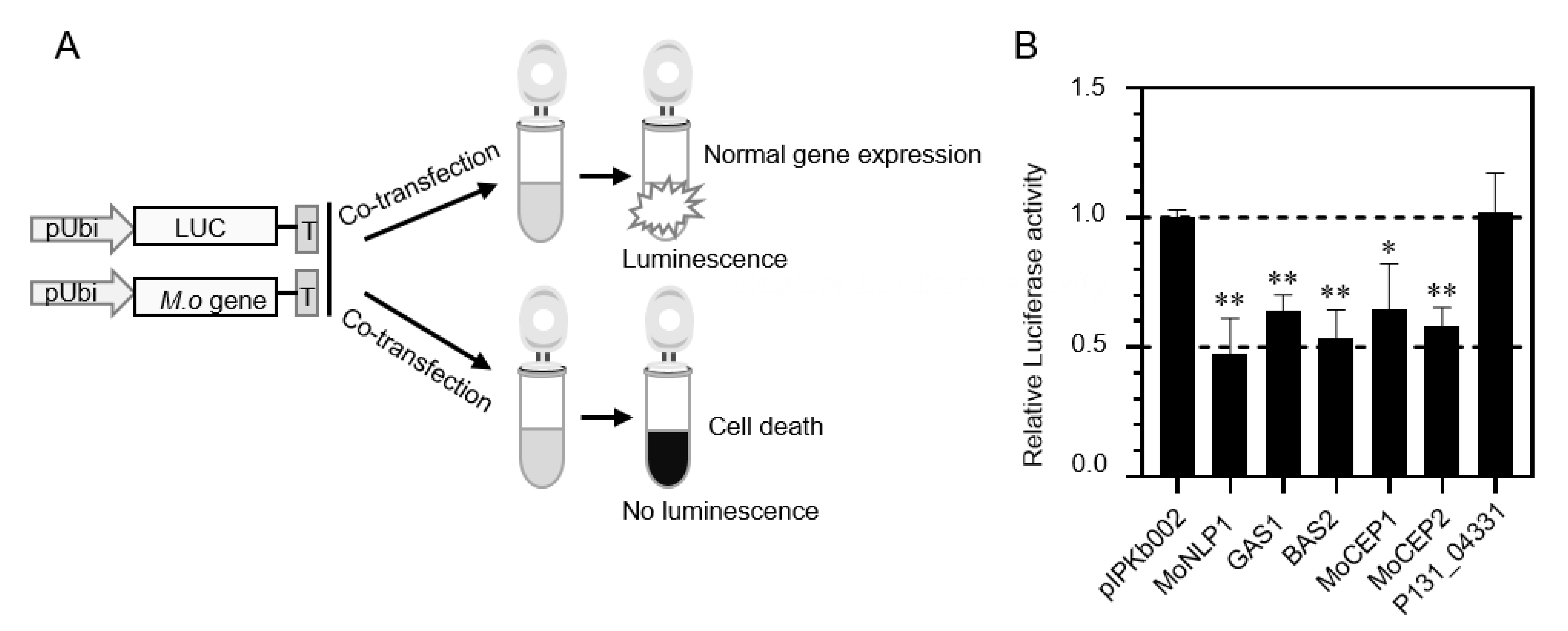

3.2. Identification of Four Candidate Effector Proteins That Induce Cell Death in Rice Protoplasts

During plant–pathogen interactions, many pathogen effectors induce host cell death responses. To identify potential candidate effectors of M. oryzae that induce host cell death, we transiently expressed the full-length effector genes in rice protoplasts (Figure 2A). In this assay, the plasmids of the pUbi driving LUC reporter gene were mixed with plasmids of the individual candidate effector genes to transform rice protoplasts, and the luciferase activity was quantified for the level of cell viability [56]. The transient expression assay revealed that 4 out of 69 potential effector genes led to a significant reduction of luciferase activity when expressed in the rice protoplasts (Figure 2B). The cell death responses were similar to that caused by the positive control MoNLP1, which is a well-known cell death inducer [50]. However, rice protoplasts exhibited normal luciferase activity when other tested genes were transiently expressed, such as P131_04331(MGG_00245) (Figure 2B). The four genes that induced cell death in the rice protoplast are P131_00405(MGG_12337), P131_09587(MGG_09693), P131_00603(MGG_08086) and P131_04657(MGG_05232). Of these, P131_00405 encodes GAS1, a function effector protein highly enriched in appressoria, and P131_09587 encodes BAS2, a secreted protein specifically localized to BICs [24,47]. The other two genes, P131_00603 and P131_04657, were thus named as MoCEP1 and MoCEP2 (M. oryzae candidate effector proteins) in this study. There is no single nucleotide polymorphism (SNP) in the CDS sequences of these four genes among P131, 70-15 and other field isolates.

3.3. One Candidate Effector Protein Induces Cell Death in N. benthamiana

Previous reports on screening potential M. oryzae effectors have been based on the observation of non-host cell death in N. benthamiana [48,49,66]. We also tested whether those potential candidate effectors can trigger non-host cell death in N. benthamiana via an Agrobacterium-mediated transient expression approach. Among the 69 potential candidate effector genes, only MoCEP2 induced cell death responses in the N. benthamiana leaves. Surprisingly, the genes GAS1, BAS2 and MoCEP1 that induce cell death in rice protoplast, could not induce cell death responses in N. benthamiana leaves (Figure 3A,B). RT-PCR analysis verified that those genes were expressed in N. benthamiana (Figure 3C). Together, these results imply that only MoCEP2 induces both host cell death and non-host cell death responses.

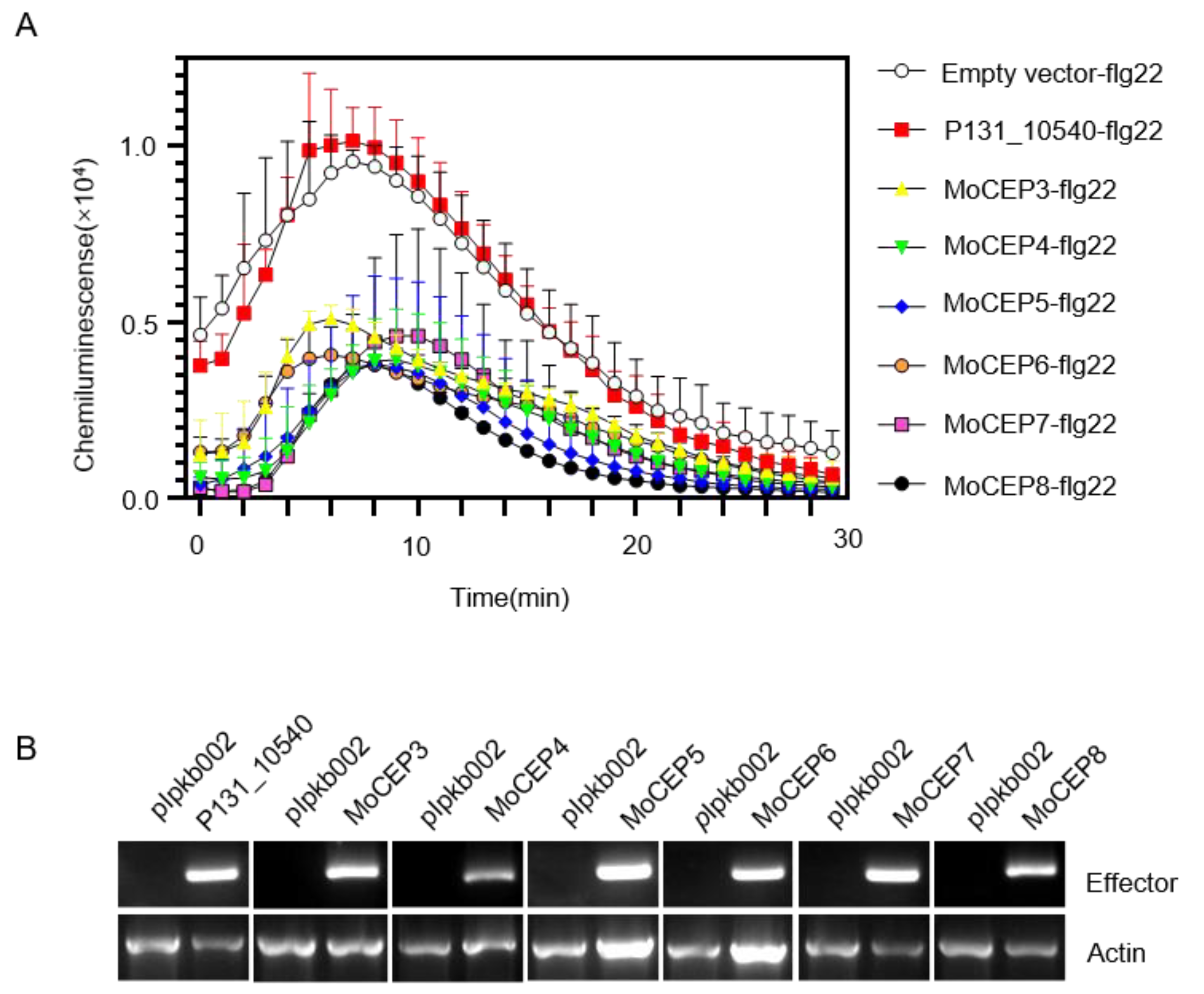

3.4. Identification of Six Candidate Effector Proteins That Suppress flg22-Triggered ROS Burst in N. benthamiana

For successful colonization, pathogens secrete virulence effectors to suppress host defense responses, such as PAMP-triggered ROS production [67,68,69]. In this study, we evaluated whether a flg22-induced ROS burst was suppressed by the expression of the potential candidate effector genes in N. benthamiana leaves. When expressed in N. benthamiana, 6 out of the 69 genes inhibited the flg22-induced ROS burst, whereas the other tested genes such as P131_10540(MGG_08428) could not (Figure 4A). In the N. benthamiana leaves expressing all those genes, water treatment could not induce ROS response (Figure S1). These six genes are P131_02098(MGG_03671), P131_07667(MGG_09019), P131_08608(MGG_15401), P131_10190(MGG_09842), P131_04965(MGG_04944) and P131_11327(MGG_02715), named as MoCEP3 to MoCEP8, respectively. Additionally, BLAST searches revealed that one SNP was present in the CDS sequences of MoCEP5 and MoCEP7 among the laboratory strain 70-15 and the field isolates P131, MO004 and MO102 (Figure S2), while no SNP was present in the other four CEP genes. RT-PCR analysis verified that those genes were expressed in N. benthamiana (Figure 4B). These six CEPs may play important roles in suppressing host immunity against pathogens.

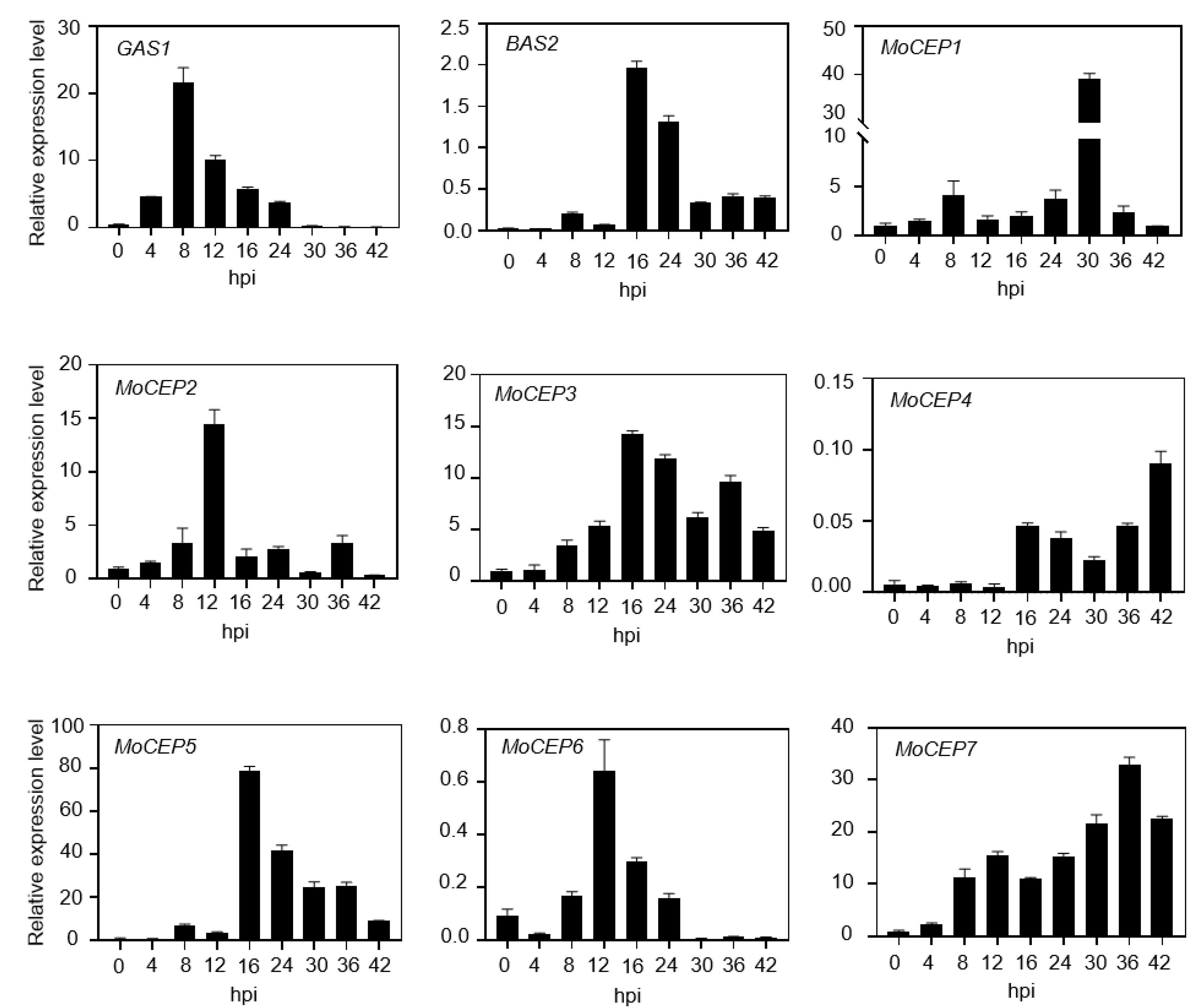

3.5. Nine Candidate Effector Protein Genes Are Highly Expressed during M. oryzae Infection

In total, we have identified ten candidate effector protein genes, including cell death inducers GAS1, BAS2, MoCEP1 and MoCEP2, and ROS suppressors MoCEP3 to MoCEP8. To evaluate the expression pattern of the ten genes in infected leaves, qRT-PCR was carried out using the RNA extracted from barley leaves inoculated with P131 isolate at different time points. The signal of MoCEP8 was not observed, possibly because of a low proportion of fungal mass in the infected leaves. The expression of the other nine genes was at a relative low level at the initial time of inoculation (0 h), but strongly increased during the fungal infection. Specifically, GAS1 was highly expressed at 8 hpi, MoCEP2 and MoCEP6 exhibited the highest expression at 12 hpi, while BAS2, MoCEP3 and MoCEP5 did so at 16 hpi. By contrast, MoCEP1, MoCEP4 and MoCEP7 showed a significant increase at the later infection stage (30–42 hpi) (Figure 5). Overall, nine out of ten candidate effector genes were expressed specifically in the initial period of M. oryzae infection, suggesting that these candidate effector proteins function in pathogenicity.

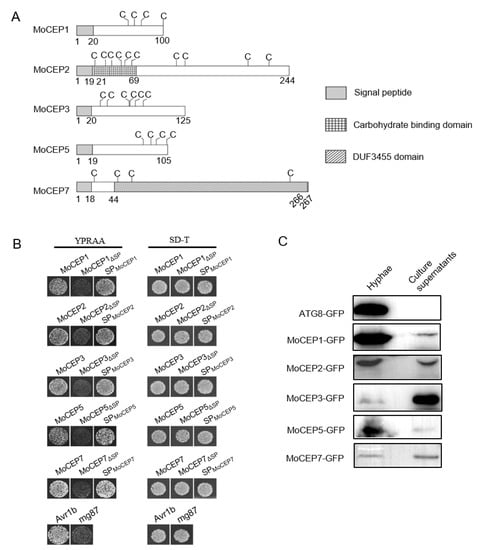

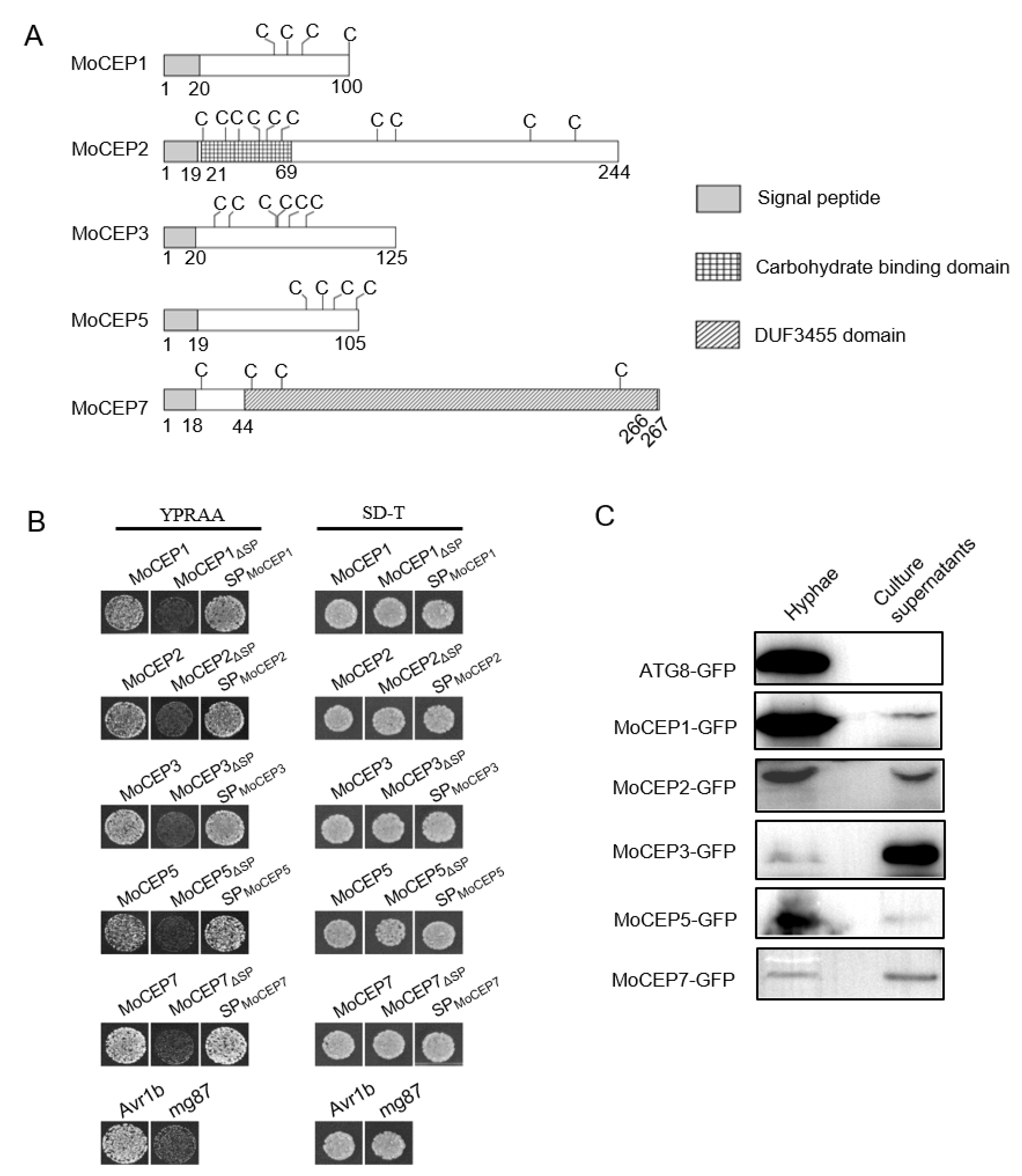

3.6. Validation of the Secretory Function of Five Candidate Effector Proteins

Since the function of GAS1 and BAS2 has been reported [24,47], we mainly characterized the function of the other candidate effector genes through generating gene deletion mutants in M. oryzae via targeted gene replacement. Finally, we successfully generated gene deletion mutants for MoCEP1, MoCEP2, MoCEP3, MoCEP5 and MoCEP7. The mutants for these five genes were confirmed by Southern blot analysis (Figure S3). Bioassays showed that the mutants of those candidate effector genes are similar to the wild-type strain P131 in mycelial growth and conidiation (Figure S4).
We analyzed the domain structure of the five candidate effector proteins using SMART (http://smart.embl-heidelberg.de/, accessed on 1 October 2022) and found that they all contain a predicted N-terminal signal peptide (SP). MoCEP2 contains a carbohydrate binding domain (CBD), which shares partial similarity to the CBD of Schizosaccharomyces pombe endo-1,3-b-glucanase Eng1 [70], MoCEP7 contains a functionally uncharacterized DUF3455 domain, while the MoCEP1, MoCEP3 and MoCEP5 proteins do not have predicted domains (Figure 6A).
To experimentally verify the predicted signal peptides, a yeast signal trap assay was utilized. The predicted SP nucleotide sequence, the full-length effector coding sequence and the truncated protein without the predicted SP sequence of each gene were fused to the truncated SUC2 gene lacking its original signal peptide coding sequence. The fusion constructs were transformed into an invertase-deficient yeast strain YTK12, thus only the yeast cells expressing functional signal peptides could hydrolyze raffinose and grow on YPRAA media such as the positive control Avr1b [71,72]. Consistent with the prediction, the yeast transformed with the full-length effector proteins or the predicted signal peptides of each protein did grow on YPRAA media, but the yeast transformed with the truncated proteins without the predicted SP sequence did not (Figure 6B), suggesting that the signal peptides were functional. To further determine whether these effectors are secretory proteins, individual constructs containing the MoEGF1 promoter and the CDS of each gene with a C-terminal GFP tag were generated and transformed into wild-type strain P131 [73]. The fusion gene transformants were cultured in liquid CM, and the presence of effector proteins were detected both in the mycelium and medium liquid for all five candidate effector proteins in the immunoblots using an anti-GFP antibody (Figure 6C). Collectively, we demonstrated that MoCEP1, MoCEP2, MoCEP3, MoCEP5 and MoCEP7 are bona fide secreted proteins.

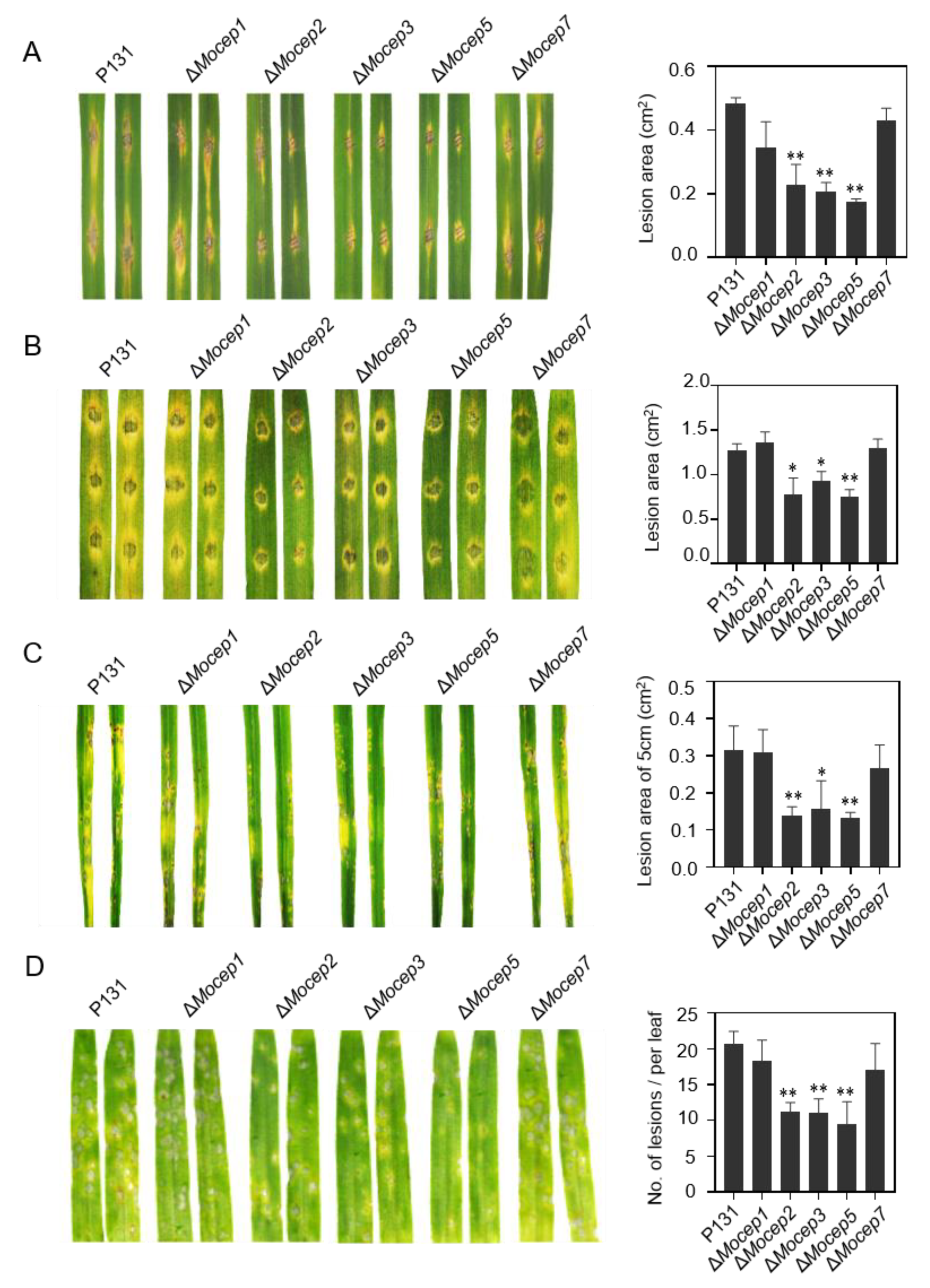

3.7. Three Candidate Effector Genes Are Virulence Factors in M. oryzae

Previous studies have reported that GAS1 is a virulence factor in M. oryzae [47], but the disruption of BAS2 does not show phenotypes in pathogenicity [24]. To characterize the function of the five candidate effector genes in pathogenicity, a conidial suspension of P131 and each effector gene mutant were inoculated onto rice and barley leaves via drop-inoculation or spray-inoculation methods. The strains ∆Mocep2, ∆Mocep3 and ∆Mocep5 caused a significantly reduced lesion area compared with P131 on both rice and barley leaves, while strains ∆Mocep1 and ∆Mocep7 exhibited normal virulence as P131 (Figure 7). These data demonstrate that MoCEP2, MoCEP3 and MoCEP5 play important roles in fungal pathogenicity.

4. Discussion

In this study, we cloned 69 M. oryzae genes encoding potential candidate effector proteins for functional screening. Among those 69 candidate effector genes, transient expression of four genes, GAS1, BAS2, MoCEP1 and MoCEP2, induced cell death responses in rice protoplast, and MoCEP2 also led to a necrosis phenotype in N. benthamiana when expressed transiently. Furthermore, the transient expression of six genes, MoCEP3 to MoCEP8, suppressed the flg22-induced ROS burst in N. benthamiana. Finally, we generated gene knockout mutants of five candidate effector genes in M. oryzae, and revealed that MoCEP2, MoCEP3 and MoCEP5 function as key factors in fungal pathogenicity. Together, the functional screening approaches help us to identify novel candidate effector genes from M. oryzae.
Cell death responses are commonly observed when pathogens grown in resistant host or non-host plants, and are closely associated with the induction of plant immunity [74]. Many cell-death-inducing proteins from various pathogens have been characterized based on heterogeneous expression, especially using the Agrobacterium-mediated transient expression in N. benthamiana [75,76]. Due to possible differences between the immune systems of monocot and dicot plants, the effector proteins of a certain pathogen that cause cell death in N. benthamiana may not be essential to its infection of a host. For example, for the cell-death-inducer genes VdSCP27, VdSCP113 or VdSCP126 in Verticillium dahlia, the knockout of individual genes did not change the fungal virulence on susceptible cotton [11]. Therefore, it is necessary to directly test the candidate effector proteins of a pathogen in its host cells. In this project, we carried out the screening of cell death phenotype in host protoplast cells [56]. Four cell-death-inducing proteins were identified (Figure 2B), among which GAS1 was reported to be expressed specifically in appressoria and is essential for plant infection [47] and BAS2 was specifically expressed in invasive hyphae in a previous report [24]. Apart from the two previously reported effector genes, MoCEP1 and MoCEP2 are novel candidate effector genes that induce cell death in rice protoplasts. MoCEP2 also induced cell death responses in N. benthamiana leaves (Figure 3A), and the knockout mutant ∆Mocep2 exhibited reduced virulence on rice and barley plants (Figure 7). Both GAS1 and MoCEP2 are key players in fungal pathogenicity, indicating that our strategy of testing for a cell death phenotype in rice protoplast is efficient for identifying functional effector proteins. However, the knockout mutant ∆Mocep1 does not exhibit a notable phenotype in virulence (Figure 7), similar to the MoNLPs family genes that induce cell death on N. benthamiana leaves. Also, among the 13 cell-death-inducing proteins, MoCDIP1 to MoCDIP13, that induced cell death in rice protoplasts or on N. benthamiana leaves [48,49], only MoCDIP4 functions as a virulence factor [77]. Taken together, most candidate effector proteins contribute minor roles to fungal pathogenicity [50]. Notably, in vitro purified MoNLPs, and CDIP6/7 proteins activate plant immunity against rice blast fungus. Therefore, further investigation is needed to test whether BAS2 and MoCEP1 proteins also have a similar function.
Reactive oxygen species (ROS) act as key signals or toxic molecules with strong oxidant power during plant–pathogen interactions [78,79]. Plants react rapidly and produce a transient ROS burst in PTI, whereas the ROS production in ETI is much more persistent [80]. In order to establish successful infection, pathogens secrete a variety of effectors to impair host immune responses including ROS production. Examples are Colletotrichum CoNIS1, ChNIS1 and M.oryzae MoNIS1 [46], Fusarium oxysporum effectors Six1, Foa1, Foa2 and Foa2 [81], Acidovorax citrulli effector AopV [82] and Pseudomonas syringae type III effectors HopAI1 and HopF2 [83,84]. Here, we screened the suppressors of the flg22-induced ROS responses in N. benthamiana transient expressed potential candidate effector genes. Six candidate effector genes were identified expressing ROS suppressors (Figure 4A), and the knockout mutants ∆Mocep3, ∆Mocep5 and ∆Mocep7 were generated in the P131 background for the pathogenicity test. Subsequently, we assessed that MoCEP3 and MoCEP5 play key roles in virulence (Figure 7). A few pathogen effectors directly target PTI signaling components to prevent host ROS production. For example, the Xanthomonas campestris type III effector AvrAC and the M. oryzae effector MoNIS1 target different receptor-like cytoplasmic kinases to inhibit PTI signaling [46,85], whereas the Phytophthora sojae effector CRN78 phosphorylates and leads to the degradation of aquaporin NbPIP2;2 to suppress ROS accumulation in N. benthamiana [69]. The candidate effector proteins MoCEP3 and MoCEP5 might also target key players in PTI signaling, which needs further investigation.
Ten modules of gene expression patterns were characterized corresponding to different infection life cycles of M. oryzae [25]. In our study, nine candidate effector genes have distinct gene expression patterns belonging to four modules (Figure 5), suggesting that these genes may have different functions or be regulated with distinct mechanisms, such as the genome regulation mediated by histone modification, or transcriptional regulation by Rgs1 [86,87]. Consistent with the previous observation, we confirmed that GAS1 showed peak expression at 8 hpi, which was associated with an appressorium-mediated infection as module 2 genes. BAS2 was highly expressed at 16 hpi, and functioned at infection hyphae elongation as module 3 genes. In addition, the expression of MoCEP2, MoCEP3, MoCEP5 and MoCEP6 showed peaks at 12–16 hpi, indicating that they belong to module 4 and might function at the initial biotrophic stage. In contrast, the expression of MoCEP1, MoCEP4 and MoCEP7 exhibit peaks at 30–42 hpi, suggesting that they may function at the transition stage to necrotrophic colonization. However, the knockout mutants ∆Mocep1 or ∆Mocep7 did not show any phenotype related to fungal virulence. It is possible that the detection system we used was unable to accurately measure small changes in pathogenicity. A relative fitness assay has been applied to test the function of Mep1 in virulence [25], and the same approach could be used for our candidate effector genes. In addition, generating multiple gene knockout mutants has addressed the functional complexity of fungal virulence factors [88], which would be an effective approach to test the function of M. oryzae virulence genes in the future.
For three candidate effector protein genes MoCEP4, MoCEP6 and MoCEP8, we could not obtain gene knockout mutants via a homogenous recombination approach, and a similar situation has also applied to effector gene BAS4 [24], possibly because of retrotransposon elements flanking the gene coding region. Since CRISPR-Cas9-mediated BAS4 editing resulted in multiple BAS4 deletion mutants of M. oryzae, CRISPR techniques could be used as an alternative approach to generate mutants for those candidate genes in the future [89].

5. Conclusions

To subvert plant immunity, M. oryzae secretes a large number of effectors to manipulate host immune responses; however, the vast majority of effectors have not been identified and characterized. Our study cloned 69 M. oryzae putative effector genes for functional screening. Four cell death inducers, GAS1, BAS2, MoCEP1 and MoCEP2, were identified by utilizing the rice protoplast transient expression system, and MoCEP2 also induced cell death in N. benthamiana leaves through Agrobacteria-mediated transient expression. In addition, we identified that the transient expression of six candidate effector genes, MoCEP3 to MoCEP8, suppressed the flg22-induced ROS burst. Pathogenicity tests in gene knockout mutants revealed that MoCEP2, MoCEP3 and MoCEP5 are virulence factors during fungal infection. Our study found valuable candidate effector proteins for further investigation on the molecular mechanisms underlying the rice–blast fungus interaction.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jof9050574/s1, Figure S1: Water treatment could not induce ROS burst in N. benthamiana leaves. Figure S2: (A,B) The alignment of CDS of MoCEP5 (A) and MoCEP7 (B) from the laboratory strain 70-15 and the field isolates P131, MO004 and MO102. Figure S3: The knockout of candidate effector genes. Figure S4: The five candidate effectors are dispensable for vegetative growth and sporulation of M. oryzae. Table S1: List of 69 cloned putative effector genes from M. oryzae field isolate P131. Table S2: Primers used in this study.

Author Contributions

Conceptualization, X.L. and Y.-L.P.; investigation, D.L., Z.L., N.L., G.Y., X.W. and S.L.; writing—original draft preparation, X.L. and D.L.; writing—review and editing, X.L., D.L. and N.L.; supervision, X.L. and Y.-L.P.; funding acquisition, X.L. and Y.-L.P.; All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the China Natural Science Foundation (Grant No. 32172370) for X.L., and the Program for Changjiang Scholars and Innovative Research Team in University (Grant No. IRT1042) for Y.-L.P. The funders had no roles in study design, data collection and analysis, decision to publish or preparation of the manuscript.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are included in the article; further inquiries can be directed to the corresponding author.

Acknowledgments

We thank Jochen Kumlehn (Leibniz Institute of Plant Genetics and Crop Plant Research) for providing the gateway-compatible vector pIPKb002.

Conflicts of Interest

We declare that no conflict of interest exist.
