Next Article in Journal
Editorial for the Special Issue Entitled “Recent Advances in Crosslinked Gels”
Previous Article in Journal
Characterization of Quaternary-Ammonium-Based Ionogel Membranes for Application in Proton Exchange Membrane Fuel Cells
Previous Article in Special Issue
A Comparative Study between Beeswax and Glycerol Monostearate for Food-Grade Oleogels


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Gels
Volume 10
Issue 5
10.3390/gels10050309
gels-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles thumb_up
...
Endorse textsms
...
Comment
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Heat-Induced Gelation of Chickpea and Faba Bean Flour Ingredients

by
Anna Mengozzi
,
Emma Chiavaro
,
Davide Barbanti
and
Francesca Bot
*
Department of Food and Drug, University of Parma, Parco Area delle Scienze 27/A, 43124 Parma, Italy
*
Author to whom correspondence should be addressed.
Gels 2024, 10(5), 309; https://doi.org/10.3390/gels10050309
Submission received: 29 March 2024 / Revised: 20 April 2024 / Accepted: 26 April 2024 / Published: 1 May 2024
(This article belongs to the Special Issue Recent Advances in Food Gels)
Browse Figures
Versions Notes

Abstract

:
This study aimed to investigate the gelling behavior of faba bean (FB) and chickpea (CP) flour between 10 and 20% (w/w) concentration at pH 3.0, 5.0, and 7.0. Both sources formed at pH 3.0 and 5.0 self-standing gels with 12% (w/w) of flour, while 16% (w/w) of flour was required to obtain a gel at pH 7.0. During gelling between 40 and 70 °C, a sharp increase of the elastic modulus G′ was observed in both flours, mainly due to water absorption and swelling of the starch, one of the major constituents in the ingredients. Increasing the temperature at 95 °C, G′ increased due to the denaturation of globulins and therefore the exposure of their internal part, which allowed more hydrophobic interactions and the formation of the gel. After cooling, both FB and CP gels displayed a solid-like behavior (tan δ ranging between 0.11 and 0.18) with G′ values at pH 3.0 and 5.0 significantly (p < 0.05) higher than those at pH 7.0, due to the lower electrostatic repulsions at pHs far from the isoelectric point. The rheological properties were supported by the water binding capacity values, confirming the better gels’ strength described by rheological analysis. These results will enhance our understanding of the role of legume flours in formulating innovative and sustainable food products as alternatives to animal ones.

1. Introduction

The demand for plant-based food products is constantly rising owing to the rapid growth of the global population and deteriorating climatic conditions [1] along with the consumer’s demand for sustainable and affordable ingredients. Therefore, new initiatives are required to increase the production of high-quality, functional, and sustainable plant-based ingredients [2,3,4].
Among the plant-based ingredients, pulses are affordable, nutrient-dense, and an excellent source of protein, dietary fiber, and minor nutrients such as iron and vitamins. Within the pulses family, the most relevant sources are soybeans, lentils, red kidney beans, chickpeas, and faba beans [5,6]. More specifically, faba beans can be grown in most climate areas of Europe, including Sweden, where they are extensively produced but mainly used for animal feed [7]. Faba beans are rich in starch (40–44%), fibers (11–17%), and proteins (29–36%), with the main globular fractions belonging to the proteins legumin (11S) and vicilin (7S) [8,9,10,11]. Chickpeas represent the second most cultivated legume worldwide, and India is by far the largest producer (FAO, 2016). In chickpeas, starch content is around 52–71%, fibers range between 6 and 15% [12], while lipids account for 6.5% [13]. The protein fraction ranges between 15 and 30%, and the main constituents are globulins (53–60%), glutelins (19–25%), albumins (8–12%), and prolamins (3–7%) [12].
Both faba bean and chickpea ingredients have interesting functional properties, including emulsifying, foaming, and gelling properties [10,11,12,13,14], with the latter being extremely important in food products like yogurt, cheese, puddings, and sausages. To formulate food products with desired gelling characteristics, the understanding of the gelling mechanisms as well as the molecular interactions among macro and micro constituents (i.e., starch, proteins, minerals) is of primary importance [15]. In particular, when forming a protein–starch gel during heat treatment, the main steps include starch gelatinization, which causes the swelling of the starch granules, followed by amylose leaching and loss of the granular integrity [16], together with conformational change or denaturation of the protein molecules followed by the aggregation and the consequent network formation [17]. More specifically, in legumes globulins in their native state are characterized by rigid secondary and ternary structures, whereas during heating, these polypeptide chains lose their rigid tertiary structure at the expense of improved mobility and flexibility, thus facilitating protein–protein interactions [18,19]. These phenomena can be explained by the behavior of the buried cysteine residues that are not accessible in the native conformation, and become exposed and available, leading to intermolecular cross-links upon heating [20].
Another factor influencing the physical structure of gels is the pH, which, by affecting the charge distribution and conformation of proteins, induces changes in the gel strength and the nature of interactions involved in the gel formation (e.g., hydrophobic interactions, hydrogen bonds, and disulfide bridges) [21,22,23].
Heat-induced gelatinization has been widely investigated in mixed protein–starch systems, containing concentrates or isolates as ingredients and starches from several pulses including lentils, chickpeas, faba and mung beans, and peas [7,10,24,25,26]. In those systems, the results have shown that during heating, protein unfolds and aggregates to form a structured matrix [22], while starch granules swell first upon hydration and leak amylose upon heating, then amylose forms a network between the starch granules [16].
Despite many studies that have been conducted on the gelation properties of different protein isolate ingredients [7,17,25,26], there is a notable absence of systematic investigations of the heat-induced gelation properties of less refined ingredients in a wide pH range. Therefore, the aim of this research was to investigate the physical properties of heat-induced gels of faba bean- and chickpea-derived ingredients at pH 3.0, 5.0, and 7.0 and in a wide concentration range (i.e., between 10 and 20% (w/w) flour content). In the present study, after investigating the thermal properties and the sol-gel transition of faba bean and chickpea flours at pH 3.0, 5.0, and 7.0, the rheological properties at the flour concentration able to form a gel and below and above this point were investigated.
The obtained results will provide valuable insights into their potential application in food formulations and contribute to unlocking the development of legume-based products with enhanced and tailored functional properties.

2. Results and Discussion

2.1. Thermal Properties of FB and CP Flours

Differential scanning calorimetry analysis was performed to develop an understanding of the gelling behavior of the selected flours. In both FB and CP, two main endothermic peaks were observed in the thermogram (Figure 1). In particular, the FB sample had the first peak with Ton and Toff of 59.56 and 80.74 °C, respectively, and a Tpeak of 74.12 °C, while the second peak had Ton and Toff of 84.72 and 104.86 °C, respectively, with a Tpeak of 97.66 °C. A similar thermogram can be observed in CP, with the first peak having a Ton and Toff of 60.22 and 83.99 °C, respectively, and a Tpeak of 77.32 °C. The second peak, instead, had a Ton and Toff of 95.93 and 119.36 °C, respectively, with a Tpeak of 107.66 °C. The first endothermic peak is generally associated with starch gelatinization [27] and protein denaturation, more specifically the denaturation of (7S) vicilin [28,29]. On the other hand, the second endothermic peak can be associated with the denaturation of the (11S) legumin fraction [30]. Similar endothermic peaks have been also observed in both faba beans and chickpea ingredients [29,30,31] and the slight variation in the thermal properties of the ingredients has generally been linked to different legume varieties together with different processing parameters applied during the ingredients’ production [31,32,33]. It can be also observed that CP had a higher Tpeak than FB, especially in the second endothermic peak. This behavior can be related to the need for a higher temperature to unfold the secondary and tertiary protein structures contained in the protein–starch network [30].
In addition, from the thermogram, it is possible to determine the enthalpy alteration linked with the gelatinization or denaturation process, which reflects the quantity of heat necessary for the thermal transition of the macro molecules under consideration and depends on the proportions of polar and non-polar interactions within the resulting aggregate [34]. In FB, the enthalpies associated with the first and the second peaks were 0.91 and 0.78 J/g, respectively, while higher values were observed in CP flours (i.e., 1.52 and 0.96 J/g, respectively, for the first and the second peaks). This indicates a significantly (p < 0.05) higher amount of unfolded native proteins in CP than in FB [30].

2.2. Sol-Gel Phase Diagram Determination of CP and FB Flours

Protein–starch suspensions when heat treated generally undergo phenomena like phase separation, aggregation, and gelation, and these modifications are strongly affected by many factors including protein type, concentration, and pH [23,24,25,26,27,28,29,30,31,32,33,34,35]. Figure 2 shows the sol-gel phase diagram of FB and CP at increasing flour concentrations and pH 3.0, 5.0, and 7.0. At pH 3.0, the minimum gelling concentration (MGC), defined as the concentration at which the gel is self-standing and does not flow when the tubes are inverted, was 12% (w/w) for both FB and CP. The gels appeared with a smooth and homogeneous texture and, when increasing the flour concentration up to 20% (w/w), both FB and CP displayed a self-standing and compact structure. At pH 5.0, the MGC values were similar to the ones observed at pH 3.0, with a value of 12% (w/w) in both FB and CP, while at pH 7.0, the MGC increased to 16% (w/w) in both the flours. The higher MGC values at pH 7.0 compared to pH 3.0 and 5.0 could be attributable to multiple factors, including the pH, which was set at values far from the isoelectric point (IP) (i.e., pH 4.3 and 5.0 for FB and CP, [23,36,37,38], the strong electrostatic repulsions among the proteins, and the presence of starch, which has been gelatinized during the heat treatment [7,39,40,41]. Similar MGC values have been also found for pea, faba bean, and soybean protein isolates, which at neutral pH had an MGC of 18%, 14%, and 16%, respectively [26,37,42,43].

2.3. Water Holding Capacity of Gelled FB and CP Flours

Water holding capacity (WHC) indicates the ability of an ingredient to interact with water under conditions where water is limited [44] and it is generally affected by both intrinsic (e.g., protein structure, conformation, amino acid composition, hydrophobicity, hydrophilicity, and starch content) and extrinsic (e.g., pH, temperature, and ionic strength) factors [45,46]. Generally, low WHC is often associated with a weak gel structure not able to hold water [47] and in starch-based gels, the presence of proteins can affect the WHC and the water distribution within the matrix [45,46,47,48]. The WHC of CP and FB have been investigated at the MGC, the concentration below the MGC (−2% MGC), and the concentration above the MGC (+2% MGC) in all the pH range considered, in order to gain a better understanding of ability of the selected ingredients to hold water (Figure 3). At pH 3.0, the WHC of FB was significantly (p < 0.05) higher than CP with values ranging between 0.74 and 0.97 g/g for FB gels, and between 0.67 to 0.87 for CP gels. Similar results have been also observed in legume flours such as chickpeas and lentils, which had a water binding capacity ranging between 0.72 and 1.0 g/g at neutral pH [14].
Moving to pH 5.0 and 7.0, the WHC had slightly lower WHC values compared to those found at lower pH, with values ranging between 0.67 to 0.98 g/g in both FB and CP. The higher WHC at pH 3.0 than at pH 5.0 can be attributed to proteins and their solubility [49]. Indeed, at pH close to the isoelectric point (i.e., pH 4.3 and 5.0 for FB and CP, respectively) proteins aggregate, thus allowing an increase in water binding capacity [50,51].

2.4. Rheological Properties of FB and CP Gels

The gelation behaviors of faba bean and chickpea flour suspensions were studied for the MGC, MGC−2%, and MGC+2% by measuring G′, G″, and tan δ as a function of time upon and after the heat treatment (Figure 4 and Figure S1, and Table 1).
During the temperature sweep test between 65 and 85 °C, a steep increase of the elastic modulus (G′) was observed in both FB and CP (Figure 4, left panel). The results reflect the DSC thermographs (Figure 1), where the first peak ranged between 60 and 85 °C for both FB and CP. The rapid G′ and G″ increase can be mainly attributed to starch gelatinization, which is characterized by water absorption and swelling of the starch granules. At the same time, the subsequent decrease in G′ could be due to loss of crystallinity, uncoiling, dissociation of double helices, and leaching of amylose in the continuous phase of the starch [52,53]. Increasing the temperature to 75 °C, a slight increase in G′ in both sources has been observed, while during the holding time at 95 °C, both G′ and G″ did not change. In the final cooling step, G′ further increased and reached the highest value, indicating the presence of a gelled structure. The increase of G′ can be attributed to the formation of hydrogen bonds, which stabilizes and strengthens the matrix [54,55], and to the presence of starch granules and fiber particles, which acted as active fillers and reinforced the gel [7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56]. In addition, also the proteins fraction play a role in the gel formation. Indeed, an increase of the temperature up to 95 °C caused proteins denaturation, the exposure of their interior part, and, as a consequence, the formation of hydrophobic interactions and the formation of a network typical of a gel structure [57,58]. Similar temperature sweep profiles have been observed between the two sources at all the pH considered (Figure 4).
Interestingly, after cooling, different G′ values were found between FB and CP: at pH 3.0, FB displayed always lower G′ than CP. More specifically, at 12% (w/w) flour content, corresponding to the MGC, G′ for FB and CP was 159 and 869 Pa, respectively (Table 1). At pH 5.0 and below the MGC (i.e., 10% (w/w) flour content), FB had a significantly (p < 0.05) lower G′ than CP, while, when increasing the flour content, only slight differences can be observed among the two sources. Moving to pH 7.0, G′ values in FB and CP were lower than the ones observed at pH 5.0 and 3.0, indicating that at pHs far from their IP have a minor contribution to the gels’ strength, which is mainly attributed to the gelatinized starch [57]. This behavior is confirmed by no significant (p > 0.05) differences in G′ between FB and CP at pH 7.0 and flour concentrations of 14% and 16%. At pH 7.0 and 14% (w/w) flour concentration, G′ ranged between 111 and 113 Pa in FB and CP gels. When increasing the flour concentration up to 16% (w/w), which corresponds to the MGC+2 point, G′ increased in both FB and CP gel and reached 194 and 413 Pa, respectively. In addition, the results highlighted that the rheological properties are correlated with the WHC (Figure 2), as already shown by other authors in various mixed systems [15,59,60].
The tan δ values of FB and CP gels in all the pH ranges were below 0.25, with values ranging between 0.11 and 0.18 (Table 1). This indicates that the gels had a solid-like behavior typical of weak gels upon heating, which can be attributed to the chemical composition (with starch and proteins as the main macronutrients) and pH. Similar tan δ values have been also observed in gelled systems formulated with different legume flours or protein isolate fractions from peas [57,58].
After the heat-induced gelation step, the G′ and G″ dependencies on frequency were determined by a frequency sweep test in order to have a better understanding of the type of gel formed (Figure 4). In both FB and CP gels at all the selected pHs, G′ was higher than G″ over the full frequency range, thus indicating the predominance of the elastic component. In addition, both moduli were constant over this frequency range and did not display any dependency on frequency. It can be also observed that, at high frequency, the nearly flat line could indicate the presence of a broad relaxation spectrum that is typical for a disordered system [61]. Several studies have observed similar behavior in gels formulated with plant proteins (e.g., pea) or starch-based batter added with proteins [7,25,49,62]. However, there is no full agreement on the results available in the literature for gels formulated with legume flours or starch–protein-based ingredients. Some authors have reported that the addition of protein in starch-based systems decreased the G′ and G″ values [63,64,65,66,67], whereas others have observed an increase of G′ and G″ values only in a certain frequency range [68,69,70,71]. Therefore, further studies are still needed in this area to understand the structural properties of the protein–starch gel formed in function on the frequency applied.
Moving to the strain sweep test in the right panels of Figure 4, it is possible to observe that in all the pH ranges investigated and within the linear viscoelasticity region (LVE), both FB and CP had a G′ always higher than G″, thus indicating a solid-like behavior of the ingredients [72]. By increasing the strain, both the G′ and G″ dropped steeply, thus indicating that the gels become more fluid-like, due to the disruption of the initial structured network [72]. In both FB and CP, the critical strain range was lower than 10% and similar values have been found in yellow pea ingredients with different protein (19–87%) and carbohydrates (60–3%) content [57] or in starch-based systems [73,74,75,76].

3. Conclusions

The results of this study provide insight into the gelling properties of faba bean (FB) and chickpea (CP) flours at pH 3.0, 5.0, and 7.0. The thermal analysis revealed a distinct pattern in the starch gelatinization and protein denaturation temperatures among the different flours, which can be attributed to different macronutrient compositions together with starch granule characteristics and different protein fractions. The MGC values for both FB and CP were identified at 12% (w/w) flour content at pH 3.0 and 5.0, while the value increased up to 16% (w/w) at pH 7.0, due to the low ability of FB and CP proteins to form a gel at pH far from the isoelectric points.
The rheological properties of the heat-induced gels showed higher G′ at pH values close to or below the isoelectric point (i.e., pH 3.0 and 5.0) than pH 7.0 with a tan δ, indicating a weak gel structure. The greater ability to enhance gel structure at lower pH (3.0, and 5.0) can be associated with proteins being closer to their isoelectric points and their ability to associate to each other through van der Waals, hydrophobic, or hydrogen bonding as well as with the ability of starch in reinforcing the matrix. Slight differences can be observed between the sources, with a slight tendency of FB to form gels with higher elastic moduli.
These new insights on how pH and flour concentration can influence the rheological and structural properties of gels made of different flour sources will support the further development of innovative food formulations spanning from fermented to neutral products.

4. Materials and Methods

4.1. Materials

Faba bean (FB) flour, with the following composition of carbohydrates 52%, fibers 21%, proteins 30%, fat 1.9%, and minerals 0.03% was provided by Ingredion (Hamburg, Germany). Chickpea (CP) flour was provided by Muller’s Muhle GmbH (Gelsenkirchen, Germany), with the following macronutrient content, carbohydrate 49%, fiber 11%, proteins 21% and fat 6.5% and minerals <0.1%. All the reagents used in this study were of analytical grade and supplied by Sigma–Aldrich (St Louis, MO, USA) unless otherwise stated.

4.2. Differential Scanning Calorimetry (DSC)

Thermograms of the FB and CP flours were obtained using a differential scanning calorimeter (DSC) (DSC Q100, TA Instruments, New Castle, DE, USA) following the method of [29]. Indium and mercury were used to calibrate the instrument and an empty pan was used as reference. All the flours were weighed (5.2–8.6 mg) into hermetic aluminium pans and ~ 10 mg of distilled water was added to hydrate the flours for 24 h at 4 °C. Flour suspensions were equilibrated at 20 °C and then heated from 20 to 130 °C at 5 °C/min. DSC curves were analyzed with Universal Analysis Software (Version 3.9A, TA Instruments) to obtain the enthalpy change for transition (ΔH, J/g), the onset temperature of transition (Ton, °C), offset temperature of transition (Toff, °C), and peak temperature at the maximum (Tpeak, °C) for the main events during heating transitions.

4.3. Minimum Gelling Concentration (MGC)

Aqueous solutions were prepared by adding 10, 12, 14, 16, 18, and 20% (w/w) of flour (FB and CP) and deionized water. The suspensions were magnetically stirred for 3 h at room temperature and after 2 h and 30 min of stirring, pH was adjusted to 3.0, 5.0, and 7.0 by adding 1 M HCl or 1 M NaOH. To induce gelation, FB and CP suspensions were transferred in 50 mL sealed falcon tubes and subjected to heat treatment in a water bath (95 °C for 1 h), followed by a first cooling in a water bath (15 °C for 10 min). The heat-treated samples were then stored at 4 °C for 24 h before analysis. The minimum gelling concentration (MGC) was determined as the sample with the lowest concentration that did not flow when the tubes were inverted [73].

4.4. Gel Analyses

The samples considered in the following analyses were the ones identified as the MGC, the concentration below the MGC (−2% MGC), and the concentration above the MGC (+2% MGC).

4.4.1. Water Holding Capacity

Samples were prepared with the same method as described in Section 2.3. The water binding capacity (WHC) was determined after gelation induced by heat treatment for all the pH considered (pH 3.0, 5.0, and 7.0). The samples were left to stand overnight at 4 °C and were weighed (Wi), before centrifugation at 3000× g at 4 °C for 10 min (Centrifuge 5810 R, Eppendorf, Fisher Scientific, Waltham, MA, USA). The remaining pellets were then weighed (Wr). The samples were measured in duplicate, and WHC was calculated using the following equation [25]:
W H C = W r W i

4.4.2. Rheological Measurements

Rheological properties were performed in an MCR102 rheometer (Anton Paar, Graz, Austria) equipped with a CC-27 concentric cylinder geometry. Samples were prepared with the same method as described in Section 4.3. Gelling occurred within the cylinder and to prevent solvent from evaporating during heating, a solvent trap was placed on top of the probe. The samples were sequentially exposed to temperature, frequency, and amplitude sweep. For temperature sweeps, the samples were heated from 20 to 95 °C at a rate of 3 °C/min. Then, the samples were kept at 95 °C for 10 min before cooling back to 20 °C. The temperature was kept at 20 °C for 5 min. The storage (G′) and loss (G”) moduli were recorded as a function of temperature at a frequency of 1 Hz and a strain amplitude of 1%. Subsequently, the gels were subjected to a frequency sweep at 1% deformation with a frequency increase from 0.01 to 10 Hz. Amplitude sweeps were carried out at a frequency of 1 Hz and amplitude strain from 0.1% to 1000% to determine the linear viscoelastic region. G′ and G″ dependency on temperature, frequency, and amplitude were recorded. The three tests followed the method of [74]. Data on rheological measurements were run at least in triplicate.

4.4.3. Statistical Analyses

The results are the average of at least three measurements carried out on at least three replicated experiments from the same sample batch. Data are reported as mean value ± standard error. Statistical analysis was performed using the SPSS (version 28.0.1.0 SPSS Inc., Chicago, IL, USA) statistical software package. Levene’s test to check the homogeneity of variance, a one-way analysis of variance (ANOVA) and Tukey’s postdoc significant difference test (HSD) at a 95% confidence level (p < 0.05) to identify statistically significant differences among means. Dunnett’s T3 test was used when the variances were not equal.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/gels10050309/s1, Figure S1: Temperature, frequency, and strain amplitude sweeps of faba bean (FB) and chickpea (CP) gels at 10 and 14% for pH 3.0 and 5.0, and 14, and 18% at pH 7.0. (excluding the MGC). G′: black point symbols, G″: grey triangle symbols.

Author Contributions

Conceptualization, A.M. and F.B.; methodology, A.M. and F.B.; formal analysis, A.M.; investigation, A.M. and F.B.; resources, A.M. and F.B.; data curation, A.M. and F.B.; writing—original draft preparation, A.M. and F.B.; writing—review and editing, A.M., F.B., D.B. and E.C.; supervision, F.B. and E.C.; project administration, F.B.; funding acquisition, F.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been carried out in the frame of the ALIFAR project, funded by the Italian Ministry of University through the program “Dipartimenti di Eccellenza 2023-2027”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

The authors would like to acknowledge the invaluable technical assistance provided by Anna Bonomo and Daiana della Ventura.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ren, W.; Xia, W.; Gunes, D.Z.; Ahrné, L. Heat-induced gels from pea protein soluble colloidal aggregates: Effect of calcium addition or pH adjustment on gelation behavior and rheological properties. Food Hydrocoll. 2024, 147, 109417. [Google Scholar] [CrossRef]
  2. Aiking, H. Future protein supply. Trends Food Sci. Technol. 2011, 22, 112–120. [Google Scholar] [CrossRef]
  3. Schutyser, M.; van der Goot, A. The potential of dry fractionation processes for sustainable plant protein production. Trends Food Sci. Technol. 2011, 22, 154–164. [Google Scholar] [CrossRef]
  4. Schutyser, M.; Pelgrom, P.; van der Goot, A.; Boom, R. Dry fractionation for sustainable production of functional legume protein concentrates. Trends Food Sci. Technol. 2015, 45, 327–335. [Google Scholar] [CrossRef]
  5. Keshavarz, R.; Didinger, C.; Duncan, A.; Thompson, H. Pulse crops and their key role as staple foods in healthful eating patterns. Crop Ser. Prod. 2020. [Google Scholar]
  6. Tachie, C.; Nwachukwu, I.D.; Aryee, A.N. Trends and innovations in the formulation of plant-based foods. Food Prod. Process. Nutr. 2023, 5, 1–14. [Google Scholar] [CrossRef]
  7. Johansson, M.; Johansson, D.; Ström, A.; Rydén, J.; Nilsson, K.; Karlsson, J.; Moriana, R.; Langton, M. Effect of starch and fibre on faba bean protein gel characteristics. Food Hydrocoll. 2022, 131, 107741. [Google Scholar] [CrossRef]
  8. Crépon, K.; Marget, P.; Peyronnet, C.; Carrouée, B.; Arese, P.; Duc, G. Nutritional value of faba bean (Vicia faba L.) seeds for feed and food. Field Crop. Res. 2010, 115, 329–339. [Google Scholar] [CrossRef]
  9. Warsame, A.O.; O'Sullivan, D.M.; Tosi, P. Seed Storage Proteins of Faba Bean (Vicia faba L): Current Status and Prospects for Genetic Improvement. J. Agric. Food Chem. 2018, 66, 12617–12626. [Google Scholar] [CrossRef]
  10. Jiang, Z.-Q.; Wang, J.; Stoddard, F.; Salovaara, H.; Sontag-Strohm, T. Preparation and characterization of emulsion gels from whole faba bean flour. Foods 2020, 9, 755. [Google Scholar] [CrossRef]
  11. Labba, I.-C.M.; Frøkiær, H.; Sandberg, A.-S. Nutritional and antinutritional composition of fava bean (Vicia faba L., var. minor) cultivars. Food Res. Int. 2021, 140, 110038. [Google Scholar] [CrossRef] [PubMed]
  12. Hall, C.; Hillen, C.; Garden Robinson, J. Composition, nutritional value, and health benefits of pulses. Cereal Chem. 2017, 94, 11–31. [Google Scholar] [CrossRef]
  13. Caprioli, G.; Giusti, F.; Ballini, R.; Sagratini, G.; Vila-Donat, P.; Vittori, S.; Fiorini, D. Lipid nutritional value of legumes: Evaluation of different extraction methods and determination of fatty acid composition. Food Chem. 2016, 192, 965–971. [Google Scholar] [CrossRef] [PubMed]
  14. Badia-Olmos, C.; Laguna, L.; Haros, C.M.; Tárrega, A. Techno-functional and rheological properties of alternative plant-based flours. Foods 2023, 12, 1411. [Google Scholar] [CrossRef] [PubMed]
  15. Joshi, M.; Aldred, P.; Panozzo, J.; Kasapis, S.; Adhikari, B. Rheological and microstructural characteristics of lentil starch–lentil protein composite pastes and gels. Food Hydrocoll. 2014, 35, 226–237. [Google Scholar] [CrossRef]
  16. Morris, E.R. Mixed polymer gels. In Food Gels; Springer: Dordrecht, The Netherlands, 1990; pp. 291–359. [Google Scholar]
  17. Nicolai, T.; Chassenieux, C. Heat-induced gelation of plant globulins. Curr. Opin. Food Sci. 2019, 27, 18–22. [Google Scholar] [CrossRef]
  18. Nicolai, T. Gelation of food protein-protein mixtures. Adv. Colloid Interface Sci. 2019, 270, 147–164. [Google Scholar] [CrossRef] [PubMed]
  19. Zhang, L.; Liang, R.; Li, L. The interaction between anionic polysaccharides and legume protein and their influence mechanism on emulsion stability. Food Hydrocoll. 2022, 131, 107814. [Google Scholar] [CrossRef]
  20. Visschers, R.W.; de Jongh, H.H. Disulphide bond formation in food protein aggregation and gelation. Biotechnol. Adv. 2005, 23, 75–80. [Google Scholar] [CrossRef]
  21. Renkema, J.M.; Lakemond, C.M.; de Jongh, H.H.; Gruppen, H.; van Vliet, T. The effect of pH on heat denaturation and gel forming properties of soy proteins. J. Biotechnol. 2000, 79, 223–230. [Google Scholar] [CrossRef]
  22. Totosaus, A.; Montejano, J.G.; Salazar, J.A.; Guerrero, I. A review of physical and chemical protein-gel induction. Int. J. Food Sci. Technol. 2002, 37, 589–601. [Google Scholar] [CrossRef]
  23. Ma, K.K.; Greis, M.; Lu, J.; Nolden, A.A.; McClements, D.J.; Kinchla, A.J. Functional performance of plant proteins. Foods 2022, 11, 594. [Google Scholar] [CrossRef] [PubMed]
  24. Ma, Z.; Boye, J.I.; Simpson, B.K.; Prasher, S.O.; Monpetit, D.; Malcolmson, L. Thermal processing effects on the functional properties and microstructure of lentil, chickpea, and pea flours. Food Res. Int. 2011, 44, 2534–2544. [Google Scholar] [CrossRef]
  25. Nilsson, K.; Johansson, M.; Sandström, C.; Röhnisch, H.E.; Hedenqvist, M.S.; Langton, M. Pasting and gelation of faba bean starch-protein mixtures. Food Hydrocoll. 2023, 138, 108494. [Google Scholar] [CrossRef]
  26. Tang, Q.; Roos, Y.H.; Miao, S. Plant protein versus dairy proteins: A pH-dependency investigation on their structure and functional properties. Foods 2023, 12, 368. [Google Scholar] [CrossRef]
  27. Bashir, K.; Aggarwal, M. Effects of gamma irradiation on the physicochemical, thermal and functional properties of chickpea flour. LWT 2016, 69, 614–622. [Google Scholar] [CrossRef]
  28. Renkema, J.M.; Gruppen, H.; Van Vliet, T. Influence of pH and ionic strength on heat-induced formation and rheological properties of soy protein gels in relation to denaturation and their protein compositions. J. Agric. Food Chem. 2002, 50, 6064–6071. [Google Scholar] [CrossRef] [PubMed]
  29. Grasso, N.; Bot, F.; Roos, Y.; Crowley, S.; Arendt, E.; O’Mahony, J. The influence of protein concentration on key quality attributes of chickpea-based alternatives to cheese. Curr. Res. Food Sci. 2022, 5, 2004–2012. [Google Scholar] [CrossRef]
  30. Withana-Gamage, T.S.; Wanasundara, J.P.; Pietrasik, Z.; Shand, P.J. Physicochemical, thermal and functional characterisation of protein isolates from Kabuli and Desi chickpea (Cicer arietinum L.): A comparative study with soy (Glycine max) and pea (Pisum sativum L.). J. Sci. Food Agric. 2011, 91, 1022–1031. [Google Scholar] [CrossRef]
  31. Kaur, M.; Singh, N. Characterization of protein isolates from different Indian chickpea (Cicer arietinum L.) cultivars. Food Chem. 2007, 102, 366–374. [Google Scholar] [CrossRef]
  32. Paredes-López, O.; Ordorica-Falomir, C.; Olivares-Vázquez, M. Chickpea protein isolates: Physicochemical, functional and nutritional characterization. J. Food Sci. 1991, 56, 726–729. [Google Scholar] [CrossRef]
  33. Mousazadeh, M.; Mousavi, M.; Askari, G.; Kiani, H.; Adt, I.; Gharsallaoui, A. Thermodynamic and physiochemical insights into chickpea protein-Persian gum interactions and environmental effects. Int. J. Biol. Macromol. 2018, 119, 1052–1058. [Google Scholar] [CrossRef] [PubMed]
  34. Henshaw, F.O.; McWatters, K.H.; Akingbala, J.O.; Chinnan, M.S. Thermal properties of cowpea flour: A study by differential scanning calorimetry. Mol. Nutr. Food Res. 2003, 47, 161–165. [Google Scholar] [CrossRef] [PubMed]
  35. Akharume, F.U.; Aluko, R.E.; Adedeji, A.A. Modification of plant proteins for improved functionality: A review. Compr. Rev. Food Sci. Food Saf. 2021, 20, 198–224. [Google Scholar] [CrossRef]
  36. Vioque, J.; Sánchez-Vioque, R.; Clemente, A.; Pedroche, J.; Bautista, J.; Millan, F. Production and characterization of an extensive rapeseed protein hydrolysate. J. Am. Oil Chem. Soc. 1999, 76, 819–823. [Google Scholar] [CrossRef]
  37. Guldiken, B.; Stobbs, J.; Nickerson, M. Heat induced gelation of pulse protein networks. Food Chem. 2021, 350, 129158. [Google Scholar] [CrossRef]
  38. Tang, Q.; Roos, Y.H.; Miao, S. Comparative studies of structural and thermal gelation behaviours of soy, lentil and whey protein: A pH-dependency evaluation. Food Hydrocoll. 2024, 146, 109240. [Google Scholar] [CrossRef]
  39. De Berardinis, L.; Plazzotta, S.; Manzocco, L. Optimising soy and pea protein gelation to obtain hydrogels intended as precursors of food-grade dried porous materials. Gels 2023, 9, 62. [Google Scholar] [CrossRef]
  40. Yiu, C.C.-Y.; Liang, S.W.; Mukhtar, K.; Kim, W.; Wang, Y.; Selomulya, C. Food emulsion gels from plant-based ingredients: Formulation, processing, and potential applications. Gels 2023, 9, 366. [Google Scholar] [CrossRef]
  41. Chassenieux, C.; Nicolai, T. Mechanical properties and microstructure of (emul)gels formed by mixtures of proteins and polysaccharides. Curr. Opin. Colloid Interface Sci. 2023, 70, 101781. [Google Scholar] [CrossRef]
  42. Fernández-Quintela, A.; Macarulla, M.T.; del Barrio, A.S.; Martínez, J.A. Composition and functional properties of protein isolates obtained from commercial legumes grown in northern Spain. Plant Foods Hum. Nutr. 1997, 51, 331–341. [Google Scholar] [CrossRef] [PubMed]
  43. Zha, F.; Rao, J.; Chen, B. Plant-based food hydrogels: Constitutive characteristics, formation, and modulation. Curr. Opin. Colloid Interface Sci. 2021, 56, 101505. [Google Scholar] [CrossRef]
  44. Singh, J.; Singh, N. Studies on the morphological, thermal and rheological properties of starch separated from some Indian potato cultivars. Food Chem. 2001, 75, 67–77. [Google Scholar] [CrossRef]
  45. Aryee, A.N.; Boye, J.I. Comparative Study of the Effects of processing on the nutritional, physicochemical and functional properties of lentil. J. Food Process. Preserv. 2017, 41, e12824. [Google Scholar] [CrossRef]
  46. Foegeding, E.A.; Davis, J.P. Food protein functionality: A comprehensive approach. Food Hydrocoll. 2011, 25, 1853–1864. [Google Scholar] [CrossRef]
  47. Cruz, N.; Capellas, M.; Jaramillo, D.; Trujillo, A.; Guamis, B.; Ferragut, V. Soymilk treated by ultra high-pressure homogenization: Acid coagulation properties and characteristics of a soy-yogurt product. Food Hydrocoll. 2009, 23, 490–496. [Google Scholar] [CrossRef]
  48. Pelgrom, P.J.; Vissers, A.M.; Boom, R.M.; Schutyser, M.A. Dry fractionation for production of functional pea protein concentrates. Food Res. Int. 2013, 53, 232–239. [Google Scholar] [CrossRef]
  49. Patrascu, L.; Vasilean, I.; Banu, I.; Aprodu, I. Functional properties of pulse flours and their opportunities in spreadable food products. Qual. Assur. Saf. Crop. Foods 2017, 9, 67–78. [Google Scholar] [CrossRef]
  50. Sreerama, Y.N.; Sashikala, V.B.; Pratape, V.M.; Singh, V. Nutrients and antinutrients in cowpea and horse gram flours in comparison to chickpea flour: Evaluation of their flour functionality. Food Chem. 2012, 131, 462–468. [Google Scholar] [CrossRef]
  51. Kumitch, H.M.; Stone, A.K.; Nickerson, M.T.; Korber, D.R.; Tanaka, T. Effect of fermentation time on the physicochemical and functional properties of pea protein-enriched flour fermented by Aspergillus oryzae and Aspergillus niger. Cereal Chem. 2020, 97, 416–428. [Google Scholar] [CrossRef]
  52. Ratnayake, W.S.; Hoover, R.; Warkentin, T. Pea starch: Composition, structure and properties—A review. Starch-Stärke 2002, 54, 217–234. [Google Scholar] [CrossRef]
  53. Zhang, H.; Yin, L.; Zheng, Y.; Shen, J. Rheological, textural, and enzymatic hydrolysis properties of chickpea starch from a Chinese cultivar. Food Hydrocoll. 2016, 54, 23–29. [Google Scholar] [CrossRef]
  54. Kalichevsky, M.T.; Orford, P.D.; Ring, S.G. The retrogradation and gelation of amylopectins from various botanical sources. Carbohydr. Res. 1990, 198, 49–55. [Google Scholar] [CrossRef]
  55. O’Kane, F.E.; Happe, R.P.; Vereijken, J.M.; Gruppen, H.; van Boekel, M.A.J.S. Heat-induced gelation of pea legumin: Comparison with soybean glycinin. J. Agric. Food Chem. 2004, 52, 5071–5078. [Google Scholar] [CrossRef]
  56. Dille, M.; Draget, K.; Hattrem, M. The effect of filler particles on the texture of food gels. In Modifying Food Texture; Chen, J., Rosenthal, A., Eds.; Woodhead Publishing: Amsterdam, The Netherlands, 2015; pp. 183–200. [Google Scholar]
  57. Kornet, R.; Veenemans, J.; Venema, P.; van der Goot, A.J.; Meinders, M.; Sagis, L.; van der Linden, E. Less is more: Limited fractionation yields stronger gels for pea proteins. Food Hydrocoll. 2021, 112, 106285. [Google Scholar] [CrossRef]
  58. Sun, X.D.; Arntfield, S.D. Molecular forces involved in heat-induced pea protein gelation: Effects of various reagents on the rheological properties of salt-extracted pea protein gels. Food Hydrocoll. 2012, 28, 325–332. [Google Scholar] [CrossRef]
  59. Ronda, F.; Oliete, B.; Gómez, M.; Caballero, P.A.; Pando, V. Rheological study of layer cake batters made with soybean protein isolate and different starch sources. J. Food Eng. 2011, 102, 272–277. [Google Scholar] [CrossRef]
  60. Feng, Y.-Y.; Mu, T.-H.; Zhang, M.; Ma, M.-M. Effects of different polysaccharides and proteins on dough rheological properties, texture, structure and in vitro starch digestibility of wet sweet potato vermicelli. Int. J. Biol. Macromol. 2020, 148, 1–10. [Google Scholar] [CrossRef] [PubMed]
  61. Bandyopadhyay, R.; Liang, D.; Harden, J.L.; Leheny, R.L. Slow dynamics, aging, and glassy rheology in soft and living matter. Solid State Commun. 2006, 139, 589–598. [Google Scholar] [CrossRef]
  62. Johansson, M.; Xanthakis, E.; Langton, M.; Menzel, C.; Vilaplana, F.; Johansson, D.P.; Lopez-Sanchez, P. Mixed legume systems of pea protein and unrefined lentil fraction: Textural properties and microstructure. LWT 2021, 144, 111212. [Google Scholar] [CrossRef]
  63. Kim, Y.; Kee, J.I.; Lee, S.; Yoo, S.-H. Quality improvement of rice noodle restructured with rice protein isolate and transglutaminase. Food Chem. 2014, 145, 409–416. [Google Scholar] [CrossRef] [PubMed]
  64. Sang, S.; Zhang, H.; Xu, L.; Chen, Y.; Xu, X.; Jin, Z.; Yang, N.; Wu, F.; Li, D. Functionality of ovalbumin during Chinese steamed bread-making processing. Food Chem. 2018, 253, 203–210. [Google Scholar] [CrossRef] [PubMed]
  65. Wang, W.; Chen, W.; Yang, H.; Cui, M. Textural and rheological properties of potato starch as affected by amino acids. Int. J. Food Prop. 2017, 20, S3123–S3134. [Google Scholar] [CrossRef]
  66. Zhou, J.; Liu, J.; Tang, X. Effects of whey and soy protein addition on bread rheological property of wheat flour. J. Texture Stud. 2018, 49, 38–46. [Google Scholar] [CrossRef] [PubMed]
  67. Yang, C.; Zhong, F.; Goff, H.D.; Li, Y. Study on starch-protein interactions and their effects on physicochemical and digestible properties of the blends. Food Chem. 2019, 280, 51–58. [Google Scholar] [CrossRef] [PubMed]
  68. Wang, F.; Huang, W.; Kim, Y.; Liu, R.; Tilley, M. Effects of transglutaminase on the rheological and noodle-making characteristics of oat dough containing vital wheat gluten or egg albumin. J. Cereal Sci. 2011, 54, 53–59. [Google Scholar] [CrossRef]
  69. Ribotta, P.D.; Colombo, A.; Rosell, C.M. Enzymatic modifications of pea protein and its application in protein–cassava and corn starch gels. Food Hydrocoll. 2012, 27, 185–190. [Google Scholar] [CrossRef]
  70. Qiu, C.; Li, X.; Ji, N.; Qin, Y.; Sun, Q.; Xiong, L. Rheological properties and microstructure characterization of normal and waxy corn starch dry heated with soy protein isolate. Food Hydrocoll. 2015, 48, 1–7. [Google Scholar] [CrossRef]
  71. Chen, B.; Zhang, B.; Li, M.-N.; Xie, Y.; Chen, H.-Q. Effects of glutenin and gliadin modified by protein-glutaminase on pasting, rheological properties and microstructure of potato starch. Food Chem. 2018, 253, 148–155. [Google Scholar] [CrossRef]
  72. Schlangen, M.; Dinani, S.T.; Schutyser, M.A.; van der Goot, A.J. Dry fractionation to produce functional fractions from mung bean, yellow pea and cowpea flour. Innov. Food Sci. Emerg. Technol. 2022, 78, 103018. [Google Scholar] [CrossRef]
  73. Boye, J.; Aksay, S.; Roufik, S.; Ribéreau, S.; Mondor, M.; Farnworth, E.; Rajamohamed, S. Comparison of the functional properties of pea, chickpea and lentil protein concentrates processed using ultrafiltration and isoelectric precipitation techniques. Food Res. Int. 2010, 43, 537–546. [Google Scholar] [CrossRef]
  74. Möller, A.C.; van der Padt, A.; van der Goot, A.J. Influence of the fractionation method on the protein composition and functional properties. Innov. Food Sci. Emerg. Technol. 2022, 81, 103144. [Google Scholar] [CrossRef]
  75. Joyner, H.S.; Wicklund, R.A.; Templeton, C.M.; Howarth, L.G.; Wong, S.-S.; Anvari, M.; Whaley, J.K. Development of starch texture rheological maps through empirical modelling of starch swelling behavior. Food Hydrocoll. 2021, 120, 106920. [Google Scholar] [CrossRef]
  76. Yousefi, A.R.; Razavi, S.M.A. Dynamic rheological properties of wheat starch gels as affected by chemical modification and concentration. Starch–Stärke 2015, 67, 567–576. [Google Scholar] [CrossRef]
Gels 10 00309 g001

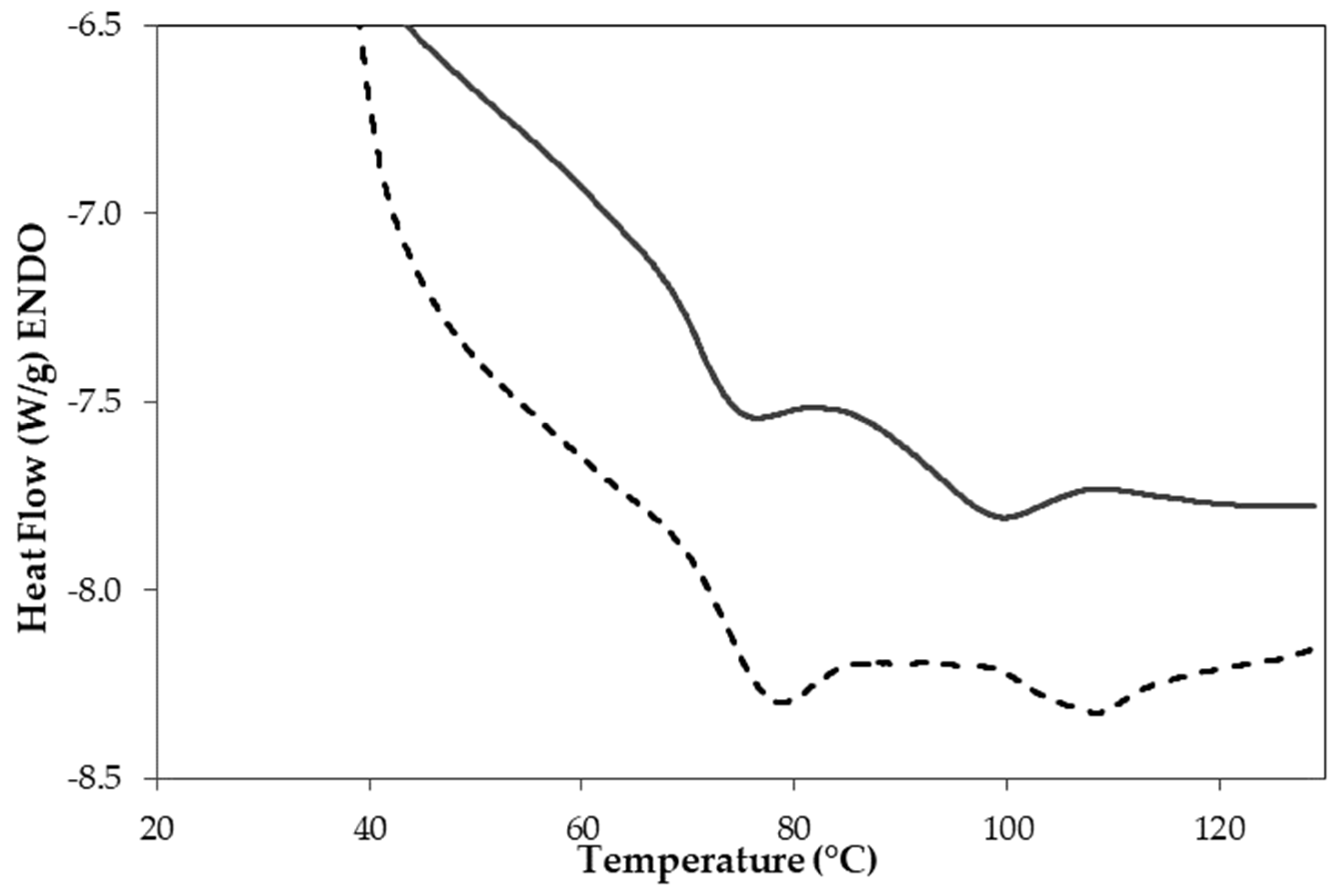

Figure 1. Differential scanning calorimetry thermogram of hydrated faba bean (Gels 10 00309 i001) and chickpeas (Gels 10 00309 i002) flours.
Figure 1. Differential scanning calorimetry thermogram of hydrated faba bean (Gels 10 00309 i001) and chickpeas (Gels 10 00309 i002) flours.
Gels 10 00309 g001
Gels 10 00309 g002

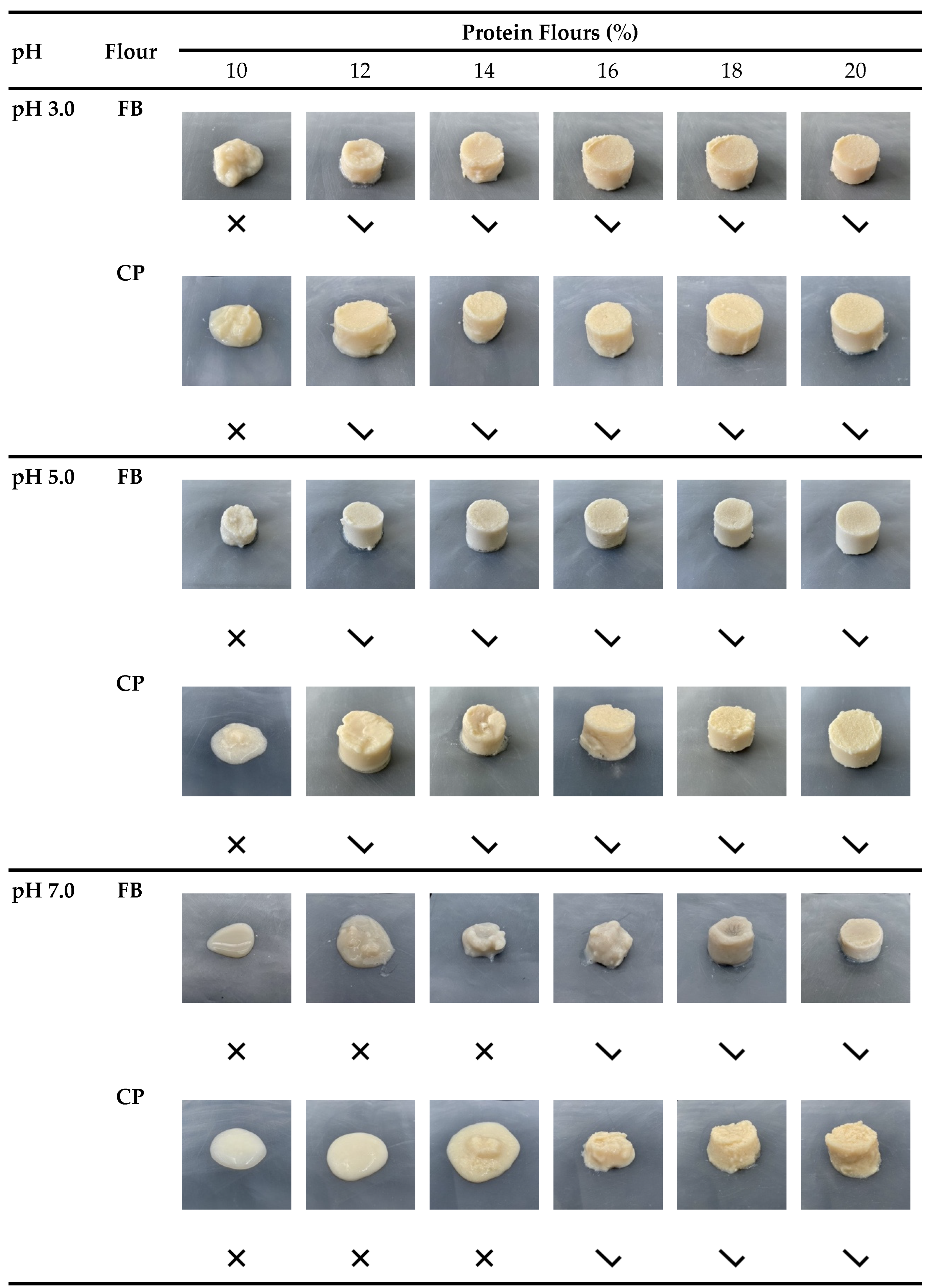

Figure 2. Sol-gel transition diagram of faba bean (FB) and chickpeas (CP) flours at 10, 12, 14, 16, 18, 20% (w/w) and pH 3.0, 5.0, and 7.0 Symbol Gels 10 00309 i003 indicates a gel-like structure and symbol Gels 10 00309 i004 indicates a liquid or aggregate-like structure.
Figure 2. Sol-gel transition diagram of faba bean (FB) and chickpeas (CP) flours at 10, 12, 14, 16, 18, 20% (w/w) and pH 3.0, 5.0, and 7.0 Symbol Gels 10 00309 i003 indicates a gel-like structure and symbol Gels 10 00309 i004 indicates a liquid or aggregate-like structure.
Gels 10 00309 g002
Gels 10 00309 g003

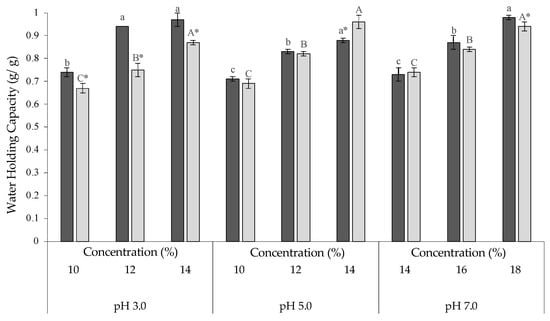

Figure 3. Water holding capacity of faba beans (FB) (Gels 10 00309 i005) and chickpeas (CP) (Gels 10 00309 i006) gels at 10, 12, and 14% at pH 3.0 and 5.0, and 14, 16, and 18% at pH 7.0. Different lowercase (a, b, c) (FB) and uppercase (A, B, C) (CP) letters indicate significant (p < 0.05) differences among the same source and same pH. Differences between sources (FB and CP) within the same pH and concentration are indicated with *.
Figure 3. Water holding capacity of faba beans (FB) (Gels 10 00309 i005) and chickpeas (CP) (Gels 10 00309 i006) gels at 10, 12, and 14% at pH 3.0 and 5.0, and 14, 16, and 18% at pH 7.0. Different lowercase (a, b, c) (FB) and uppercase (A, B, C) (CP) letters indicate significant (p < 0.05) differences among the same source and same pH. Differences between sources (FB and CP) within the same pH and concentration are indicated with *.
Gels 10 00309 g003
Gels 10 00309 g004aGels 10 00309 g004b

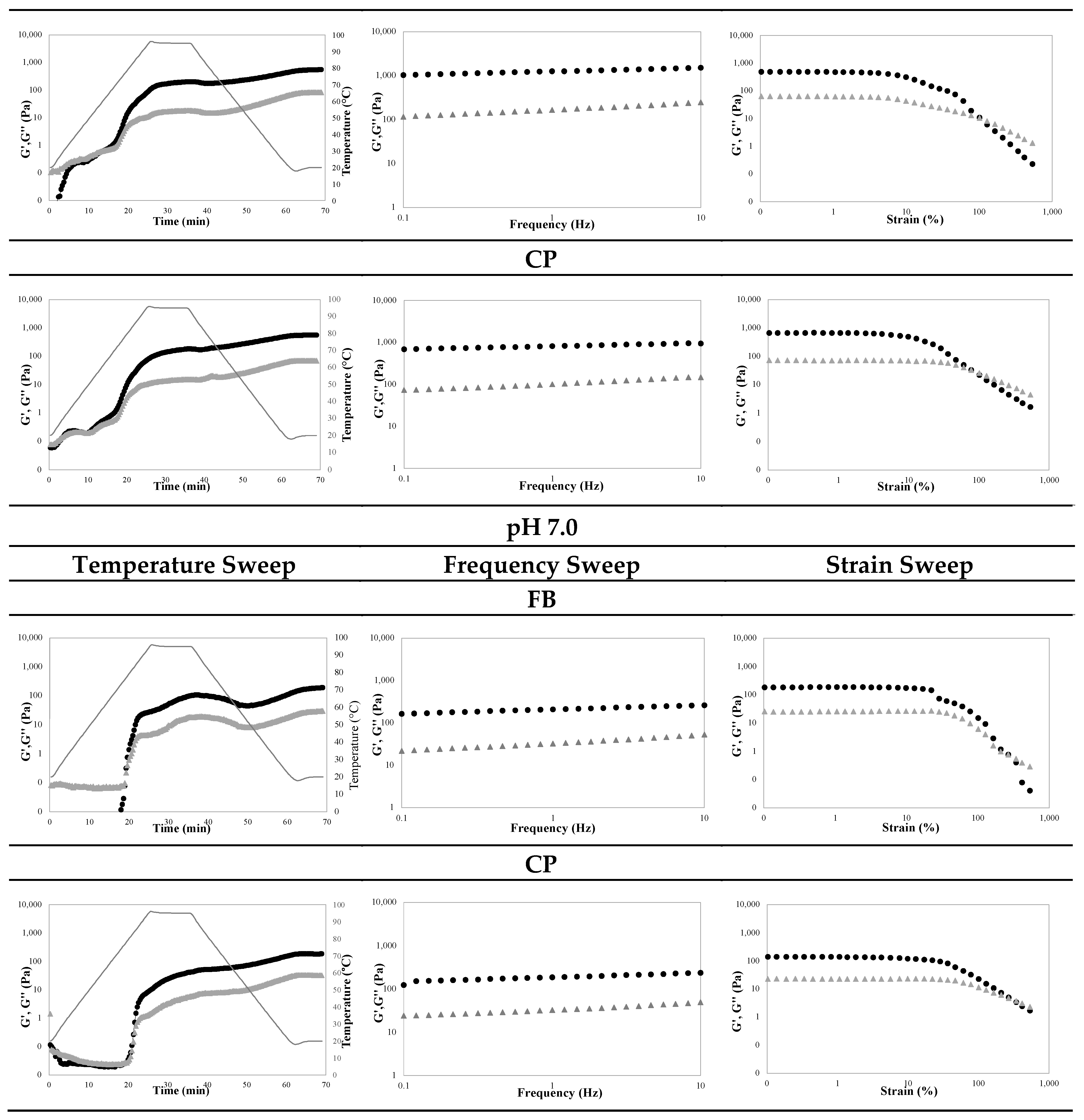

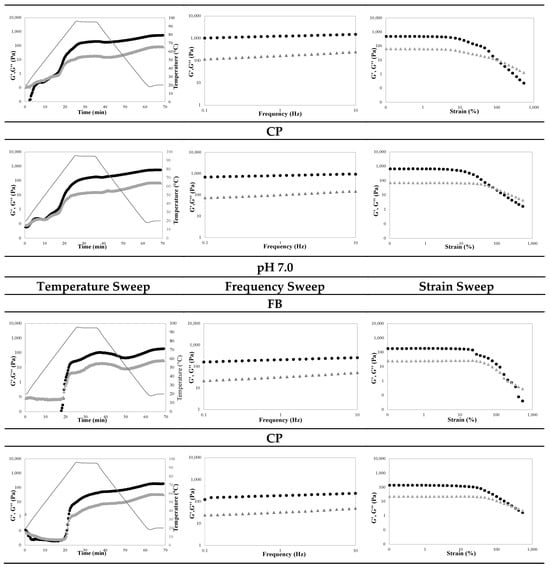

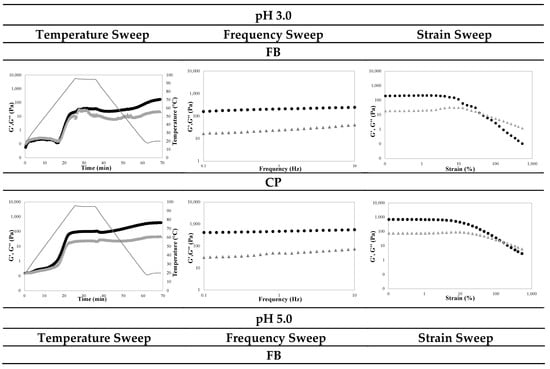

Figure 4. Temperature, frequency, and strain amplitude sweeps of faba bean (FB) and chickpea (CP) gels at pH 3.0, 5.0, 7.0 at the minimum gelling concentration (MGC). G′: black point symbols, G″: grey triangle symbols.
Figure 4. Temperature, frequency, and strain amplitude sweeps of faba bean (FB) and chickpea (CP) gels at pH 3.0, 5.0, 7.0 at the minimum gelling concentration (MGC). G′: black point symbols, G″: grey triangle symbols.
Gels 10 00309 g004aGels 10 00309 g004b
Table 1. Average elastic moduli (G′) and loss factors (tan δ) of the gelled faba bean (FB) and chickpea (CP) gels at 10, 12, and 14% pH 3.0 and 5.0, and 14, 16, and 18% at pH 7.0. The elastic moduli and loss factor correspond with the values of the last data point from the temperature sweeps and the critical strains. Data are taken from the temperature sweeps. Different lowercase (a, b, (FB) and uppercase (A, B, C) (CP) letters indicate significant (p < 0.05) differences among the same source and same pH. Differences between sources (FB and CP) within the same pH and concentration are indicated with *.
Table 1. Average elastic moduli (G′) and loss factors (tan δ) of the gelled faba bean (FB) and chickpea (CP) gels at 10, 12, and 14% pH 3.0 and 5.0, and 14, 16, and 18% at pH 7.0. The elastic moduli and loss factor correspond with the values of the last data point from the temperature sweeps and the critical strains. Data are taken from the temperature sweeps. Different lowercase (a, b, (FB) and uppercase (A, B, C) (CP) letters indicate significant (p < 0.05) differences among the same source and same pH. Differences between sources (FB and CP) within the same pH and concentration are indicated with *.
G′ (Pa)tan δ (-)G′ (Pa)tan δ (-)G′ (Pa)tan δ (-)
Concentration (%)101214
pH 3.0FB32.21 ± 12.66 b*0.15 ± 0.05 a159.01 ± 38.57 b*0.14 ± 0.04 a1505.39 ± 117.52 a0.15 ± 0.06 a
CP631.42 ± 23.83 C0.11 ± 0.01 A869.75 ± 35.31 B0.11 ± 0.00 A1254.51 ± 100.47 A0.11 ± 0.00 A
Concentration (%)101214
pH 5.0FB424.95 ± 48.20 b0.14 ± 0.00 a*552.65 ± 131.54 b0.15 ± 0.00 a1144.25 ± 83.8 a0.14 ± 0.01 a
CP238.07 ± 29.14 C*0.16 ± 0.01 A590.06 ± 93.26 B0.13 ± 0.01 B*1038.40 ± 66.88 A0.13 ± 0.01 B*
Concentration (%)141618
pH 7.0FB113.75 ± 29.02 a0.14 ± 0.05 a186.91 ± 44.39 a0.15 ± 0.00 a194.03 ± 29.31 a*0.16 ± 0.01 a
CP111.02 ± 14.55 C0.18 ± 0.01 A162.82 ± 21.31 B0.18 ± 0.01 A413.85 ± 58.0 A0.18 ± 0.01 A
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mengozzi, A.; Chiavaro, E.; Barbanti, D.; Bot, F. Heat-Induced Gelation of Chickpea and Faba Bean Flour Ingredients. Gels 2024, 10, 309. https://doi.org/10.3390/gels10050309

AMA Style

Mengozzi A, Chiavaro E, Barbanti D, Bot F. Heat-Induced Gelation of Chickpea and Faba Bean Flour Ingredients. Gels. 2024; 10(5):309. https://doi.org/10.3390/gels10050309

Chicago/Turabian Style

Mengozzi, Anna, Emma Chiavaro, Davide Barbanti, and Francesca Bot. 2024. "Heat-Induced Gelation of Chickpea and Faba Bean Flour Ingredients" Gels 10, no. 5: 309. https://doi.org/10.3390/gels10050309

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
