Article

Clap-and-Fling Mechanism of Climbing-Flight Coccinella Septempunctata

1
Robotics Institute, Beihang University, Beijing 100191, China
2
Beijing Advanced Innovation Center for Biomedical Engineers, Beihang University, Beijing 100191, China
*
Author to whom correspondence should be addressed.
Biomimetics 2024, 9(5), 282; https://doi.org/10.3390/biomimetics9050282
Submission received: 14 March 2024 / Revised: 4 May 2024 / Accepted: 5 May 2024 / Published: 9 May 2024

Abstract

:
Previous studies on the clap–fling mechanism have predominantly focused on the initial downward and forward phases of flight in miniature insects, either during hovering or forward flight. However, this study presents the first comprehensive kinematic data of Coccinella septempunctata during climbing flight. It reveals, for the first time, that a clap-and-fling mechanism occurs during the initial upward and backward phase of the hind wings’ motion. This discovery addresses the previously limited understanding of the clap-and-fling mechanism by demonstrating that, during the clap motion, the leading edges of beetle’s wings come into proximity to form a figure-eight shape before rotating around their trailing edge to open into a “V” shape. By employing numerical solutions to solve Navier–Stokes (N-S) equations, we simulated both single hind wings’ and double hind wings’ aerodynamic conditions. Our findings demonstrate that this fling mechanism not only significantly enhances the lift coefficient by approximately 9.65% but also reduces the drag coefficient by about 1.7%, indicating an extension of the applicability range of this clap-and-fling mechanism beyond minute insect flight. Consequently, these insights into insect flight mechanics deepen our understanding of their biological characteristics and inspire advancements in robotics and biomimetics.

1. Introduction

Over the past 30 years, flying insects have garnered significant attention in engineering and science. This interest is due to the similarity in length, velocity scales, and flight conditions between these insects and micro air vehicles (MAVs) [1,2,3]. Micro air vehicles (MAVs) typically feature a wingspan of under roughly 15 cm and weigh less than 100 g, operating at low Reynolds numbers below 105 [4]. During this flow regime, there is a significant deterioration in the aerodynamic performance of fixed wings, particularly in the lift-to-drag ratio and restructure content, while a flapping flight becomes more efficient due to the unsteady flow mechanisms [2,3,5,6,7]. As a result, the lift generation mechanisms associated with the flapping flight of various insects, including fruit flies, bumblebees, hawkmoths, rhinoceros beetles, cicadas, and mosquitoes, have been the subject of extensive research by many scientists [8,9,10,11,12,13,14].
Understanding the aerodynamic characteristics of flapping wings is vital in designing insect-styled micro air vehicles (MAVs). It is exceedingly challenging and practically unfeasible to directly gauge the aerodynamic forces and moments acting on a freely flying insect and to map the flow field around the wings. To overcome the challenge of direct measurement, researchers can employ experimental or numerical methods to estimate the aerodynamic forces and moments on model wing replicas of insect wings [9,15,16,17,18].
In the present study, we focus on the Coleoptera beetle species Coccinella septempunctata in Figure 1a, among various flying insects, as it is one of the heaviest of the smaller-size insects and has a pair of thick elytra among the biological flyers that meet the weight and size requirements of MAV [19,20,21,22]. Meanwhile, there have been few investigators who have studied the flight mechanism of the Coleopteran beetle [23,24,25,26,27].
Weis-Fogh initially discovered the clap-and-fling mechanism and its role in enhancing lift while investigating the diminutive wasp Encarsia formosa [28]. Experts typically characterize the clap-and-fling mechanism as such [29,30,31,32]: The clap occurs at the end of the upward wing motion, where the wings’ leading edges make contact. Subsequently, the wings rotate about the leading edge, eliminating the space between them; this action expels a downward jet of fluid due to the clapping motion, resulting in a significant upward force. During the fling phase, which marks the start of the downward wing movement, the wings rotate around the trailing edge, causing them to separate or fling apart rapidly. In the current paper, we designated this mechanism as the “ideal” clap-and-fling mechanism, since no quantitative kinematic measurements were available for the wings to facilitate its detailed description.
Most previous studies have found the clap–fling mechanism in tiny insects, including the greenhouse whitefly Trialeurodes vaporariorum [33], Thrips physique [34], Muscidifurax raptor wasps, and Nasonia vitripennis [35]. The clap-and-fling mechanism, observed in all these species, is thought by researchers to be a pivotal contributor to lift generation in tiny insects, leading to additional inquiries into the unique kinematics of this action [35,36,37,38,39,40]. Reevaluating the mechanism with a focus on the dynamics of wing motion and the generation of force, supported by accurate insect motion data and fluid dynamics analysis, we recommend adjustments to its current portrayal [37]: During the clap phase, the wings adjust to a pronounced angle of attack well before nearing each other, approaching one another with their surfaces nearly in a vertical orientation, followed by an upward vertical movement; in essence, the theoretical depiction of the clap motion diverges significantly from actual observations. The fling phase resembles the theoretical ideal, albeit with an exception. Researchers have studied some novel flap–fling mechanisms [4,36,37,38,41]. In conclusion, because previous research on the flapping mechanism did not involve the Coleoptera, and there is also a lack of research on insect movement other than hovering and forward flight, there has not been a complete understanding of the flapping motion.
The wing system of Coleopteran insects uniquely consists of highly flexible hindwings, which are folded and covered by rigid elytra (forewings). This mechanism differs from that of dragonflies, cicadas, and butterflies, which all have front and rear wing structures. Researchers have not explored small Coleoptera insects’ kinematic measurement and flight mechanisms in climbing flight. The contributions are (1) This study presents the first comprehensive kinematic data of the Coccinella septempunctata during climbing flight, revealing a previously unobserved clap-and-fling mechanism during the initial upward and backward phase of the hind wings’ motion. (2) Through numerical simulation of the Navier–Stokes equations, the research demonstrates that the clap-and-fling mechanism significantly enhances lift by approximately 9.65% while reducing drag by about 1.7%, broadening the mechanism’s applicability beyond the flight of minute insects. (3). The findings offer new insights into insect flight mechanics, enhancing our understanding of insect biological characteristics and inspiring advancements in robotics and biomimetics.

2. Materials and Methods

2.1. Wing Kinematics and Morphological Parameters

We captured Coccinella septempunctata in a school garden. All flight experiments were conducted from 12:00 to 14:00 on the capture day when insects exhibited peak activity levels. Consequently, the researchers selected only the most vigorous individuals as test subjects for the experiments. Due to their positive phototactic behavior, Coccinella septempunctata primarily exhibit climbing flight. In the center of the flight zone, researchers positioned a vertical branch. The initial behavior of Coccinella septempunctata involves flying from the top of this branch, with data collected from the stable phase of its free flight.
We utilized three orthogonally aligned, synchronized high-speed cameras (i-SPEED 716, capable of capturing 5000 frames per second, with a shutter speed of 50 μs and a resolution of 2048 × 1596 pixels) to capture the 3D kinematics of the wings and body of Coccinella septempunctata during climbing flight. LED arrays, the light source, were employed to illuminate the focal area and enhance image quality. The researchers synchronized the three cameras by inputting the same signal from a signal generator. We developed a specialized toolbox for Matlab designed to extract the positions and orientations of the wings and body of the Coccinella septempunctata from images captured by all three cameras.
Following the flight recording sequence, we subjected the insects to anesthesia and subsequently ascertained the total mass of the Coccinella septempunctata using a BT25S lab scale from Sartorius AG, Göettingen, Germany, with a precision of up to ±0.01 mg. We digitally recorded the configuration of the wings using a microscope that featured an electronic eyepiece boasting a display resolution of 2048 × 1536. The researchers used video sequences to reconstruct the insect’s body shape, treating the cross-sections as simplified elliptical shapes [42]. Once we had collected all morphological parameters, we manually measured body and wing kinematics frame by frame, employing a binocular stereoscopic technique, as suggested in the references [43,44]. This approach required carefully adjusting the models’ position and orientation to achieve an overlay with the physical captures from the three distinct views.
Researchers captured the climbs of a Coccinella septempunctata using high-speed cameras, analyzing wing movements over five wingbeat cycles. Figure 1 illustrates both the movement parameters of the wings and their coordinate system, following established guidelines. This system starts at the left hind wing base, using axes (X, Y, Z) where X is backward, Y is up against gravity, and Z is to the left, with the (X, Z) plane being horizontal. The study outlines how the stroke-plane angle (β) is the angle between this horizontal plane and the path made by the wing’s shoulder and tip during wingbeats. It also sets up a coordinate system (xs, ys, zs), with ys perpendicular to the wing’s movement plane, zs lined up with the Z-axis, and xs following a right-hand rule. We then modify this system to match the wing’s movement through three rotations—sweeping, out-of-plane deviation, and pitching—that align with the wing’s thickness, chord, and span directions. The sweeping angle (ϕ) shows the zs-axis and z-axis relationship on the movement plane. The heaving angle (θ) and the pitching angle (η) measure how the wing tilts and rotates around the z-axis.

2.2. Aerodynamic Force Computation

In the inertial Cartesian coordinate system, we calculated the aerodynamic forces and flow dynamics surrounding the flapping phase by solving the three-dimensional, unsteady, incompressible Navier–Stokes equations.
u = 0
u t + u u = p + 1 Re 2 u
Here, u represents the fluid velocity, t denotes time, p signifies fluid pressure, Re stands for the Reynolds number, is the gradient operator, and 2 is the Laplacian operator.
The wing’s relative velocity and chord length determine the wing’s Reynolds number. Letting U represent the average velocity at the wing’s tip, Re represent the Reynolds number of the wing, and F stand for the aerodynamic force on the wing, the relationship can be expressed as follows:
U = 2 Φ f R
Re = U c ν
S represents the area of the wing (S = Rc). AR is the aspect ratio of the wing (AR = R/c), and ν denotes the kinematic viscosity of the air. Then, numerical simulation was conducted of the beetle flight with air density, ρ, 1.225 kg·m−3 and dynamic viscosity, μ, 1.87510−5 kg·ms−1, respectively. The Reynolds number is Re = 1234.
The model’s wings are designed as flat plating with gently curved front and back edges, with the plate’s dimension extending into a thickness of 0.03c. We configured the outline of the model wing in Figure 2 using the wing shape obtained through precise measurement. Due to the relative motion between the left and right hind wings, overlapping moving grids need to be used in the process of solving the equations. A body-aligned curvilinear grid is designated for each wing, complemented by a background Cartesian grid that covers the distant far-field boundary of the flow realm, as shown in Figure 2.
Before exploring the dynamics of flows and aerodynamic forces, we undertook a test to assess grid resolution. We considered three grids: 1 million grids, 3.4 million grids, and 4.3 million. Using the above grids, we performed calculations for the climbing flight of a Coccinella septempunctata; Figure 3 displays the results: It can be seen that as the grid increases, the difference in the lift coefficient of insect flight is within 1%. A finer grid is conducive to the generation of the flow field; hence, we opt for 4.3 million grids.

2.3. Morphological Parameters

In Table 1, we summarize the parameters measured for morphology and kinematics. Chord lengths for the hind wing are registered as mean values of c ¯ = 3.5 mm. Similarly, the hind wing has measured wing lengths of R = 11.4 mm; here, we state the aspect ratio as AR = R/c, with aspect ratios AR = 3.257 and masses of single wing = 0.32 mg, respectively. We obtain m = 29.7 mg, and the flapping amplitude equals 190 degrees.

2.4. Wing-Flapping Motion at Climbing Flight

Experts often describe the clap-and-fling mechanism: In the clap phase, the leading edges of the insect’s wings come together as the upstroke concludes. Subsequently, the wings pivot around this leading edge, eliminating the space between them. In the fling phase, the wings open up by rotating around the trailing edge at the start of the ensuing downstroke. The clap–fling mechanism occurs at the end of the upstroke or the beginning of the downstroke. During our study, we successfully recorded the free-climbing flight patterns of Coccinella septempunctata. The movies in Figure 3 (Multimedia view) give the video sequences for one cycle. For example, Figure 4, at t = 0, shows the sequences of one of the Coccinella septempunctata’s flights, marking the beginning of the downstroke; it is observable from the movement sequence in the figure that a clap–fling mechanism is present at the end of the downstroke or the beginning of the upstroke as well. This clap–fling motion concludes at the end of the downstroke when the wings approach each other near the leading edge. As the upstroke initiates, the wings unfold around the trailing edge, forming a V-shape. The clap–fling mechanism is present during the upstroke and the downstroke phase.

3. Results and Discussion

In the climbing flight of the Coccinella septempunctata, if the displacement upwards (y-axis) and forwards (x-axis) is approximately three times the lateral displacement (z-axis), this indicates that the Coccinella septempunctata primarily focuses on vertical and forward movement, as shown in Figure 5. It achieves more efficient climbing and forward flight by increasing the amplitude and frequency of wing flapping, generating more significant lift and propulsive force.
The pitch angle η is related to the angle of attack of the wing (α) as follows: α = η in the upstroke and α = 180° − η in the downstroke. Measurements taken included the wingbeat frequency (n) and stroke-plane angle (β), as well as the body angle (χ)—the angular displacement of the long axis of the insect’s body to the horizontal. β + χ is the angle between the stroke plane and the long axis of the insect body. The notation β represents the angle between the stroke plane and the body’s long axis, which is 61.01°. A non-dimensional time parameter, denoted as (τ), has been defined for clarity in data representation: (τ) starts at 0 at the beginning of a downstroke and reaches 1 by the end of the succeeding upstroke.
Figure 6 shows the parameters of wing kinematics of the hind wing in five cycles. We created the graph with the data value averaged from three extractions using the DLT method in Figure 7. The shaded area represents the immediate standard deviation. There were 53 frames for a single stroke, meaning the frequency f was 72.5 Hz ± 0.3 Hz. The recording indicated a flapping angle of 190 degrees. The stroke angle for the hind wing stood at 61.03 degrees, subject to a variance of 2.3 degrees. Deviations remained confined below 20 degrees. We observed a much broader spectrum for the angle of attack (AOA), which varied from 5 degrees to a space of 160 degrees—for the hind wing, the flapping periods exhibited asymmetry between downstroke and upstroke. We approximated the angle values for each wing as 8th-order Fourier series:
φ t = n = 0 n = 8 φ c n cos n k t + φ s n sin n k t
α t = n = 0 n = 8 α c n cos n k t + α s n sin n k t
β t = n = 0 n = 8 β c n cos n k t + β s n sin n k t
We derived the coefficients φ c n , φ s n , β c n , β s n , α c n , and α s n by solving a matrix equation, Equations (3.1)–(3.3) in the reference [23], using experimental data and then used them as input to describe the motion of the wing surface in the flow solver.
Figure 7 (the curves) presents the filtered values of ϕ, θ, and η as functions of τ. In a wingbeat cycle, the researchers took approximately 69 pictures. They then determined a linear regression line of the projections. The definition of a stroke plane is a plane that is parallel to the above line and passes through the wing base.

The Aerodynamic Forces on the Wings

The resolution of the incompressible Navier–Stokes equations, detailed in Section 2, determines the aerodynamic forces acting on the insect and the surrounding fluid flows. In the ensuing discourse, we will use the right wing as a representative example, given that both wings mirror the aerodynamic force and flow-field structure during the fling motion.
We can define the lift and drag of the wing as the components of the total aerodynamic force that act perpendicular and parallel to the wing’s relative velocity at the radius of gyration (r2) of the wing. A wing’s vertical and horizontal forces are attributed to its lift and drag. Now, we will examine the generation of lift and drag by analyzing the lift (L) and drag (D) of the wings of Coccinella septempunctata throughout the flapping cycle. Refer to Figure 8 for a visualization of these quantities.
As observed from the temporal profiles of CL and CD in Figure 8, the lift force produced in the case of real double-wing flapping is always better than the result of single-wing flapping. The main contribution to the mean lift originates from the middle sections of the upstroke and downstroke phases (Notice the prominent peaks in CL occurring around τ ≈ 0.2–0.48 and τ ≈ 0.78–0.9, as depicted in Figure 8a). Based on the data in Figure 8a, researchers estimate that the middle sections of the upstroke and downstroke phases contribute approximately 66% of the mean lift. The opening phase of the wings produced 9.65% of the lift while concurrently reducing drag by about 1.7% in Figure 8b.
Table 2 shows the single and double wings under the same parameters and the resulting hind-wing lift and drag coefficients over time with and without interaction. It calculates the total sum of lift and drag coefficients over a cycle. The opening phase of the wings produced 9.65% of the lift while concurrently reducing drag by about 1.7%.
Observations indicate that the leading-edge vortex resulting from wing–wing interaction is significantly more robust, though to a moderate extent, than that produced by a single wing alone. This suggests that wing interactions create a more robust “downward-velocity jet”, exceeding the effect seen with just one wing. Consequently, this results in the production of a greater vertical force. Indeed, examining Figure 9 confirms this phenomenon, as it depicts the velocity-vector plots in a vertical plane at a distance of 0.62027R from the wing root. Hind wings with wing–wing interaction produce a high-speed, almost downward jet, in contrast to the weaker downward flow generated by the single wing.
We then look at the fling phase (t/T = 0.55–0.65), plotting the pressure data in Figure 10. The wings undergo rapid rotation around their trailing edges during the fling phase, starting from zero rotational velocity. This rotation generates significant and opposing vorticity at various locations. Furthermore, the wings forcefully strike the fluid during the fling phase, generating a substantial impulse. This action leads to a pronounced positive pressure on the lower surface of the wings and a notable suction pressure on the upper surface. Thus, the interaction between the wings has a positive effect on lift.

4. Conclusions and Future Work

This study has significantly expanded the knowledge of the clap-and-fling mechanism in insect flight, particularly beyond the previously studied scope of miniature insects during hovering or forward flight. Through the comprehensive kinematic analysis of Coccinella septempunctata during its climbing flight, we unveiled a novel phase of the clap-and-fling mechanism occurring during the hind wings’ initial upward and backward motion. This phase is characterized by the wings’ leading edges coming into proximity to form a figure-eight shape, subsequently rotating around their trailing edge into a “V” shape to open. Such a mechanism was previously undocumented in giant insects like Coccinella septempunctata, marking a groundbreaking discovery in insect flight dynamics.
Utilizing numerical solutions for solving Navier–Stokes equations enabled a detailed simulation of the aerodynamic conditions influencing single and double hind wings. Our findings conclusively demonstrated that the opening phase of the clap-and-fling mechanism enhances lift by approximately 9.65% while concurrently reducing drag by about 1.7%. We estimate that the middle sections of the upstroke and downstroke phases contributed approximately 66% of the mean lift. This finding broadens the applicability of the clap-and-fling mechanism, indicating its relevance for the flight of tiny insects and larger species.
Consequently, this research deepens the scientific community’s understanding of insect flight mechanics and illuminates potential pathways for innovation in robotics and biomimetics. By demonstrating the aerodynamic efficiency of the clap-and-fling mechanism in a larger insect species, we pave the way for developing more efficient biomimetic flying robots, potentially revolutionizing current designs by leveraging the natural efficiency of insect flight dynamics. Future studies should continue to explore the application of these findings in designing advanced robotic systems that mimic these biological flight mechanisms, potentially leading to breakthroughs in aeronautics and engineering.
In the future, we plan to conduct comparative studies of the clap-and-fling mechanism among various beetle species and other insects. This approach will clarify whether the kinematic patterns and aerodynamic advantages we observed in Coccinella septempunctata are unique to this species or common among others. Such research could enhance our understanding of the evolution of flight mechanics.

Author Contributions

L.Y. was responsible for setting up the simulations and analysis, obtaining the biological data that facilitated the reconstruction, processing the data, postprocessing the data, and writing the manuscript. H.D. provided the biological data from which we generated the rebuilding and also contributed to paper revisions. X.D. offered strategic guidance on the research direction and contributed to the paper’s editing. K.H. worked on postprocessing the data and revising the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The National Natural Science Foundation of China supported this research under Grant No. 51975023 & No. 52322501. This work was partly supported by the National Natural Science Foundation of China under Grant No. U22B2040.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The datasets used and analyzed during the current study are available from the corresponding author upon reasonable request.

Acknowledgments

The author would like to thank Di Shi for the help provided in the theoretical calculations.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Pennycuick, C.J. Modelling the Flying Bird; Elsevier: Amsterdam, The Netherlands, 2008. [Google Scholar]
  2. Shyy, W.; Aono, H.; Kang, C.-K.; Liu, H. An Introduction to Flapping Wing Aerodynamics; Cambridge University Press: Cambridge, UK, 2013; Volume 37. [Google Scholar]
  3. Shyy, W.; Lian, Y.; Tang, J.; Viieru, D.; Liu, H. Aerodynamics of Low Reynolds Number Flyers; Cambridge University Press: Cambridge, UK, 2008. [Google Scholar]
  4. Cheng, X.; Sun, M. Aerodynamic forces and flows of the full and partial clap-fling motions in insects. PeerJ 2017, 5, e3002. [Google Scholar] [CrossRef]
  5. Ho, S.; Nassef, H.; Pornsinsirirak, N.; Tai, Y.-C.; Ho, C.-M. Unsteady aerodynamics and flow control for flapping wing flyers. Prog. Aerosp. Sci. 2003, 39, 635–681. [Google Scholar] [CrossRef]
  6. Spedding, G.; Lissaman, P. Technical aspects of microscale flight systems. J. Avian Biol. 1998, 29, 458–468. [Google Scholar] [CrossRef]
  7. Lissaman, P. Low-Reynolds-number airfoils. Annu. Rev. Fluid Mech. 1983, 15, 223–239. [Google Scholar] [CrossRef]
  8. Bomphrey, R.J.; Nakata, T.; Phillips, N.; Walker, S.M. Smart wing rotation and trailing-edge vortices enable high frequency mosquito flight. Nature 2017, 544, 92–95. [Google Scholar] [CrossRef] [PubMed]
  9. Dickinson, M.H.; Lehmann, F.-O.; Sane, S.P. Wing rotation and the aerodynamic basis of insect flight. Science 1999, 284, 1954–1960. [Google Scholar] [CrossRef]
  10. Dudley, R.; Ellington, C.P. Mechanics of forward flight in bumblebees: II. Quasi-steady lift and power requirements. J. Exp. Biol. 1990, 148, 53–88. [Google Scholar] [CrossRef]
  11. Le, T.Q.; Truong, T.V.; Park, S.H.; Quang Truong, T.; Ko, J.H.; Park, H.C.; Byun, D. Improvement of the aerodynamic performance by wing flexibility and elytra–hind wing interaction of a beetle during forward flight. J. R. Soc. Interface 2013, 10, 20130312. [Google Scholar] [CrossRef]
  12. Liu, G.; Dong, H.; Li, C. Vortex dynamics and new lift enhancement mechanism of wing–body interaction in insect forward flight. J. Fluid Mech. 2016, 795, 634–651. [Google Scholar] [CrossRef]
  13. Willmott, A.P.; Ellington, C.P.; Thomas, A.L. Flow visualization and unsteady aerodynamics in the flight of the hawkmoth, Manduca sexta. Philos. Trans. R. Soc. London. Ser. B Biol. Sci. 1997, 352, 303–316. [Google Scholar] [CrossRef]
  14. Zheng, L.; Hedrick, T.L.; Mittal, R. A multi-fidelity modelling approach for evaluation and optimization of wing stroke aerodynamics in flapping flight. J. Fluid Mech. 2013, 721, 118–154. [Google Scholar] [CrossRef]
  15. Menzer, A.; Ren, Y.; Guo, J.; Tobalske, B.W.; Dong, H. Wing Kinematics and Unsteady Aerodynamics of a Hummingbird Pure Yawing Maneuver. Biomimetics 2022, 7, 115. [Google Scholar] [CrossRef] [PubMed]
  16. Noda, R.; Nakata, T.; Liu, H. Effect of Hindwings on the Aerodynamics and Passive Dynamic Stability of a Hovering Hawkmoth. Biomimetics 2023, 8, 578. [Google Scholar] [CrossRef] [PubMed]
  17. Sun, M.; Tang, J. Unsteady aerodynamic force generation by a model fruit fly wing in flapping motion. J. Exp. Biol. 2002, 205, 55–70. [Google Scholar] [CrossRef]
  18. Usherwood, J.R.; Ellington, C.P. The aerodynamics of revolving wings I. Model hawkmoth wings. J. Exp. Biol. 2002, 205, 1547–1564. [Google Scholar] [CrossRef] [PubMed]
  19. Nekoo, S.R.; Ollero, A. Closed-loop nonlinear optimal control design for flapping-wing flying robot (1.6 m wingspan) in indoor confined space: Prototyping, modeling, simulation, and experiment. ISA Trans 2023, 142, 635–652. [Google Scholar] [CrossRef] [PubMed]
  20. Sanchez-Laulhe, E.; Fernandez-Feria, R.; Ollero, A. Unsteady Propulsion of a Two-Dimensional Flapping Thin Airfoil in a Pulsating Stream. AIAA J. 2023, 61, 4391–4400. [Google Scholar] [CrossRef]
  21. Suarez, A.; Grau, P.; Heredia, G.; Ollero, A. Winged Aerial Manipulation Robot with Dual Arm and Tail. Appl. Sci. 2020, 10, 4783. [Google Scholar] [CrossRef]
  22. Zahedi, A.; Shafei, A.M.; Shamsi, M. On the dynamics of multi-closed-chain robotic mechanisms. Int. J. Non-Linear Mech. 2022, 147, 104241. [Google Scholar] [CrossRef]
  23. Le, T.Q.; Truong, T.V.; Tran, H.T.; Park, S.H.; Ko, J.H.; Park, H.C.; Byun, D. How Could Beetle’s Elytra Support Their Own Weight during Forward Flight? J. Bionic Eng. 2014, 11, 529–540. [Google Scholar] [CrossRef]
  24. Nguyen, Q.V.; Park, H.C.; Goo, N.S.; Byun, D. Characteristics of a beetle’s free flight and a flapping-wing system that mimics beetle flight. J. Bionic Eng. 2010, 7, 77–86. [Google Scholar] [CrossRef]
  25. Oh, S.; Lee, B.; Park, H.; Choi, H.; Kim, S.-T. A numerical and theoretical study of the aerodynamic performance of a hovering rhinoceros beetle (Trypoxylus dichotomus). J. Fluid Mech. 2019, 885, A18. [Google Scholar] [CrossRef]
  26. Truong, T.V.; Le, T.Q.; Tran, H.T.; Park, H.C.; Yoon, K.J.; Byun, D. Flow visualization of rhinoceros beetle (Trypoxylus dichotomus) in free flight. J. Bionic Eng. 2012, 9, 304–314. [Google Scholar] [CrossRef]
  27. Wang, Q.; Goosen, J.F.L.; van Keulen, F. A predictive quasi-steady model of aerodynamic loads on flapping wings. J. Fluid Mech. 2016, 800, 688–719. [Google Scholar] [CrossRef]
  28. Weis-Fogh, T. Quick Estimates of Flight Fitness in Hovering Animals, Including Novel Mechanisms for Lift Production. J. Exp. Boil 1973, 59, 169–230. [Google Scholar] [CrossRef]
  29. Arora, N.; Gupta, A.; Sanghi, S.; Aono, H.; Shyy, W. Lift-drag and flow structures associated with the “clap and fling” motion. Phys. Fluids 2014, 26, 071906. [Google Scholar] [CrossRef]
  30. Miller, L.A.; Peskin, C.S. A computational fluid dynamics ofclap and fling’ in the smallest insects. J. Exp. Biol. 2005, 208, 195–212. [Google Scholar] [CrossRef]
  31. Sane, S.P. The aerodynamics of insect flight. J. Exp. Biol. 2003, 206, 4191–4208. [Google Scholar] [CrossRef] [PubMed]
  32. Santhanakrishnan, A.; Robinson, A.K.; Jones, S.; Low, A.A.; Gadi, S.; Hedrick, T.L.; Miller, L.A. Clap and fling mechanism with interacting porous wings in tiny insect flight. J. Exp. Biol. 2014, 217, 3898–3909. [Google Scholar] [CrossRef]
  33. Weis-Fogh, T. Flapping flight and power in birds and insects, conventional and novel mechanisms. In Swimming and Flying in Nature: Volume 2; Springer: Berlin/Heidelberg, Germany, 1975; pp. 729–762. [Google Scholar]
  34. Ellington, C.P. The aerodynamics of hovering insect flight. III. Kinematics. Philos. Trans. R. Soc. B 1984, 305, 41–78. [Google Scholar]
  35. Miller, L.A.; Peskin, C.S. Flexible clap and fling in tiny insect flight. J. Exp. Biol. 2009, 212, 3076–3090. [Google Scholar] [CrossRef] [PubMed]
  36. Cheng, X.; Sun, M. Very small insects use novel wing flapping and drag principle to generate the weight-supporting vertical force. J. Fluid Mech. 2018, 855, 646–670. [Google Scholar] [CrossRef]
  37. Cheng, X.; Sun, M. Revisiting the clap-and-fling mechanism in small wasp Encarsia formosa using quantitative measurements of the wing motion. Phys. Fluids 2019, 31, 101903. [Google Scholar] [CrossRef]
  38. Cheng, X.; Sun, M. Wing kinematics and aerodynamic forces in miniature insect Encarsia formosa in forward flight. Phys. Fluids 2021, 33, 021905. [Google Scholar] [CrossRef]
  39. Sun, M.; Yu, X. Flows around two airfoils performing fling and subsequent translation and translation and subsequent clap. Acta Mech. Sin 2003, 19, 103–117. [Google Scholar]
  40. Sun, M.; Yu, X. Aerodynamic force generation in hovering flight in a tiny insect. AIAA J. 2006, 44, 1532–1540. [Google Scholar] [CrossRef]
  41. Wu, Y.K.; Sun, M.; Liu, Y.P. The wing− wing interaction mechanism of bristled wing pair in fling motion. Phys. Fluids 2022, 34, 071903. [Google Scholar] [CrossRef]
  42. Ellington, C.P. The Aerodynamics of Hovering Insect Flight. II. Morphological Parameters. Philos. Trans. R. Soc. B Biol. Sci. 1984, 305, 17–40. [Google Scholar]
  43. Liu, Y.; Sun, M. Wing kinematics measurement and aerodynamics of hovering droneflies. J. Exp. Biol. 2008, 211, 2014–2025. [Google Scholar] [CrossRef]
  44. Fry, S.N.; Sayaman, R.; Dickinson, M.H. The aerodynamics of free-flight maneuvers in Drosophila. Science 2003, 300, 495–498. [Google Scholar] [CrossRef]

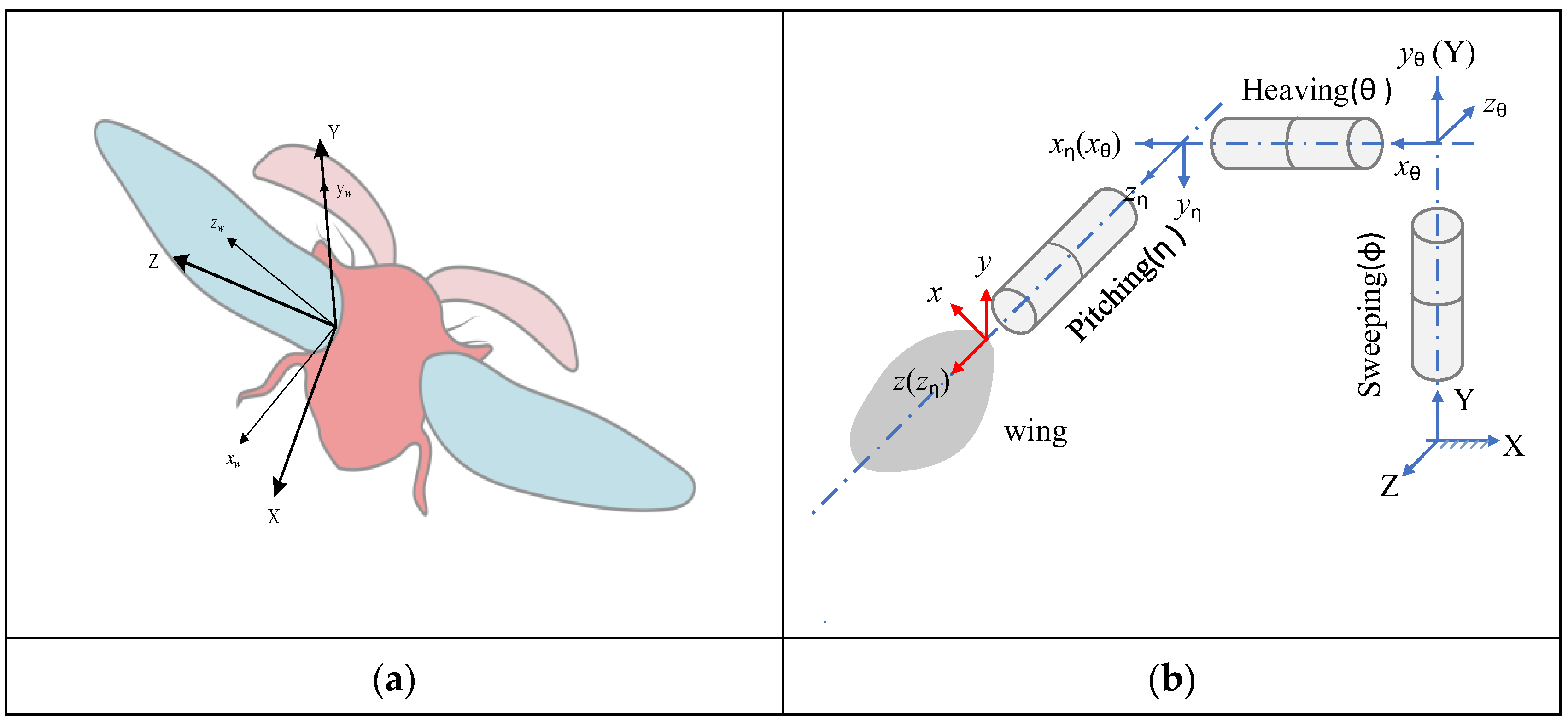

Figure 1. (a) Wing kinematics parameters and (b) Coordinates.
Figure 1. (a) Wing kinematics parameters and (b) Coordinates.
Biomimetics 09 00282 g001

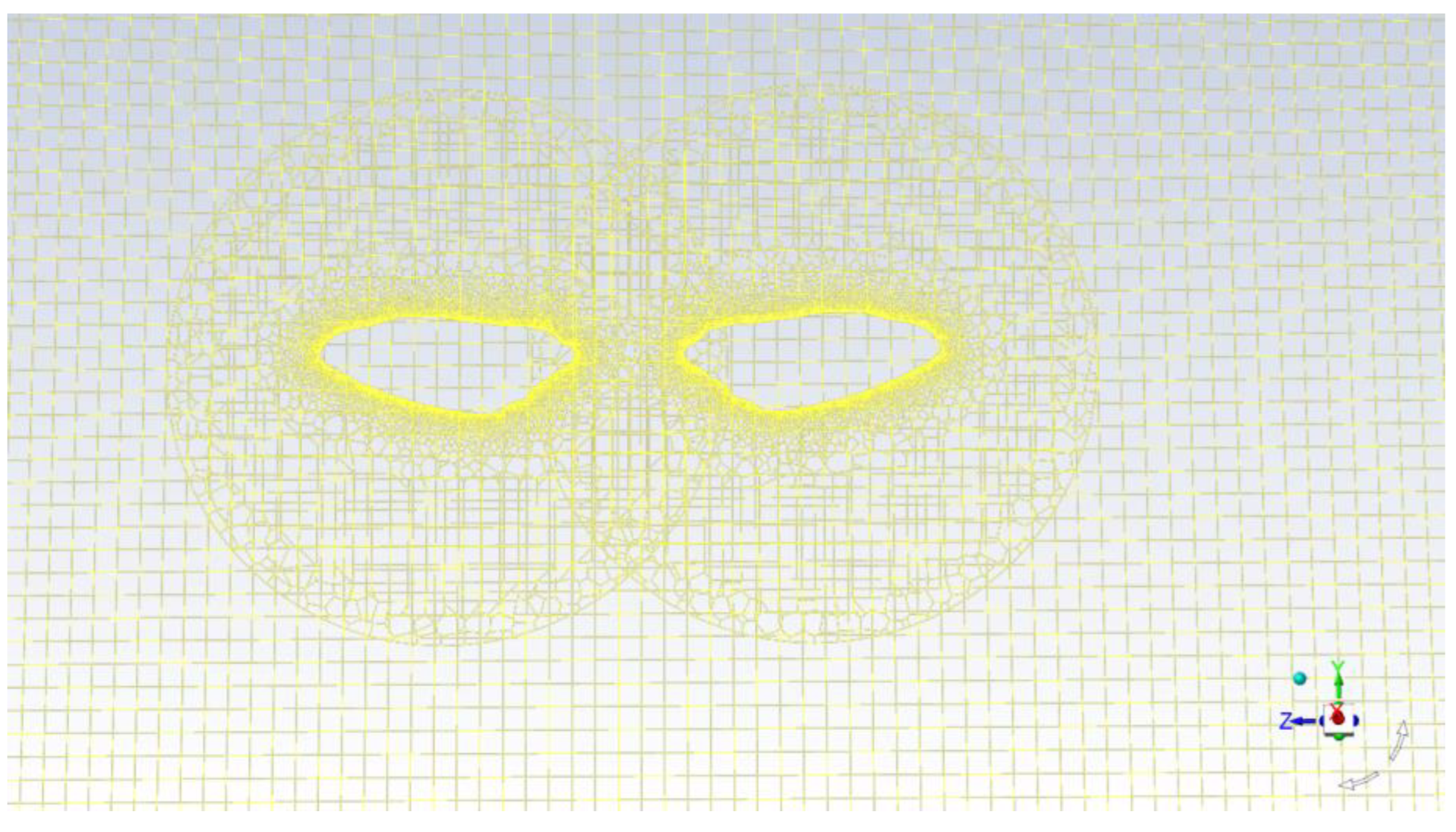

Figure 2. Portions of a computational grid system.
Figure 2. Portions of a computational grid system.
Biomimetics 09 00282 g002

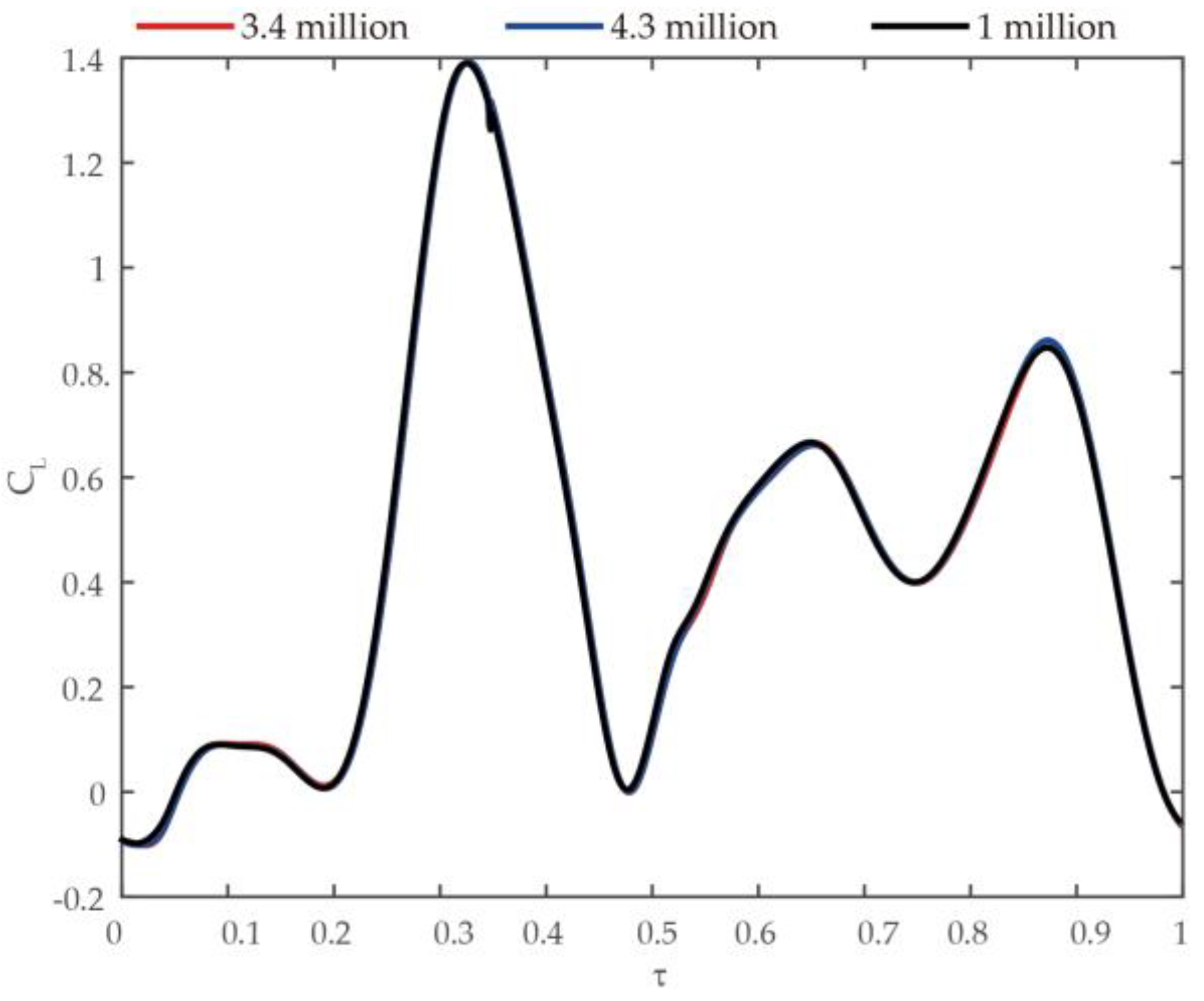

Figure 3. Temporal progression of the lift coefficient (CL) for Coccinella septempunctata’s wing in climbing mode over various grid options.
Figure 3. Temporal progression of the lift coefficient (CL) for Coccinella septempunctata’s wing in climbing mode over various grid options.
Biomimetics 09 00282 g003

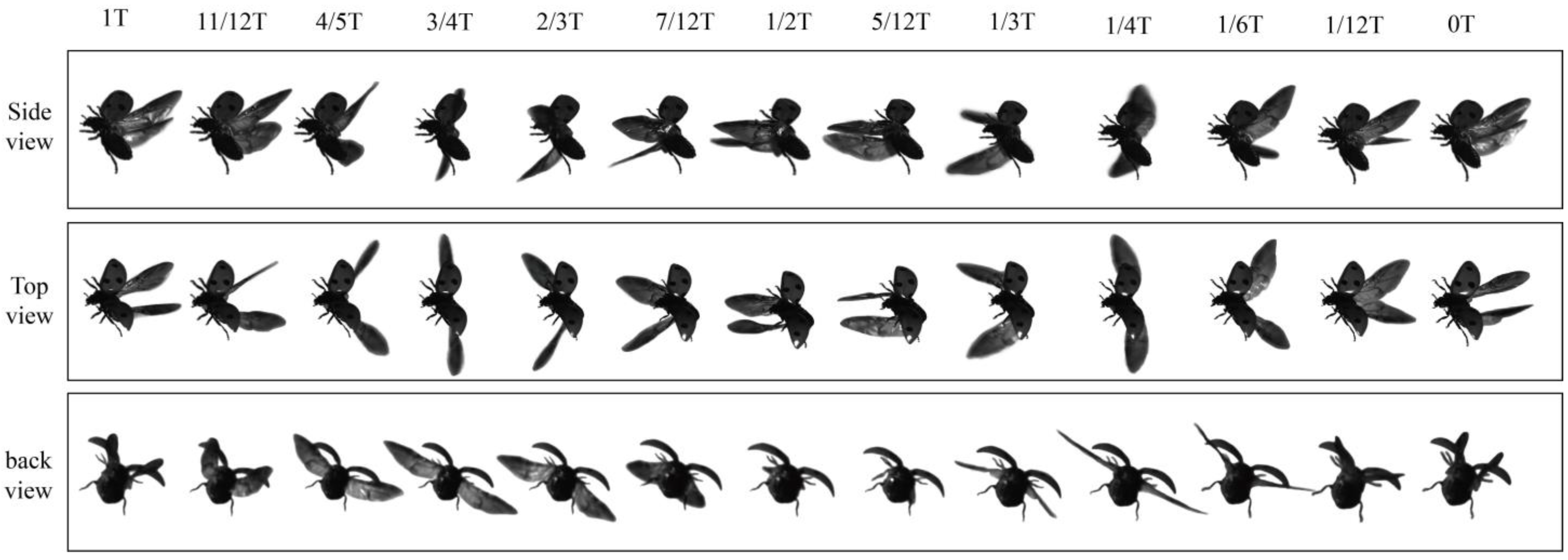

Figure 4. The videos of Coccinella septempunctata in climbing motion, featuring perspectives from three cameras. The time notations represent microseconds starting from the downstroke’s commencement.
Figure 4. The videos of Coccinella septempunctata in climbing motion, featuring perspectives from three cameras. The time notations represent microseconds starting from the downstroke’s commencement.
Biomimetics 09 00282 g004

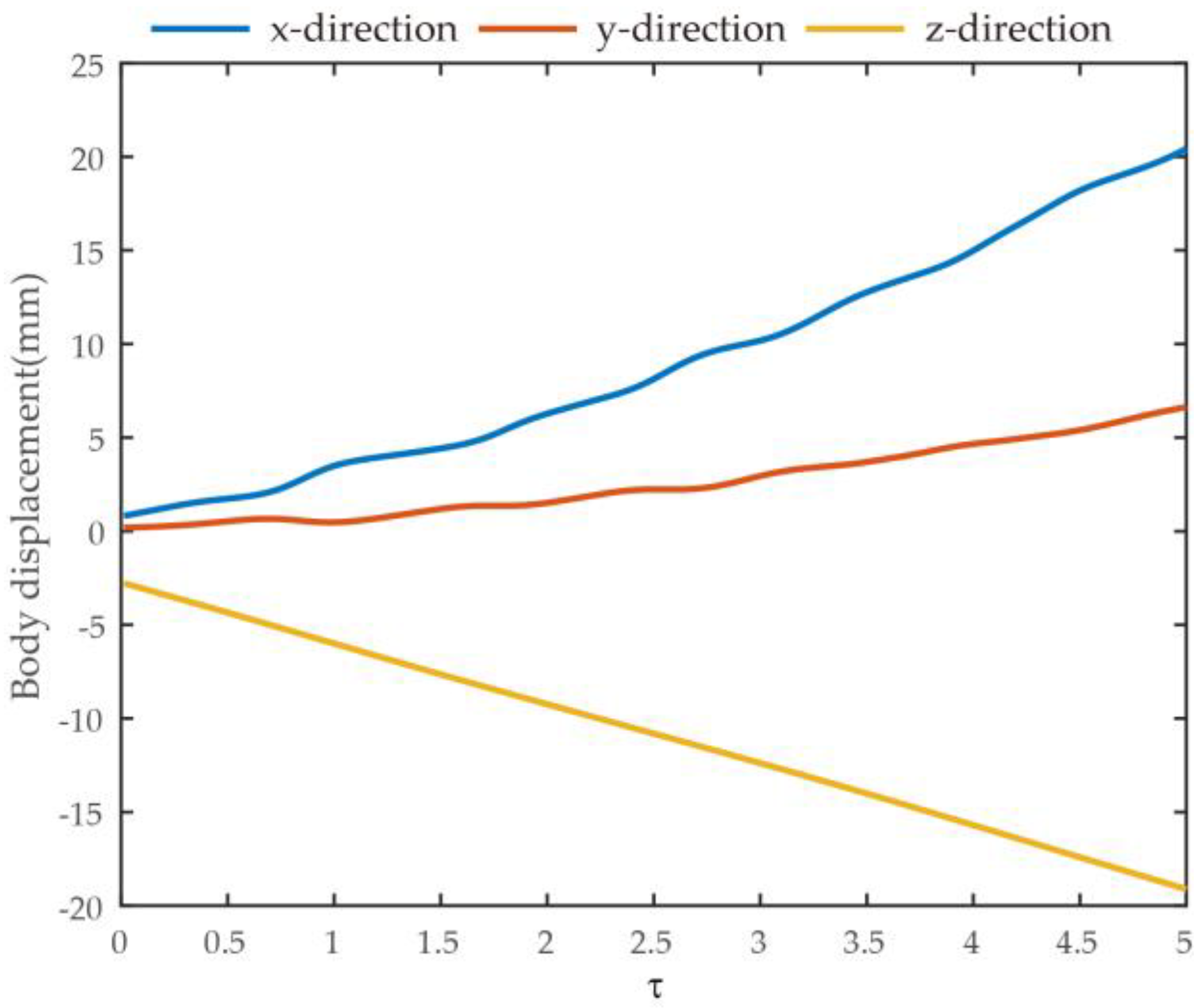

Figure 5. The measured body-translational kinematics of Coccinella septempunctata in climbing flight.
Figure 5. The measured body-translational kinematics of Coccinella septempunctata in climbing flight.
Biomimetics 09 00282 g005

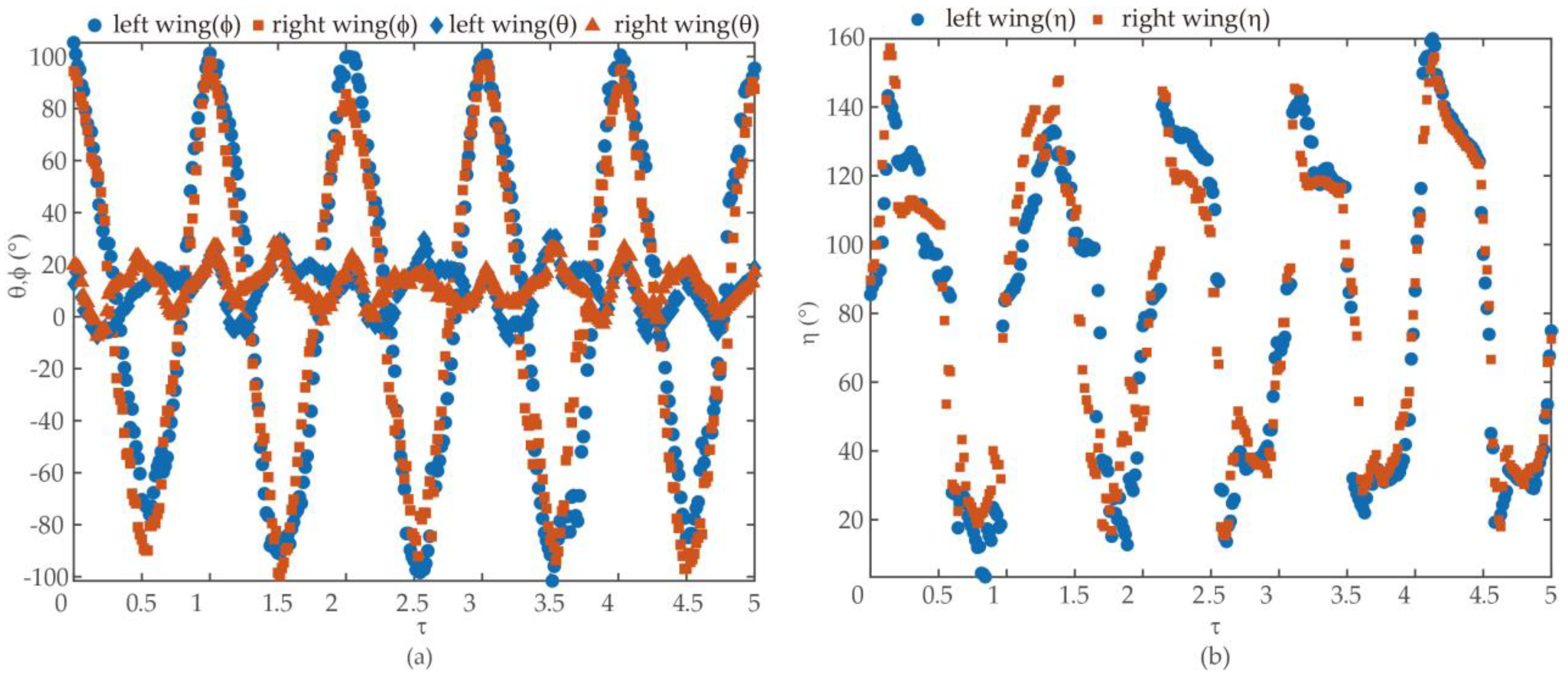

Figure 6. Wing kinematics of Coccinella septempunctata (a) Instantaneous wing kinematics of Coccinella septempunctata ϕ, sweeping angle; θ, deviation angle; (b) η pitch angle.
Figure 6. Wing kinematics of Coccinella septempunctata (a) Instantaneous wing kinematics of Coccinella septempunctata ϕ, sweeping angle; θ, deviation angle; (b) η pitch angle.
Biomimetics 09 00282 g006

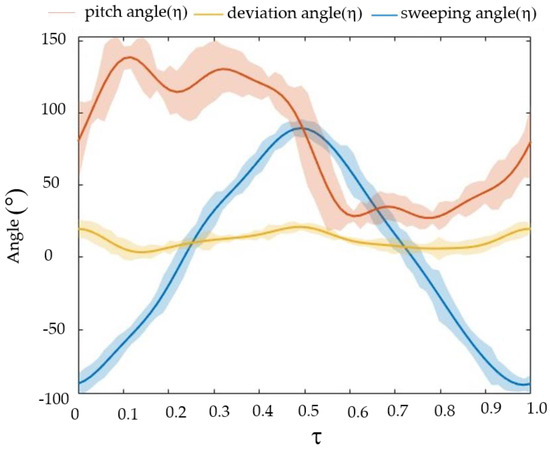

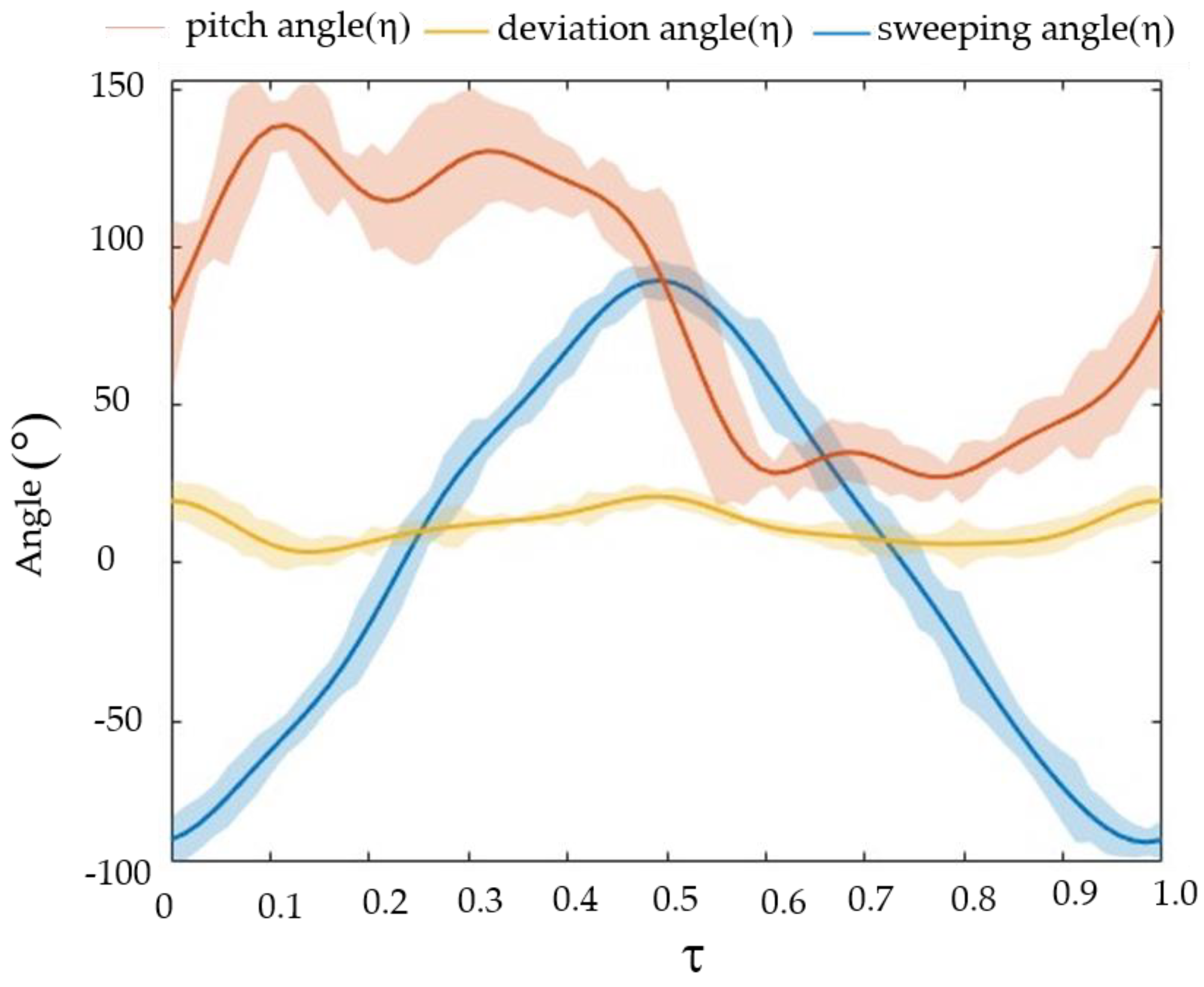

Figure 7. The kinematics of the hind wing and the shaded region represent the instantaneous standard deviation.
Figure 7. The kinematics of the hind wing and the shaded region represent the instantaneous standard deviation.
Biomimetics 09 00282 g007

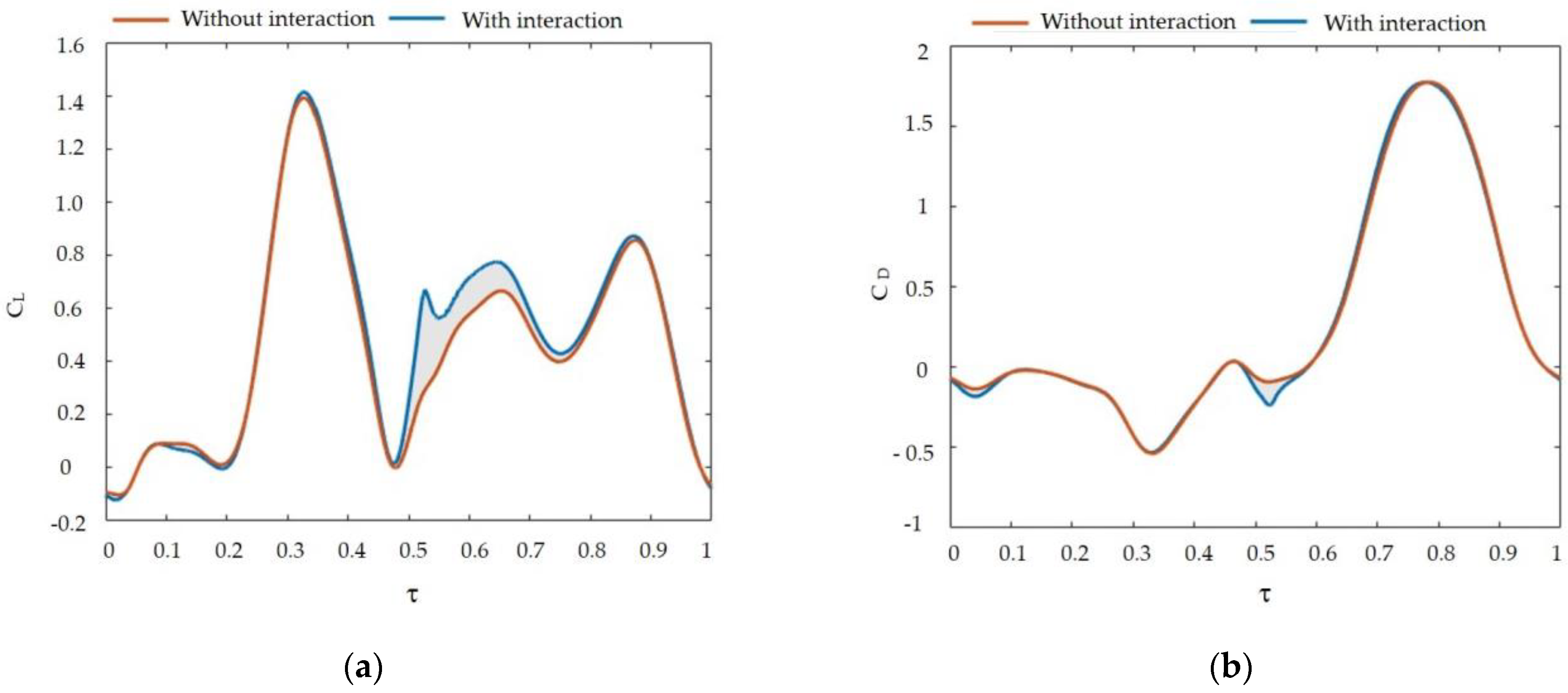

Figure 8. (a) Time courses of the computed CL; (b) CD of the right wing with and without interaction.
Figure 8. (a) Time courses of the computed CL; (b) CD of the right wing with and without interaction.
Biomimetics 09 00282 g008

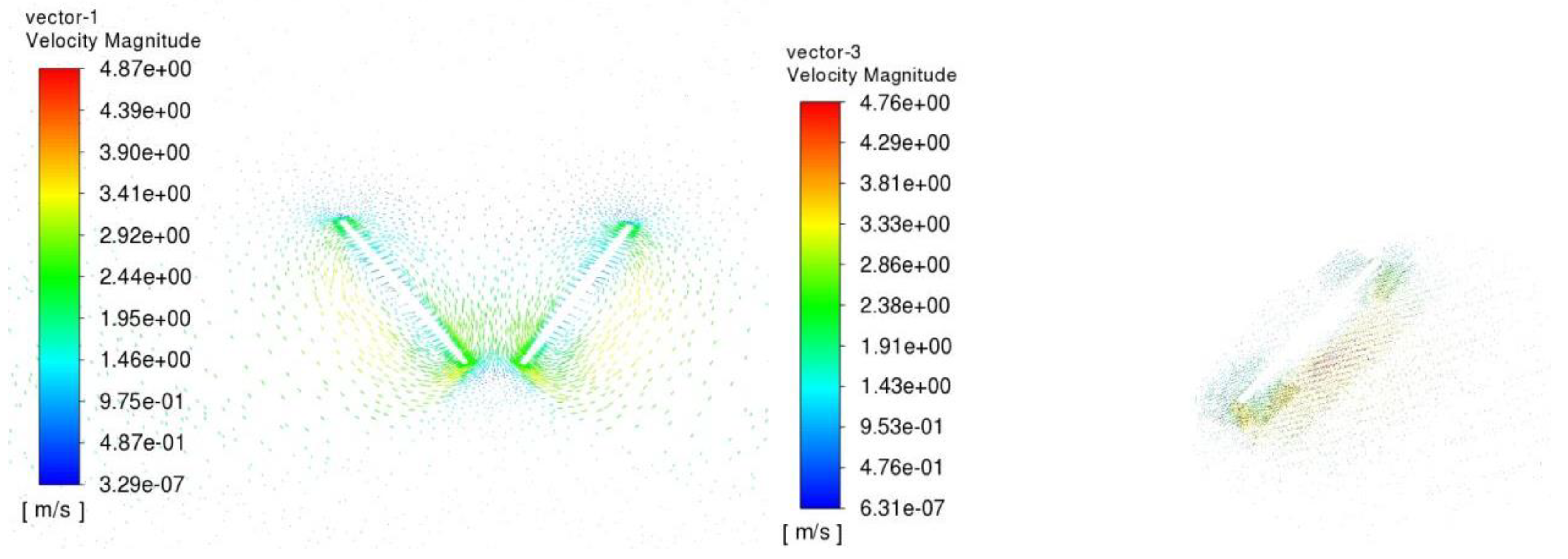

Figure 9. The velocityvector plots are displayed in a vertical plane 6.2027R from the wing for both the double and single wing during the fling.
Figure 9. The velocityvector plots are displayed in a vertical plane 6.2027R from the wing for both the double and single wing during the fling.
Biomimetics 09 00282 g009

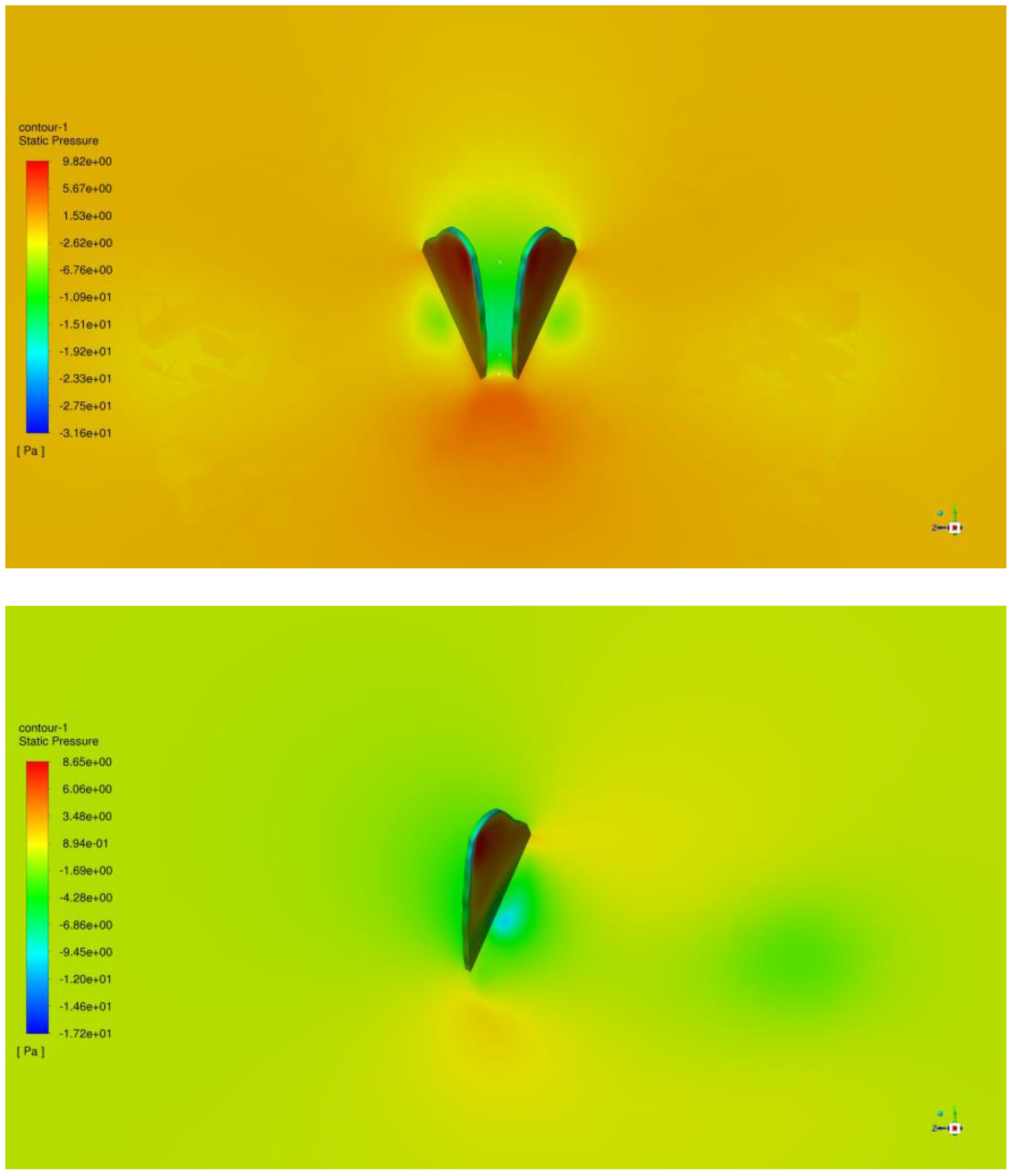

Figure 10. Upper-surface pressure differences between the right wing with and without interaction.
