Article

The Effect of Artificial Substrate and Carbon Source Addition on Bacterial Diversity and Community Composition in Water in a Pond Polyculture System

by
Kun Guo
1,2,3,†,
Mumin Shi
1,2,3,†,
Xiaoli Huang
2,3,
Liang Luo
2,3,
Shihui Wang
2,3,
Rui Zhang
2,3,
Wei Xu
2,3,
Guoliang Ruan
1,* and
Zhigang Zhao
1,2,3,*
1
College of Animal Science and Technology, Yangtze University, Jingzhou 434025, China
2
Key Open Laboratory of Cold Water Fish Germplasm Resources and Breeding of Heilongjiang Province, Heilongjiang River Fisheries Research Institute, Chinese Academy of Fishery Sciences, Harbin 150070, China
3
Engineering Technology Research Center of Saline-Alkaline Water Fisheries (Harbin), Chinese Academy of Fishery Sciences, Harbin 150070, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Fishes 2024, 9(3), 80; https://doi.org/10.3390/fishes9030080
Submission received: 17 January 2024 / Revised: 4 February 2024 / Accepted: 15 February 2024 / Published: 20 February 2024
(This article belongs to the Special Issue Biofloc Technology in Aquaculture)
Browse Figures
Versions Notes

Abstract

:
The use of artificial substrates and biofloc technology can favor fish culture and improve water quality. The aim of this study was to evaluate whether artificial substrates and carbon source additions modify the microbial activity of water bodies. The diversity and structure of microflora in the water after adding artificial substrates and carbon sources to the ponds were analyzed using high-throughput sequencing based on the V3-V4 region of 16S rRNA genes. The results showed that there was no difference in the richness and diversity of intestinal microflora between the control and experimental groups. Principal coordinate analysis (PCoA) and nonmetric multidimensional scaling (NMDS) showed that artificial substrate and carbon source addition changed the structure of the microflora. The results of a linear discriminant analysis (LDA) effect size (LefSe) indicated 11 biomarkers in the EGˍst group. Spearman correlation heatmap analysis showed that environmental factors affected the bacterial communities, and the results of a redundancy analysis indicated that chemical oxygen demand was a critical factor in controlling the bacterial communities in the water. These results provide an understanding of the effect of artificial substrate and carbon source addition on bacterial diversity and community composition in water.
Keywords:
artificial substrate; biofloc; 16S rRNA; high-throughput sequencing; microbial community
Key Contribution: The results demonstrated that combined artificial substrate and carbon source addition can modify microbial activity, thereby regulating pond water bodies.

1. Introduction

Common carp (Cyprinus carpio) is an important species of freshwater fish that is commonly cultured in over one hundred countries throughout the world [1]. In 2022, the annual production of this species in China was approximately 2,831,763 tons, accounting for 10.7% of the output of freshwater fish [2]. However, intensive aquaculture is currently the main production mode of fish, which creates a stressful environmental problem due to high aquaculture density and high feed input [3]. Due to the impact of pollutants (such as ammonia nitrogen and nitrite) generated in intensive aquaculture, pond water needs to be frequently exchanged with external water to ensure the standard survival rate of fish and shrimp [4]. The discharge of wastewater can lead to the entry of nitrogen, phosphorus, plankton, organic matter, and suspended solids into natural water bodies, resulting in severe eutrophication [5]. To reduce environmental pollution caused by aquaculture, it is urgent to seek technology for treating aquaculture wastewater.
In recent years, some new technologies have been studied and applied in the treatment of aquaculture wastewater, including in situ treatment and off-site treatment technologies. In order to achieve the development of high-quality aquaculture, the Ministry of Agriculture and Rural Affairs of China has started implementing the “Five Actions” for green and healthy aquaculture since 2020 [6], and increasing numbers of environmentally friendly aquaculture models have gradually been explored and promoted. Biofloc technology (BFT) utilizes beneficial microorganisms to convert toxic nitrogen-containing compounds into edible biological flocs for fish, significantly enhancing the recycling and reuse of nutrients and waste, which has been widely applied in various green aquaculture models [7]. At present, BFT can significantly reduce breeding costs and improve the survival rate of breeding objectives in the cultivation of O. niloticus, L. vannamei, and other species, with great economic benefits [8,9]. Wei et al. [9] found that biological flocs contain essential nutrients such as amino acids and fatty acids for aquatic animals, which can replace some commercial feed and increase feed efficiency. In addition, research has found that the application of biofilm water quality remediation technology in intensive aquaculture can effectively purify aquaculture wastewater [10], providing a new approach for ecological-friendly aquaculture. An eco-substrate is an environmentally friendly material that can serve as a carrier for biofilms [11]; it promotes microbial reproduction by adsorbing suspended solids and fish and shrimp excrement in water and utilizes microbial metabolism to remove pollutants in water, thereby purifying the water environment [12,13]. In aquaculture systems, bacteria and algae are the main absorbers and converters of ammonia–nitrogen compounds [14]. However, the process of bacteria converting ammonia–nitrogen compounds in aquaculture water into bacterial proteins only occurs in environments with a C/N greater than 10.
Previous studies have shown that combining appropriate C/N with artificial substrate can effectively purify water quality, increase yield, and enhance fish immunity, and this technology has been found to be promising [15,16]. For example, AftabUddin et al., (2015) showed that increasing the C/N ratio with corn meal could significantly increase the total heterotrophic bacteria in water and the shrimp yield in biofilm systems [17]. Asaduzzaman et al., (2008) found that carbon source supplementation combined with artificial substrate addition greatly improved the net production of farmed animals, which is related to the reduced nitrogen-containing inorganic compounds and elevated concentration of heterotrophic bacteria [18]. In short, providing a substrate for the development of surrounding organisms and increasing the C/N ratio can increase pond yield. Similarly, in previous studies, we found that the combination of artificial substrates and carbon source addition can improve the water chemical indicators of carp aquaculture ponds [19].
Microorganisms play a crucial role in the transformation and metabolism of organic matter in aquaculture environments [20]. Understanding the characteristics of aquatic microbial communities has important theoretical value for the construction of ecological models in aquaculture [21]. In this study, we analyzed the effect of artificial substrate and carbon source addition on bacterial diversity and community composition in a pond polyculture system to provide a technical basis for the in situ water quality control of a carp aquaculture.

2. Materials and Methods

2.1. Experimental Sites and Design

A culture trial was conducted in six earthen fish ponds with a surface area of approximately 740 square meters and a depth of approximately 2 m at the breeding experimental base of the Heilongjiang River Fishery Research Institute, Chinese Academy of Fishery Sciences in Harbin, Heilongjiang Province, China (Figure 1). The experimental period was 140 days. Before the experiment began, the soil pond was disinfected with commercially available chlorine-containing products [19].
In the ponds of the experimental group, fifteen eco-substrates (2.0 m × 1.5 m) were fixed in the enclosure through a string and suspended vertically. Due to its unique arrangement structure, geotextile Aquamat™ (Meridian Aquatic Technology, Silver Spring, MD, USA) was used as the eco-substrate, which provided a living environment for microorganisms and was more conducive to microbial growth. As an organic carbon source, corn starch was added to each aquaculture pond every two weeks during the trial period. In the ponds of the control group, neither artificial substrate nor carbon source was added. Each group was set with 3 repeated ponds.

2.2. Experimental Fish and Culture Management

After a week of injecting water into the pond, 1000 young bottom-feeder mirror carp (Cyprinus carpiospecularis) (193.11 ± 14.17 g), 70 filter-feeder silver carp (Hypophthalmichthys molitrix) (45.52 ± 5.94 g), and 19 big carp (Aristichthys nobilis) (34.11 ± 4.48 g) were collected according to the ordinary standard of the stocking ratio and density of the main farmed species and supporting species in mixed culture ponds in Northern China.
Throughout the culture duration, the water of all the ponds was not exchanged. The temperature, dissolved oxygen (DO), and pH of the water were continuously tested. The commercial feed was fed 3 times each day (7:00–7:30, 12:00–12:30, and 17:00–17:30, respectively). The daily feeding amount was 2% of the total body weight and gradually increased to 4% of the total body weight [19].

2.3. Water Quality Indicators

Starting from the hanging eco-substrate, determination was performed every two weeks, and the collection time occurred at 10:00 am; the day after, measurements were obtained for nitrate nitrogen NO3− (ultraviolet spectrophotometry), nitrite nitrogen NO2− (diazo coupling spectrophotometer), total ammonia nitrogen (TAN) (Nesser reagent colorimetric method), phosphorus (phosphorus molybdenum blue—ascorbic acid spectrophotometry), total phosphorus TP (acid potassium persulfate digestion spectrophotometry), total nitrogen TN (alkaline potassium persulfate digestion ultraviolet spectrophotometry), COD (potassium permanganate method), suspended matter in water (extraction and filtration method), pH (water quality analyzer), and dissolved oxygen DO (water quality analyzer) (SEPA.2002).

2.4. Bacterial DNA Extraction and 16S rRNA Sequencing

From each enclosure, 1.0 L water samples were collected and were then filtered using a mixed cellulose ester microporous membrane with a pore diameter of 0.22 μm. The total bacterial DNA was extracted from water samples using the DNeasy® PowerSoil® Pro Kit (QIAGEN, Hilden, FL, USA), in accordance with the manufacturer’s instructions. The quality of the extracted genomic DNA was detected by 1% agarose gel electrophoresis, and the concentration and purity of the DNA were determined using an ultra-micro spectrophotometer (NanoDrop 2000, Waltham, MA, USA).
Variable regions of the bacterial 16S rRNA gene (V3-V4) were amplified via polymerase chain reaction from the extracted DNA using universal primers primer pairs of 338f/806r (5′-ACTCCTACGGGAGGCAGCAG-3′/5′-GGACTACHVGGGTWTCTAAT-3′). The PCR products of the same sample were mixed, which then were purified using an AxyPrep DNA Gel Extraction Kit. DNA fragment libraries were built for the purification of PCR products with the following criteria: (i) joint connection; (ii) using magnetic beads to screen and remove self-connected fragments of the connector; (iii) enrichment of library templates using PCR amplification; and (iv) recycling PCR products with magnetic beads to obtain the final library. Purified amplicons were sequenced based on an Illumina MiSeq PE300 platform (Illumina, San Diego, CA, USA) according to the standard procedures (Majorbio Bio-Pharm Technology Co., Ltd., Shanghai, China).

2.5. Statistical Analysis

Nonmetric multidimensional scaling (NMDS) ordination based on an analysis of similarity using the Bray–Curtis dissimilarity statistic was conducted to visualize the differences in microbial community structure in the two treatment groups. Redundancy analysis (RDA) and principal coordinate analysis (PCoA) were applied to study the correlation between environmental factors and microbial community structures. A Venn diagram was used to show the unique and shared OTUs detected in two treatment groups. Bacterial groups with significant differences in abundance from phylum to genus level among different groups were analyzed using Linear discriminant analysis Effect Size (LEfSe). Bioinformatic analysis of the water microbiota was carried out using the Majorbio Cloud platform (https://cloud.majorbio.com) accessed on 24 December 2021. The significant level in water quality indicators between the two treatment groups was analyzed with SPSS 20.0 software by using one-way ANOVA.

3. Results

3.1. Bacterial 16S rRNA Sequencing Data and OTUs

The changes in the water microbial community structure of the two treatment groups were studied using high-throughput sequencing technology. The total number of effective tags obtained from each sample of water was 779,004 sequences, of which the length ranged from 200 to 521 bp, resulting in an OTU range of 781–1189. The mean numbers of reads and OTUs were 47805 and 2058, respectively. The optimized sequences were clustered into operational taxonomic units (OTUs) with a 97% sequence similarity level and then classified into different taxonomic levels, including 55 phyla, 156 classes, 359 orders, 559 families, 946 genera, and 1838 species or varieties.
The rarefaction curve was prepared using randomly selected sequence numbers and their relative number of OTUs from each sample, which indicated that the sequencing depth was sufficient to cover the expected number of OTUs at a 3% sequence difference level in the study (Figure 2a). The Venn diagram showed similarity and overlaps of OTUs in the two groups (Figure 2b). The results revealed that the CGˍst and EGˍst groups shared 2020 OTUs, and there were 955 and 837 unique OTUs, respectively.

3.2. Analysis of Alpha Diversity and Beta Diversity

The alpha diversity indices of microbial communities, including richness (ACE and Chao) and diversity (Simpson and Shannon), for the two groups are shown in Table 1. There was no significant difference between the two groups. Additionally, beta diversity, PCoA, and NMDS based on the Bray–Curtis dissimilarity statistic were used to examine the community structure of the water microbiota among samples. The distance between symbols in a PCoA and NMDS plot (Figure 3) reflects relative differences in the community structure, with each symbol representing one water sample.

3.3. Bacterial Community Composition

The top 11 phyla and classes were selected from each treatment group, and a bar chart was created to display relative abundances and their proportions at different classification levels. The relative abundance of taxa in the phylum and class are presented in Figure 4a,b. The largest relative abundance among the 5 phyla in the CGˍst group was dominated by Proteobacteria (38.4%), Cyanobacteria (15.2%), Bacteroidota (15.1%), Actinobacteriota (7.93%), and Chloroflexi (8.59%). Based on the research results, a change was found in the relative abundance in the EGˍst group compared to that in the CGˍst group, such as an increase in the abundance of Bacteroidota, Cyanobacteria, and Actinobacteriota and a decrease in the abundance of Proteobacteria and Chloroflexi, but the main phylum did not change. The EGˍst group was dominated by Proteobacteria (35.45%), Bacteroidota (20.37%), Cyanobacteria (18.56%), Actinobacteriota (8.06%), and Chloroflexi (5.57%). The largest relative abundance among the 5 classes in the CGˍst group was dominated by Gammaproteobacteria (22.7%), Alphaproteobacteria (15.7%), Cyanobacteriia (15.1%), Bacteroidia (14.1%), and Anaerolineae (7.9%). Compared to the CGˍst group, the relative abundance of some classes in the EGˍst group showed a decrease, such as Gammaproteobacteria, Alphaproteobacteria, and Anaerolineae, whereas some classes showed an increase, such as Bacteroidia and Cyanobacteriia, but the main phylum did not change. The EGˍst group was dominated by Gammaproteobacteria (20.2%), Bacteroidia (18.5%), Cyanobacteriia (18.4%), Alphaproteobacteria (15.3%), and Anaerolineae (5.1%). Figure 4c shows the microbial relative abundance of bacteria at the genus level. The top 5 bacterial genera in the CGˍst group were Microcystis_PCC-7914 (5.08%), norank_f__Caldilineaceae (5.60%), norank_f__Sutterellaceae (4.36%), Cyanobium_PCC-6307 (5.64%), and norank_f__norank_o__Chloroplast (3.08%). The top 5 bacterial genera in the EGˍst group were Microcystis_PCC-7914 (13.74%), norank_f__Sutterellaceae (4.30%), norank_f__Caldilineaceae (3.92%), Flavobacterium (3.84%), and Ahniella (2.99%). The heatmap indicates that the abundance and composition of water bacteria were affected by the addition of artificial substrates and carbon sources.

3.4. Taxonomic Composition Analysis

LefSe was applied to analyze bacterial community data at all taxonomic levels (Figure 5). There were 12 groups of bacteria enriched in the CGˍst group, which was significantly higher than the EGˍst group: Chloroflexi (at the phylum level), Patescibacteria (at the phylum level), Anaerolineae (at the class level), Saccharimonadia (at the class level), Steroidobacterales (at the order level), Saccharimonadales (at the order level), Phormidiaceae (at the family level), NS9_marine_group (at the family level), Saprospiraceae (at the family level), RBG-13-54-9 (at the genus level), Steroidobacteraceae (at the genus level), and Planktothrix_NIVA-CYA_15 (at the genus level). The bacterial lineages enriched in water from the EGˍst group were Verrucomicrobiota (at the phylum level), Verrucomicrobiae (at the class level), Corynebacteriales (at the order level), Cyanobacteriales (at the order level), Microcystaceae (at the family level), Mycobacteriaceae (at the family level), Microcystis_PCC-7914 (at the genus level), Flavobacteriaceae (at the genus level), Flavobacterium (at the genus level), env_OPS_17 (at the genus level), and Mycobacterium (at the genus level).

3.5. Correlation Analysis of Water Quality and Microbial Community

A Spearman correlation heatmap was generated to study the relationships between the microbial phyla of water and water quality indicators such as DO, TP, TN, NH4+, NO3−, COD, NO2−, and PO4-P (Figure 6). Myxococcota was significantly positively correlated with TN; Chloroflexi was significantly positively correlated with NO3−, TN, and NO2−; Patescibacteria was significantly positively correlated with PO4-P, NH4+, and NO3−; Actinobacteriota and Cyanobacteria were significantly positively correlated with COD; Verrucomicrobiota was significantly negatively correlated with NO3−, TN, and NO2−.
The RDA supported the findings of Spearman’s correlation and illustrated how environmental parameters affect bacterial communities. The dimensions of all variables were reduced, and two principal components were retained. Axis 1 and Axis 2 accounted for 52.45% and 39.14% of the variability, respectively. COD had significant effects on the distribution of sample communities (Figure 7).

4. Discussion

The stability of aquaculture ecosystems is supported by complex physical and biochemical interactions. With the development of intensive production ponds, the balance of the system has become disrupted, which has restricted the growth and survival of aquatic animals. In recent years, BFT has developed into a mature technology that can achieve zero water exchange and ensure the healthy growth of aquatic animals [9]. Compared with facility-based tail water treatment technology, BFT generally has low operating costs because it requires fewer hardware facilities. In addition, BFT converts ammonia into bacterial proteins, which provides a source of food to farmed animals. However, the management of the system is difficult, and if not properly managed, complex microorganisms may increase ammonia nitrogen in the water [22]. There are three main ways for biofloc systems to remove ammonia nitrogen: namely, heterotrophic, chemoautotrophic, and photoautotrophic biological process [23]. Previous studies have indicated that the microbial composition of BFT systems varies greatly and can be influenced by various environmental factors, such as temperature, dissolved oxygen concentrations, and the C/N ratio [24,25]. In BFT systems, different microorganisms play different roles in the nutrient cycling of water [26]. Microbial communities can be suspended in water or attach to solid surfaces to form biofilms, and they are easily influenced by aquaculture patterns [27]. Under higher breeding density conditions, microbial processes are disrupted when low dissolved oxygen and other indicators of bad water quality occur. Substrates have been applied in the BFT system of aquatic animals, playing a synergistic role in in situ water quality control. In aquaculture environments, different types of substrates can be used as carriers for biofilms to improve water quality and increase the yield of aquaculture species, such as bamboo, nylon mesh, PVC pipes, and commercial products. The substrate provides attachment points for the growth of microorganisms and peripheral organisms. Keshavanath found that the type of artificial substrate has a significant impact on the primary productivity of algae in the study of the impact of artificial substrates on the yield of fish aquaculture ponds [28]. Carlos [29] studied the effects of biofilm on the growth and water environment of juvenile Litopenaeus vannamei, using AquaMats as the biofilm attachment substrate, which showed that different microbial communities worked together in the aquaculture system to promote nitrogen conversion in the aquaculture water.
In the composite aquaculture system of BFT and artificial substrates, biofilms may contain microalgae, algae, protozoon, and nitrifying and heterotrophic bacteria, which can absorb and assimilate free nitrogen in water, effectively reducing the ammonia nitrogen content in breeding water [4,10,30]. Microorganisms play a major role in water quality control, and the use of high-throughput sequencing can accurately characterize changes in microbial communities [31].
A total of 50,177 (CGˍst) and 53595 (EGˍst) high-quality gene sequences were obtained; 2082 and 2036 OTU were generated in CGˍst and EGˍst group, respectively. The ACE, Chao, Shannon, and Simpson index values ranged from 2525 to 3446, 2466 to 2948, 5.22 to 5.52 and 0.016 to 0.036, respectively. The data showed that richness and diversity changed between the two groups, but there was no significant difference. Bratvoldet et al., (2001) and Ray et al., (2010) confirmed the abundant change in microorganisms during the aquaculture period by adding carbon sources and artificial substrates [32,33]. Beta diversity is often applied to compare microbial community compositions and evaluate differences between microbial communities [34]. The experimental results revealed differences in the bacterial community structure of water, as evidenced by the clear separation of the CGˍst group and EGˍst group on the PCoA and NMDS based on the Bray–Curtis dissimilarity statistic. Figure 4a–c show that the microbial communities varied in different experimental groups at the phylum, class, and genus levels, respectively.
Water quality can influence or, at most, even disturb bacterial communities, which have a guiding role in water quality evaluation [7,35]. Proteobacteria, Bacteroidota, Chloroflexi, and Actinobacteriota are the main bacteria in phylum in river lakes and aquaculture ponds [36,37]. The results in the experiment were consistent with the research findings above. Proteobacteria account for a significant proportion of bacteria that participated in nitrification and denitrification [38]. Previous studies have shown that this phylum is widely distributed in freshwater environments and participates in various biogeochemical processes, such as nutrient cycling and organic compound mineralization processes [22,39]. In addition, the majority of microorganisms in biofloc systems for wastewater treatment are these bacteria [40]. This means that they can effectively control the water quality of aquaculture. Bacteroidota mainly exist in hypoxic environments and participate in nitrogen removal, metabolizing large amounts of organic matter and proteins [20]. Chloroflexi is a common anaerobic ammonia oxidation denitrifying bacterium that thrives in autotrophic environments by using carbohydrates or amino acids [41]. The results showed that the abundance of Proteobacteria, Chloroflexi, and Bacteroidota changed, indicating that artificial substrate and carbon source addition changes the nitrification and denitrification process in water bodies, thereby altering nitrogen cycling in aquatic ecosystems.
The results of the Spearman correlation heatmap and RDA suggested that the bacterial composition was related to some environmental factors (Figure 6 and Figure 7). The most significant environmental factor that influenced the dominant bacterial community distribution was COD. The results were similar to those of Tang et al., (2021), who indicated that the bacterial community composition could be affected by environmental factors and that COD was the one of the main environmental factors affecting the bacterial community; it was positively related to the dominant phyla Actinobacteria and Cyanobacteria [42]. Evidence suggests that Actinobacteria exist in various freshwater habitats [43]. It is widely believed that Actinobacteriota, as producers of antibacterial and growth-promoting substances, have the potential to develop new types of aquatic probiotics [44]. In this study, Actinobacteriota was the third most dominant phylum in the water and was significantly positively correlated with COD. This result may indicate that Actinobacteria play an important role in the metabolism of microbial communities in aquaculture water.

5. Conclusions

In the study, 16S rRNA high-throughput sequencing technology was applied to analyze the effect of artificial substrate and carbon source addition on bacterial diversity and community composition in water in a pond polyculture system in Northeast China. Artificial substrate and carbon source addition changed the structure of the microflora. There were 11 biomarkers enriched in the EGˍst group: Verrucomicrobiota, Verrucomicrobiae, Corynebacteriales, Cyanobacteriales, Microcystaceae, Mycobacteriaceae, Microcystis_PCC-7914, Flavobacteriaceae, Flavobacterium, env_OPS_17259, and Mycobacterium. Research has shown that the addition of artificial substrates and carbon sources can alter the structure of bacterial communities, thereby regulating pond water bodies. The results of this study have significance as a reference for freshwater aquaculture water quality control technology.

Author Contributions

K.G.: Investigation, Writing—original draft, Project administration. M.S.: Resources, Formal analysis. X.H.: Formal analysis. L.L.: Software, Visualization. S.W.: Resources, Formal analysis. R.Z.: Supervision. W.X.: Software, Visualization. G.R.: Writing—review and editing. Z.Z.: Project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Central Public-interest Scientific Institution Basal Research Fund, CAFS (NO. 2022XT0501, 2023TD59) and the National Key Research and Development Project (2023YFD2401003).

Institutional Review Board Statement

All animal procedures in this study were conducted according to the guidelines for the care and use of laboratory animals of Heilongjiang River Fisheries Research Institute, CAFS. The studies of the animals were reviewed and approved by the Committee for the Welfare and Ethics of Laboratory Animals of Heilongjiang River Fisheries Research Institute, CAFS. Approval Code: 20210401-001; Approval Date: 1 April 2021.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The authors greatly appreciate the support of the relevant project and the experimental research platform of Heilongjiang River Fisheries Research Institute, Chinese Academy of Fishery Sciences. Additionally, we would like to express our gratitude to all the students, colleagues, and livestock workers (not listed as authors) in the project team for their assistance in livestock management and sample collection.

Conflicts of Interest

All the authors declare that there were no conflicts of interest or personal relationships that interfered with this study.

References

  1. Parkos, J.; Wahl, D. Effects of Common Carp (Cyprinus carpio), an Exotic Fish, on Aquatic Ecosystems; Ilinois Natural History Survey Report of January/February 2000. University of Illinois Board of Trustees; Center for Aquatic Ecology: Raleigh, NC, USA, 2014. [Google Scholar]
  2. Fisheries and Fisheries Administration of the Ministry of Agriculture and Rural Affairs of China. China Fisheries Statistcal Yearbook; China Agriculture Press: Beijing, China, 2022. (In Chinese) [Google Scholar]
  3. Zhao, Y.J.; Zhang, J.; Qiao, D.; Gao, F.; Gu, Y.L.; Jiang, X.Y.; Zhu, L.; Kong, X.H. CcGSDMEa functions the pore-formation in cytomembrane and the regulation on the secretion of IL-lb in common carp (Cyprinus carpio haematopterus). Front. Immunol. 2023, 13, 1110322. [Google Scholar] [CrossRef]
  4. Zhu, S.-M.; Deng, Y.-L.; Ruan, Y.-J.; Guo, X.-S.; Shi, M.-M.; Shen, J.-Z. Biological denitrification using poly(butylene succinate) as carbon source and biofilm carrier for recirculating aquaculture system effluent treatment. Bioresour. Technol. 2015, 192, 603–610. [Google Scholar] [CrossRef] [PubMed]
  5. Barraza-Guardado, R.H.; Arreola-Lizárraga, J.A.; López-Torres, M.A.; Casillas-Hernández, R.; Miranda-Baeza, A.; Magallón-Barrajas, F.; Ibarra-Gámez, C. Effluents of shrimp farms and its influence on the coastal ecosystems of Bahía de Kino, Mexico. Sci. World J. 2013, 2013, 306370. [Google Scholar] [CrossRef]
  6. Notice of the General Office of the Ministry of Agriculture and Rural Affairs on the Implementing the “Five Major Actions” of Green and Healthy Aquaculture in 2020; Gazette of the Ministry of Agriculture and Rural Affairs of the People’s Republic of China: Beijing, China, 2020; pp. 86–87.
  7. Yu, Y.-B.; Choi, J.-H.; Lee, J.-H.; Jo, A.-H.; Lee, K.M.; Kim, J.-H. Biofloc Technology in Fish Aquaculture: A Review. Antioxidants 2023, 12, 398. [Google Scholar] [CrossRef] [PubMed]
  8. Castro, L.F.; Pinto, R.C.; Nunes, A.J. Nutrient value and contribution of microbial floc to the growth performance of juvenile shrimp, Litopenaeus vannamei, fed fatty acid and amino acid-restrained diets under a zero-water exchange intensive system. Aquaculture 2021, 531, 735789. [Google Scholar] [CrossRef]
  9. Wei, Y.; Liao, S.-A.; Wang, A.-L. The effect of different carbon sources on the nutritional composition, microbial community and structure of bioflocs. Aquaculture 2016, 465, 88–93. [Google Scholar] [CrossRef]
  10. Uddin, M.; Azim, M.; Wahab, M.; Verdegem, M. Effects of substrate addition and supplemental feeding on plankton composition and production in tilapia (Oreochromis niloticus) and freshwater prawn (Macrobrachium rosenbergii) polyculture. Aquaculture 2010, 297, 99–105. [Google Scholar] [CrossRef]
  11. Asaduzzaman, M.; Rahman, M.; Azim, M.; Islam, M.A.; Wahab, M.; Verdegem, M.; Verreth, J. Effects of C/N ratio and substrate addition on natural food communities in freshwater prawn monoculture ponds. Aquaculture 2010, 306, 127–136. [Google Scholar] [CrossRef]
  12. Asaduzzaman, M.; Wahab, M.; Verdegem, M.; Benerjee, S.; Akter, T.; Hasan, M.; Azim, M. Effects of addition of tilapia Oreochromis niloticus, and substrates for periphyton developments on pond ecology and production in C/N-controlled freshwater prawn Macrobrachium rosenbergii, farming systems. Aquaculture 2009, 287, 371–380. [Google Scholar] [CrossRef]
  13. Huggett, M.J.; Nedved, B.T.; Hadfield, M.G. Effects of initial surface wettability on biofilm formation and subsequent settlement of Hydroides elegans. Biofouling 2009, 25, 387–399. [Google Scholar] [CrossRef]
  14. Schveitzer, R.; Arantes, R.; Baloi, M.F.; Costódio, P.F.S.; Arana, L.V.; Seiffert, W.Q.; Andreatta, E.R. Use of artificial substrates in the culture of Litopenaeus vannamei (Biofloc System) at different stocking densities: Effects on microbial activity, water quality and production rates. Aquac. Eng. 2013, 54, 93–103. [Google Scholar] [CrossRef]
  15. Ballester, E.L.C.; Wasielesky, W.; Cavalli, R.O.; Abreu, P.C. Nursery of the pink shrimp Farfantepenaeus paulensis in cages with artificial substrates: Biofilm composition and shrimp performance. Aquaculture 2007, 269, 355–362. [Google Scholar] [CrossRef]
  16. Asaduzzaman, M.; Wahab, M.; Verdegem, M.; Mondal, M.; Azim, M. Effects of stocking density of freshwater prawn Macrobrachium rosenbergii and addition of different levels of tilapia Oreochromis niloticus on production in C/N controlled periphyton based system. Aquaculture 2009, 286, 72–79. [Google Scholar] [CrossRef]
  17. AftabUddin, S.; Siddique, M.A.M.; Sein, A.; Dey, P.K.; Rashed-Un-Nabi, M.; Haque, M.A. First use of biofloc technology for Penaeus monodon culture in Bangladesh: Effects of stocking density on growth performance of shrimp, water quality and bacterial growth. Aquac. Rep. 2020, 18, 100518. [Google Scholar] [CrossRef]
  18. Asaduzzaman, M.; Wahab, M.A.; Verdegem, M.C.J.; Azim, M.E.; Haque, S.; Salam, M.A. C/N ratio control and substrate addition for periphyton development jointly enhance freshwater prawn Macrobrachium rosenbergii production in ponds. Aquaculture 2008, 280, 117–123. [Google Scholar] [CrossRef]
  19. Guo, K.; Zhao, Z.; Xie, J.; Luo, L.; Wang, S.; Zhang, R.; Xu, W.; Huang, X. Combined effects of eco-substrate and carbon addition on water quality, fish performance and nutrient budgets in the pond polyculture system. Fishes 2022, 7, 212. [Google Scholar] [CrossRef]
  20. Song, C.; Zhong, L.; Liu, Y.; Yin, Y.; Zhang, C.; Zhang, X.; Chen, J. Spatial and temporal succession of bacterial communities in three artificial fishponds. Aquac. Res. 2019, 50, 2793–2801. [Google Scholar] [CrossRef]
  21. Mohapatra, S.; Chakraborty, T.; Kumar, V.; DeBoeck, G.; Mohanta, K.N. Aquaculture and stress management: A review of probiotic intervention. J. Anim. Physiol. Anim. Nutr. 2013, 97, 405–430. [Google Scholar] [CrossRef]
  22. Ray, A.J.; Lotz, J.M. Shrimp (Litopenaeus vannamei) production and stable isotope dynamics in clear-water recirculating aquaculture systems versus biofloc systems. Aquac. Res. 2017, 48, 4390–4398. [Google Scholar] [CrossRef]
  23. Ebeling, J.M.; Timmons, M.B. Carbon: Nitrogen balance impacts nitrogen removal process in microbial-based aquaculture systems. Glob. Aquac. Advocate 2008, 11, 38–40. [Google Scholar]
  24. Singh, T.; Mandal, A.; Holeyappa, S.A.; Khairnar, S.O.; Tyagi, A. Growth performance and physiological responses of striped catfish (Pangasianodon hypophthalmus) under different carbohydrates supplemented biofloc aquaculture systems. Aquaculture 2024, 579, 740252. [Google Scholar] [CrossRef]
  25. Hu, X.; Meng, L.-J.; Liu, H.-D.; Guo, Y.-S.; Liu, W.-C.; Tan, H.-X.; Luo, G.-Z. Impacts of Nile Tilapia (Oreochromis niloticus) exposed to microplastics in bioflocs system. Sci. Total Environ. 2023, 901, 165921. [Google Scholar] [CrossRef] [PubMed]
  26. Luo, G.; Xu, J.; Meng, H. Nitrate accumulation in biofloc aquaculture systems. Aquaculture 2020, 520, 734675. [Google Scholar] [CrossRef]
  27. Morais, A.P.M.; Abreu, P.C.; Wasielesky, W., Jr.; Krummenauer, D. Effect of aeration intensity on the biofilm nitrification process during the production of the white shrimp Litopenaeus vannamei (Boone, 1931) in Biofloc and clear water systems. Aquaculture 2020, 514, 734516. [Google Scholar] [CrossRef]
  28. Keshavanath, P.; Gangadhar, B.; Ramesh, T.J.; Van Rooij, J.M.; Beveridge, M.C.M.; Baird, D.J.; Verdegem, M.C.J.; Van Dam, A.A. Use of artificial substrates to enhance production of freshwater herbivorous fish in pond culture. Aquac. Res. 2001, 32, 189–197. [Google Scholar] [CrossRef]
  29. Carlos, L.C.; Paniagua-Michel, J. Effects of constructed microbial mats on water quality and performance of Litopenaeus vannamei, post-larvae. Aquac. Eng. 2010, 42, 75–81. [Google Scholar]
  30. Houdt, R.V.; Michiels, C.W. Role of bacterial cell surface structures in Escherichia coli, biofilm formation. Res. Microbiol. 2005, 156, 626–633. [Google Scholar] [CrossRef]
  31. Gullian-Klanian, M.; Quintanilla-Mena, M.; Hau, C.P. Influence of the biofloc bacterial community on the digestive activity of Nile tilapia (Oreochromis niloticus). Aquaculture 2023, 562, 738774. [Google Scholar] [CrossRef]
  32. Bratvold, D.; Browdy, C.L. Effects of sand sediment and vertical surfaces (AquaMatsTM) on production, water quality, and microbial ecology in an intensive Litopevaeus vamvamei culture system. Aquaculture 2001, 195, 81–94. [Google Scholar] [CrossRef]
  33. Ray, A.J.; Seaborn, G.; Leffler, J.W.; Wilde, S.B.; Lawson, A.; Browdy, C.L. Characterization of microbial communities in minimal-exchange, intensive aquaculture systems and the effects of suspended solids management. Aquaculture 2010, 310, 130–138. [Google Scholar] [CrossRef]
  34. Cardona, E.; Gueguen, Y.; Magré, K.; Lorgeoux, B.; Piquemal, D.; Pierrat, F.; Noguier, F.; Saulnier, D. Bacterial community characterization of water and intestine of the shrimp Litopenaeus stylirostris in a biofloc system. BMC Microbiol. 2016, 16, 157. [Google Scholar] [CrossRef]
  35. Kruglova, A.; Gonzalez-Martinez, A.; Kråkström, M.; Mikola, A.; Vahala, R. Bacterial diversity and population shifts driven by spotlight wastewater micropollutants in low-temperature highly nitrifying activated sludge. Sci. Total Environ. 2017, 605–606, 291–299. [Google Scholar] [CrossRef] [PubMed]
  36. Zhang, J.; Yang, Y.; Zhao, L.; Li, Y.; Xie, S.; Liu, Y. Distribution of sediment bacterial and archaeal communities in plateau freshwater lakes. Appl. Microbiol. Biotechnol. 2015, 99, 3291–3302. [Google Scholar] [CrossRef] [PubMed]
  37. Fan, L.; Barry, K.; Hu, G.; Meng, S.; Song, C.; Qiu, L.; Zheng, Y.; Wu, W.; Qu, J.; Chen, J.; et al. Characterizing bacterial communities in tilapia pond surface sediment and their responses to pond differences and temporal variations. World J. Microbiol. Biotechnol. 2017, 33, 1. [Google Scholar] [CrossRef] [PubMed]
  38. Fang, Y.-K.; Sun, Q.; Fang, P.-H.; Li, X.-Q.; Zeng, R.; Wang, H.-C.; Wang, A.-J. Integrated constructed wetland and bioelectrochemistry system approach for simultaneous enhancment of p-chloronitrobenzene and nitrogen transformations performance. Water Res. 2022, 217, 118433. [Google Scholar] [CrossRef] [PubMed]
  39. Klase, G.; Lee, S.; Liang, S.; Kim, J.; Zo, Y.-G.; Lee, J. The microbiome and antibiotic resistance in integrated fishfarm water: Implications of environmental public health. Sci. Total Environ. 2019, 649, 1491–1501. [Google Scholar] [CrossRef] [PubMed]
  40. Paniagua-Michel, J. Wastewater treatment using phototrophic–heterotrophic biofilms and microbial mats. In Prospects and Challenges in Algal Biotechnology; Tripathi, B.N., Kumar, D., Eds.; Springer: Singapore, 2017; pp. 257–275. [Google Scholar]
  41. Lv, Y.; Wan, C.; Lee, D.-J.; Tay, J.-H. Microbial communities of aerobic granules: Granulation mechanisms. Bioresour. Technol. 2014, 169, 344–351. [Google Scholar] [CrossRef] [PubMed]
  42. Tang, Y.; Zhao, L.; Cheng, Y.; Yang, Y.; Sun, Y.; Liu, Q. Control of cyanobacterial blooms in different polyculture patterns of filter feeders and effects of these patterns on water quality and microbial community in aquacultural ponds. Aquaculture 2021, 542, 736913. [Google Scholar] [CrossRef]
  43. Kiersztyn, B.; Chróst, R.; Kalinski, T.; Siuda, W.; Bukowska, A.; Kowalczyk, G.; Grabowska, K. Structural and functional microbial diversity along a eutrophication gradient of interconnected lakes undergoing anthropopressure. Sci. Rep. 2019, 9, 111444. [Google Scholar] [CrossRef]
  44. Das, S.; Ward, L.R.; Burke, C. Prospects of using marine actinobacteria as probiotics in aquaculture. Appl. Microbiol. Biotechnol. 2008, 81, 419–429. [Google Scholar] [CrossRef]
Fishes 09 00080 g001

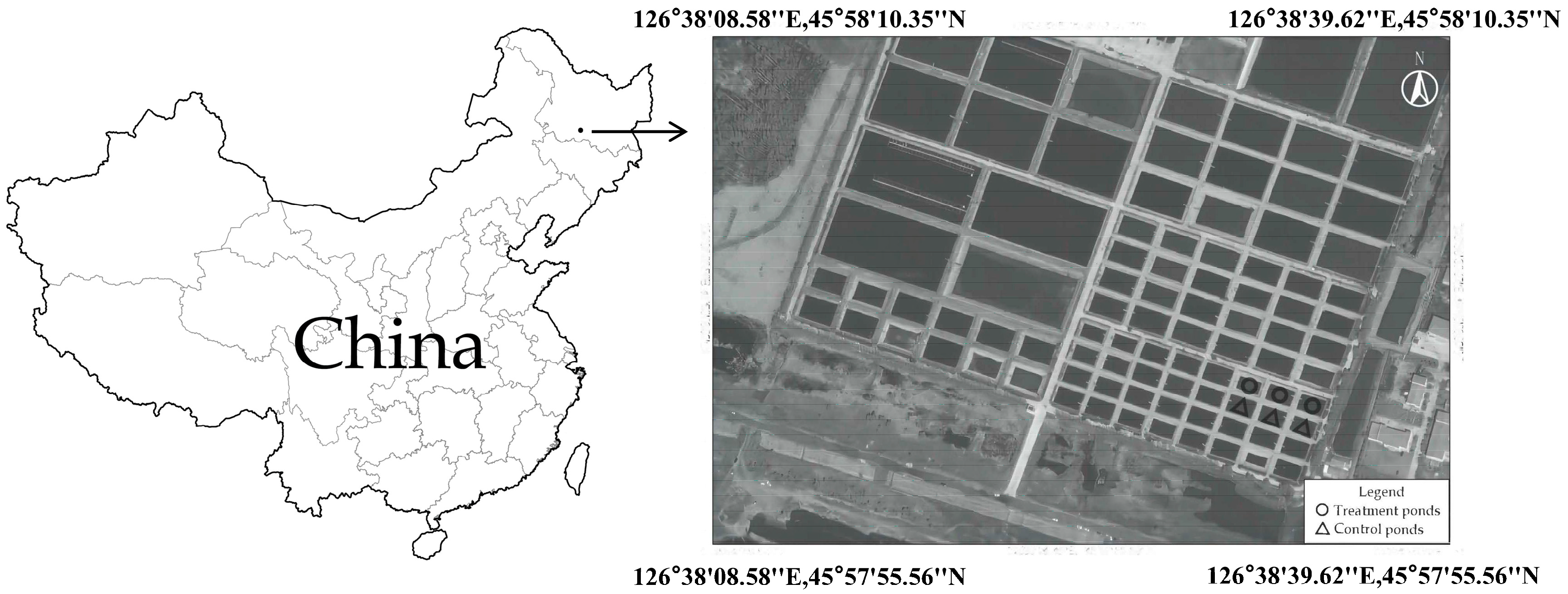

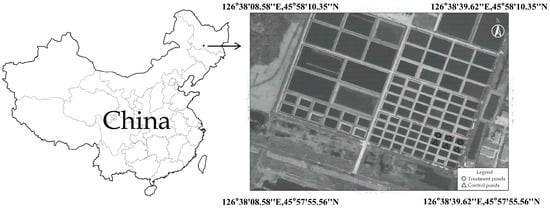

Figure 1. Experimental location of the study.
Figure 1. Experimental location of the study.
Fishes 09 00080 g001
Fishes 09 00080 g002

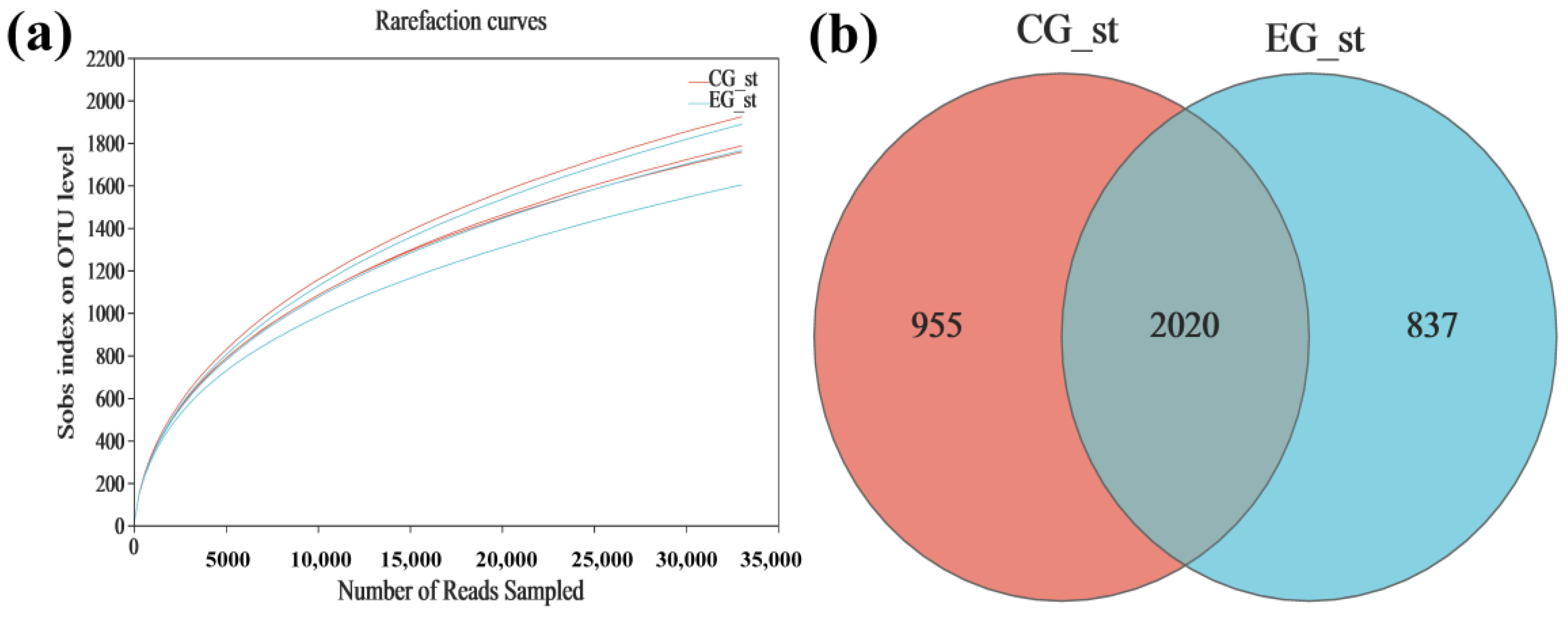

Figure 2. Rarefaction curves and Venn diagram analysis of water microbes with OTUs of the two groups. (a) Rarefaction curves; (b) Venn diagram.
Figure 2. Rarefaction curves and Venn diagram analysis of water microbes with OTUs of the two groups. (a) Rarefaction curves; (b) Venn diagram.
Fishes 09 00080 g002
Fishes 09 00080 g003

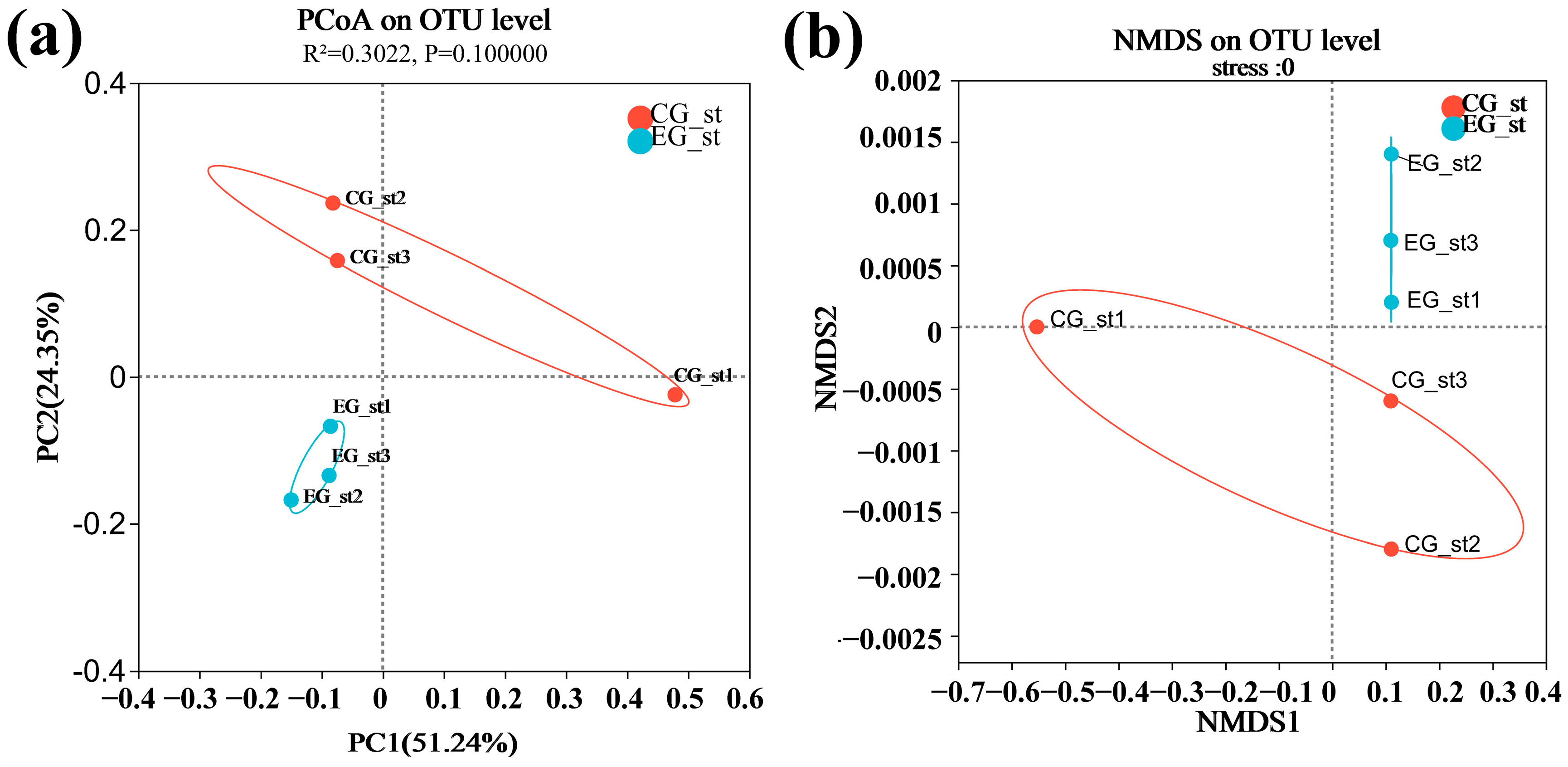

Figure 3. PCoA and NMDS based on the Bray–Curtis dissimilarity statistic of the microbial communities between the two groups. (a) PCoA; (b) NMDS.
Figure 3. PCoA and NMDS based on the Bray–Curtis dissimilarity statistic of the microbial communities between the two groups. (a) PCoA; (b) NMDS.
Fishes 09 00080 g003
Fishes 09 00080 g004

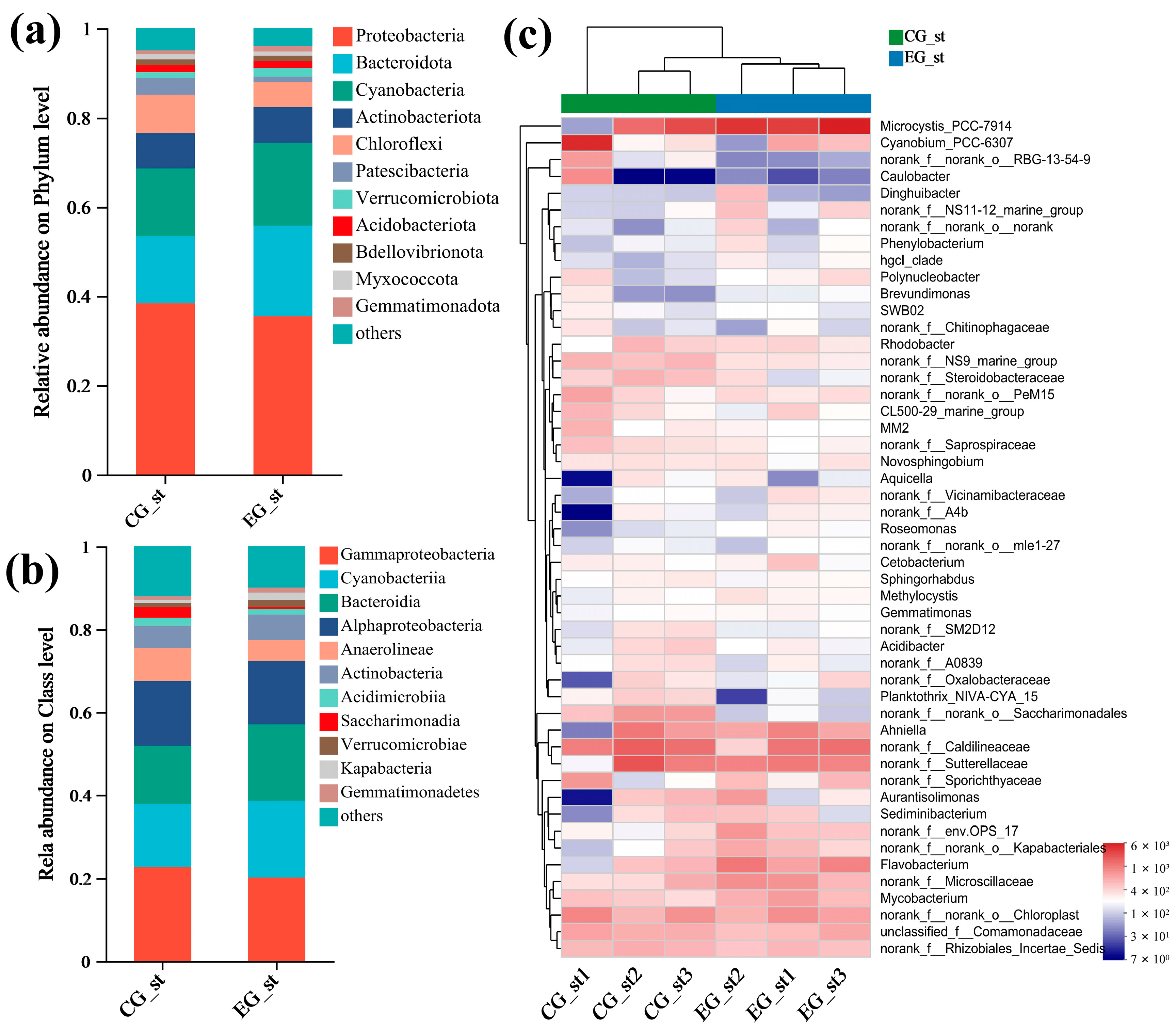

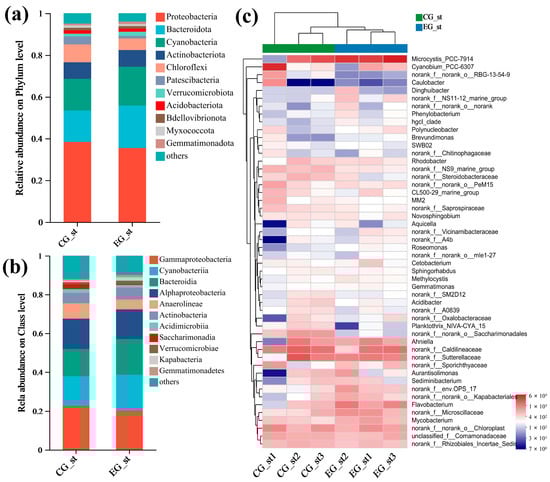

Figure 4. Microbial community composition in the two groups. (a) Relative abundance of the major taxonomic composition at the phylum level; (b) relative abundance of the major taxonomic composition at the class level; (c) heatmap at the genus level.
Figure 4. Microbial community composition in the two groups. (a) Relative abundance of the major taxonomic composition at the phylum level; (b) relative abundance of the major taxonomic composition at the class level; (c) heatmap at the genus level.
Fishes 09 00080 g004
Fishes 09 00080 g005

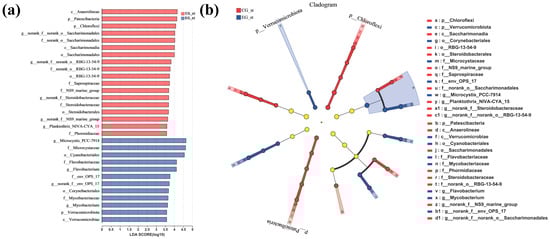

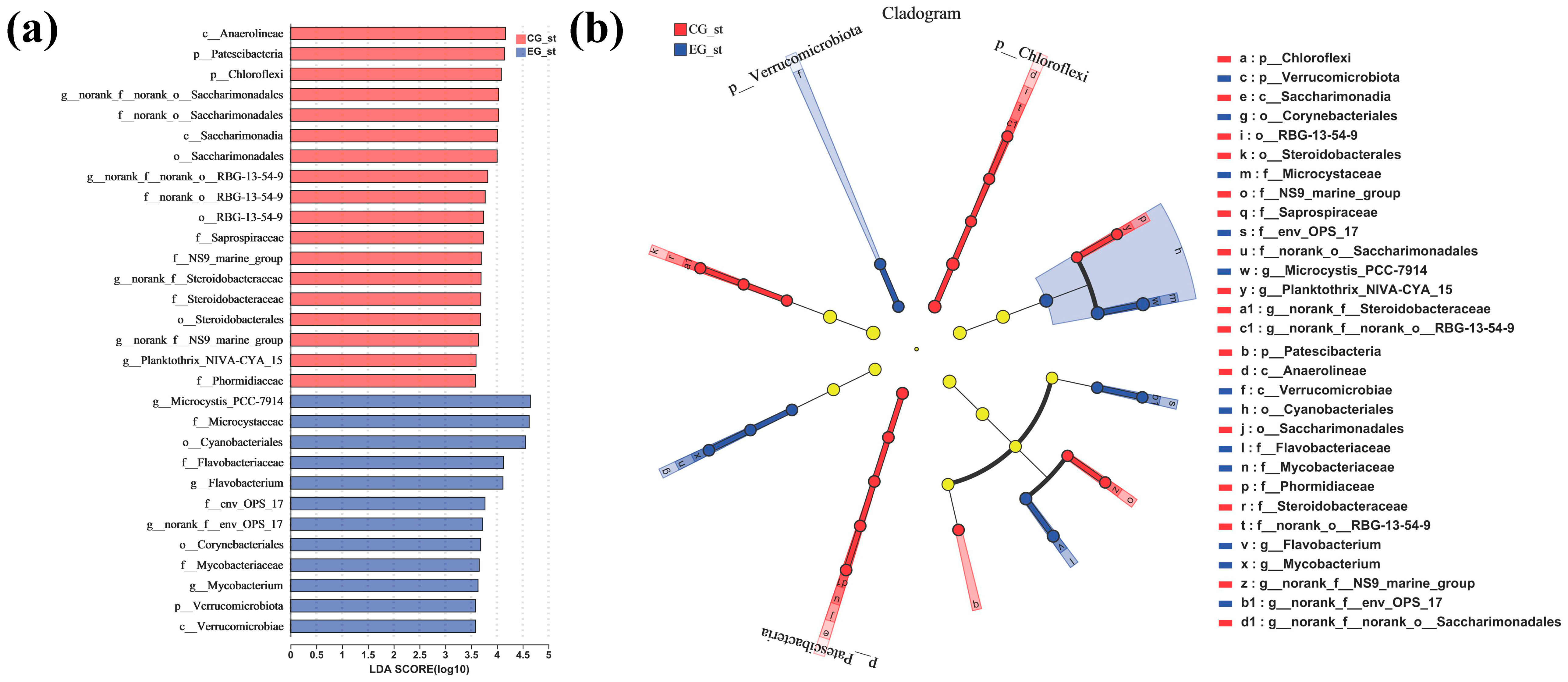

Figure 5. OTU markers in the microbial community of water in the CGˍst and EGˍst groups through linear discriminant analysis (LDA) (a) and effect size (LEfSe) (b).
Figure 5. OTU markers in the microbial community of water in the CGˍst and EGˍst groups through linear discriminant analysis (LDA) (a) and effect size (LEfSe) (b).
Fishes 09 00080 g005
Fishes 09 00080 g006

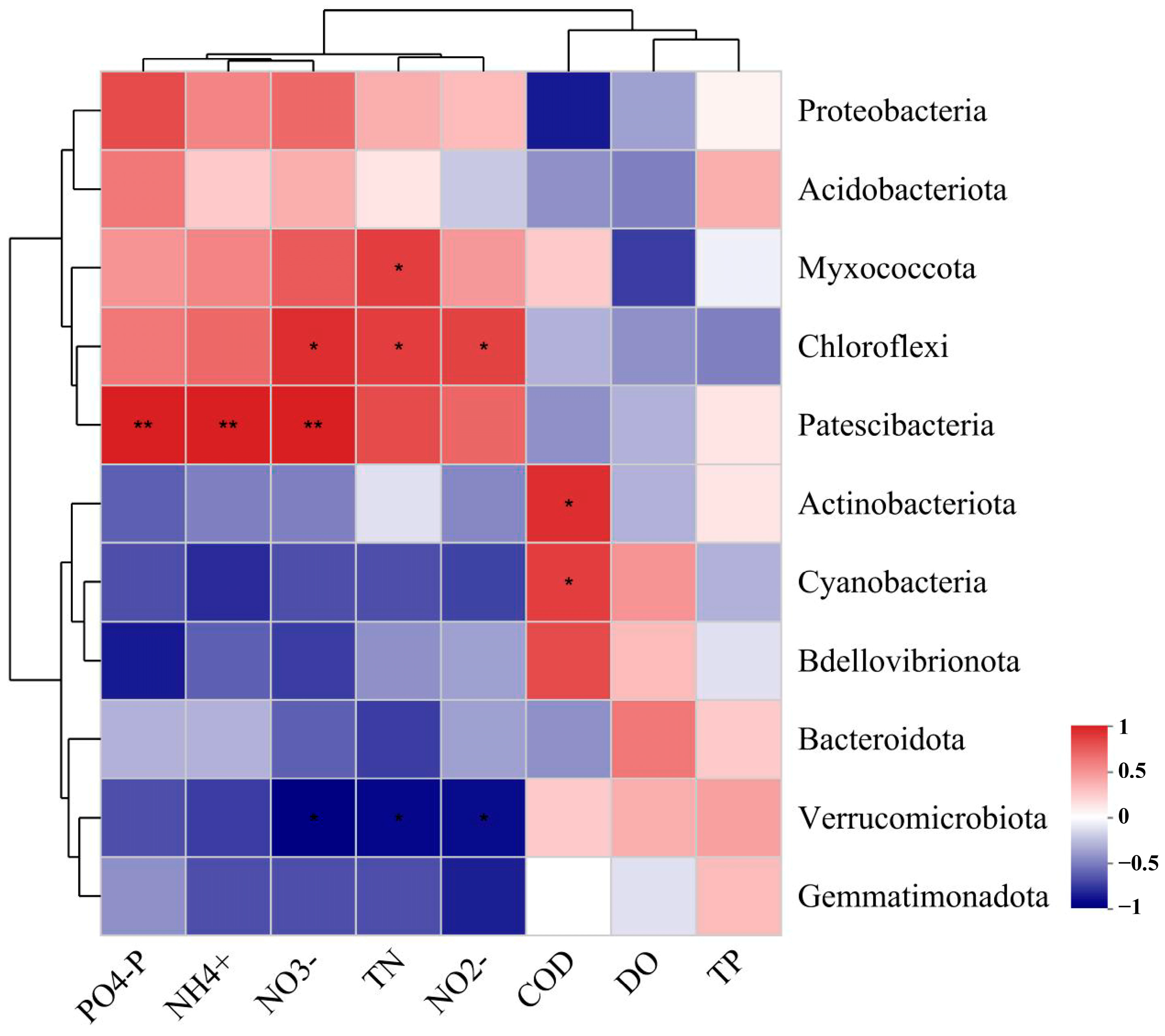

Figure 6. Spearman correlation heatmap between microbial communities based on the relative abundance of bacterial phyla and water quality indicators.* indicates p < 0.05 and ** indicates p < 0.01.
Figure 6. Spearman correlation heatmap between microbial communities based on the relative abundance of bacterial phyla and water quality indicators.* indicates p < 0.05 and ** indicates p < 0.01.
Fishes 09 00080 g006
Fishes 09 00080 g007

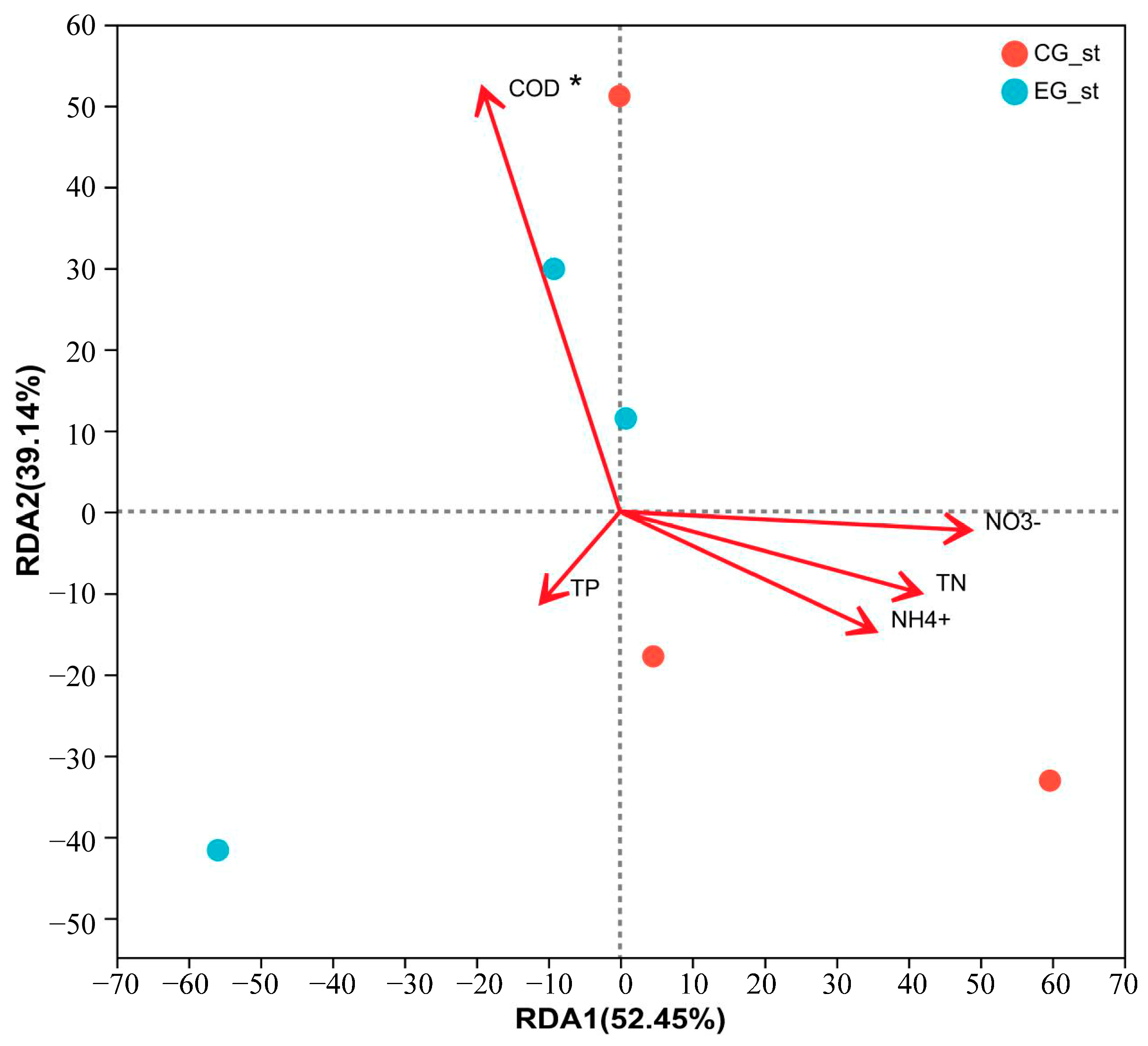

Figure 7. RDA biplot of the distribution of the bacterial community and environmental factors. * p < 0.05.
Figure 7. RDA biplot of the distribution of the bacterial community and environmental factors. * p < 0.05.
Fishes 09 00080 g007
Table 1. Analysis of richness and diversity of the microbial community.
Table 1. Analysis of richness and diversity of the microbial community.
SampleCoverageRichnessDiversity
ACEChaoShannonSimpson
CGˍst0.979 ± 0.0013055 ± 3892720 ± 1725.455 ± 0.0480.0170 ± 0.009
EGˍst0.978 ± 0.0013247 ± 902678 ± 1545.318 ± 0.0760.0266 ± 0.0070
Note: Values represent the mean ± standard deviation (SD; n = 3).
